that looks good. Let me know on the aluminum ones. I may have a vendor.

If I get nothing toady, I will PM you



[antarusfree]

Aluminum is gonna be pretty pricey, SLA would probably be best for costuming. Plus you can make molds and cast copies.

Well, you can make molds from aluminum parts too . It's about the surface finish of the parts.



[cjkirk11]

Well, you can make molds from aluminum parts too . It's about the surface finish of the parts.

Yeah, of course you can. Just kinda expensive unless you just really want an aluminum master for yourself



[lmgill]

Not really. The quality of the master part has a huge impact on the molded /cast part. An aluminum master will give you a cast part that looks much better than molding a plastic master. Unless you are extremely skilled at surface finishing, you will never get the same surface on a plastic printed part, that you can get on a machined / polished aluminum one.



[antarusfree]

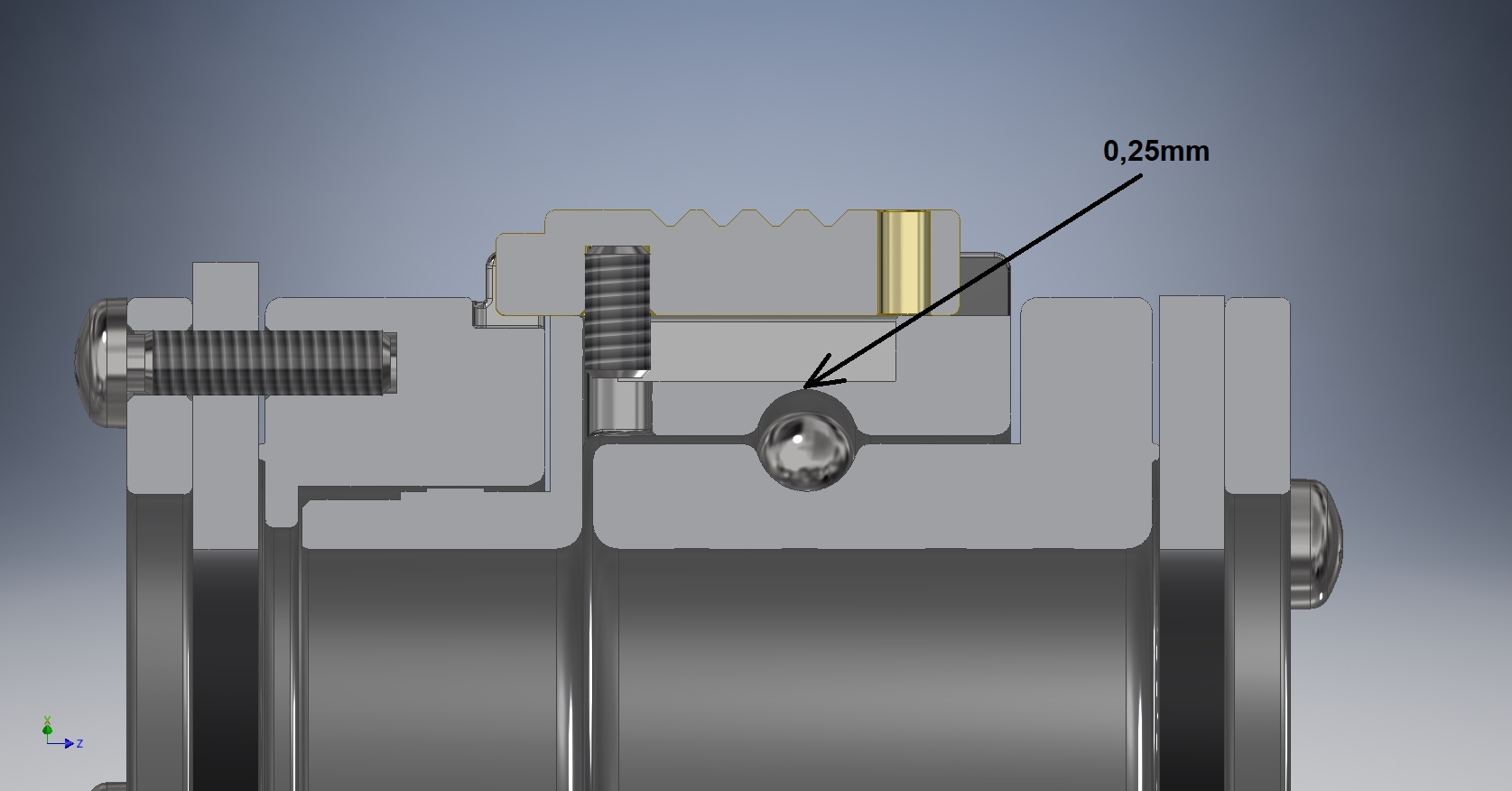

There is still one thing I'm not comfortable with and that is, how close is the bearing groove to the locking spring groove. It's only 0,25mm.
I am going to make some design changes to solve this problem.



[lmgill]

Given you have two cylindrical radii perpendicular to one another, it's only .25mm at about .25 mm in surface area. So it probably doesn't need to change.



[jontom]

This thread is so amazing, I'm learning so much!



[antarusfree]

This thread is so amazing, I'm learning so much!

Thanks



[cjkirk11]

Any news on the machined wrings?



[antarusfree]

Any news on the machined wrings?

No news yet. Still trying to sort thing out with Imgill.



[antarusfree]

I know it has been a long time since any update on the disconnects.
We are still looking for a vendor to machine the rings.



[TBell]

Sign me up for a couple sets when you do get these built. An ACES and S1030 suit are on my list of builds I would like to do.



[TBell]

Any movement on this project? I hope it has not fallen into the void.



[WBiggs]

Has any progress been made on finding a vendor to machine the rings? (I don't have a vendor in mind, I'm just curious) And are the CAD files available or for sale anywhere?



[Asher Siapco]

I've been following this thread for a few years now and I'd like to thank everyone that's contributed reference images and mechanical advice. I've finally finished a set after a few months of work on breaks between semesters. There's certainly a few changes I'll be making on my next set and I haven't put the Open/Lock on it yet but I'm happy with them. These will be going on my S1034 U2 suit and hopefully on an ACES when I get around to sewing one those.



[alexbailey]

Very start of machining.



[alexbailey]

First part finished did the easiest part first.

and some machining shots



[antarusfree]

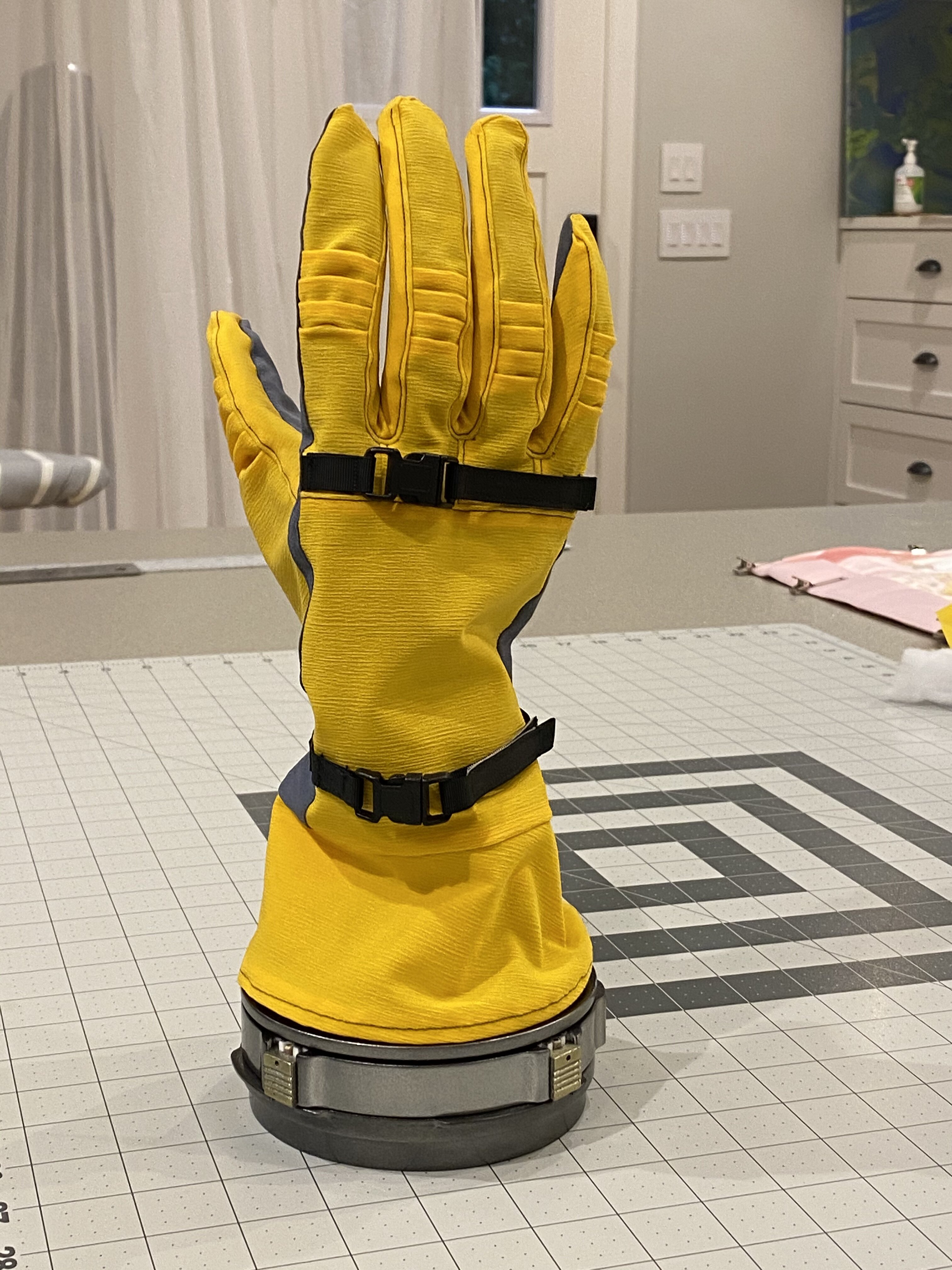

I've been following this thread for a few years now and I'd like to thank everyone that's contributed reference images and mechanical advice. I've finally finished a set after a few months of work on breaks between semesters. There's certainly a few changes I'll be making on my next set and I haven't put the Open/Lock on it yet but I'm happy with them. These will be going on my S1034 U2 suit and hopefully on an ACES when I get around to sewing one those.
View attachment 1380575

Great work on the disconnects



[antarusfree]

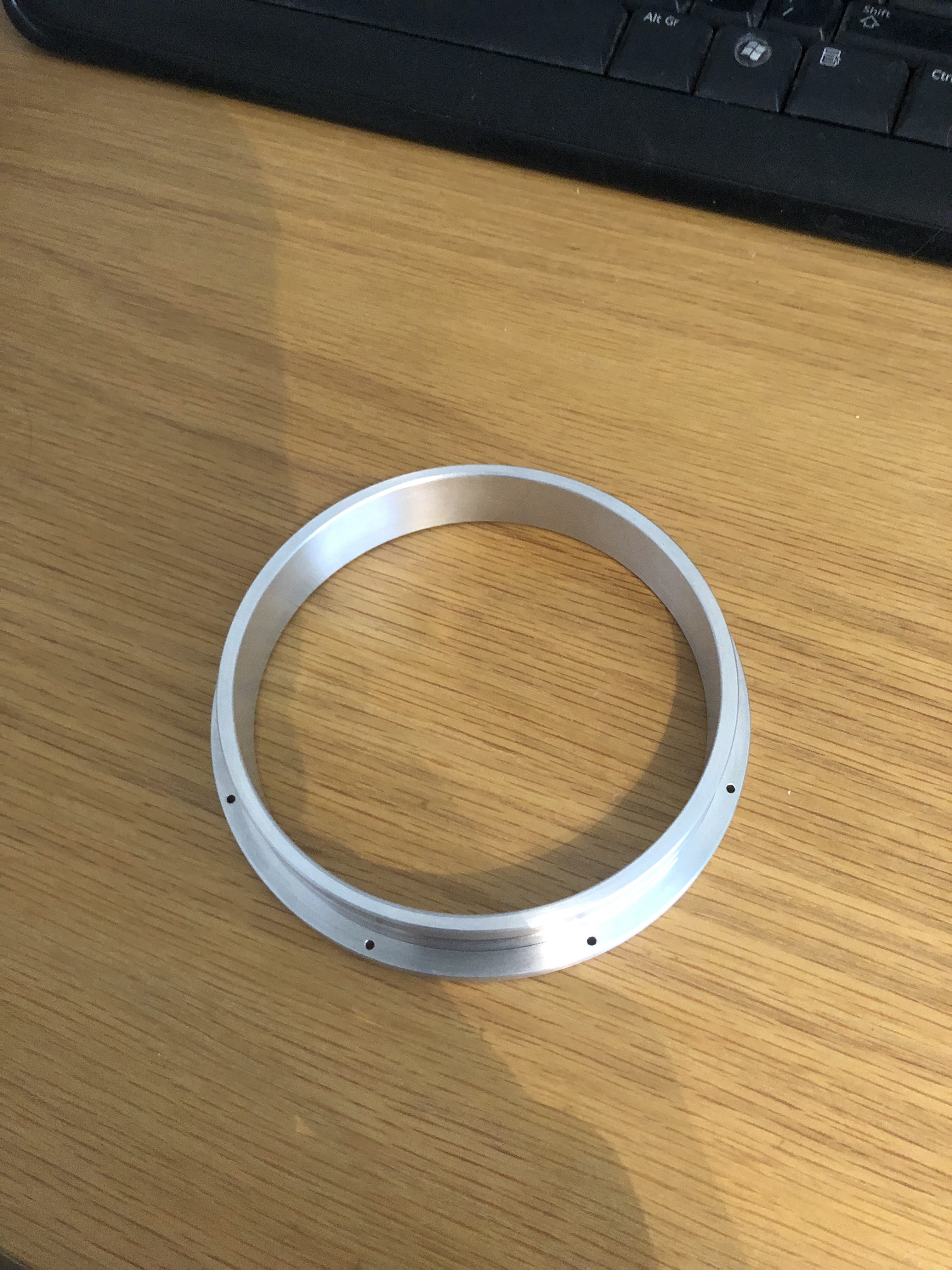

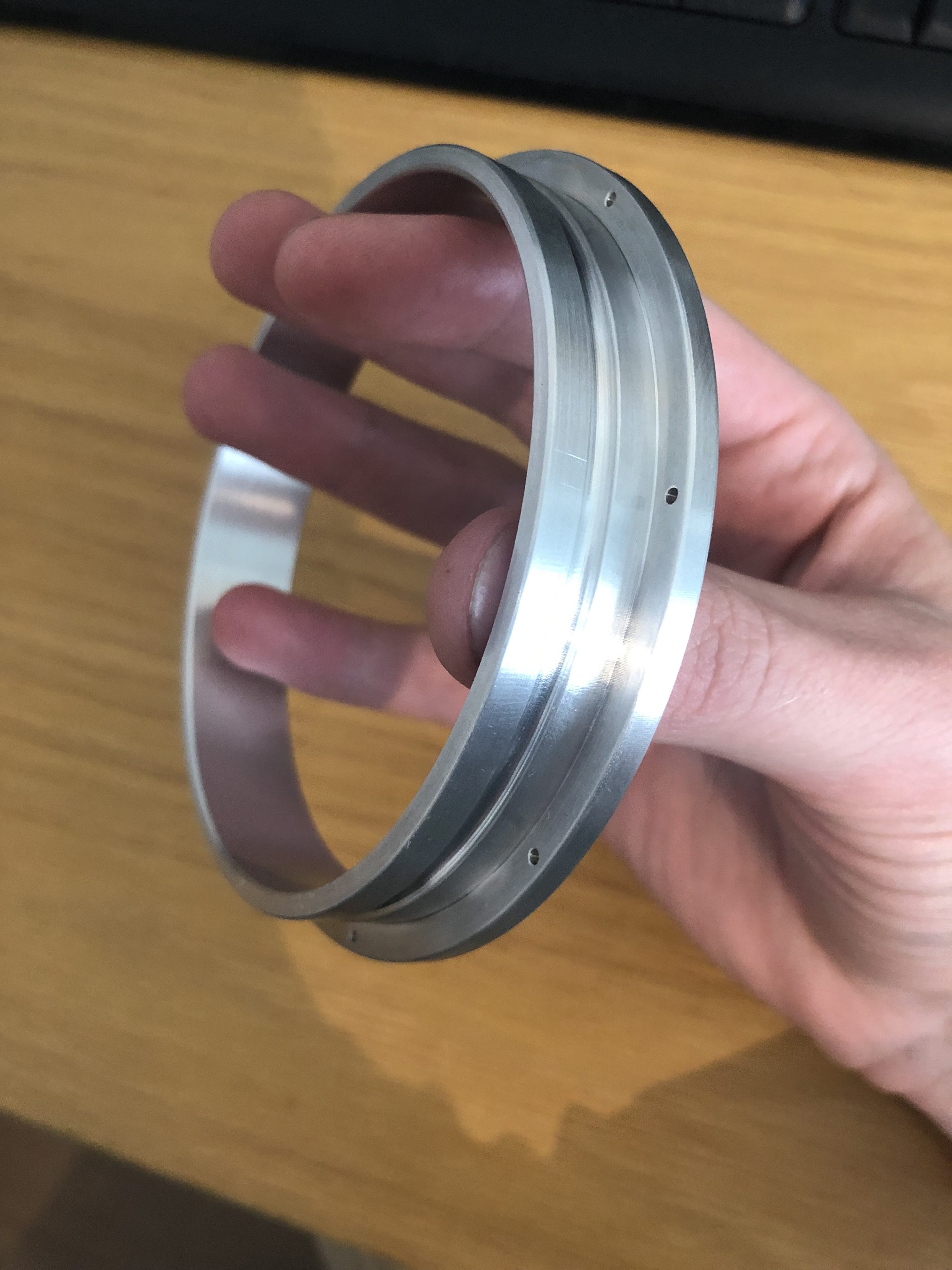

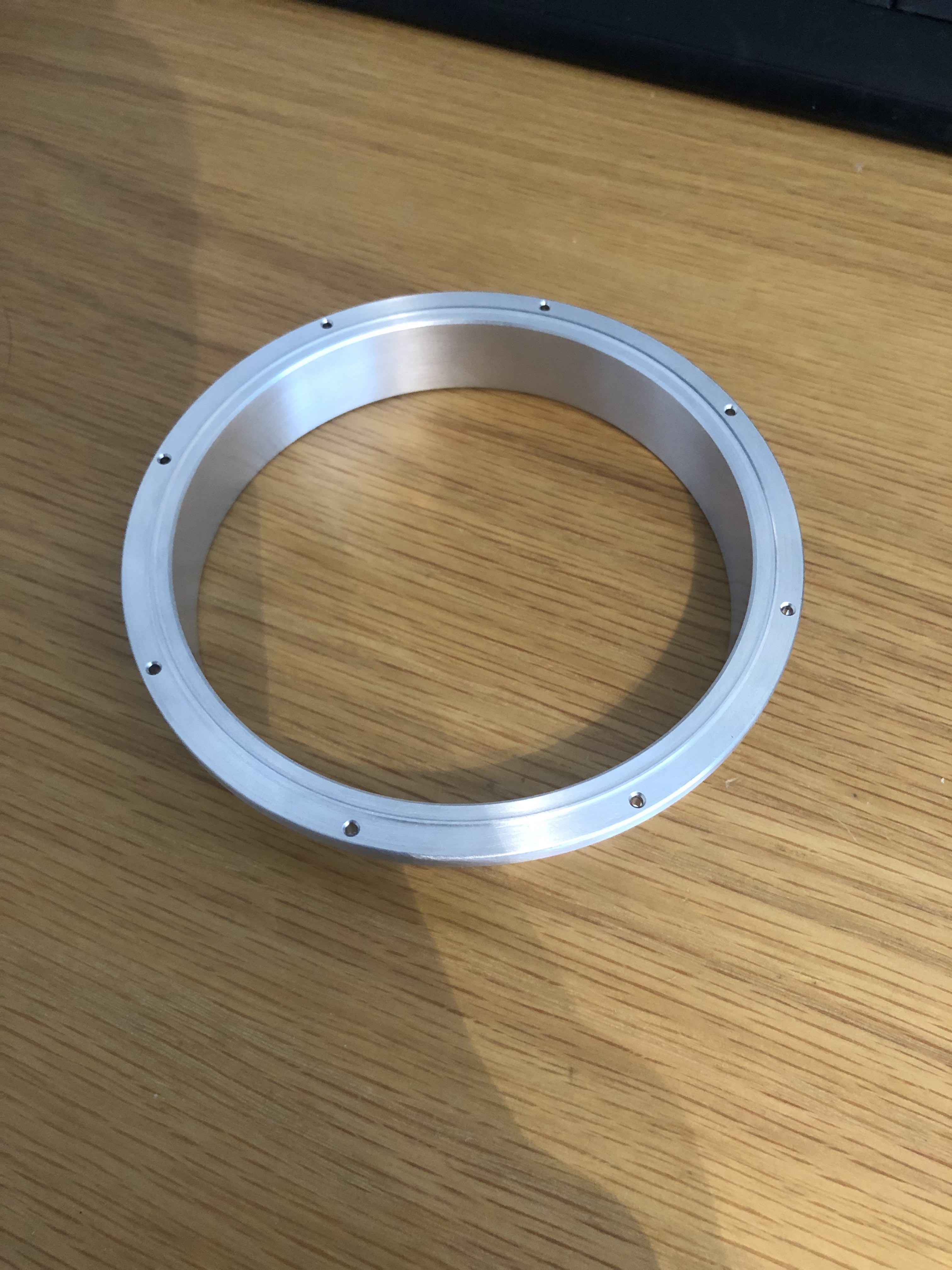

First part finished did the easiest part first.
View attachment 1484696 View attachment 1484697 View attachment 1484698

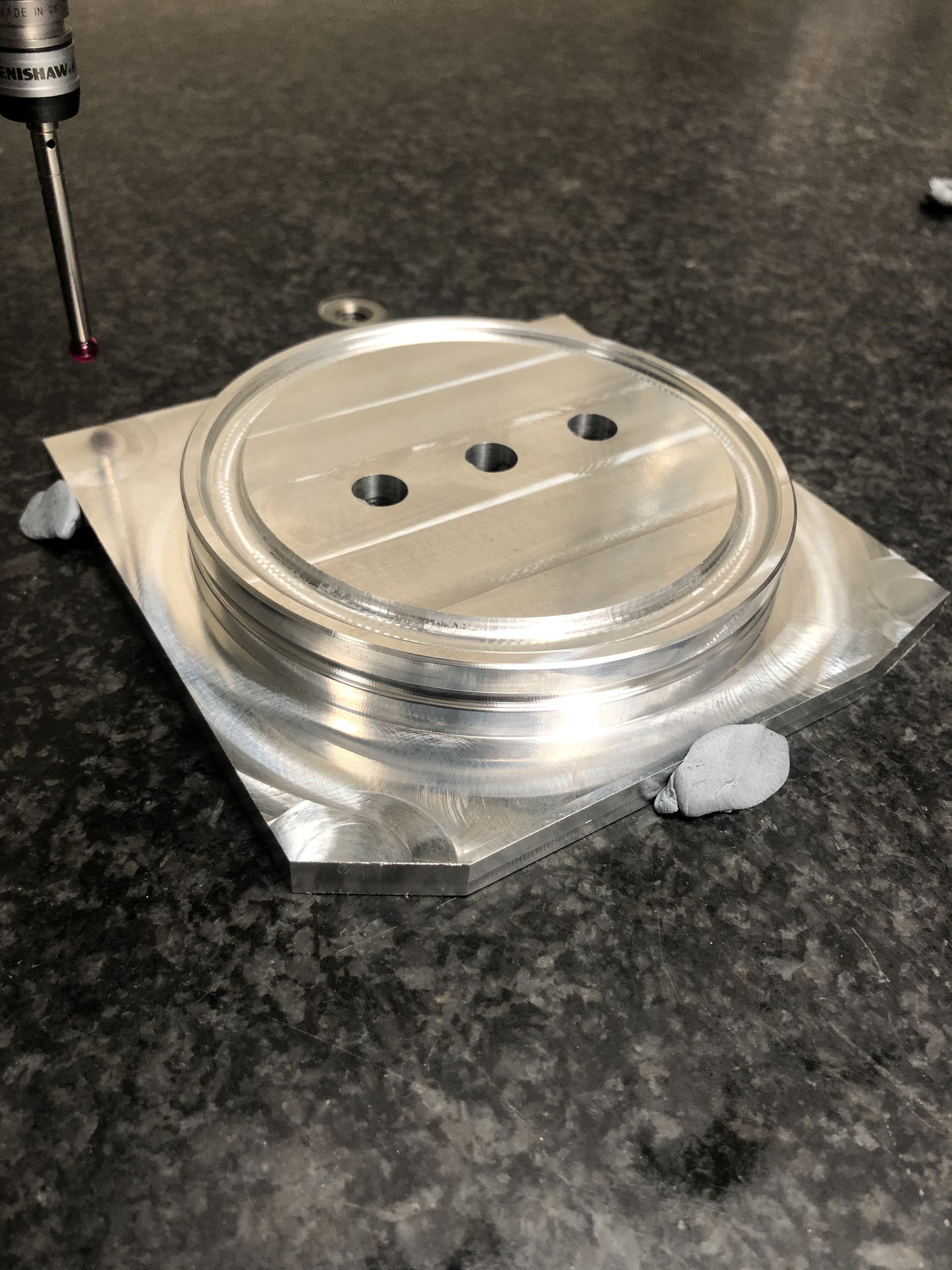

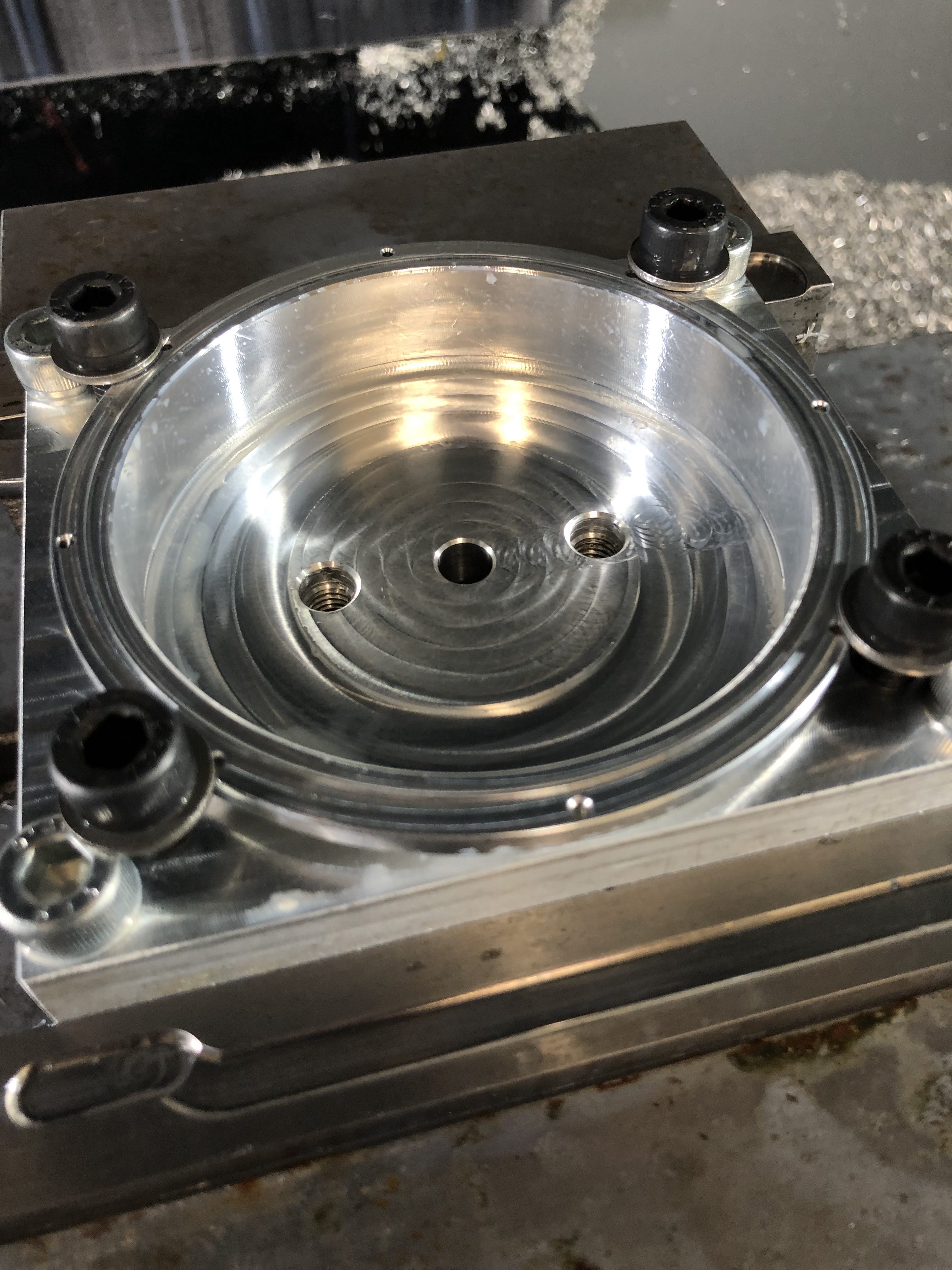

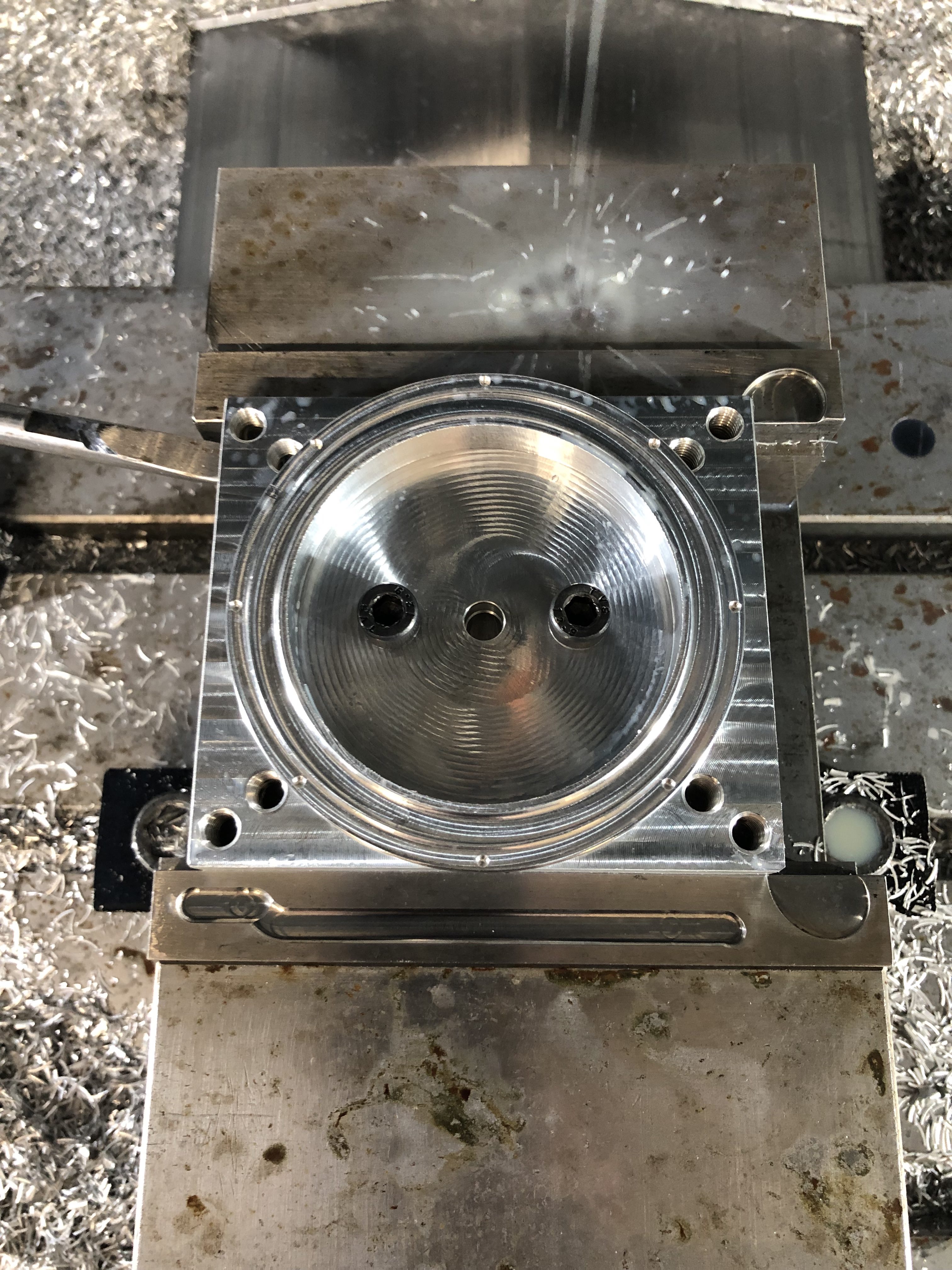

and some machining shots

View attachment 1484699 View attachment 1484700 View attachment 1484701

Wow, really nice machining. It is alway great to see the 3D model turning into a real part.
Keep it up



[antarusfree]

Hi everybody,

yes, this thread was inactive for a long time. There was no real progress with the machining. I was contacted by some great members on this forum and they are working on their disconnects.
Right now I will be selling the 3D models for 3D printing or machining if anyone is interested. Just send me a PM.
