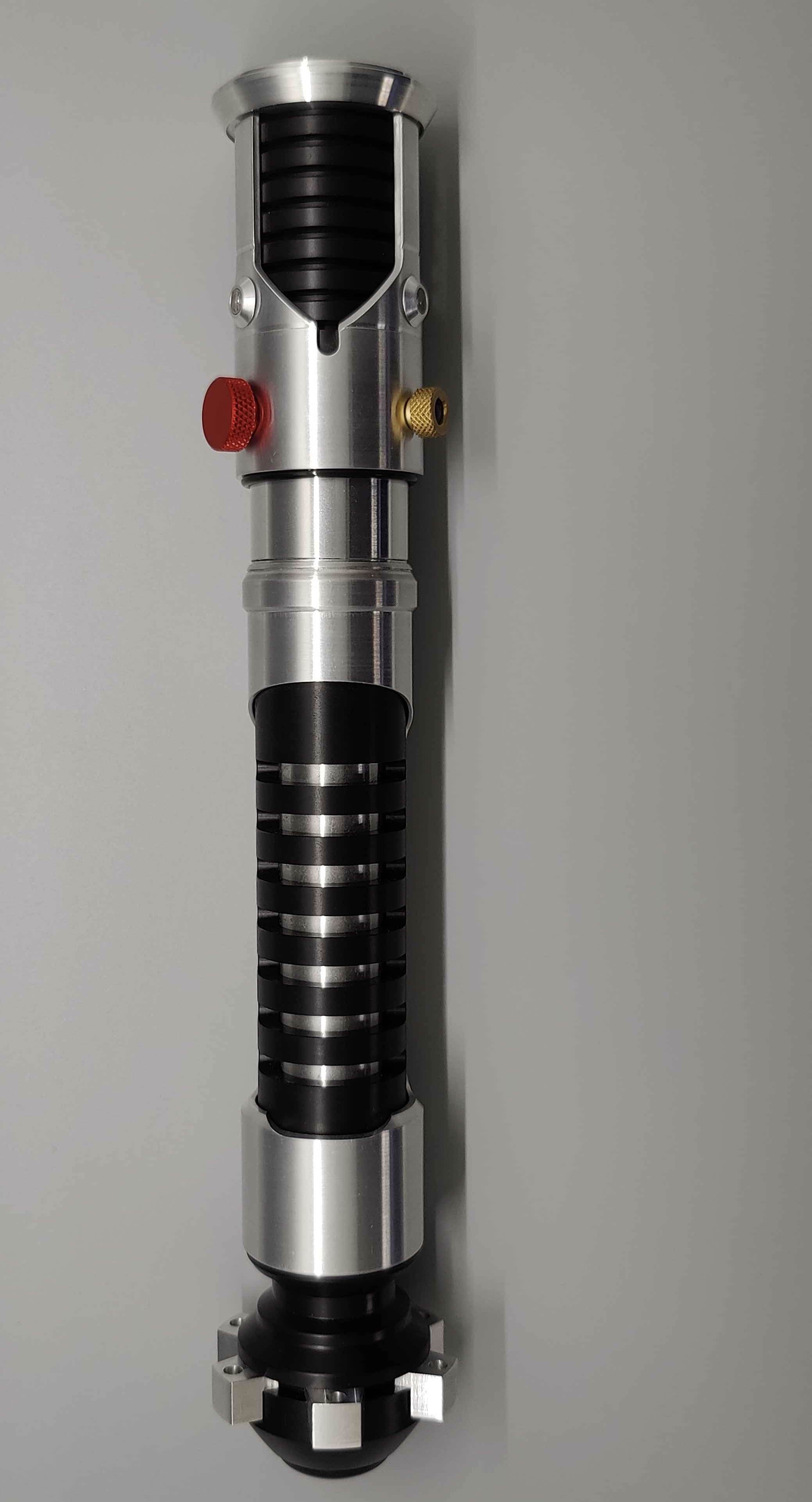

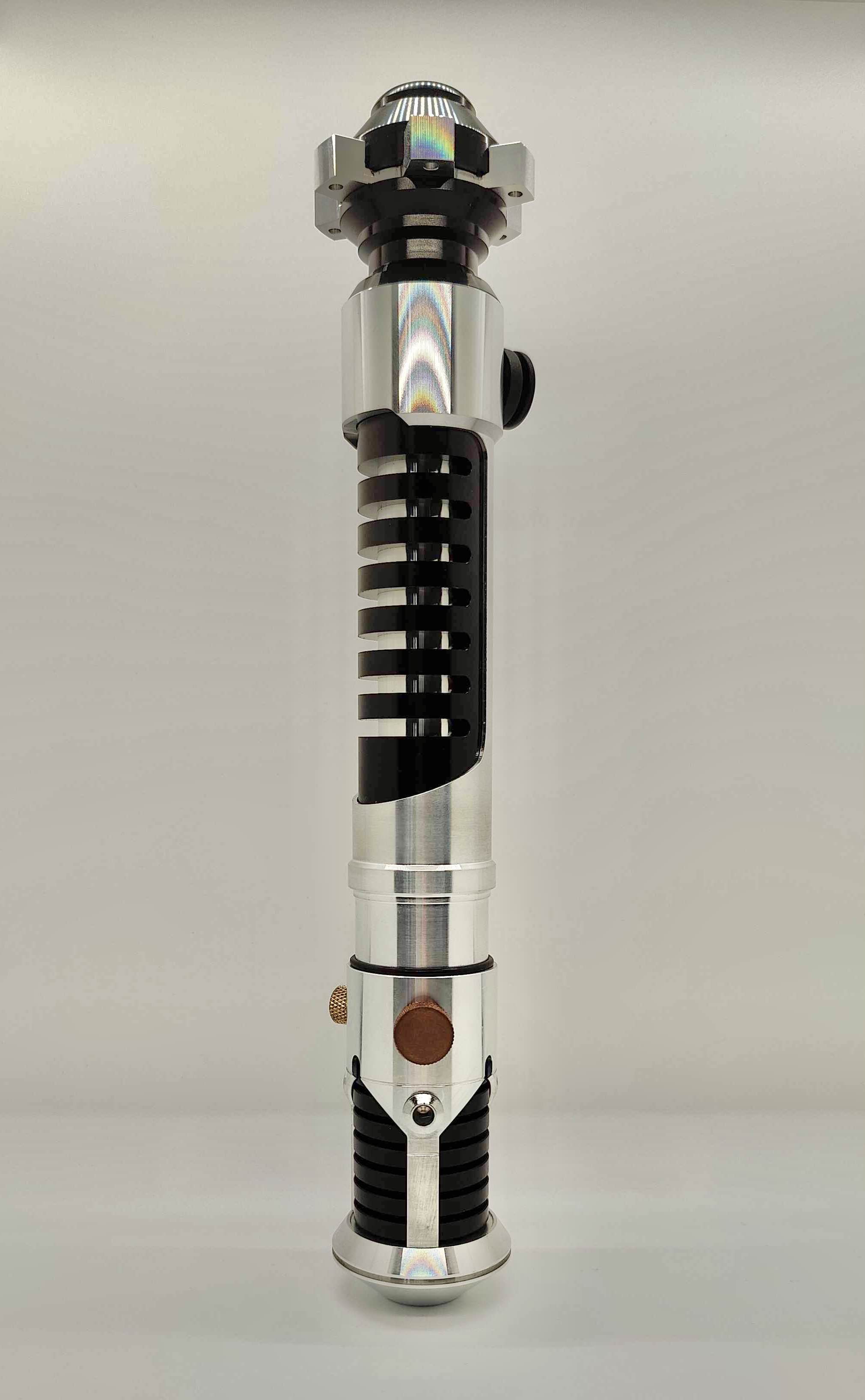

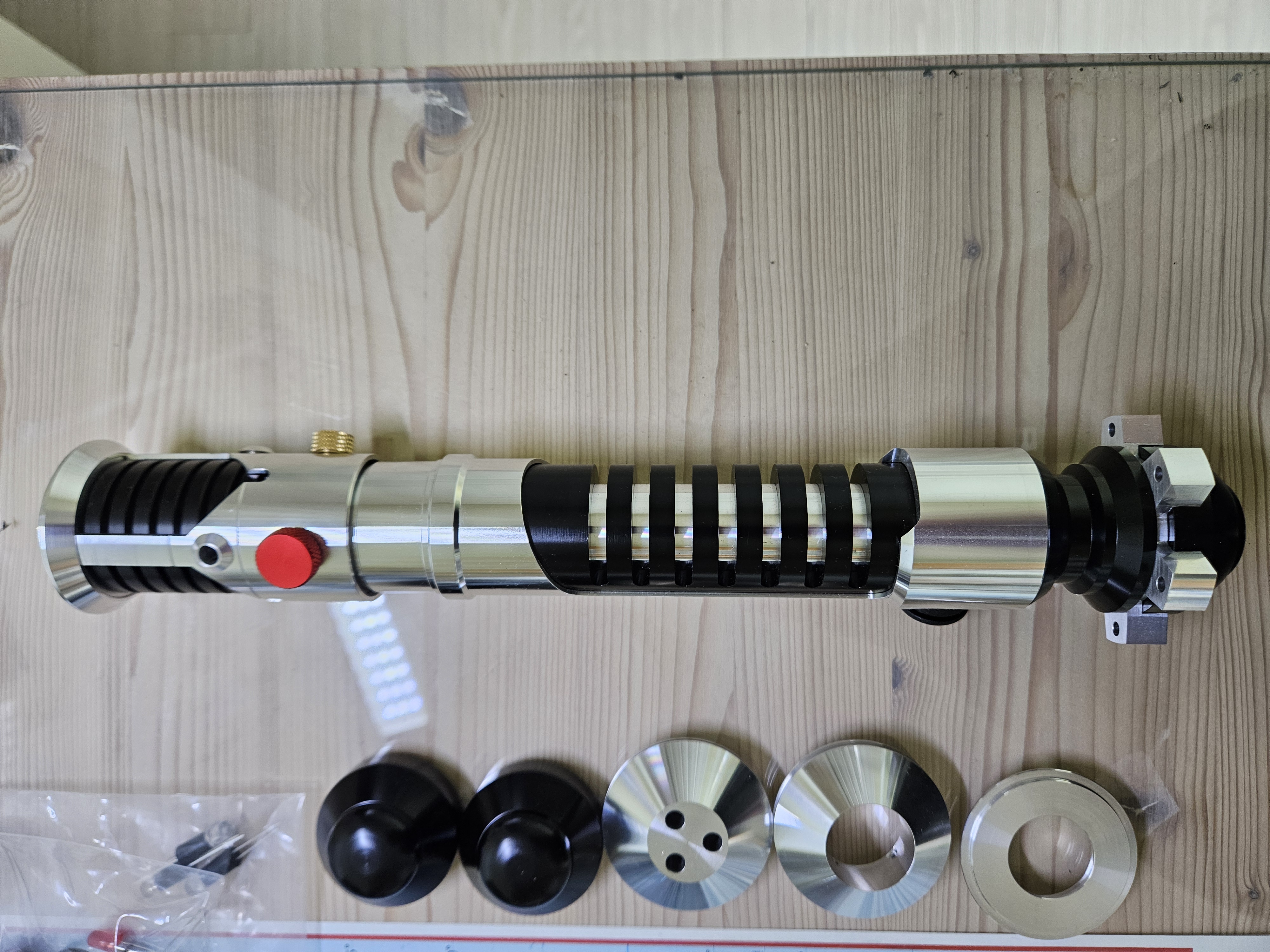

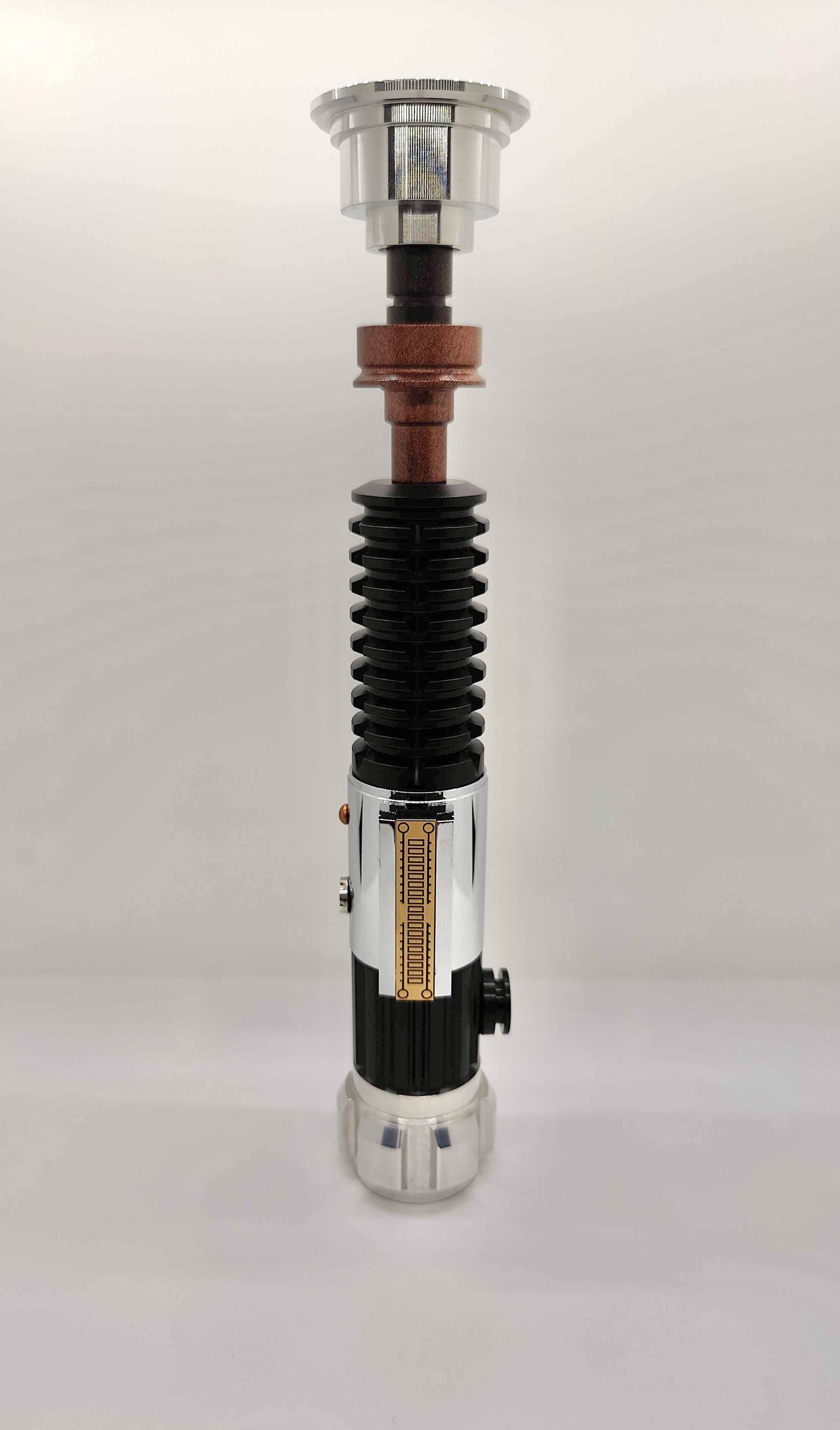

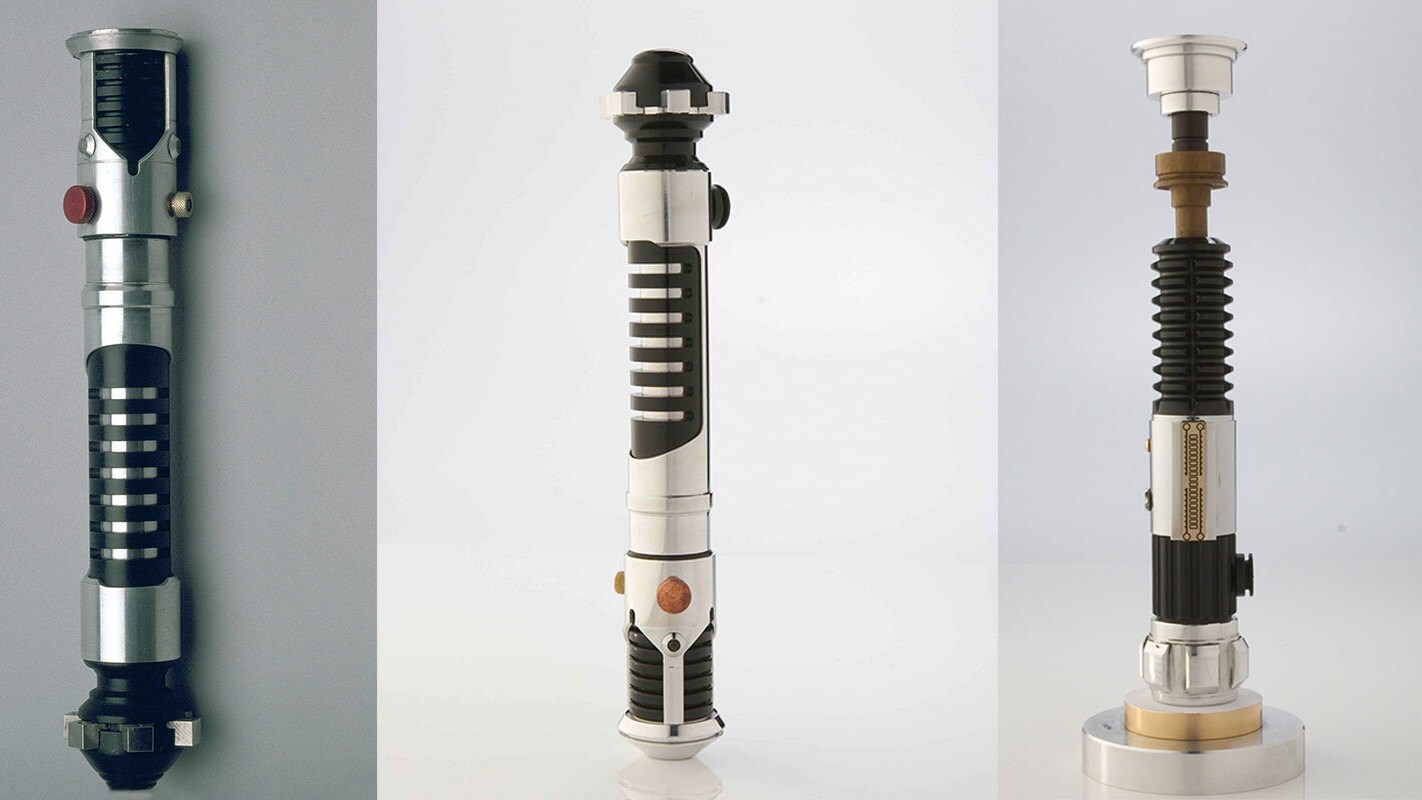

New model for OWK three holes saber... (New pics on pg 13. 11-17-2024)

Huge shoutout to guabe for sending me some of his Clan Series Decorative Rivets.

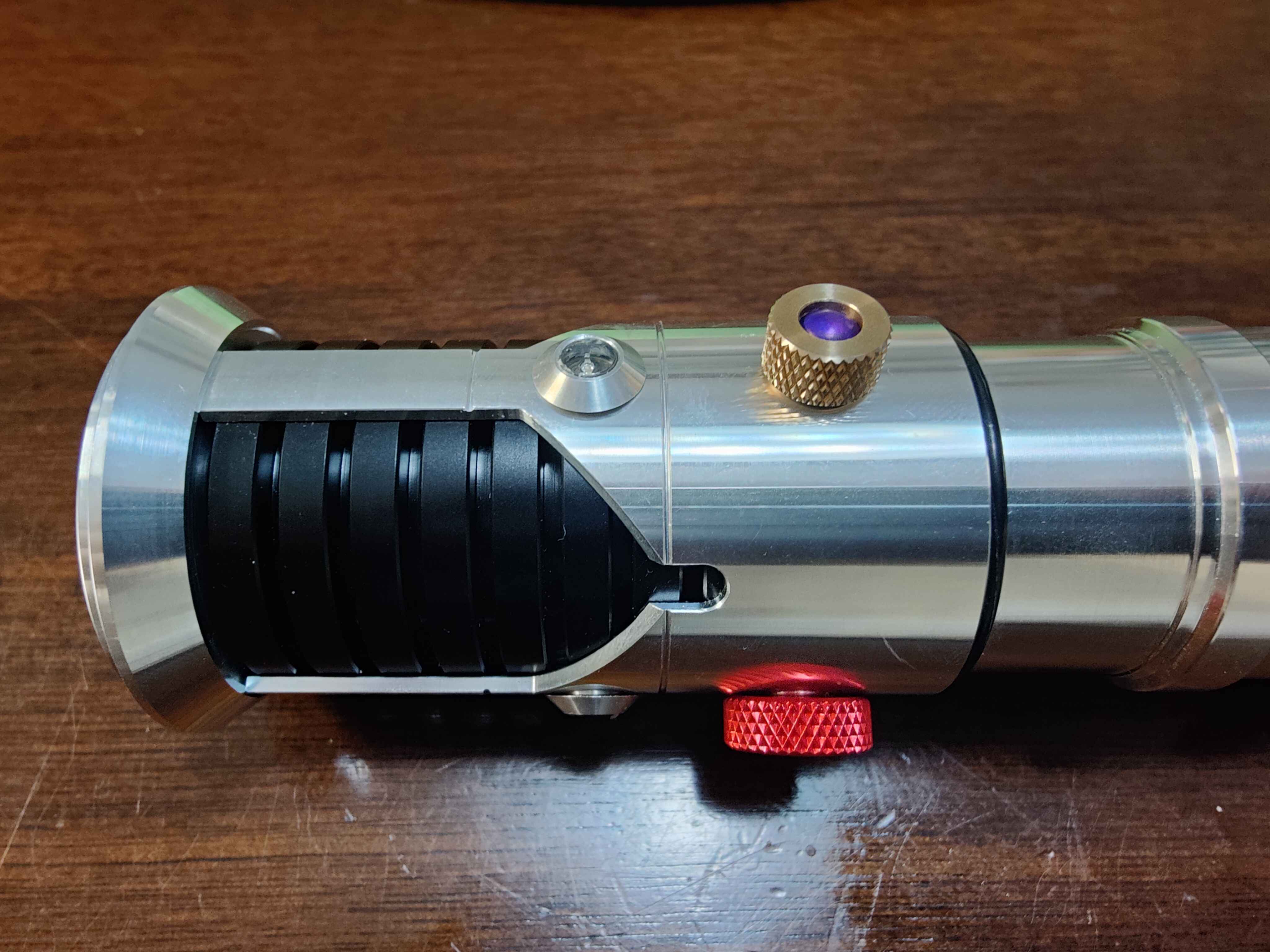

He got them from LAS Aero but it looks like the Round Dome Purples fit the best:

View attachment 1889853View attachment 1889854View attachment 1889855View attachment 1889856

You can get em here:

Thanks! Ordered! I checked awhile back, but they were out of stock. Must've gotten some more in.

Removable 18650 battery chassis successful.


Attachments

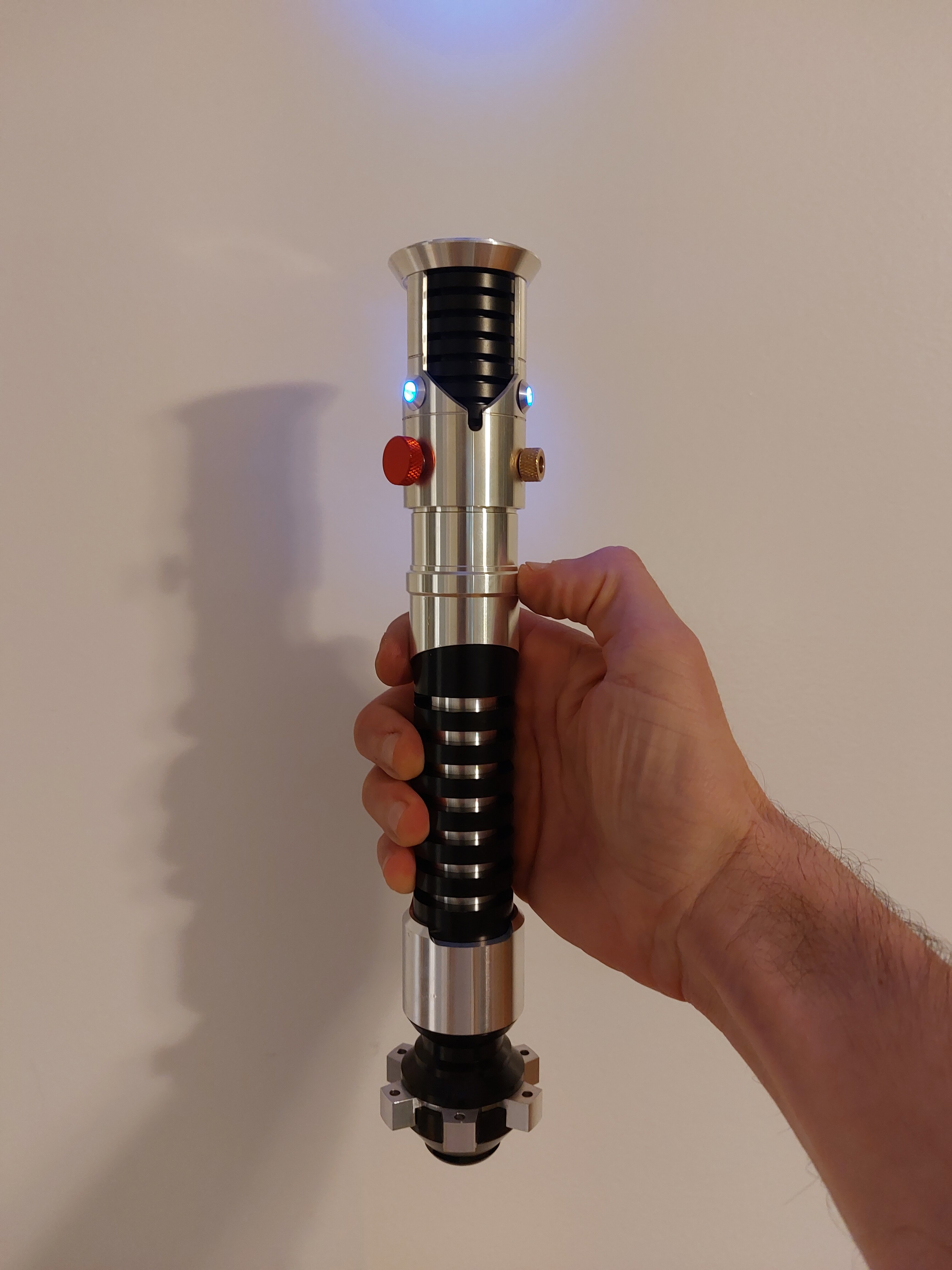

  • 20241221_165436.jpg
    1.1 MB · Views: 101

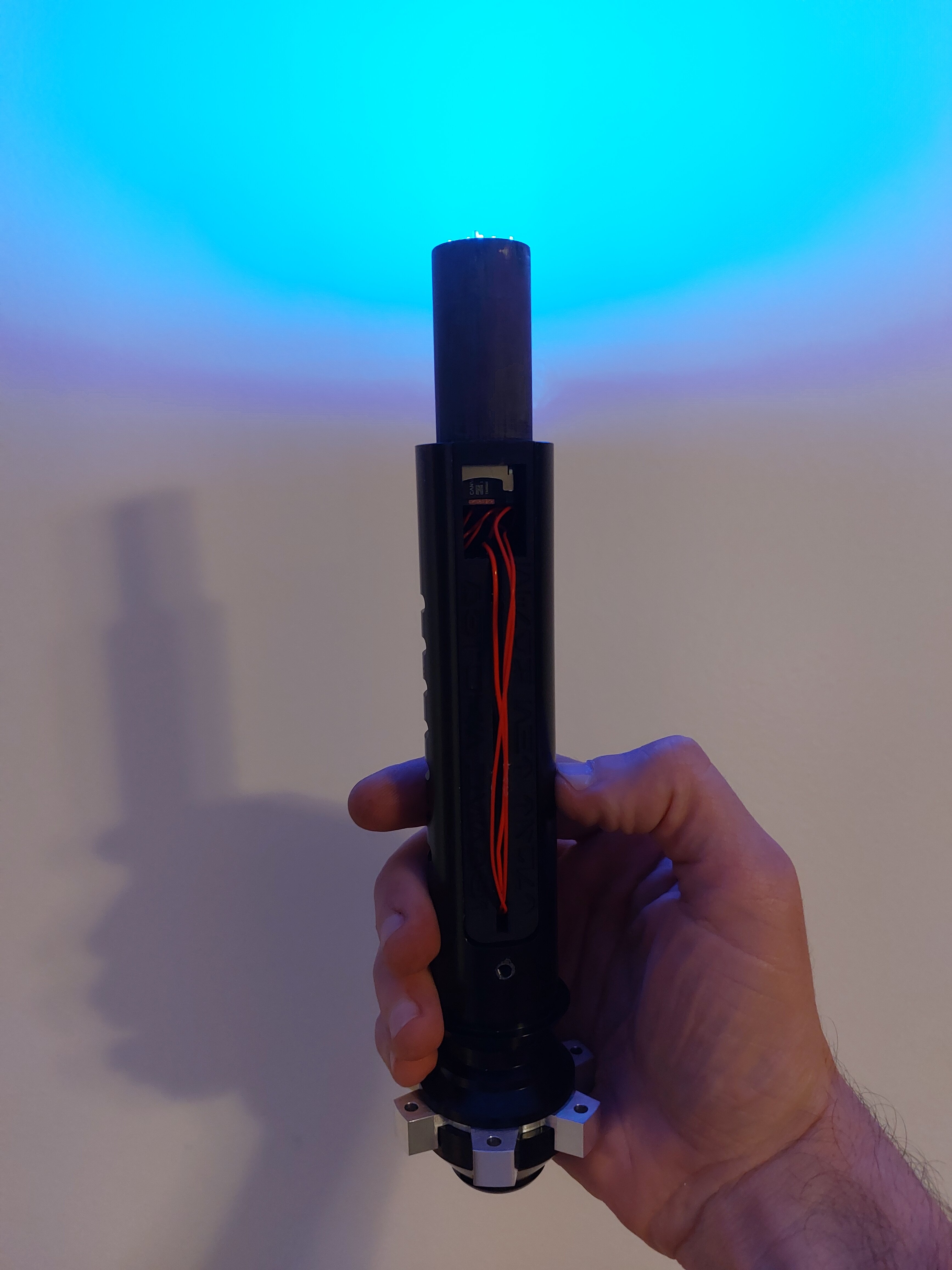

  • 20241221_165535.jpg
    1.1 MB · Views: 101

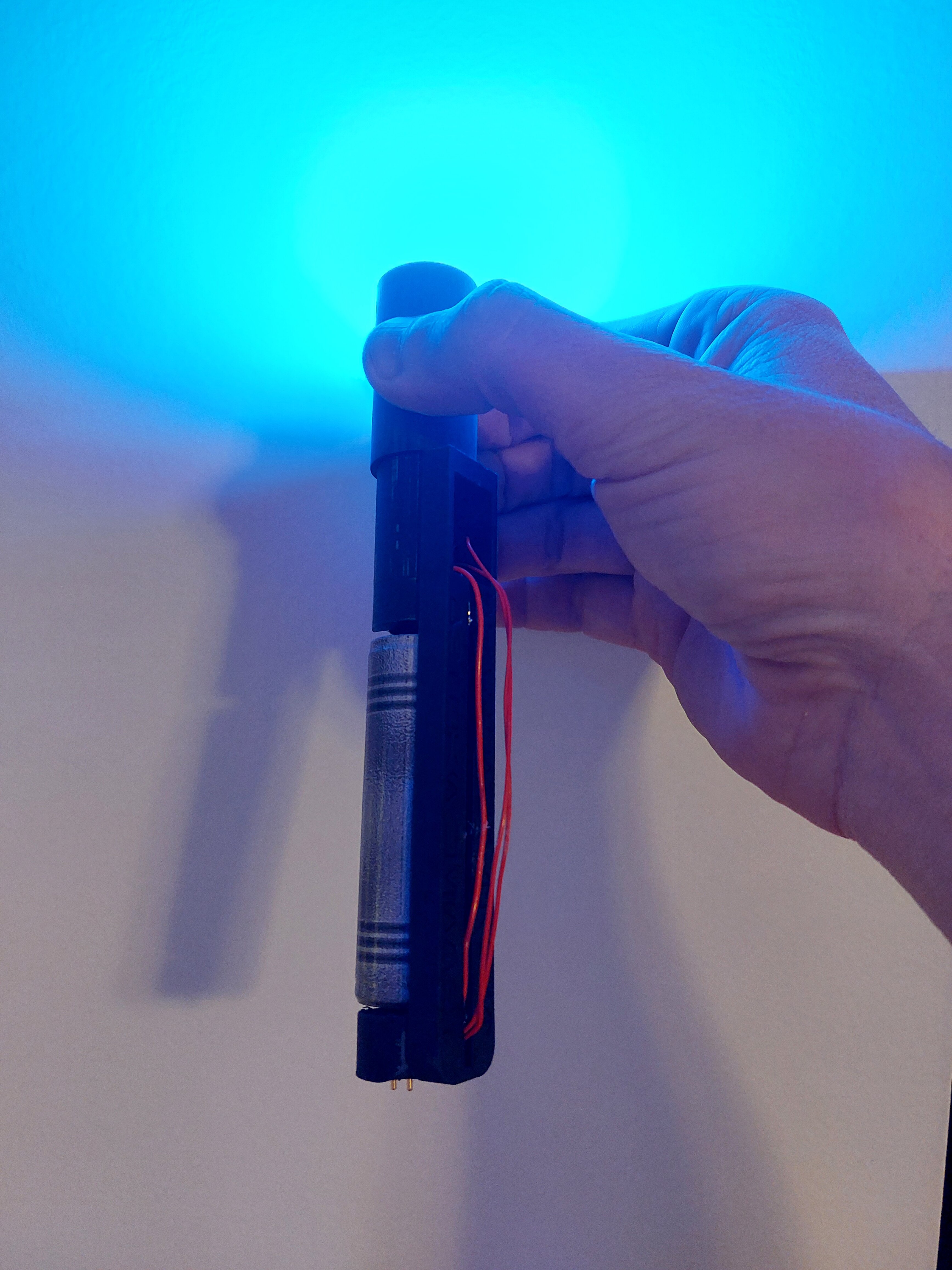

  • 20241221_165604.jpg
    1.6 MB · Views: 105
Love it! Will this chassis be available somewhere soon?
Hey dude! STLs attached here and I can email the Fusion file to anyone who wants to manipulate the design as they see fit.

This chassis relies on a GHv4, a Shtok NPXL (I used a v3, but a V4 would also work), Shtok 2-pin speaker PCBs, a 28mm bass speaker, and the smaller battery tabs found here: Battery Tabs

I revised my speaker pod slightly and found that a .075" spacer works well. New STL attached.


Attachments

  • OWK Salt Shaker v7.stl
    302.9 KB · Views: 32
Last edited:
Hey dude! STLs attached here and I can email the Fusion file to anyone who wants to manipulate the design as they see fit.

This chassis relies on a GHv4, a Shtok NPXL (I used a v3, but a V4 would also work), Shtok 2-pin speaker PCBs, a 28mm bass speaker, and the smaller battery tabs found here: Battery Tabs

I discovered today that I may need to use the spacer for the speaker pod to keep the contacts pressed the pins and will be testing different sized spacers. Thankfully these are easy to design and print quickly, so I should have an update later today when I return home.
Thanks so much! Very generous of you.

Do you mind if I list this for download on my website for people who aren't following this thread?

Thanks so much! Very generous of you.

Do you mind if I list this for download on my website for people who aren't following this thread?
I don't mind at all! Here's the list of the parts I used:

Golden Harvest V4 (it will not work with a GHv3 as the older board is wider)


Saberbay 28mm X-BASS 8ohm/3W Speaker

Battery Tabs

The speaker PCB set I used doesn't seem to be listed anywhere online, but it was nearly identical to this: 2 channel 2 Pin Chassis Connector

Last edited:
I don't mind at all! Here's the list of the parts I used:

Golden Harvest V4 (it will not work with a GHv3 as the older board is wider)


Saberbay 28mm X-BASS 8ohm/3W Speaker

Battery Tabs

The speaker PCB set I used doesn't seem to be listed anywhere online, but it was nearly identical to this: 2 channel 2 Pin Chassis Connector
Incredibly generous! I'll throw this up on my website later this week!
