NASA ACES suit disconnects

alexbailey

Active Member
RPF PREMIUM MEMBER

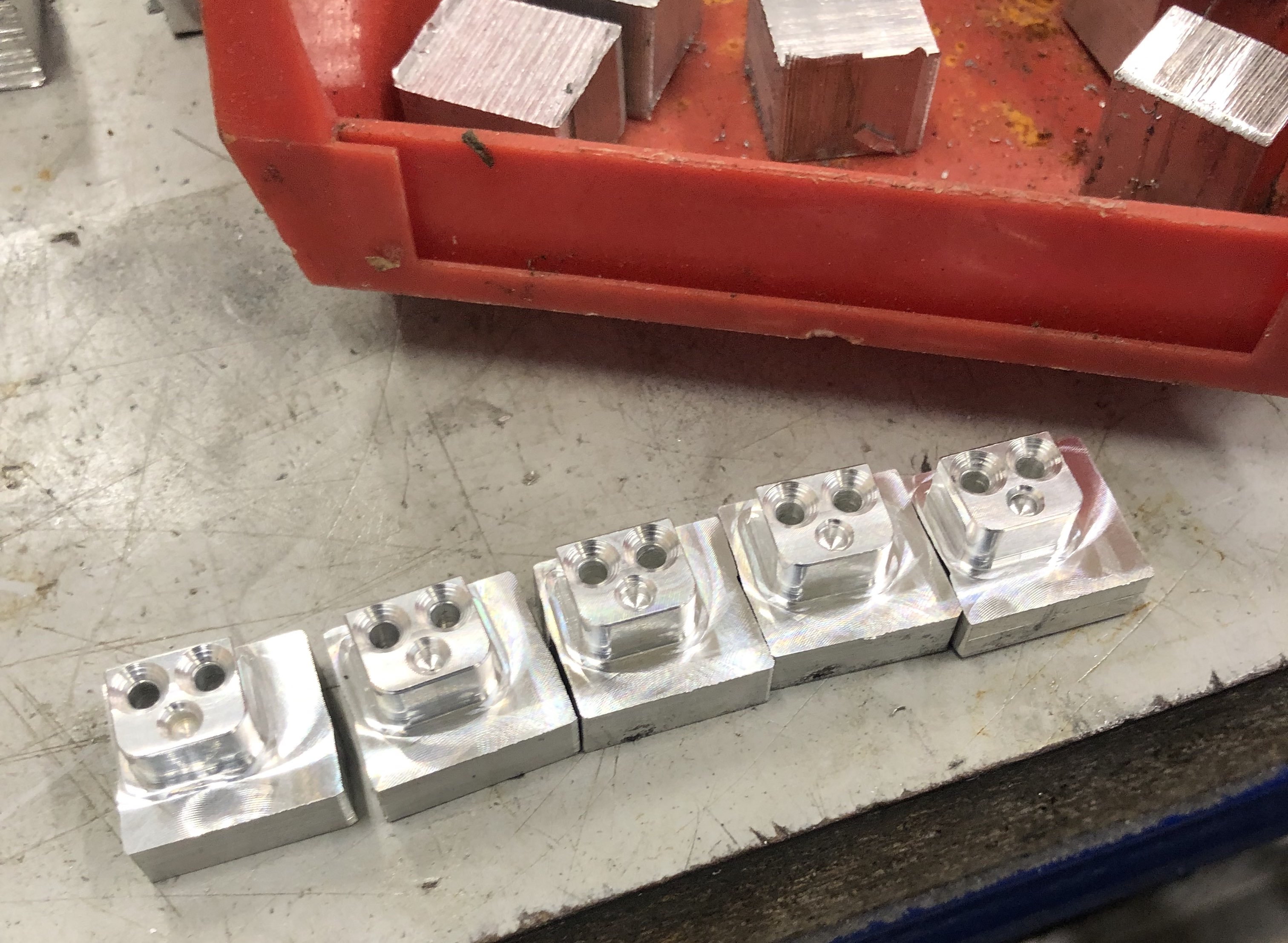

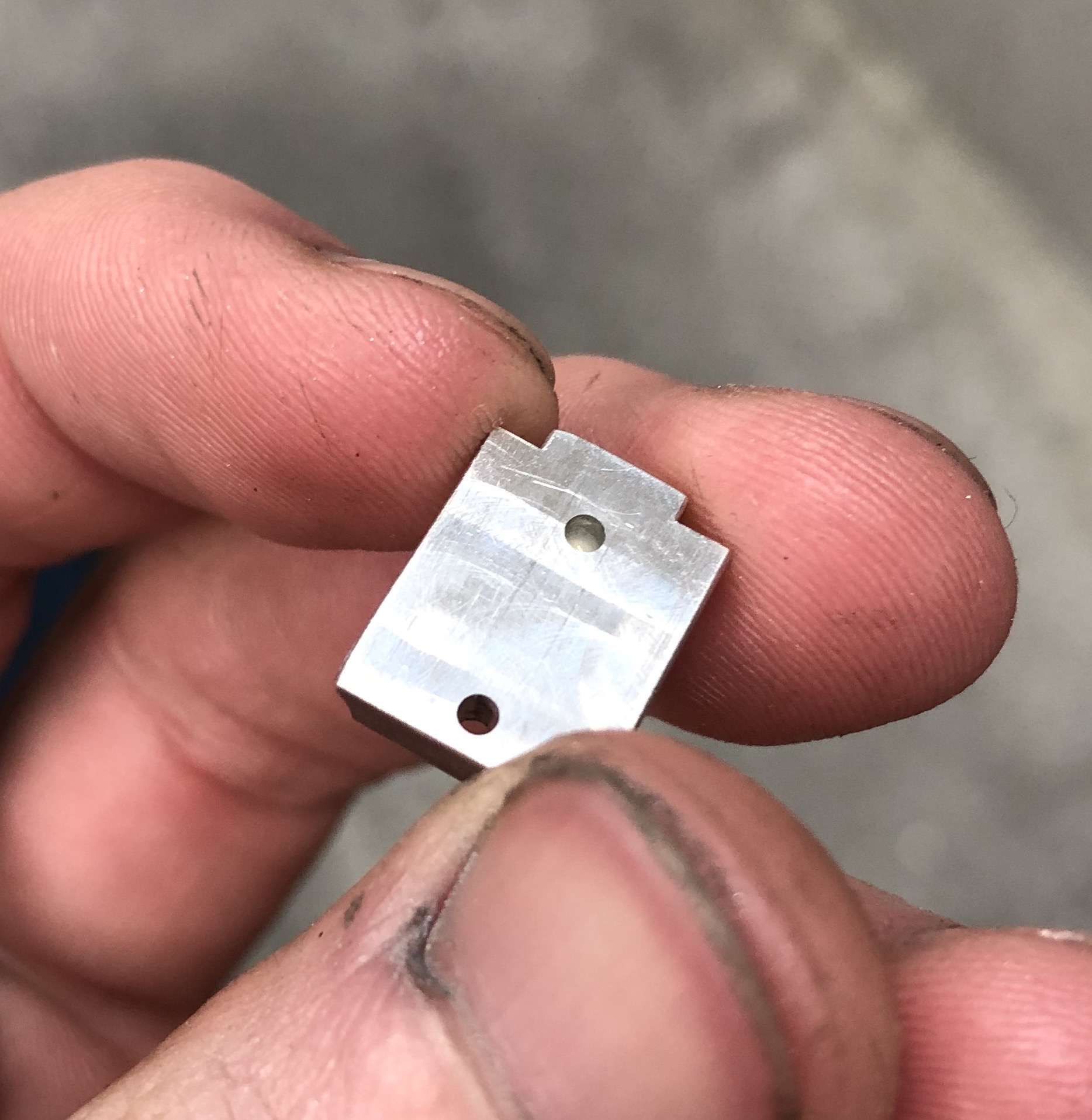

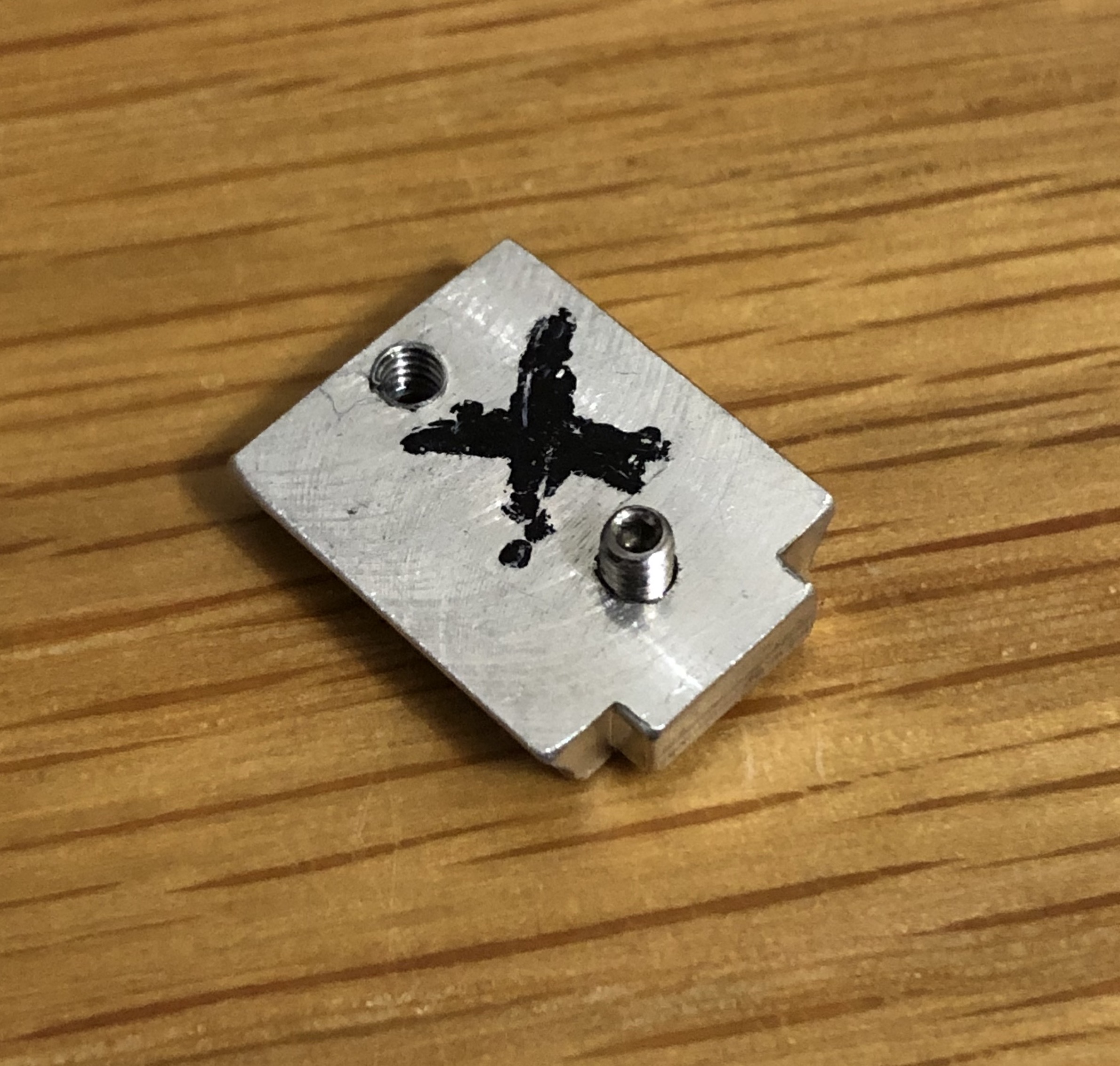

Here's some photo of the machining of the left hand locking ring and the internal features of the left cuff ring.

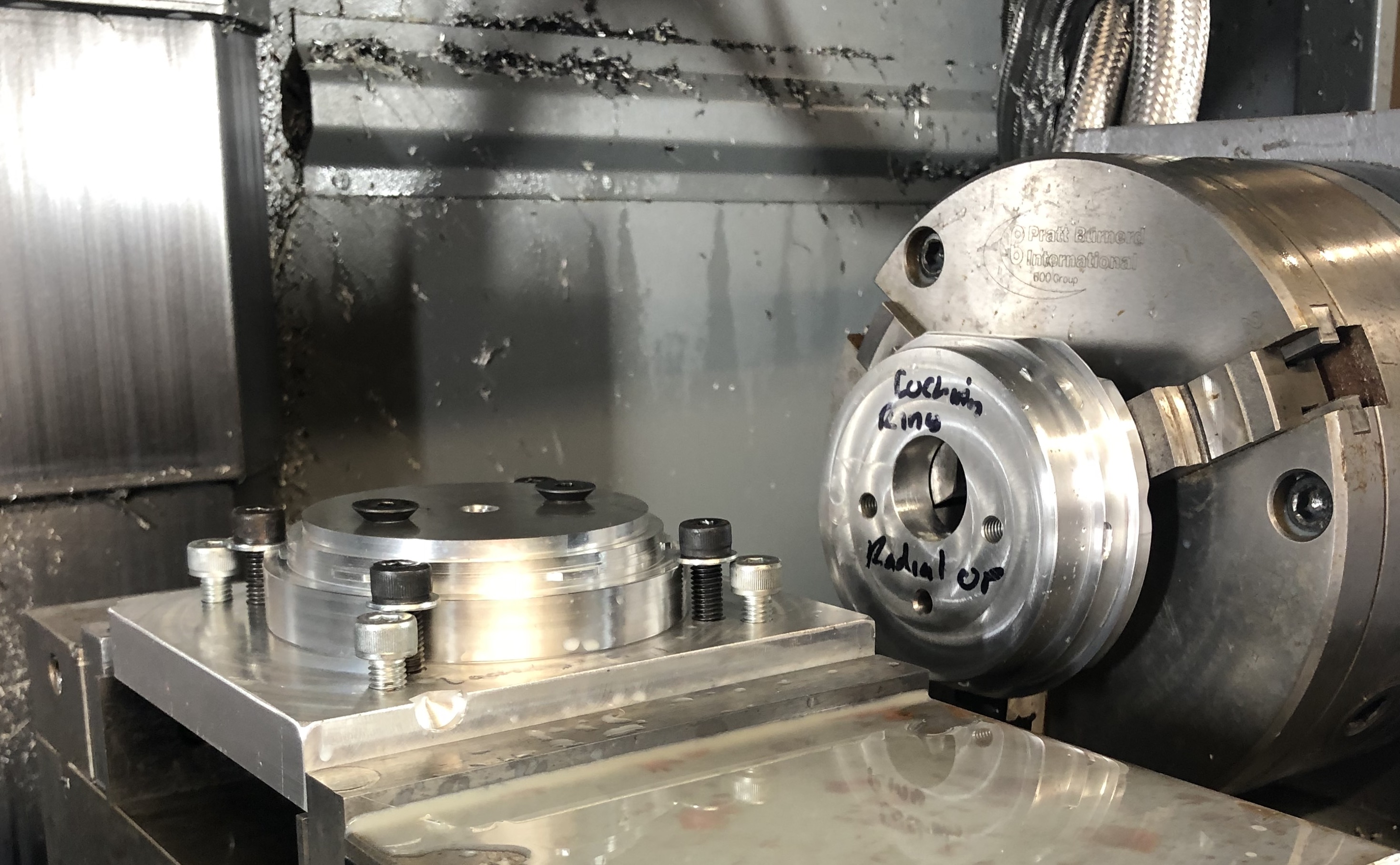

Setup for machining the cuff ring.

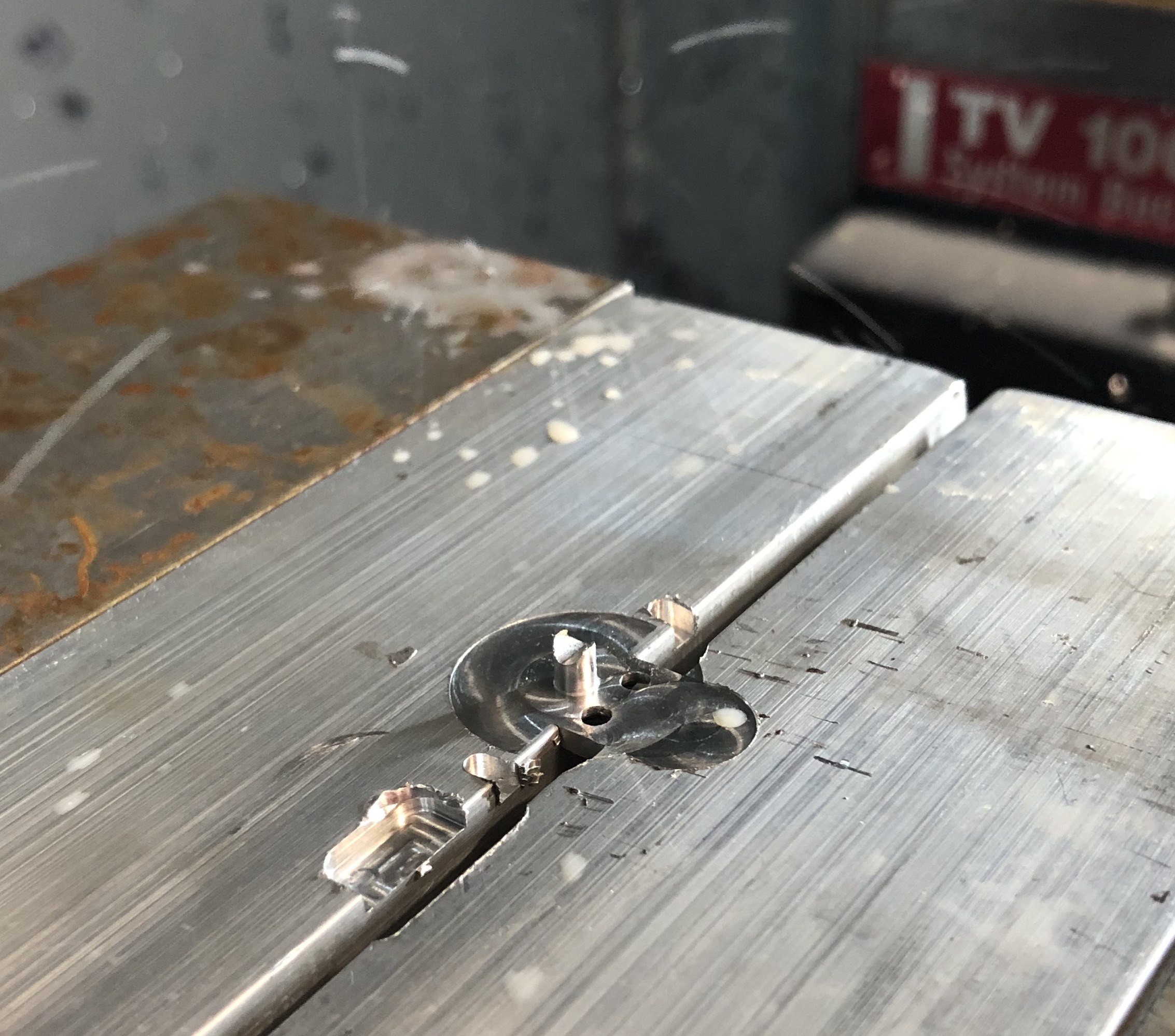

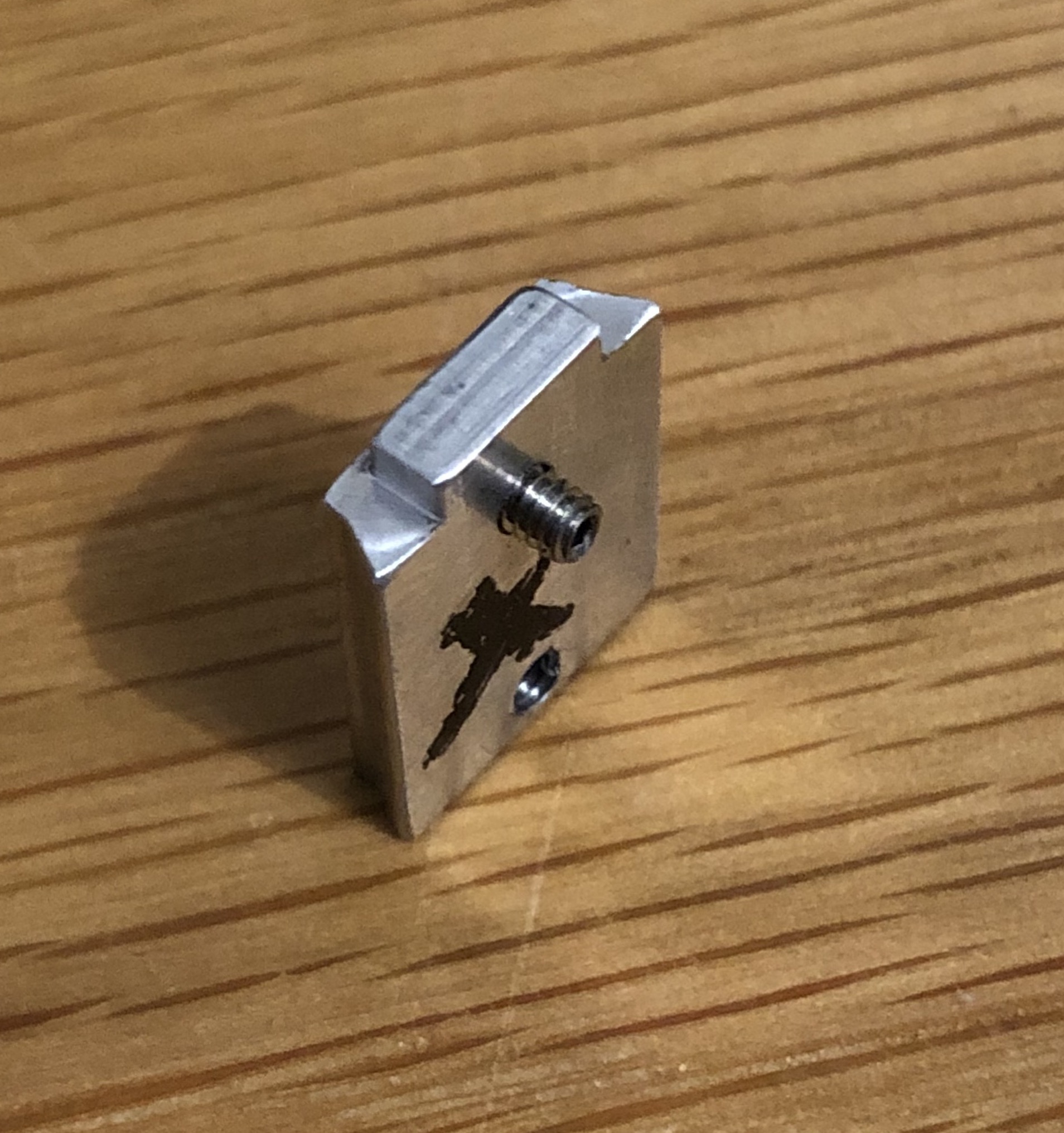

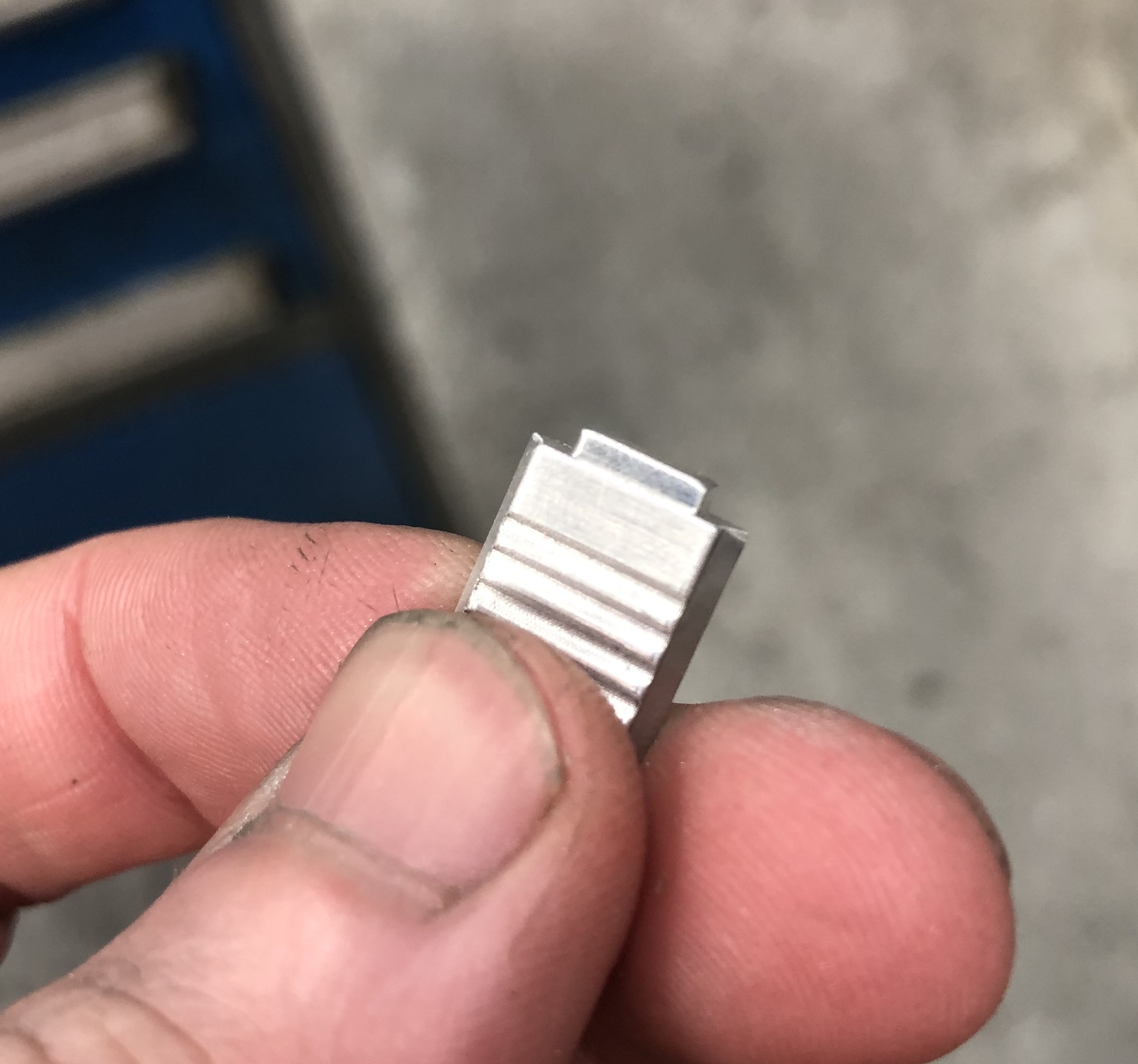

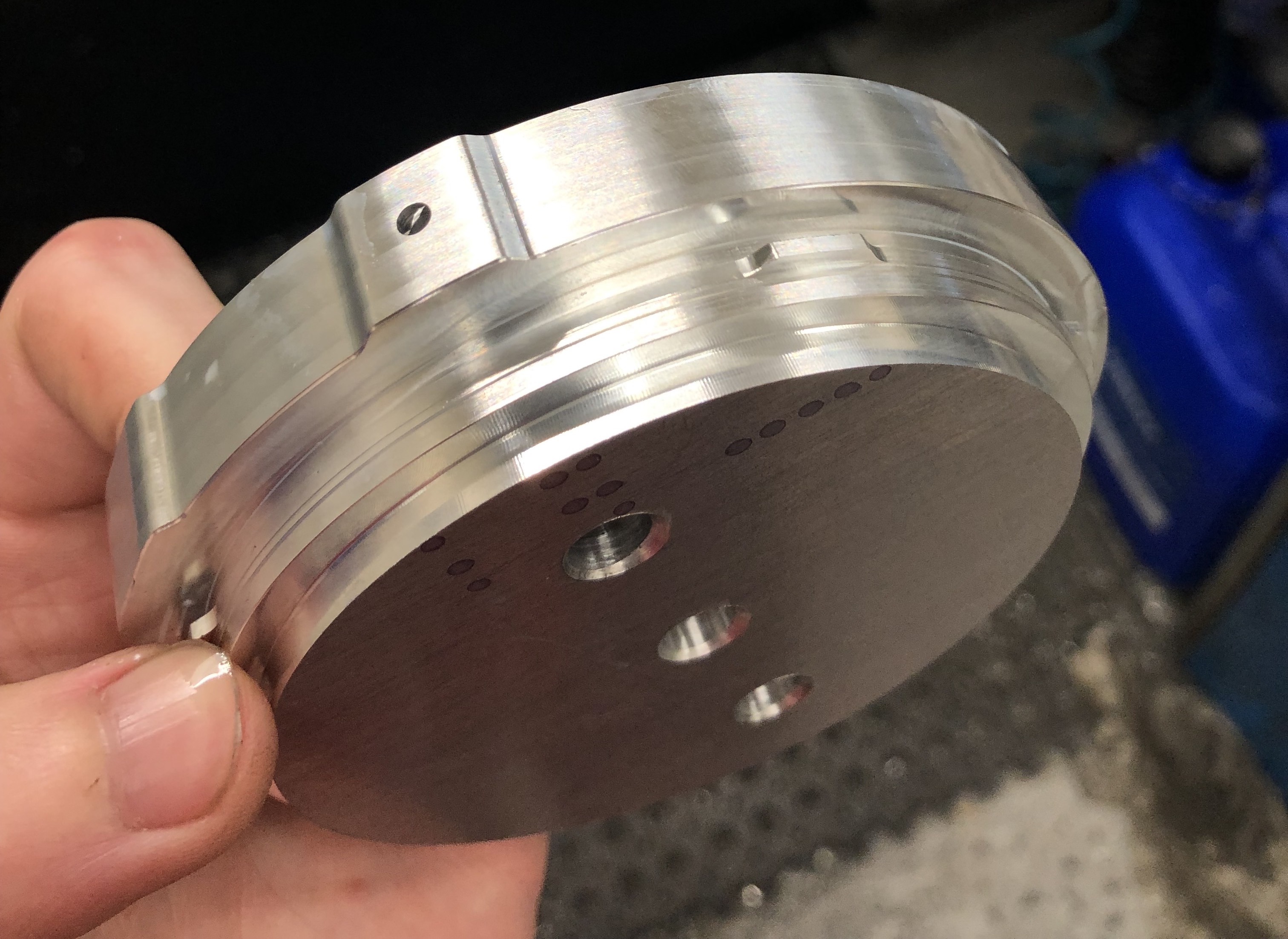

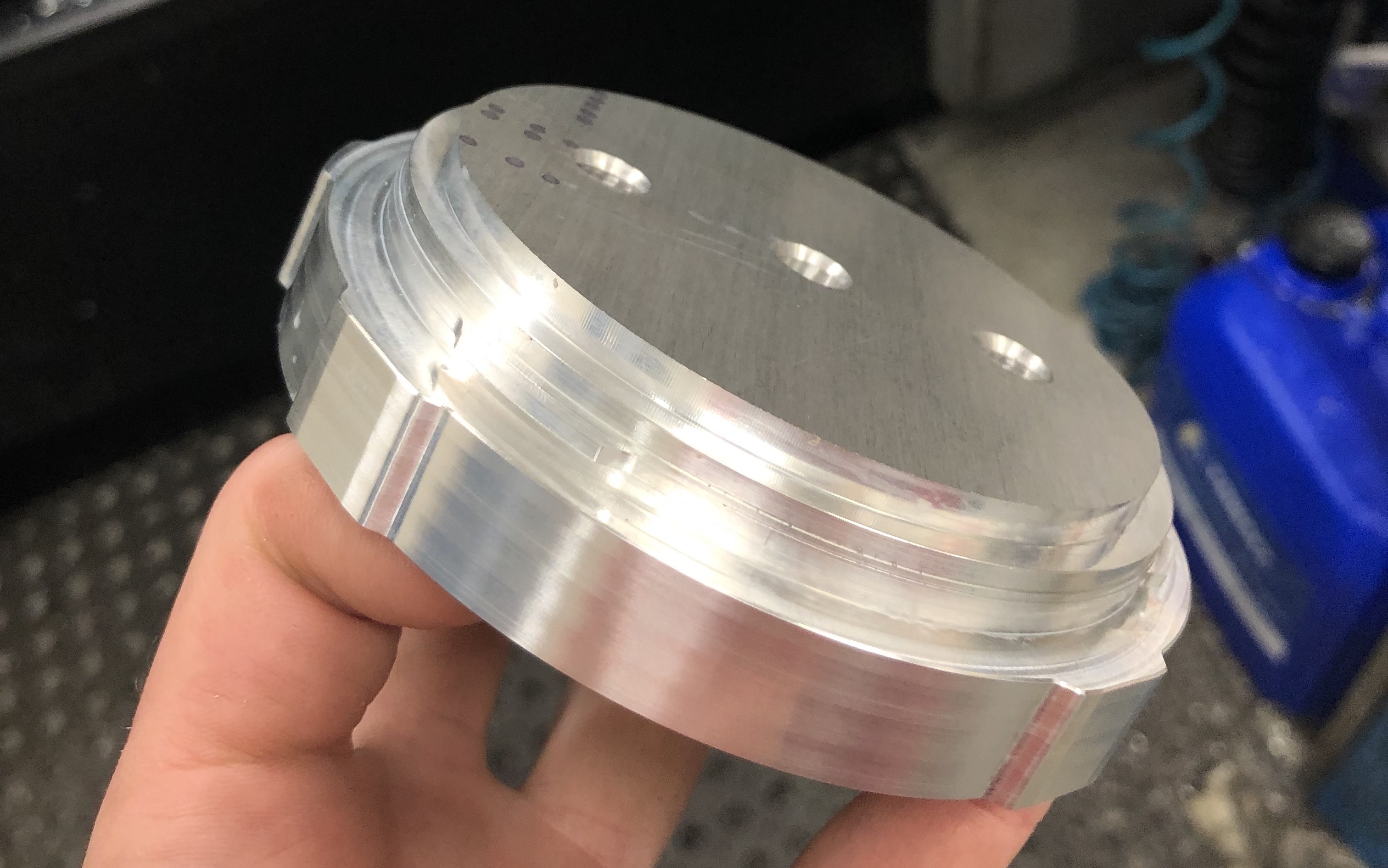

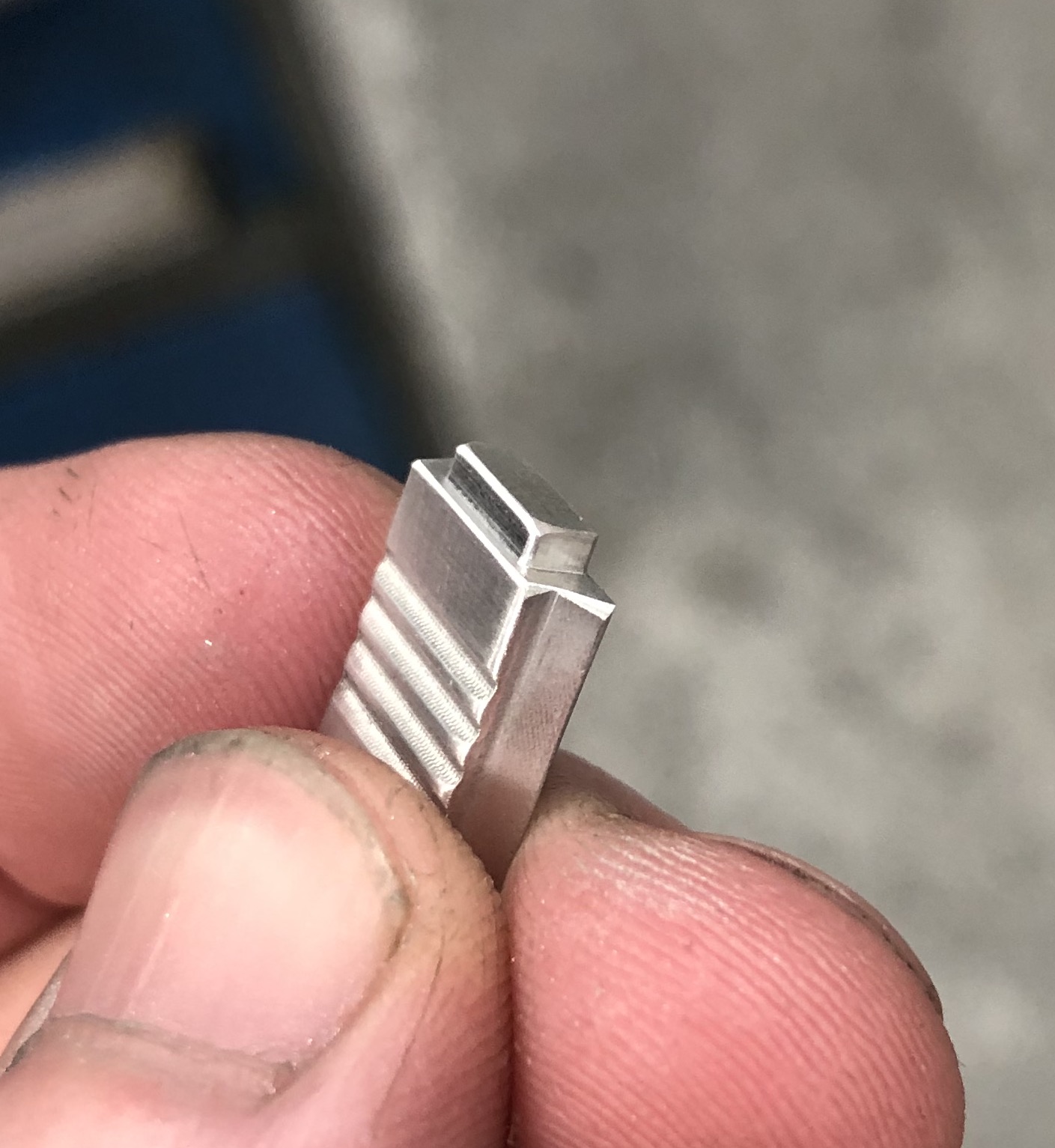

The left cuff ring is now complete. The left locking ring had to go the the rotary axis for the radial details to be machined.

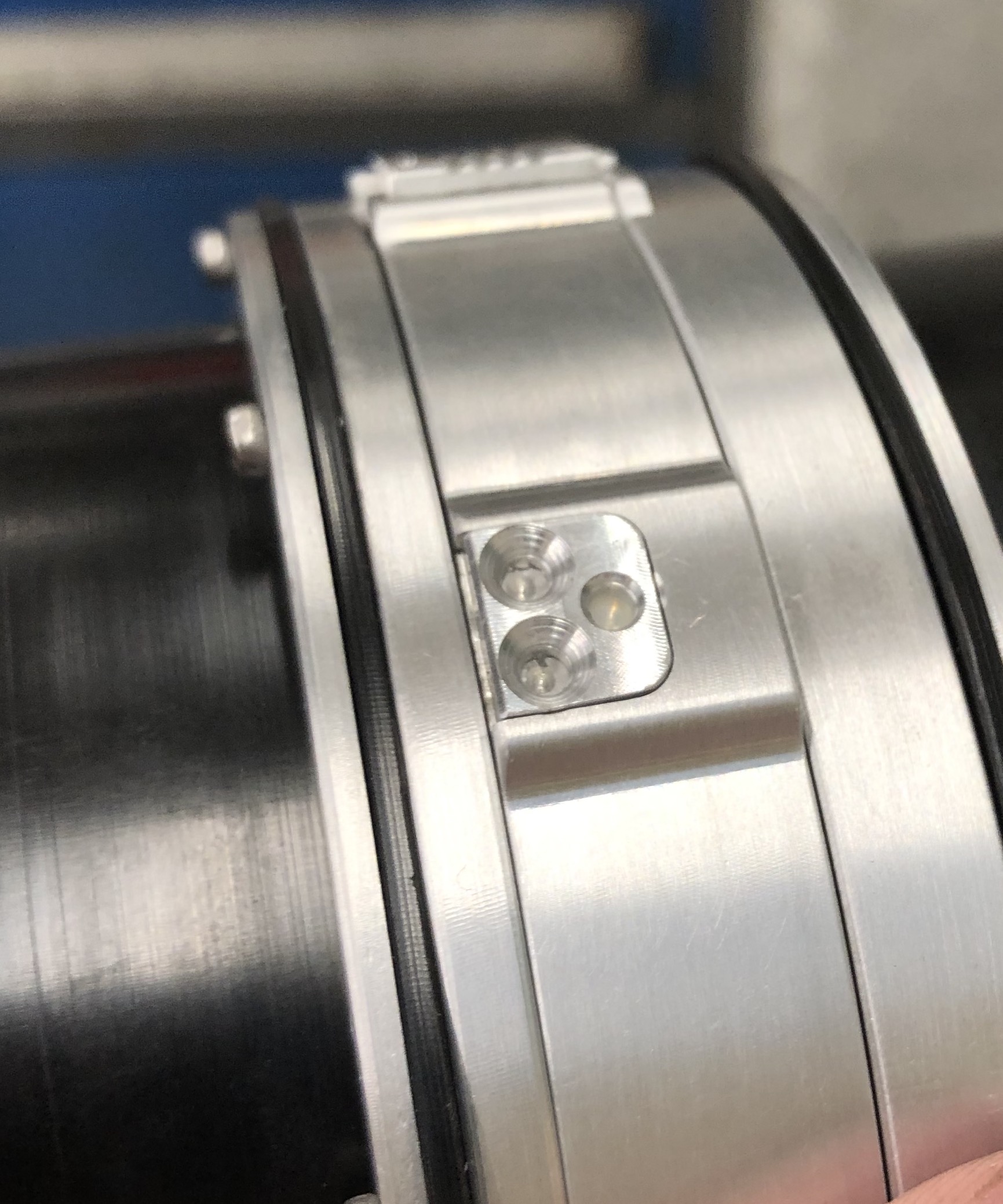

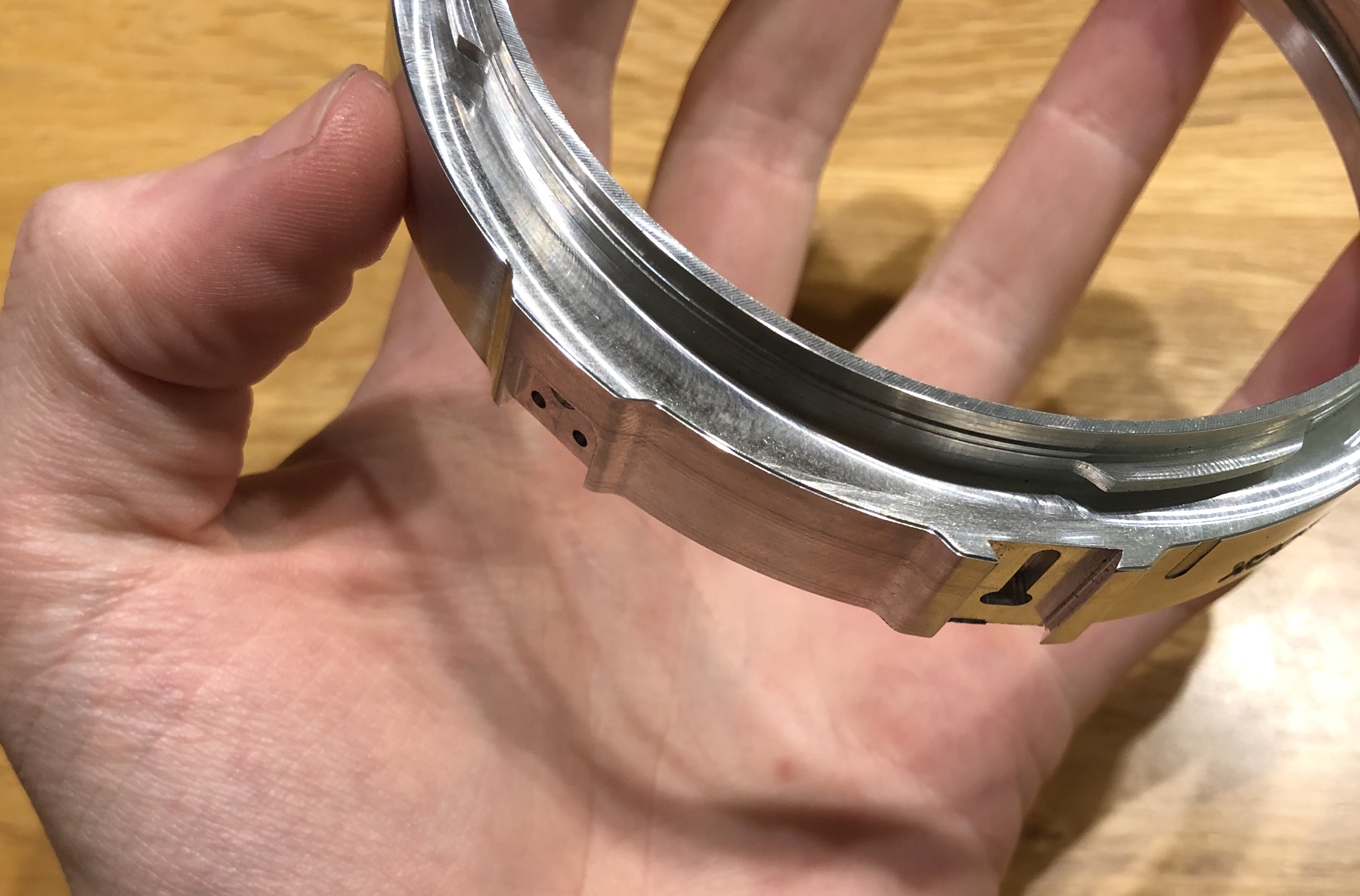

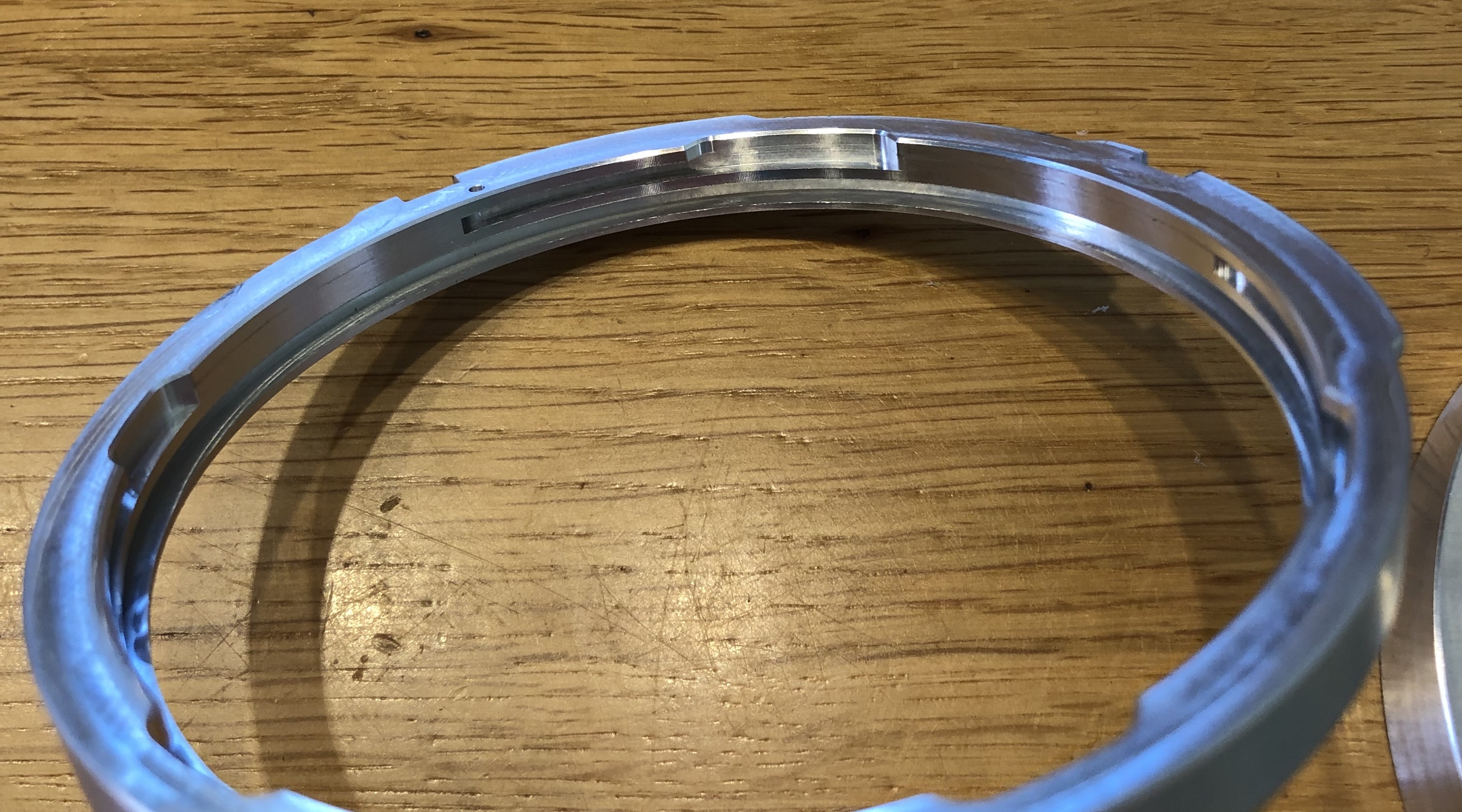

The finished cuff ring.

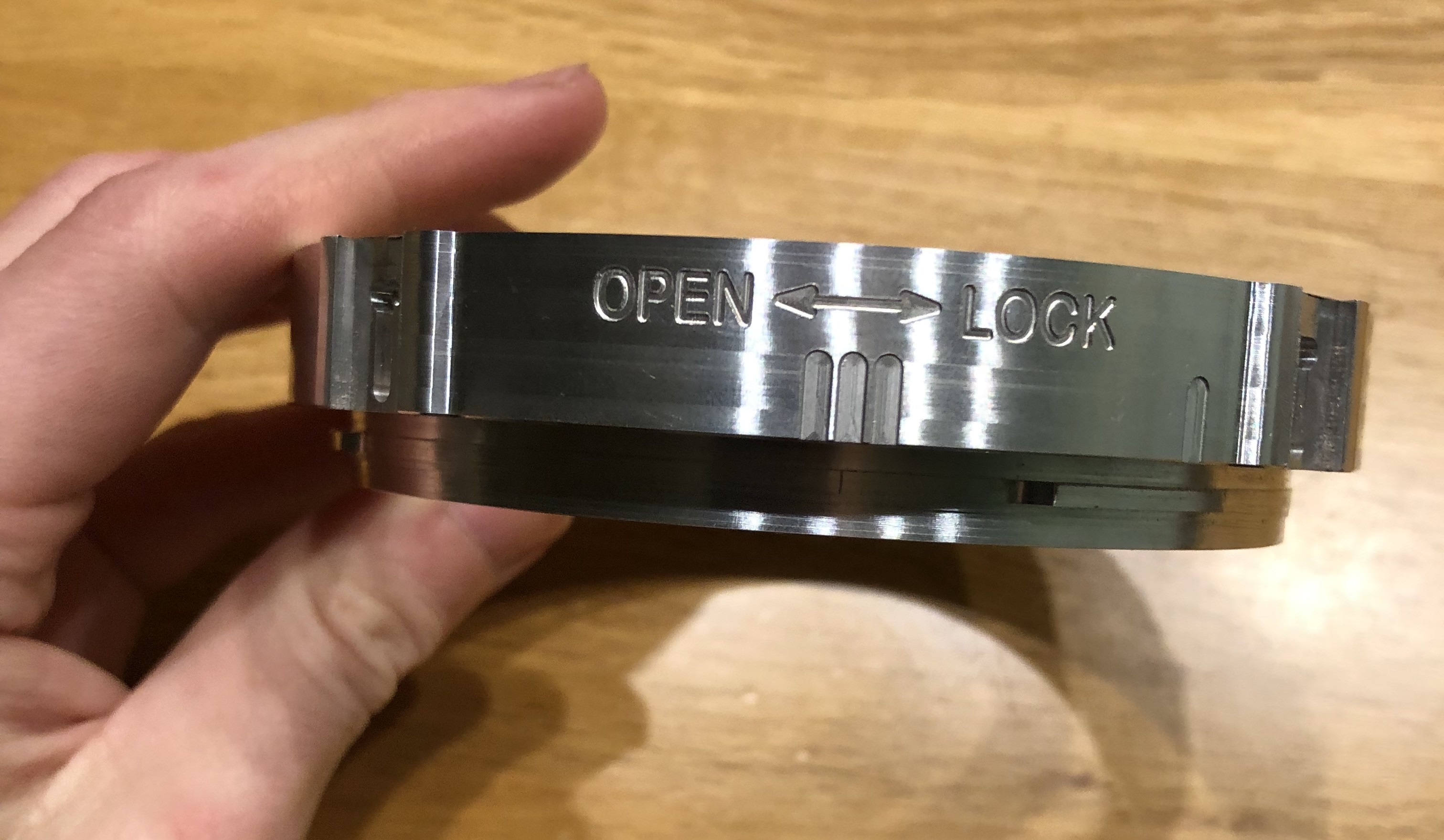

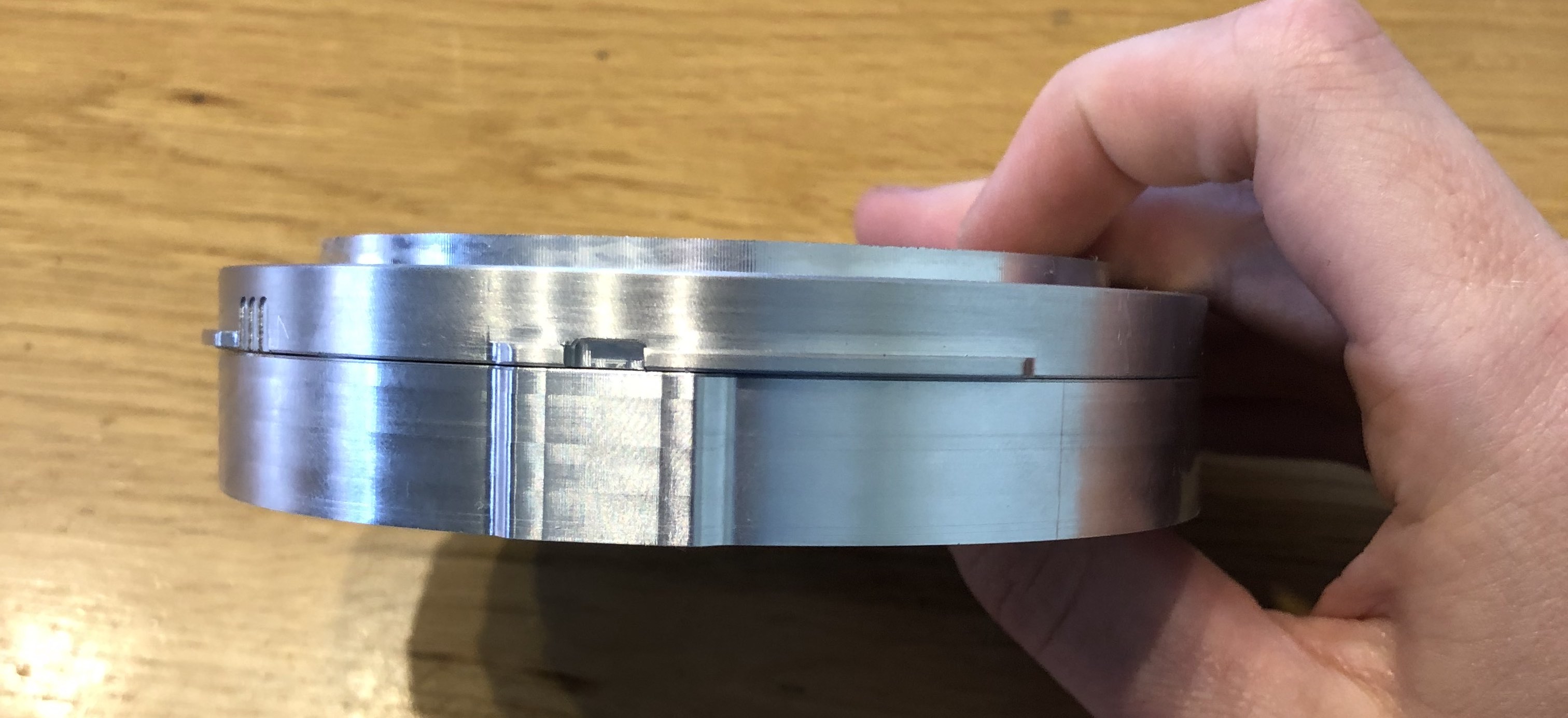

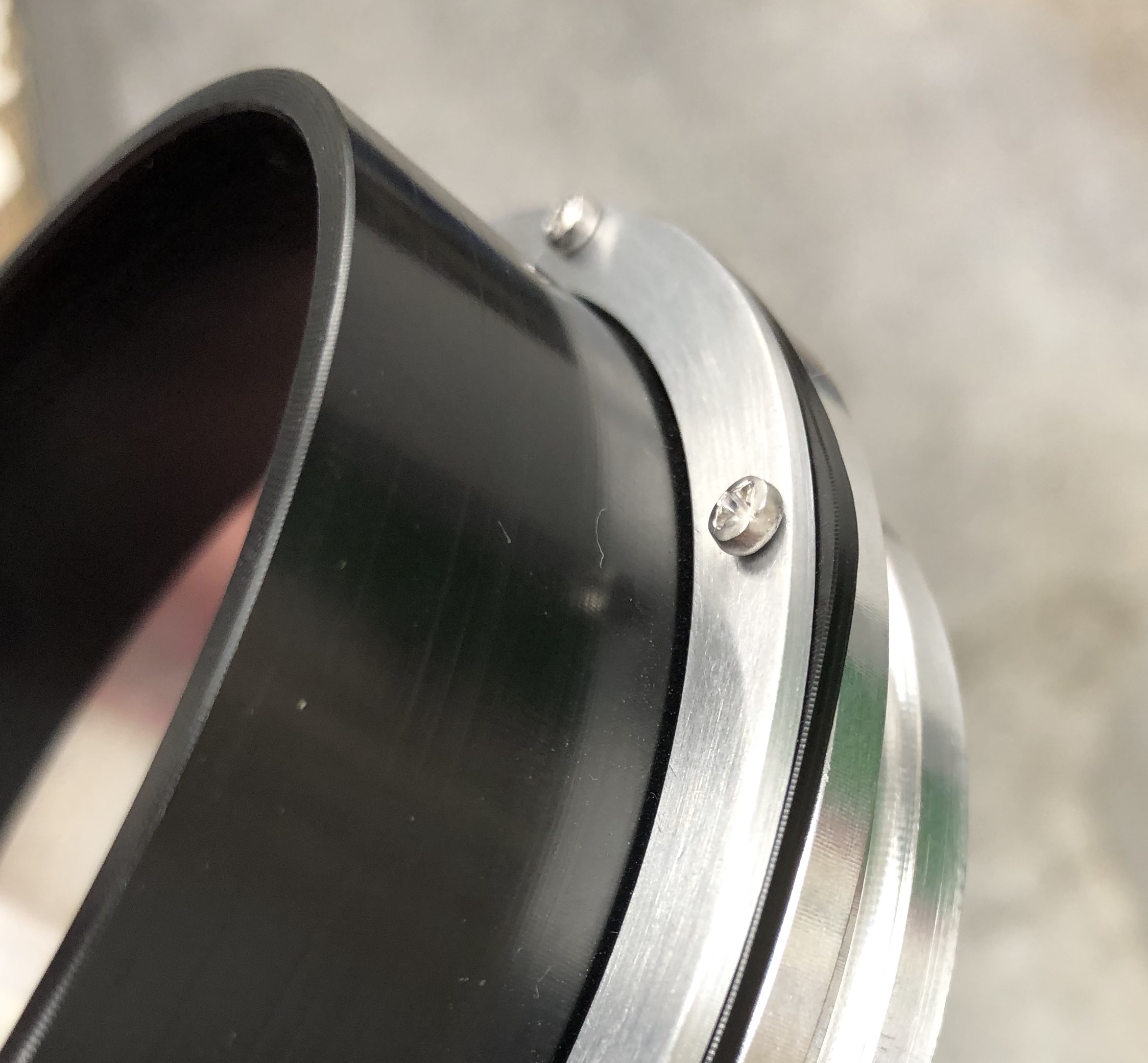

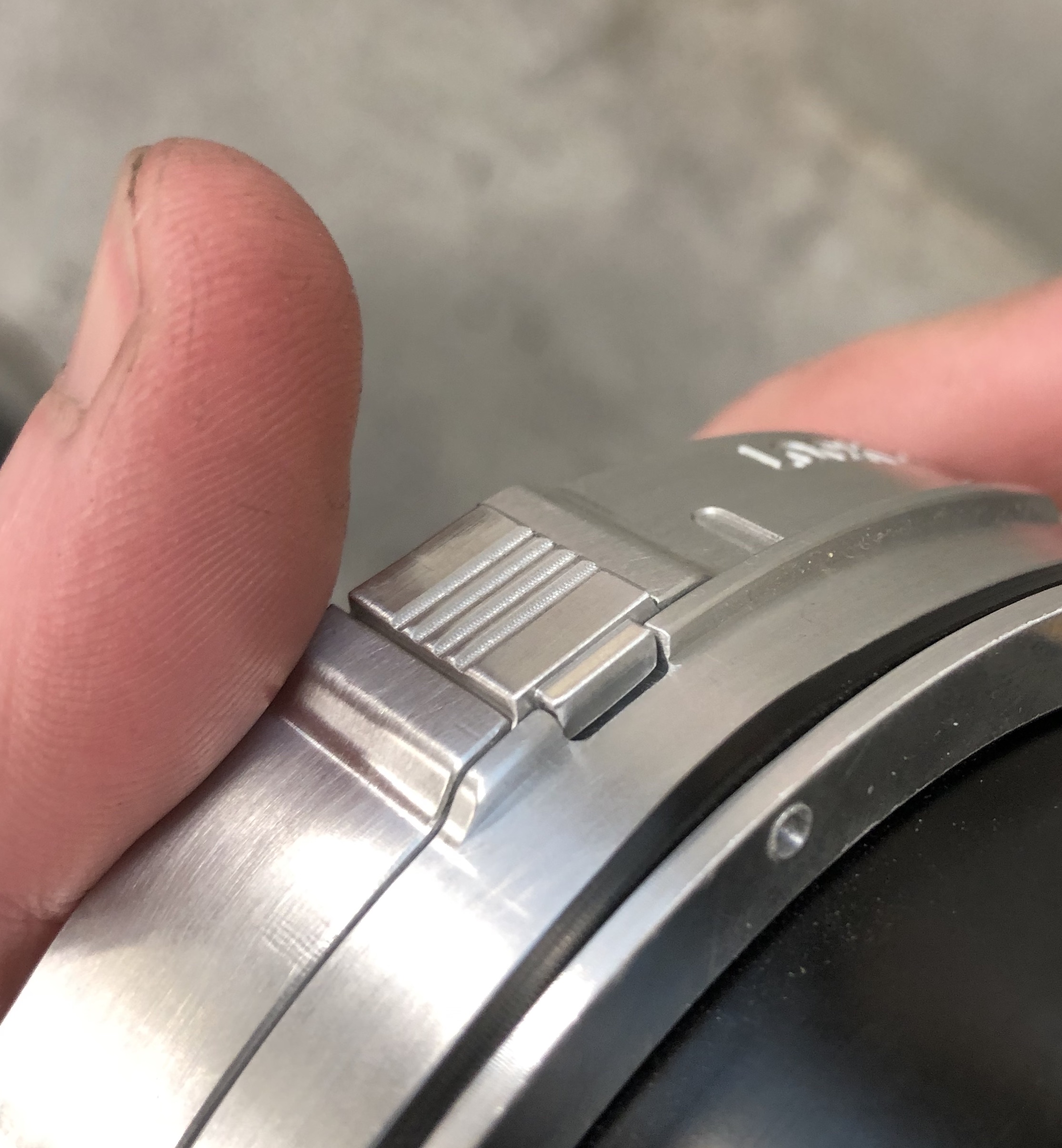

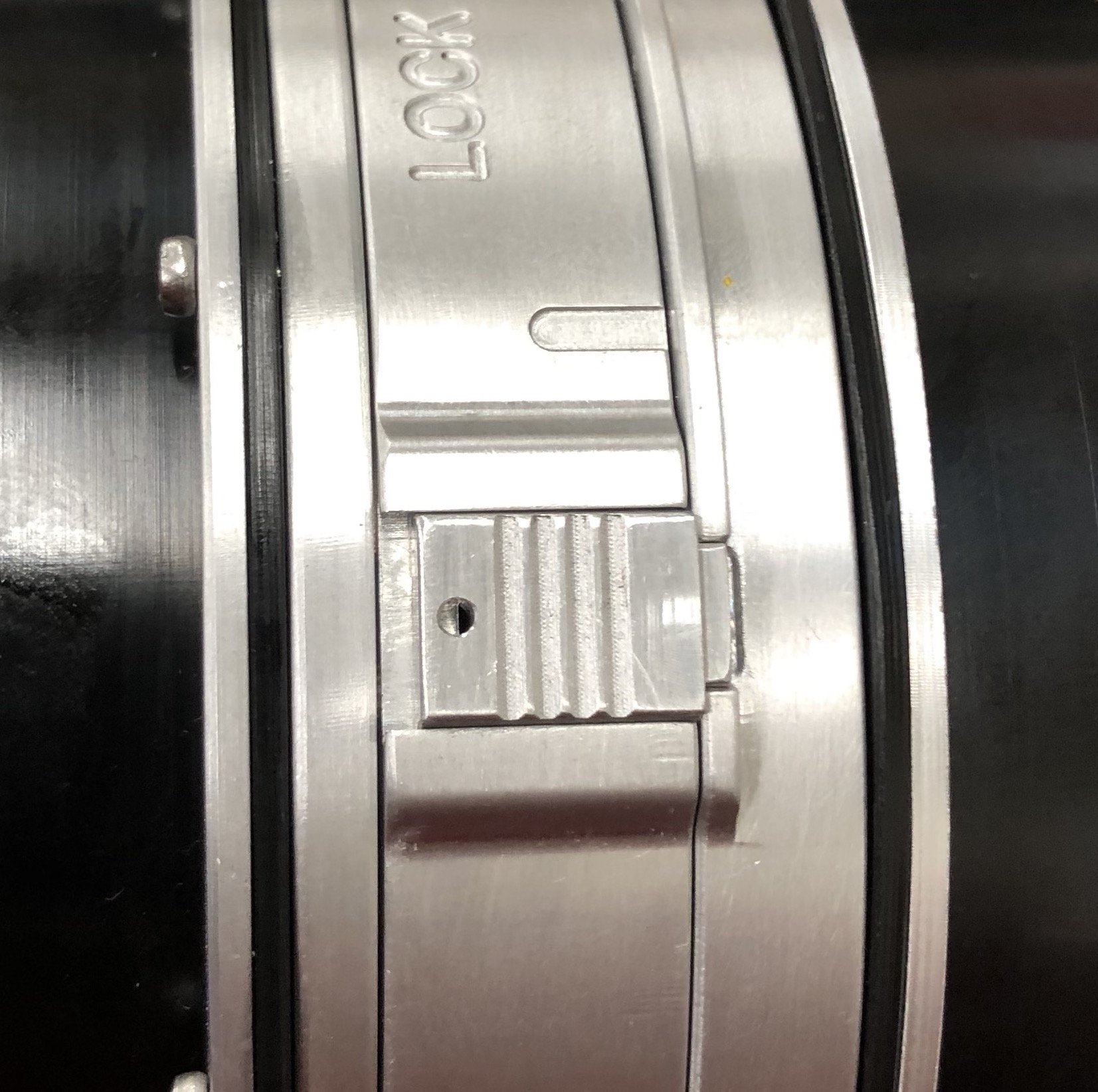

Both pieces locked together.



alexbailey

Active Member
RPF PREMIUM MEMBER
Very impressive. Sorry if this was already discussed, but is this piece actually functional enough that it might work in a real suit?
It functions in that you can connect and disconnect them and the mechanical features function accurately. They don't seal and hold pressure. I have no idea how they hold pressure. If anyone knows how that works i would be eager to find out. They would leak at the bearing ring area.
