Can someone post a close up pic of the 2.0 button (top and bottom) please and if they have a real Graflex one can they post side by side pics

Can someone post a close up pic of the 2.0 button (top and bottom) please and if they have a real Graflex one can they post side by side pics

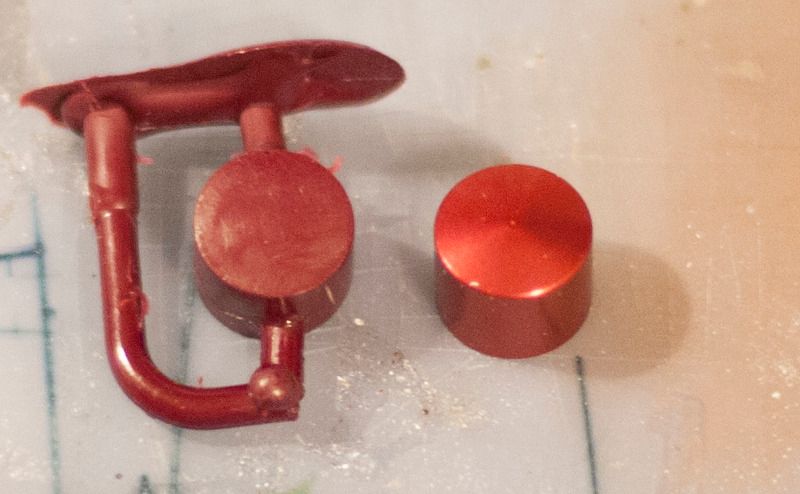

Not vintage, but here's the upgrade option from the junkyard

Thank you for the post. I was hoping for the whole button. Metal and all. I want to know if the 2.0 can be modd'd to fit in a vintage

FYI. Got my replacement red button and glass eye today from The Graflex Shop so they are back in stock.

I now have all the parts and tools... just need the hilt to come in.

Last edited:
FYI. Got my replacement red button and glass eye today from The Custom Saber Shop so they are back in stock.

I now have all the parts and tools... just need the hilt to come in.
How's the glass eye look? I ordered one and got an email on the 20th saying it would ship soon, hoping to see it in the next few days.

How's the glass eye look? I ordered one and got an email on the 20th saying it would ship soon, hoping to see it in the next few days.

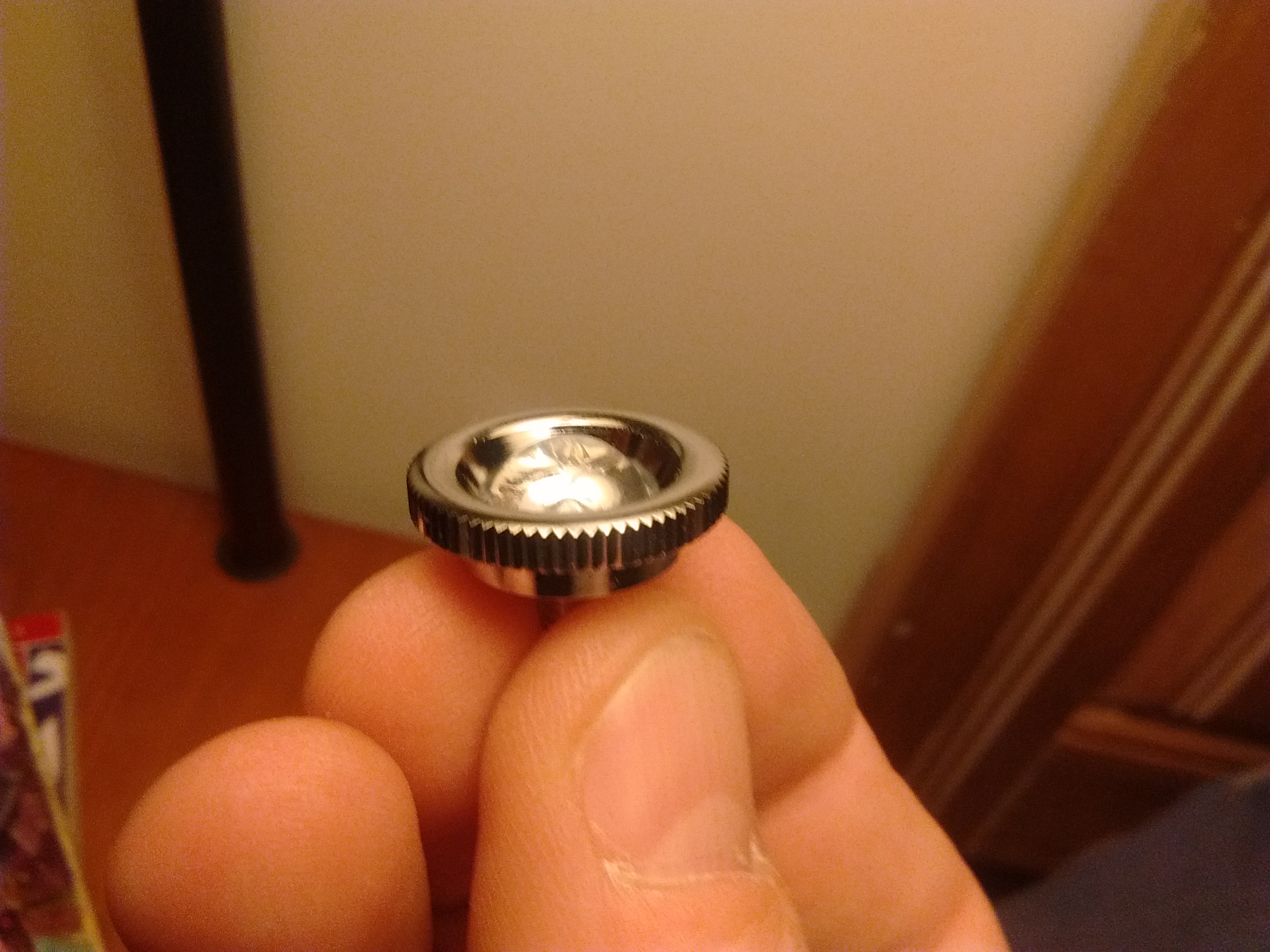

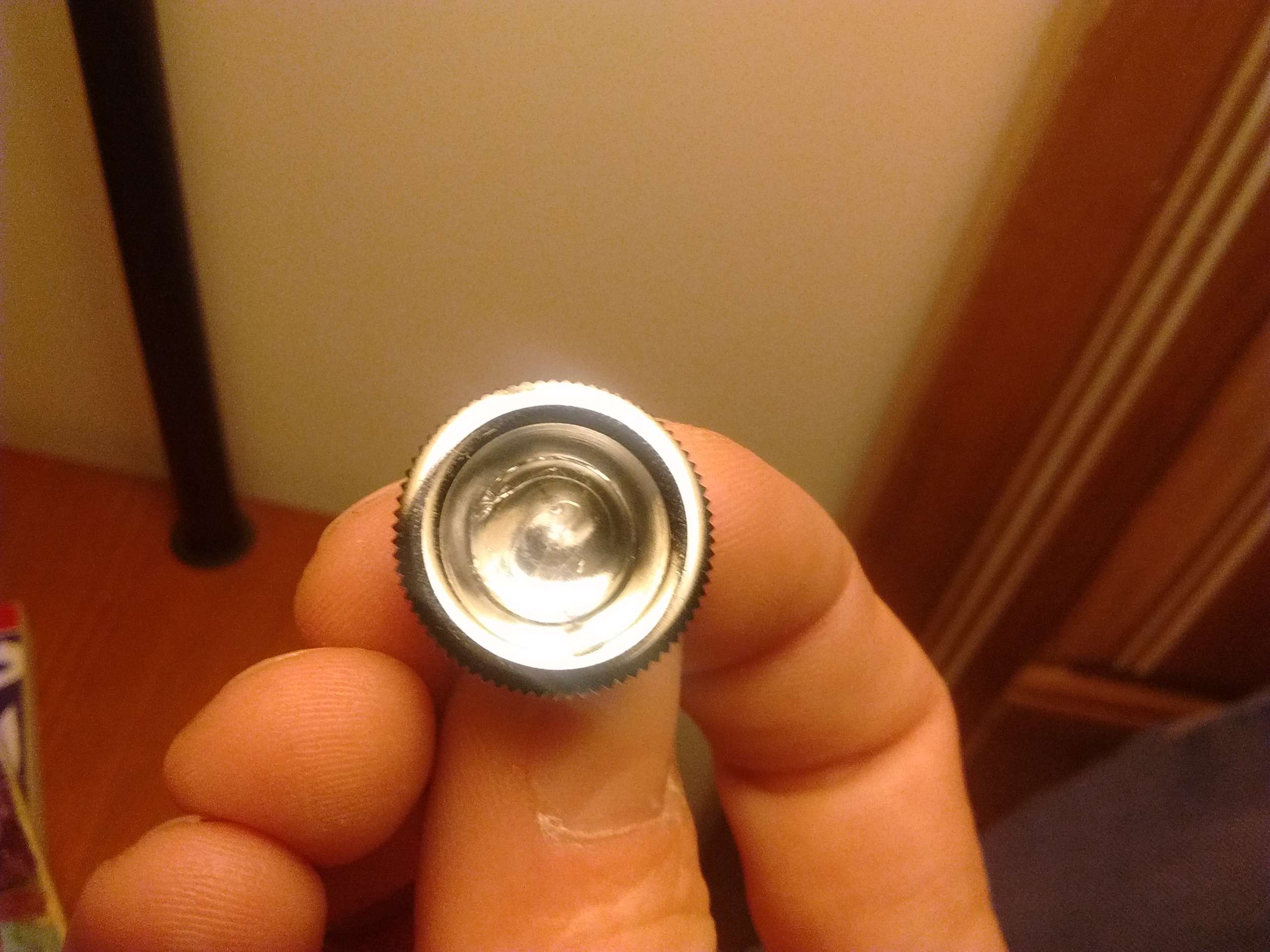

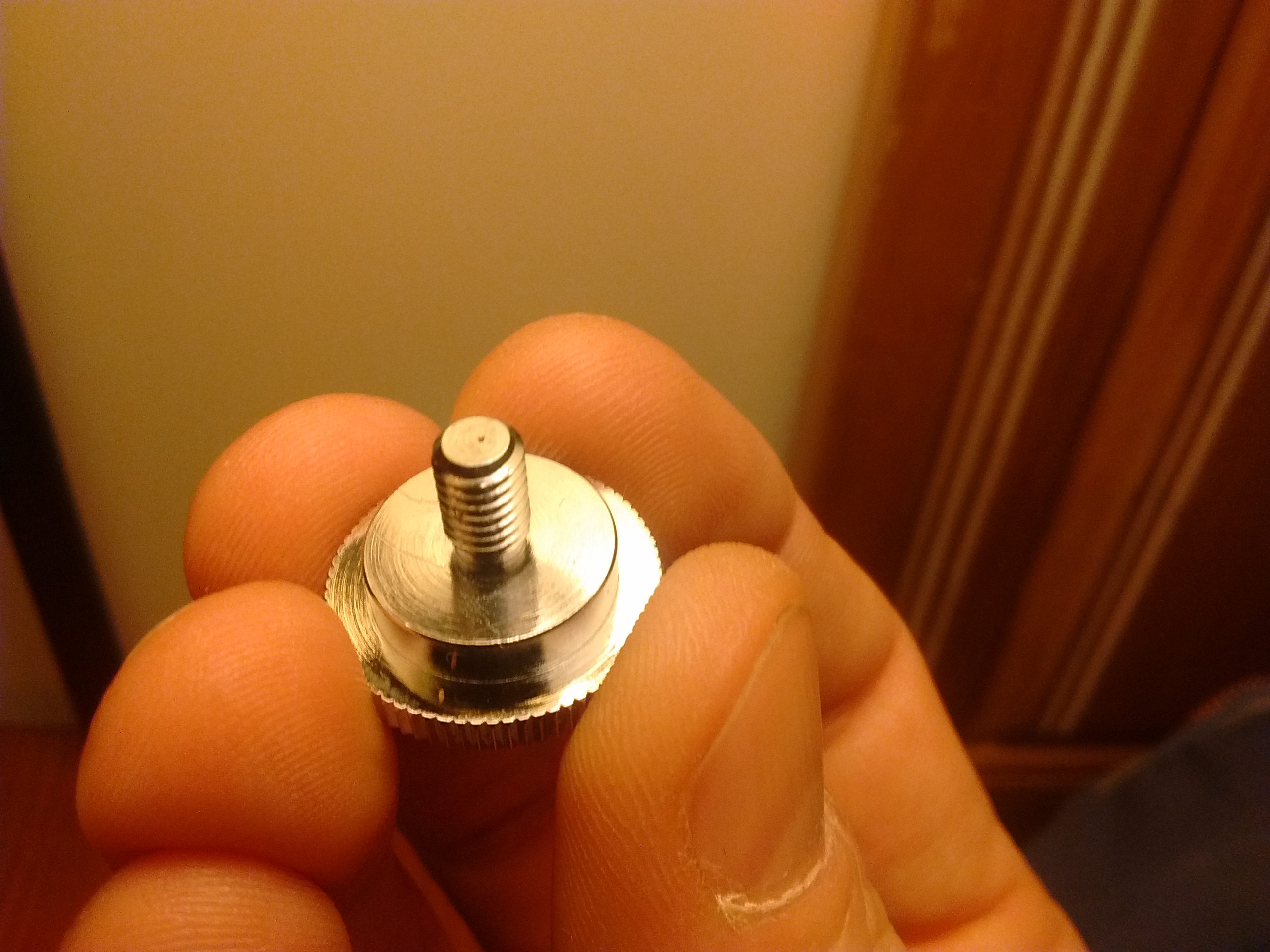

Looks good! Much better than an all metal one. I have a client with a digital drill press. I'm going to see if they can drill a hole directly down the post. If not I'll cut it off and drill a larger hole and glue it to the hilt with JB weld... I WILL have a shine through glass eye one way or the other... :)


Looks good! Much better than an all metal one. I have a client with a digital drill press. I'm going to see if they can drill a hole directly down the post. If not I'll cut it off and drill a larger hole and glue it to the hilt with JB weld... I WILL have a shine through glass eye one way or the other... :)

View attachment 609986View attachment 609987View attachment 609988
That has me thoroughly excited. I wasn't thrilled about paying $10 for shipping on it, but between Roy's parts, this, and my KR blade plug I'm really happy.

Would anyone be kind enough to post measurements of the bottom half of the hilt? More specifically, I'd like to know the internal diameter and length, so that I can look for parts to build my chassis.


Sent from my iPhone using Tapatalk

Would anyone be kind enough to post measurements of the bottom half of the hilt? More specifically, I'd like to know the internal diameter and length, so that I can look for parts to build my chassis.


Sent from my iPhone using Tapatalk

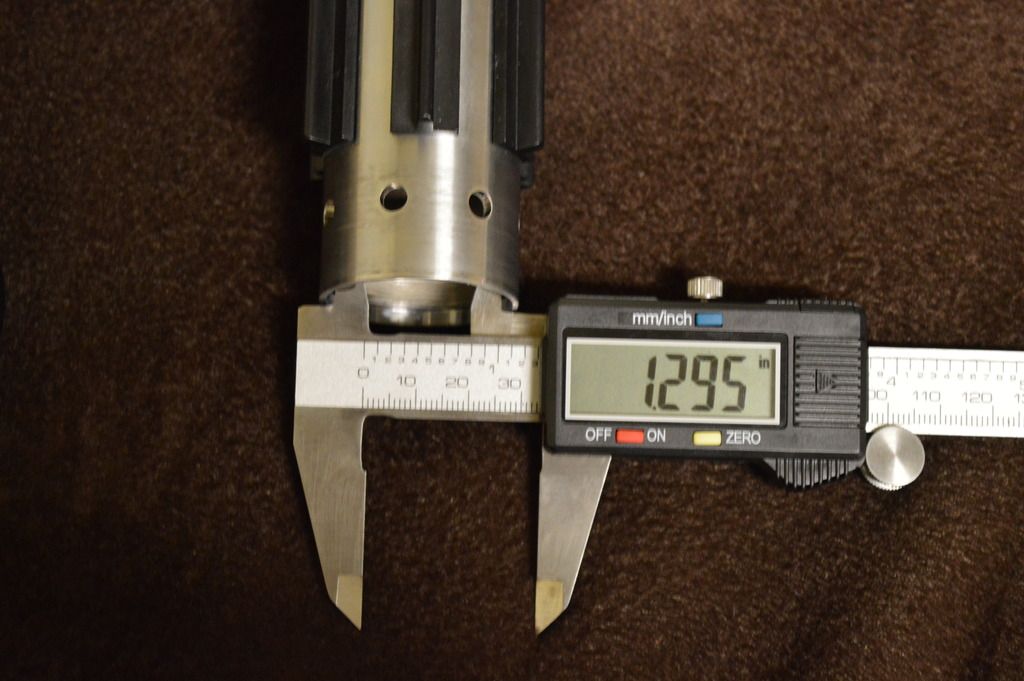

Here you go.





I recommend using a .05 to .1 inch tolerance on your chamber, that way you know for a fact that it fits inside and you won't have a delicate chamber getting stuck in your saber.

Here you go.

[url]http://i781.photobucket.com/albums/yy98/JaxAndTheMoon/DSC_0225_zpsgzlpvr2e.jpg[/URL]

[url]http://i781.photobucket.com/albums/yy98/JaxAndTheMoon/DSC_0226_zpshoqwwlls.jpg[/URL]

I recommend using a .05 to .1 inch tolerance on your chamber, that way you know for a fact that it fits inside and you won't have a delicate chamber getting stuck in your saber.

Thanks! That's exactly what I was looking for.

I'm actually trying to build the chassis using things that I find at hardware stores instead of relying on TCSS. I'm probably making my life more difficult than it needs to be though ;-)

Where does TCSS source their glass eye thumbscrews and kobold d-rings from? I just ordered one of each from them and I'm curious if they're the same stock as the ones from TGS and Roy, respectively.

Where does TCSS source their glass eye thumbscrews and kobold d-rings from? I just ordered one of each from them and I'm curious if they're the same stock as the ones from TGS and Roy, respectively.

I don't know where they source them from but they are not the same. The quality is not as good as Roy or TGS. The glass eye from TCSS is actually a clear gelatin material, not real glass. The one from TGS is real glass and a higher quality.
