I want to build a Harp chassis love this reveal lots of small led's doing a lot of stuff just wiring this part up is going to be a challenge I have the mill to do this and a pretty good modeler just see my thread on the 1/6th batmobile got to get this done before wonderfest. I don't really want to remove all those bits to pull out the chassis can I do this with out doing those steps or do I have to to have this reveal. The blade adapter I will get from vader's vault this seems like the rite one and its 1 inch so will all my led's change in size. Man when I do a project I jump in deep I can't even feel the bottom LOL. Thanks.....Jim
jcroscigno
Well-Known Member
Thanks for the heads up - this is one of the few pieces that will be harder to obtain - ordered mine yesterday. One thing that's kind of sad is how many of these nice pieces will be unseen in a finished build - that copper heatsink is very pretty, as is the whole grenade-style blade holder. I wonder if someone will figure out a way to do a very wide-open reveal like the eFX that shows it off.
ViperDeCobray
Active Member
I just ordered some more parts. Ordered the Goth 3D Knight chassis (both parts), the copper 7/8 heat sink off etsy, and a tri-rebel blue/blue/white LED and lens off of TCSS. Now, to sit and wait for those to come in, and then will order more stuff.
kermet
Sr Member
Yep I agree there are a lot of unseen parts that are cool and a lot of parts are getting hard to get so many are building this saber, but its cool just to see what others are coming up with Love it. Thanks....Jim
Fett 4 Real
Sr Member
I just ordered TCSS heat sink and the etsy one...see which I like better...doubt there will be a big difference but I think I'll end up building a second one in the future anyway. For a good friend of mine.
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Do you have a link for the TCSS heatsink?
That new copper one from Saberforge (etsy) looks great. I kinda wish i hadn't order the other one.
That new copper one from Saberforge (etsy) looks great. I kinda wish i hadn't order the other one.
jcroscigno
Well-Known Member
Saberbay, not saberforge.
I grabbed one yesterday - the design looks great with the groove for a retention screw. The lip on the TCSS sink would be nice to hold the optics in place, but I'll make do. My 2.0 will not be a dueling saber in any way.
Fett 4 Real
Sr Member
Everyone says the white doesn't need a resistor. For the 3.7V
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
JaxAndTheMoon
Sr Member
TCSS is out of stock on sound boards almost immediately after they restock. I blame this site!!!
jcroscigno
Well-Known Member
I'm not sure if the NBv3 has improved on this, but my NBv2 that I used in a Luke Hero build is definitely finicky. I have two green dies (no FOC) each with a 1 watt, 1 ohm resistor. A green xpe2 die draws 3.7v at 1 amp, and the NBv2 is supposed to be able to drive 2 amps without issue. Still, I get random swings, etc., when the battery is fully charged, so I'd err on the side of caution and stick a resistor on anyway.
It's one of the reasons I'm going with a Spark Color 2 board, no resistors needed with the trudrive.
It's one of the reasons I'm going with a Spark Color 2 board, no resistors needed with the trudrive.
Fett 4 Real
Sr Member
TCSS has its own forum....and theres FX-Sabers forum both talked about the 2.0 and the boards...lol I think mine shipped!
jcroscigno
Well-Known Member
Also there are quite a few lightsaber boards on facebook that eagerly await stock notifications as well. There's lot of people trying to build fx sabers these days.
AgentOfShield
Well-Known Member
TCSS recently posted on their forums that their Facebook page is the best place to monitor for stock updates, so I'd keep checking over there.
kermet
Sr Member
Yep, for sure I see that I may be one of those, I love it its like model building but in another form. I never thought it would be so cool. I've always loved the light saber only had toy types and now after seeing all this I have gone I can't think of a word to type in there,but this is all so cool and loving this thread every time. Thanks......Jim

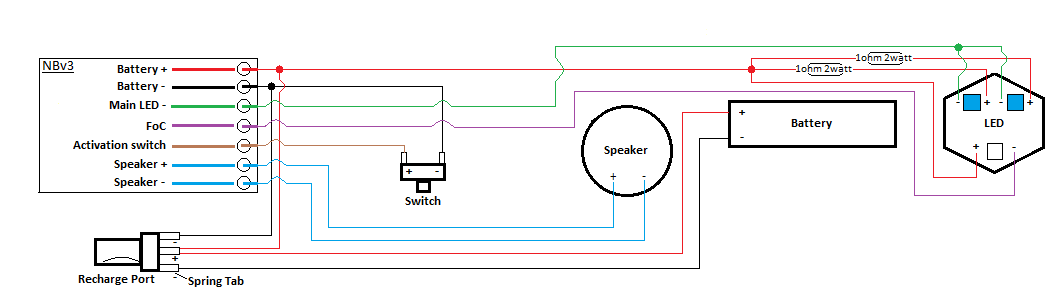

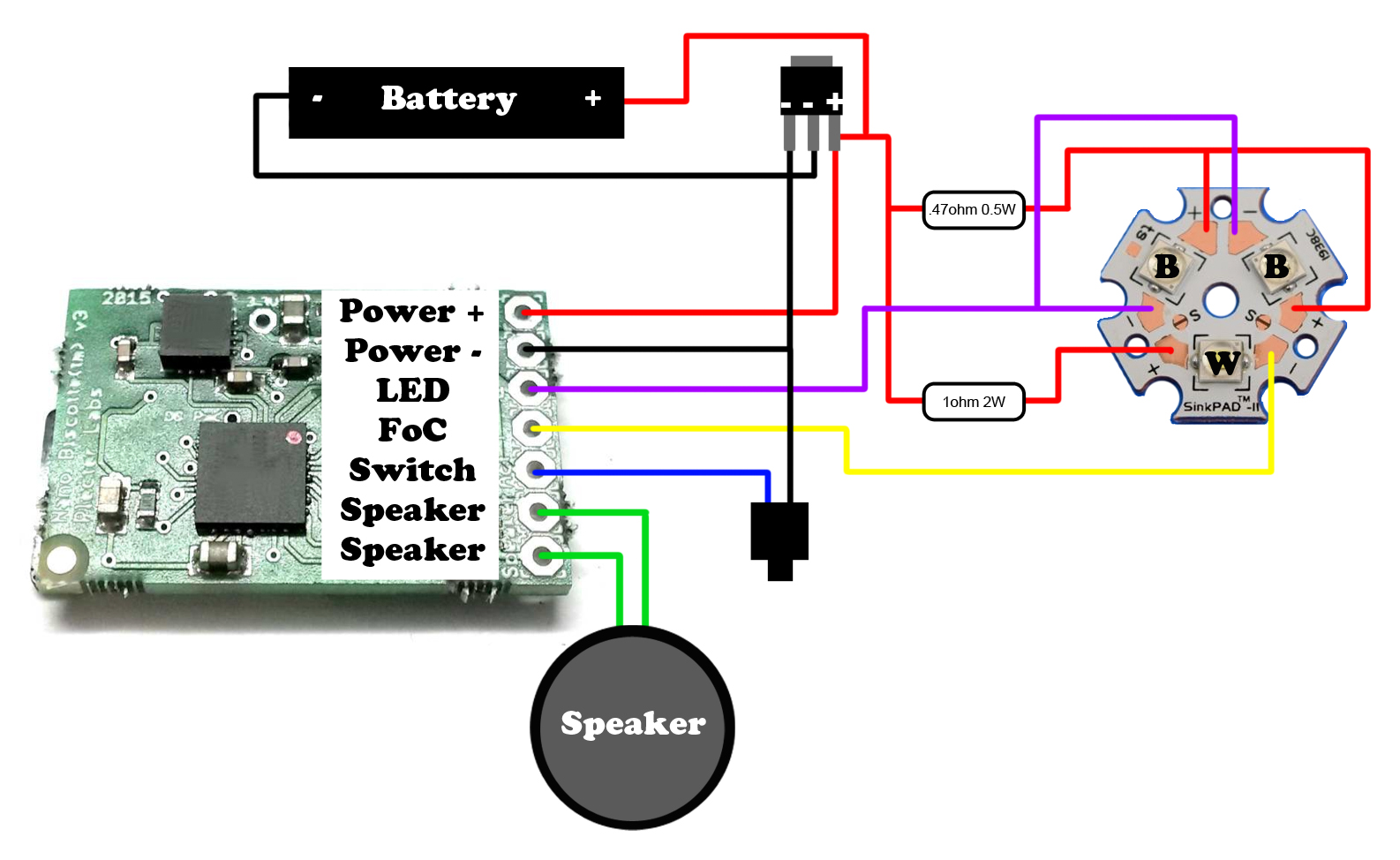

This is my personal diagram that I have drawn up (I have many for different configurations. It is always recommended to resist the LED's individually. And no, you do not need a resistor on the white die since the forward voltage of the die is so close to the supply voltage.
