TIE Advanced Build Log (Nice-N Base with Modifications)

Discussion in 'Studio Scale Models' started by vectorzero, Oct 8, 2018.

  1. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    I never seem to have the time to build stuff although I spend a lot of time here living vicariously....

    Being a perfectionist by nature I’ve been caught in the loop that by the time I’ve got the time to create my ‘grail collection’ of Studio Scale Star Wars ships, it will take me so long to build my skills back to where I’m competent that I’ll be dead.

    So last year I commissioned Andy (flyscriber) to build my Salzo Mk IV X-Wing as Red 5. The results were perfect and exactly what I wanted.

    So now everything has to meet that standard. Which means Andy’s going to be getting a lot of resin from me over the next few years.

    This year, the choice was Nice-N (via Mike Salzo) Y Wing, or Nice-N TIE Advanced. To keep balance in the Force, we went with the TIE Advanced. The idea was that it would be a quick and easy build as the subject matter isn’t madly complex, and the kit was very modern.

    There are a few other fellow travellers with this replica who might recognise some challenges. Here’s the story spread over loads of posts.

    (Note that Andy’s camera tends to have a pink caste towards the centre of the frame.)

    Last edited by a moderator: Nov 9, 2018
    swmodelfan1977 likes this.
  2. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    The kit is very well made and reflects the (sparse) reference photos well. The finish is a sandy texture unlike a very smooth model from Mike Salzo (my only other reference point in this type of kit.)

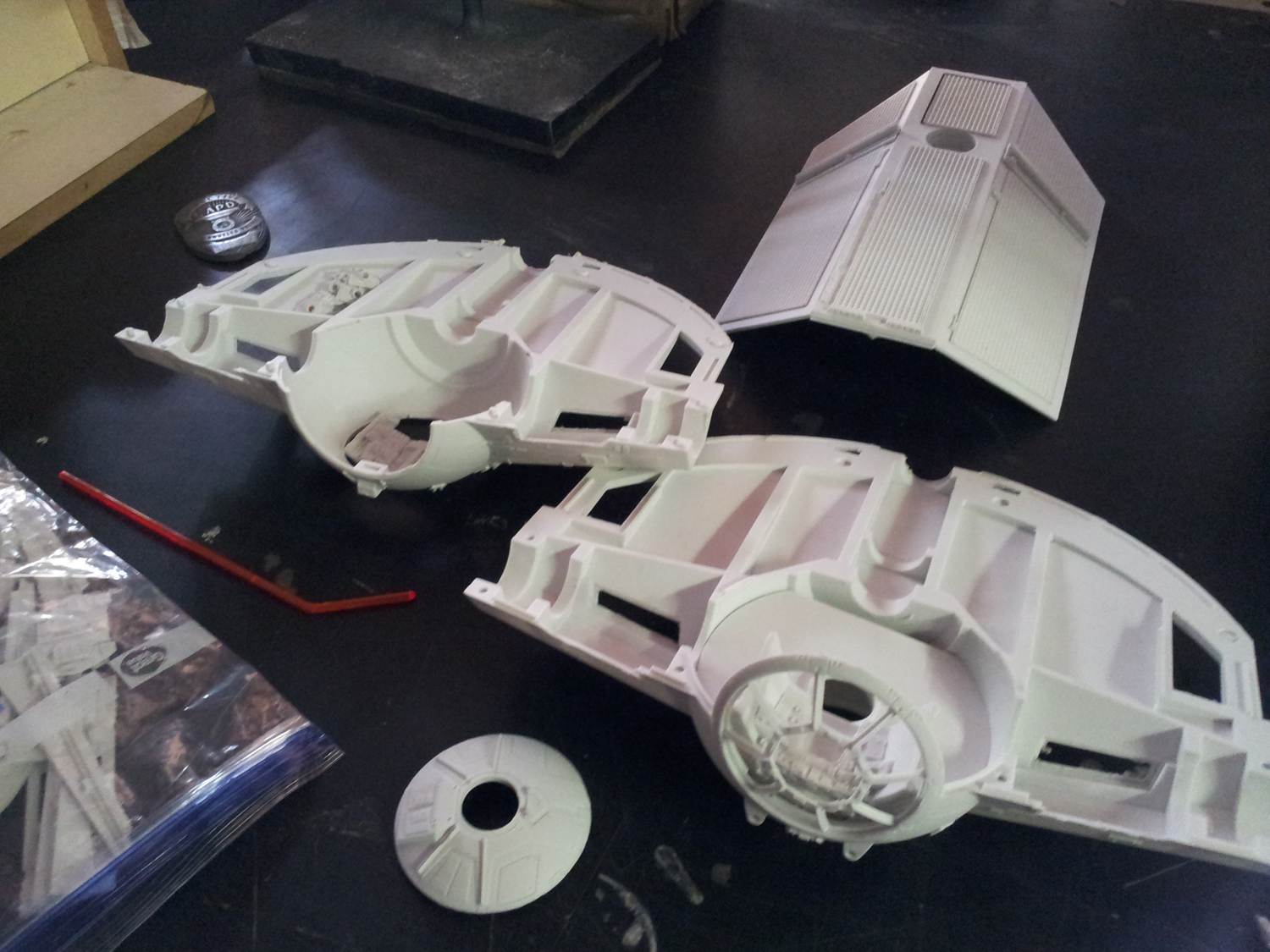

    01 Parts Laid Out.jpg

    The first step is to remove all pour stubs, and then sand all the body and wing panels with progressively finer grit up to 800 grade.

    Many of the separately supplied surface details and the various detailed pits also exhibit this texture. A fair amount of time has to go to cleaning these up before the any assembly starts.

    There is some work to do to ensure the top and bottom halves fully align. There are big keys to ensure alignment of the hull halves. However, most of the keys are actually too large for their corresponding holes, so a lot of trimming is needed to get the halves to fit perfectly. Some alignment tabs had to be removed completely to allow for manual alignment during final glueing.

    The top and bottom cockpit holes also need to be opened up gradually to ensure a good interference fit with proper alignment.

    02 Upper Hull Prep 1.jpg 03 Lower Hull Prep 1.jpg 04 Upper and Lower Test Fit 1.jpg 05 Upper and Lower Test Fit 2.jpg

    01 Parts Laid Out.jpg

    02 Upper Hull Prep 1.jpg

    03 Lower Hull Prep 1.jpg

    04 Upper and Lower Test Fit 1.jpg

    05 Upper and Lower Test Fit 2.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, swmodelfan1977 and George like this.
  3. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    The armature runs along both wings and features 1/2” UNF threaded holes to allow mounting from each each wingtip, front, bottom and top of cockpit. There is an extension piece which extends to the tail and allows mounting from the back.

    01 Armature from Front 1.jpg 02 Armature from Top.jpg 03 Armature from LHS Wing.jpg 04 Armature Botton Mount in use.jpg

    The threaded holes for the rear mount were not square to the main axis of the bar which made the rear extension about 2mm out of line at its farthest point. The rear mount armature was made to fit the model with a slightly cranked rear member with a 1⁄2 inch nut welded into it.

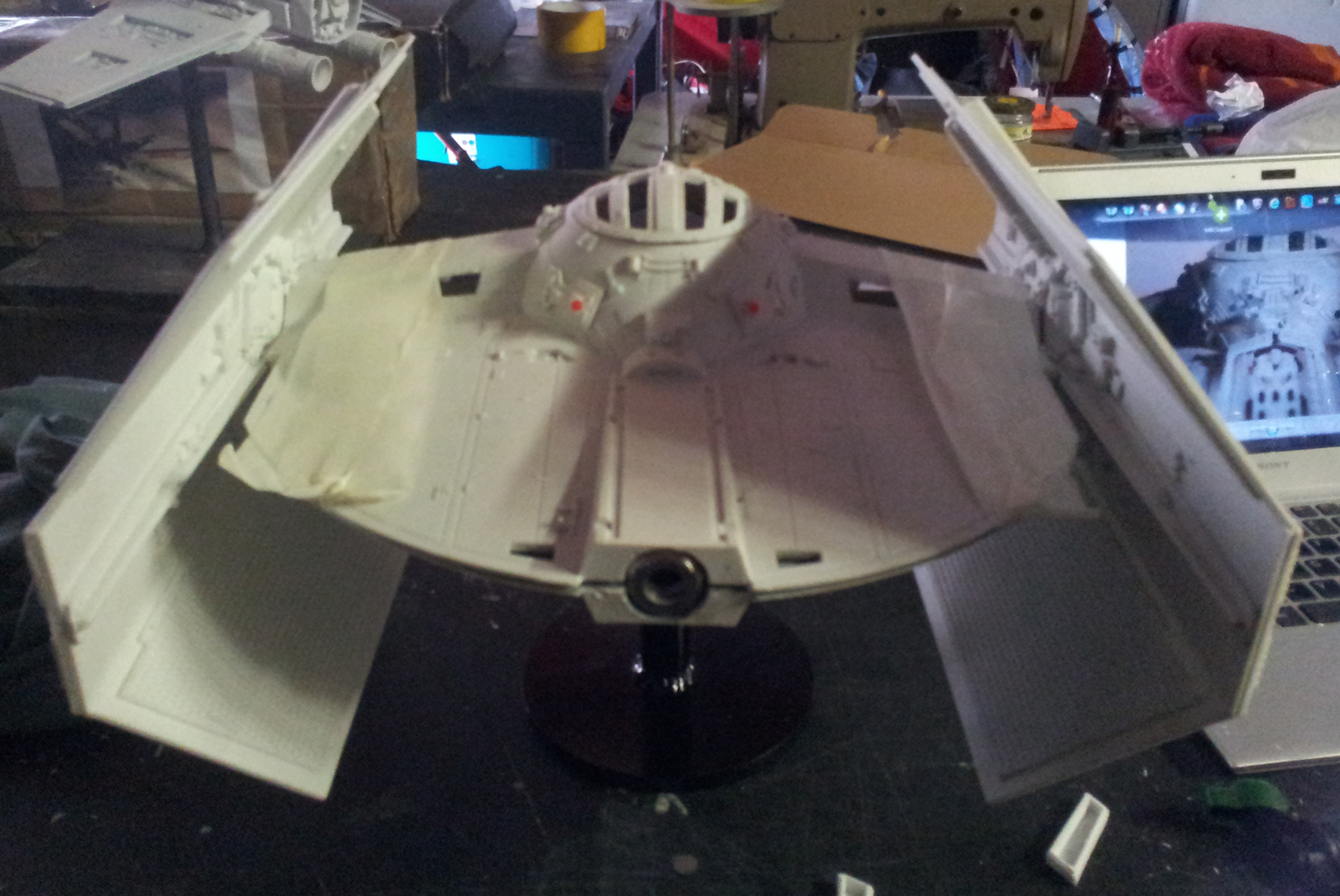

    05 Armature from Rear Showing Offset.jpg

    Where the two parts intersect there are only about 4 turns of thread holding the rear extension in place when the front armature is in place. This is secured with a locking nut and threadlock.

    01 Armature from Front 1.jpg

    02 Armature from Top.jpg

    03 Armature from LHS Wing.jpg

    04 Armature Botton Mount in use.jpg

    05 Armature from Rear Showing Offset.jpg

    Last edited by a moderator: Nov 9, 2018
  4. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Some modellers of both the Nice-N TIE and X-1have noted that the cockpit is not a great fit in the ball. This may be a greater or lesser problem depending on the vintage of the kit.

    In this December 2017 example it does look a fraction small in comparison to the original. The side walls don't seem to be high enough in the cockpit as you can see the transition to the top section through the opening.

    The next issue is that the internal armature encroaches into the cockpit area. This requires some dramatic metal removal to allow it to fit without placing the pilot too far forward.

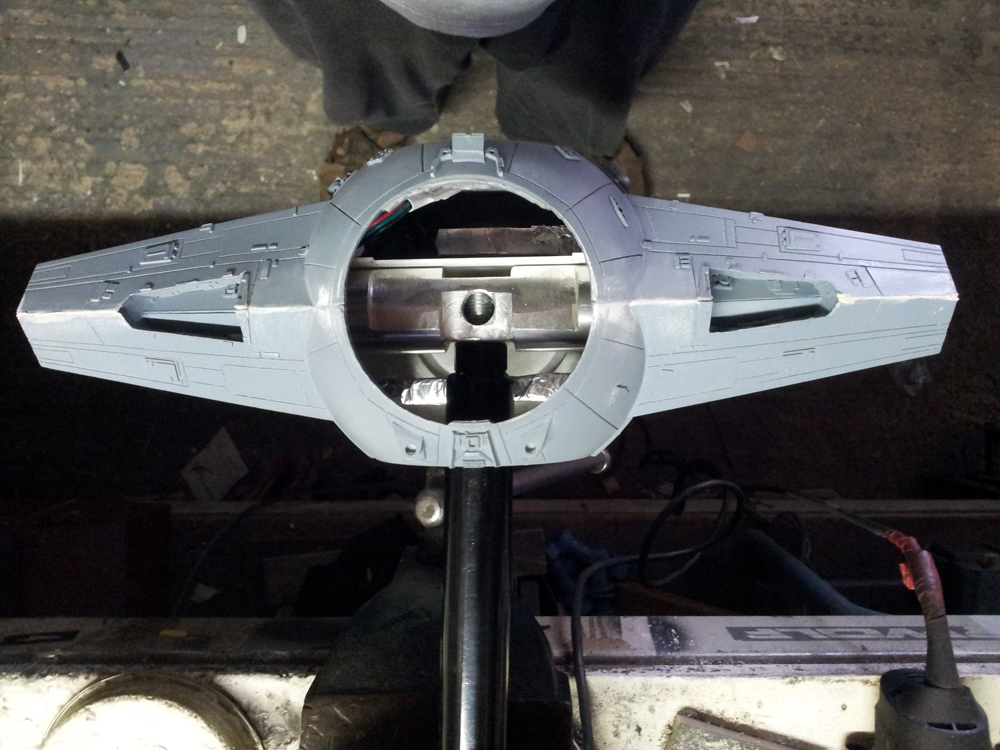

    00 Armature showing through front.jpg 01 Armature Modification Close Up.jpg

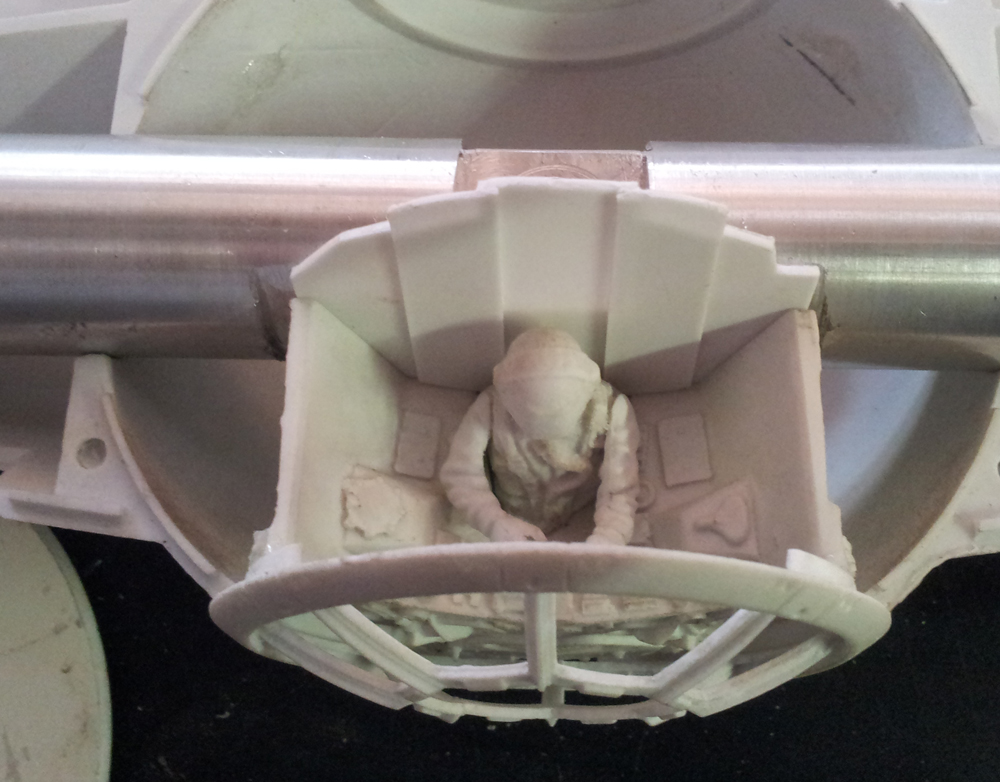

    02 Cockpit Mod from Above.jpg 03 Cockpit Mod from Above LHS.jpg

    The inner floor plate is impossible to fit in a nice way with the cockpit and armature clearance so this has been left off the final build. The cockpit now inserts from the front, and is anchored in place by the shelf / battery holder (see later post). This makes the alignment of the inner cockpit and the gap at the bottom much nicer.

    There is some discrepancy in the upper and lower half's of the main body at the front, so the front hole is enlarged to allow the cockpit to slide to the left (as viewed by the pilot) and remain centred when final assembly takes place.

    04 Cockpit and Front Frame Test Fit.jpg

    The cockpit has gaps on either side between the roof section and the walls. This was not modified as the original shows a gap inside.

    The interior and armature is clearly visible through the slots in the top hatch.

    05 Top Hatch before modification showing armature.jpg

    Reference photos don’t show much of what is really going on here, although the suspicion is that it really is wide open. To hide the armature and the lighting electronics, the slots are boxed, and then an inner cap fitted to close off the cockpit.

    06 Modified Top Hatch Lower.jpg 07 Modified Top Hatch Upper.jpg 08 Modified Top Hatch in Position 1.jpg 09 Modified Top Hatch in Position 2.jpg

    00 Armature showing through front.jpg

    01 Armature Modification Close Up.jpg

    02 Cockpit Mod from Above.jpg

    03 Cockpit Mod from Above LHS.jpg

    04 Cockpit and Front Frame Test Fit.jpg

    05 Top Hatch before modification showing armature.jpg

    06 Modified Top Hatch Lower.jpg

    07 Modified Top Hatch Upper.jpg

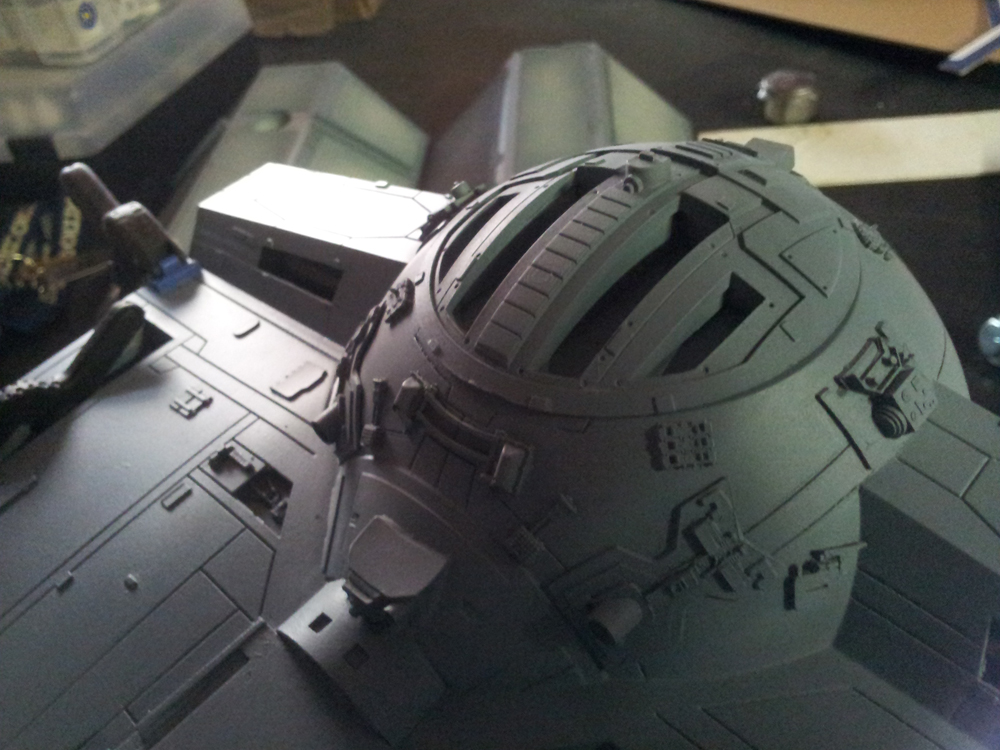

    08 Modified Top Hatch in Position 1.jpg

    09 Modified Top Hatch in Position 2.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, jkno, pepperbone and 2 others like this.
  5. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    One of the wings was quite warped, so needed a multi stage correction. First the the wing was heated slowly to get the whole part fairly flexible and then clamped overnight. This resulted in about a 50% reduction in the distortion.

    01 Wing After Initial Correction.jpg

    A jig was then built to clamp the wing more securely with a notch to allow the main wing supports to be supported close to the major joint. Another heat/chill cycle was done using hot water, then immediately clamping and cooling with cold water. This fixed the issue and gave a nice straight edge.

    02 Correcting Wing in Jig.jpg

    The two wings are now very similar when viewed side by side.

    03 Comparing Wings.jpg

    Some of the T strip moulding on the wing is a little too thin when compared with the archive photographs.

    04 Missing Wing Detail.jpg

    This was chiselled off and replaced with styrene T strut which should be accurate to the original.

    The wings were initially mounted with spacing washers to clamp the wings to the main armature without applying pressure to the cast resin then checked for relative alignment, taper etc.

    05 Wing Alignment Test.jpg

    01 Wing After Initial Correction.jpg

    02 Correcting Wing in Jig.jpg

    03 Comparing Wings.jpg

    04 Missing Wing Detail.jpg

    05 Wing Alignment Test.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, Treadwell, pepperbone and 2 others like this.
  6. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    I'm looking forward to reading this thread, but your attachments are broken!

  7. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Hmmm. Inline images should stand the test of time. But getting them to stick when I do a lot of consecutive posts is sometimes problematic.

    I check each post carefully and they were all fine 12 hours ago. I’ve corrected them.

    Last edited: Oct 9, 2018
  8. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    The decision was made to light the engines but not the guns. (I think this is the case with the original model.)

    The engines are standalone detail pieces, and only one was perfectly cast. The others needed some additional work to match the studio reference. The engine nozzles on the supplied parts seem longer than the studio model.

    The greeblie apertures were drilled out for lighting. One option was to use an LED in each engine. However, future maintenance would be impossible so a test was done using a light pipe.

    The is red acrylic tubing illuminated by a strip of RGB LEDs. In the test shot the visible end has just been sanded and the end heated - hence the small bubbles.

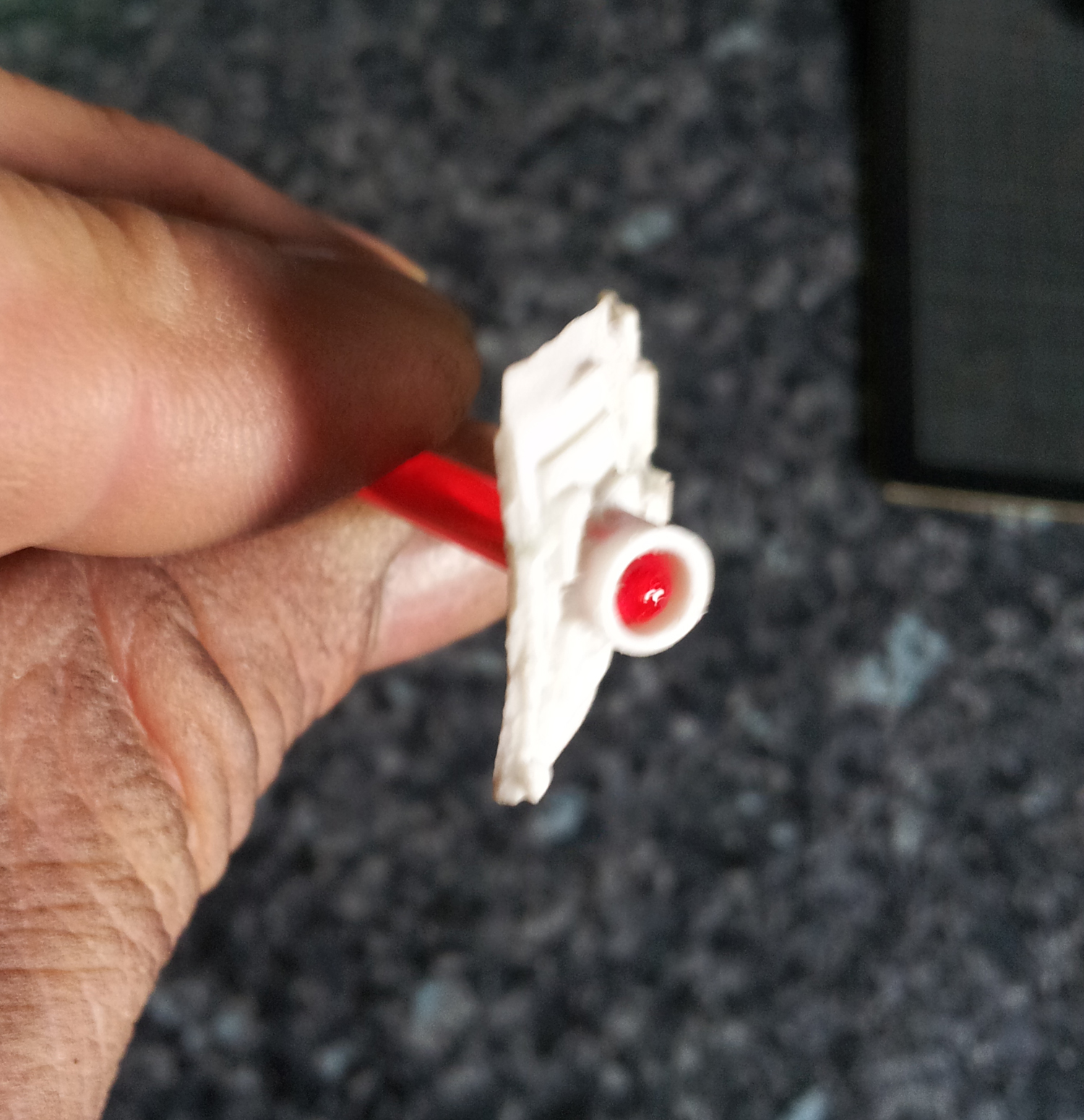

    01 Light Tube Test Standalone Engine Greeblie.jpg 02 Light Tube Test Standalone Engine Greeblie.jpg

    The engine greeblies were attached to the ball and then holes were drilled all the way through. The light pipe ends were finished by turning down in a lathe and then polishing to a high gloss. The light pipe was then connected into place behind the cockpit.

    03 Light Pipe.jpg

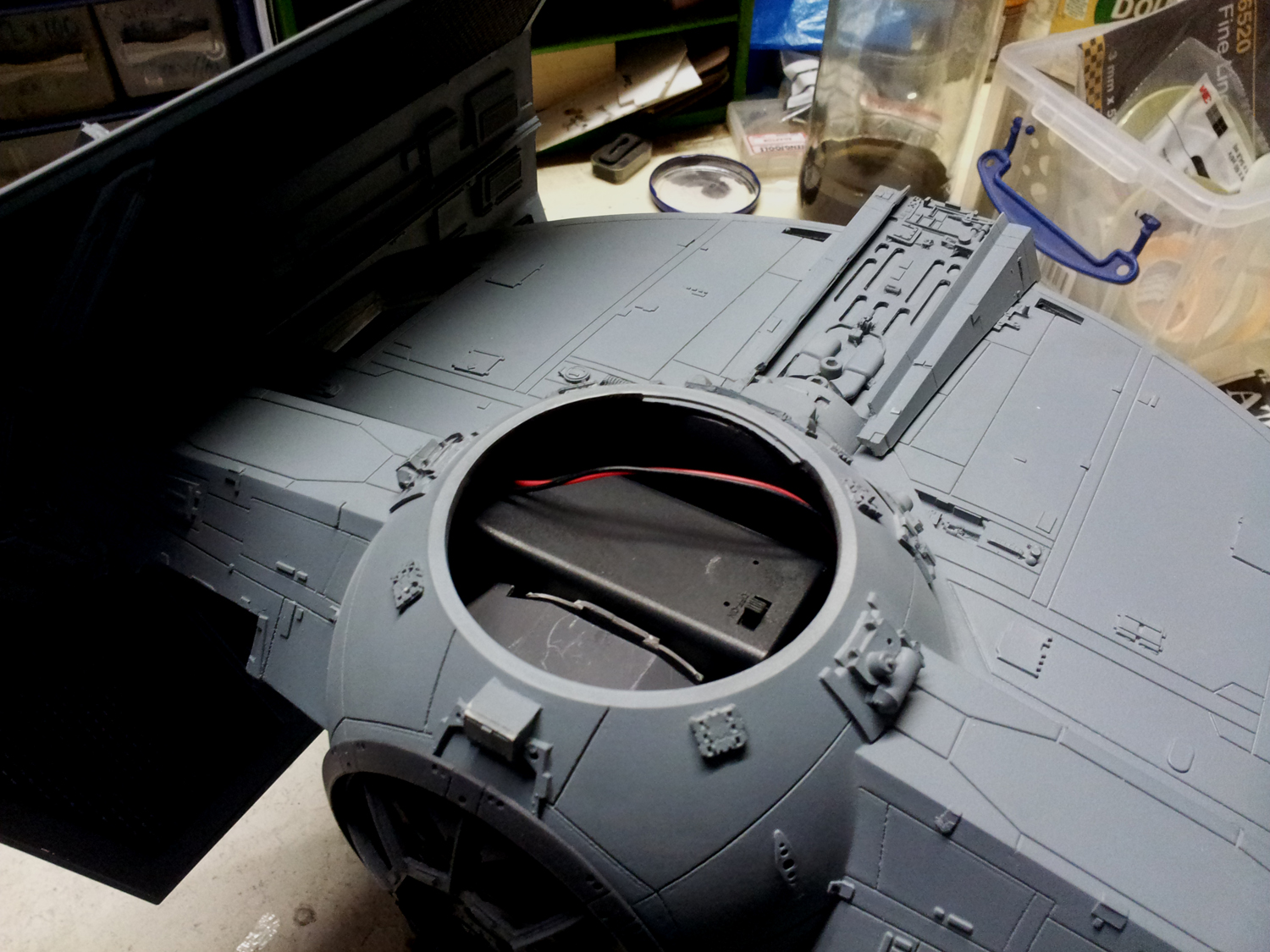

    Lighting is driven from a 9v battery inserted into the ball and controlled by an RF remote control.
    The remote can change the colour options on the LEDs, but the light pipe only transmits red. In practice this means fine control of the light intensity as well as giving the option of making flashes, pulses etc.

    04 Battery Box.jpg 05 Remote.jpg

    Light bleed was an issue with the very thin resin tubes of the kit engines, so they were drilled out and replaced with 5.5mm aluminium tubing correcting the length issue.

    06 Resin Engine Light Bleed.jpg 07 Resin Engine Light Bleed.jpg
    08 Metal Engine Fitment.jpg 09 Metal Engine Light Test.jpg

    02 Light Tube Test Standalone Engine Greeblie.jpg

    03 Light Pipe.jpg

    01 Light Tube Test Standalone Engine Greeblie.jpg

    04 Battery Box.jpg

    05 Remote.jpg

    06 Resin Engine Light Bleed.jpg

    07 Resin Engine Light Bleed.jpg

    08 Metal Engine Fitment.jpg

    09 Metal Engine Light Test.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, George and swmodelfan1977 like this.
  9. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Several people have reported issues in getting paint to adhere to this model, and it has proved very difficult to get a satisfactory solution.

    This is not just a problem for painting because even CA glue has a hard time grabbing the surface well.

    As noted at the beginning surfaces were sanded to remove the grainy surface texture left behind after the 3D print. This was done 3 times to get an 800 grit finish.

    Andy usually uses automotive primer on resin and it typically yields impressive results. (I’ll put up the Salzo Mk IV Red 5 when I get my DSLR upgrade done.)

    Armed with the knowledge of the potential issue, automotive base coat was first applied to the cockpit shelf since this part wasn’t going to be used in the
    final build. Once the paint was dry masking tape was pressed to the paint and then pulled gently away.

    With minimal pressure on the tape, automotive base coat came straight off.

    Plan B was Valejo paints in case they happened to contain some kind of chemical which matched the resin. No dice. Then some other variants of auto paints were tried and they were exactly the same.

    Plan C was clear plastic primer for automobile bumpers. The etching nature adds a little surface texture which is why Andy has avoided it in the past. So the etch primer was airbrushed on and then covered in automotive base coat, and it seemed to worked fine resisting plucking even with gaffer tape.

    01 Automotive Primed Base.jpg

    However, the same technique on another part of the model still resulted in the paint coming away. So the issue varies from one part to another.

    02 Body Pluck Test 01.jpg 04 Wing Pluck Test 01.jpg

    Figuring that the surface wasn’t allowing any penetration to the paints, the whole body of the model was washed in premium thinner, which is an aggressive Toluene, Xylene and Methanol mix. Tamiya plastic primer was then shot directly onto the surface as it was drying hoping to let the lower surface of the primer be thinned by the almost wet surface and absorbed into the resin a little. This proved to be successful with the lower part of the main body.

    However the top half of the body shed paint like a snake even using this method.

    05 Tamiya Primed Upper Fail 1.jpg 06 Tamiya Primed Upper Fail 2.jpg

    So the top half of the model was washed in the thinners for a little longer and the spray technique used again. This second attempt was much more successful.

    07 Tamiya Primed Lower.jpg 08 Tamiya Primed Upper.jpg

    On that basis, every part was primed separately so that adhesion issues could be addressed on a case by case basis.

    Each part was also based coated with Tamiya TS-32. Once assembled the plan was to wet sand back, and then do a final pass of TS-32 to finish it off before weathering etc.

    To quote Andy:

    “In the past I have had weeping casts which were impossible to paint as they always remained sticky. This is not the case with this kit, as there is no tackiness to the surface and it sands well. I am presuming it is a mix/ batch issue as some parts take the paint well, and others do not.”

    To quote Jason Eaton from the thread X1 tie fighter's choice?

    “Guys I'm not new to resin. I cleaned it well. After multiple tries with different primers, the Upol Acid Etch 8 seems to be sticking. You know - after wasting WEEKS.”

    02 Body Pluck Test 01.jpg

    04 Wing Pluck Test 01.jpg

    05 Tamiya Primed Upper Fail 1.jpg

    06 Tamiya Primed Upper Fail 2.jpg

    07 Tamiya Primed Lower.jpg

    08 Tamiya Primed Upper.jpg

    01 Automotive Primed Base.jpg

    Last edited by a moderator: Nov 9, 2018
  10. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    I never get tired seeing these scale models.Thanks for sharing !
    Your attachments from post #8 don't show though

  11. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Getting inline images to stay in these posts is worryingly similar to getting paint to stay on a TIE X-1. Hopefully all stuck this time.

    George likes this.
  12. swmodelfan1977

    swmodelfan1977 New Member

    Trophy Points:
    17
    Hello vectorzero! Did you make the extension piece by yourself? It is just simple question as my kit does not include it, just in case.
    Also there were other missing pieces like decal and waiting for them from Steve to send them long time again. Anyway it is not main subject.

  13. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736

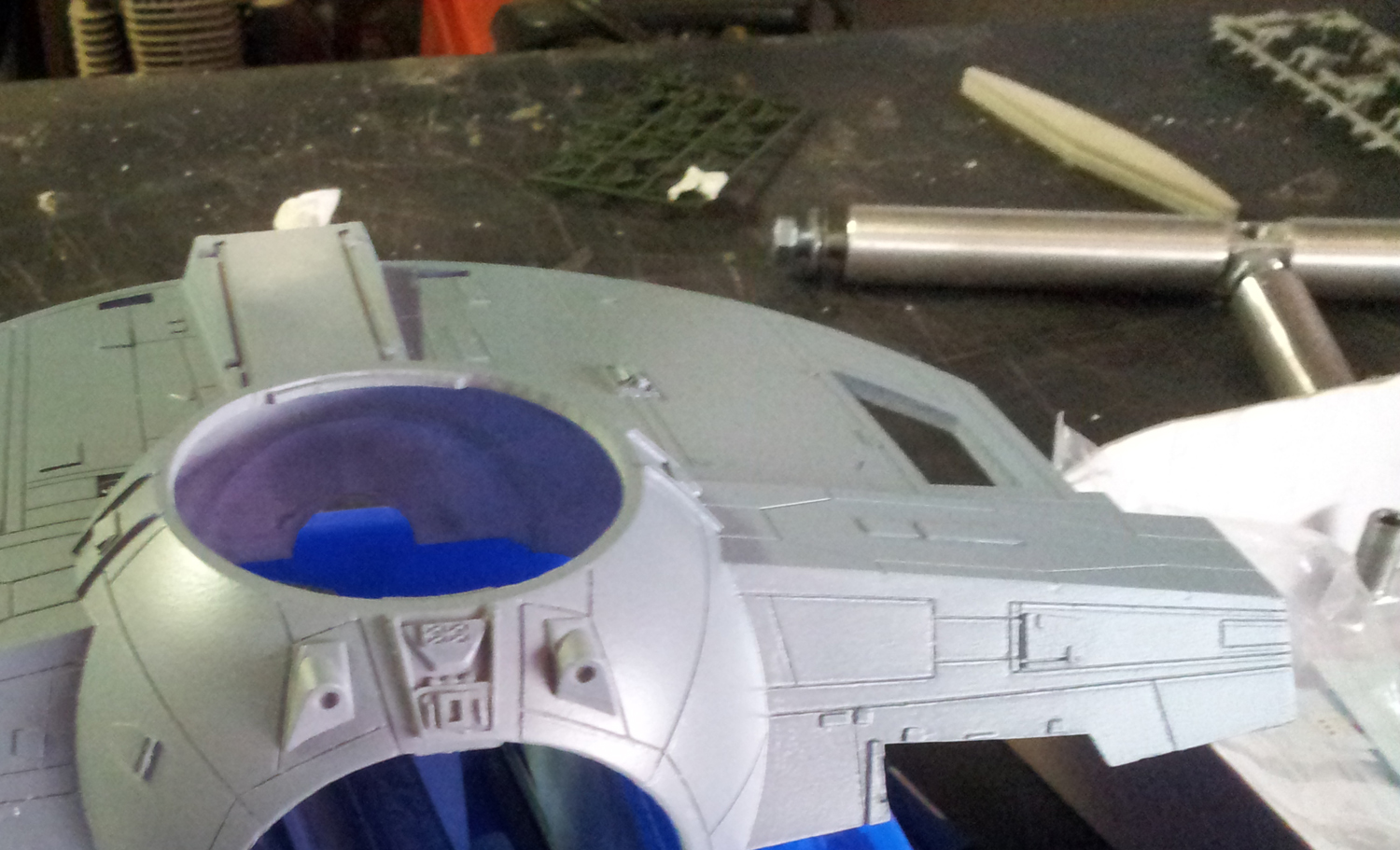

    No worries. The armature extension was not part of the kit. I ordered mine in December 2017 and received it a few weeks later in 2018.

    See Andy’s explanation of what he did in post #18 below.

    The decals were part of the kit, but I believe propcollector has more accurate versions. Again, see Post #21in the thread I have referenced above.

    Last edited: Oct 10, 2018
  14. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Given the cast guns were not too great it was decided to replace them with more original components.

    Research suggest that the guns are 5mm LEDs in a standard 5mm LED holder - CLP125BLK.

    The CLP125BLK is still available, but having sourced some, they were too shallow in the upper area compared to the casting.

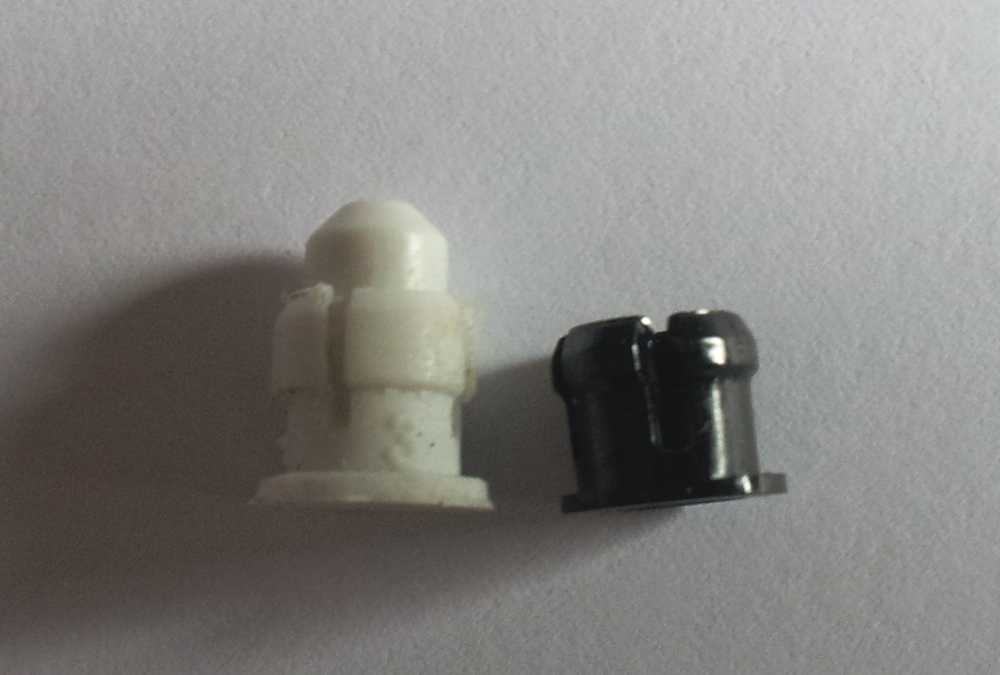

    00 Cast Part Compared with Supposed Donor Part.jpg
    Quite a lot of Internet Research yielded a supplier with something that looked a lot closer. For those in the UK, the part is here.
    Compared to the casting this was much closer.

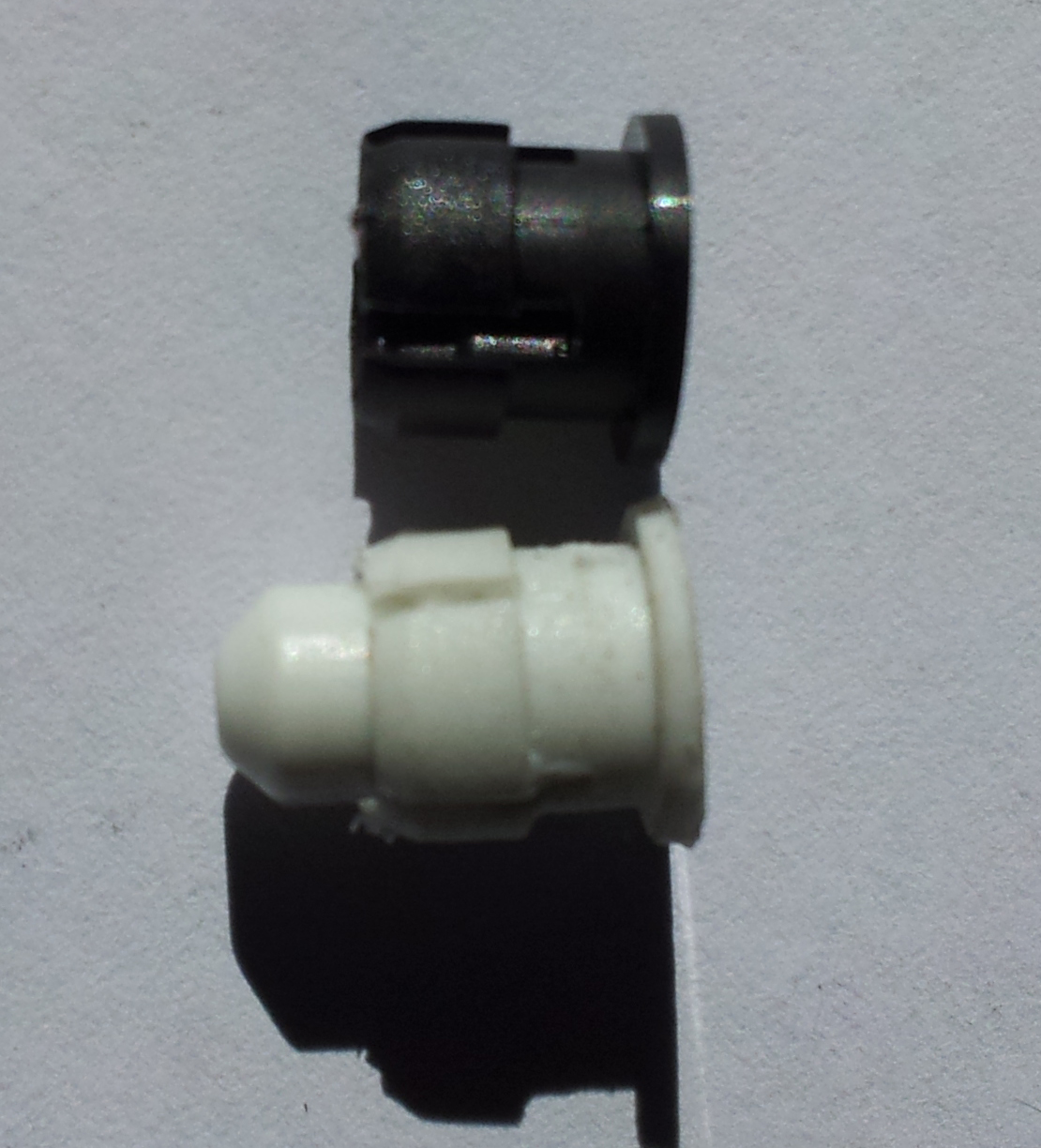

    01 New Found Part.jpg
    New gun mounts were made using threaded studs into the main hull and metal screw on shafts holding the new LED holders. Some resin parts were modified to reflect the slightly tapered original LED parts (orange on the original). A 1mm hole was drilled in the end as seen on the studio model.
    04 Gun Screw on Cap.jpg 05 Gun Studs.jpg 06 gun_screw_in_place.jpg
    The completed assemblies screw into position and can be removed at any time for replacement if needed.
    08 Finished Guns Lower 01.jpg 09 Finished Guns Lower 02.jpg

    00 Cast Part Compared with Supposed Donor Part.jpg

    01 New Found Part.jpg

    04 Gun Screw on Cap.jpg

    05 Gun Studs.jpg

    06 gun_screw_in_place.jpg

    08 Finished Guns Lower 01.jpg

    09 Finished Guns Lower 02.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, Treadwell and George like this.
  15. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Some of the more complex elements of the X-1 are hard to cast. In particular the Nichimo U Boat part on the rear deck and the M10 Tank Destroyer part on the rear cockpit.

    The latter is common to the TIE, and thanks to Joe White for the reference shots at studioscalemodellers.

    99 Joe White TIE Part Map.jpg

    The parts map also threw up the missing (vintage) Shinano part 29 from the right rear upper side of the cockpit.

    01 Shinano Donor for Rear Cockpit Greeblie.jpg 00 Missing Rear Cockpit Greebly.jpg

    So two U boat kits (never buy an incomplete model - the one part you really wanted is the part that won’t be there), an original M10 and a vintage Shinano later all these parts are now correct and in place.

    03 M10 Part in Place.jpg

    There is some slight variation in the upper fuselage half. Mounting the M10 part as a direct replacement of the cast material looked wrong, so the part was placed by eye to be as symmetrical as possible. The U Boat part is quite tall and the plastic part looks much better than the casting.

    05 Rear Deck with U Boat Part in Place.jpg

    The upper and lower cutouts in the rear wing root, and the ‘holes’ the rear apron section are problematic. The details are small, and the castings aren’t super crisp. It’s really unclear from the reference shots what the parts could be.

    09 Mystery Parts in Rear Apron Pits.jpg

    The clearly identifiable cast parts were retained, such as the Panzer radiator elements, but the parts bin was raided to source some additional and sharper parts to keep the texture and level of detail consistent with the studio model. I’m happy with the result as it looks right, and to me conforms to the spirit of the original filming miniature.
    10 Apron Hole LHS 01.jpg 11 Apron Hole RHS 01.jpg 12 Apron Hole RHS 02.jpg 13 Apron Hole RHS 03.jpg



    99 Joe White TIE Part Map.jpg

    00 Missing Rear Cockpit Greebly.jpg

    01 Shinano Donor for Rear Cockpit Greeblie.jpg

    03 M10 Part in Place.jpg

    05 Rear Deck with U Boat Part in Place.jpg

    09 Mystery Parts in Rear Apron Pits.jpg

    10 Apron Hole LHS 01.jpg

    11 Apron Hole RHS 01.jpg

    12 Apron Hole RHS 02.jpg

    13 Apron Hole RHS 03.jpg

    Last edited by a moderator: Nov 9, 2018
  16. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736

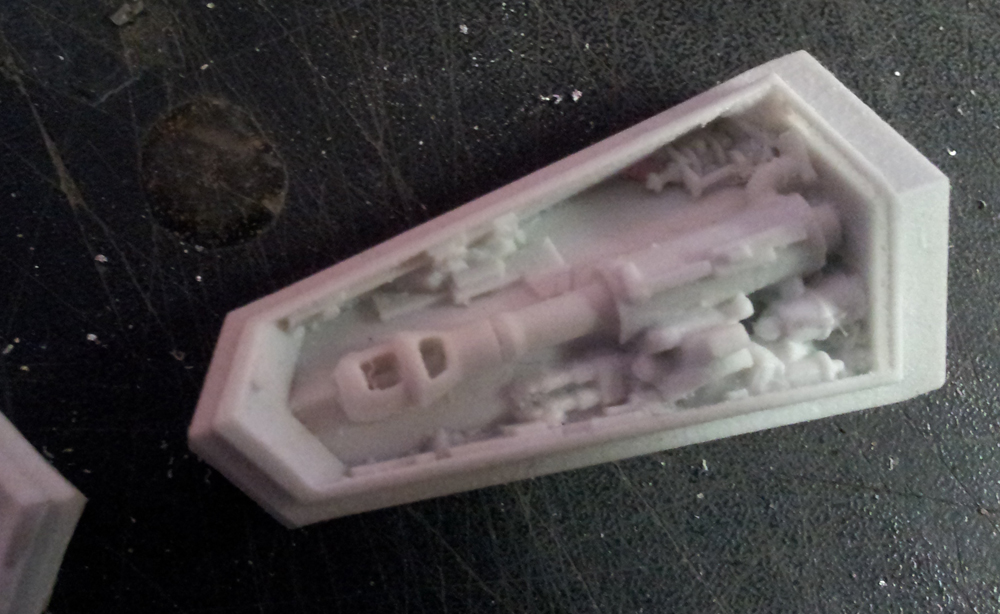

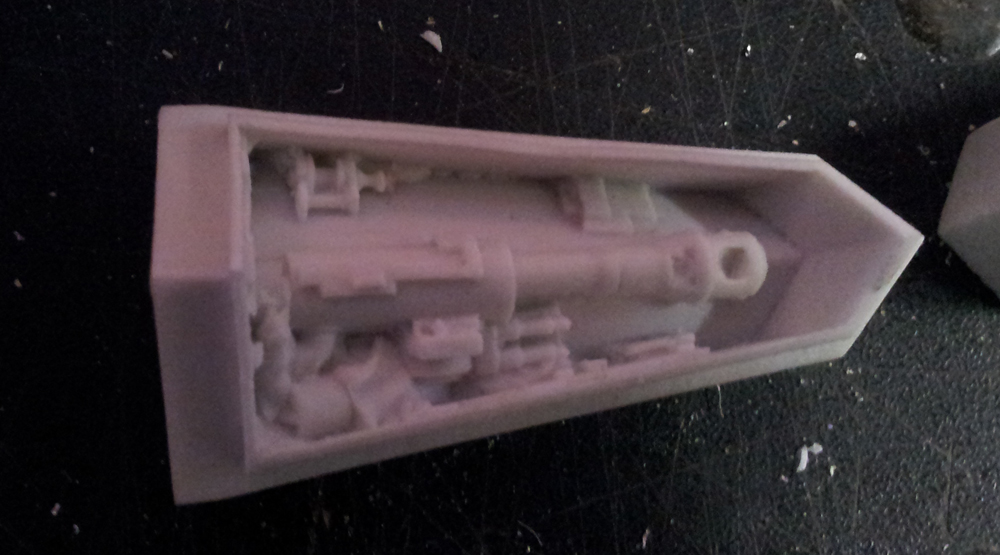

    The front detail recesses on the wings are pretty bad, as most of the empty space is taken up with some nasty resin which looked like it was going to be very tricky to remove.

    01 Wing Detail Pit 01.jpg 02 Wing Detail Pit 02.jpg

    The recesses were redesigned in CAD, and the panels printed out so they could be assembled in styrene.

    03 Insert Comparison.jpg

    Checking the original ILM model against the kit supplied inserts, it looks like the Nice-N model parts are too shallow. You can see the greeblies from the top looking down on the Nice-N, but not on the original. Another 3 to 4 mm depth was added to the insets to hide the greeblies a bit more when viewed from above.

    The main parts were sourced from a 1/48 Bandai Panther G as well as the Heller 1/400 La Seine. Thanks again to Joe White’s part maps. We had an excursion into the Tamiya 312 B for the curved part, but that turned out not to match, so was scratched from brass. The balance was a combination of kit resin and scratch built parts.

    05 Completed Left Pit Unpainted.jpg 07 Completed Inserts Wide Shot.jpg 04 Unfinished Right Pit In Progress.jpg
    The final look is a lot crisper and worth the effort as this is the best known view of the ship.

    09 Finished Inserts Wide Shot.jpg 08 Finished Left Recess Close Up.jpg

    01 Wing Detail Pit 01.jpg

    02 Wing Detail Pit 02.jpg

    03 Insert Comparison.jpg

    04 Unfinished Right Pit In Progress.jpg

    05 Completed Left Pit Unpainted.jpg

    07 Completed Inserts Wide Shot.jpg

    08 Finished Left Recess Close Up.jpg

    09 Finished Inserts Wide Shot.jpg

    Last edited by a moderator: Nov 9, 2018
  17. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    A number of areas needed finishing before main painting could begin.

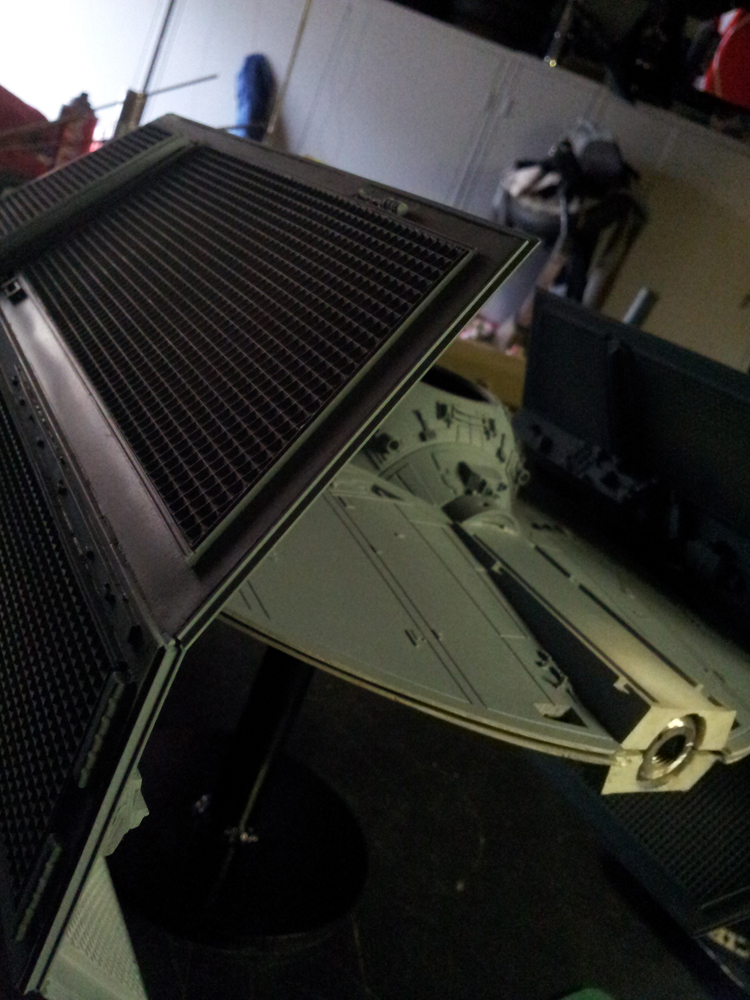

    The wing edging was finished off on both the main panels and the ‘sandwich’.

    01 edge 1.jpg 02 edge 2.jpg

    The lower hatch was revisited to ensure accurate fit of the removable section which covers the lower mounting point.

    03 lower_hatch.jpg 04 lower_hatch_1.jpg

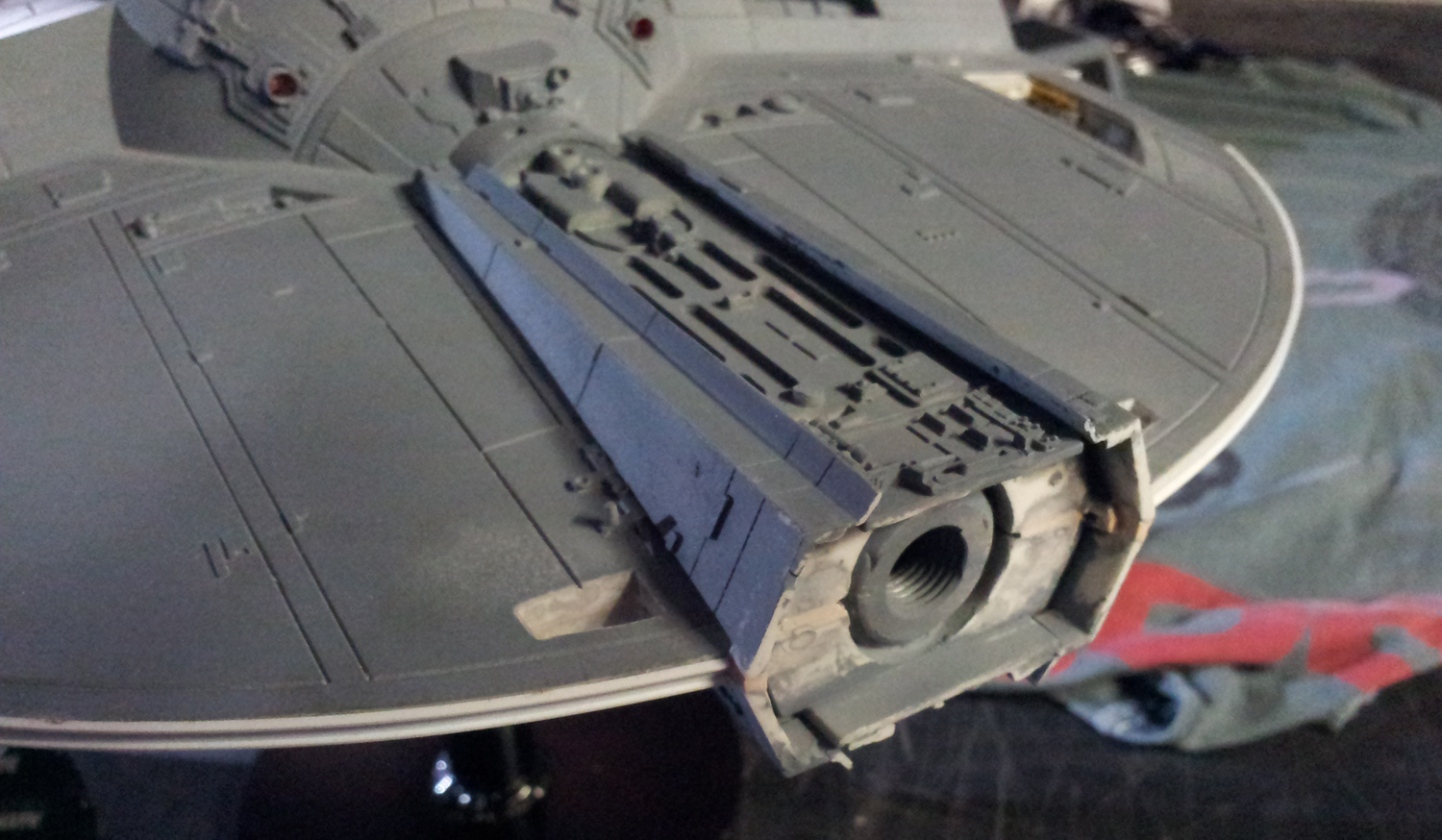

    Finally the edge of the apron was finished by attaching the edging. The area around the rear mount was filled and sanded to clean things up, but more work will be done to provide two versions of the end cap. One will have a circular hole to allow the mount to attach without exposing the internals. The second will be the complete end cap to cover things up if any of the other mounting points are in use. The intent is to fabricate a new master for these options using the correct donors - a 1/48 FA-200, and the various parts from the 1/48 Bandai Panther G.

    05 rear_filled_and_edging_added.jpg

    01 edge 1.jpg

    02 edge 2.jpg

    03 lower_hatch.jpg

    04 lower_hatch_1.jpg

    05 rear_filled_and_edging_added.jpg

    Last edited by a moderator: Nov 9, 2018
    robn1, George and Hammer3246 like this.
  18. Flyscriber

    Flyscriber Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Hi swmodelfan1977
    Just a quick note vectorzero. Thanks for posting this, I just cant get the time on 2.5meg :)
    The rear extension for the armature wasn't included in the kit. I made one up from some metal tube (I think 1 inch diameter) with an inserted 1/2 inch bolt welded in place for connecting to the main ally tube with a locking nut to secure it into position, and a 1/2 inch nut welded into the rear end. I could adjust the position of the tube/ bolt assembly to fit the body before welding it up. This took up any discrepancy and fitted without applying pressure to the cast resin.
    You can just see it in the top right of this image, showing the bolt with locking nut against the main crossmember. Sorry for the lack of images on this issue. armature.jpg
    Cheers folks

    Last edited: Oct 10, 2018
    George likes this.
  19. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Doh! Thanks for the correction. I’ve amended my response in the previous post and pointed to your post for the correct information.

    Last edited: Oct 10, 2018
  20. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    The base coat was sanded back with 1200 grit. The process was to bring the main body up to about 50% of its final finishing, then tackle the wings before doing the final detailing on the main body to bring it all together.

    Some of the surface scratching seen on the studio model was added, but aiming only for that which was likely to have been filmed, and not the subsequent dirt and marks due to storage and handling over the years.

    All the work is very subtle - lots of tiny panels, detailing and scratching. The blue edge has been taken off the main body colour a little by the subtle weathering and the lighter highlights around the detailing.

    The issues with adhesion led to a particular approach to avoid applying pressure to the paint if possible. Normally each panel would be masked individually for a super sharp finish but many have been done by hand to avoid lifting paint.

    Changes in panel colour were done with a variable mix of TS-32 and grey Tamiya primer all masked off and airbrushed. Individual raised details were hand painted using the same mix to give the subtle changes in colour.

    Weathering was done using a Tamiya flat black and dark brown mix, thinned to 50% using Tamiya thinners.

    A final airbrush pass with TS-32 was used to blend the weathering into the model again.

    01 cockpit.jpg 02 front_ob_2_painted.jpg 03 Inner_wing_painted.jpg 07 top2_painted.jpg 08 guns_painted.jpg

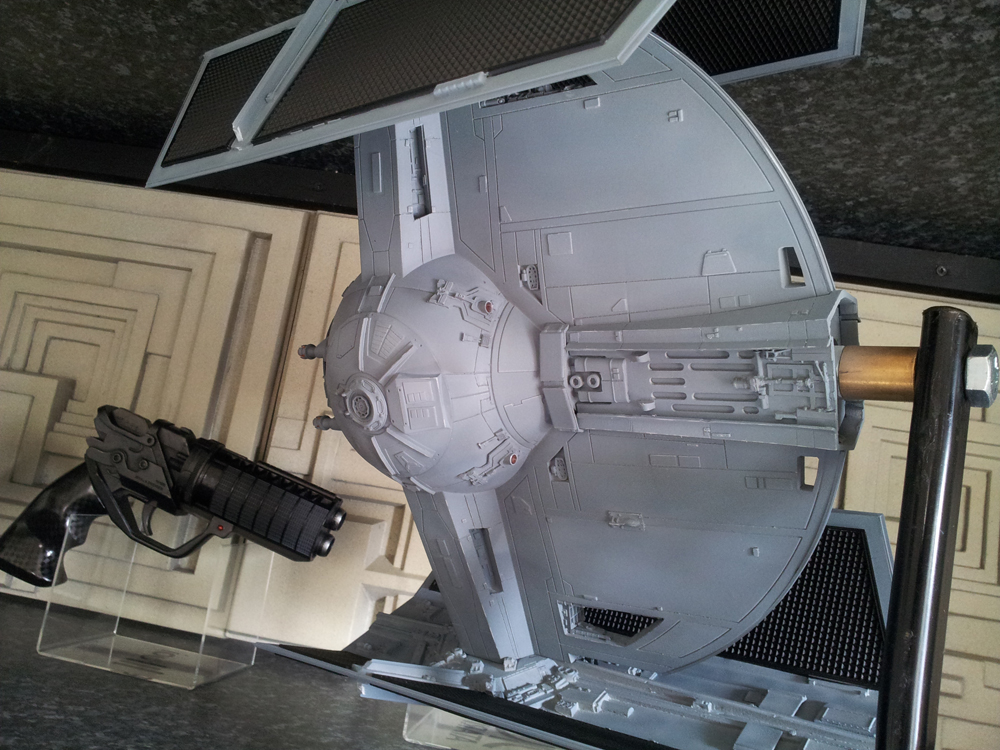

    04 hatch_painted.jpg 05 top_hatch_painted.jpg 06 top_rear_2_painted.jpg 09 lower_part_done.jpg

    The model is resting at the moment before finalising the stand. I’ll post more shots as things progress, and then try and get some final shots using a full frame DSLR and consistent lighting. Thanks to flyscriber for the amazing work so far.

    10 front_top.jpg 11 front_body_part_done.jpg

    01 cockpit.jpg

    02 front_ob_2_painted.jpg

    03 Inner_wing_painted.jpg

    04 hatch_painted.jpg

    05 top_hatch_painted.jpg

    06 top_rear_2_painted.jpg

    07 top2_painted.jpg

    08 guns_painted.jpg

    09 lower_part_done.jpg

    10 front_top.jpg

    11 front_body_part_done.jpg

    02 front_ob_2_painted.jpg

    07 top2_painted.jpg

    08 guns_painted.jpg

    Last edited by a moderator: Nov 9, 2018
  21. Hammer3246

    Hammer3246 Sr Member

    Trophy Points:
    1,266
    Beautiful job! Did your kit come with the plug for the bottom mounting hole?

    Flyscriber likes this.
  22. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    There was no cap with the model. All the reference images seem to have used the bottom mounting point, so it’s not clear if there ever was a bottom cap.

    This one was put together from some tank parts, and an engine part from a Euro Fighter. I think it matches the spirit well.

    Last edited by a moderator: Nov 9, 2018
    Hammer3246 likes this.
  23. swmodelfan1977

    swmodelfan1977 New Member

    Trophy Points:
    17
    Hi Flyscriber, Hi vectorzero,
    Thank you for all responses.
    Yes, it was not on the Steve’s introduction pics and video. Therefore just wanted to double confirm. Again thanks for kind reply.
    I will consider how to make tail side support to absorb position difference of crossed screw threads as I don’t have welding tool.


    Sent from my iPhone using Tapatalk

  24. Antarh

    Antarh New Member

    Trophy Points:
    3
    Absolutely stunning rework! Thank you so very much for providing such detailed information on your build - it will be very much appreciated when I start on mine.

    Sent from my SM-G930F using Tapatalk

  25. Treadwell

    Treadwell Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,325
    Although the specific shot was probably staged for the documentary, in The Making of Star Wars they show Vader's TIE being mounted on stage using the rear mount. FWIW.

  26. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Oh yes, at 41:05 in the 1977 documentary here. Good spot.

    Last edited: Oct 14, 2018
  27. swmodelfan1977

    swmodelfan1977 New Member

    Trophy Points:
    17
    Assuming TIE/TIE Interceptor/X-1 might have same bottom cap. Do you know parts ID or where it comes from?
    Edit: Please refer to page 88 of Chronicles EP4,5 and 6 - Vehicles if you have.

    Last edited: Oct 15, 2018
  28. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    My understanding is that the cockpit of the TIE and the TIE X-1 are the same but I would defer to other experts on the forum for a definitive answer. I do have the Chronicles book so I’ll take a closer look. I can see a Panzer hatch or two in there...

    swmodelfan1977 likes this.
  29. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    The mount cover in that picture is used not once but *twice* on the front of the Blockade Runner. :)

    Treadwell and swmodelfan1977 like this.
  30. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Well I'll be....


    I wonder what the dodecagon (12 sided) shape could be. I see part D12 from the 8 Rad on the top of it. Maybe the gun base from the 88mm reduced in height?

    DSC_0654.JPG DSC_0782 copy.jpg

    Last edited: Oct 16, 2018
  31. star-art

    star-art Sr Member

    Trophy Points:
    1,290
    I have no idea, sorry. I do suspect it's a kit part as it looks to be complex. I'd love to know what it is!

  32. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Looks like part of the turret of a tank...

  33. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    I thought Tamiya M551 Sheridan. It's similar - but its 10 sided not 12 sided.

  34. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Anyone got a 1/48 Bandai FA-200 Aero Subaru to loan/sell/swap. The rear cover is a pain on this kit as its not a great moulding nor will paint stick to it.

    Update:

    ~~Found one on eBay so we can finish the rear cover.

    Last edited: Oct 24, 2018
  35. Carnet

    Carnet Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    687
    Great build log, and beautiful work! I am wishing that I had ground my armature instead of the cockpit now.

    So strange and frustrating about the paint issue. I also purchased mine in December of 2017 but I haven't had a bit of an issue with primer sticking to the model. All I did to mine was soak all of my parts in TSP, scrubbed down with a tooth brush and then a rinse in water, and then a final wipe with 91% alcohol. I used Tamiya Fine surface primer, and then I let the primer cure for about 2 weeks (not on purpose, I just haven't had a chance to paint yet) I just tested several areas all over the kit and my primer is locked down.

    It looks like you finally got it worked out, but man, that would make me want to quit!

  36. greeble_gremlin

    greeble_gremlin Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    846
    First of all VectorZero...a really nice thread- Thanks!
    Regarding the bad fit of the fuselage components: I am surprised, and disappointed to hear.
    I know the 3D printed masters had a perfect fit with male & female keys. The alignment of the top and bottom halves was spot on. I can only surmise the must have been some undetected distortion/shrinkage in the casting. The larger "male" alignment pegs deliberately had some "wiggle" room (.014" inches) to allow for adjusting the alignment. The smaller pegs (near the front) had a tighter margin but were tapered. The gap between male an female started at .03" closing to .0026". This creates a fit like that of a snap-tight kit. All of these tolerances are above the resolution of the stereolithography.
    I can not account for the "sand" texture. That too, must have happened in the casting process.
    Like you I am a perfectionist. I am sorry you had to go to so much trouble to make adjustments and corrections.

    swmodelfan1977 likes this.
  37. Carnet

    Carnet Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    687
    Shopping for threaded rod, you mentioned the threads on the armature were 1/2 UNF is it 1/2 20 or 1/2 13?

  38. robn1

    robn1 Master Member

    Trophy Points:
    3,355
    These three shots show the model with the bottom mount in place.
    Cinefantastic22.jpg Cinefantastic23.jpg Cinefantastic48.jpg

  39. vectorzero

    vectorzero Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    736
    Wow. Those are amazing photos. I've never seen them before. Thank you.

    I just got the Japanese Chronicles book, and there are some fantastic shots of the X-1. Including a really clear on of the bottom hatch on page 88. IMG_0971.jpg

    swmodelfan1977 and robn1 like this.
  40. Flyscriber

    Flyscriber Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    837
    Hey guys, here's something you may not have seen, or maybe you have.
    I never got around to finishing this build until now, as i am building a SS wing man Tie which is almost ready for its final weathering and decals, and I needed the two models to have the same overall feel to the paint.
    I have been looking for the decals for the top hatch on the X1. Most of the SS decal sheets feature the goodyear logo as everyone knows. But on the Vader X1 there are different markings.
    During our build (myself and vectorzero) it became obvious that we needed a new rear mounting point cover, one for when the lower mount is used without a hole, and one with a hole for the rear mount. So two different Aero Subaru kits were purchased as well as the other original kits for the tank track guards and the small "fingers" to make a master mould of the rear cap. A done and looking good.
    on closer inspection I found that the decal sheet on the Aero Subaru Bandai version (the kit with the correct lower wing) had some markings which I though could be the ones used on the original. See what you think.

    Unfortunately I made a bit of a mistake when applying this decal, so I needed to cobble it together (fix it) from a couple of other bits which is why the final image shows a slightly different decal !! .
    It is super close I think, close enough for me to live with.
    But I am pretty sure this kit could be the origin of this decal. I bet that's old news to everyone out there except me :)
    heres a coupe of images. subaru boxes.jpg bandai subaru.jpg bandai wing.jpg bandai decal sheet.jpg vader decal size.jpg vader decal cut out.jpg vader top decal.jpg

    GF, robn1 and swmodelfan1977 like this.

Share This Page
