B1RDY

Active Member
Sorry to sound totally clueless but I would appreciate some advice from you more knowledgeable members.
In my time here and with this project here I find my self picking up on other members posts and discovering ways with my limited skills and experience along with working with very minimal tools to make this build the best I can. Simple things like swapping certain parts for others and using certain methods to achieve a task or process.
With that in mind may I ask a question.

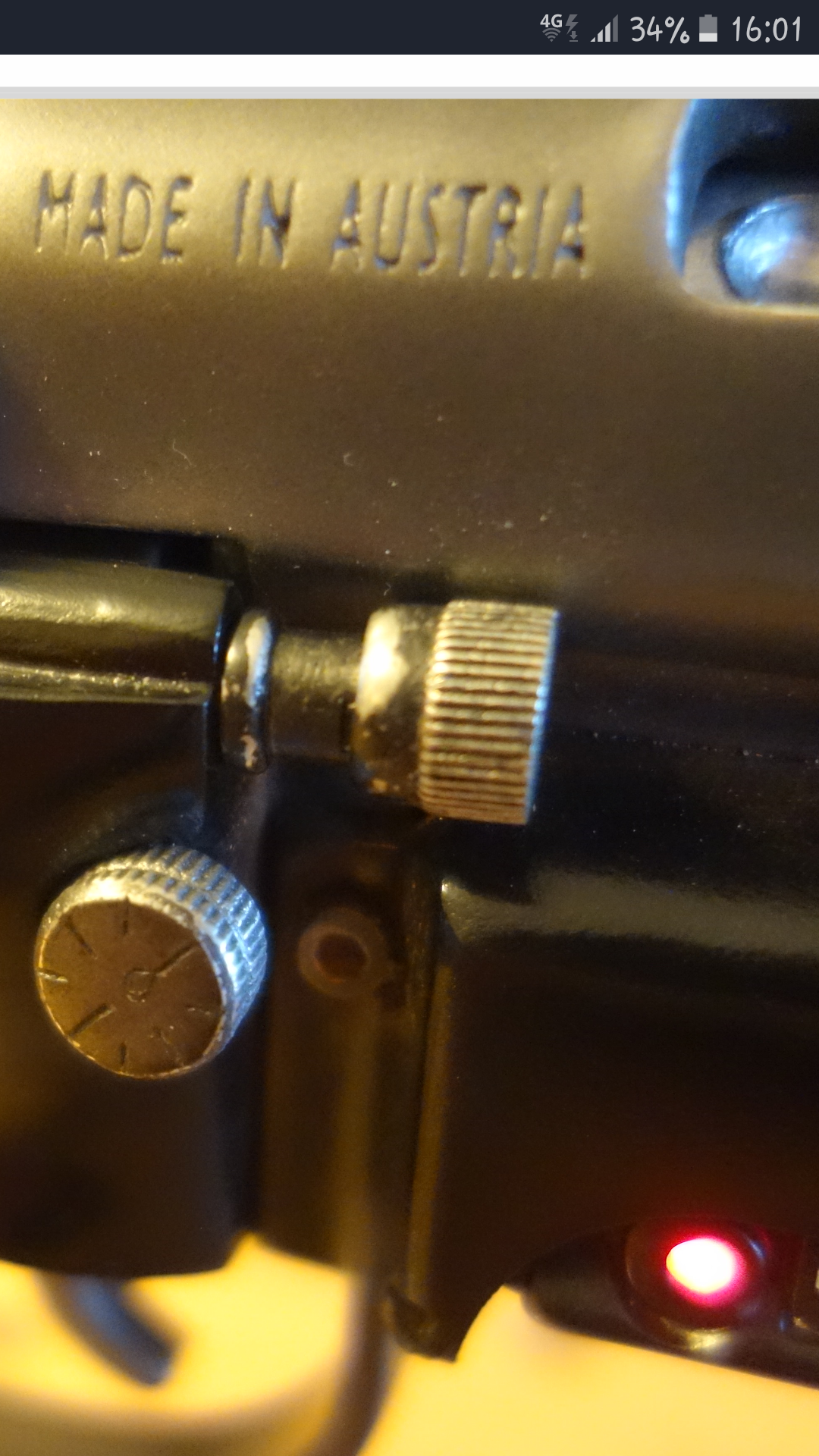

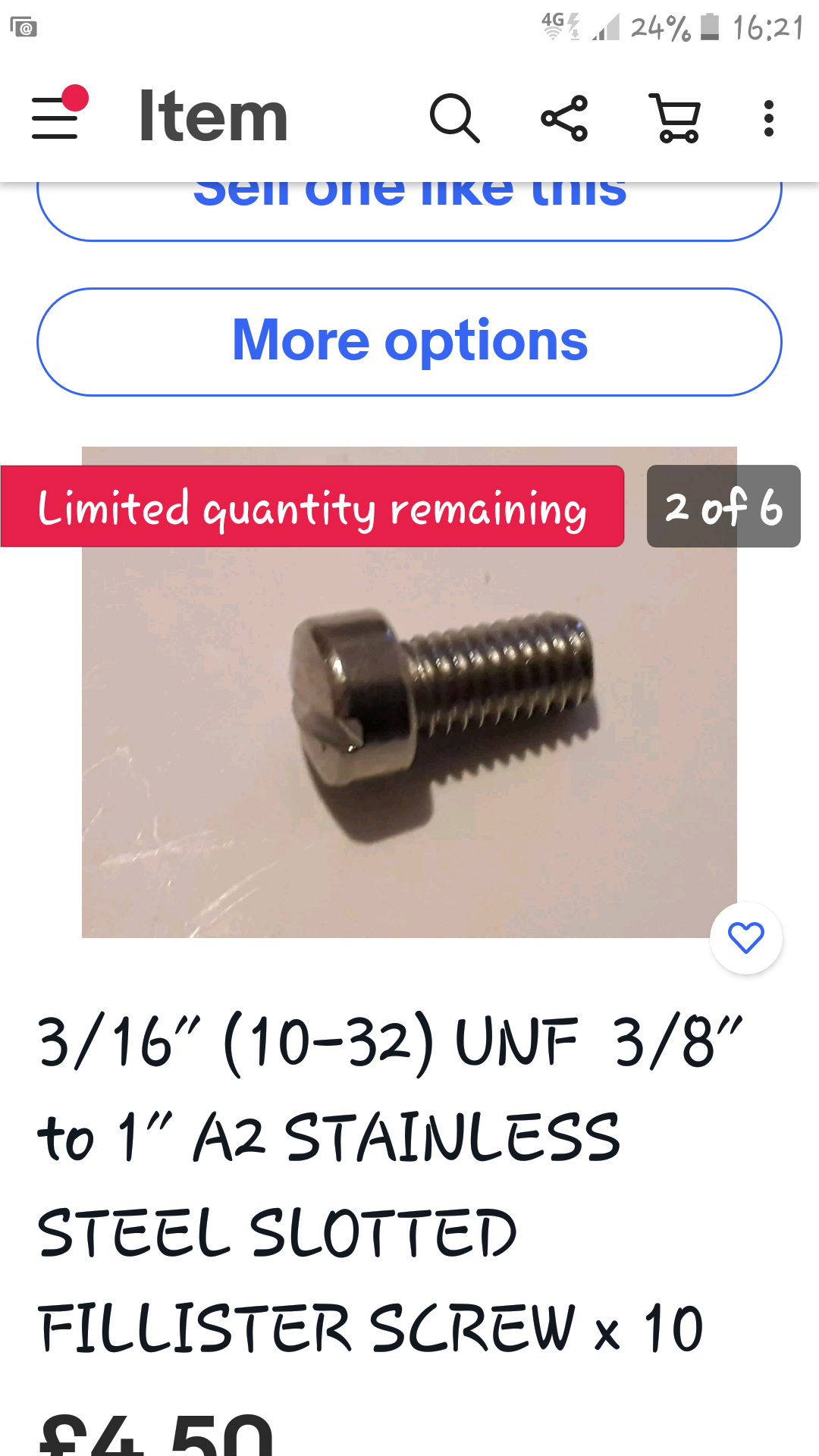

The question is swapping out a weaver knob for a more accurate fillister high profile screw but which of the two screw shown in this picture I am replacing and if the ones I've purchased are good enough?

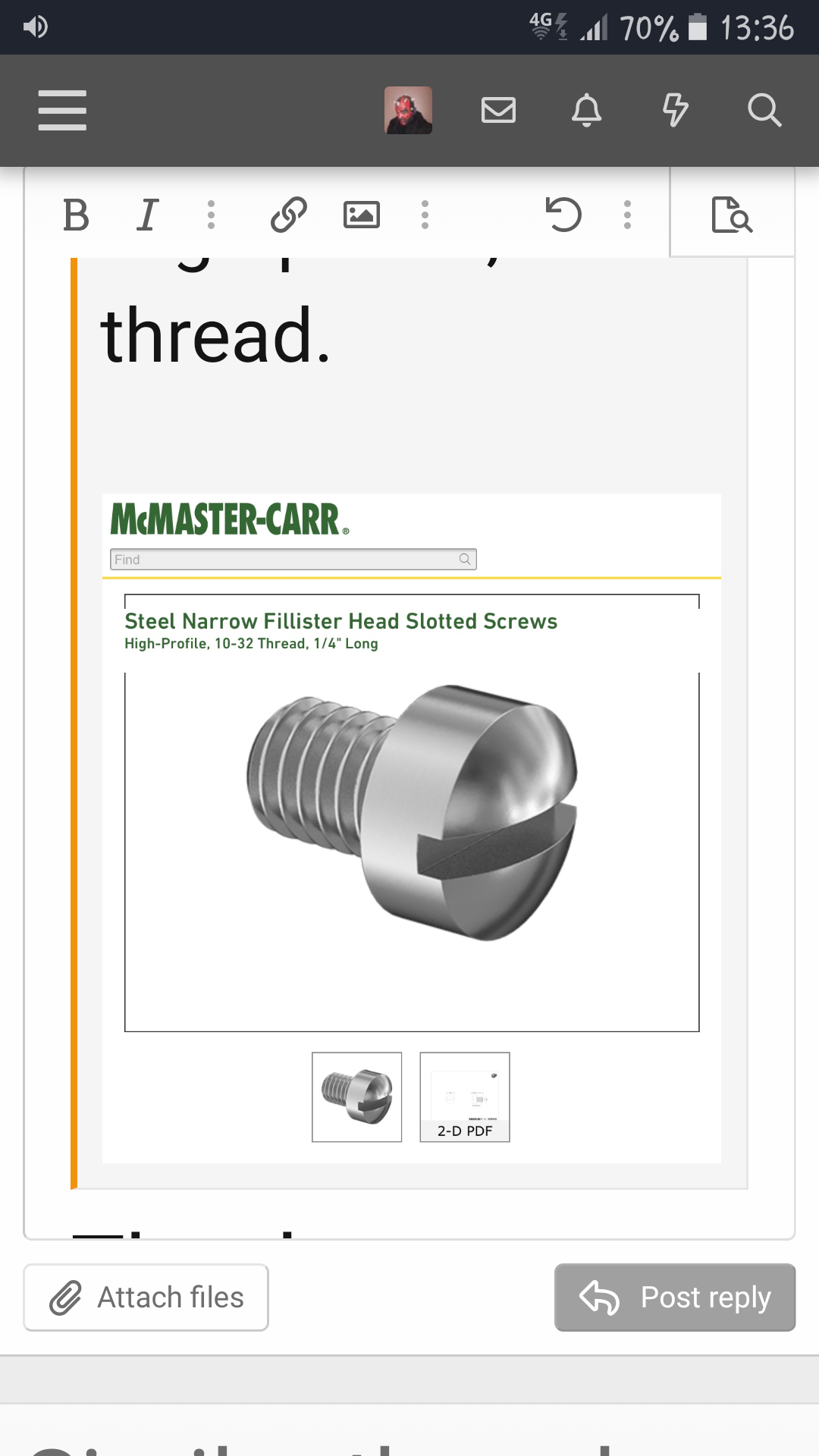

The picture showing mcmaster-carr is one that has been suggested as a replacement but that's in the USA and I'm in uk so hard to find from more local source.


Attachments

  • Screenshot_20210516-160158.png
    2 MB · Views: 38
  • Screenshot_20210516-162129.png
    239.6 KB · Views: 38
  • Screenshot_20210516-133605.png
    237.9 KB · Views: 35

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

B1RDY

Active Member

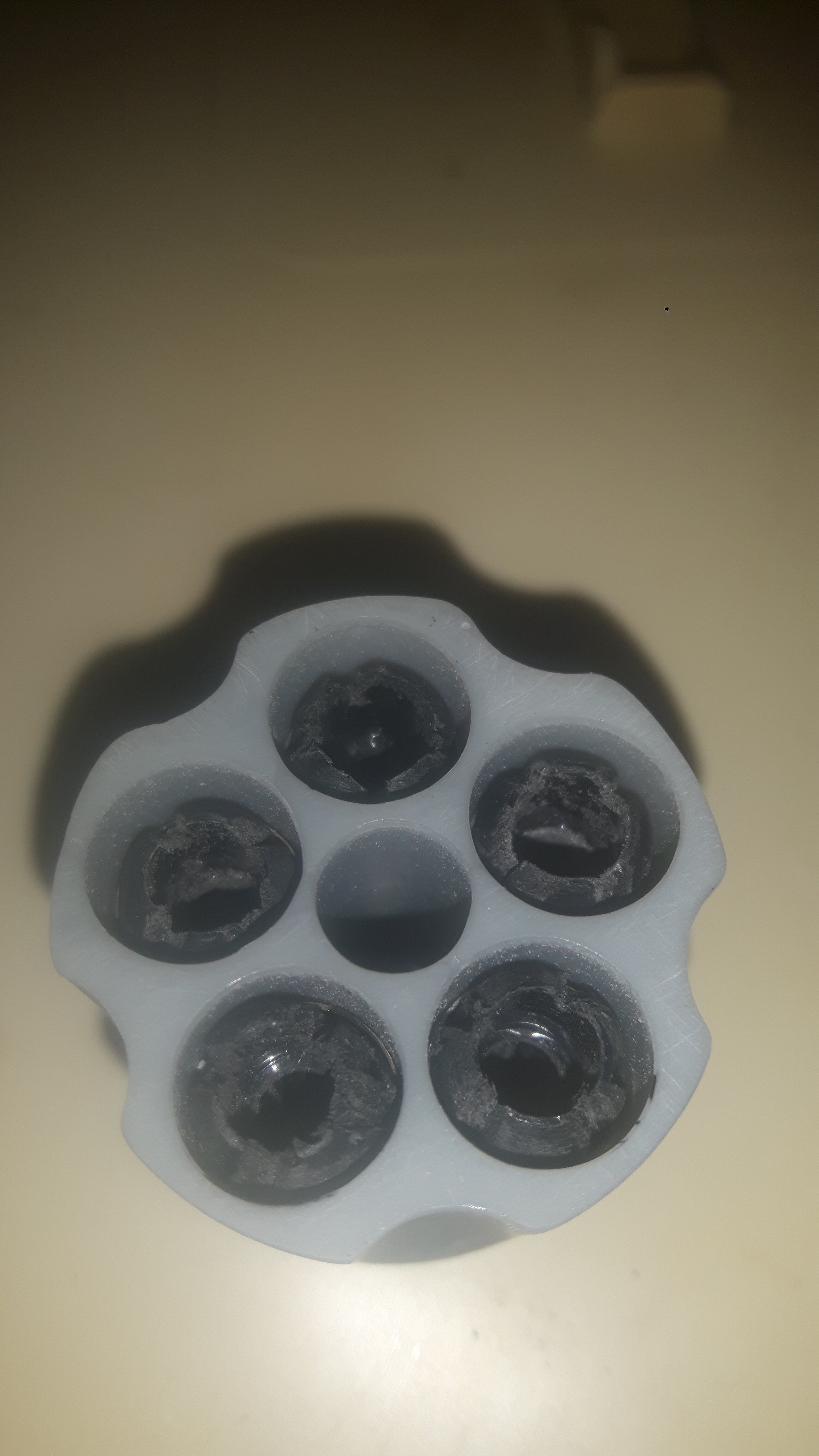

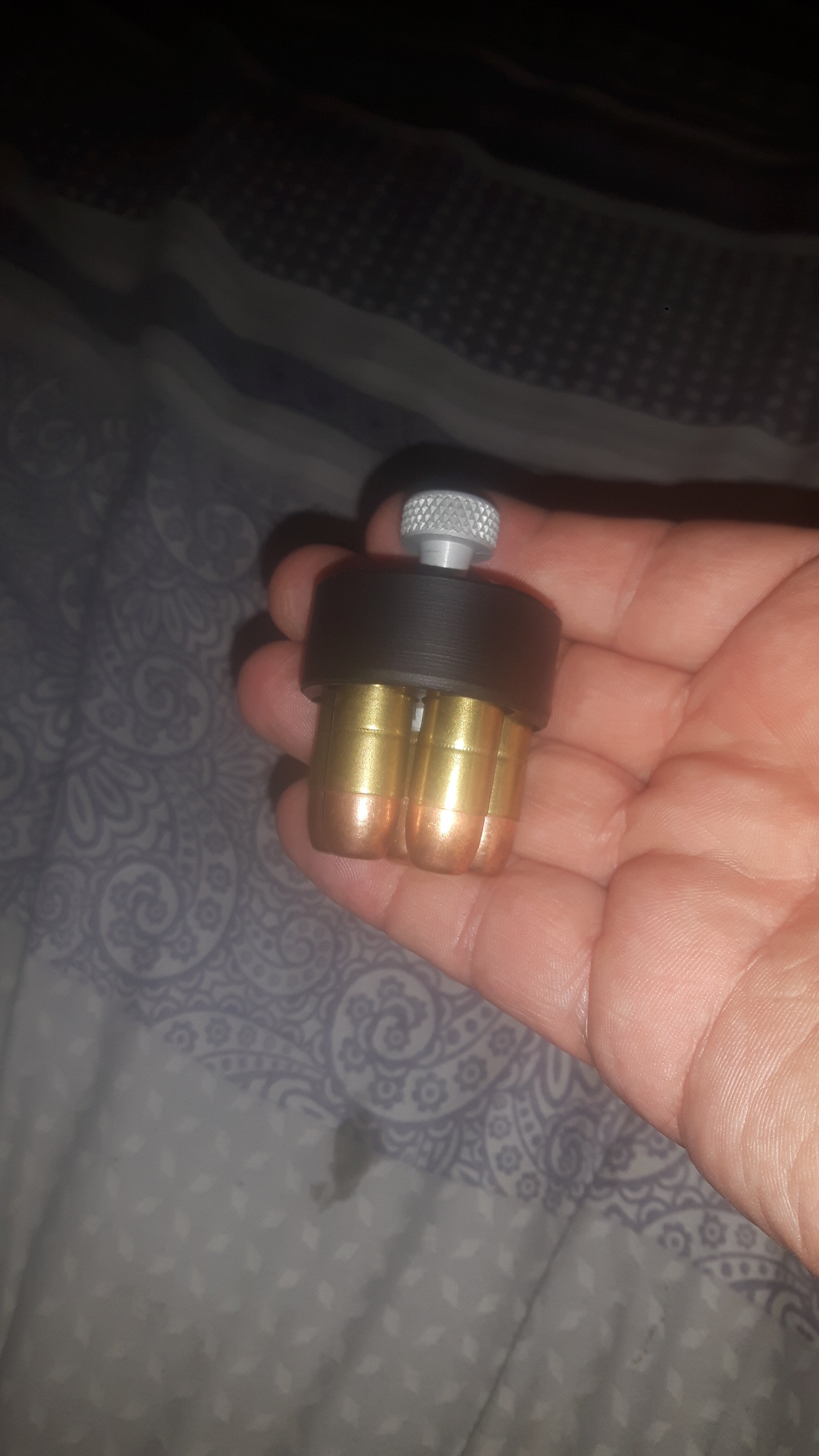

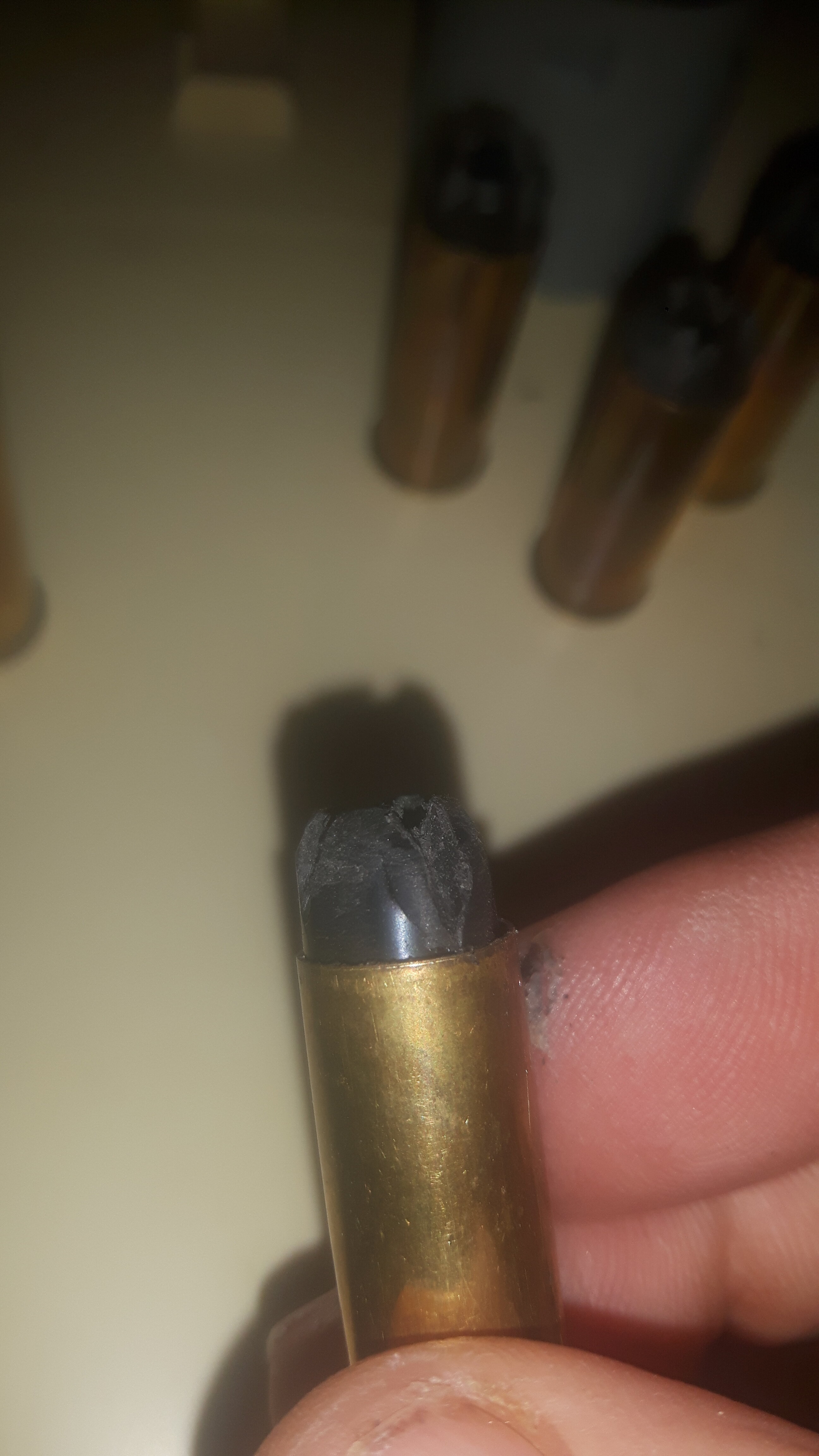

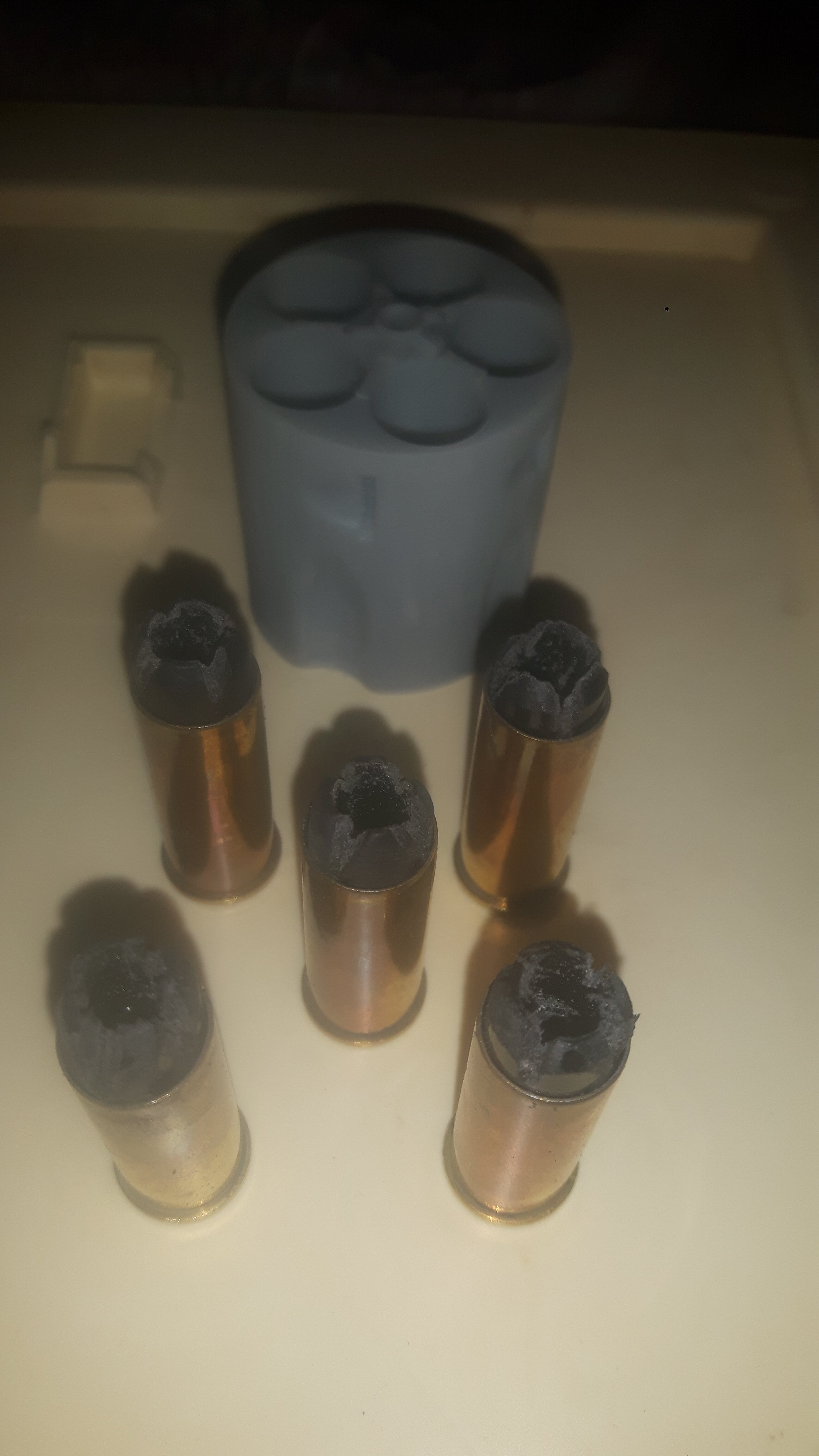

Trying a light weight alternative for bullet tips and my first attempt is using the tops of zebra pens with a bit of filing some primer and some silver rub n buff it's a possibility.


Attachments

  • 20210516_203455.jpg
    834.1 KB · Views: 55
  • 20210516_203614.jpg
    889 KB · Views: 51
  • 20210516_203753.jpg
    905.2 KB · Views: 56
  • 20210516_203836.mp4
    27.7 MB · Views: 0

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Gregatron

Sr Member
Glued together the bolt assembly, and began test-fitting it into the blaster.

The tolerances are REALLY tight. I’ve been carefully sanding down parts to loosen things up, but there’s still more work to be done.

Also, there’s a substantial gap between the bolt’s endpiece and the rear of the receiver, when they should fit flush. May have to build one part or the other up with putty, or perhaps carefully sand the front edge of the receiver’s lever-groove so that the bolt slides in about 1-2mm further forward. We’ll see.


joberg

Master Member
Sorry to sound totally clueless but I would appreciate some advice from you more knowledgeable members.
In my time here and with this project here I find my self picking up on other members posts and discovering ways with my limited skills and experience along with working with very minimal tools to make this build the best I can. Simple things like swapping certain parts for others and using certain methods to achieve a task or process.
With that in mind may I ask a question.
The question is swapping out a weaver knob for a more accurate fillister high profile screw but which of the two screw shown in this picture I am replacing and if the ones I've purchased are good enough?
The picture showing mcmaster-carr is one that has been suggested as a replacement but that's in the USA and I'm in uk so hard to find from more local source.
The slotted screw used in the movie might very well come from the Steyr itself ;)


B1RDY

Active Member

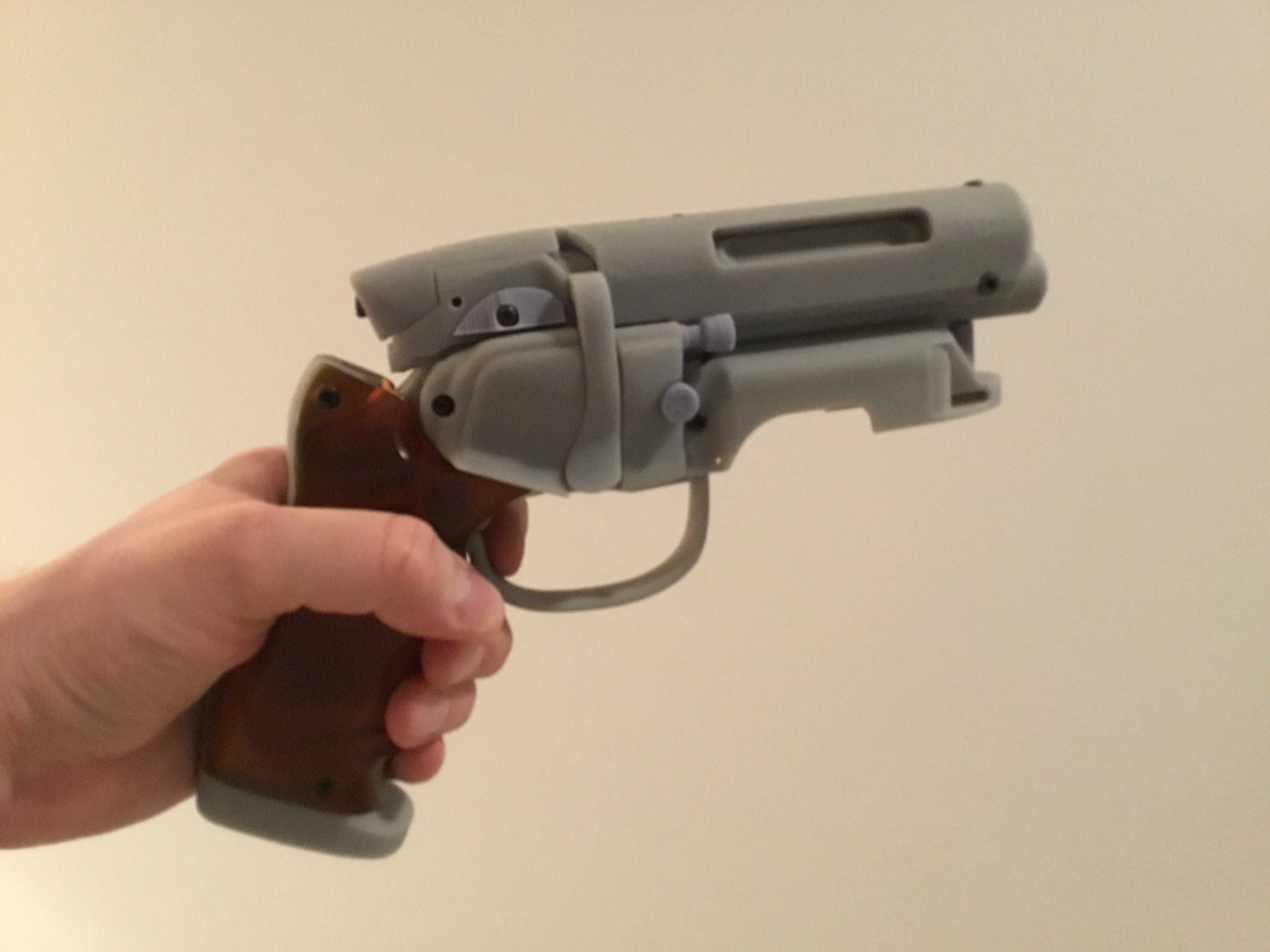

...still needs some more tweaking, but I’ve eliminated the gap.

With the bolt installed, the whole thing just comes together!

Ordered some replacement screws, which should hopefully be more accurate. Still waiting on the LED upgrade kit.

View attachment 1458581
Looking good, where are you getting your led kit from and how does it differ to the one supplied. In regards to you rear receiver gap i drilled the tube with the bolt handle attached slightly deeper and used a longer button head bolt and the gap I have I can live with plus with paint it the gap will be smaller


Attachments

  • 20210517_194221.mp4
    34.6 MB · Views: 0

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Gregatron

Sr Member
Looking good, where are you getting your led kit from and how does it differ to the one supplied. In regards to you rear receiver gap i drilled the tube with the bolt handle attached slightly deeper and used a longer button head bolt and the gap I have I can live with plus with paint it the gap will be smaller

The LED kit came from an Etsy seller, and features lower-brightness LEDs (for a less intense effect) and a proper black plastic switch housing (with the white “on” and “off” already painted).


B1RDY

Active Member
The LED kit came from an Etsy seller, and features lower-brightness LEDs (for a less intense effect) and a proper black plastic switch housing (with the white “on” and “off” already painted).
I may add a resister to dim my leds and reduce the current in the circuit on mine.


B1RDY

Active Member

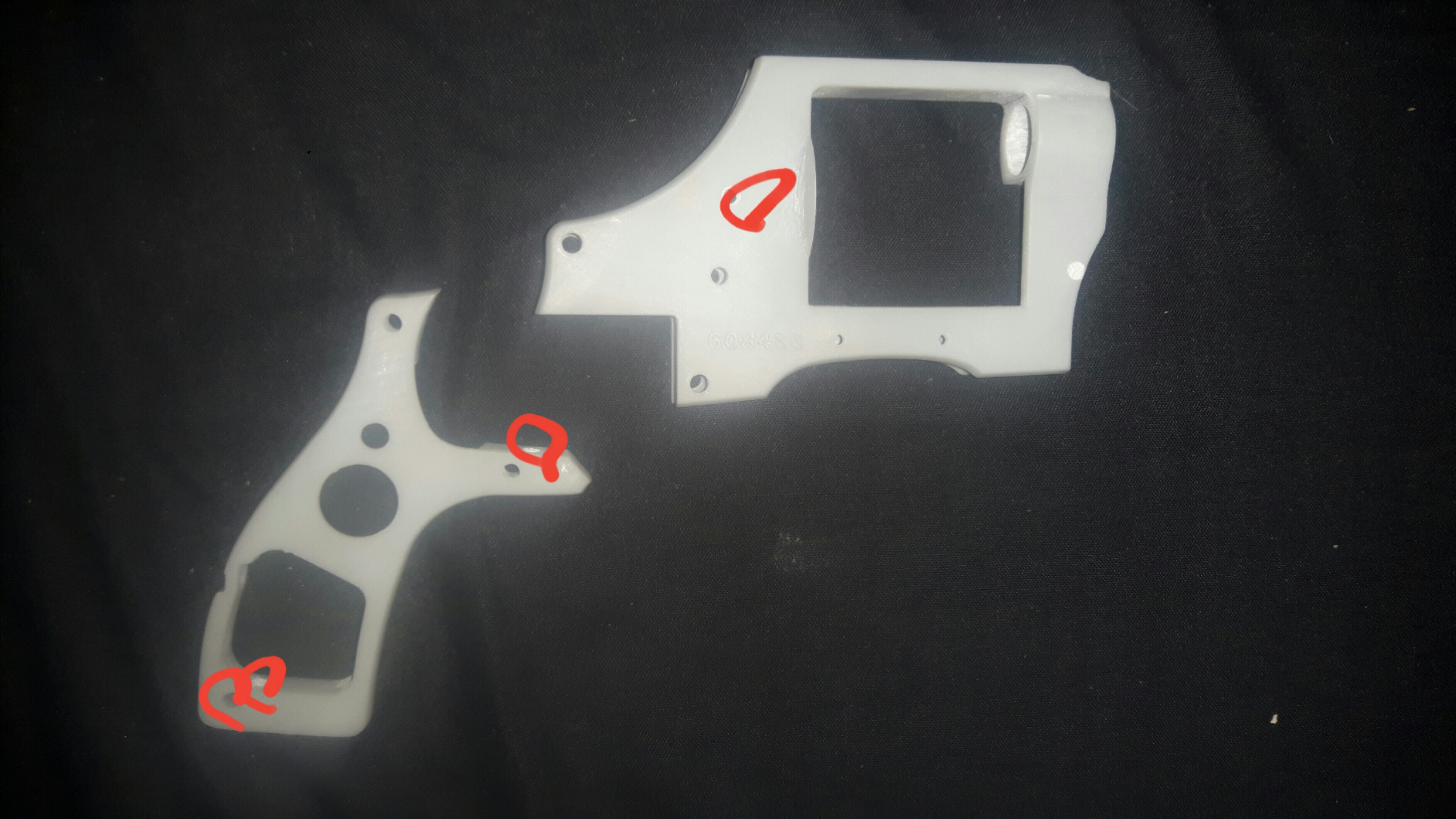

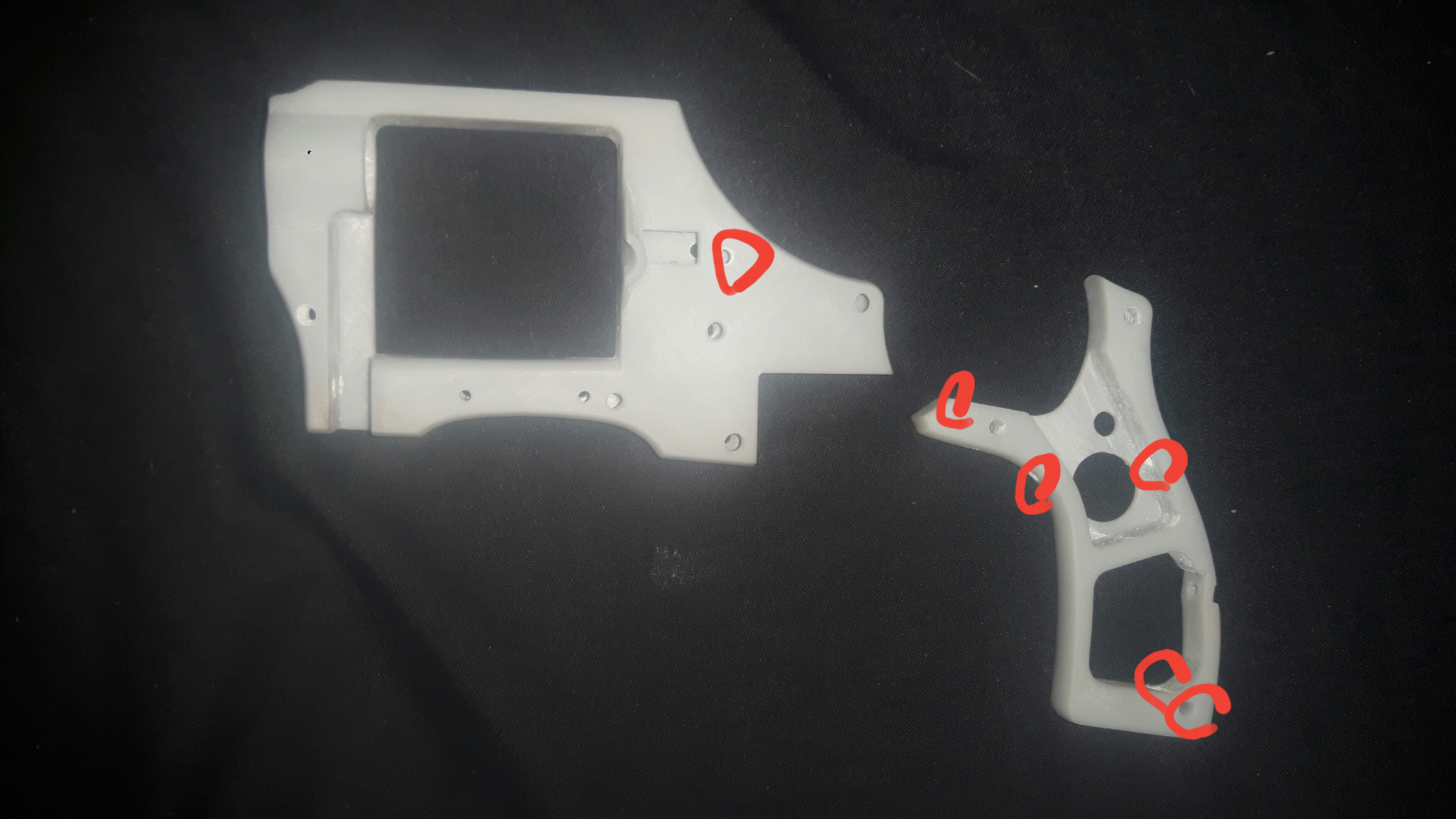

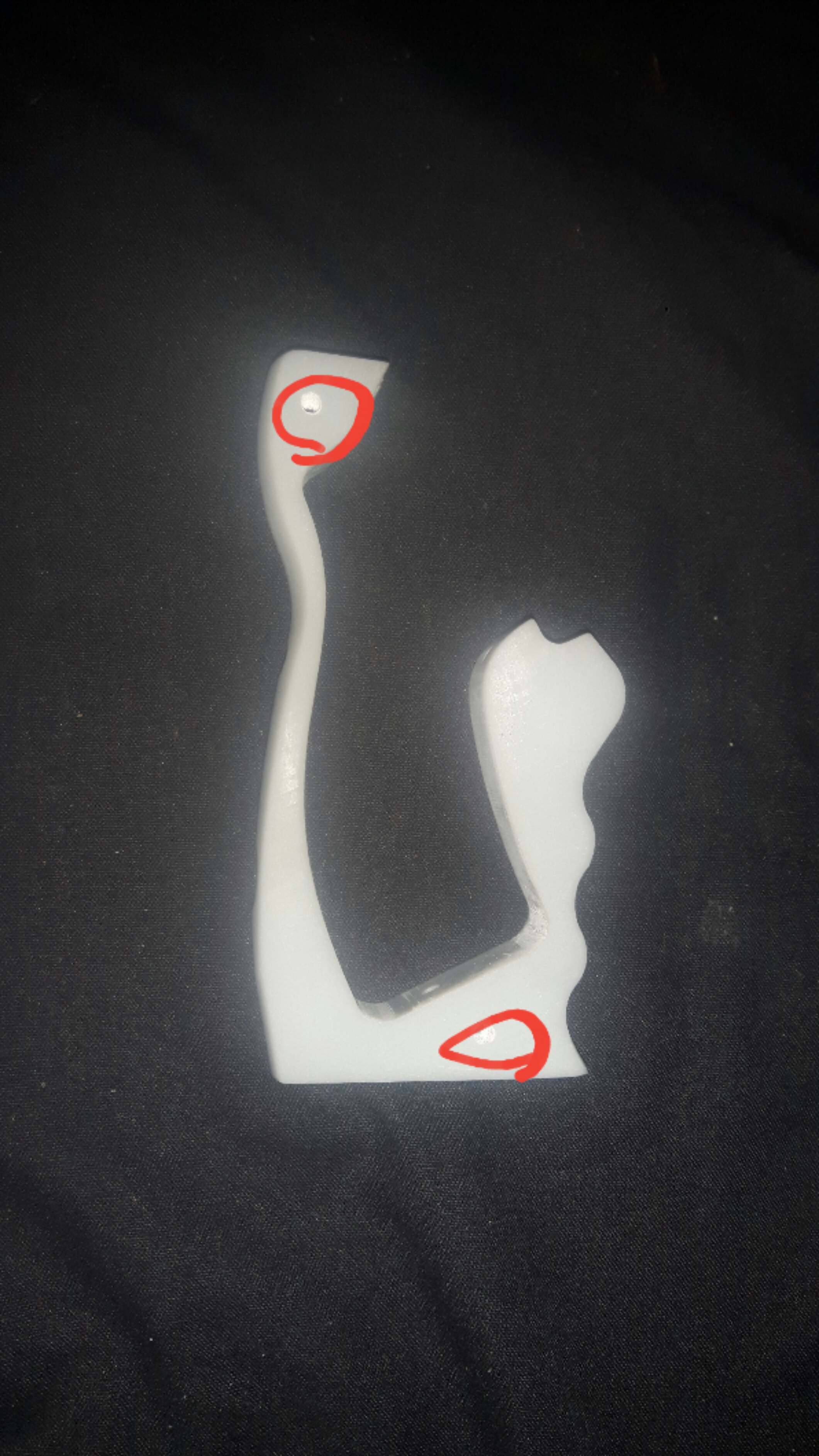

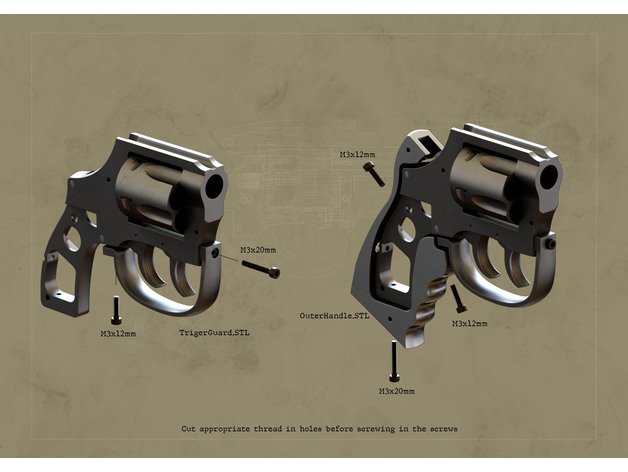

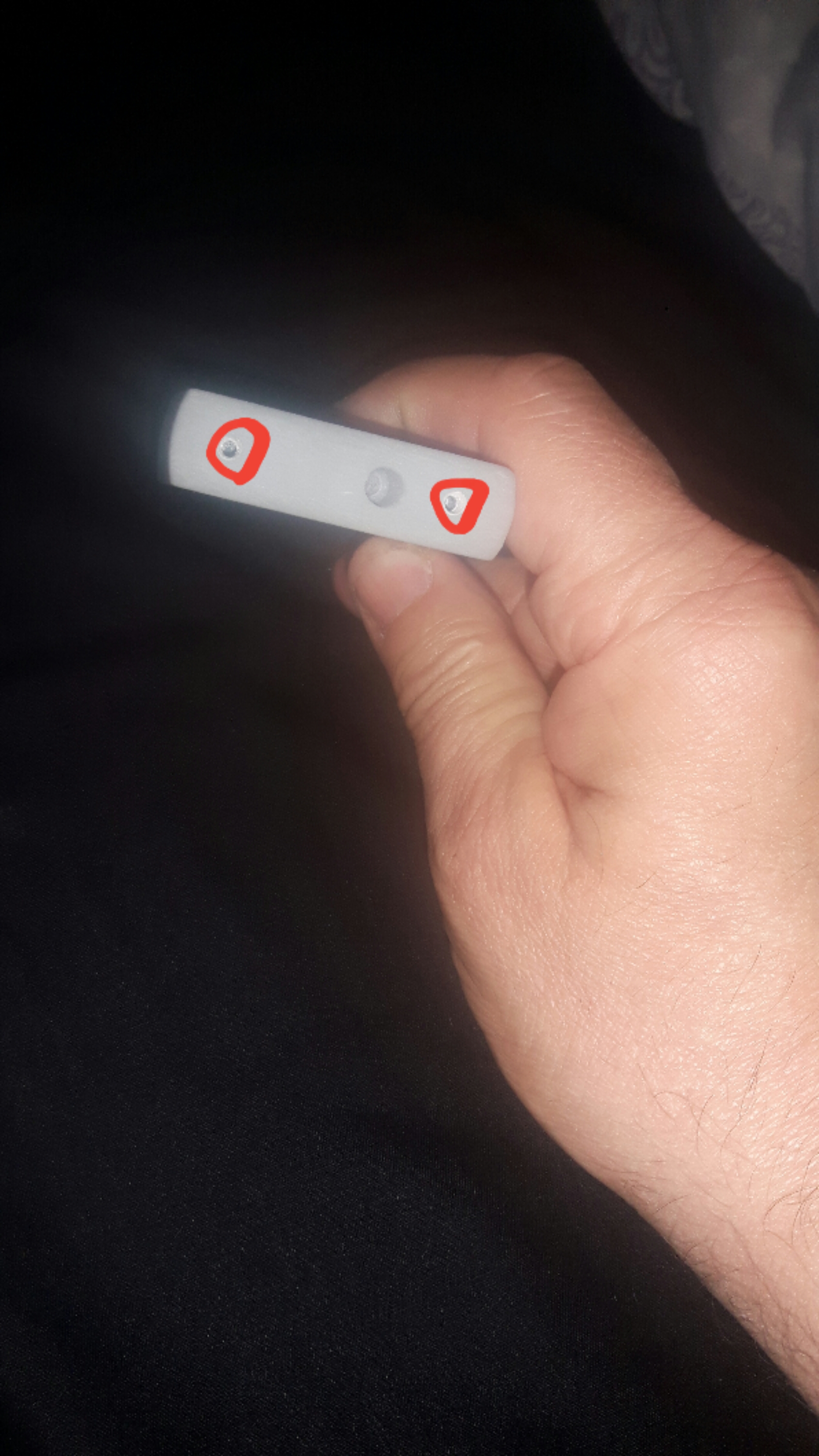

So the more I look at this kit and the more I think about it I was wondering if you are like me and like being able to disassemble and reassemble things if anyone has thought of incorporating M3 nuts into this kit where possible to save wearing out the threads on the resin frame and grip frame or just for a firmer connection from outer to inner butt frame.
I have purchased some slim 1.8mm thick nuts and was thinking of drilling and countersinking them where possible or surface mount them where not visible ie internally.


Attachments

  • 20210518_081841.jpg
    3.2 MB · Views: 13
  • 20210518_081758.jpg
    3.6 MB · Views: 16
  • 20210518_084158.jpg
    3.5 MB · Views: 11
  • 20210518_084428.jpg
    3.9 MB · Views: 10
  • PKD-2019_04.jpg
    54.4 KB · Views: 12
Last edited:

B1RDY

Active Member

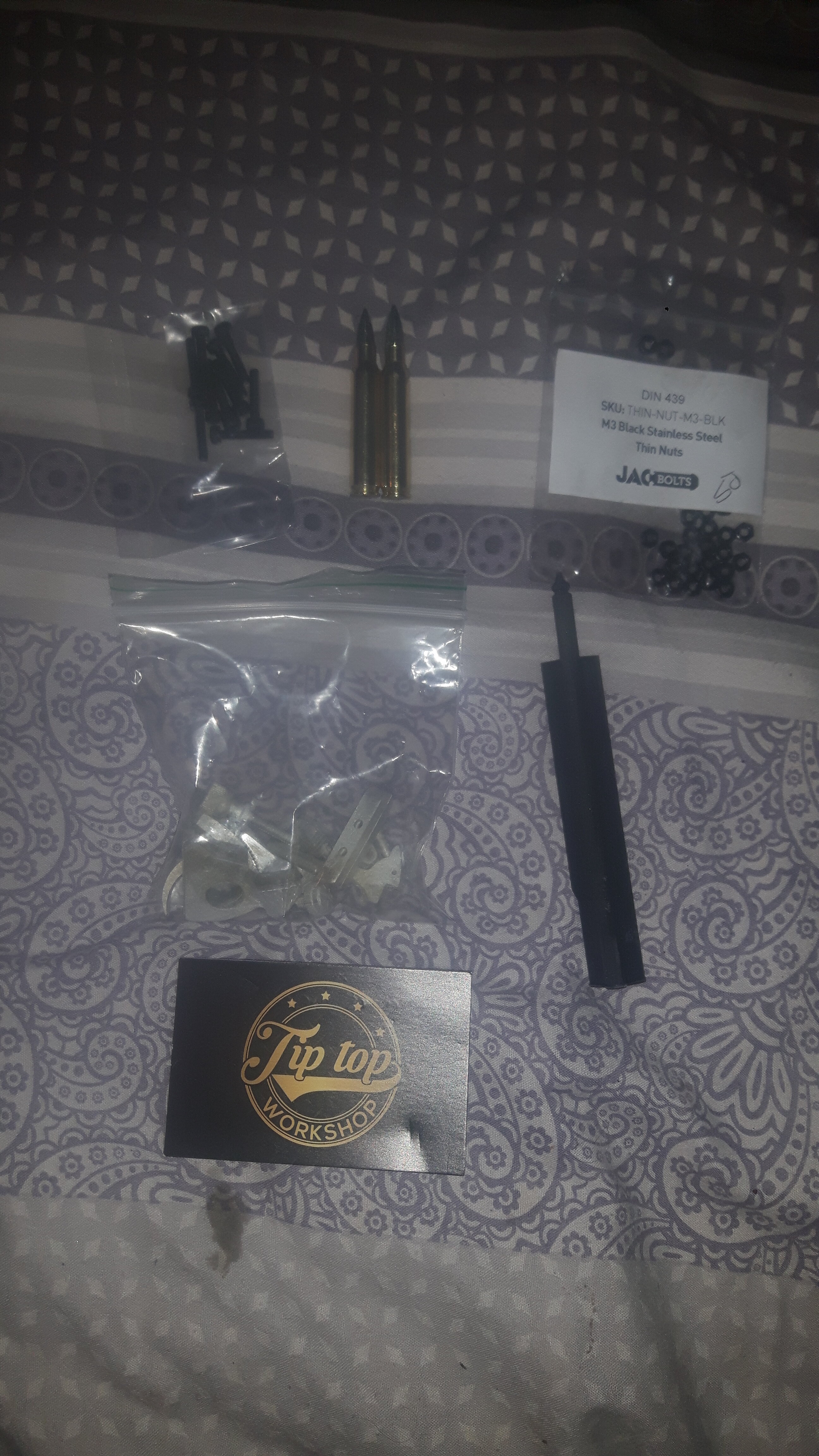

Big shout out to tiptopworkshop for super fast service on some metal upgrade parts that arrived today along with some other parts from the interweb.


Attachments

  • 20210518_094157.jpg
    1.7 MB · Views: 31

Gregatron

Sr Member
Received the fillister screw to replace the Weaver knob, but the diameter of the head seems a bit too small. Hmmm.

Anyone have any sources for an accurate screw?
