Little bit of progress (WIP):

I ended up printing the stencil I made on to printable label paper and cut out the individual pieces with scissors.

This was laborious, but worth it in the end I think.

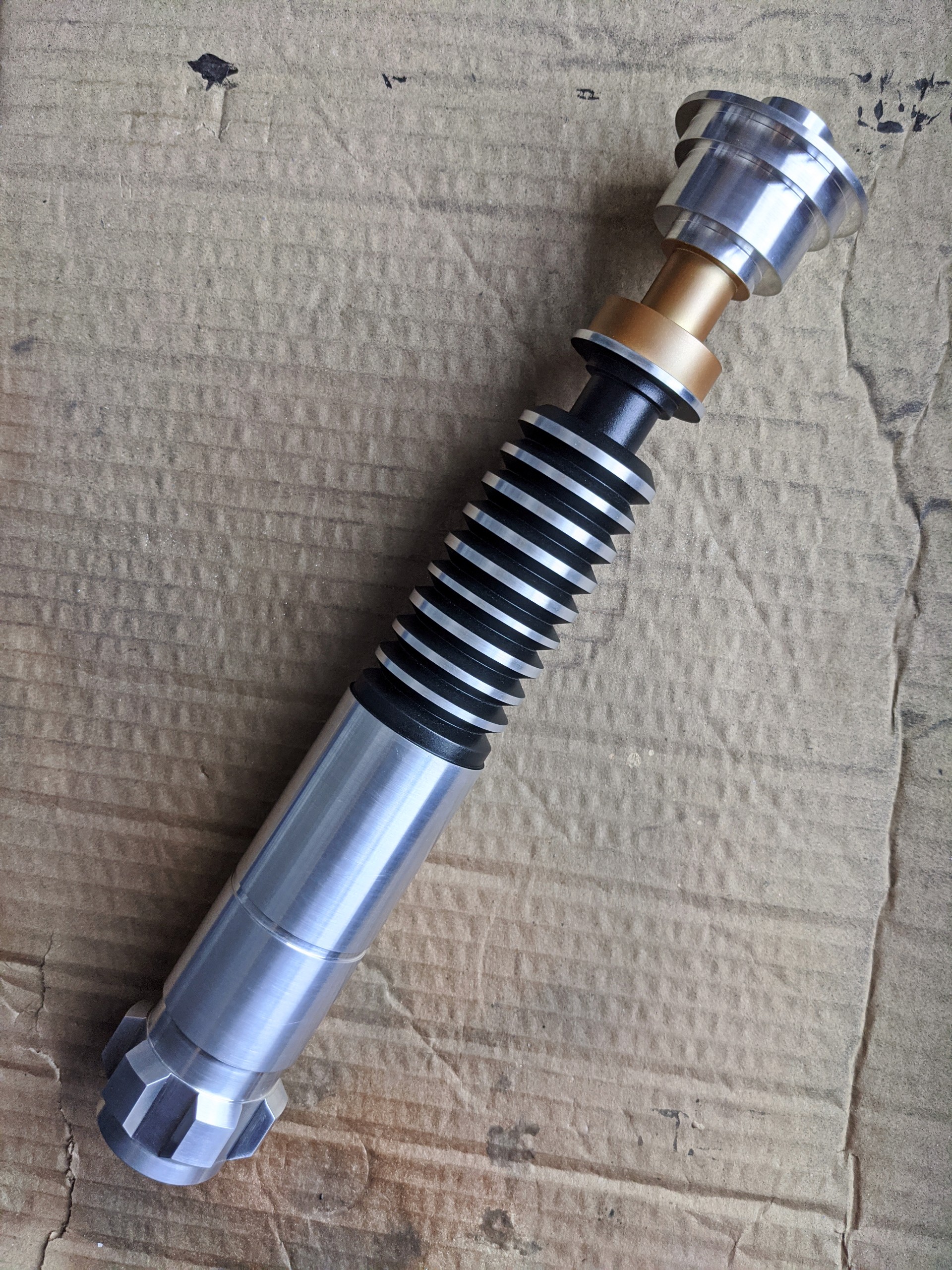

To get the right colour for the necks, I used the Spray.Bike bronze gold as a base, and then airbrushed Vallejo Air Metallic Copper over the top until I arrived at a colour I was happy with. For the Yuma, I added a little black to the mix to dull it down slightly.

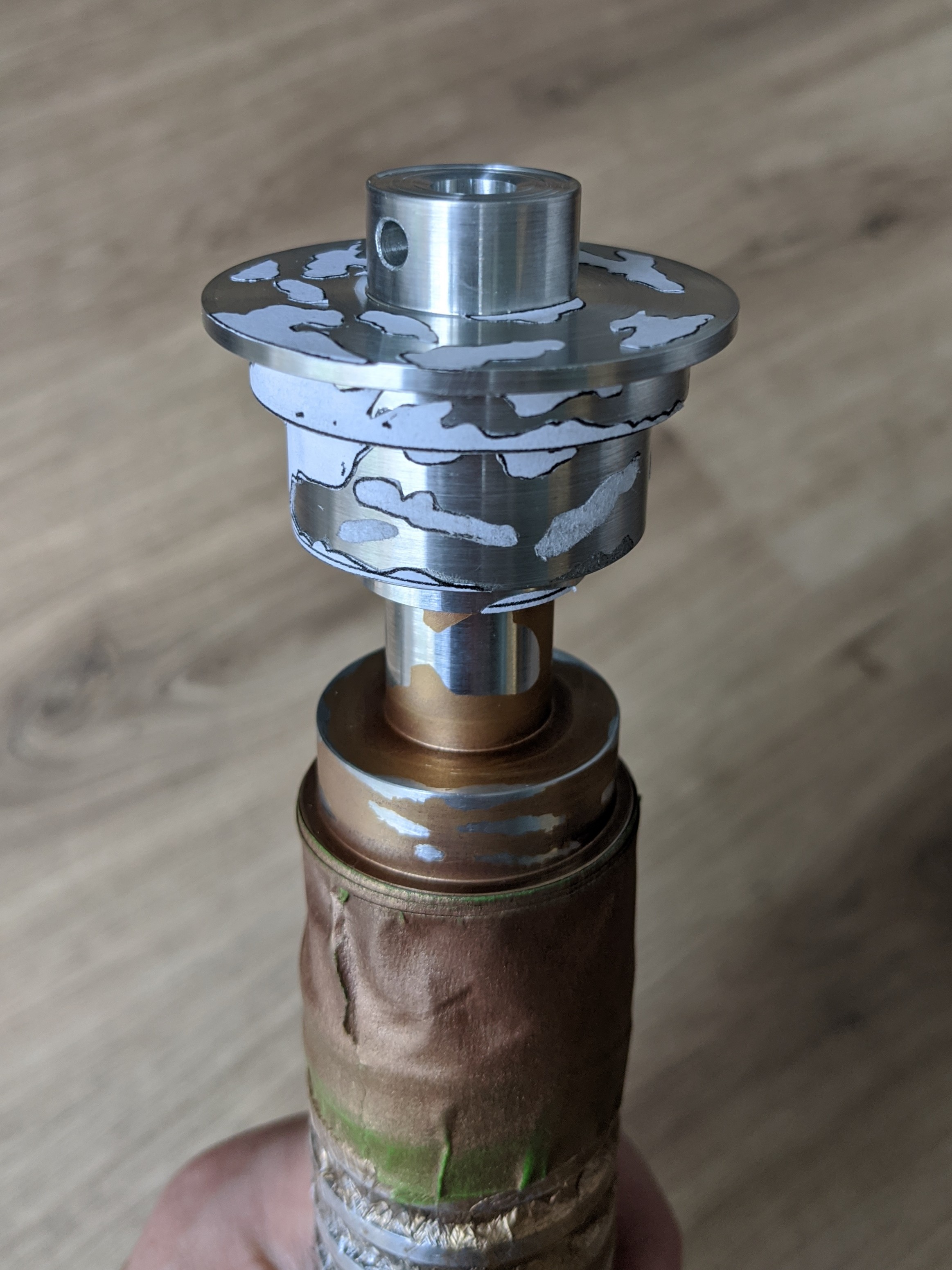

Next steps are to remove the paint from the rings on the Hero with sandpaper, and knock back the black on the Yuma emitter. I'll be using a scotchbrite pad to do this. I think the rings need a few more chips here and there too. I'll be revisiting the reference photos to see where I need to add a little more wear...


DaveP

Sr Member
RPF PREMIUM MEMBER
Bit of progress on the Yuma... Nearly finished. Just a couple of finishing touches to do:






Knocked back the paintwork on the emitter, which I'm quite happy with. I've opted to keep the nipple paint free. Just a personal preference. I think it's more in keeping with the body, which is mostly bare metal. I'll be adding a little more dirt and grime though, as it's all looking a bit too clean at the moment.

I've gone for a stainless Tri-Ring to match the look of the shiny new ring at this point in the props life. I've opted to keep the grub screw shiny and new for the same reason.

Still a few more little things I'd like to add, but for now I'm going to concentrate on getting the Hero finished:



All done with the body/paint job. Moving on to the control box next. :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

DaveP

Sr Member
RPF PREMIUM MEMBER
Little bit of progress on the Hero:

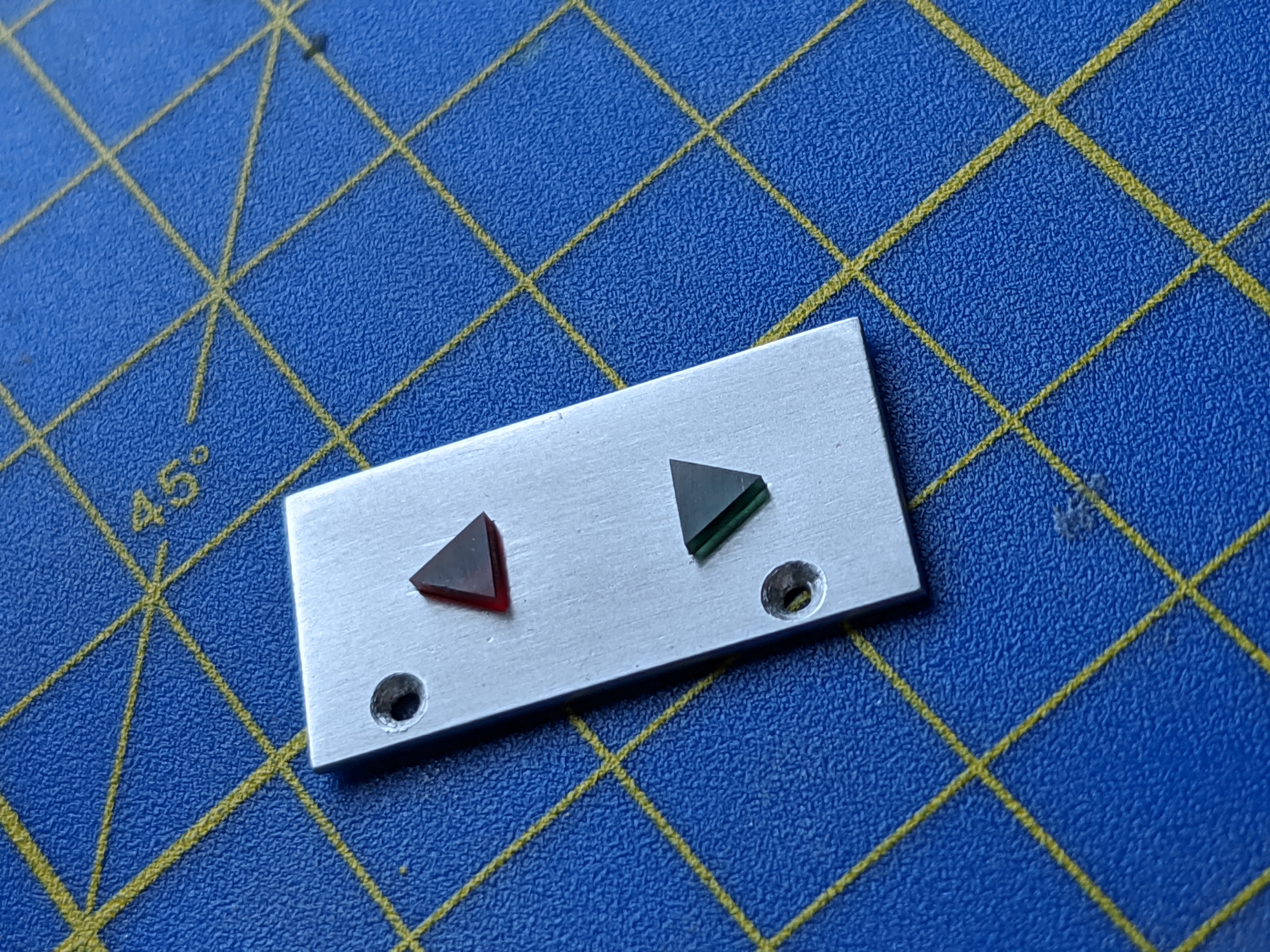

It's been an insanely busy week with work, but I've managed to get the triangles glued in to the plate, and the plate installed.

You may find (as I did) that the mushroom screws for attaching the box are a thread or two too long :rolleyes: Apologies for that! I opted to hacksaw a few mm off which didn't take long. Still, it would have been preferable to not have to do that. I'll be supplying shorter ones in the second run.

All a learning process. It's my first time building one of these too.

Anyway, it's looking good. Steady away. (y)







DaveP

Sr Member
RPF PREMIUM MEMBER

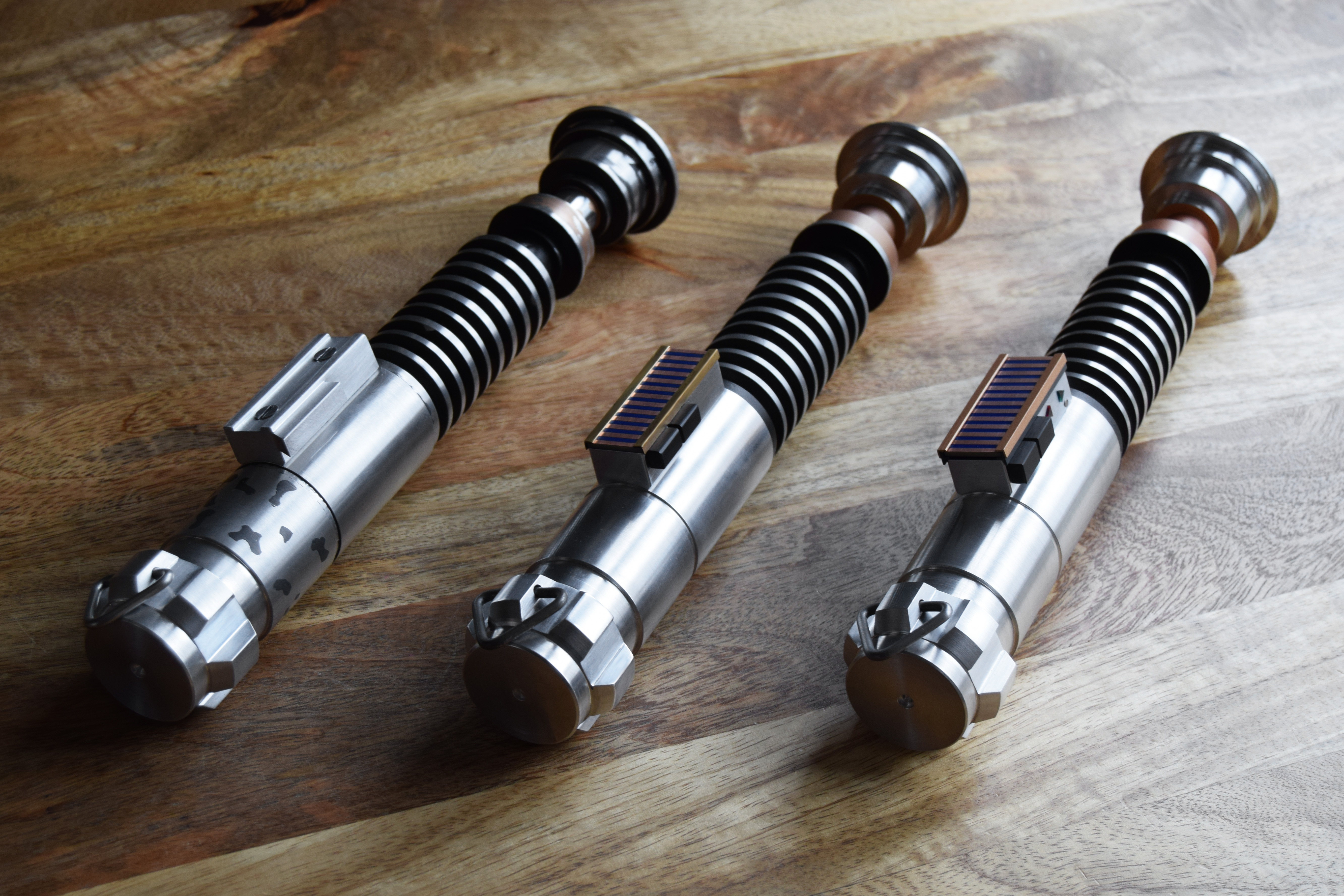

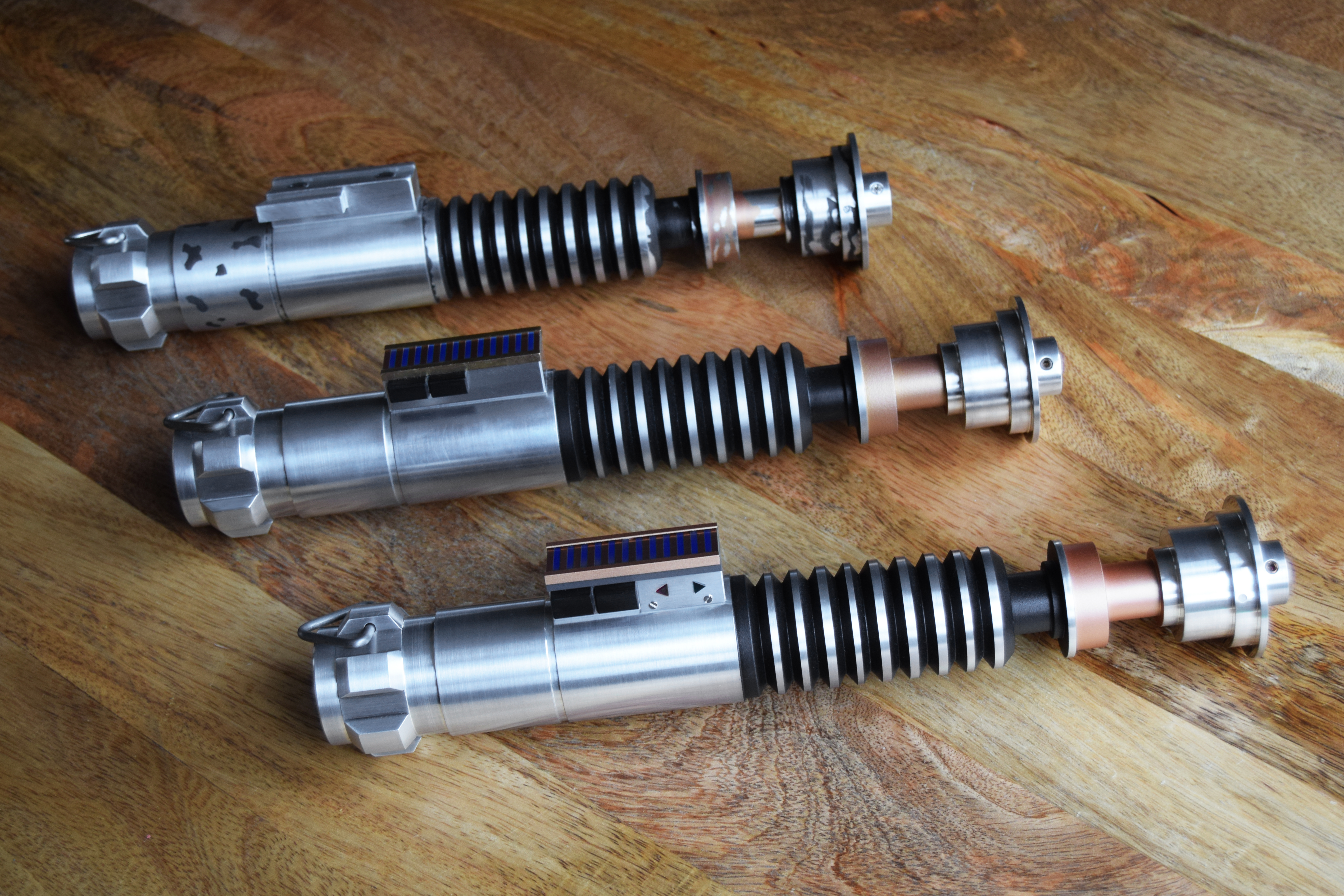

Here they are.... At long last... The holy trinity!





Well... Nearly... I'm still waiting on some paints to arrive for the PCB board, so the rails and buttons are held on temporarily with blue tack for the time being! I couldn't resist putting it together to see how it looked though. :D

So good to see all three together after all this time! :)

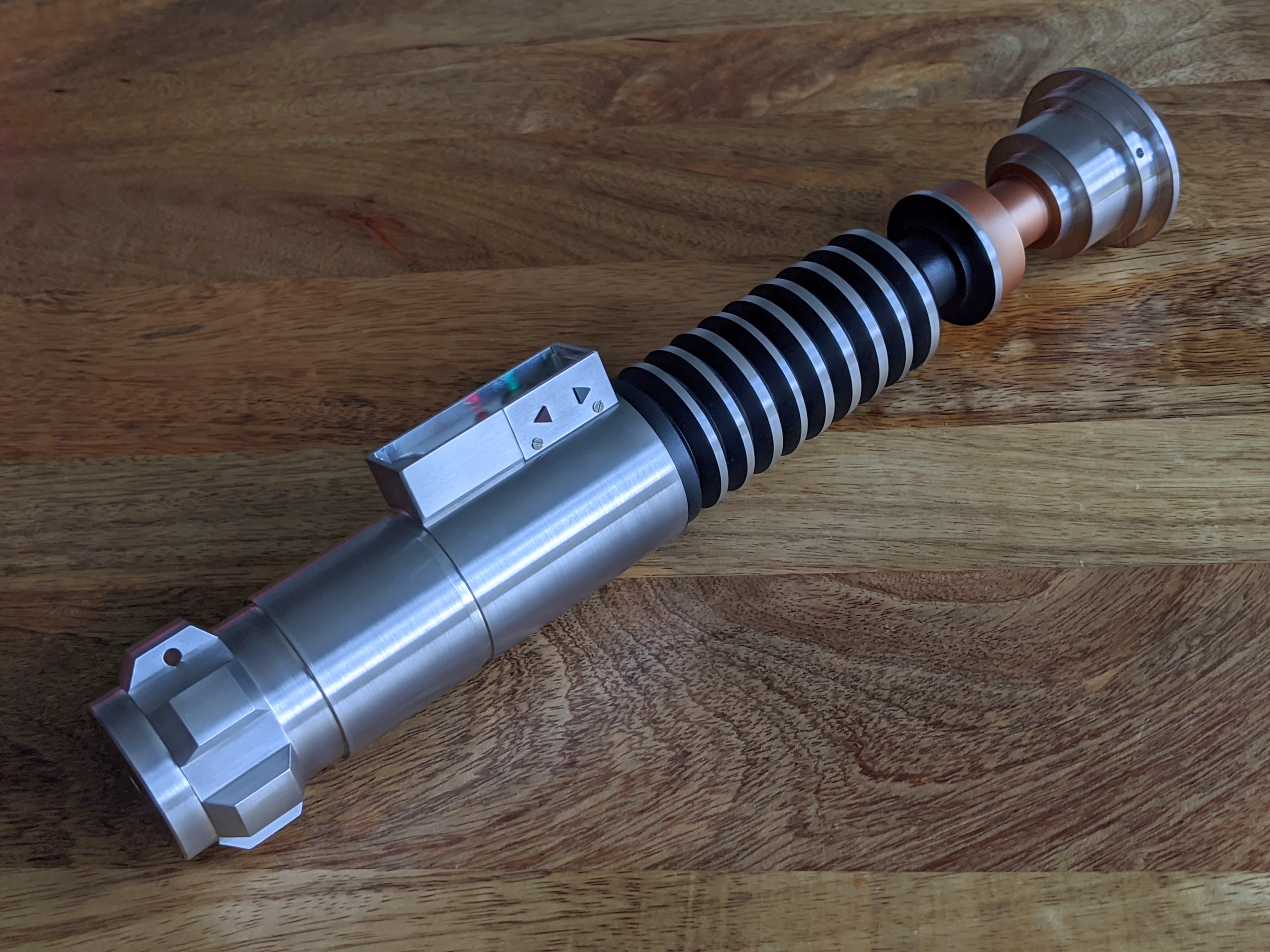

Here's a shot of just the Hero:



The Brass rails have been painted to match the neck (as with the original prop). Its a base of Spray.Bike Bronze Gold with Vallejo Air Metallic Copper over the top. For the T-Track, I mixed up a mid-to-dark grey by eye to match the reference material.

For the second emitter screw, I opted to fill in using epoxy filler rather than using the screw that I supply with the kit (Although, I did use it on the Yuma). The Aluminium filler I used was way too dark, so I colour matched with a Markal Aluminium paint marker.

Really poor lighting conditions today, so I'm not able to get the best photos. Couldn't wait to share though!

As soon as we get a nice day, I'll snap some better images.

Looking forward to cracking on with the PCB as soon as the paints arrive.

Cheers,

Dave
