Slave I Map & Reference Thread

[Ogibendogy]

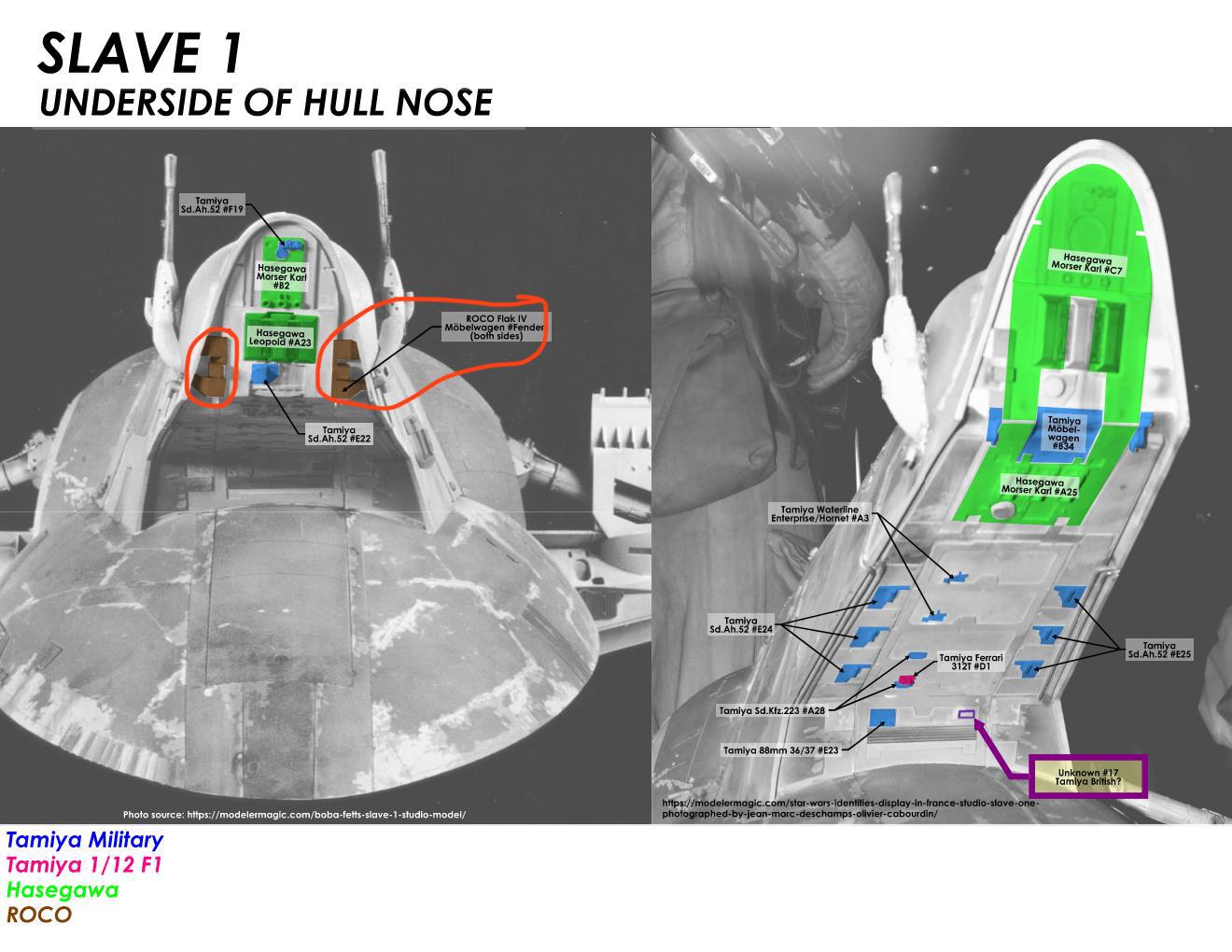

Next up are maps for the hull/fuselage and cannons. I had a leg up on some of these thanks to some old maps I picked up from I don't know who! See next post for better pics of the unknows...

2023-02-05 Edits - updated maps with found parts and corrected a couple errors



[Ogibendogy]

Unknowns from Post #41. Appreciate any help.

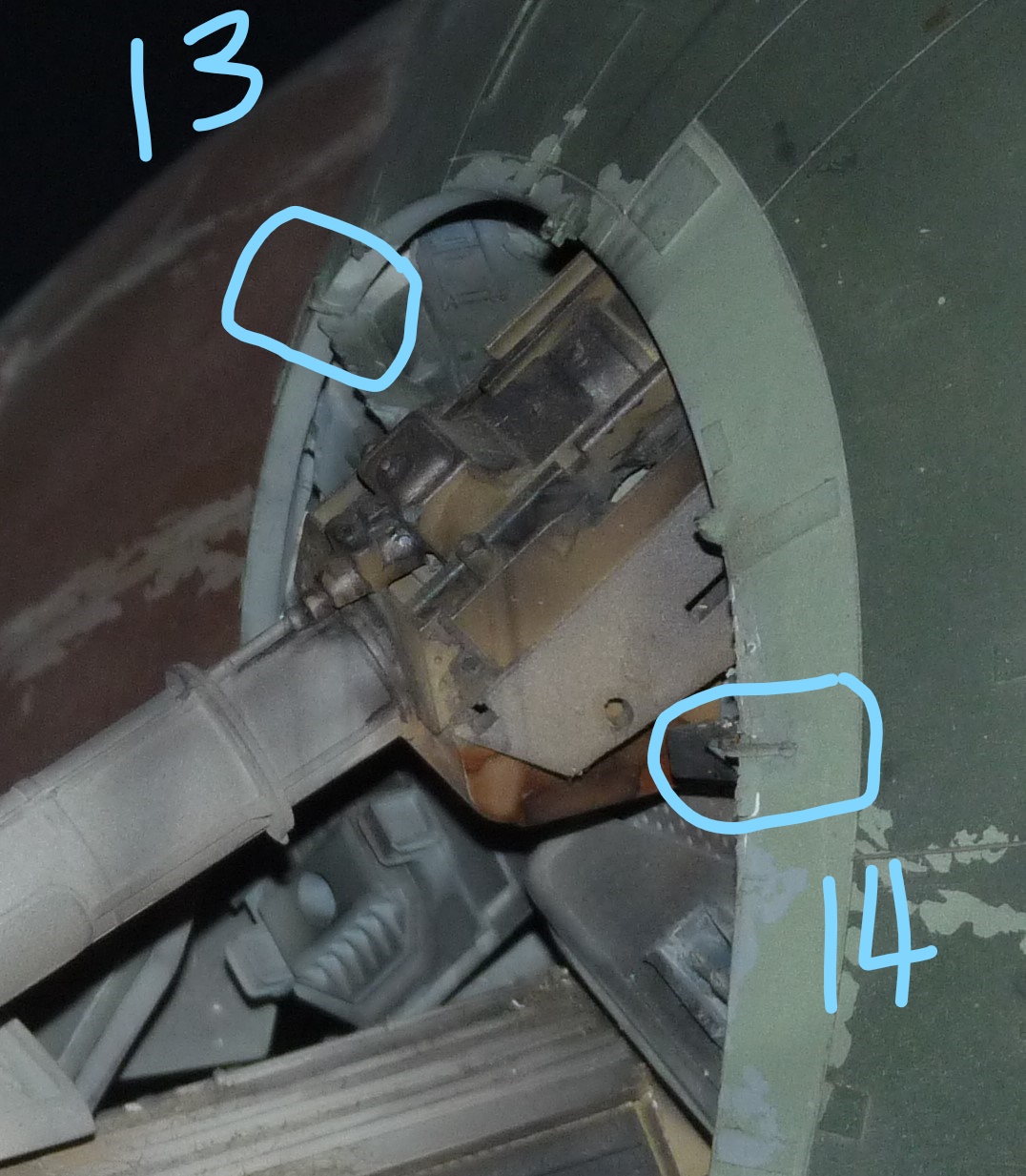

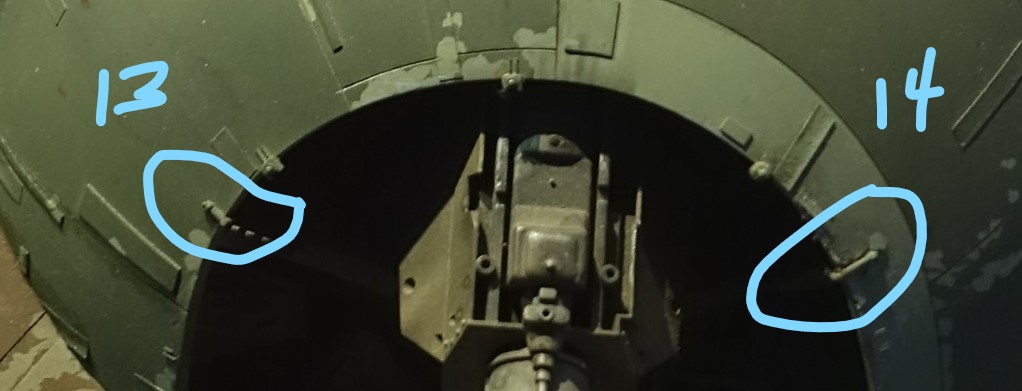

Unknown #13 & #14: I think these could be the same part and from the Tamiay Mobelwagen

Unknown #15: Found - Tamiya Russian SU-85 #D25 (if top of hinges filed off)

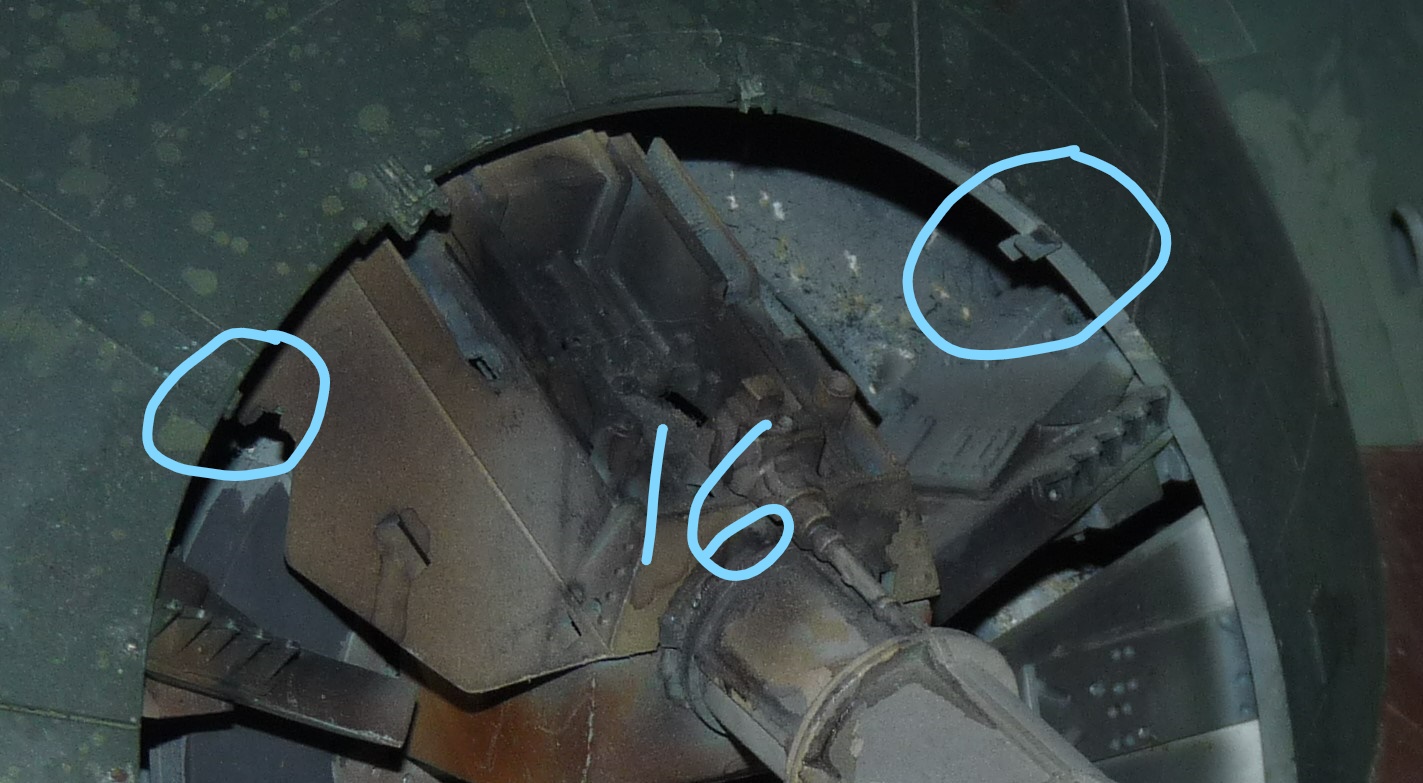

Unknown #16: These look to be the same part and I suspect are from a 1/700 or 1/600 naval kit

Unknown #17: Found - Hasegawa Morser Karl #A24



[GTMill]

The items circled are the Roco Mobelwagen gun shields rather than the fenders.



[sjanish]

13 and 14 feel similar to parts in the 8rad. Little stubby things that appear in so many armor kits. Just throwing it out there, I don't really know.

15 - there is a part in the Tamiya SU-85 that is very close, but they would have had to sand some things off.



[Ogibendogy]

Updated most of the maps in Post #1, #22, and #41 with found items and minor corrections. Also reloaded the PDF of all maps to date with better image quality.

Up next is the wings and cockpit (this may take a while!).



[propcollector]

these parts are very good .. and should not very expensive to print.

So where do we get the files



[propcollector]

Unknowns from Post #41. Appreciate any help.

Unknown #13 & #14: I think these could be the same part and from the Tamiay Mobelwagen
View attachment 1666482View attachment 1666483
View attachment 1666488

Unknown #15: Found - Tamiya Russian SU-85 #D25 (if top of hinges filed off)
View attachment 1666767

Unknown #16: These look to be the same part and I suspect are from a 1/700 or 1/600 naval kit
View attachment 1666485

Unknown #17: Found - Hasegawa Morser Karl #A24
View attachment 1666769

any chance to get these pics without the mark and the other reference you have on the slave......these are good and clear....Please



[Ogibendogy]

any chance to get these pics without the mark and the other reference you have on the slave......these are good and clear....Please

Sure thing! Aside from the Japanese Chronicles pics, everything I've used is from these two links:

Reference Pics
Slave 1 by Deschamps & Cabourdin



[propcollector]

The secound link says there’s nothing there



[sjanish]

Did some searching on the site. Try this:

Star Wars Identities Display in France: Studio SLAVE ONE photographed by Jean-Marc Deschamps & Olivier Cabourdin



[Ogibendogy]

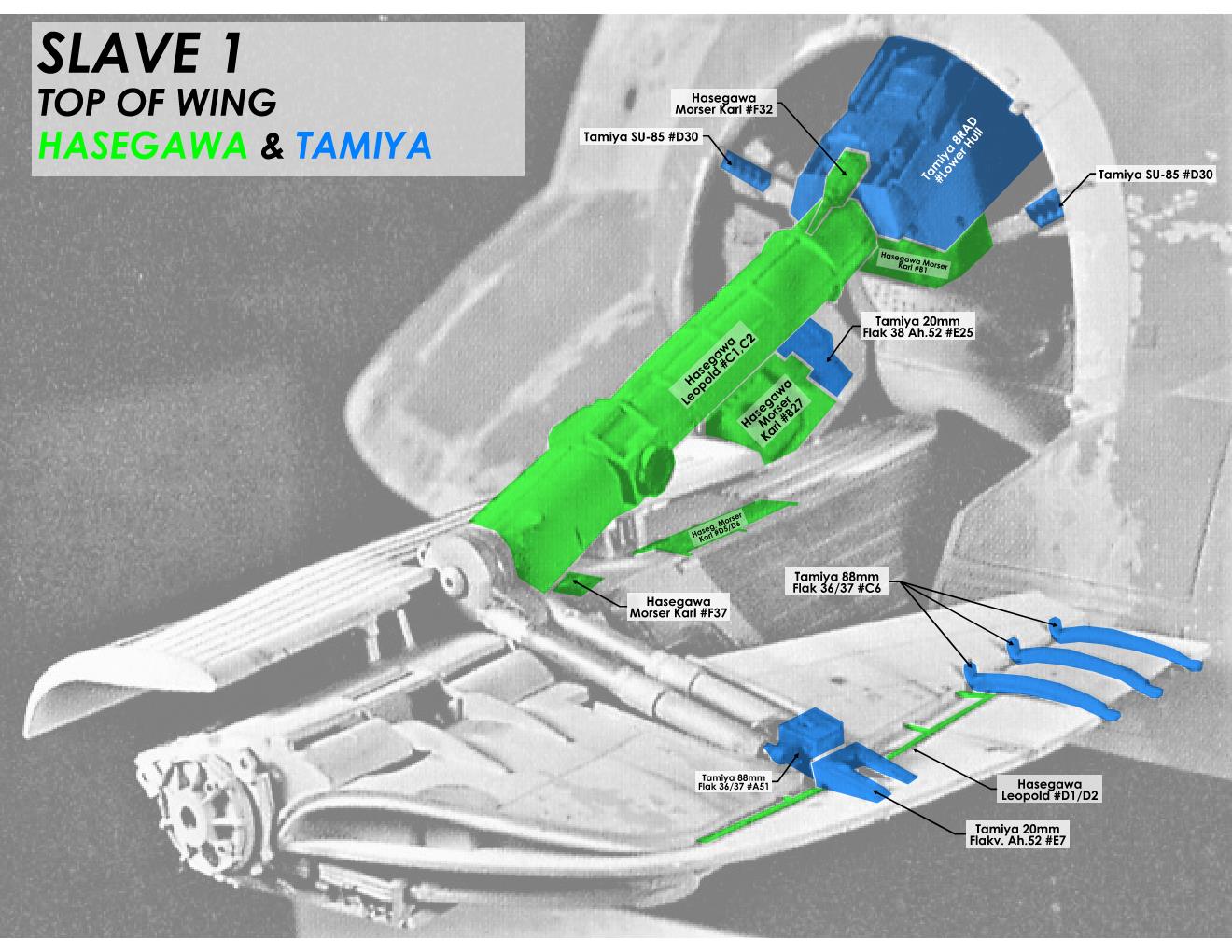

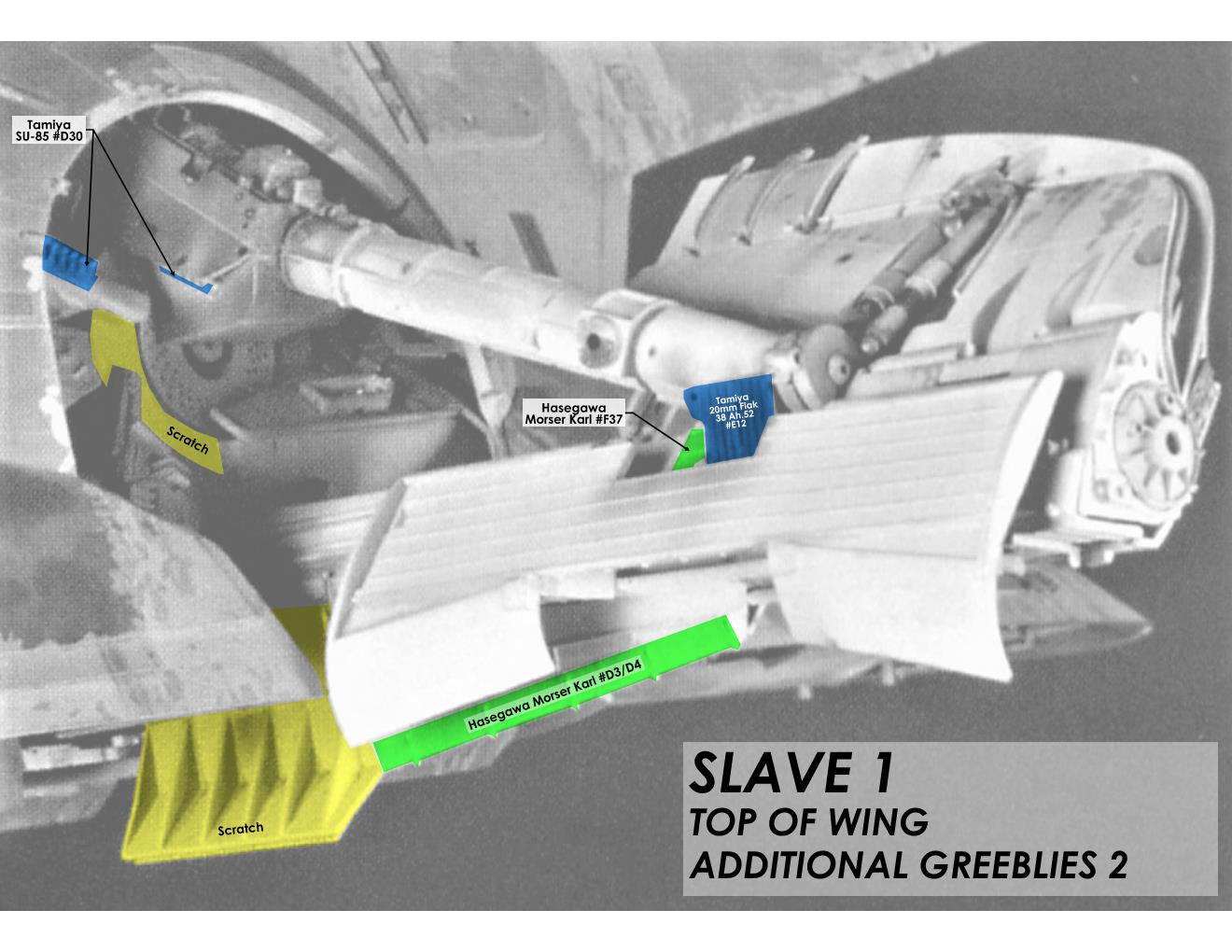

Here are the maps for the wings. Maps use the starboard wing but they're nearly identical. I've tried to note any differences. I'll add close ups for the unidentified pieces in just a bit.

2023-02-25 - Updated with minor edits



[sjanish]

The thin parts on top of the 1/20 BT-46 are from the Tamiya 88mm Flak. The kit part is V shaped. Part of it gets trimmed off and then it gets bent to the shape of the BT-46 part.



[Ogibendogy]

I see it now - thanks, sjanish !



[Ogibendogy]

Here are some closeups of the unidentified parts.

#18: These are the pieces that lock in the brass tubing pistons. I suspect they are scratch built.

#19: These two fins between the 1/20 Brabham part look like scratch styrene but remind me of the small ends of the BT44 cockpit window.

#20: This piece holds the Molex connector above the Entex fender. I think this is just a scratch styrene piece with some tubing.

#21: I thought this could be a 1/20 scale wheel but might also be part of the armature?



[Ogibendogy]

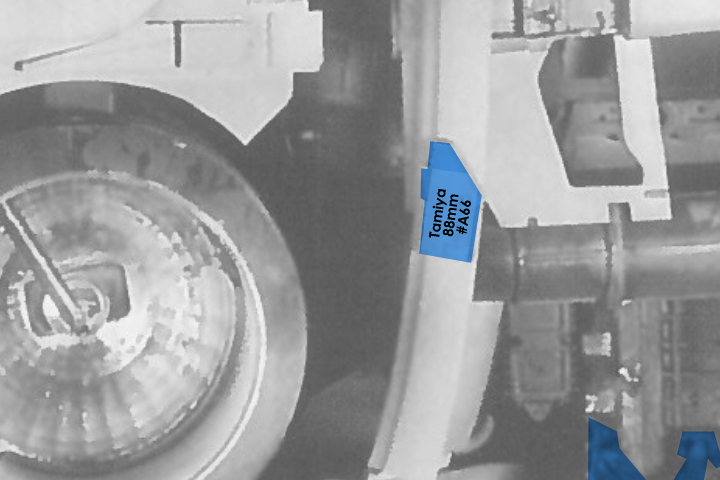

I missed a piece in the engine bay on top of the Entex Porsche fender. It's #A66 from the Tamiya 88mm. Will add to the maps on the next update.



[Ogibendogy]

Just finished up my first pass on the cockpit. Good pics of the interior are hard to find, so Marcel graciously shared a 3D render (not to mention - he was a big help with IDs). Fire away!



[Ogibendogy]

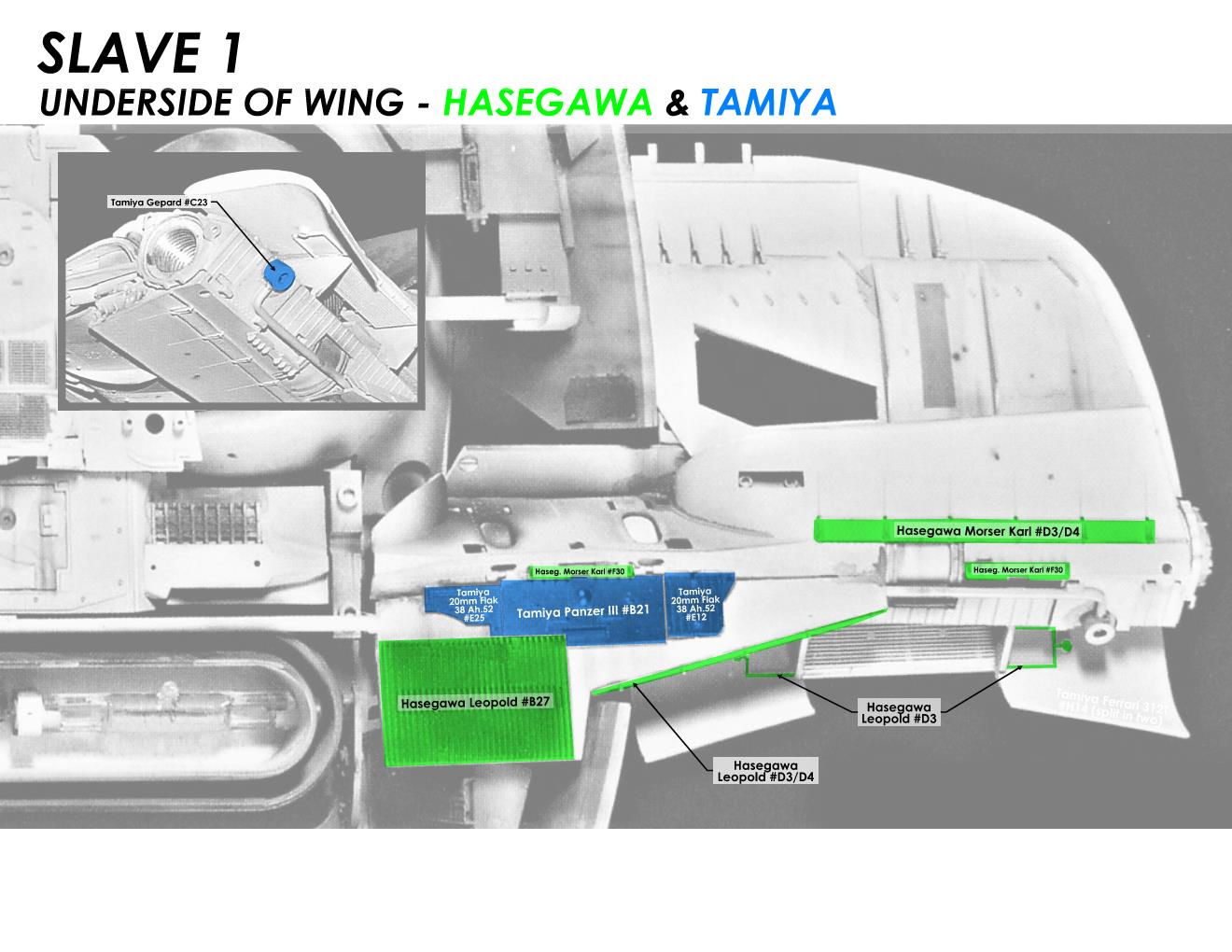

Made a few more edits to show details in the wing bells. I also added a parts list from my spreadsheet to the end of the PDF. See the first post for the combined PDF.

Still looking for help with those last few unidentified parts!
