I wanted to build a y-wing at a pretty big scale but not quite studio scale so 1/36 it was.

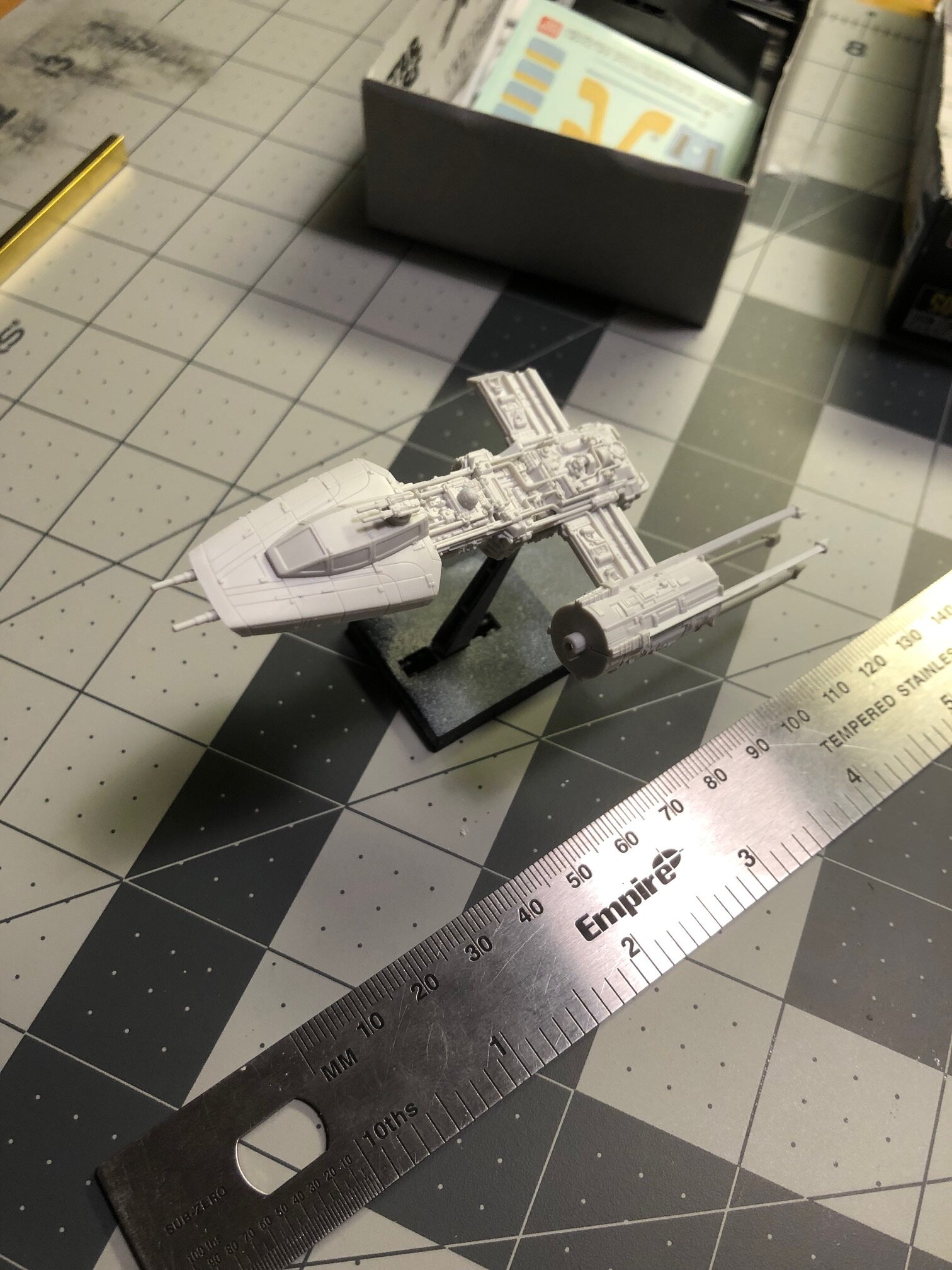

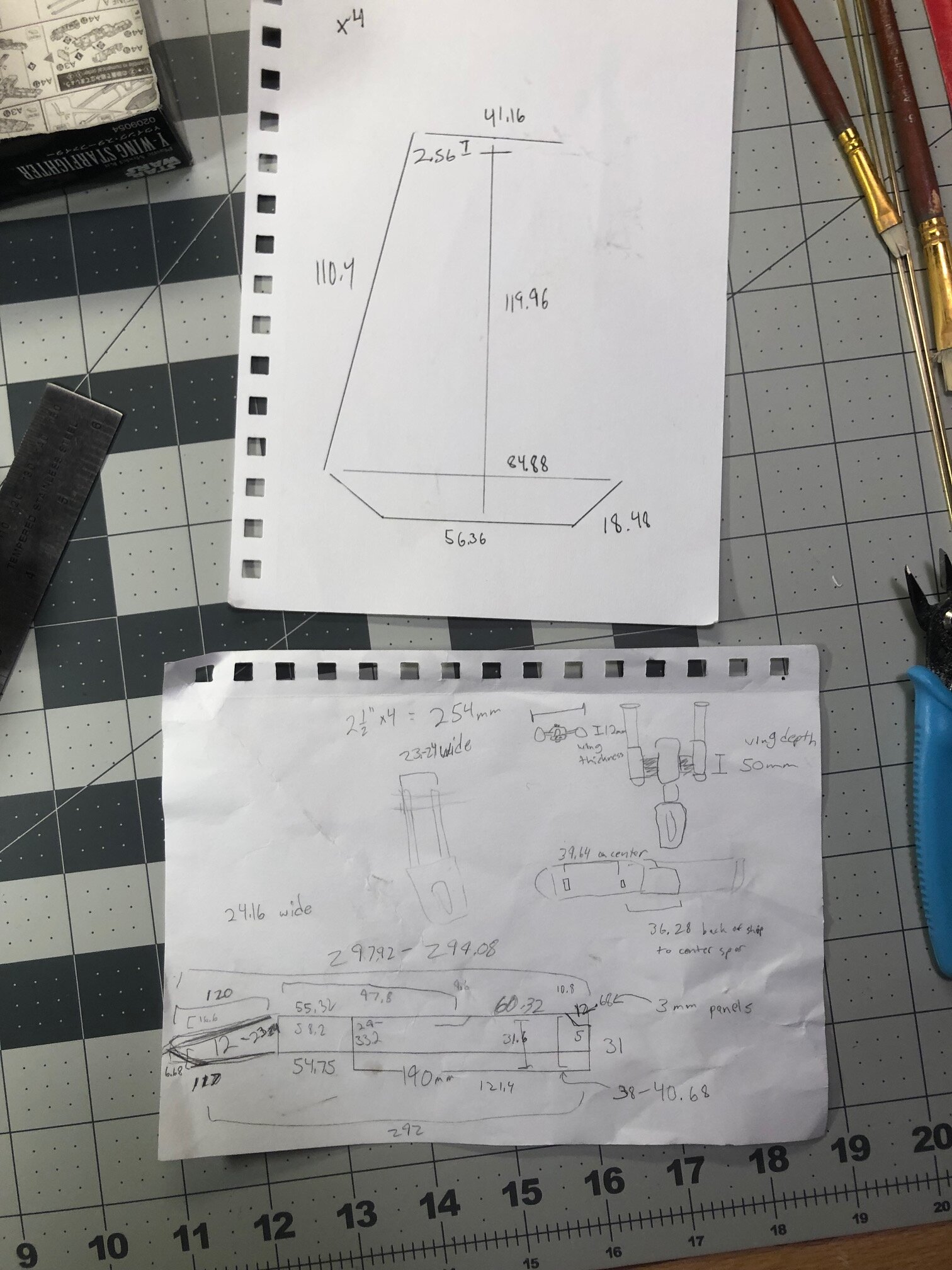

1/35 would probably be a more conventional modeling scale but I was using the Bandai 1/144 y-wing to measure off of and multiplying everything by 4 made for easier numbers to work with.




I'll be using a few different tanks and artillery to kitbash from --but nothing screen accurate. The general features of the y-wing will be followed but my version will deviate from the original when it comes to the finer details.

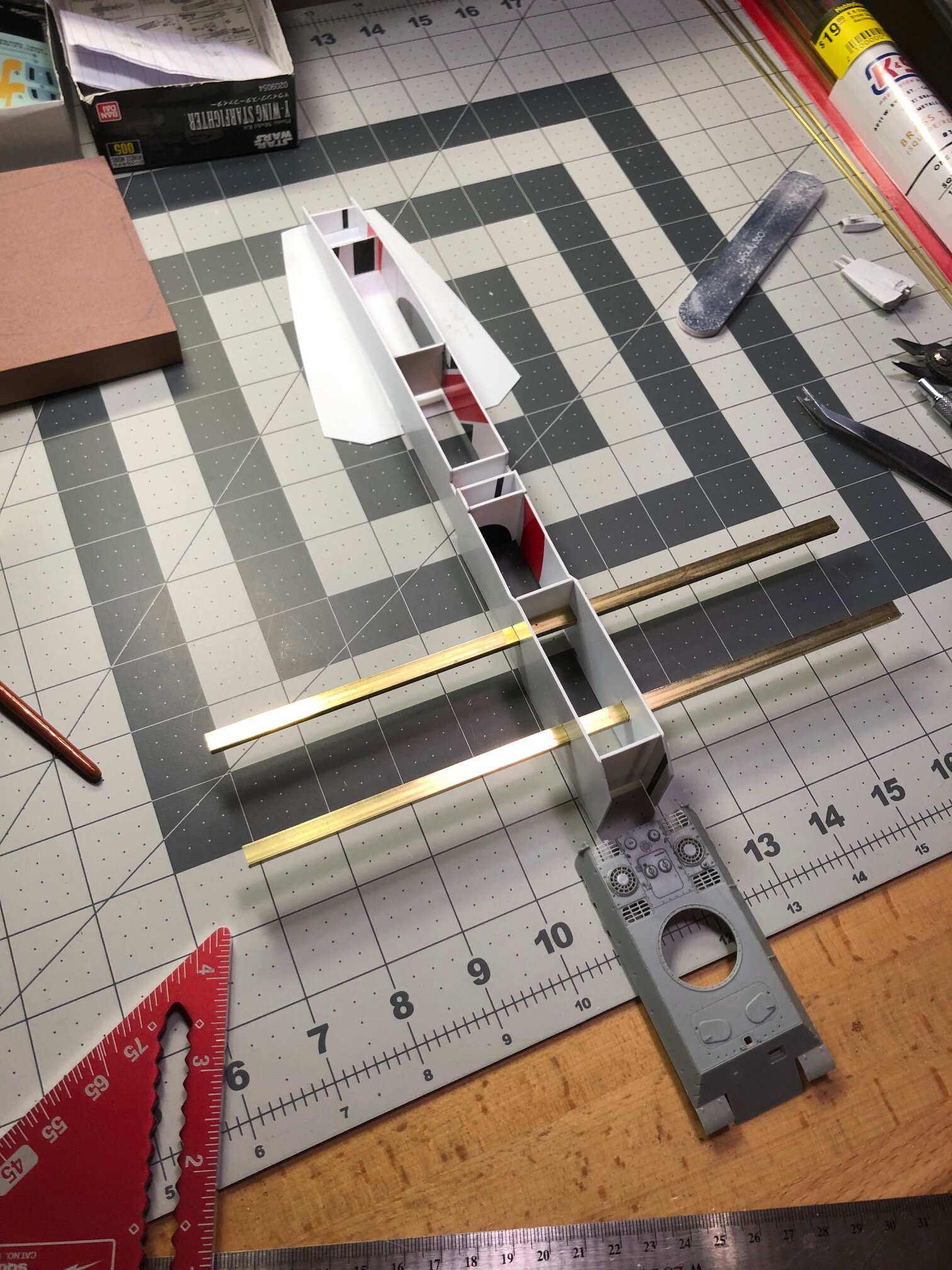

The exhaust section from a tiger tank kit. The scale isn't proportional but I'll build it up with some styrene bits and greeblies.

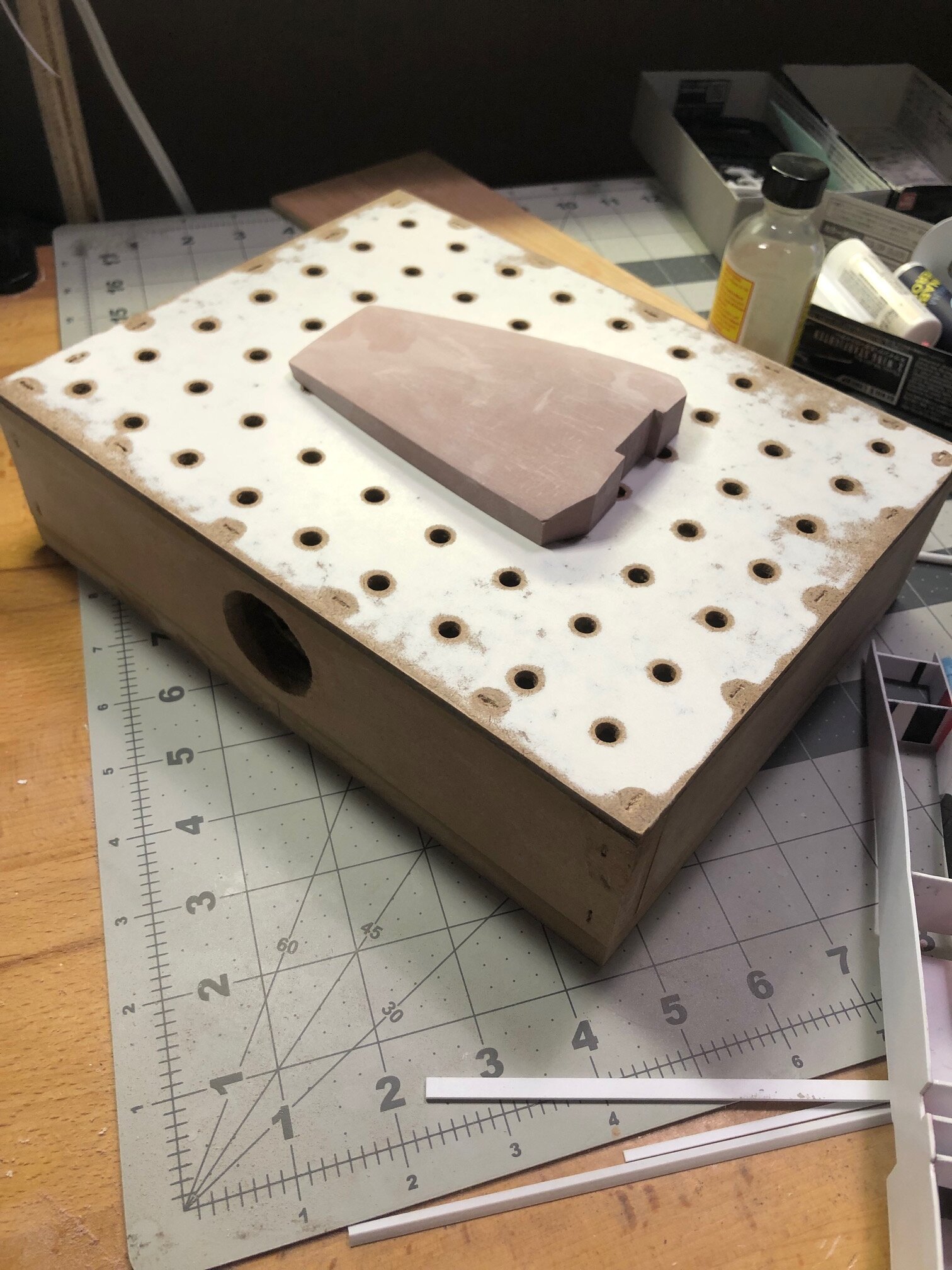

Some high density foam to sculpt a buck for vacuforming the nose section.

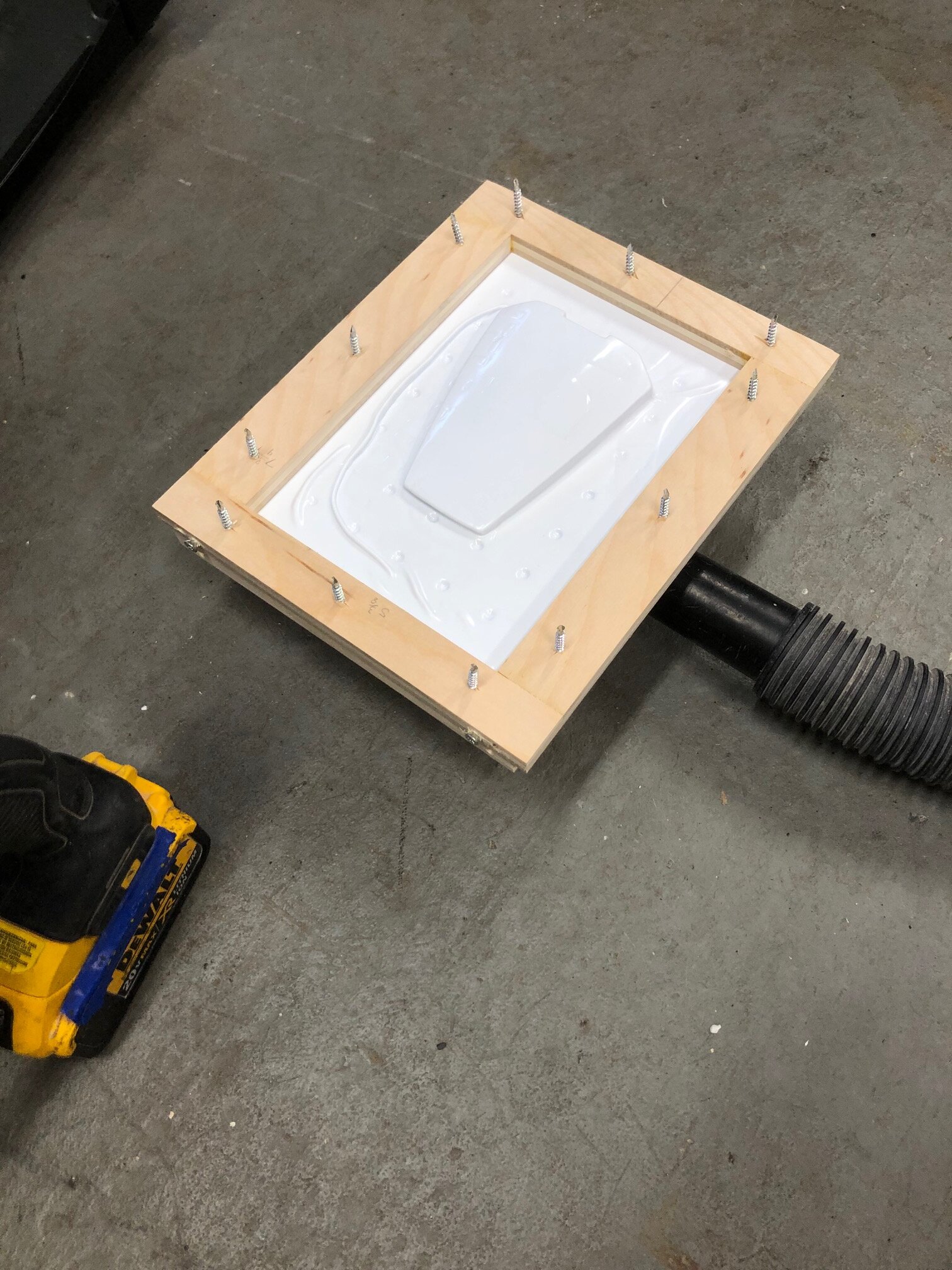

First pull didn't go well. Too thin styrene

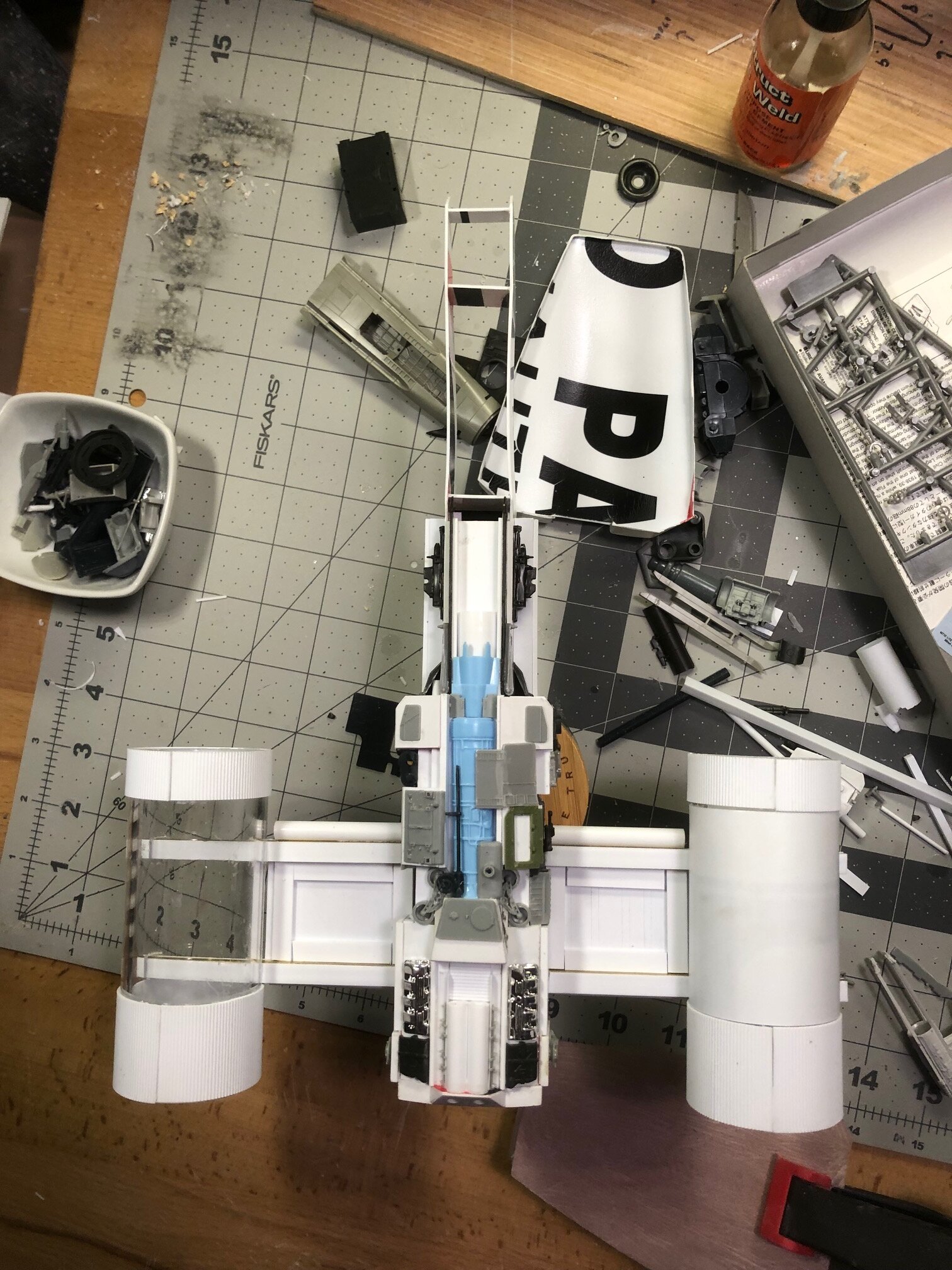

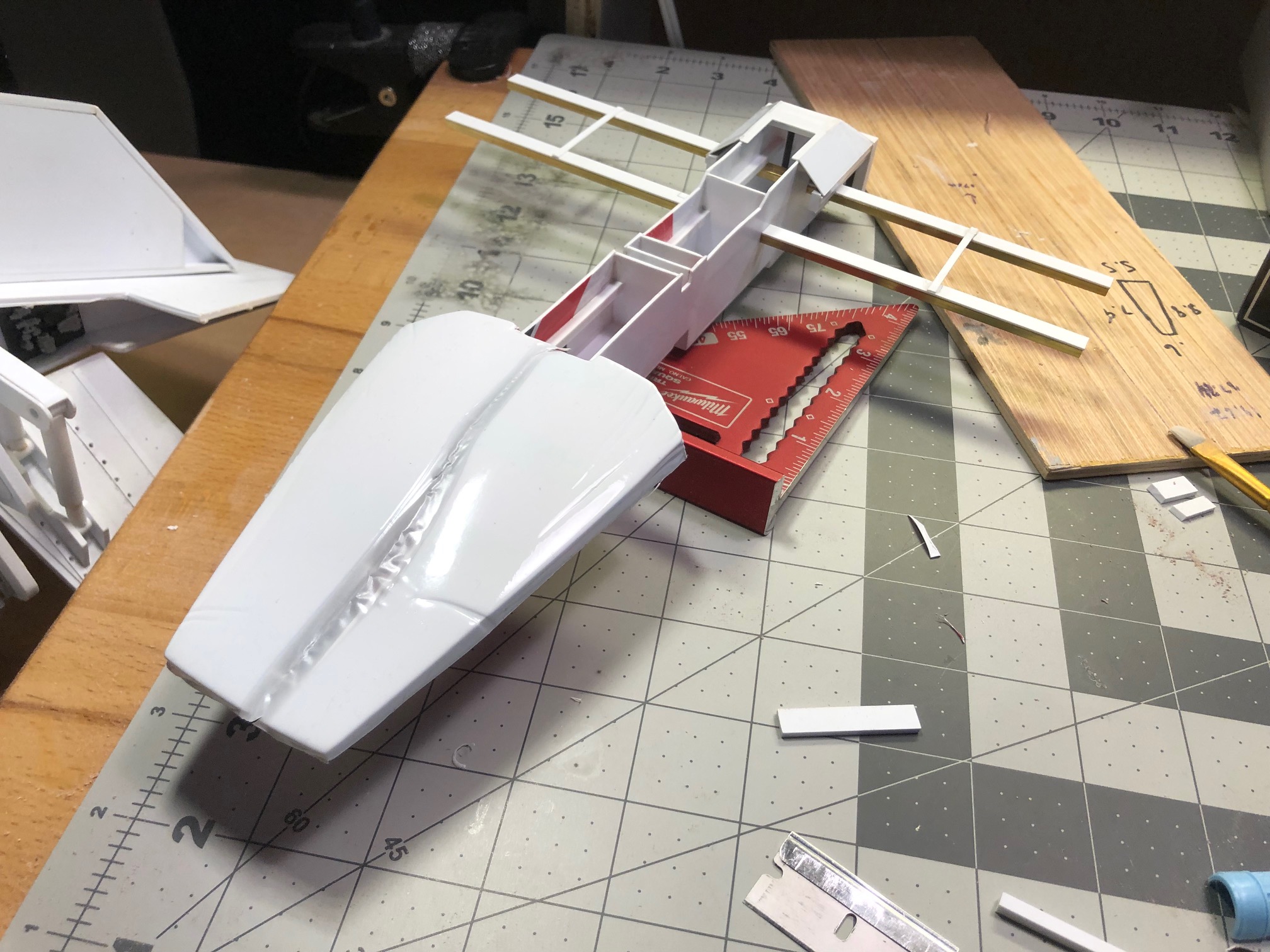

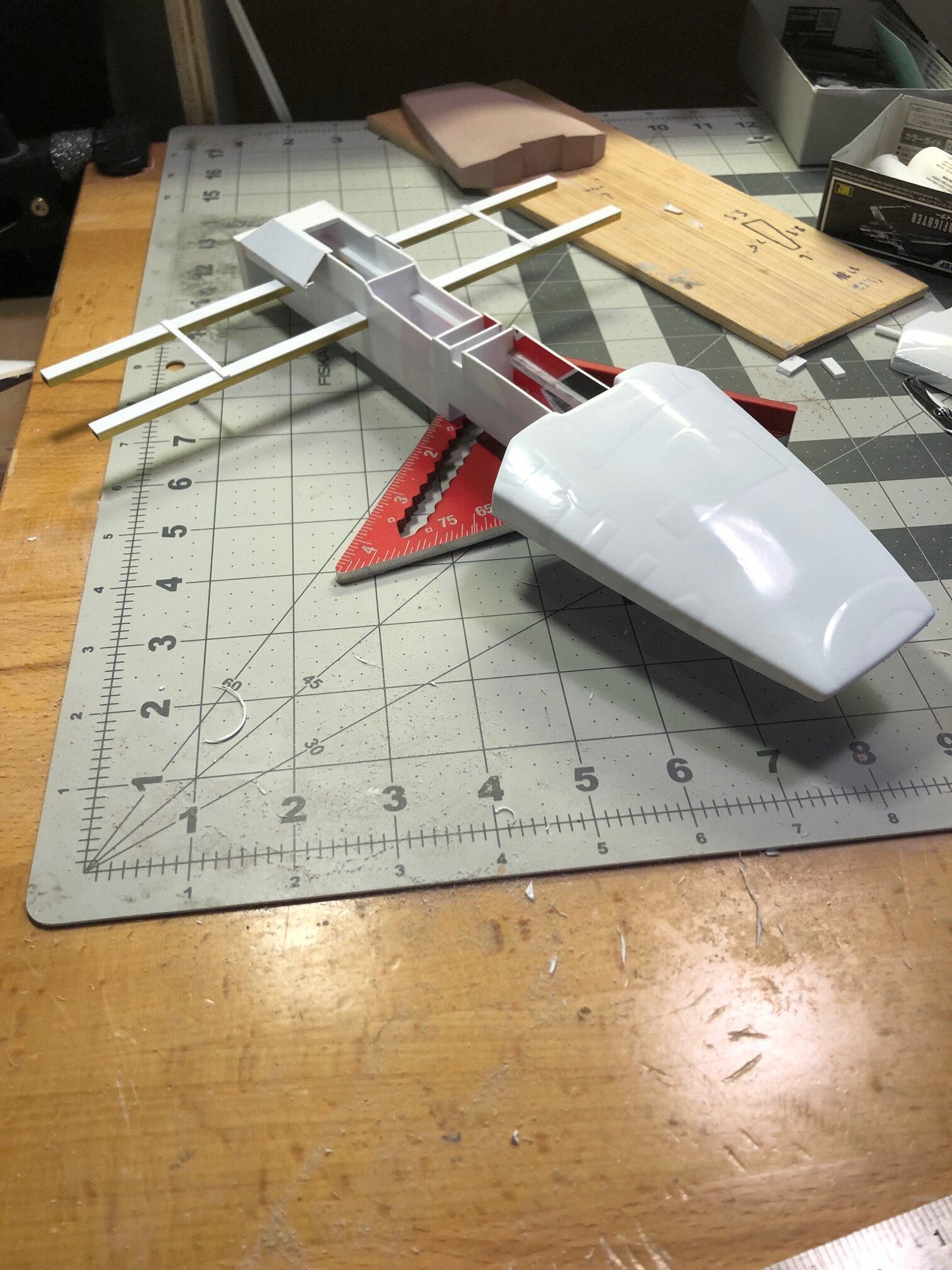

Second pull from thicker styrene but the "no parking" text on the sheet got imprinted on to the side showing. I'll try again later but use this as a placeholder in the meantime.

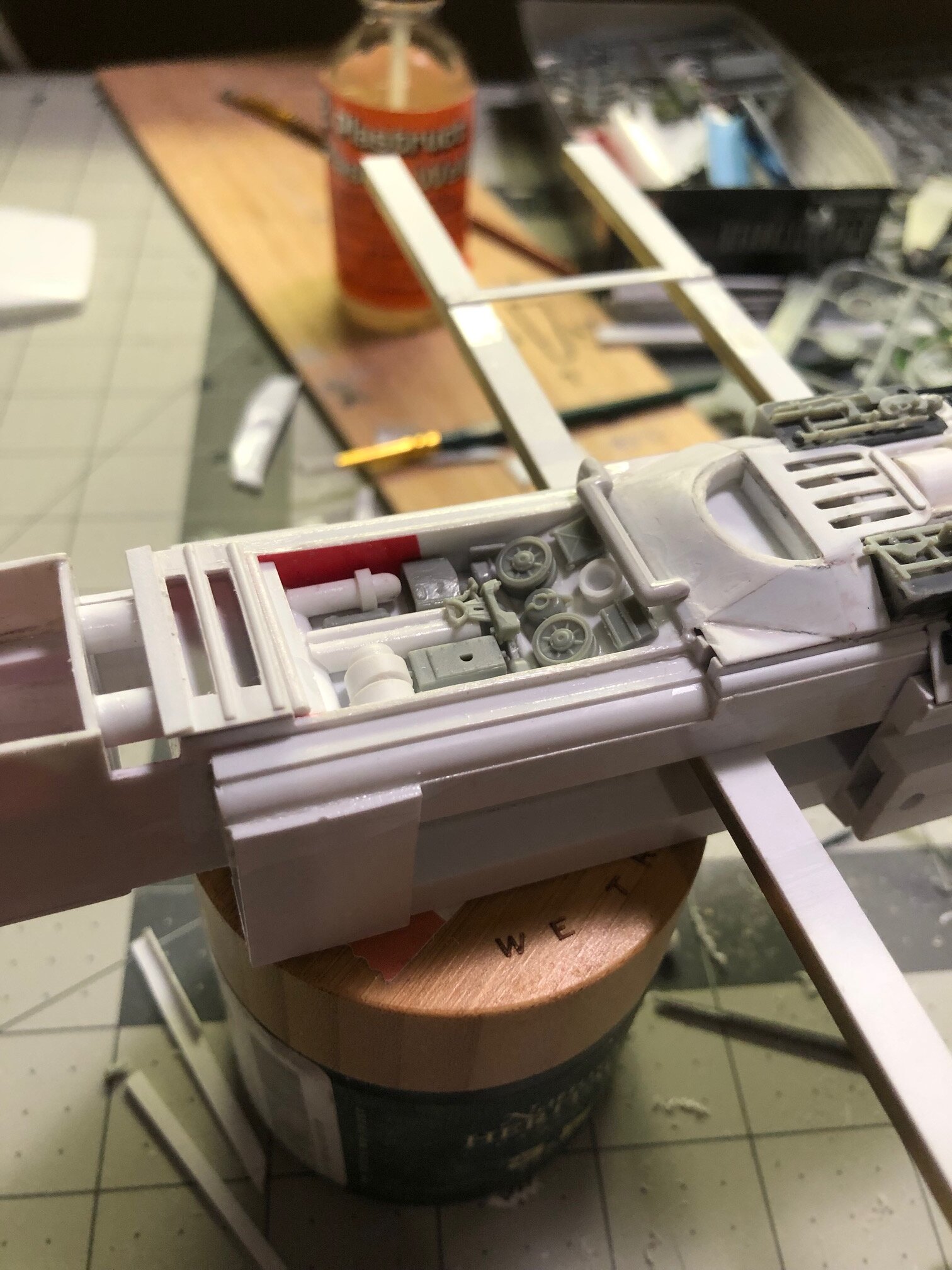

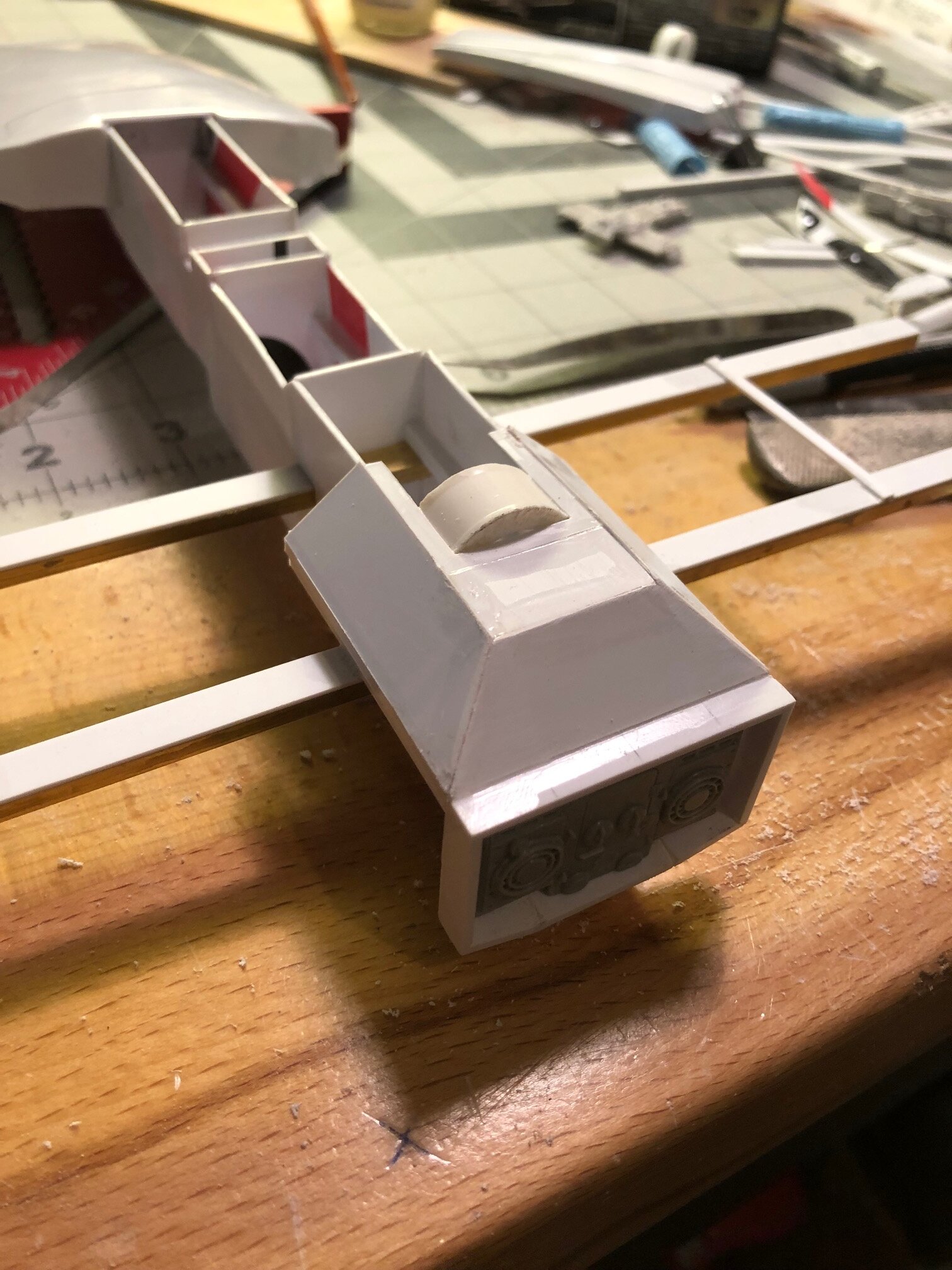

Back to the rear fuselage...



Underside

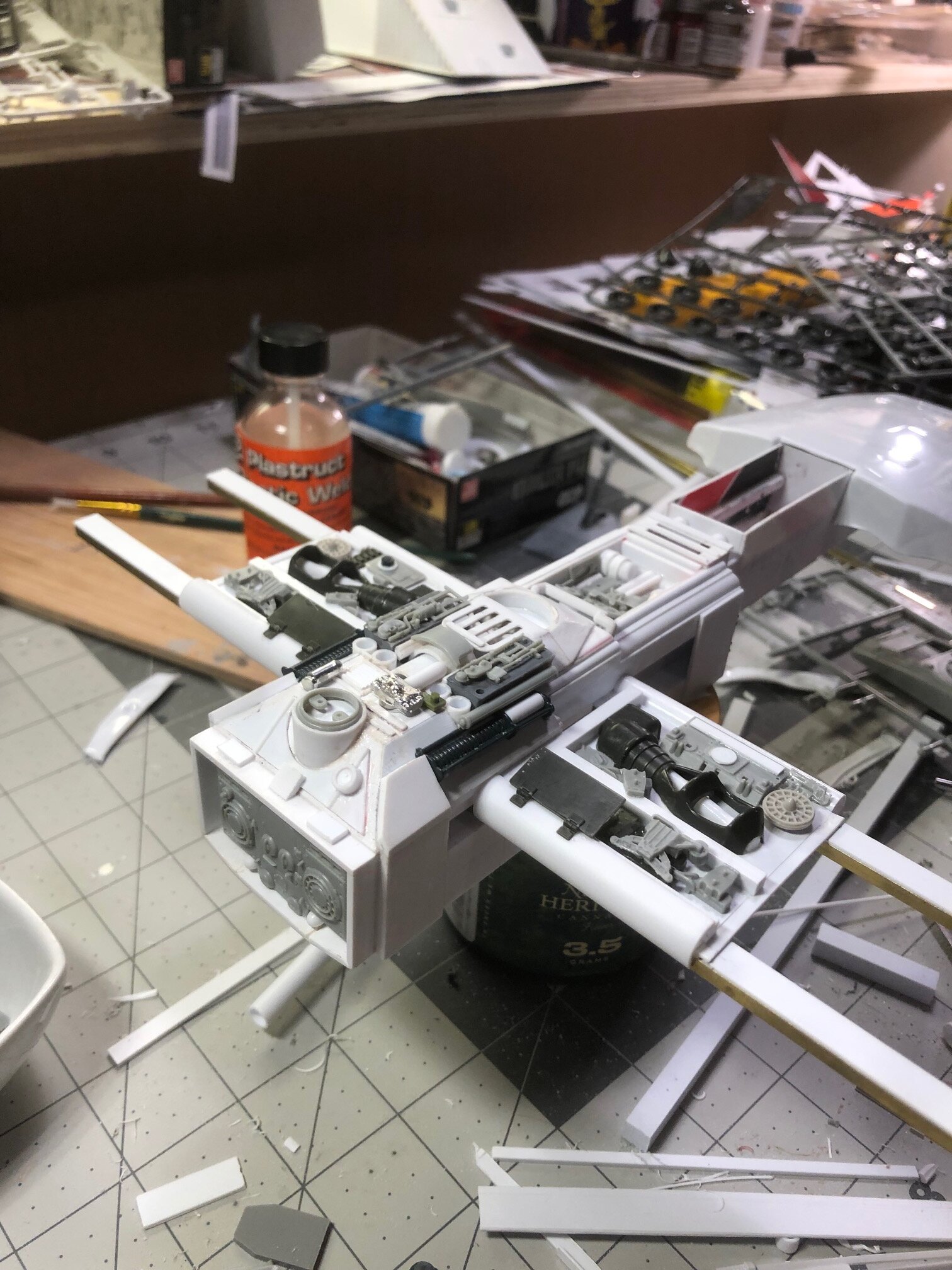

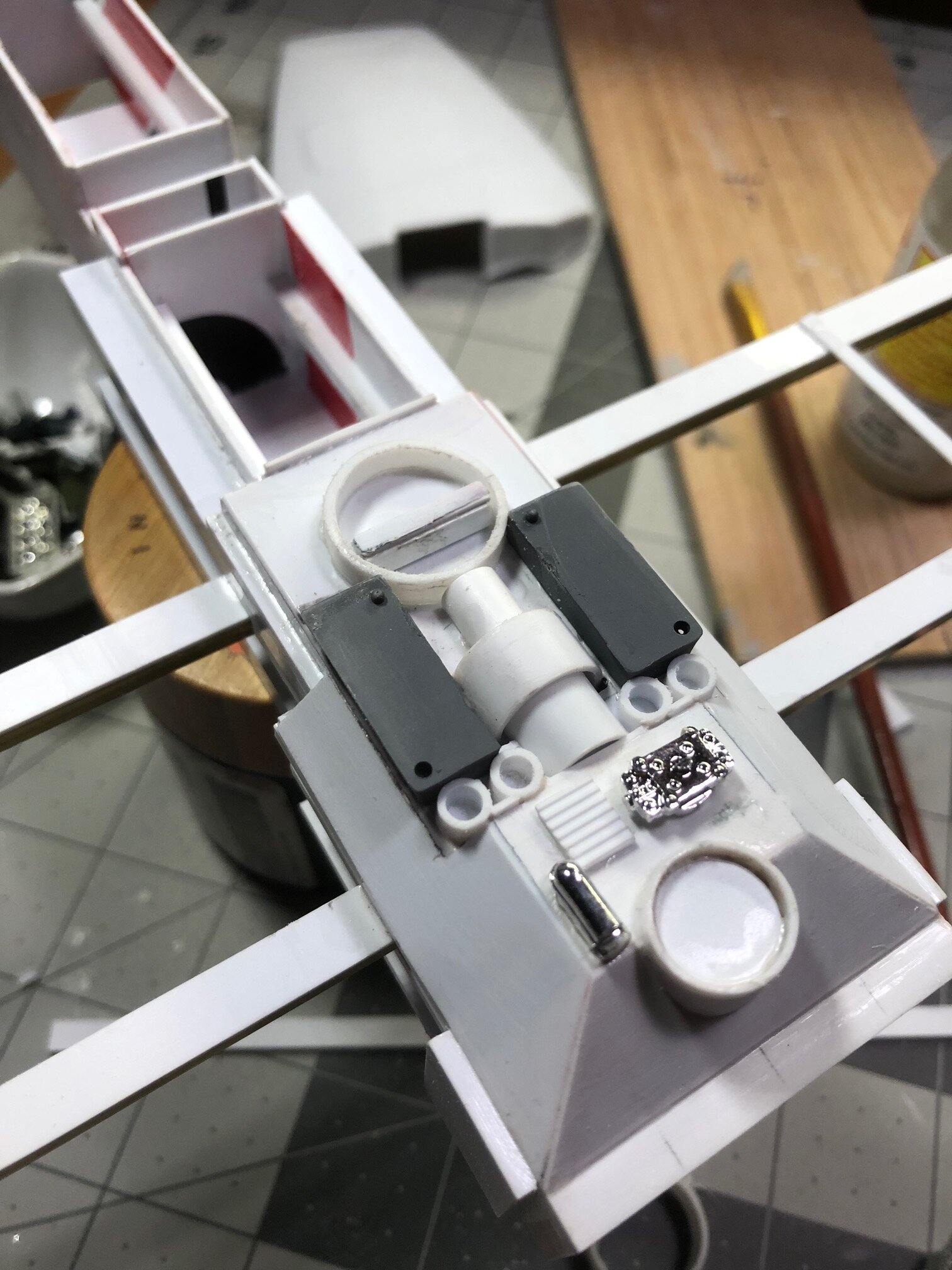

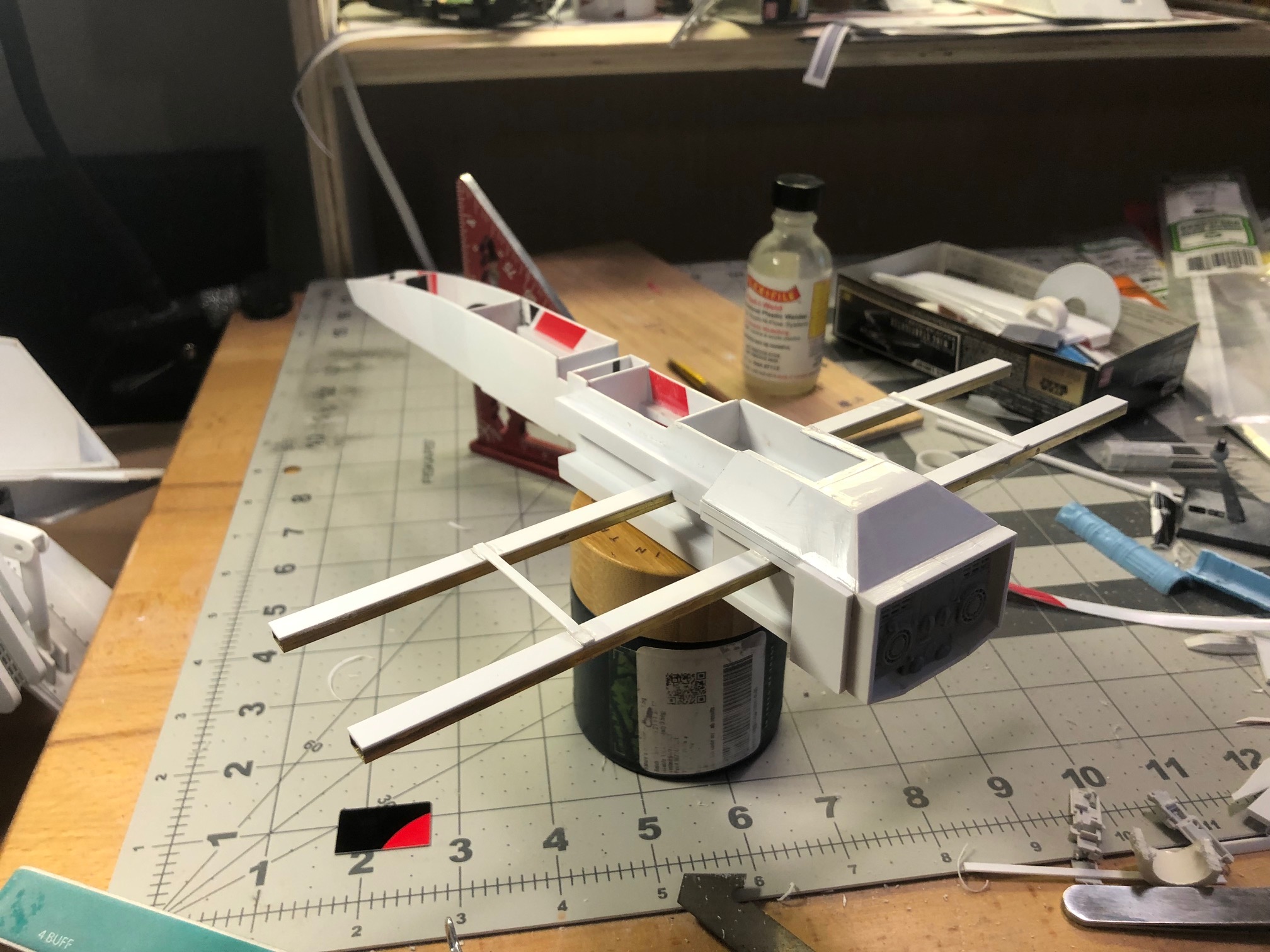

Midsection


Wings
I stray from the original y-wing a lot here when it comes to the greeblies.

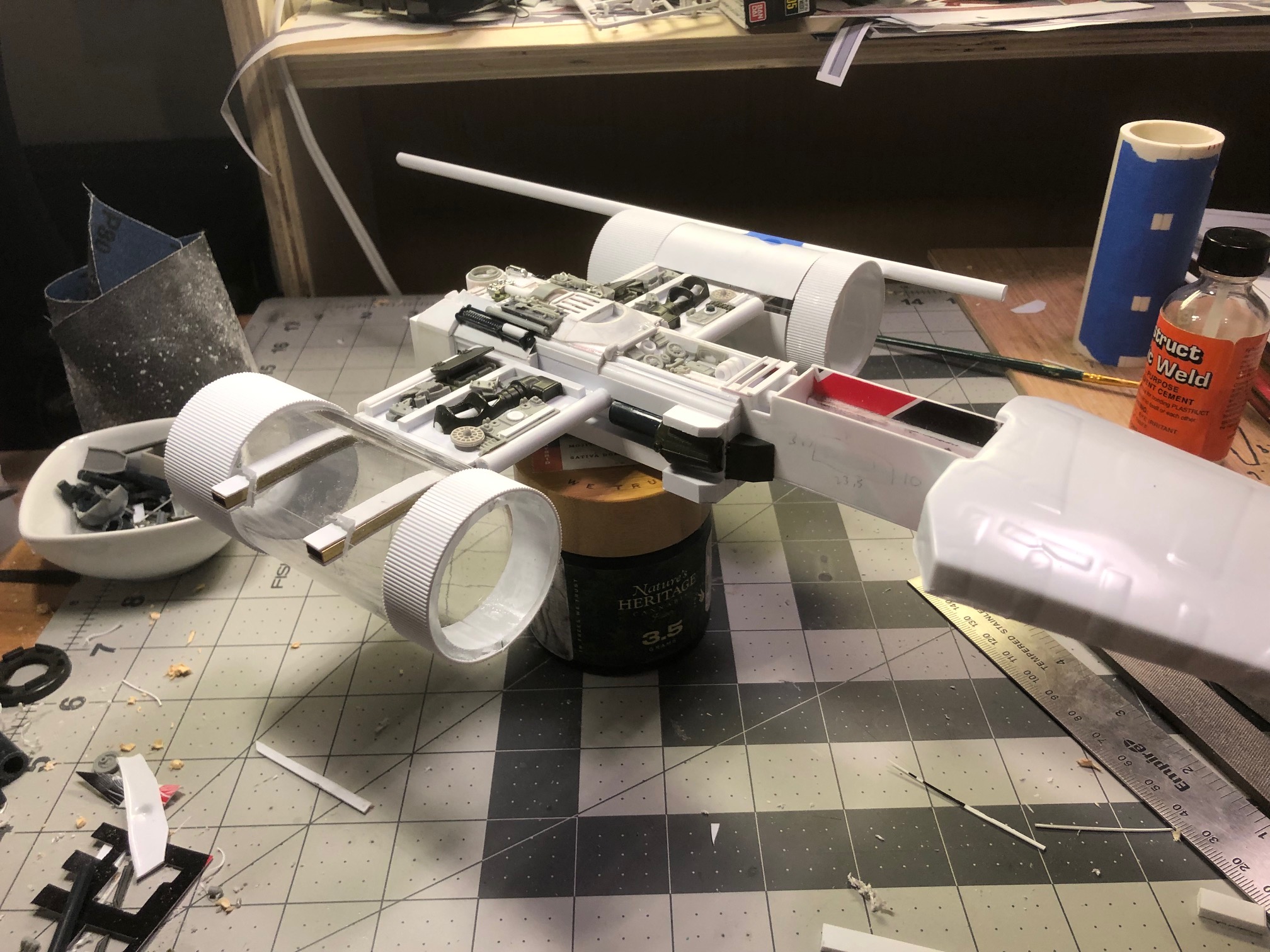

Engine tubes cut from 1 3/4" acrylic and wrapped in styrene

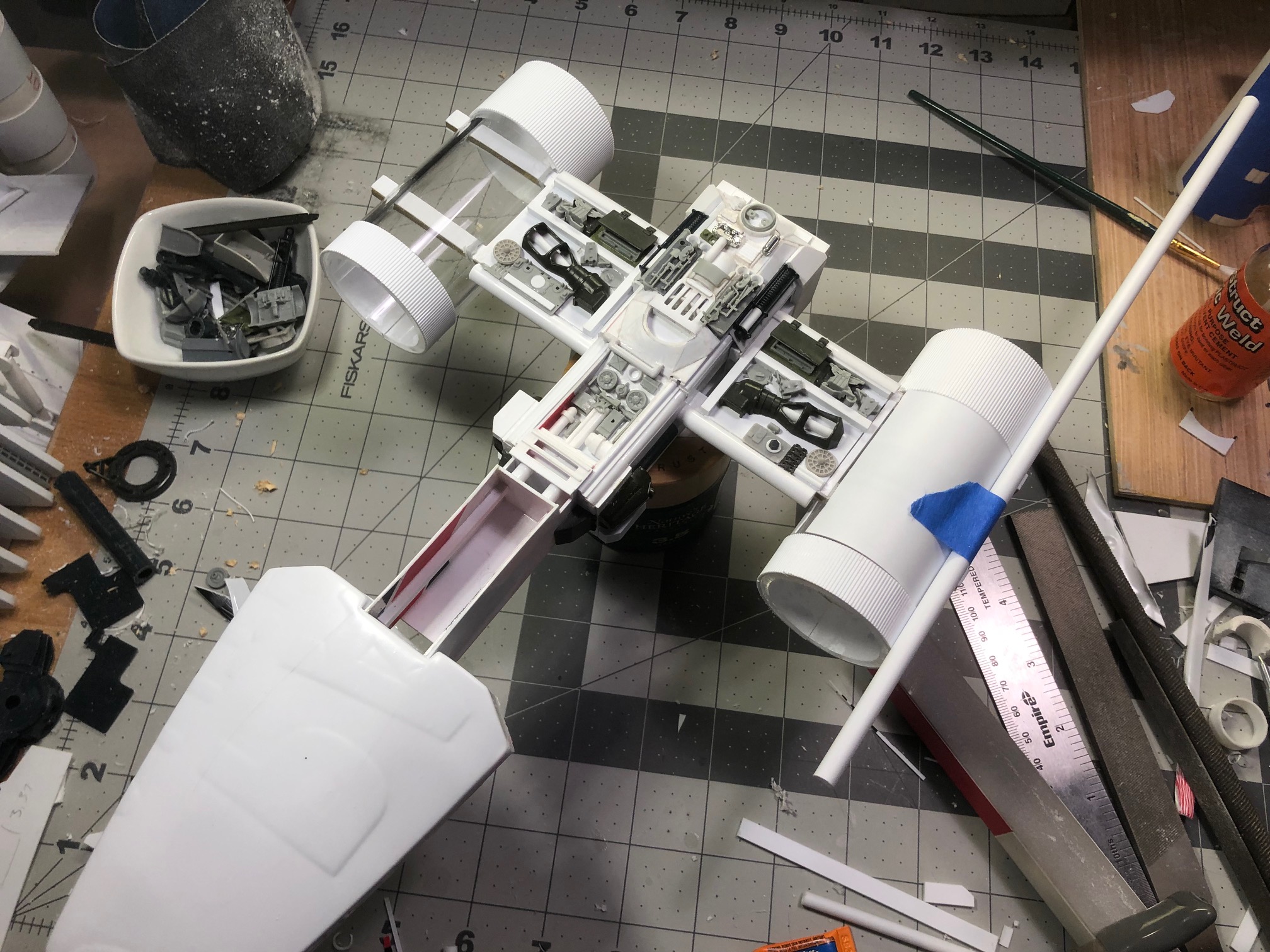

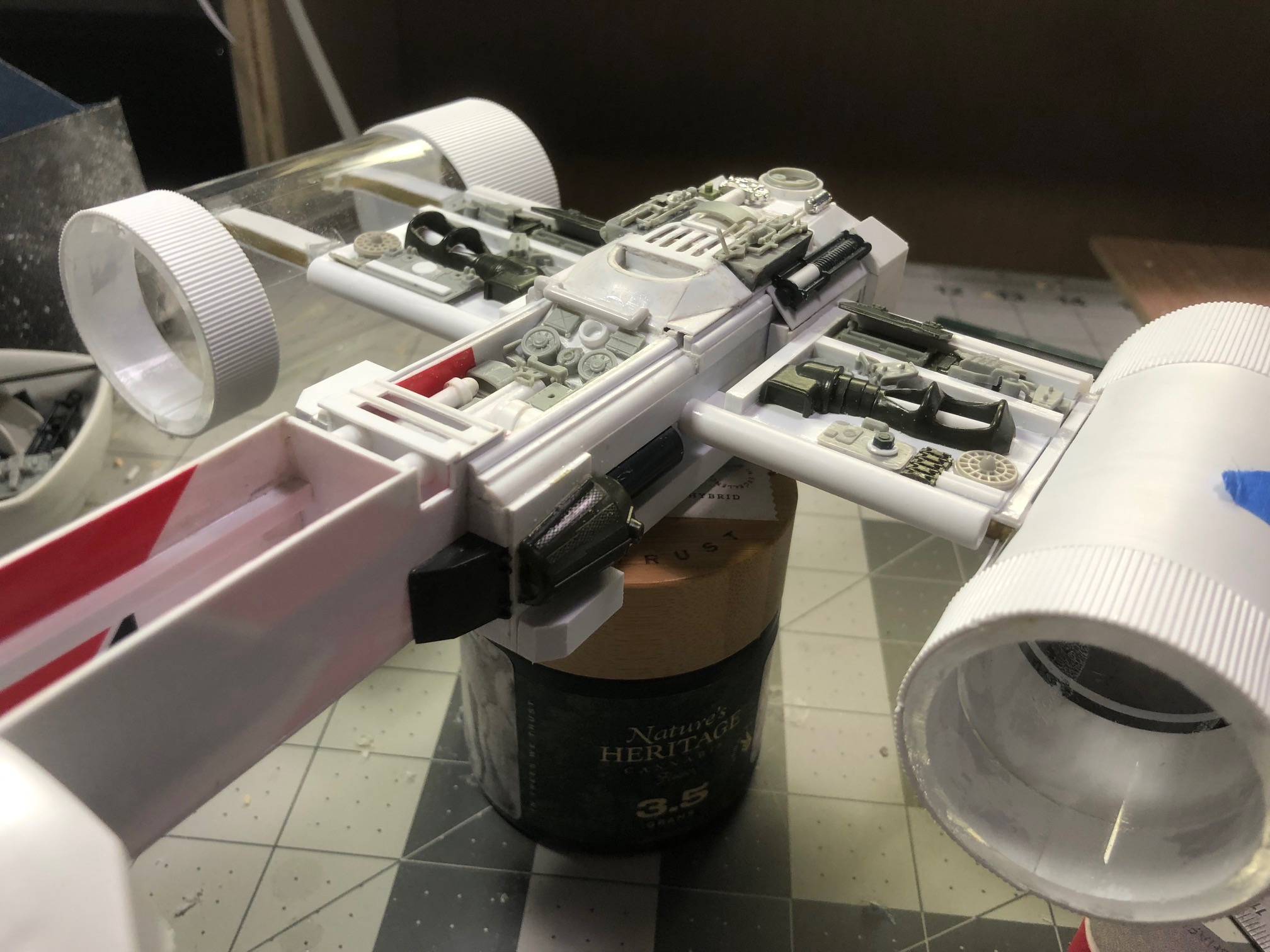

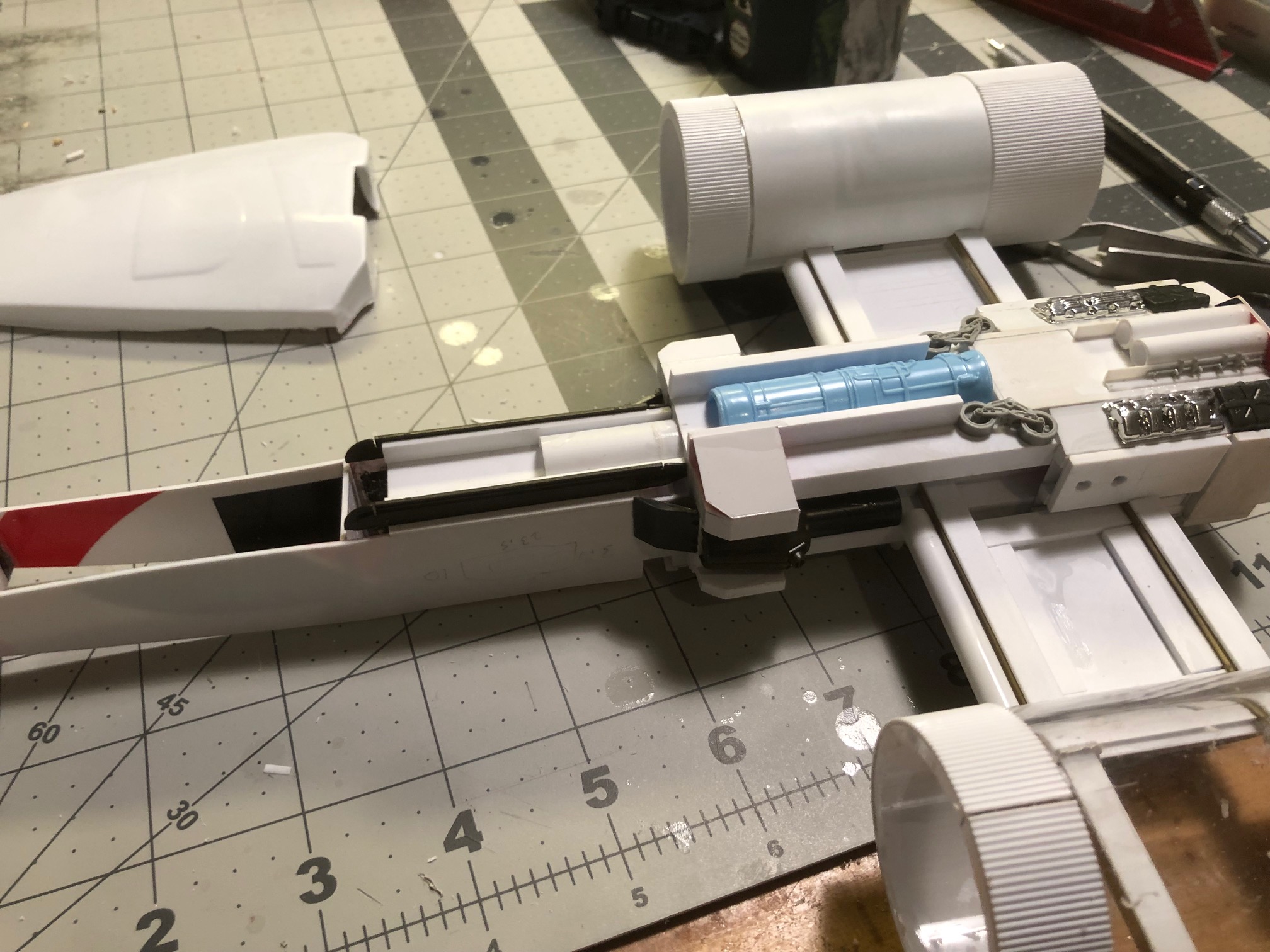

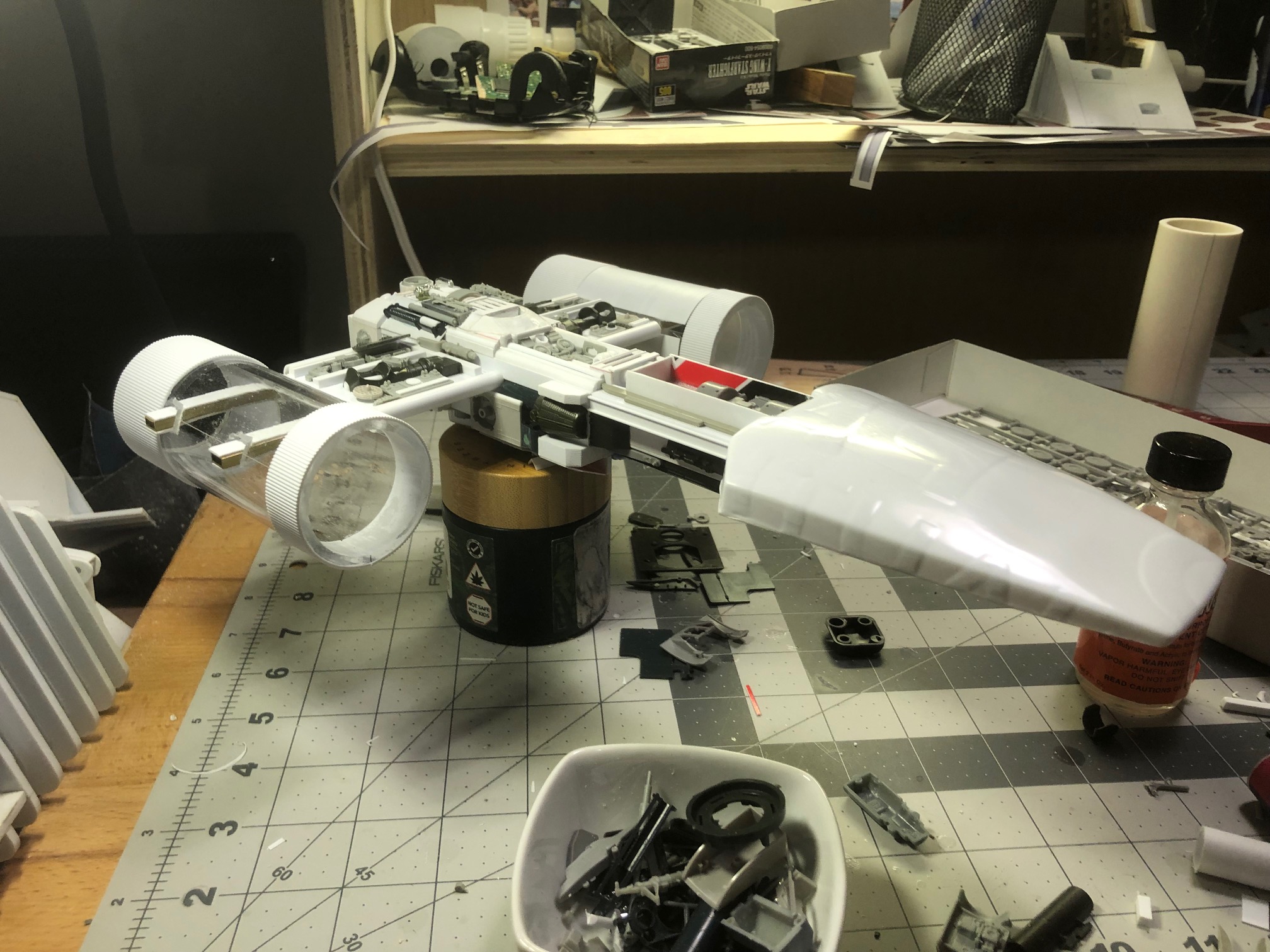

That's the current state of the ship. Not sure what I'll work on next. Probably finishing the buck for the bottom half of the nose.


Attachments

  • IMG_4327.jpg
    513.8 KB · Views: 30
  • IMG_3874.jpg
    412.5 KB · Views: 33

hoosleberg

New Member

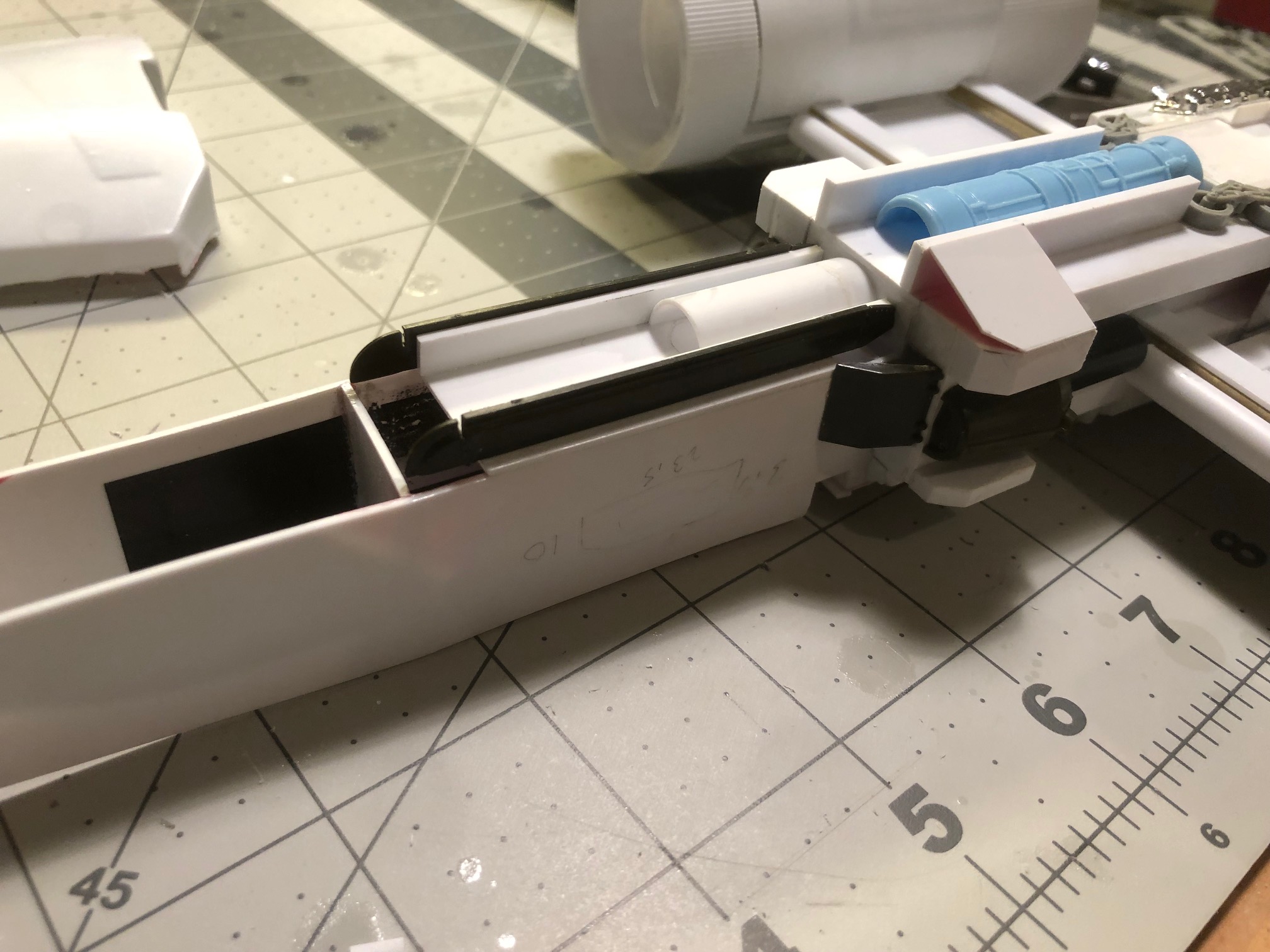

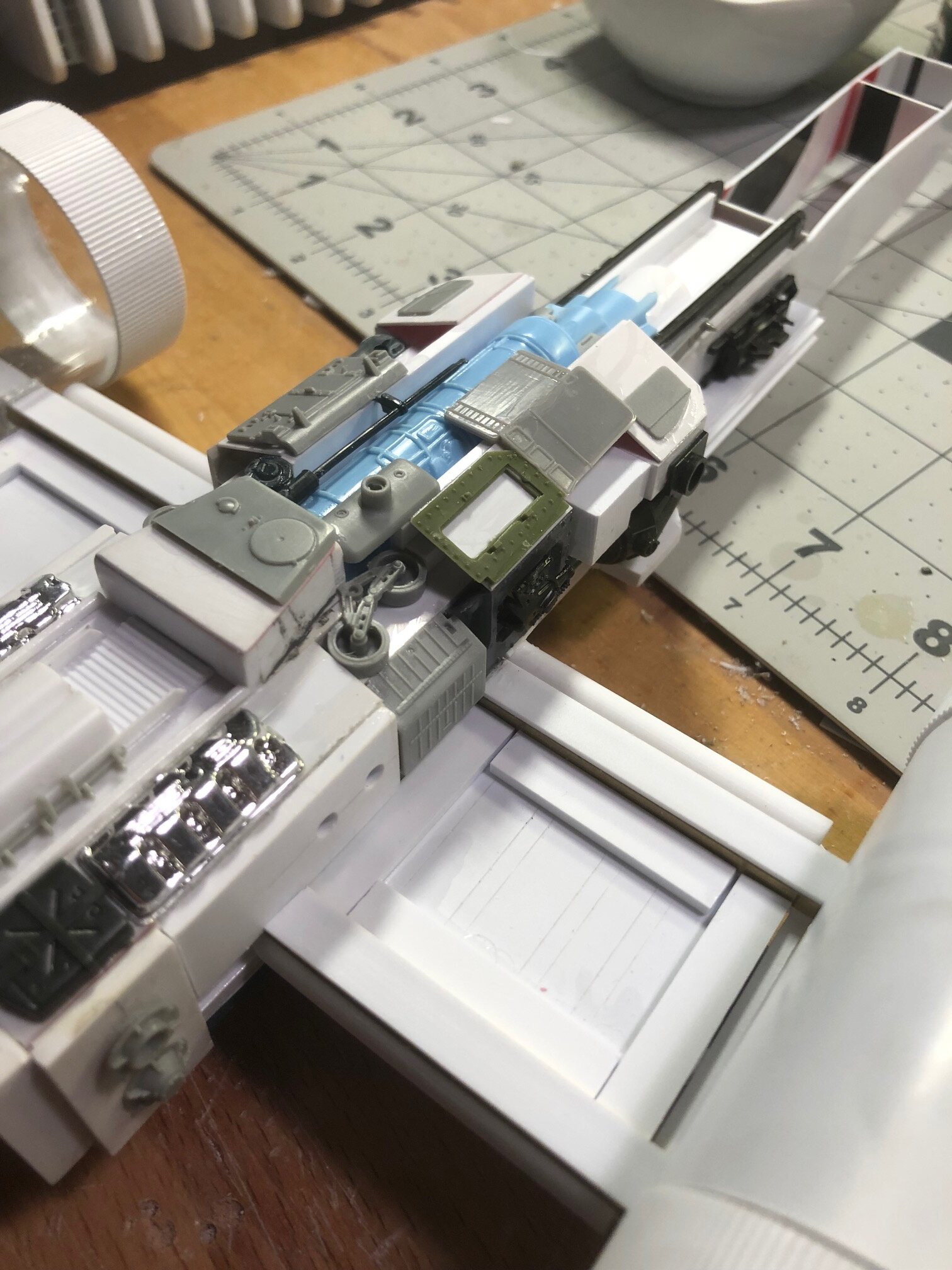

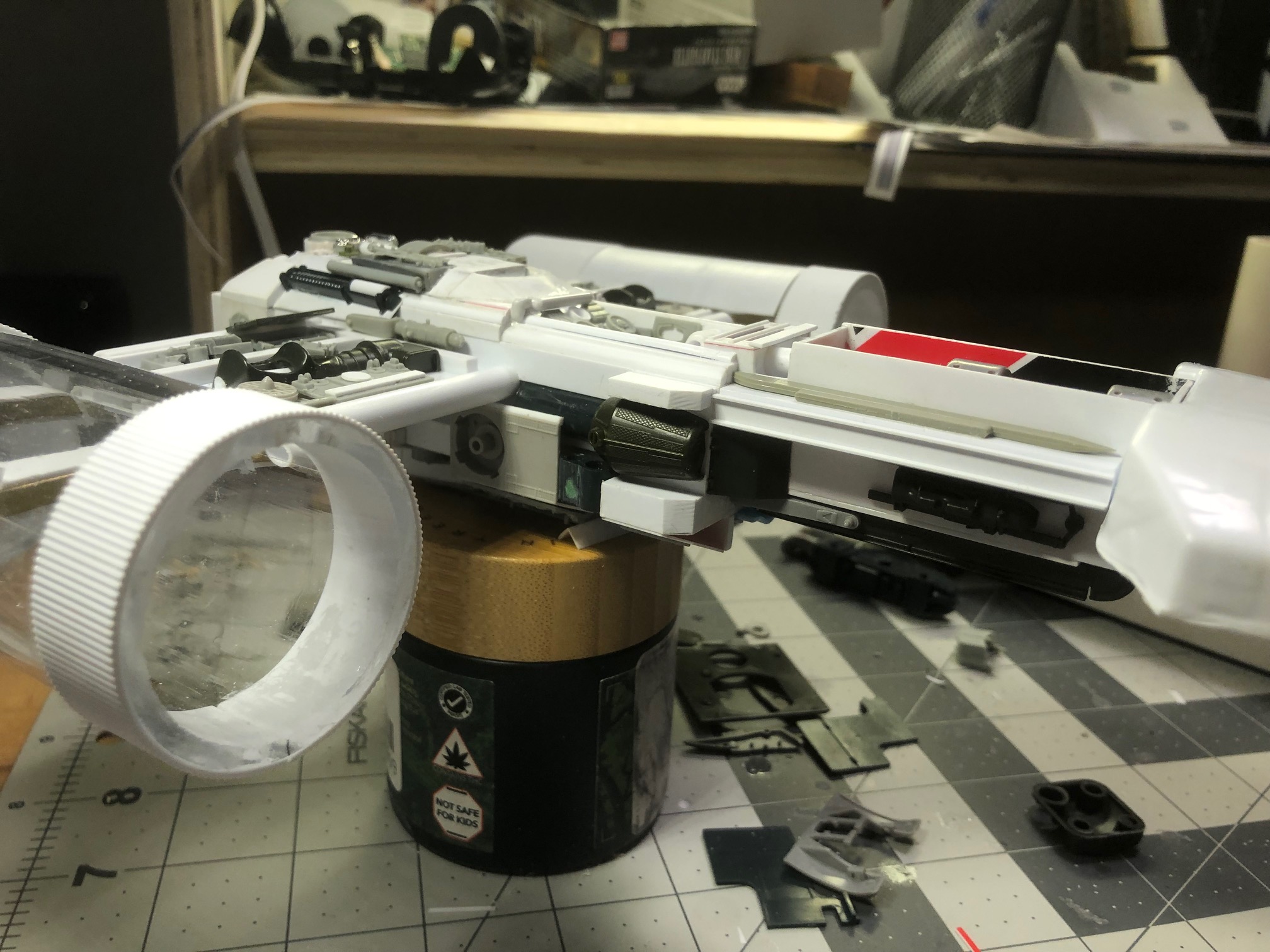

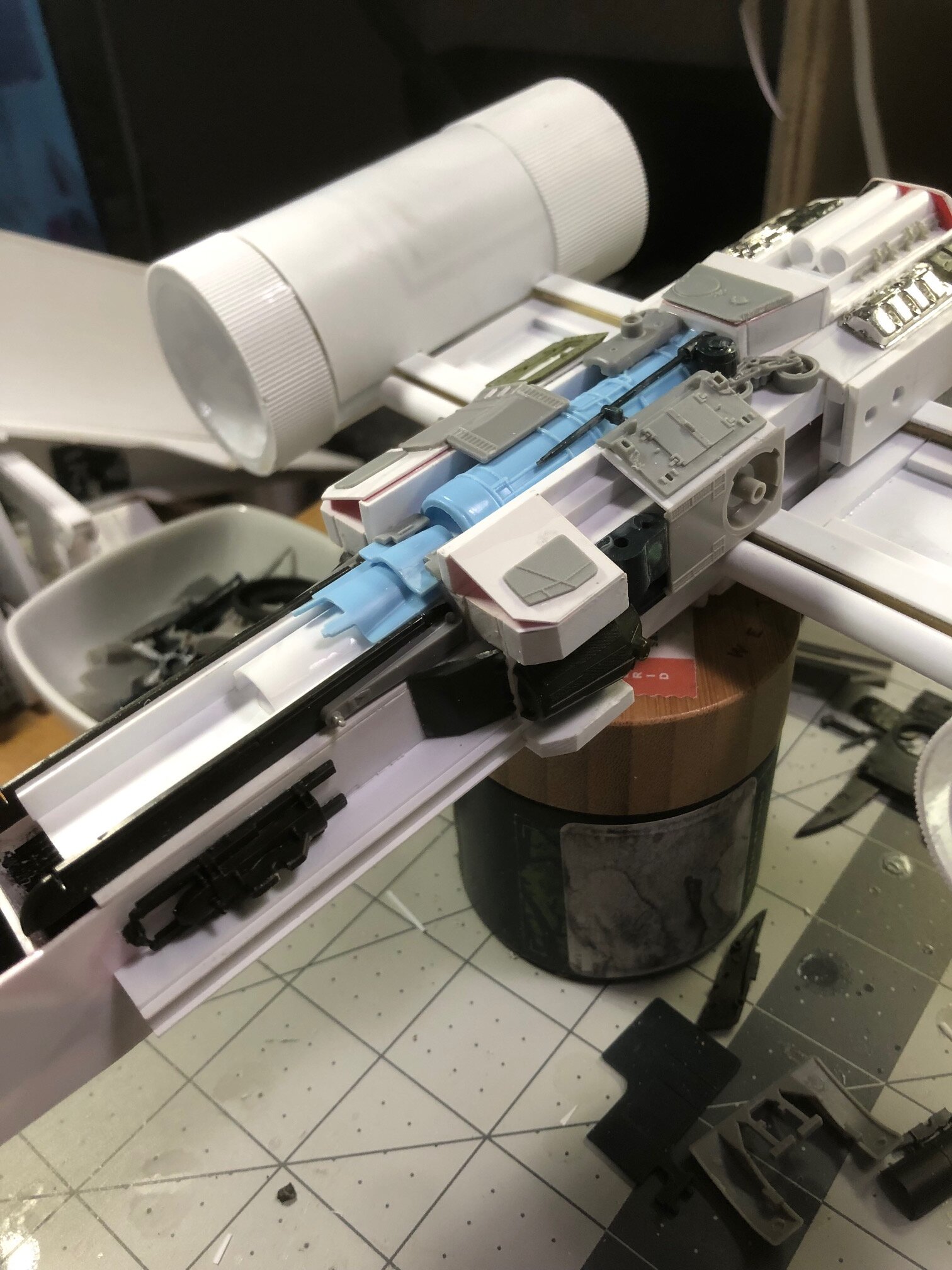

Been trying to chip away at the y-wing. I've mainly been focused on bulking up the fuselage, working my way to the nose.





Still have to model an astromech...

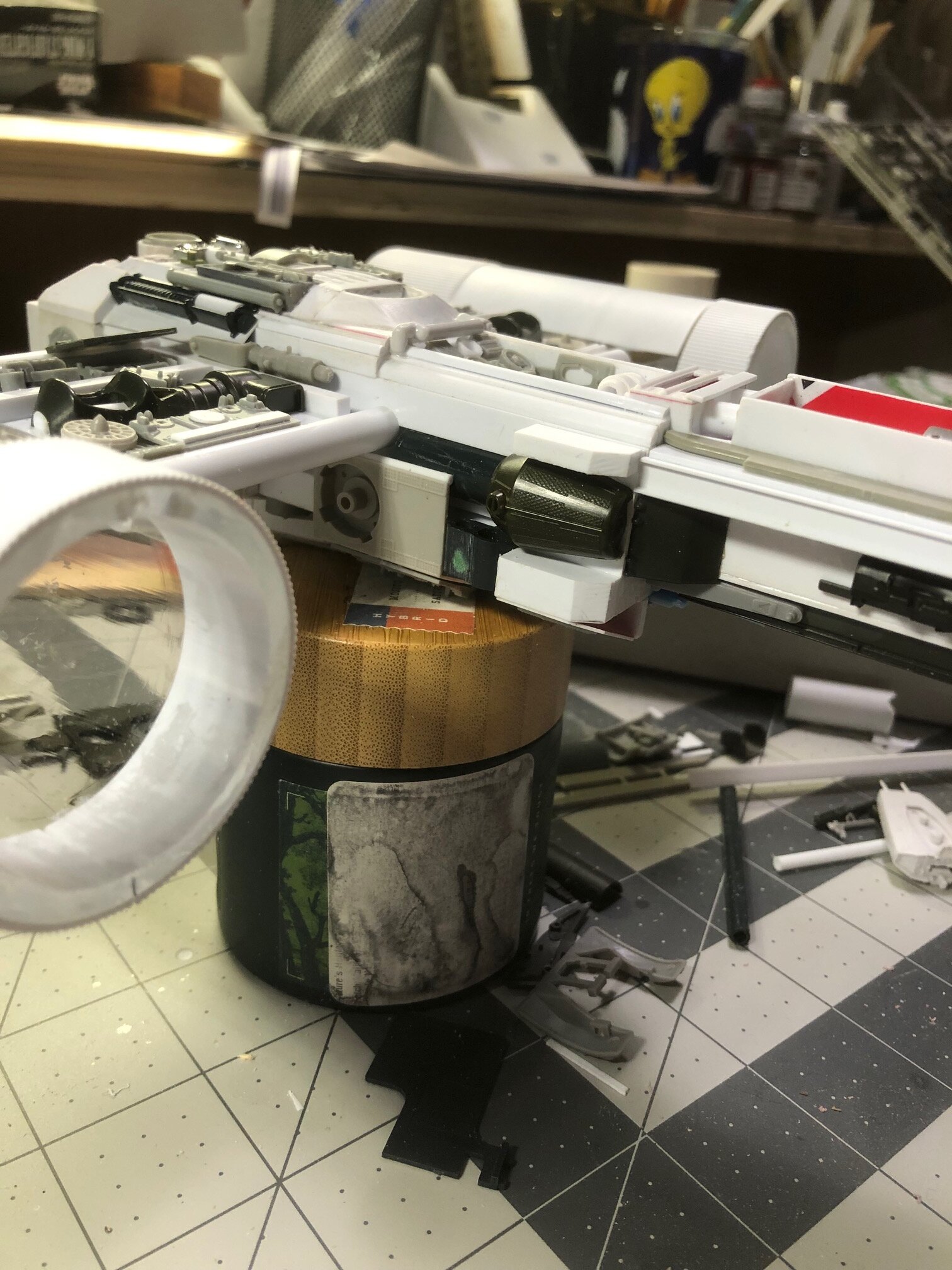

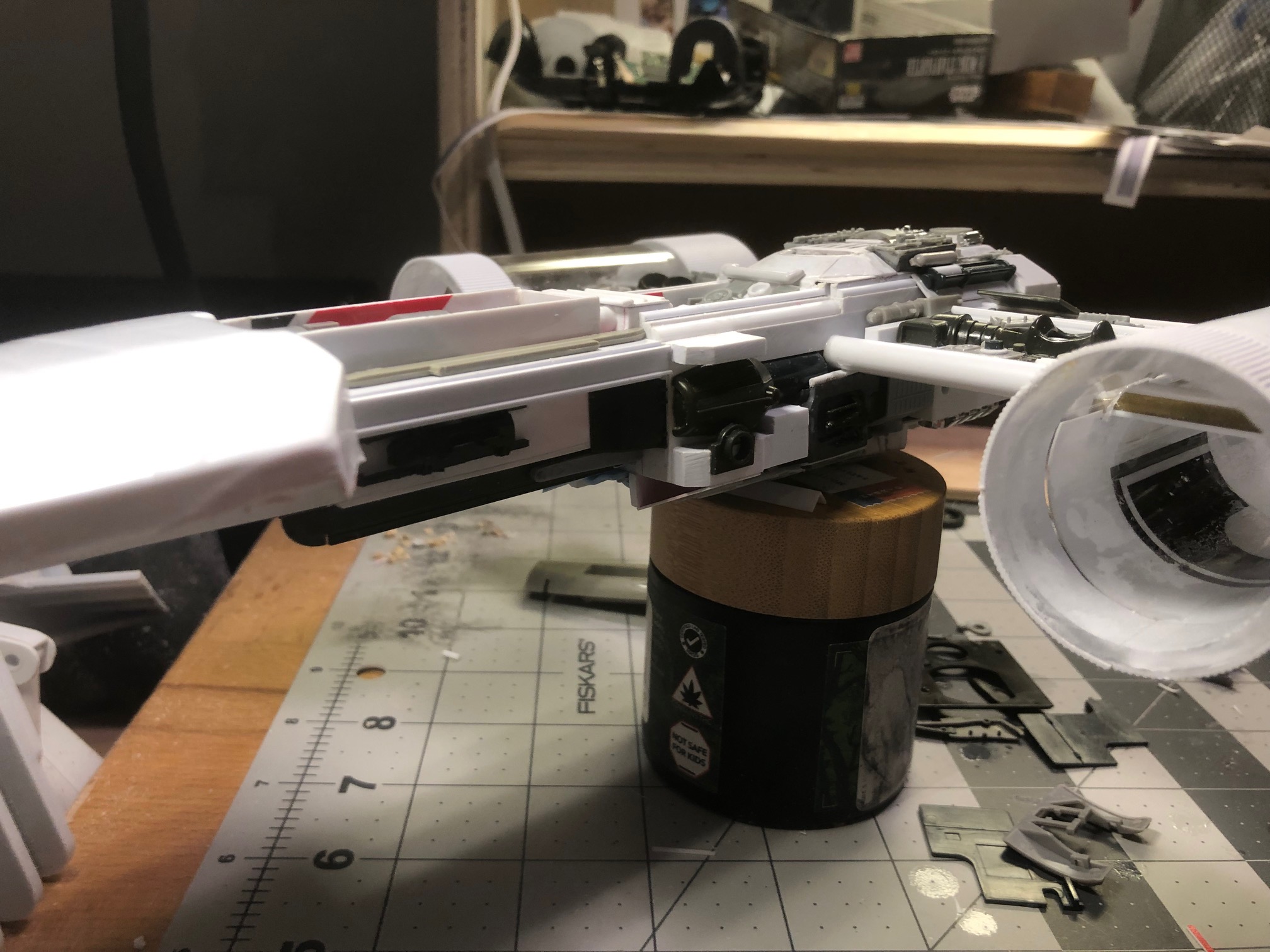

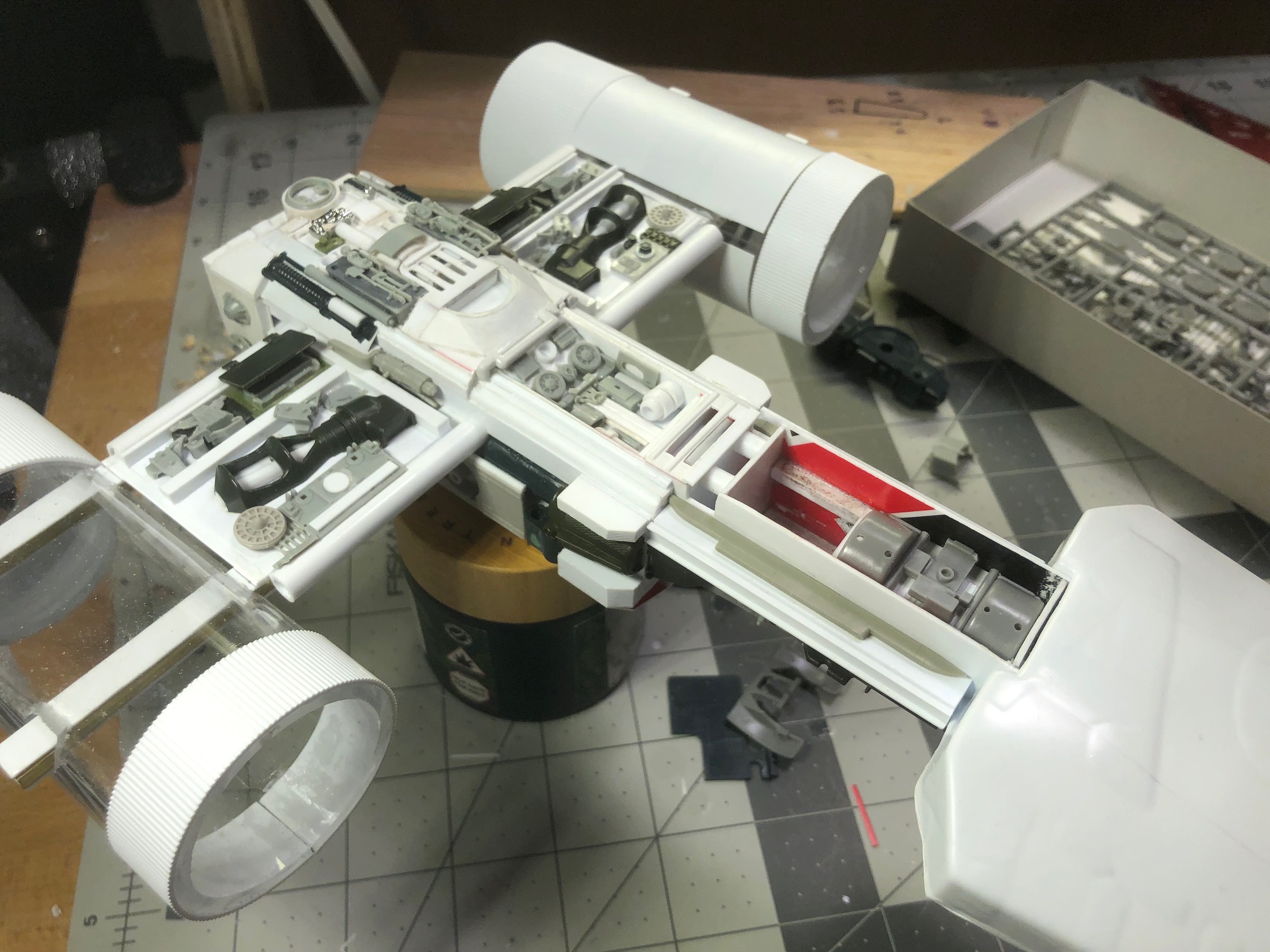

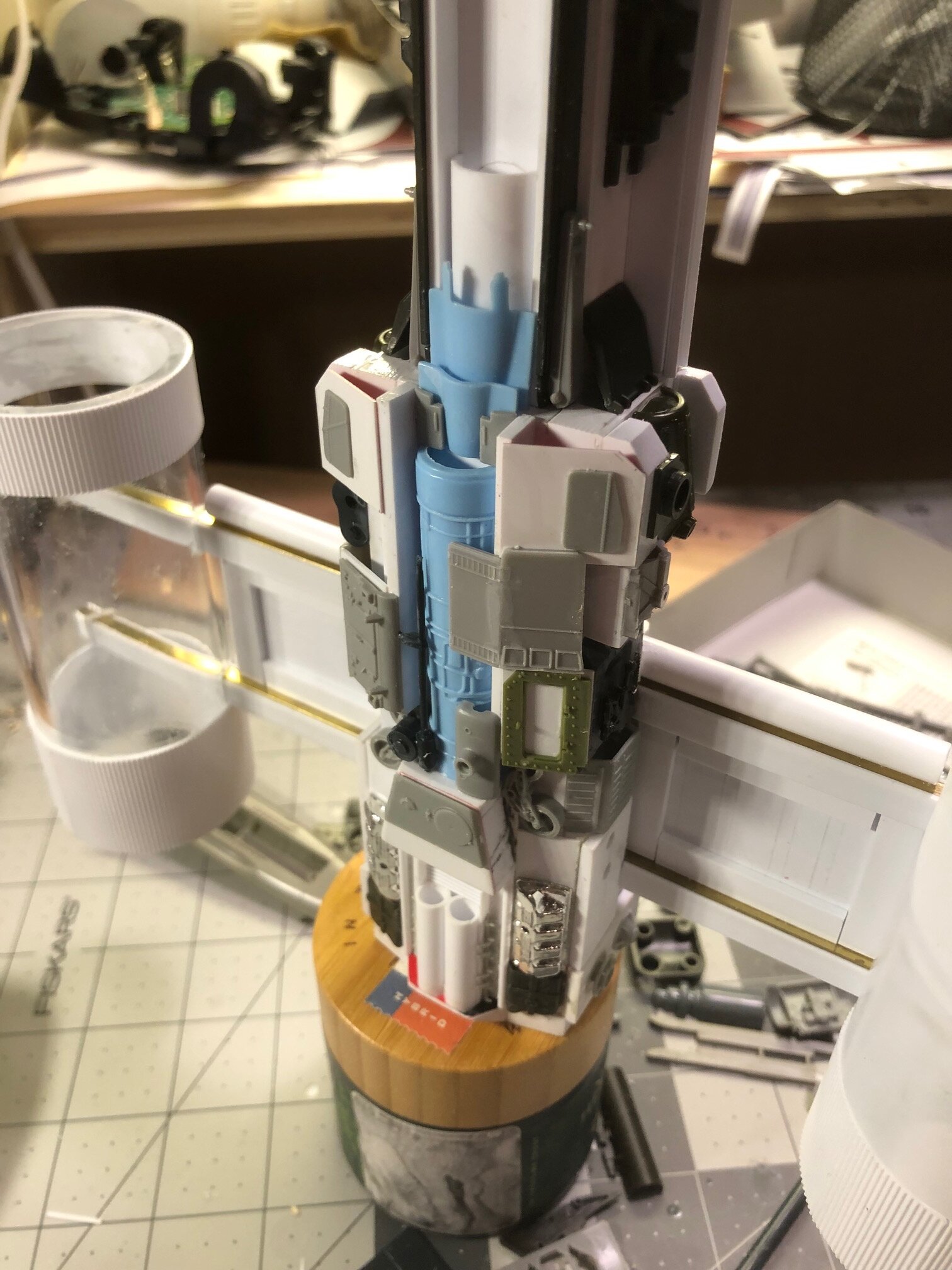

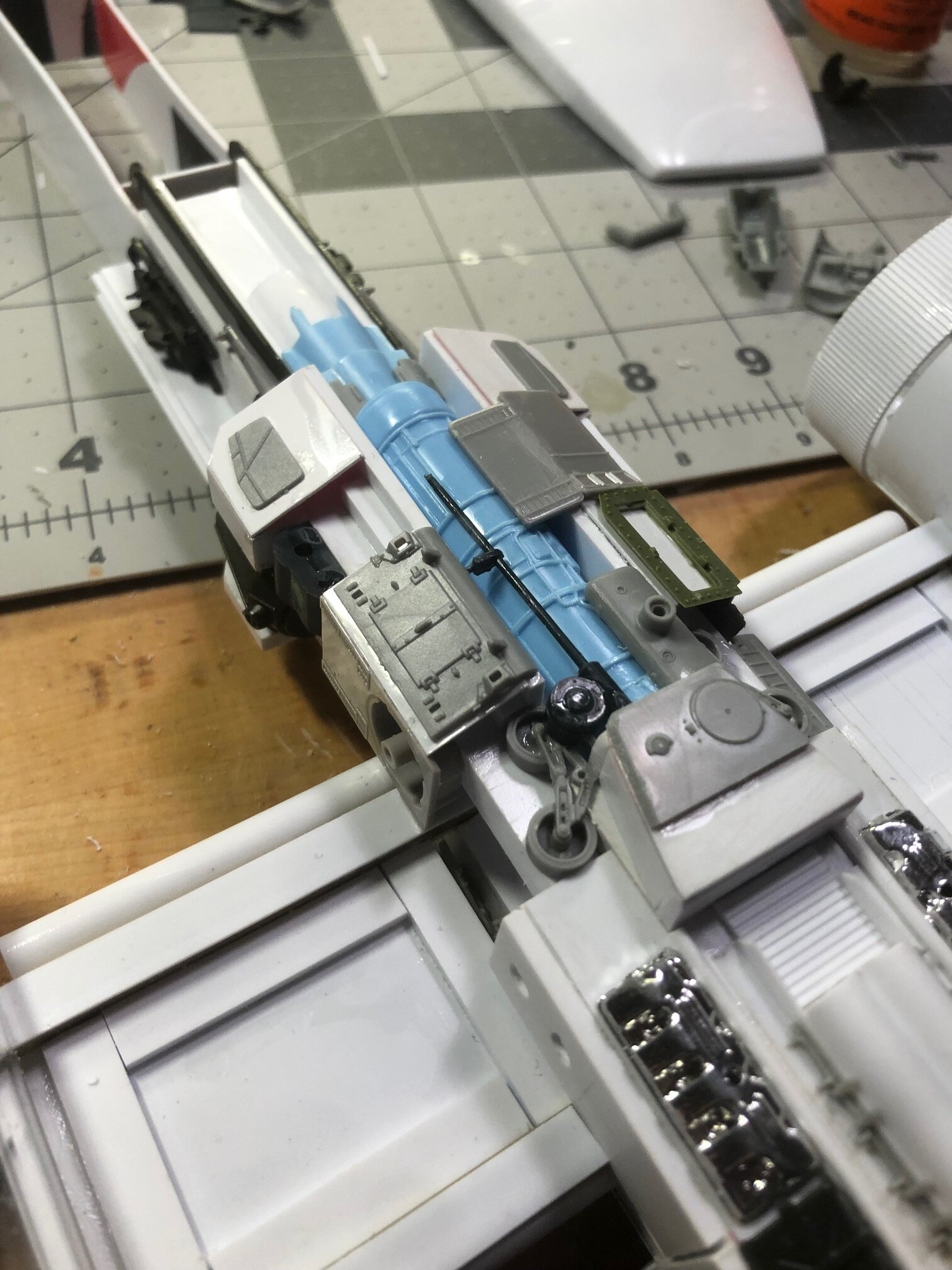

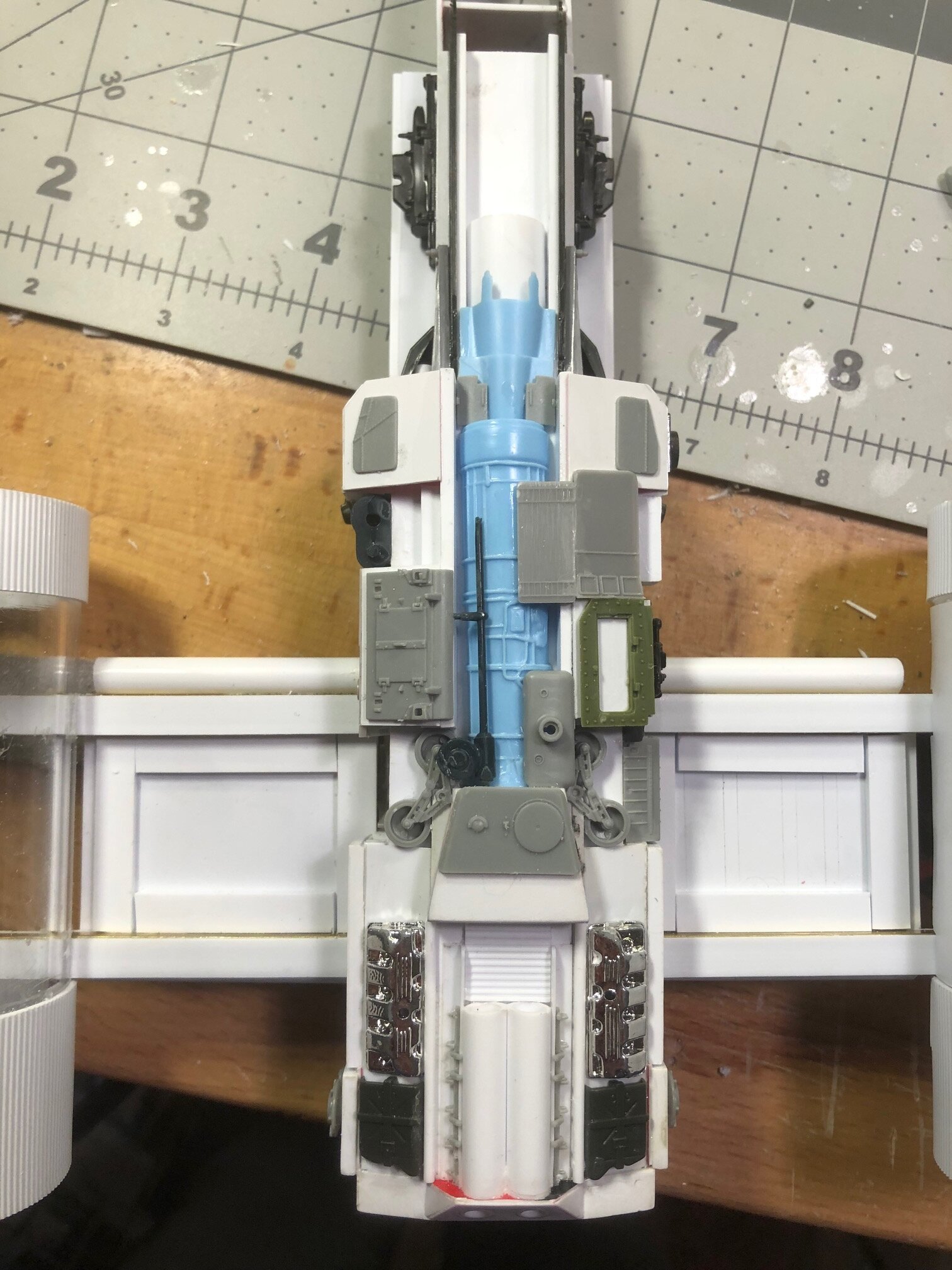

Bulking up the underside. Might rework this area with styrene and less kit parts. Not sure yet...

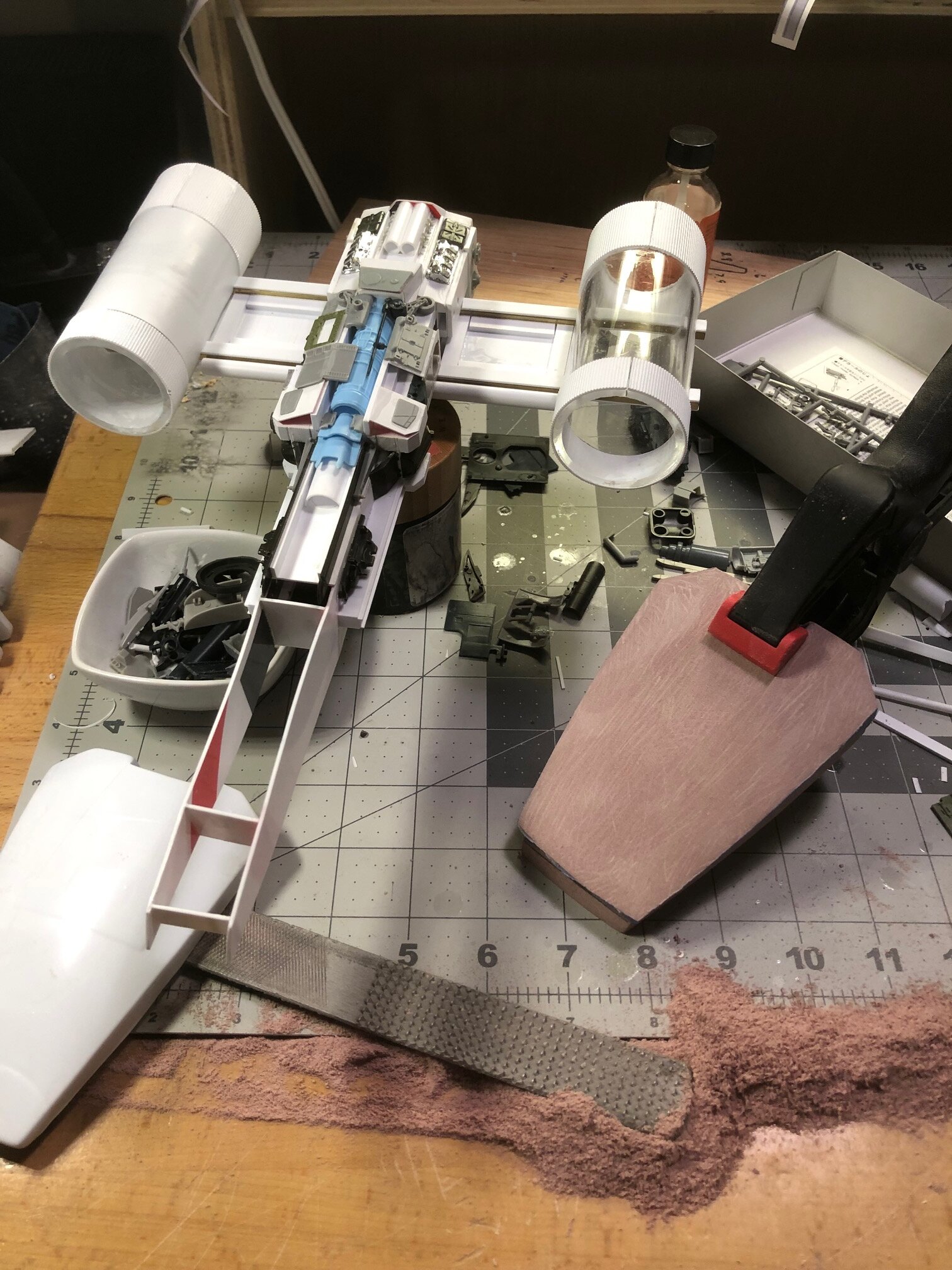

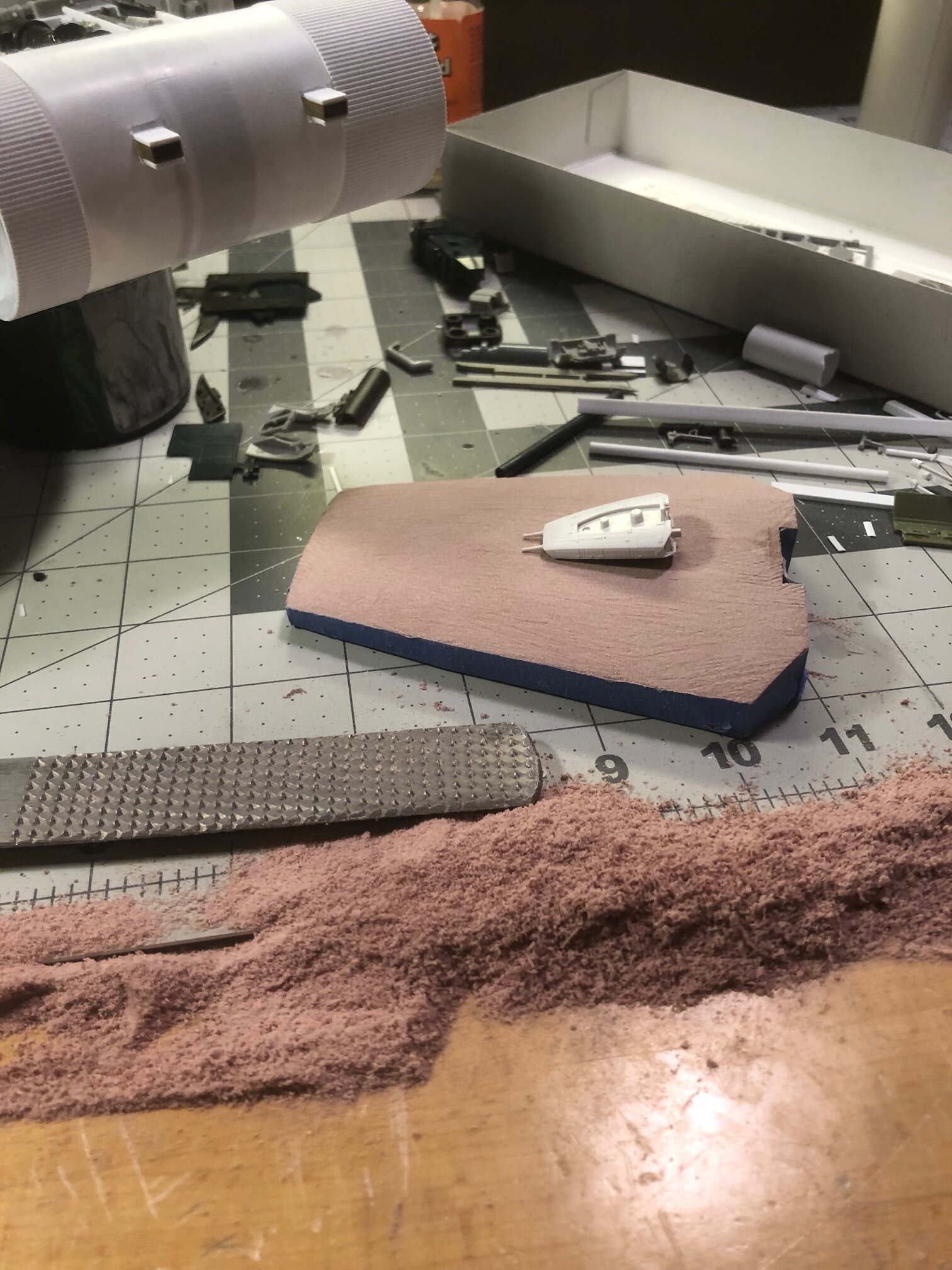

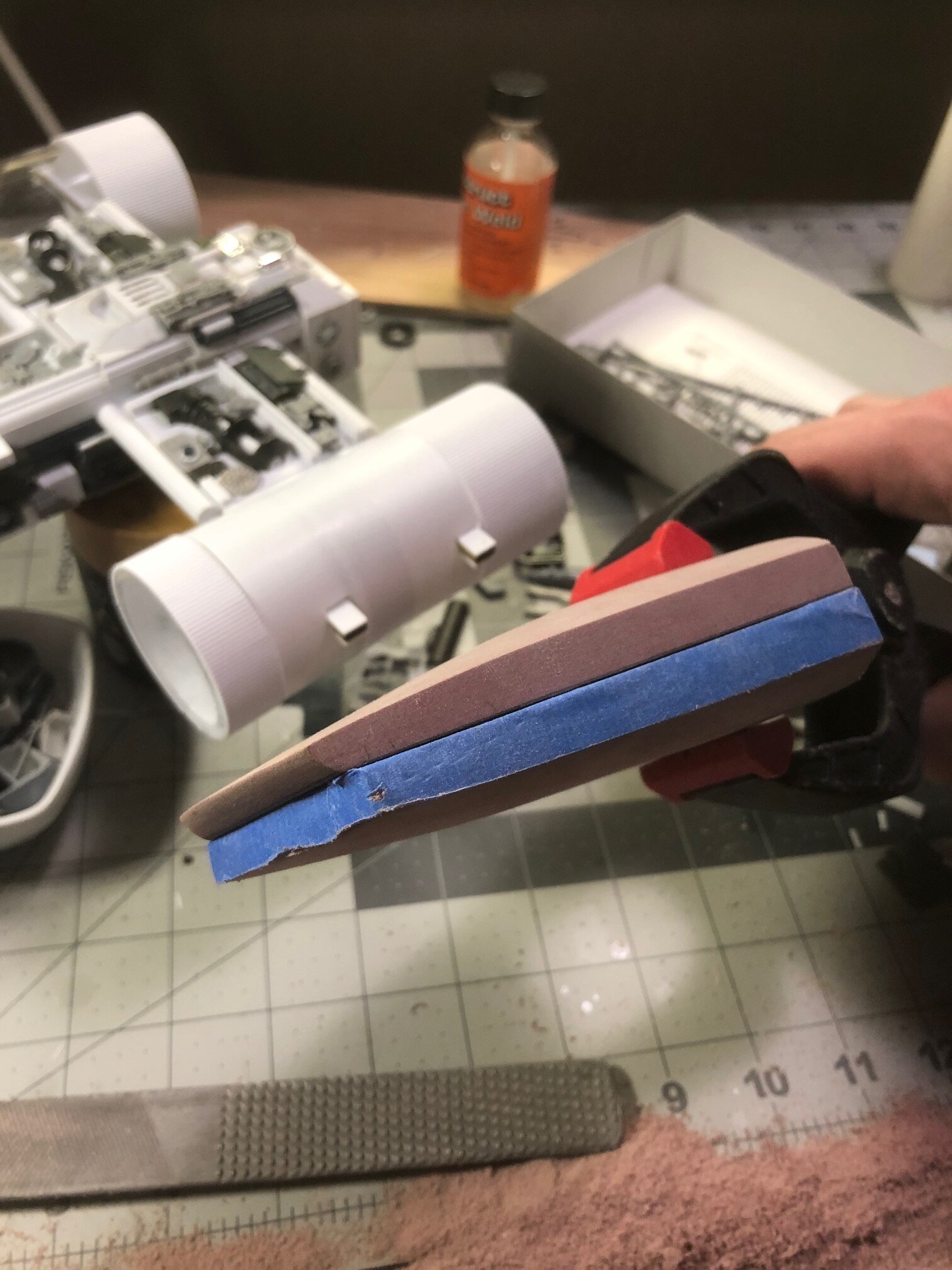

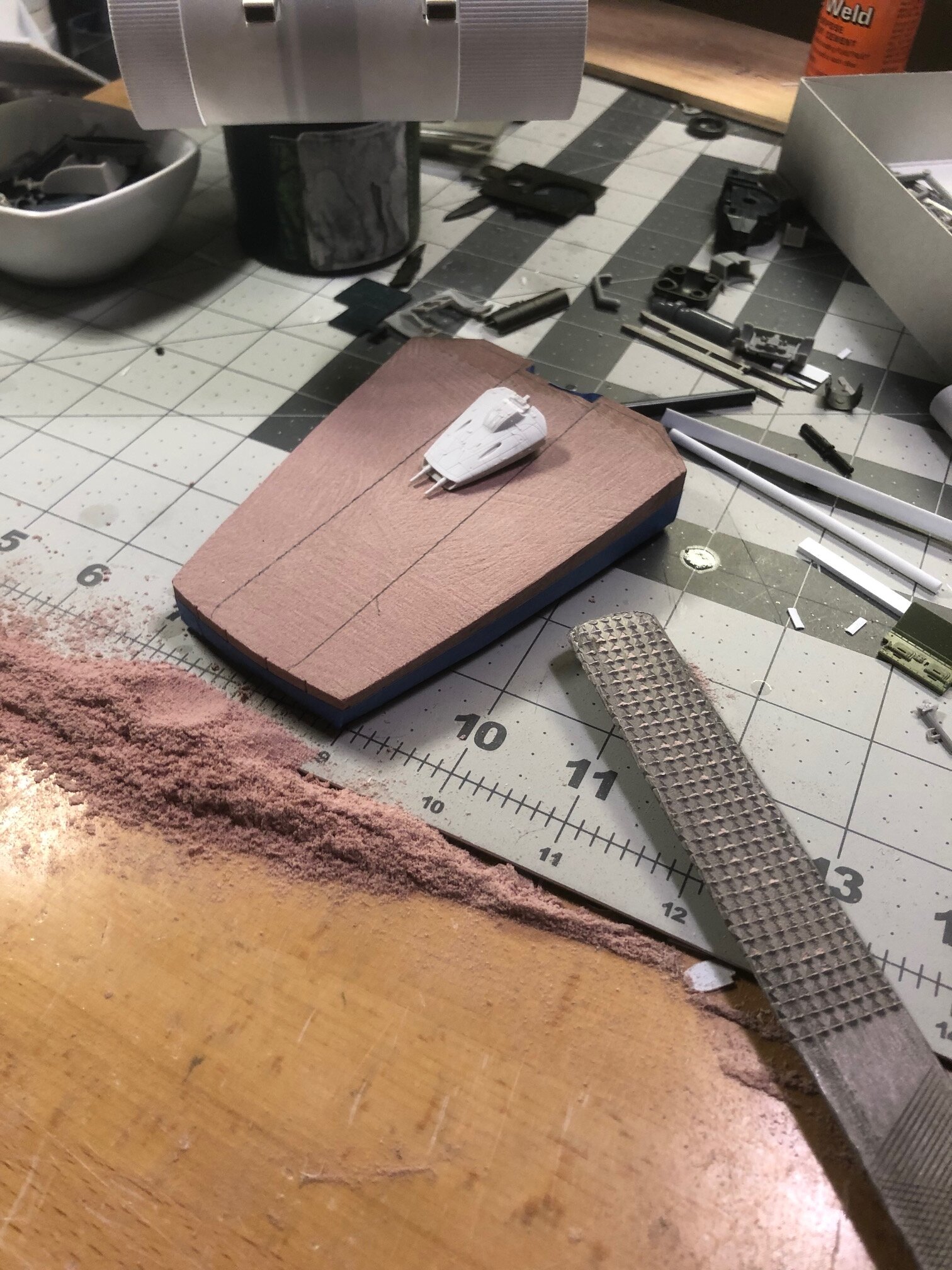

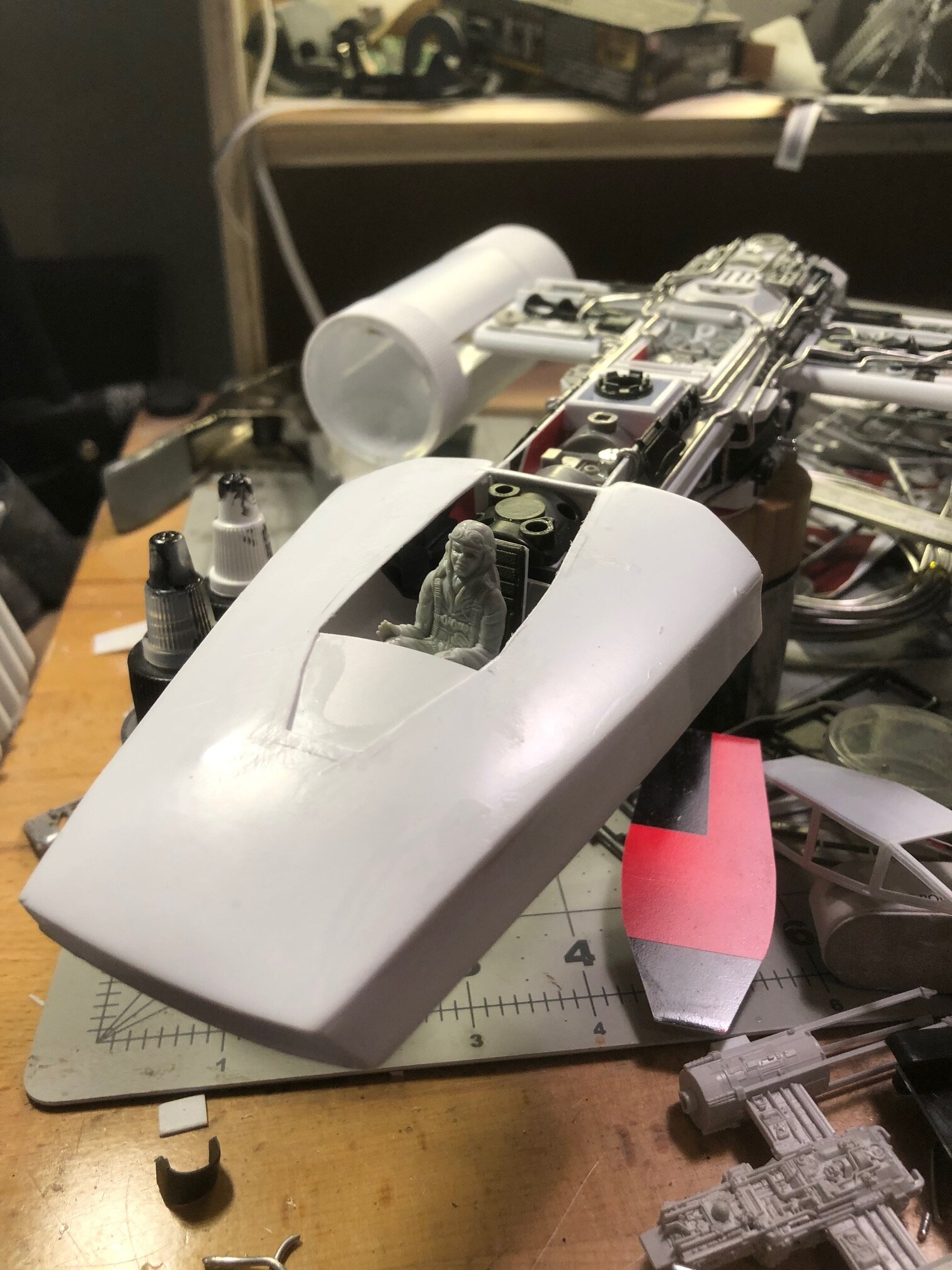

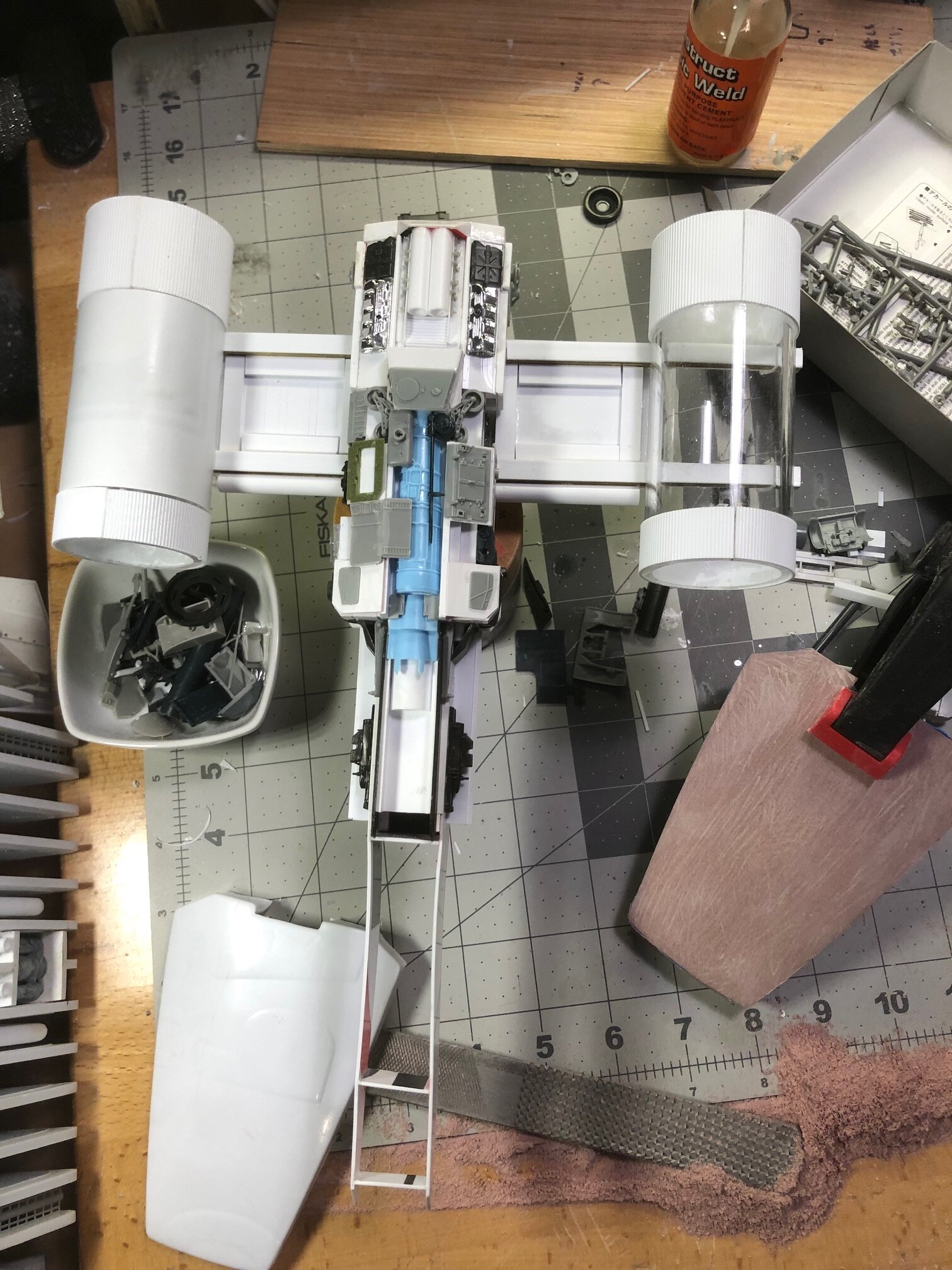

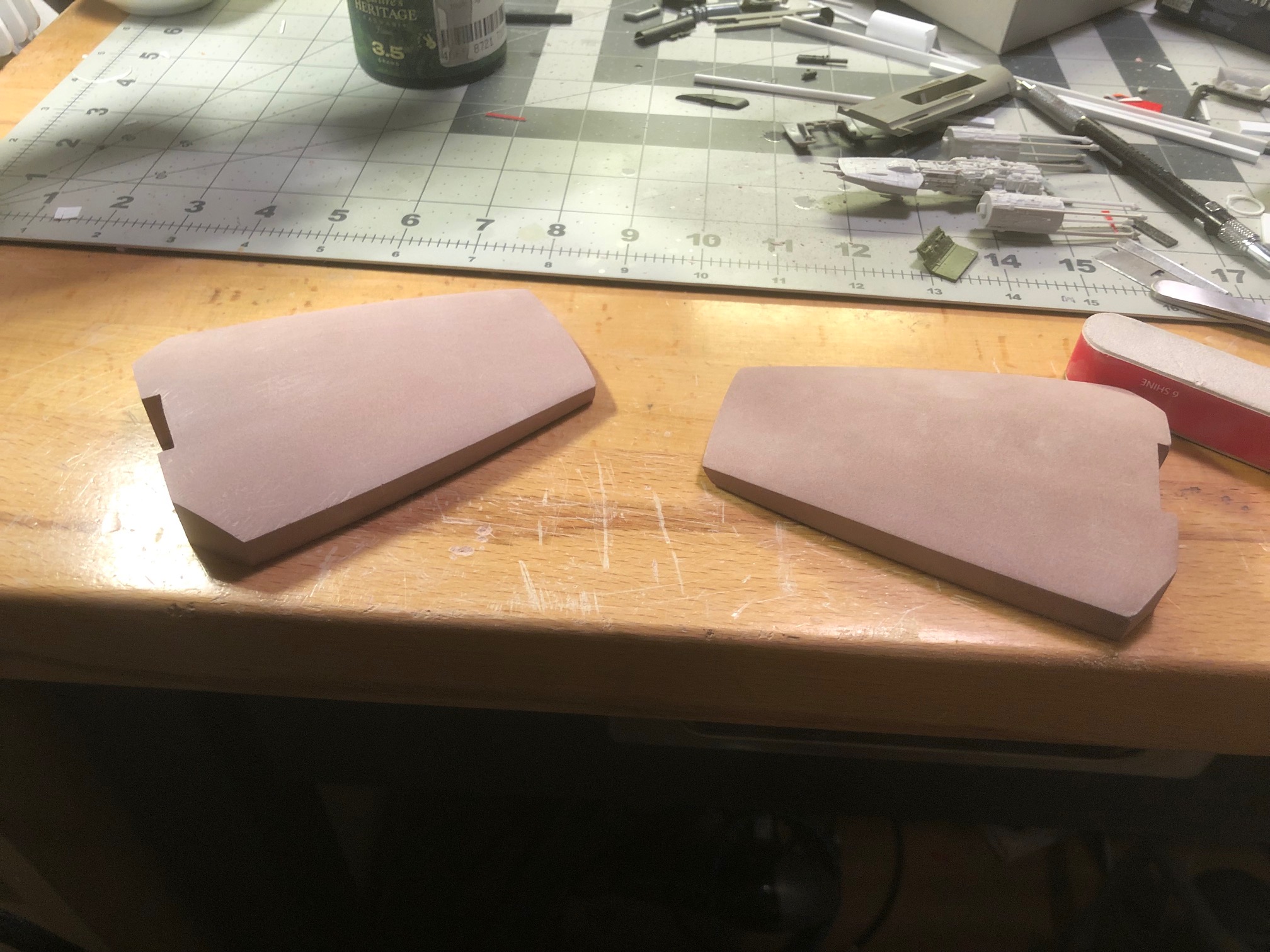

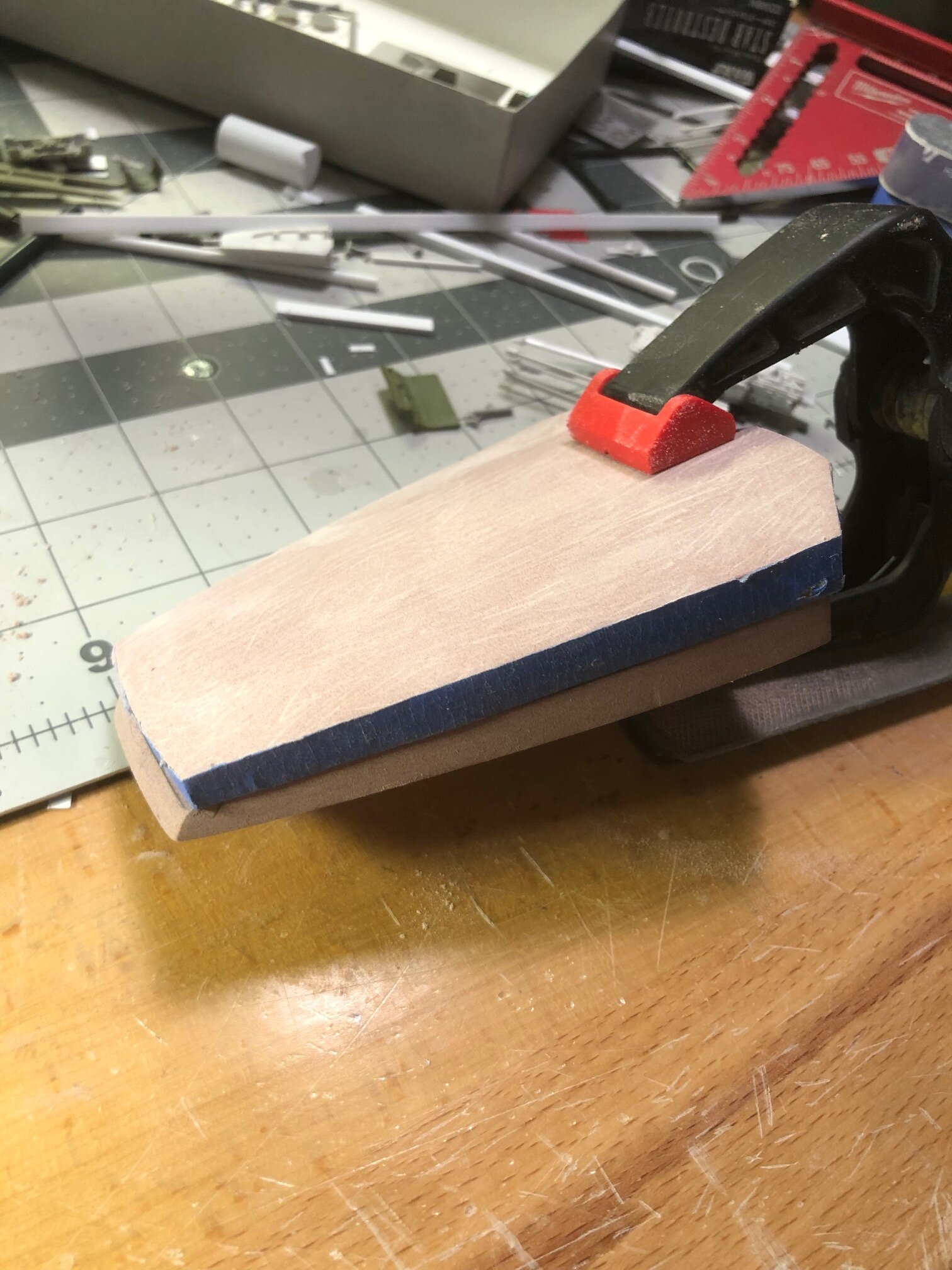

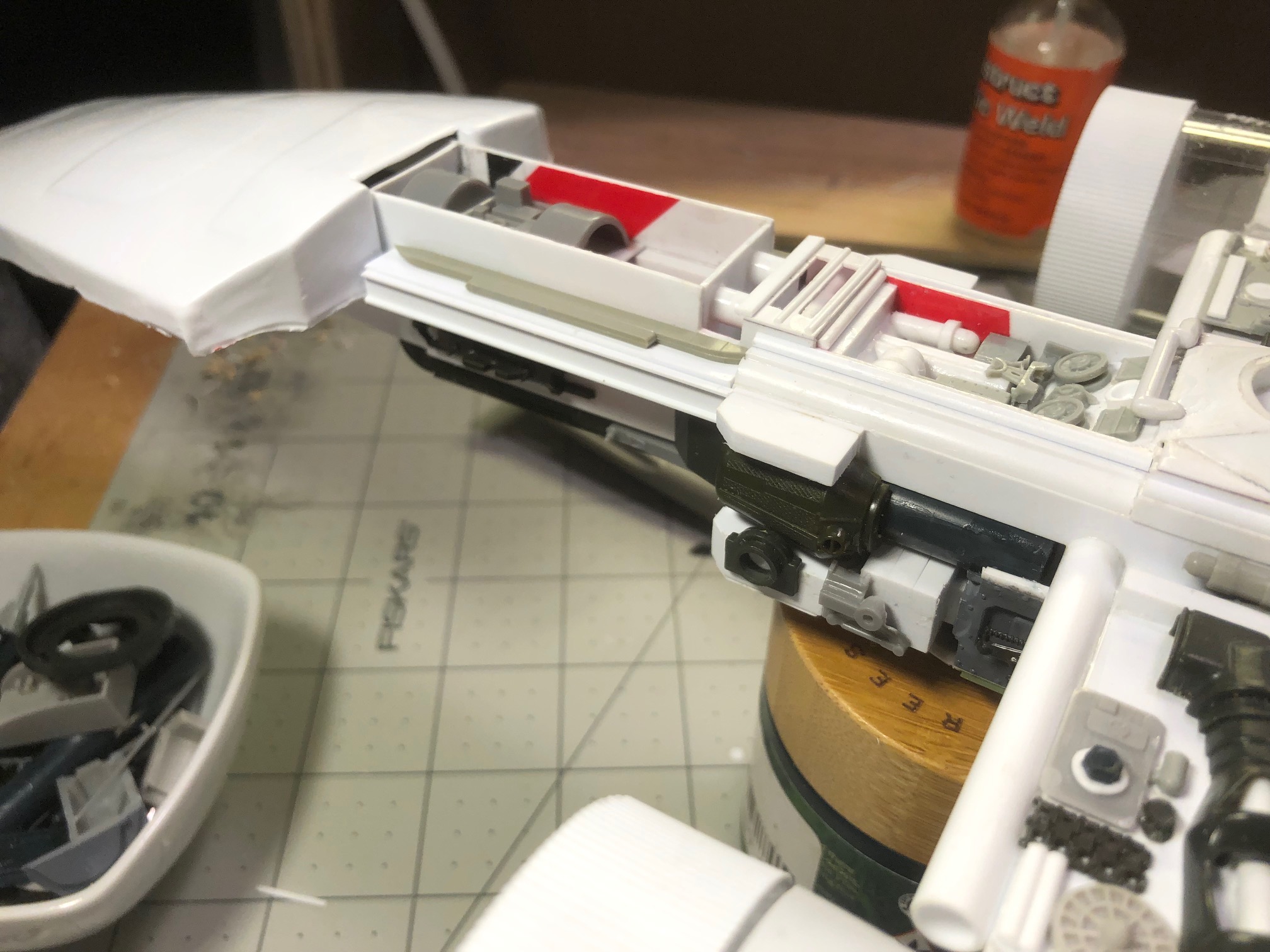

I also got the nose of the ship fleshed out...

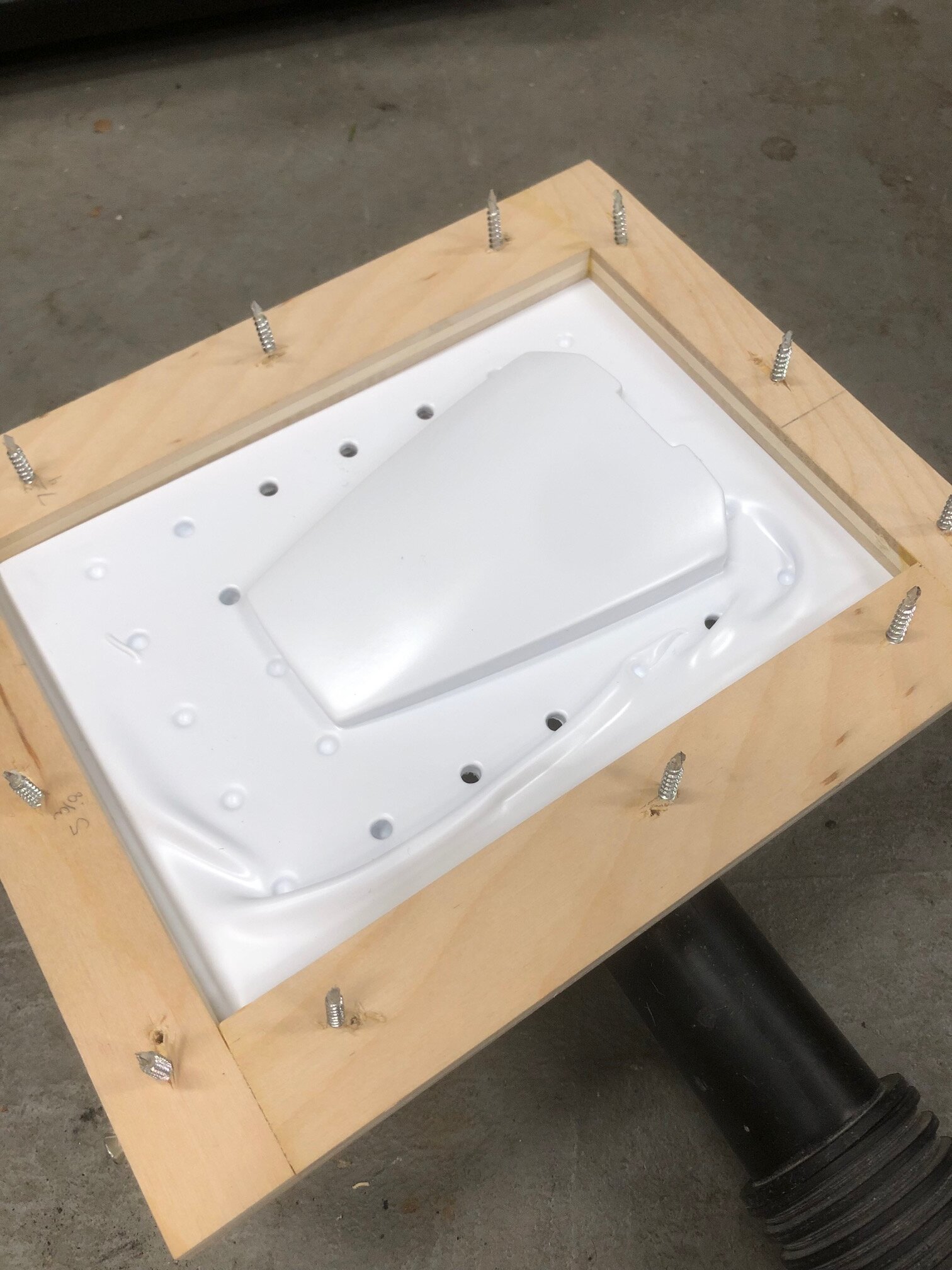

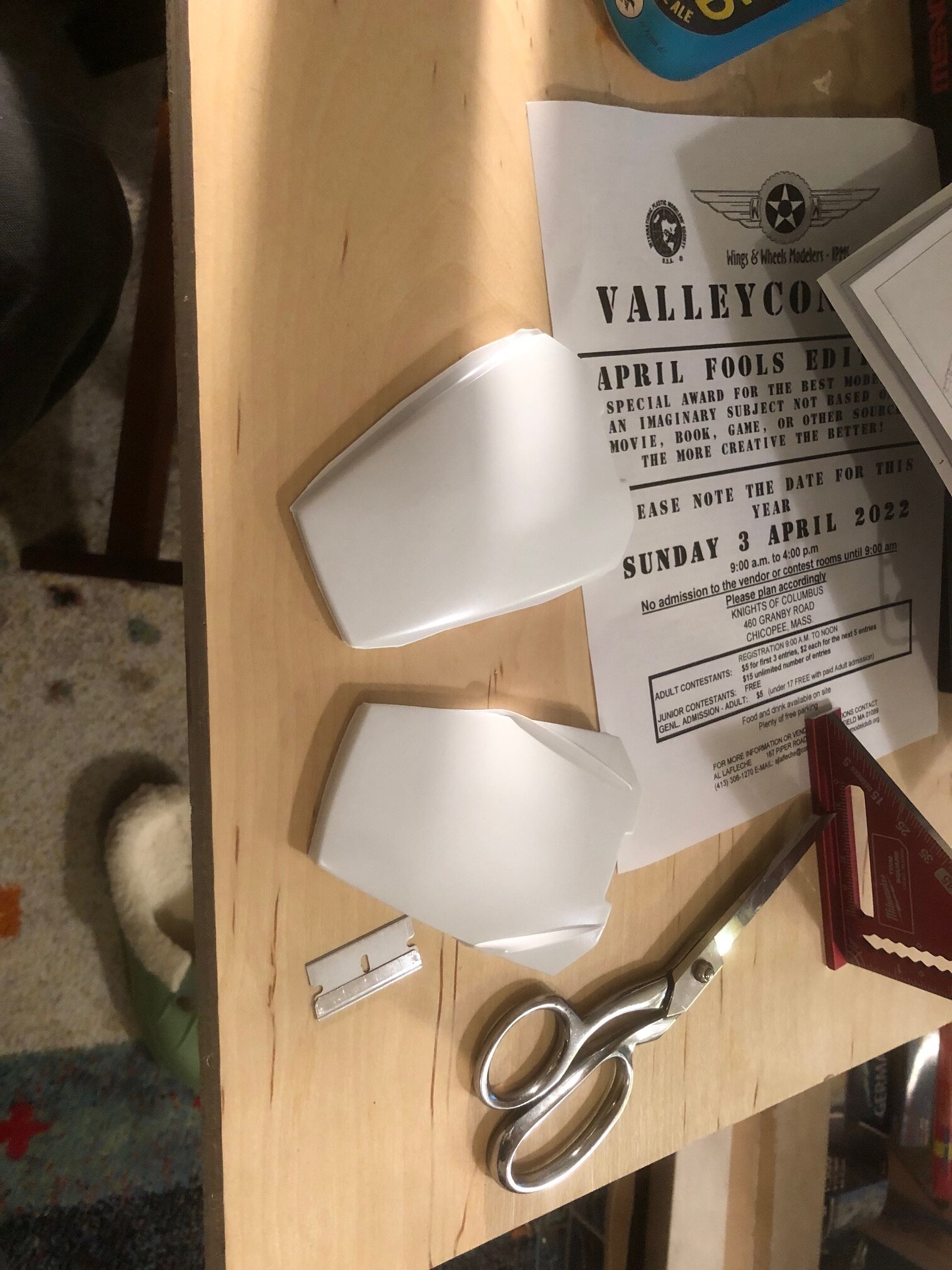

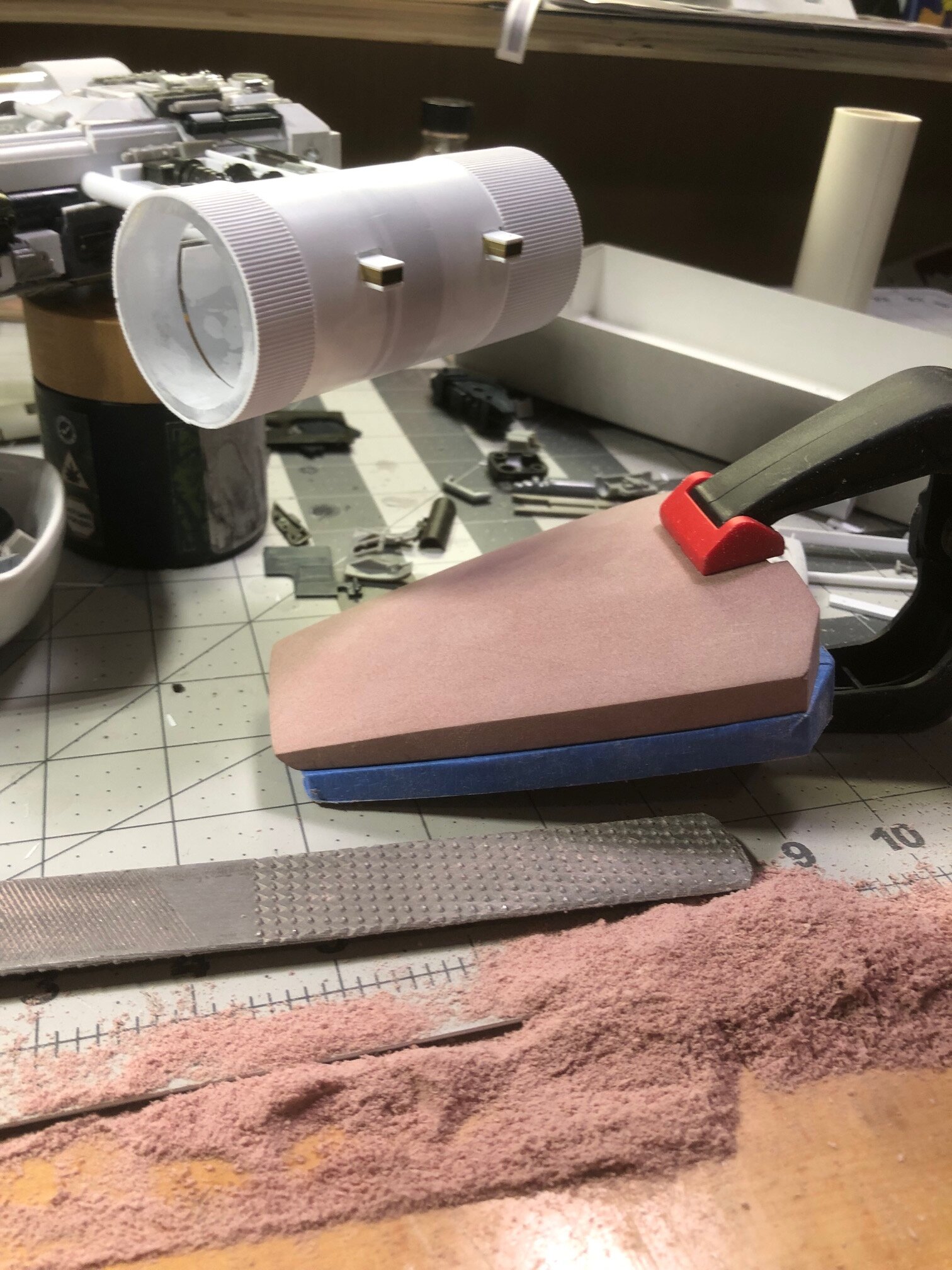

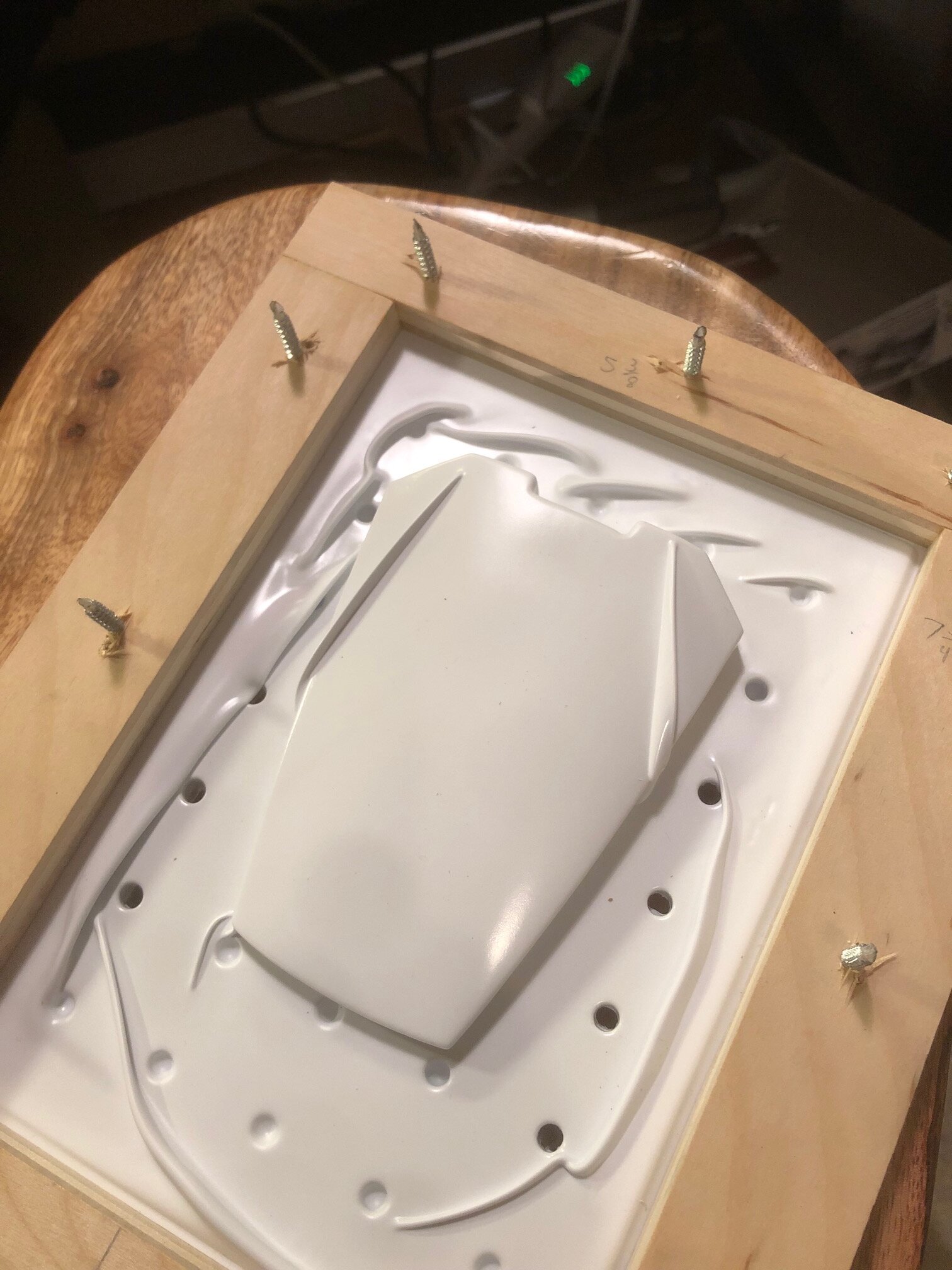

After a lot of filing it was ready for the toaster oven and shopvac

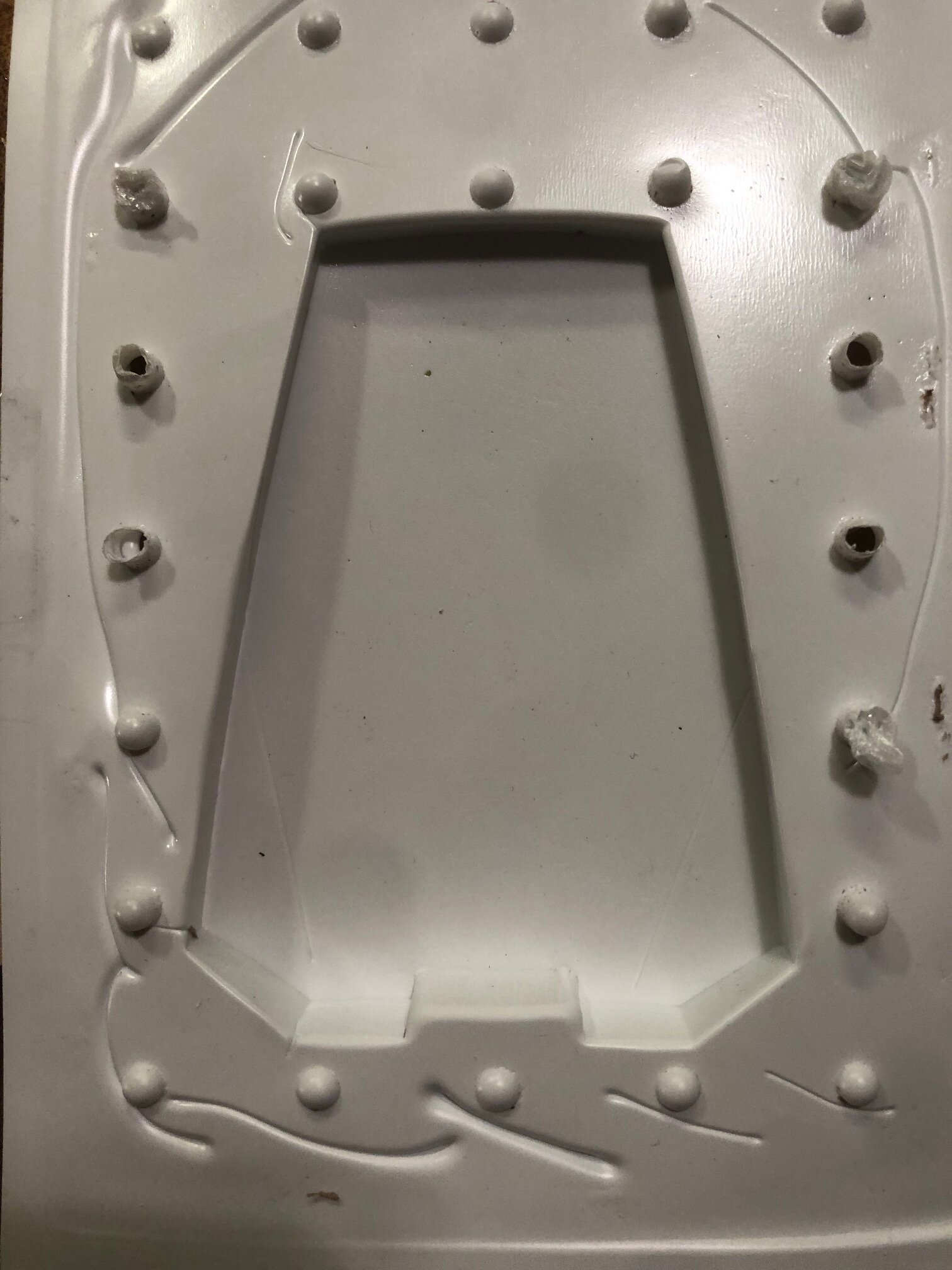

Too much heat on the bottom pull but still usable


topside

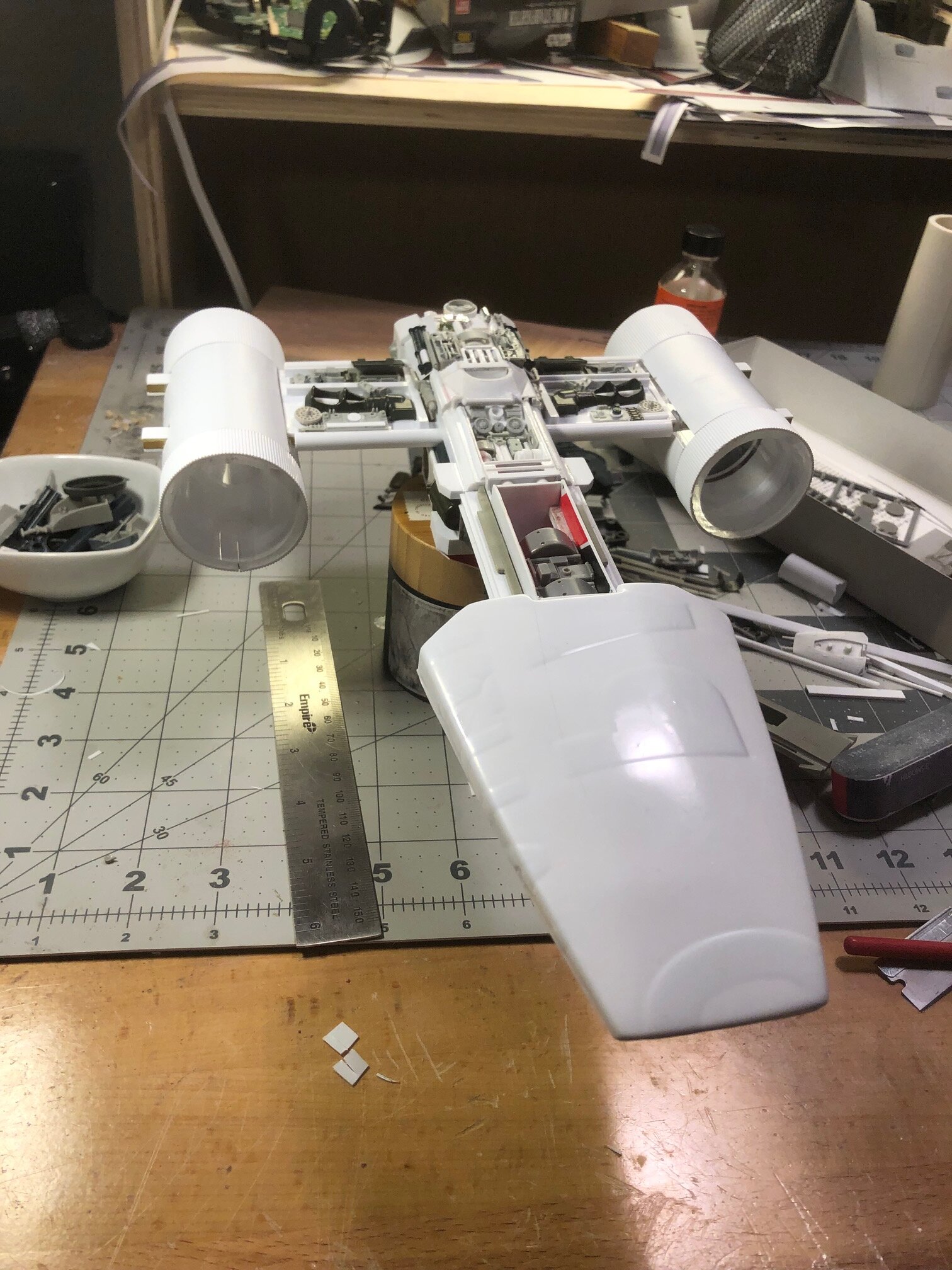

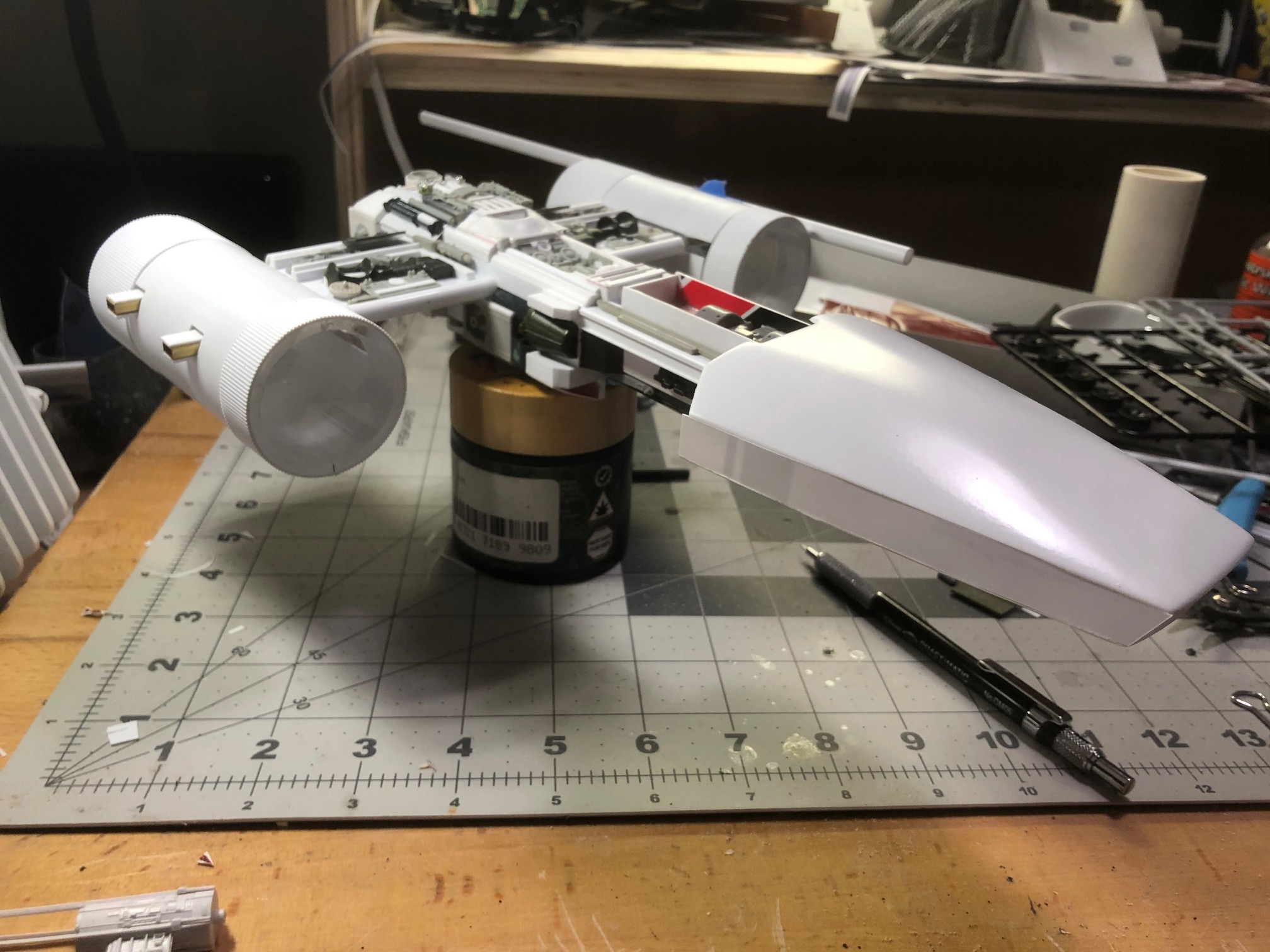

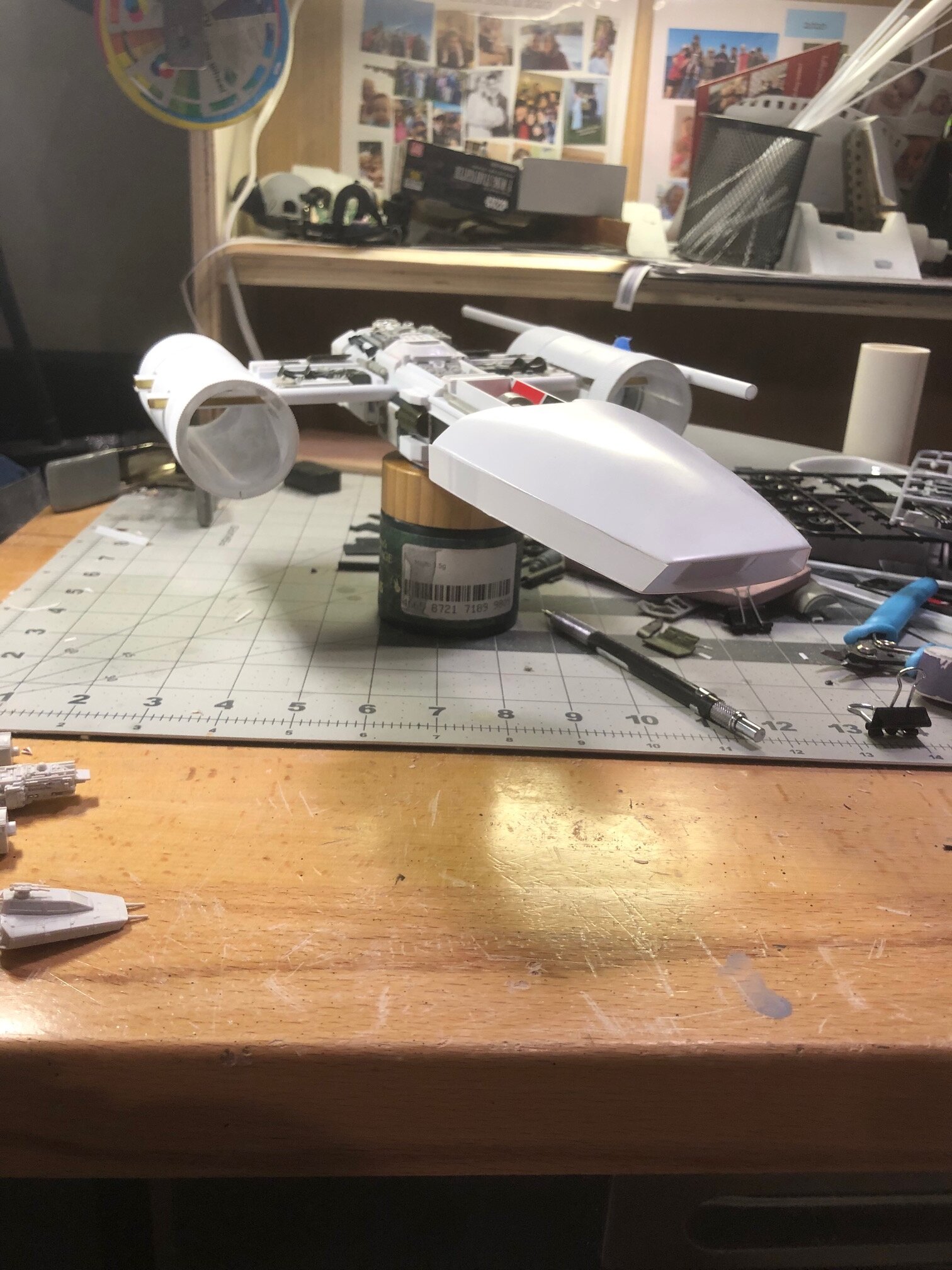

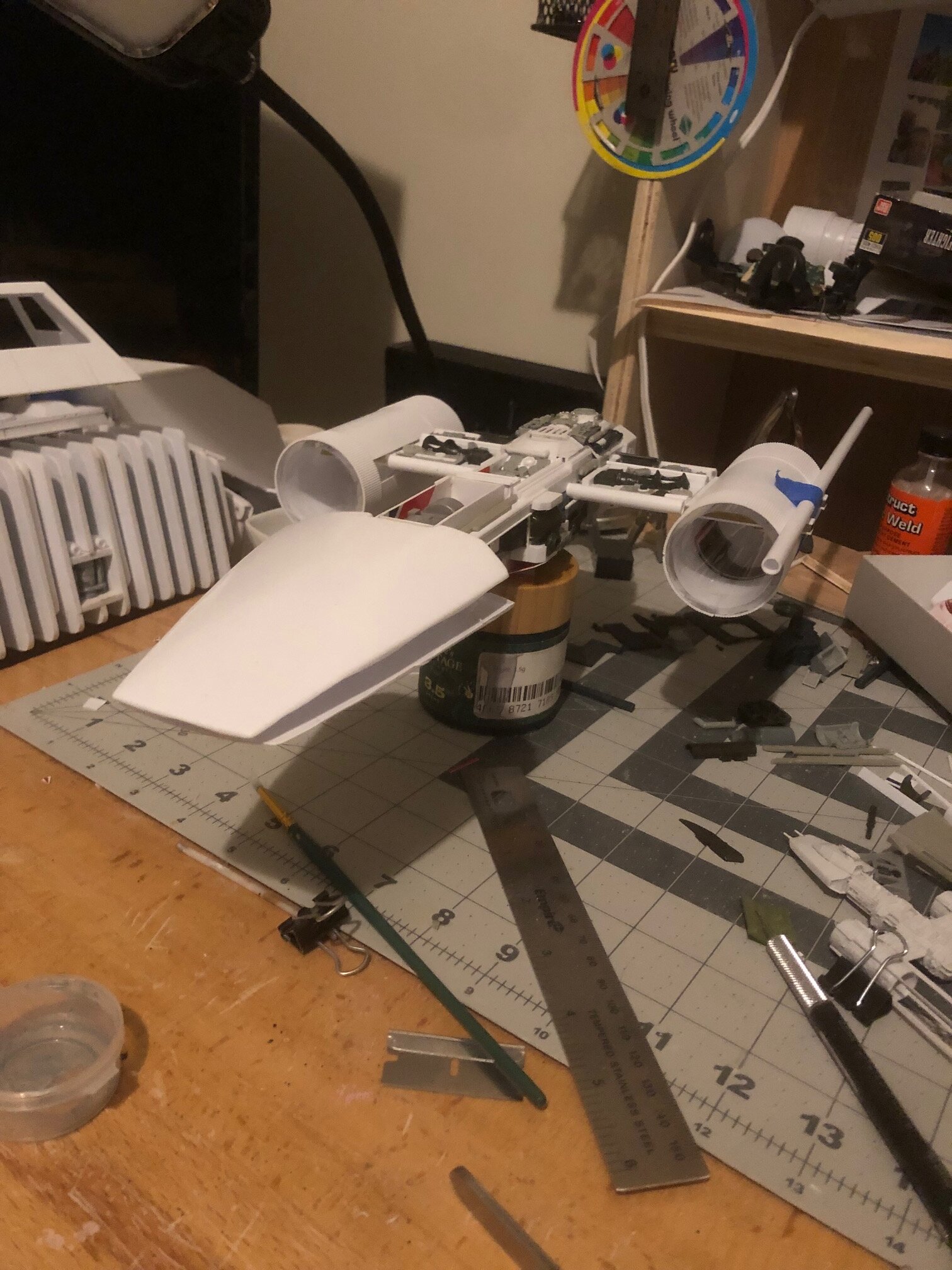

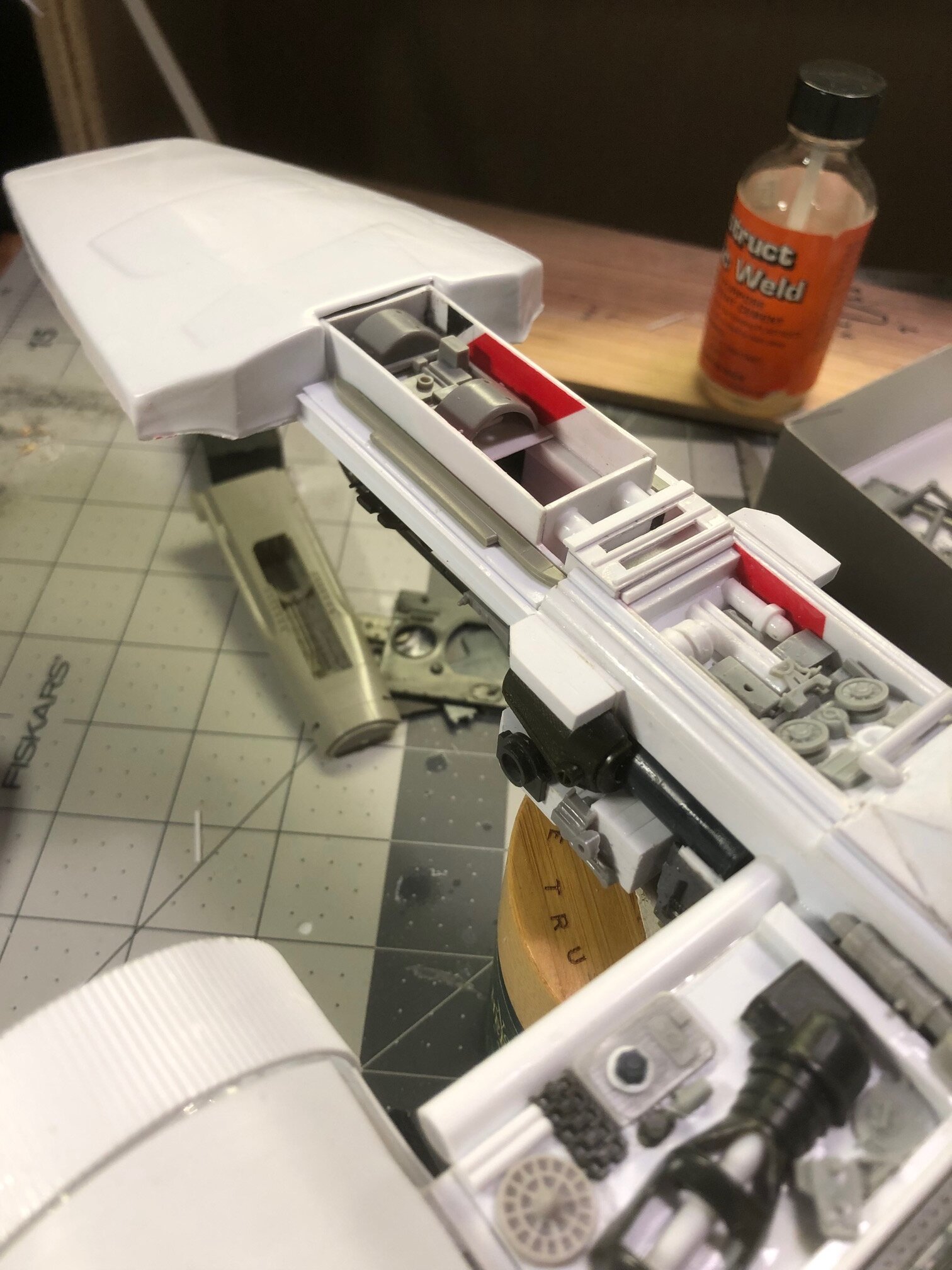

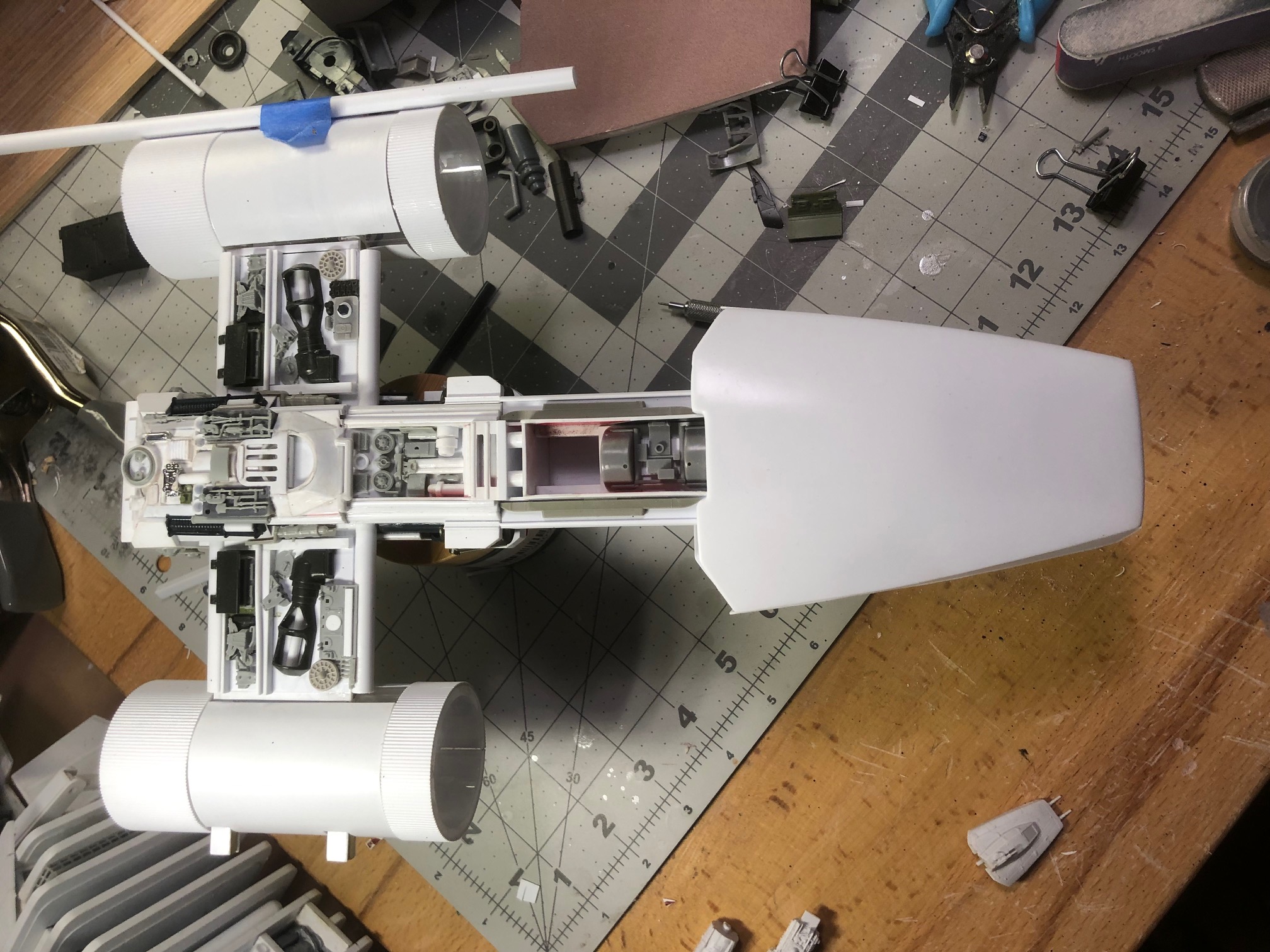

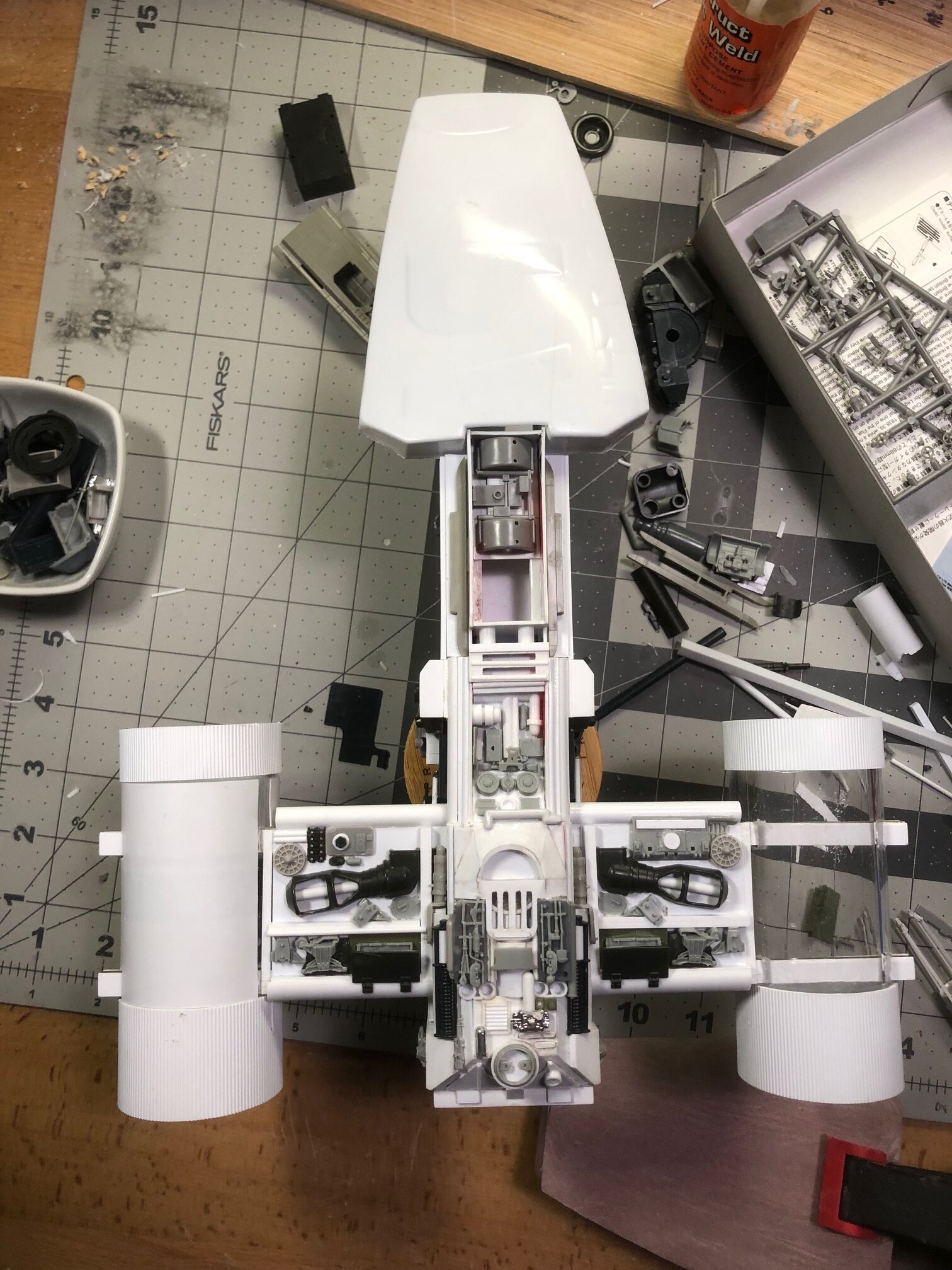

The top and bottom were then joined via the side pieces




happy new year!


Attachments

  • IMG_4382.jpg
    437.8 KB · Views: 28
  • IMG_4384.jpg
    435 KB · Views: 26
  • IMG_4385.jpg
    358.2 KB · Views: 25
  • IMG_4387.jpg
    345.6 KB · Views: 28
  • IMG_4388.jpg
    447.6 KB · Views: 27
  • IMG_4389.jpg
    496 KB · Views: 29
  • IMG_4390.jpg
    423.5 KB · Views: 27
  • IMG_4416.jpg
    447.6 KB · Views: 27
  • IMG_4414.jpg
    496.6 KB · Views: 27
  • IMG_4409.jpg
    417.9 KB · Views: 29
  • IMG_4407.jpg
    337.2 KB · Views: 25
  • IMG_4391.jpg
    498.6 KB · Views: 28
  • IMG_4392.jpg
    530.1 KB · Views: 30
  • IMG_4358.jpg
    512.6 KB · Views: 24
  • IMG_4360.jpg
    382 KB · Views: 29
  • IMG_4371.jpg
    353.2 KB · Views: 27
  • IMG_4395.jpg
    485 KB · Views: 34
  • IMG_4379.jpg
    425 KB · Views: 30
  • IMG_4378.jpg
    377.5 KB · Views: 30
  • IMG_4377.jpg
    520.2 KB · Views: 30
  • IMG_4375.jpg
    496.4 KB · Views: 29
  • IMG_4374.jpg
    455.9 KB · Views: 25
  • IMG_4373.jpg
    457.2 KB · Views: 31

hoosleberg

New Member

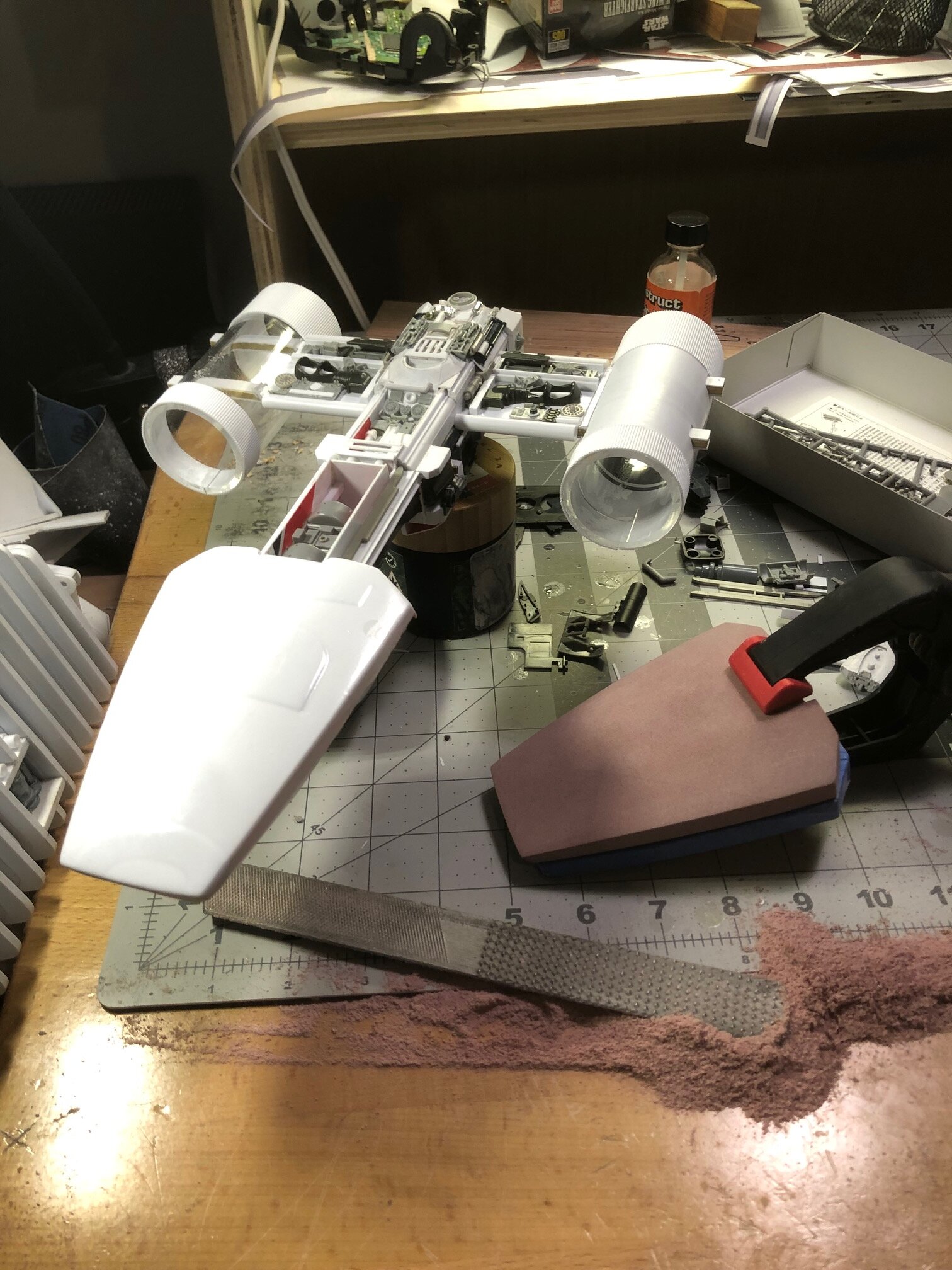

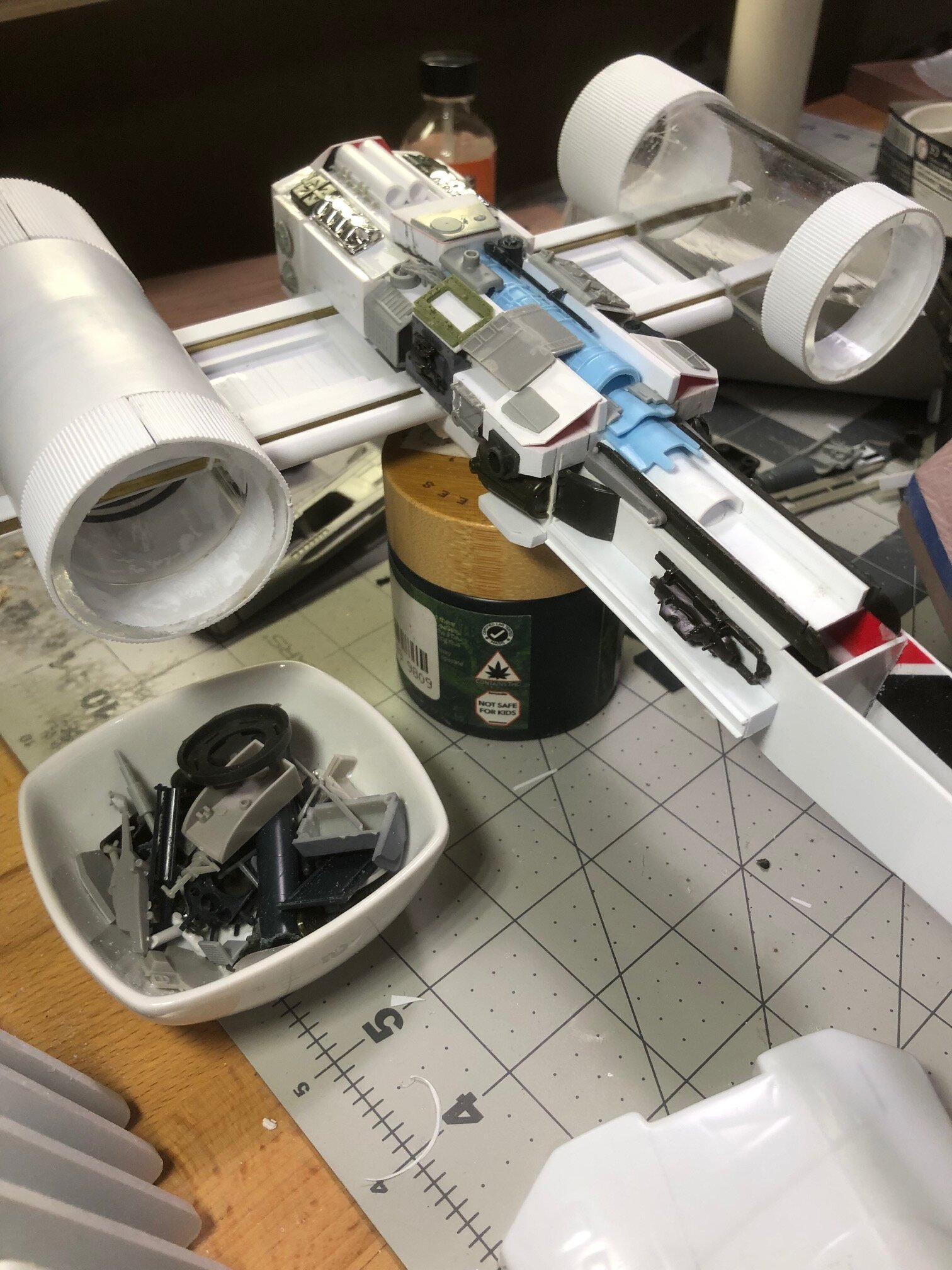

Starting to look y-wingy

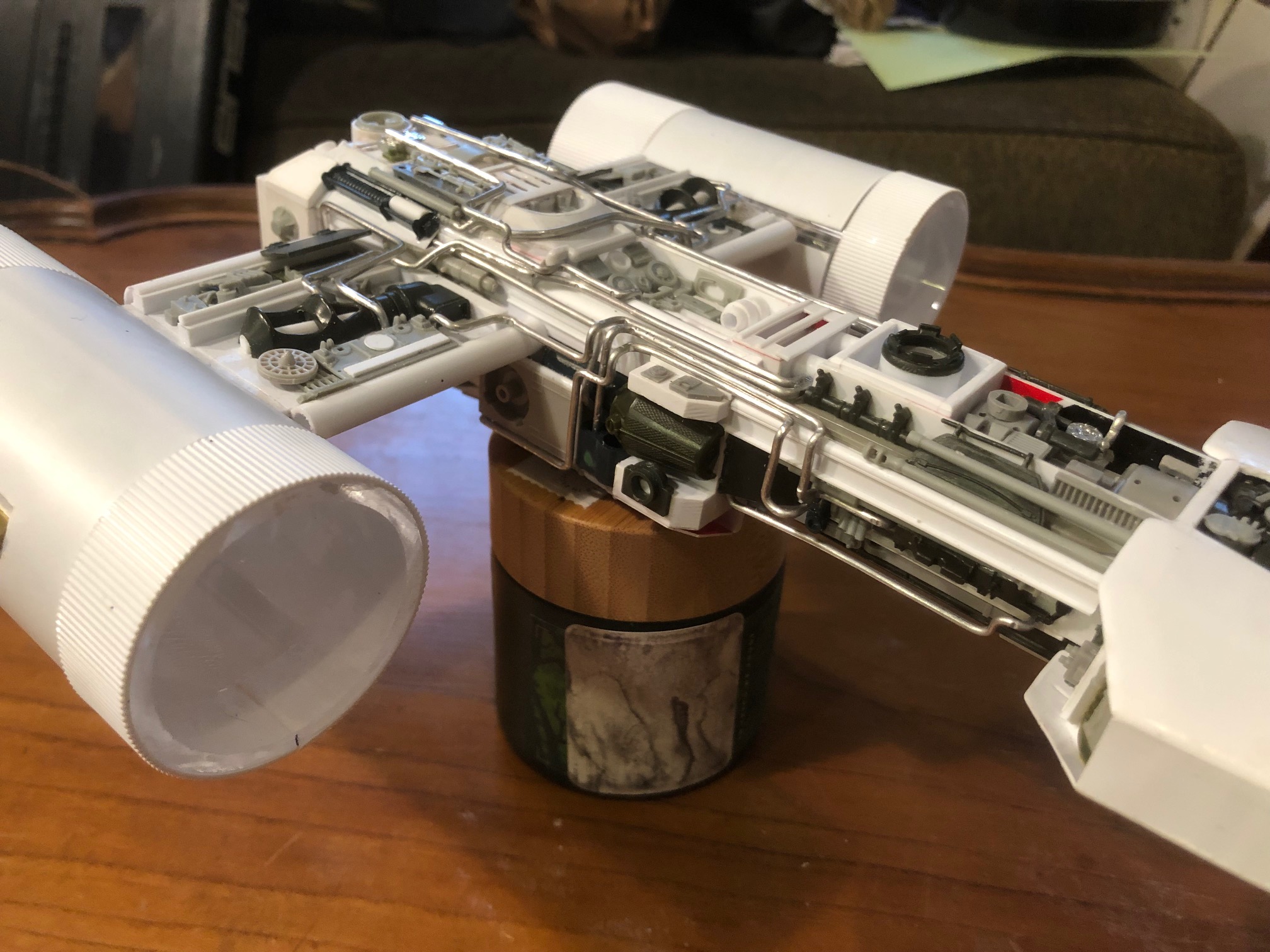

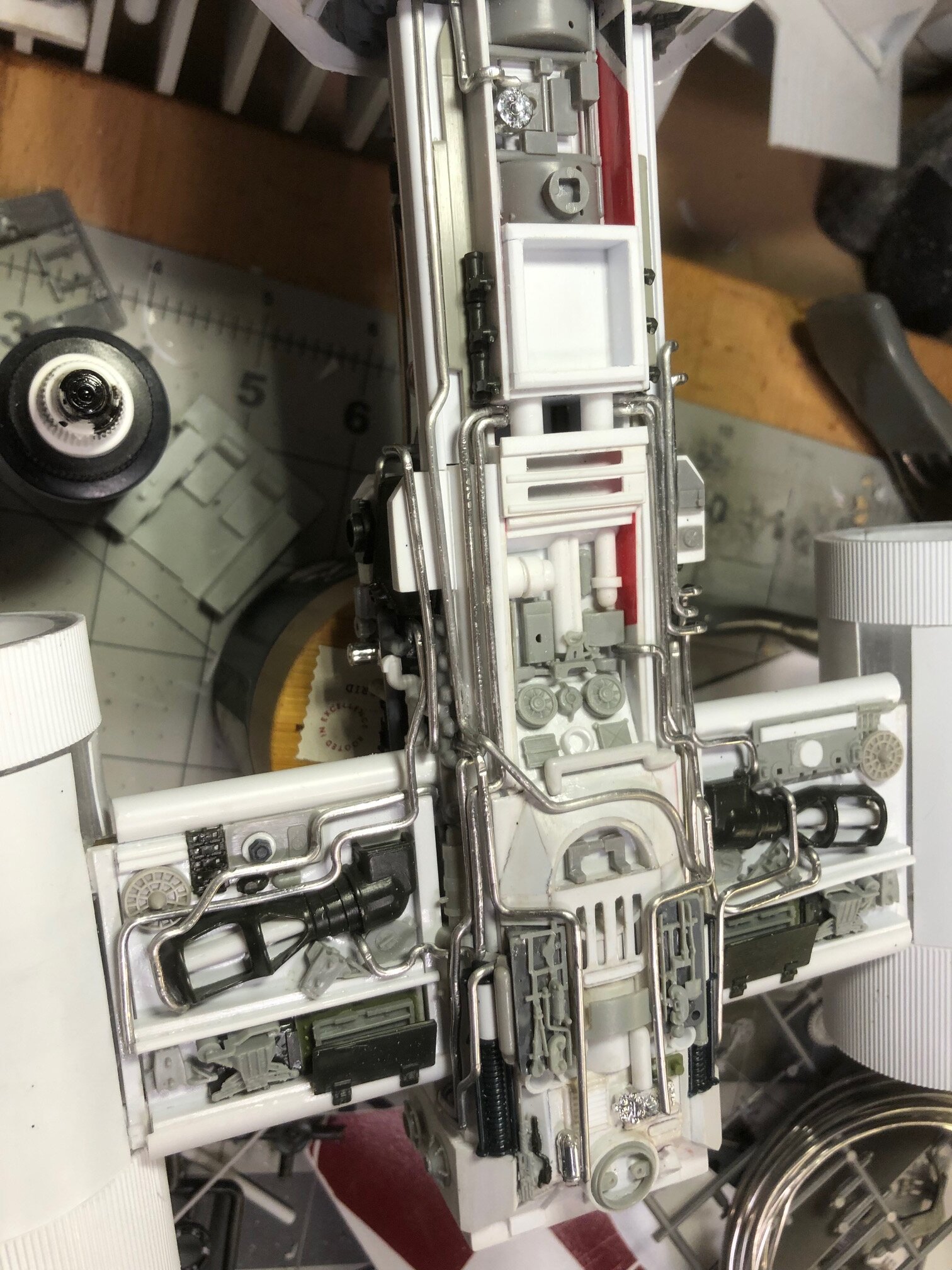

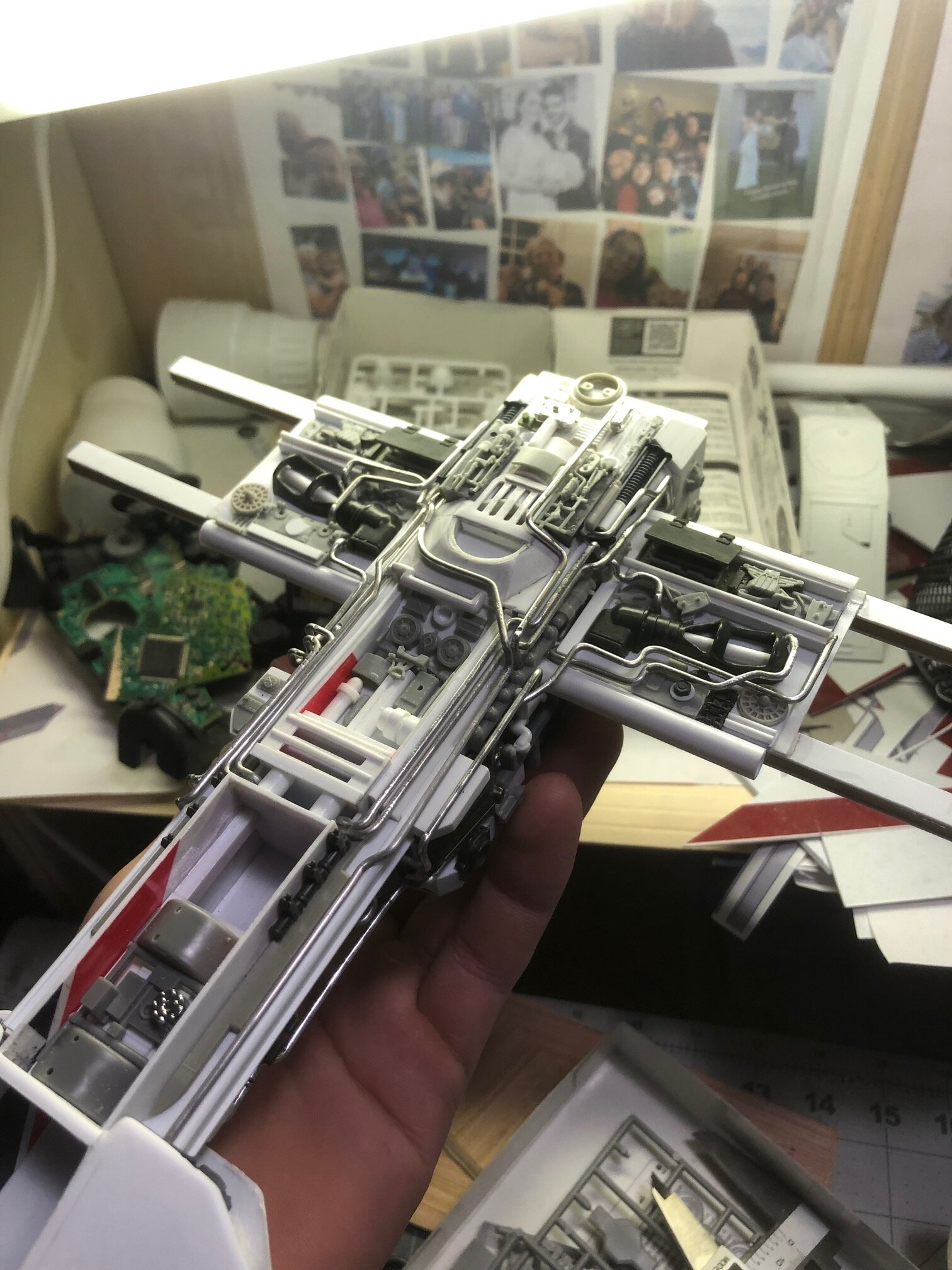

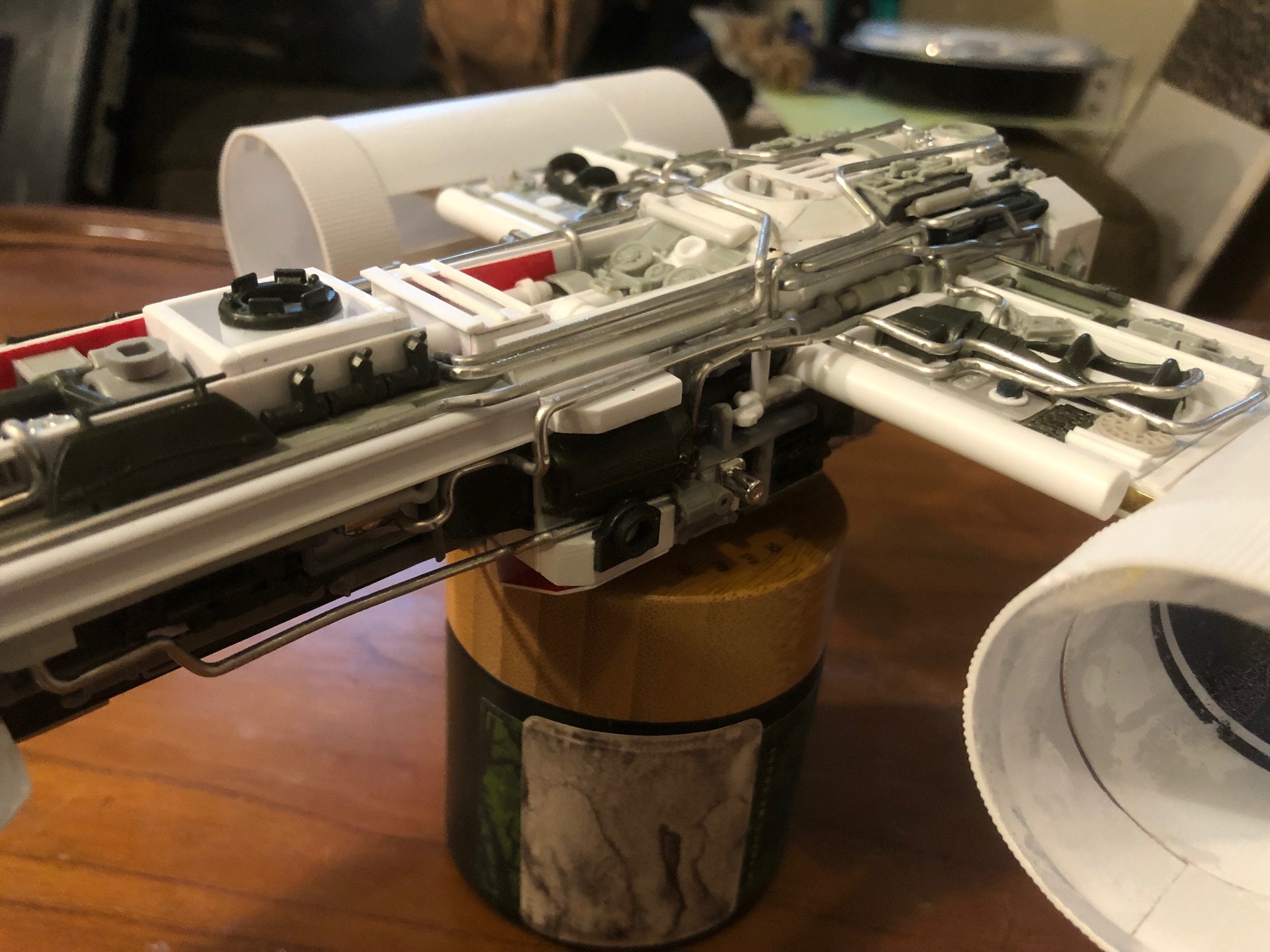

Using armature wire for all the tubing/piping on the y-wing

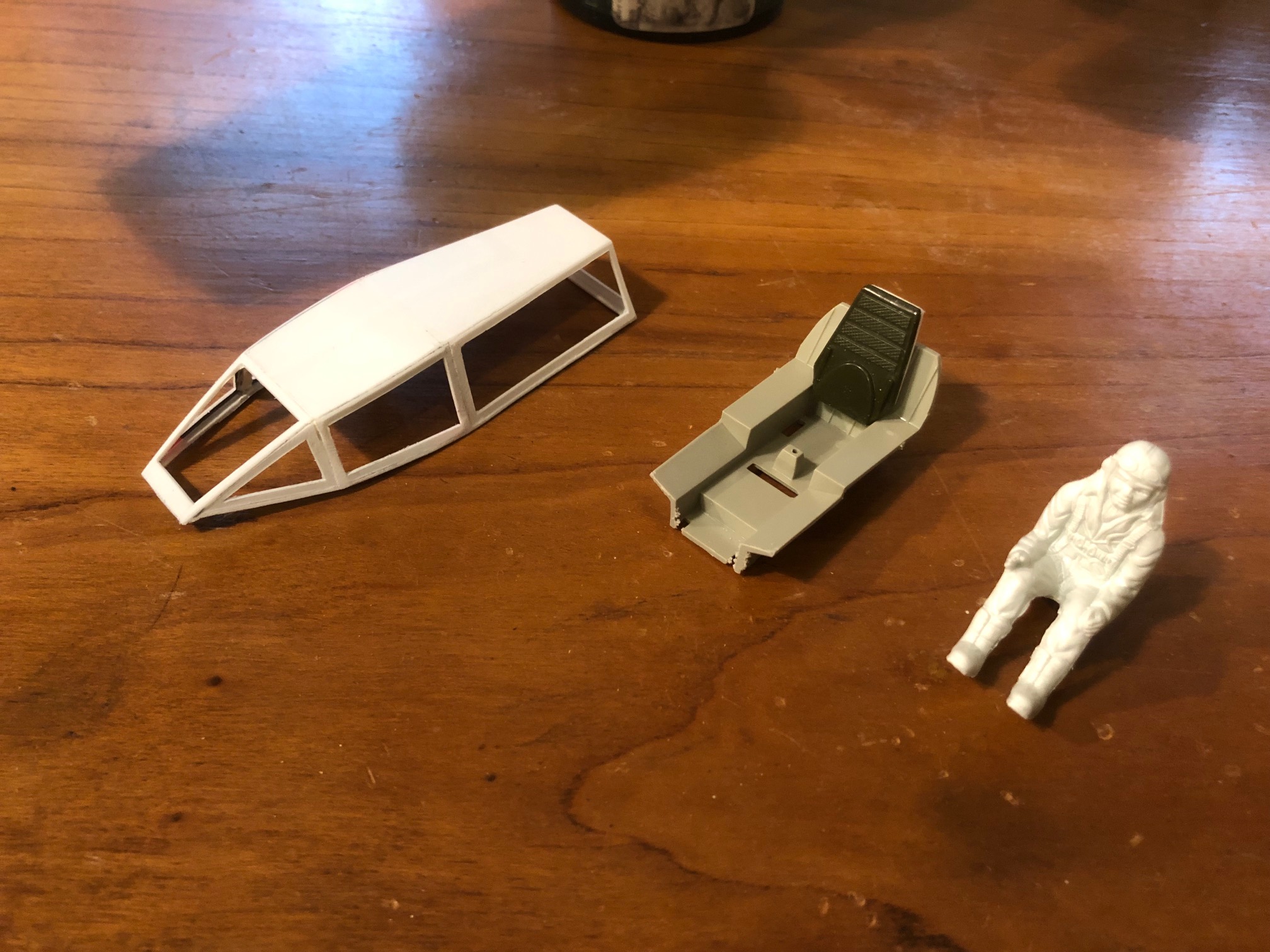

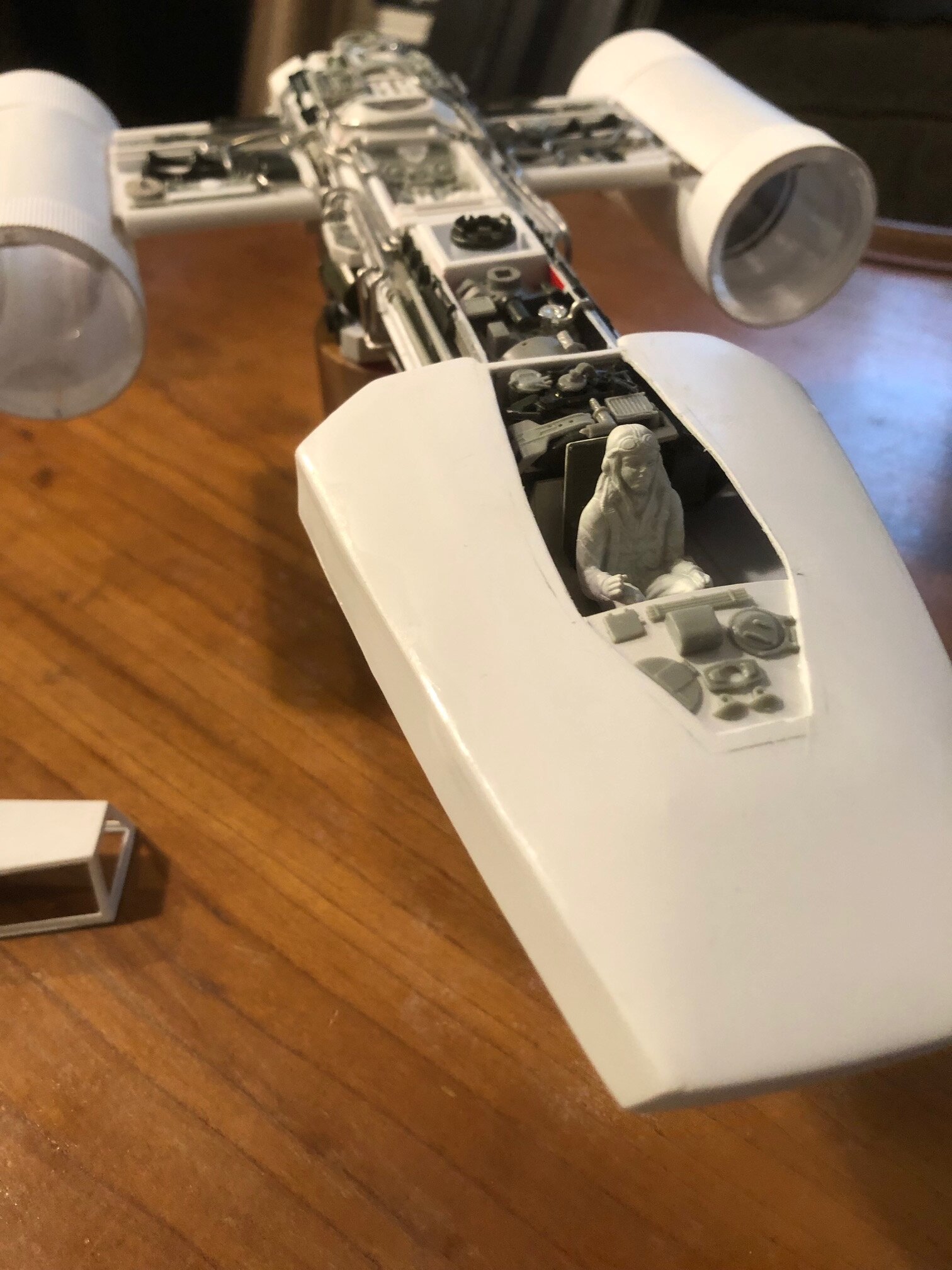

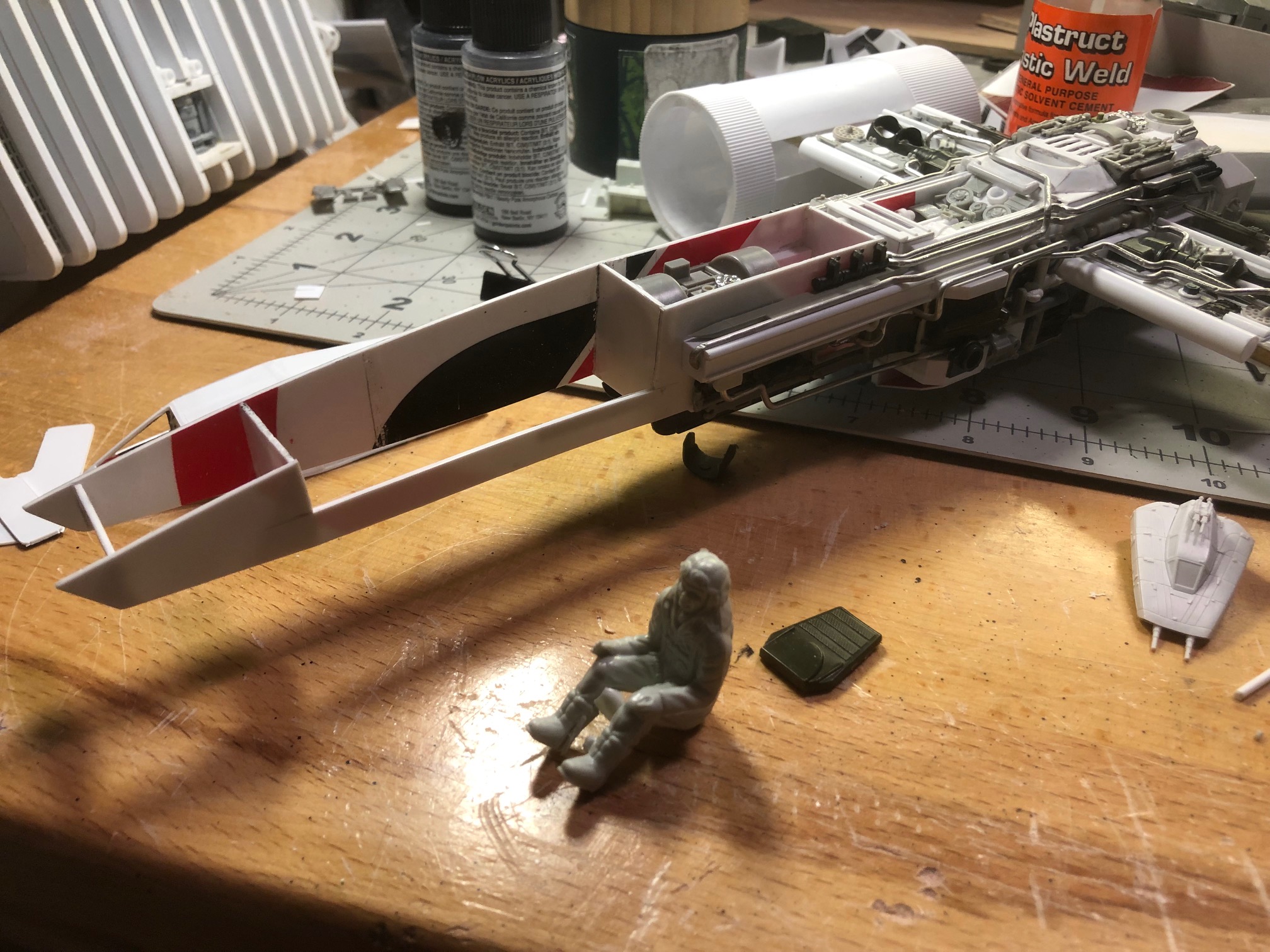

Started to work on the cockpit. This 1/32 Corsair pilot fits nicely. A random piece from a helicopter kit works well for the seatback too




greebs added

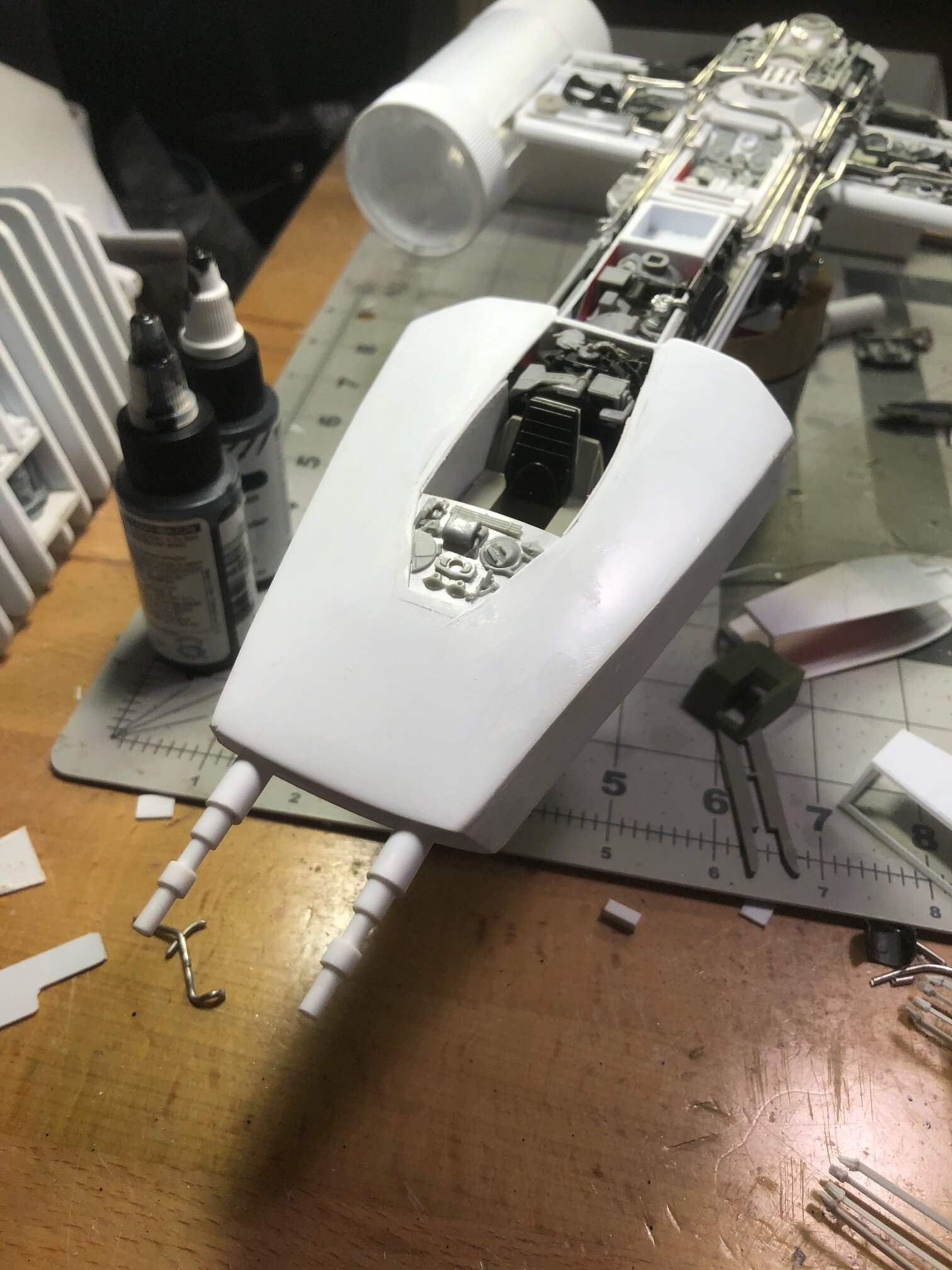

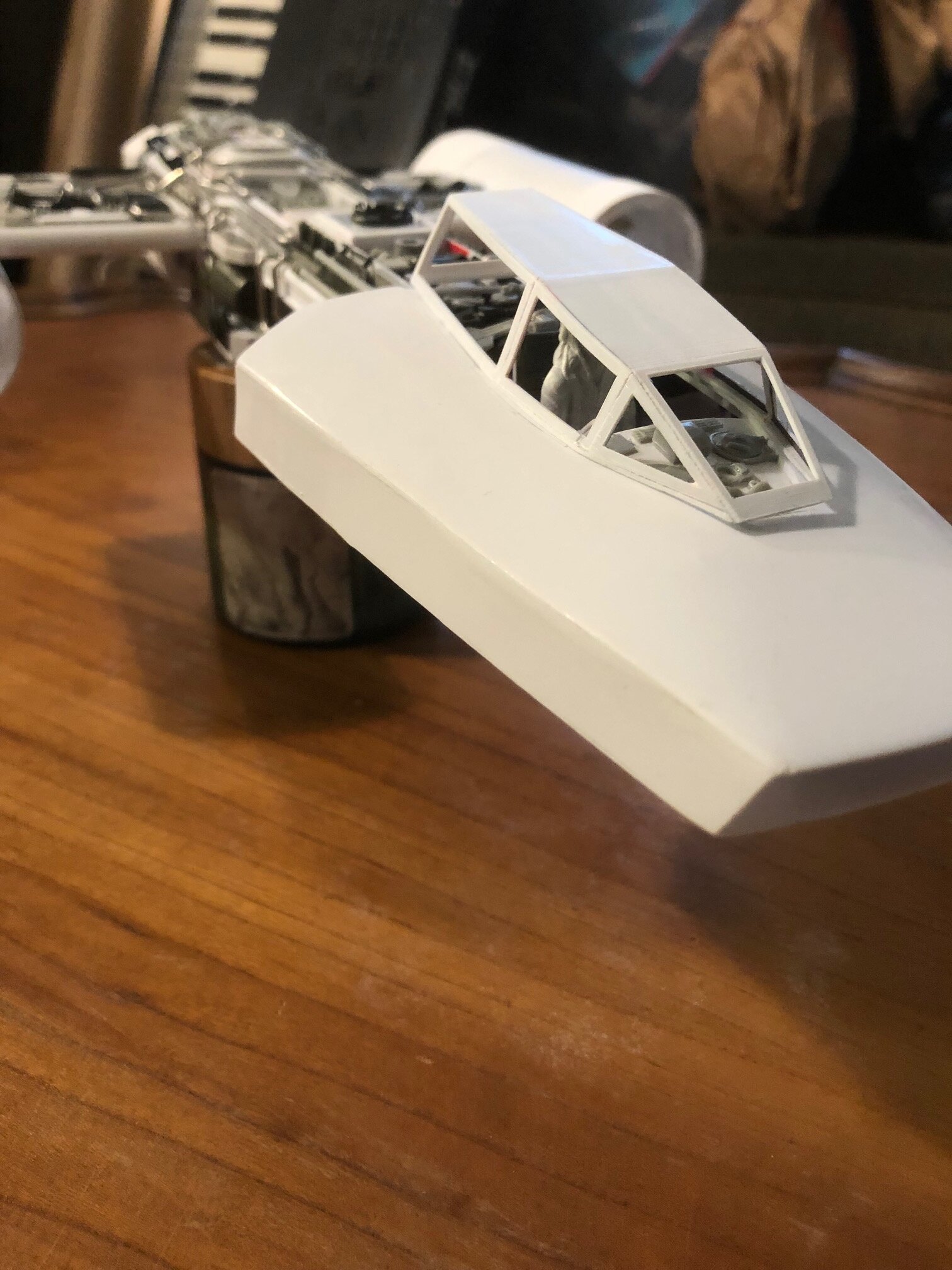

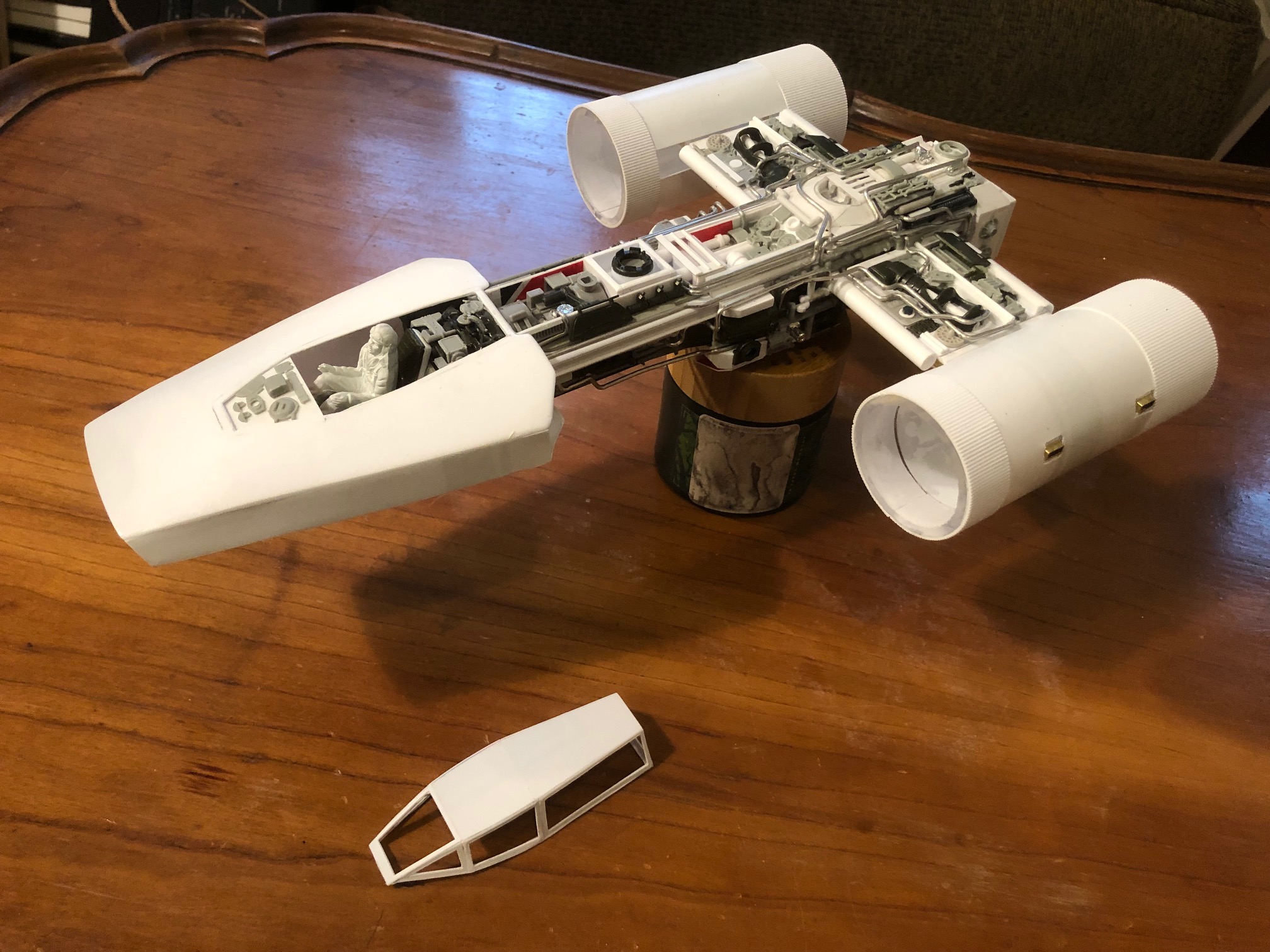

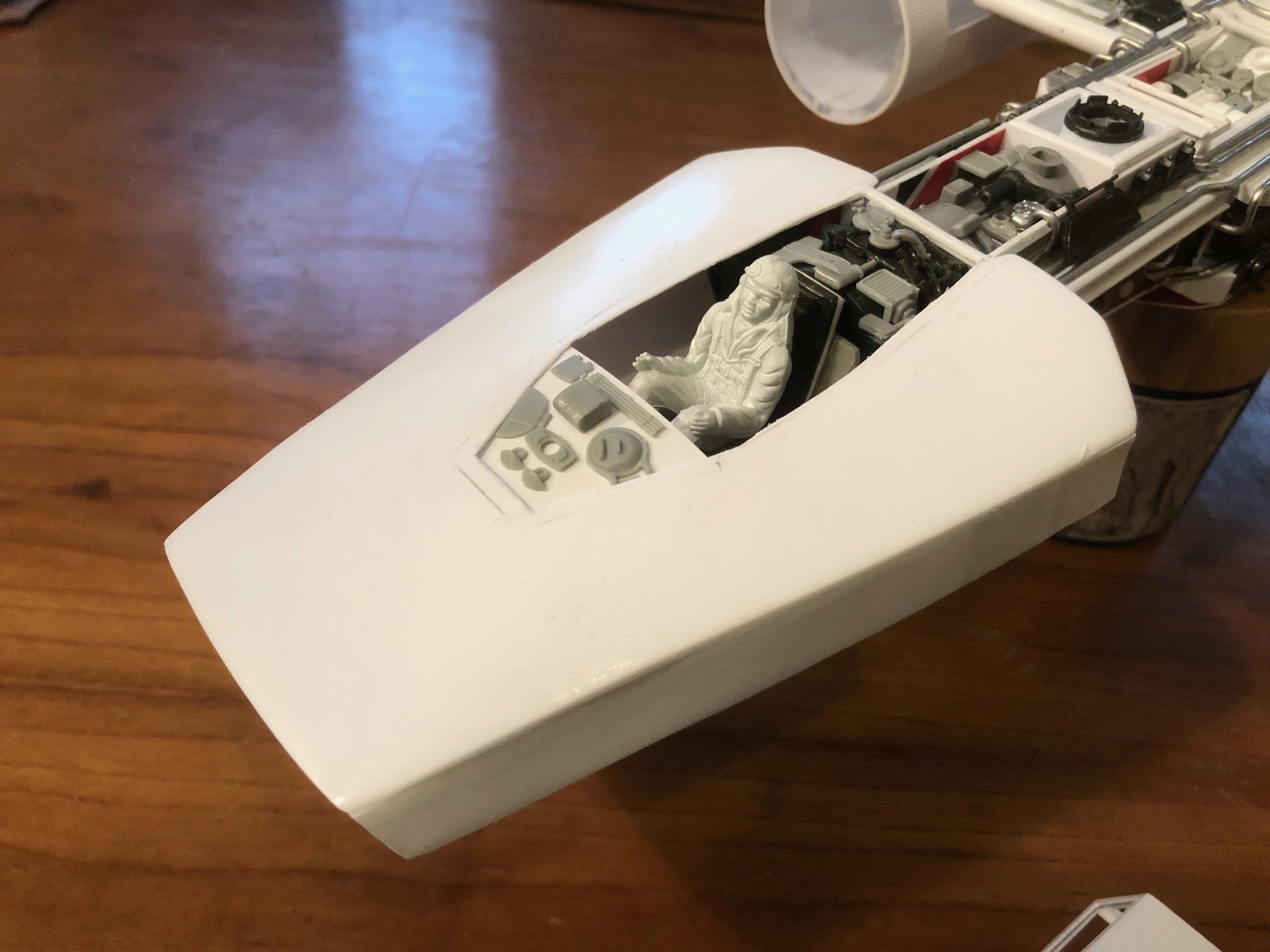

Made the canopy



The beginnings of an astromech...

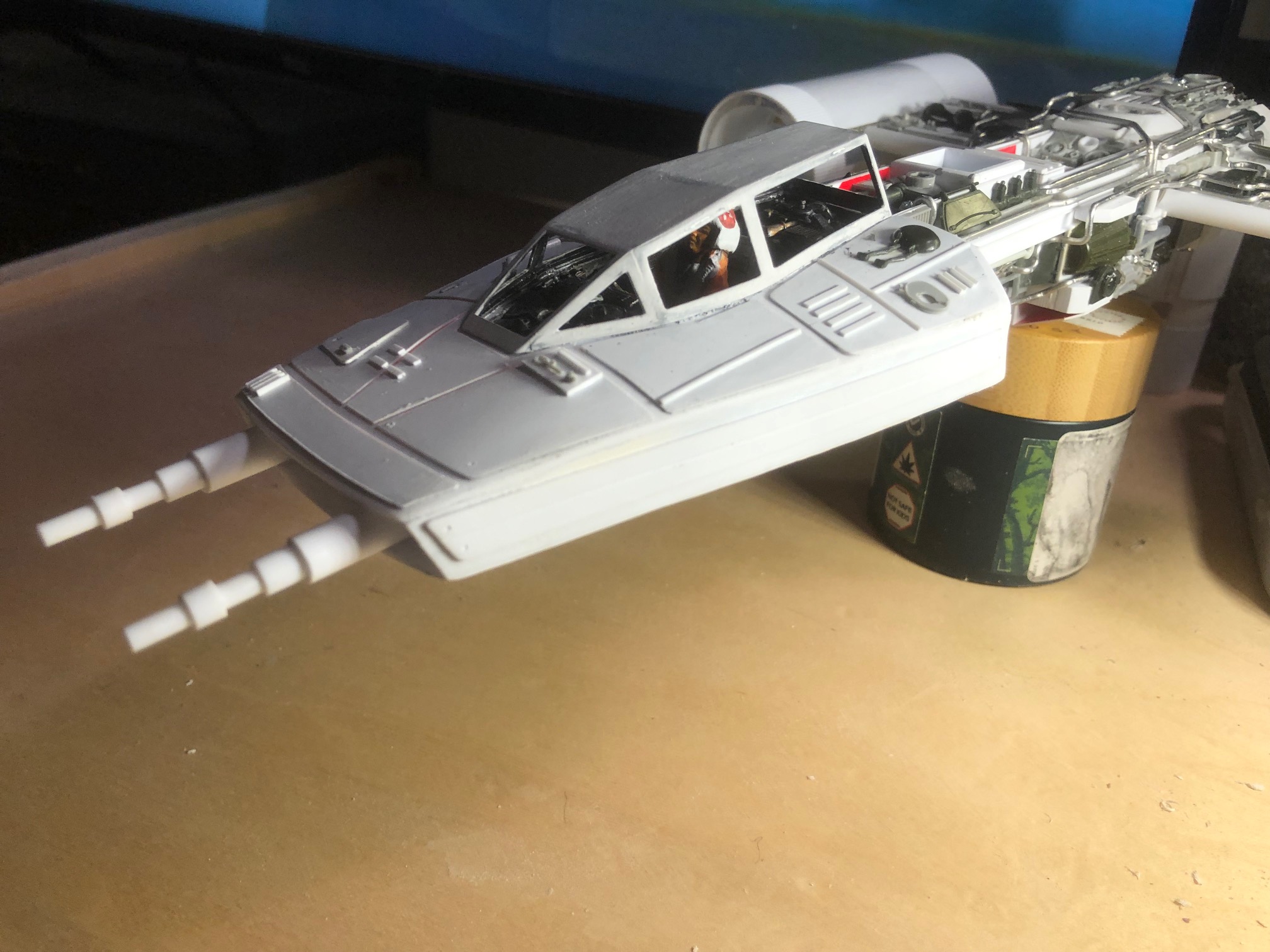

Started to work on the cannons too



Attachments

  • IMG_4520.jpg
    503 KB · Views: 25
  • IMG_4525.jpg
    551.9 KB · Views: 25
  • IMG_4529.jpg
    376.1 KB · Views: 33
  • IMG_4527.jpg
    584.1 KB · Views: 29
  • IMG_4526.jpg
    612.6 KB · Views: 27

hoosleberg

New Member
Update...

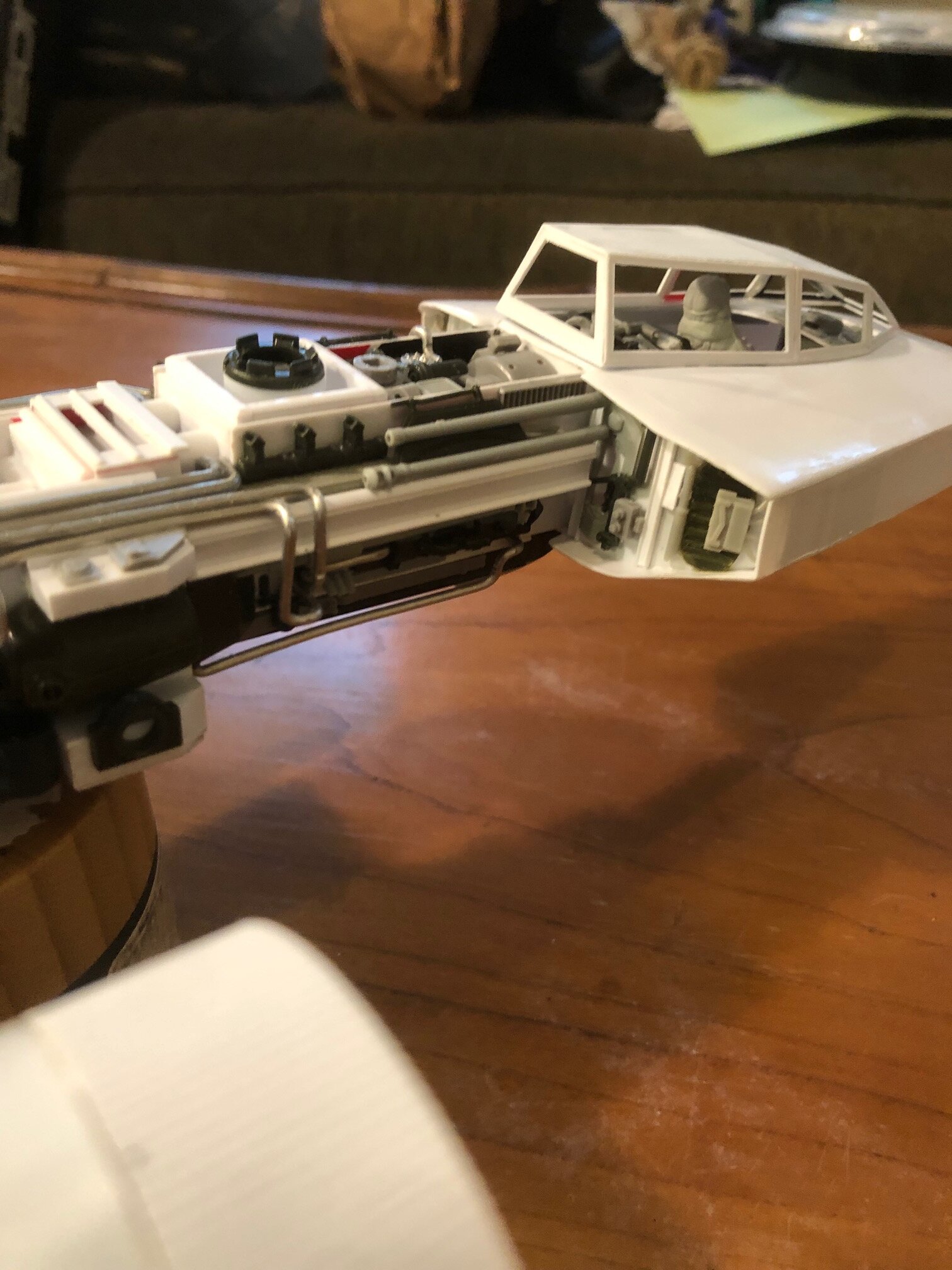

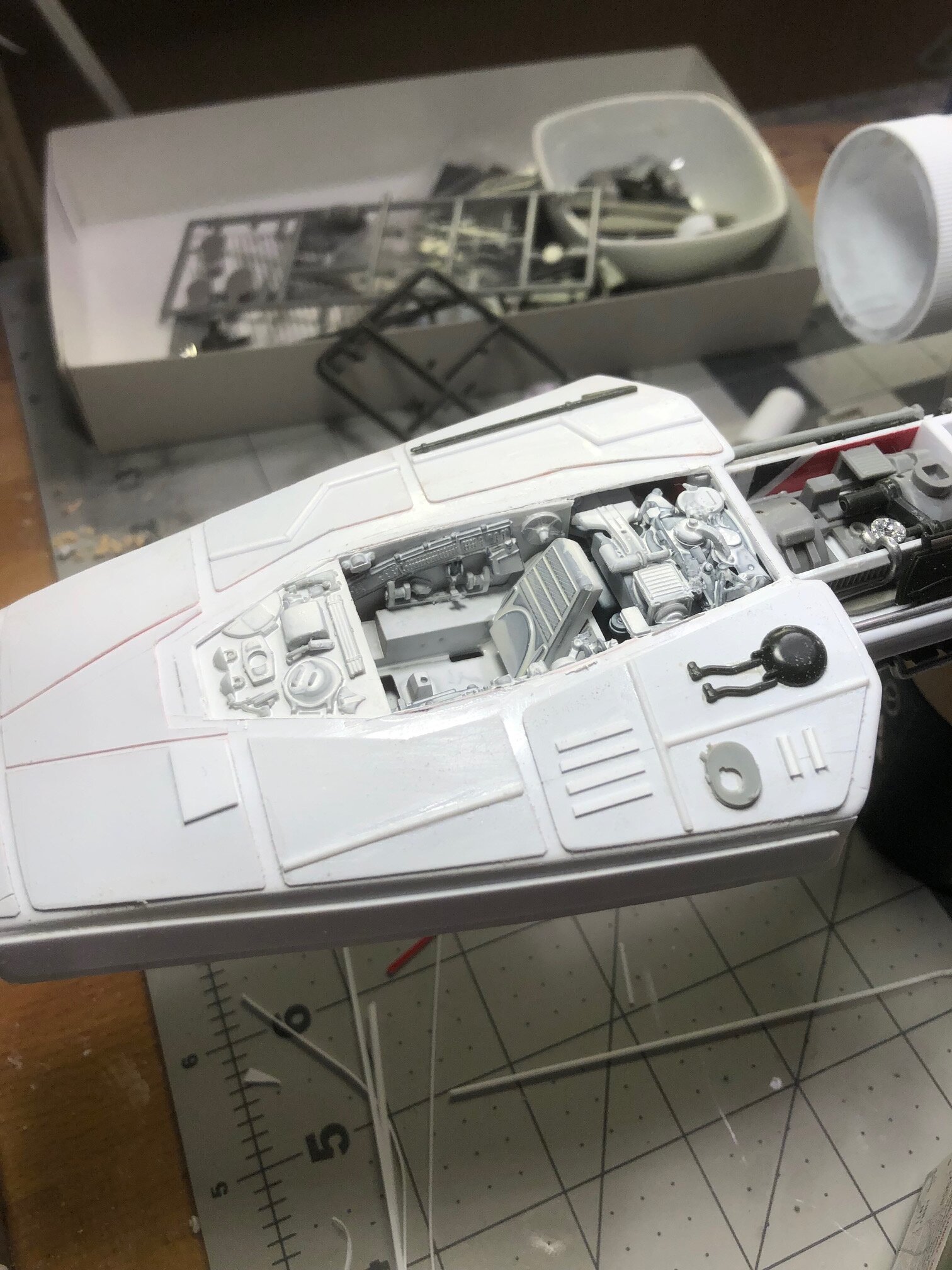

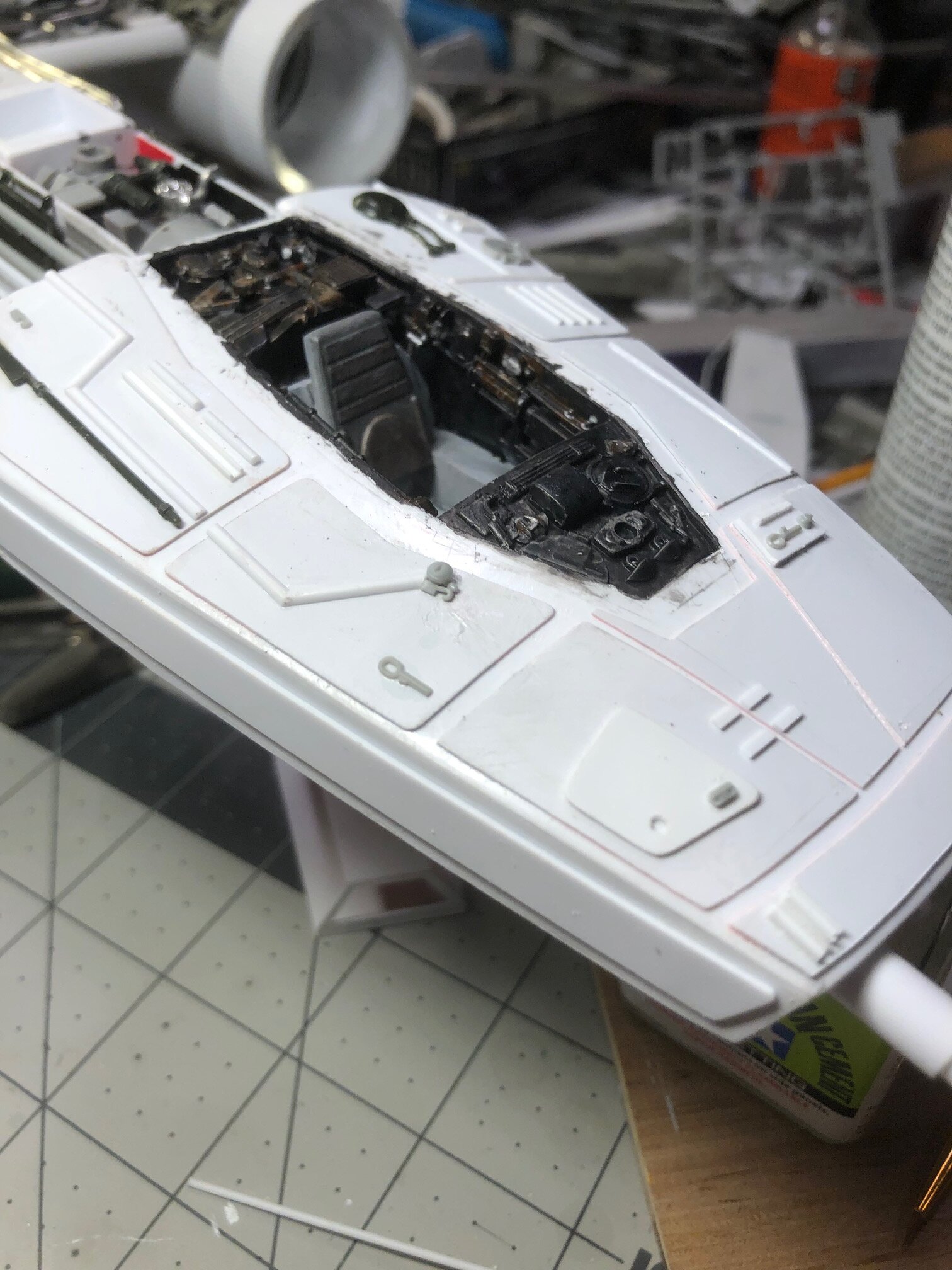

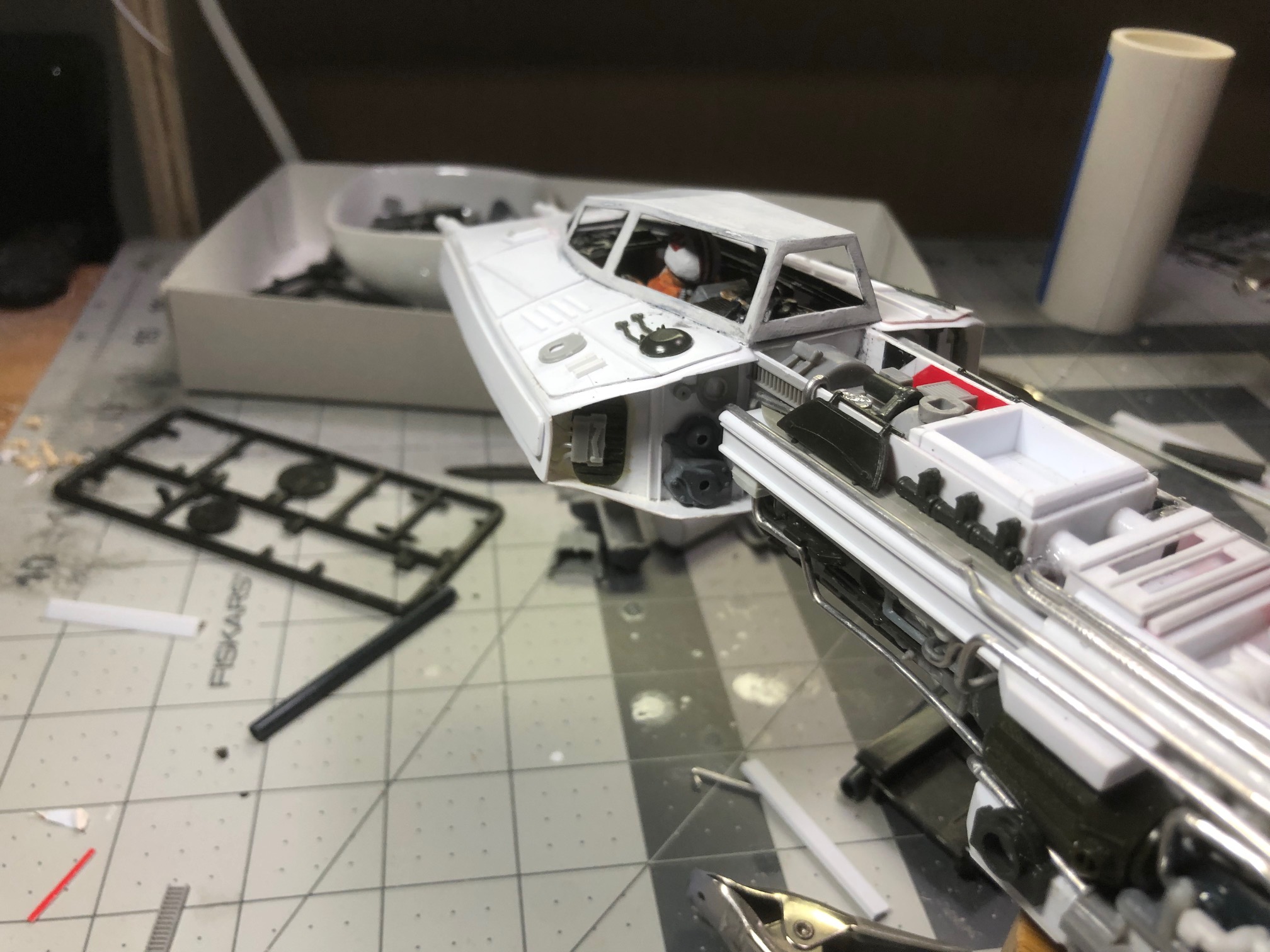

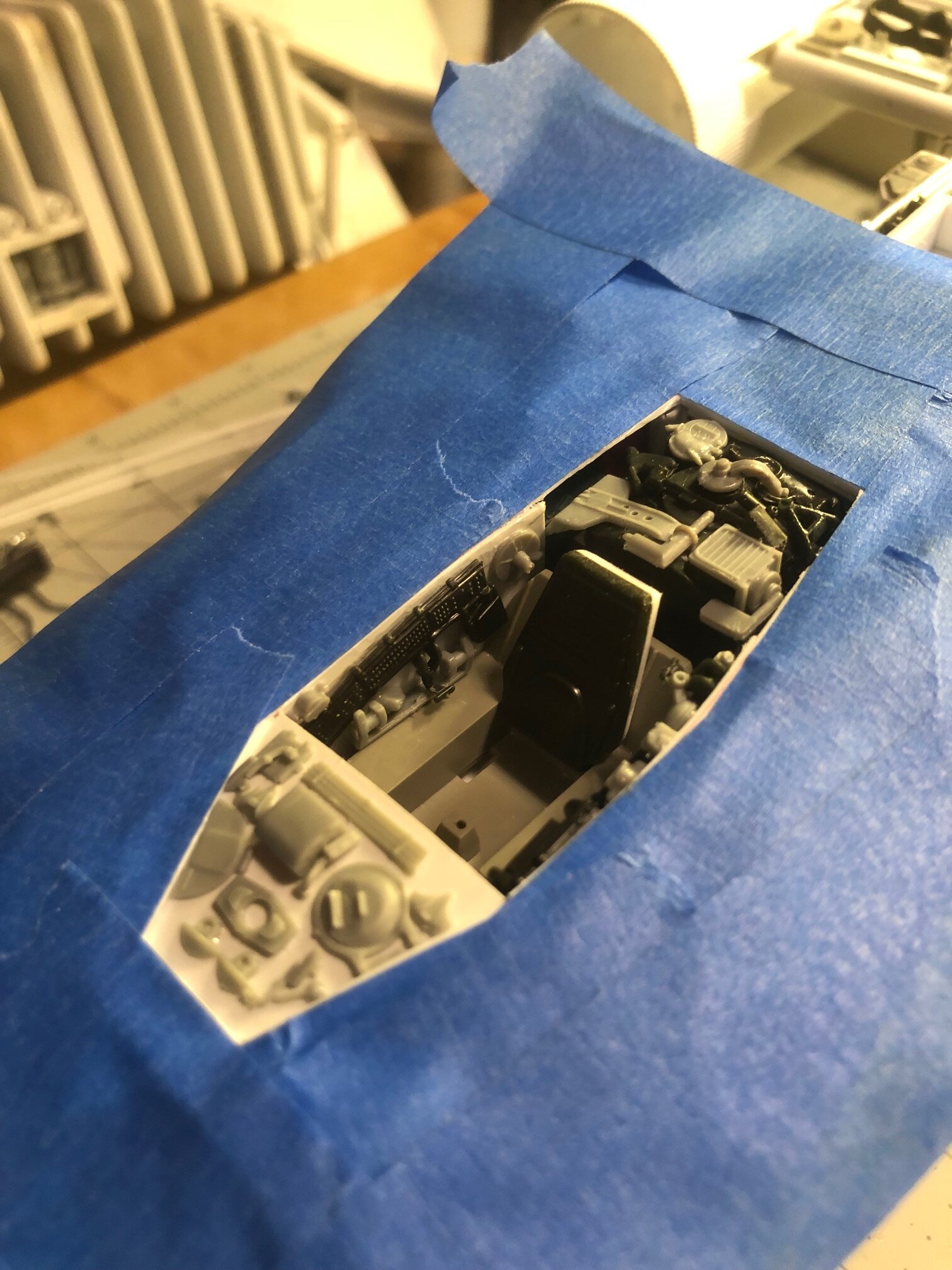

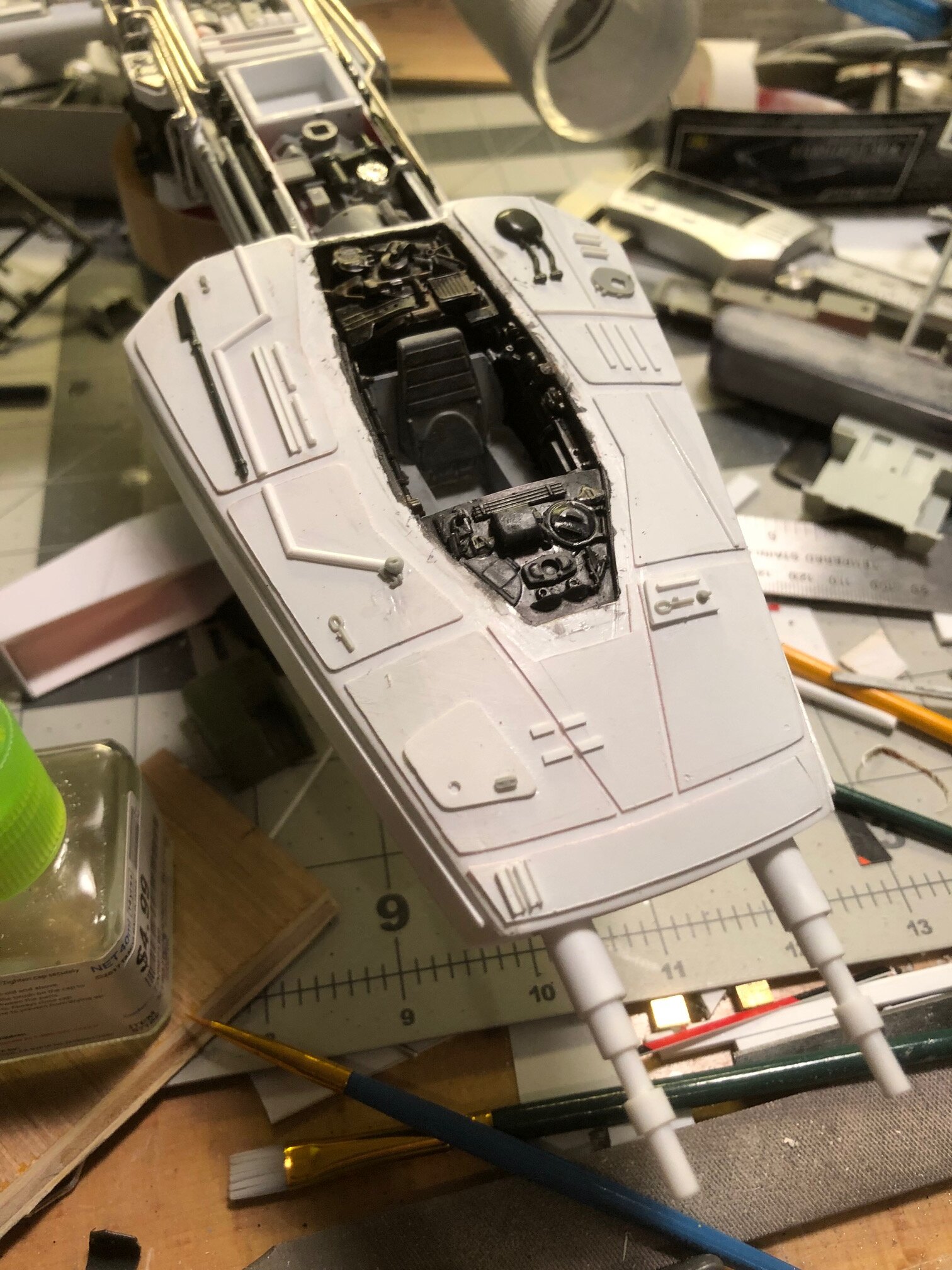

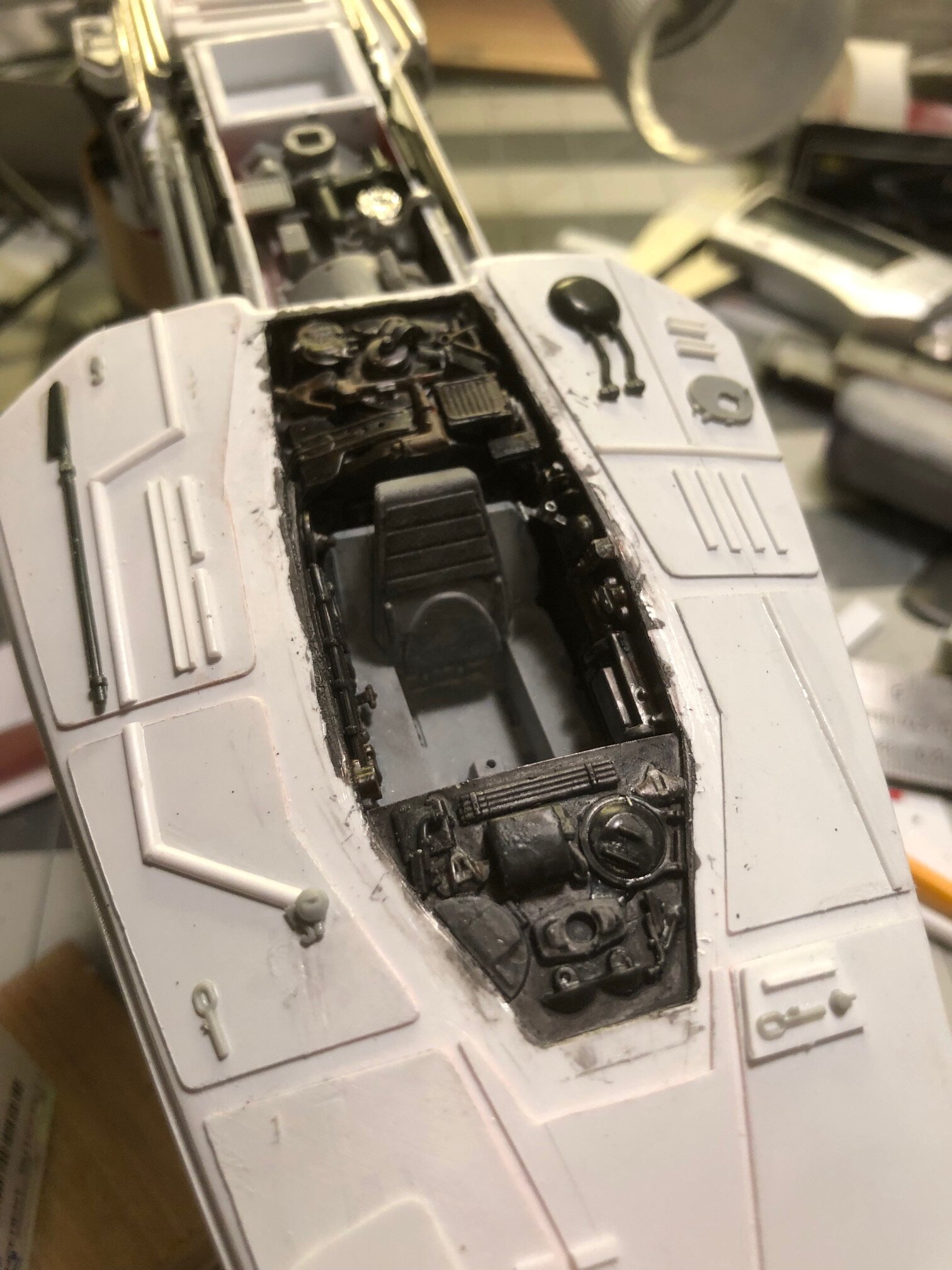

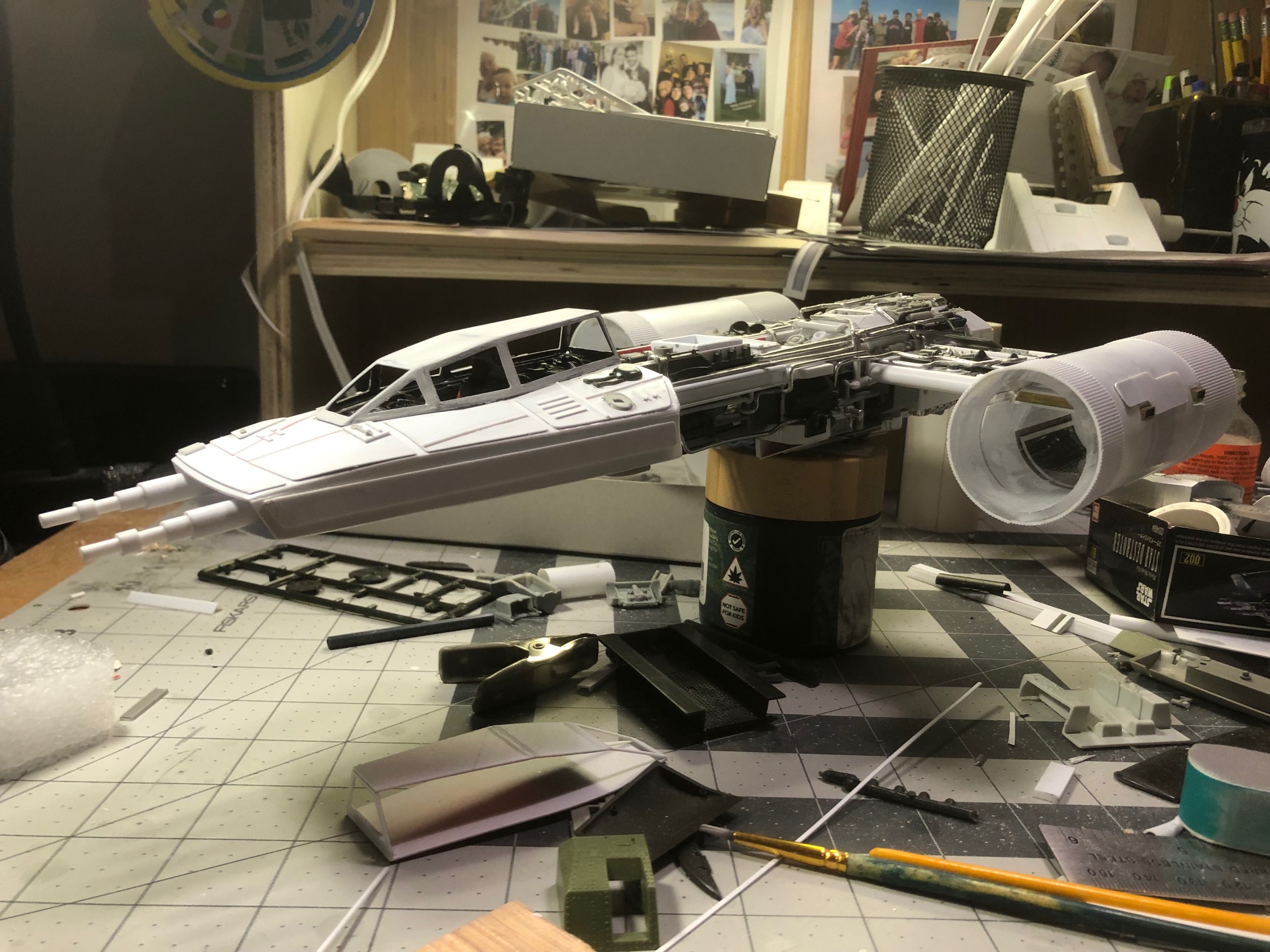

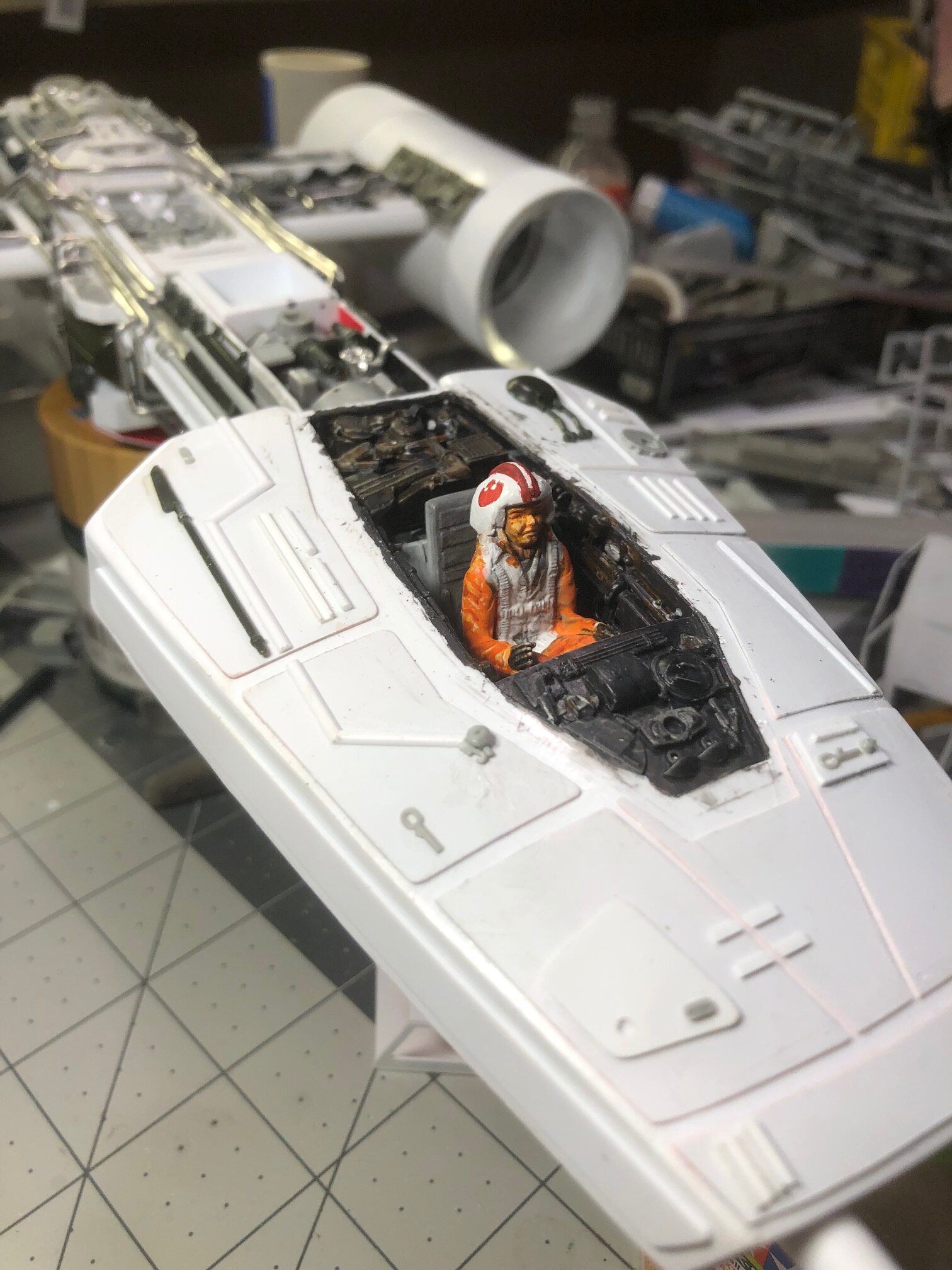

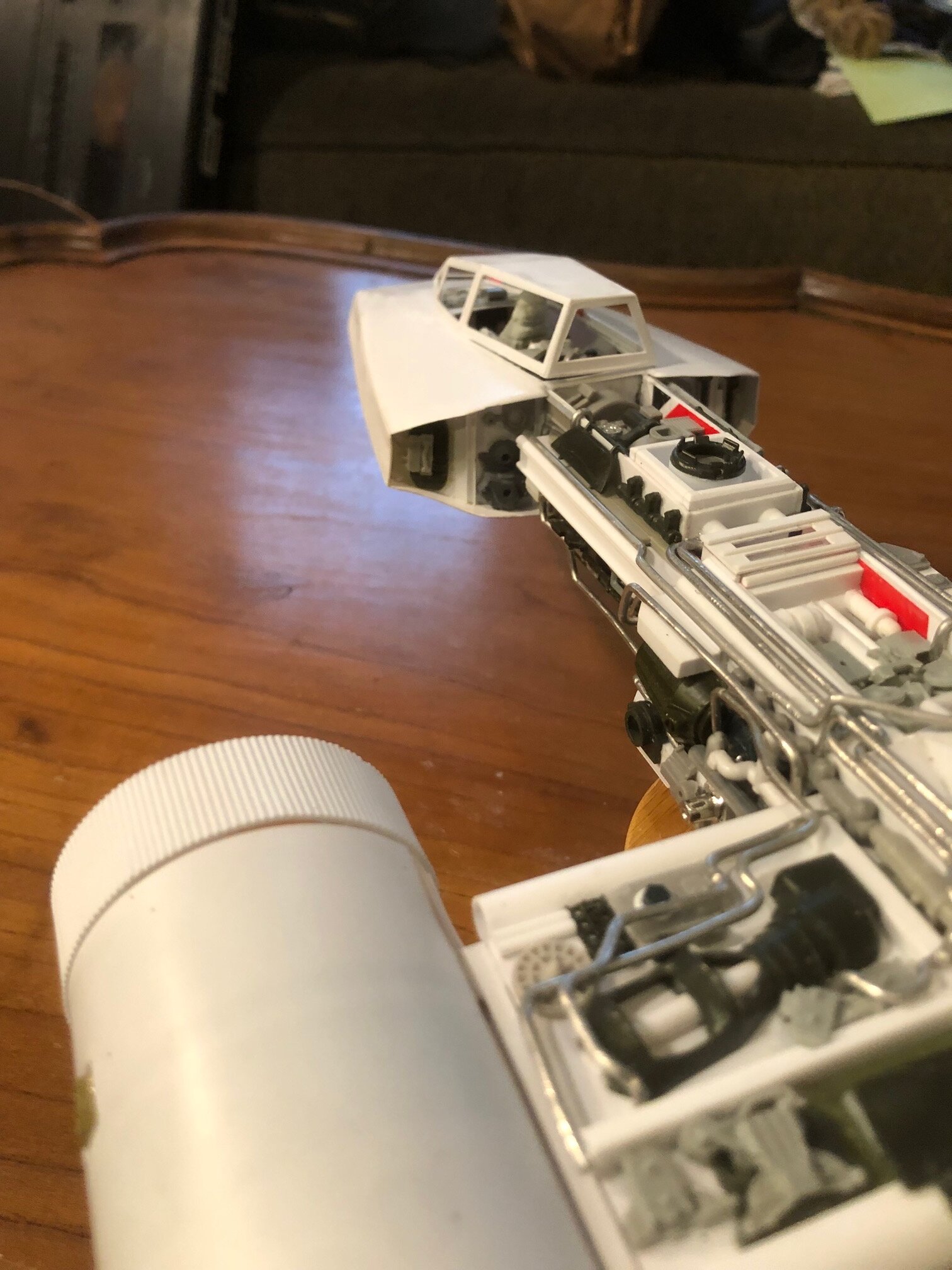

cockpit greebled and detailed

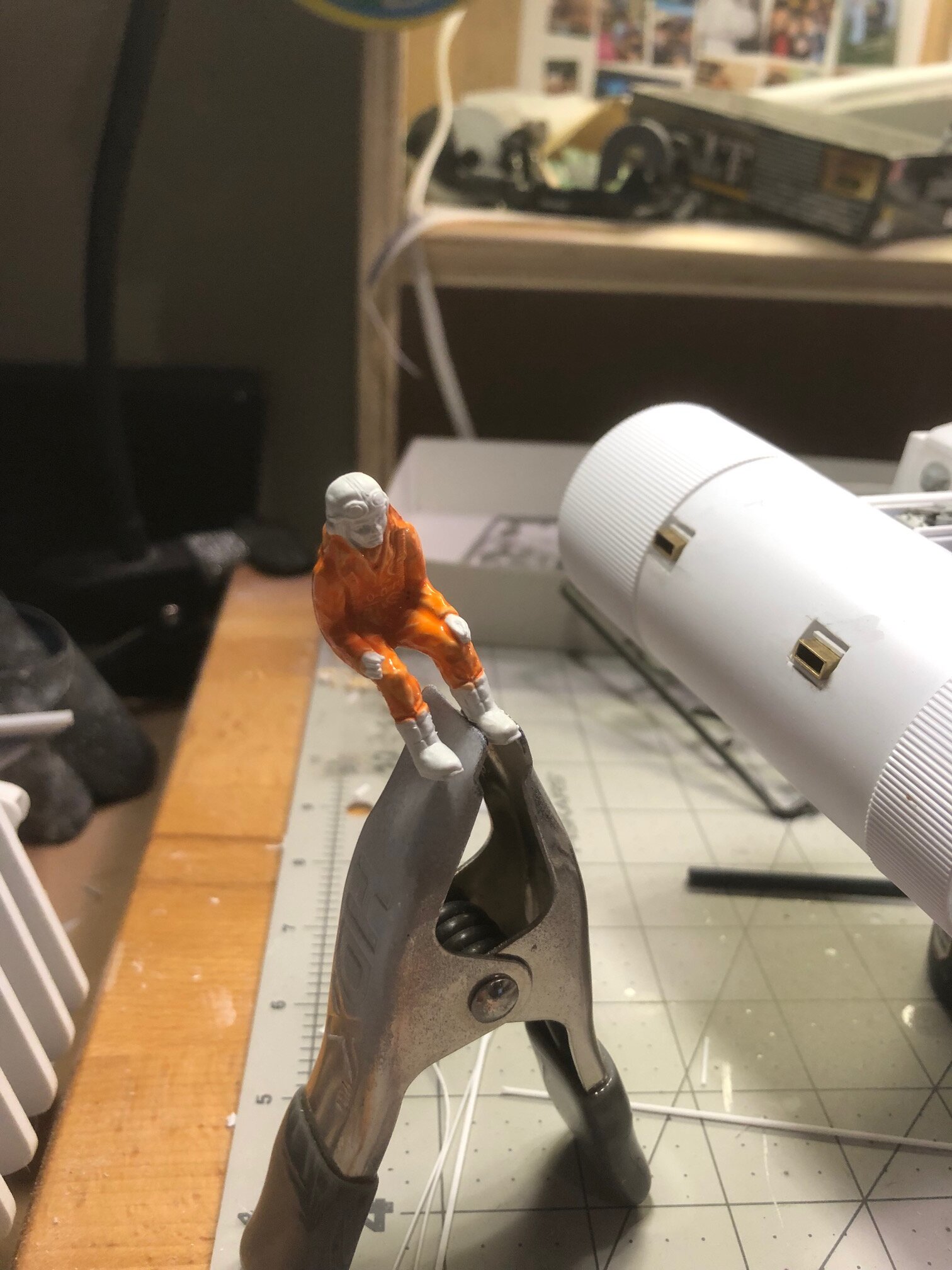

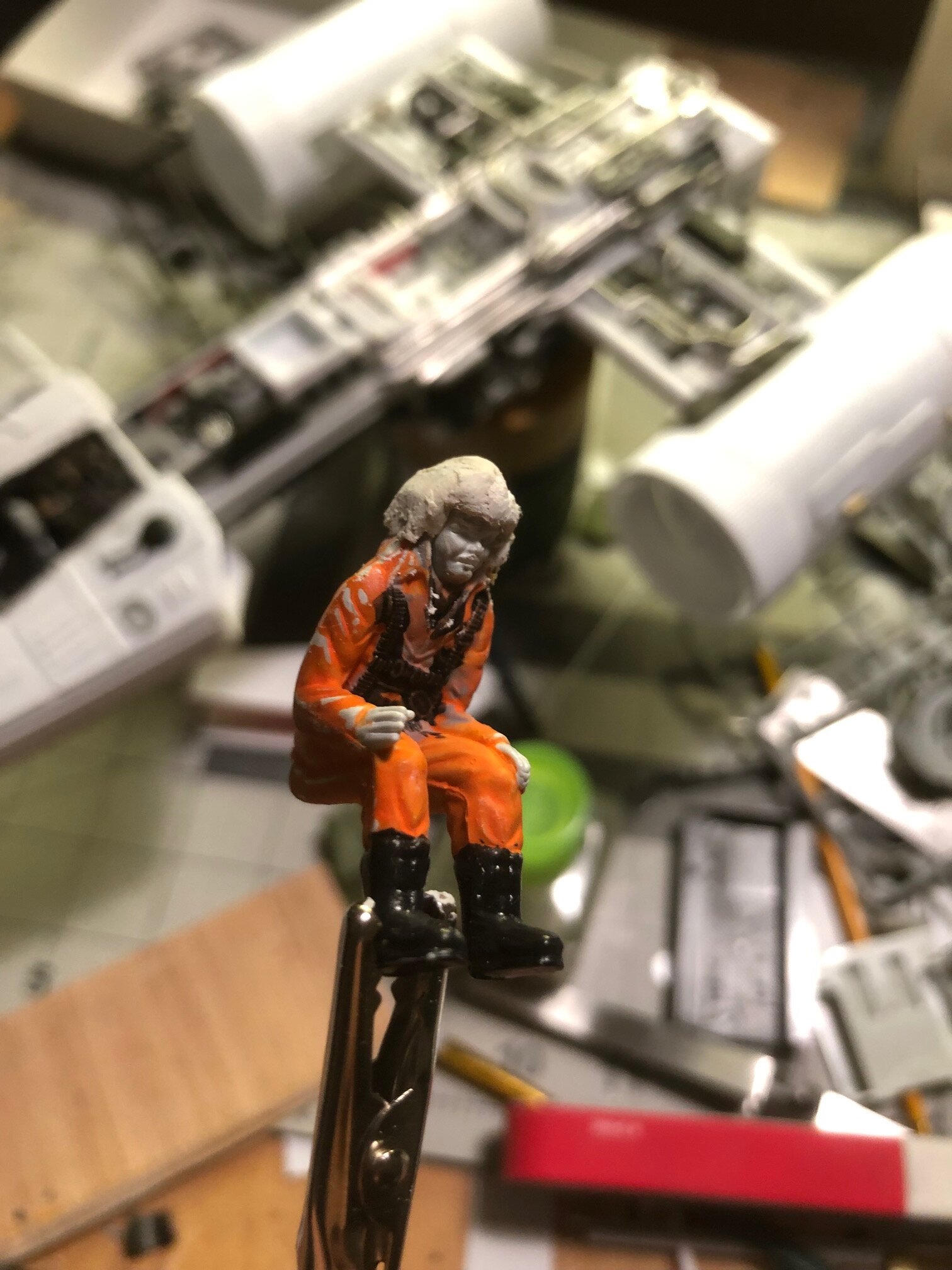

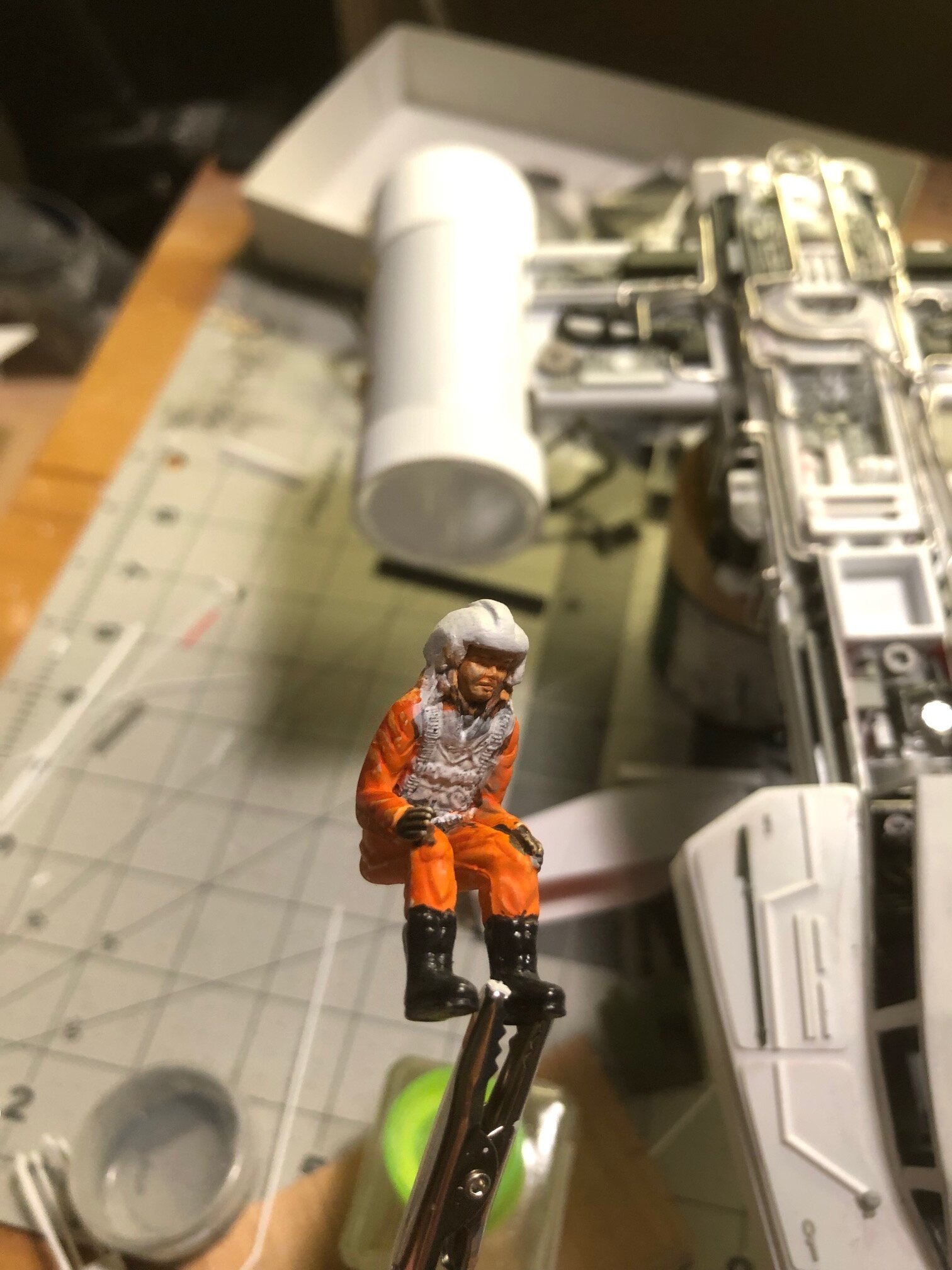

pilot painted

made a quick helmet for him out of air dry clay


...and painted

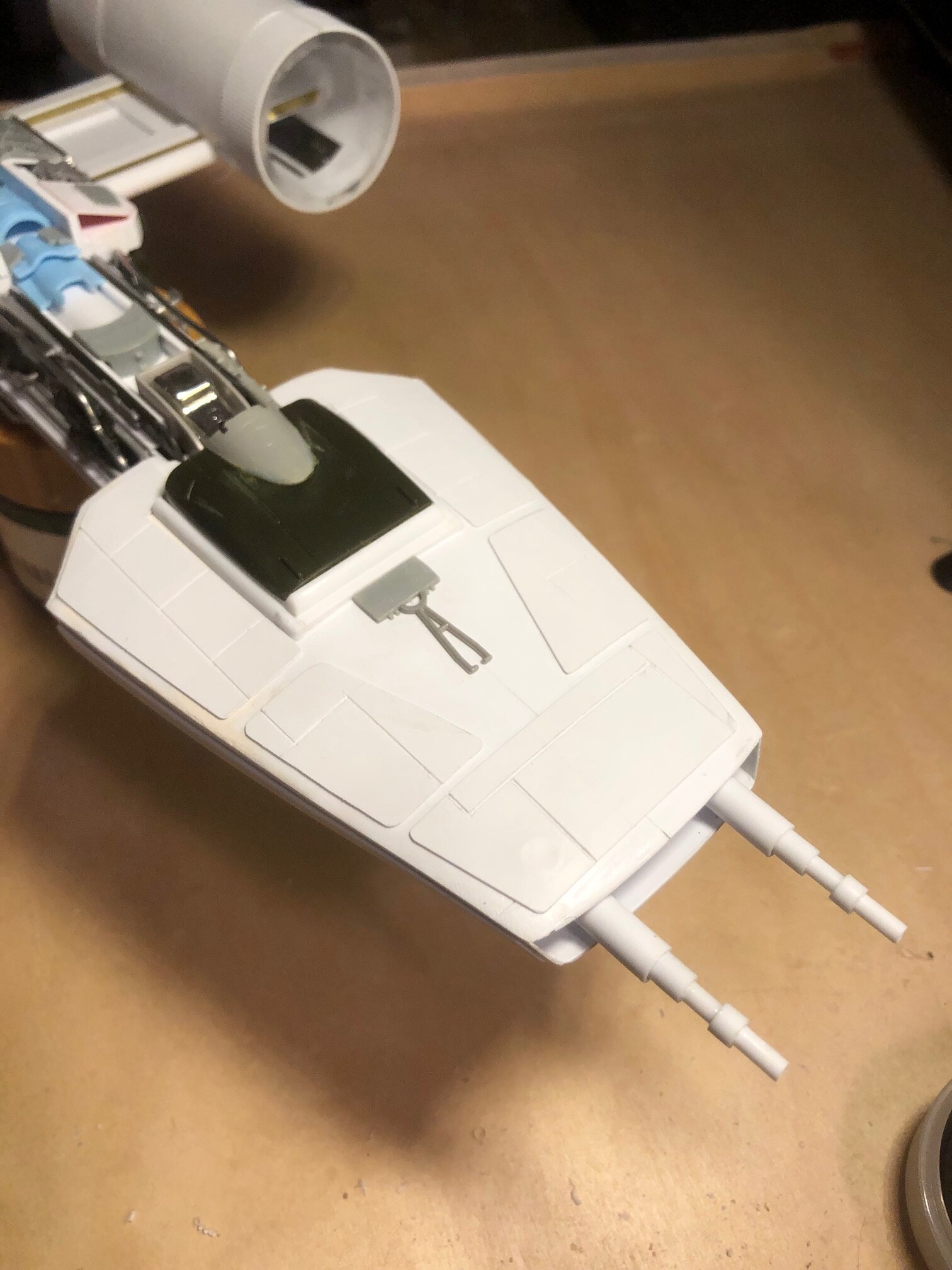

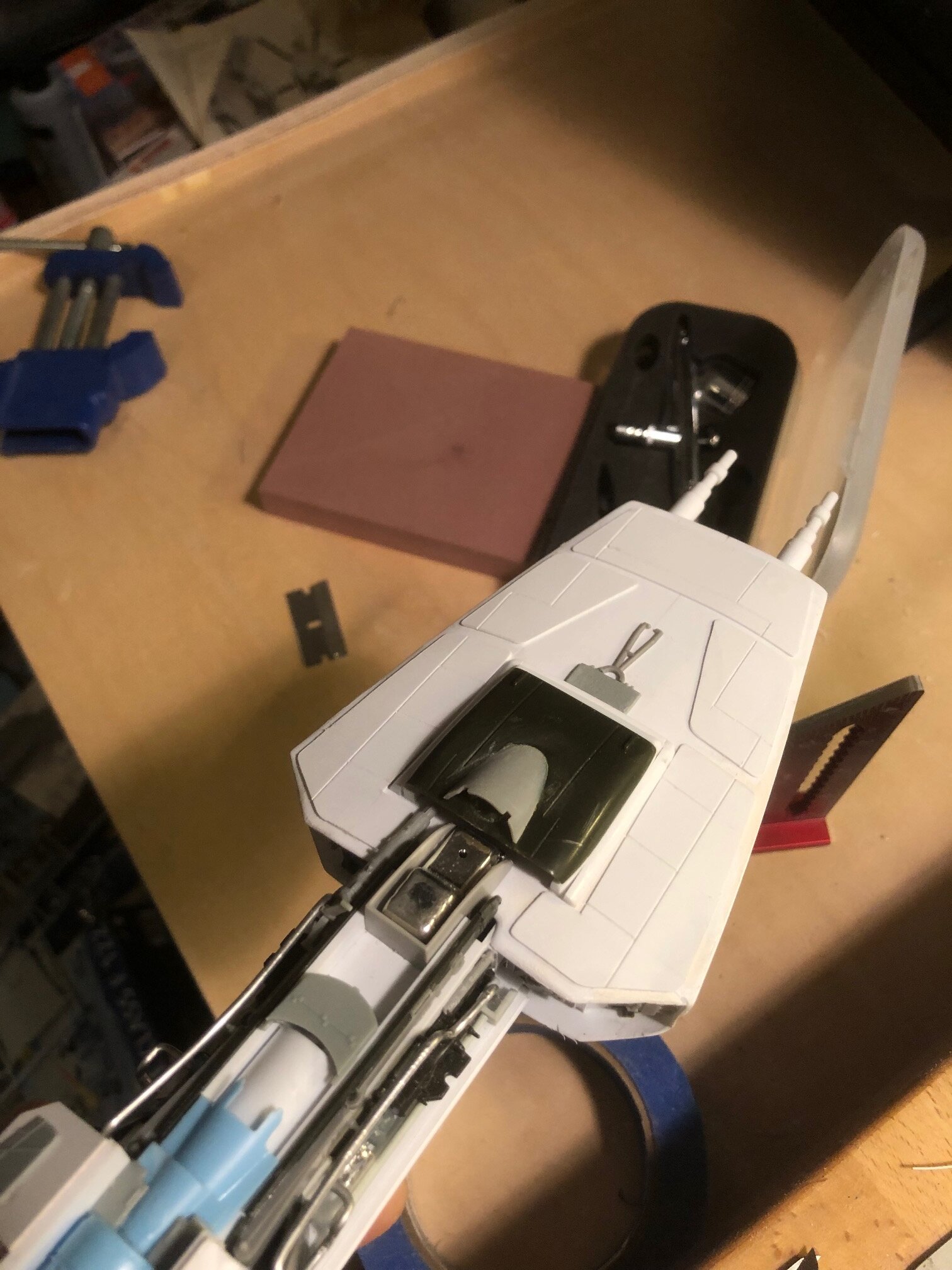

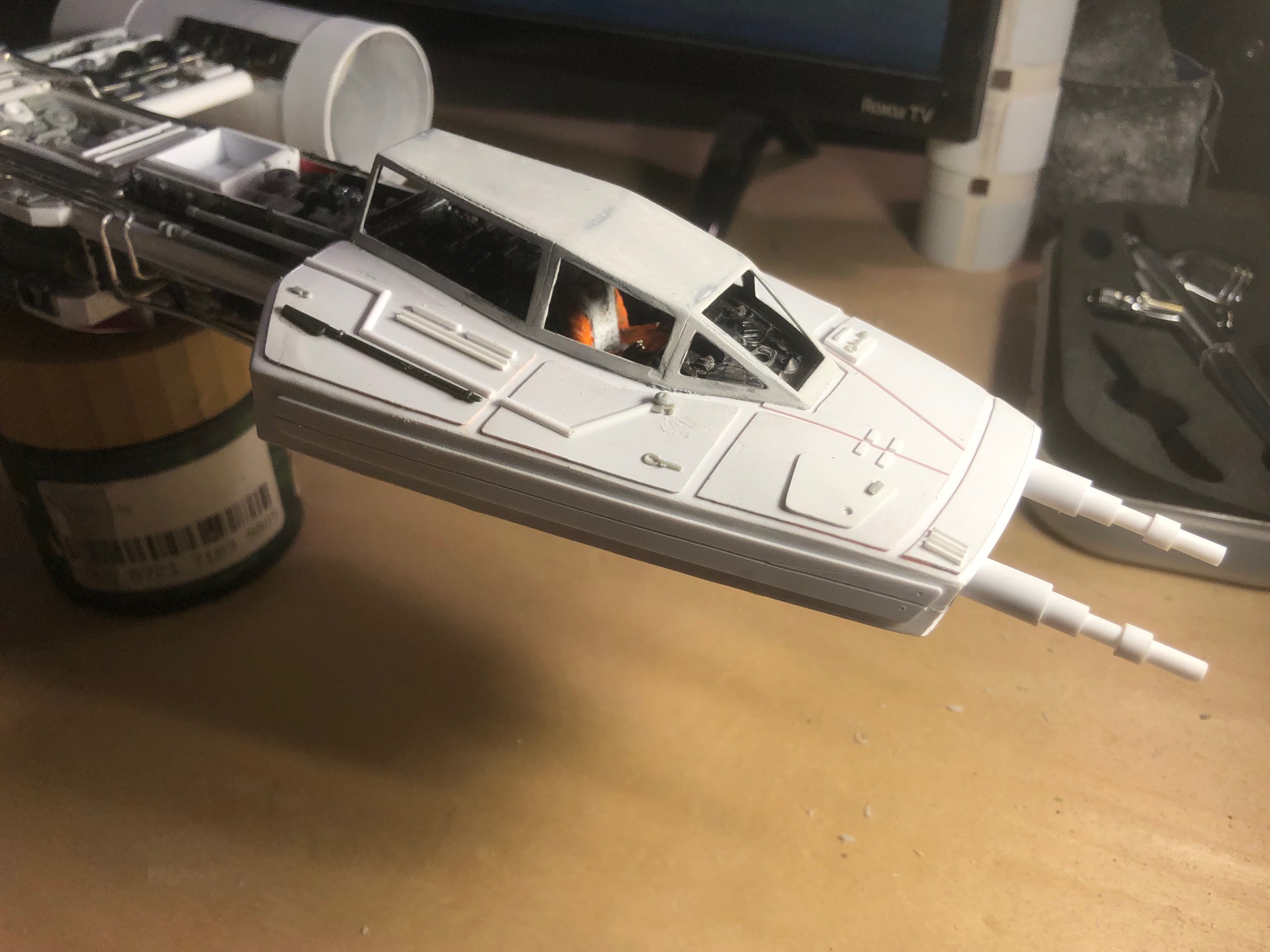

the canopy glued on

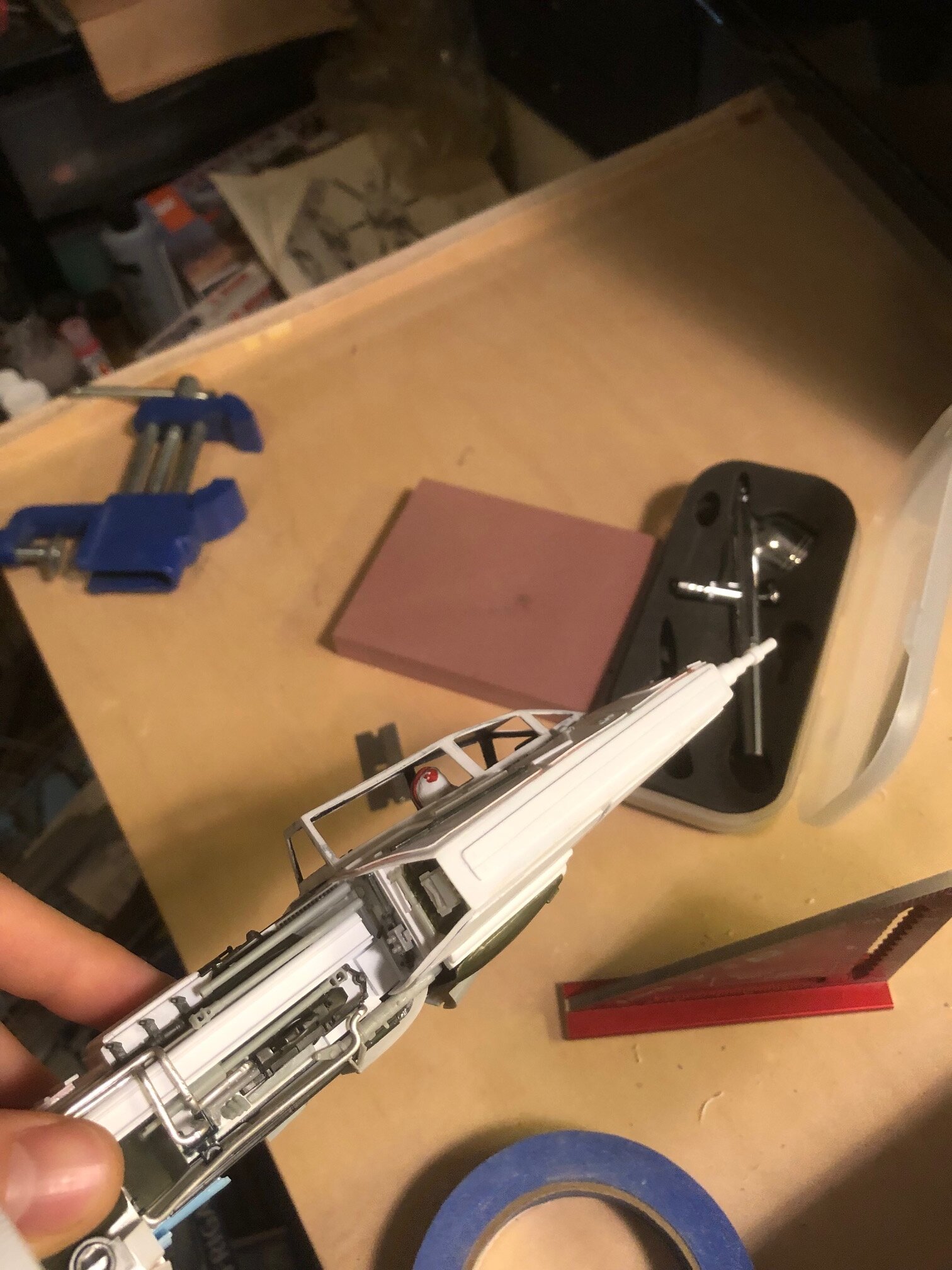

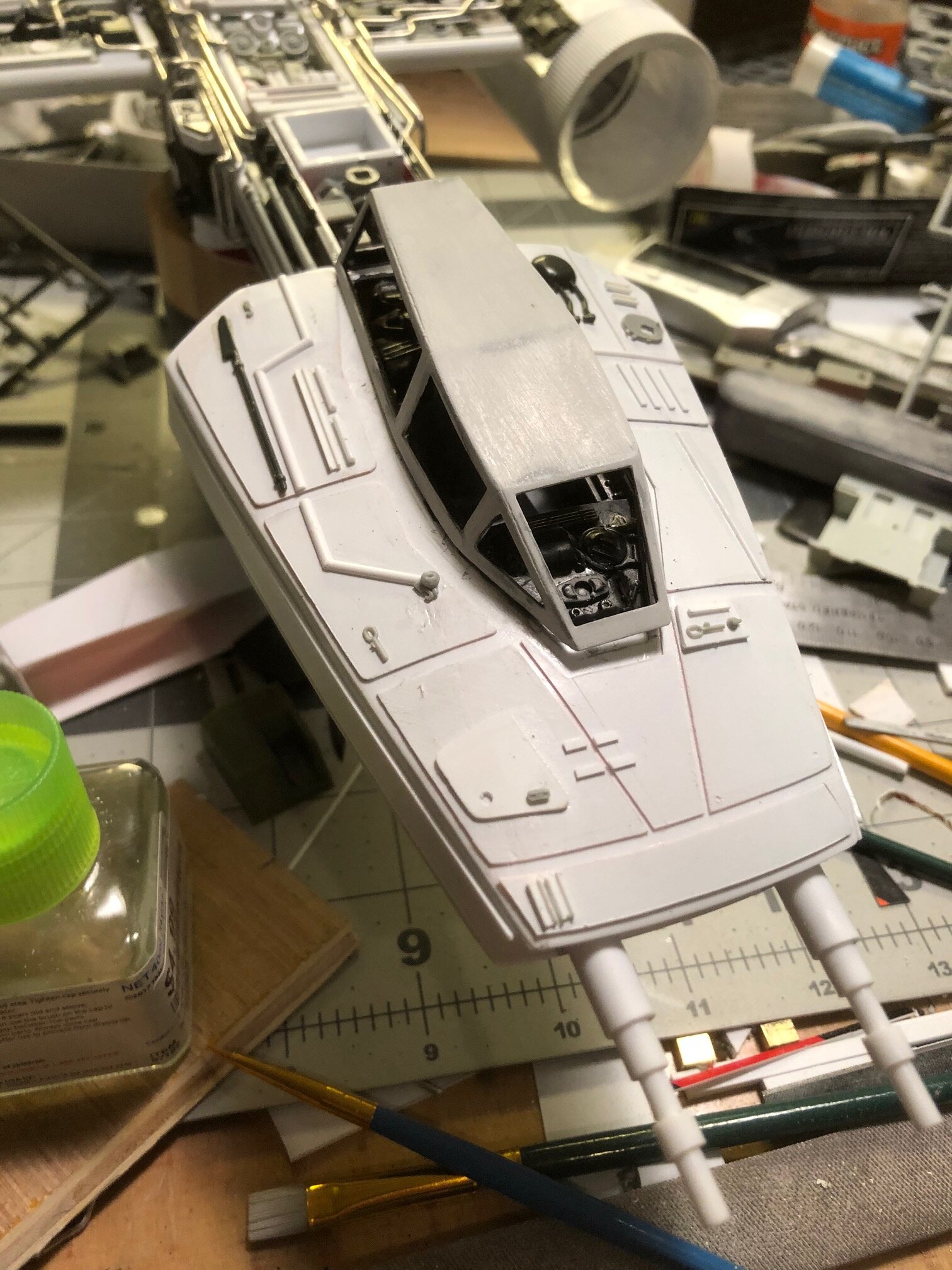

detailing the underside of the nose

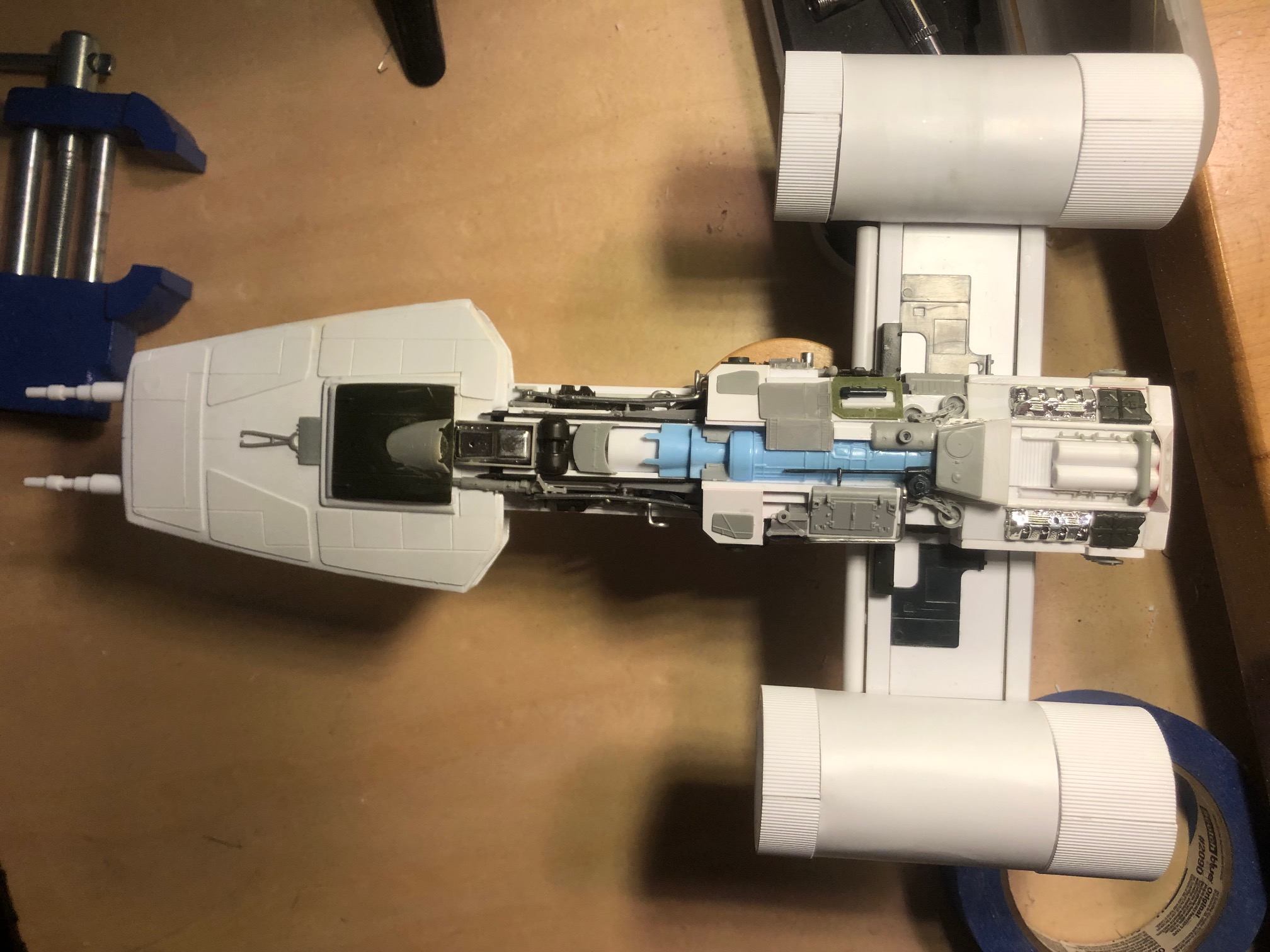

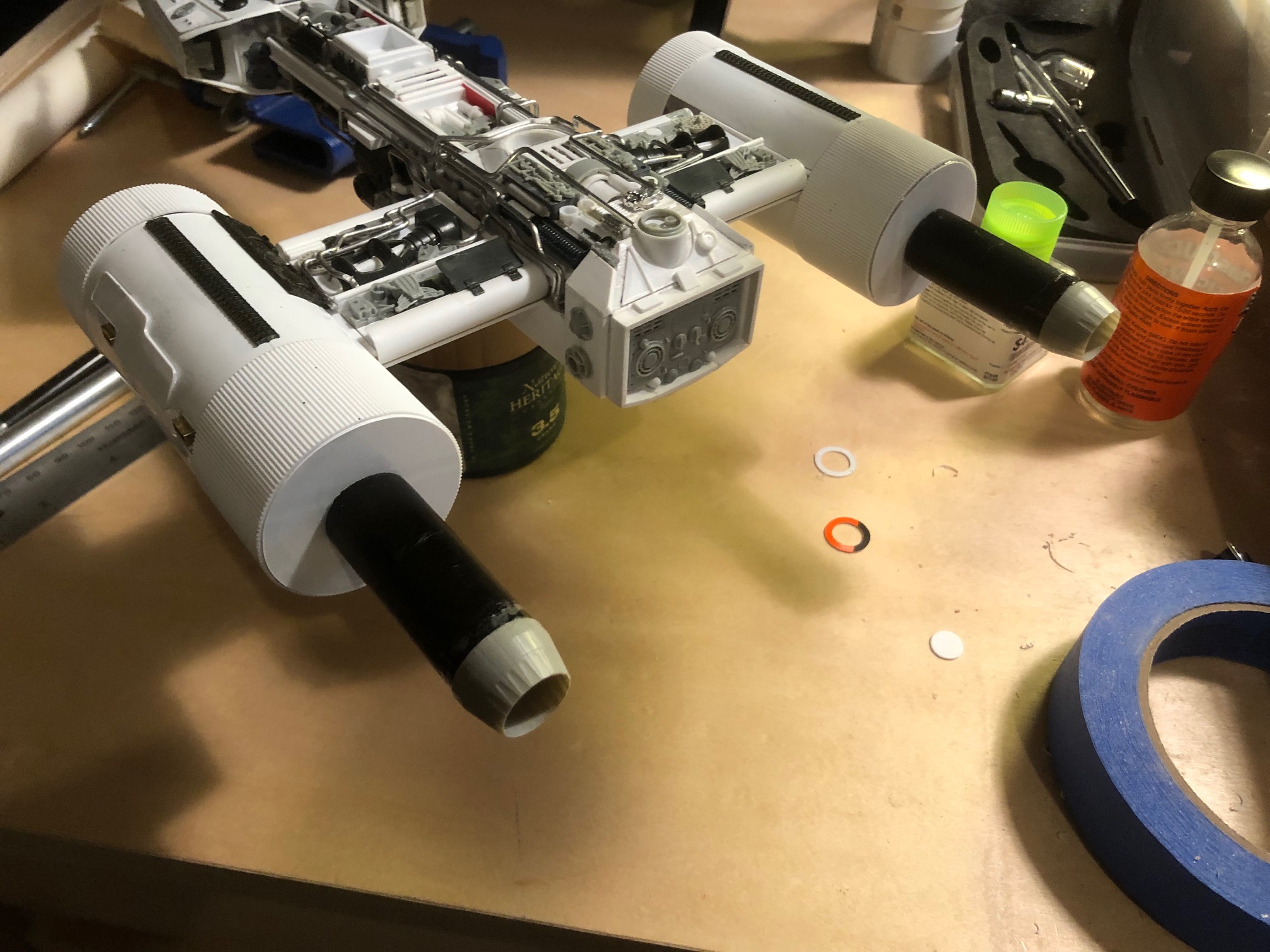

starting to focus on the engines

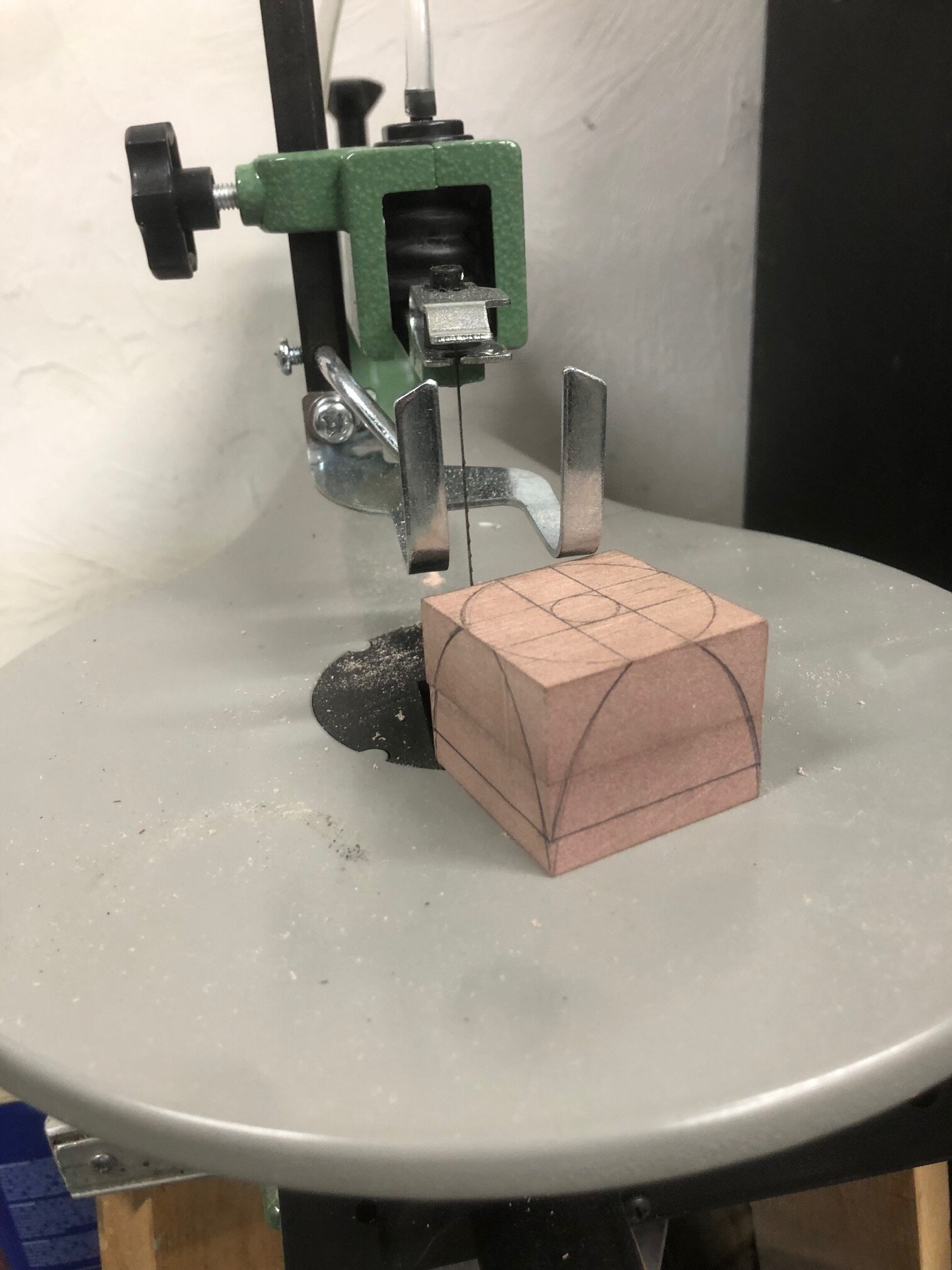

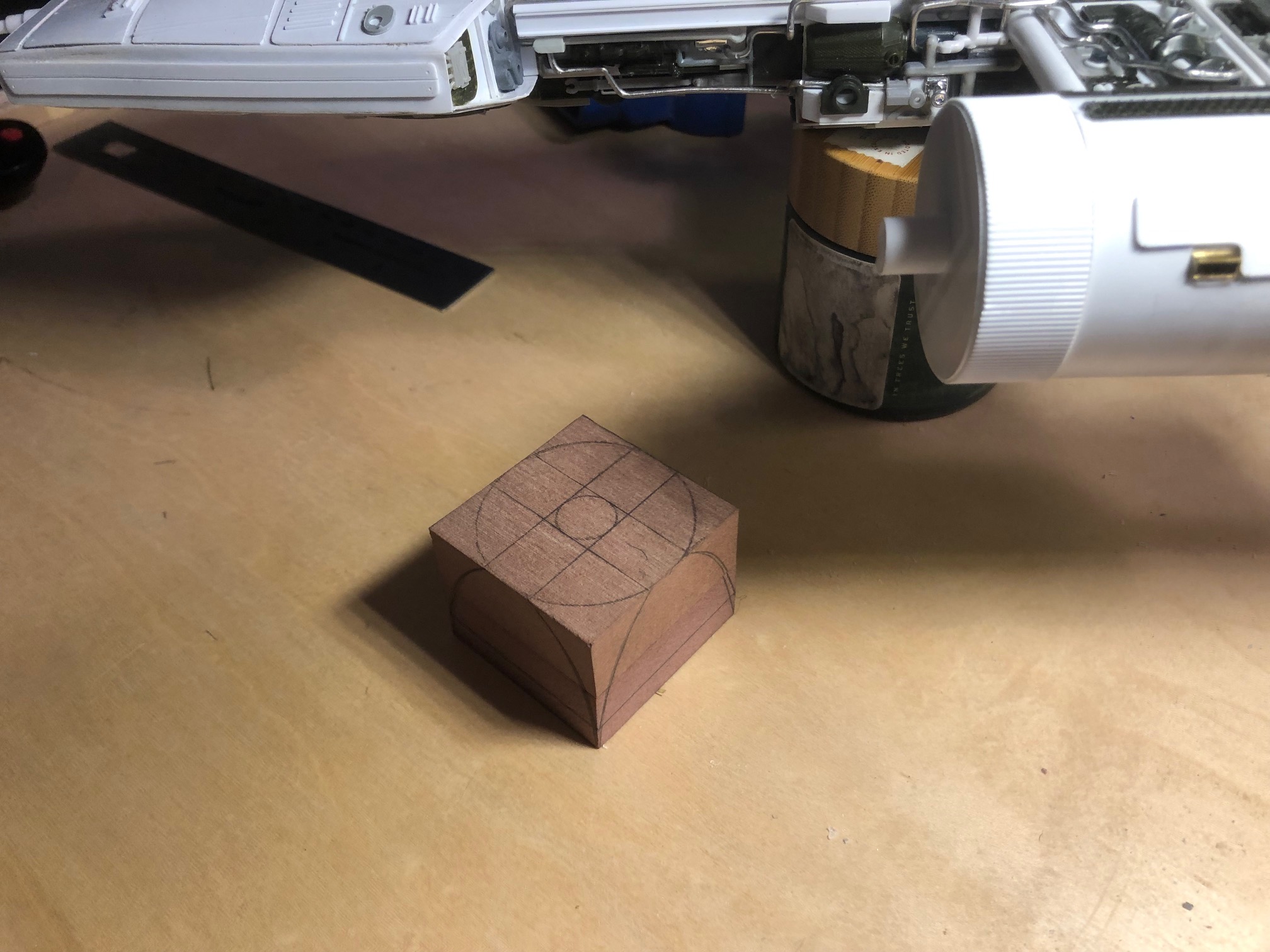

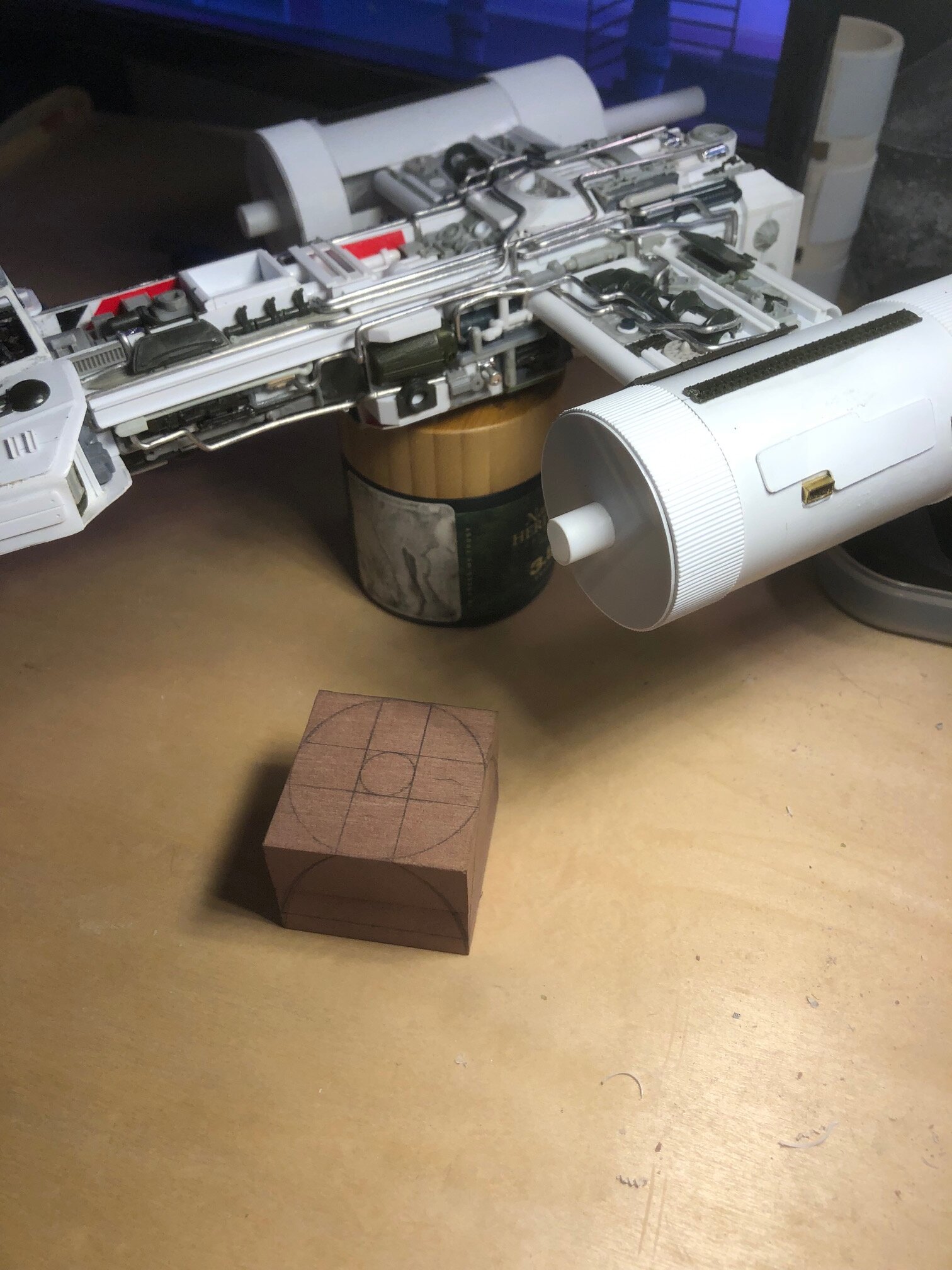

I hope to finish the engine cone buck next so i can vacuform it

Thanks for looking!


Attachments

  • IMG_4537.jpg
    410.2 KB · Views: 29
  • IMG_4535.jpg
    471.7 KB · Views: 32
  • IMG_4559.jpg
    376.6 KB · Views: 29
  • IMG_4553.jpg
    476.5 KB · Views: 32
  • IMG_4552.jpg
    483.1 KB · Views: 26
  • IMG_4584.jpg
    385.2 KB · Views: 30
  • IMG_4580.jpg
    496.2 KB · Views: 32
  • IMG_4579.jpg
    486.6 KB · Views: 28
  • IMG_4578.jpg
    535.4 KB · Views: 29
  • IMG_4577.jpg
    311 KB · Views: 27
  • IMG_4574.jpg
    384.5 KB · Views: 28

Searun

Active Member
Just went through your thread. You have some real good scratch modeling skills not to mention the greeblie art form. Thanks for sharing the excellent build photo sequence and a tutorial in vacuum forming, styrene and assorted plastic crafting.


hoosleberg

New Member
Just went through your thread. You have some real good scratch modeling skills not to mention the greeblie art form. Thanks for sharing the excellent build photo sequence and a tutorial in vacuum forming, styrene and assorted plastic crafting.
Thank you! I'm glad the greeblies are looking okay. Its easy to get lost in the jumble of parts and overwork the effect.


hoosleberg

New Member

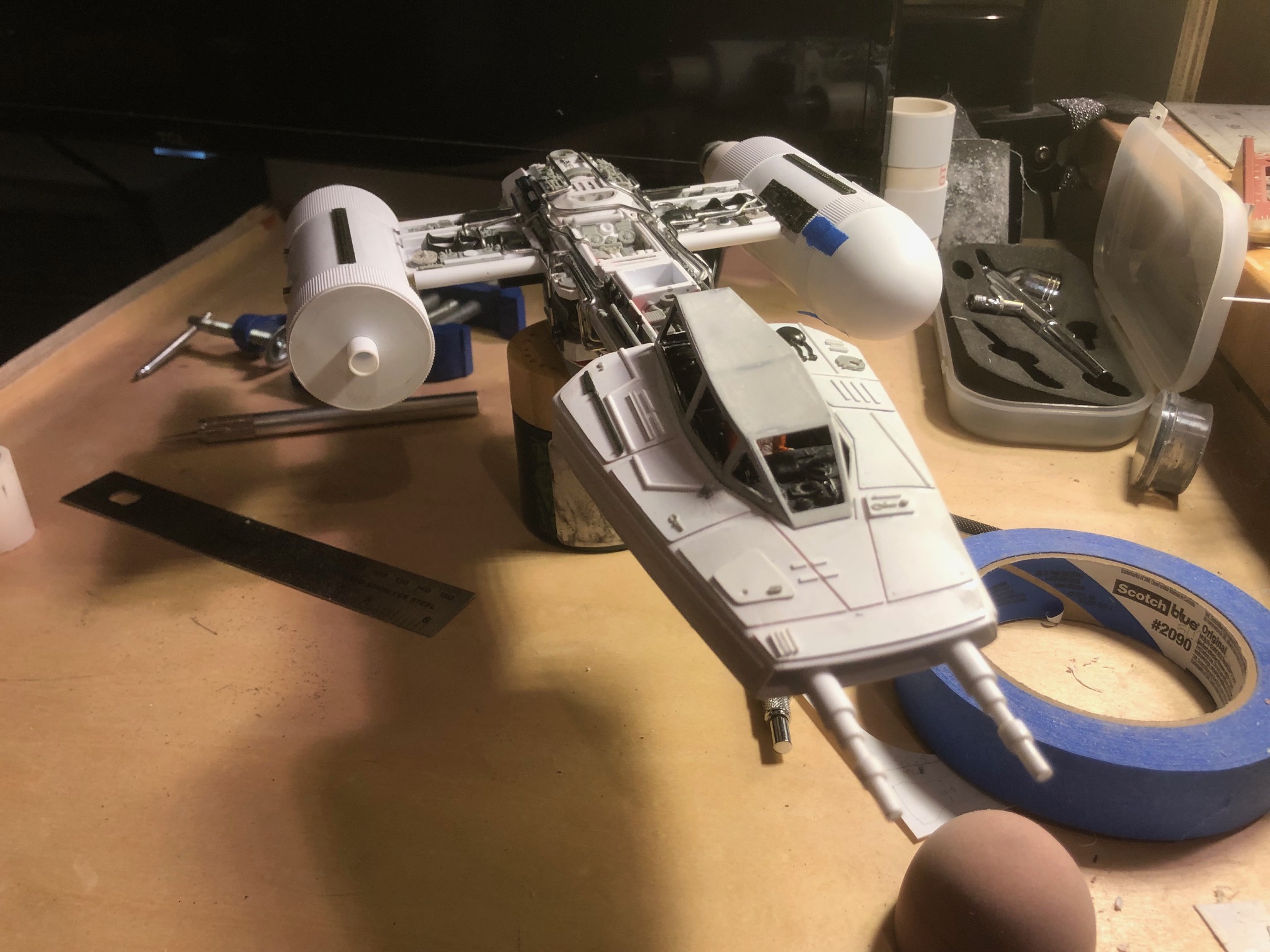

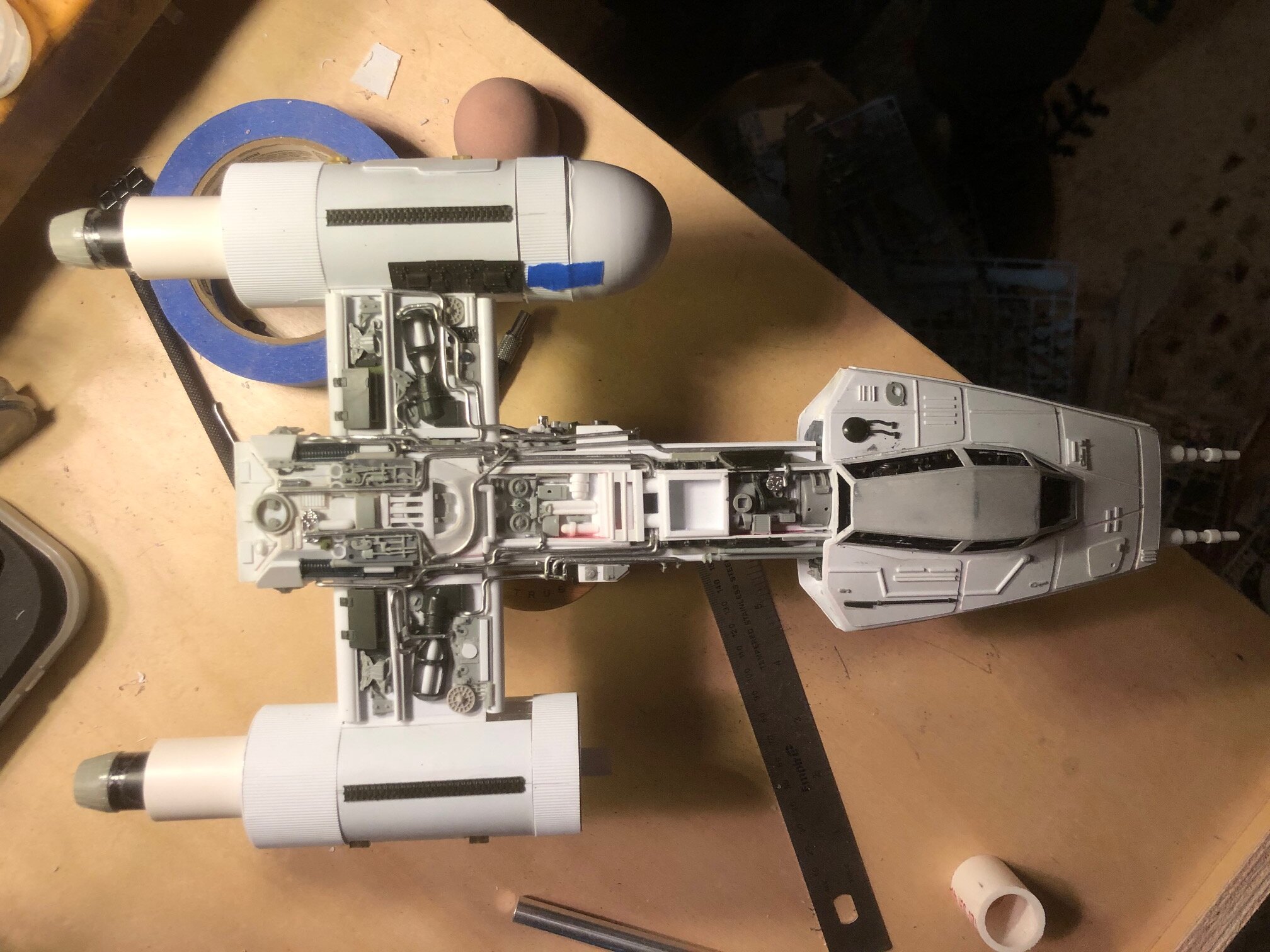

Small update on the engines...

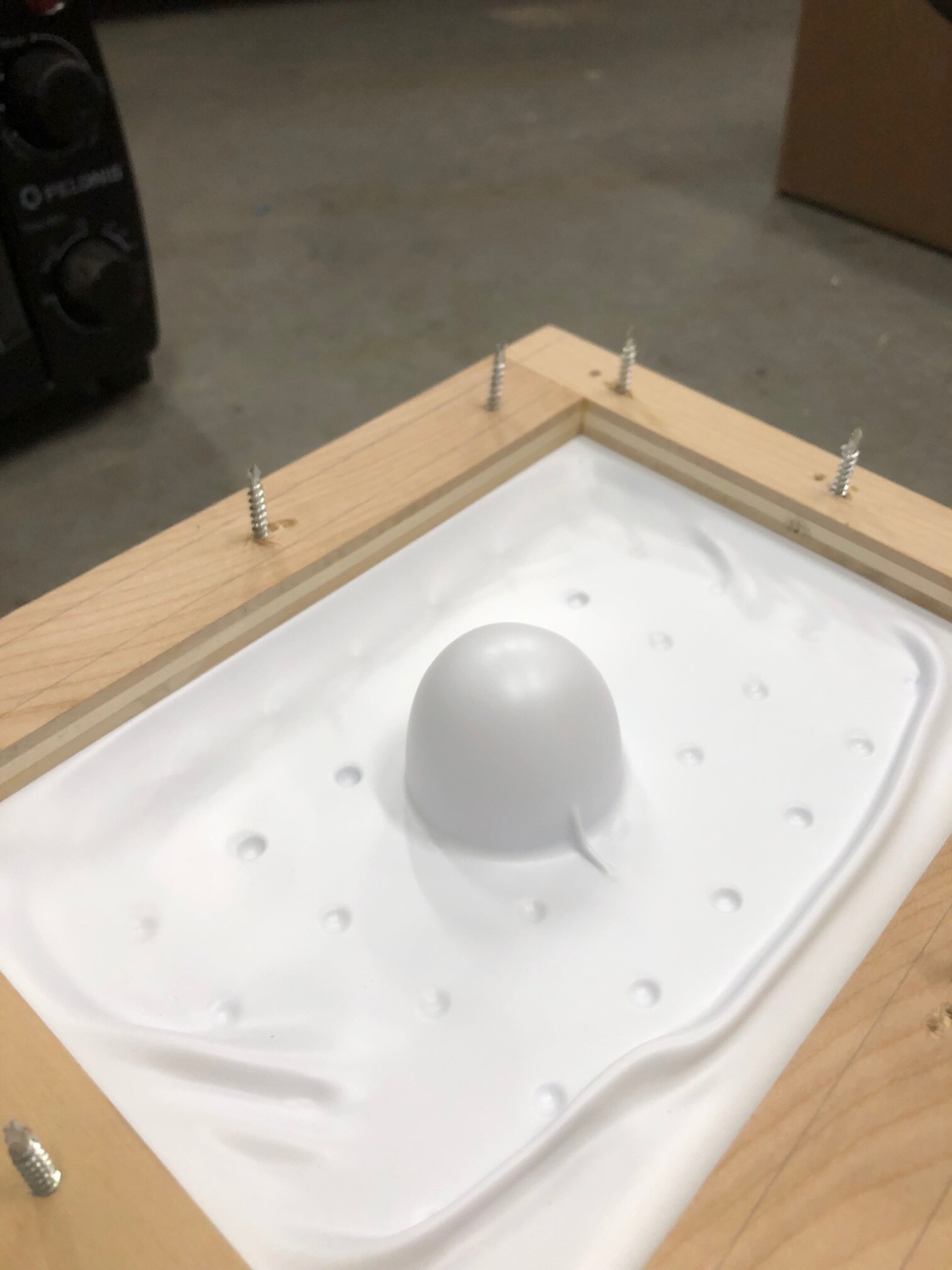

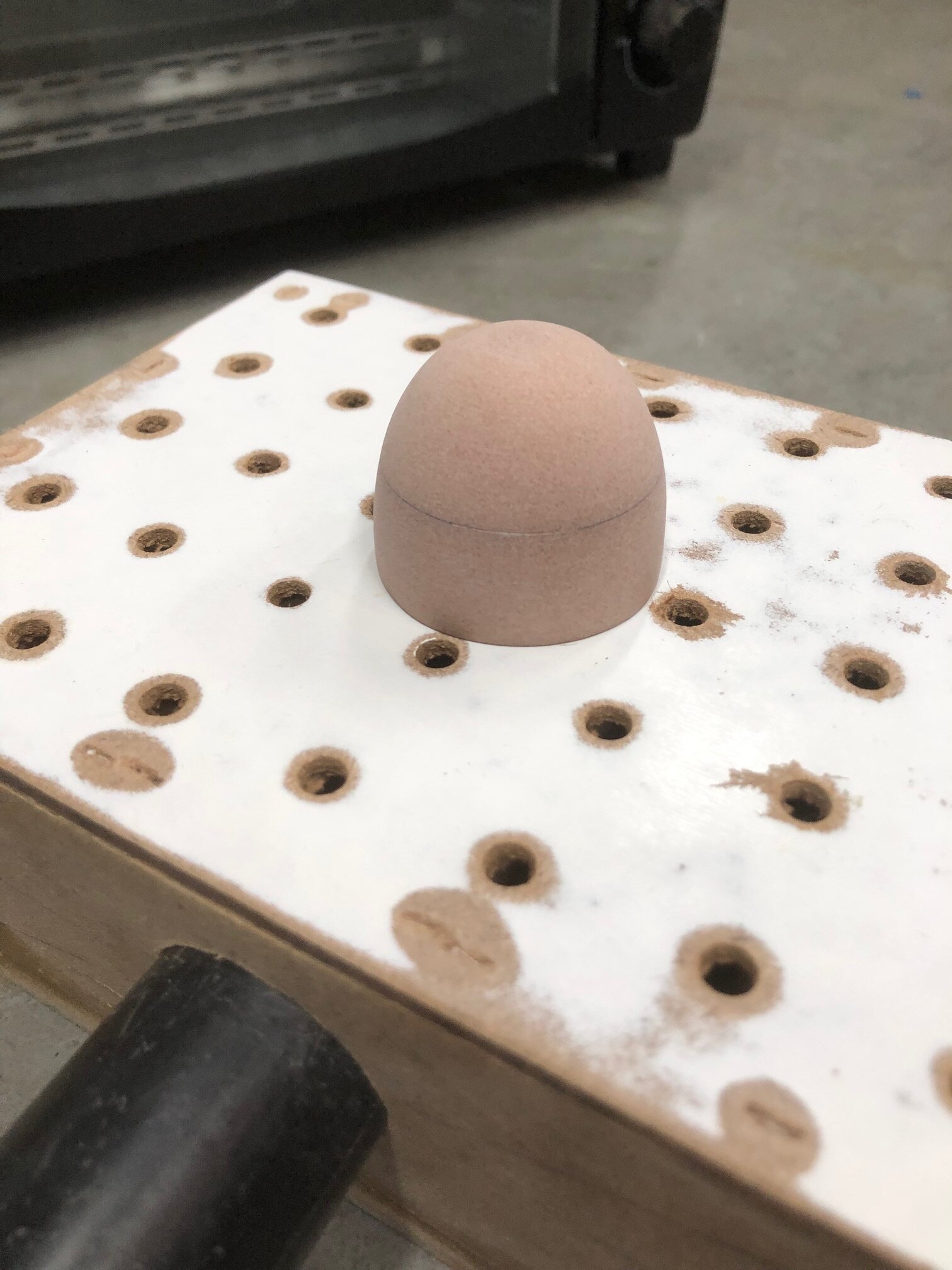

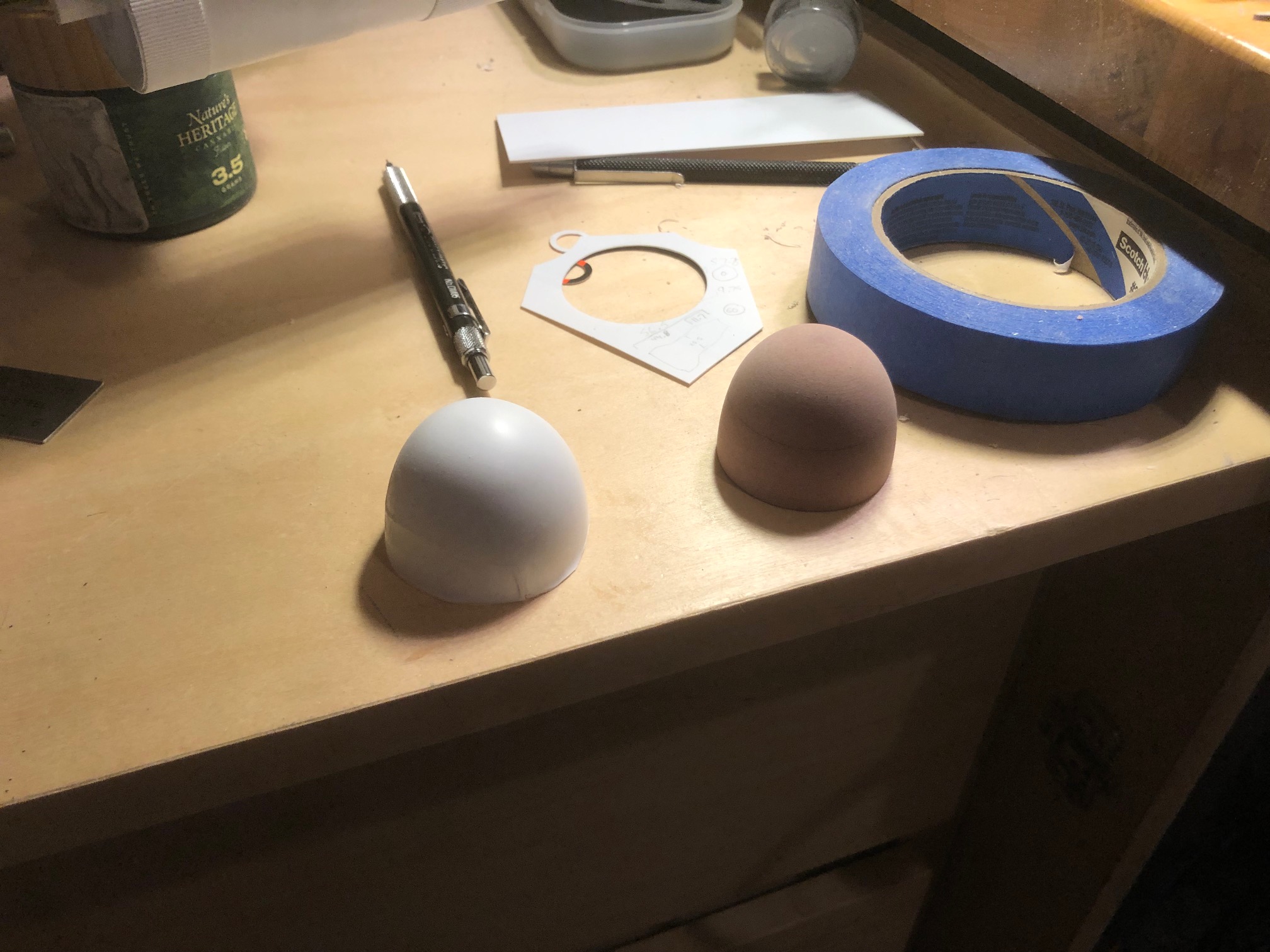

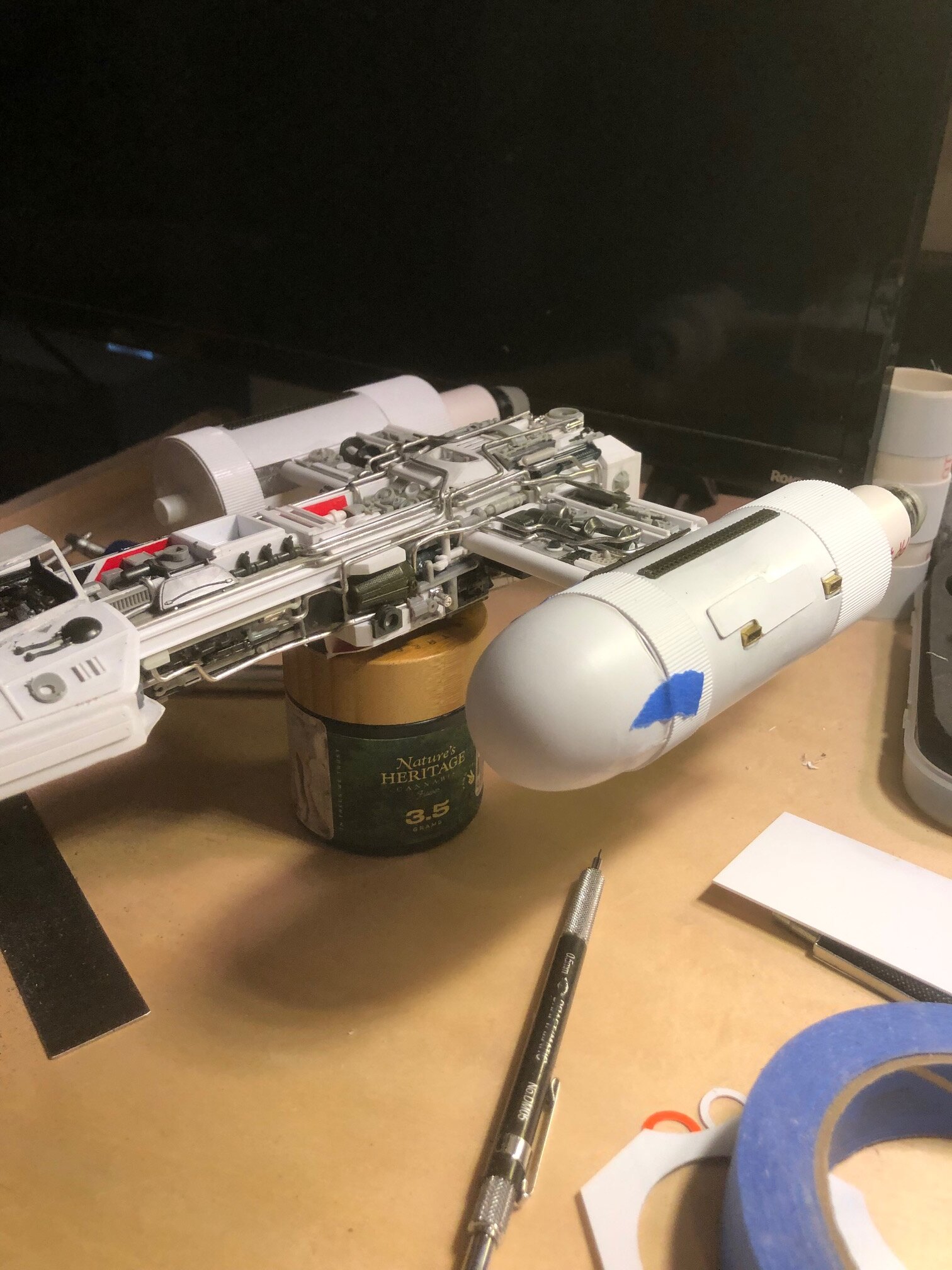

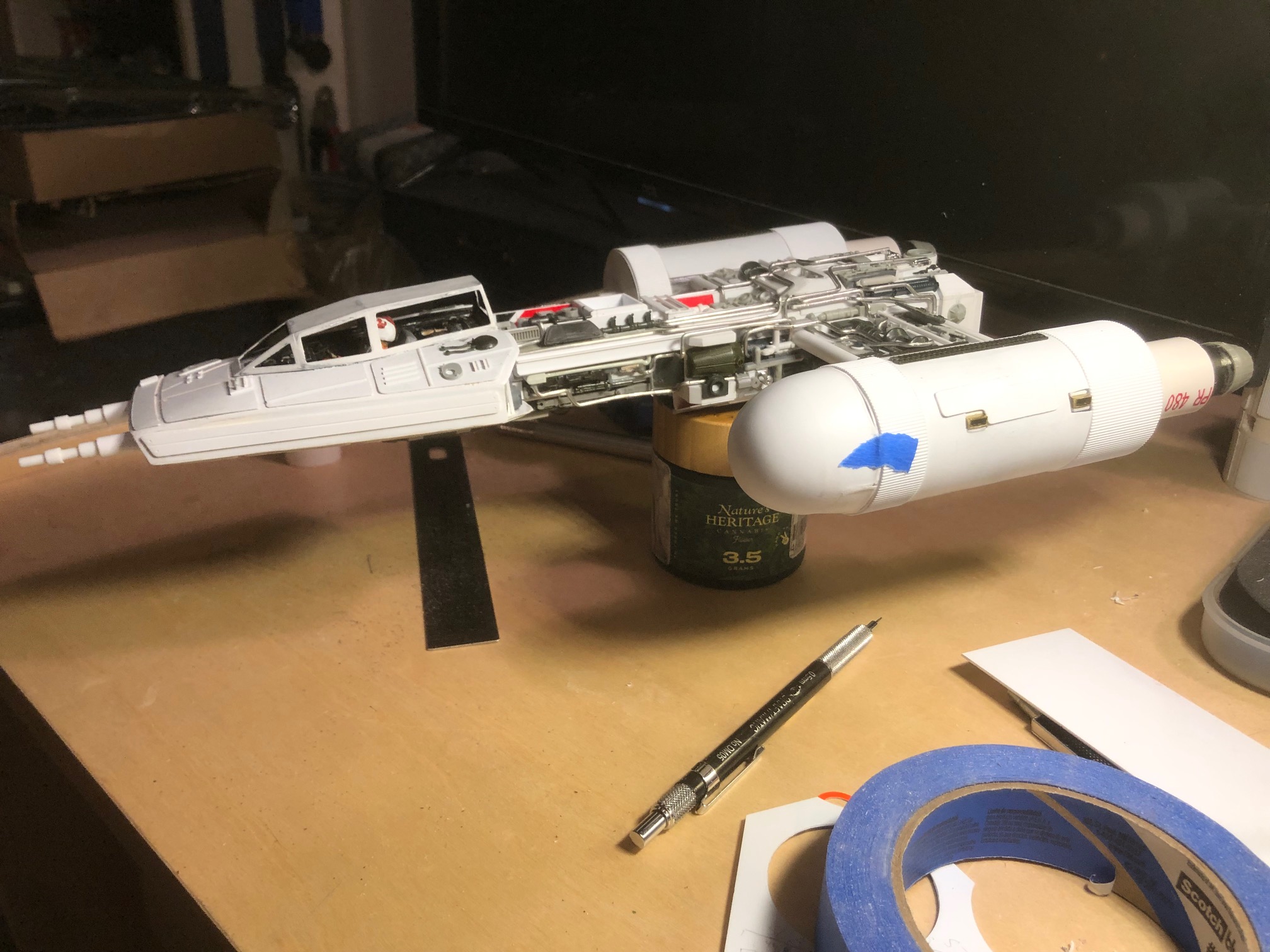

Did a vacuum pull on the engine dome. It had a little wrinkle and tore taking it off the mold, but I glued and mocked it up on the engine.





I've got some thicker styrene for the domes that will end up on the ship. A few mm will probably get trimmed from the bottom edge too, but I think we're in the ballpark!

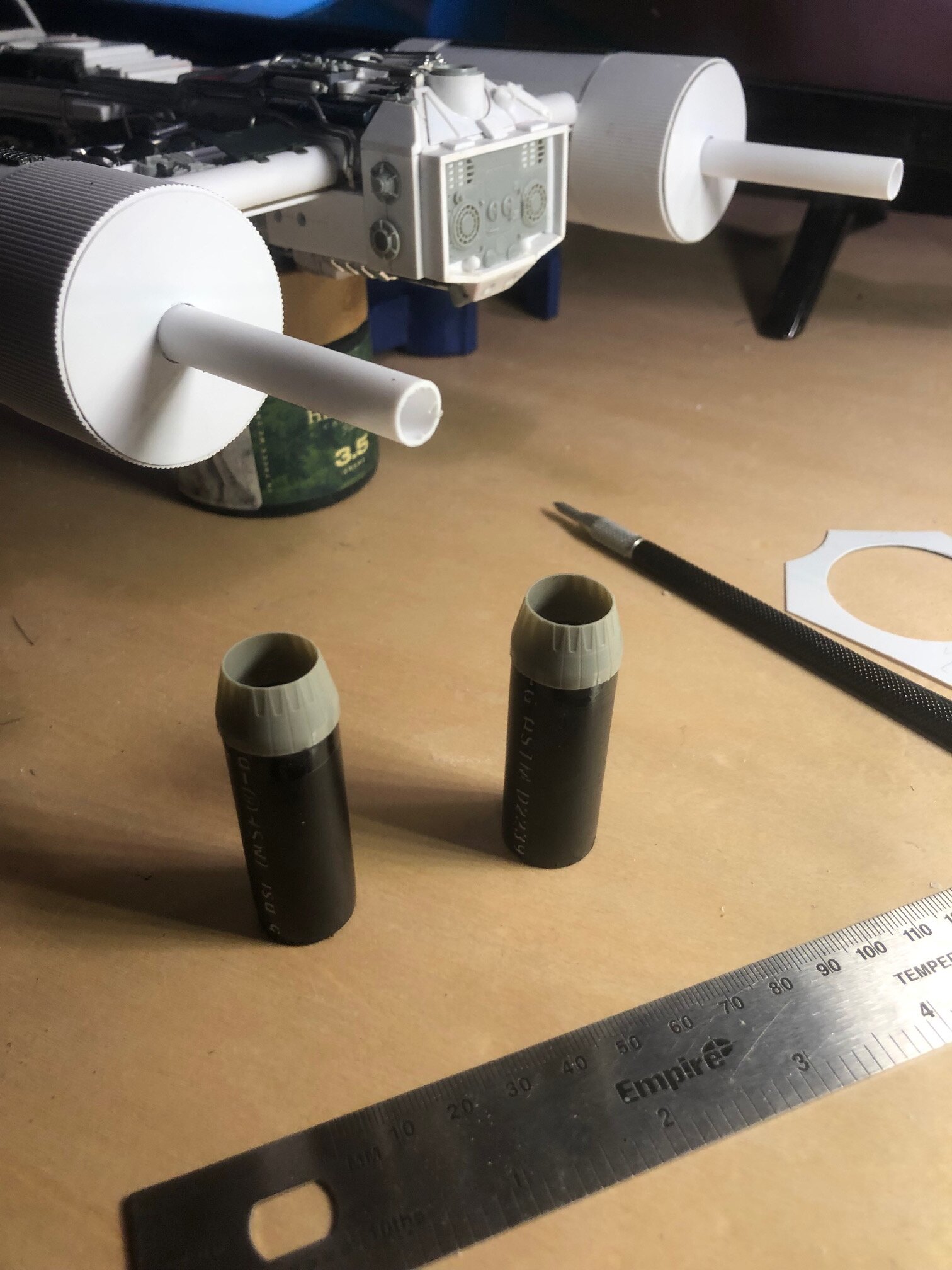

Building up the thruster/nozzles at the rear of the engines with pvc.

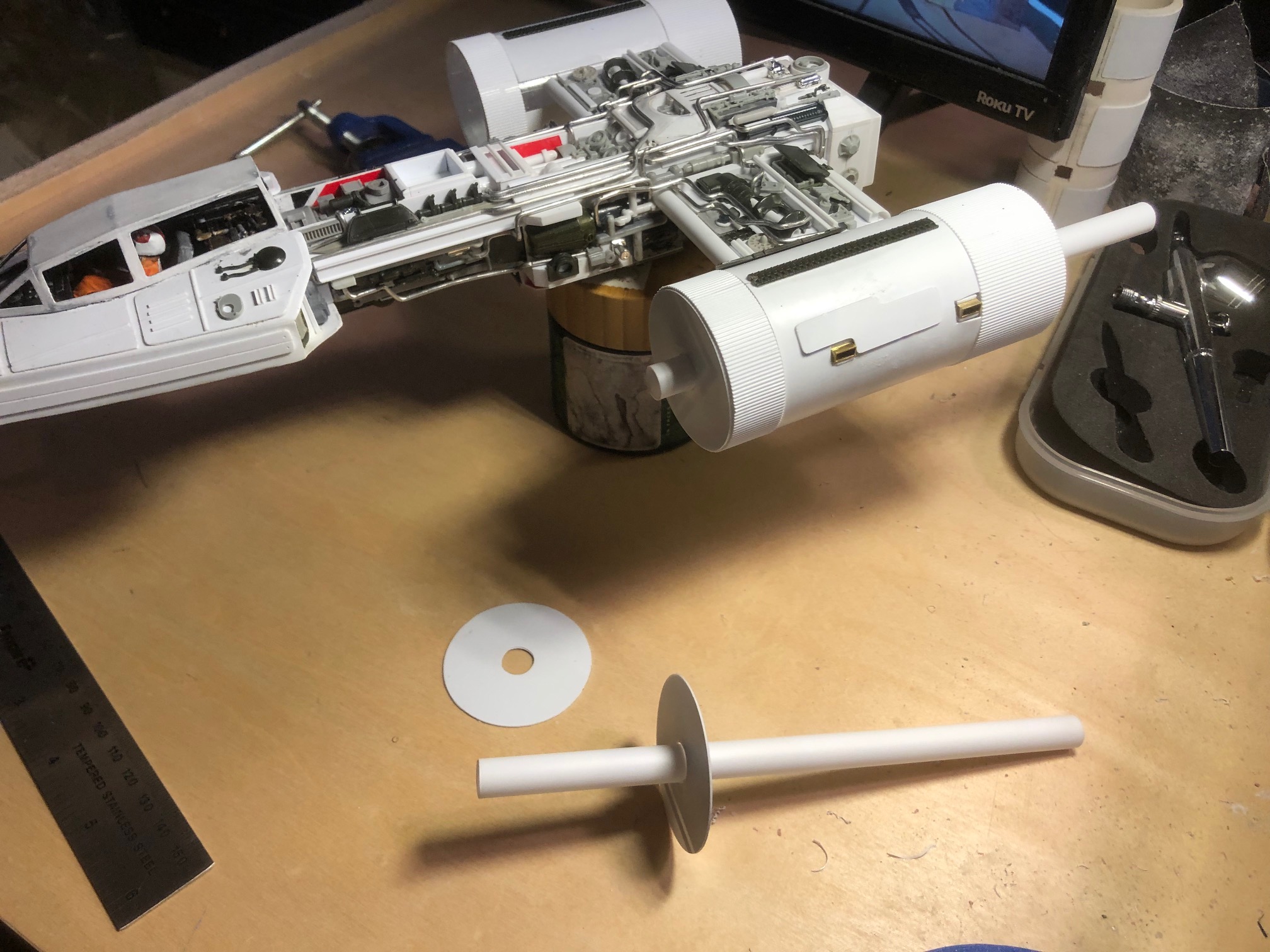

Currently taking measurements for the eight tail struts coming of the engines. More to come.


Attachments

  • IMG_4607.jpg
    233.7 KB · Views: 17
  • IMG_4666.jpg
    397.3 KB · Views: 16

hoosleberg

New Member

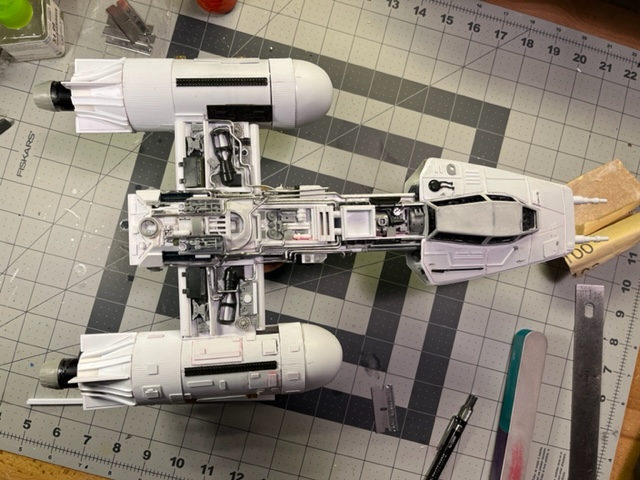

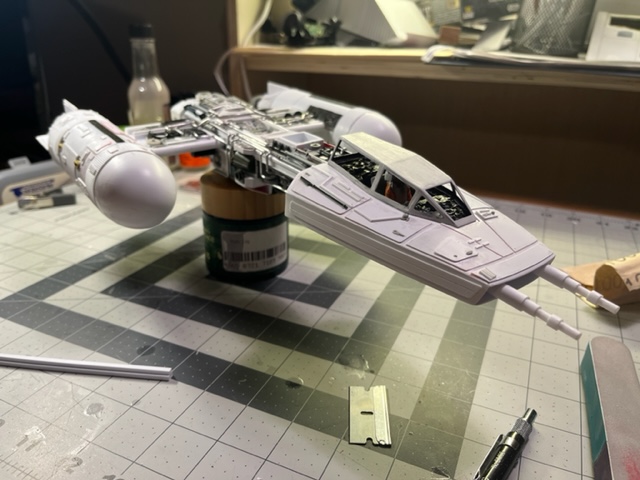

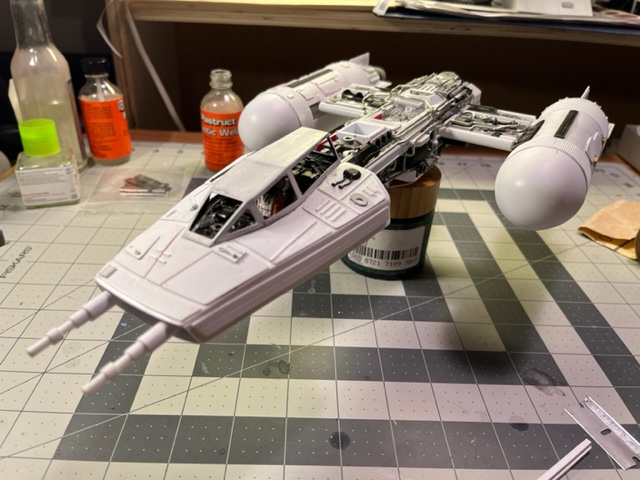

Made the new nosecones

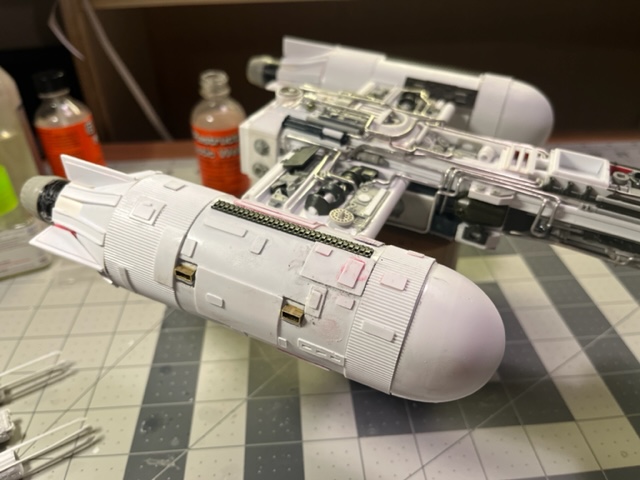

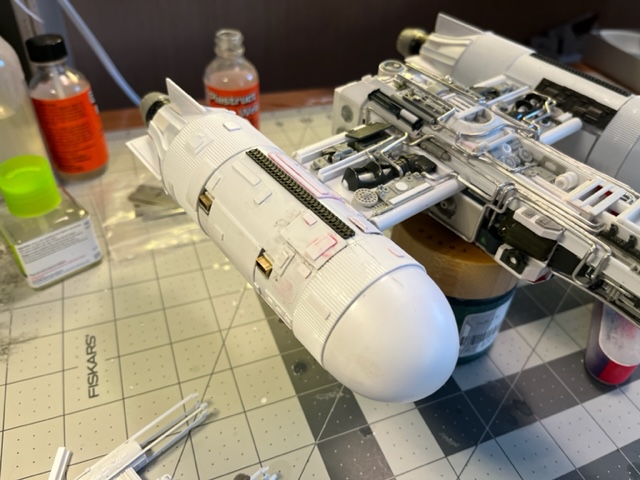

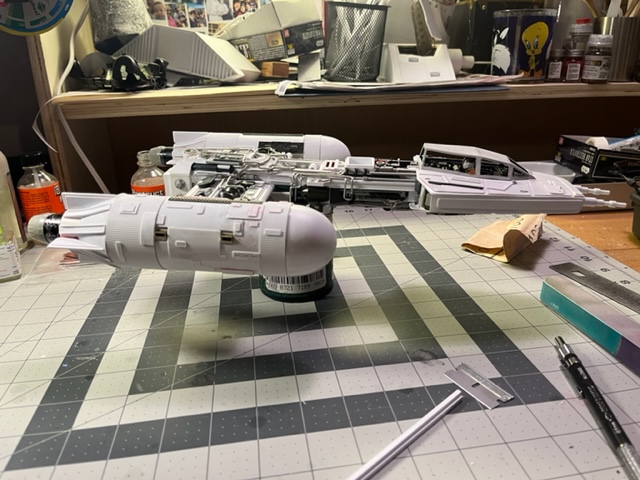

I started attaching the engine panels. Very loosely following the studio models for basic shape and placement

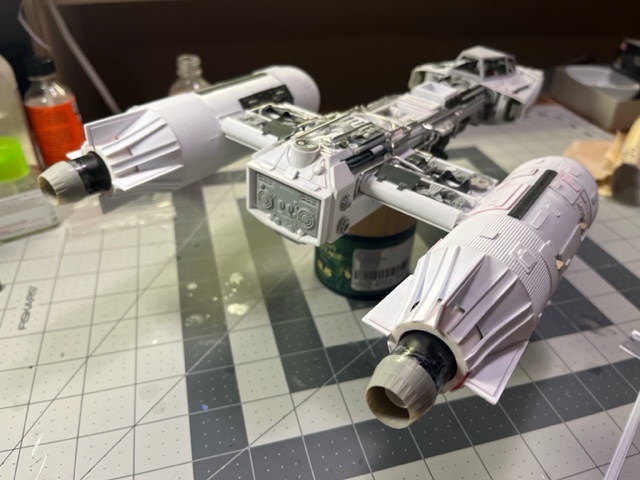

Got the tail fins attached too. Again, not the same as the movie models but these are Koensayr's "R500" engines not the weaker R270s that come standard on y-wings.

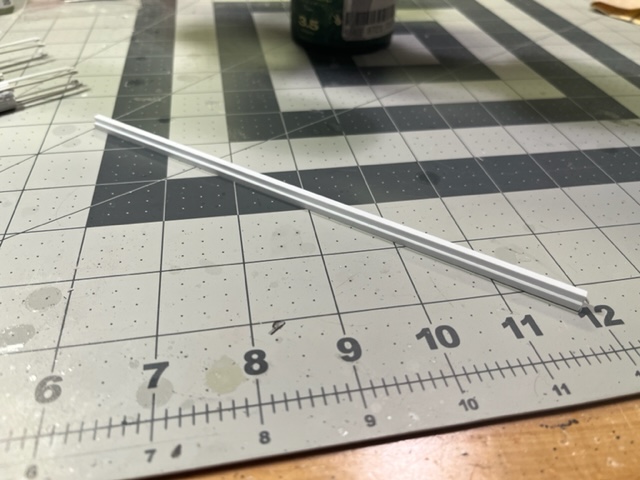

Figuring out the rear t-struts too. x8


That's all for now!
