RESEARCH: X-WING CONTROL STICK

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Halliwax

Legendary Member
RPF PREMIUM MEMBER
Just another quick example, I got a emergency call this morning about a elderly woman’s garage door breaking, and now she can’t open it to leave

When I got there sure enough the motor was covered in a few boxes with the cotton pin clips

I’m not saying it’s garage door opener, but it was a pretty common why to make things back in the 60s-70s

I have a gut feeling the top part we see and the handle are 2 different parts

No proof, just a gut feeling


lonepigeon

Sr Member

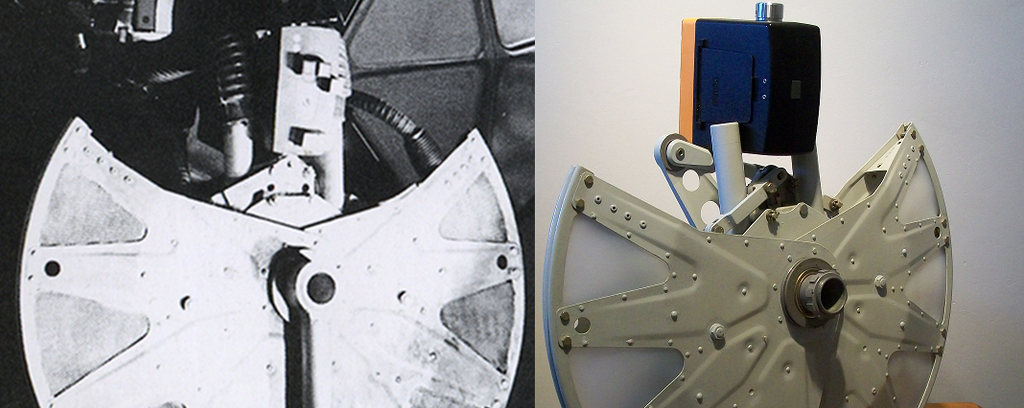

The X-wing dash also has a bunch of the leftover Kalimar parts from the macros.
There are obviously a bunch of the radial engine it parts and Michell pieces as well.

Edit - one of the other cameras too. I think it was one of the stunt macro lens cameras.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

OdiWan72

Master Member
RPF PREMIUM MEMBER
Is there a source for accurate red switch covers, as found on the control stick (and imperial rank bars)?

AFAIK there was quite a bit of discussion about the correct dimensions of the plastic covers all the ETSY sellers use for their rank bars...

Would need one or two for my own controlstick...any leads?

Thanks in advance


thd9791

Master Member
RPF PREMIUM MEMBER

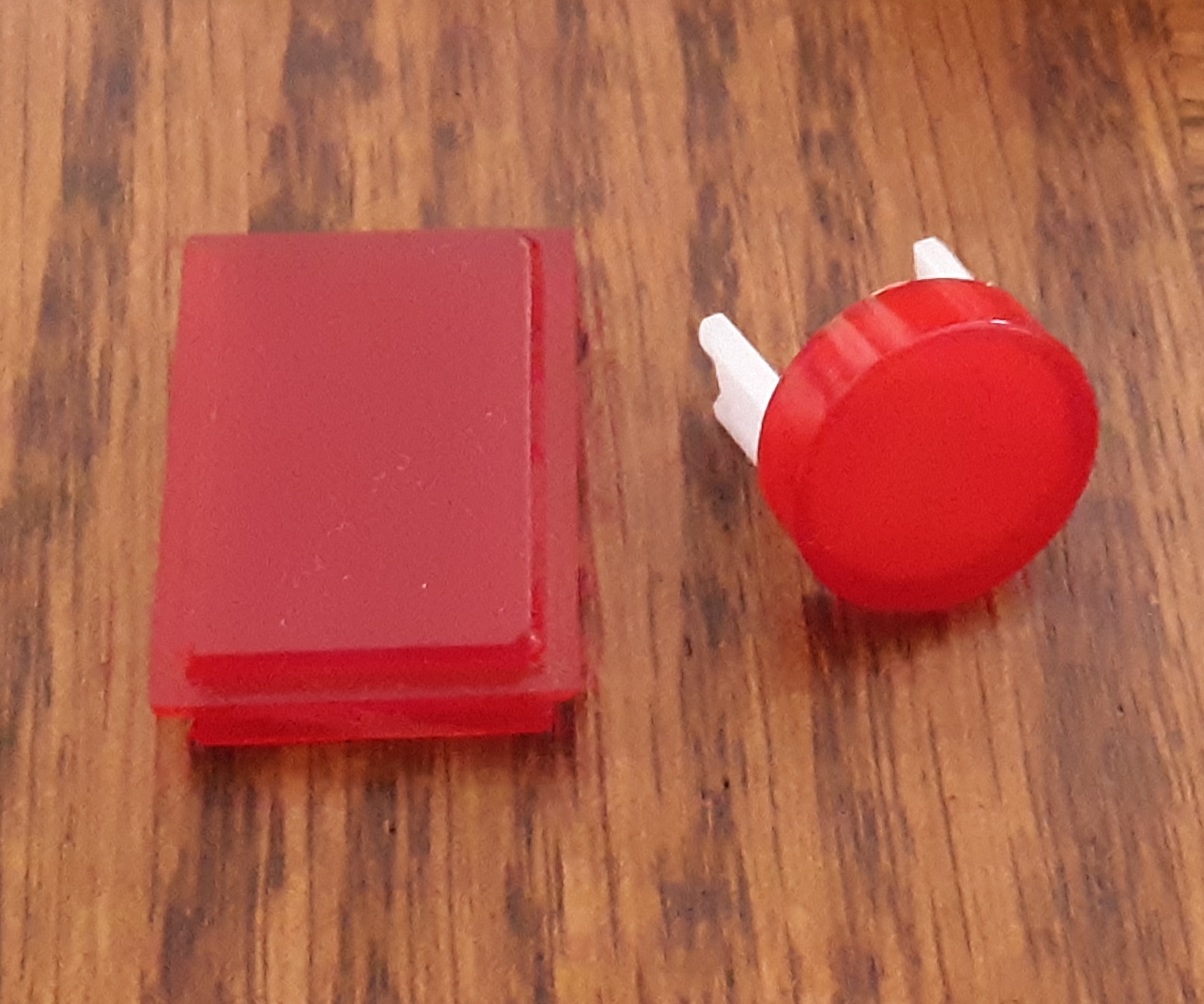

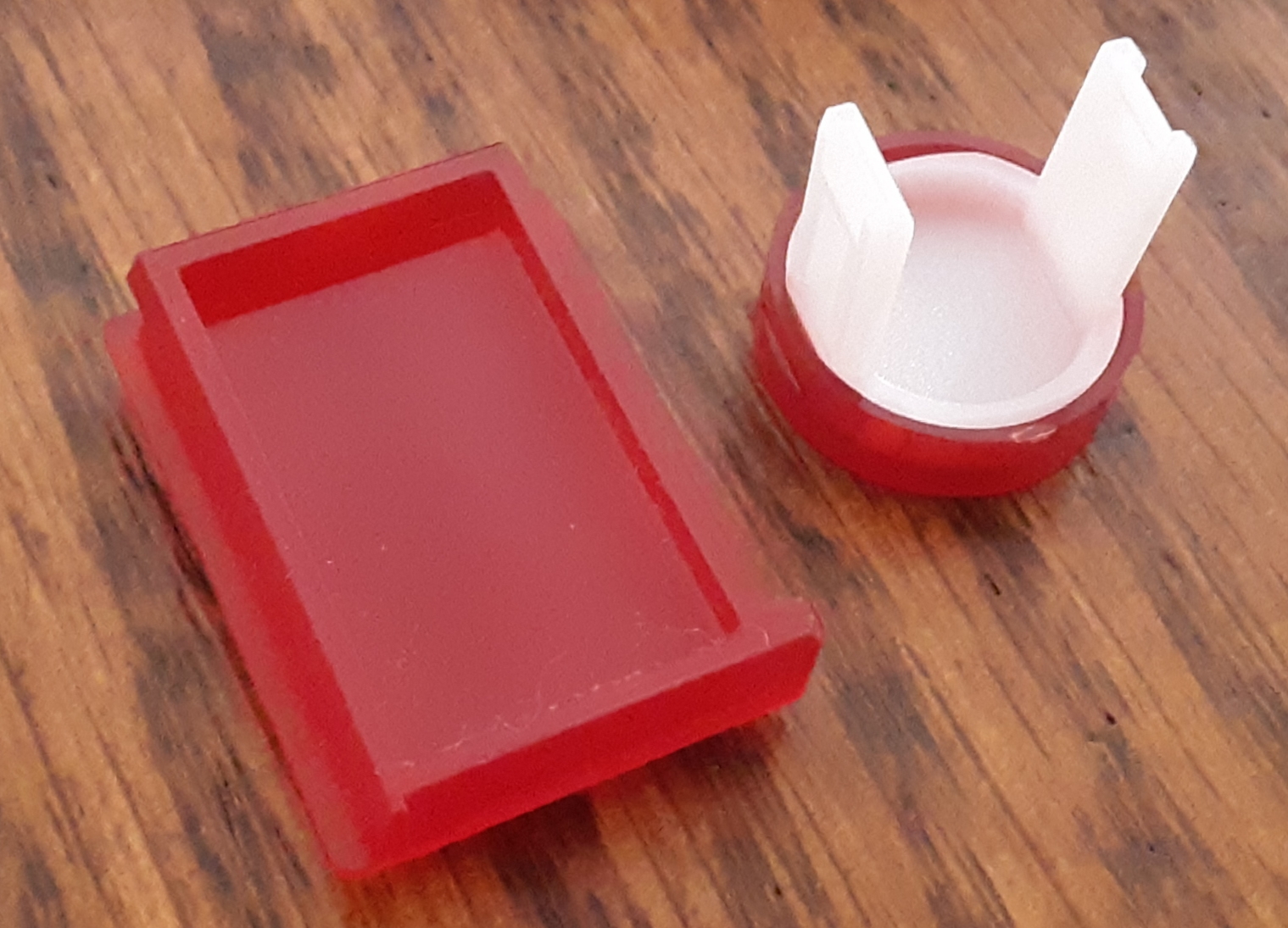

The round one? I used EAO 31 series, with two tabs on the back and not the EAO 61 series with the round plug at the back. The lens just seemed to match the translucence we see on screen, was thin enough and had the same darker edges.

I got a couple round ones for the joystick (in case I lose one) and they are 15.5 mm or 15.6 mm in diameter

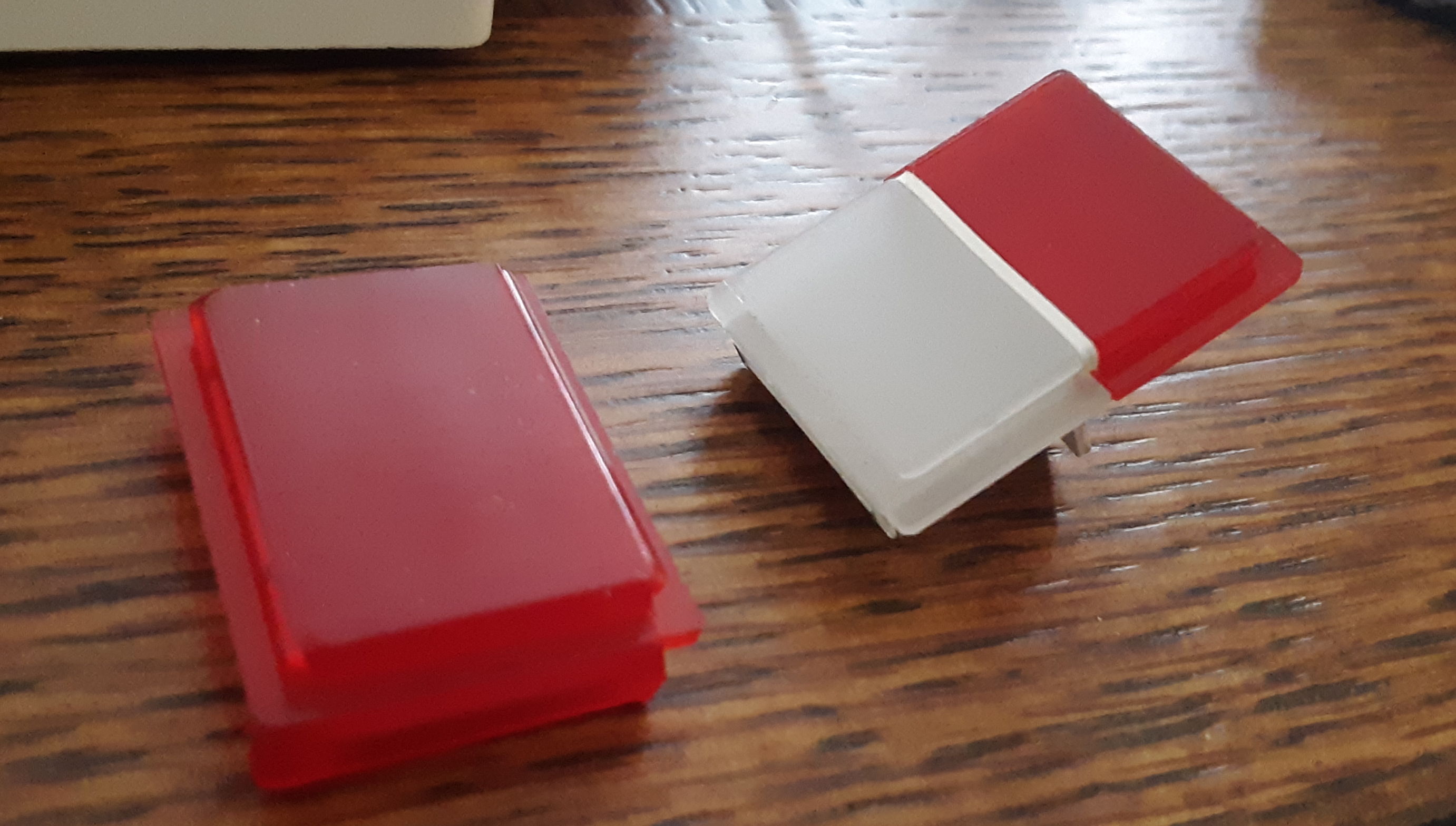

The rectangular switch lens on the pad I just learned about and again I'm late to the party. Those thick ones are Honeywell switches, and I got one from parts of sw. They are out there new and rather expensive I think, 20 or 30 USD. I managed to find a white and red pair of these Honeywell lenses that are, infuriatingly, half the size!


thd9791

Master Member
RPF PREMIUM MEMBER
Here are the lenses!

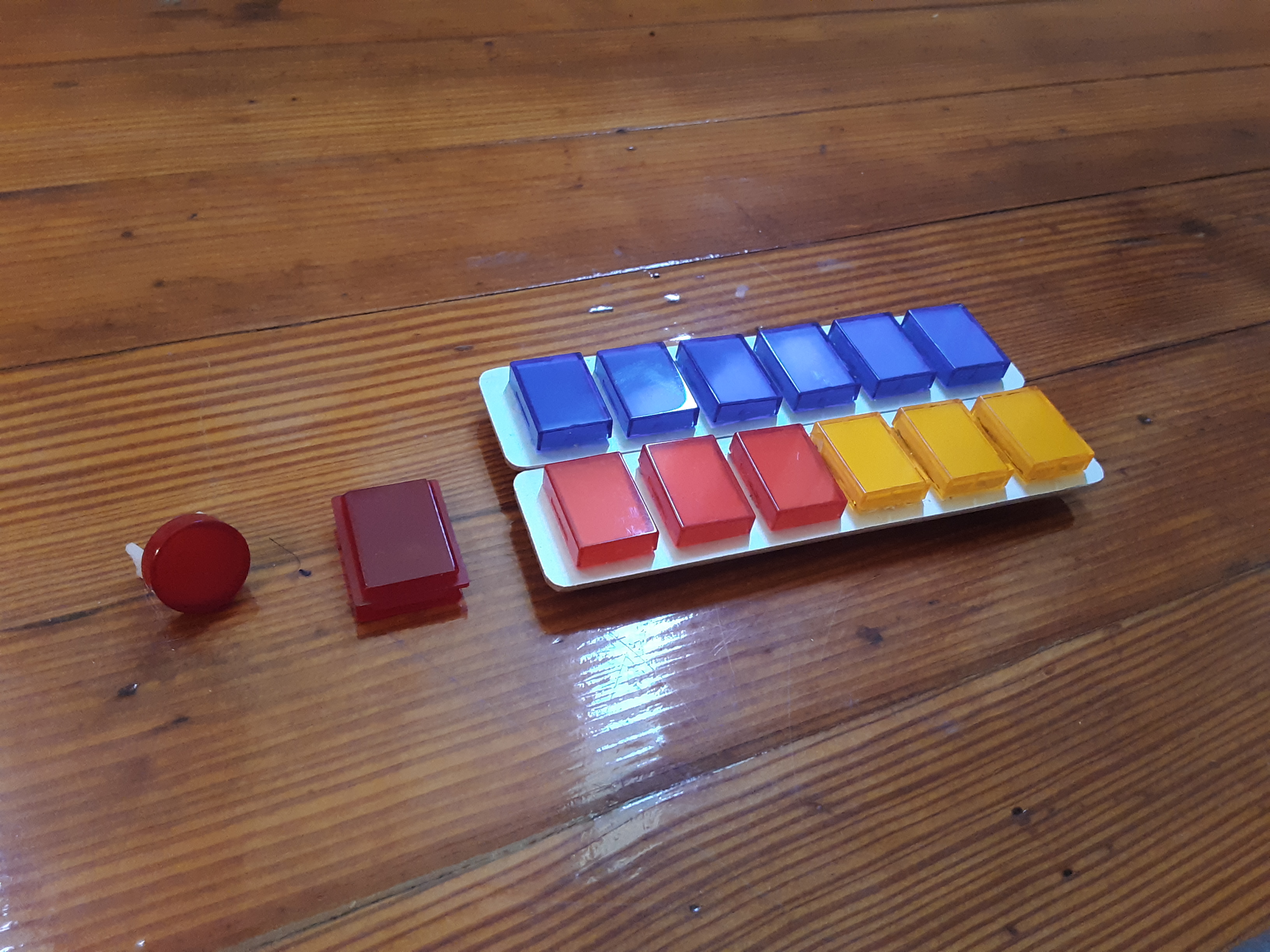

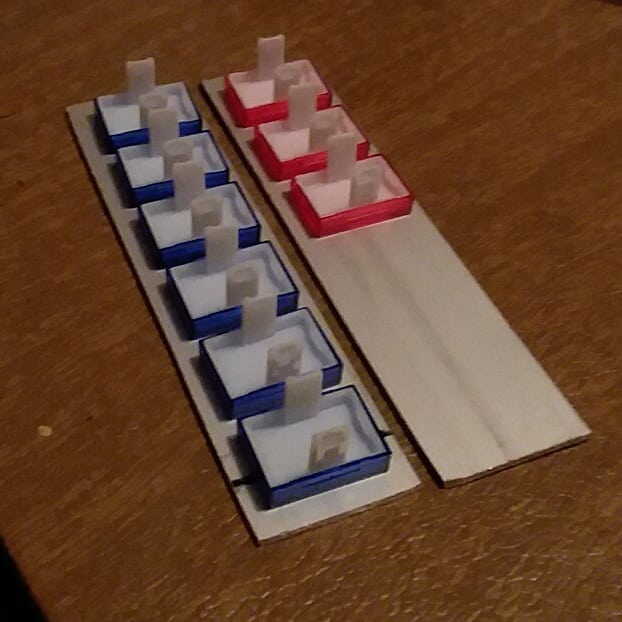

1 EAO round lens, a Honeywell switch lens, smaller Honeywell lenses and my ID badge made with EAO lenses


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

lonepigeon

Sr Member
Last edited:

OdiWan72

Master Member
RPF PREMIUM MEMBER
Last edited:

OdiWan72

Master Member
RPF PREMIUM MEMBER

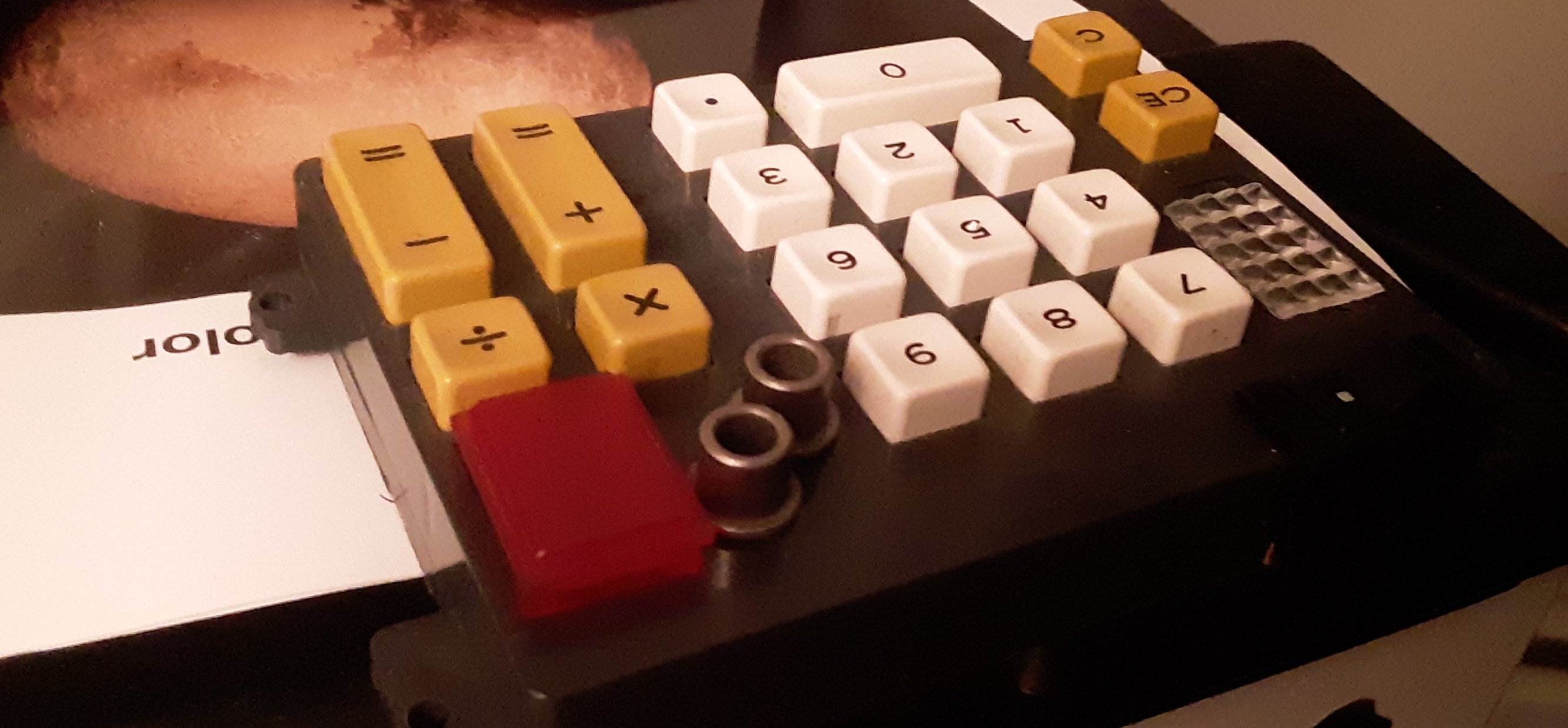

And another thing - I need to workout the exact size of them small connectors too. Here's a very rough estimate based on my D-grip measurements. They all look to have the same proportions so that would make them a 10mm diameter tube on a 12mm base ring.

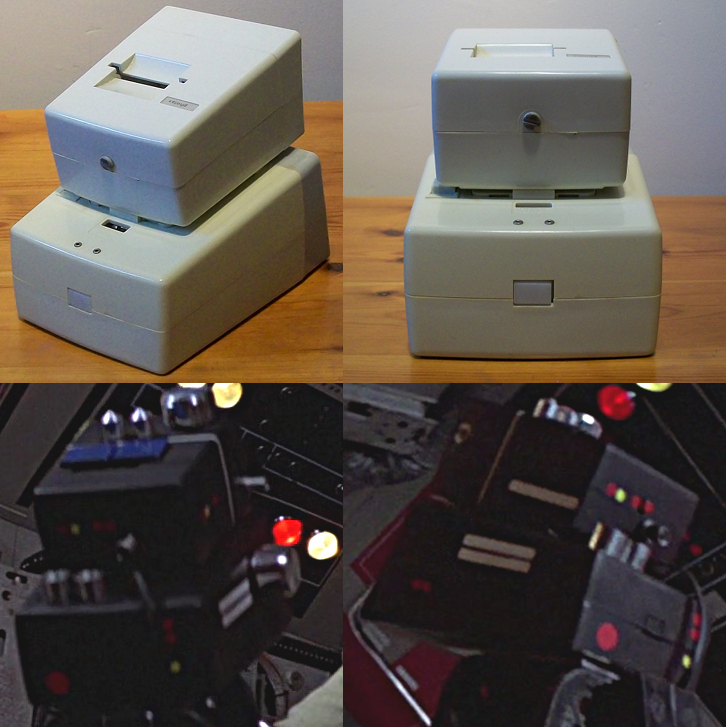

WHat the hell is that thing in the upper left corner? Is this the base for the X-Wing control stick or another spaceship?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Wavey

Well-Known Member
In the Prop Store's video, an interview with a Stormtrooper, the legend that is Mr Syd Wragg states that he spent over a week doing just hand shots in the X-Wing and Tie Fighter and a few other places. So that cuts down the initial search by about 90% and countries to about one - yay lol! I had no idea Syd was the hand in the glove. Great stuff Syd, cheers!!


Attachments

newmagrathea

Sr Member
In the Prop Store's video, an interview with a Stormtrooper, the legend that is Mr Syd Wragg states that he spent over a week doing just hand shots in the X-Wing and Tie Fighter and a few other places. So that cuts down the initial search by about 90% and countries to about one - yay lol! I had no idea Syd was the hand in the glove. Great stuff Syd, cheers!!
Do you have a link to the video?
