TheAntReplicas
Active Member
Prototyping the glyphtrack with bearings, which runs quite smoothly. For the moment, the structure is made of wood, but it will eventually be made of aluminium.
Project Stargate SG1:10
TheAntReplicas
Active Member
It turns! Mdf laser cut to scale...
Even at 1:10 scale, it's a bit large and the motor integration is really just right, but it's enough!
Even at 1:10 scale, it's a bit large and the motor integration is really just right, but it's enough!
Redrocirt
New Member
What an amazing project - Thank you for sharing your building process!
Thank you also for mentioning the project Les Enfants de MacGyver / Children of MacGyver – haven't heard of it before and... WOW ... a life-size Stargate
Thank you also for mentioning the project Les Enfants de MacGyver / Children of MacGyver – haven't heard of it before and... WOW ... a life-size Stargate
TheAntReplicas
Active Member
MerciUn taf de dingues
TheAntReplicas
Active Member
Main chevron test: mechanism + light. The results are quite conclusive! The whole thing is controlled by an arduino.
TheAntReplicas
Active Member

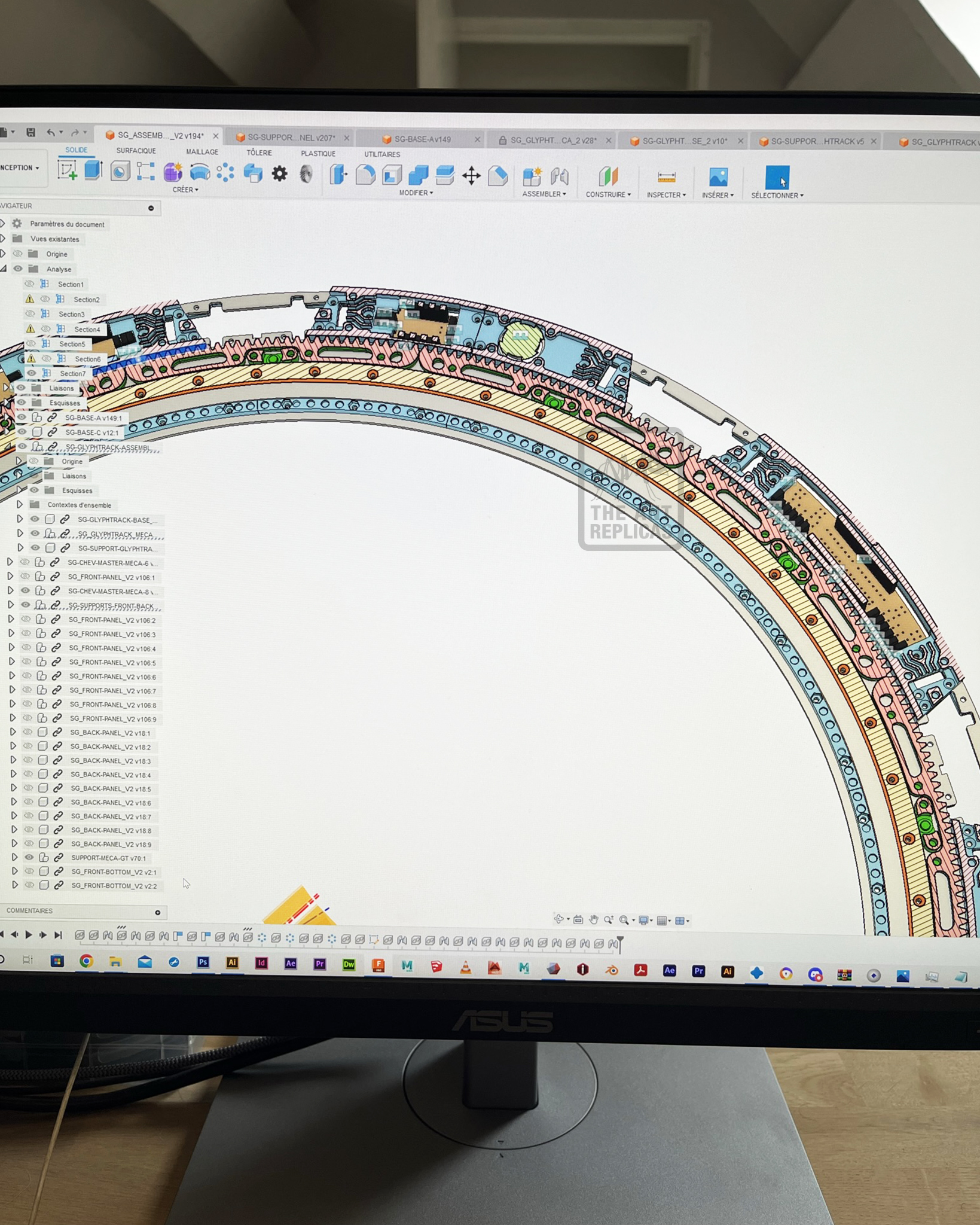

In the bowels of a stargate! The electronic and mechanical integration isn't easy to do, but it should be OK
TheAntReplicas
Active Member

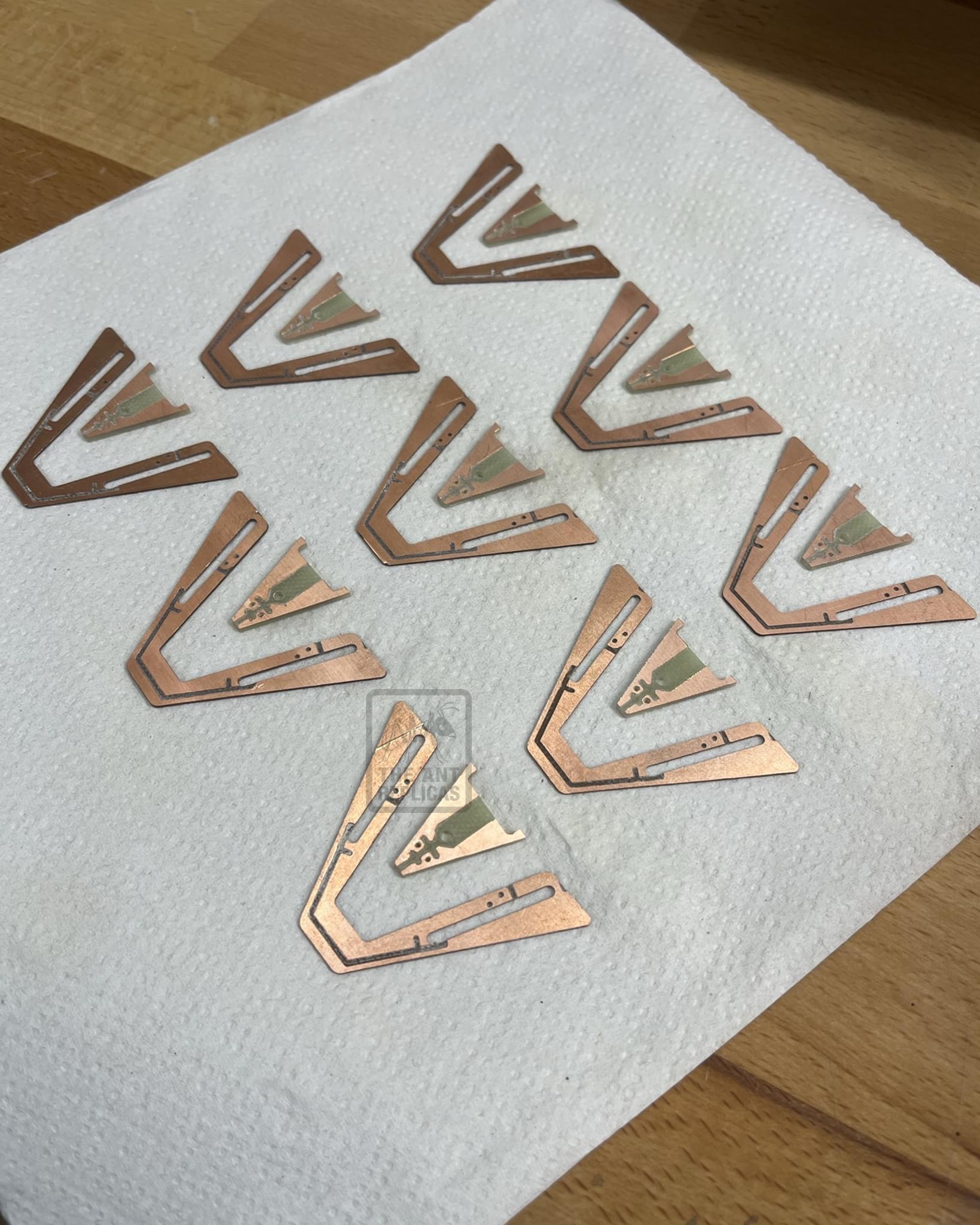

Copy and paste! Preparing circuits for all the chevrons.
TheAntReplicas
Active Member

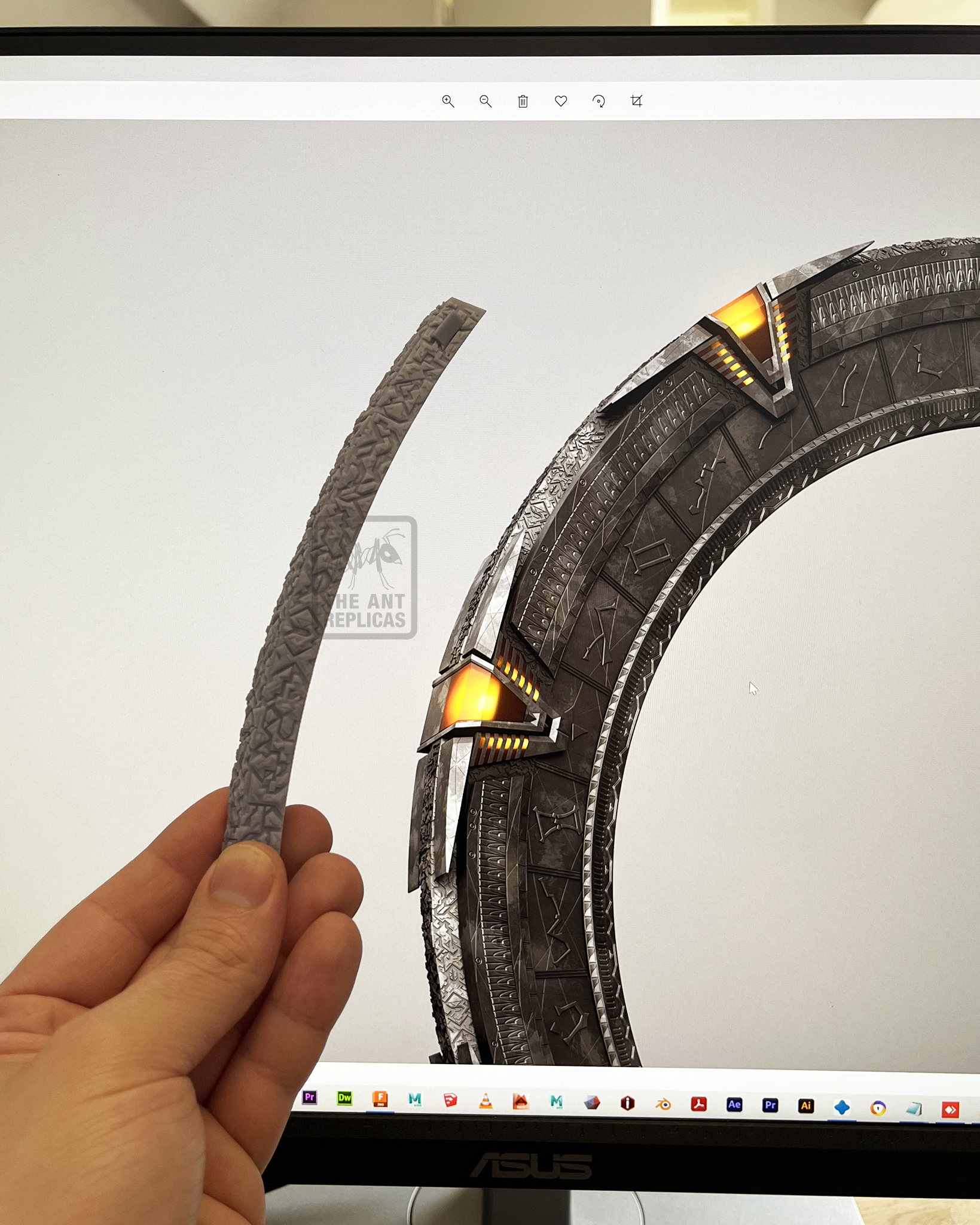

The collar, the most complex part of the Stargate. Nearly 1,000 geometric shapes! At 1:10 scale, the smallest details are less than 0.3mm.
TheAntReplicas
Active Member

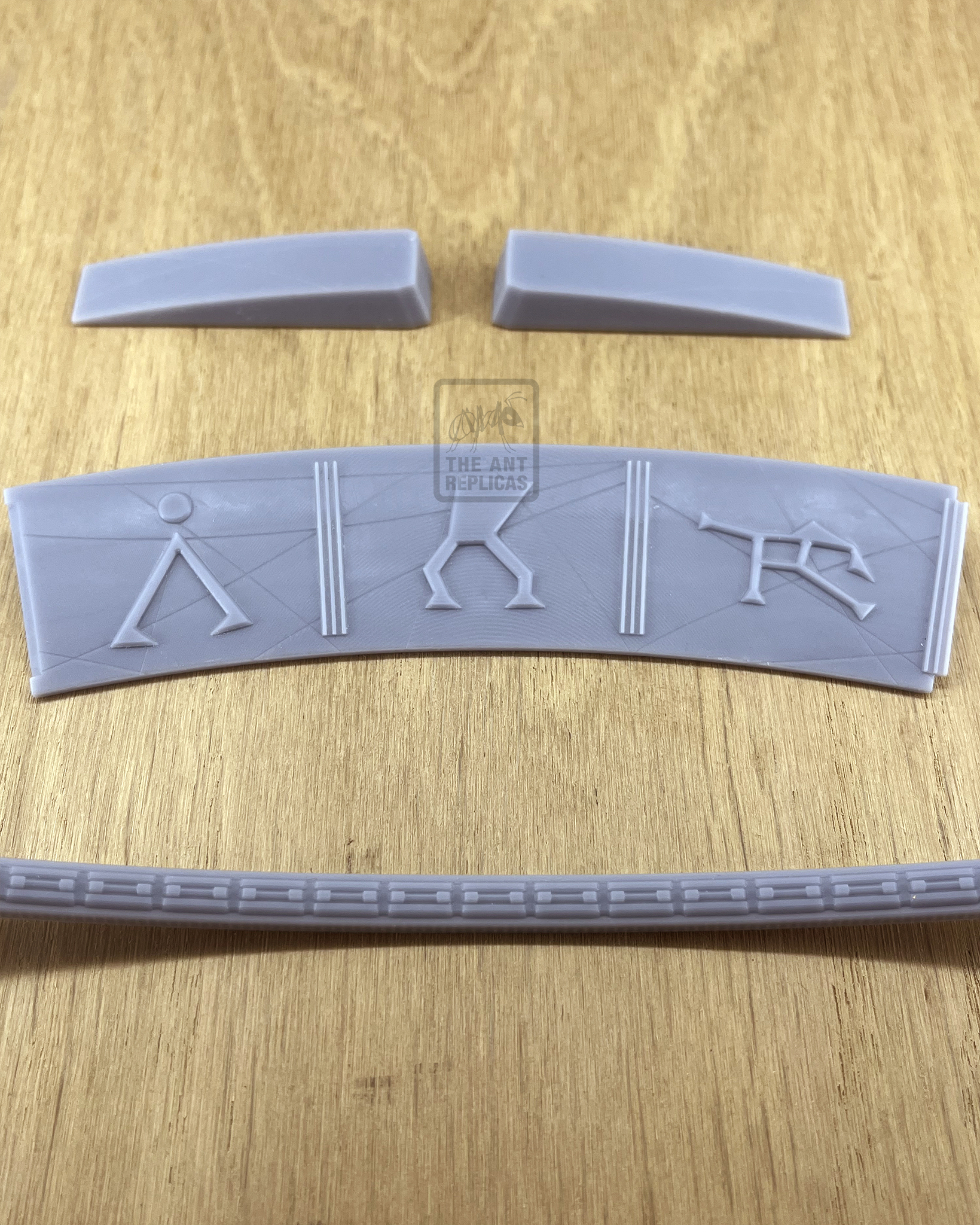

Print test of last door parts: fins, glyphtrack (1/13), inner ring.
TheAntReplicas
Active Member

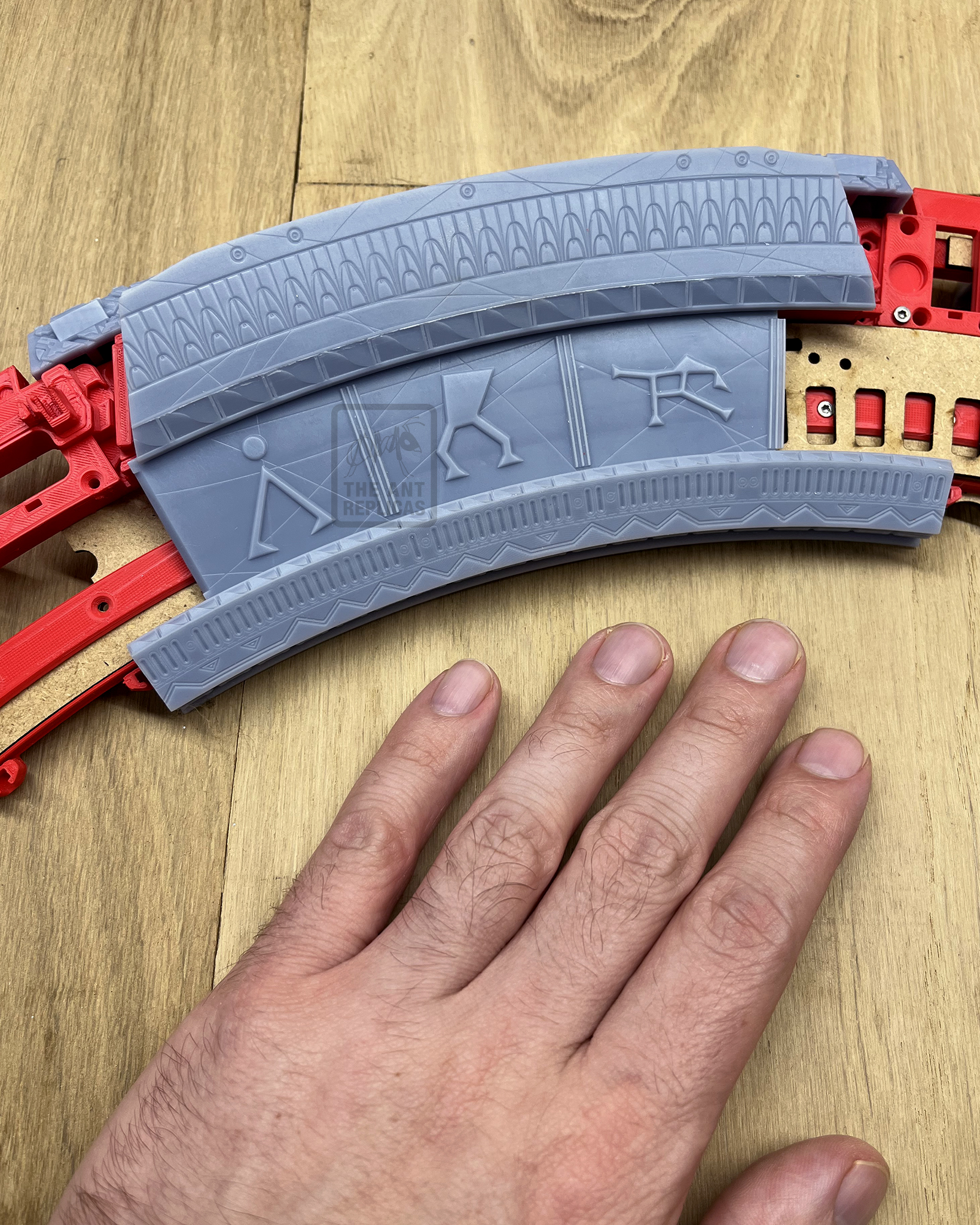

Testing assembly of a complete door segment, everything seems to fit!
TheAntReplicas
Active Member

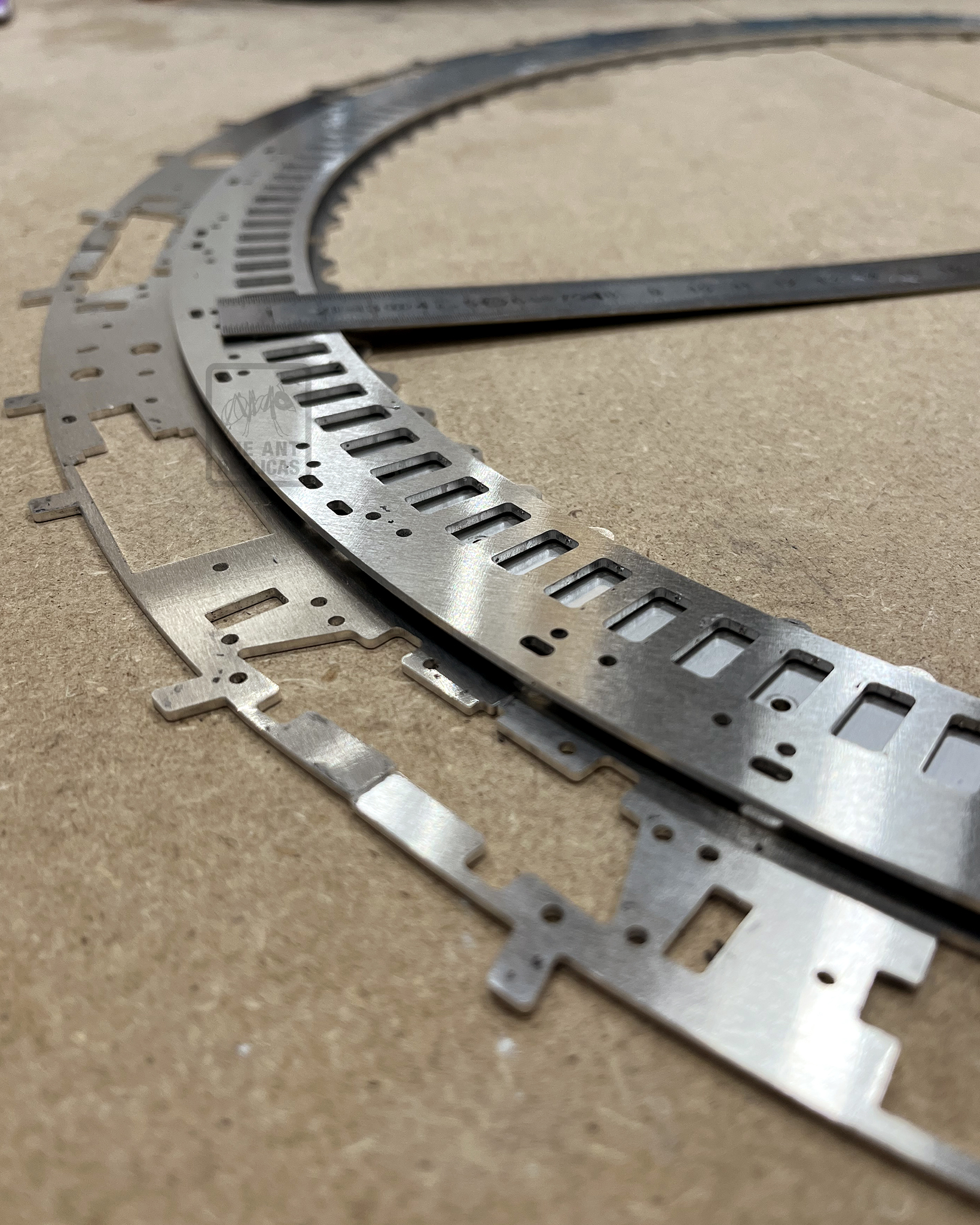

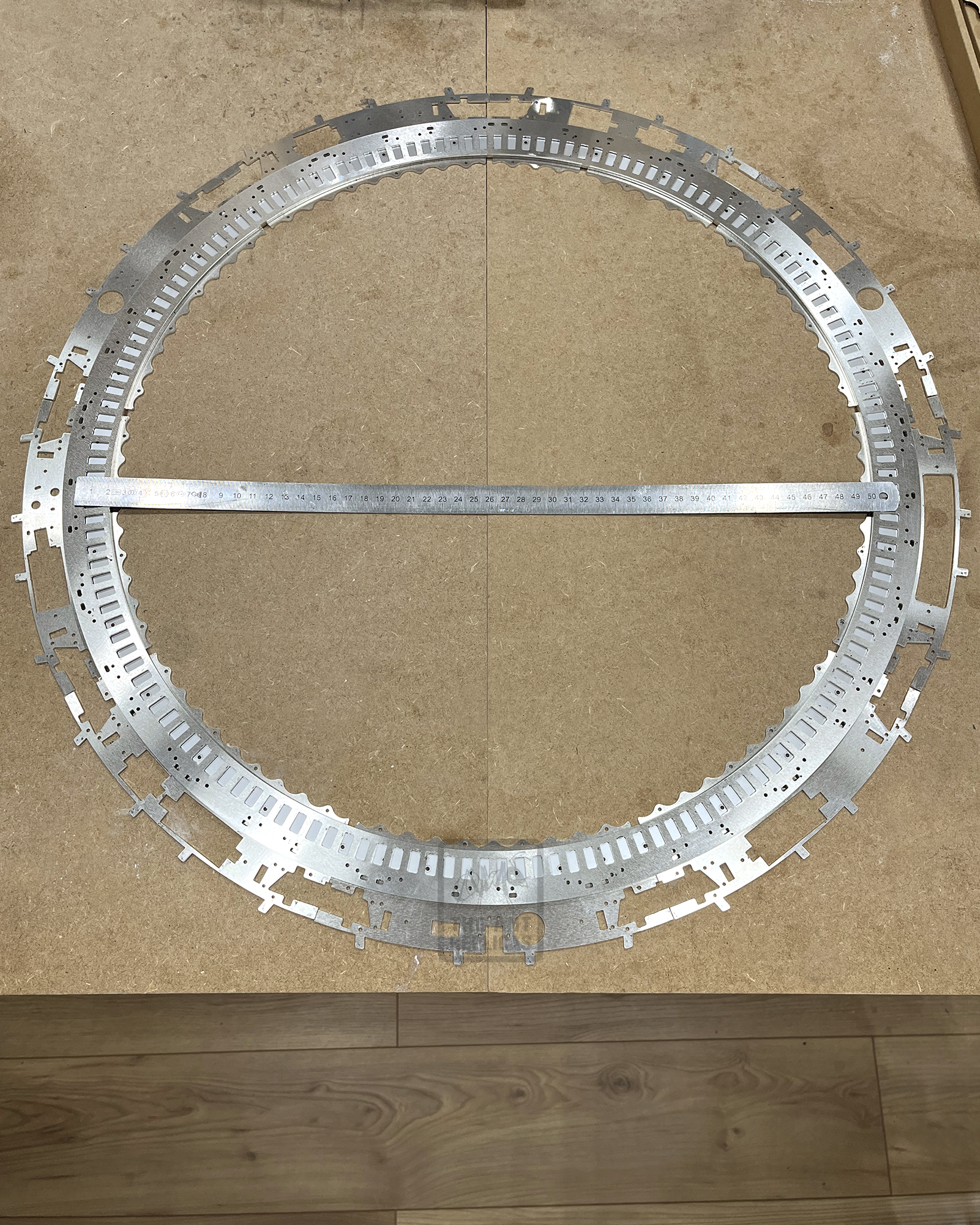

The metal structure has arrived!!! It's getting serious!!!
Darthbauer
Well-Known Member
This is freaking awesome
