Nike MAG replicas (V2 and V3 only)

WizardBTTF said:

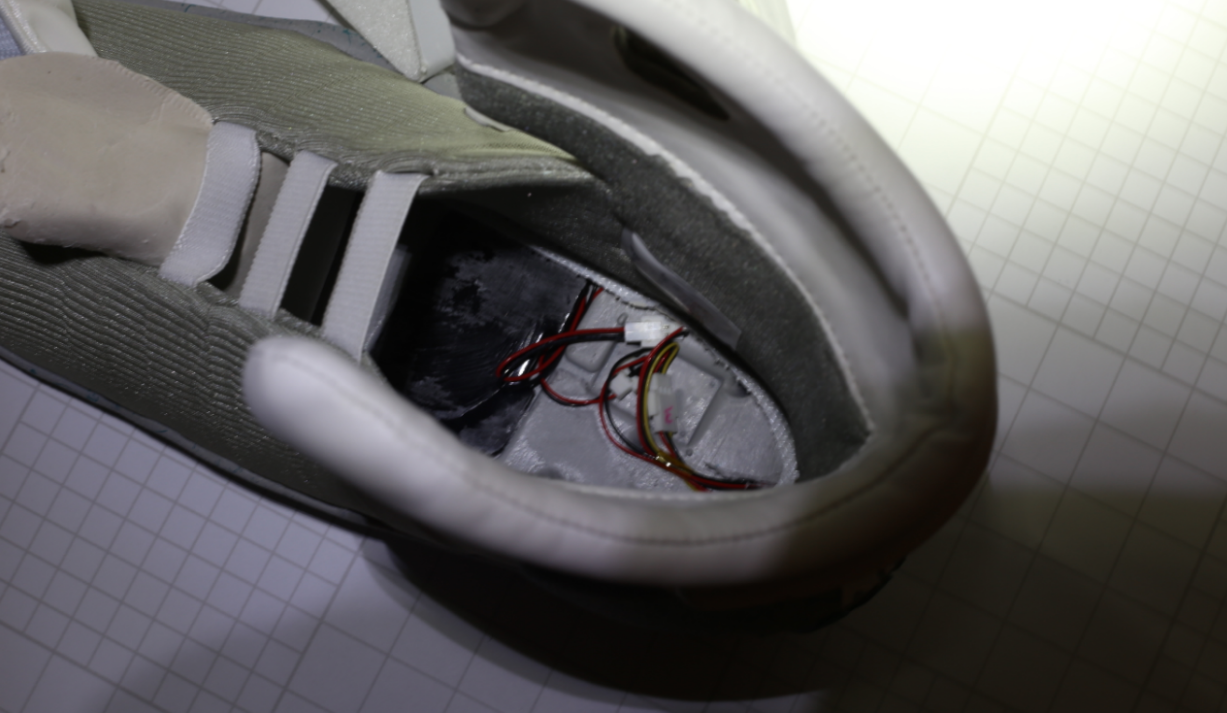

Oh what do we have here? EDIT: It's the battery, 1000mah not tooo shabby! AND it uses connectors so one can simply unplug it and replace/upgrade. There is enough room for probably a battery double the size in this cut out. (Although I can understand why he refrained)

Also, the battery can now be eliminated as the possible cause of the dim EL. Definitely not the battery causing it.

PS: SORRY DAVID :(

View attachment 652134
Click to expand...
Interesting findings here.

So now that clear sole is removed, it is actually clear of clouded? Does this diffuse the light in any way?

Can you post pics of the EL running without the clears?

Wore my mags tonight..some kids started screaming and taking pics etc lol didn't expect to see ppl so excited. Guess that's the reaction to expect whenever I wear them

MitasTouch said:
You're creating new clear soles?
Click to expand...

Yes...I know David said they would work on making better soles. But the process they use will always yellow, blue tint would just hide it a little longer. So doing my own with a material I know will never yellow.


cavx said:
Interesting findings here.

So now that clear sole is removed, it is actually clear of clouded? Does this diffuse the light in any way?

Can you post pics of the EL running without the clears?
Click to expand...

Sole material itself is pretty clear. It does diffuse it very slightly I'd say. Not enough to effect the brightness. I'll try to get everyone's picture requests done later today its like 3:30am right now.

WizardBTTF said:
I don't think I would call it a crap inverter, I believe it was designed to limit the output. Fairly certain it will be a custom made inverter, I think they do it for longer battery life, although I'd rather have it last 4 hours at full brightness then say 8 hours dim.

Inverter appears to be in the ankle buckle, checking the best way to access it. Seems I can get to it from the inside of the shoe, I don't care if the inside of the shoe is torn up, as I wont wear these ever...but if I did you wouldn't see anything has been done. When I remove it, I will probably put the new one in a sole cutout.

It's a 3.7v li-po. Yes, it has a protection circuit. Here is the exact model
View attachment 652135


The sole panel EL is also designed specifically for this shoe. It has a connector on the backside of it.

After teardown I will put them back together lol...but then they will probably just sit on a shelf...might wear them idk. I bought this pair to mod, so not sure what they will end up being for.

I will get more pictures of random stuff soon, working on the sole molds too.
Click to expand...

Great, thanks. Pics of every component will be really helpful for anyone wanting to fix or repair.

The inverter will most likely be too weak. You can get inverters with same voltages but differing strength of capabilities. So some inverters can light upto a certain amount of surface area while others can do far more even though their power input is exactly the same, ex 3v or 9v.
An example being the tiny 3v circle inverter and the normal thin rectangular inverters I have in 9v and 3v.

The tiny 3v circular inverter will only light up small surface areas while the rectangular in 3v one will do far more.

It's why I can light up the strap and sole panels in both 9v and 3v without any real difference in brightness.
I asked for David for images of his inverter and he said his inverter is smaller than the rectangular one we've been using.

He said he cannot fit that rectangular one in the soles, but had they just made a slightly bigger space in the sole it wouldn't be an issue.

I'd rather have more full brightness than longer lighting at dim levels. That's the who point of having a rechargeable battery, to charge when empty!

airair said:
So some inverters can light upto a certain amount of surface area while others can do far more even though their power input is exactly the same, ex 3v or 9v.
Click to expand...

Agreed. My tester inverter is just 3V (2 x AA) and can light up a whole A5 sheet to full brightness where the smaller 12V inverters I used in the shoes needed at least 9V to light the same area.

airair said:
The inverter will most likely be too weak. You can get inverters with same voltages but differing strength of capabilities. So some inverters can light upto a certain amount of surface area while others can do far more even though their power input is exactly the same, ex 3v or 9v.
An example being the tiny 3v circle inverter and the normal thin rectangular inverters I have in 9v and 3v
Click to expand...

The inverter is too weak for sure...but again I feel its on purpose.

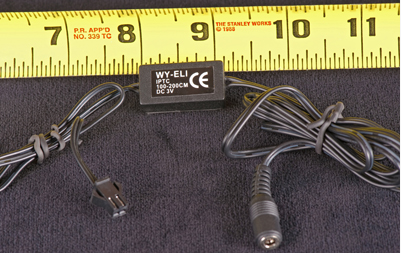

Not sure which rectangular inverter you guys are talking about, but this is the one I am replacing it with. I know it can run the shoes EL full power. My idea is this..currently the bottom shoes EL connecter seems to be the only one you can get access to without opening the ankle buckle which is basically impossible without butchering your shoes. So my plan is directing the bottom sole to a new inverter I add in the sole. Hopefully...the bottom sole no longer running off the original inverter will then brighten the strap and the new inverter will of course run the sole EL full power too. Going to try this first since its the least destructive method I can think of to get full brightness.



WizardBTTF said:
The inverter is too weak for sure...but again I feel its on purpose.

Not sure which rectangular inverter you guys are talking about, but this is the one I am replacing it with. I know it can run the shoes EL full power. My idea is this..currently the bottom shoes EL connecter seems to be the only one you can get access to without opening the ankle buckle which is basically impossible without butchering your shoes. So my plan is directing the bottom sole to a new inverter I add in the sole. Hopefully...the bottom sole no longer running off the original inverter will then brighten the strap and the new inverter will of course run the sole EL full power too. Going to try this first since its the least destructive method I can think of to get full brightness.


View attachment 652154
Click to expand...
Do you think it will dim down the LEDs to the proper brightness?

MitasTouch said:
Do you think it will dim down the LEDs to the proper brightness?
Click to expand...

No, EL inverter wont have any effect on LEDS. I think the LEDs look too bright because they are so diffused. Sand your ankle bubble and either polish or clear coat it would be the biggest improvement to the blending and brightness of those LEDS.

WizardBTTF said:
The inverter is too weak for sure...but again I feel its on purpose.

Not sure which rectangular inverter you guys are talking about, but this is the one I am replacing it with. I know it can run the shoes EL full power. My idea is this..currently the bottom shoes EL connecter seems to be the only one you can get access to without opening the ankle buckle which is basically impossible without butchering your shoes. So my plan is directing the bottom sole to a new inverter I add in the sole. Hopefully...the bottom sole no longer running off the original inverter will then brighten the strap and the new inverter will of course run the sole EL full power too. Going to try this first since its the least destructive method I can think of to get full brightness.


View attachment 652154
Click to expand...

Thats the rectangular one yes. Same one im referring to.

If the inverter is in the white ankle piece, then changing just that bit will be enough.

WizardBTTF said:
No, EL inverter wont have any effect on LEDS. I think the LEDs look too bright because they are so diffused. Sand your ankle bubble and either polish or clear coat it would be the biggest improvement to the blending and brightness of those LEDS.
Click to expand...

What grit for the sandpaper would you recommend?

cavx said:
Don't know about you guys, but I would rather have 5 hours of bright, than 10 hours of dim. Maybe just me.
Click to expand...

I just came up with an idea. We will all refer to their power lace version as V3PL. I get credit for this. So it is written, so it is done.

IxMAGICx1 said:
I just came up with an idea. We will all refer to their power lace version as V3PL. I get credit for this. So it is written, so it is done.
Click to expand...
Maybe I'm missing the joke, but I'm pretty sure that's what everyone in this thread has been referring to them as...

-Nick

IxMAGICx1 said:
I just came up with an idea. We will all refer to their power lace version as V3PL. I get credit for this. So it is written, so it is done.
Click to expand...

Not so fast there pal lol

- - - Updated - - -

TheNickFox said:
Maybe I'm missing the joke, but I'm pretty sure that's what everyone in this thread has been referring to them as...

-Nick
Click to expand...

It's a joke because I was the originator of the name.
