My Kylo Ren Build WIP

Discussion in 'Star Wars Costumes and Props' started by VegasSkywalker, Apr 19, 2015.

  1. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Hey all!

    Now that we have some better pictures of the new Kylo Ren outfit, I'm starting my costume.

    Here's my belt so far. I've got it on a test swatch of fabric for my over coat.

    [​IMG]

    I've started on a helmet that I'm doing via a Pepakura pattern. I'll post some pics of it when I get home!

    Let me know what you think!

  2. LorduDesign

    LorduDesign Sr Member

    Trophy Points:
    1,085
    Good start! Keep working!

  3. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

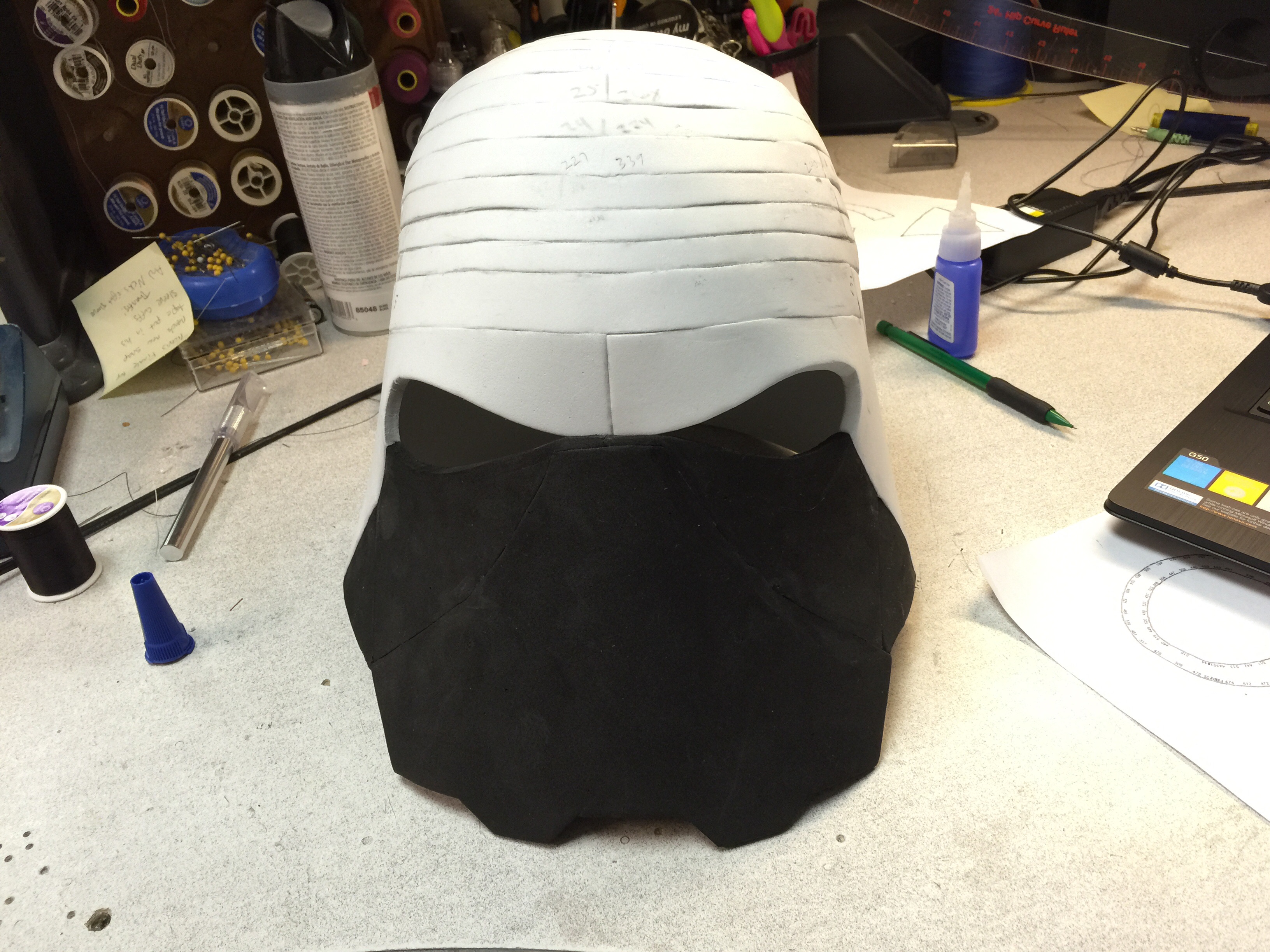

    So I had previously built the done from a pep file that I purchased. Then I made the face from scratch just to have something to draw on 3 dementionally. image.jpg

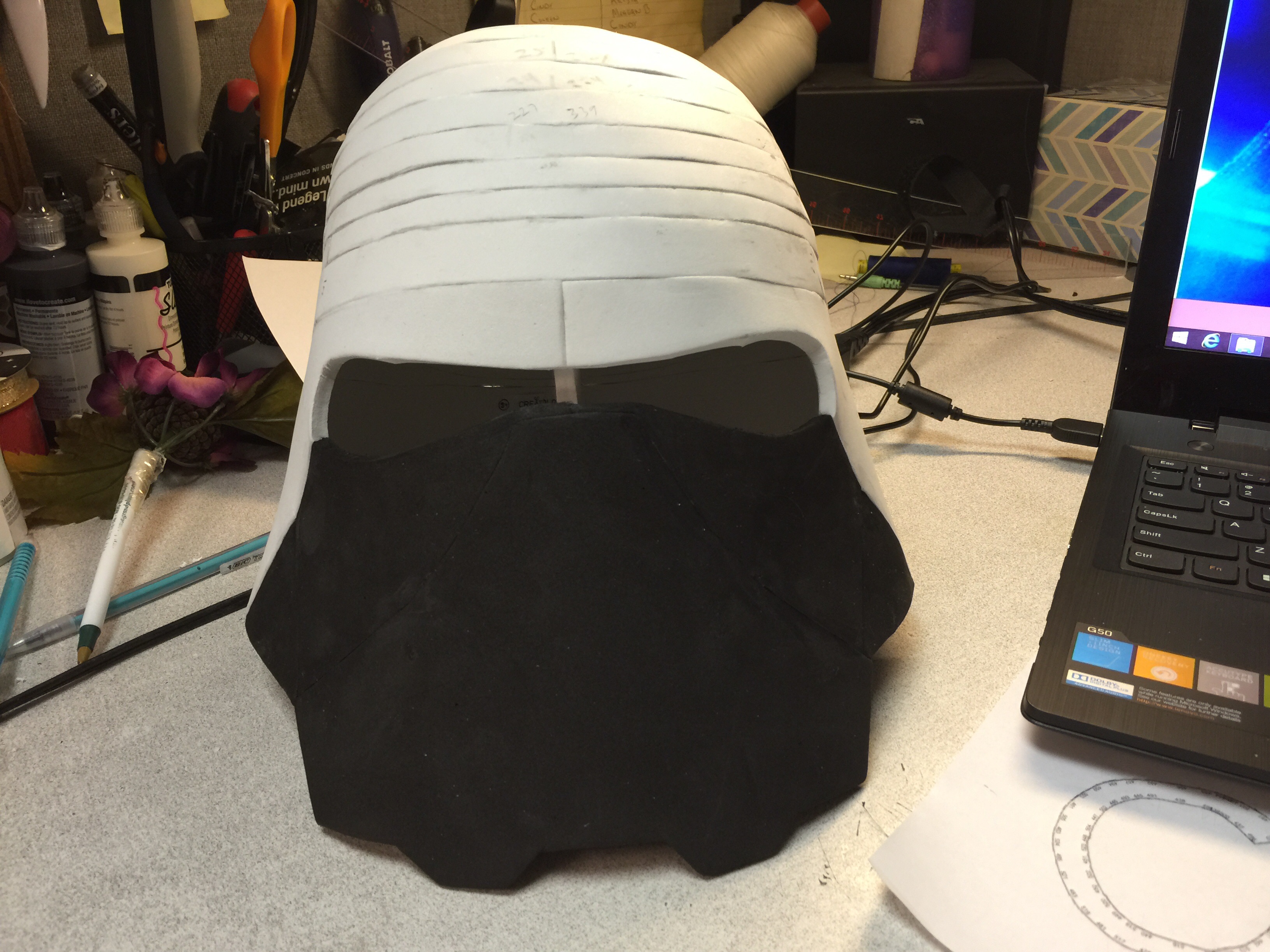

    then I trimmed off the brow section a bit to make it more the shape of the screen used one.

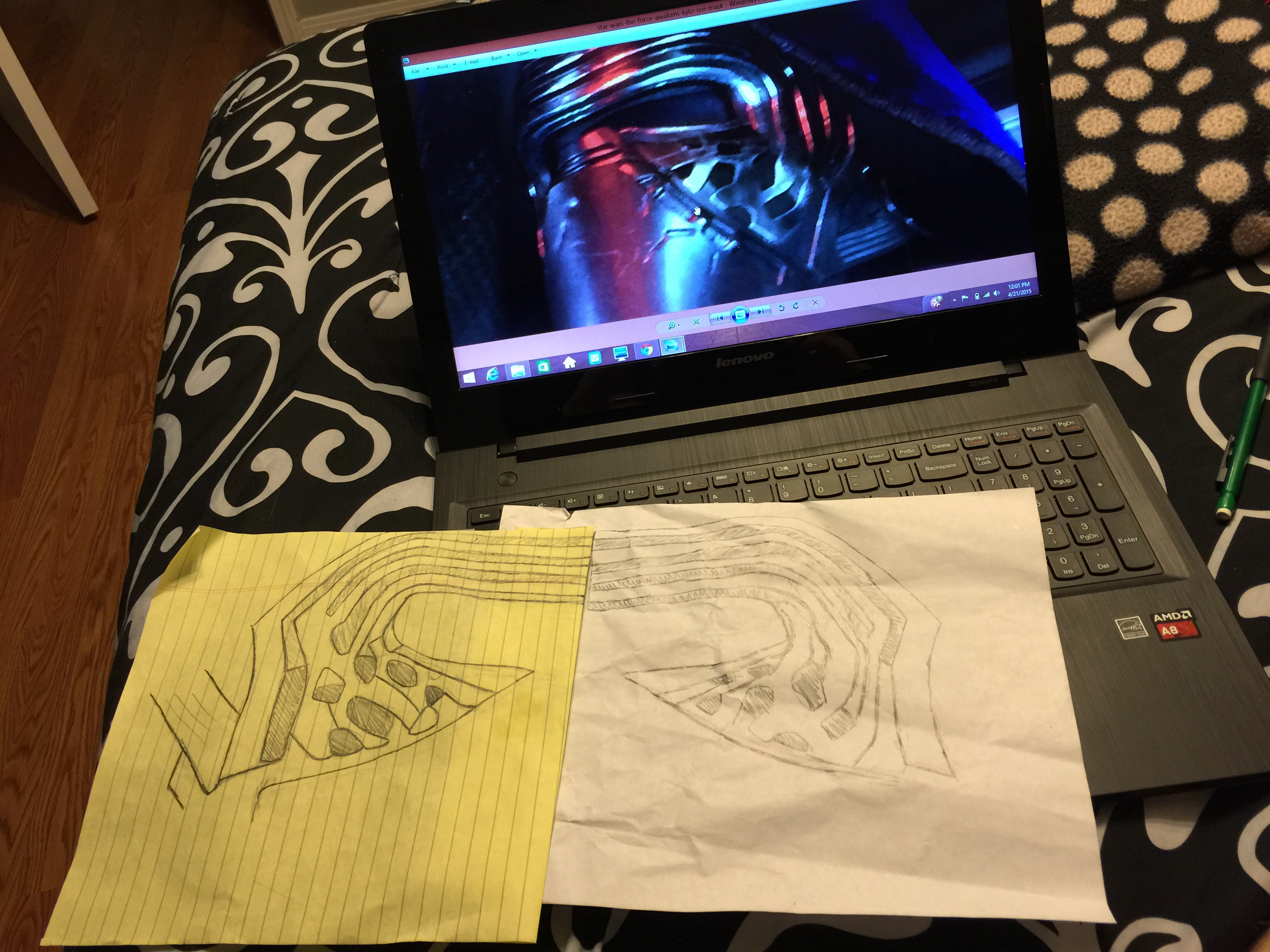

    I then traced the face shapes off of an image of the right cheek onto foam. Here's how it came out!

  4. Gunslingerzero

    Gunslingerzero New Member

    Trophy Points:
    17
    Looks fantastic so far. I don't suppose you made a template of the face pieces that you would mind sharing?

  5. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

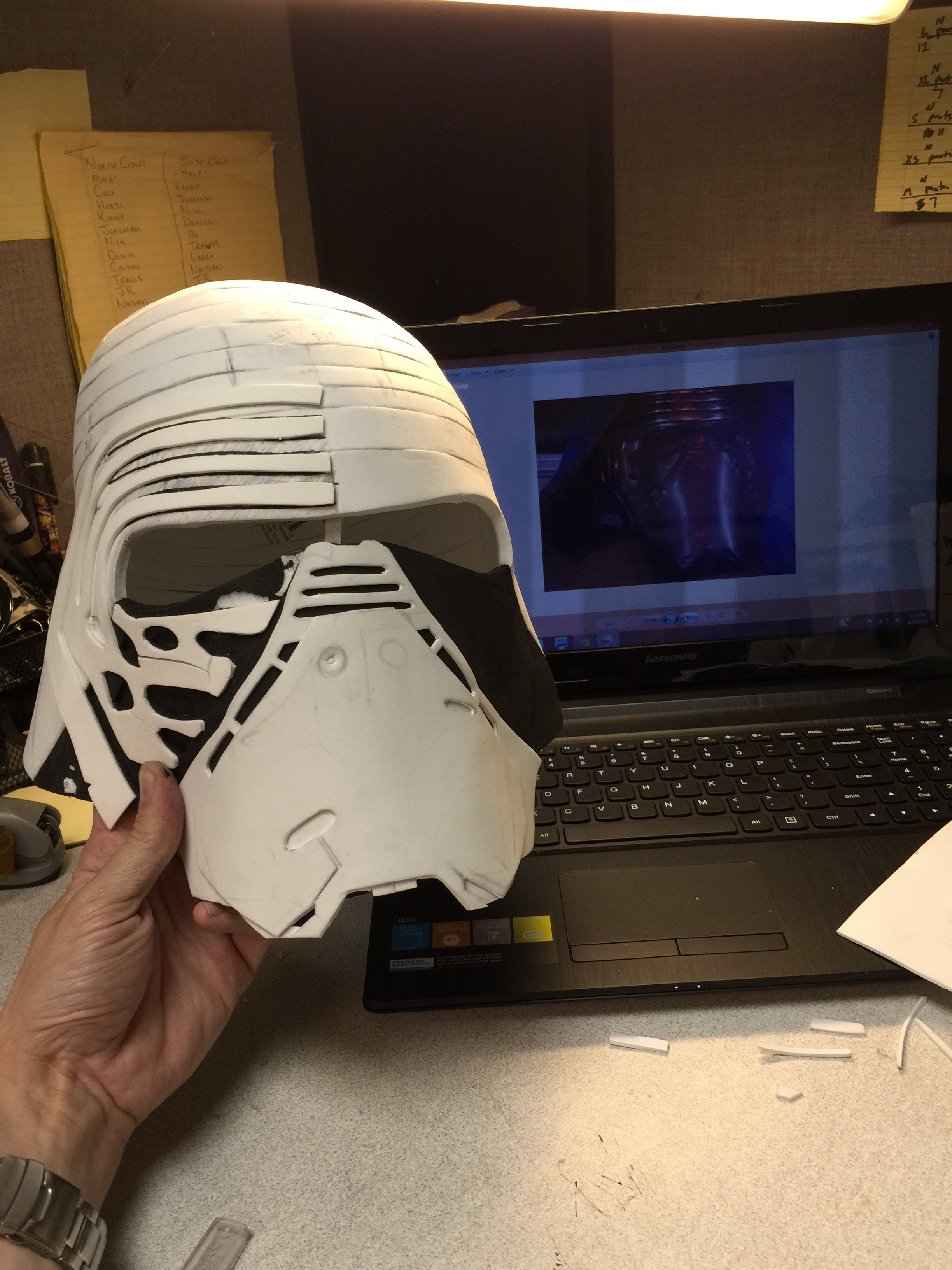

    Thank you!! I don't mind sharing. I can take a picture of them a little later. Here's what it looks like now.


    I got the two face layers done. I just have the left side of the face and the dome panels left. Then I can plasti dip it! I found a gun metal metallic plastidip style paint that works amazing!

    Bogleo likes this.
  6. Gunslingerzero

    Gunslingerzero New Member

    Trophy Points:
    17
    Really awesome. Especially for such a quick build.

  7. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

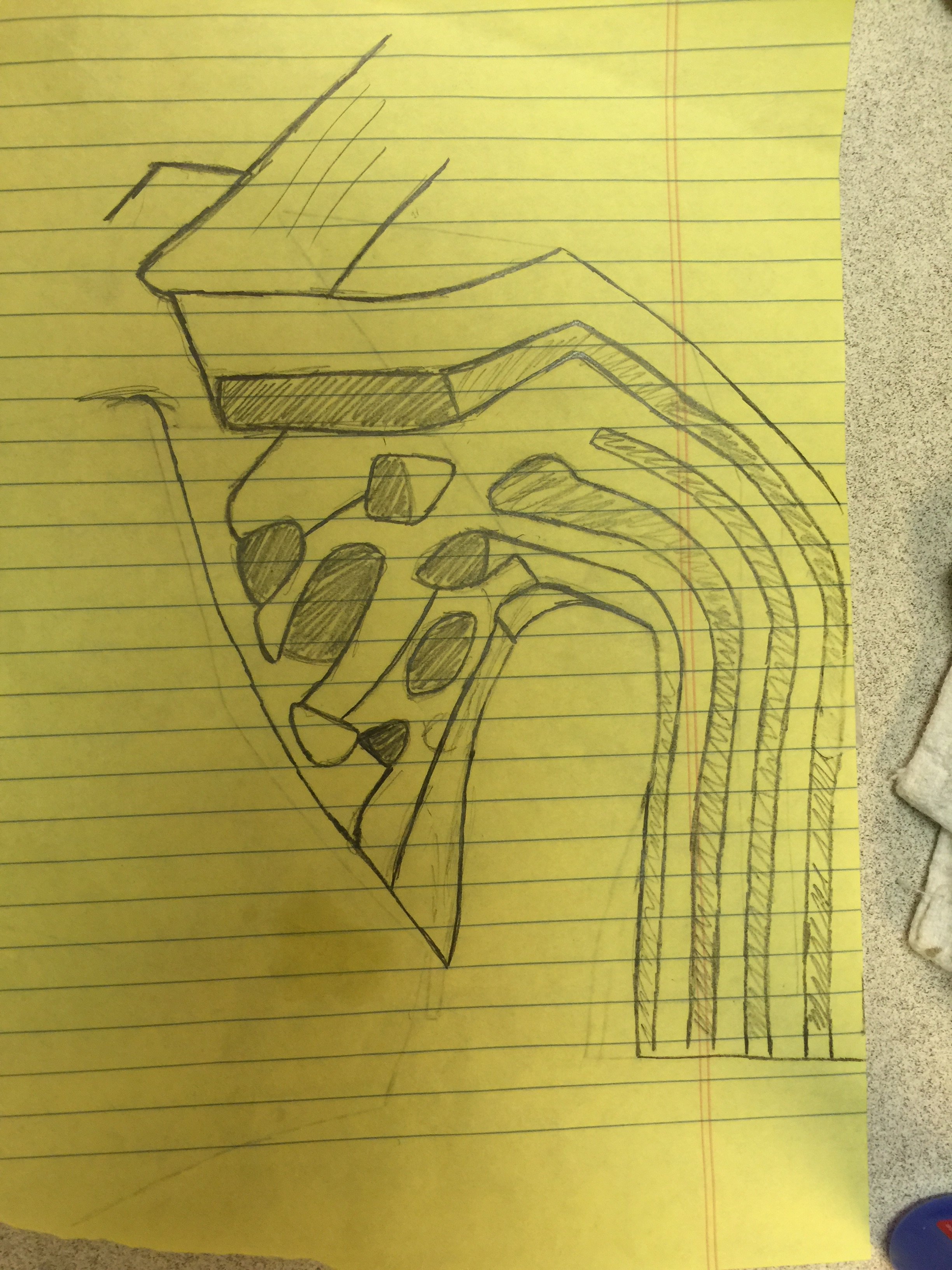

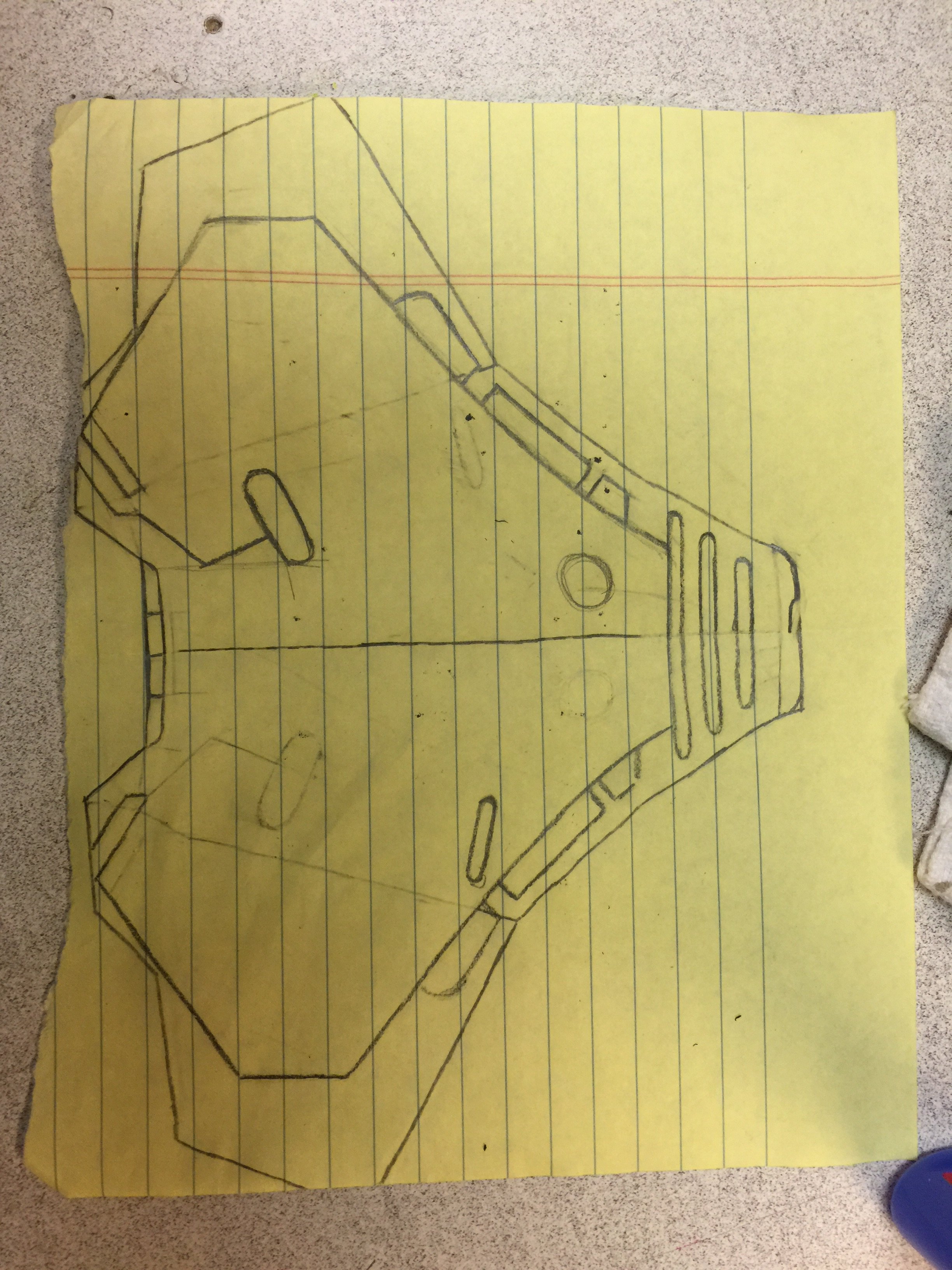

    image.jpg image.jpg

    Let me know if that works for ya

    Art Andrews likes this.
  8. Gunslingerzero

    Gunslingerzero New Member

    Trophy Points:
    17
  9. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    no problem! I'll post the left side when I get it finished!

  10. imonafalcon

    imonafalcon Member

    Trophy Points:
    191
    That looks amazing!

    VegasSkywalker likes this.
  11. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Thank you!!

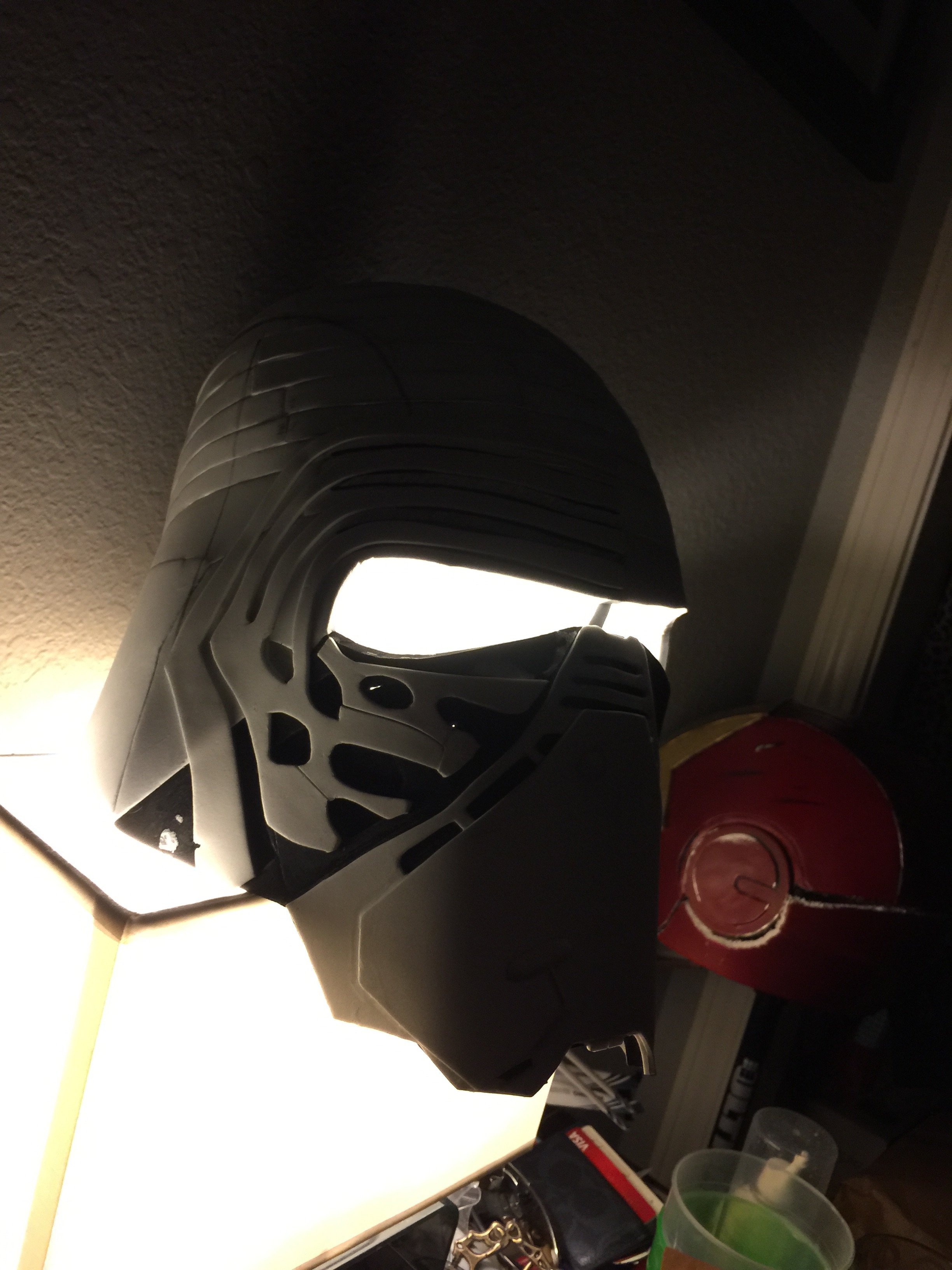

    So I got off later than I expected but the helmet makes a great lamp shade!

    harmfulAdam and ARKM like this.
  12. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

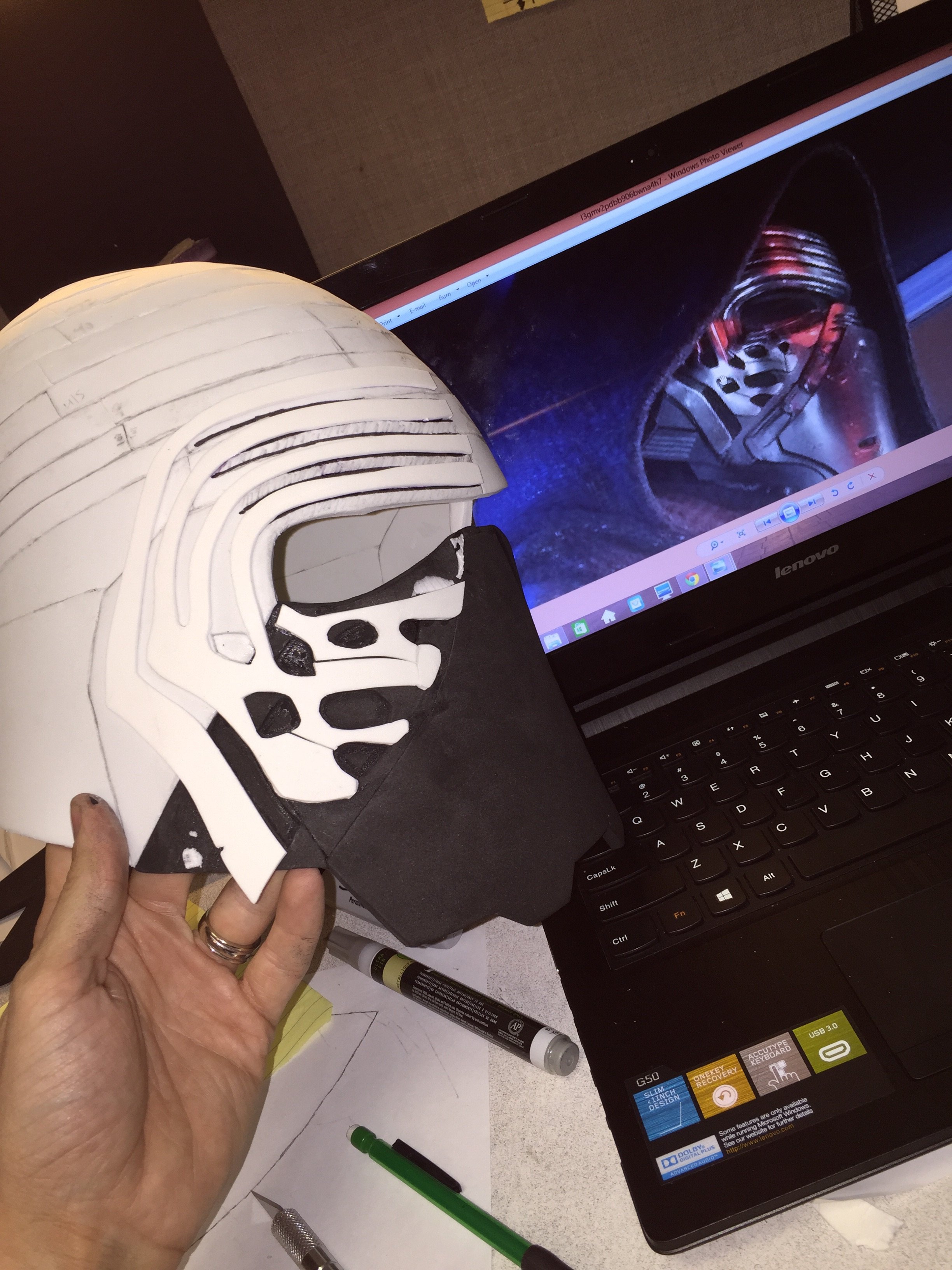

    Working on the right side of the face!


  13. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

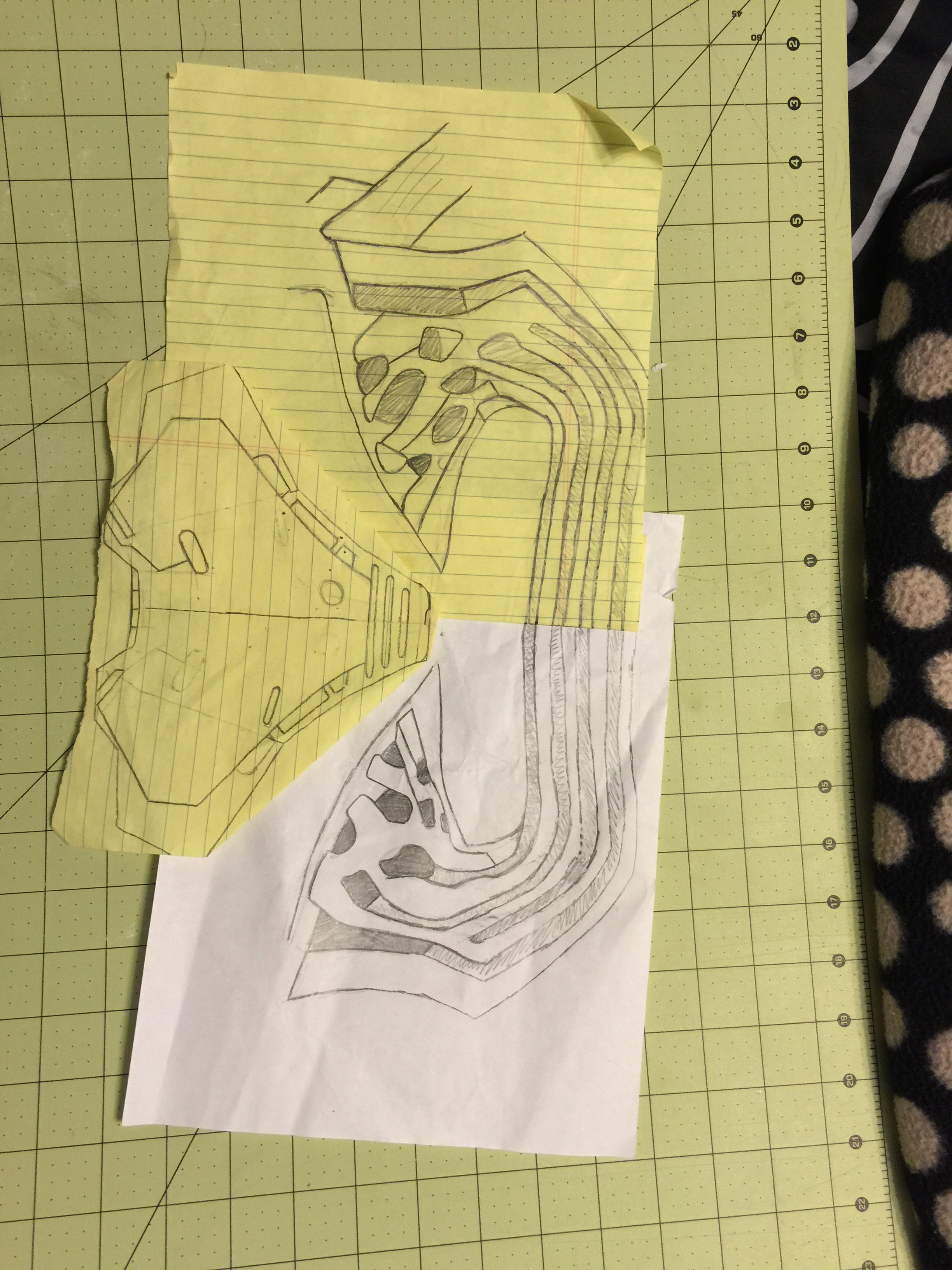

    Face pattern image.jpg

    - - - Updated - - -

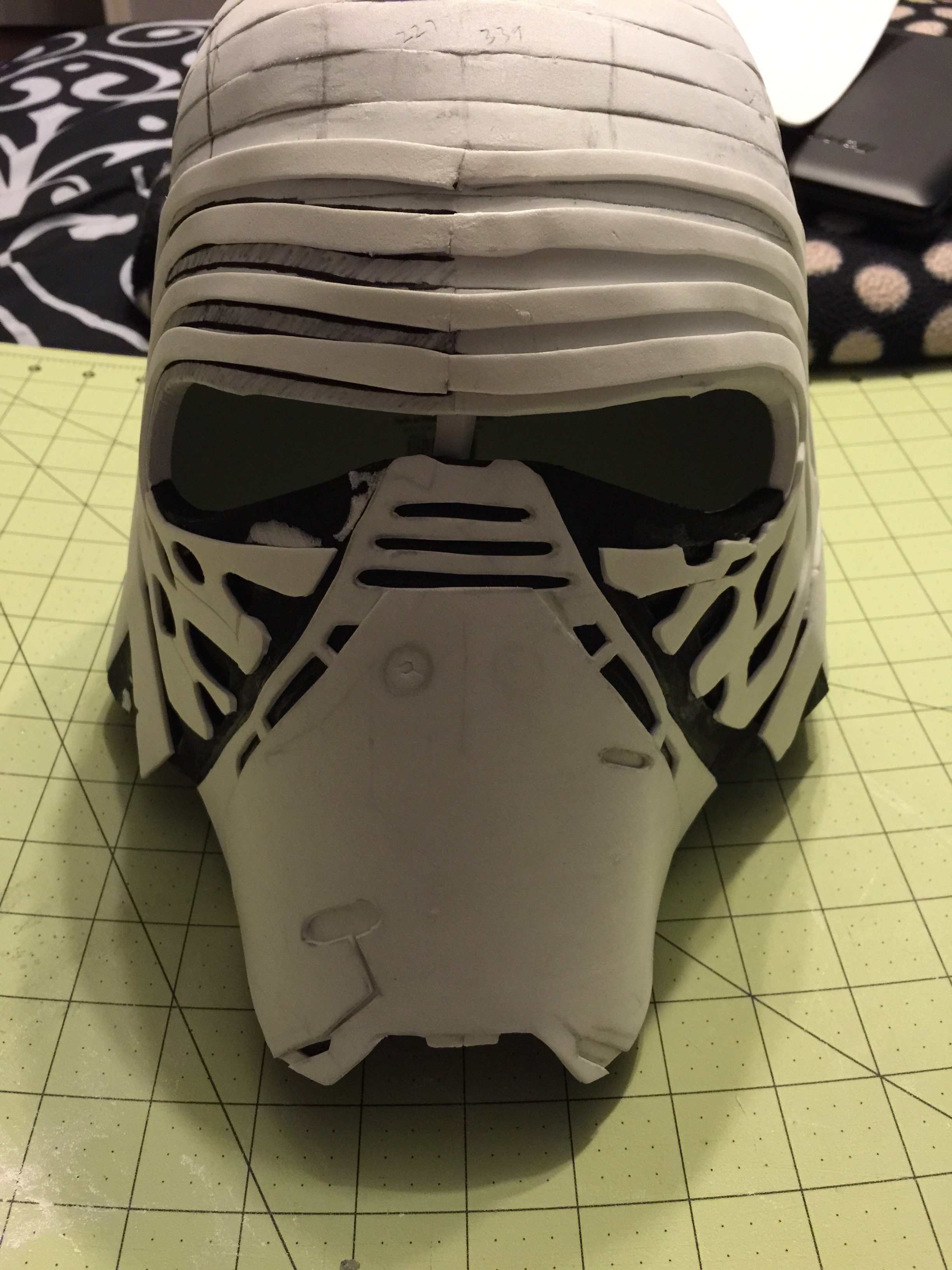

    Here's the helmet as of right now.


    I I just need to make the jaw pattern and then the dome panels. Then it's ready or paint!

  14. Wardog2a

    Wardog2a New Member

    Trophy Points:
    3
    Oh man that is looking incredible. great work.

  15. astralrayn

    astralrayn Member

    Trophy Points:
    162
    I love how this is coming along! One thing I just noticed last night, thanks to this picture, is that beneath the "chrome" pieces on his cheeks there is actually fabric. Presumably for ventilation. You may want to consider making this addition to your mask, not so much for accuracy but just for sheer comfort! I found the perfect fabric at JoAnns, it's "Wuji Black Gabardine" according to the receipt.

    Thank you SO MUCH for sharing your templates, these are going to be super helpful when I begin my build. Keep up the amazing work!

  16. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Thanks! No problem. I thought I saw fabric as well but I figured it was justy wishful thinking! lol I have the areas for the fabric on my mask already. maybe once its painted I can cut them out and install some. Im kind of wondering if its the same fabric that is on the eyes.

    - - - Updated - - -

    thanks!! :)

  17. Chicagovader

    Chicagovader Sr Member

    Trophy Points:
    1,010
    Are you constructing your mask out of foam or some kind of thermoform plastic? Either way it looks great :)

  18. astralrayn

    astralrayn Member

    Trophy Points:
    162
    The theory I saw was that the "fabric" seen behind the eyes was just the mannequin head, the knit seemed to be going in a totally different direction and it was different fabric. I'm assuming that the eyes are a tinted visor much like a mandalorian, vader, or stormtrooper. But then that begs the question why wasn't it on the costume when it was on display..? But luckily that's a detail that can wait until later, maybe more information will come out!

  19. joshvanrad

    joshvanrad Sr Member

    Trophy Points:
    1,991
    There has to be a visor of some sort. Without a visor you can see the foam padding for the forehead in some of the shots that have been taken at SWCA.

  20. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Its Eva foam like they use for Iron Man builds and such. Just the 99c craft foam from Michaels. And thank you!!

    - - - Updated - - -

    I couldn't tell if that was a mannequin head or not. I'm hoping it's a visor as well. I guess we will find out sooner or later.

  21. Voss626

    Voss626 New Member

    Trophy Points:
    2
    Which Pep file did you use as a pattern for the dome?

    It's looking really awesome.

  22. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    I stretch some 3mm foam over the top for one of the panels with a heat gun. Now just the side ones and the jaws!

    Wardog2a and JJ Griffin like this.
  23. Chicagovader

    Chicagovader Sr Member

    Trophy Points:
    1,010
    looks great! do you plan to seal it and mold and cast it or just keep it foam?

  24. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    thank you!! I'll have to find a link. It's was $30 I think.

  25. Idaho Jones

    Idaho Jones Well-Known Member

    Trophy Points:
    747
    Thanks for sharing the templates!

    VegasSkywalker likes this.
  26. thecantinacast

    thecantinacast New Member

    Trophy Points:
    2
    What kind of material are you using for the belt? I'm trying to get ideas to do this myself! Thanks

  27. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    the belt I made with leather I had lying around. And the buckle I made with layers of styrene I had. It closes with Velcro.


    Attached Files:

    JJ Griffin likes this.
  28. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    image.jpg Last picture before paint!

    Voss626 likes this.
  29. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    So i figured i would get a few opinions on this before I decided. Am I the only one seeing the ridges on his forehead as Gold? They look gold in the trailer. The were gold on the concept art. They kinda look gold in the exhibit pics. But they also kind of look silver?

  30. Duncan

    Duncan New Member

    Trophy Points:
    3
    Yeah I believe it's gold also. The colored lighting really isn't helping, though. I'm afraid it might turn into the blue and black and white and gold dress all over again.

  31. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716

    First layer!!

  32. bh1138

    bh1138 Active Member

    Trophy Points:
    361
  33. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    That last picture is awesome! Thank you! Is there any more like that?
    And maybe I'm just seeing brassy undertones?

  34. Duncan

    Duncan New Member

    Trophy Points:
    3
    The areas in the cheeks absolutely look gold in that second shot, bh. It is pretty muted though.

  35. Chicagovader

    Chicagovader Sr Member

    Trophy Points:
    1,010
    yeah the forehead looks silver but the cheeks have a slight gold tint to them.

  36. Duncan

    Duncan New Member

    Trophy Points:
    3
    Looks like forehead silver and cheeks gold?


  37. Gunslingerzero

    Gunslingerzero New Member

    Trophy Points:
    17
    I think it's all silver chrome. Looks fantastic by the way. How did you smooth out the dome?

  38. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    image.jpg Here's what I've got so far. Slowly getting there! Lol

    Bogleo, harmfulAdam and mvanwalks421 like this.
  39. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    thank you!! I used a 3mm sheet of foam to smooth it out. I used a heat gun to stretch and shape it.

  40. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    Here's what I came up with. I did most silver with just hints of the brass color. I used a graphite color paint for the darker under tones. I'm pretty happy with it! :)

    mvanwalks421 likes this.
  41. Gunslingerzero

    Gunslingerzero New Member

    Trophy Points:
    17
    Did you hot glue it to the dome?

  42. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    I use 5 second super glue for all of my foam projects.

  43. harmfulAdam

    harmfulAdam Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    686
    Looks really great. Thanks for sharing those templates you used to make it too!

    VegasSkywalker likes this.
  44. bhodie

    bhodie Active Member

    Trophy Points:
    341
    So awesome! I love it!!!!

    VegasSkywalker likes this.
  45. ehollywood

    ehollywood New Member

    Trophy Points:
    17
    The chromed part is def just silver. Any gold showing up in the art is just reflection.

  46. mikemakesmovies

    mikemakesmovies New Member

    Trophy Points:
    17
    Nice build! And I saved those templates and have been tracing them onto a white document for better printing. If your ok with it I can post those white templates here for everybody

  47. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    that would be fine with me! Thank you!

  48. JerryDCD2

    JerryDCD2 New Member

    Trophy Points:
    2
  49. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    yep! That's the one! I only used the dome it was pretty modified! But not a bad start at all!

  50. mikemakesmovies

    mikemakesmovies New Member

    Trophy Points:
    17
    Alright, I'll post the templates once there all finished so there will be no waiting for the last template. Which will be quite soon
