Here's how the hair pin ended looking if somebody is curious. I really didn't spend much time trying to match it to the pictures, just wanted to see if it can get close I if I find a steel one later.



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

v312

Active Member
v312
What’s the metal thickness/gauge?

I see they also made some miniature ones for “doll - hair”
For the "pilers" - Somewhere in the 0.6x-0.7mm range ... I don't have a good tool to measure it better, sorry. The hair pin/clip is 0.5mm

Last edited:

AstroZopyros

Active Member
RPF PREMIUM MEMBER

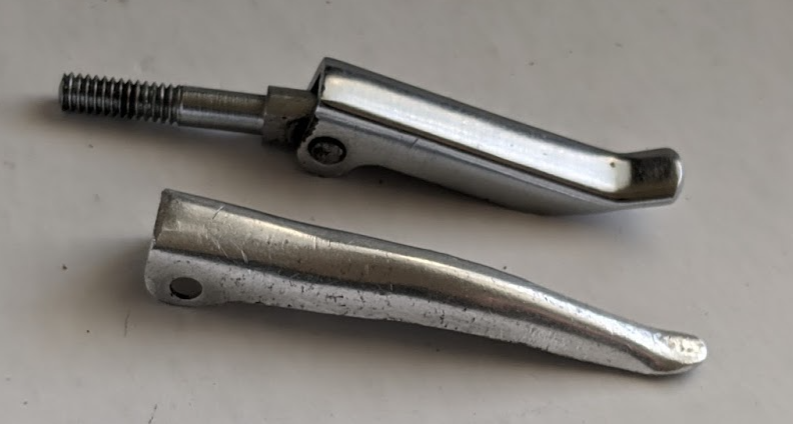

Here's how the hair pin ended looking if somebody is curious. I really didn't spend much time trying to match it to the pictures, just wanted to see if it can get close I if I find a steel one later.

View attachment 1442316
That looks really good man! I mean, this isn't a far out Idea at all. Perhaps the prop department was simply looking for a replacement part that had some sort of pin, and could function the same way?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER
Really, really looks good!!! Sorry I was so late on this. I noticed for some of them the arms curved before the hinge which would be incorrect, and there were different kinds of swoop

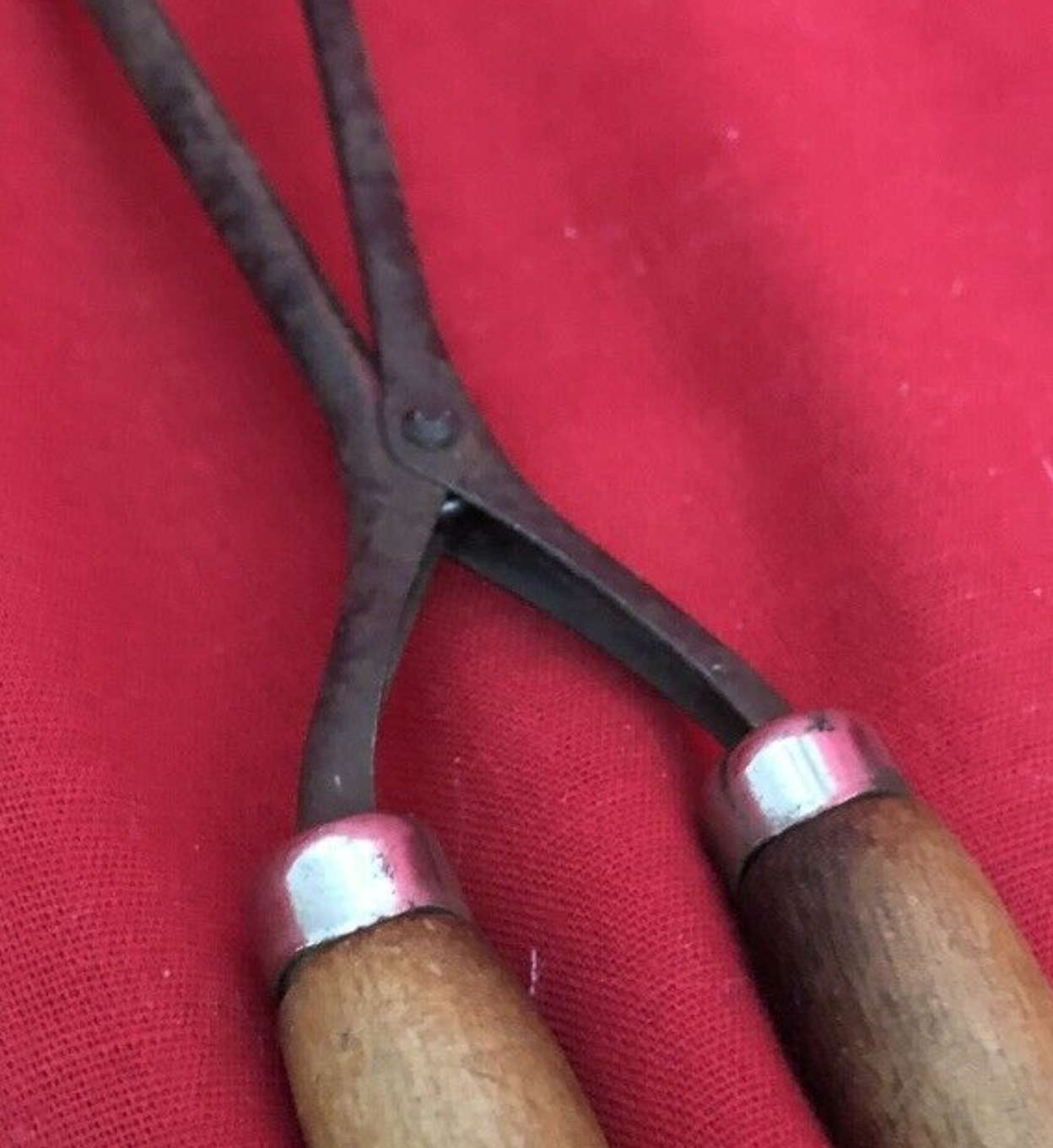

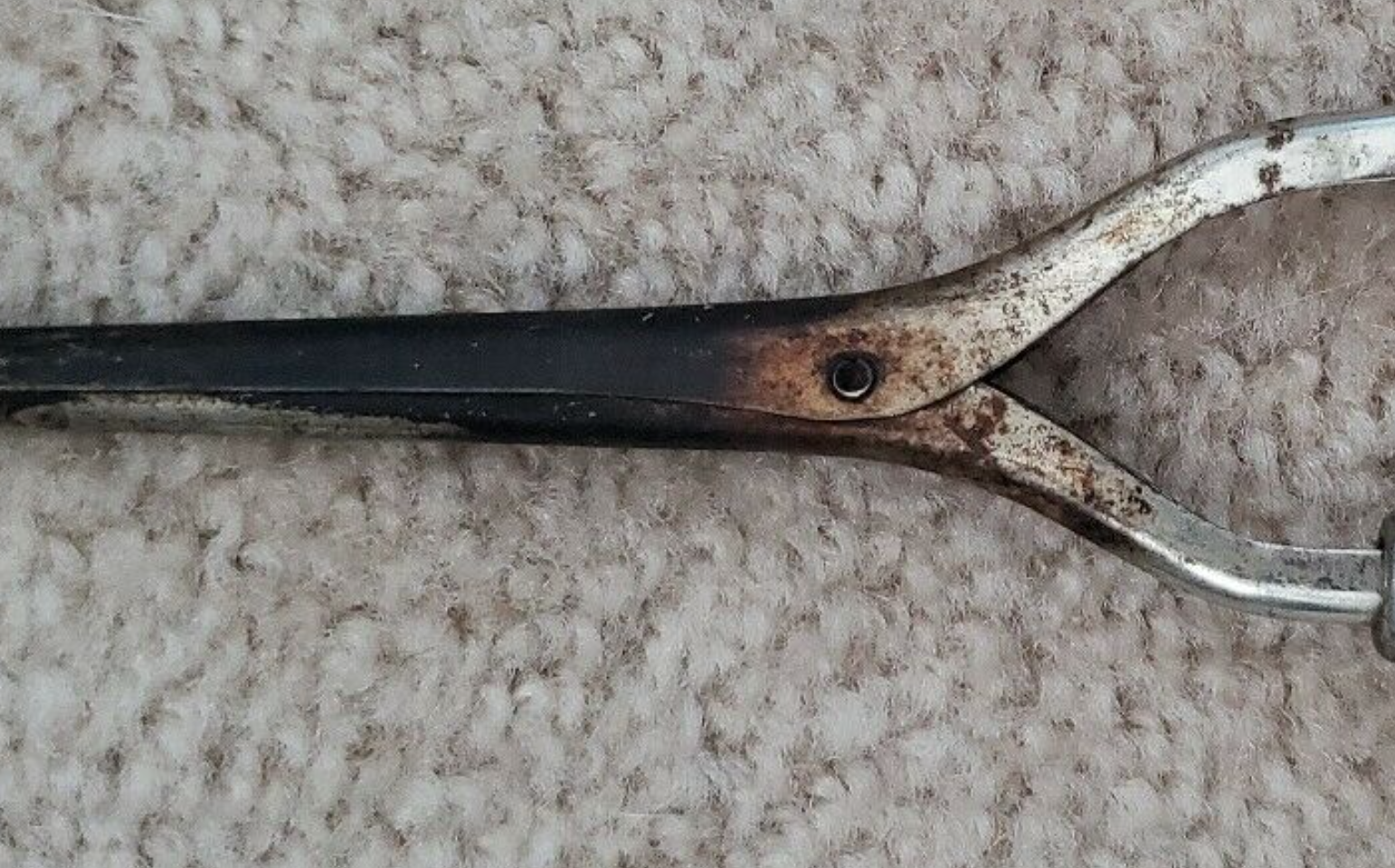

Screen Shot 2021-04-01 at 11.45.51 AM.png Screen Shot 2021-04-01 at 11.46.09 AM.png
Others were even bent

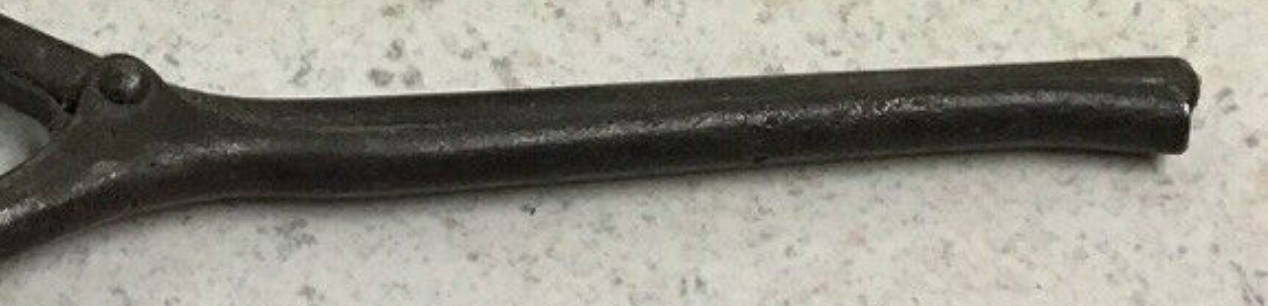

Screen Shot 2021-04-01 at 11.46.41 AM.png

Funny thing is most of them are too large. Doll hair? The mustache or eyelash ones are the right size. V312 that looks so good!!! *EDIT* did you have to hammer the hump into the body of it? phrasing, I know lol


thd9791

Master Member
RPF PREMIUM MEMBER

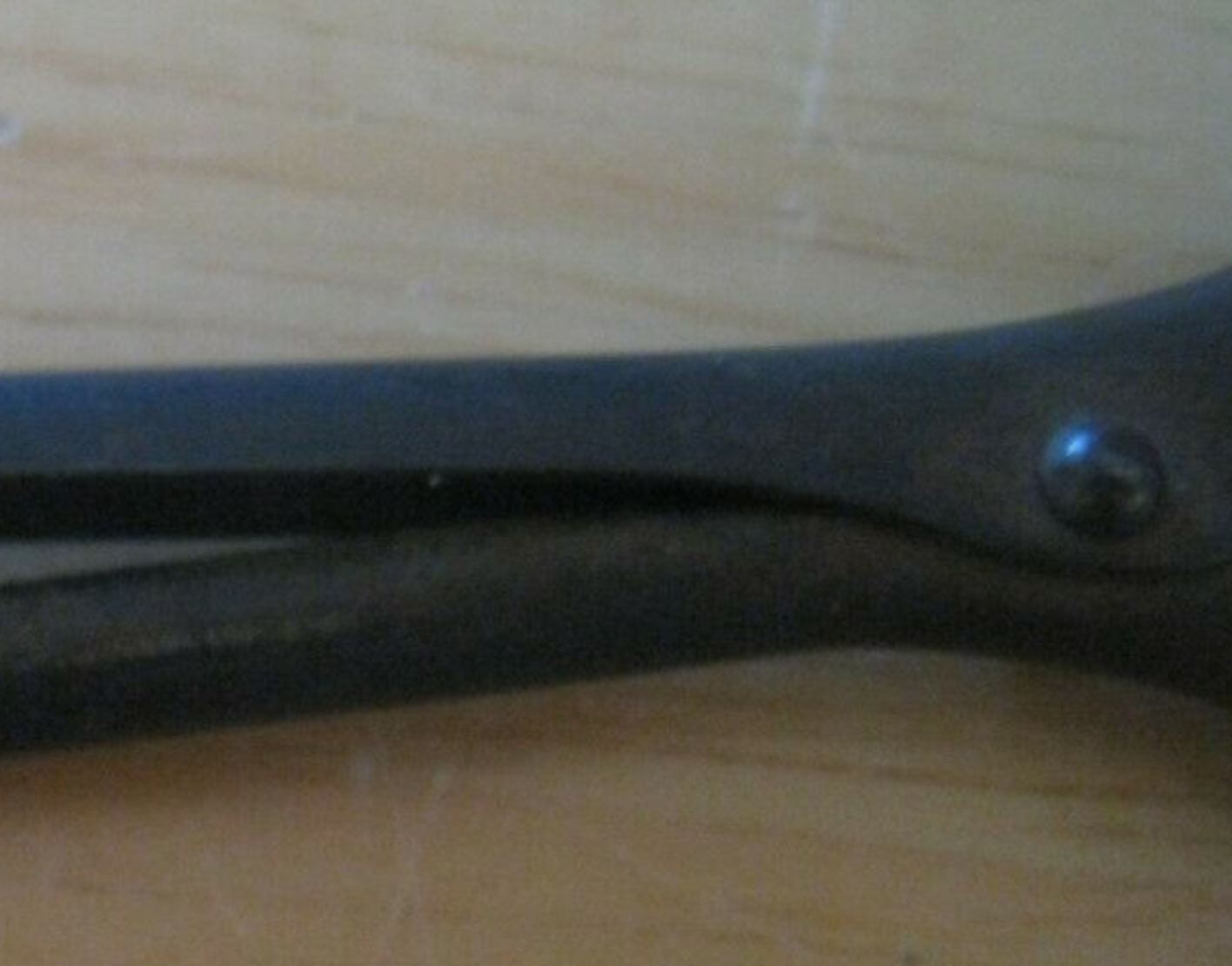

I bought this one - and it's actually tarnished like the Obi Wan ANH color! I bet I can polish it up a bit - i wouldn't be surprised if they did that when they polished up the V2.. now we have to figure out how to get the rivet to stay in there

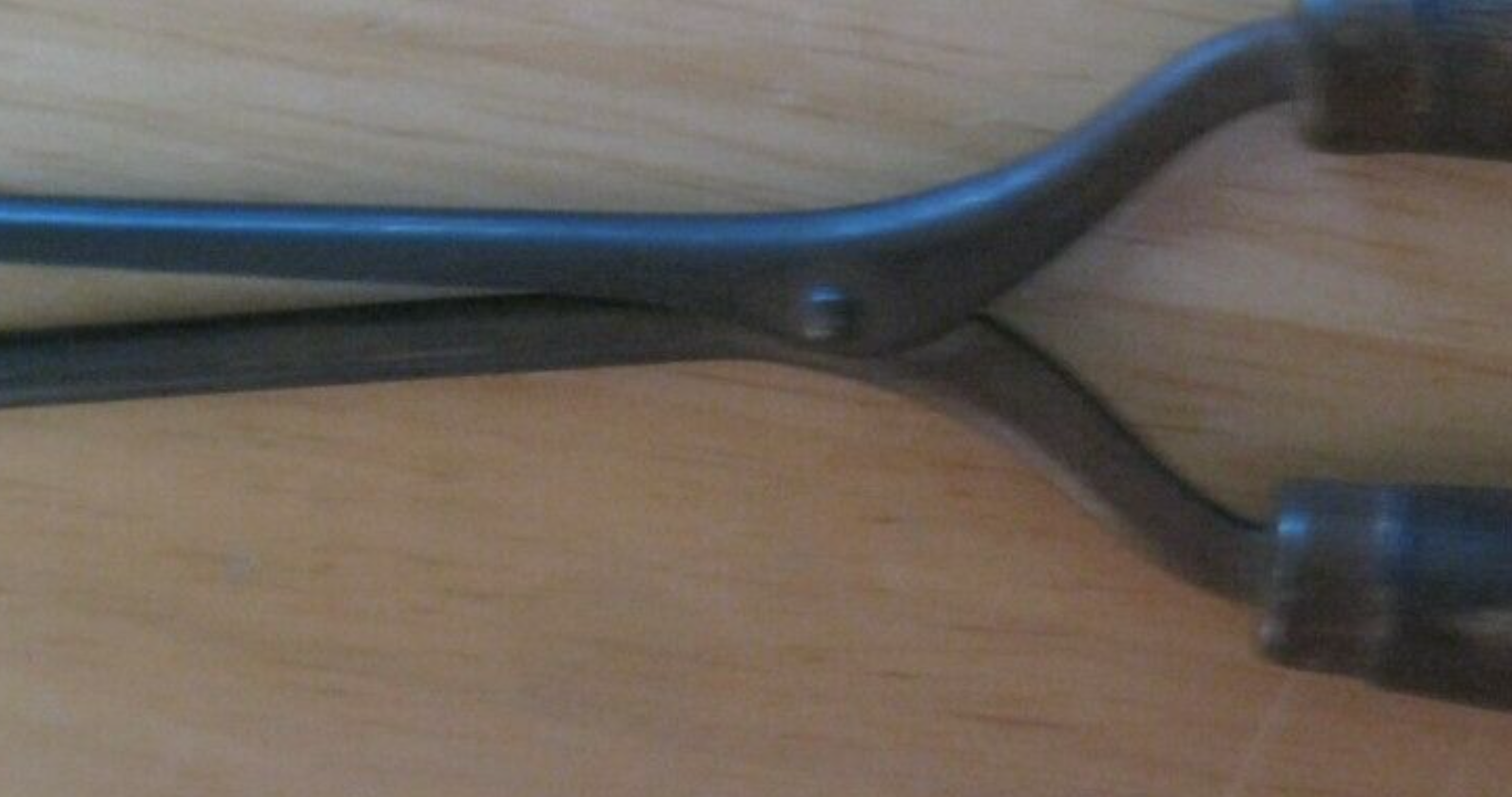

Screen Shot 2021-04-01 at 12.26.48 PM.png Screen Shot 2021-04-01 at 12.26.59 PM.png


v312

Active Member
That looks really good man! I mean, this isn't a far out Idea at all. Perhaps the prop department was simply looking for a replacement part that had some sort of pin, and could function the same way?
It is possible .. these apparently are so ancient that must have been around even when the flash was new - so in theory it could have been the photographer that replaced it. But who replaced it and why for me is still kind of mystery.
Funny thing is most of them are too large. Doll hair? The mustache or eyelash ones are the right size. V312 that looks so good!!! *EDIT* did you have to hammer the hump into the body of it? phrasing, I know lol
I got 2 of them in the lot - the one that I've shown and looks like the right size is about 6 inches long. There are some traces of paint left on the handle so it probably was painted pink once. The other is too big for a lever - about 9 inches long and handles are painted green.

No, I didn't have to hammer it - it is soft enough to bend it with my hands. Then I used small pilers to tweak the overall shape


thd9791

Master Member
RPF PREMIUM MEMBER
So I got my first (ordered 2 kinds) and i have something funny to tell you all

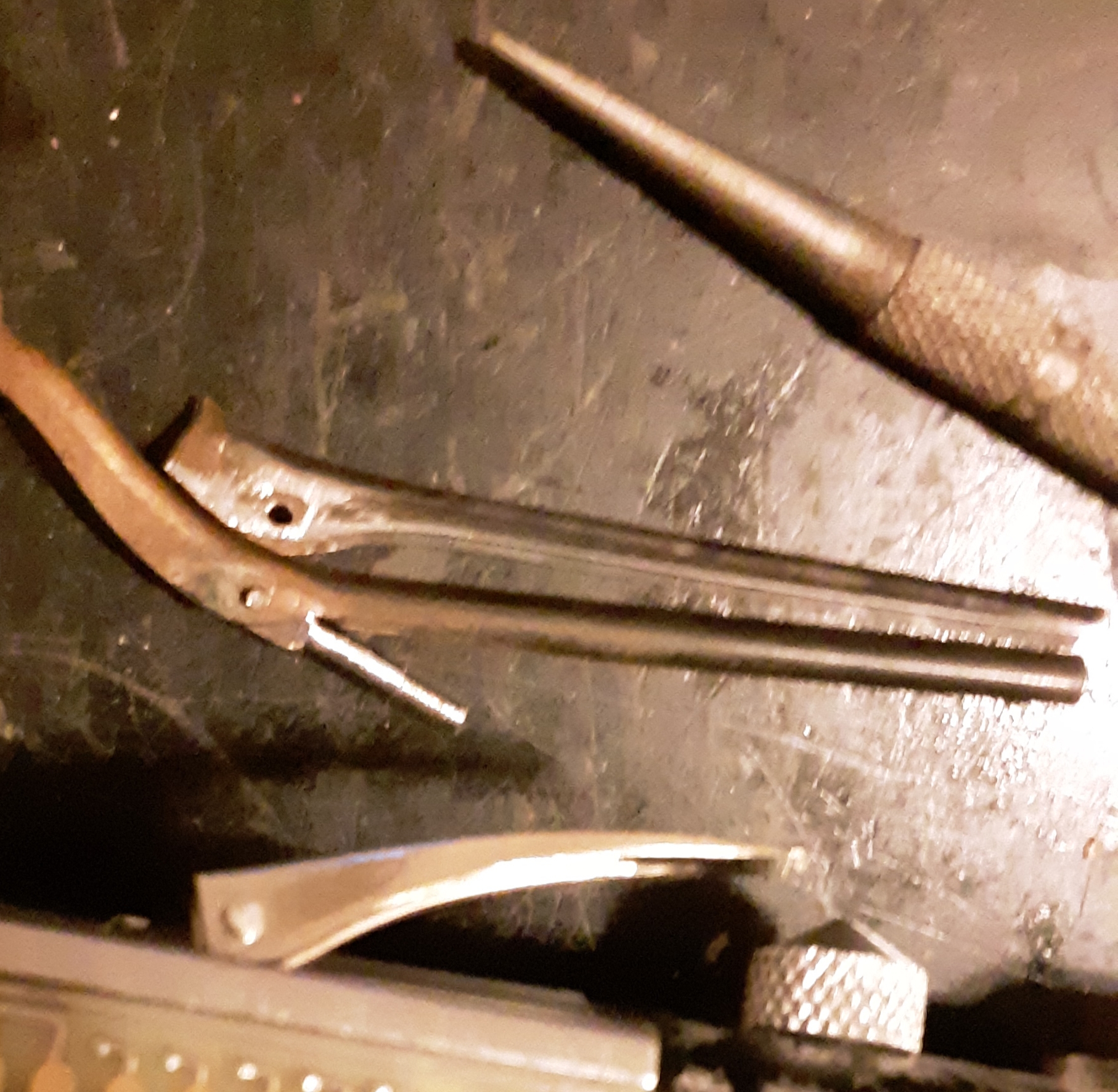

This one.. one arm is the EXACT profile.. but a bit too big
The other arm is the EXACT size for a replica graflex screw.. but the profile is a little smaller.

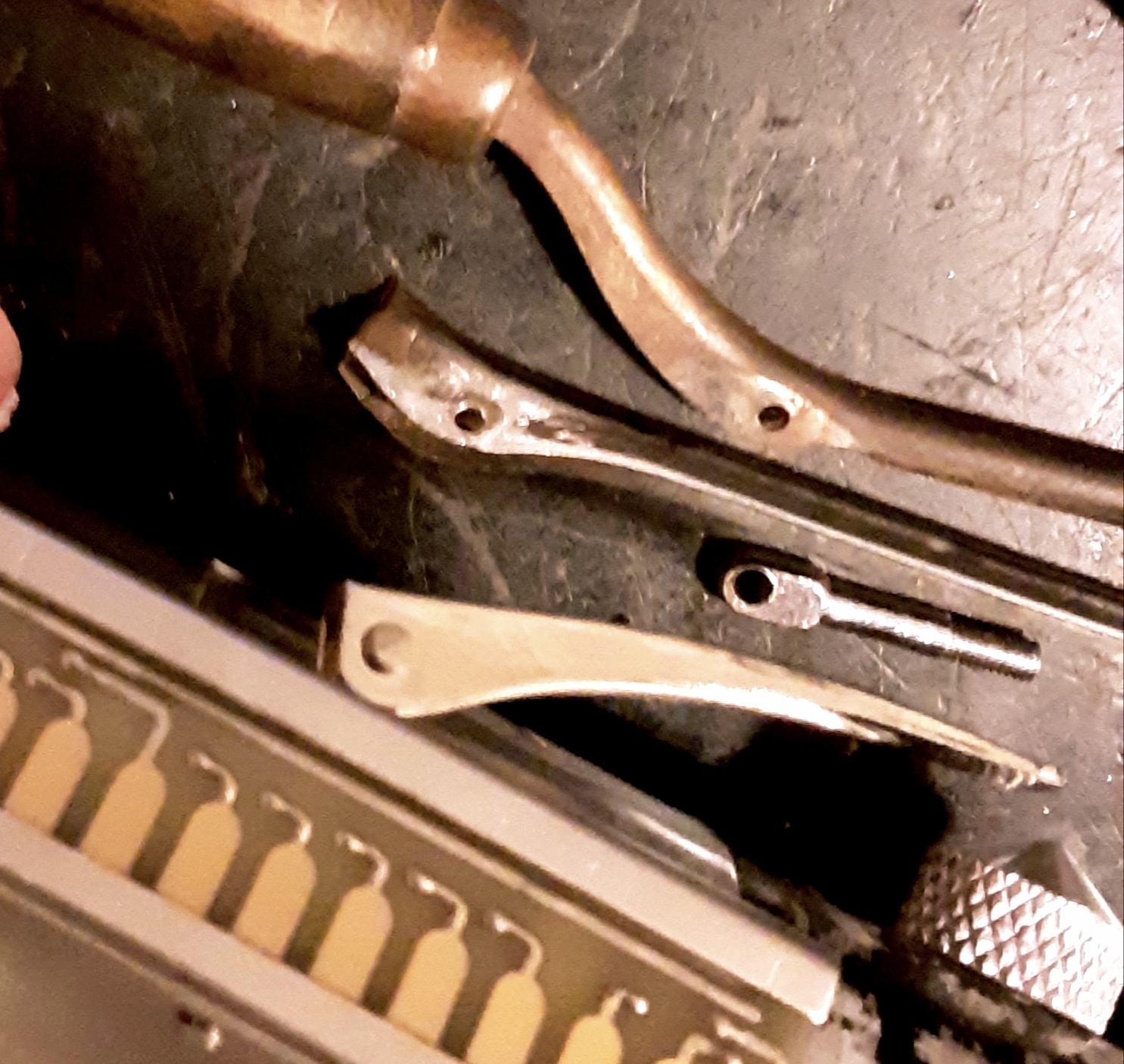

20210405_212248.jpg 20210405_212140.jpg

This is all pre-cut, so youd have to imagine the swoop - i only did this with pliers, snips and other hand tools


Attachments

  • 20210405_211921.jpg
    1.1 MB · Views: 86

thd9791

Master Member
RPF PREMIUM MEMBER
I have a VERY good feeling about this. maybe it's a HUGE coincidence, maybe not.

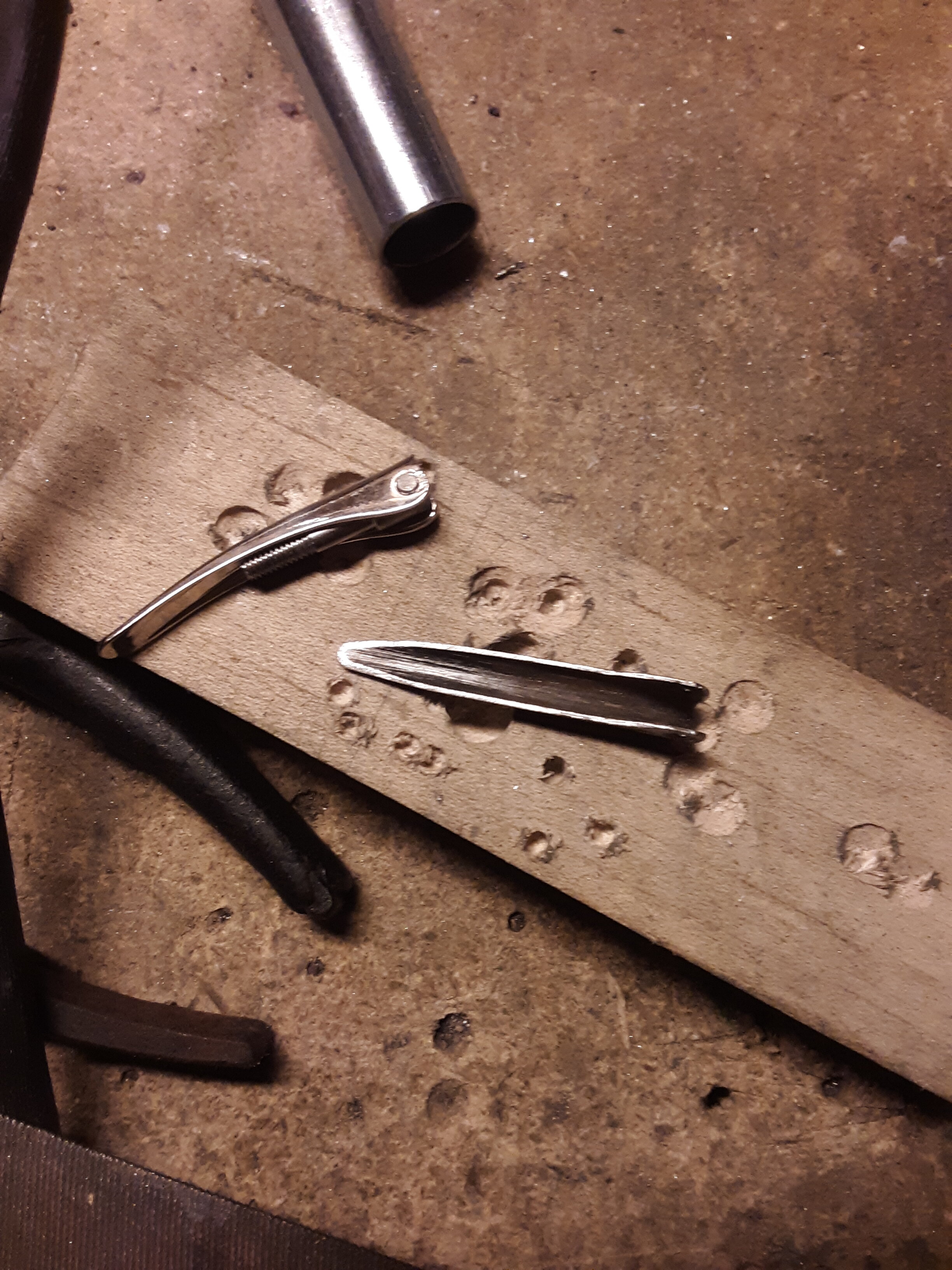

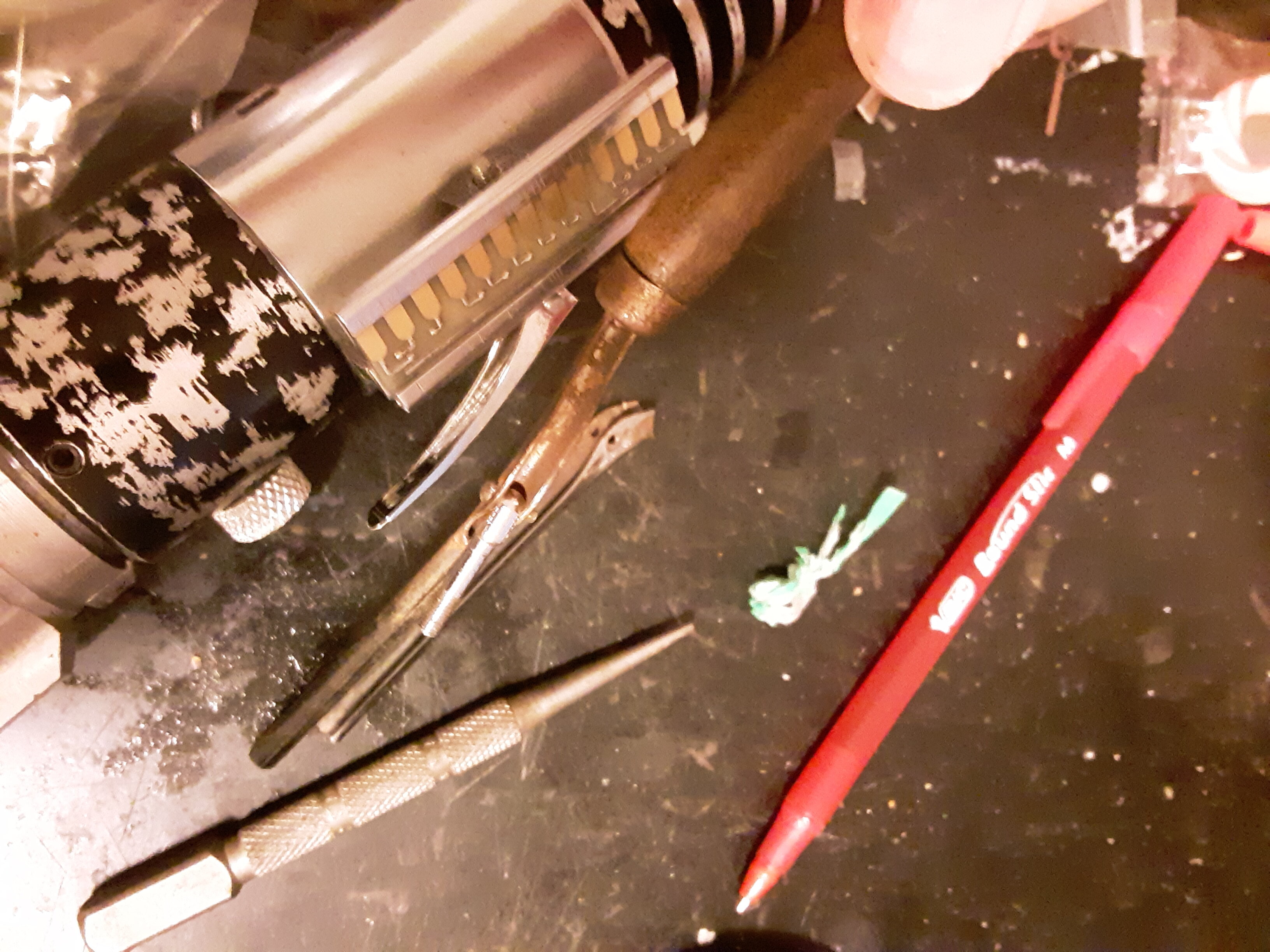

Anyway, I chopped it to length with a dremel. It shot sparks everywhere! The metal turned into tiny shards and cut the crap out of my hands. It feels like I touched a cactus

Anyway, I used a sanding drum to continue the curve, and thin the lever to the right profile. It took lots of reverse-thinking to imagine what it looked like before. I noticed the tip of the lever was so thin that the walls of the lever were milled so low that it was really just the top of the lever with no walls. it also was rounded or softened a little.

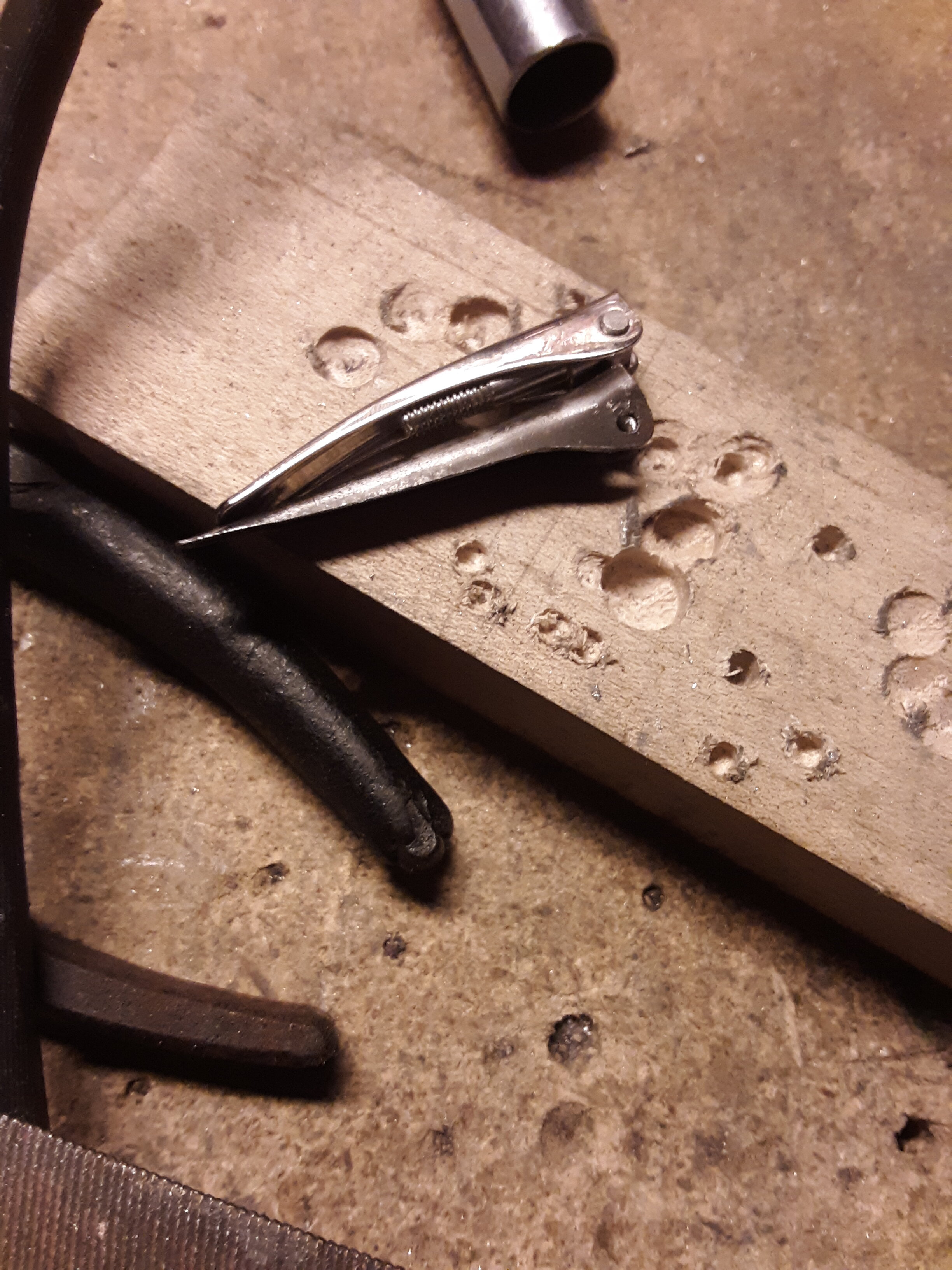

So I got stuck... what to do? how does everyone create that upward bend? pull it back and forth at different points? Well.. it finally hit me that if you line up the joints... this lever really sticks up. One bend with pliers at the right point did it.



The walls spread out afterwards, so I used a vice to fold them back in, and it went a bit too far.. giving me that EXACT folded look of the real lever! The top of the hinge pokes up too.. exactly like the real one.

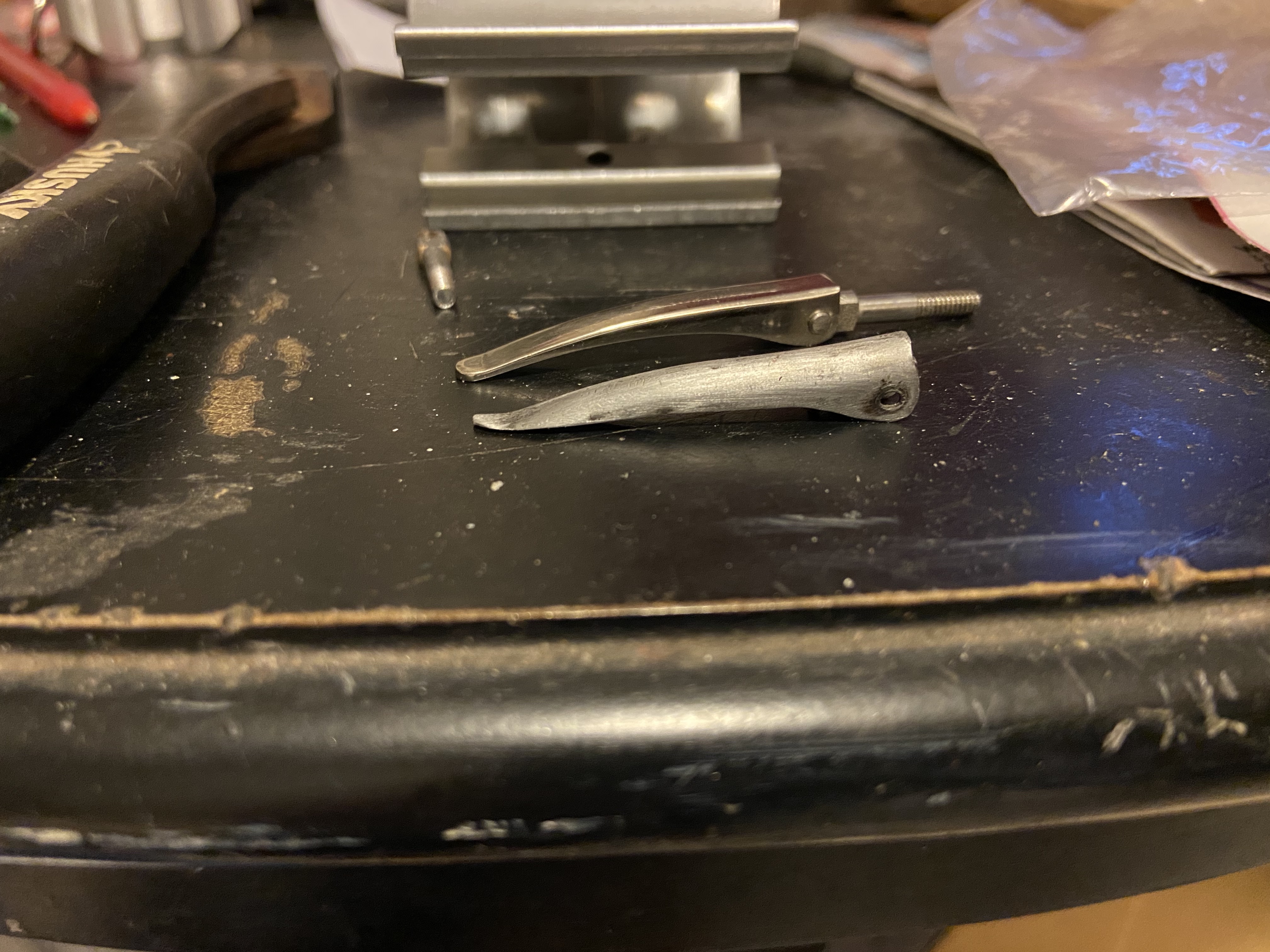

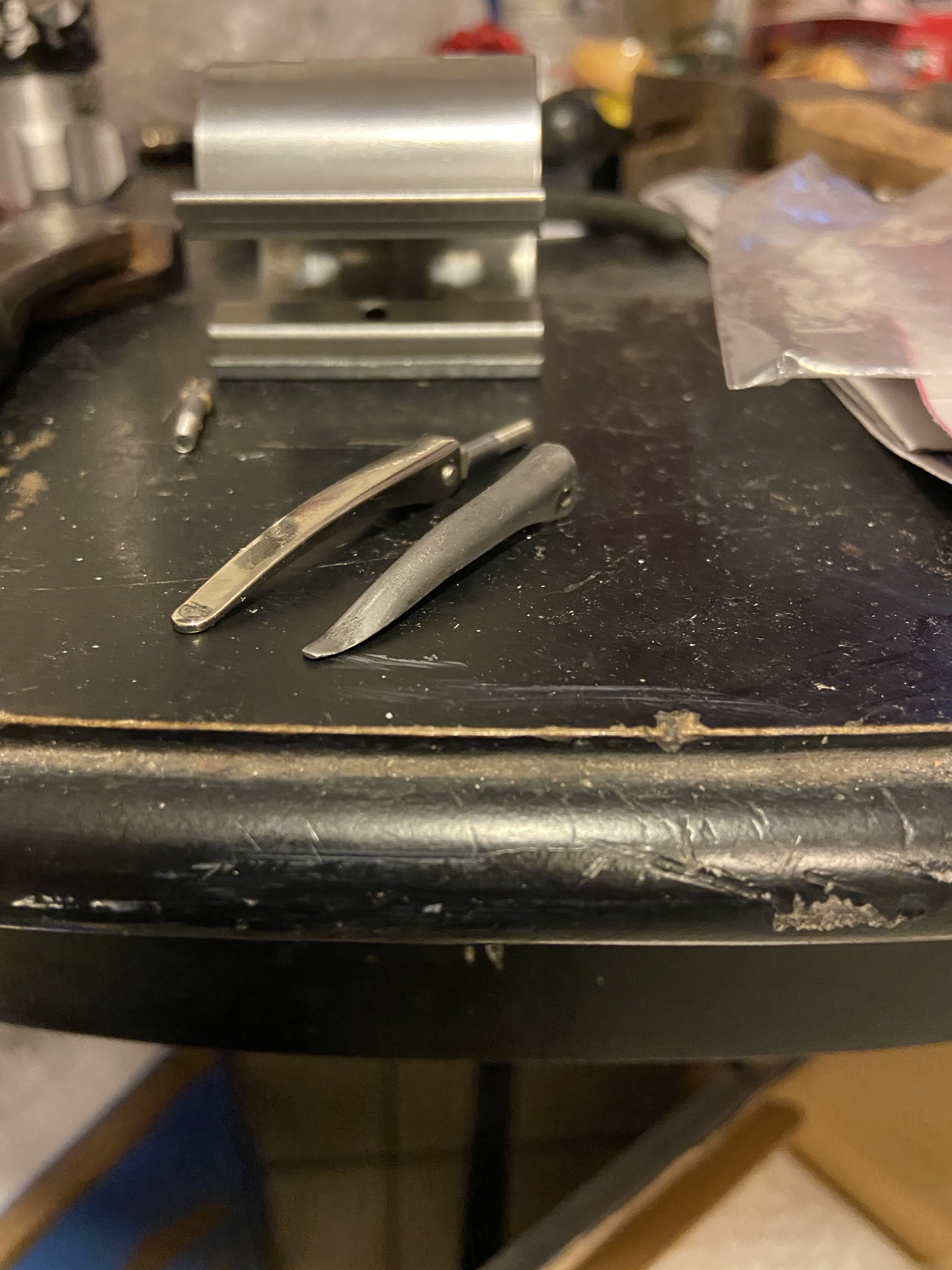

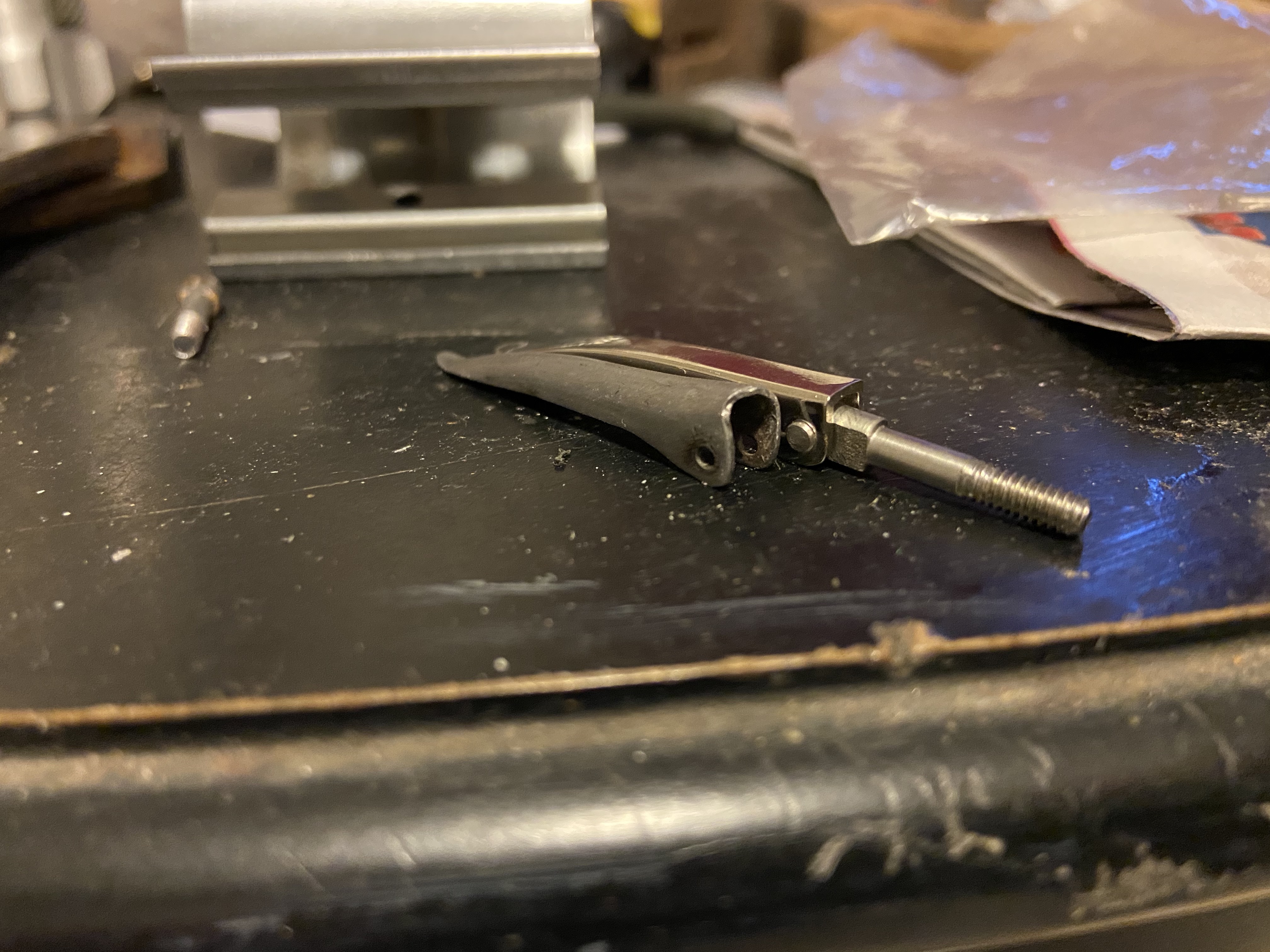

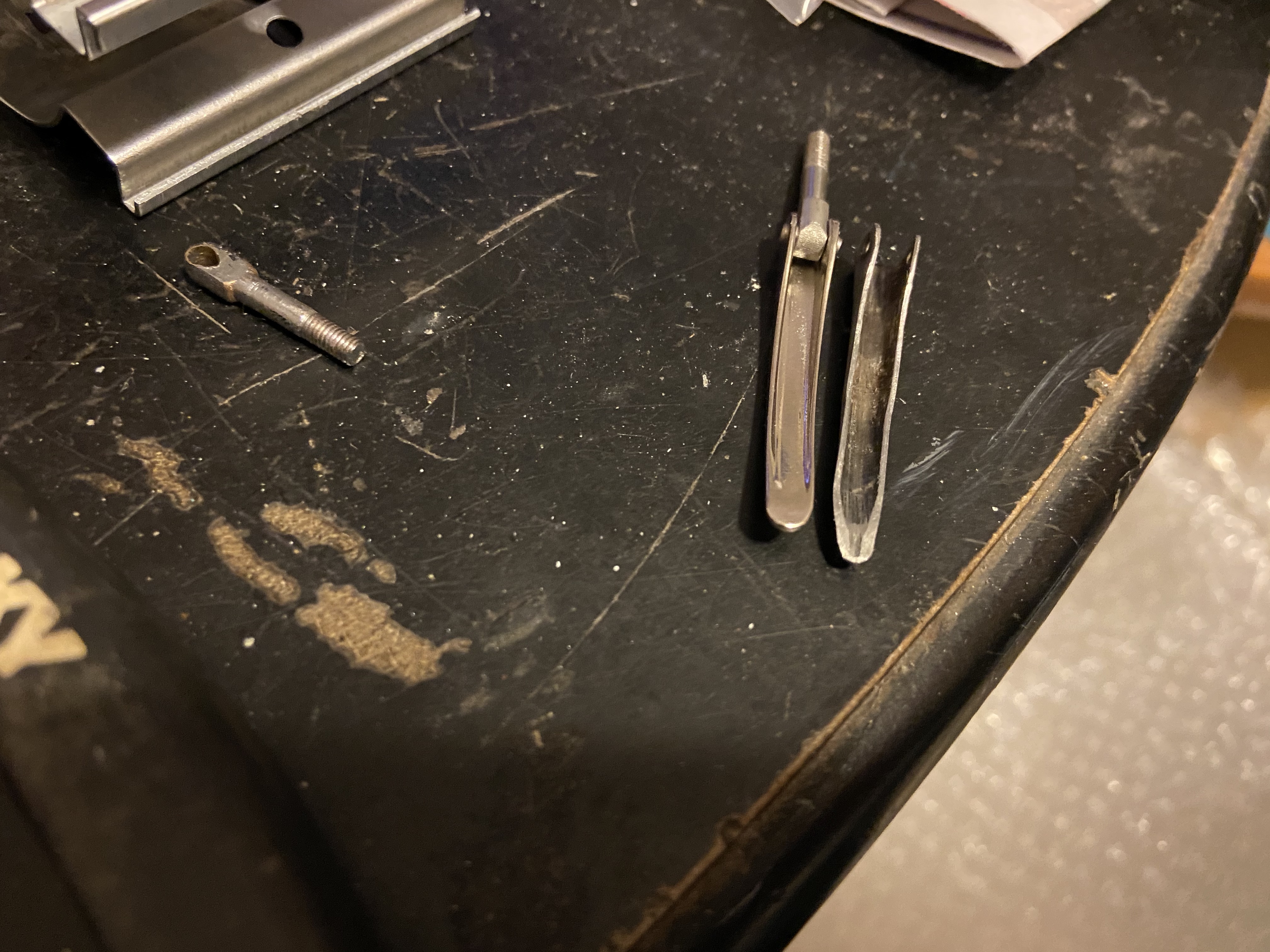

AKV%fcTqQ1uH0H1iqEnd6Q.jpg y+6Kqj39ROC0ff1KGYJC2g.jpg nb3gNl9CSe6Cg5mj5o3eWw.jpg
Problem is, we're about 1-2 mm too large around the joint. I think it looks great, just not sure how to create the stem, finishing nails look really good, but the Graflex screw is very loose



Attachments

  • 20210406_193045.jpeg
    1.4 MB · Views: 39

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

thd9791

Master Member
RPF PREMIUM MEMBER

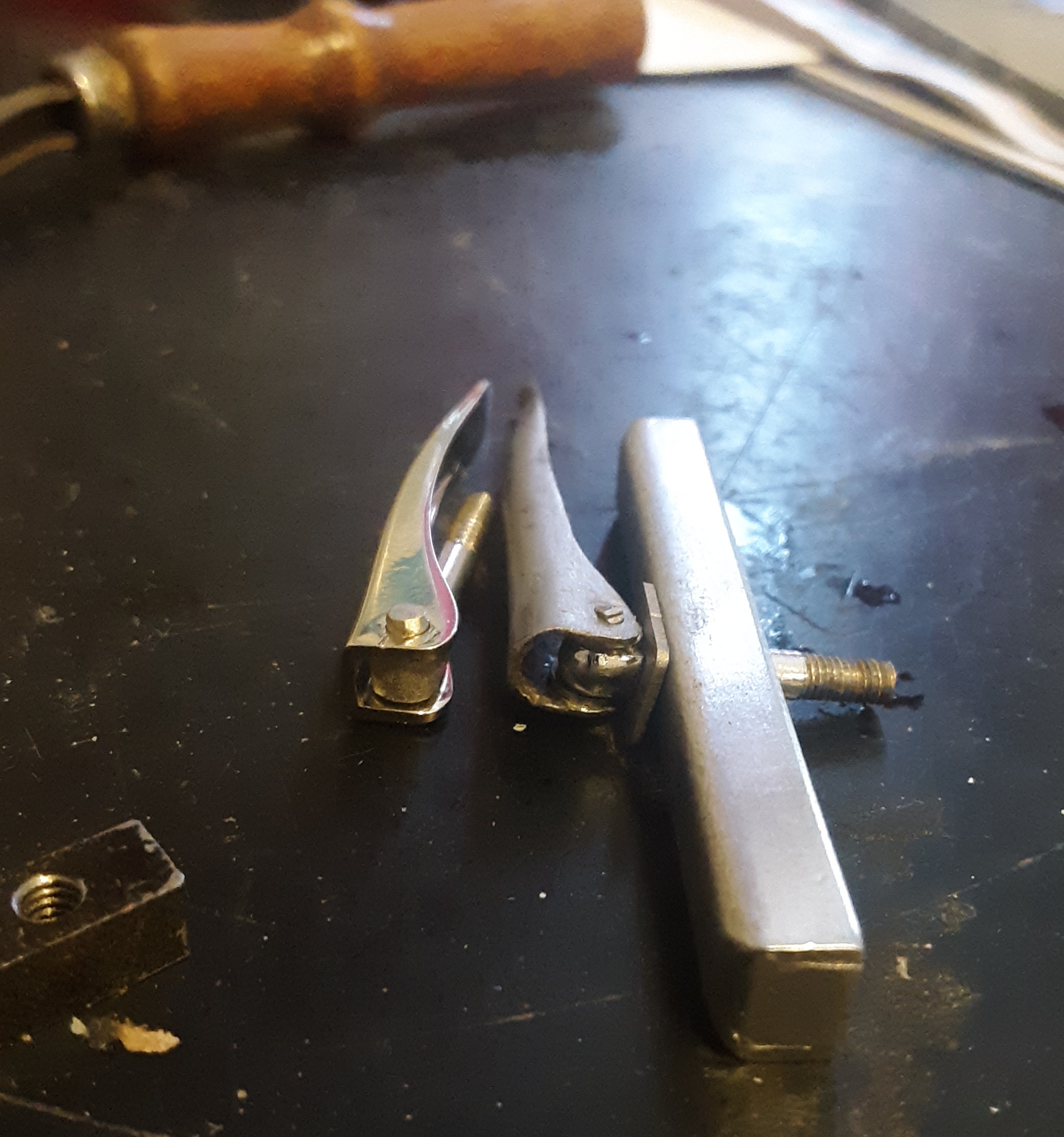

Without accurizing the profile of my first lever (could have more of a swoop) i stuck some washers around the replica graflex post and stuck the rivet from a slightly larger curling iron in there and look what we have! I dont think this works though

1) the hinge is too low. Is there enough material to drill a new hole? It doesnt seem like it

2) the graflex post hole is very close to the edge, meaning it doesnt fill the inside of the lever. Roys lever looks to have a bigger post - maybe whoever did this didnt use the original Graflex lever?



v312

Active Member
Without accurizing the profile of my first lever (could have more of a swoop) i stuck some washers around the replica graflex post and stuck the rivet from a slightly larger curling iron in there and look what we have! I dont think this works though

1) the hinge is too low. Is there enough material to drill a new hole? It doesnt seem like it

2) the graflex post hole is very close to the edge, meaning it doesnt fill the inside of the lever. Roys lever looks to have a bigger post - maybe whoever did this didnt use the original Graflex lever?

View attachment 1446365 View attachment 1446364 View attachment 1446363
Following your progress with great interest! Not too much time these days for my projects, but I'll continue to work on mine when I get my V2 from PoopaPapaPalps run :)
What replica lever did you use to get the screw part ?
