Kill la Kill - 1/1 scale rending scissors

TheFlorifant

New Member
Hello, all my first post I know. I'm making The rending scissors of the anime Kill la Kill. This is a thread in wich i will describe the process and hopefully add some files, not sure if to sell them yet. Anyway I'm 3dprinting this blade right now, and will post pictures soon


TheFlorifant

New Member

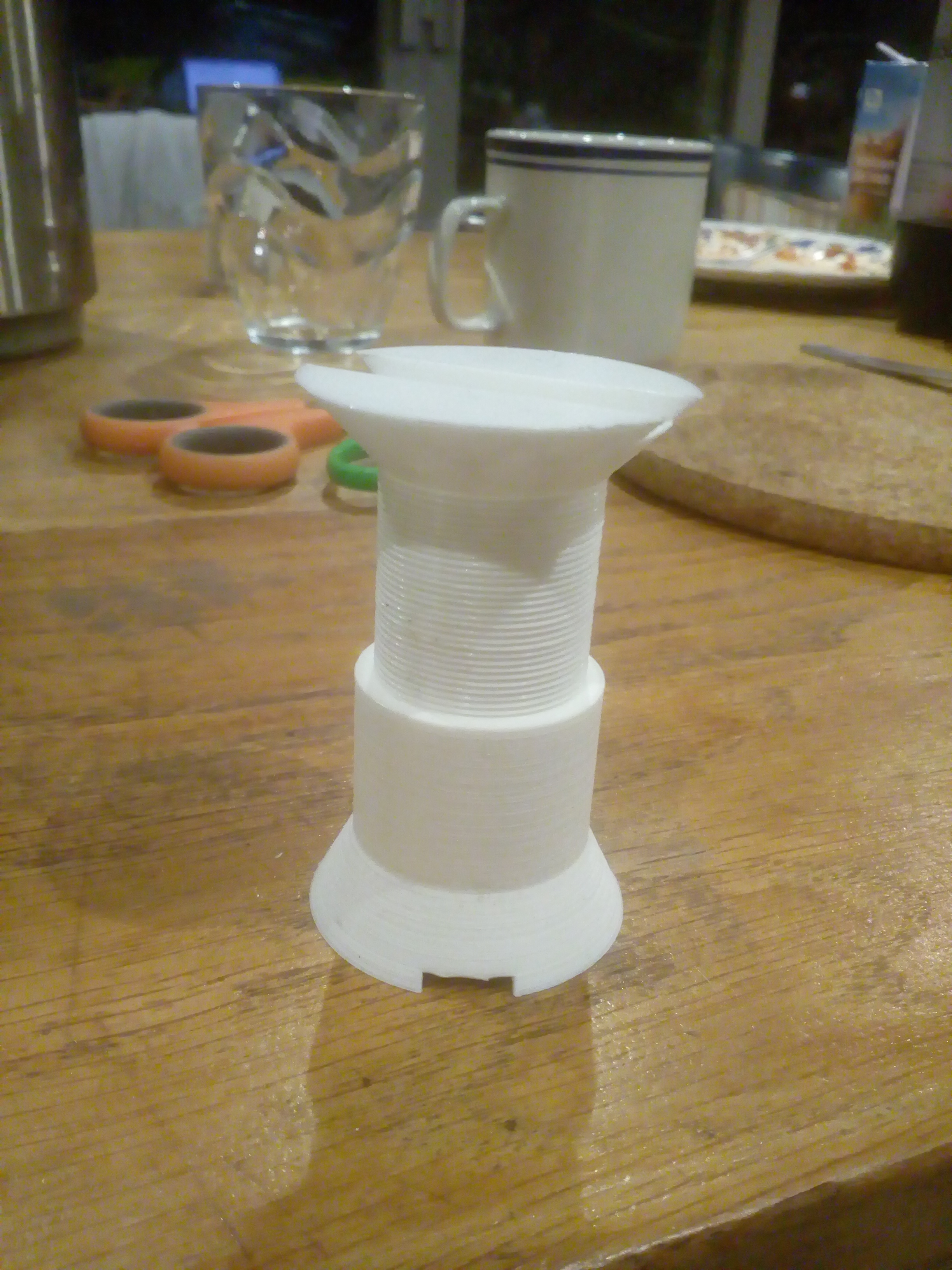

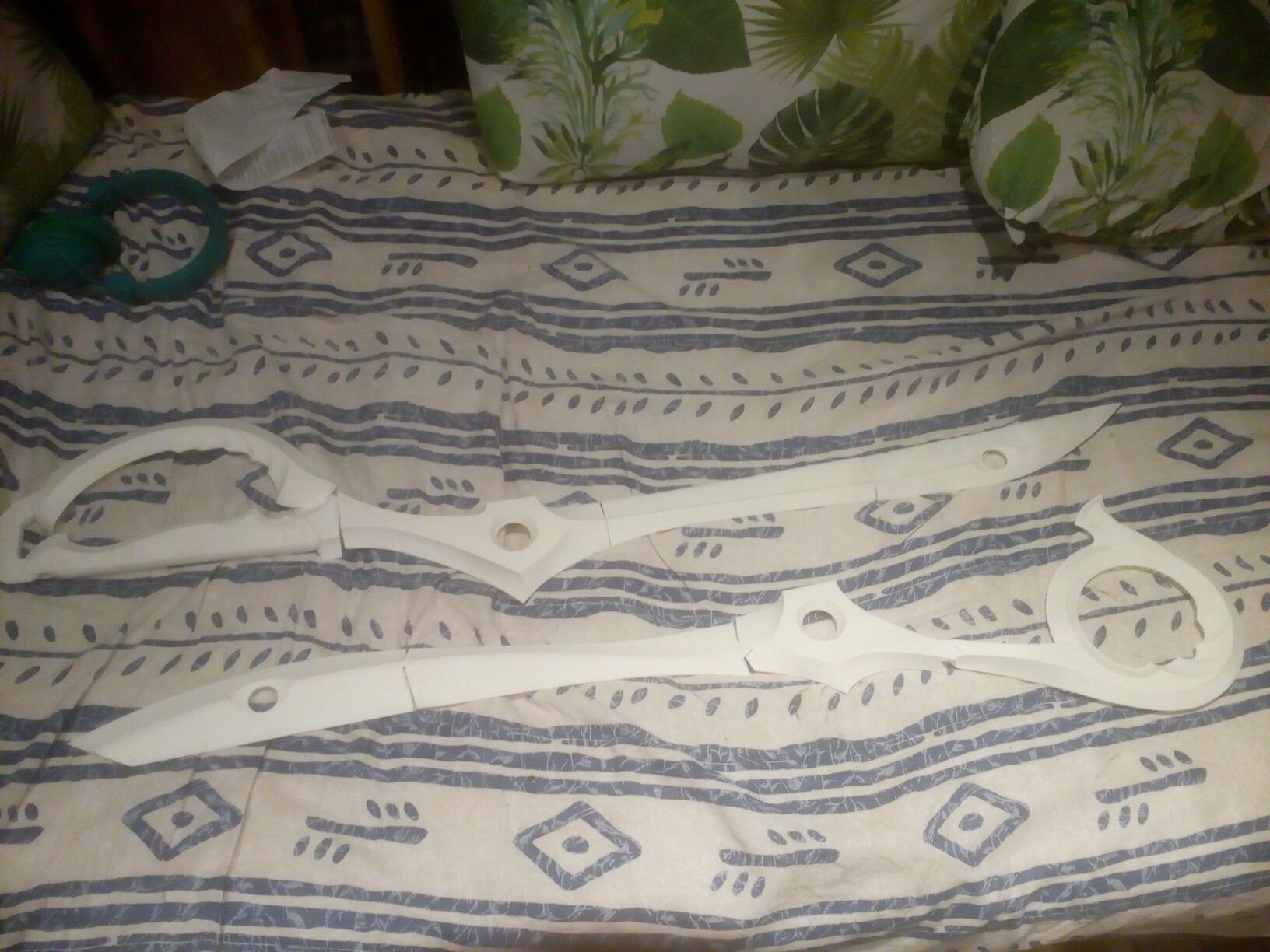

The prints have finished, here they are. I used a differen slicing technic on Nui's blade, it failed, don't cut them like I did. Also I designed two screws to hold them together, still need to fine tune them, but I'm going to be selling that part of the build the rest will be freely available.

Last edited:

TheFlorifant

New Member

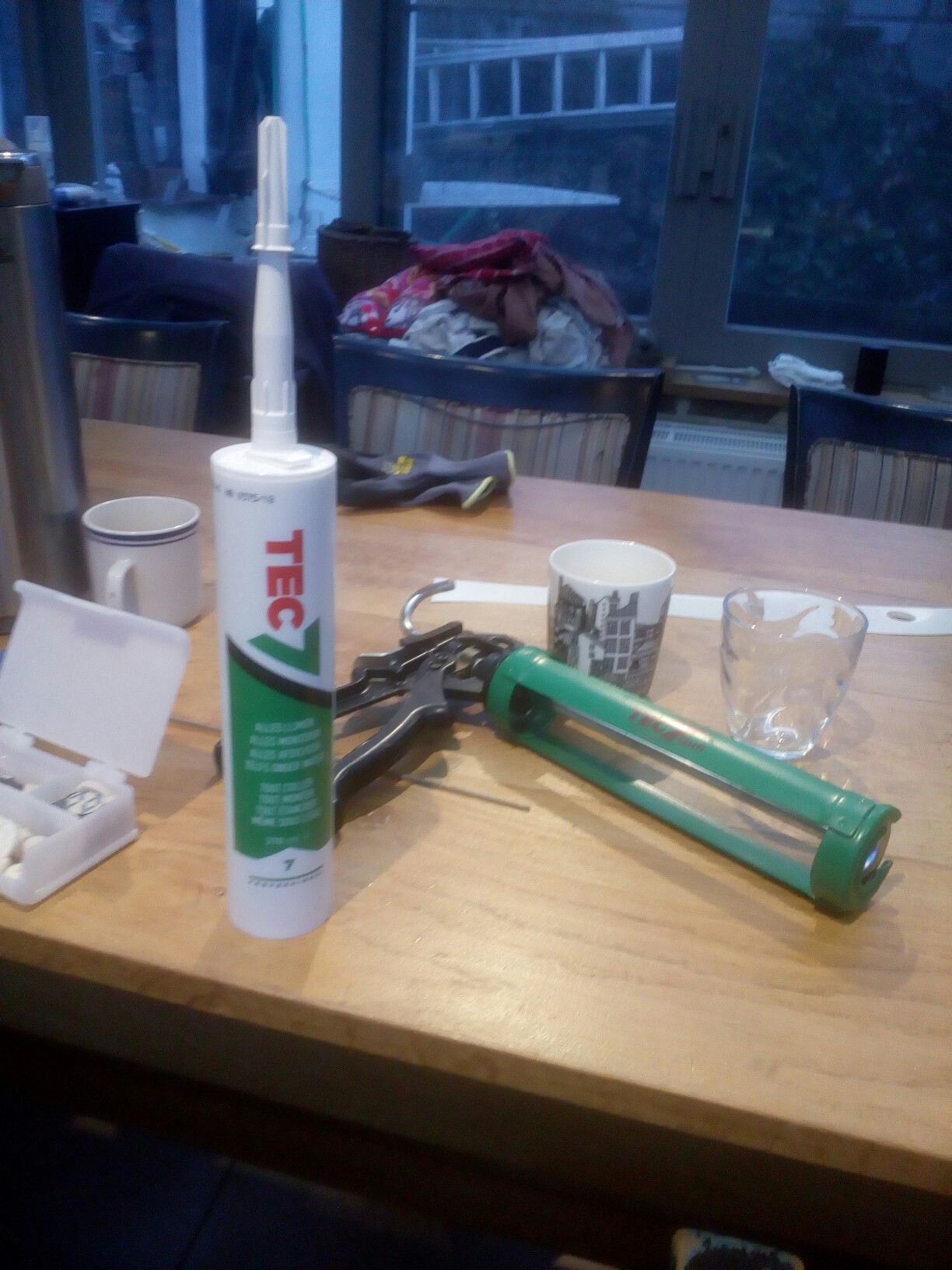

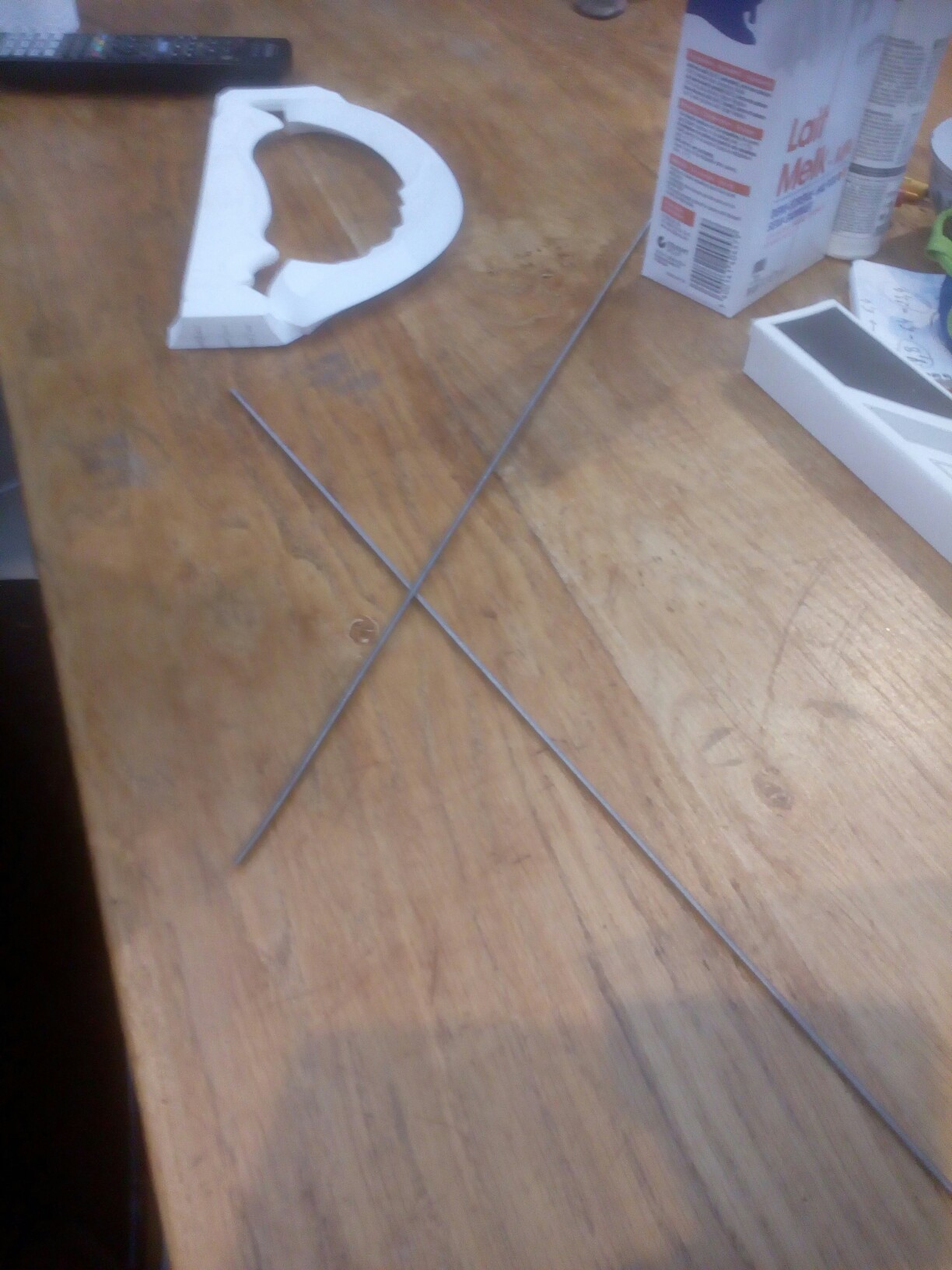

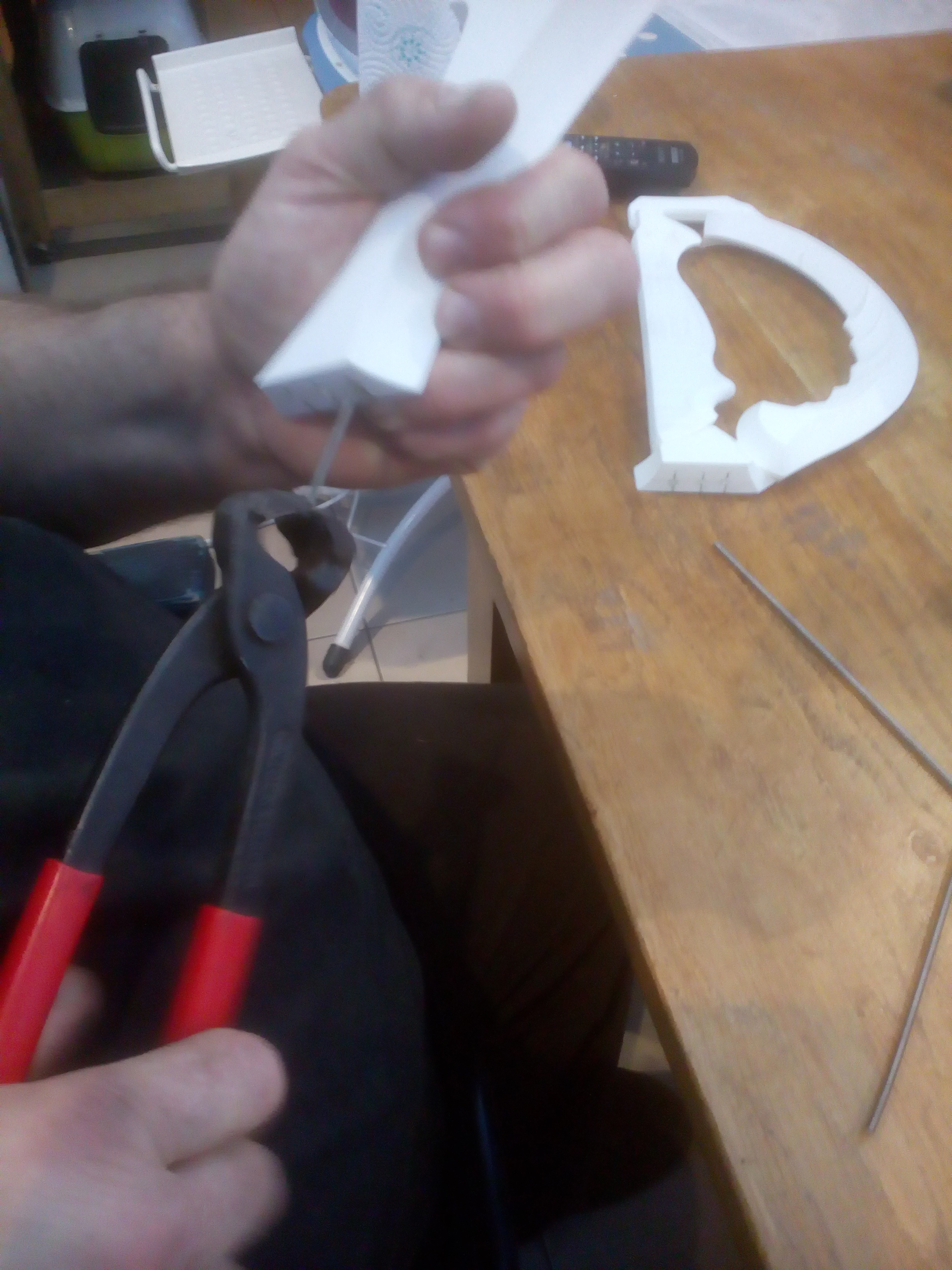

So, to put the blades together, i first drilled some holes in the parts, making sure the corresponding sides had holes that corresponded nicely and made the blade nice and flush. Than I filled the holes with Tec 7, this is a base polymer sealant glue thing. I'll link it in my next post. Than I used iron pegs to fill the wholes, these are threaded iron rods that I just got from the home renovation store.

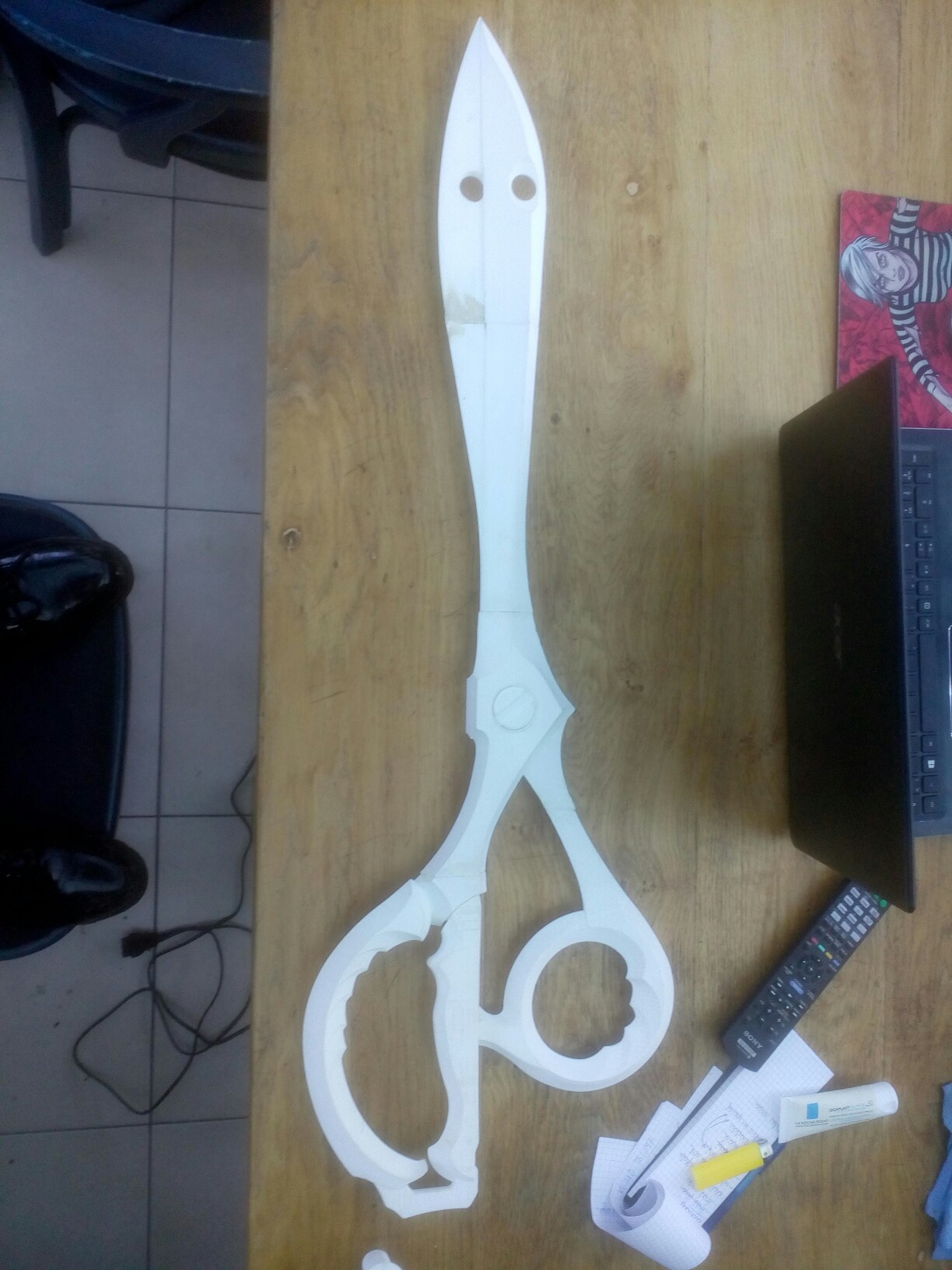

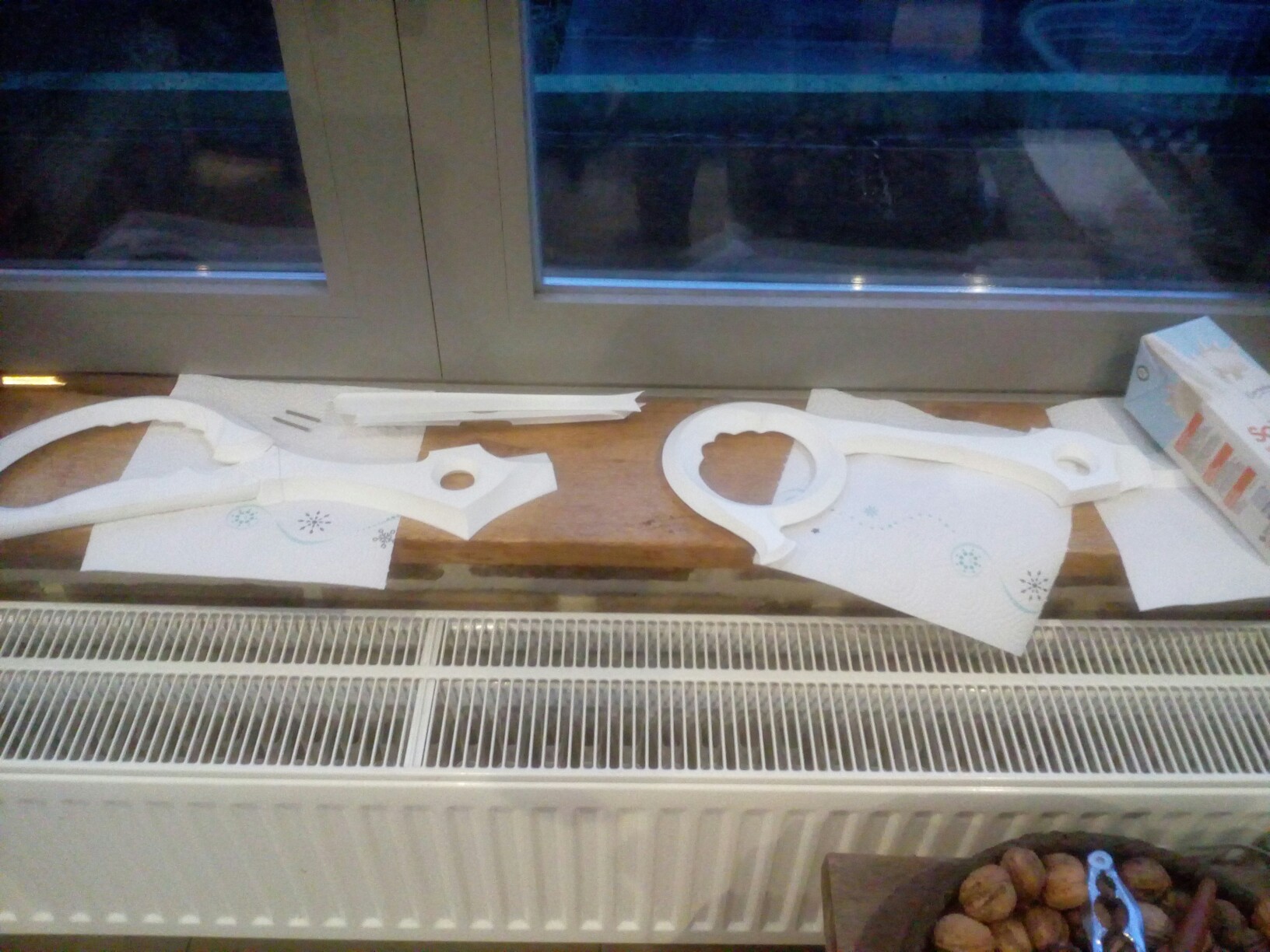

AND VERY IMPORTANT, after glueing the parts (glued them two by two) you lay them on a flat surface with a heavy object on the seam, to make sure the seems will be flush


TheFlorifant

New Member
This is a render I did of the final blade, it would be 1m long, i hope that's one to one scale, i don't actually know how big it is in the anime :c


Attachments

TheFlorifant

New Member
Since i can't post links yet. Go search myminifactory for kill la kill, you'll find my screw and nut. The blades can for now be found on sketchfab, they are called 1/1 scale nui or ryuko blade. For now this file will be free, but when I'm able to, I'll sell it.


Attachments

Last edited:

Riceball

Sr Member
You can get a rough idea of scale by making a rough guess of how tall Ryuko is supposed to be, not the easiest thing I know, but it's something. Alternately, see if there's a scene where she's in the same plane as another object that you know or at least have an average size for and use that for scaling.

Ok, just looked up Ryuko's height and she's supposed to be 5'3". Now it's just a matter of finding a full body shot of her with the scissors to get an idea of how big the scissors should be.

Last edited:

TheFlorifant

New Member
You can get a rough idea of scale by making a rough guess of how tall Ryuko is supposed to, not the easiest thing I know, but it's something. Alternately, see if there's a scene where she's in the same plane as another object that you know or at least have an average size for and use that for scaling.

Ok, just looked Ryuko's height and she's supposed to be 5'3". Now it's just a matter of finding a full body shot of her with the scissors to get an idea of how big the scissors should be.
Did the math, and it should be between 90 cm and 1m so I'm there.
