[H0llyw00d]

This is lovely, can't wait to start.

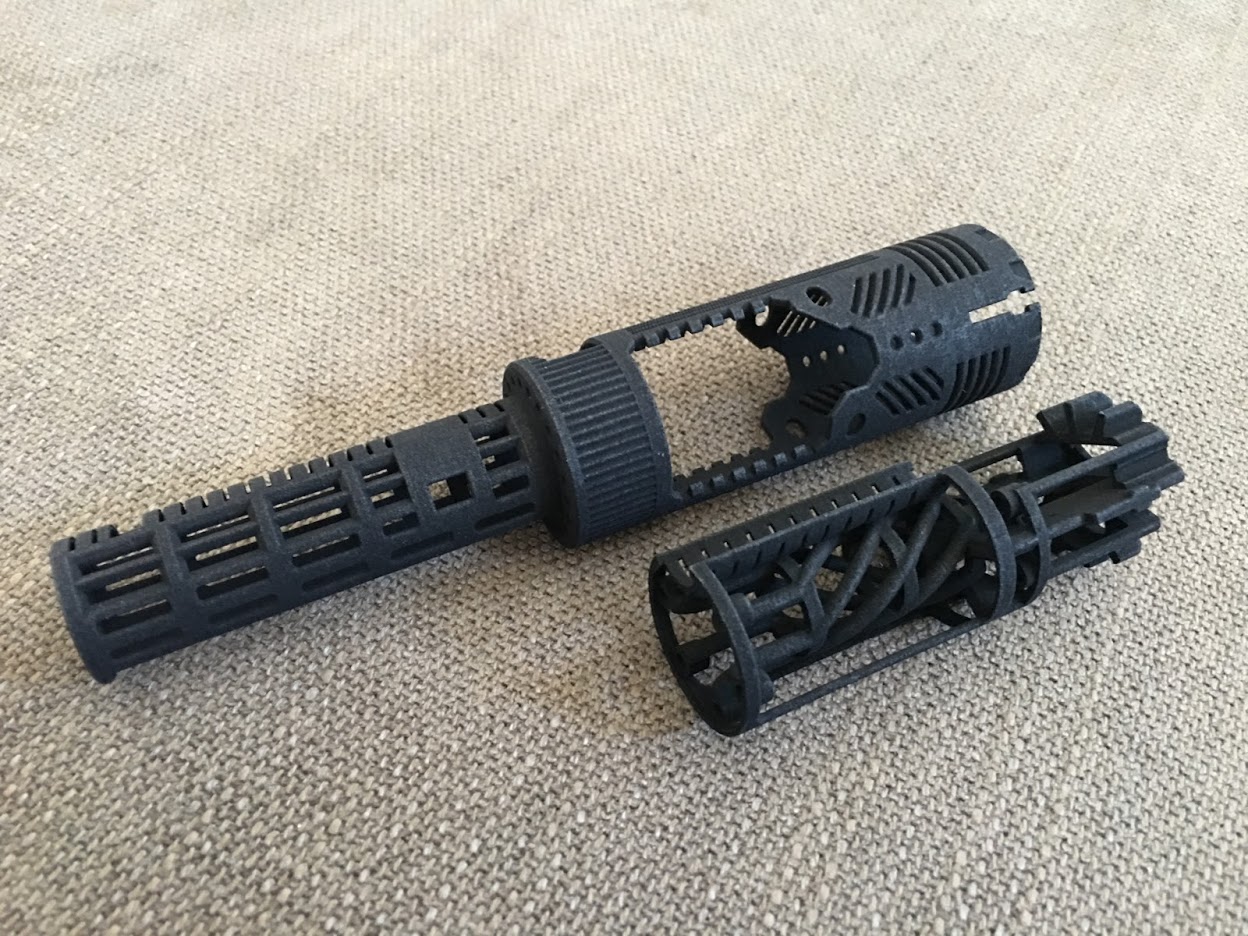

View attachment 598243

Nice! Ordered mine in black as well. Figured I could sand it down with 600 grit until it was smooth and use whatever the Phasma guys are using to faux-plate the right bits.



[Fett 4 Real]

Nice! Ordered mine in black as well. Figured I could sand it down with 600 grit until it was smooth and use whatever the Phasma guys are using to faux-plate the right bits.

Yeh, how come no one sands these smooth? Like everytime I see a GOTH chasis they straight up paint it and leave the texture....bothers my OCD big time, and you might want to look at alclad paint....youll paint it over gloss black and it gives you a chrome look



[JaxAndTheMoon]

Those are some nice prints! Just remember to finish them properly, and if you're going for that metallic look and are going to use paint, a nice semi-gloss black under your coat of metallic paint will make it look great. I use Dupli-Color Automotive Body paints to get my metallic effects.

Edit: Fett 4 Real beat me to it! Of course the page updates after I post it...



[Fett 4 Real]

I have a friend who paints model planes and he showed me alclad....that stuff is amazing. I think theres plenty of other "chrome" sprays but thats just the one I know works well. You need a SHINY black gloss under it to get a good result though....you could also use rub and buff I suppose.



[JaxAndTheMoon]

I have a friend who paints model planes and he showed me alclad....that stuff is amazing. I think theres plenty of other "chrome" sprays but thats just the one I know works well. You need a SHINY black gloss under it to get a good result though....you could also use rub and buff I suppose.

True, if shiny is what you want then full on gloss is what you need. For me, personally, I would want to match it to the body of the Graflex, which to me would look more semi gloss/matte than shiny. But that's just personal preference!

Just for example, when I was building my Arcann Mask, I did the method I mentioned above, and used silver paint along the jawline. It came out very matte/semi gloss metal looking, which to me looks more like the finish on the Graflex.



[jcroscigno]

FWIW the prints are already fairly smooth, . I'm not planning on painting most of it, primarily the spirals and vent sections in gold/silver, the rest will likely remain black. I don't mind some grain, I will want to tell people it's 3D printed when I show it off, not try and hide it. For me, this is first and foremost a functional piece with some decoration.

Thanks for the note on some gloss under the metallics though.



[Heyjude7]

Quick question (not sure if it was asked before) but will the Graflex 2.0 button fit on a real gralfex ? if not could it be modded to?



[ViperDeCobray]

I didn't sand mine down because I wanted it to have a cast aluminum look. Gives it an aged look. But did sand the interior piece.
Also, found the short that was causing my saber to be "touch activated". Fixed it up, and no more turning on with a touch.



[oneeyedgiant]

I like many have purchased the new Graflex 2.0 from Korbanth. I have read all through the RPF compiling information to make my build easier (this is my first).
I thought it would be nice and easy to make this a place where others can show off their builds and talk about what they used, where they got it. Share best practices and learn from others mistakes and achievements.

Here is my WIP part list -

Hilt - Graflex 2.0 - purchased from Korbanth here on the RPF
http://www.therpf.com/showthread.php?t=253193

Blade - 7/8 Blade from Vaders Vault

http://store.vadersvault.com/7-8-diameter-blade/

Sound - Nano Biscotte Sound Module V3 from TCSS

http://www.thecustomsabershop.com/Nano-Biscotte-Sound-Module-V3-P806.aspx

Speaker - Premium 28mm Speaker from TCSS

http://www.thecustomsabershop.com/Premium-28mm-Speaker-P77.aspx

LED - Tri Cree Xpe2 LEDs (Blue,Blue,White) from Saberbay (Etsy)

https://www.etsy.com/listing/263439...r-use-in-lightsaber?ref=listing-shop-header-1

7/8 Heatsink

https://www.etsy.com/listing/251392488/78-aluminum-heat-sinks-for-tri-led?ref=shop_home_active_1

Resistors - 1.8 Ohm 1/2W Flameproof Resistor 10 Pcs. from parts-express.com

http://www.parts-express.com/18-ohm-1-2w-flameproof-resistor-10-pcs--002-1.8

Battery - Panasonic Li-Ion 18650 3.7V 3400mAh from TCSS

http://www.thecustomsabershop.com/P...-PCB-Protected-Rechargeable-Battery-P853.aspx

Still need to buy -

Recharge Port

http://www.thecustomsabershop.com/MWS-Recharge-Port-P877.aspx

Charger

http://www.thecustomsabershop.com/37V-Li-ion-smart-charger-with-21mm-plug-P890.aspx

Blade Plug (7/8)

https://www.etsy.com/listing/241197102/kr-sabers-graflex-blade-plug-1-and-78

Chassis (Graflex 2.0 - Padawan Chassis - All-in-1 NB)

http://www.shapeways.com/product/YS...all-in-1-nb?li=shop-results&optionId=58965351

------------------------------------------------------------
Helpful Videos -

Building a Basic Saber with Sound Part 1
https://youtu.be/pOpUSCsXXhk

Building a Basic Saber with Sound Part 2
https://youtu.be/sApB7J5JdZ4

Basic Saber with Sound Style 2
https://youtu.be/BrA-FiAvR5U

-------------------------------------------------------------
Helpful Links -

http://goth-customsabers.ftl-network.com/log/diy-graflex-2-0-chassis/

Calculate which resistor is needed for your build with this online calculator -
http://led.linear1.org/led.wiz

--------------------------------------------------------------
Helpful info -

- To disassemble the hilt you will need a T6 sized Torx key or bit (Available at any hardware store usually in a small precision tool set).

- Make sure you decide which saber version you want to make before you attach the grips.
The side with the wider spaced holes (6 holes) is for Empire Strikes Back (ESB) and The Force Awakens (TFA)
The opposite side (7 holes) is for A New Hope (ANH)

- To add the D Ring to the pommel you will use the supplied 2 longer screws. You will need a T8 sized Torx bit for these 2 screws.

--------------------------------------------------------------

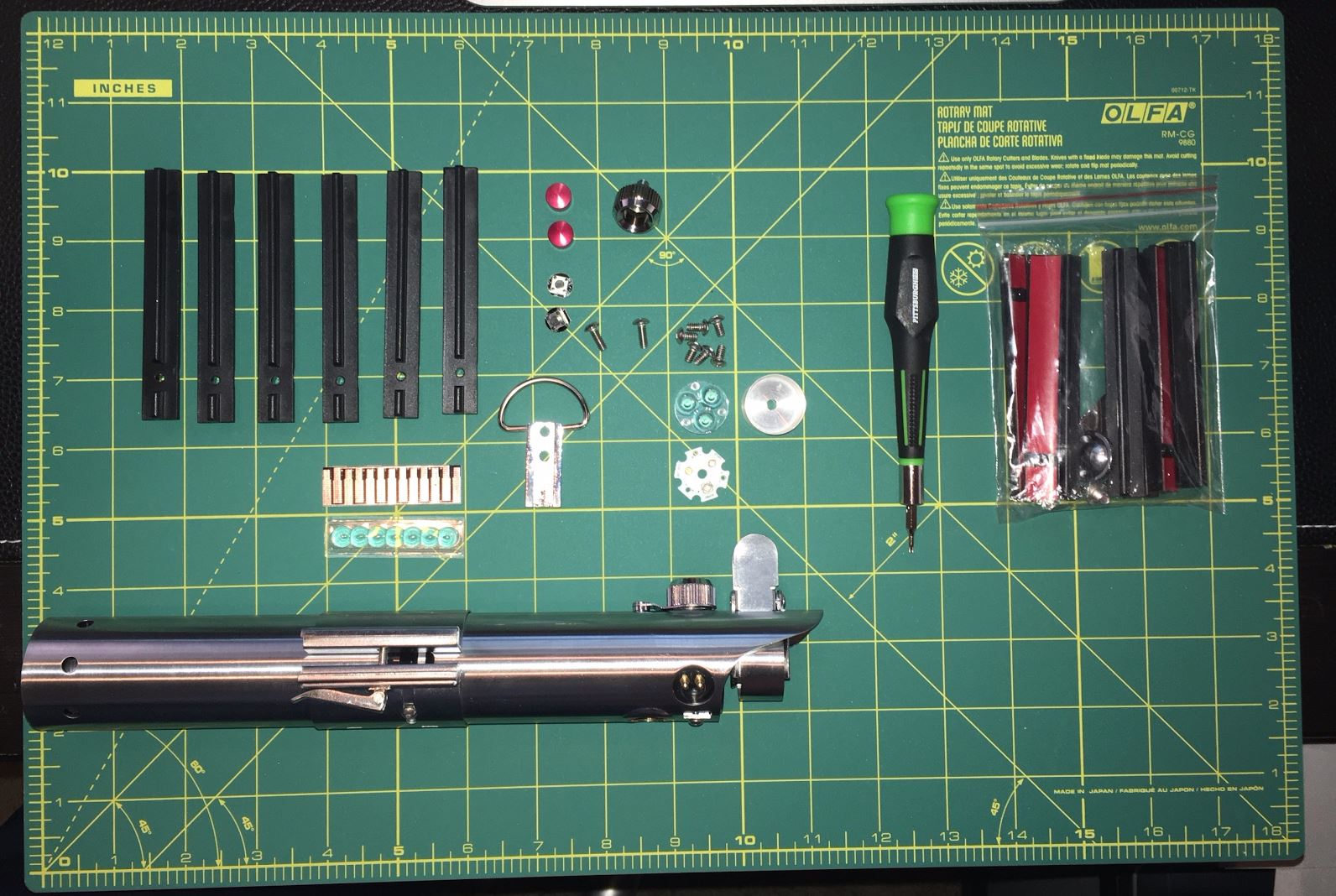

View attachment 587442

*** I am not affiliated or even know anyone from the links I am sharing, I am just supplying you with the info I have compiled for myself ***
*** I will update this as often as possible, I encourage everyone to share their own ***

Anyone know the difference between Vader's Vault's different blades? They have the option of "Standard Clear" or "Trans-White". What length blade are you guys using for your graflexes? Shine through or mirrored tip?



[jcroscigno]

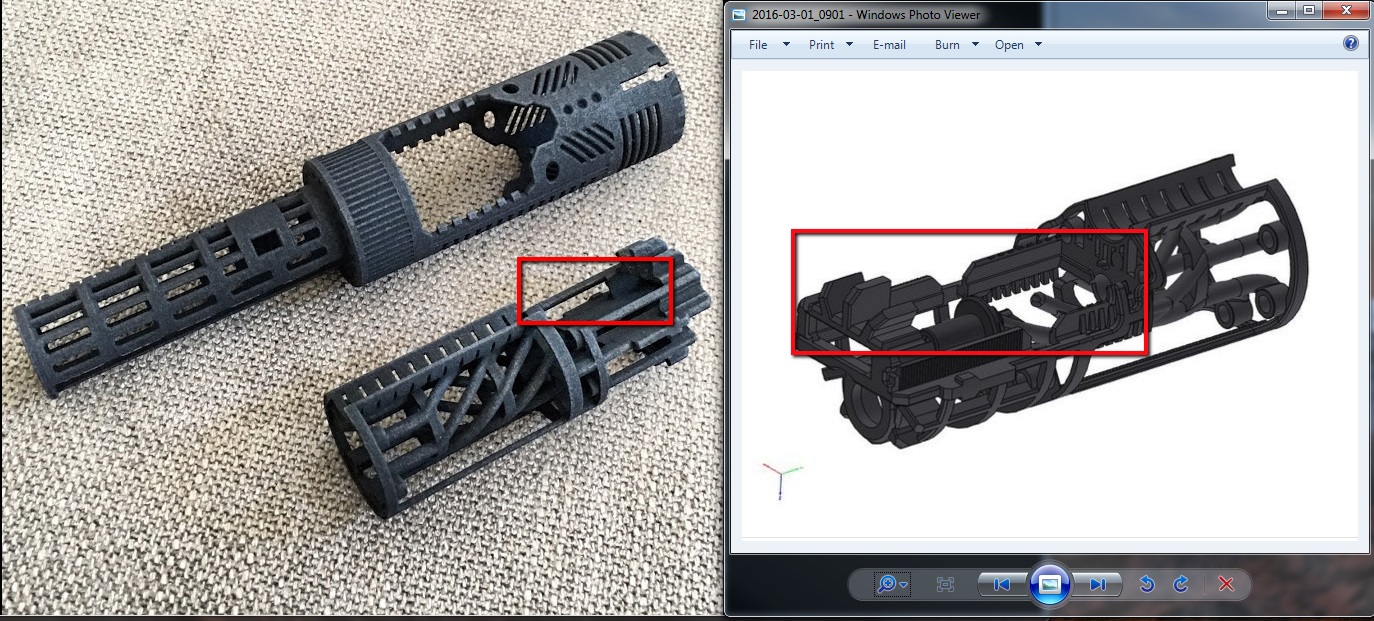

Well here's a fun glitch. I'm pretty sure I got sent the inner chassis part for a NBv3, not a Spark Color 2 (notice how much shorter the tray is). Have to check when I get home to see what the shipping label says.

My invoice shows I ordered a Spark board, but I see very obvious differences.
Edit: Rick (Darth Ryo) confirmed based on the photo that it's a NBv3...hopefully Shapeways can get me the correct one quickly.



[Fett 4 Real]

maybe I got yours? Ill find out in 2 days when I get home....



[jcroscigno]

maybe I got yours? Ill find out in 2 days when I get home....

Shapeways is making me a new one - doesn't look like I'll have to send this one back, so maybe I'll put it up in the junkyard for $20 when the replacement comes.



[Stromfire]

Just ordered the GOTH Knight chassis - and now I wonder - is the kill key included in Part 2: Soundboard Module?
Or do you have to separately order the 4 x kill key pack?
Thanks



[ViperDeCobray]

Just ordered the GOTH Knight chassis - and now I wonder - is the kill key included in Part 2: Soundboard Module?
Or do you have to separately order the 4 x kill key pack?
Thanks

There wasn't one with mine so i'm going to say no.
Which reminds me, I need to order a kill key.



[Fett 4 Real]

Shoot guess I should order a kill key also....GOOD CALL!



[H0llyw00d]

WTF, no kill key!!?? Heck, I was worried it wouldn't have the 8-32 retention screws needed for the build much less a kill key...


Edit:

On the Shapeways ordering site it says kill key included.

http://www.shapeways.com/product/WA...s-part-2-nb?li=shop-results&optionId=58742447



[jcroscigno]

WTF, no kill key!!?? Heck, I was worried it wouldn't have the 8-32 retention screws needed for the build much less a kill key...
Edit:

On the Shapeways ordering site it says kill key included.

http://www.shapeways.com/product/WA...s-part-2-nb?li=shop-results&optionId=58742447

It is included with the inner chassis part. Very nice, already has a notch so it just needs to be turned, not removed.



[Stromfire]

Oh yeah - it's included
Got an answer from Rick (DarthRyo) - didn't see it in the product page

"Hello,

Yes, the kill key is included.
On the model itself, it is kinda hidden in the middle of the chassis

Regards,
Rick"



[ViperDeCobray]

Mine didn't have it, and I went over the inner part and outer part several times looking for it. Even checked the box and bag it was shipped in. Wasn't with mine.

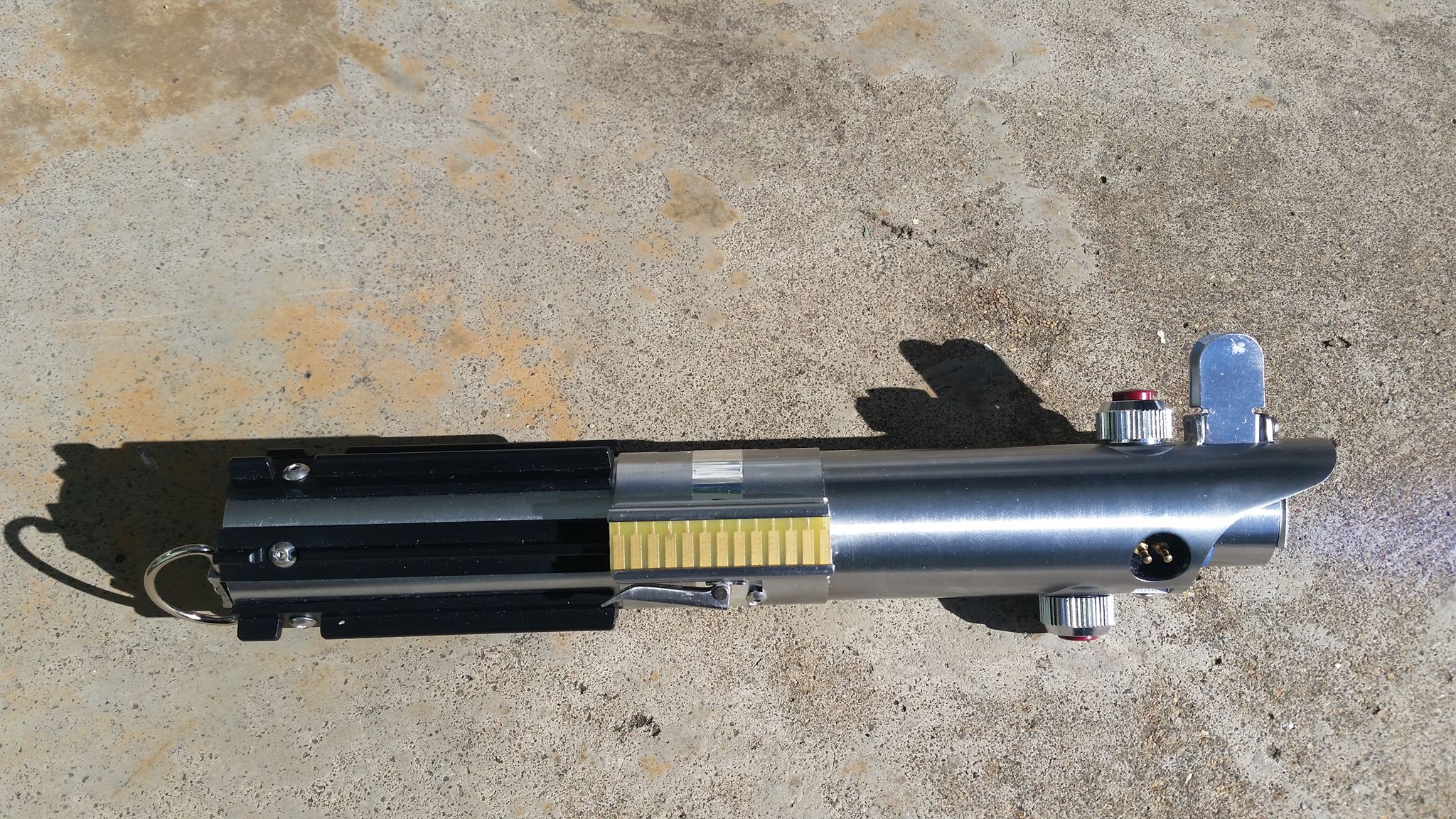

Did get my Mylar tape today. Looks great on the 2.0:



[kermet]

You skills are complete Jedi Great job Viper love it and those are the painted buttons they look great can't tell Good stuff. Thanks....Jim By the way what color did you use.
