Gonk Droid - Printer Stand

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Snow Builder

Sr Member
RPF PREMIUM MEMBER
I have a color laser printer that's big, bulky and used infrequently. I still need access to it, but would like it to be a little less prominent in my work area.

Solution, make a gonk droid that:

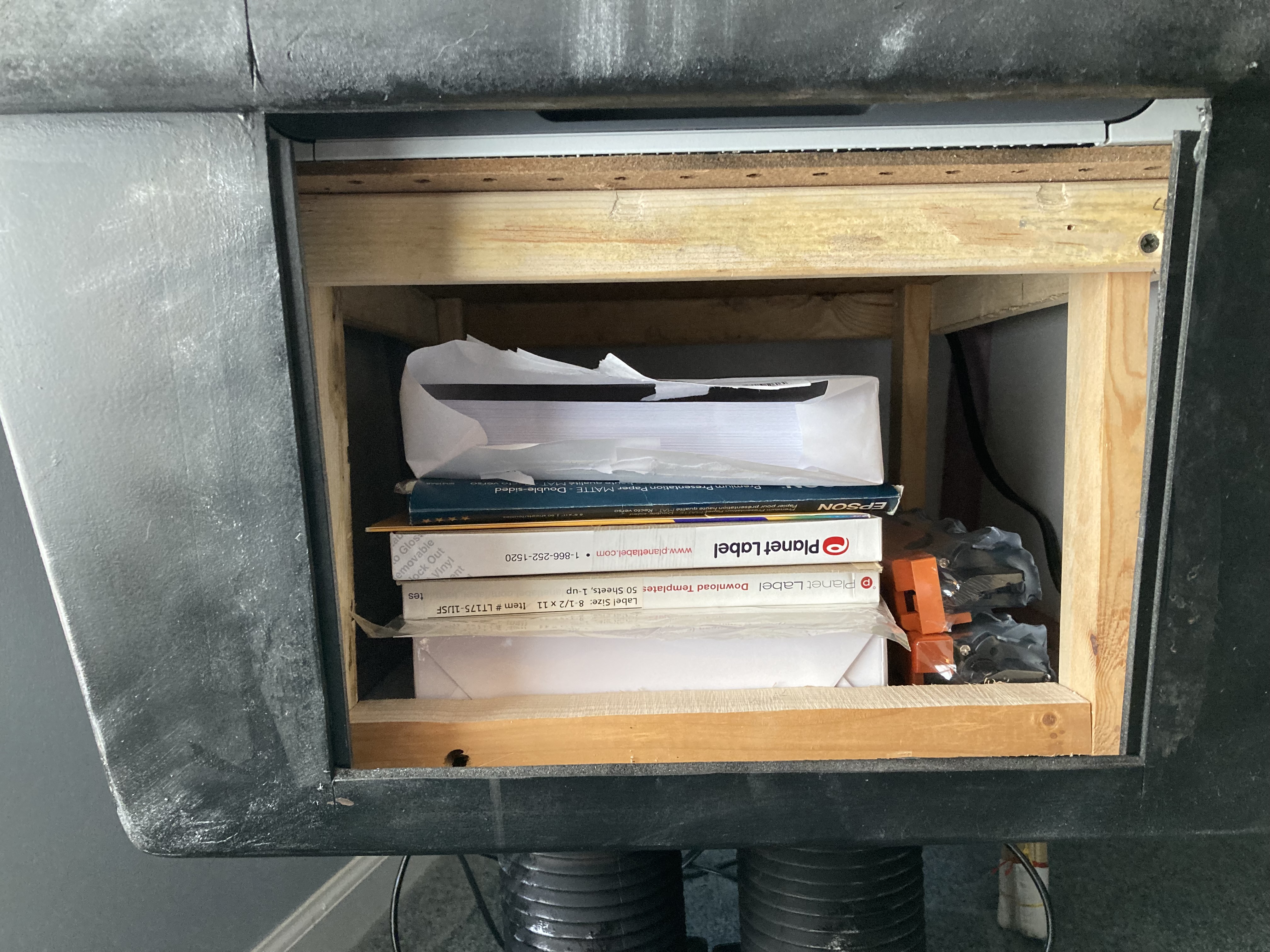

  1. Storage for paper and printer supplies

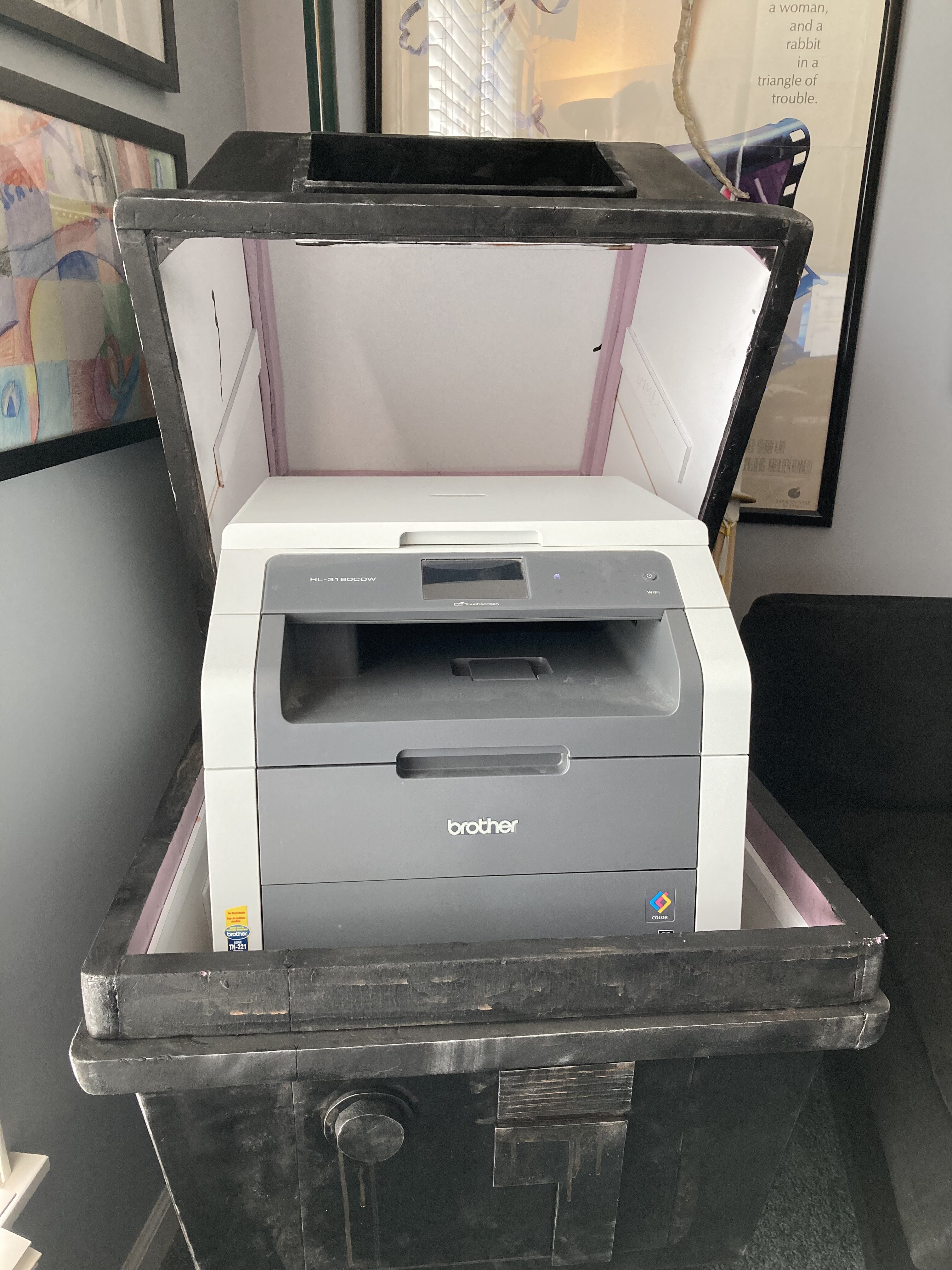

  2. Hiding place for the printer
  3. End-table for when sitting on the office couch with a drink or snack
I don't think this is a sophisticated build, more of getting the details right. Here's the plan:

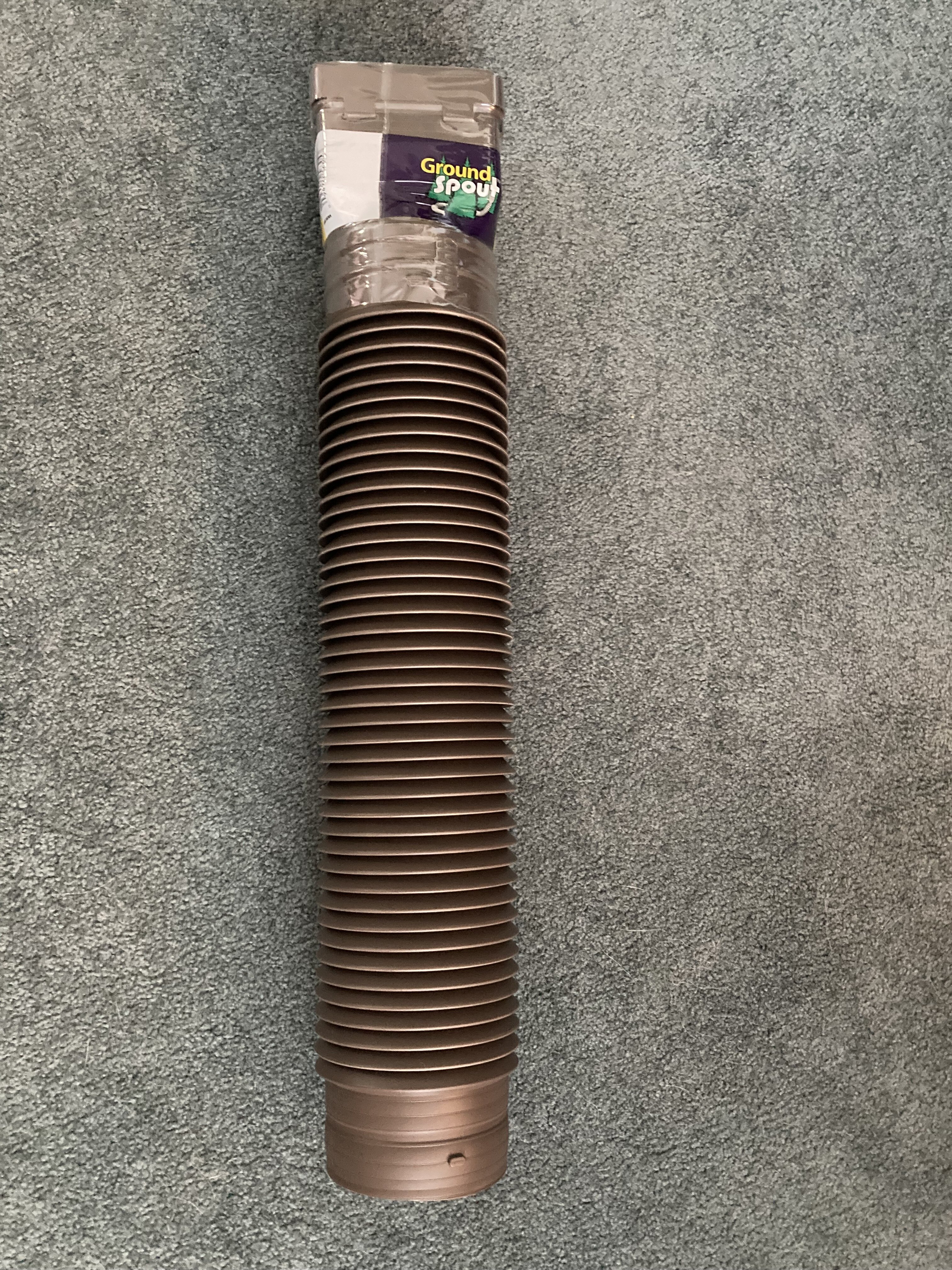

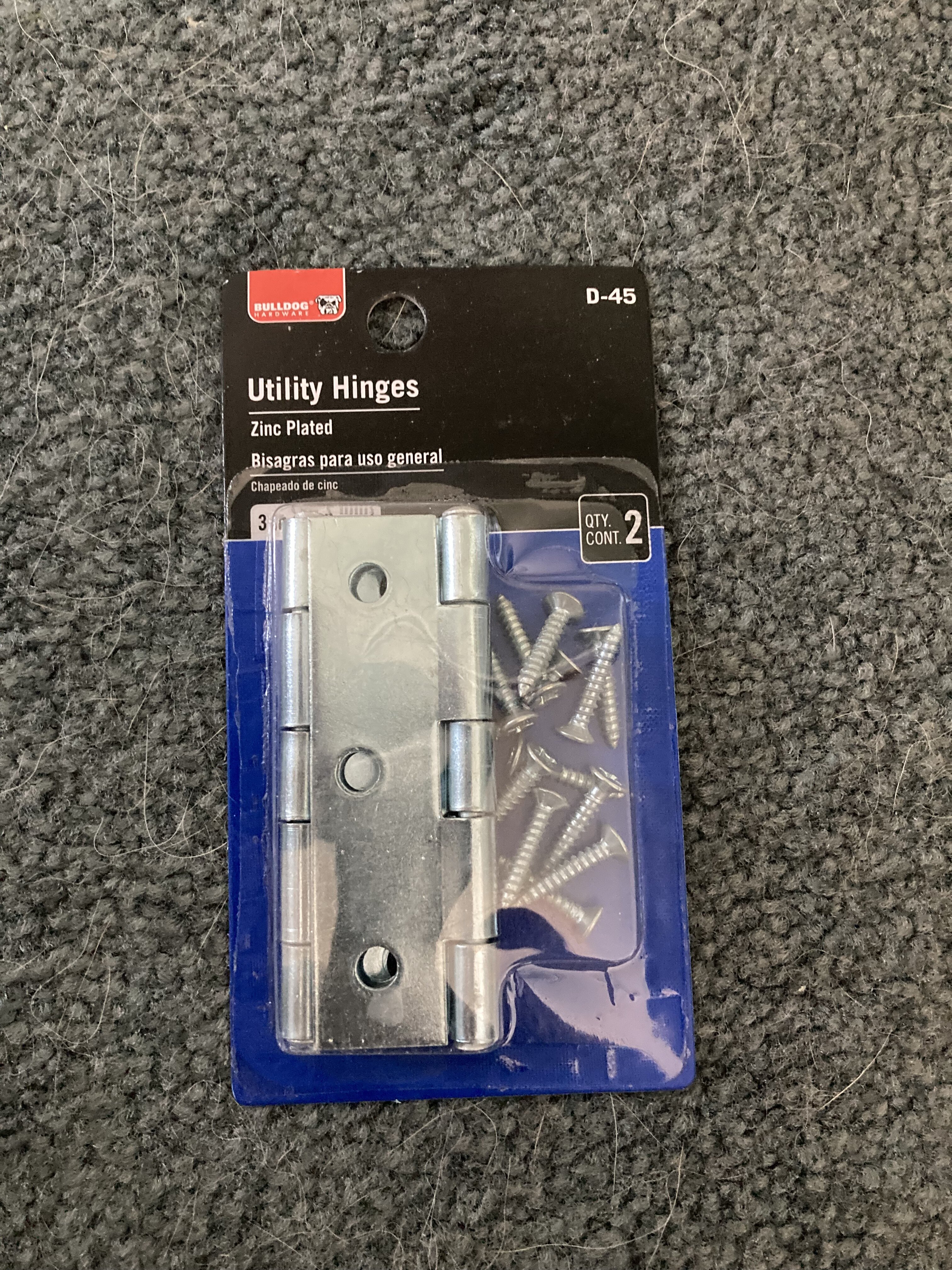

Materials acquisition --plastic tubs that fit the printer, hinges for getting to the inside of the unit, and downspout extenders for covering the legs.



Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Snow Builder

Sr Member
RPF PREMIUM MEMBER
This is a fabulous idea!

Ah-ha-ha-ha-ha-ha! This is great!

I used to fix printers for a living, it would have made my day to find something like this... :)
Thanks, I'm pretty jazzed to keep moving forward.

Pieces cut for the internal structure and the feet:

Leg construction

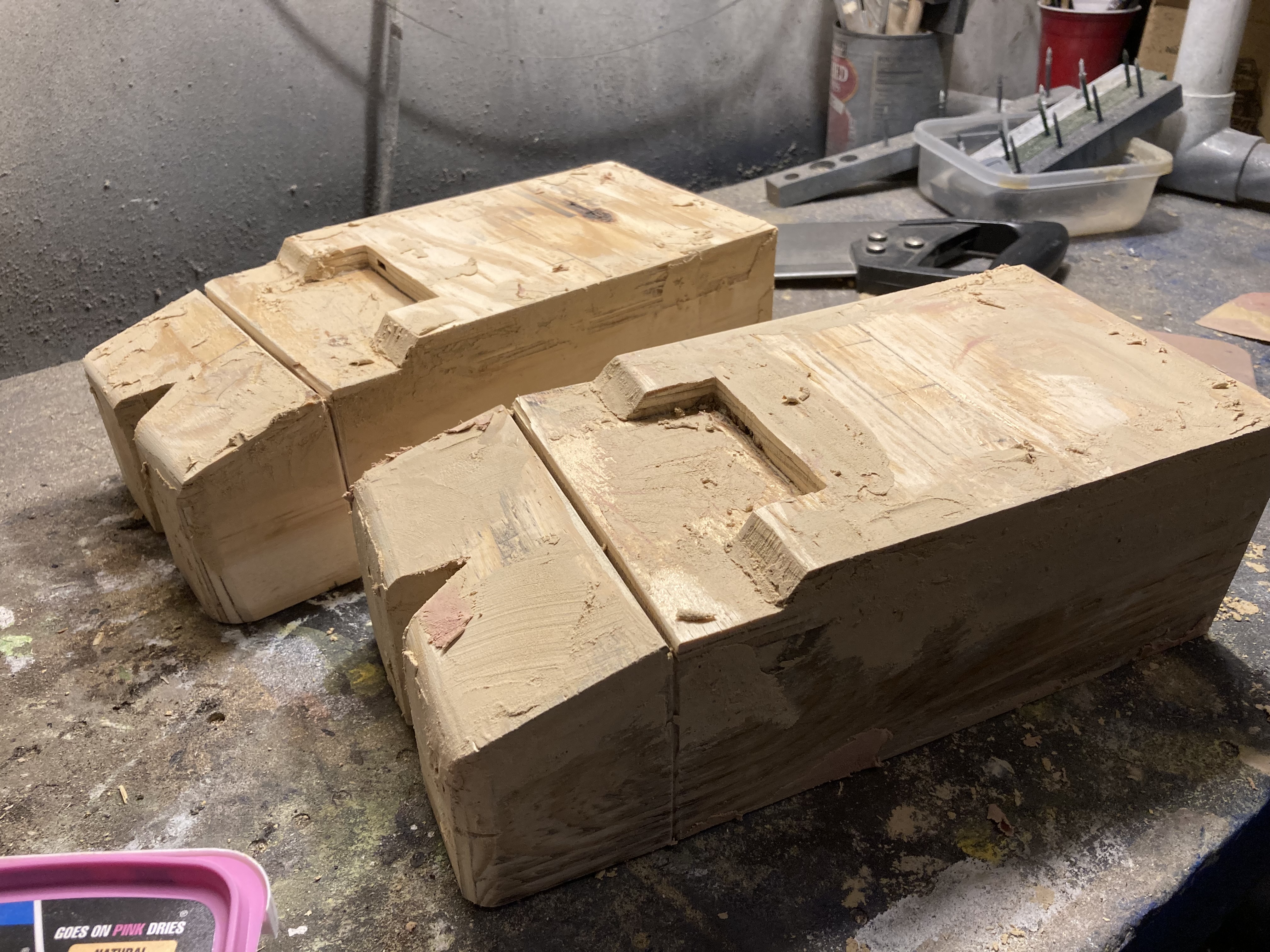

Feet construction


Test fit (nothing attached yet)



Snow Builder

Sr Member
RPF PREMIUM MEMBER
More progress, added detail to the feet and got them painted:

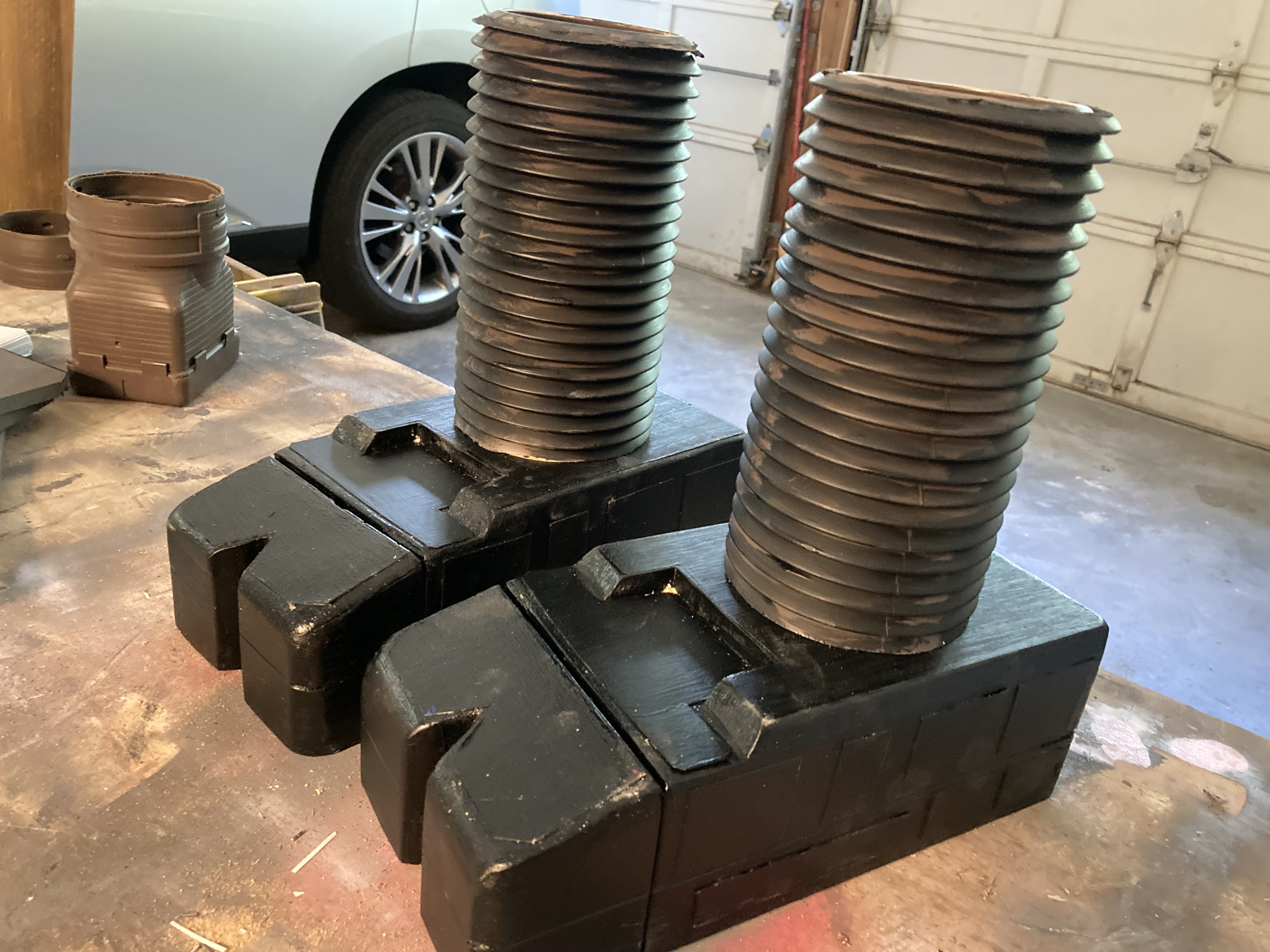

Painted and weathered the legs and got them attached to the feet

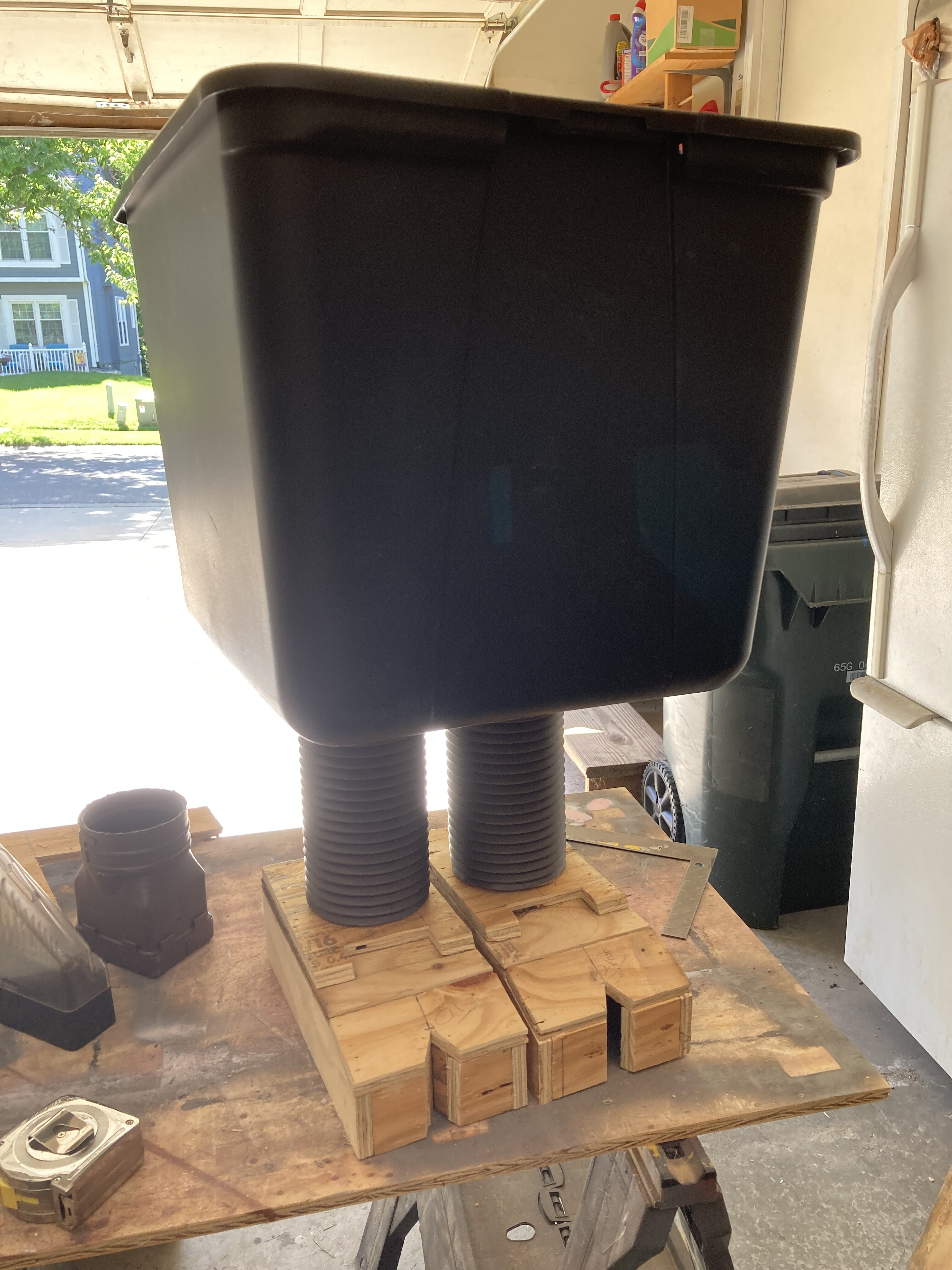

and a quick look to see what it looks like with the tubs on top (thanks to my daughter for modeling)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Snow Builder

Sr Member
RPF PREMIUM MEMBER
Great start!… going to do my own soon…
Get going, it's a fun project.

On the progress side, good news/bad news...

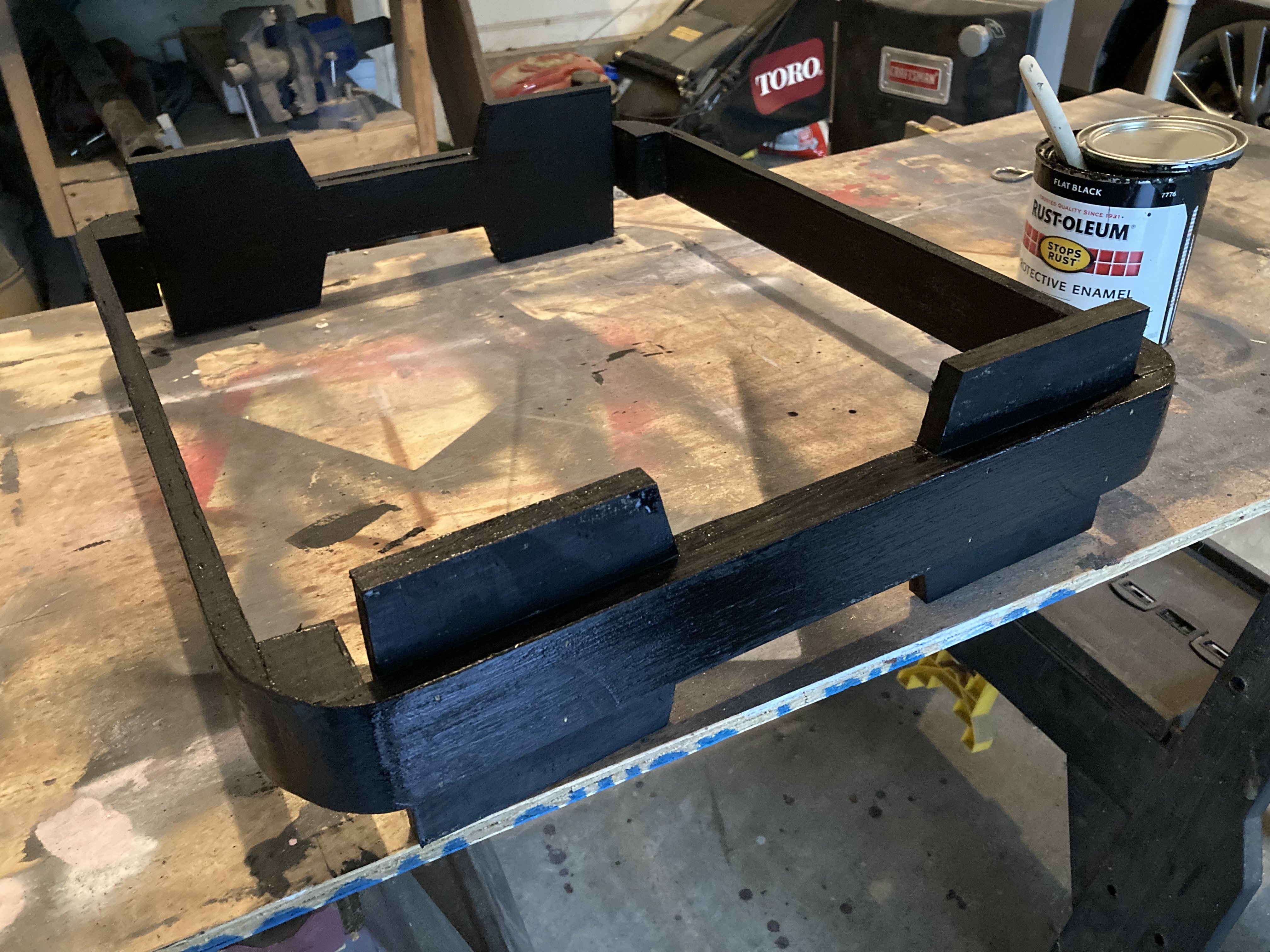

Created a bezel piece to fit between the two halves of the storage container



Assembled everything and tested it with the printer. I mis-measured, the printer is to big to fit inside the joined body of the storage containers (sorry no pics).

But, when a door closes, go through a window...

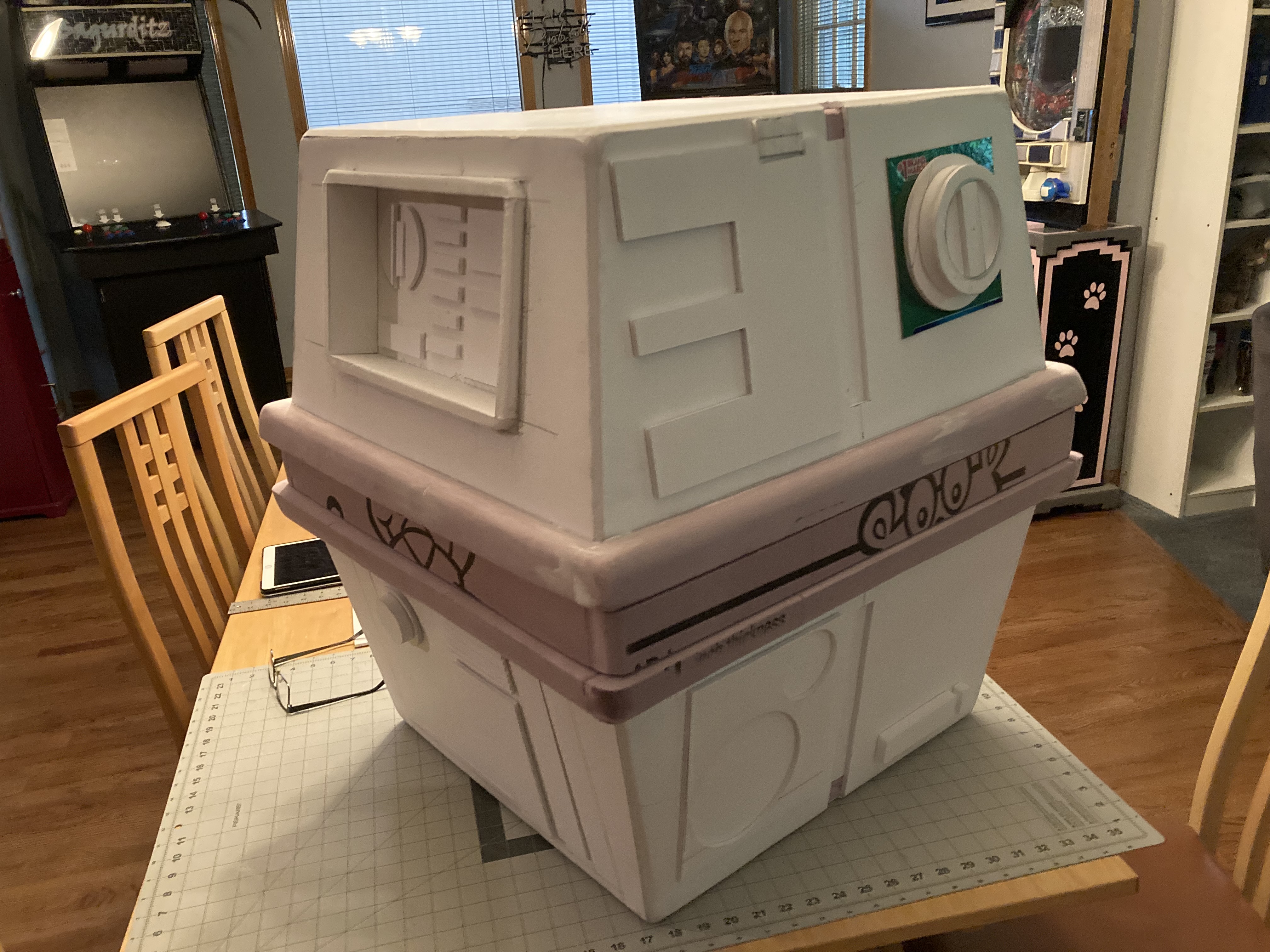

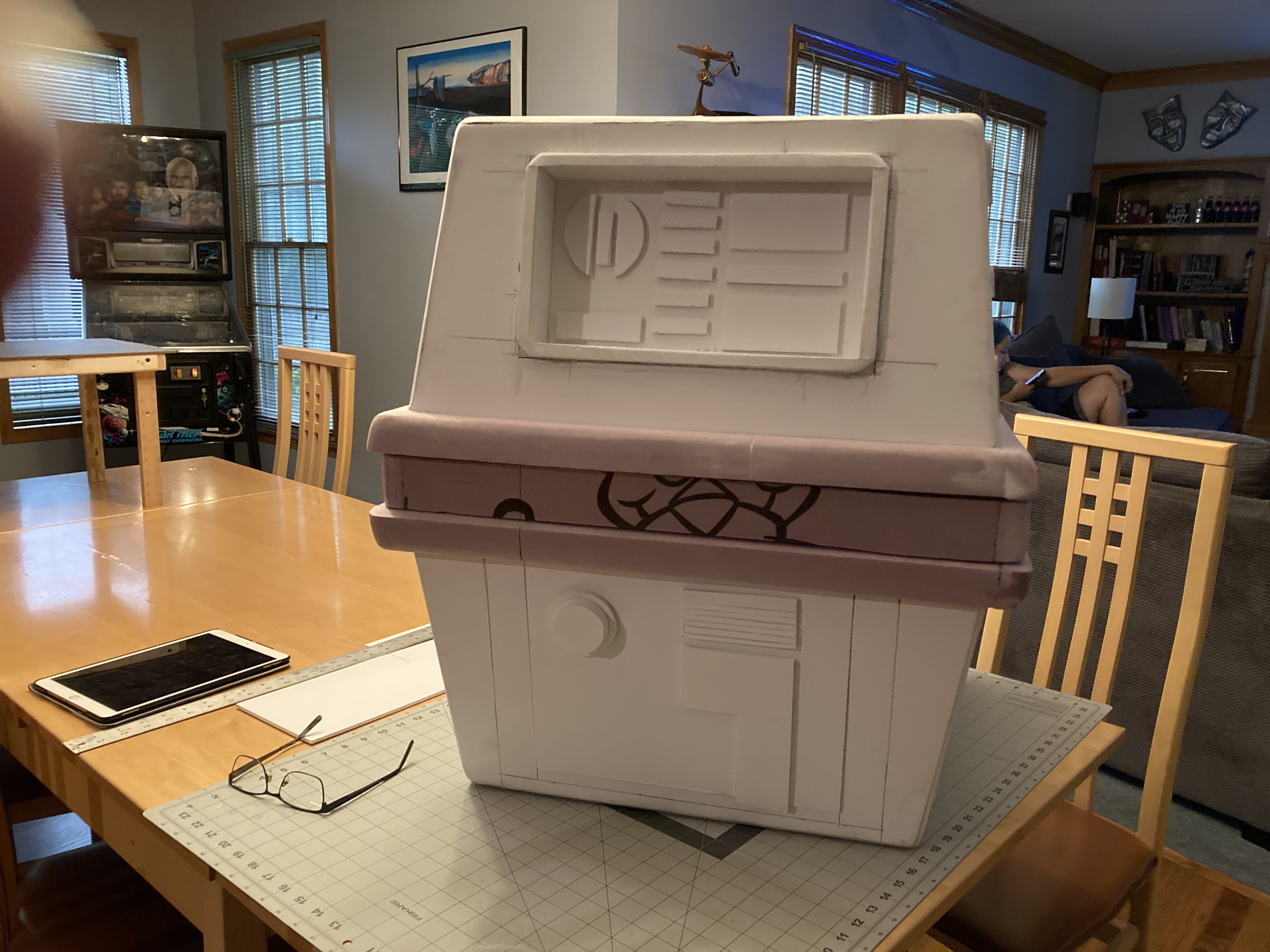

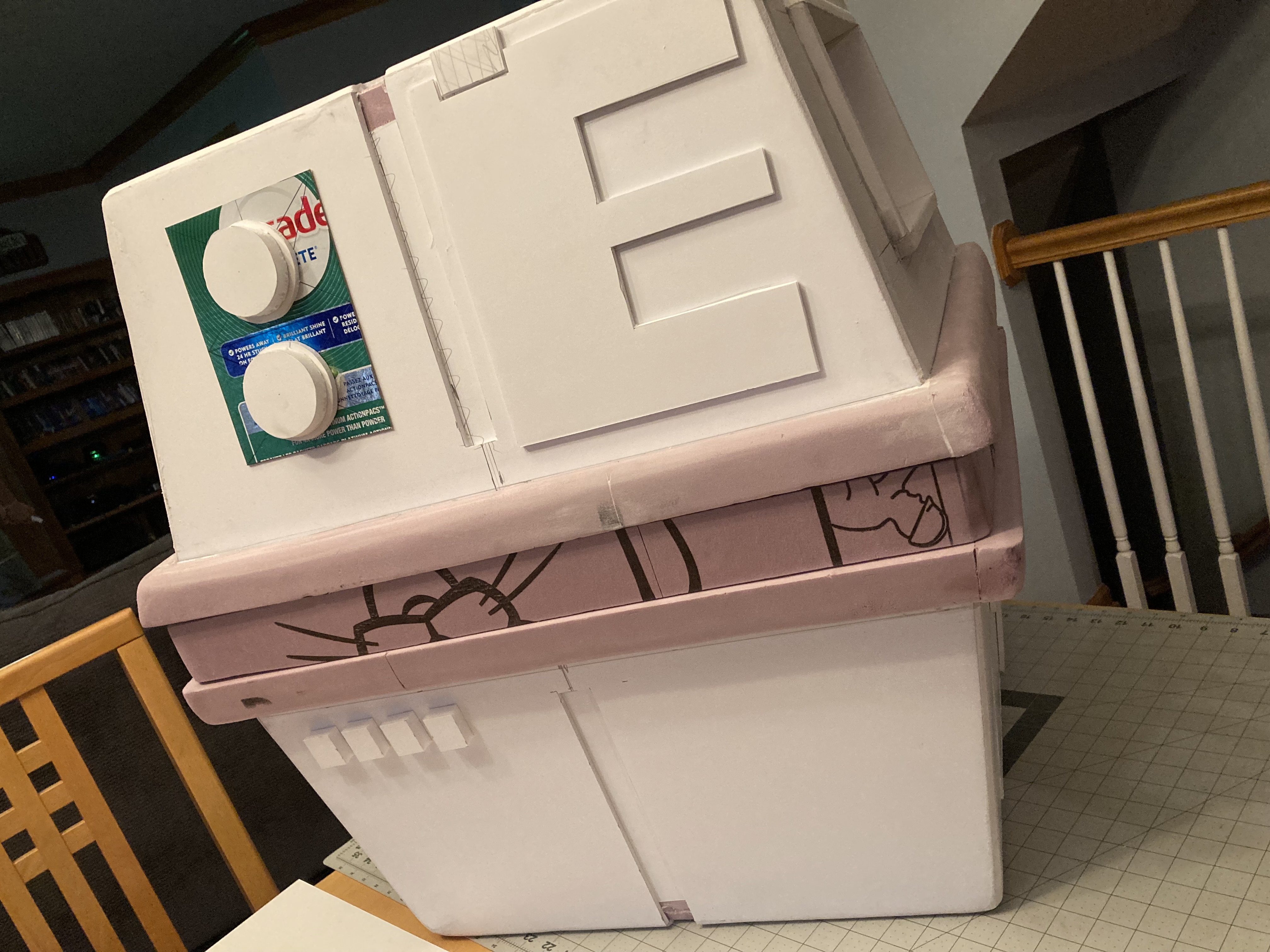

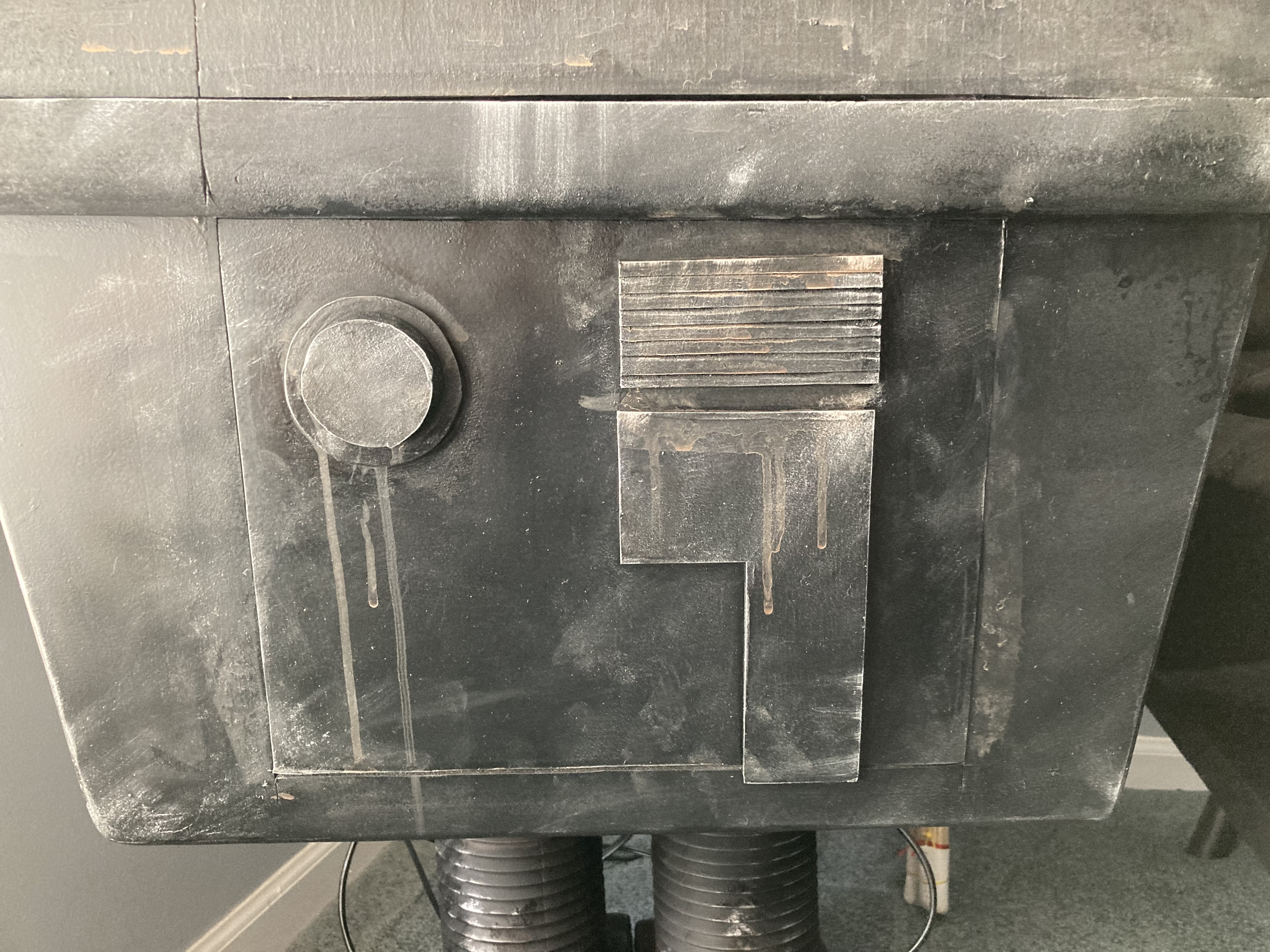

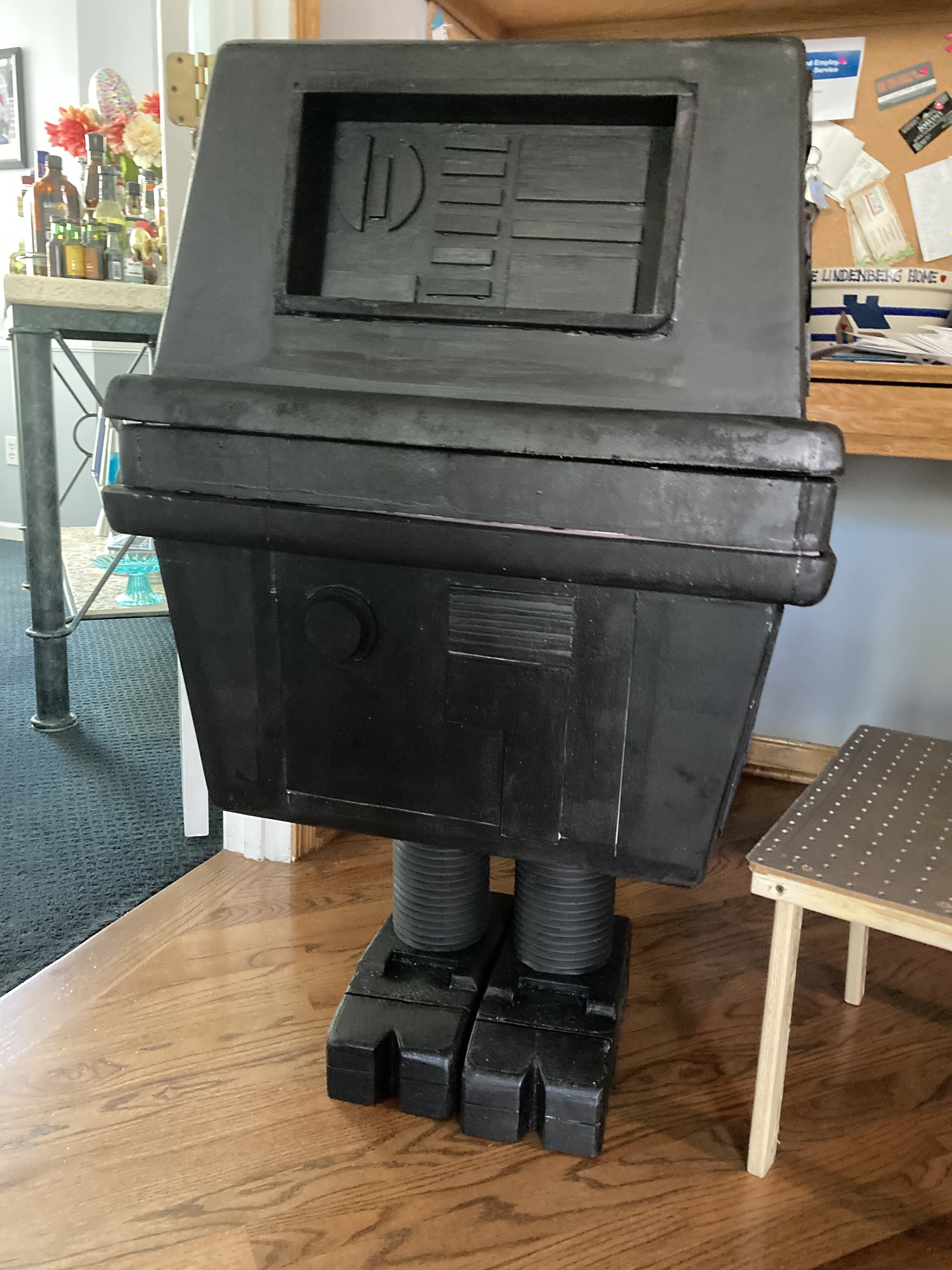

Scratch built a new body with foam core and insulation foam (plus odds and ends)
