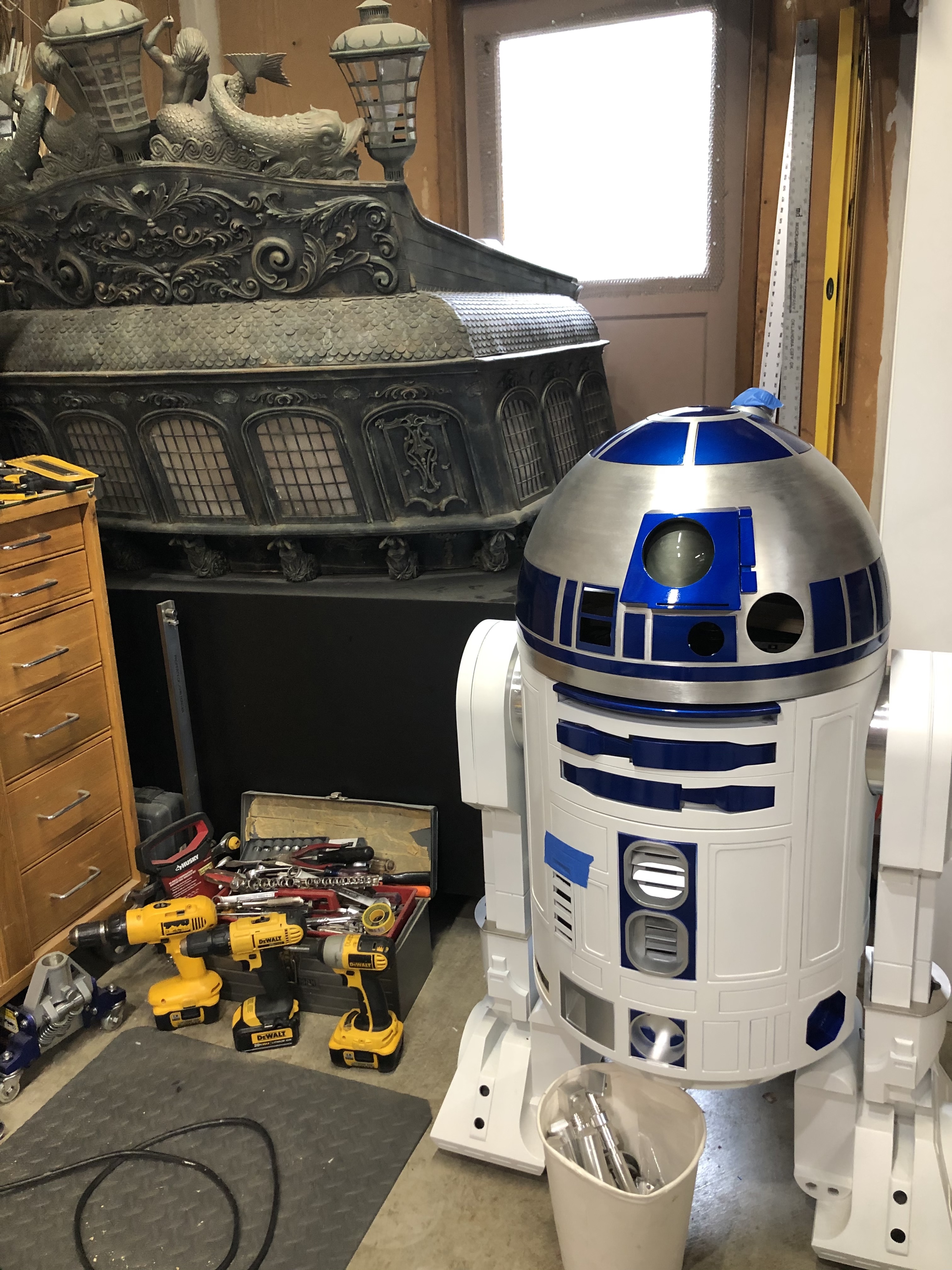

Another pic of my droid turning blue! That's the stern of the original Black Pearl behind him.

19.4 More Paint copy.jpg

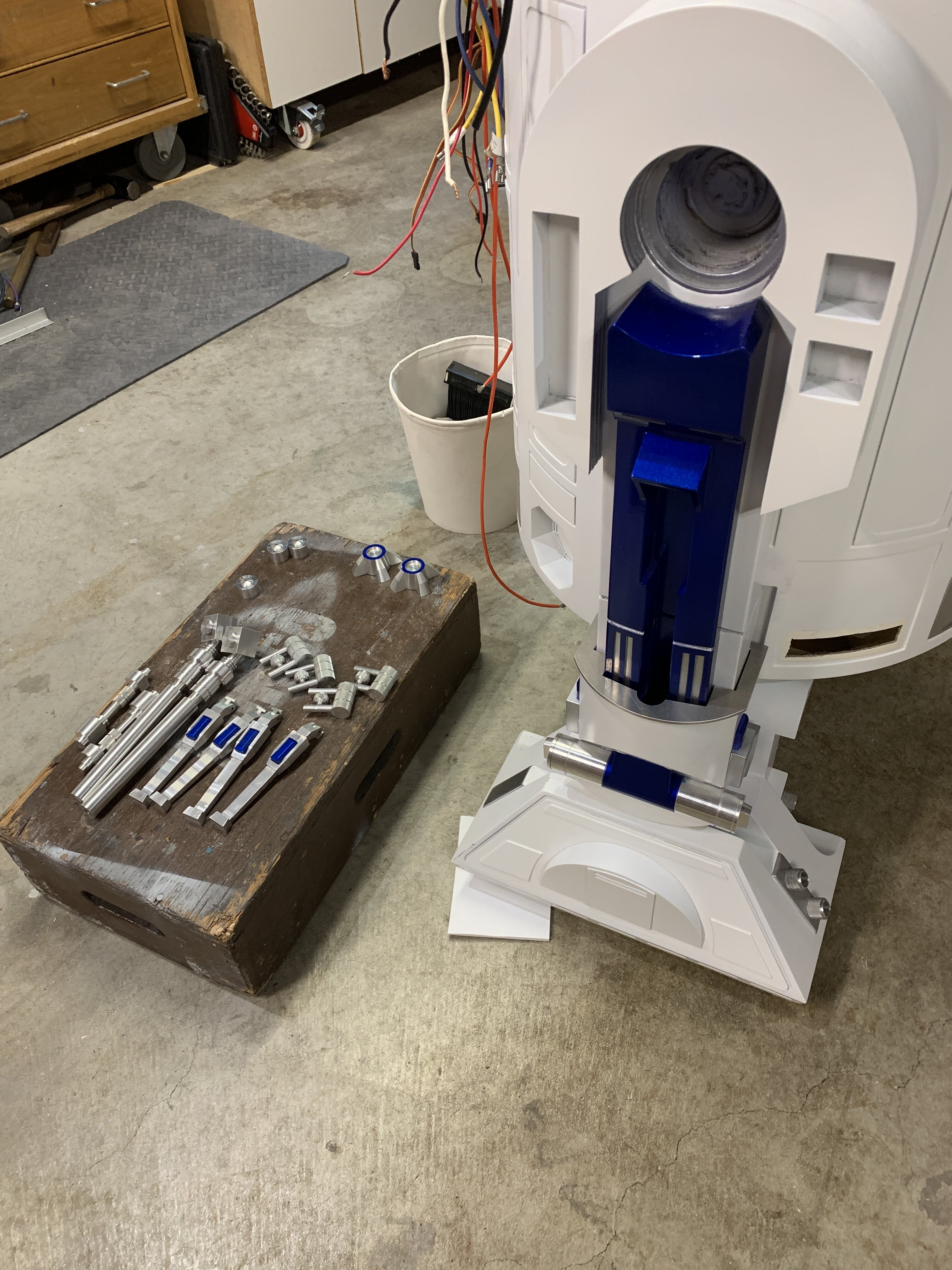

In the paper bucket in front of R2, you can see some of the aluminum parts that have waiting almost 20 years to be installed.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Duncanator

Sr Member
Even though my droid has a fiberglass body, I wanted as many of his shiny bits to be made of real aluminum. So back when I started these shenanigans 2 decades ago; and I still had access to the original parts, I machined all the metal parts for my R2.
Some of them were fairly straight-forward to mill or turn, but some presented more of a challenge.

19.10 Alum Leg parts Waiting.JPG


.....Aaaaaaaand close-ups!!!!

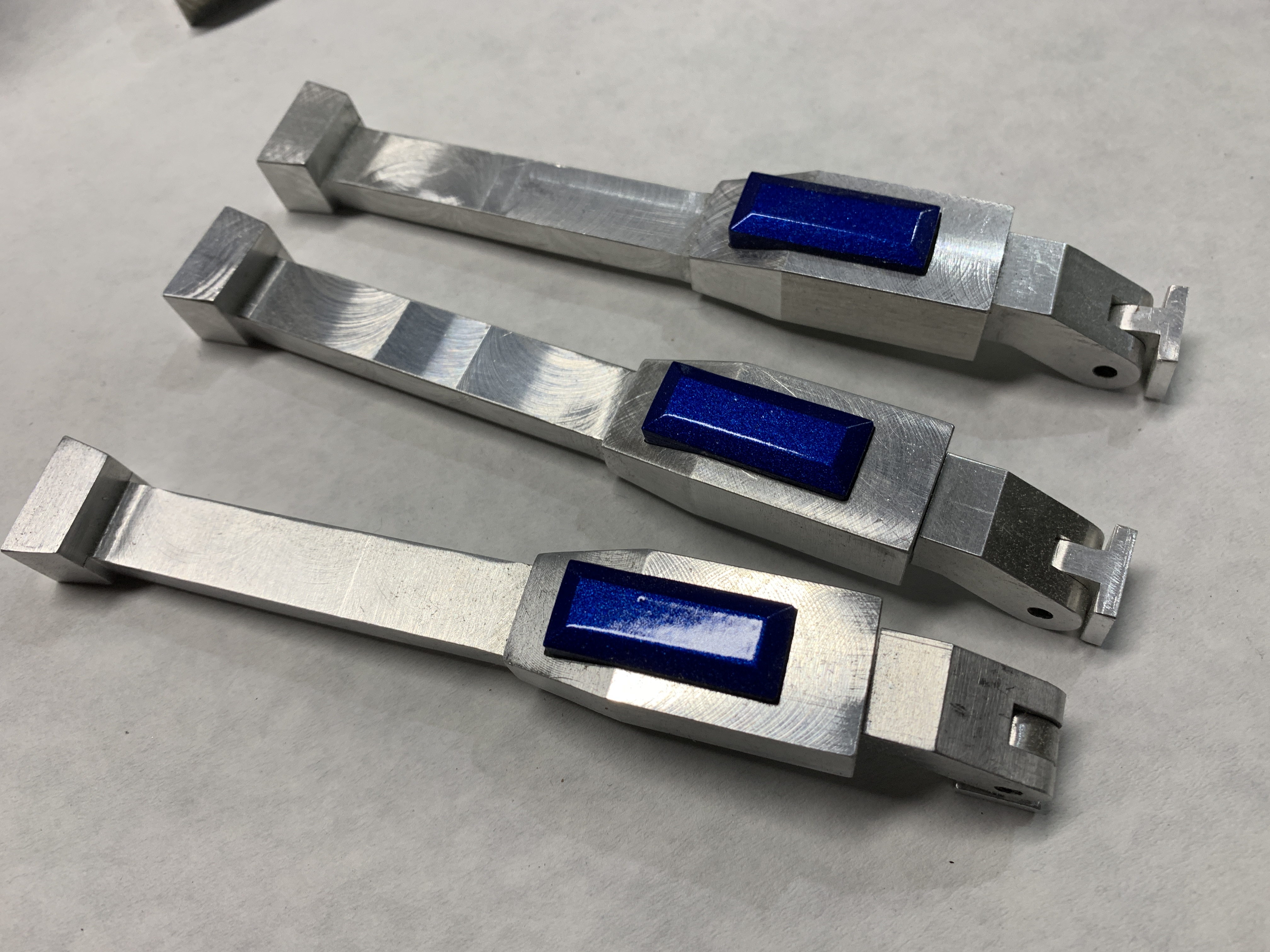

19.9 battery handles 4.JPG

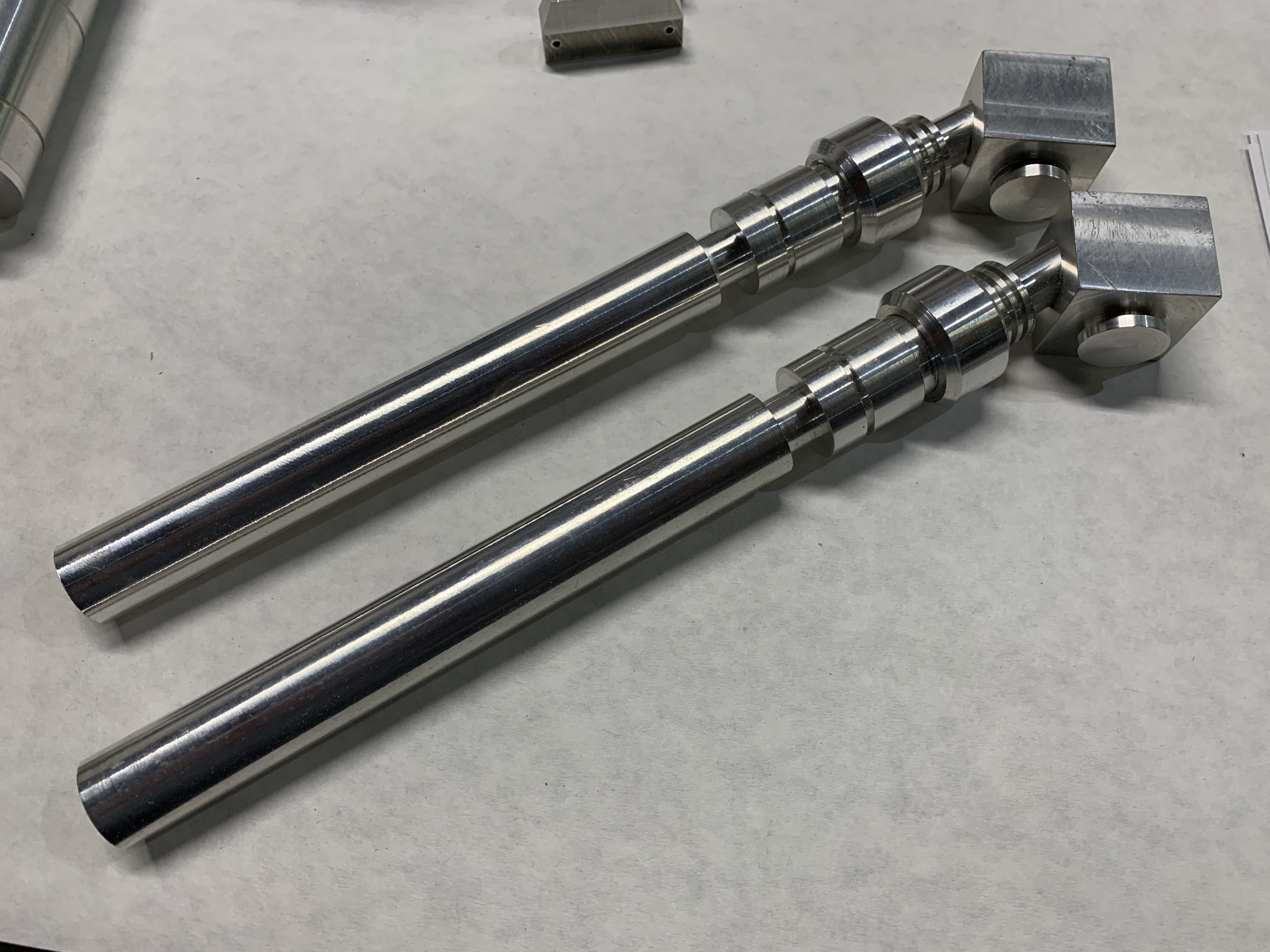

19.9 Alum Leg Slot Cylinder 4.JPG

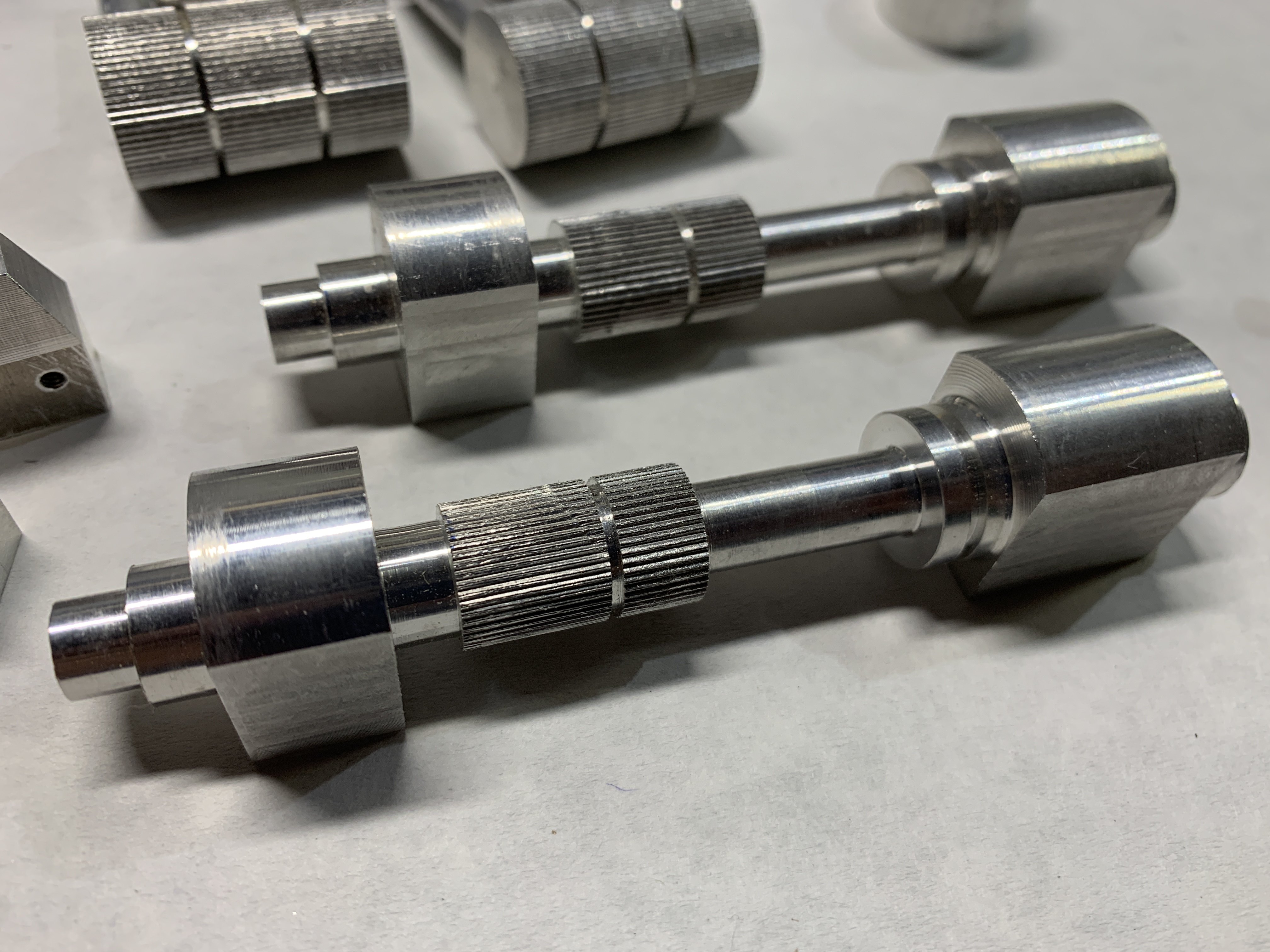

19.9 Alum Shoulder Cylinders.JPG

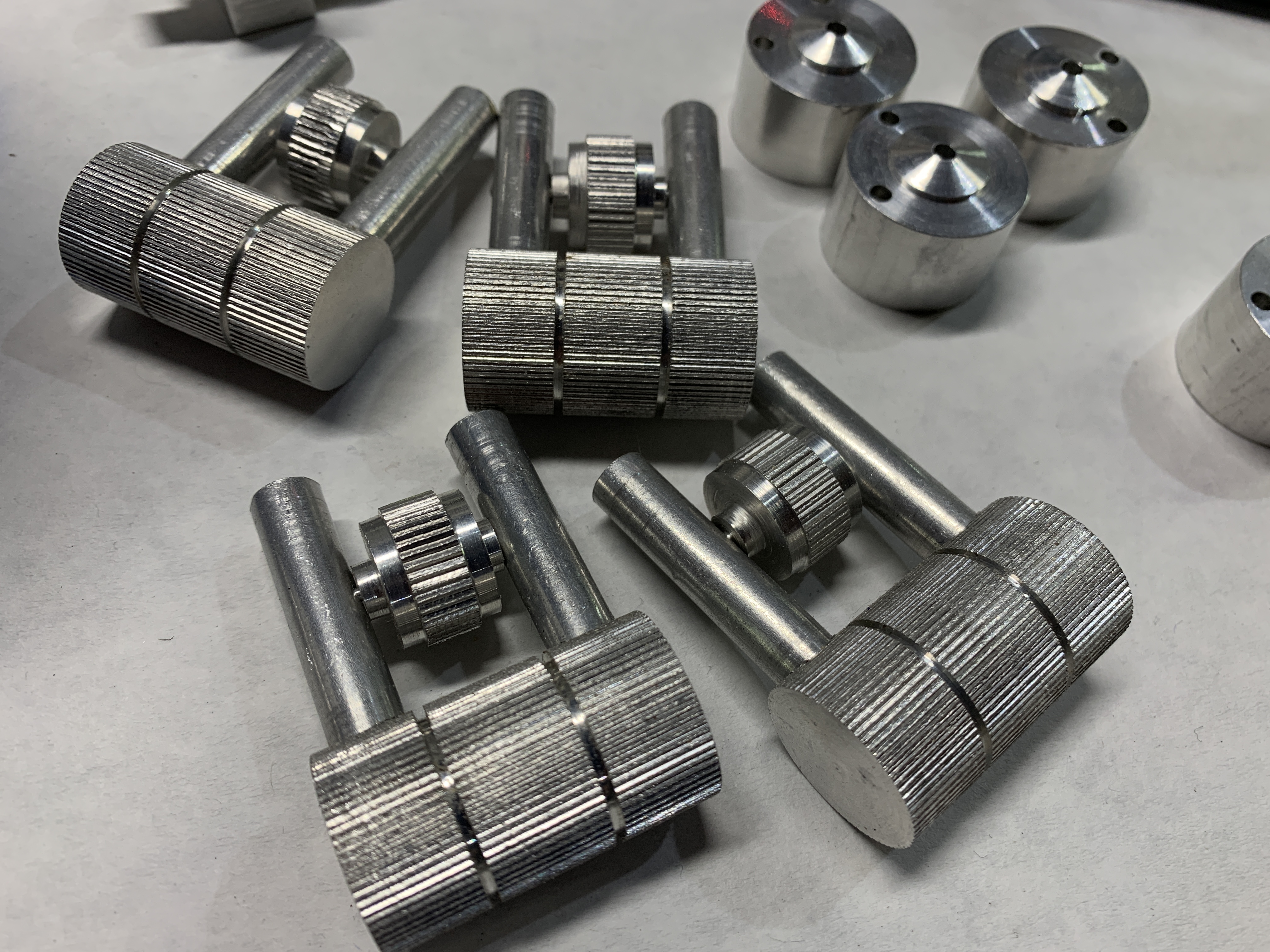

19.9 Alum Shoulder Details.JPG


Duncanator

Sr Member
Now some of the metal bits were a tad more tricky to machine....

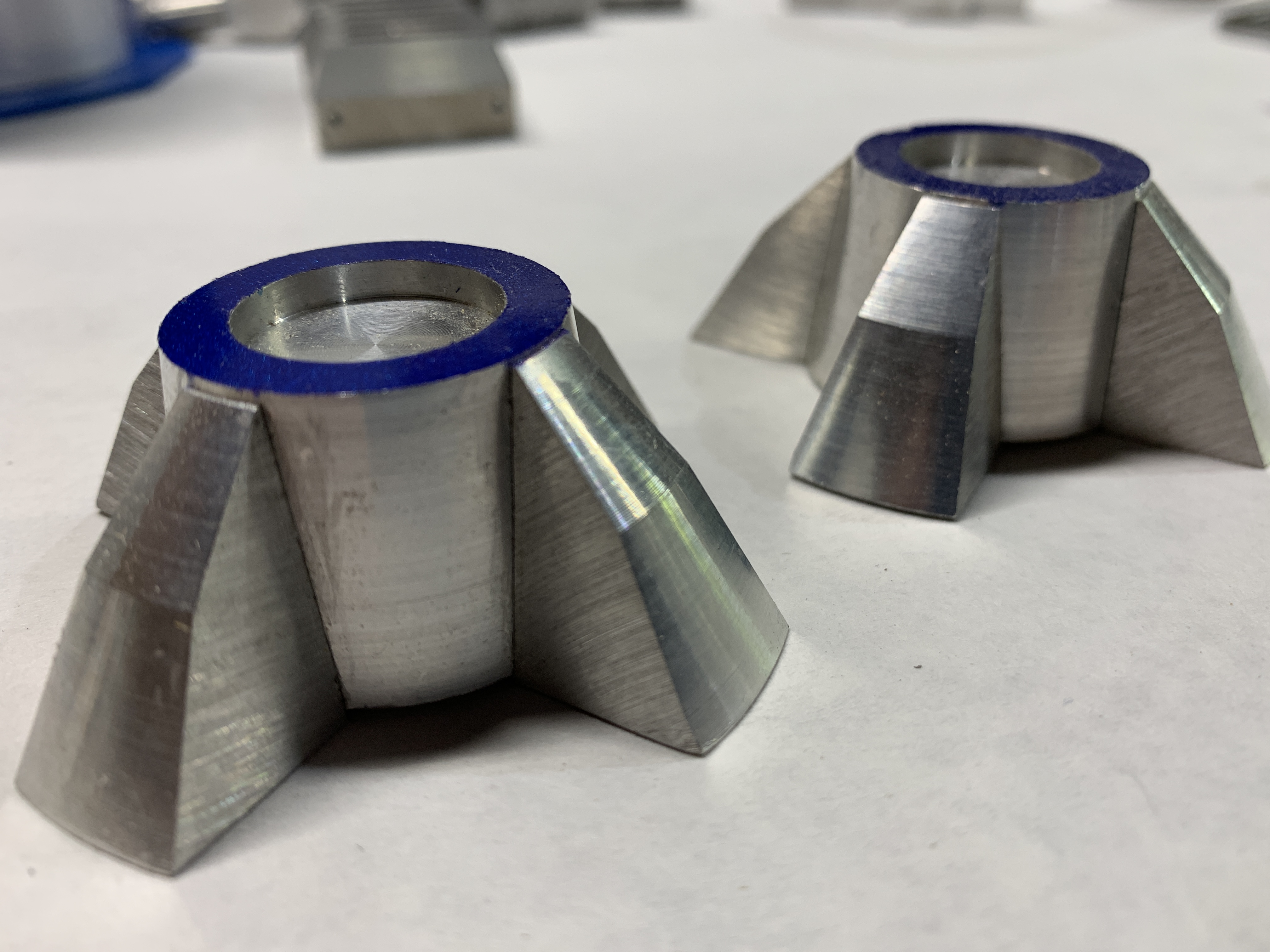

These charge port internals needed to have two nested, tapered turnings lathed, and then the outer parts milled down to create the four wings.
Oh! The angles! Lordy help me!
19.9 Alum Charge Port 3.JPG



Making square corners in the coin slot's slot had me scratching my head.

Drill lots of holes and file?
Mill with a long, tiny, fragile cutter and file?

I couldn't figure it out until I asked one of my machinist friends in the shop how to do it.
He didn't miss a beat when he told me to mill a channel that is half the depth of the slot in a plate. Then cut the plate in half, and screw the two plate halves face-to-face to create a perfect square cornered slot. After that, I just cut the plate into shorter sections, and milled the angles.

I'm very happy with the way they came out!

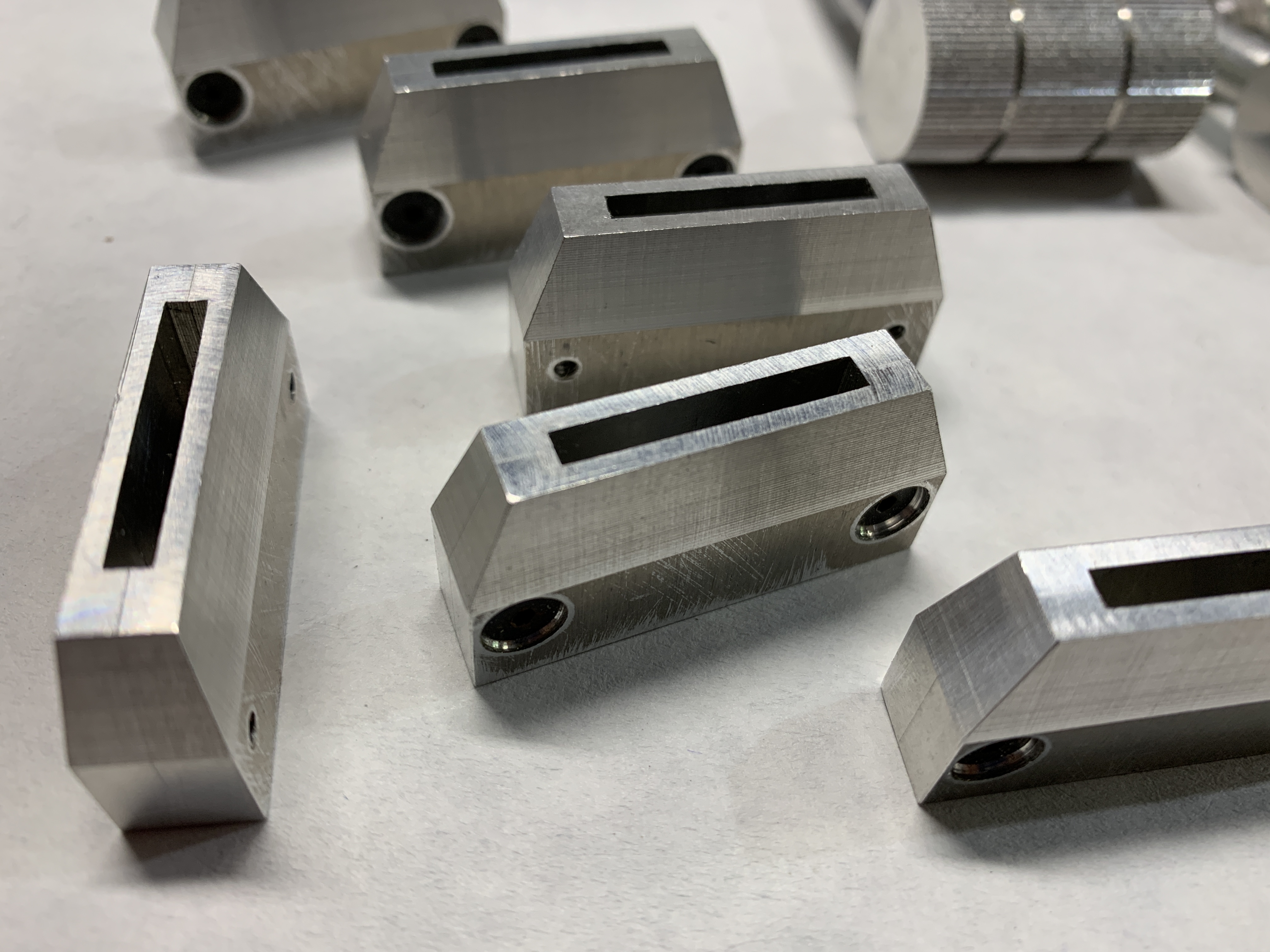

19.9 Alum Coin Slots 1.JPG


Sluis Van Shipyards

Legendary Member
This is exactly why I've never attempted to build one yet (oh and money...). I would never be happy unless I had as many metal parts as possible, all the electronics, opening compartments, etc. Very cool!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

ID10T

Well-Known Member
This is a great thread with a better story behind it.

I doubt I’ll ever build an R2 unit, but I’m still enjoying the stories here.

Carry on!


Duncanator

Sr Member
Great update Duncanator (y) (y) Love the way you opted for real alu pieces for your R2 unit. Nothing beats the look of real metal.:cool::cool::notworthy::notworthy::notworthy::notworthy:

Real metal is the way to go if one has the tools. It takes about the same amount of work to make them out of plastic or wood.
But admittedly, not everyone has machine tools available.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Duncanator

Sr Member
:rolleyes:That being said...

Making these logic surrounds REALLY kicked my butt.

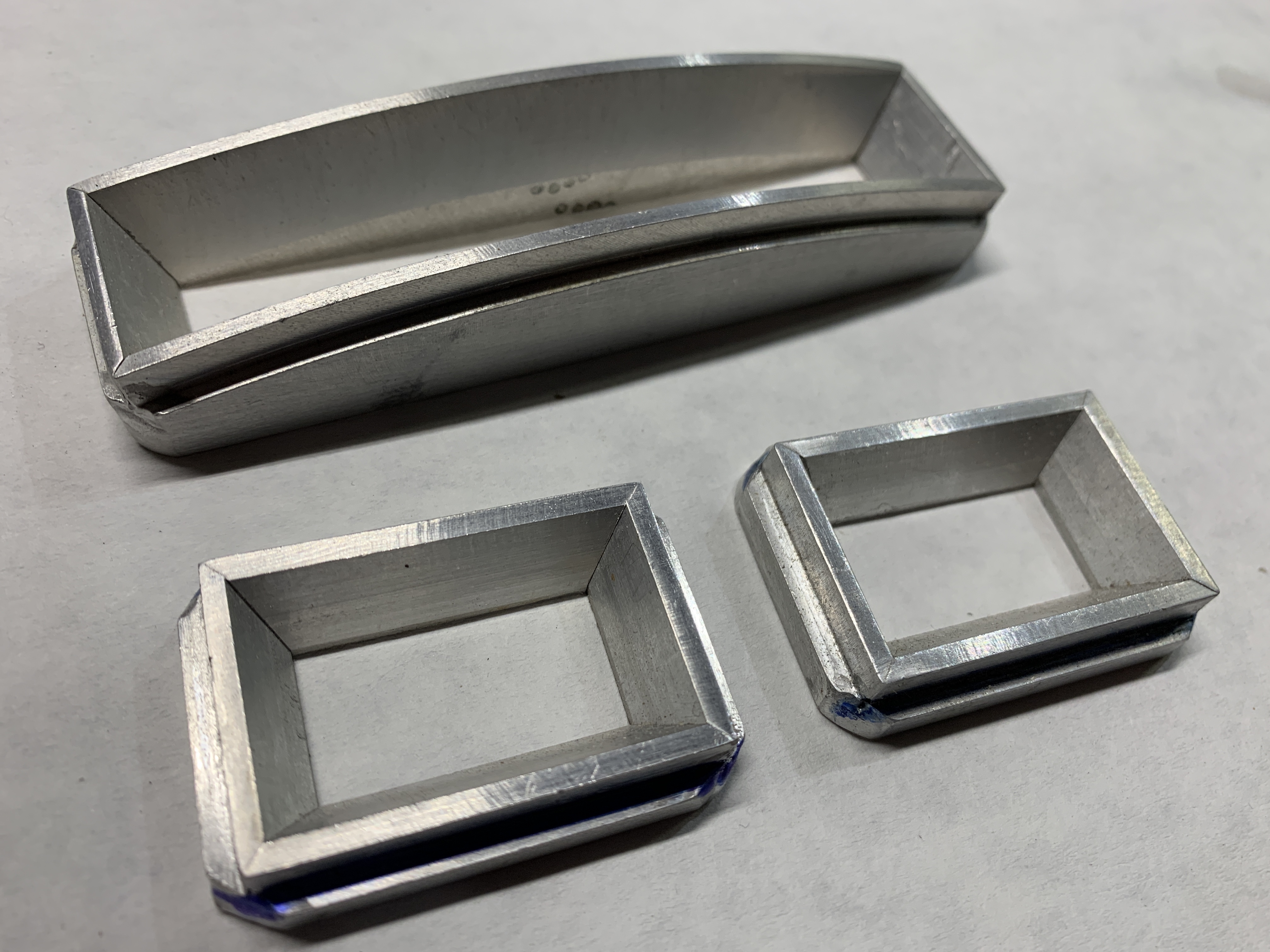

19.9 Logic displays 1.JPG



First I had to mill long strips with all the angles on them, then cut and mitre them to fit together. Getting all the angles to line up properly was trickier than it should have been.
And then getting the proper curved bevel on the longer surround stretched my machining skills in a whole new direction. I spent so much time setting up the cut, it was crazy!

And then I decided to weld them together rather than use screws. :oops:

ahem..

My TIG welding skills were brand new when I did these; and as often happens when a new skill is acquired, you look at every project as a chance to use it - even when it might be wiser to use a different technique. The thrill of joining two pieces of METAL into one piece with welding is intoxicating the first time you do it! It feels like magic after years of screws and glues. The lure of fusing metal with fire was more than I could resist!

So it took a few tries (and failures), but eventually I had some finished parts that I was happy with.

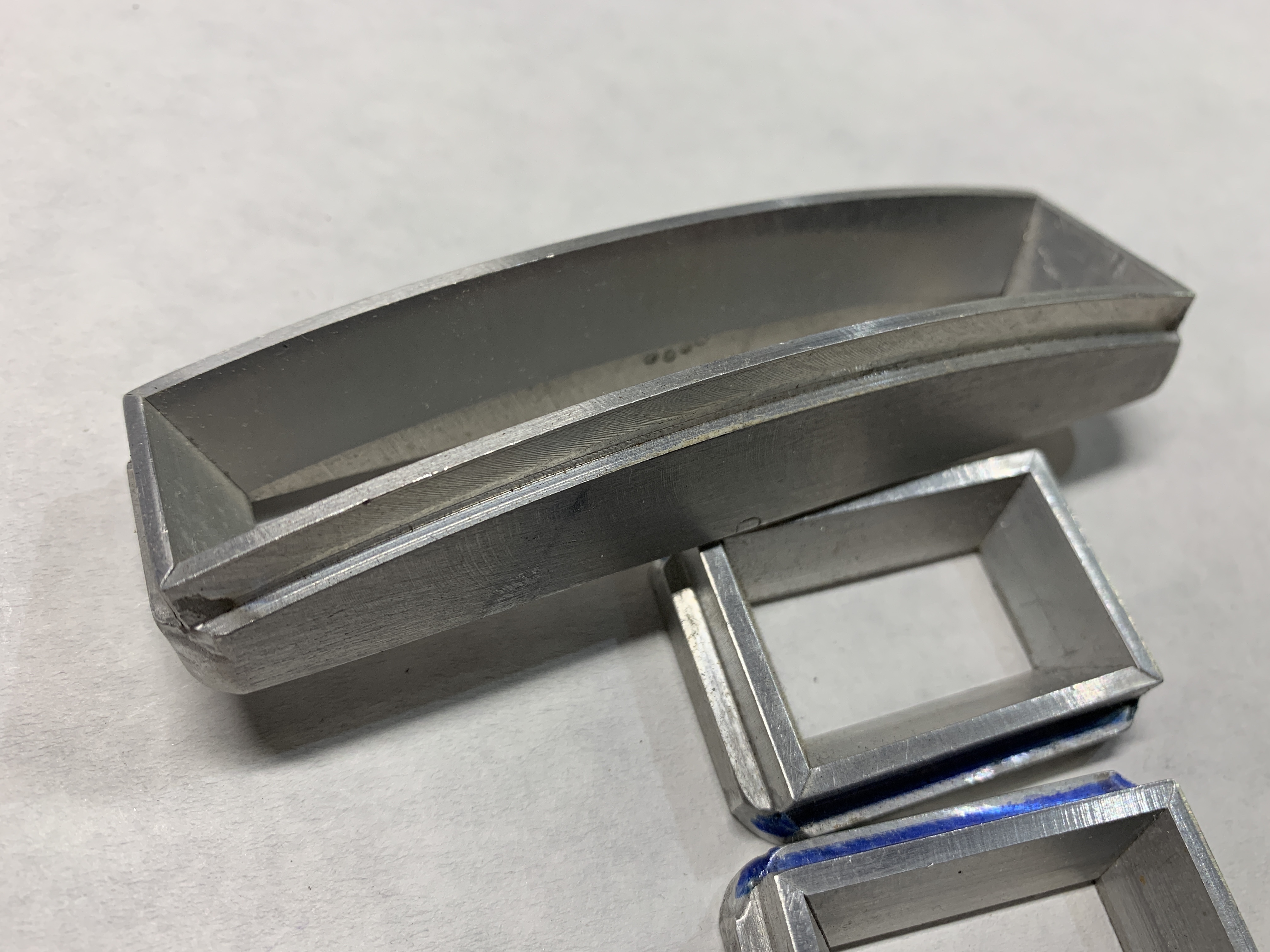

19.9 Logic displays 2.JPG
