ALIEN HELMET 3D PRINTED

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


GEEK1138

Sr Member
RPF PREMIUM MEMBER
Yes, cheers muchly dude...i've finished the 'chin strap' etching. It's so time consuming to model these parts...all the shapes have to be created to perform boolean operations to subtract them from the parent model...bit of a melon twister. Here's the pic;

ETCHINGS 1.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER
This modelling lark takes longer than actual work, but I think I'm on the home stretch,,,

All the etchings are done...I think I will print them separate from the helmet so I can apply the correct pieces for whichever helmet I make.

The front fascia is done and I re-did the chin section and the piping;

ALIEN HELMET 6.jpg

ALIEN HELMET 10.jpg
ALIEN HELMET 9.jpg

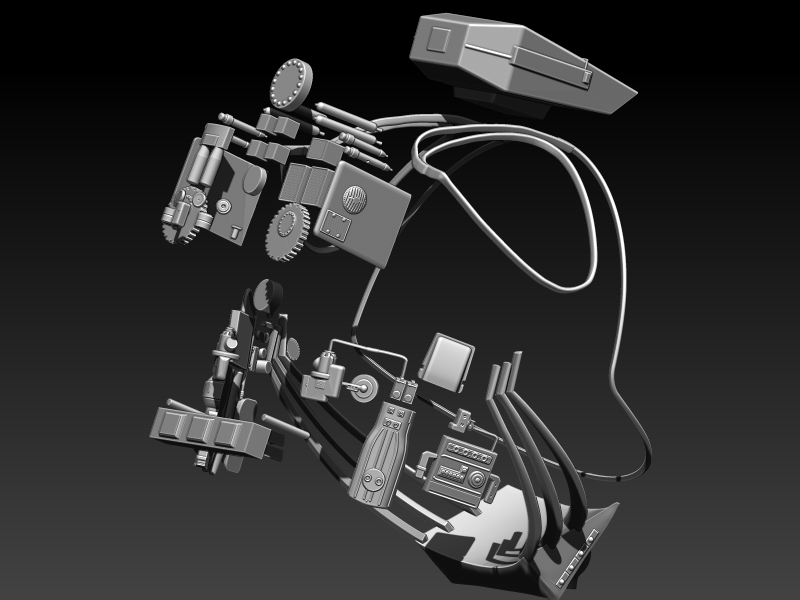

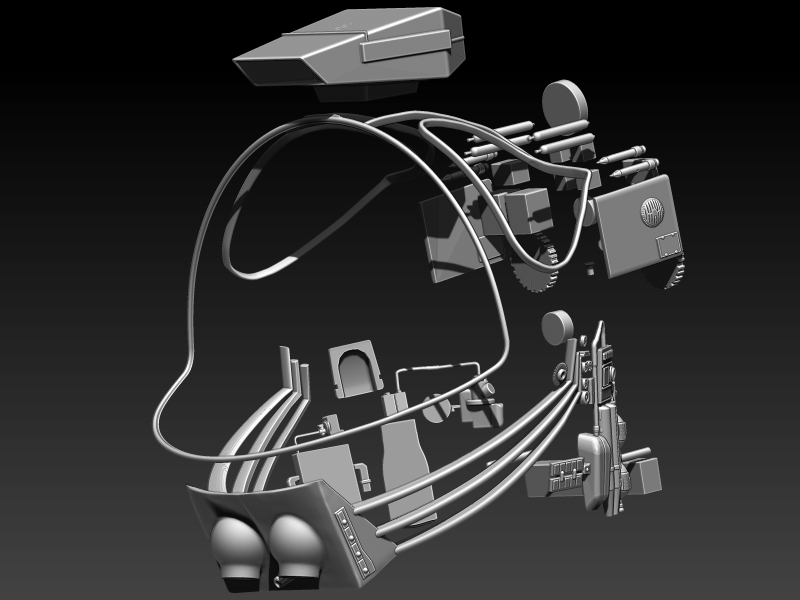

I do love these separate exploded views of the greeblies...
ALIEN HELMET 7.jpg
ALIEN HELMET 8.jpg

Just the inner rear panels and vent pipes to do and then figure out how to slice it for printing


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER
A quick question please...anyone know how the rear panels are attached? there seem to be 4 options; 1, panels fixed to inside of helmet and glass inside them. 2, panel fixed onto inside of helmet and glass cut out for front screen and rear windows only. 3, separate inner wall, inside glass, with greeblies attached and a slot for screen. 4, greeblies panels fixed to inside of glass...thanks


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Duncanator

Sr Member
A quick question please...anyone know how the rear panels are attached? there seem to be 4 options; 1, panels fixed to inside of helmet and glass inside them. 2, panel fixed onto inside of helmet and glass cut out for front screen and rear windows only. 3, separate inner wall, inside glass, with greeblies attached and a slot for screen. 4, greeblies panels fixed to inside of glass...thanks
I am not absolutely sure about this, but I believe that the clear dome is one piece that gets sandwiched between the inner panels and the outer shell. That is how I was planning to do it.
If anyone else knows for certain, please speak up.


Triin

Active Member
RPF PREMIUM MEMBER

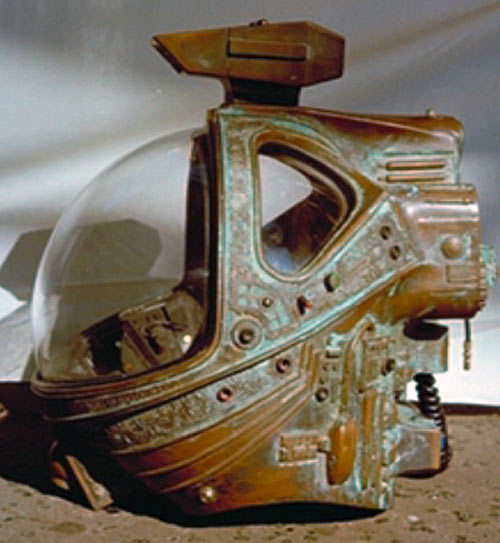

Those thin long stretches, are those tank treads or fabric strips?

And those big x rectangles look like plastic model kit sprue excess parts?
Haha they used sprue parts all over the place ( I’m sure you’ve seen this ) .. you can see one on this pic... granted... it does look like micro piping but still .. it’s sprue lolll


Attachments

  • A319773F-8F0C-40F5-8A99-66C1DAFB4A17.jpeg
    420.6 KB · Views: 36

Triin

Active Member
RPF PREMIUM MEMBER
This modelling lark takes longer than actual work, but I think I'm on the home stretch,,,

All the etchings are done...I think I will print them separate from the helmet so I can apply the correct pieces for whichever helmet I make.

The front fascia is done and I re-did the chin section and the piping;

View attachment 1489156
View attachment 1489157 View attachment 1489158

I do love these separate exploded views of the greeblies...
View attachment 1489159 View attachment 1489160
Just the inner rear panels and vent pipes to do and then figure out how to slice it for printing
Amazing!!!!


GEEK1138

Sr Member
RPF PREMIUM MEMBER
Thanks guys. So I have a quick question, probably aimed at Duncanator...the inner back panels; are they faceted to fit the separate sections inside with the greeblies on and feathered out to form into the dome shape. The inner panels seem to be mostly flat but then how to do they fit into the dome without curving as much?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Duncanator

Sr Member
Thanks guys. So I have a quick question, probably aimed at Duncanator...the inner back panels; are they faceted to fit the separate sections inside with the greeblies on and feathered out to form into the dome shape. The inner panels seem to be mostly flat but then how to do they fit into the dome without curving as much?
I'm pretty sure they are curved. I'll be able to check a bit later.


Duncanator

Sr Member

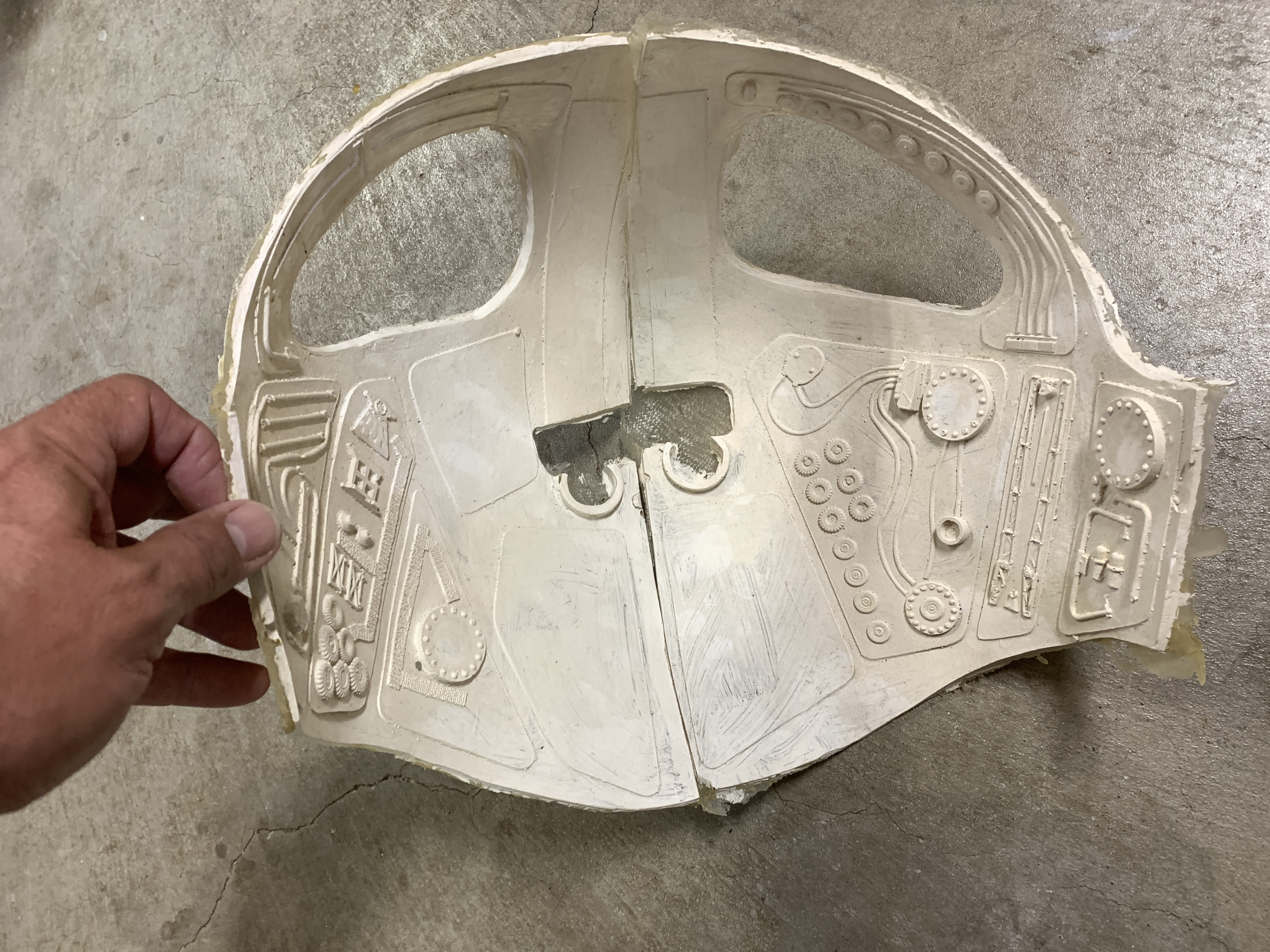

The two back panels are definitely curved. The bottoms follow the curve of the neckline; and then as they go up, they become compound curves that follow the visor dome. It looks to me like they tried to bend the greebly panels to conform to the curve of the back panels. Some conformed better than others :p.

I am curious what went into or through the rectangular opening above the two semi-circles. I haven't found a pic that shows that area finished - there's usually someone's head in the way.

Al inner 1.jpg


AL Inner 2.JPG


AL Inner 3.JPG


GEEK1138

Sr Member
RPF PREMIUM MEMBER
Awesome dude...yeah I assume there was a pipe looking thing that came thru, maybe to look like venting??

Can u take a pic of the back of the panels please...I'm trying to figure out the surface that fixes to the perspex dome and see if they are uniformly thin


thadbo13

Active Member

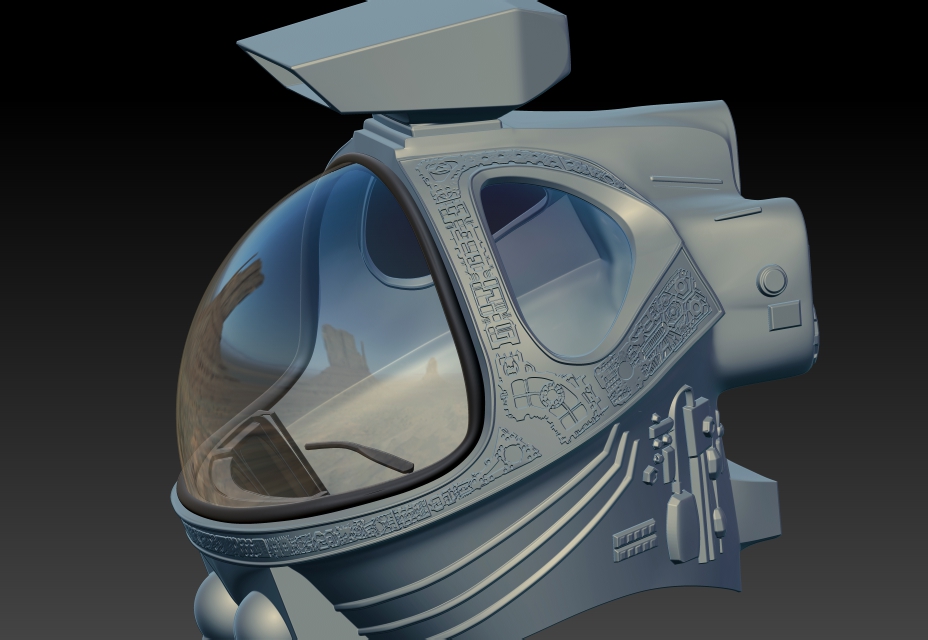

Stumbled upon this and i know the exact pain of modeling all the etchings because I've been kicking this model around for a few years.... not trying to hijack your thread but if you're interested in any of the parts i have modeled let me know and i'll send them. I did the etchings flat in fusion 360 and then imported them into zbrush. the only etching i have left is the big one and its halfway done in fusion. i didn't spend much time on any of the greeblies (you killed it!) because i planned on buying the model kits


Attachments

  • 1.jpg
    244.4 KB · Views: 41
  • 2.jpg
    203.5 KB · Views: 39
  • 3.jpg
    241.1 KB · Views: 40
