Awesome dude...yeah I assume there was a pipe looking thing that came thru, maybe to look like venting??

Can u take a pic of the back of the panels please...I'm trying to figure out the surface that fixes to the perspex dome and see if they are uniformly thin.

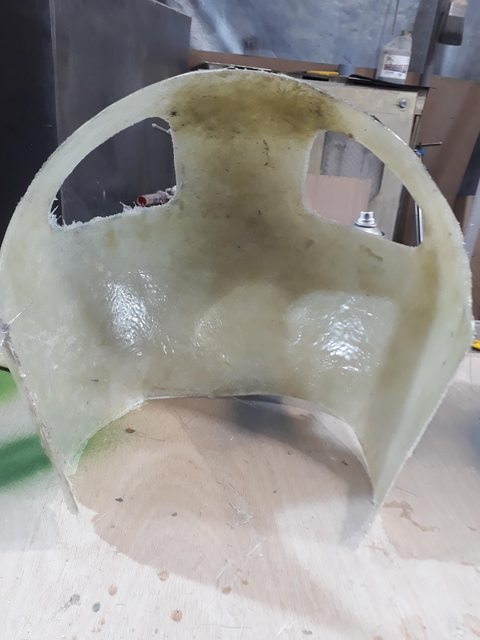

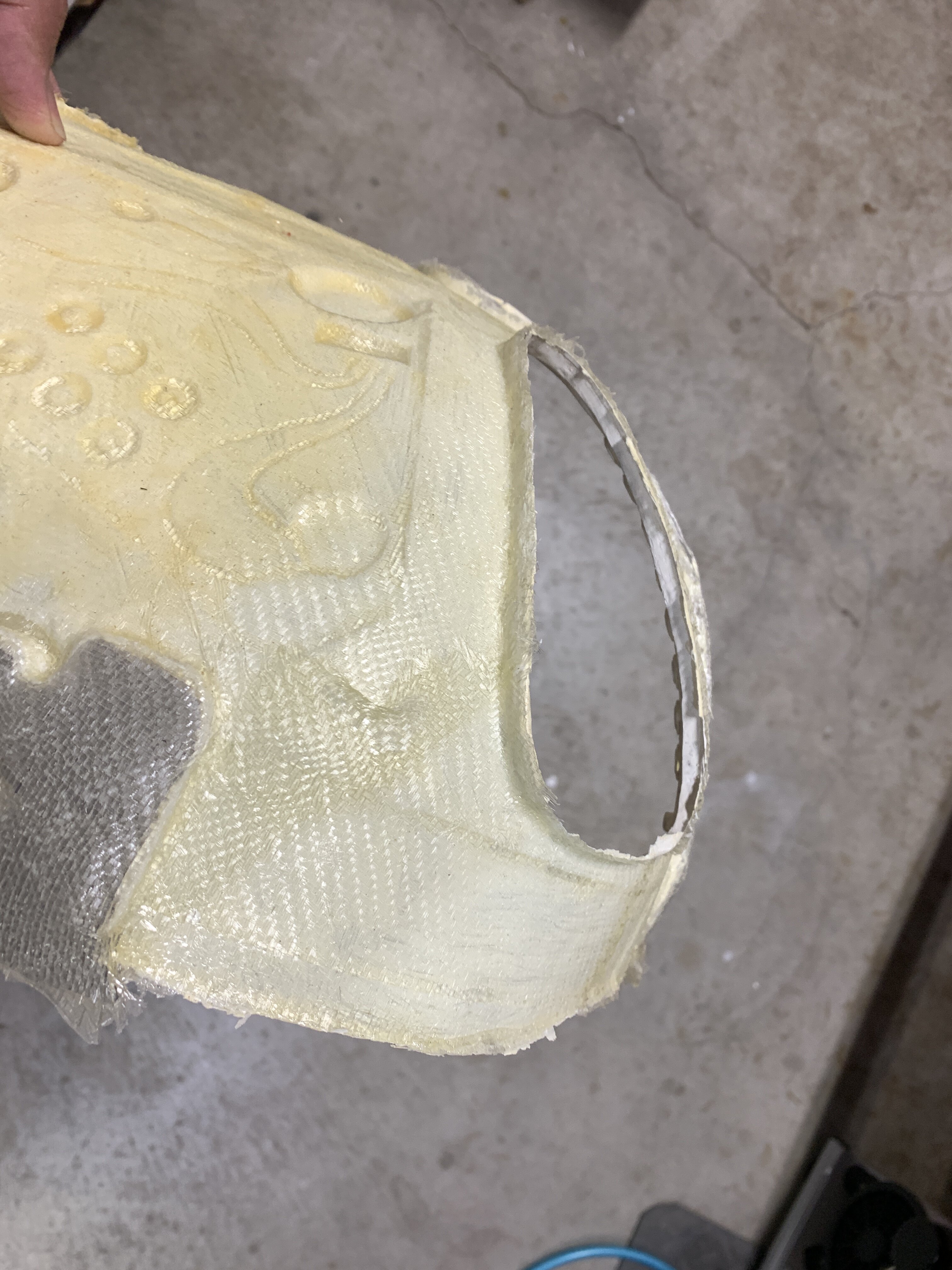

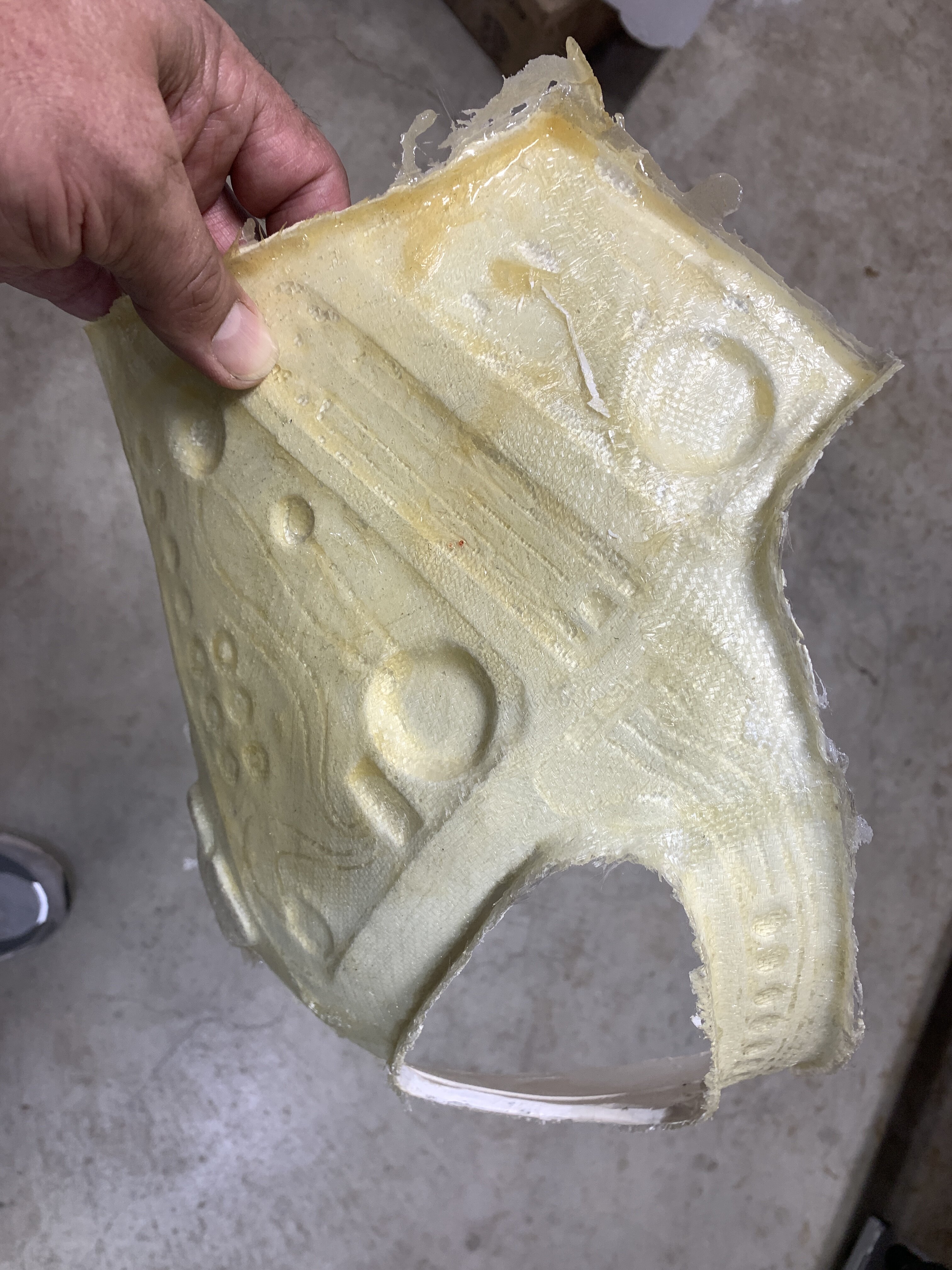

Is this what you meant by the back side? The lip around the little window is pretty uniform ( if I am understanding your question ).

Ali raw 1.JPG


Ali raw 2.JPG


Ali raw 3.JPG


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER
Thanks again dude...these have been causing me all sorts of problems and your pics have helped me decide how I want to build them. I don't think they are printable in this form factor so I have opted to print the inner panels and greeblies separately and laser cut the 'islands' that they sit on, so I can make adjustments for fitting They look like handmade items that were made to fit and that's how I'll do mine

ALIEN HELMET 11.jpg
ALIEN HELMET 12.jpg

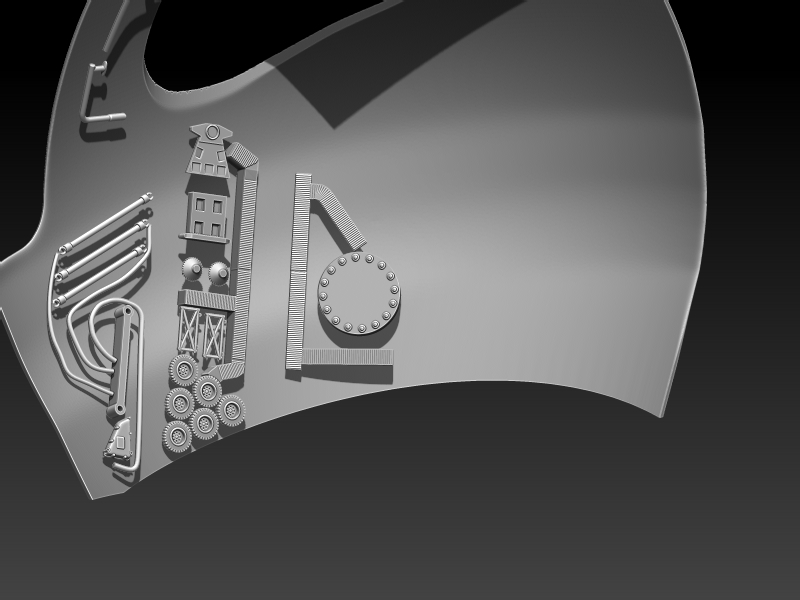

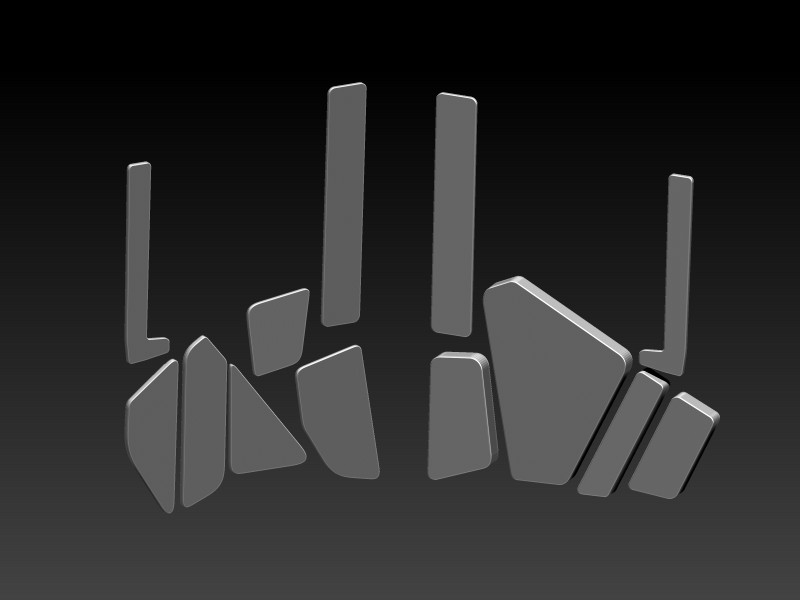

Here are the islands that will be cut to fit the curved panels
ALIEN HELMET 15.jpg

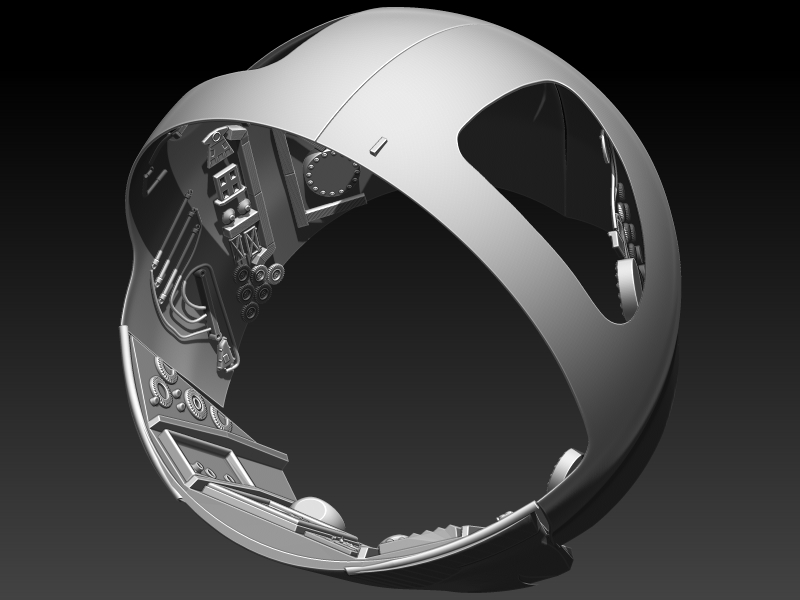

This is the whole inside structure to be printed
ALIEN HELMET 13.jpg
ALIEN HELMET 14.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER

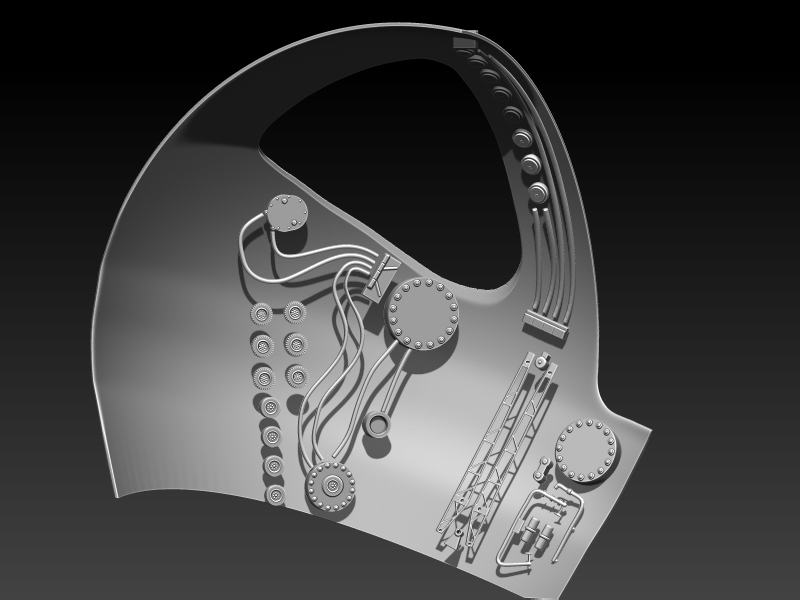

Ok, the digital side of the helmet is done, finally!

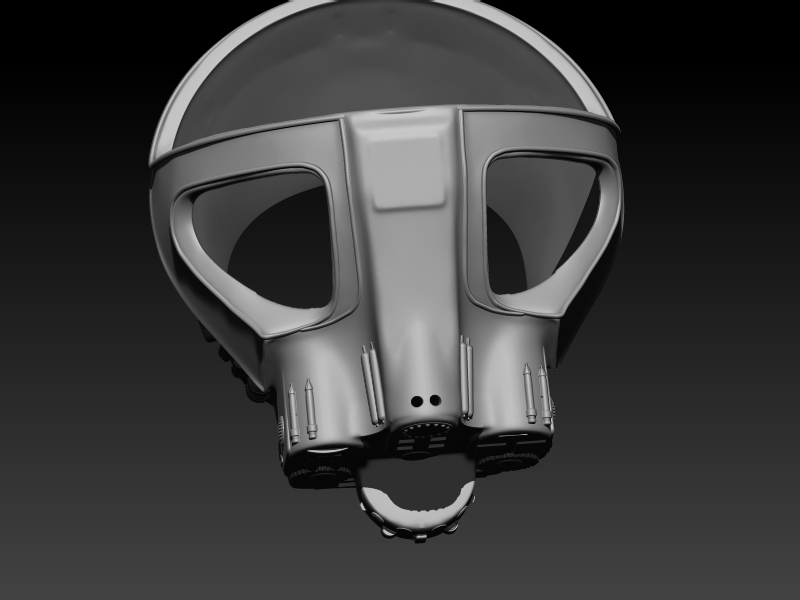

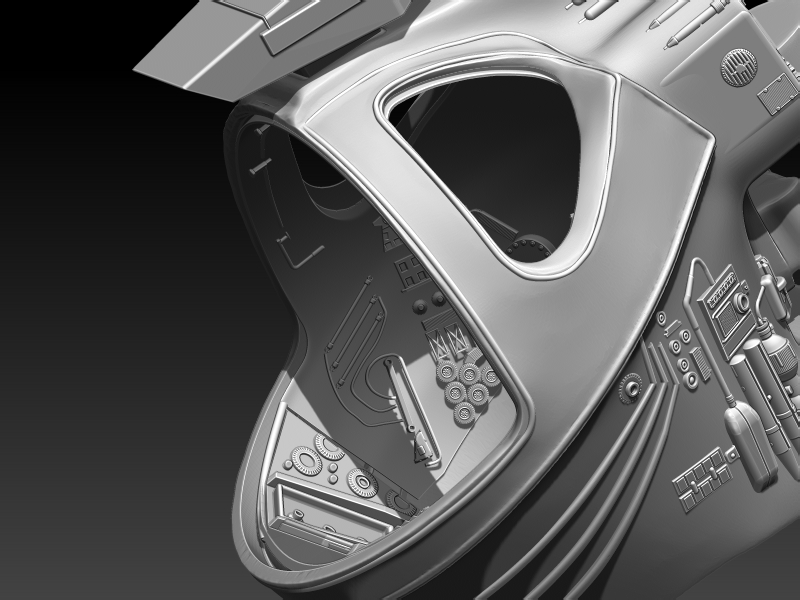

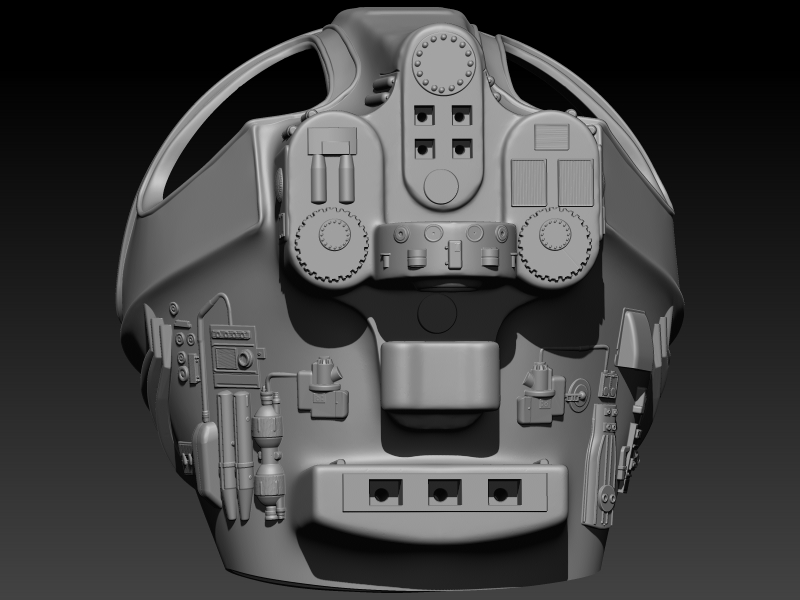

A few final tweaks...holes for cables and back lights and a channel for the breather tubes from the ribbed pipe. I'm thinking the 'fogger' for the breath venting will be mounted in the back pack, which I have yet to model

ALIEN HELMET 16.jpg
ALIEN HELMET 17.jpg


I should have some actual printed parts to show, as soon as I figure out how best to slice it


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER

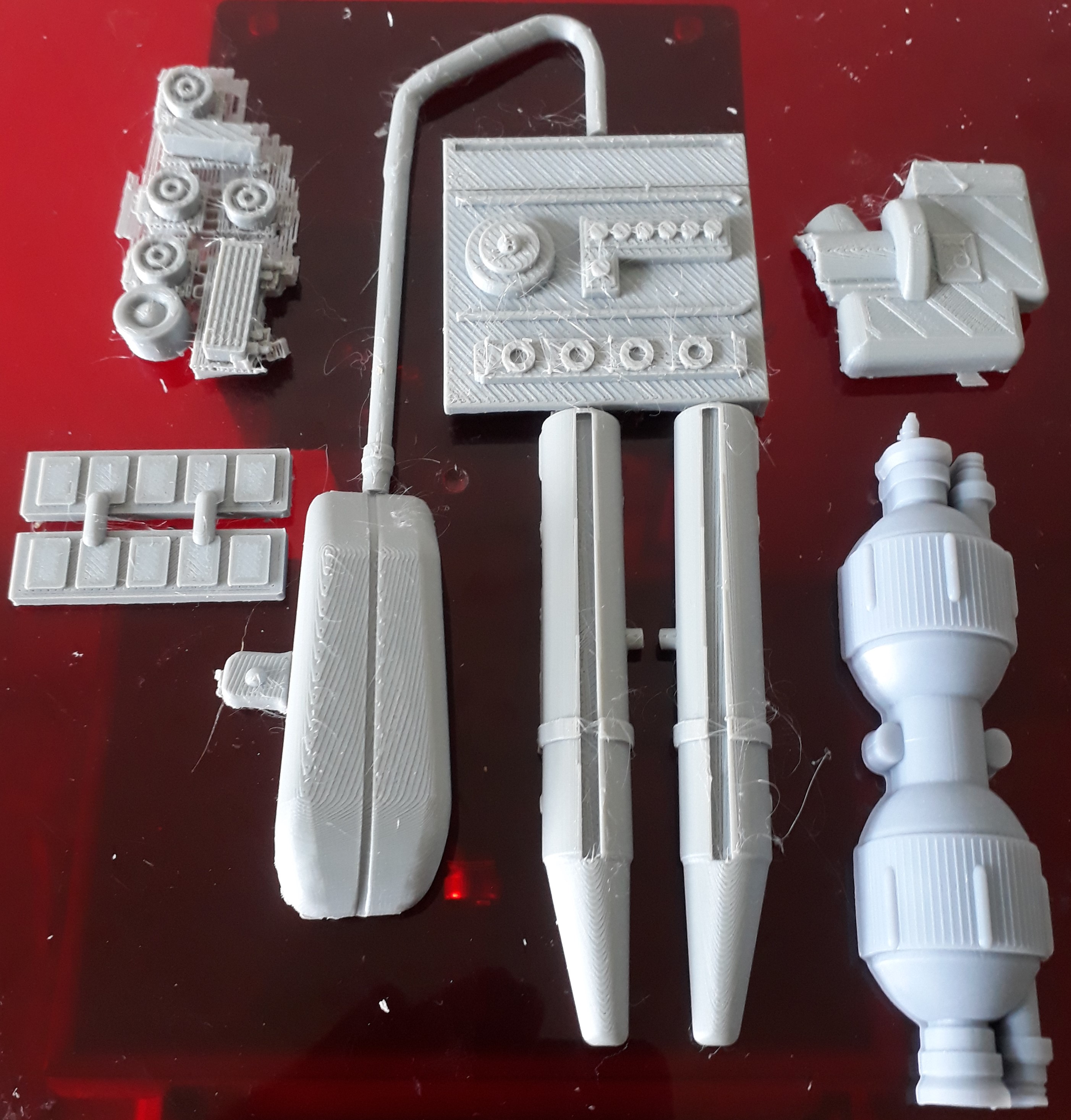

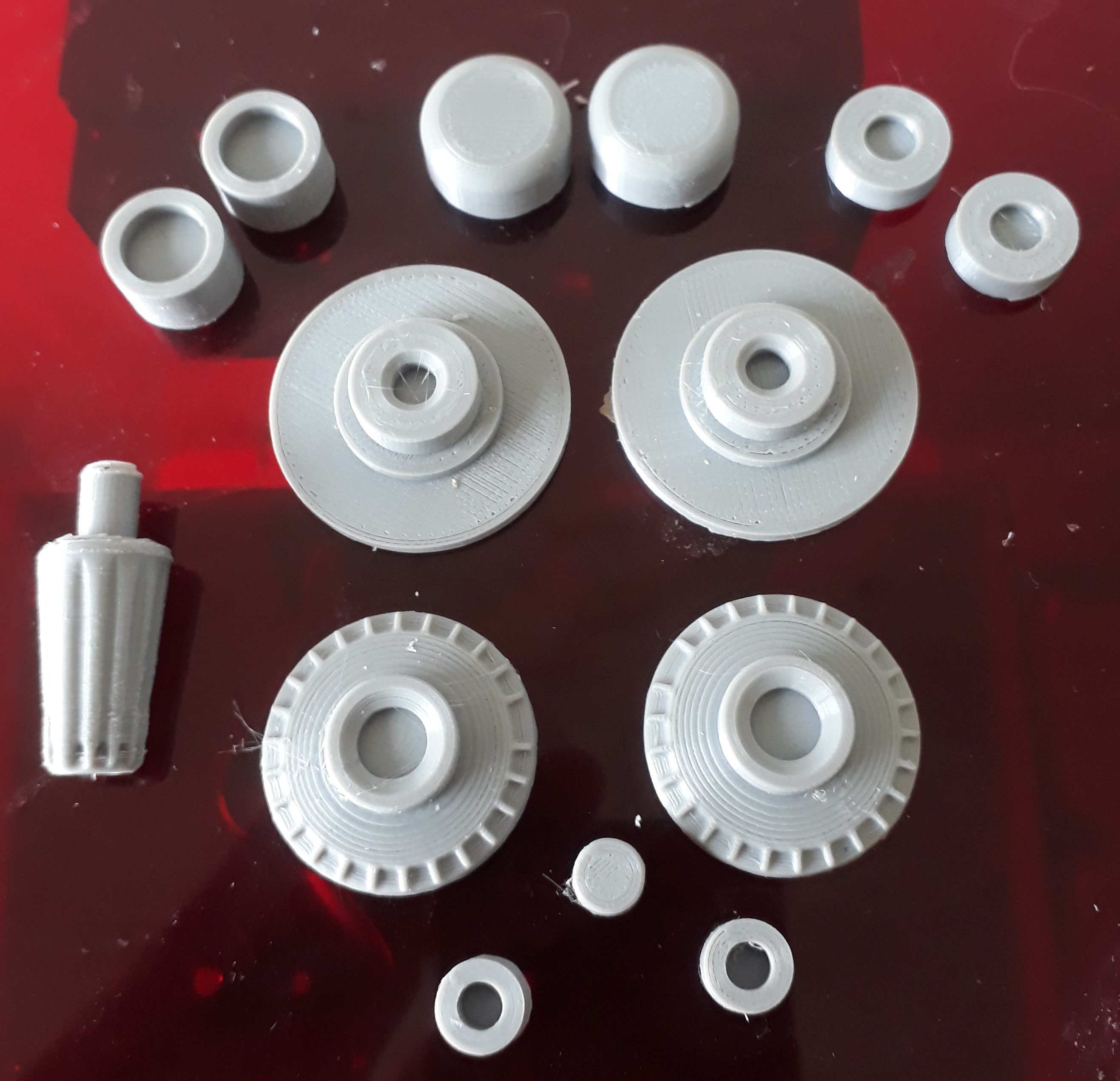

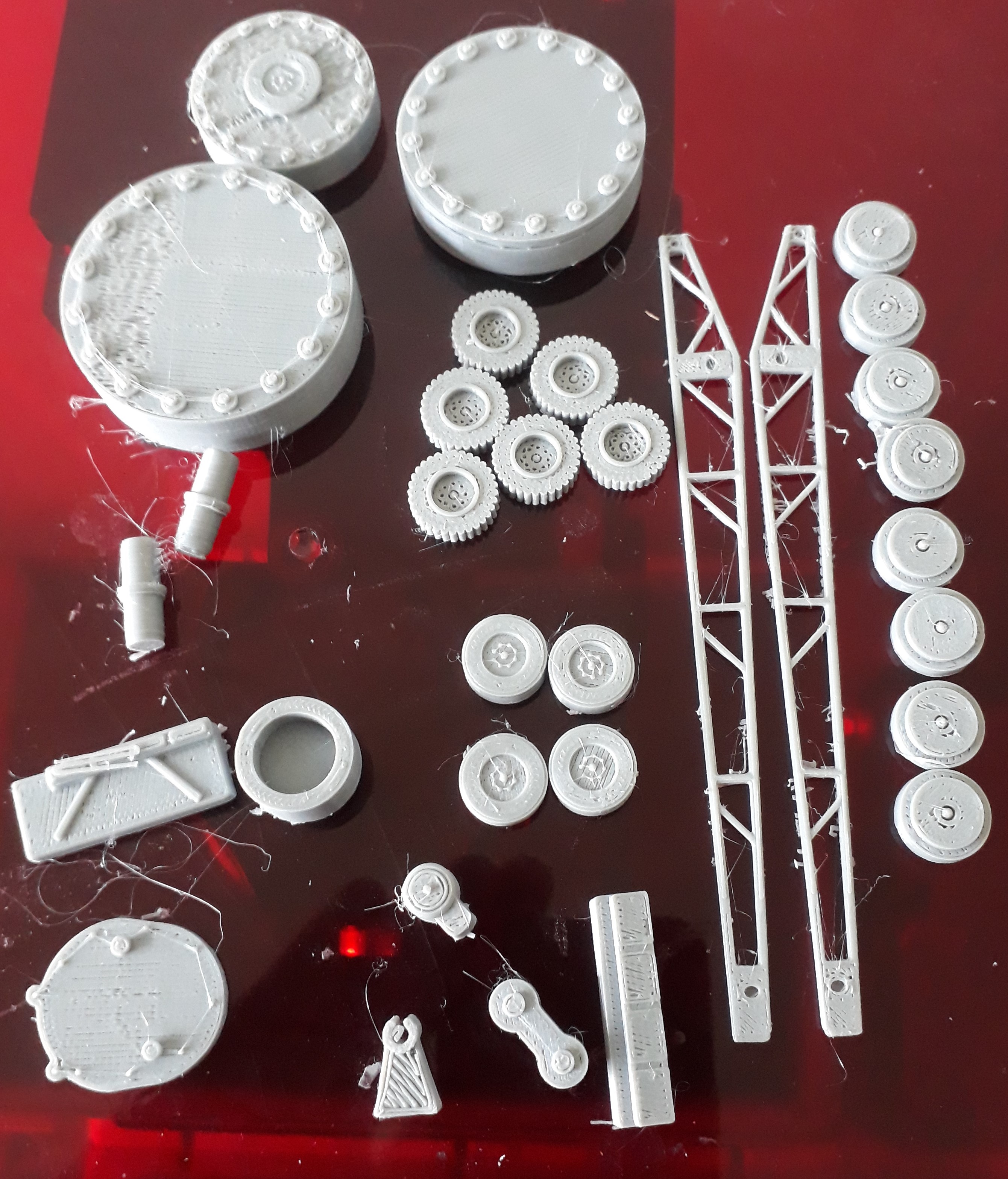

OK got most of it printed now. I'll try to do a step by step build so anyone who wants to make one can see how I did mine

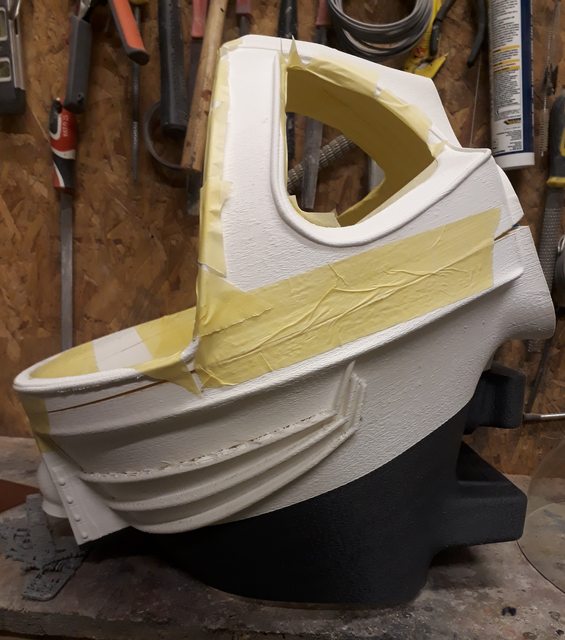

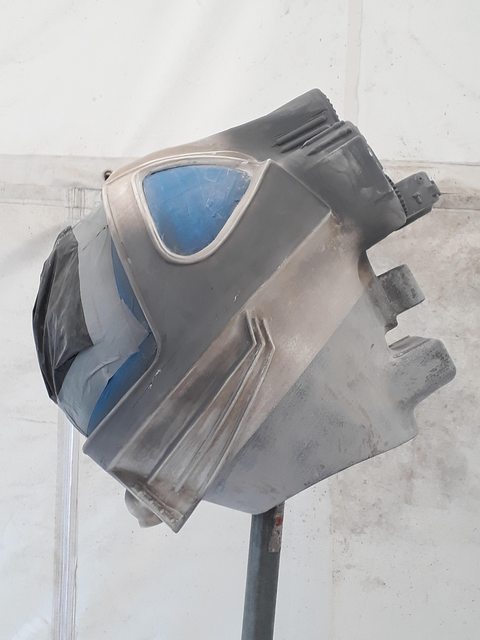

I decided to split the helmet in 3...across the mid band and separate the back section

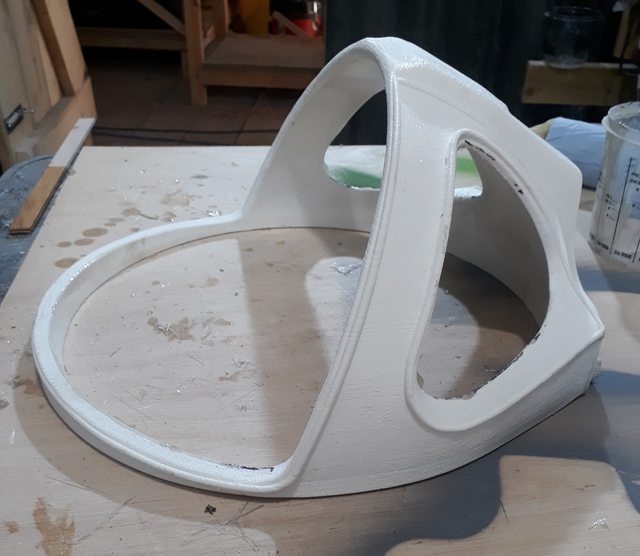

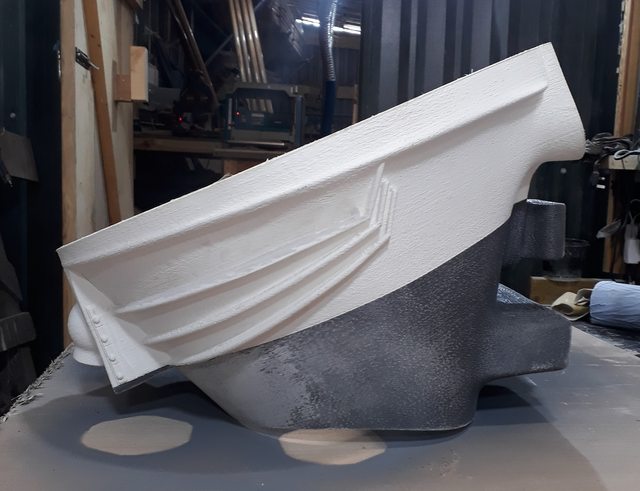

bottom half needed a new spool...quite a large print

and the back section

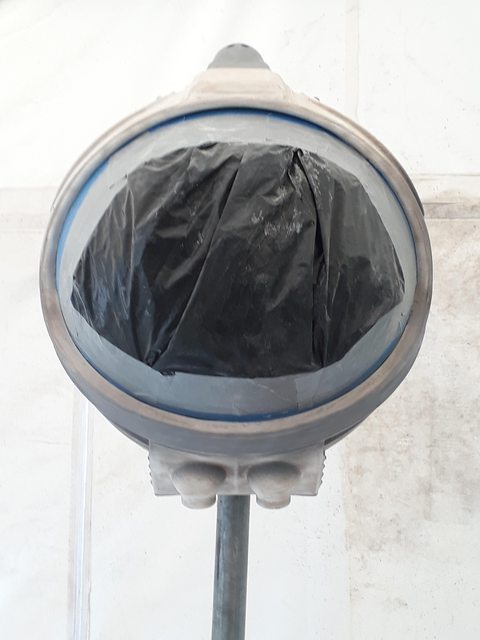

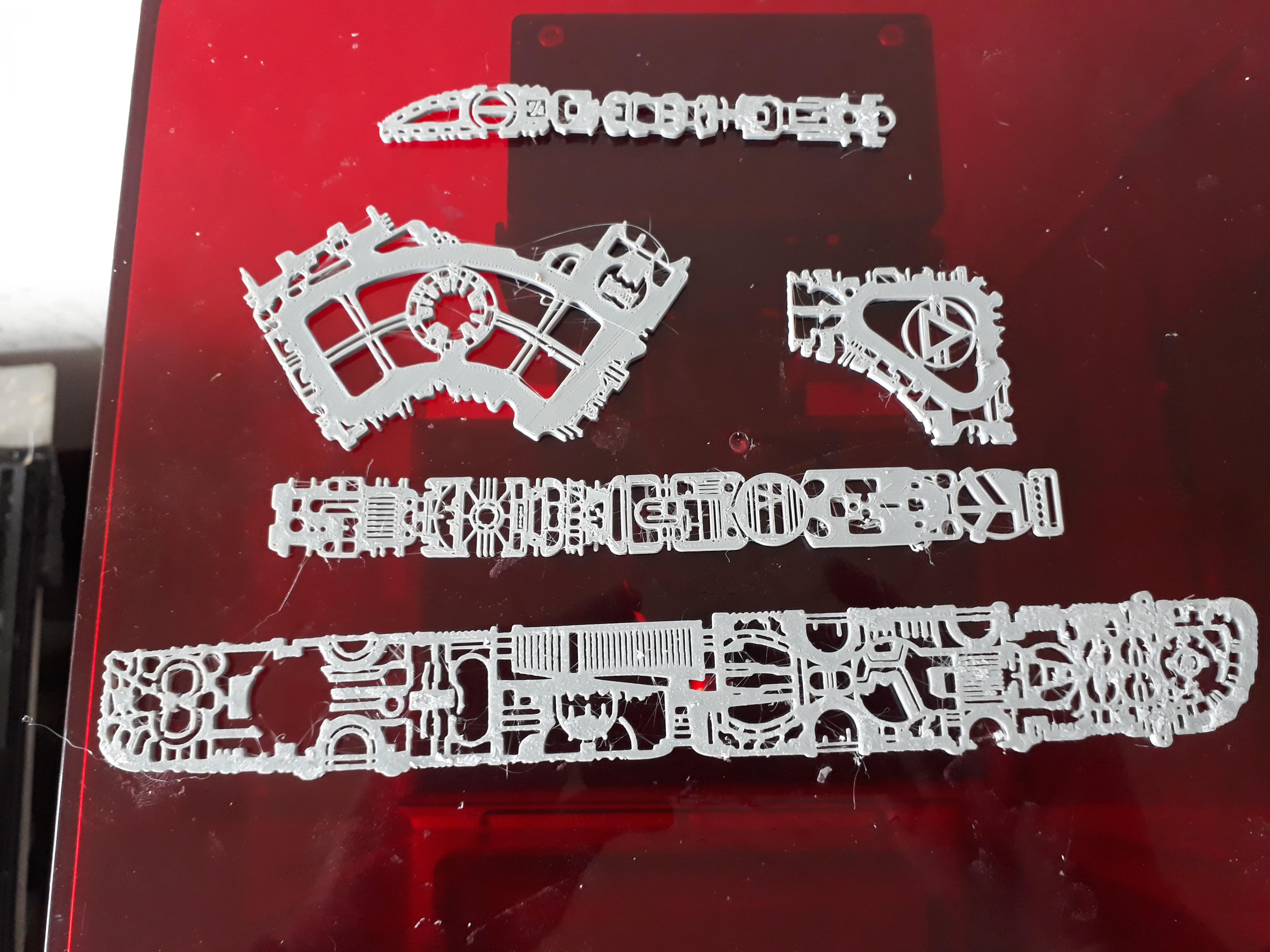

I realised when dry fitting...it is NOT possible to fit the acrylic dome after joining the 2 halves together. so I will fit it when I have done some finishing but before the etchings and paint job.

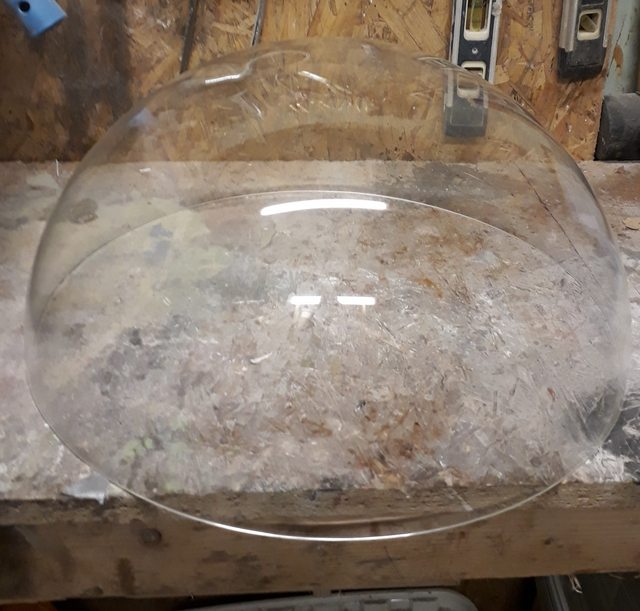

Acrylic dome 15"


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

GEEK1138

Sr Member
RPF PREMIUM MEMBER
Thanks.

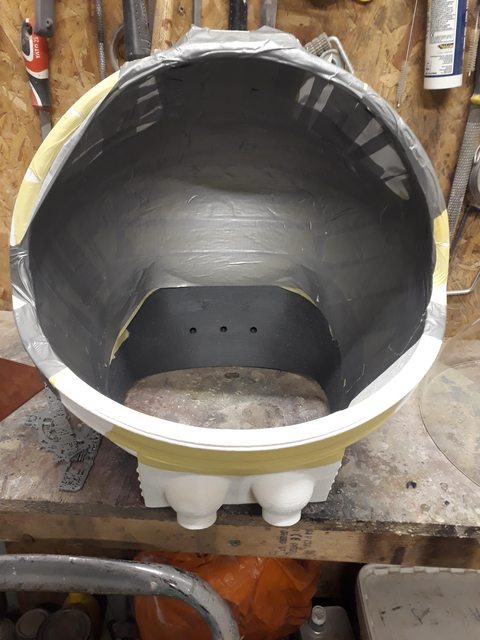

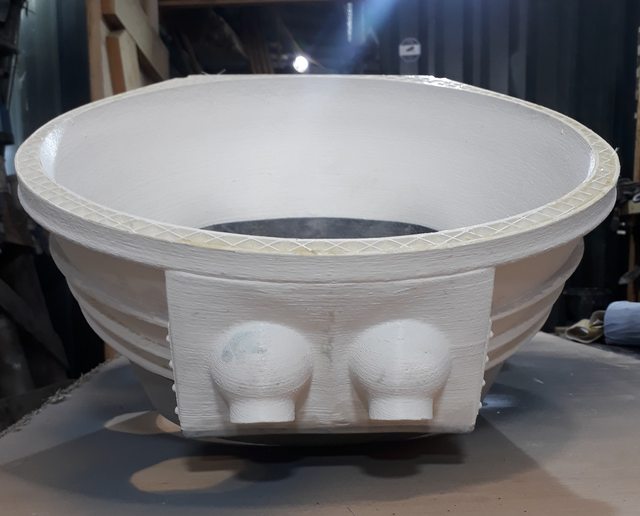

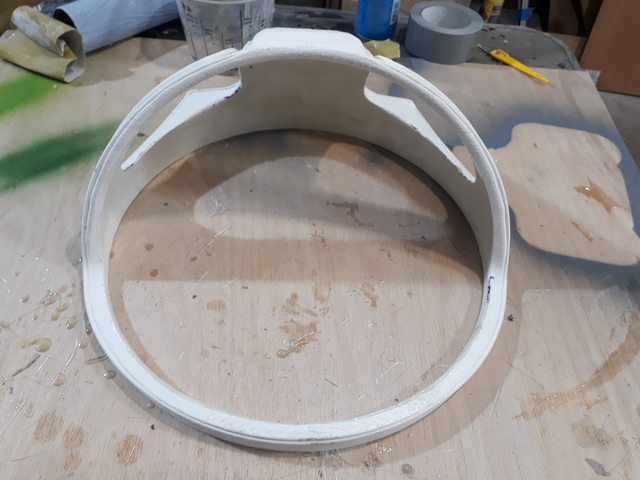

So I opted to make the inner panels by making a fibre glass copy of the inside of the helmet. First masking tape, then duct tape

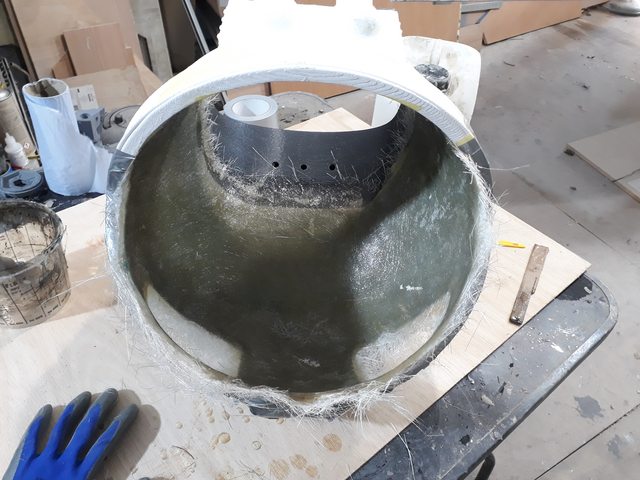

Then laying in the chop strand/polyester resin

and ta-da...will cut it in two and finish/detail it

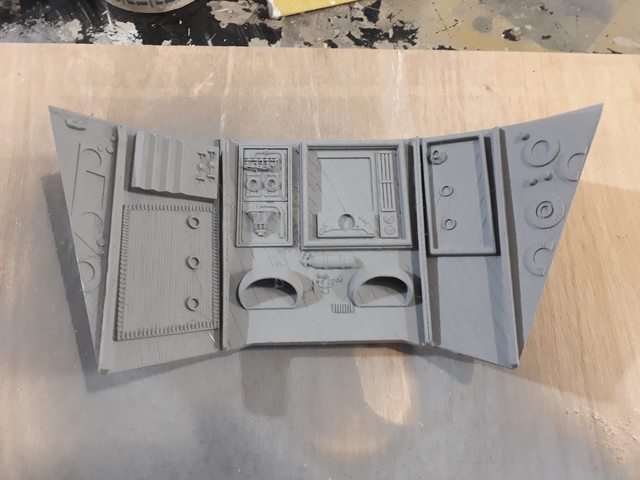

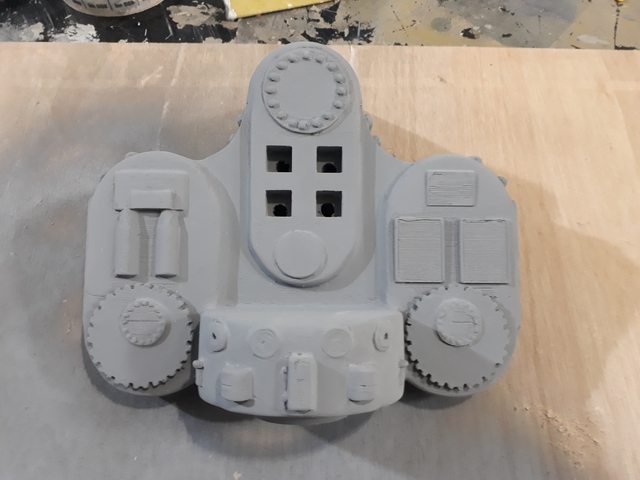

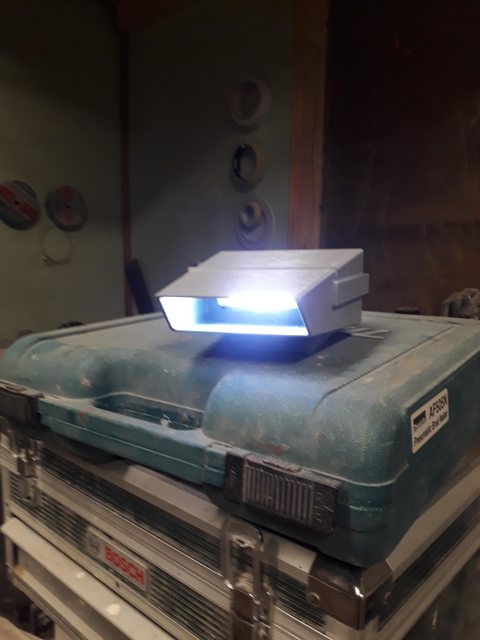

Also got the front fascia panel printed...any info/pics of the mic tips/lights would be appreciated
