Hi yes I 3D printed pretty much all of the parts, aside from the servos and lights. I have two Prusa mk3s’.

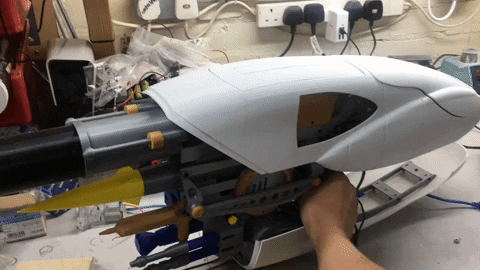

The 3D model still isn’t perfect, there are some slight issues with it but it’s good for the time being. It was a real struggle modelling it but luckily I have the authentic film shell to measure and take my references from. I spent a bit of time actually trying to find someone that would 3D scan my original film prop shell to get it 100% spot on.

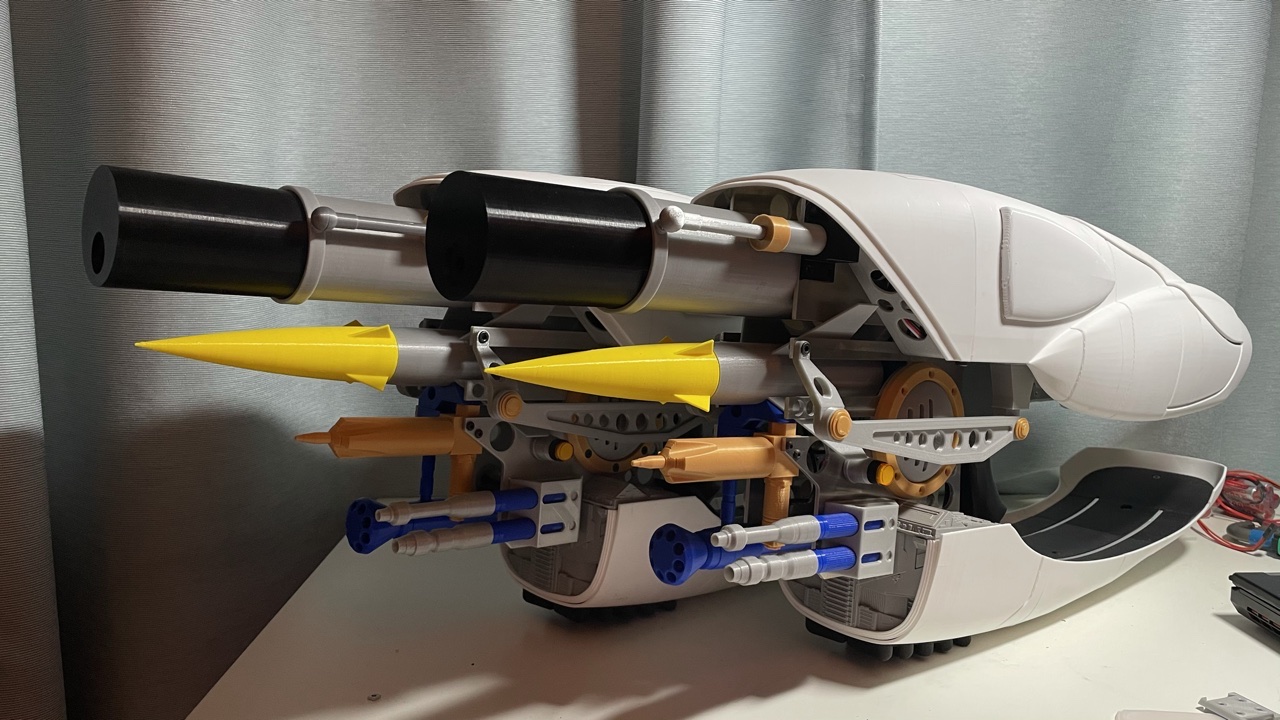

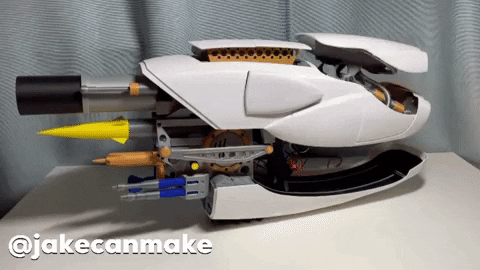

Here’s a picture of the latest iteration of my kit version ZF1.

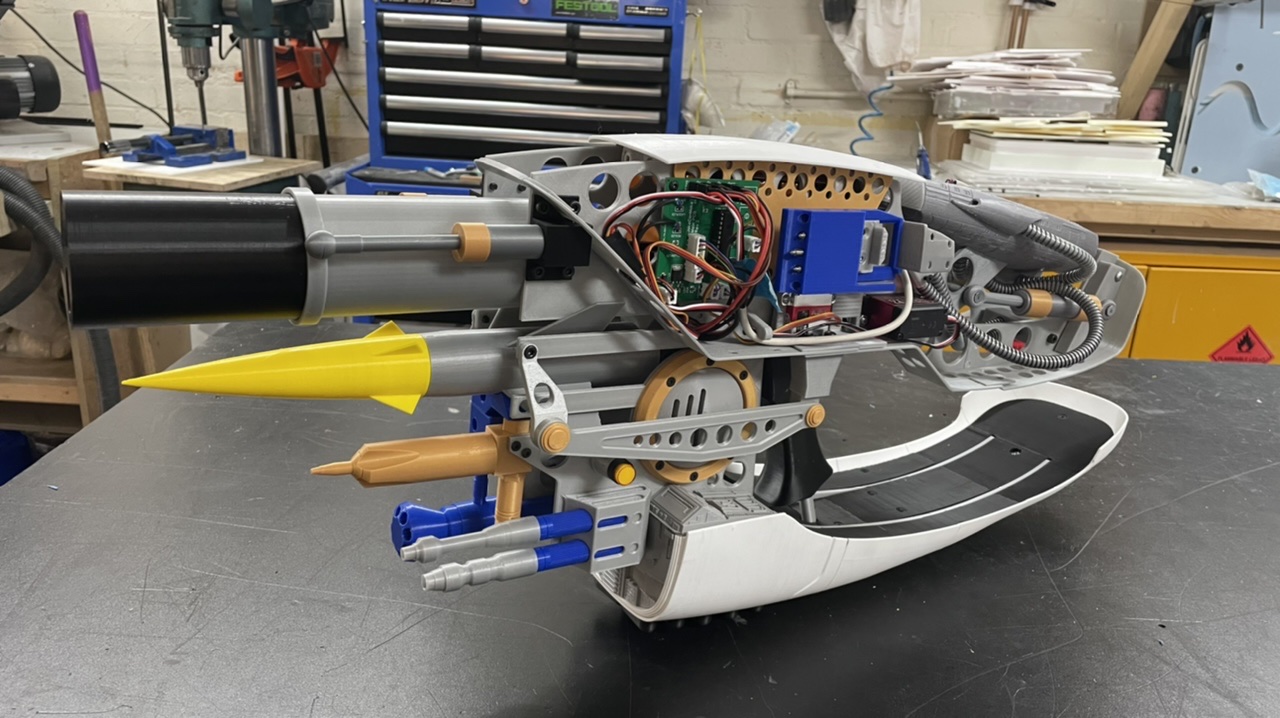

There are 5 servos powering this now, 3 micro switches and lots of cabling. I’ve put the main PCB that runs the prop on the left frame so you can easily access the trim pots that allow adjustment of where the scope and upper weapon bay stop and start.

I hope to get this painted soon too. I’d like to design hard masks, 3D printed that will enable quick and easy painting of multiple shells as opposed to using paper cut outs that flutter and need to be stuck down when spraying.

Thanks for looking!!


McFlyte

Active Member
Thanks for the info. I was wondering how you did the shell, but if you have a shell already that makes sense. Trying to match those curves from reference pics sounds like a nightmare - not that modelling them off a physical reference is an easy feat either!

Well done, this looks amazing.


JakeySnakey630

Active Member
RPF PREMIUM MEMBER

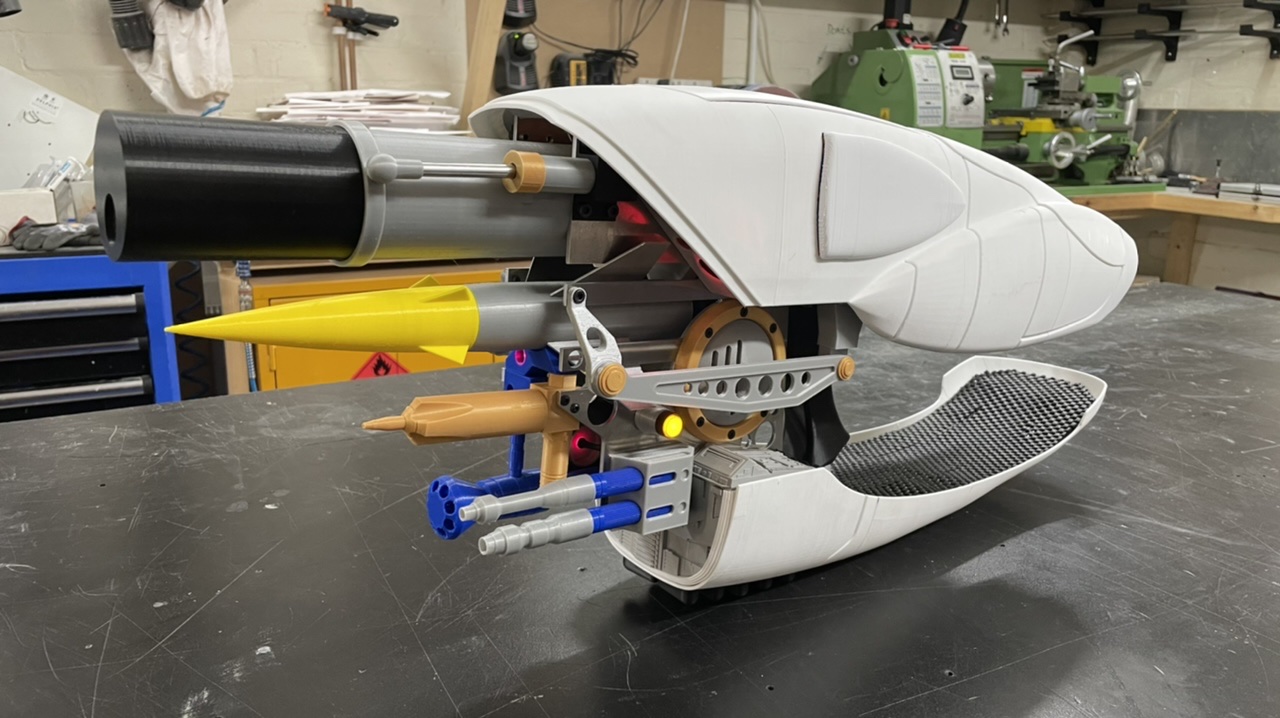

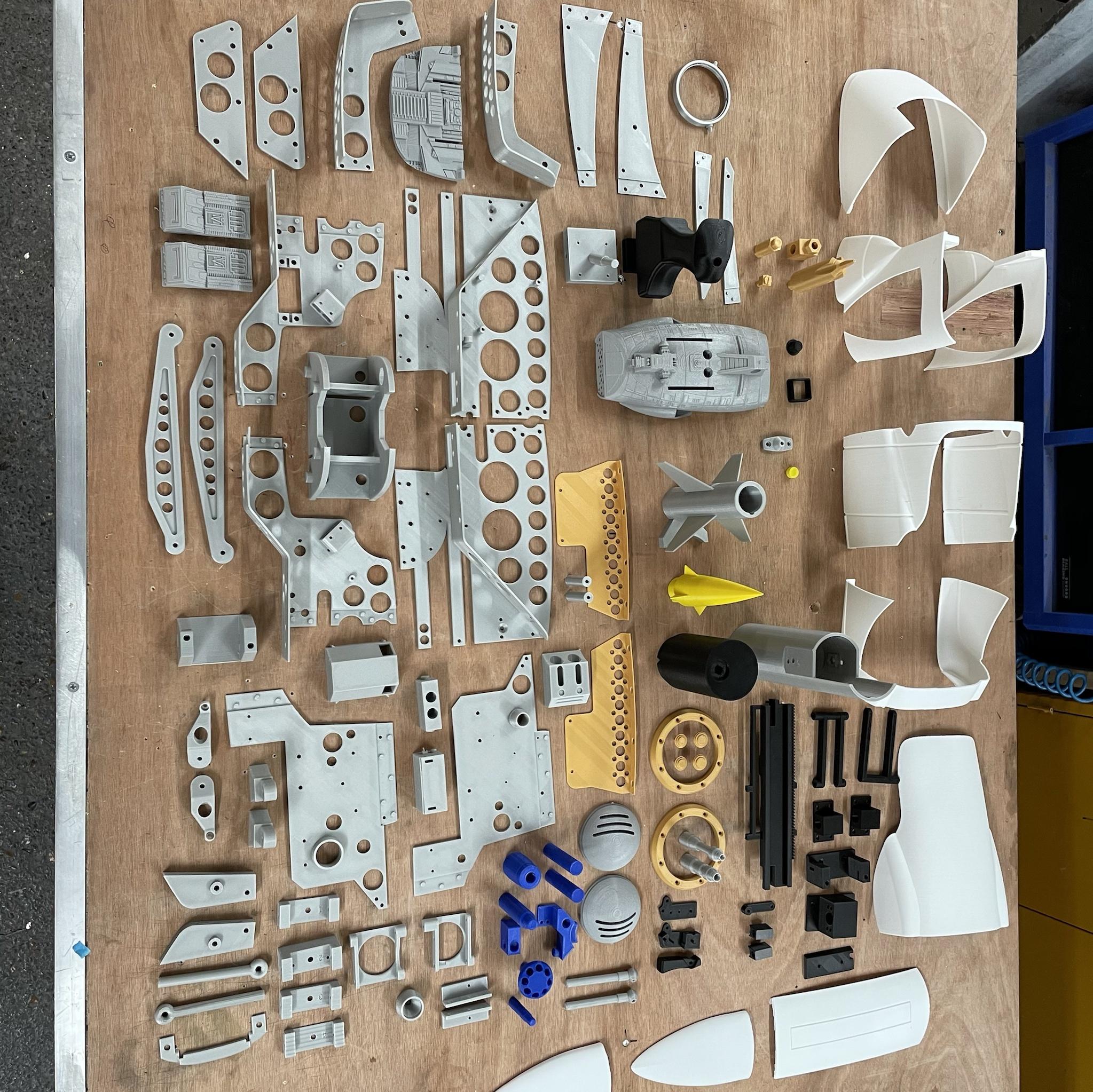

Getting down to the final niggles with my mainly 3D printable version. These two are my current test beds. The rear is an older version with entirely plastic frame, the closer one has a 3mm aluminium frame, similar to my original ZF1.





This seems to be the best of both worlds. You get a nice sturdy durable frame/skeleton with lightweight 3D printed components (these could be swapped out at a later date for metal versions) and I’m probably going to refit the plastic framed ZF1 with a metal frame.

Afterwards I’ll be working out a nice and easy way of spraying the patterns on them. I think I’ll do this by printing larger shells with cutouts for each colour of the camo. This will locate and let me spray multiple shells nice and quickly without the need to mask up individual patterns on each.

Thanks for looking!
