Update no: 123
Covering the rear armature mount!
I know the that the hole rear section is removed on the ILM version but I wanted to keep this in place whilst it is mounted form the rear.
I will make the whole section as one solid piece then fix it in place permanently. so how to cover the hole & have easy access for the Pana mount.
Stage 1: Using the pulls Mike did I have doubled their thickness with Styrene sheet from the inside. Then make the kidney shape plates for the rear.

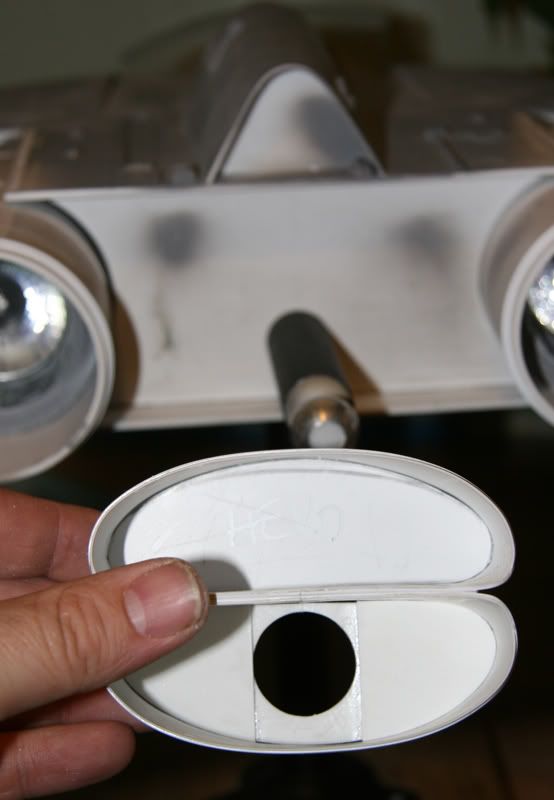

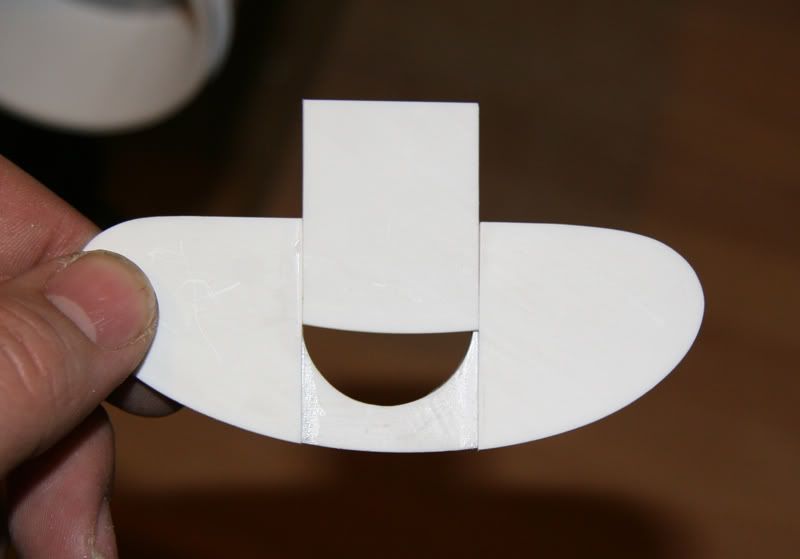

Stage 2: The rear plate had to have the center section removable, so I made 2 kidney plates in 2mm & 1.5 mm styrene. Drilled the locating hole in the thicker piece the cut the thinner piece into 3 & laminated them together leaving the center section free. Now I have a trap door that I can attach the donors to that will make a handle to pull it free. It fits as snug as a bug in a rug & thankfully I dont need to use magnets.

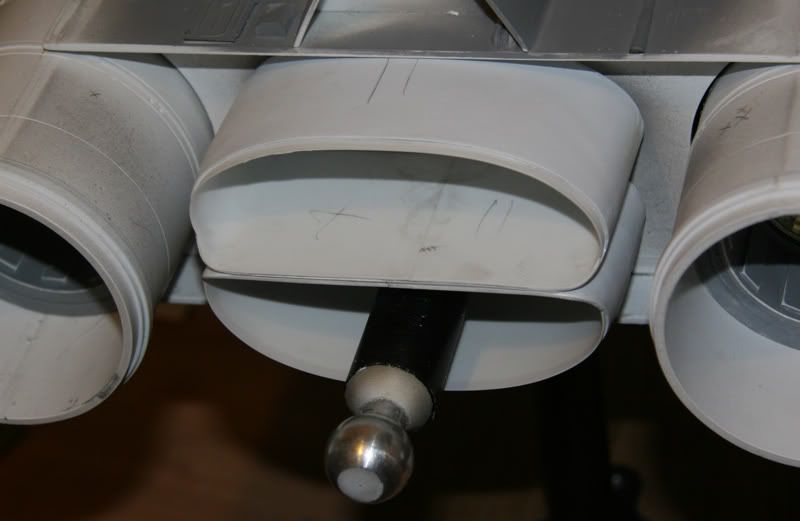

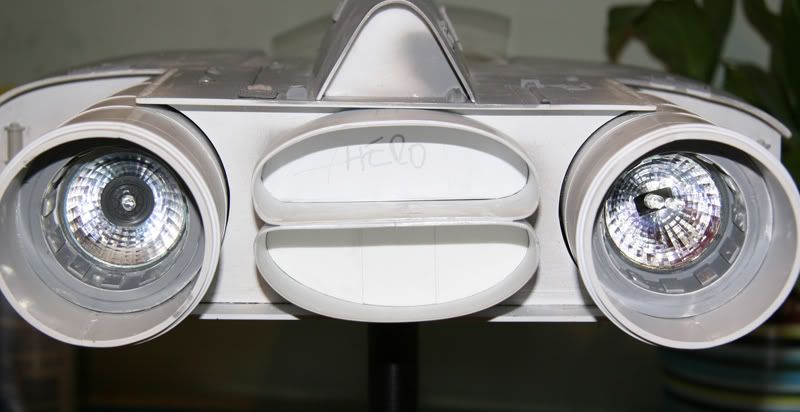

Now the test fit
So far so good, no doubt when I get the donors on it will be impossible to remove the plate but he! Thats just a hole new set of challenges.
Update no: 123
Covering the rear armature mount!
I know the that the hole rear section is removed on the ILM version but I wanted to keep this in place whilst it is mounted form the rear.
I will make the whole section as one solid piece then fix it in place permanently. so how to cover the hole & have easy access for the Pana mount.
Stage 1: Using the pulls Mike did I have doubled their thickness with Styrene sheet from the inside. Then make the kidney shape plates for the rear.
Stage 2: The rear plate had to have the center section removable, so I made 2 kidney plates in 2mm & 1.5 mm styrene. Drilled the locating hole in the thicker piece the cut the thinner piece into 3 & laminated them together leaving the center section free. Now I have a trap door that I can attach the donors to that will make a handle to pull it free. It fits as snug as a bug in a rug & thankfully I dont need to use magnets.
Now the test fit
So far so good, no doubt when I get the donors on it will be impossible to remove the plate but he! Thats just a hole new set of challenges.
3d-builder
Sr Member
Re: ID help Studio Scale A wing.
This is a part that needs to be re-done in resin, sorry it's not better
Guy but again you made it look good!!!!
thumbsup
This is a part that needs to be re-done in resin, sorry it's not better
Guy but again you made it look good!!!!
thumbsupRe: ID help Studio Scale A wing.
They're fine mate, I'm sure if you dissect the A wing like I am then you could pick faults in everything but I've got to that stage where I just want it done now. Just the smallest detail can take hours. I have been working on the detail inside the the thrusters all night. I'm not being much fun for my girlfriend so I'm taking a break for a few days ( I know I'll be itching to get my hands on it though.
I have thickened the inside walls of the thrusters & added a new ridge inside ^ the steps up to the projector lens. It doesn't look like much but it's taken me hours to get it done. Only one hickup, I got a few calculations wrong somewhere, so there is one more step on the left thruster than the right. Bollox. They do look a ton better though & I think if I hadn't said most people wouldn't notice. I did consider stripping it out & starting again, but the 4 rings on the right reach the same height as the 5 left steps. So my inner wall must have one more laminated strip than the other.
Anyhow
Before
After
One done
The thrusters look much thicker now

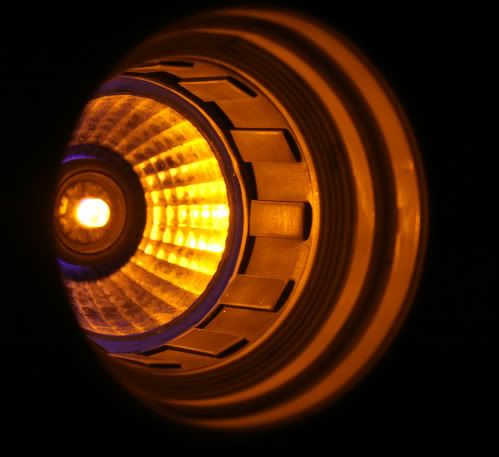

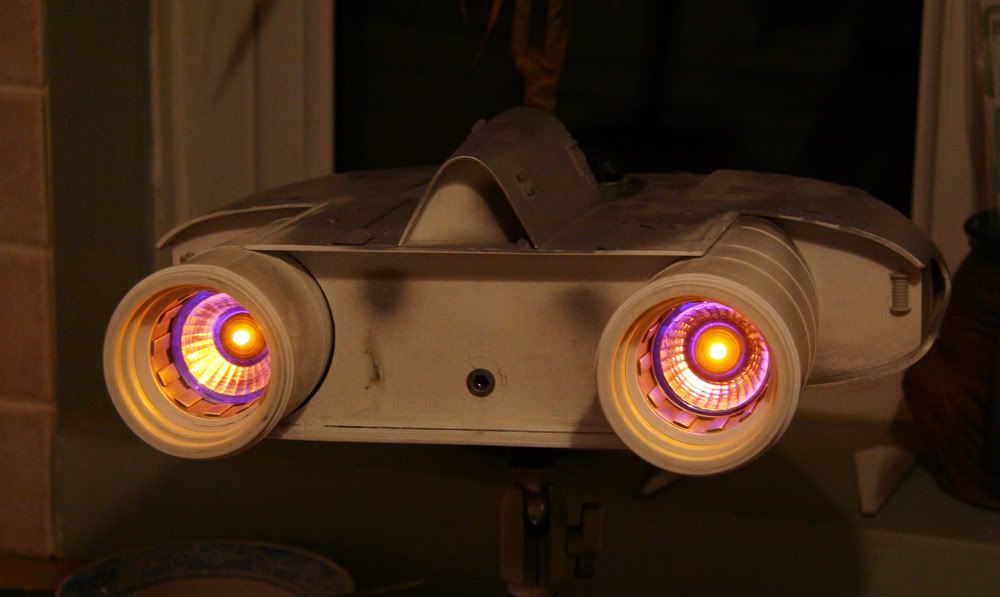

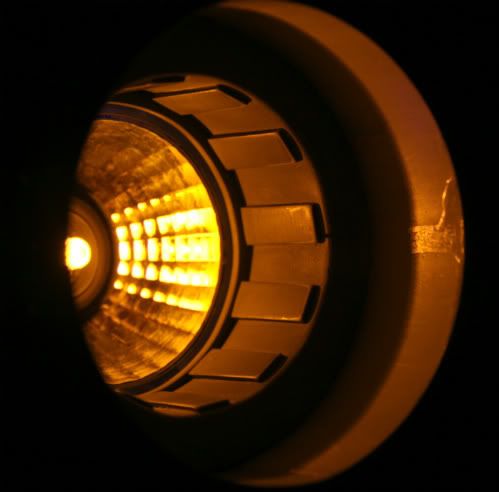

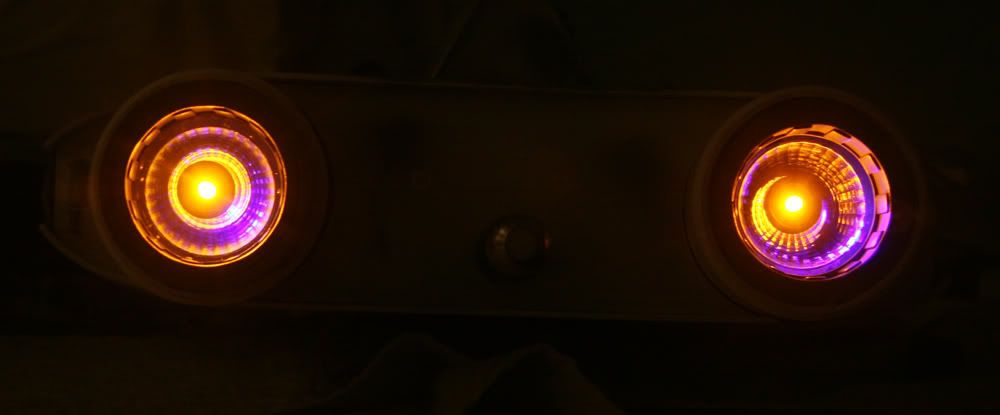

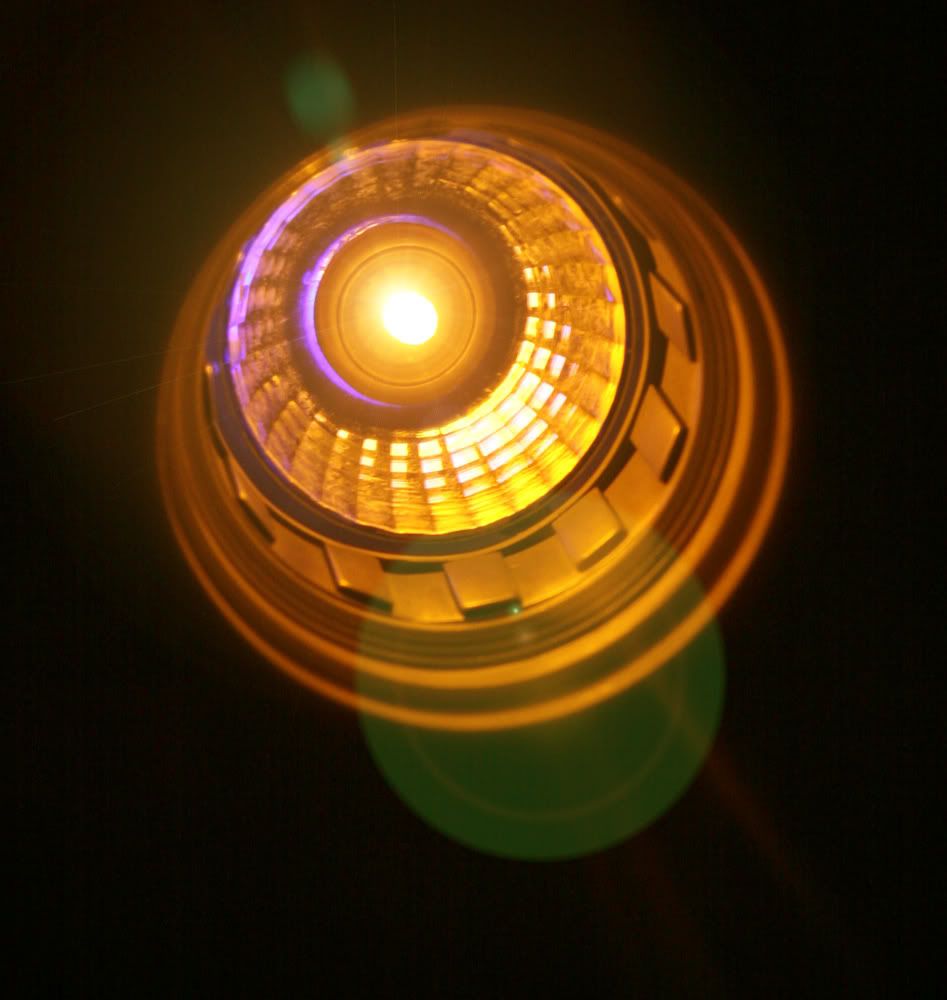

All the LED's are fixed in place now, a cool thing happened I placed the UV led pointing through the Yellow LED & the effect is awesome. It changes color when you view it from different angles.
They're fine mate, I'm sure if you dissect the A wing like I am then you could pick faults in everything but I've got to that stage where I just want it done now. Just the smallest detail can take hours. I have been working on the detail inside the the thrusters all night. I'm not being much fun for my girlfriend so I'm taking a break for a few days ( I know I'll be itching to get my hands on it though.
I have thickened the inside walls of the thrusters & added a new ridge inside ^ the steps up to the projector lens. It doesn't look like much but it's taken me hours to get it done. Only one hickup, I got a few calculations wrong somewhere, so there is one more step on the left thruster than the right. Bollox. They do look a ton better though & I think if I hadn't said most people wouldn't notice. I did consider stripping it out & starting again, but the 4 rings on the right reach the same height as the 5 left steps. So my inner wall must have one more laminated strip than the other.
Anyhow
Before
After
One done
The thrusters look much thicker now
All the LED's are fixed in place now, a cool thing happened I placed the UV led pointing through the Yellow LED & the effect is awesome. It changes color when you view it from different angles.
Last edited:
3d-builder
Sr Member
Re: ID help Studio Scale A wing.
thumbsup Nice........ in second pic it has that threaded look
like the original filming mini, good job hooking that up in
there Guy!:thumbsup
thumbsup Nice........ in second pic it has that threaded looklike the original filming mini, good job hooking that up in
there Guy!:thumbsup
Re: ID help Studio Scale A wing.

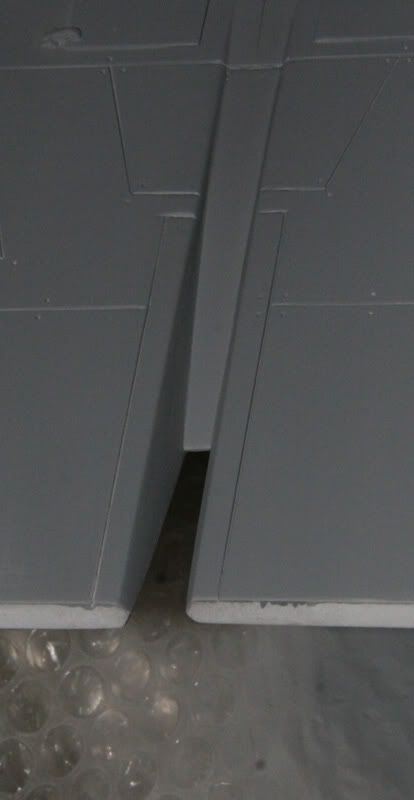

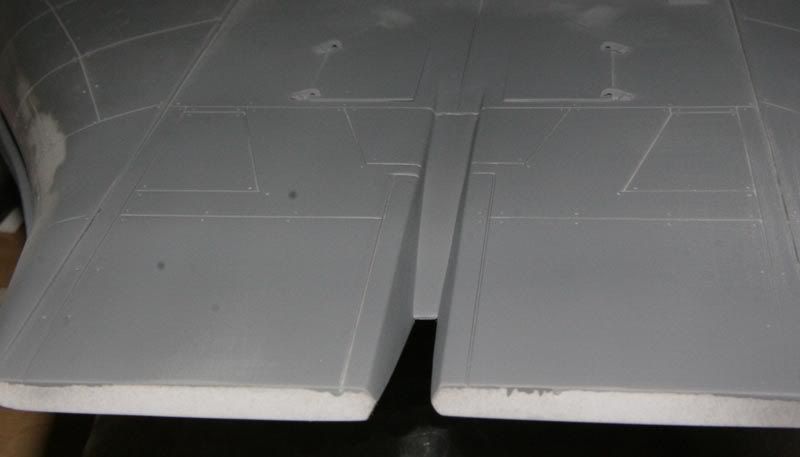

A little update, just got back from a few days away & I wanted to get the front end wrapped up. what a nightmare its been. I wish I'd of followed Mike's lead with this. I want to replicate the angles of the ilm model but without it being a separate piece for the mount point.
