monsterroom

New Member
How to sculpt Feet and much more 101

You don’t have to spend a lot of cash remember
see a need fill a need


The clay is the cheep stuff from the dollar store

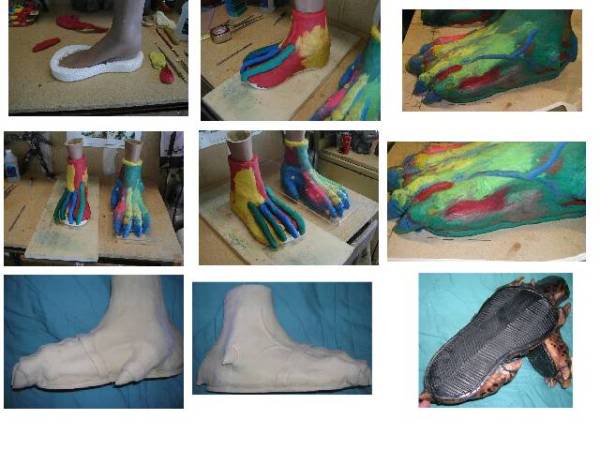

We used the feet off a mannequin sitting on 1 1/2’’ hard foam

Start to rough it out with clay

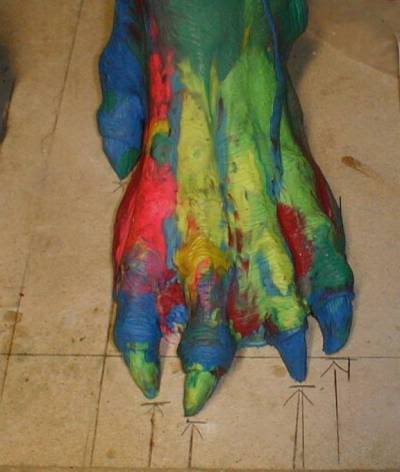

Add some detail but don’t waste time now because it will change when both feet are at this stage

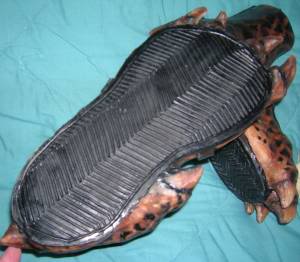

Add a pattern to the soles of the feet
don’t be afraid to add to much texture it will soften buy the time it is in latex




Once you are happy with you sculpt of feet, arms, skins, armor, Ect. Then you need to prepare your sculpt for making a 2 to 3 piece mold

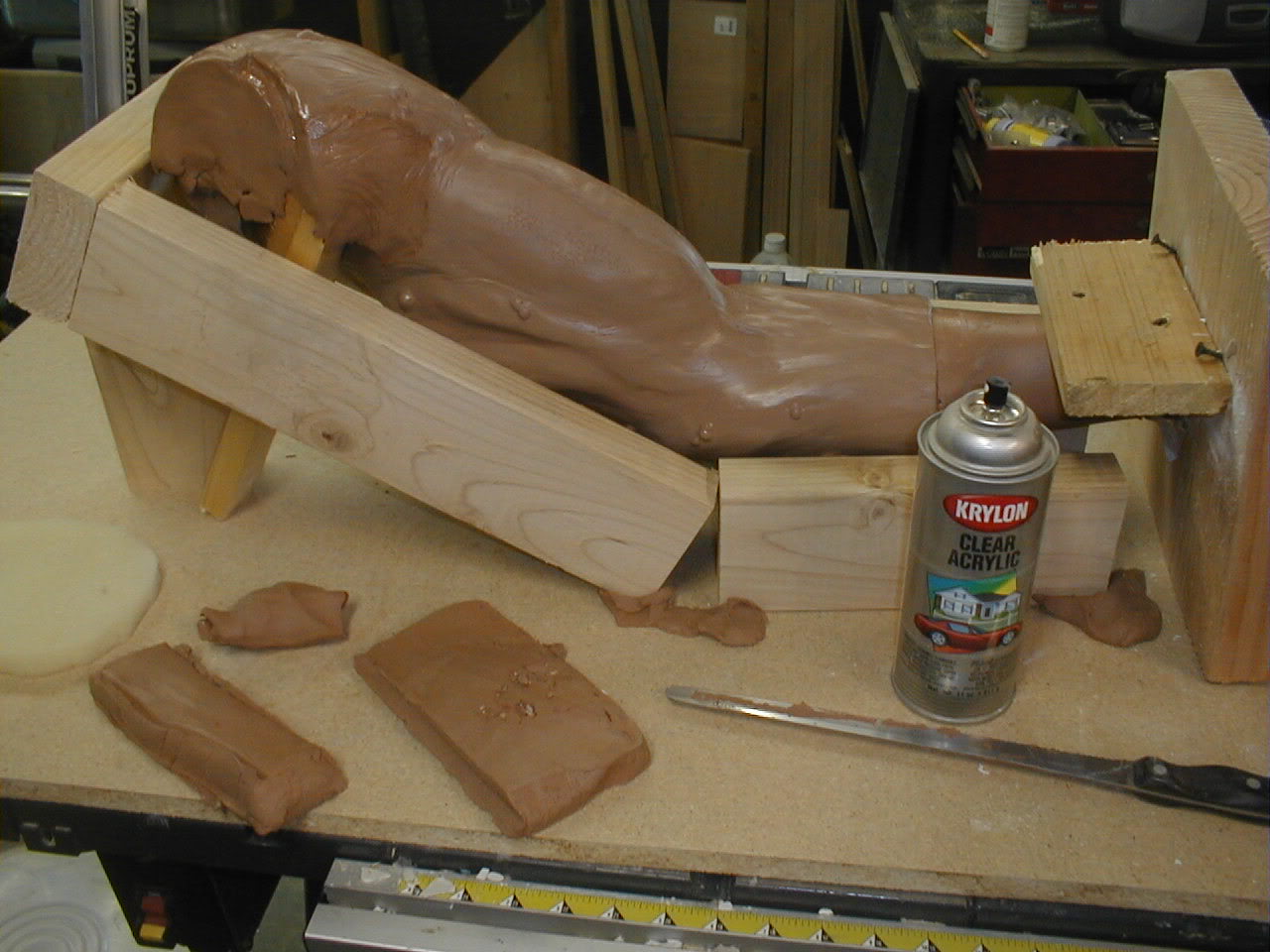

Attach your sculpt to a platform. Then seal your sculpt by spraying and seal it with krylon clear gloss paint

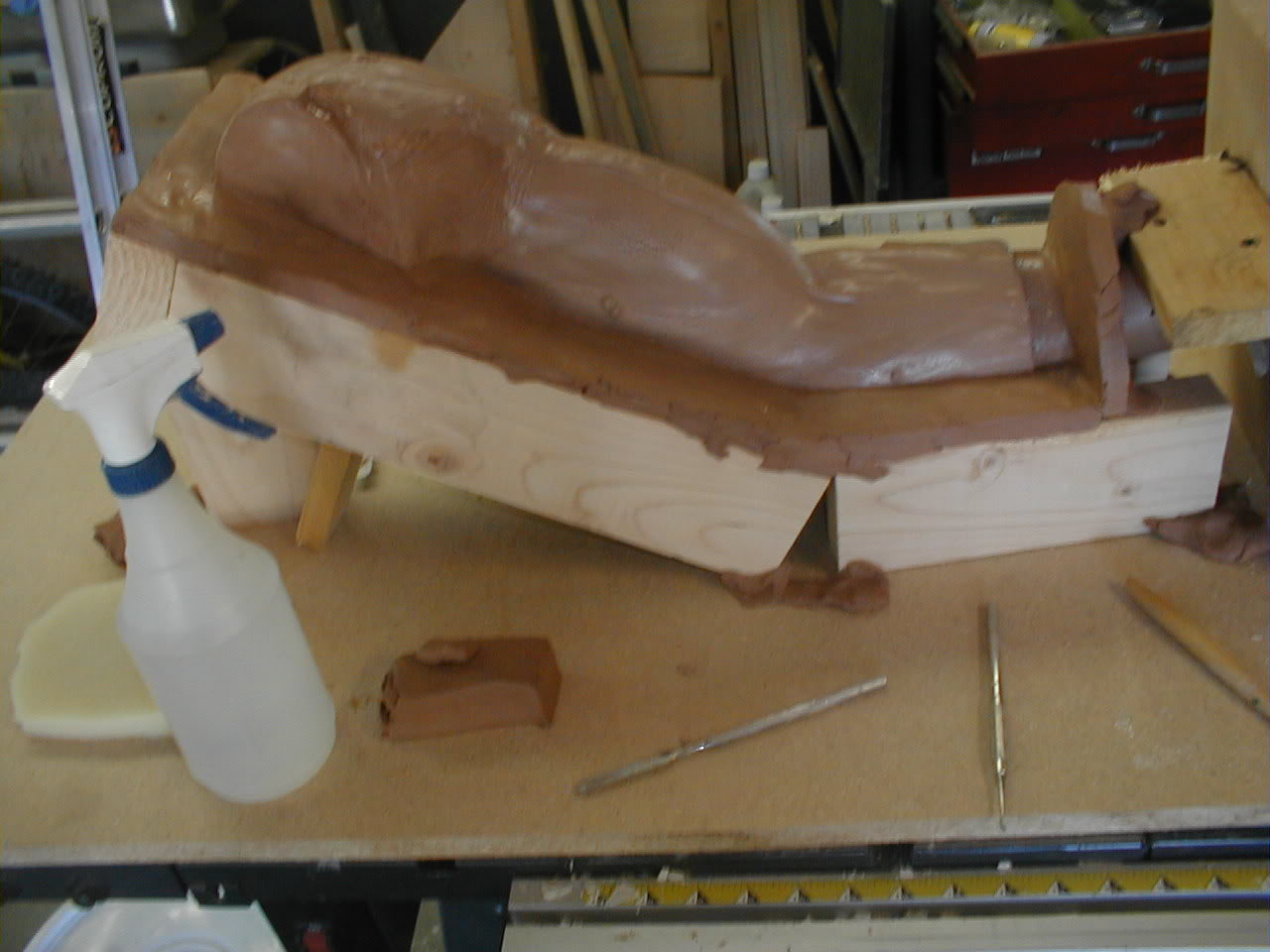

To reduce the amount of the water braced clay used we use a frame. For this one we used 2x4 to make the frame

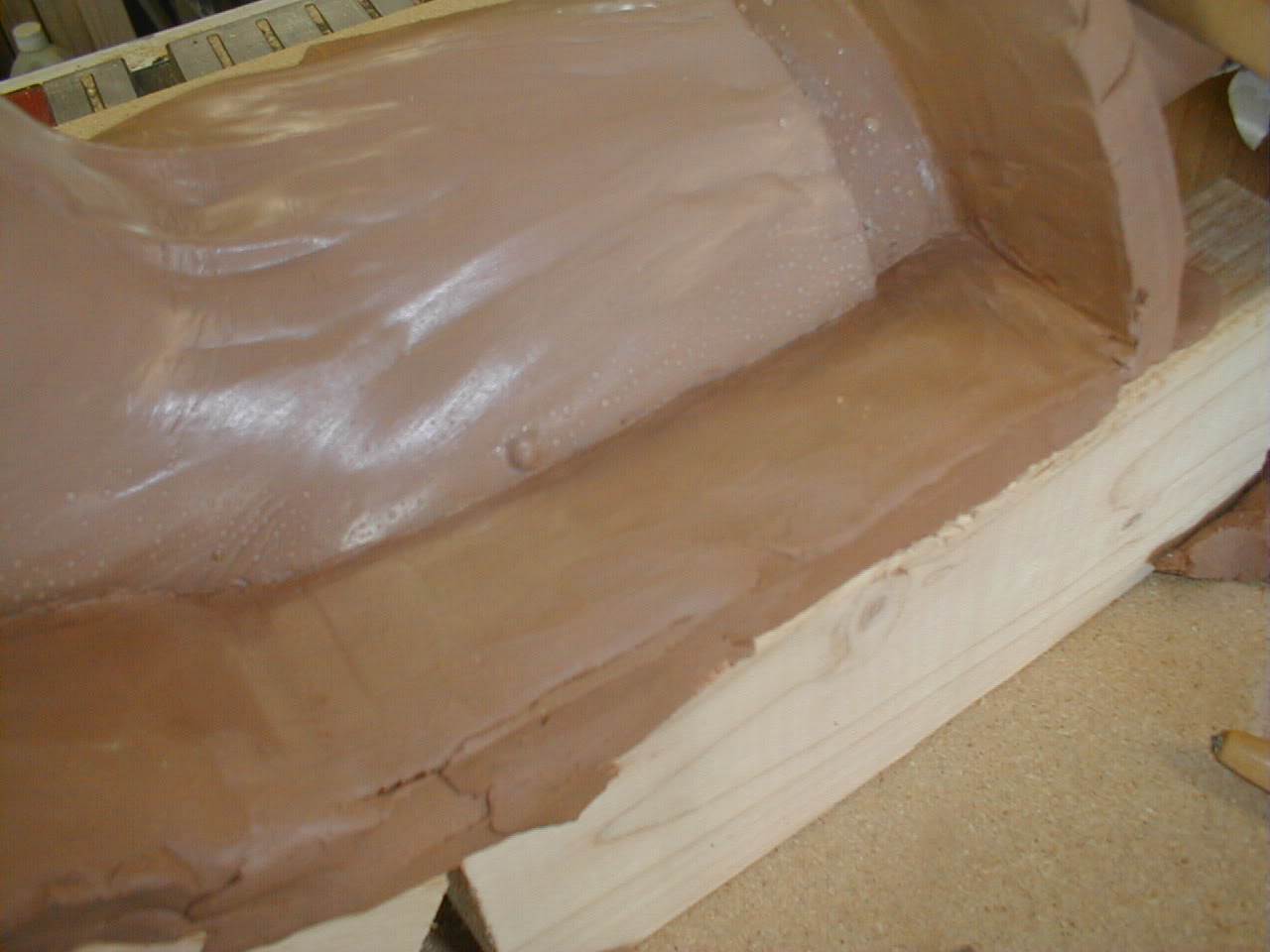

Once you decide where you want your seam line, You rough out the flange where the mold, when finished, will separate

This part is where a mold will be a success or a failure. The flange must be smooth and preferable at a 90 deg.
This will make a very thin seam line that will be easy to remove and prep before paint on the finished piece.

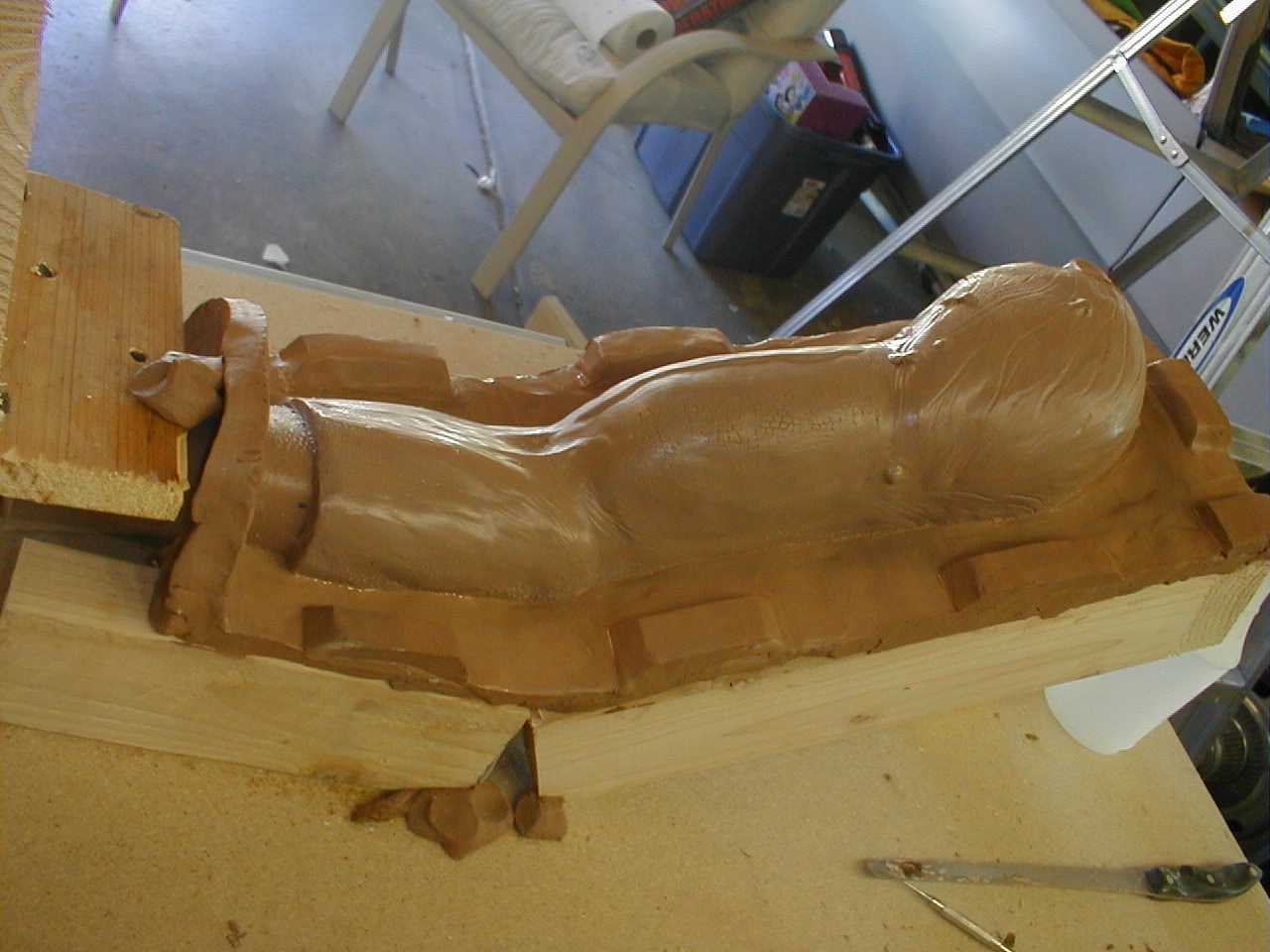

At this time Keys are inserted on to the flange so that the front and back halves of your mold are correctly aligned.
Again spray the sculpt and keys with the clear paint.

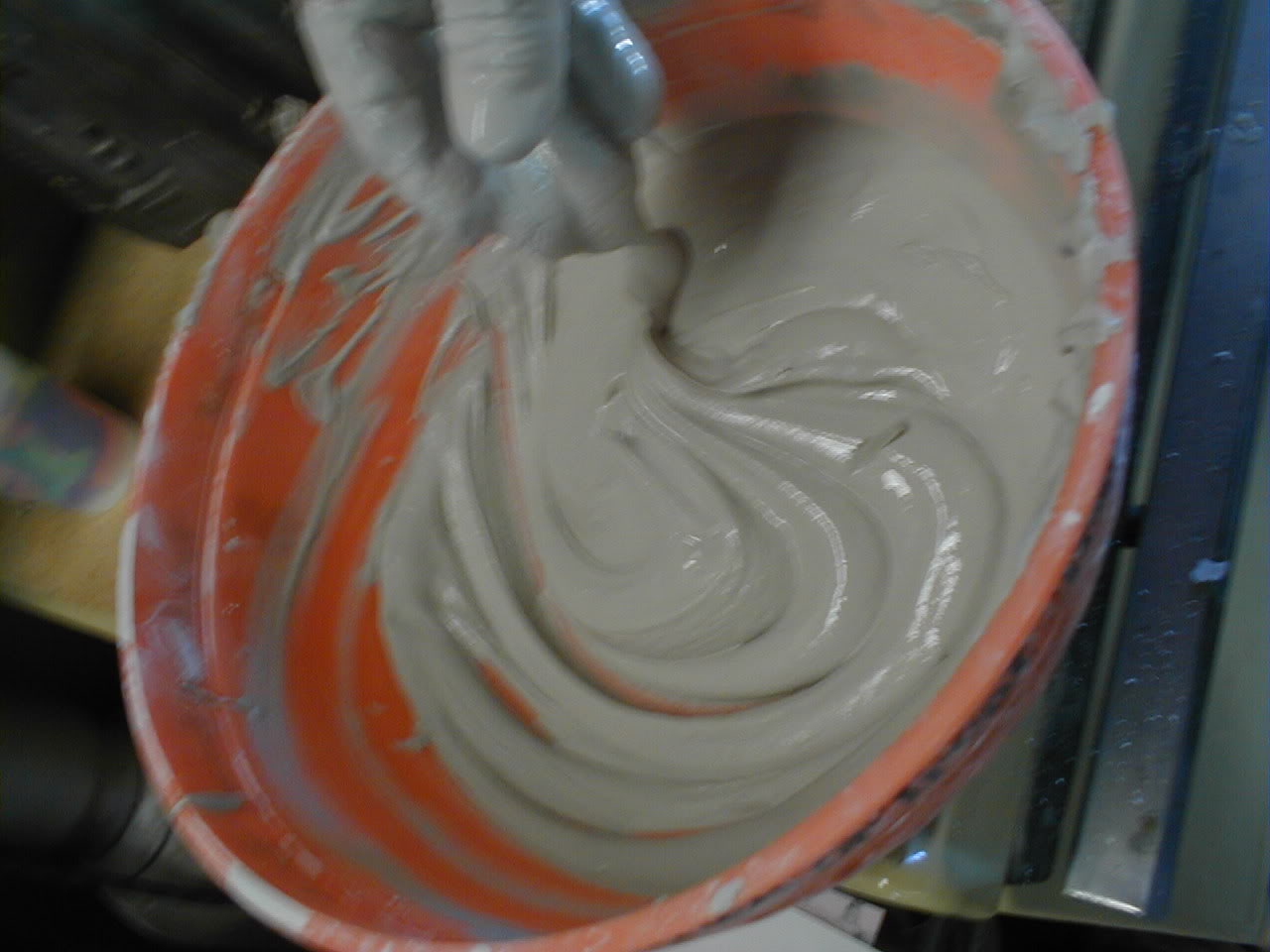

At this point we mix the Ultracal 30. We mix it to a not runny but not to firm consistancey.

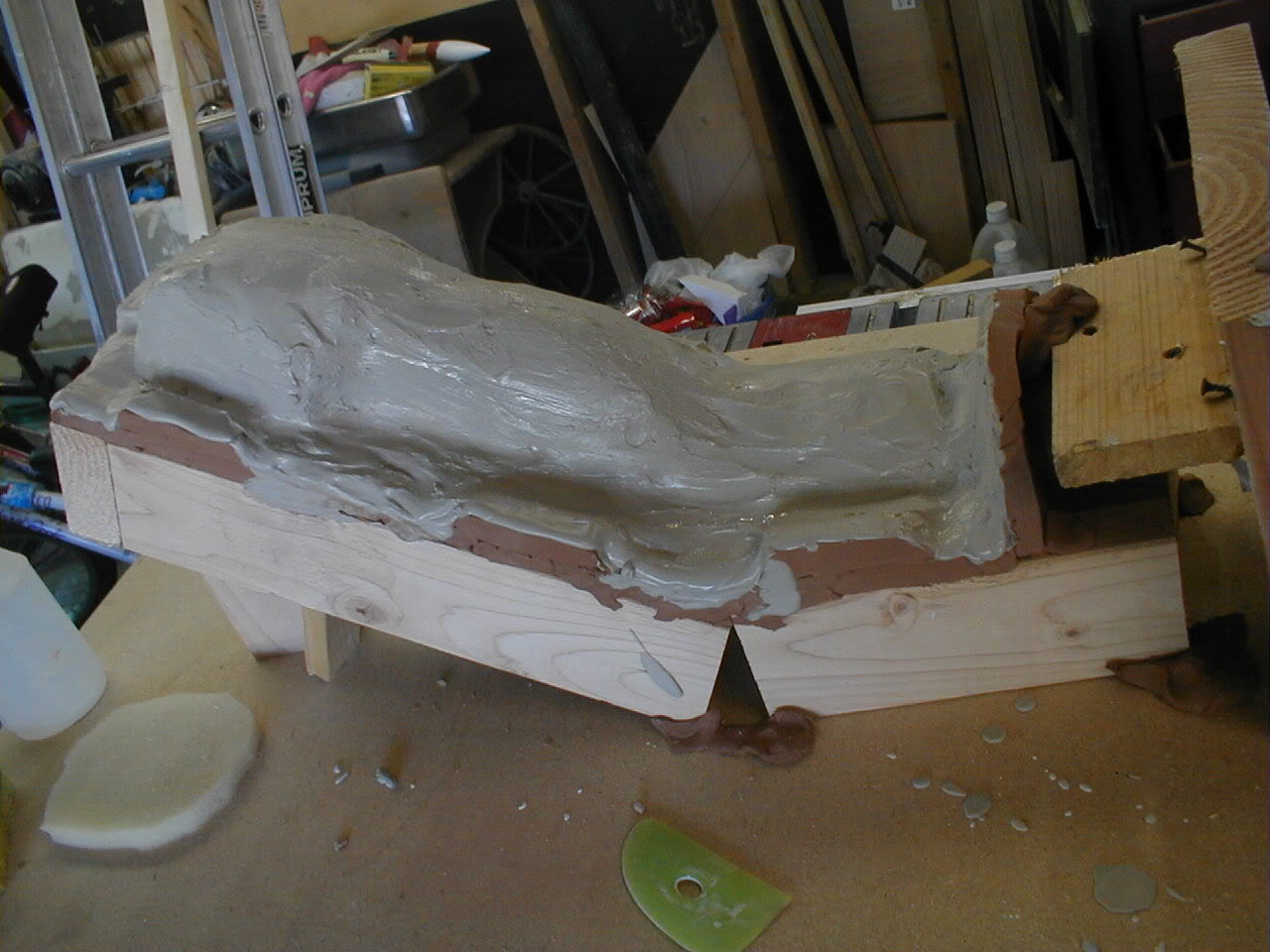

Put the first layer of ultracal about 1/2" thick. Be careful not to trap any air pockets in the stone

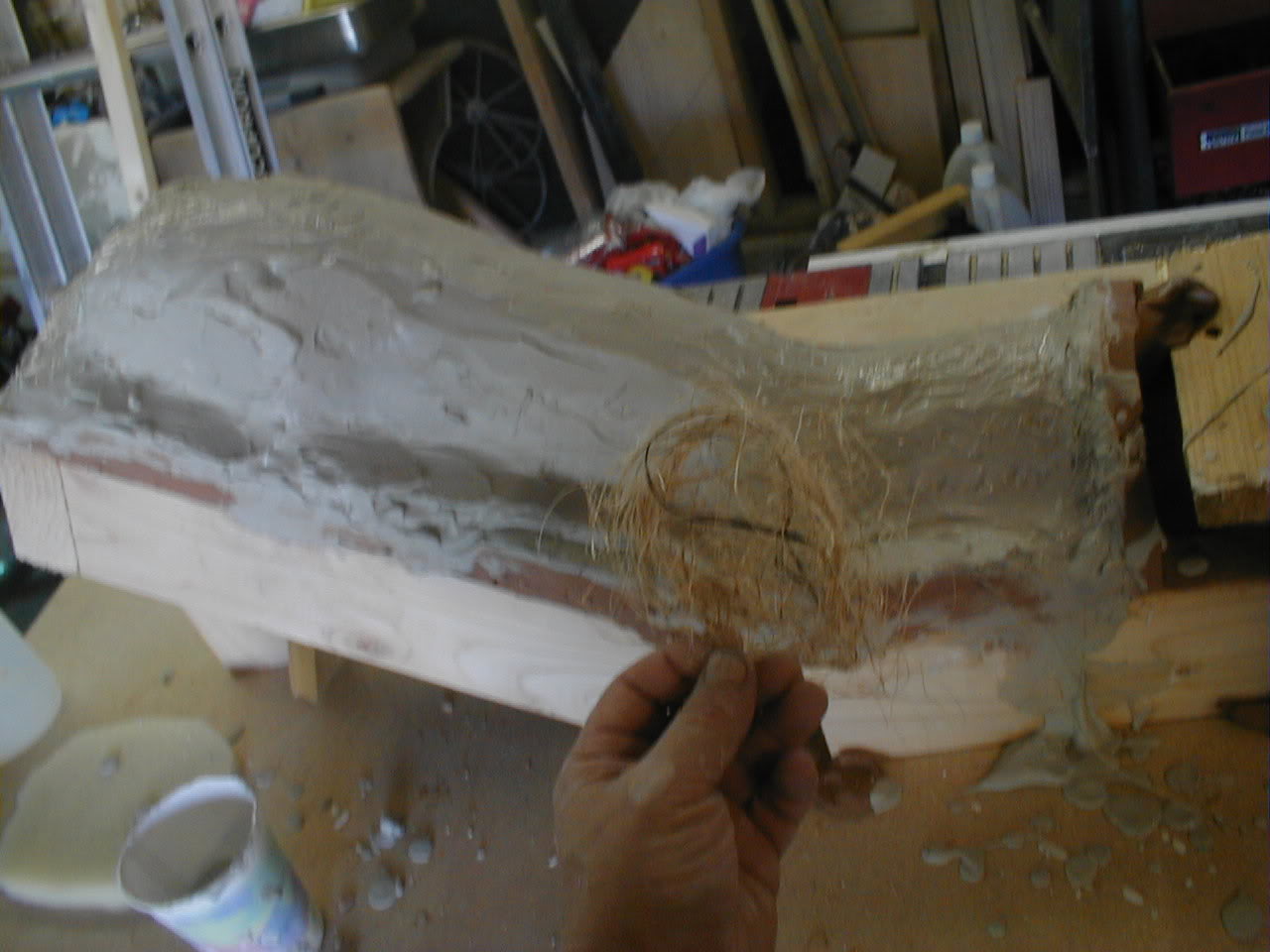

This next layer you will add hemp to the stone to reduce the possibility of the mold cracking early.
Not pictured
Add a third and final coat of just the Ultracal to make a smooth and nice looking finish. Let it fully cure.

Turn over and remove the frame.

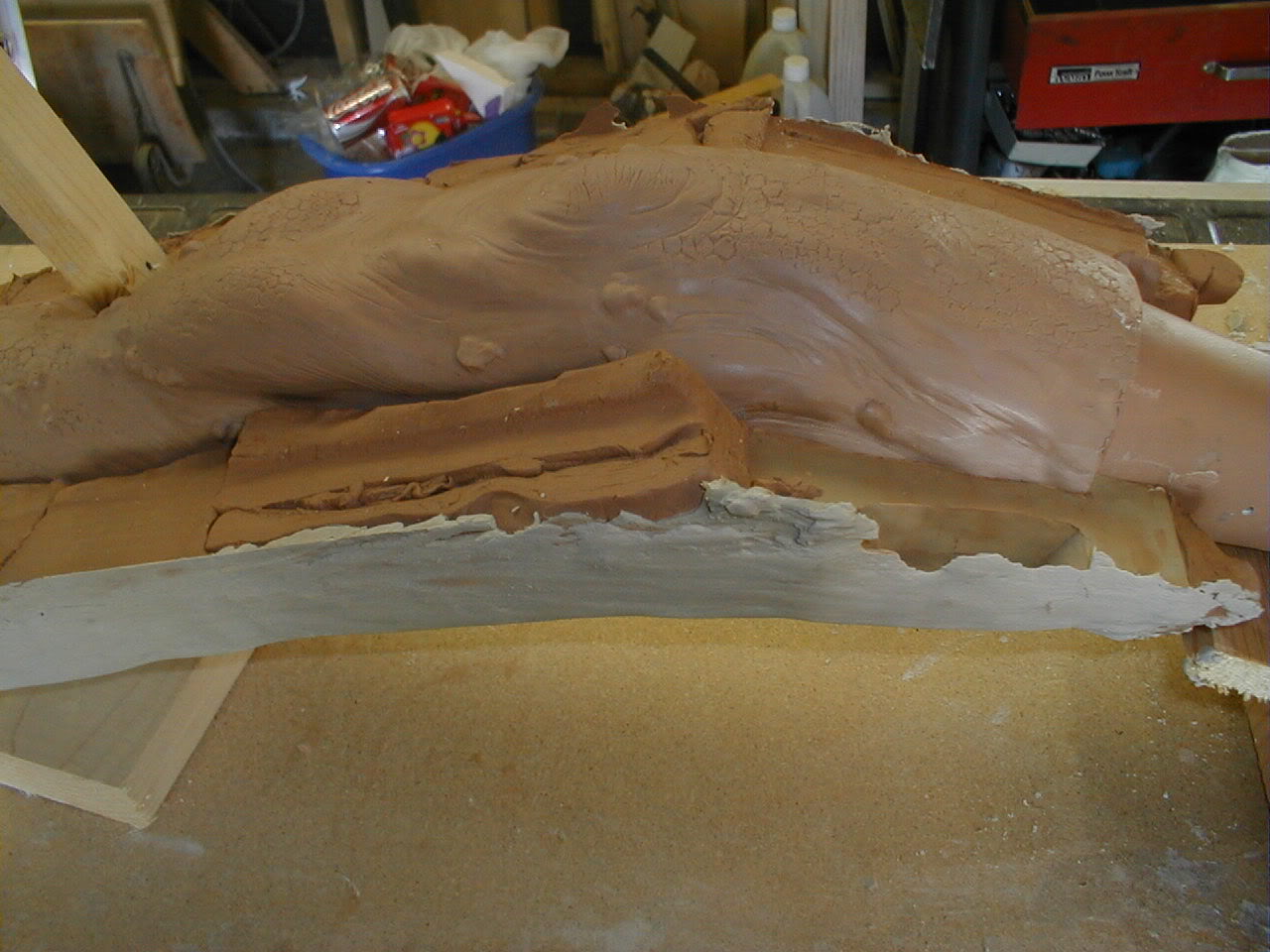

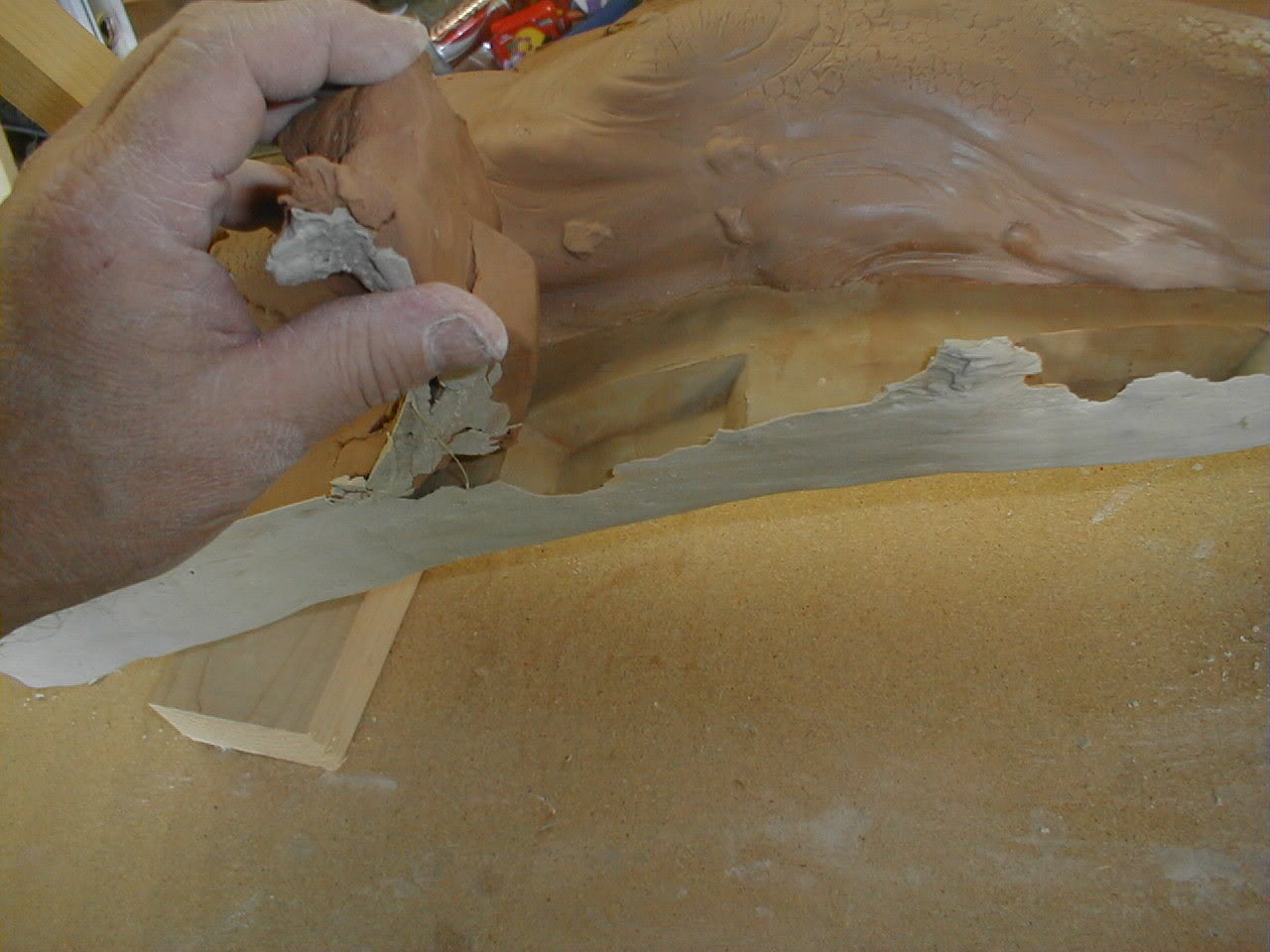

Remove the flange & key clay. Remove any excess stone and file any sharp edges.

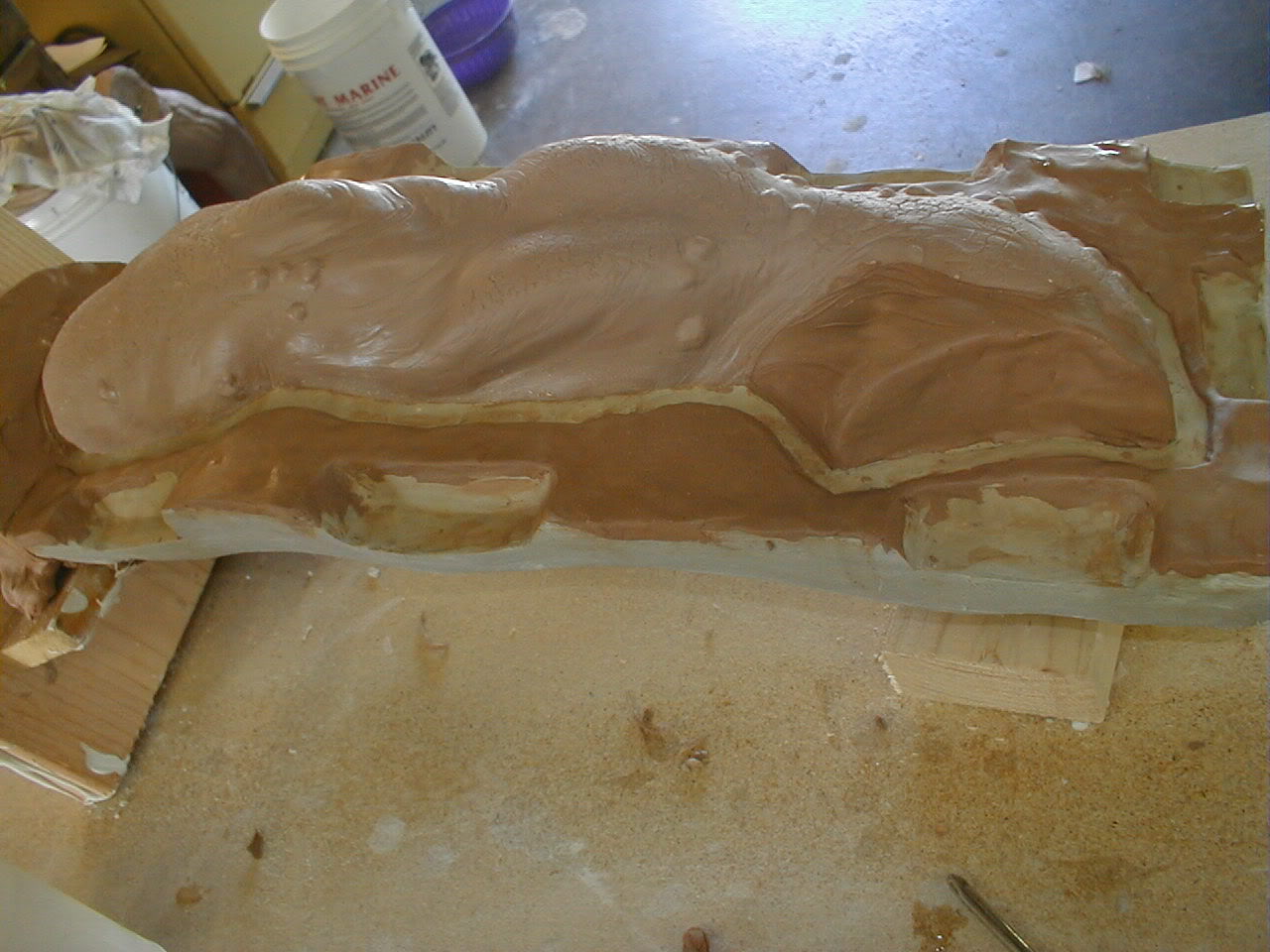

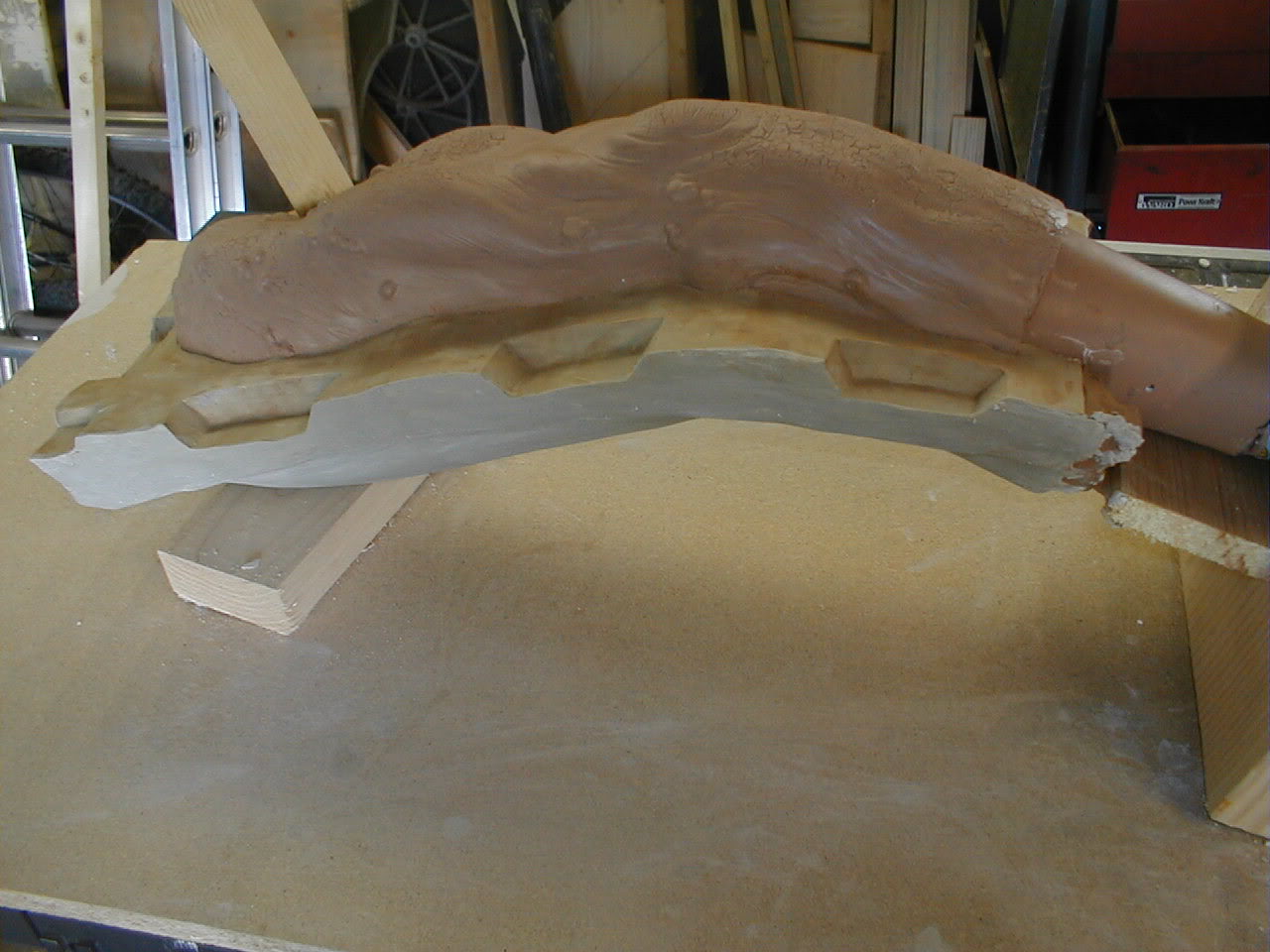

This shows the sculpt cleaned and ready for the next side to be worked on.

This is the hard one to explain.

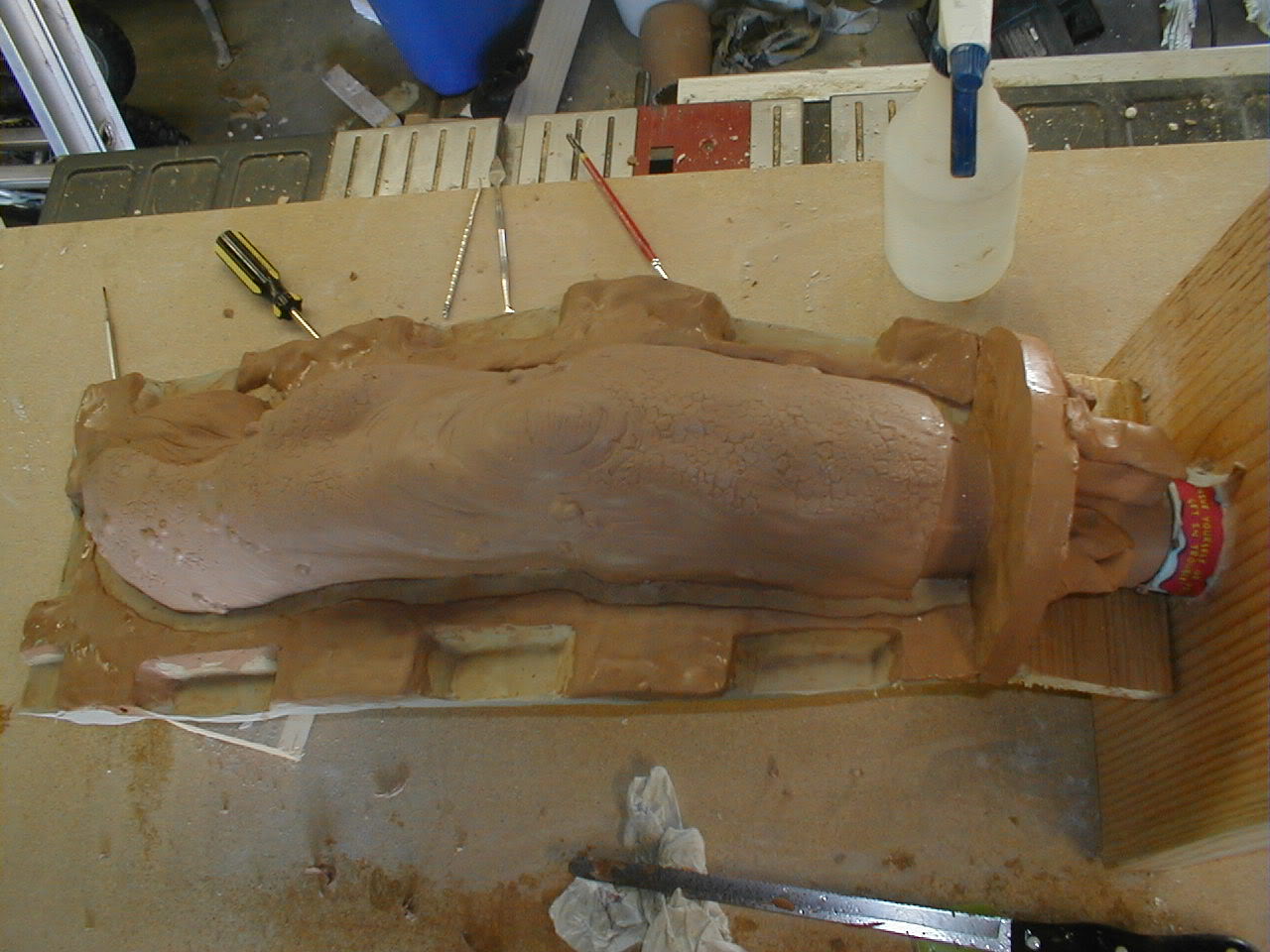

I have put a 1/16" layer of clay 1/4" away from the sculpt. You should not get any clay in the keys.
This will make a tighter fit when you start pouring your latex.
Again clear coat the sculpt and now add a thin layer of Vaseline on the exposed stone.

Repeat the steps to finish this side.

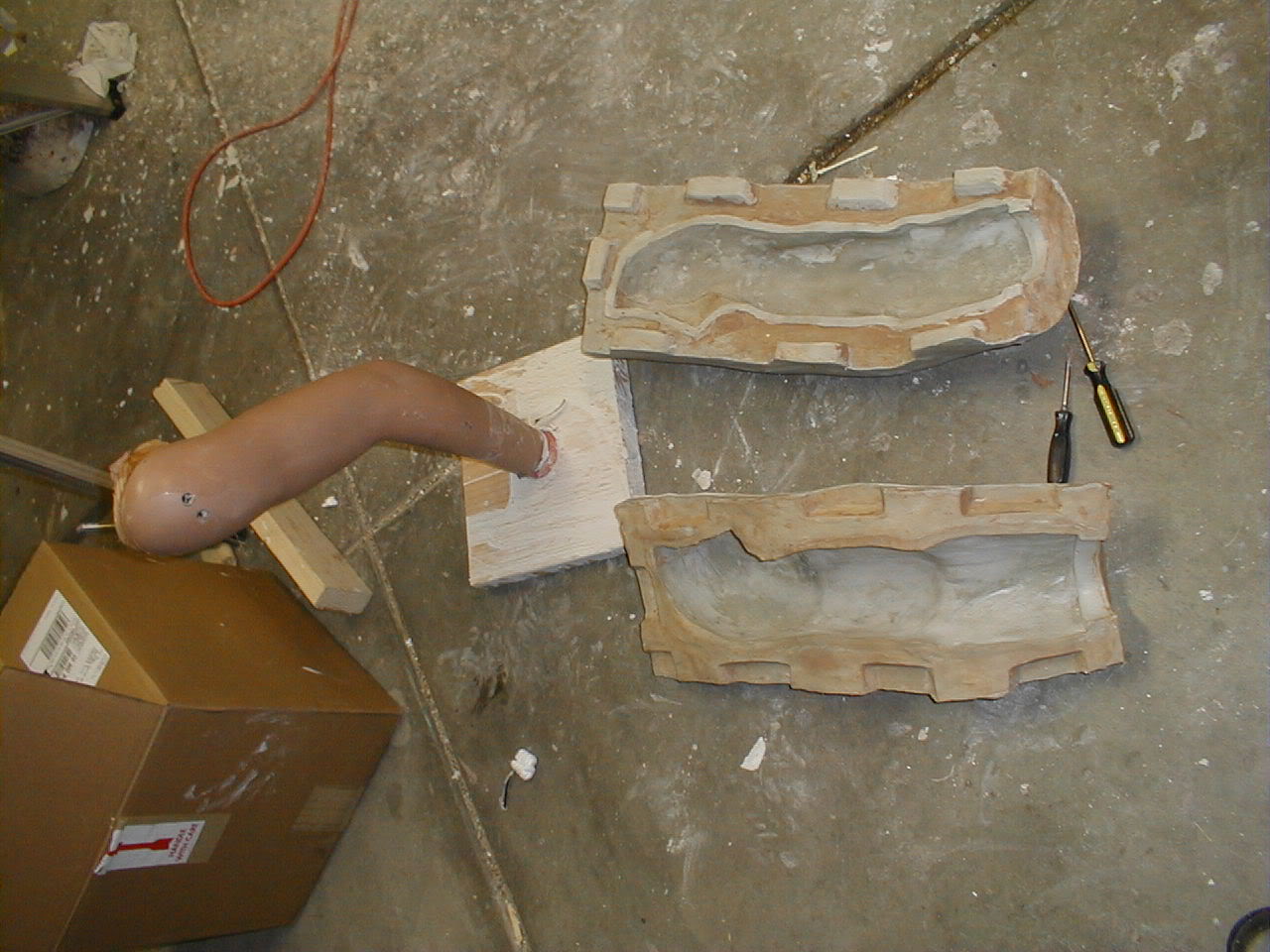

Pull your mold apart and clean off all the excess clay.

It is now ready to start making the mold work for you.

Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Elder one

New Member
THis bump couldn't have been more timely. My 50lbs of clay should be here Wednesday. Thank for sharing.

Elder one


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Uratz

Sr Member
HI Professor Monsterroom,

Can you show us how to Foam fill a Mask? What kind of Foam do you use?
What about those spray and expand foam in a can. I think its Urethane foam insulation.
I don't plan on wearing it just need to make a hard latex mask for display.
Will that stuff dissolve the latex?


SpineShank

New Member
thanks for this thread i do have a quick question tho. Would it be easier for me just to use a shoe of mine since i have to wear a size (embarassed) 14 or 15-16 (depending if i can't find them in wide).


th3 pr3dat0r

New Member
I would assume you could probably take a duct tape dummy of your foot and ankle and then cover it with something like plaster bandages or resin if you have large feet. As long as you make it sturdy enough you should be able to sculpt on it.
I am in the same boat as you with a size 14.


SpineShank

New Member
thanks i think i'm going to try that idea out. i feel sorry for my brother cause he has a size 16 wide. I'll let yall know how it turns out.


monsterroom

New Member
the duct taped dummy foot will work good
I will try to find the how to foam a mask, but till then I use BJB 265 foam or smothon 5 pound soft foam
thay wont harm latex
