Sci-Fi modeling on Elegoo Mars -- Community support/tips

TazMan2000

Master Member
Interesting technology. I'm surprised the inventors went this way with the unpredictable nature of how liquids and solids moves in a rotating container, but i understand why. Perhaps they will invent something that encapsulates the container of resin and hits it at all required angles at once. This would eliminate the need for rotation.

TazMan2000


thorst

Well-Known Member
I was super satisfied with the original Photon. Pre-ordered my Photon Mono X a while ago and can't wait for it to arrive!


korben44

Master Member
Ok...wow... This is, by far, the best resin I've used... Although I have only used Elegoo's Grey and Black prior to this, I can say with confidence that Siraya Fast is amazing!


It dramatically reduces print times and my first print came out flawless!


korben44

Master Member

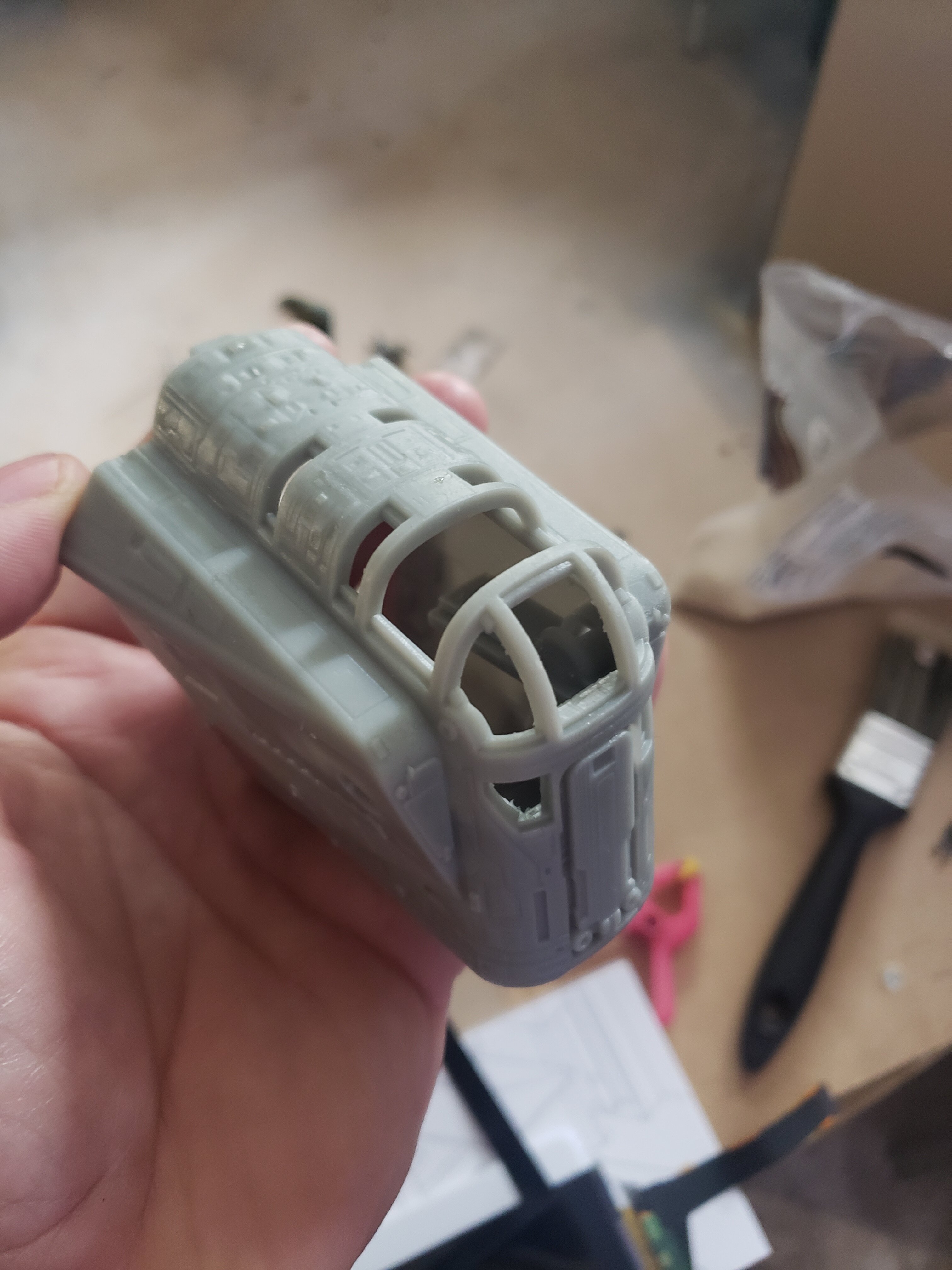

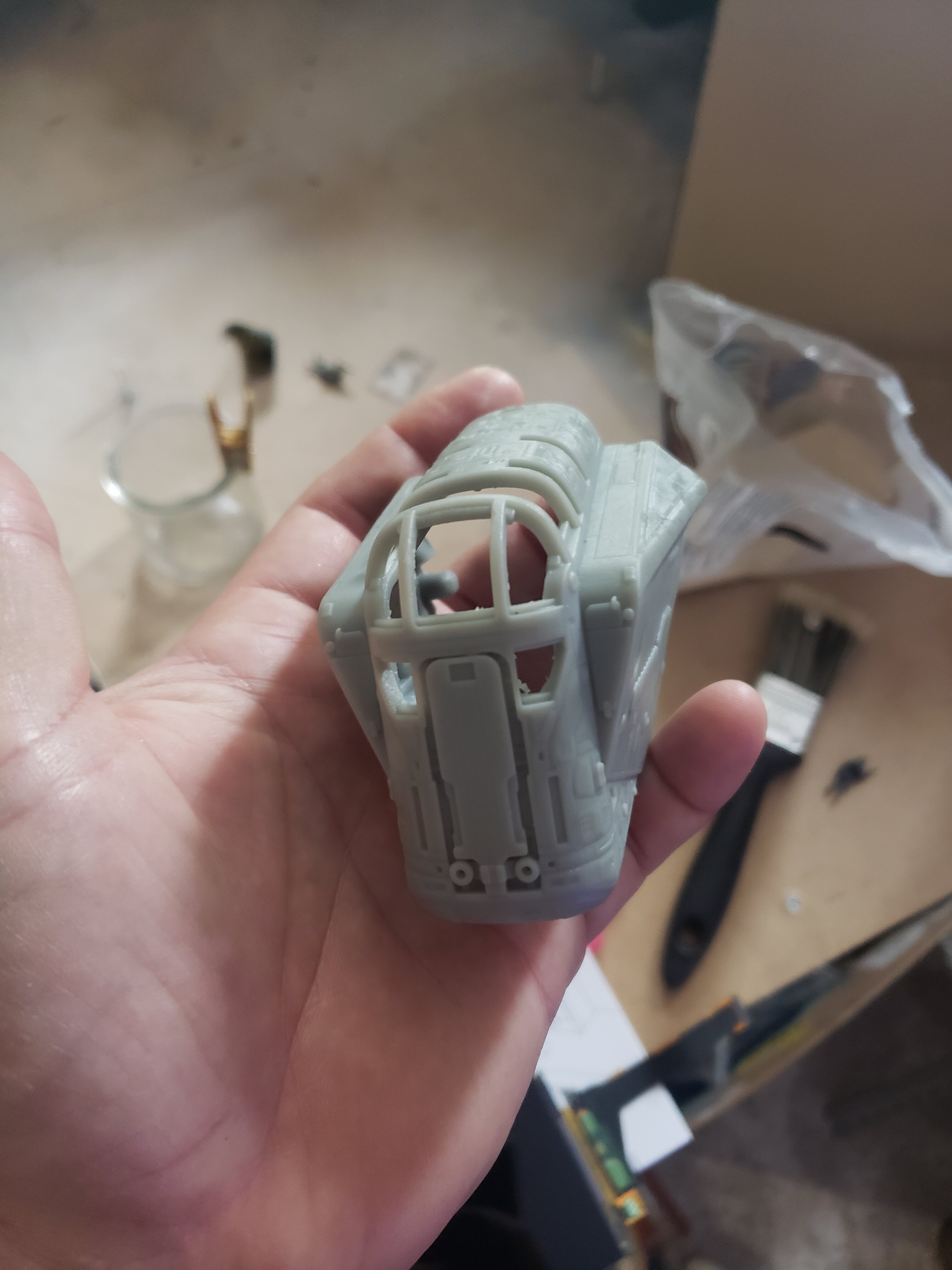

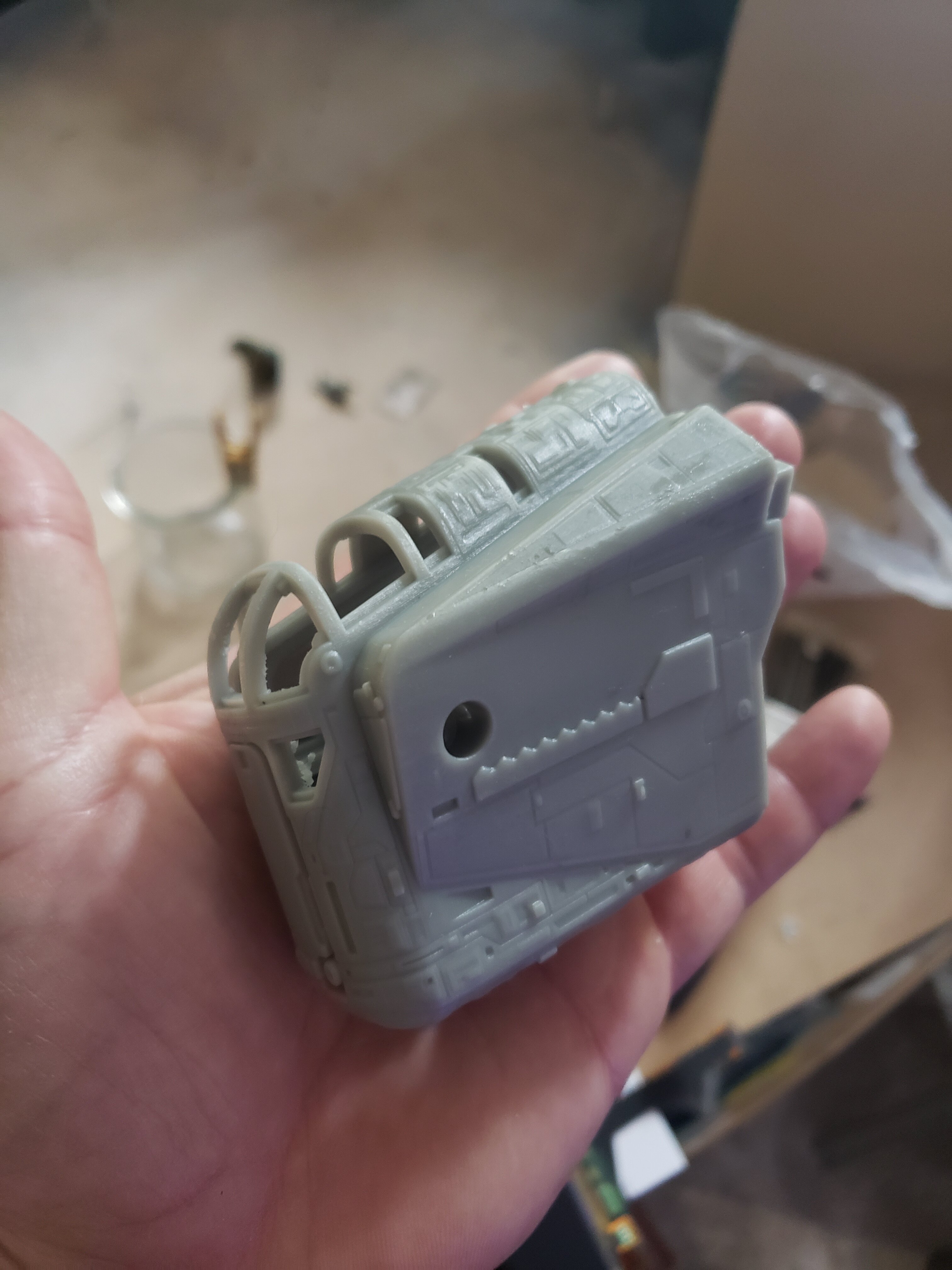

This was printed with the above mentioned resin from Siraya:




It took about 3.5 hours to print which was around an hour faster than with the other resins I've used.


Analyzer

Master Member
1/72... I scaled it down 6% from the original stl files.

I wasn't sure, I knew it looked smaller than I remember unless you have huge hands :lol:

I didn't think 6% would make much of a difference but I guess it does, although looking at the one I printed in person now, I guess it yours is not much smaller than I originally though.

It also looks so much better printed that way without the seam running down the middle. I guess sizing it down let that part fit the plate better instead of going with the halves


korben44

Master Member
I wasn't sure, I knew it looked smaller than I remember unless you have huge hands :lol:

I didn't think 6% would make much of a difference but I guess it does, although looking at the one I printed in person now, I guess it yours is not much smaller than I originally though.

It also looks so much better printed that way without the seam running down the middle. I guess sizing it down let that part fit the plate better instead of going with the halves
Yes, but it was a pain to cut the supports inside...lol... the center and rear hull were too large for my print bed to get in one piece... I'll have to upgrade to the Elegoo Saturn for that...lol...


holtaa

Active Member
Anyone else using Elegoo's water washable resin? It is all I have used, sincw taking my Mars out of the box. The whole process has been a bit of a learning curve.... But after about 400ml, I got repeatable results.


Analyzer

Master Member
I have been curious about that. In many ways I find the Isoprophyl alcohol worse smelling than the resin, and those fumes are probably just as bad if not worse than the resin


Helix6187

Well-Known Member
You can also use mr clean to wash your print. Several people use it on the french elegoo group on facebook.

It smell good and bonus point don't have nasty fumes.
Personaly I'll stick with acetone (5 to 10 sec wash and everything is clean).



tsenecal

Active Member
Anyone else using Elegoo's water washable resin? It is all I have used, sincw taking my Mars out of the box. The whole process has been a bit of a learning curve.... But after about 400ml, I got repeatable results.
i too have been using the water washable resin for my entire life of the printer... i use an old toothbrush to scrub the parts, in a tupperware full of water, and then wipe them down with a paper towel before moving them to the UV curing station. (and yeah, the shovel blade is warped - too thin)


akumazeto

Sr Member
Broke out the Mars and started printing today... I printed the mandatory Rooks with no issue at all - it was very simple really.

Now I'm attempting to use chitubox to add supports and slice my first real model. its from "Studio Kitbash" of his first scanned part. its actually too large for the Mars to print, but I'm just doing it as a test to see how it looks form the scanner, and if his models are really printable from the scanner. Tomorrow I think I'll try to figure out the FDM printer and see if I can start dialing in the settings on that one. The Mars was pretty simple to figure out - not that I'm claiming any real expertise at this point... but getting started was 1/2 a day of fiddling around.

Jedi Dade
Almost everything he is offering is available already in the open market. There are some that are not but I have thousands of greeblies. Only ones I need are the 1/12 cars. But scanning in everything like he has been is pointless as it’s out there and water proof


Jimw100

Well-Known Member
Anyone else using Elegoo's water washable resin? It is all I have used, sincw taking my Mars out of the box. The whole process has been a bit of a learning curve.... But after about 400ml, I got repeatable results.
I've never used anything other than the water washable resin - I just don't have the space or the ventilation to be sloshing litres of IPA around. I obviously can't compare it to the normal resin, as I've never used it, but I seem to get good results. The only problem I have now is that I want to print some stuff in clear resin, which doesn't seem to be available in a water-washable version.

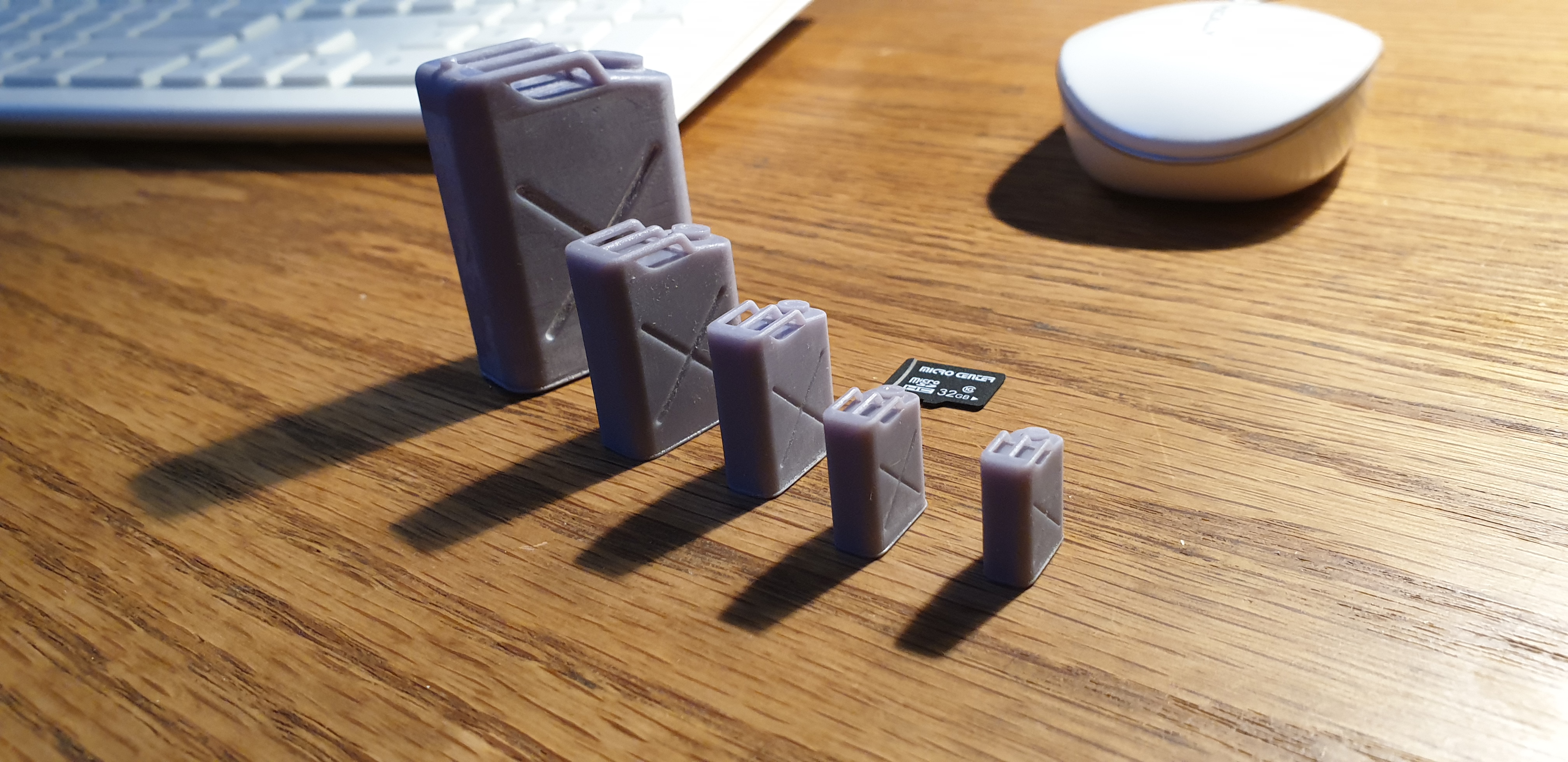

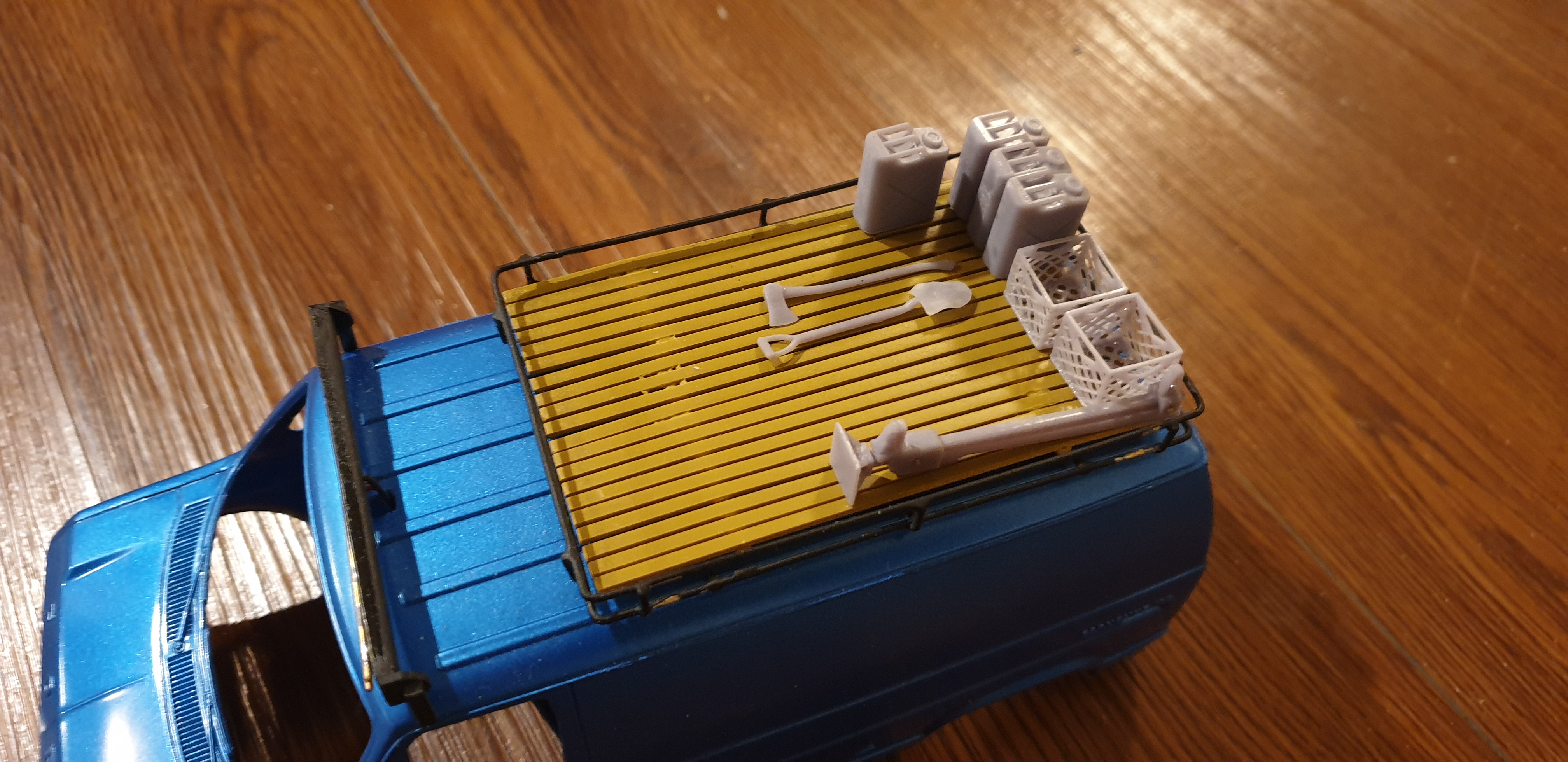

P.S. Where did you get the files for the jerry cans? I've been looking for that sort of thing for a non-sci fi model.


tsenecal

Active Member
I've never used anything other than the water washable resin - I just don't have the space or the ventilation to be sloshing litres of IPA around. I obviously can't compare it to the normal resin, as I've never used it, but I seem to get good results. The only problem I have now is that I want to print some stuff in clear resin, which doesn't seem to be available in a water-washable version.

P.S. Where did you get the files for the jerry cans? I've been looking for that sort of thing for a non-sci fi model.
i got it off thingiverse: Jerrycan 1/10 scale by lixtap21


Redman99

Active Member

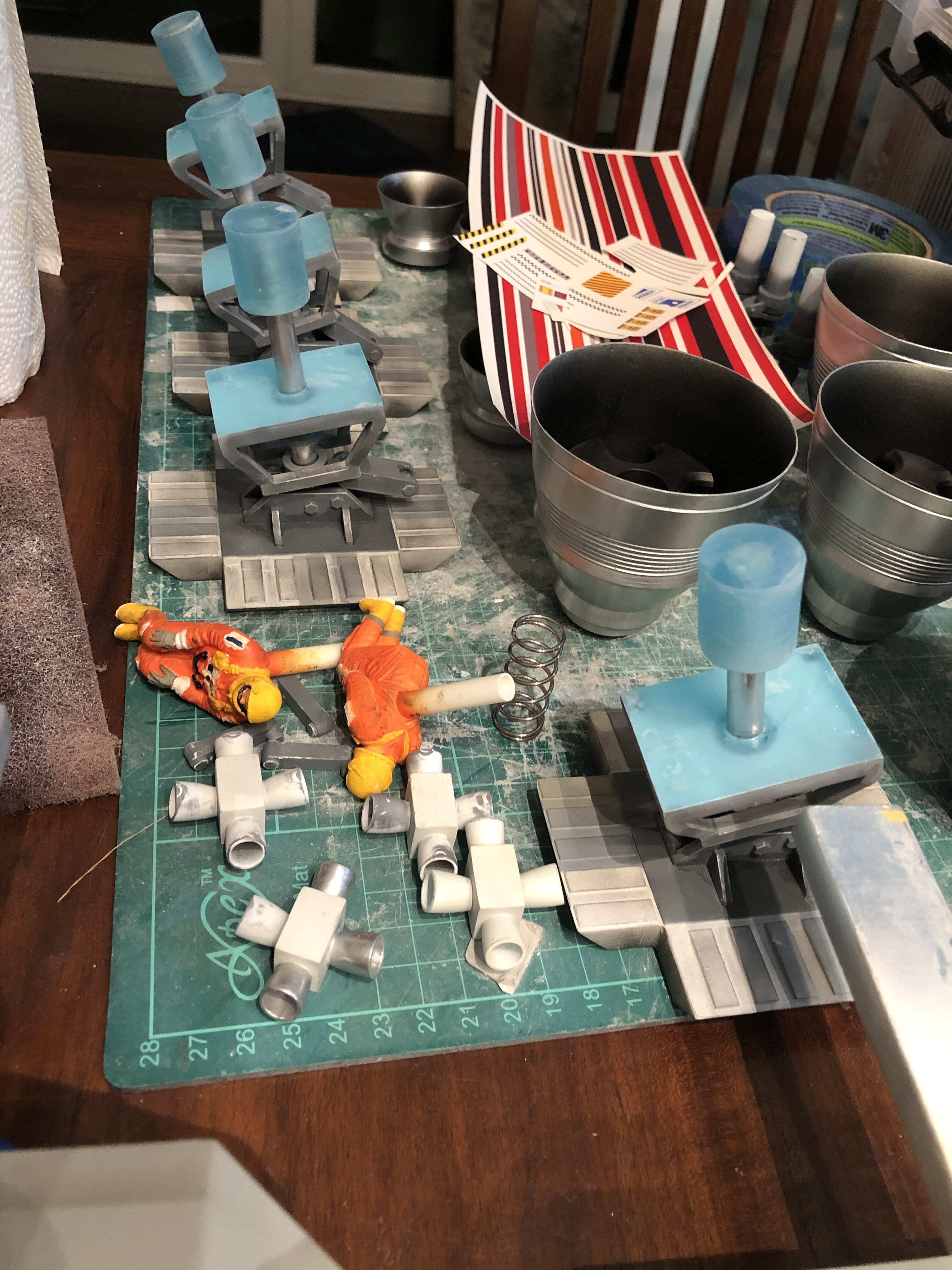

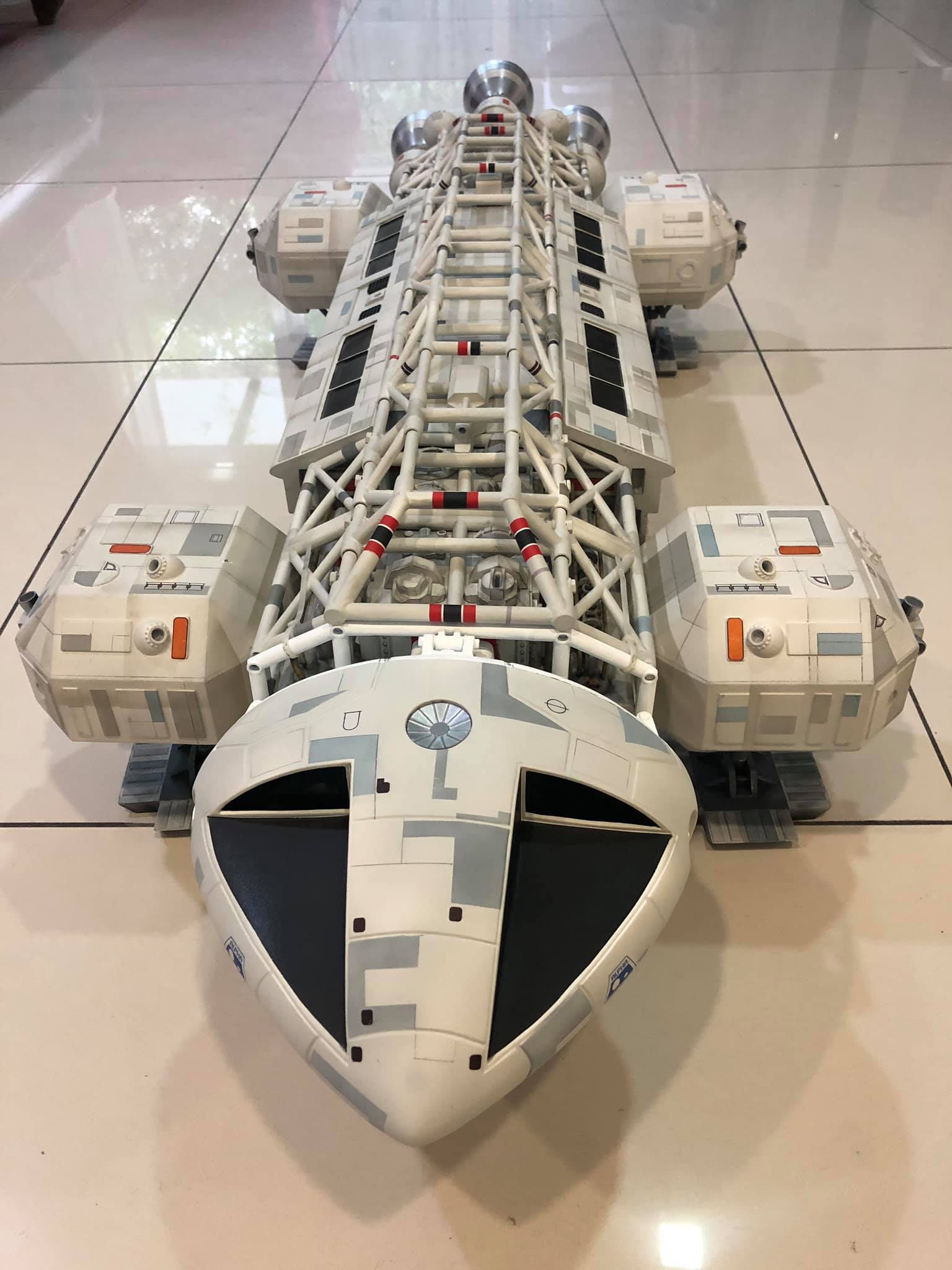

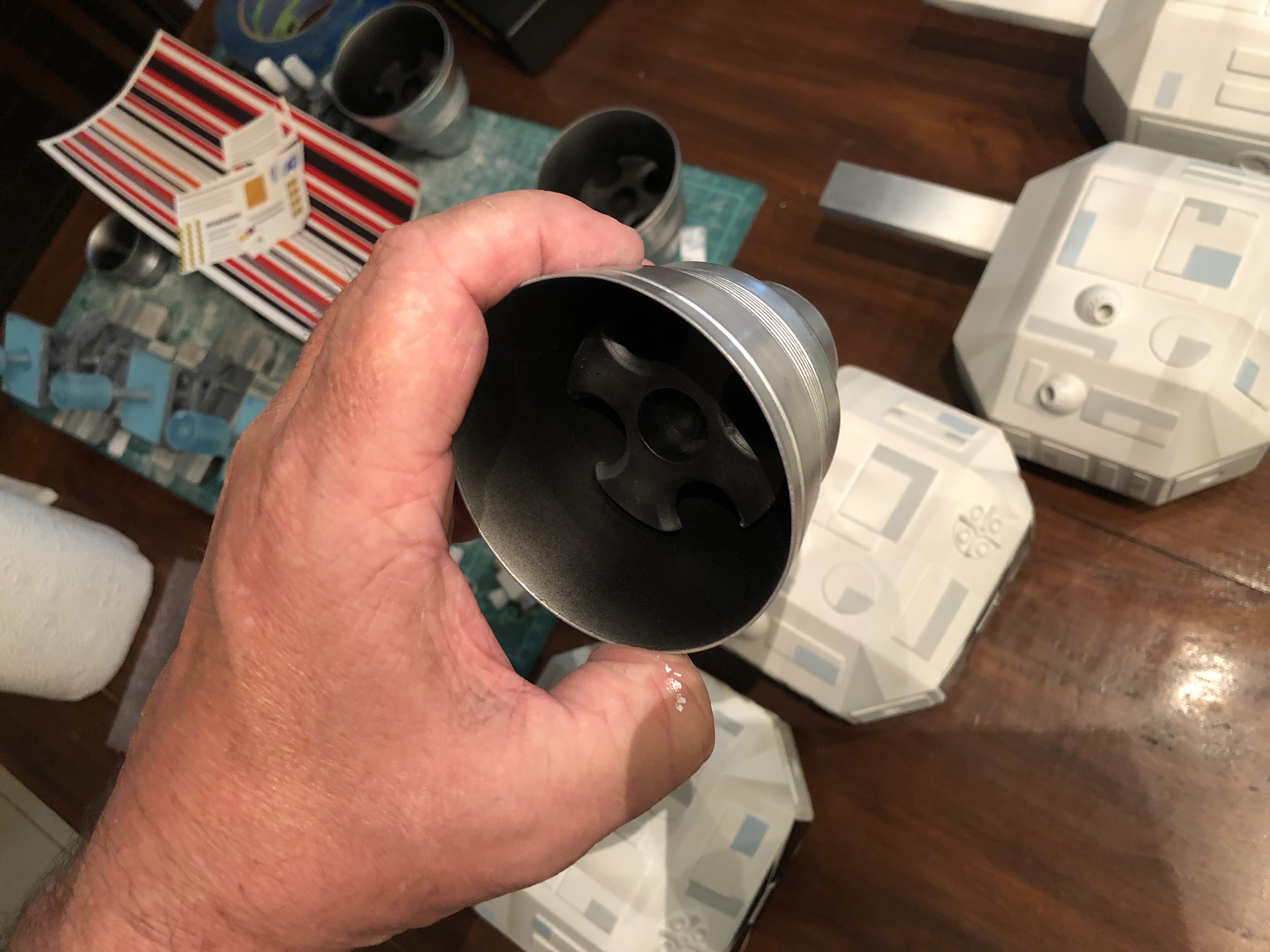

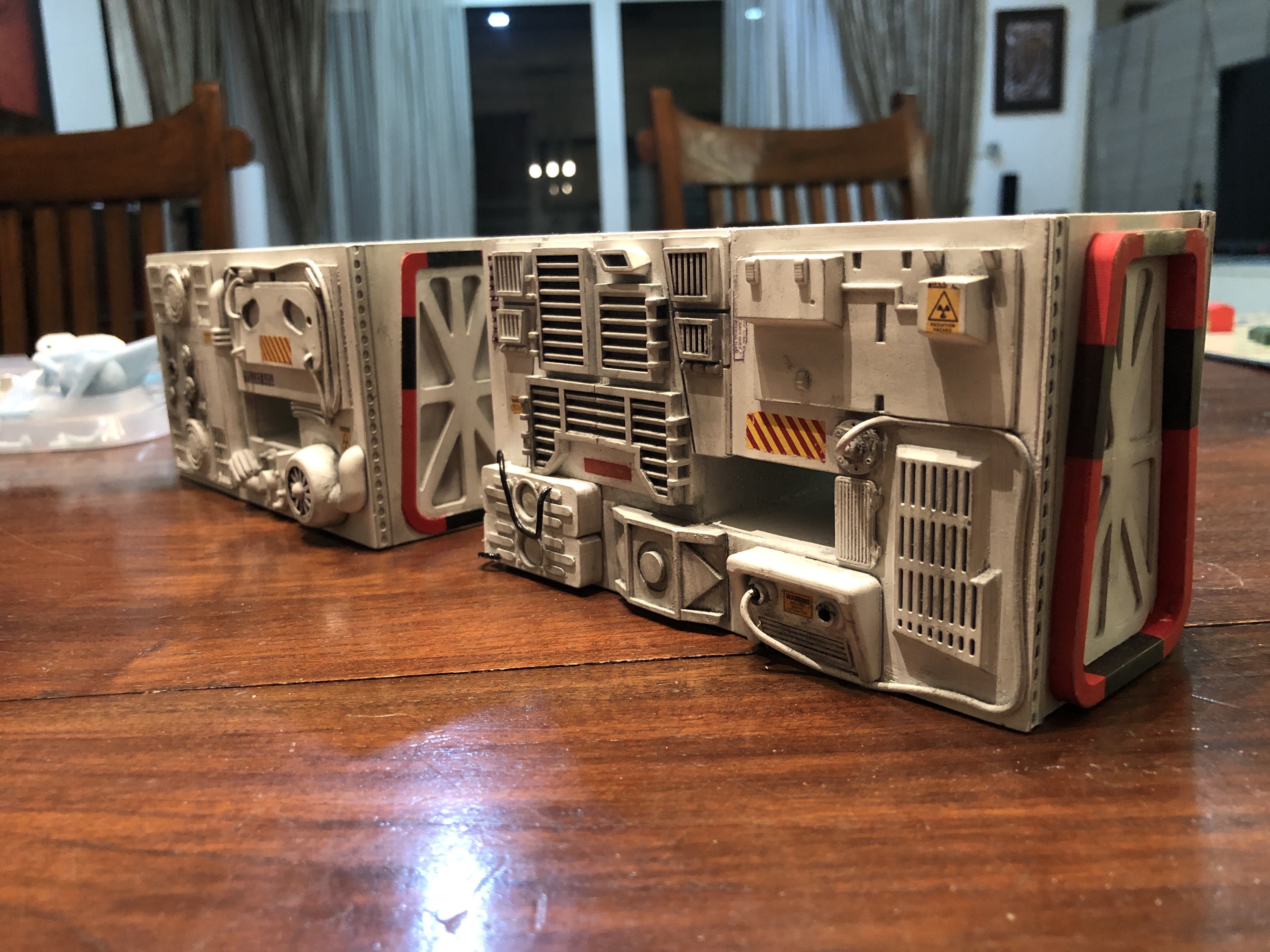

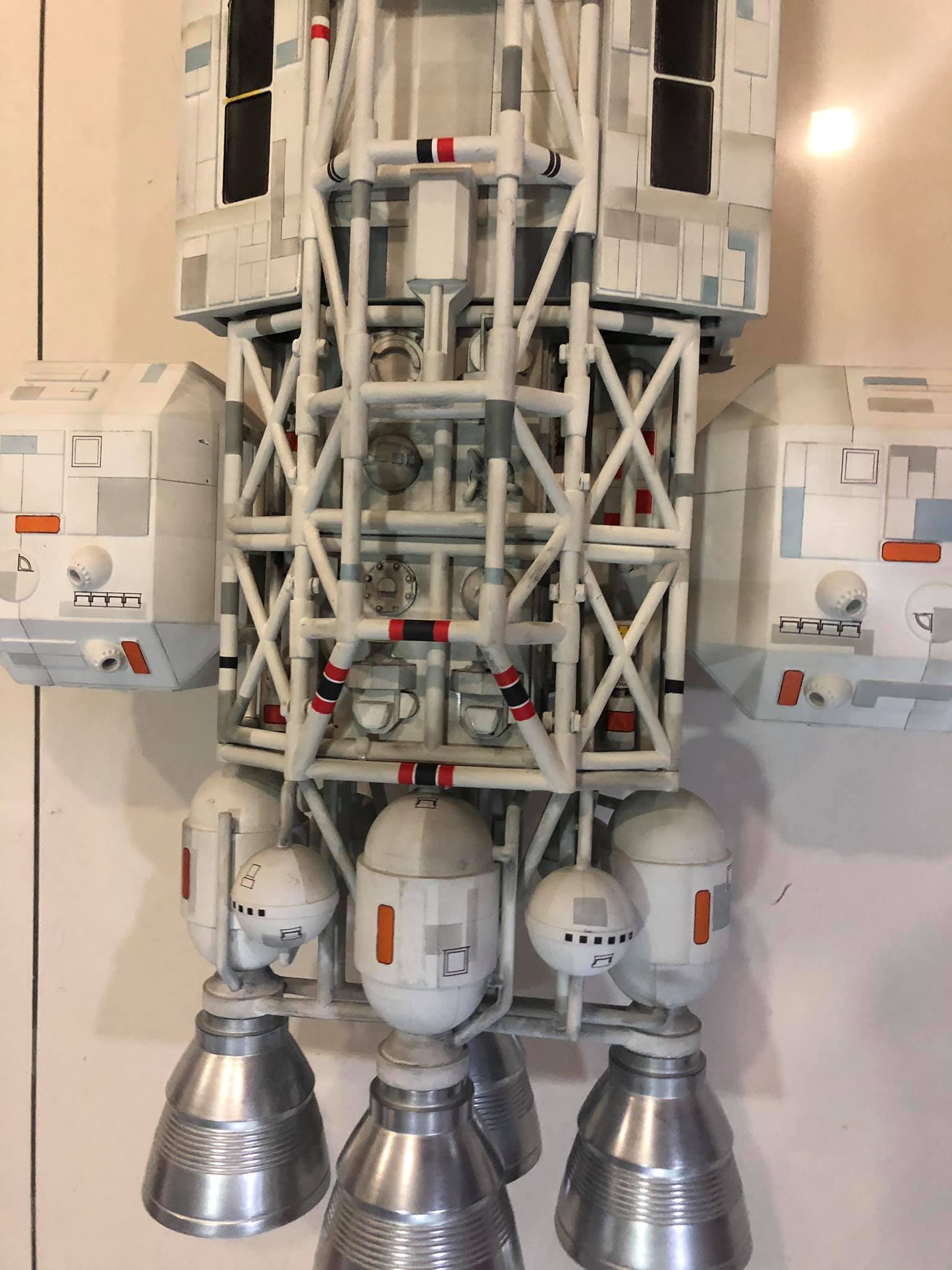

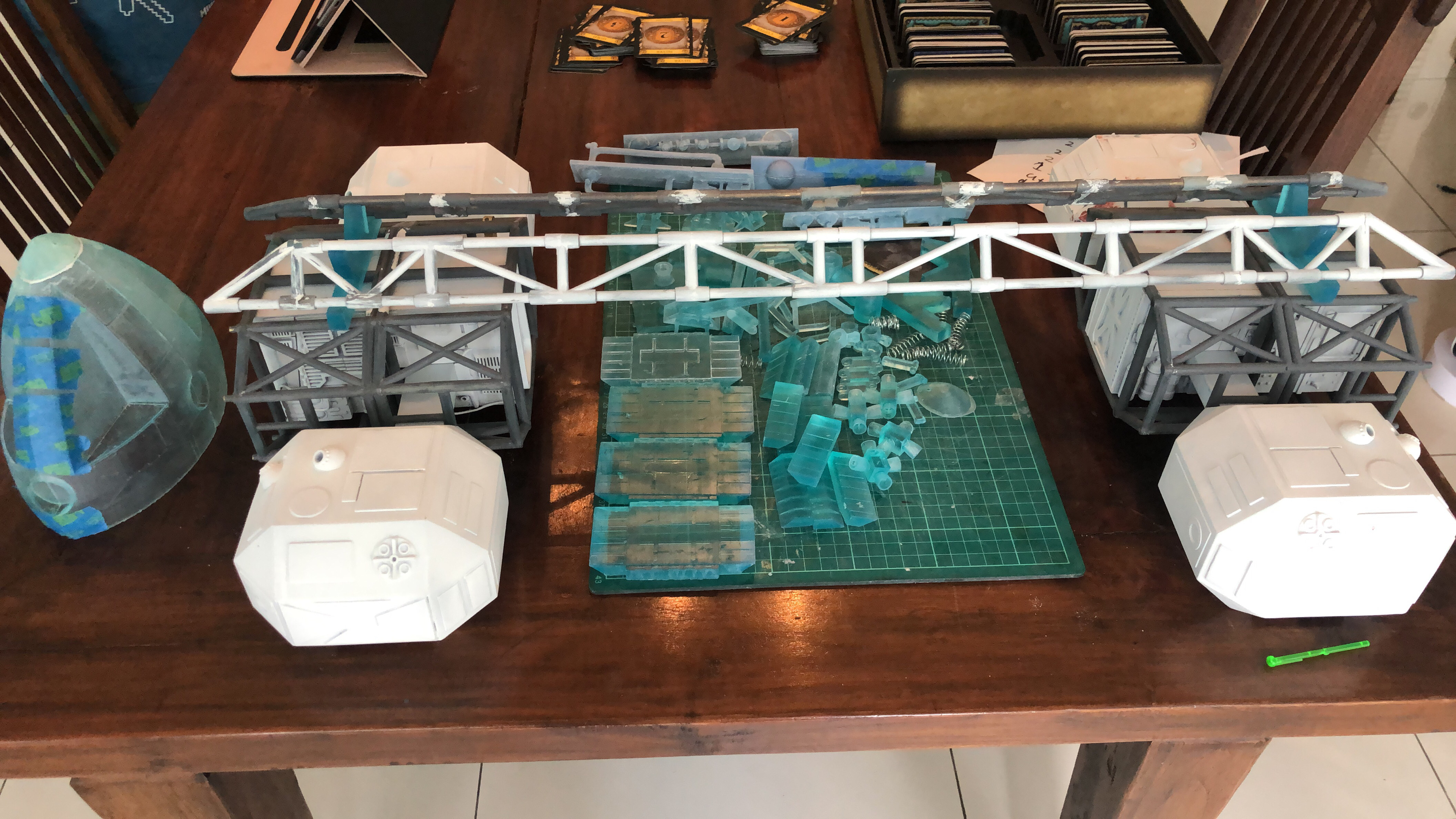

Just about finished by 44" Eagle from Space:1999. I'm waiting on a little more paint for last bit of cockpit, but pretty much finished.

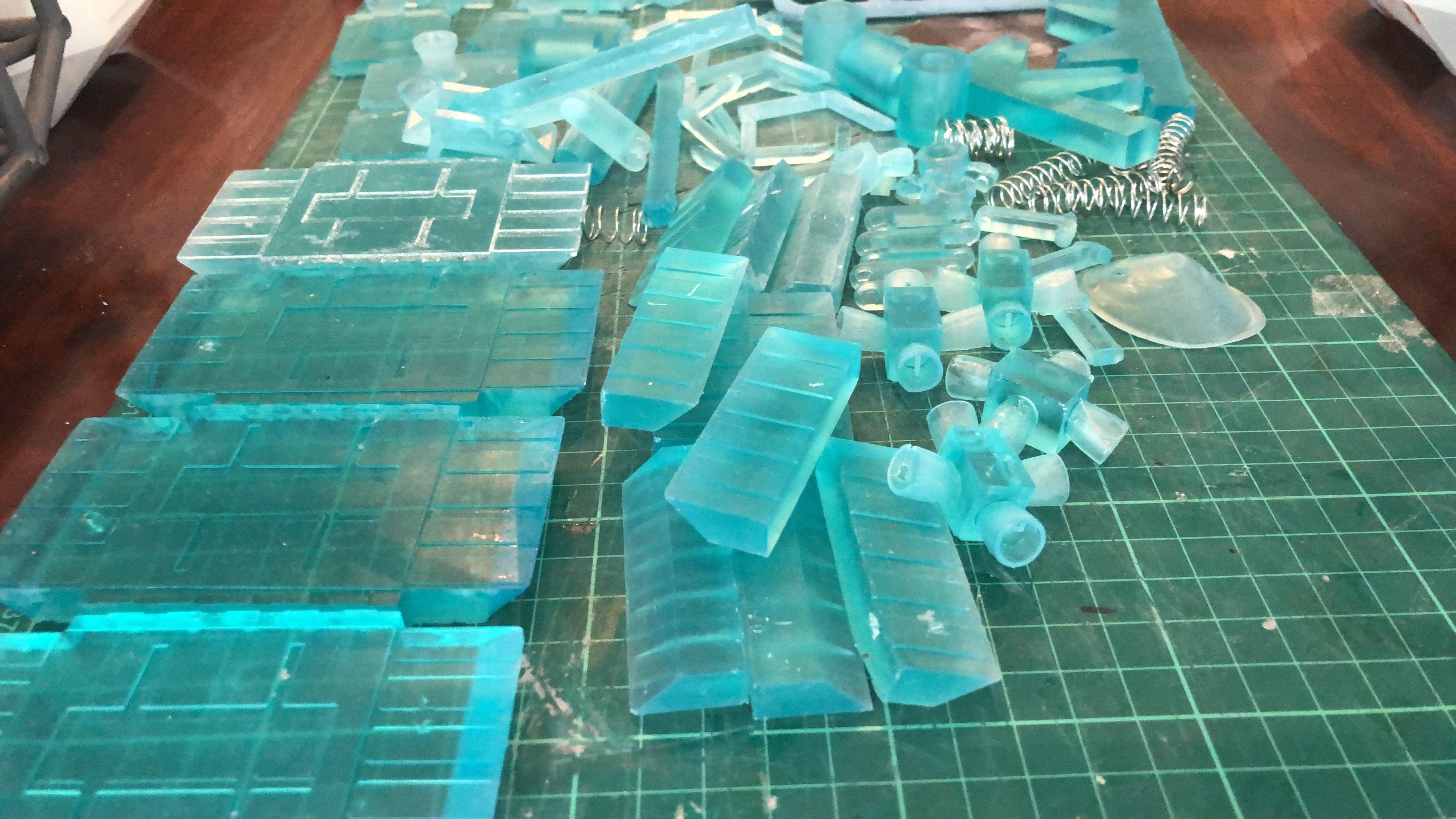

Printed on Mars with Siraya Tech blu.
Uses Brass rods to support frame.
It weighs a LOT!

Files from CGtrader. I modified a bit in blender, and used a cockpit from a different model.
Sliced with Prusa to fit onto build plate.
Leg pods were about 9 pieces in the end. I discovered about half way through gluing using resin and UV light.
Definitely recommend this way of bonding and joining.
