Having been working on a lot of comic book and tactical-style costumes lately (as much as I love those) I wanted to go in a different direction for my new concept piece.

I’ve always been a fan of RPGs, fantasy and games like World of Warcraft, Elder Scrolls, Dragon Age and similar. So, I decided to create a new rogue costume. This costume design will also become a new pattern set on my Etsy shop.

As usual, I gathered some images to use for inspiration.






With some inspiration gathered and some ideas rolling around in my head, I decided to get started and see where things went. I started by working up a hooded harness that will, eventually form a base for partial armor and a cloak.

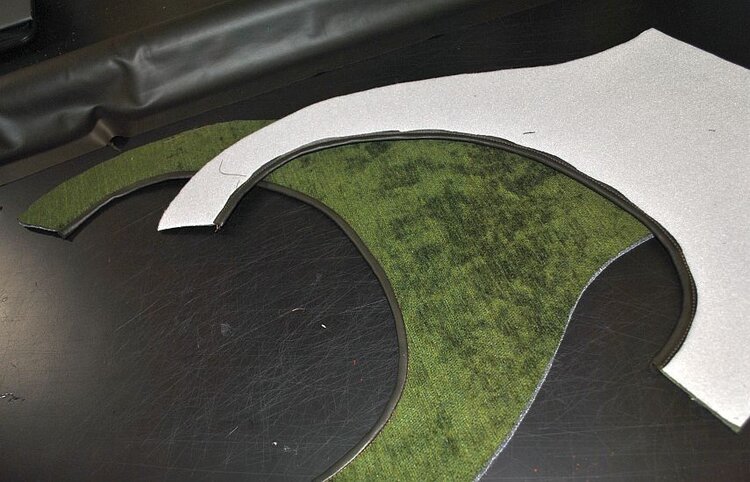

I used a vest/harness pattern that I originally created for Dr Doom with some slight modifications. I cut the back and shoulder pieces out of headliner foam and used Super77 to mount it to the back of a distressed green chenille.

These pieces were assembled and then the edges finished with a dark brown faux leather. Next, I created some wings for over the shoulders. These were also cut out of headliner and covered in chenille. Then I cut stripes out of 2mm craft foam and covered them with a medium brown faux leather. These stripes were also edged in the dark brown leather.

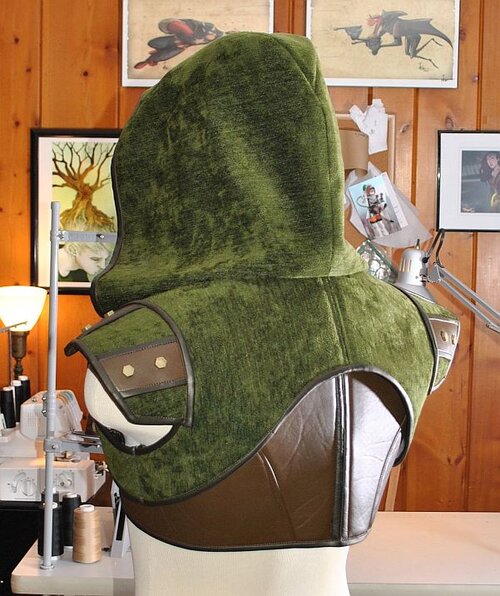

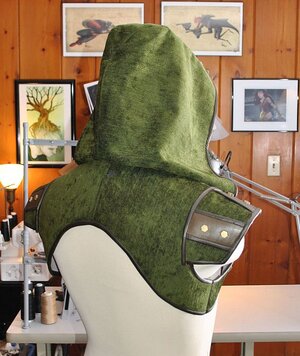

The edges of the wings were finished and they were added to the harness. Next, the hood was created out of the green chenille, lined in a bronze gauze, edged with dark brown faux leather and attached to the harness. Details for the front of the harness were cut out of 2mm foam and covered with faux leather.

Once all of these pieces were assembled, the sings and front panels were detailed with bronze screw-back studs.

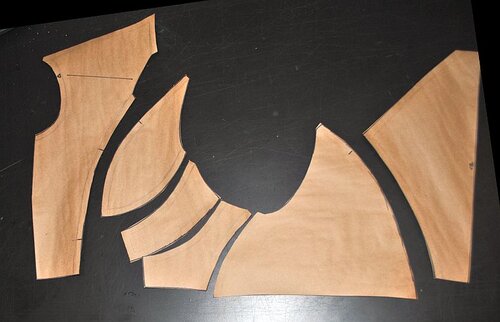

The next layer for the costume I wanted to create was a short leather ‘armor’ vest. For this piece, I modified another vest pattern I recently created and drew out the new patter. This was also cut from headliner foam and covered with the same medium faux leather that was used on the hood/harness.

I also knew I wanted to stitch ribbing into the vest pieces, so I started thinking about the direction of the stitching and sketched some lines on the back of the foam (though, I ended up going a different way on many of the pieces). The pieces were all ribbed separately and then assembled. The bad on the front was also reinforced with 2mm craft foam to support the grommets that would be added.

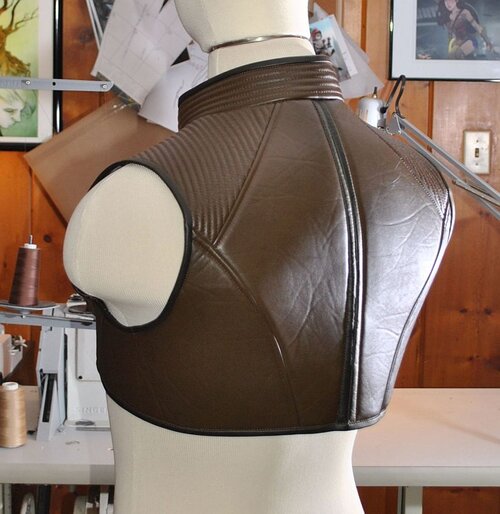

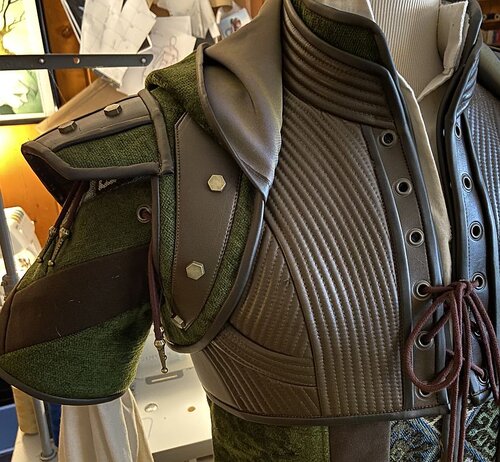

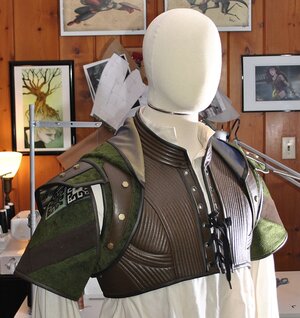

I then created a collar for the vest, finished all the edges and added the grommets. Here’s the vest by itself and with the hooded harness.






Coming up, the gambeson/jerkin and armor gets underway. Stay tuned!


Keelan562

Well-Known Member
This looks fantastic! It makes me want to take one of my D&D characters and build their costume now :D

I can't wait to see the finished build of this.


SMP Designs

Sr Member
RPF PREMIUM MEMBER
Realized I've not been keeping up this thread and have made loads of progress since the last post. So, here we go:

With these upper body pieces together, I began to think about what I wanted to do with the rest of the torso. I wanted to create a sort of gambeson, but I wanted it to be lighter, not so bulky and a little more ornate - sort of hybrid between a gambeson and a jerkin.

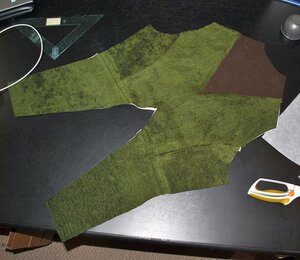

I started with the sleeves. I’d known from the start that I wanted bicep-length sleeves for the upper body, the shirt to show through at the elbow and the gauntlets to be elbow-length. With that in mind, I drafted a simple sleeve pattern that was modified to be tied onto the body of the rest of the garment, not sewn-in.

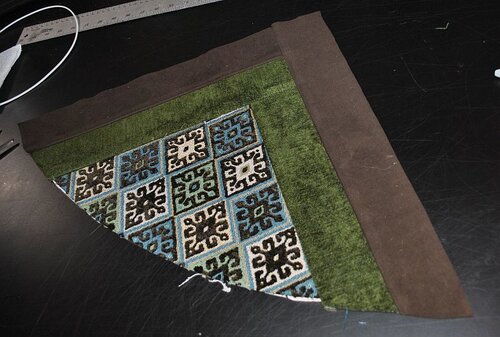

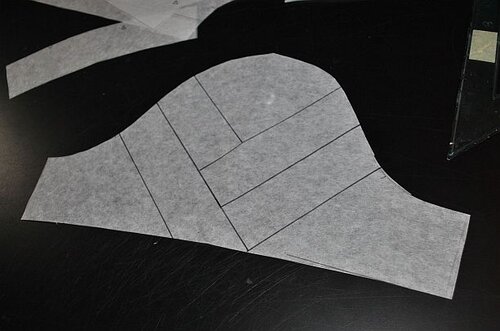

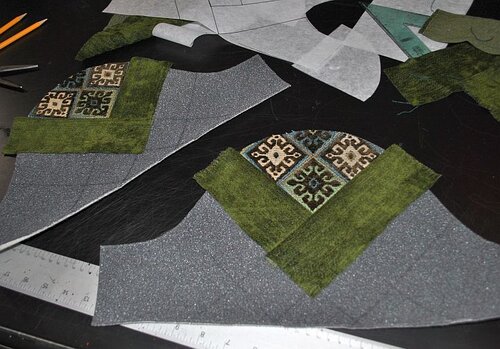

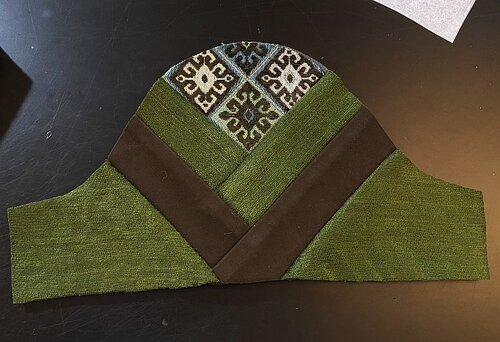

I then mapped out a ‘woven’ style for the fabrics (inspired by the MCU Loki) and set about to putting the sleeves together using a headliner base (I wanted that lightly padded, quilted feel of a gambeson, but not bulky), a nice woven fabric in a diamond pattern (remnants from some cushions I made for my flat) and green chenille and brown brushed cotton.





The top and bottom edges of the sleeves were then bound with faux leather. I tested them with the rest of the completed pieces and then began the pattern for the rest of the gambeson/jerkin.

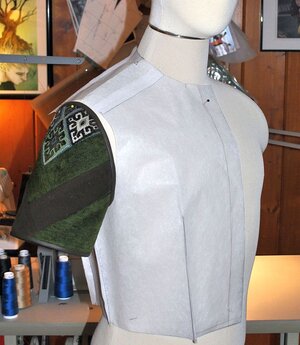

I used a base patter - a ‘sloper’ - to create the body of the garment and adjusted the armholes to match the sleeves and the neckline to work with the vests that I’d already made. The ‘skirt’ part was drafted to fit the waist with a slight flare.

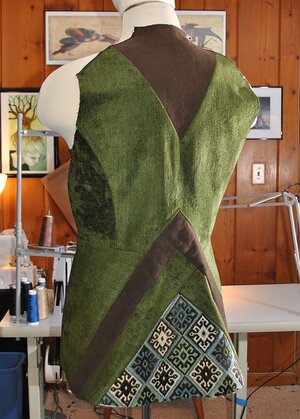

I knew that I wanted to pull in that woven detail from the sleeve and decided to do it on the back. I created an insert in the back below the waist that created an upside-down version of the sleeves.

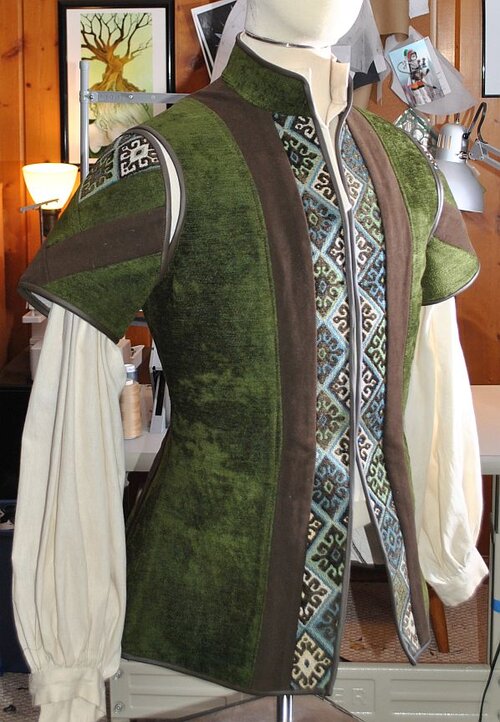

The rest of the body was then built with some diamond and brown accent at the front edges and tested with the sleeves.

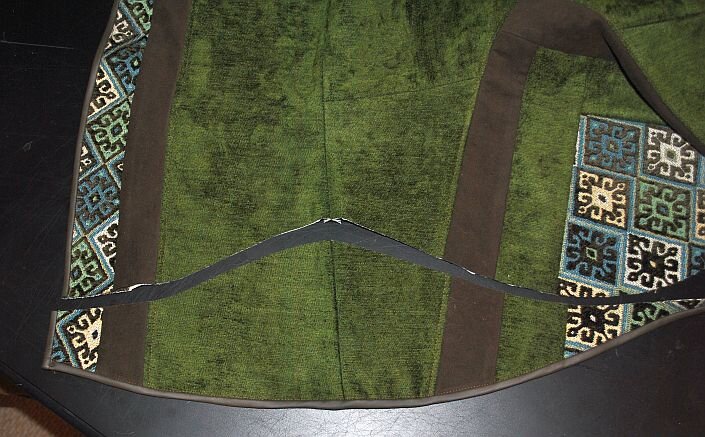

After consideration, I decided that I didn’t care for the straight hemline of the piece and decided to pull a page from the Assassin’s Creed playbook and curve the hem over the hips and create separate leg extensions. So the extra hem was cut away and the hem was refinished.

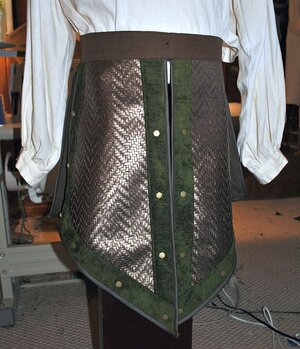

The extensions for the legs were modified from patterns from an Edward Kenway project.

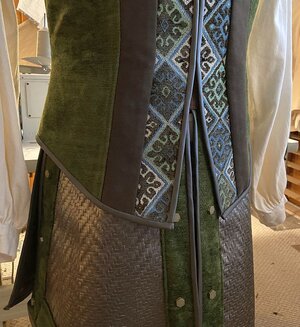

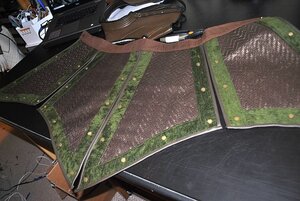

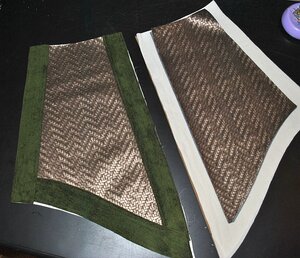

I decided to use a bronze colored faux leather that is embossed with a woven texture as the base for these pieces, edge each tab with green and brown and stud them with the same findings that were used on the hooded vest.






SMP Designs

Sr Member
RPF PREMIUM MEMBER

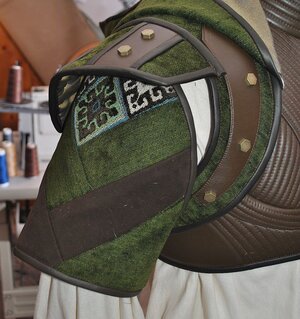

The next step for the torso was to set in the grommets and tie the sleeves onto the jacket.

I’m using a fabric cord for all of the lacing that’s then tipped with bronze findings. The sleeve ties are tipped with bolo tie ends in antique bronze.
These tips are actually too big to fit through the grommets, so the sleeves were permanently tied on and the tips attached after. The functional laces are finished with smaller, more streamlined tips.

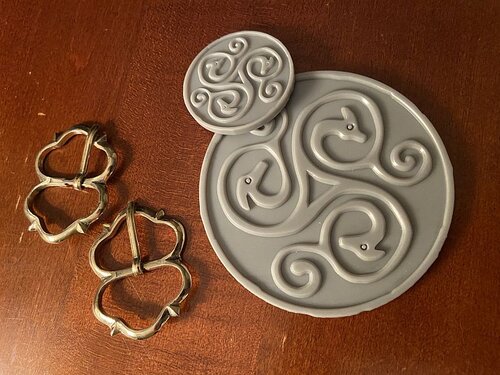

Next, I moved on to collecting details for the accessories and straps. I found an amazing Etsy shop that creates period hardware and ordered several hand-made buckles - one of which can be seen on the strap for the hooded vest.

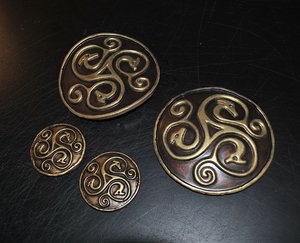

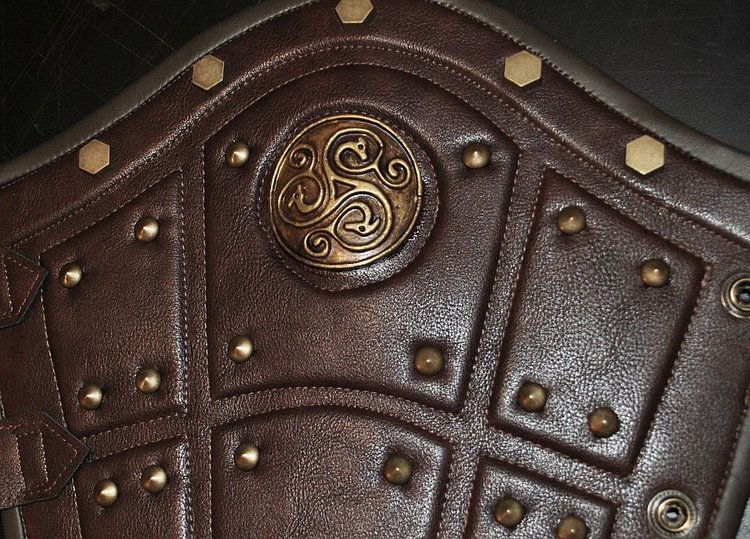

I also turned to my long-time collaborator Jordan’s Ironic Armory to create a Celtic dragon motif.

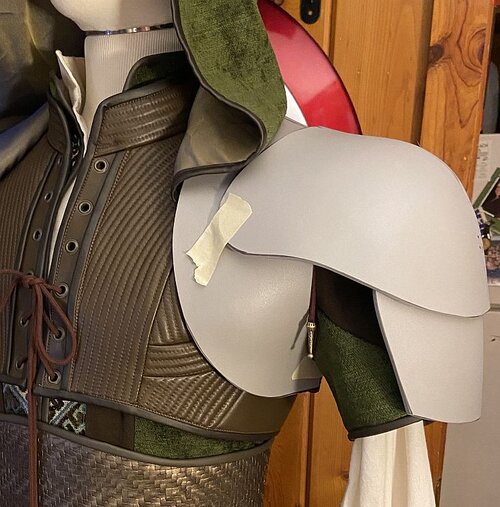

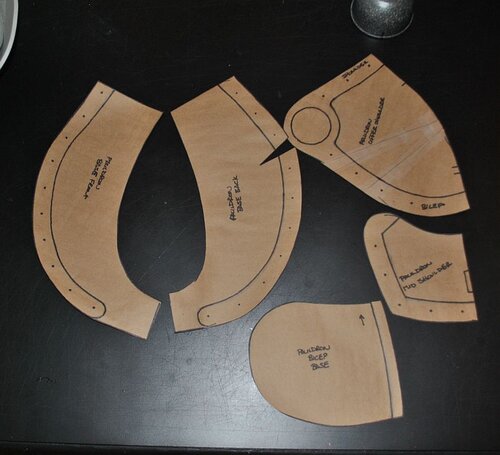

I wanted to create some partial armor for this project as well, so I began drafting and mocking up patterns for a foam pauldron.

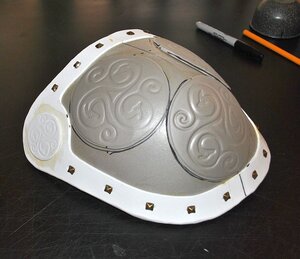

While deciding how to detail the foam armor, I discovered that if I heated thin EVA foam with my heat gun and then pressed the resin print of the dragon motif into it, I could emboss the foam with the pattern.

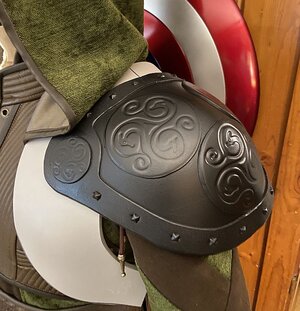

I decided to create three large discs and two smaller ones for the main pauldron section. I cut them all out and contact cemented them in place. I also created an edge detail and accented it with small studs.

The edges of the piece were rounded with a dremel and then the whole thing was coated with PlastiDip.

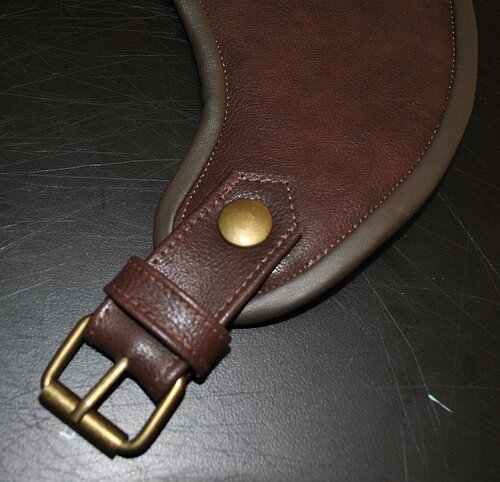

While working on the armor pieces, I decided to make the harness base out of a new faux leather that I found and began by backing the leather with headliner and edging the entire piece with the thin dark faux leather. I then created a buckle and strap set to close the harness under the arm and make it somewhat adjustable.

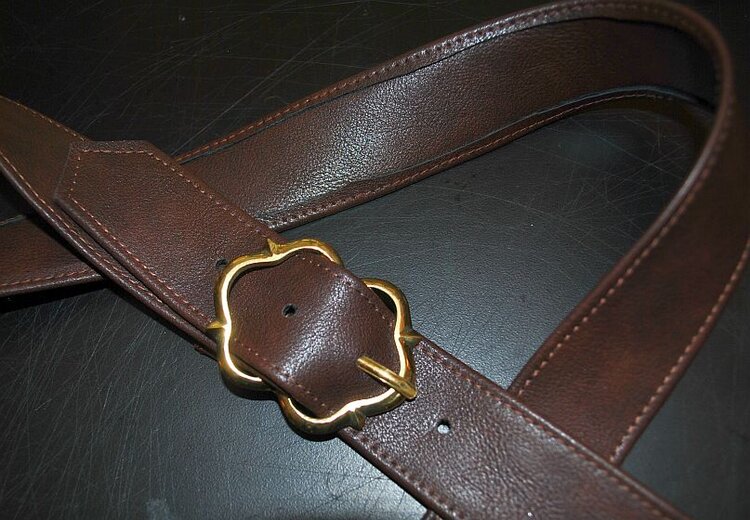

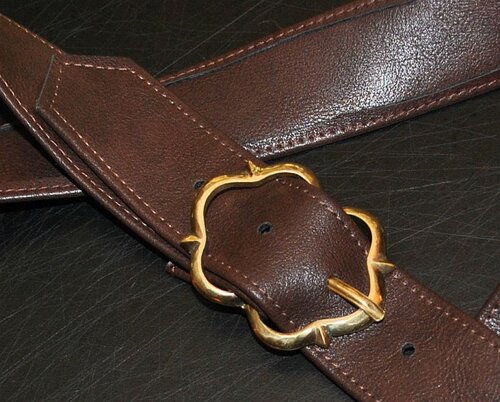

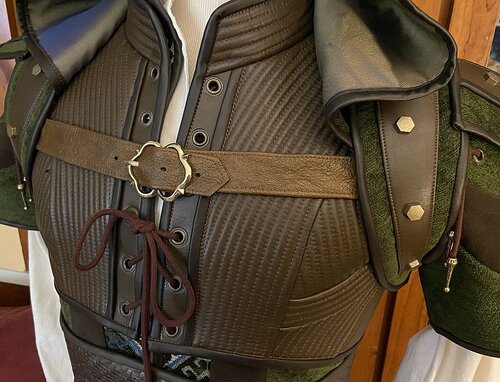

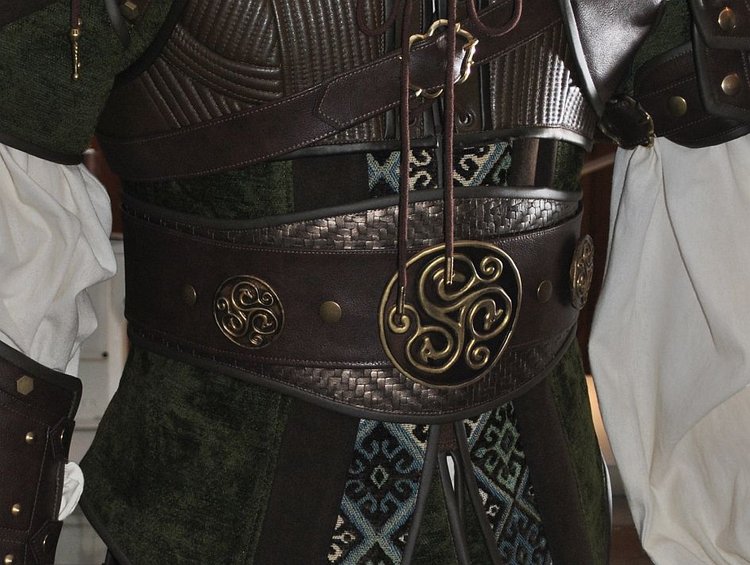

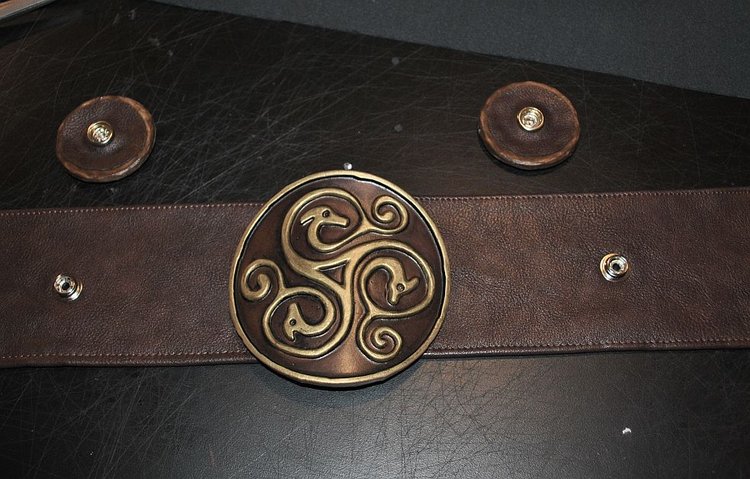

At the same time, I made the strap that goes around the chest to hold the harness and armor onto the body. This is one of the straps that will use the bespoke buckles I ordered from ReliquariaMedieval.

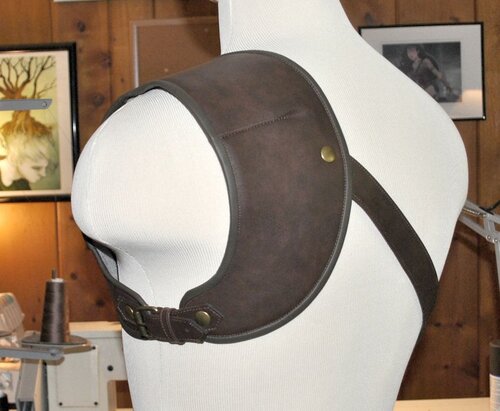

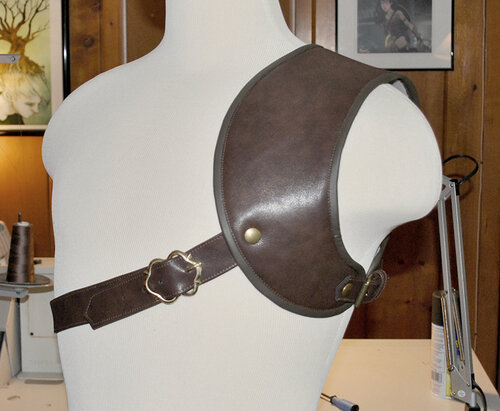

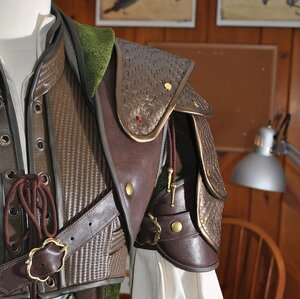

Here is the finished harness base with the straps attached. I used antique brass heavy duty snaps from Tandy Leather for the ‘rivets’.

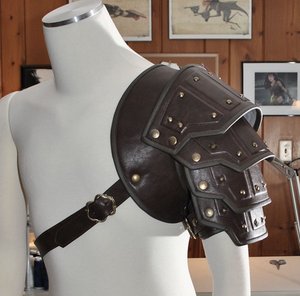

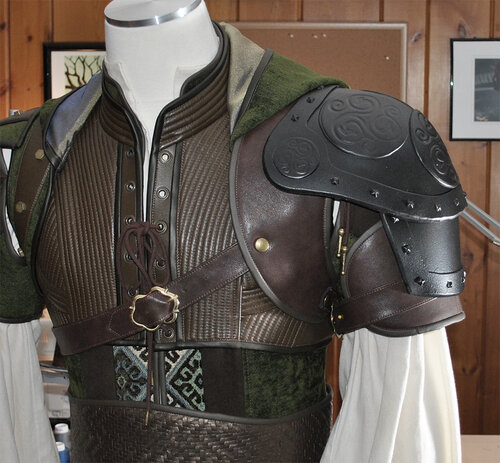

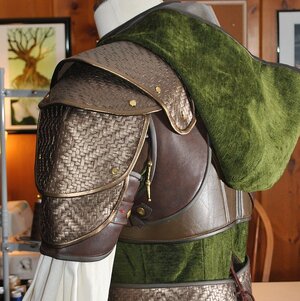

I then finished assembling the bicep part of the foam armor and created a bicep base piece and used a scrap of leftover strapping to test the fit of the entire shoulder together.




Next up will be finalizing the shoulder armor and creating some of the accessories and embellishments for the costume.

Stay tuned!


SMP Designs

Sr Member
RPF PREMIUM MEMBER
After test fitting the pauldron to see how it wore and moved, I decided that the foam armor was just too bulky and restrictive. I like the armor in and of itself, but it’s just not right for this character. I decided to go in a different direction and create a more “dragon” style segmented pauldron.

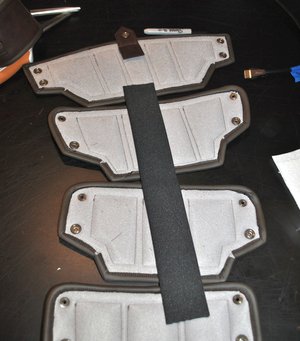

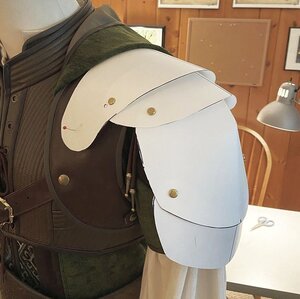

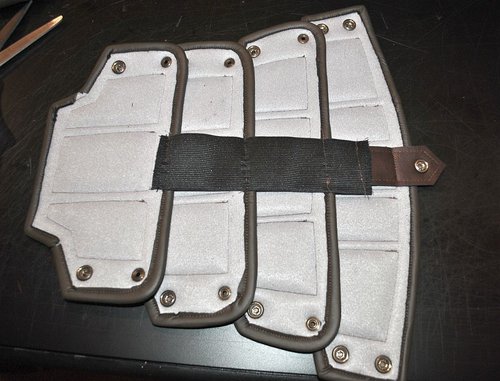

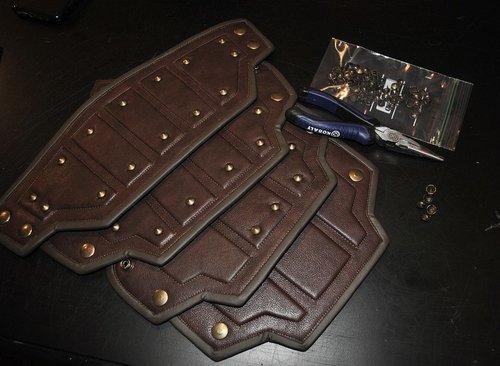

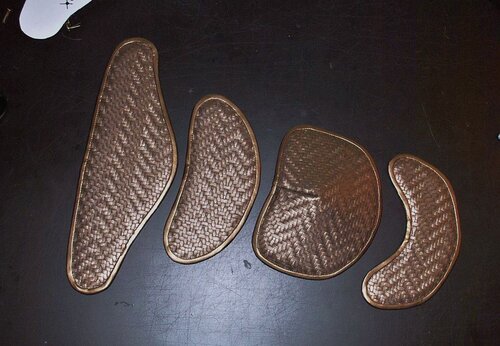

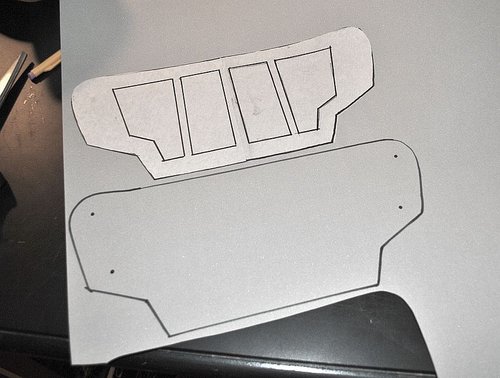

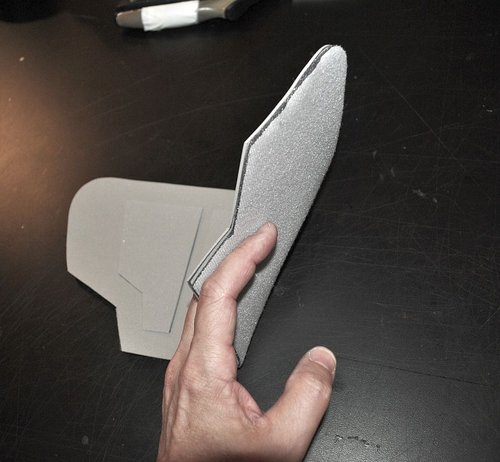

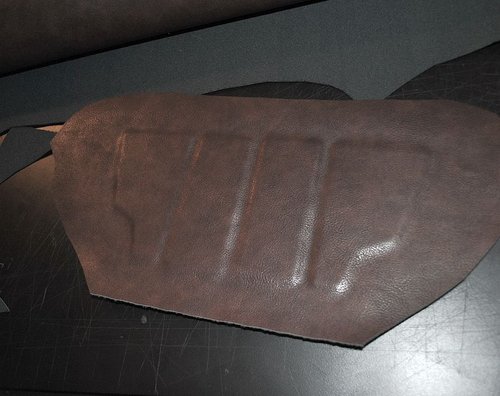

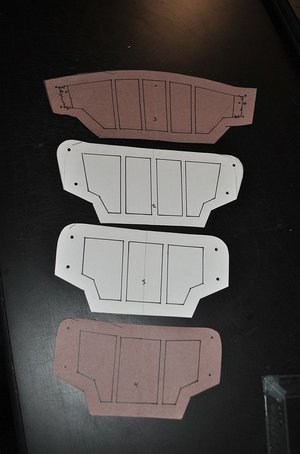

I began by working up some base templates in poster board and linking them together with paper fasterners. Once I had the base templates the way I wanted, I cut each piece out of headliner foam, covered them in the same ‘woven’ embossed faux leather that was used in the belt and skirt. Those pieces were also covered on the undersides with brushed cotton and edged in a copper thin faux leather.

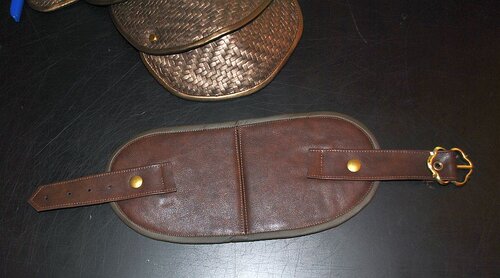

The straps for the bicep pad were then measured and attached.

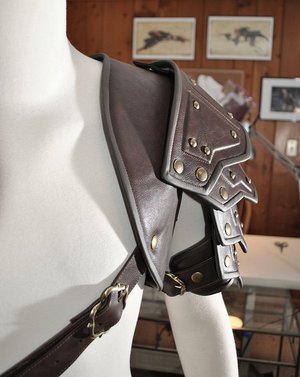

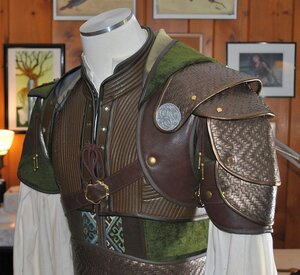

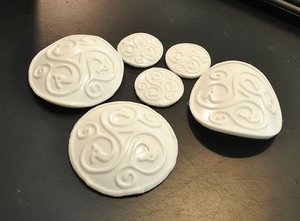

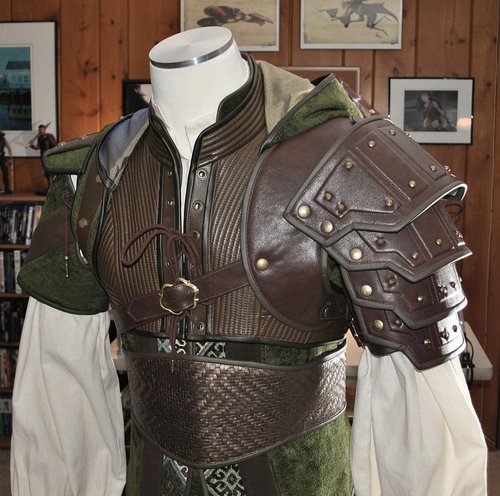

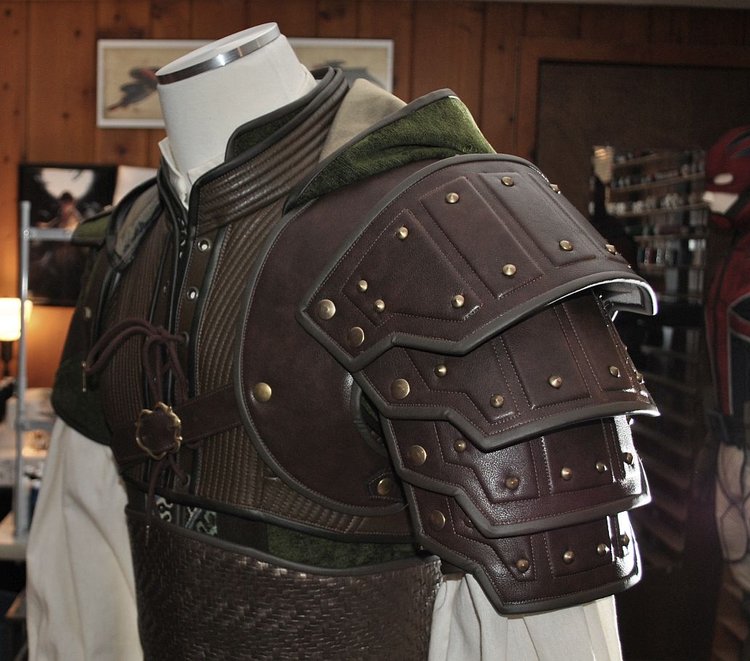

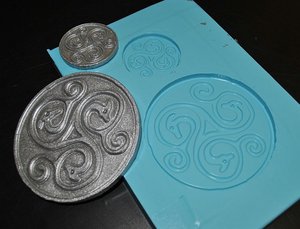

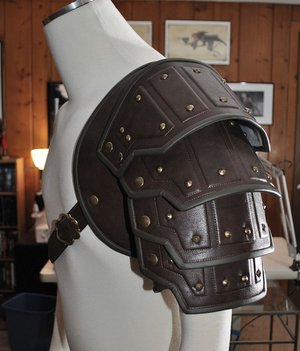

The pieces were all test fitted to the rest of the costume. Next, they will be embellished with casts of the dragon motif that was 3d printed.





Coming up - the pauldron is completed and the belt and pants get underway. Stay tuned!
