Project Stargate SG1:10

[TheAntReplicas]

Let's go! Starting the 3D modeling of the DHD.



[joberg]

Most excellent



[TheAntReplicas]

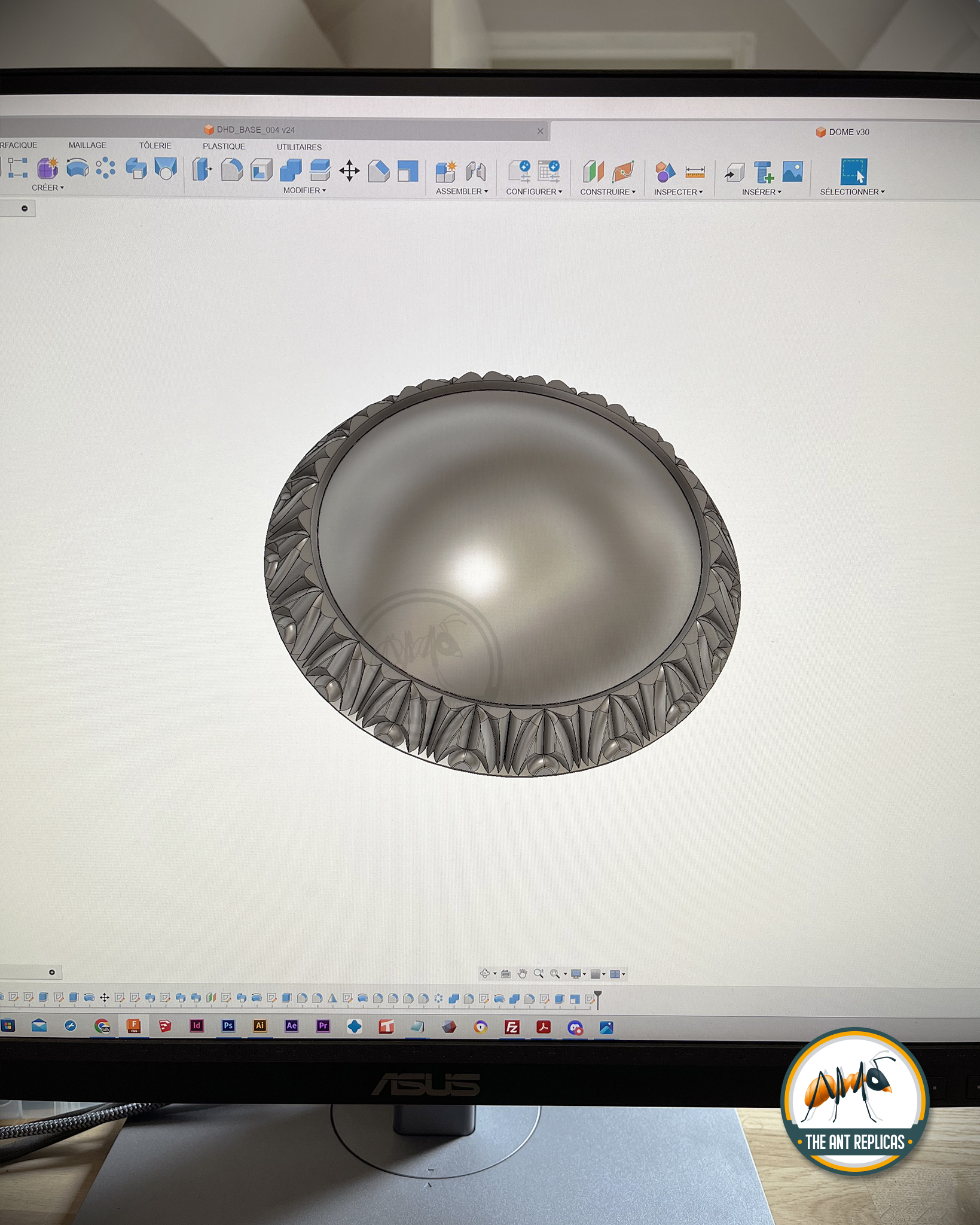

Continuation of the 3D modeling of the DHD: here is the dome with a rather complex pattern at its base.



[TheAntReplicas]

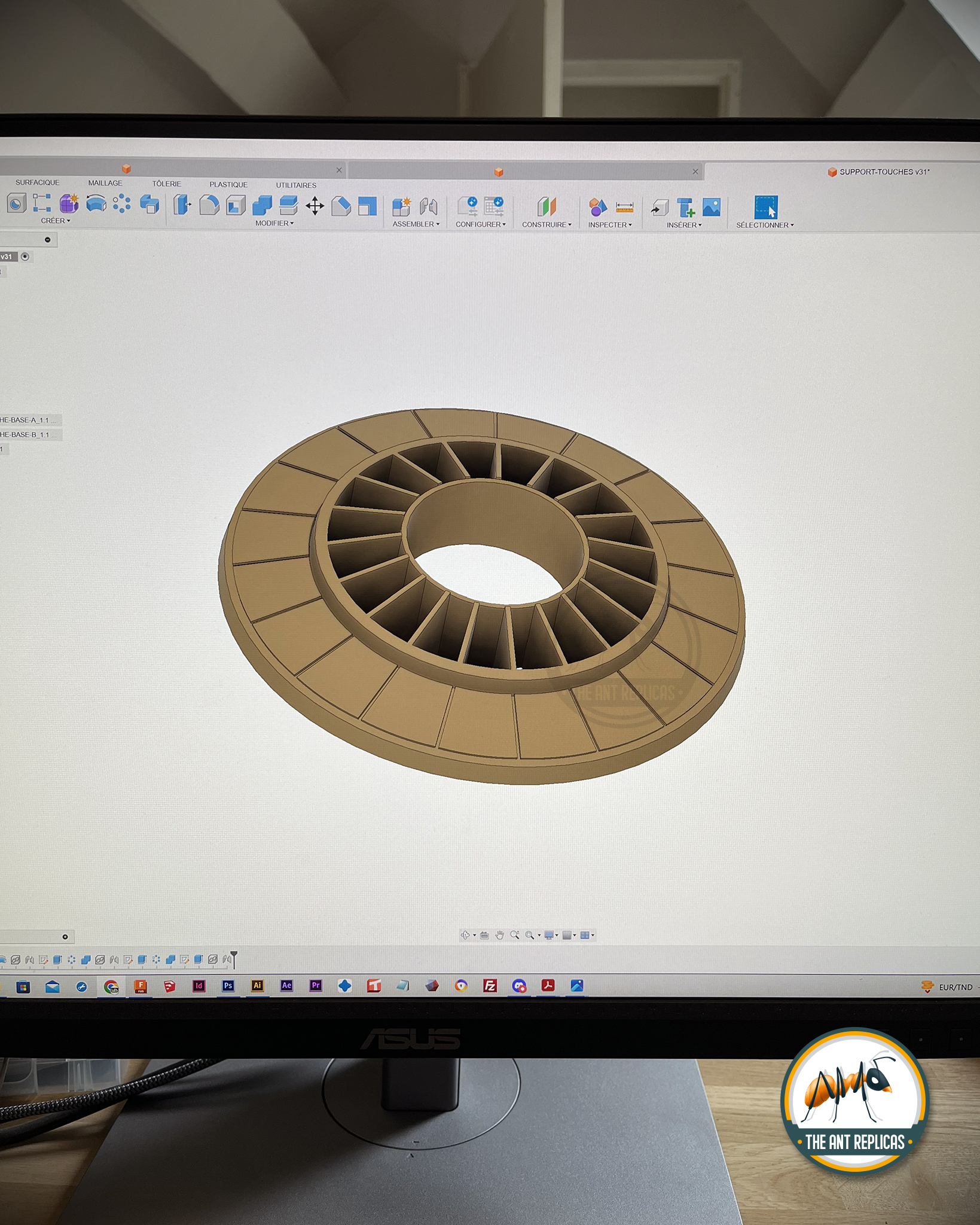

The 3D modeling of the DHD is progressing well! Here, finishing the console... Not easy on Fusion 360



[joberg]

Great work...keep it up



[TheAntReplicas]

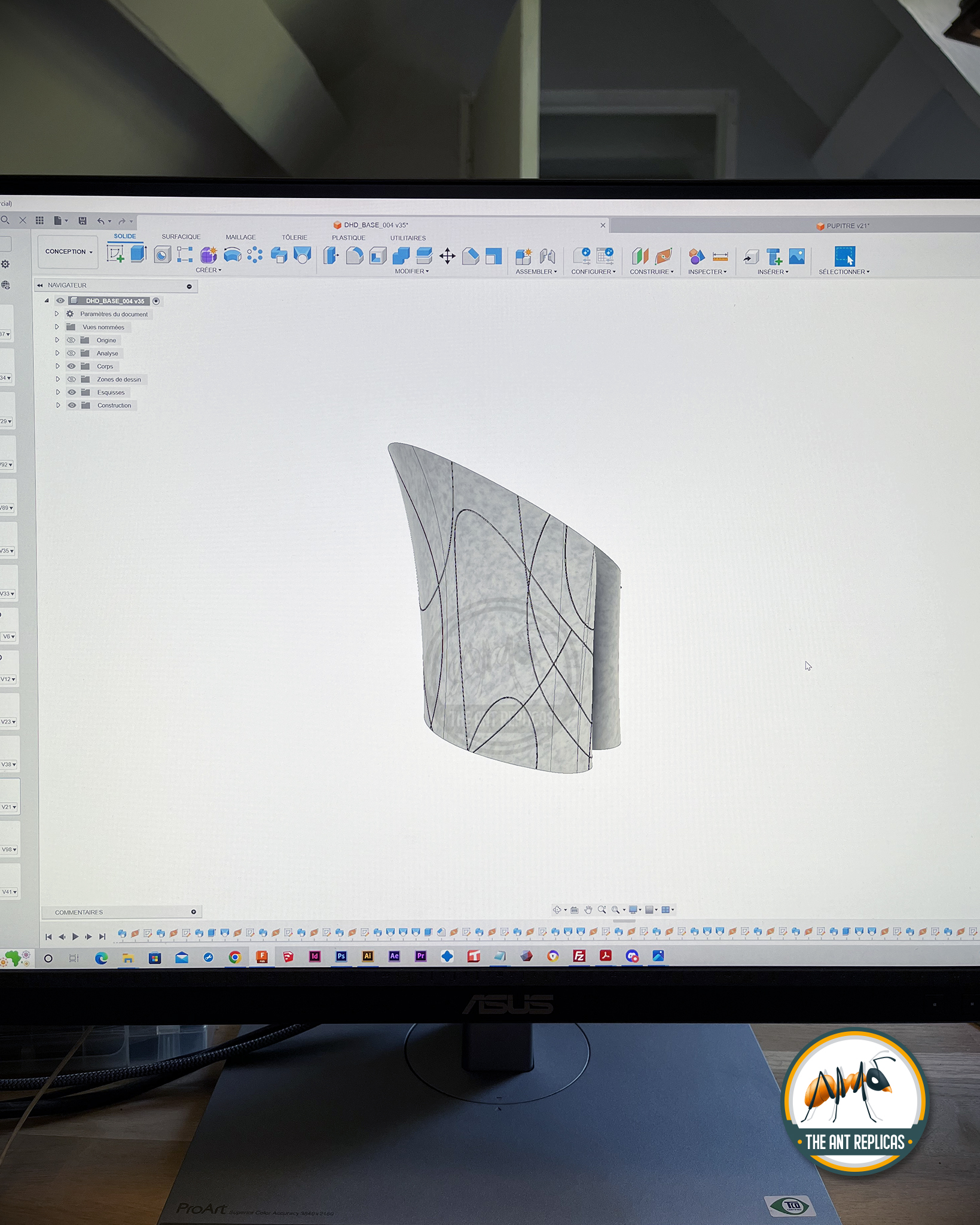

Start of 3D modeling of DHD base.



[TheAntReplicas]

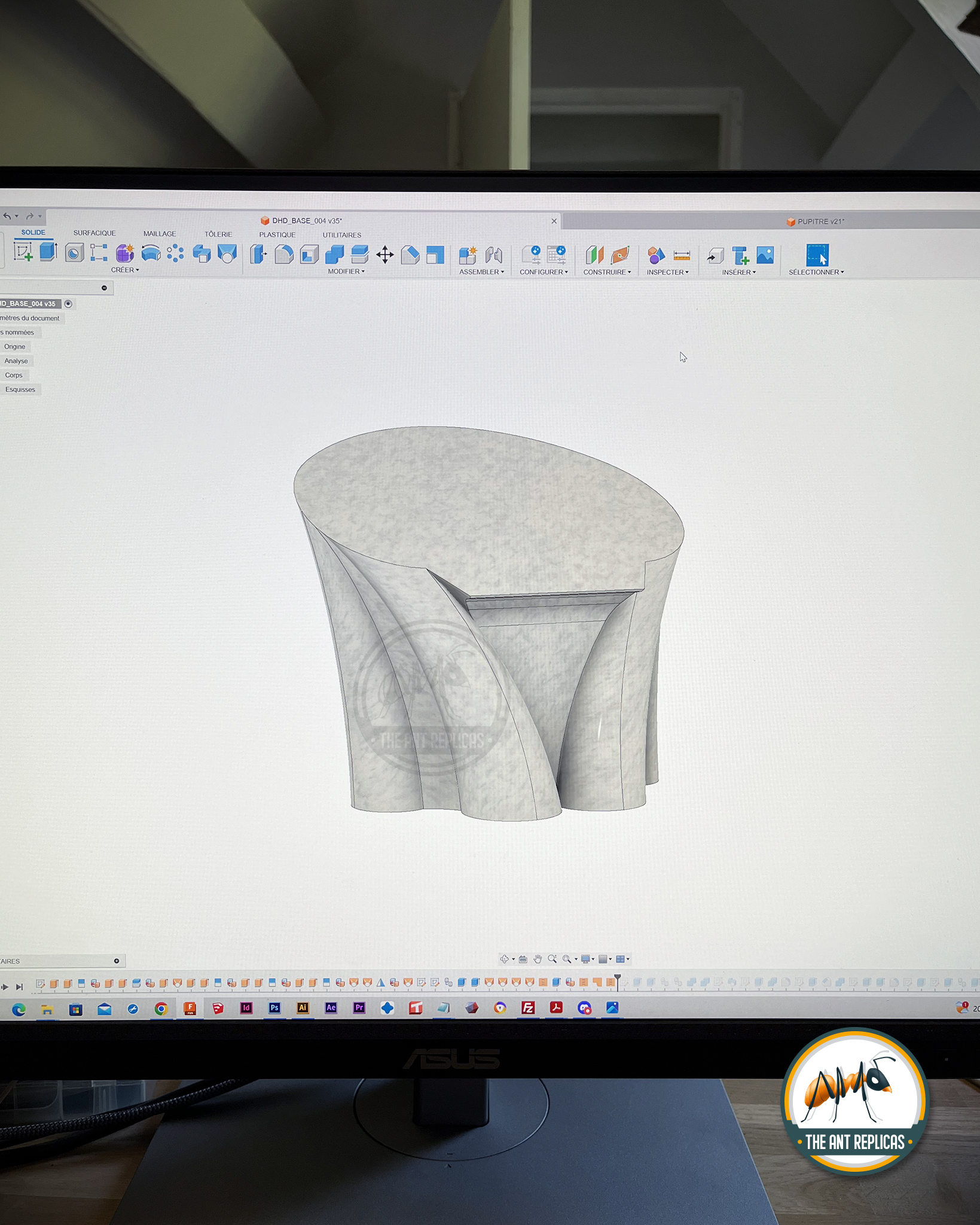

The 3D modeling of the DHD base is progressing well, but it's not easy to make all those lines.



[TheAntReplicas]

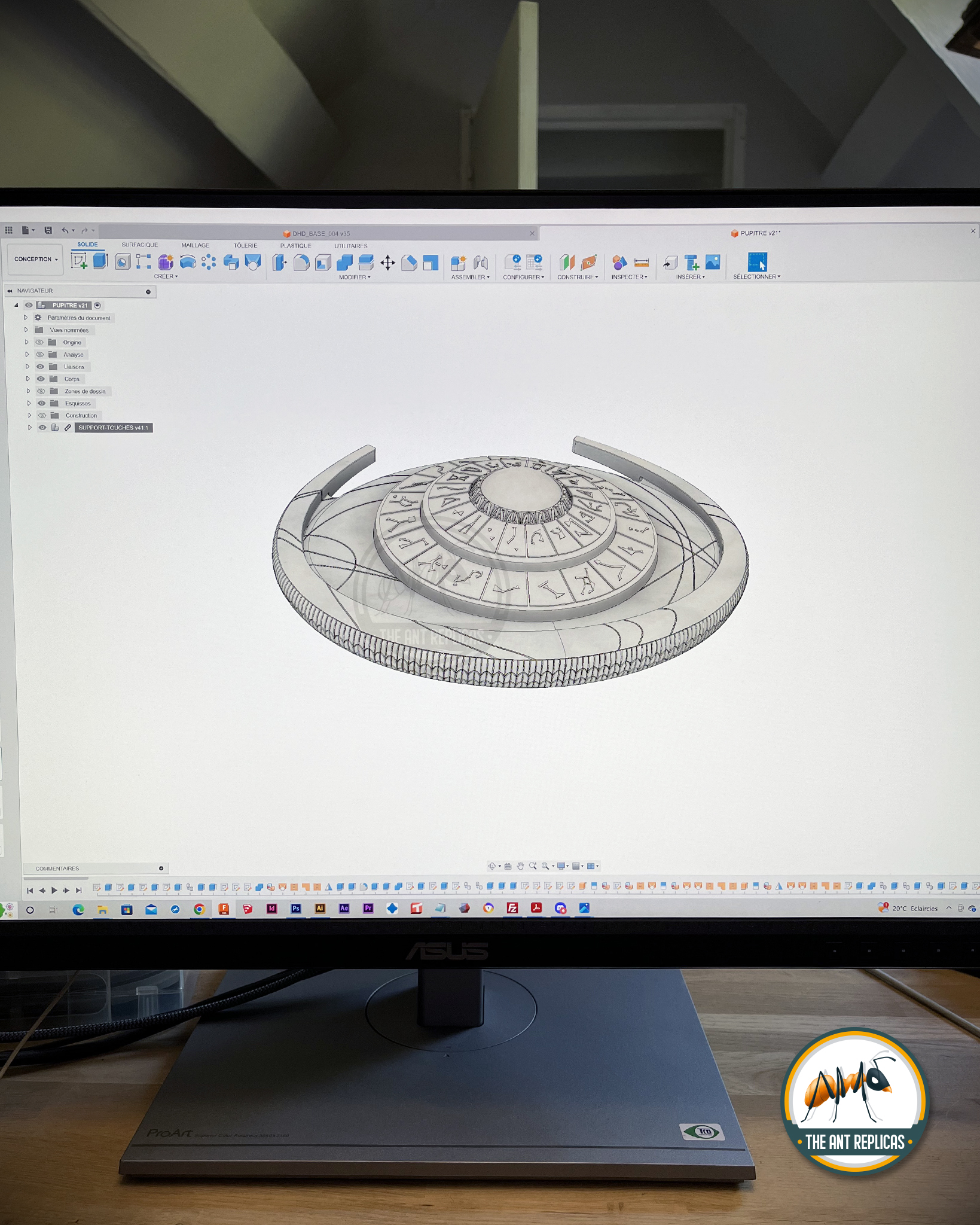

All done! The overall 3D modeling of the DHD is complete! And the rendering is pretty cool.

There are still a few small details to be added, like the crystal holder and the integration of the electronics.



[joberg]

Wow...that's a beauty of a piece



[TheAntReplicas]

Study and implementation of the electronics for the DHD. Once again, the challenge is to integrate all the electronics into the replica!



[joberg]

Yes, the lighting is always a challenge for any project for sure



[TheAntReplicas]

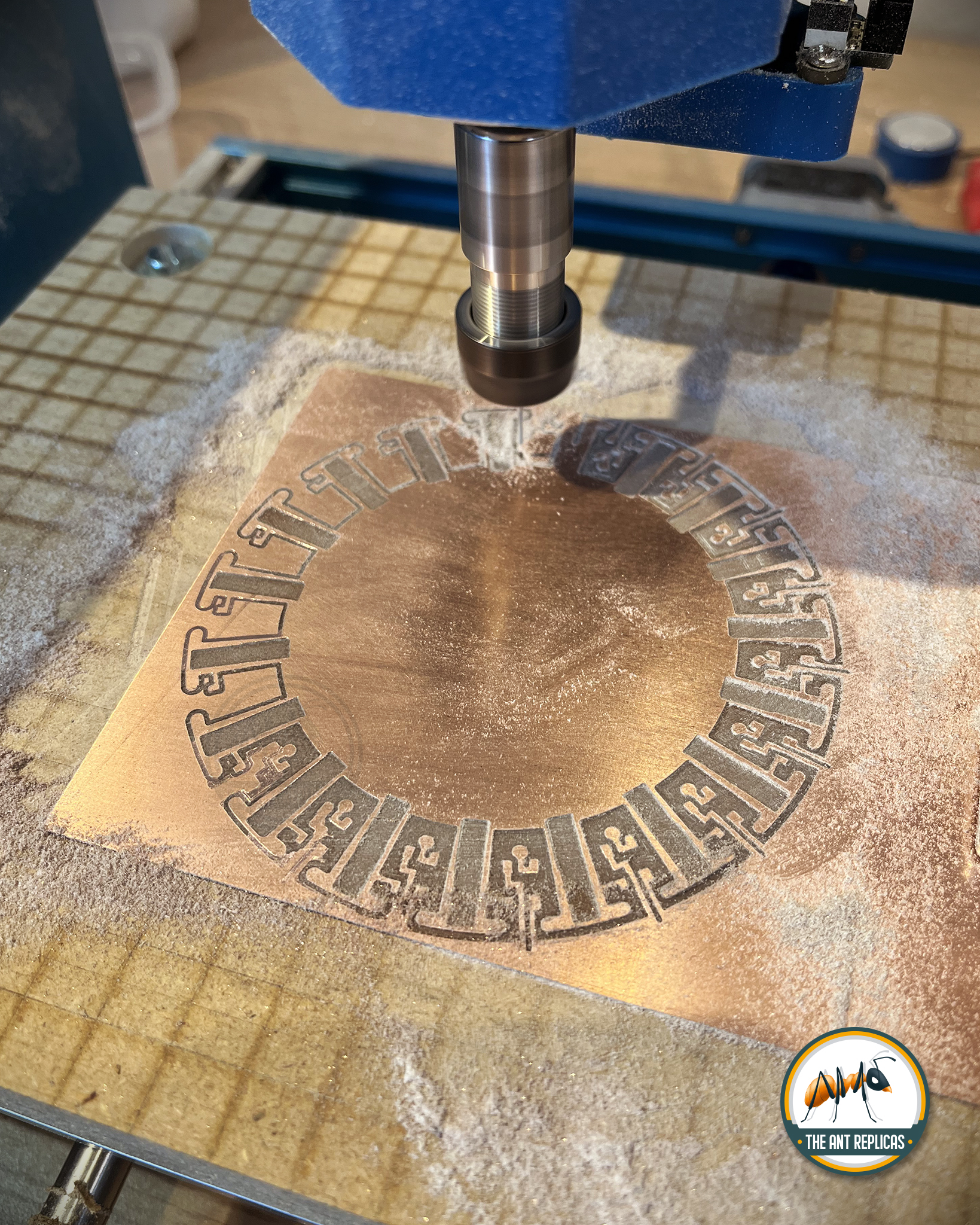

Today, some machining to create the first circuit for the DHD.



[joberg]

What's that? Seems complicated...



[srspicer]

Just caught up on this build because I wasn't getting email updates.

Beautiful Ant!!!!



[TheAntReplicas]

What's that? Seems complicated...

Yes indeed



[TheAntReplicas]

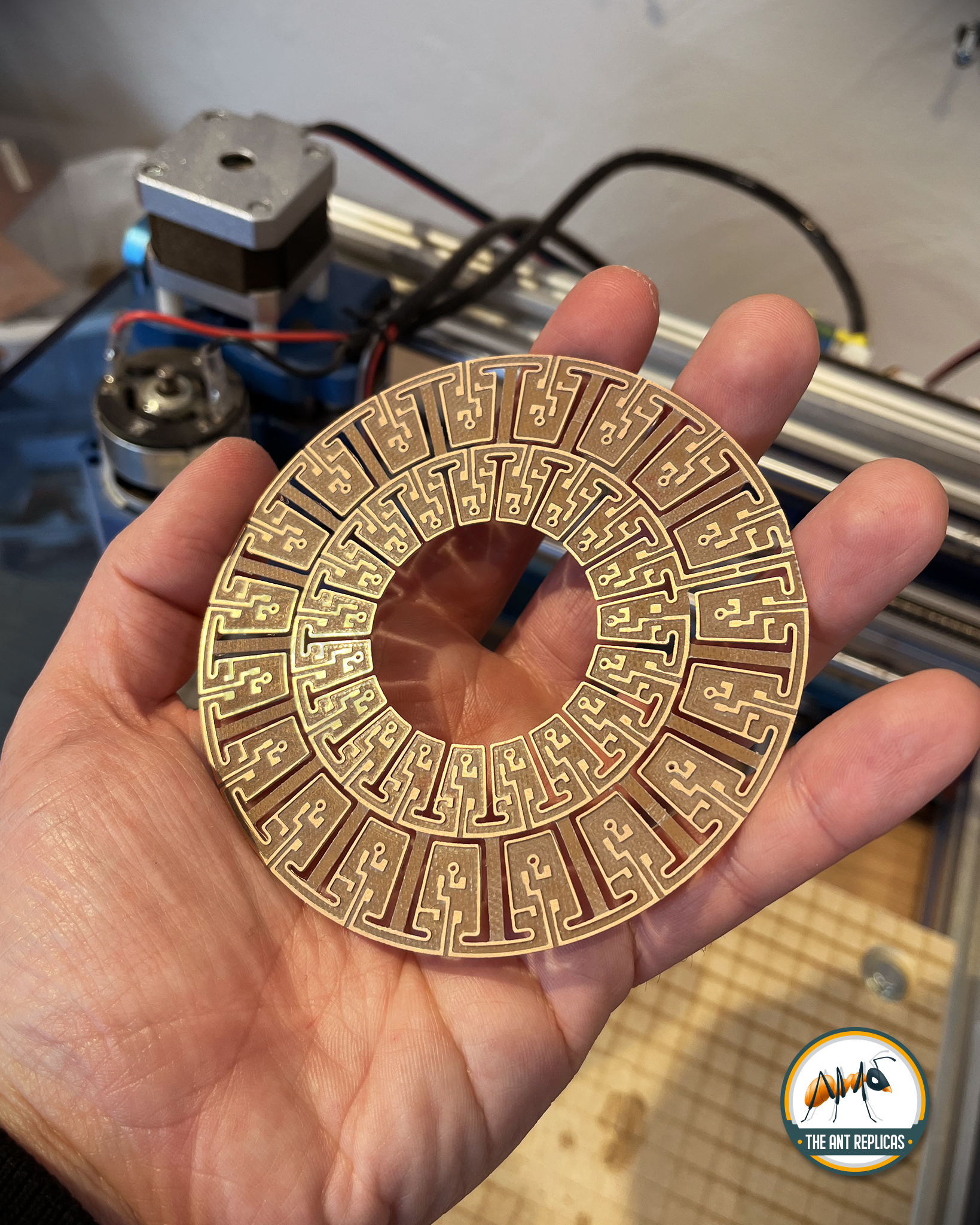

And here's a first prototype circuit for the DHD. It will be used to illuminate the keys from below.



[joberg]

Wow, so you've printed a electrical circuit?



[Erisari]

Absolutely astonishing! I have never wanted to be friends with someone so badly! This is amazing!

Photos & videos are top-notch!



[TheAntReplicas]

Wow, so you've printed a electrical circuit?

It's machined on a CNC machine.



[Carlb]

here's a first prototype circuit

FANTASTIC !
