Getting back to Gort. I designed a visor that rotates. I'm not sure how to get the visor to open slowly like in the movie. I don't want it to get too complicated with Arduino programming and servos just to get a basic movement.

I'm also debating not cutting holes in the bottom of the chin, as well as making an inner helmet like the filming prop had, since this will, most likely, be sitting on a shelf, but I think it would be kind of ominous to have the visor slowly open, and then an LED (or series of LEDs) would come on and gradually brighten behind a translucent inner shield.

TazMan2000



[ID10T]

Can you get planetary gear sets off the shelf? Those are simple and compact and allow big speed changes.

Also a worm and wheel will reduce input speed a lot.



[laellee]

That's what I was thinking.

I think the issue is finding a servo that is already limited to perhaps a 90 degree swing and can automatically limits it's movement; so positive voltage applied swings 90 degrees and stops, reverse the polarity and it swings back and stops. No arduino, no dealing with controllers for the servo, just a simple 3-way. Linear actuators can get the job done, but then the speed control goes out the window.



[ID10T]

DC motor with a worm on it driving a large diameter ring gear will provide what you want (and lots of torque). Reverse polarity to go the other way.

Limit switches on each end cut power until restored to travel the opposite way... Easy to do without any electronics at all. A 3V DC motor and a 321 battery would do it.



[TazMan2000]

ID10T and laellee , thanks for the really great ideas. There are some solutions out there, with inline servo speed controllers, for RC aircraft flaps, that I looked at, but that movement was still way too fast. I estimated that the Gort visor should move from open to closed in about 6 seconds.

I should have mentioned, that I needed an almost off the shelf solution, that even a relatively newb could implement, but it got me thinking about a past project that I had (uncompleted, of course), where I wanted to use a miniature gear motor. All that someone would have to do, is to mount a disc onto the gear motor and create a linkage to the arms of the visor. I calculated that 10rpm would be adequate. The movement would be cyclic, but at that slow RPM it would be easy to start and stop it with a button push. Plus if the piano wire linkage was thin enough, the wire would bend once reaching the visor closed position and keep it closed for a second or two.

TazMan2000



[joberg]

Or that if the servo/RC flaps doesn't work



[ID10T]

Not terribly compact...



[joberg]

Not terribly compact...

...and you have to feed the critter



[ID10T]

He'll just munch on your brain.



[Bickle2]

I have spent the last three months attempting to understand 3-D modeling software and it makes absolutely no sense to me. I don't understand why they can't just make a simple program where I can import and existing STL and use simple shape to create a new one

I'm building a 3-D printed Battlestar Galactica and while the model has space for lighting the engines, it doesn't actually have any pieces to facilitate it, I'm just trying to create essentially a circle with a base that has holes for the LED wires. i've got a really cool FX board that is going to re-create the flickering

I have no idea why I find 3-D modeling so hard, but I have for the 20 years I've tried to do it off and on it just doesn't make any sense to me where having something I can hold does. I know what I want to make, I just never have the ability to realize it

Is anyone willing to help me? I'm also very impressed with the APC above. I have one of those in progress as well, but I don't have any chairs or figures for it because they haven't made them in a very long time. I finally found some helicopter pilots that I can modify to fit the dropship but I'd rather have the real thing



[greenmachines]

He'll just munch on your brain.

"Low fuel indicator light seems stuck ON."



[TazMan2000]

I have spent the last three months attempting to understand 3-D modeling software and it makes absolutely no sense to me. I don't understand why they can't just make a simple program where I can import and existing STL and use simple shape to create a new one

I'm building a 3-D printed Battlestar Galactica and while the model has space for lighting the engines, it doesn't actually have any pieces to facilitate it, I'm just trying to create essentially a circle with a base that has holes for the LED wires. i've got a really cool FX board that is going to re-create the flickering

I have no idea why I find 3-D modeling so hard, but I have for the 20 years I've tried to do it off and on it just doesn't make any sense to me where having something I can hold does. I know what I want to make, I just never have the ability to realize it

Is anyone willing to help me? I'm also very impressed with the APC above. I have one of those in progress as well, but I don't have any chairs or figures for it because they haven't made them in a very long time. I finally found some helicopter pilots that I can modify to fit the dropship but I'd rather have the real thing

What APC or dropship are you talking about? I'm not certain your are in the correct thread. This thread is for artists who have created 3D designs and not for persons who have purchased 3D designs and are printing them or want to modify other artists designs. Requests for services should be in the Want to Buy forum.

TazMan2000



[Bickle2]

i'm asking for help developing my 3-D modeling skills or creating the part that I need, and I figured a thread full of people who are making 3-D things would be a good place to find them.

i'm not modifying a design, I am creating a holder for LEDs that is holy original and not modifying anyone else's stuff. I was merely saying I could provide the STL so that people knew what they were trying to fit it into



[TazMan2000]

i'm asking for help developing my 3-D modeling skills or creating the part that I need, and I figured a thread full of people who are making 3-D things would be a good place to find them.

i'm not modifying a design, I am creating a holder for LEDs that is holy original and not modifying anyone else's stuff. I was merely saying I could provide the STL so that people knew what they were trying to fit it into

When you mentioned the "APC above" when there was no APC, (along with a "dropship) I figured you were looking at another thread, and mistakenly replied to this one. If you quoted a post, it would have given ideas to members what you were talking about.

So you're looking to make an add-on part to a 3d model you're printing. What problems are you having? What software are you using?

TazMan2000



[greenmachines]

i'm asking for help developing my 3-D modeling skills or creating the part that I need, and I figured a thread full of people who are making 3-D things would be a good place to find them.

i'm not modifying a design, I am creating a holder for LEDs that is holy original and not modifying anyone else's stuff. I was merely saying I could provide the STL so that people knew what they were trying to fit it into

Totally get it. I have fallen across a few threads here in rpf land that are aligned with that exact thought process but you have to catch them before everyone has wandered off, elsewhere. Jintosh has one that is a repository for personally made stuff that you can also download and print and often the folks there are using varying softwares and offer advice and help with random features. Usually, the ones that are the most helpful are those related to your prop source, like if it is from Battlestar Galactica and there is a ship thread for that show, there will be many modelers all interested in pushing out the pieces like your LED holder. I haven't yet seen one that is 3d modeling shared training like a thingiverse thread or Fusion 360 thread but maybe my search skills aren't the greatest. This one is a show off thread so is usually pics from folks who are more the post and wander away group. Shy, skilled, and looking for pretty pictures of inspiring projects but not so much watching the thread for convo.

So my offering (keep in mind, I am a degree holding engineer and HATE 3D software) is the

Prop Replica STL files Section Free Personal Use

There's no Official place on TheRPF.com website for Free STL files, but I'm starting a thread for them. The files in this thread are for personal use only. Do NOT repost these files to other sites. Each post will include a basic STL file (ZIPPED and under 10mb) and a rendering of the product...

www.therpf.com

Does anyone else have some good thread pics or possibly outside sources with live AND understandable training forums?

Bickle2 if you post your 3d sofware name we can probably find a much more precise answer.

Let me make sure I inderstand the ask, you are looking for a feature, within yours, or in general all 3d software that will "fit lock" the outside of your LED holder in a current stl model of a specific ship and you already have the ship stl. Like clicking on the face of the windows internal frame, lets say porthole, and get that to create the matching outside frame of the holder? Like a possible: click, choose specific face only of current selection, copy, save as new project (but a hair smaller for fit) and close the face into a printable 3d object ( with a thickness ) and then assign the hole size for the LED?



[frostrubin]

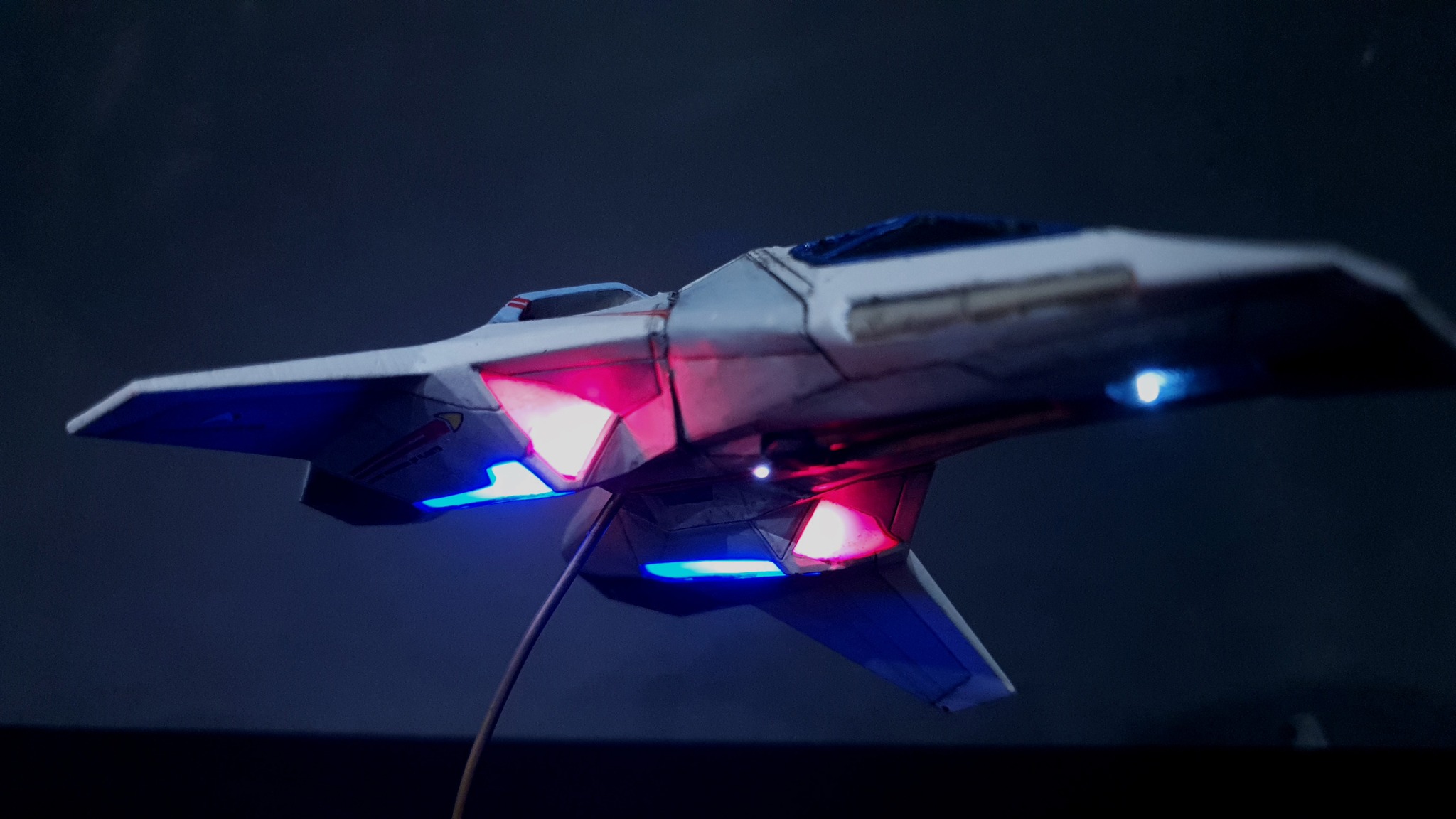

Got no workspace in 2024 (caused by water leak in basement) So I done mainly digital work last year.
Here are some of my 3D works done in 2024:

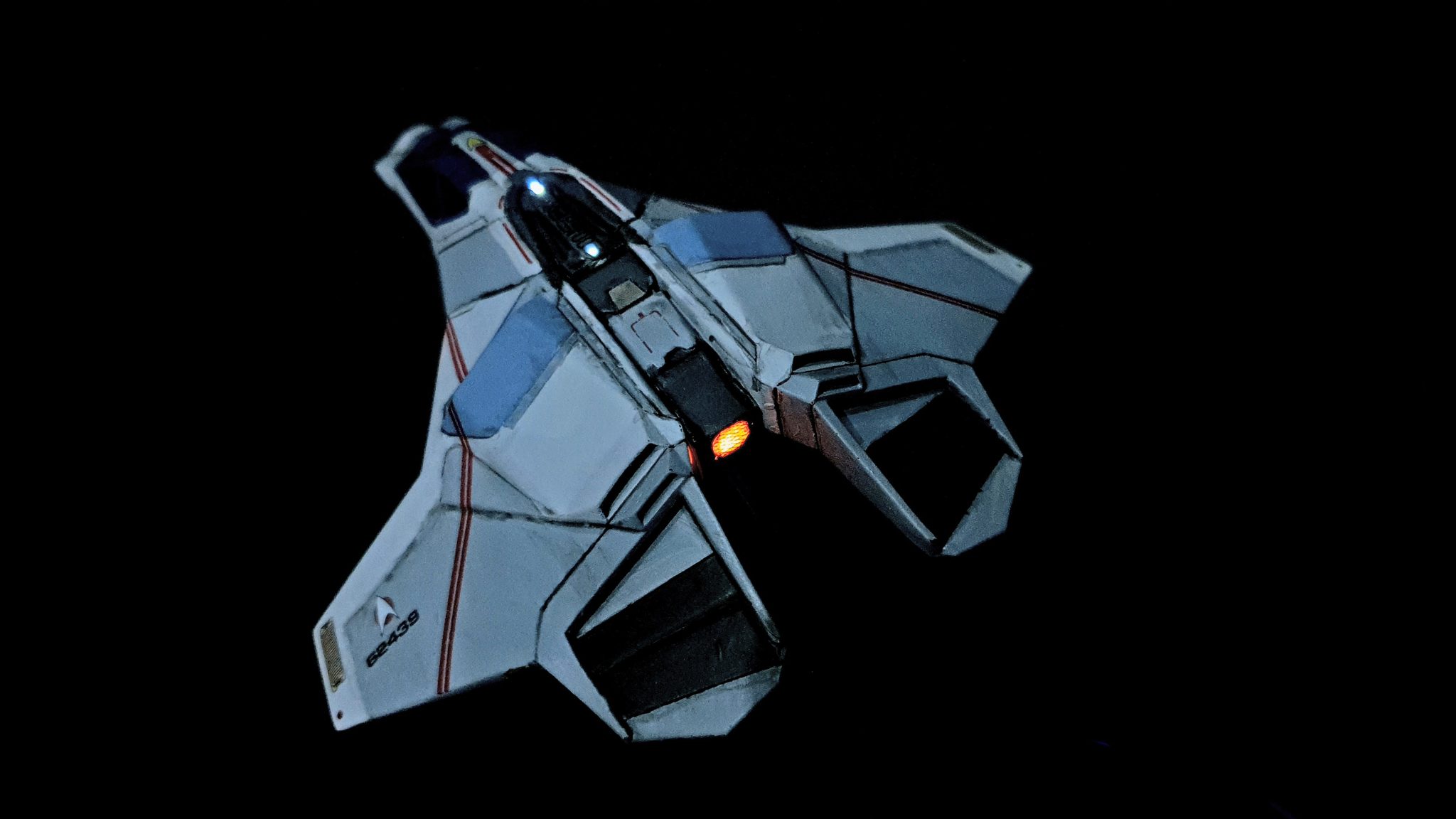

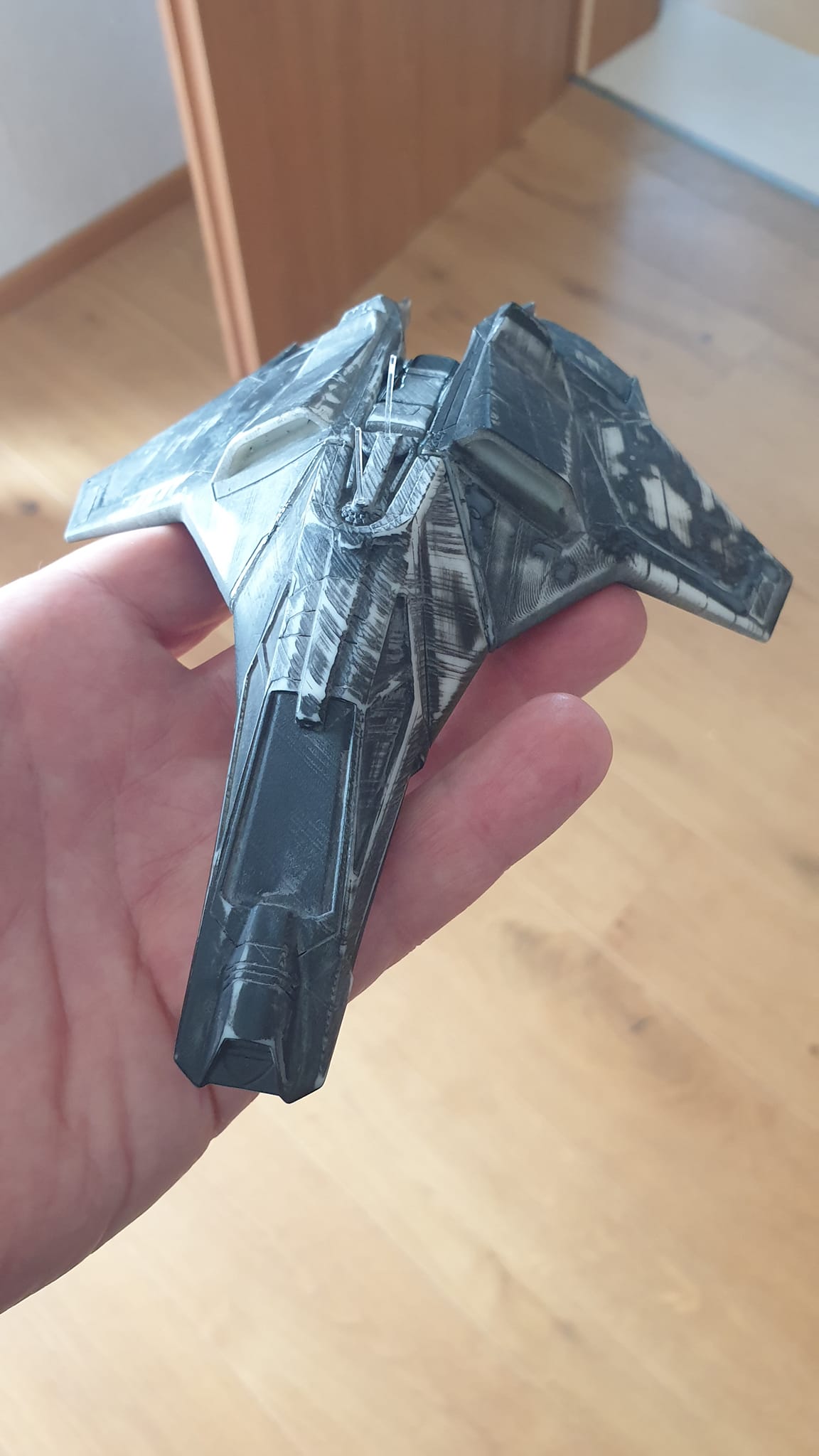

Star Trek Federation Fighter 1/72 (based on pc game)

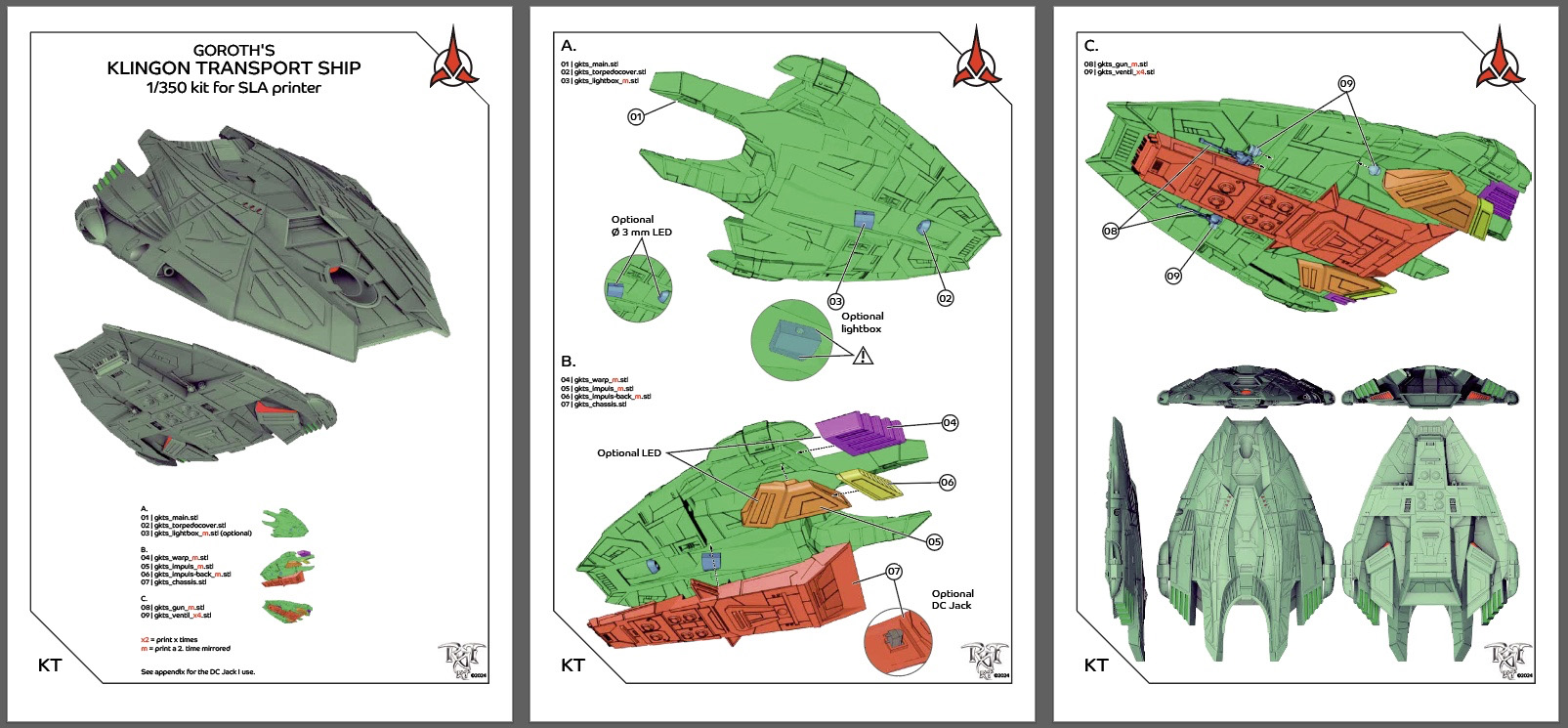

Klingon Transporter 1/350 (not testprinted yet)

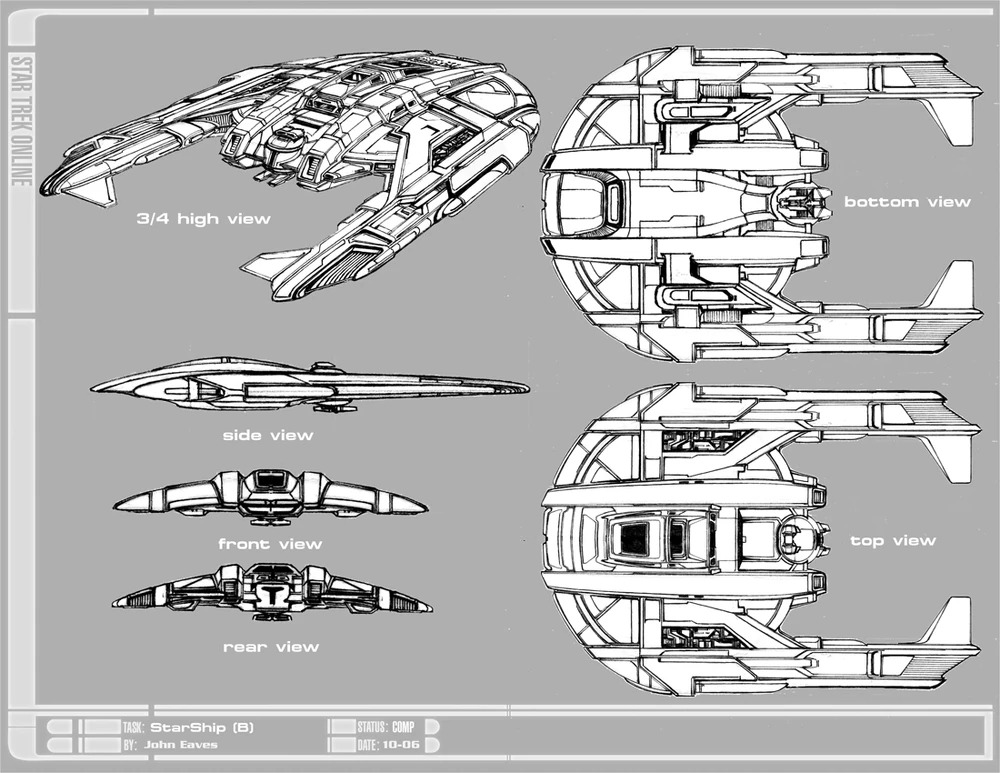

Star Trek Ramjet Class shuttle 1/72. Based on a concept from John Eaves (not printed yet):

Star Trek Rex Class 1/350 from the ST Online Game (not printed yet):

And a quicky - Captains yacht from the Enterprise D 1/144 (not printed yet):



[publiusr]

Here are some recent 3D advances:

Tough materials

Imaging technique reveals first 2D chainmail-like material

An advanced imaging technique developed at Cornell has revealed the first two-dimensional, mechanically interlocked polymer—confirming a breakthrough in both material design and electron microscopy.

techxplore.com

More versatile shape-shifting materials offer new possibilities for soft robotics and wearable tech

Finding new angles on an old artform, McGill researchers have increased the number of stable shapes that kirigami-based engineered materials can take, opening the way to a range of new applications. Their study is published in Advanced Materials.

techxplore.com

Soft electronics

A new method to fabricate soft electronics via particle engulfment printing

The electronics industry has been rapidly advancing over the past few decades, leading to the development of countless devices of different sizes and shapes, which are designed for a variety of applications.

techxplore.com

New general law governs fracture energy of networks across materials and length scales

Materials like car tires, human tissues, and spider webs are diverse in composition, but all contain networks of interconnected strands. A long-standing question about the durability of these materials asks: What is the energy required to fracture these diverse networks? A recently published...

techxplore.com

Engineers develop polycatenated architected materials for innovative 3D designs

A team of engineers at the California Institute of Technology, working with colleagues from Lawrence Livermore National Laboratory and Princeton University, has developed what they have named polycatenated architected materials (PAMs) that can be used as wireframe elements to create novel 3D...

techxplore.com

For Aztec?

Software Lets You Paint Surface Patterns On 3D Prints

Just when you think you’ve learned all the latest 3D printing tricks, [TenTech] shows up with an update to their Fuzzyficator post-processing script. This time, the GPL v3 licensed program ha…

hackaday.com

Stronger prints

Laser-Cut Metal Endoskeleton Beefs Up 3D Prints

There are limits to what you can do with an FDM printer to make your parts stronger. It really comes down to adding more plastic, like increasing wall thickness or boosting up the infill percentage…

hackaday.com

Brick Layer Post-Processor, Promising Stronger 3D Prints, Now Available

Back in November we first brought you word of a slicing technique by which the final strength of 3D printed parts could be considerably improved by adjusting the first layer height of each wall so …

hackaday.com

Bioinspired 3D printing: Architected design creates efficient structures

When 3D printing was first introduced in 1985, it marked a major turning point for the manufacturing industry. In addition to being cheaper than traditional manufacturing technologies, it also promised the ability to customize designs and make prototypes on demand. While its technology is still...

techxplore.com

Major breakthrough here:

Machine learning and 3D printing yield steel-strong, foam-light materials

Researchers at the University of Toronto's Faculty of Applied Science & Engineering have used machine learning to design nano-architected materials that have the strength of carbon steel but the lightness of Styrofoam.

phys.org

https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202410651

Lathe

Modulathe Is CNC Ready And Will Machine What You Want

Once upon a time, lathes were big heavy machines driven by massive AC motors, hewn out of cast iron and sheer will. Today, we have machine tools of all shapes and sizes, many of which are compact a…

hackaday.com

Getting over the hump: Researchers boost high-speed laser welding for fuel cell production

Fuel cells offer a form of clean energy across many sectors and are of particular interest in vehicles, where they produce no emissions. The production of fuel cells requires the use of a rapid laser welding process; however, welding at too high a speed results in humping, marked by surface...

techxplore.com



[JCalhoun]

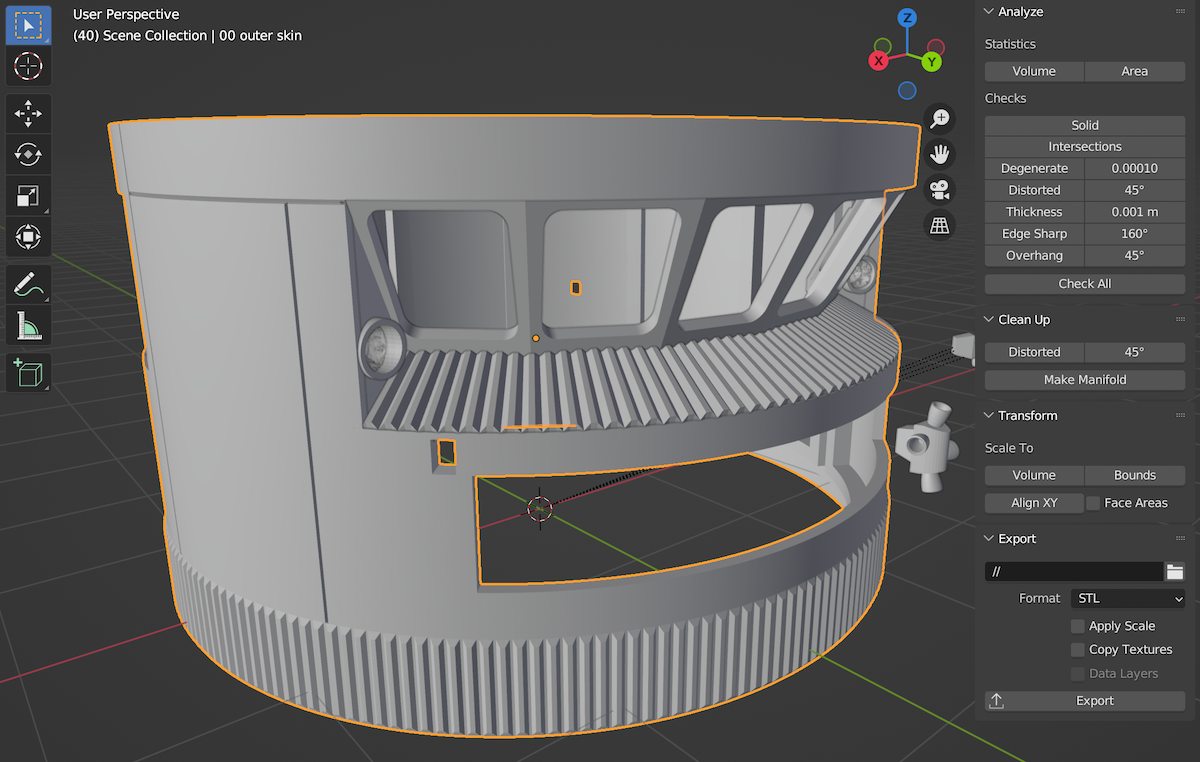

I did a Space Tug a few years ago based on NASA-funded designs from 1970.
