ORCA scratch build

[flimzy]

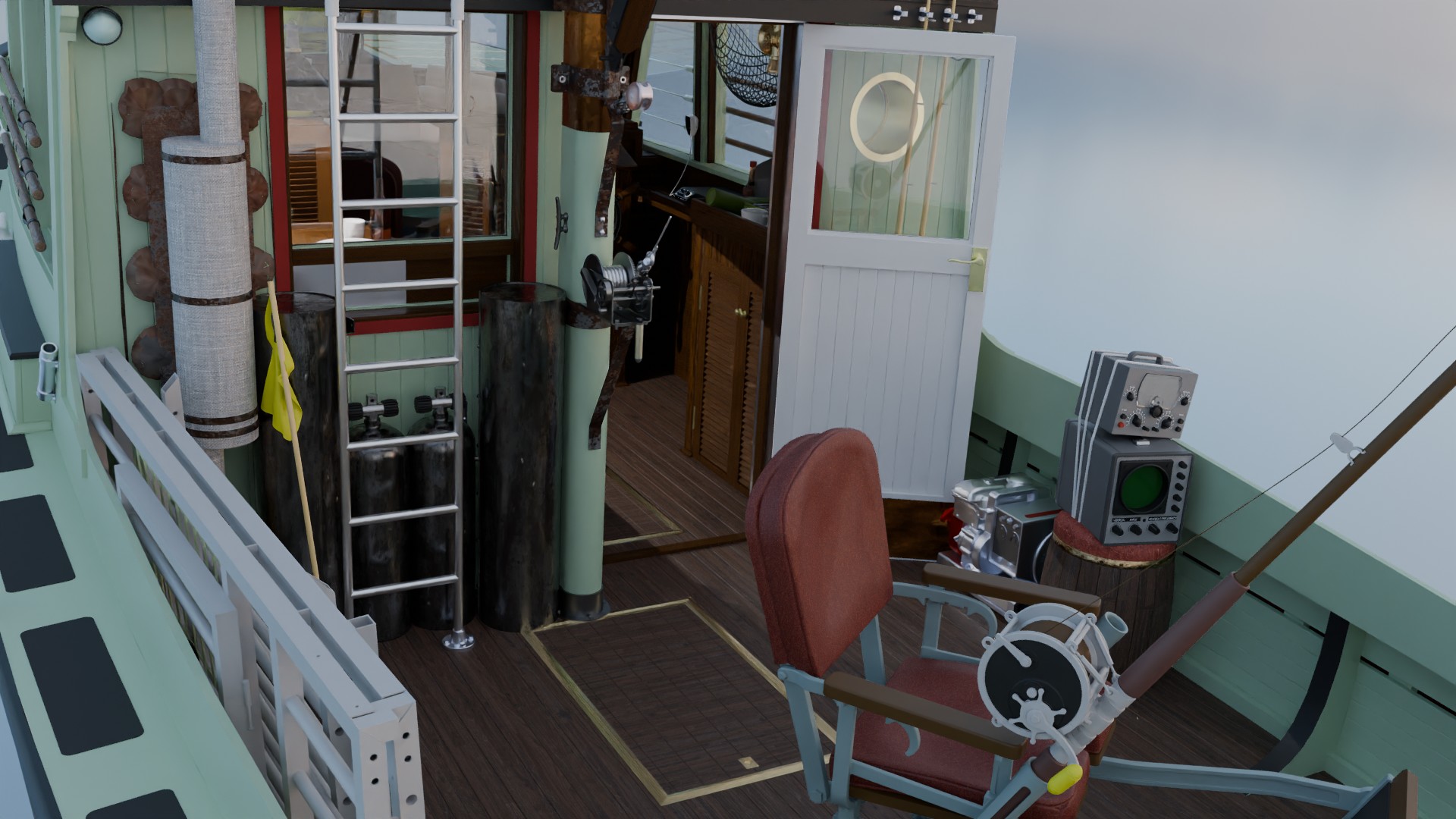

all the modeling is done now I'm as happy as I can be with everything. it took way longer than I thought.
So I've started adding textures to the render file so It can be put into Unreal so I can VR head set walk around.
Here are some WIPs

Who knew there was so much set dressing to model.



[ID10T]

Knocked it right the f- outa the park!



[DCN]

Look at what you've done! I swear Zee, you know Orca like no other. So good!
You're right, there is more "stuff" on that boat. The grandeur of Orca.



[batguy]

WOW.

The boat's proportions look GREAT. If it's not perfect then it's damn close.



[shaunsheep]

Looking good can’t wait for the forthcoming build updates…….



[Lt Washburn]

So I've started adding textures to the render file so It can be put into Unreal so I can VR head set walk around.

Jaws 3D!

Just wanted to say that this project is some of my favorite stuff in the hobby. I love all the researching of references, and finding found objects, and collating all of it into accurate 3D models, that allow you to discover even more information that was never apparent, or even knowable, without having done all that. I love builds that strive for complete accuracy, but a lot only get to a certain threshold, because either the builder just doesn't have the time or the interest in taking it that final 5-10% that would really get it there. And the fact that you're not just doing a virtual or physical build but doing both! Such a cool project!



[DCN]

Jaws 3D!

Just wanted to say that this project is some of my favorite stuff in the hobby. I love all the researching of references, and finding found objects, and collating all of it into accurate 3D models, that allow you to discover even more information that was never apparent, or even knowable, without having done all that. I love builds that strive for complete accuracy, but a lot only get to a certain threshold, because either the builder just doesn't have the time or the interest in taking it that final 5-10% that would really get it there. And the fact that you're not just doing a virtual or physical build but doing both! Such a cool project!

The biggest problem all Orca builders have with modeling accuracy is the forward cabin. It's only on screen for 43 seconds. I've asked people like Marty Milner who worked on the movie, tansformed, and built Orca 1 and 2. He couldn't even remember what it looked like. This is one part of Orca that might be lost in film history.



[joberg]

Cor Blimey flimzy This has to be one of your craziest build (in a good way)



[Attirex]

Love the (re?)build! I think the Orca is also hard to recreate bc it's like someone's garage with 30 years of crap in it lol. Which is also what makes it great.



[flimzy]

thank you everyone.
I turned off the hull just leaving the props just for fun.
this isn't even all of them.



[flimzy]

I chickened out and instead of modelling an M1 Garand I bought a fantastic one from CG trader. Does anyone have the measurements of the harpoon box , I used to have them from an auction site but have miss laid the bit of paper.



[Lt Washburn]

Box Size: 15" x 22" x 5" - Found this at the first link below, the rest are just stuff I found related to the harpoon gun.

A Greener Light Model Harpoon Gun, 1960s.... (Total: 1 )

A Greener Light Model Harpoon Gun, 1960s.... (Total: 1 ) - Heritage Auctions (Old)

www.icollector.com

LiveAuctioneers: Online Auctions for Arts, Antiques & Collectibles

Win one-of-a-kind items from auctions around the world. Awarded Excellent (4.5 stars) on Trustpilot by thousands of bidders.

www.liveauctioneers.com

https://entertainment.ha.com/itm/movie-tv-memorabilia/robert-shaw-quint-hero-harpoon-rifle-from-jaws/a/997027-2339.s

Jaws Quint's Harpoon Gun original prop weapon

This harpoon gun features prominently throughout the Orca sequences. It is by this gun that Quint (Robert Shaw) hooks the shark up to the yellow barrels in order to track the shark. It's featured in ...

www.yourprops.com

Cased W.W. Greener Martini Action MK 2 Light Harpoon Gun

Cased W.W. Greener Martini Action MK 2 Light Harpoon Gun with AccessoriesWith original case, 5 harpoons, 8 lines, 90 MK 2 harpoon gun cartridges, bore rod with cleaning attachments and 2 detachable line holders.

www.rockislandauction.com

Jaws W.W.GREENER 'JAWS' MK2 Light Harpoon Gun original prop weapon

Come on Hooper, tie it up! - Quint (Robert Shaw) This has turned out to be one of the most valued and beloved items in my collection of movie memorabilia! This is an ORIGINAL 'W.W.G ...

www.yourprops.com



[flimzy]

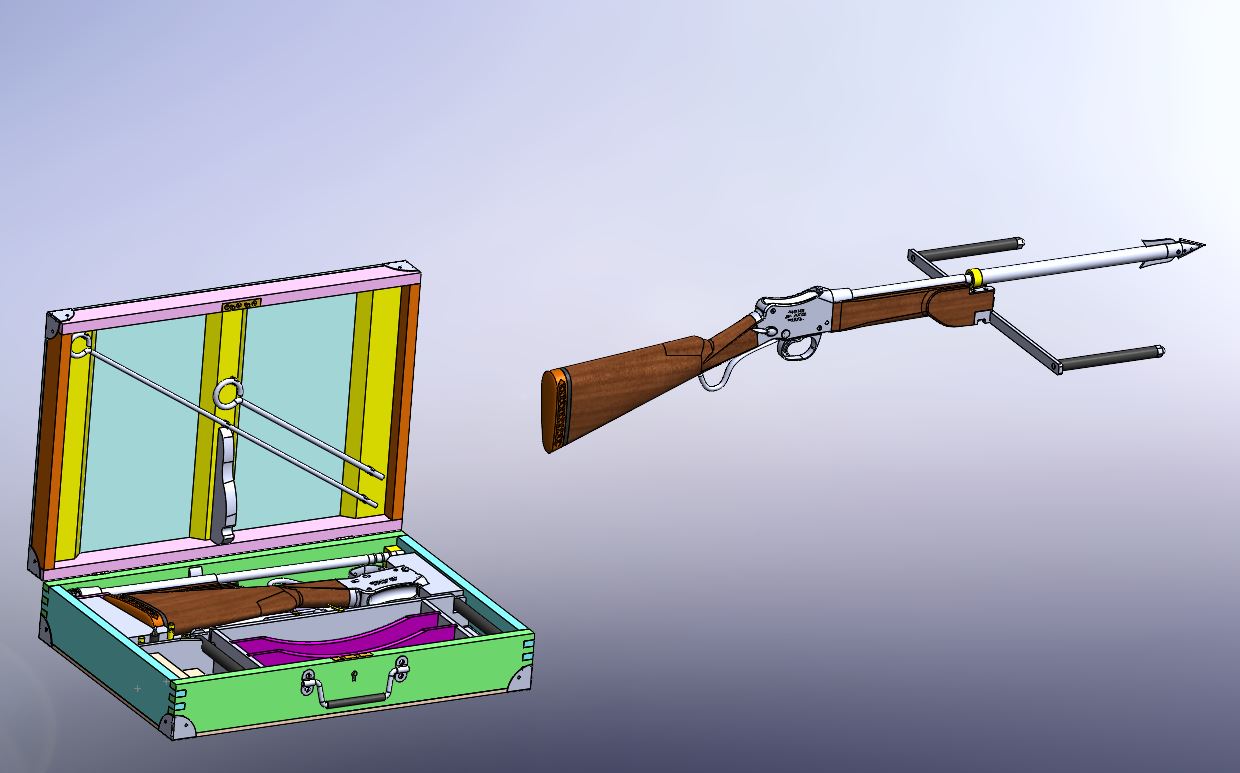

So I went around the houses for a wile until all the dimension linked up but I'm very happy with the results.
I've bought all the hardware so I can add this to my bucket list of builds. I've got enough for 5 so I can sell them and the Modars to fund the 6th scale Orca.



[joberg]

No words flimzy, no words



[flimzy]

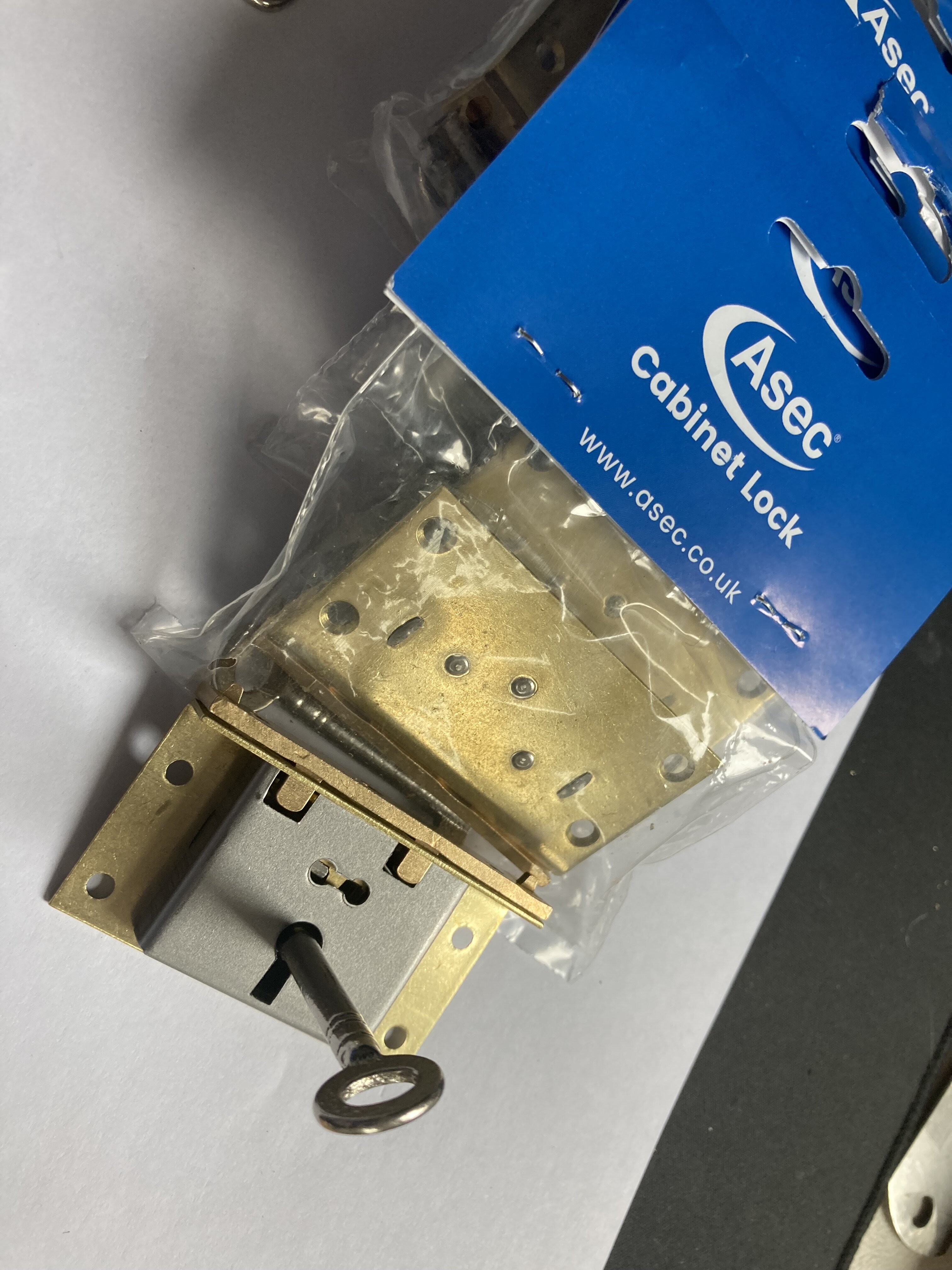

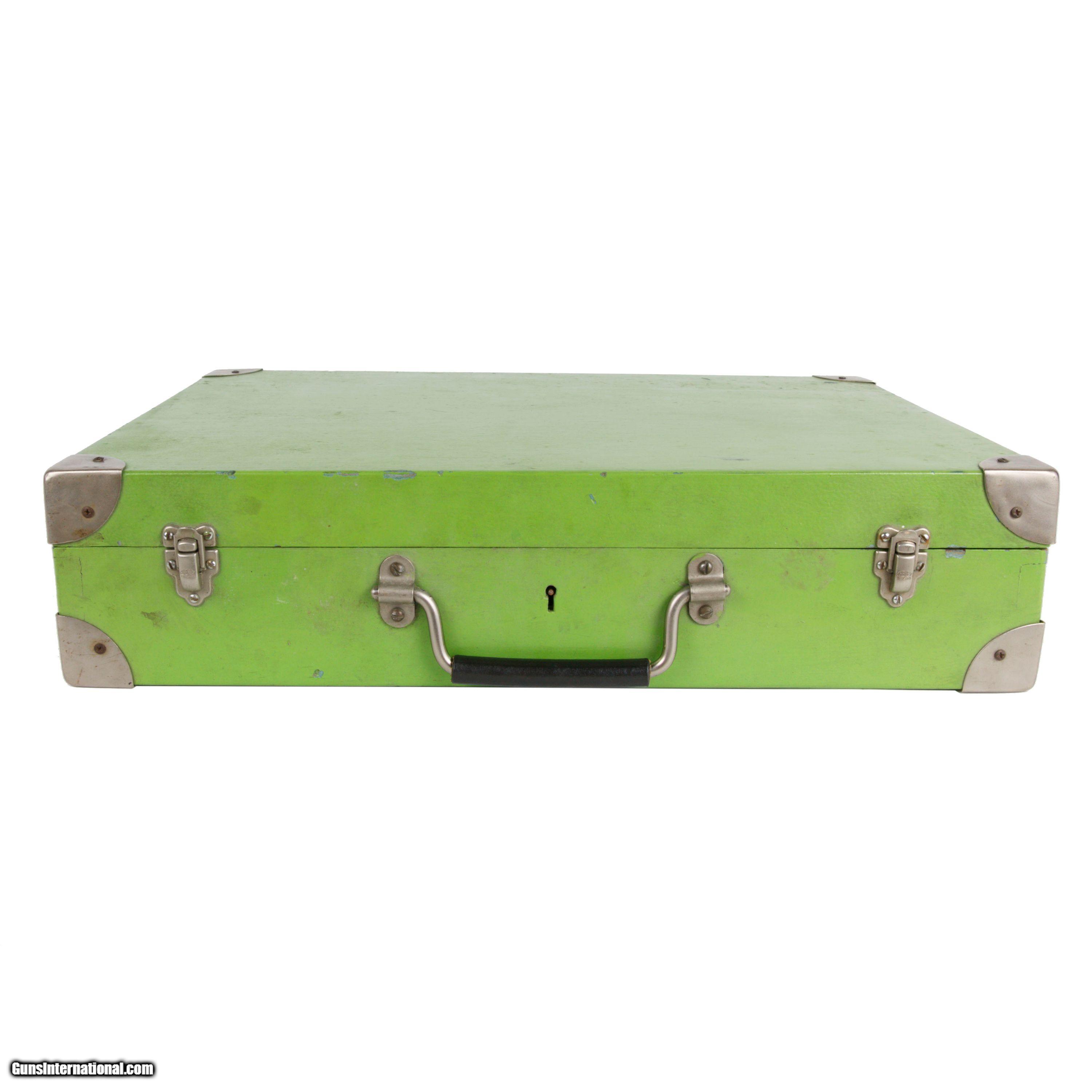

here is a funny story, I spent hours looking for the lever latch's from this photo

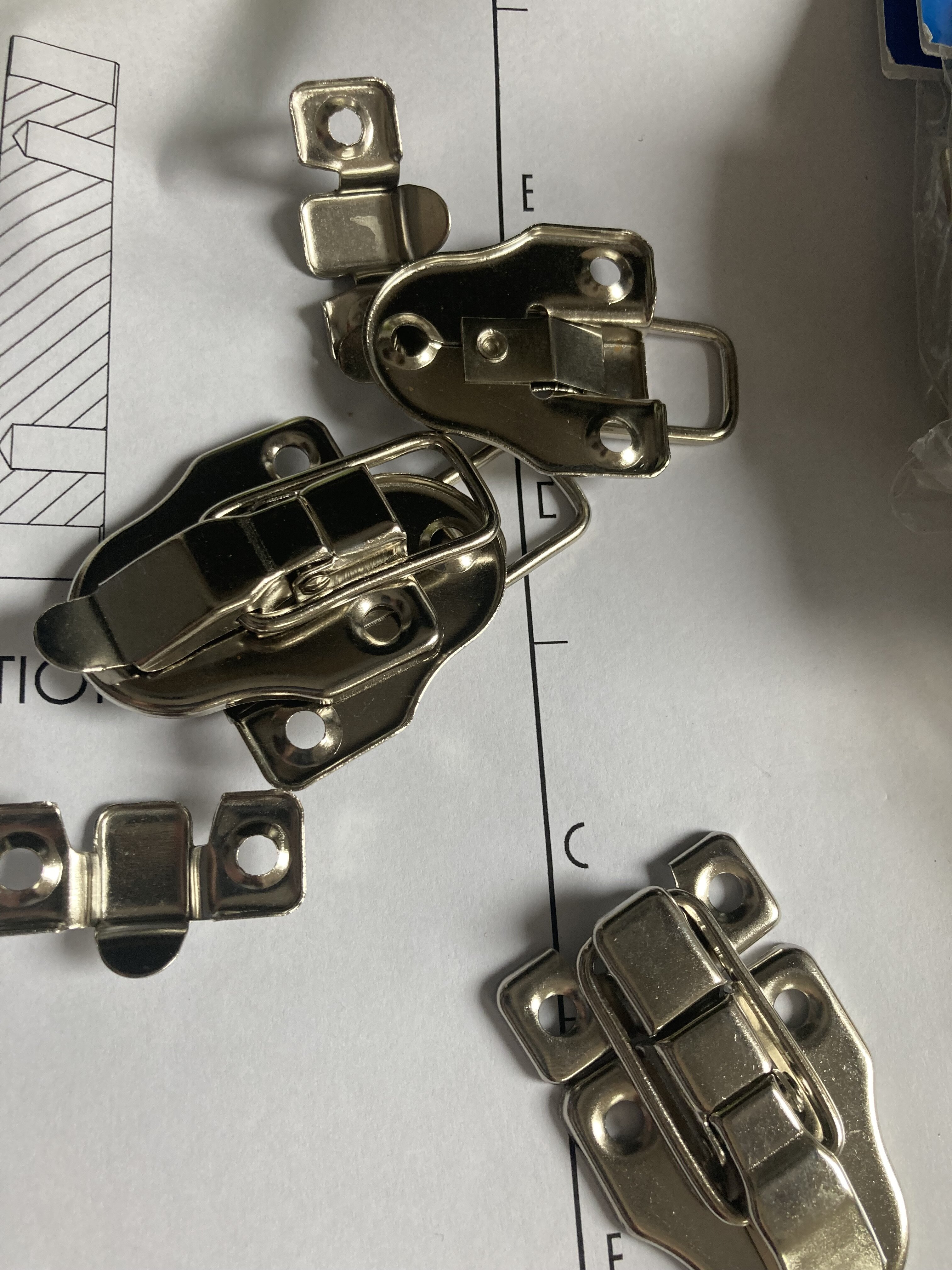

and in desperation I gave up and settled for the only close ones I could find. There not the same type but the right size with a similar look.

and then I went back the the very brief appearance from the film only to remember each one of these box's was made by hand and changed over time and Quint's version didn't have them at all.

On a good side I did find the old style square 3 screw hindges on Ebay and they still make the 64mm locks and corners

As this isn't a model when it come time to make this I'll move it to the props forum.



[ID10T]

What better way to model than build the rear thing and copy that!



[joberg]

^^
You've said it



[flimzy]

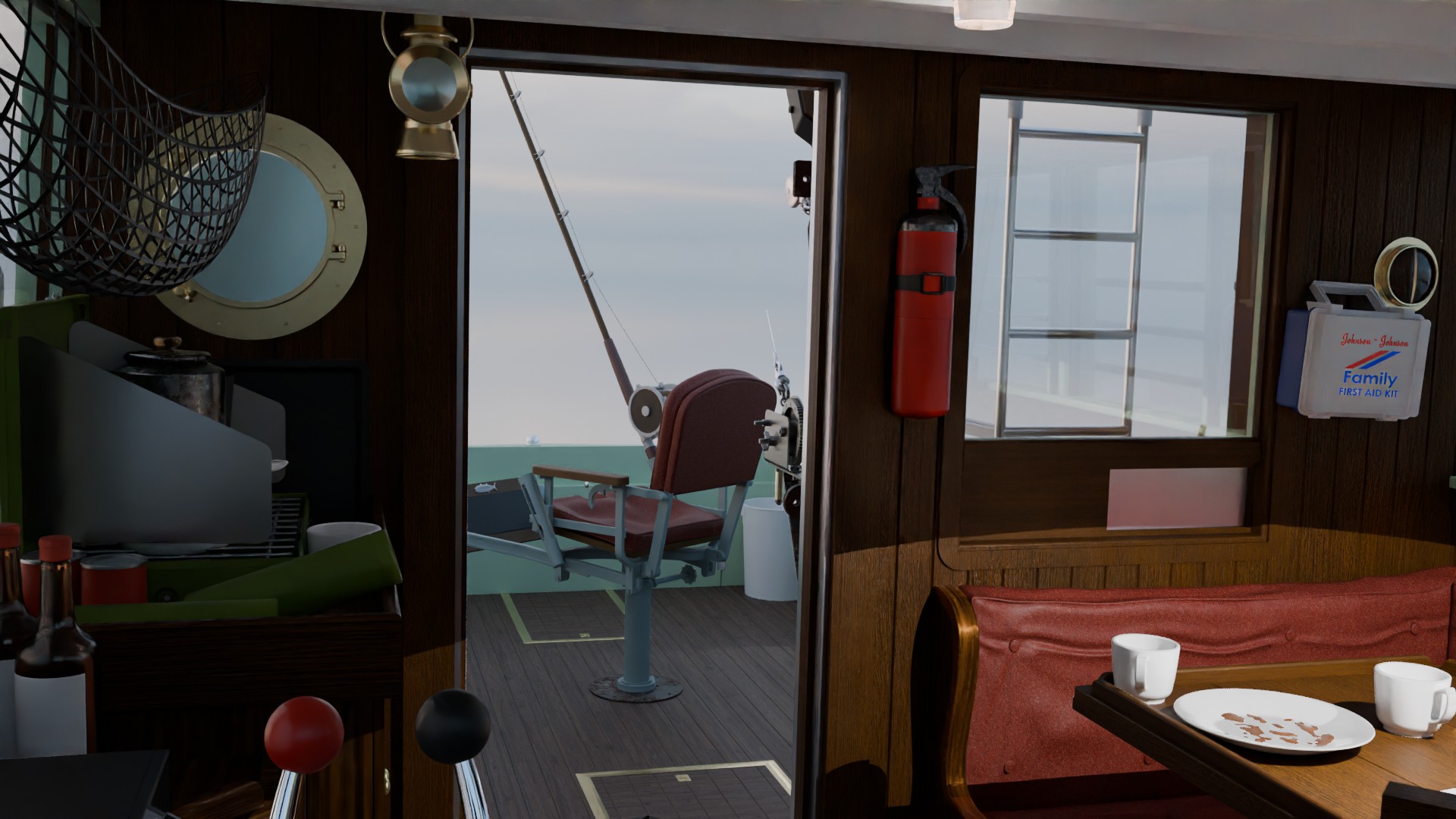

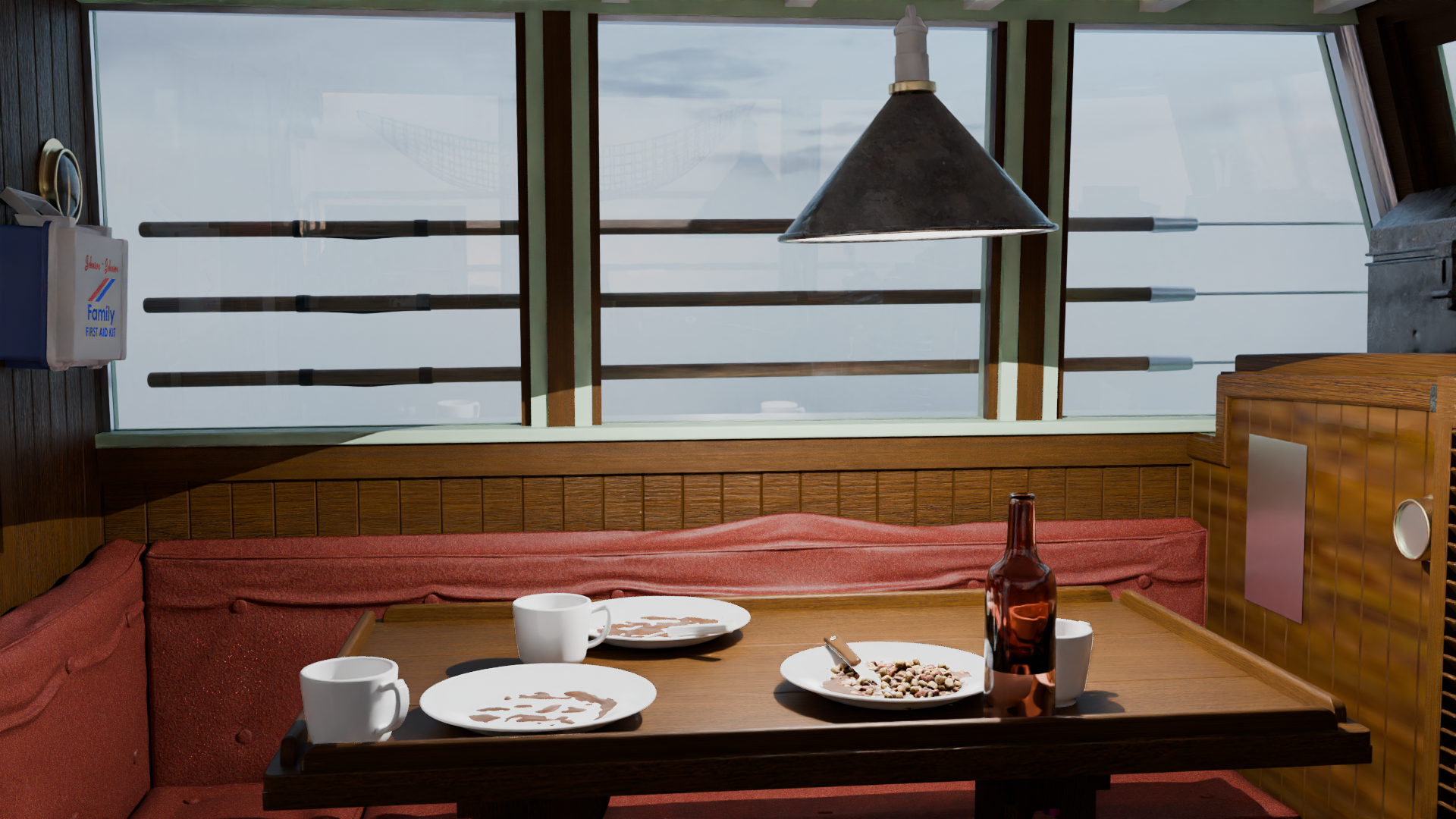

just before I went to bed I let the model render a bit as a test. I'm new to Texturing in 3D, Yes I do use CAD and do previs in my job but I've never needed to provide a colour item. I sort out colours and finish's in the real world. I have a lot more respect for the people that do do this there a lot more to it than I thought. Maybe I should have started with such a complicated project.

still loads to do and redo.



[joberg]

Dear Lord flimzy...you're going all out with this model



[flimzy]

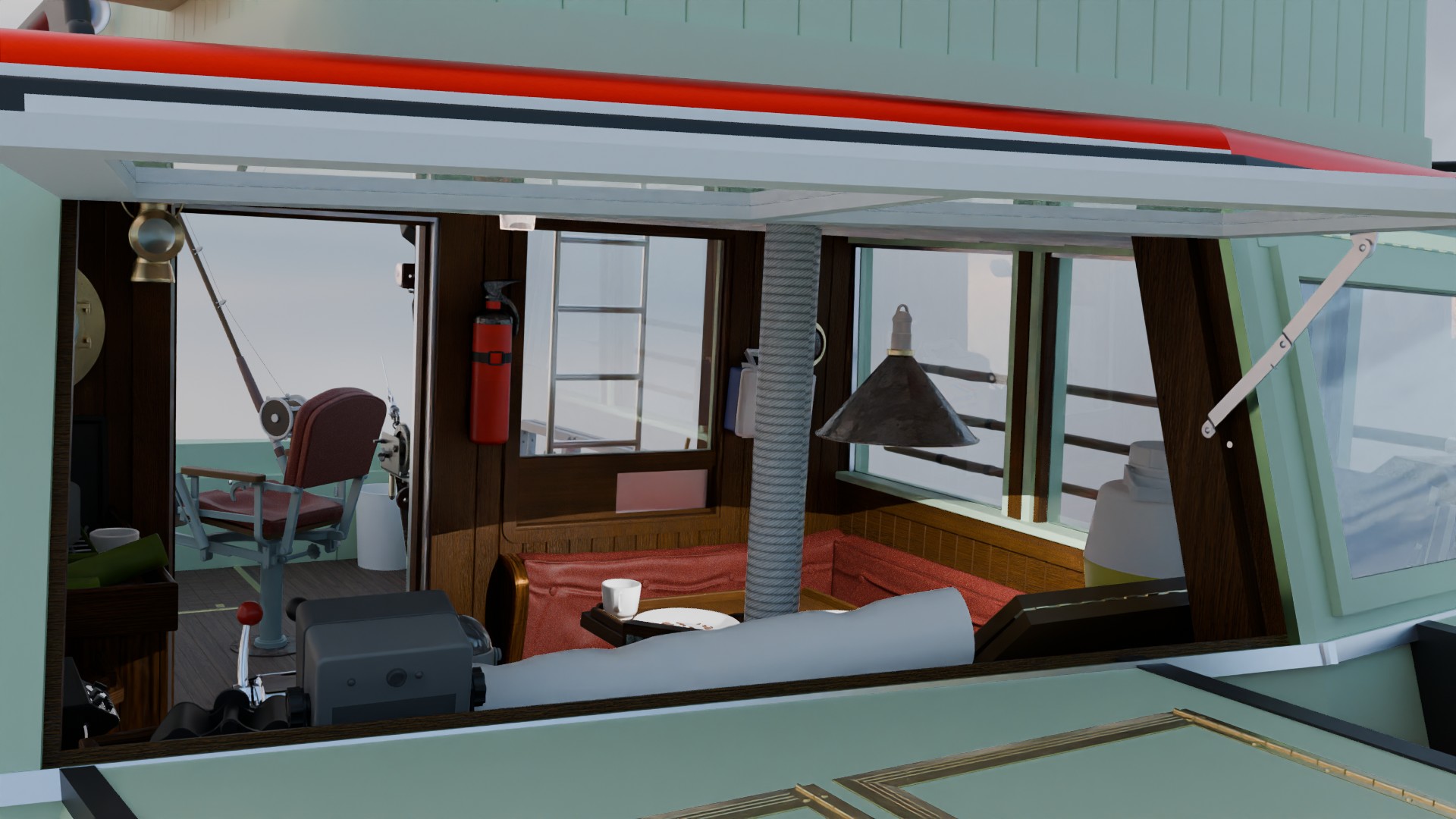

well now we know what the bulls eye is for. Some one said it was for keeping mould down with UV light but that never made sense to me as the windows are so big. but if your at the wheel up top it give a perfect reflection of the lower dials.
