GHOSTBUSTERS FIREHOUSE Scratch Build
- Thread starter Carlb
- Start date
Carlb
Well-Known Member

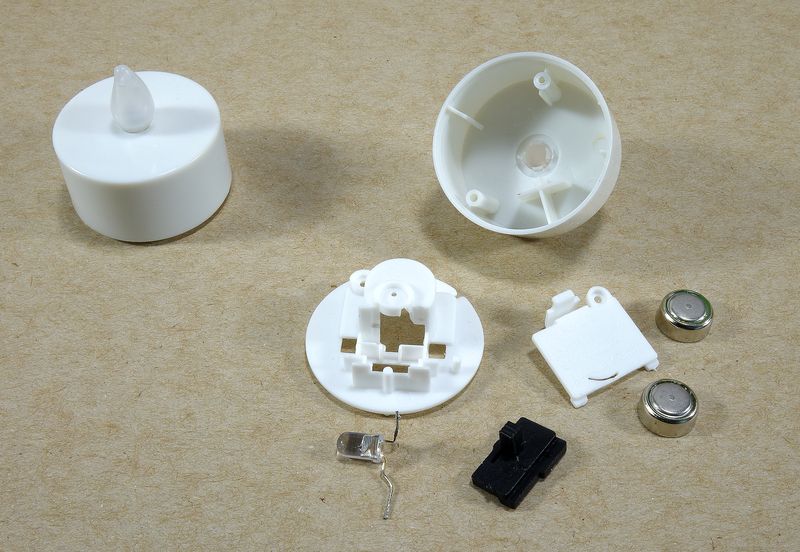

Started lighting...I harvested some "flickering LED's" from these dollar store "tea lights"...these will drive new LED's....

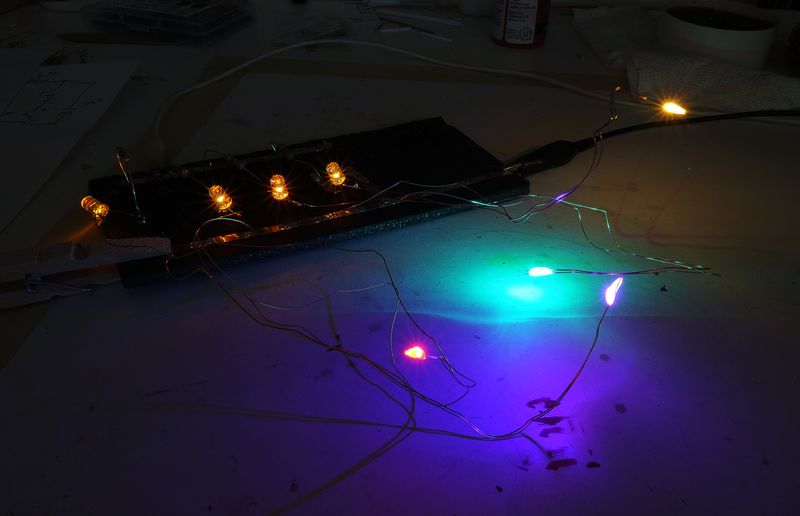

Built a test circuit board with four colors of LED's, including red, purple, yellow and green for a "spooky" random flashing effect inside....Aware that some are not interested in the electrical/lighting phase, I'll stop here on this subject, unless interested parties want a detailed explanation of how it's wired.....

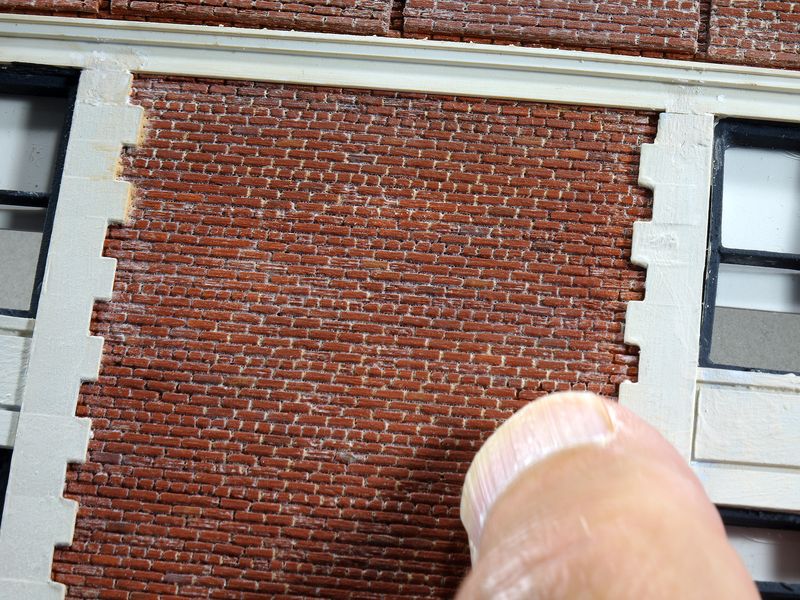

The brick walls were ready to receive some attention. The mortar mix is a very watered down Liquitex Modeling paste.
I brushed it on and immediately wiped away the excess with a finger.

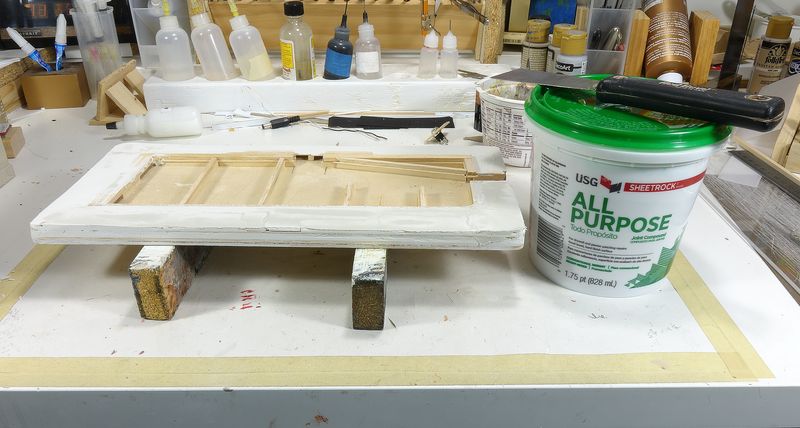

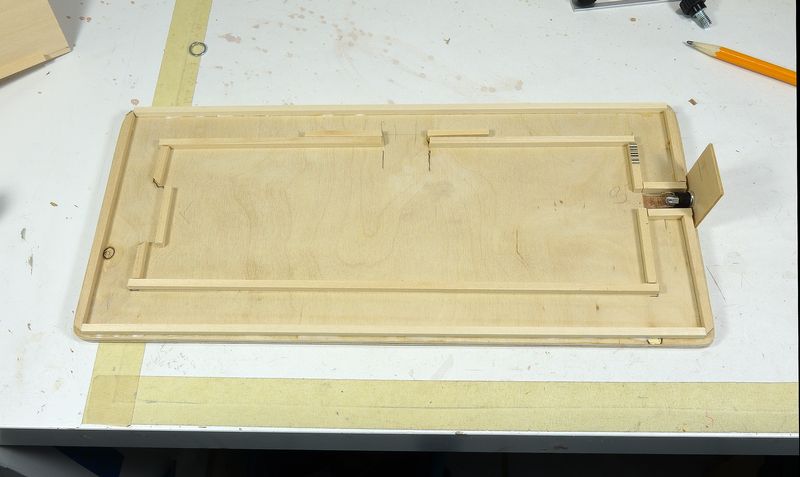

At the same time, I'm building a base from 7/32" (5.5mm) plywood. Just enough room around the model perimeter for a side walk in the front & right sides, and some grungy alley neglect on the back and left side. Power jack on the right.
Building up two coats of drywall compound & will scribe expansion lines into later...

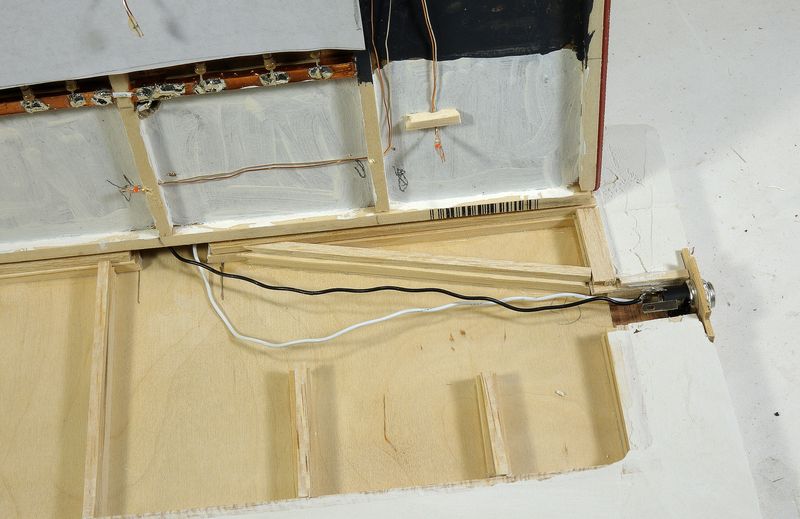

The wiring is concealed thru the chimney chase, and under the base to meet up with the DC power jack.
I'll be using a 12 volt wall wart.
Till next time...
Built a test circuit board with four colors of LED's, including red, purple, yellow and green for a "spooky" random flashing effect inside....Aware that some are not interested in the electrical/lighting phase, I'll stop here on this subject, unless interested parties want a detailed explanation of how it's wired.....
The brick walls were ready to receive some attention. The mortar mix is a very watered down Liquitex Modeling paste.
I brushed it on and immediately wiped away the excess with a finger.
At the same time, I'm building a base from 7/32" (5.5mm) plywood. Just enough room around the model perimeter for a side walk in the front & right sides, and some grungy alley neglect on the back and left side. Power jack on the right.
Building up two coats of drywall compound & will scribe expansion lines into later...
The wiring is concealed thru the chimney chase, and under the base to meet up with the DC power jack.
I'll be using a 12 volt wall wart.
Till next time...
JediMichael
Master Member
That really looks good. A close up of the brick, without knowing its a model, and it probably could fool someone to thinking it was full sized.
yuumi2891103
Master Member
Wonderful use of those materials!
Carlb
Well-Known Member

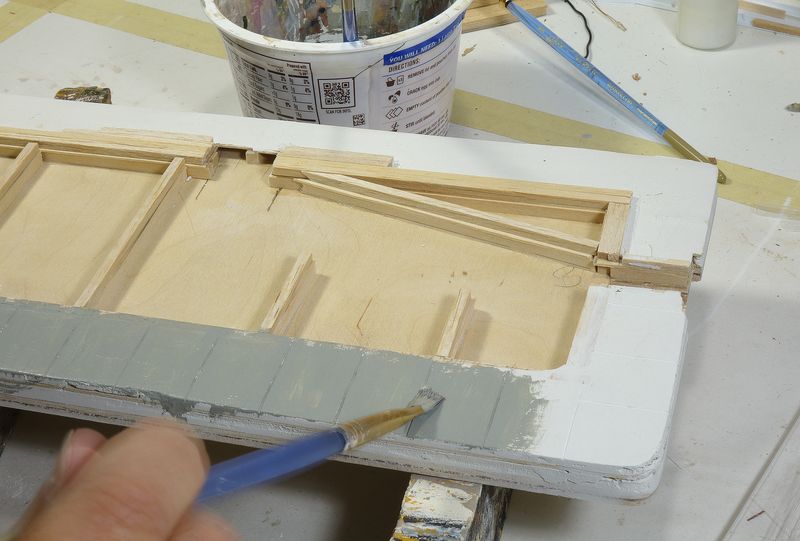

I scribed sidewalk expansion lines in the dried joint compound, and painted a first coat of concrete gray.

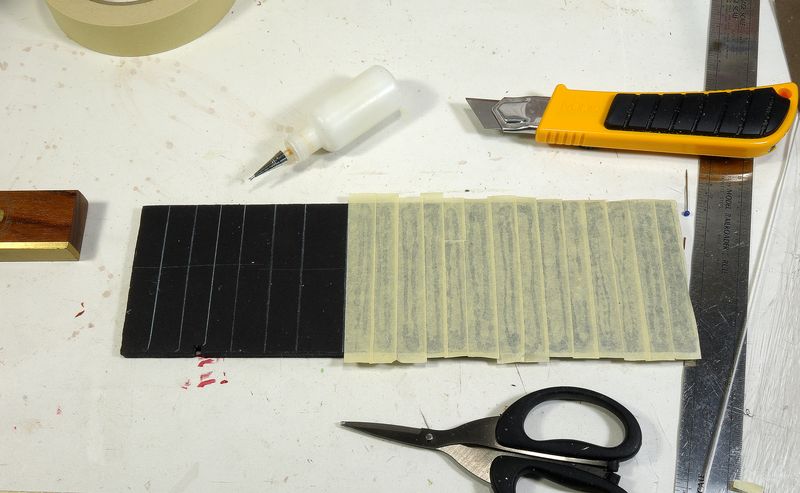

I built a simple roof, just masking tape over a black foam core.

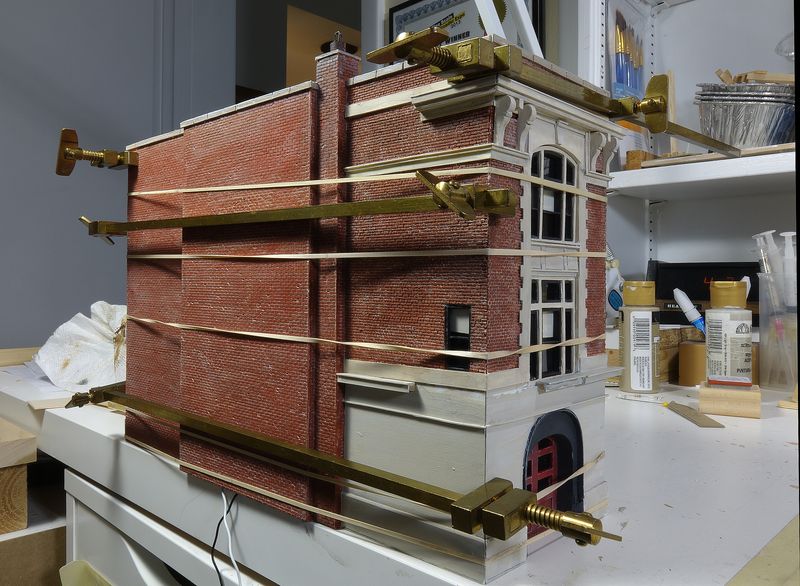

Glue up of the last (side) wall..goodbye (permanently) to lighting access..

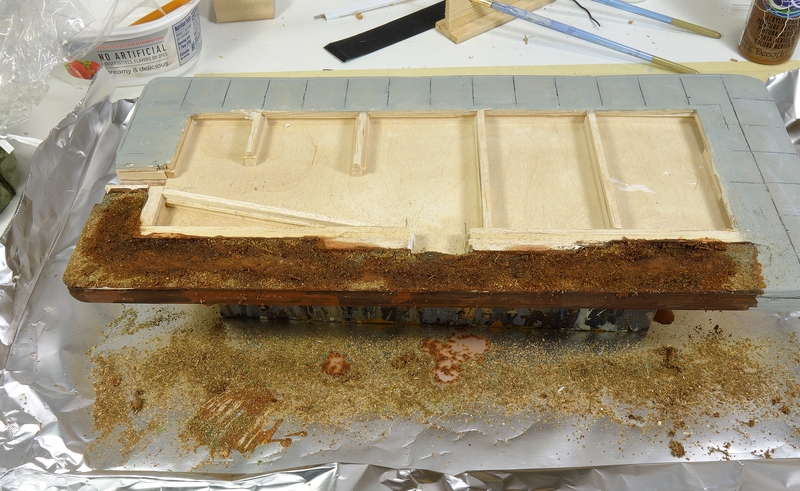

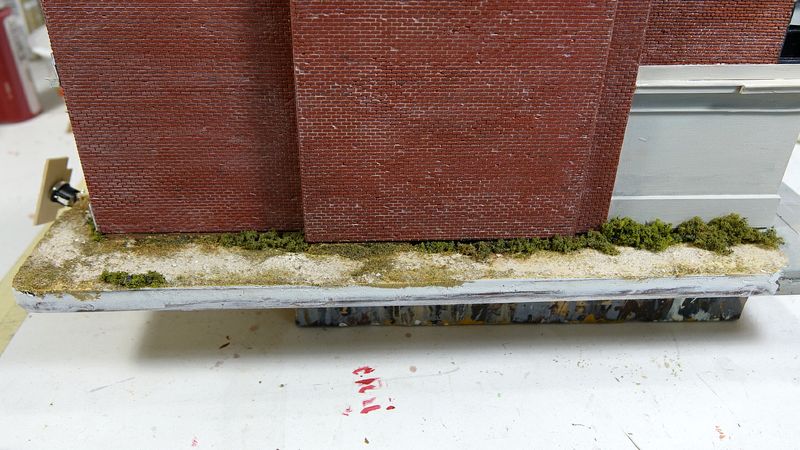

1st layer of a narrow strip of alley scenery.

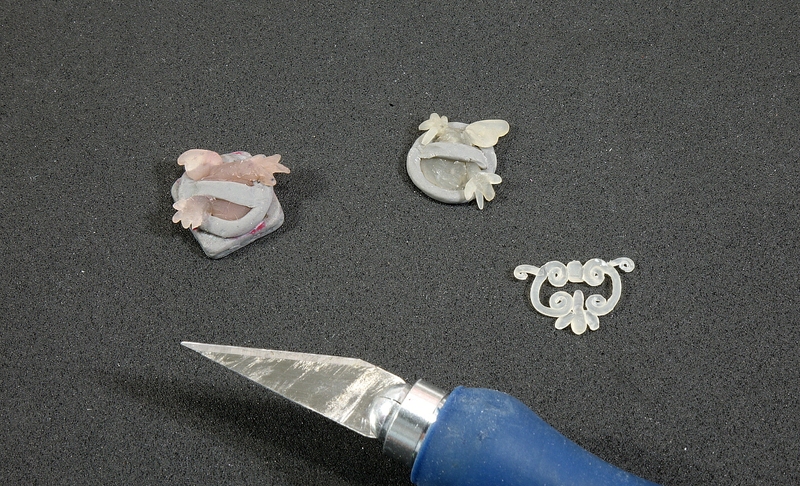

I asked my son-in-law to use his sculpting skills to create the large filigree above the door, and the double-sided Ghostbusters logo sign. He used Sculpey Primo for the logo, and Sculpey Firm for the filigree. These are after they were baked in the oven....
I glued the two halves of the logo together, and I painted them white and red.

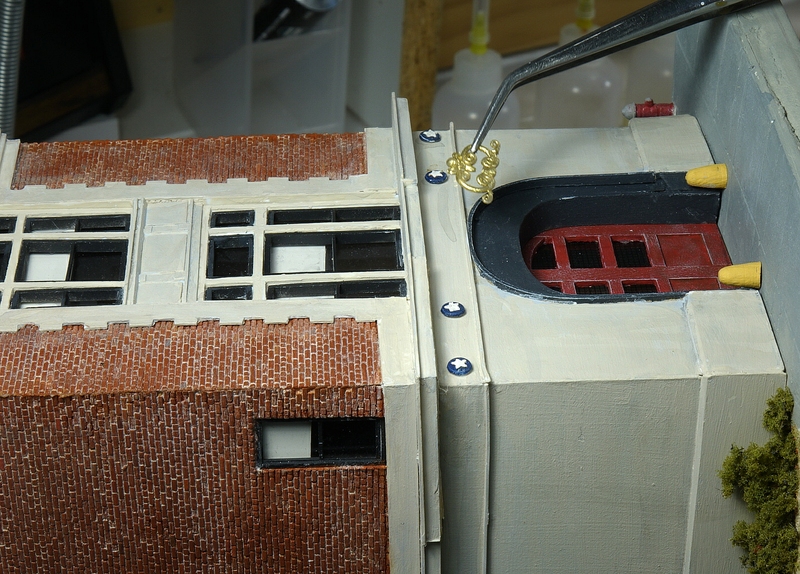

The filigree received a coat of gold gilding wax.
Till next time... Final pix outdoors.
I built a simple roof, just masking tape over a black foam core.
Glue up of the last (side) wall..goodbye (permanently) to lighting access..
1st layer of a narrow strip of alley scenery.
I asked my son-in-law to use his sculpting skills to create the large filigree above the door, and the double-sided Ghostbusters logo sign. He used Sculpey Primo for the logo, and Sculpey Firm for the filigree. These are after they were baked in the oven....
I glued the two halves of the logo together, and I painted them white and red.
The filigree received a coat of gold gilding wax.
Till next time... Final pix outdoors.
Carlb
Well-Known Member
Searun- Thank you very much. I always enjoy sharing as much as feasible, in order to encourage others.
Joberg- Thanks, I appreciate your continued support. I've built many masonry/brick buildings, and painting
several shades of red on individual bricks is a reliable, albeit tedious, technique.
Joberg- Thanks, I appreciate your continued support. I've built many masonry/brick buildings, and painting
several shades of red on individual bricks is a reliable, albeit tedious, technique.
Bloop
Sr Member
Looking great! Can't wait to see the sign in place.

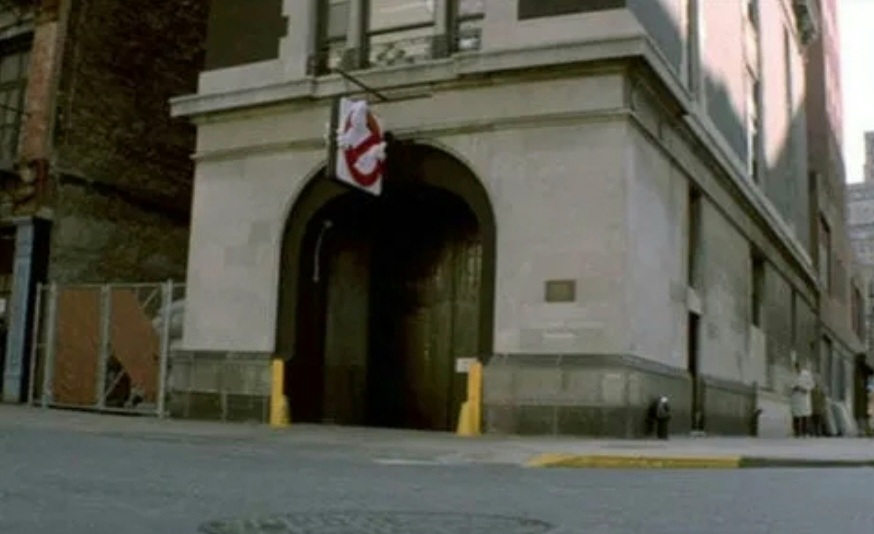

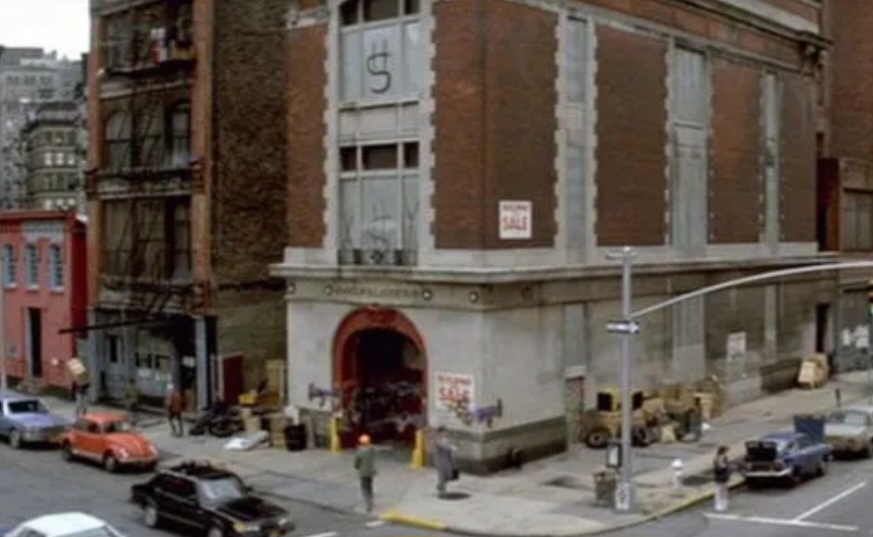

One question, though: the 4 circles with stars on the front, below the ledge - were they on the building in the film? I only did a quick image search, but it seems like they might've only been present in its pre-renovation state in the movie. Here's a couple pics (sorry for the quality):
It seems like they just covered over that entire section, including the engraved "8 - Hook & Ladder - 8" writing.
One question, though: the 4 circles with stars on the front, below the ledge - were they on the building in the film? I only did a quick image search, but it seems like they might've only been present in its pre-renovation state in the movie. Here's a couple pics (sorry for the quality):
It seems like they just covered over that entire section, including the engraved "8 - Hook & Ladder - 8" writing.
Last edited:
Carlb
Well-Known Member
Thank you Bloop.
I'm not sure if the stars were on the building in the movie or not.
I don't own a DVD of the film to analyze.
I found many photos of the building over the years, and it fell into serious disrepair.
The stars were so heavily soiled at one point... to be nearly black!
When it was finally restored by the city of NY, the stars were cleaned up, to what I would assume to be their original condition.
I liked the look, so I made them stand out on the model.
Also, two more stars are mounted on each sidewall as well.
I'm not sure if the stars were on the building in the movie or not.
I don't own a DVD of the film to analyze.
I found many photos of the building over the years, and it fell into serious disrepair.
The stars were so heavily soiled at one point... to be nearly black!
When it was finally restored by the city of NY, the stars were cleaned up, to what I would assume to be their original condition.
I liked the look, so I made them stand out on the model.
Also, two more stars are mounted on each sidewall as well.
Carlb
Well-Known Member

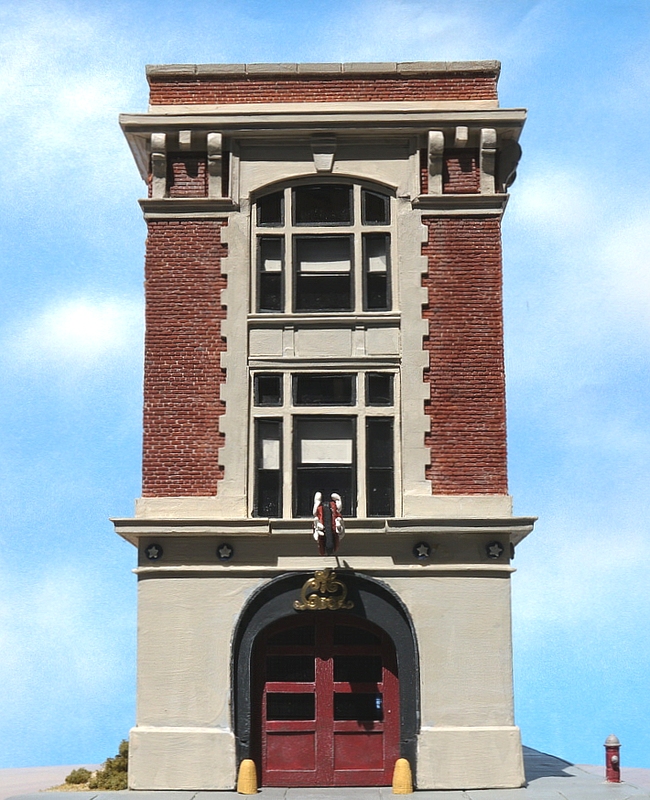

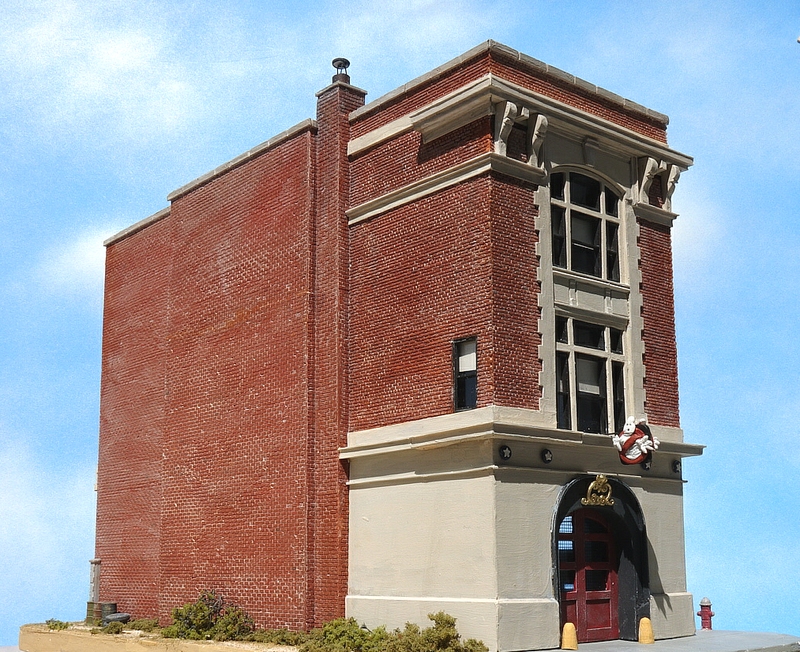

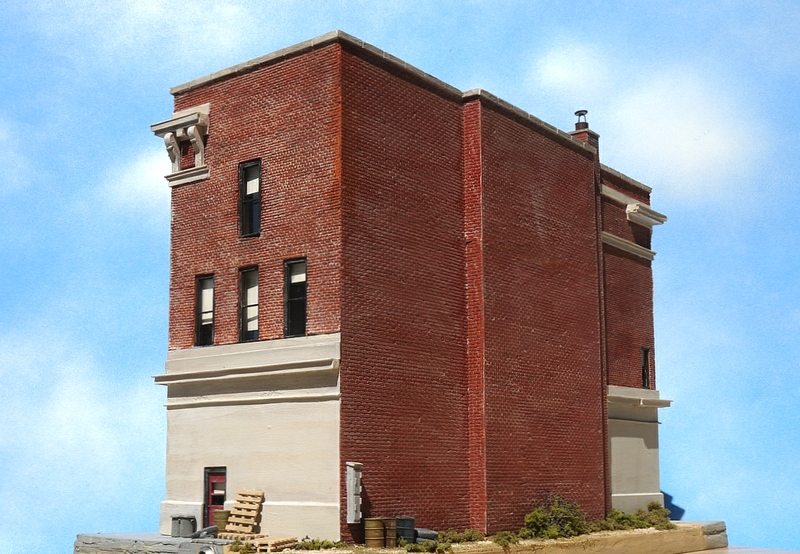

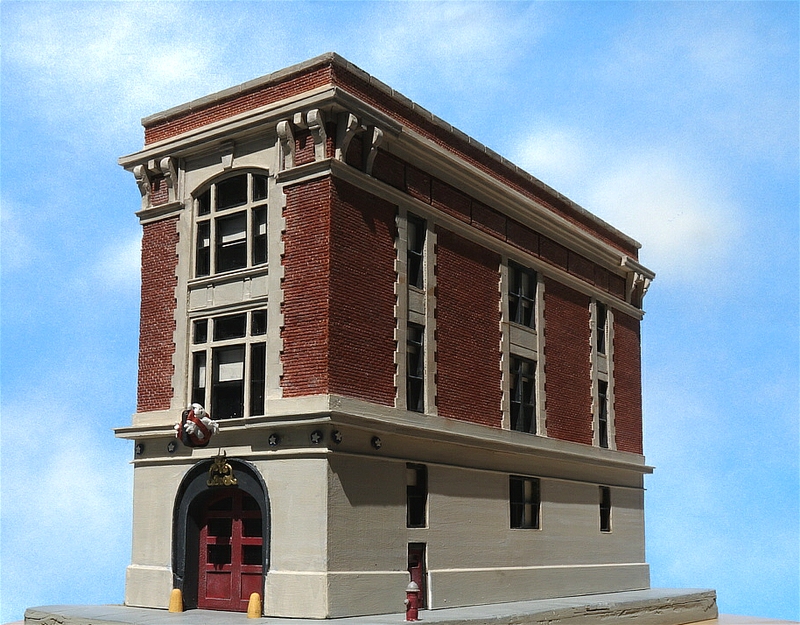

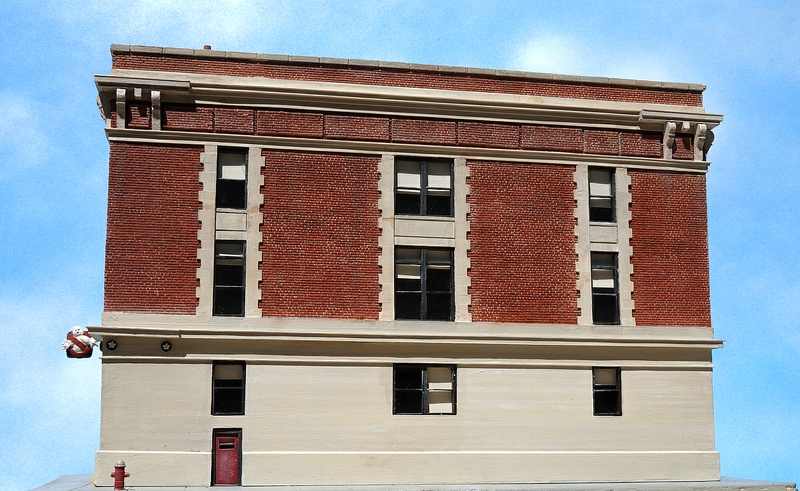

Final pix ... Hook & Ladder #8 station... otherwise known as the Ghostbusters Firehouse Headquarters
After cutting the 12 1/2" x 5 3/4" (317mm x 146mm) base, we decided the Ecto1 car and 4 characters just didn't have enough room to display properly. There's only 1" (25mm) from the walls to the edge.
I needed 3 walls to be assembled early on in the process, to align mitered corner moldings. This made it extremely difficult to work on.
I deliberately kept weathering to a bare minimum.
Thanks to everyone who read and commented on this thread. I appreciate the encouragement of all forum members (and guests too). Many challenges were here. I learned some new things-tried a few techniques. I hope I explained my procedures plainly, and passed on some construction tips along the way....any questions, just ask.
After cutting the 12 1/2" x 5 3/4" (317mm x 146mm) base, we decided the Ecto1 car and 4 characters just didn't have enough room to display properly. There's only 1" (25mm) from the walls to the edge.
I needed 3 walls to be assembled early on in the process, to align mitered corner moldings. This made it extremely difficult to work on.
I deliberately kept weathering to a bare minimum.
Thanks to everyone who read and commented on this thread. I appreciate the encouragement of all forum members (and guests too). Many challenges were here. I learned some new things-tried a few techniques. I hope I explained my procedures plainly, and passed on some construction tips along the way....any questions, just ask.
stevielewis
Sr Member
Really great work. It looks like the real building!
Such a great build! Thanks so much for sharing it with us!
