New Vibro Axe from the Mandalorian

[LordHeadass]

i do have one for scaling but I'm not sure how to get the complex curves it has into onshape



[Ryan Clinton]

I really dig the chipped blade. I'm definitely going to do a version of that for myself



[LordHeadass]

I finished another part of it, its the handle thing at the bottom

Here is what it looks like

Its 8"tall and sits 9" above the bottom of the dowel maybe 10", ill play around with that number



[Ryan Clinton]

I finished another part of it, its the handle thing at the bottom
View attachment 1364787

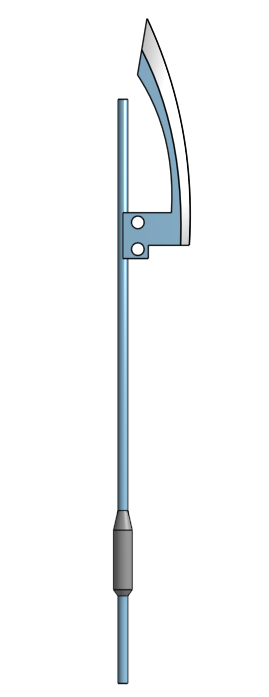

Here is what it looks like
View attachment 1364788
Its 8"tall and sits 9" above the bottom of the dowel maybe 10", ill play around with that number

Yeah this is such a simpler design than the rotj axe. I love the way the bd-1 cutter looks but the mandelorian one is a more practical design ill talk to my machinist today about what file format to send and if you're ok ill just have you send it to him



[LordHeadass]

sounds like a plan



[LordHeadass]

Also I just finished transferring the dimensions to AutoCAD where I created a dimensioned drawing of the blade from 3 angles, top, side, and bottom.



[Ryan Clinton]

Quik question, does cad, take into account the image agle and therefore auto scale it. For instance, if you're tracing an image that is obviously angled if it were a straight on shot it would be wider and possibly bigger than it appears in the photo. Does this make sense?



[Ryan Clinton]

I'd just like to make sure before I cut these.



[Ryan Clinton]

The file would need to be Stp or xt. Not sure what that means but thats what he needs



[LordHeadass]

I used Onshape and the blade in the image was slightly curved so it might not be the exact shape but it is extremely close from what I can tell. Also I cant export to stp or xt through AutoCAD but I can export it through Onshape to STEP which I think is an stp file but just in case could you ask your machinist if that's the same thing?



[zorg]

The file would need to be Stp or xt. Not sure what that means but thats what he needs

i believe stp + xt is short for "stop texting me"

i could be wrong



[LordHeadass]

hahahaha nice one



[Saranac]

This axe can also be seen at the 18:54 and 19:50 marks of Gallery - Star Wars: The Mandalorian, season 1, episode 8



[LordHeadass]

awesome, thanks for the info!



[Ryan Clinton]



[LordHeadass]

Looks good



[Ryan Clinton]

The pole is 3/4 inch. The blade is 15-1/2"



[LordHeadass]

width or length?



[LordHeadass]

still im only off by an inch or two



[Ryan Clinton]

Length
