Fallout AERX modular laser pistol/rifle

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Phaestoz

Active Member
I started this build when Fallout 4 was first announced and I've had a few restarts but its pretty far along now. The plan is to make the laser pistol modular just as it is in game to switch from a pistol to a rifle or an automatic at some point. So far I have finished the short barrel, standard grip, capacitor, and reflex sight. The long barrel, rifle grip, and standard stock are close to completion and will be molded when I get silicone.

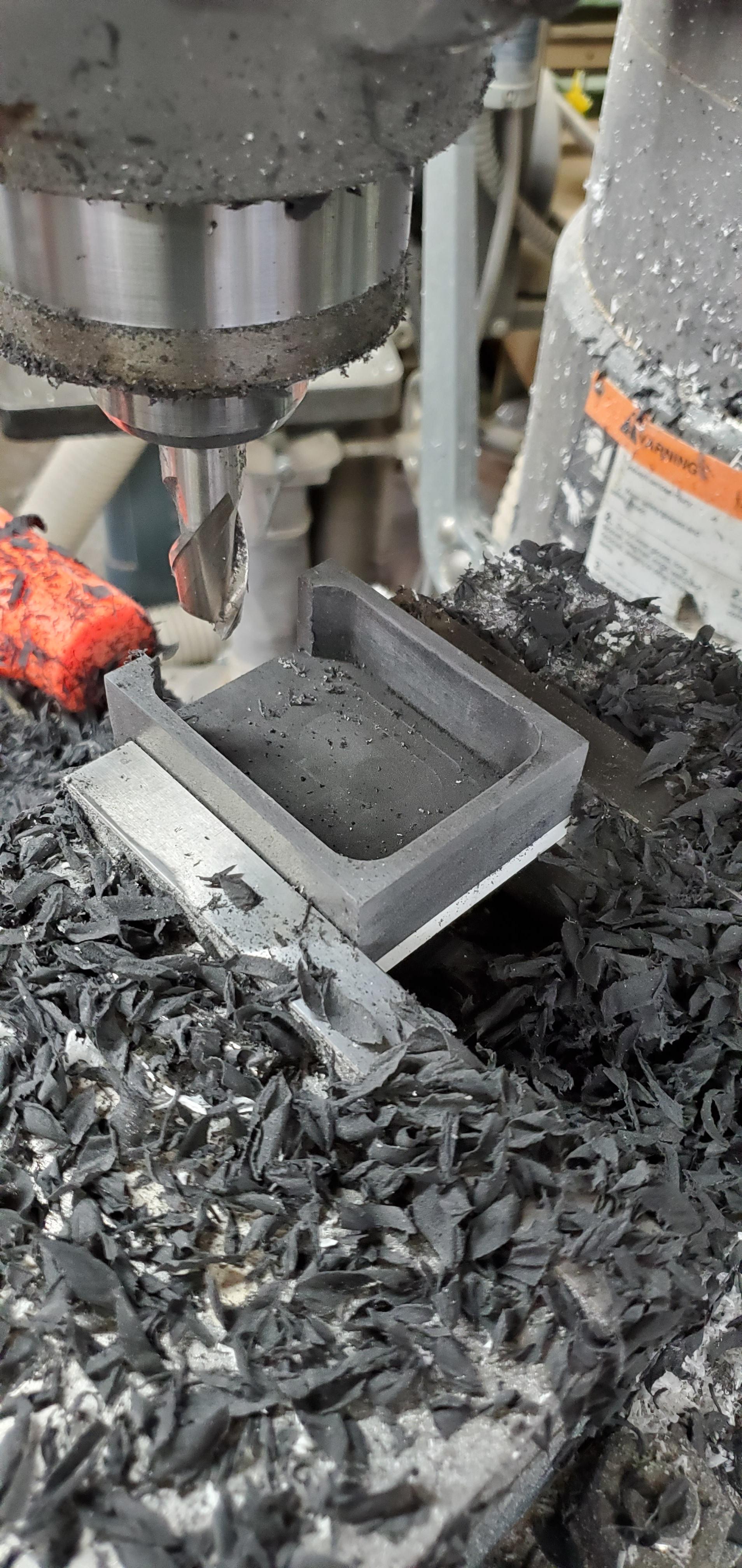

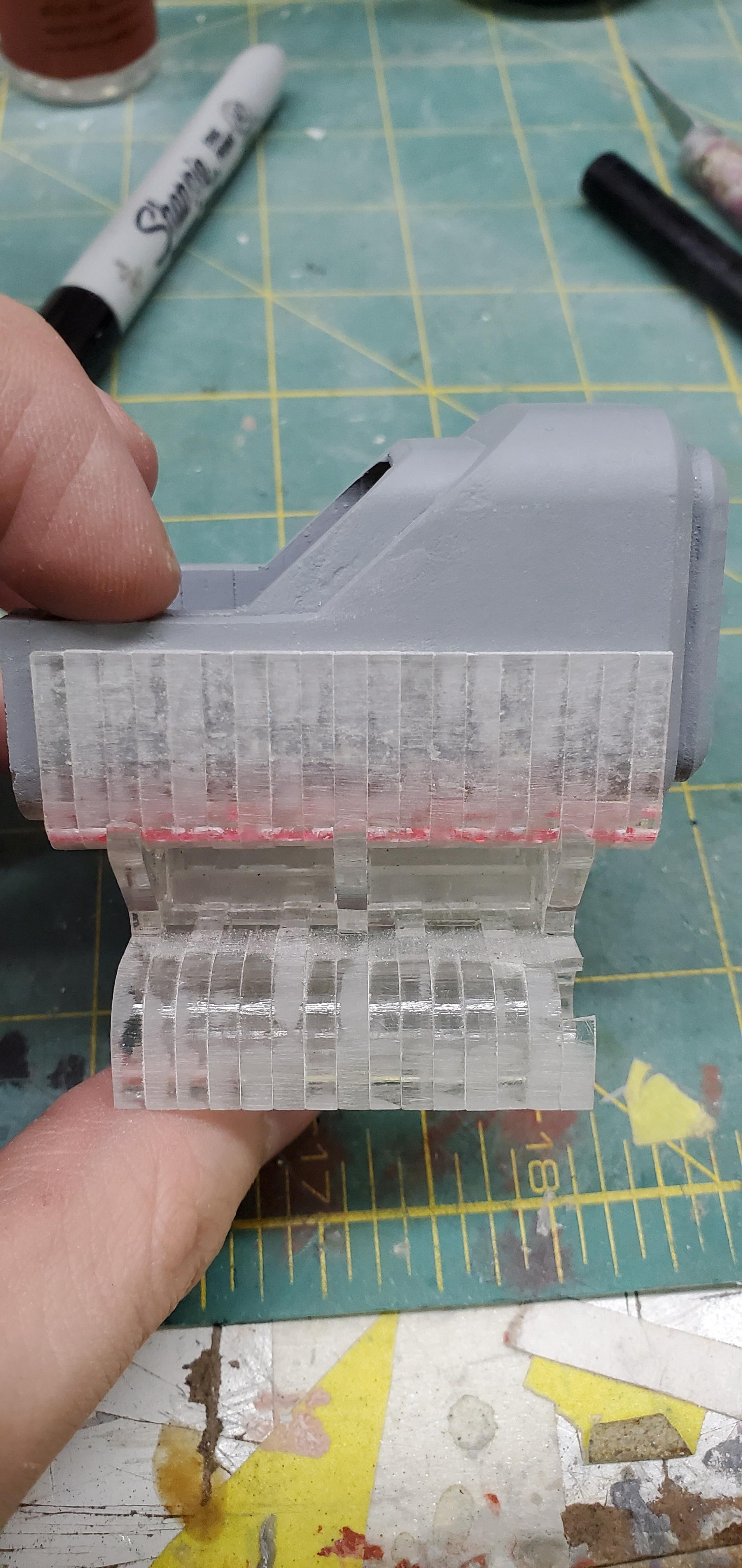

The masters are hand machined out of mainly Syntra, acrylic, and styrene with very few 3D printed pieces.

The cast pieces are cold cast with aluminum powder (one piece with copper powder) and have laser cut aluminum inserts, a hand machined aluminum rail, and steel hardware for all of the screws.

I also made the battery lever, trigger, and slide functional (videos on imgur)

I'll post a few photos here from the pistol first and some progress on the rifle later, but I have a lot more on Imgur and Instagram.
(unfortunately my Instagram is currently offline but should be back tomorrow)

an early picture before primer

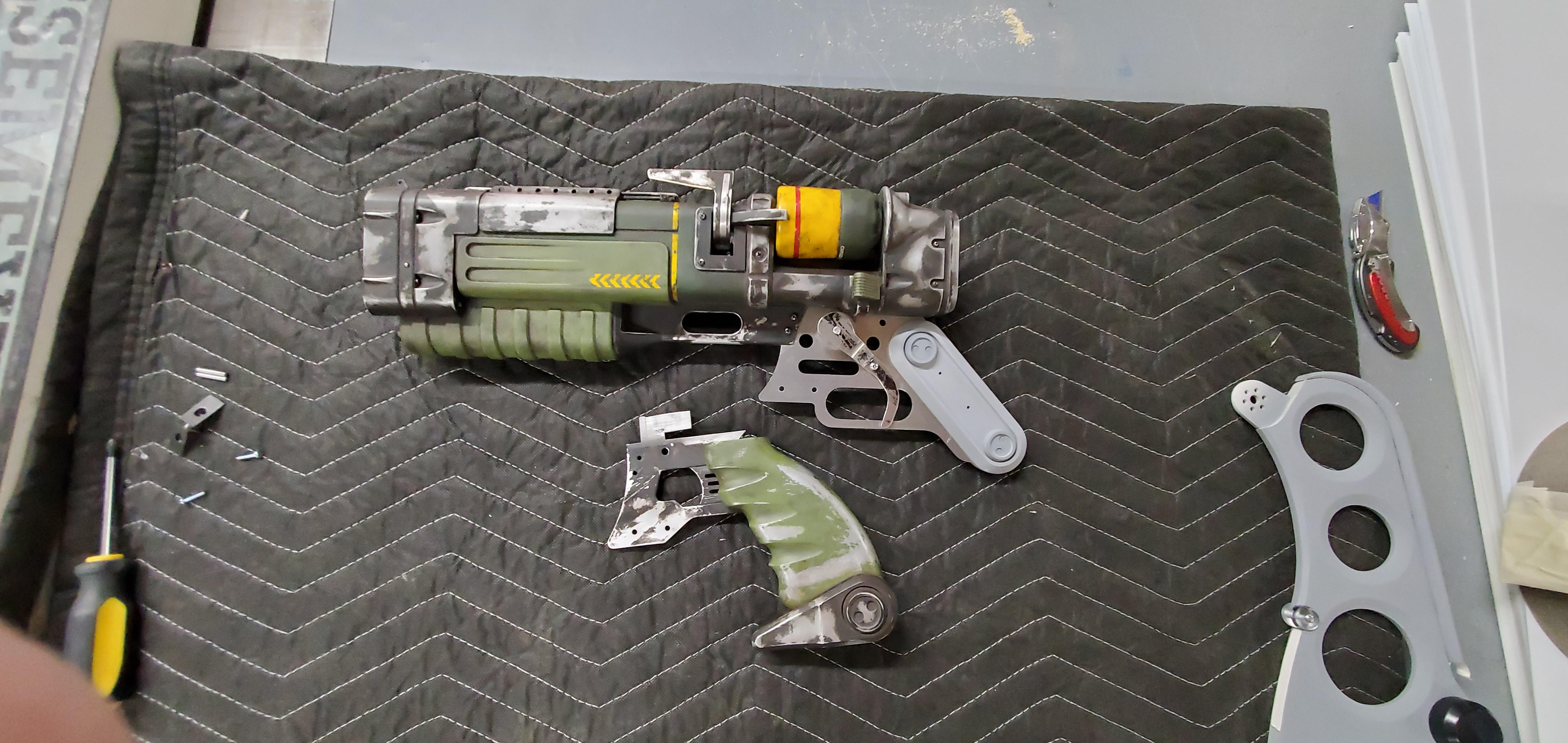

This is where each piece separates. The grip is held in with 2 screws in the angled supports and the barrel is connected with 1 inch neodymium magnets as well as 2 screws into the aluminum flat section of the grip to lock it in.

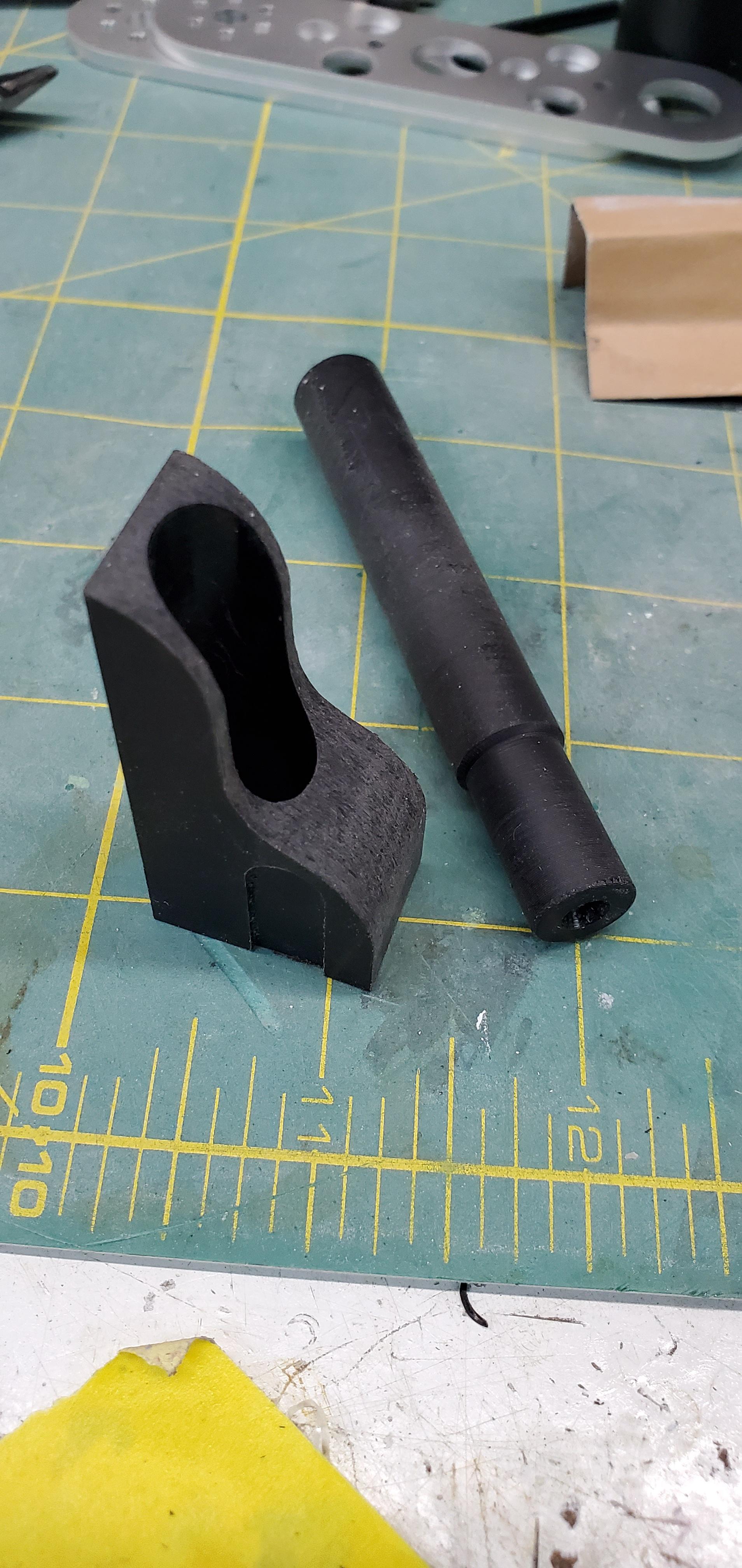

The pistol grip had to have an odd way of sliding into its spot to avoid the ridge on the capacitor, I'll see if can find my test piece that shows it well later.



I made a press form out of steel for the ridge on the aluminum battery lever


A nice exploded view of all of the masters before molding


First set of good castings test fit together


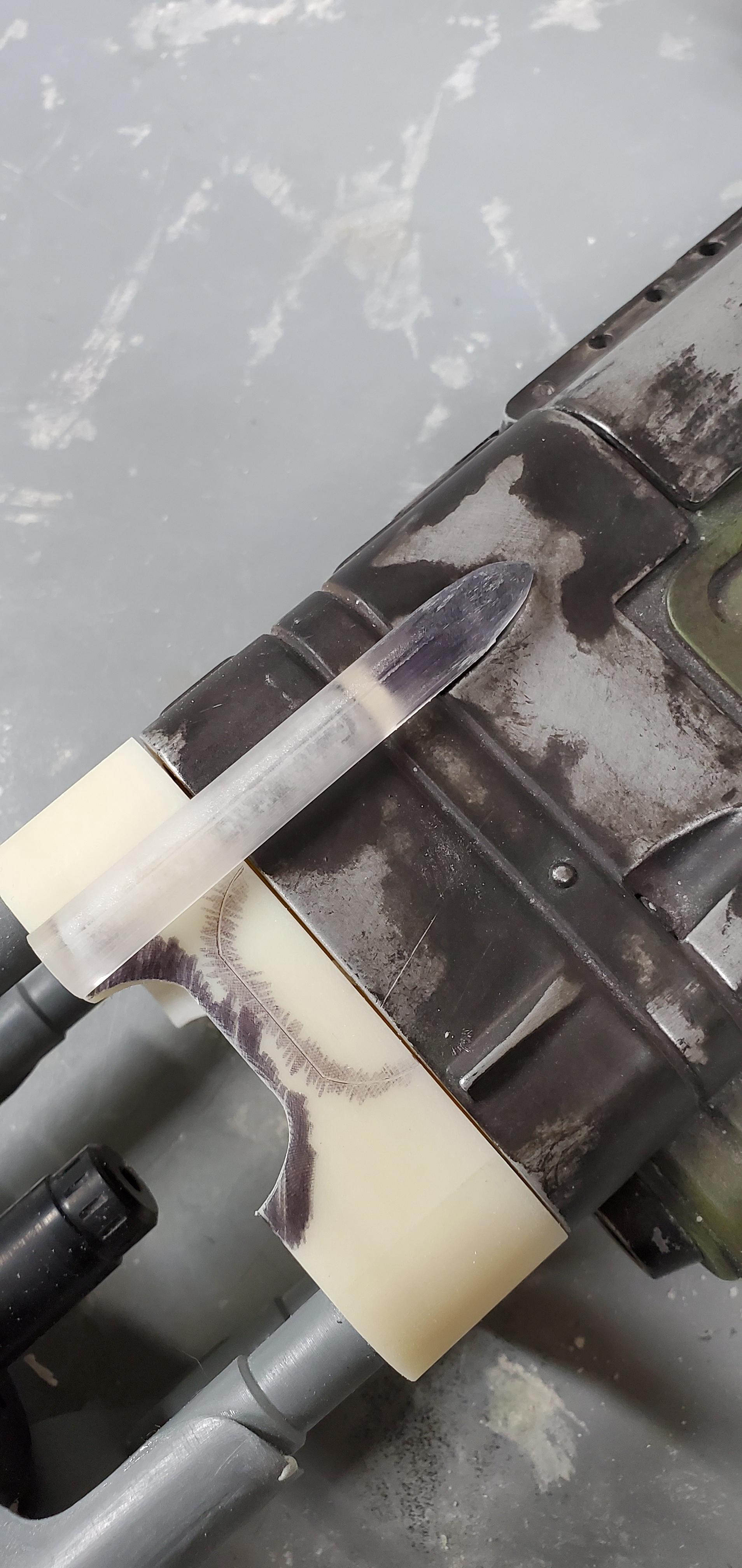

An almost completed kit, last thing that needed weathering was the battery in this picture




Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Sluis Van Shipyards

Legendary Member
Nice!!! That's one of the best replicas I've seen so far and it's not 3D printed! I've been planning to do the rifle for a couple years for my nephew and have done planning and bought materials, but haven't gotten to it yet.


Sluis Van Shipyards

Legendary Member
I'm glad to see that works because that's exactly how I planned to attach the site to mine! What strength magnets did you have to use to get it to stay attached?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Wow, this is an amazing build! The craftsmanship is simply uncanny! I love everything Fallout, and will absolutely be following this thread and project!


mikelbrierly

New Member
This is beyond incredible! The craftsmanship is truly inspiring. What is your primary material for building the core rifle elements? Forex/PVC Foam board?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Phaestoz

Active Member
This is beyond incredible! The craftsmanship is truly inspiring. What is your primary material for building the core rifle elements? Forex/PVC Foam board?

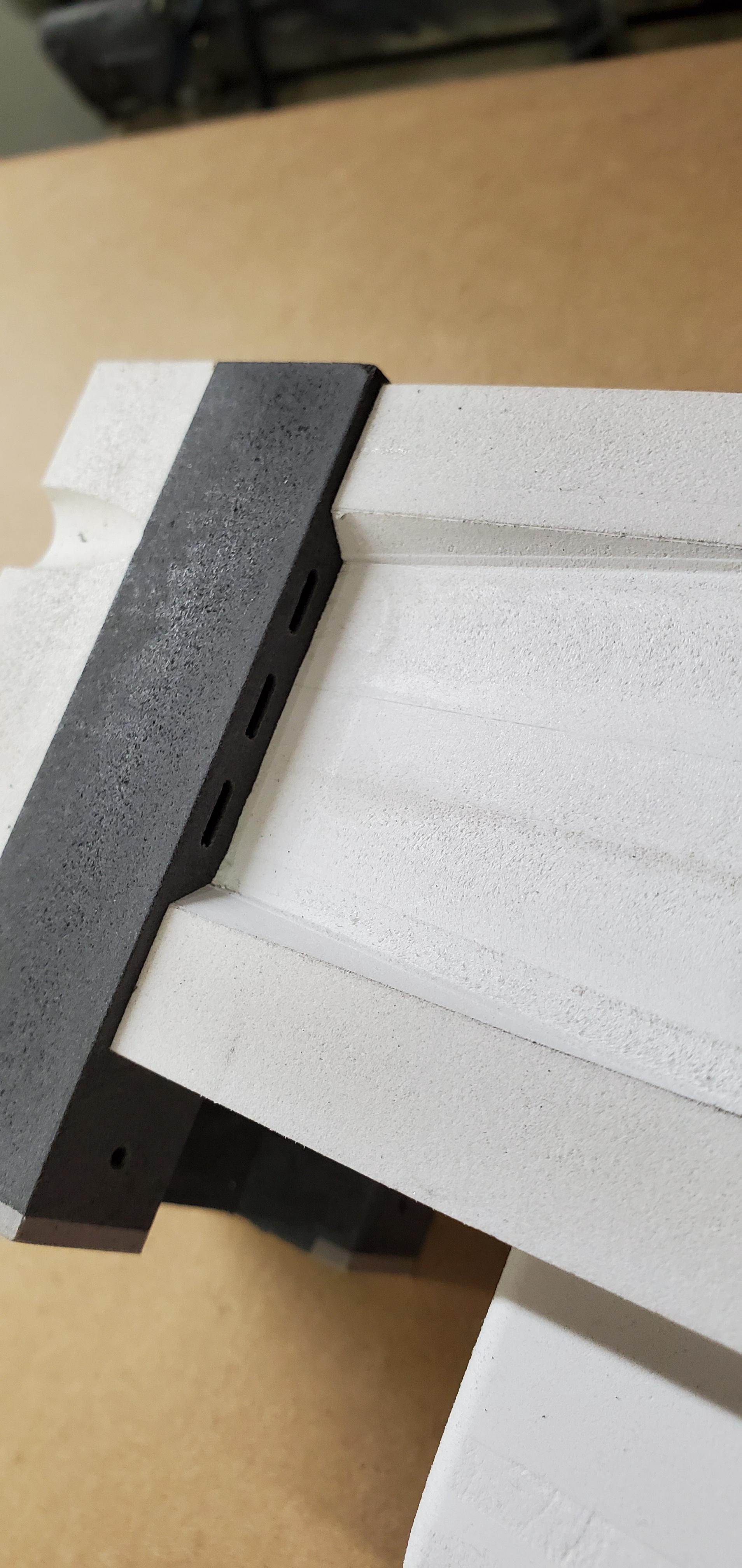

Thank you! The bulk of it is machined out of expanded white/black/grey PVC foam which I believe is Sintra brand. To make the thicker pieces I stack up layers of Sintra with super glue and it seems to hold nicely.
