Dune 2021 Shield Generator - group project?

Is anyone else getting a 404 error when trying to download the files from Thingiverse?

Yeah, it’s thingiverse. I’m getting the same trying to download lots of stuff. The individual files links seem to still work though.
I can put everything in a zip file and upload it if you want to make it easier ?
Or just grab them from Prusa prints.

First resin print of neophyl ’s excellent model!

Sean

I wonder would it be possible build this fully out of metal? I would love to purchase a metal replica if there was ever a limited edition run.

adamszki427 said:
great work on the modelling, i know this probably isnt the ideal set up you would want but if you want to keep the thickness true to the prop, how about housing just the board (similar size to a lightsabers pico crumble i would imagine) and then have wires run to a battery pack up your arm housed on a band like the iPod things for runner's? assuming you would wear it with costume anyway it would be hidden, and the accelerometer would still function as it is in the right place?
or you could potentially sew 2 pieces of the elastic together and make a sleeve for coin cells or some kind of small battery pack like out of those tiny Bluetooth speakers like the one punished props used in his pipboy?
Click to expand...
I had that exact same idea as I read through the thread, and truly nothing says wasn't exactly what was done with the movie props... would make sense given it appears all the costumes are long sleeved.
And to heap on the accolades, ***very nice*** work!
Cheers! Robert

Does anyone have any ideas on the rivets used on the screen used prop? They lay flush, and I'm not familiar with any that would do that.

I personally believe they used quick rivets normally used for leather. The bottoms are flat like the ones adamszki linked to. They normally come with a button head for the other end which in this case faces inward towards the wrist. That's how I assembled mine. I should have hammered them a bit more when setting them which would have flattened the bottom more but the ones I had in my leather supplies weren't quite long enough to do that without damaging the surround.

The large version of these Rapid Rivets - 100 PackAntique Nickel Plate / Medium for example.

I'm not aware of a 1st run lol.
I did eventually do myself a version with a hand built pcb in it and a couple of other off the shelf modules to make a 'working' version. Working as in it can send coded IR pulses to my lasertag sensor to activate its shield mode :) Oh and do some sound playback etc while doing so using a WT588D module and a small 20x30mm oval speaker.

Added a TP4056 module to charge up a small Lipo cell for power and hid the USB C port behind the front silver section which I made removeable. Held on with magnets.

neophyl said:
I'm not aware of a 1st run lol.
I did eventually do myself a version with a hand built pcb in it and a couple of other off the shelf modules to make a 'working' version. Working as in it can send coded IR pulses to my lasertag sensor to activate its shield mode :) Oh and do some sound playback etc while doing so using a WT588D module and a small 20x30mm oval speaker.

Added a TP4056 module to charge up a small Lipo cell for power and hid the USB C port behind the front silver section which I made removeable. Held on with magnets.
Click to expand...
Pics or it didn’t happen! :lol:

Sean

You asked you get :)

I have now uploaded the extra stl files for the hollowed out version to the Printables site Dune 2021 Shield Generator by Neophyl | Download free STL model | Printables.com should anyone wish to use them. Updated pics are also on there but here you go -

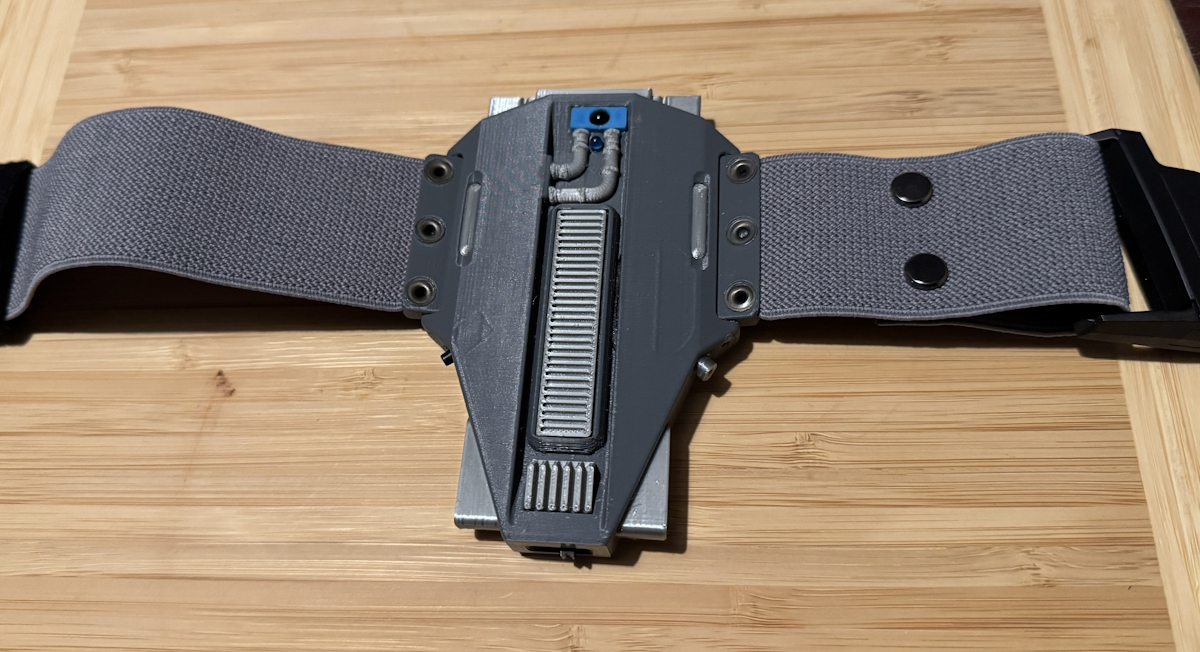

Dune Shield with electronics.jpg

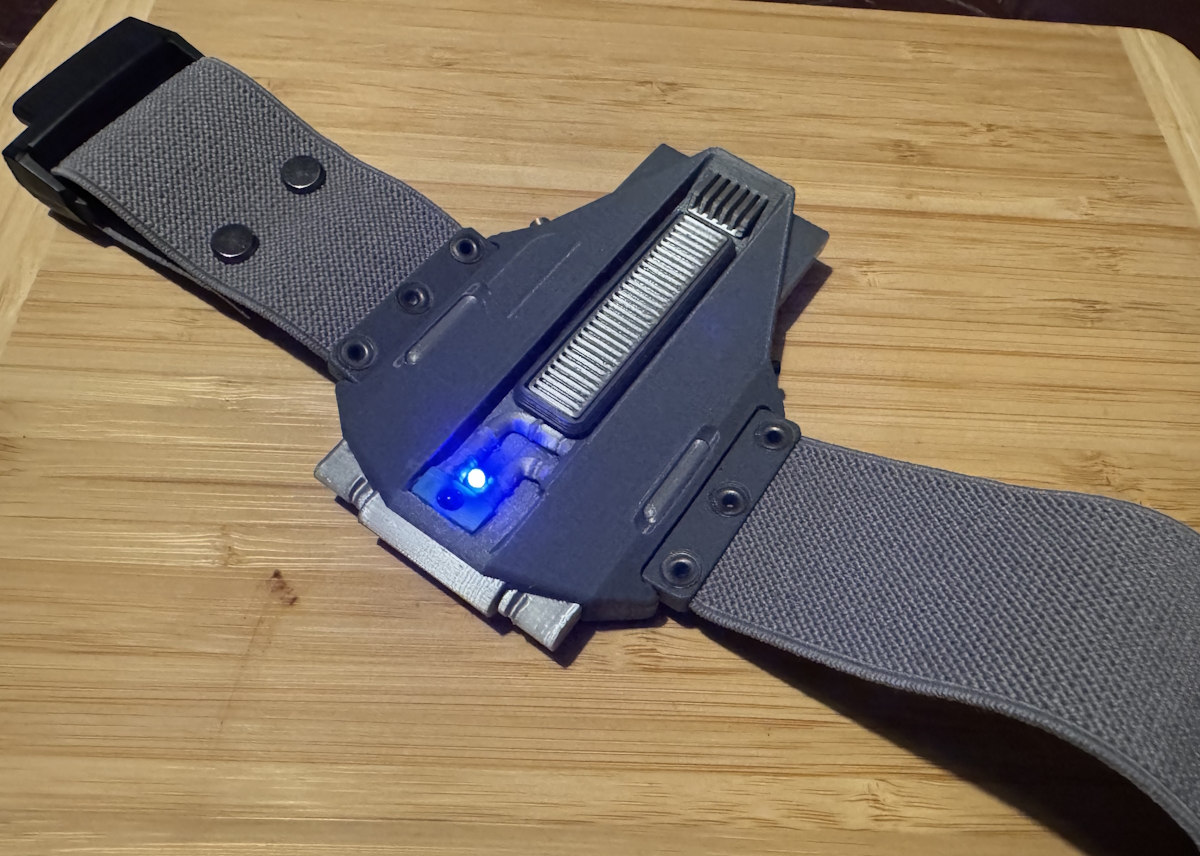

Dune Shield with electronics_2.jpg

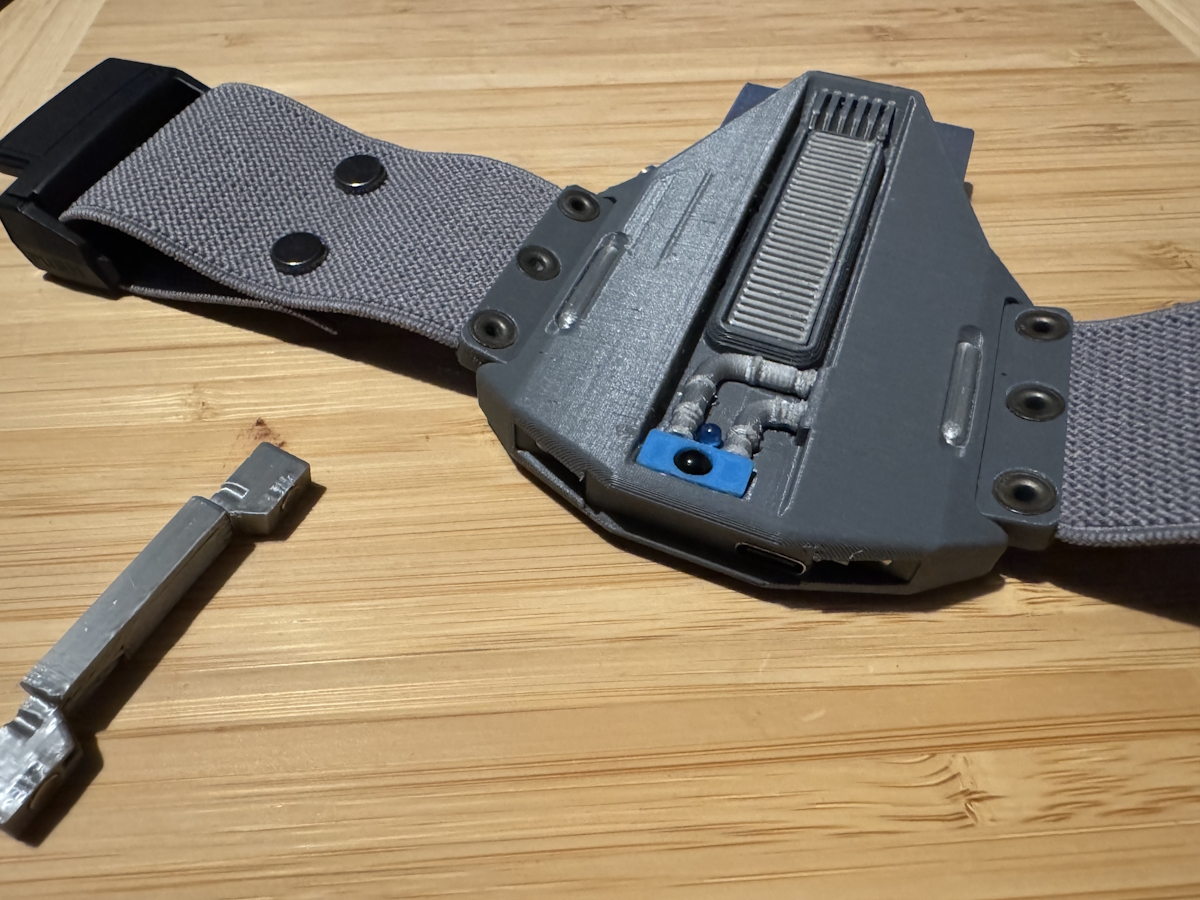

Dune Shield with electronics_3.jpg

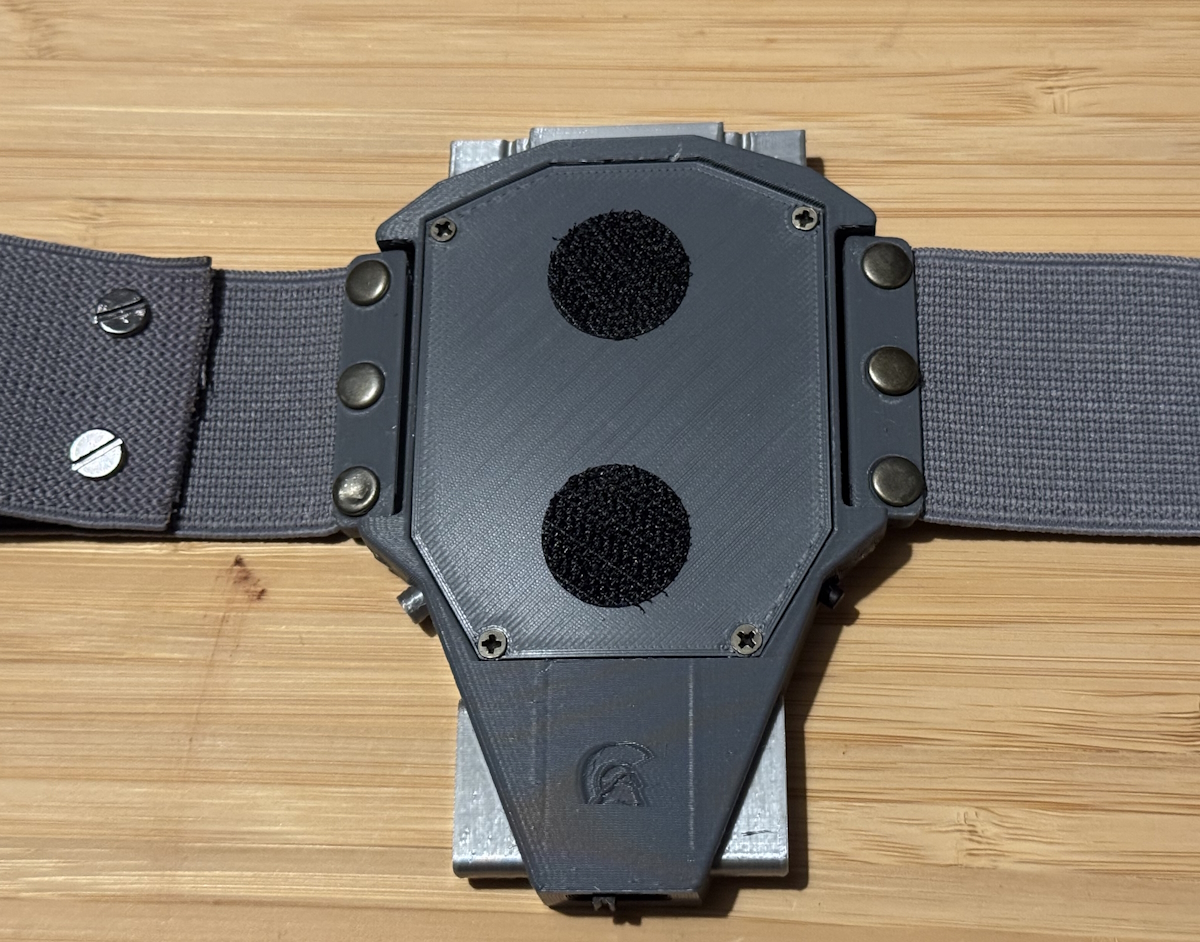

Dune Shield with electronics_4.jpg

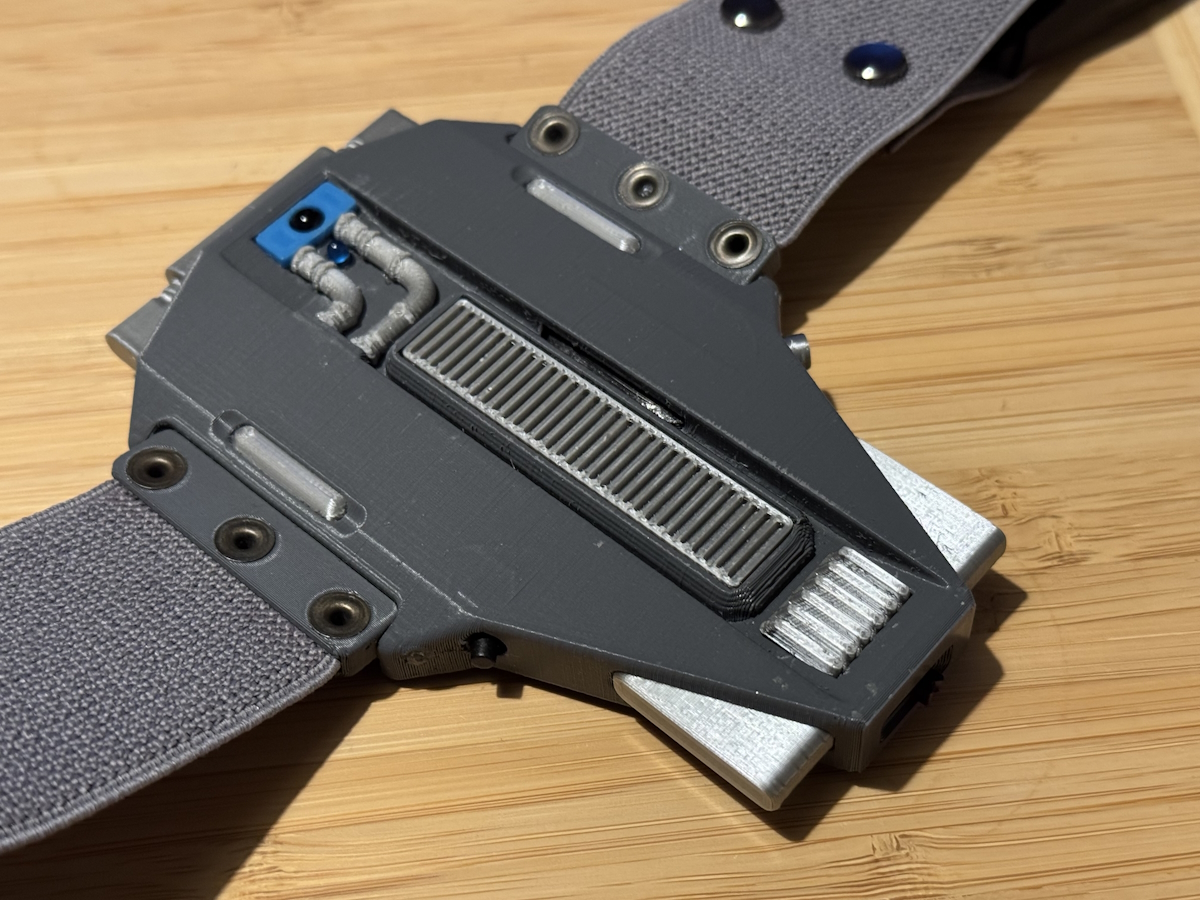

Dune Shield with electronics_5.jpg



Again I wish I had a resin printer for this as even though I made the main body a few mm thicker some of the walls are quite thin and you can see some ghosting from the internal voids on the surface. Unfortunately its the best my printer could do.
