Saberhoarder
Active Member
Wow. That's nice
.
Dewy and Anakin Starkiller's Accurate Obi-Wan Kenobi Episode 1 Lightsaber Design
- Thread starter Dewy
- Start date
.
AnubisGuard
Master Member
I have the worst luck with rubber bands, and now o-rings. Must be something about where we live. What size/material is the appropriate replacement for these?

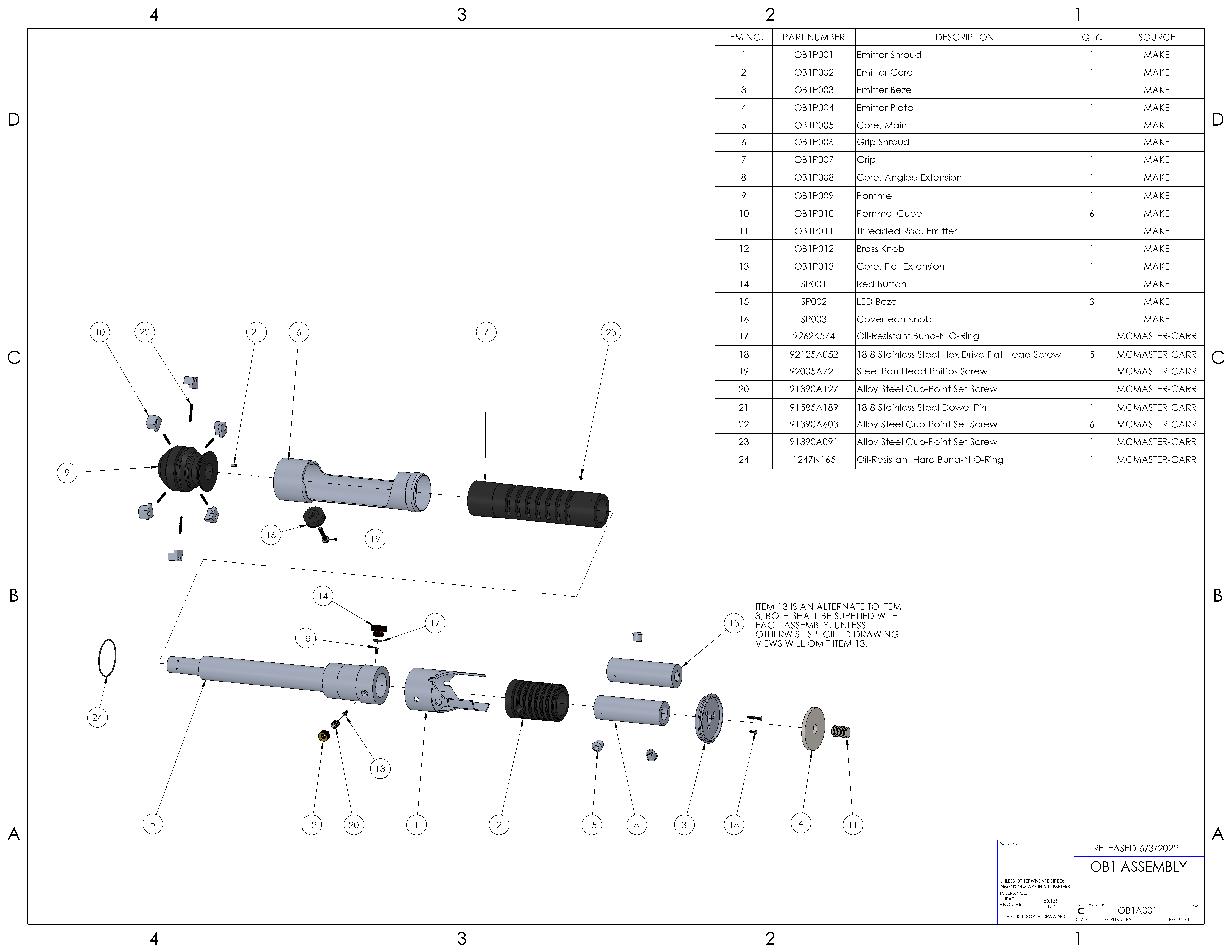

Oil-Resistant Hard Buna-N O-Ring, 2 mm Wide, 28 mm ID
McMaster-Carr
McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.
Attachments
AnubisGuard
Master Member
Thanks. I took a chance on the 1.5mm width version, as the 2mm looks a little chunky to my eye.
AnubisGuard
Master Member

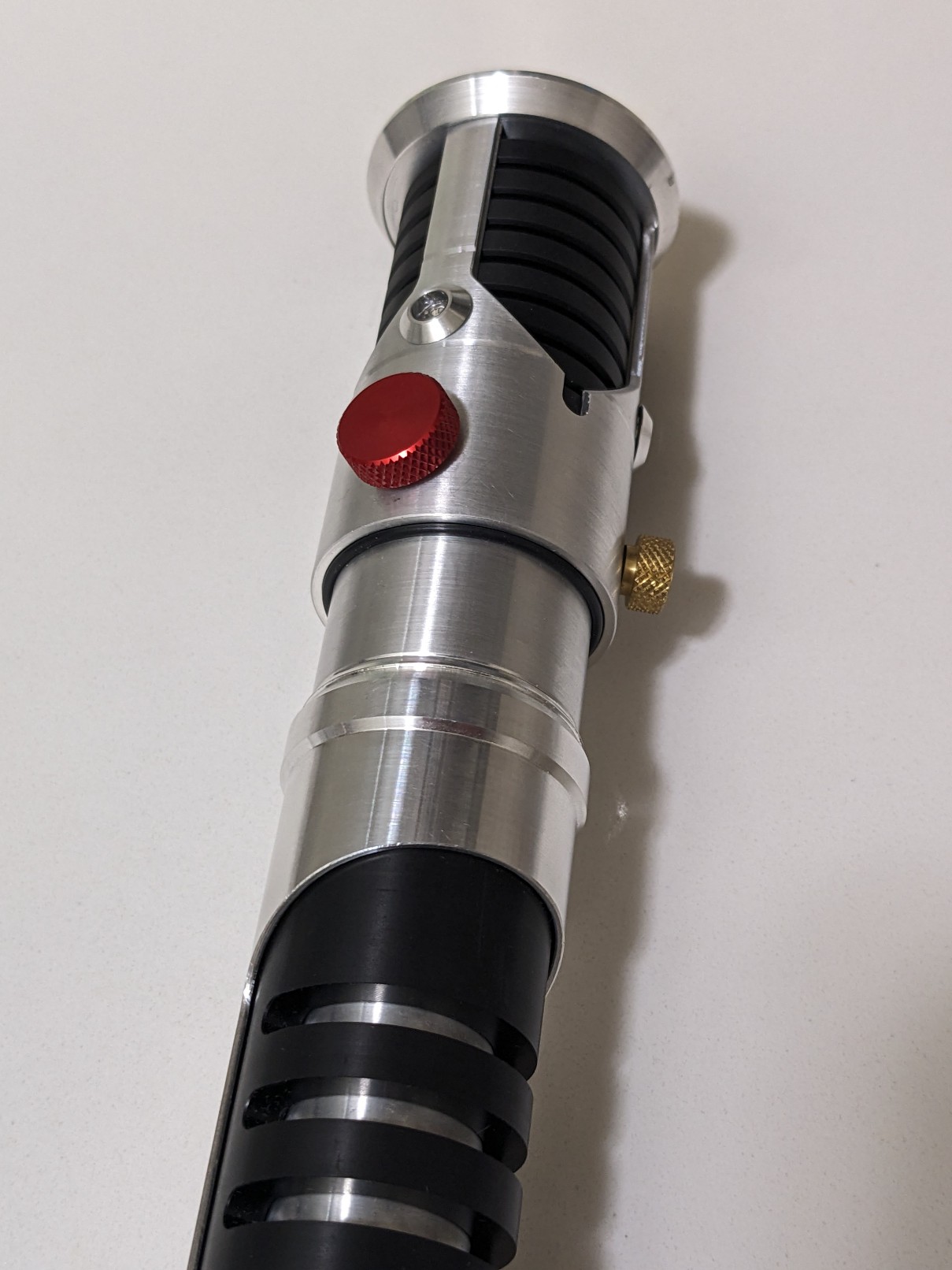

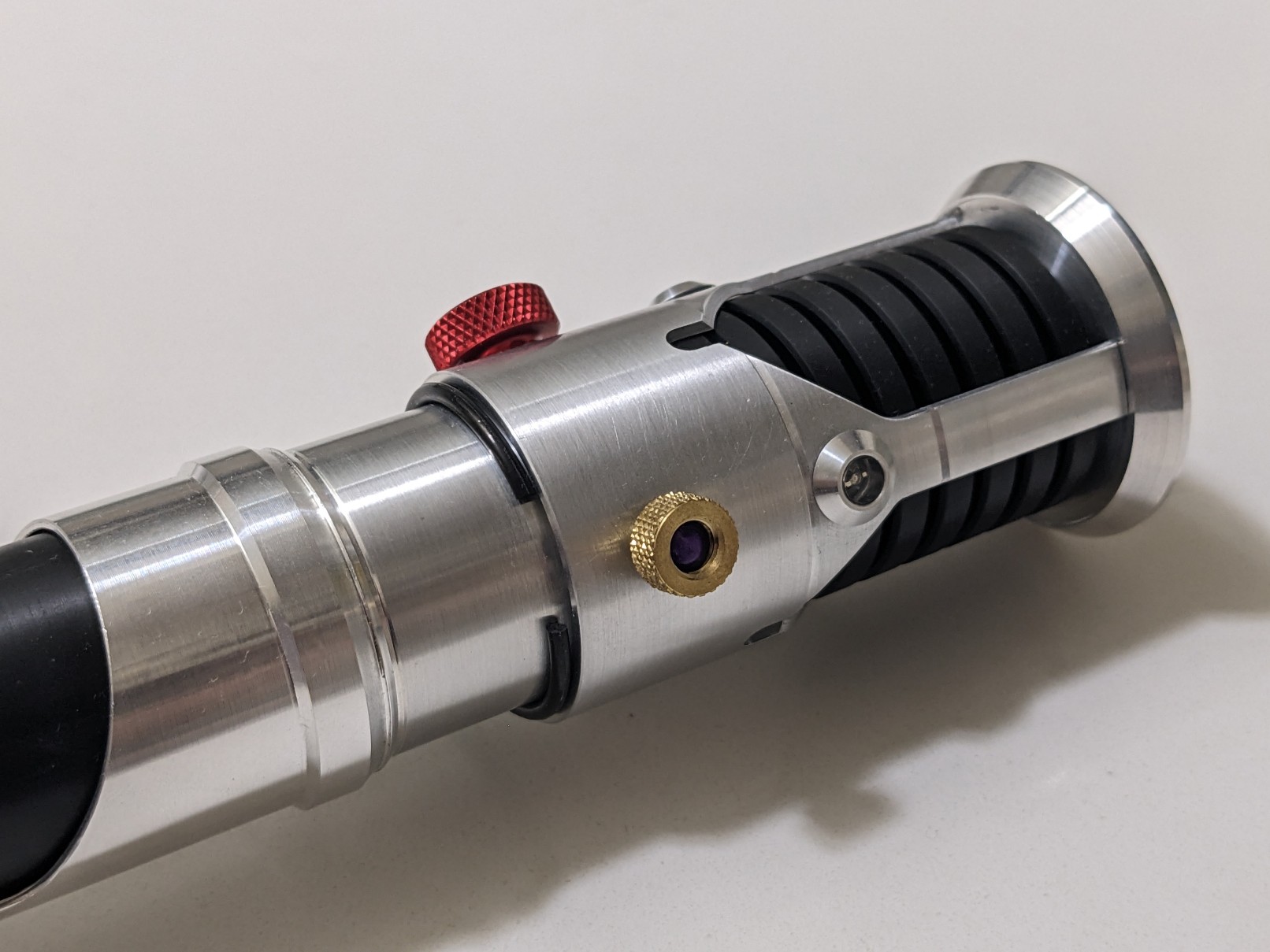

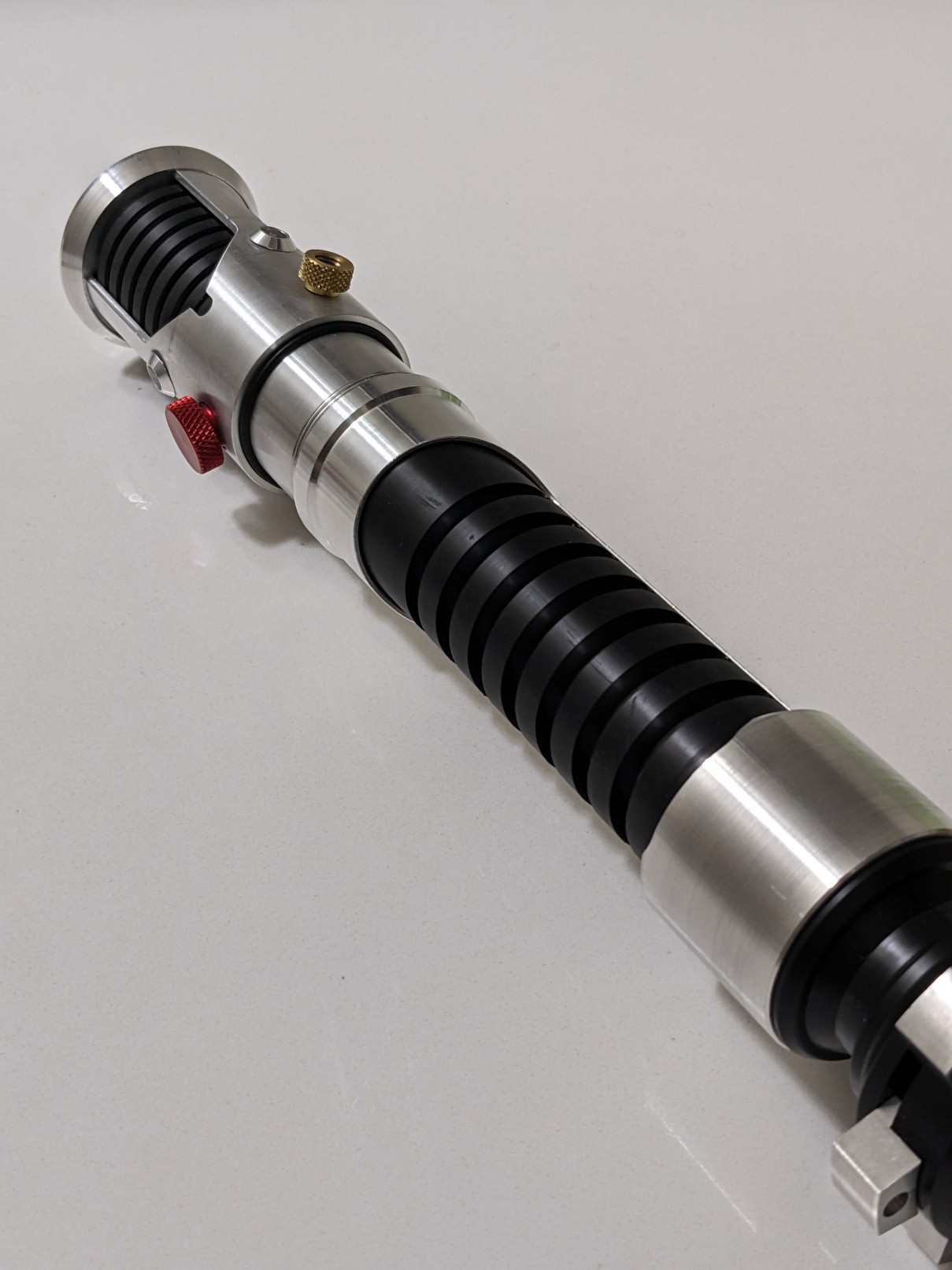

Here's the 1.5mm. Might be a touch small but I think it's closer overall.
Actually looks perfect!! I may buy a few
AnubisGuard
Master Member

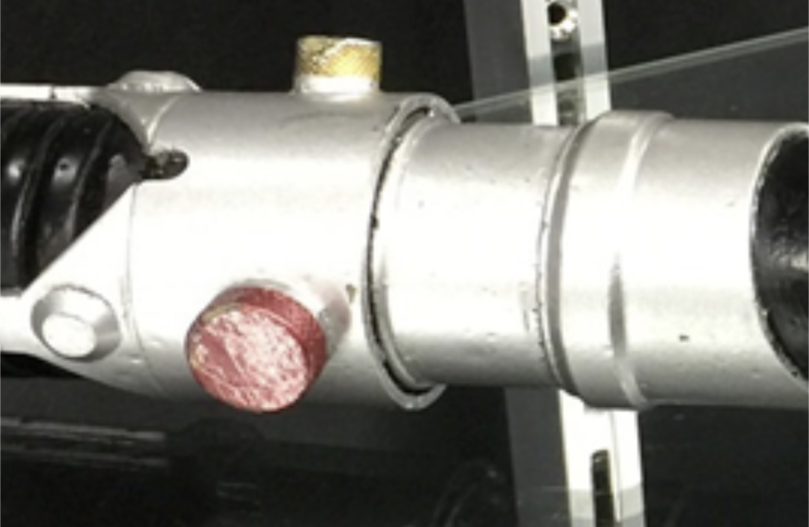

The only shortcoming I see now is the lack of a groove in the neck to hold it in place. From Dewy's resin stunt thread, a crop of one of the reference images with the o-rings captured in resin and painted silver:
The o-ring appears to be in a groove set a fraction down from the head, enough to leave an all-around gap, which just isn't possible to do on this replica. The 1.5mm on mine doesn't leave a gap when pressed against the bottom of the head.
Actually, looking at it again, the prop o-ring appears rather beefy. I wonder if it is 2mm, and there's a deep enough groove that half of the width is sunk into it.
The o-ring appears to be in a groove set a fraction down from the head, enough to leave an all-around gap, which just isn't possible to do on this replica. The 1.5mm on mine doesn't leave a gap when pressed against the bottom of the head.
Actually, looking at it again, the prop o-ring appears rather beefy. I wonder if it is 2mm, and there's a deep enough groove that half of the width is sunk into it.
Excelsior made a point of this in his earlier post when he made his mods on his kit, determining that there was a groove.
AnubisGuard
Master Member
Yeah, I saw that. And the subsequent suggestion of a replacement part. If AK and Dewy were to offer one with the Qui-Gon or the resin stunts, I'd be in.
I'd also be down for another run of this hilt at some point with the further research we're doing;D.. but suppose we need to enjoy the stunning prop we have in the current and make those small upgrades work the best we can
AnubisGuard
Master Member
They came in a pack of 100, so if you want I could drop a couple in an envelope and send them to you.
Just PMd ya!
Saberhoarder
Active Member
These are the 28mmX1.50mm-NBR70 ?
I guess you are from the US?
AnubisGuard
Master Member
Correct on both counts.
AnubisGuard
Master Member

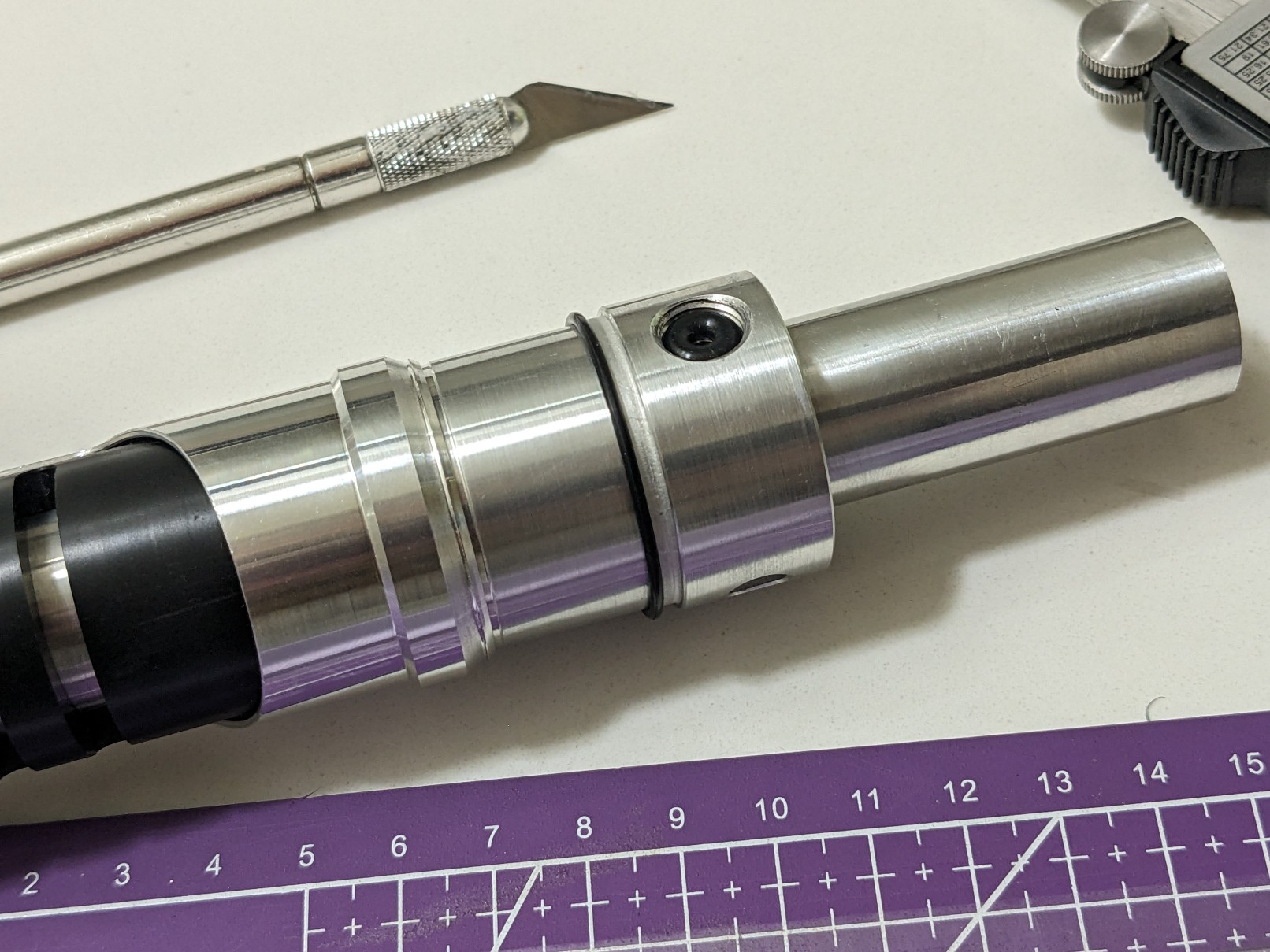

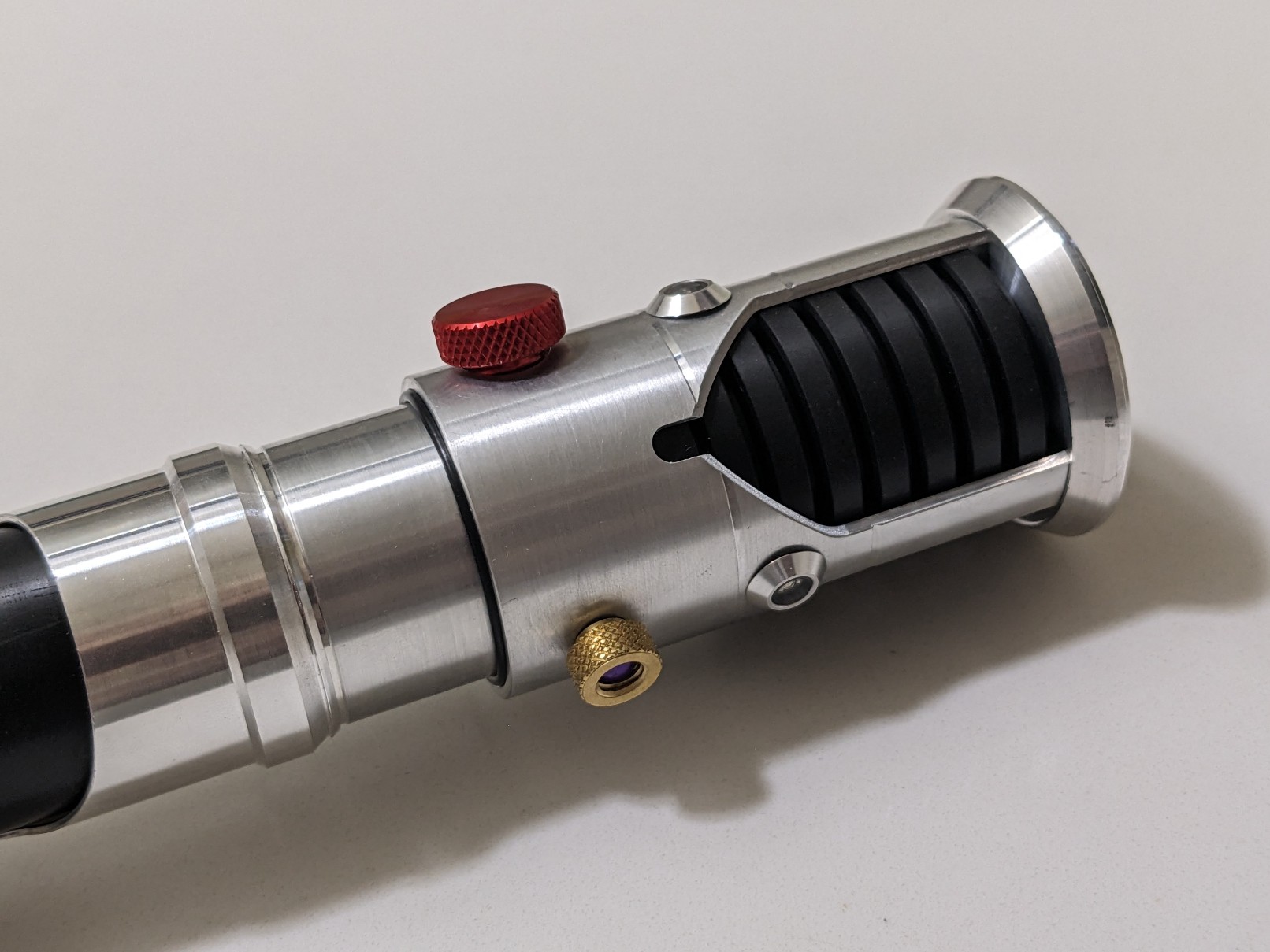

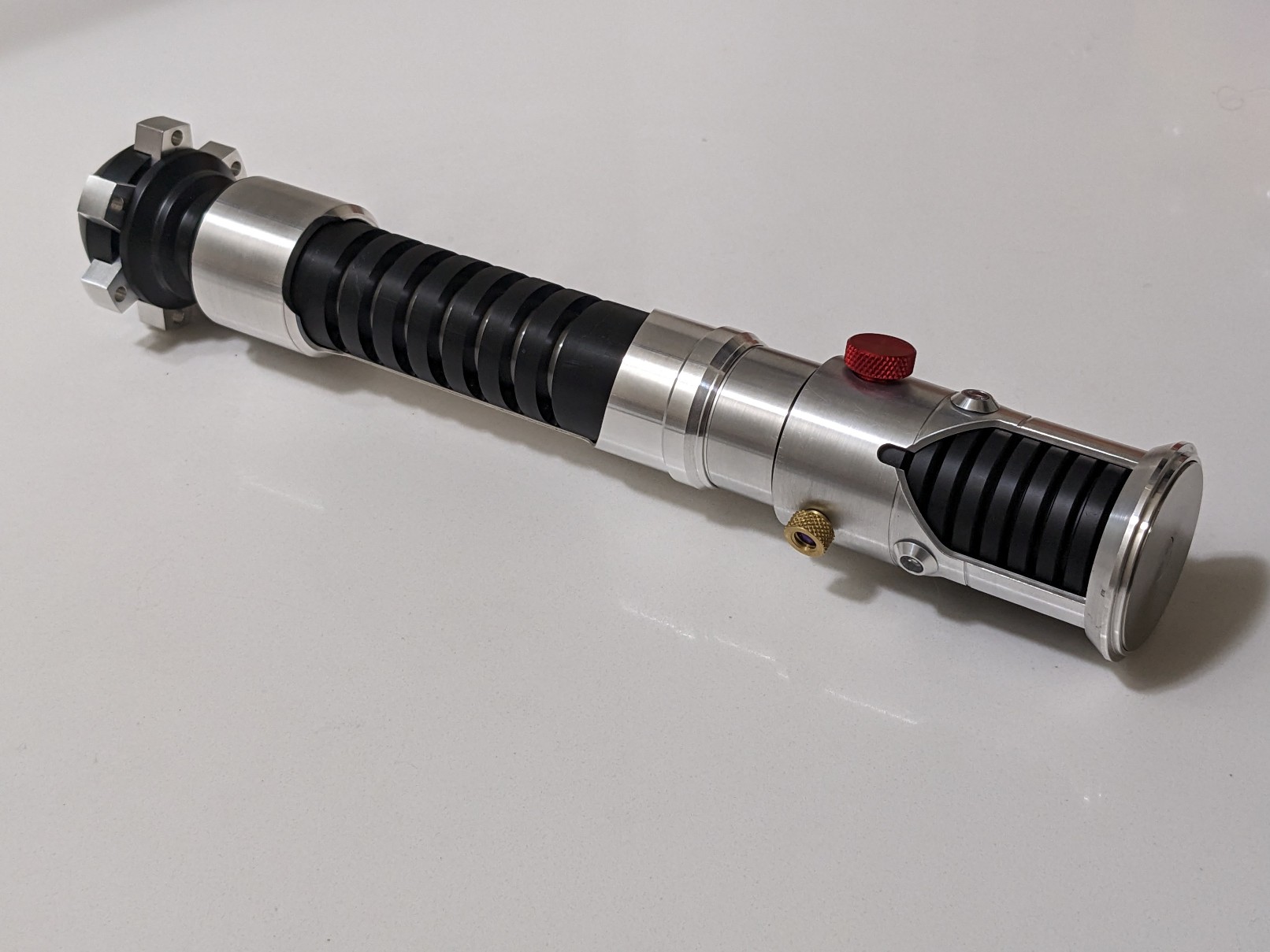

In lieu of a groove, I cut thin strips of Scotch tape to hold the o-ring exactly where I want it. With a little adjusting and trimming, think it looks nearly perfect now.

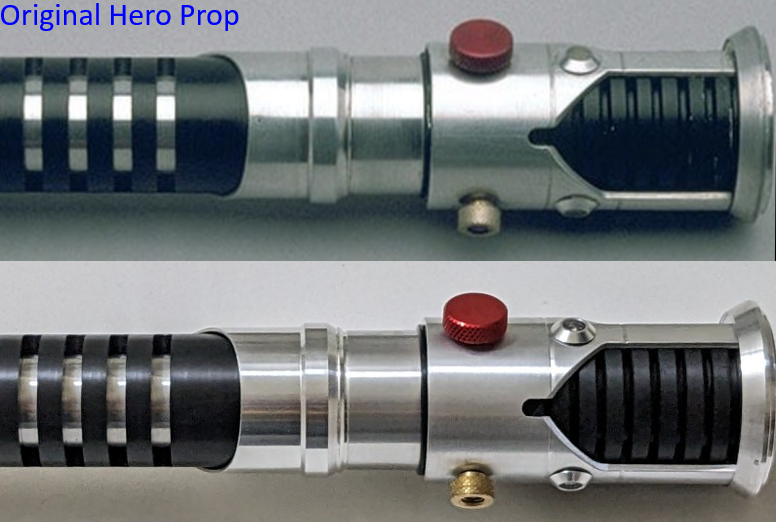

Vs the original prop (from the first page):
Vs the original prop (from the first page):
Last edited:
Do you have a link to the o ring? Did you order it online?
AnubisGuard
Master Member

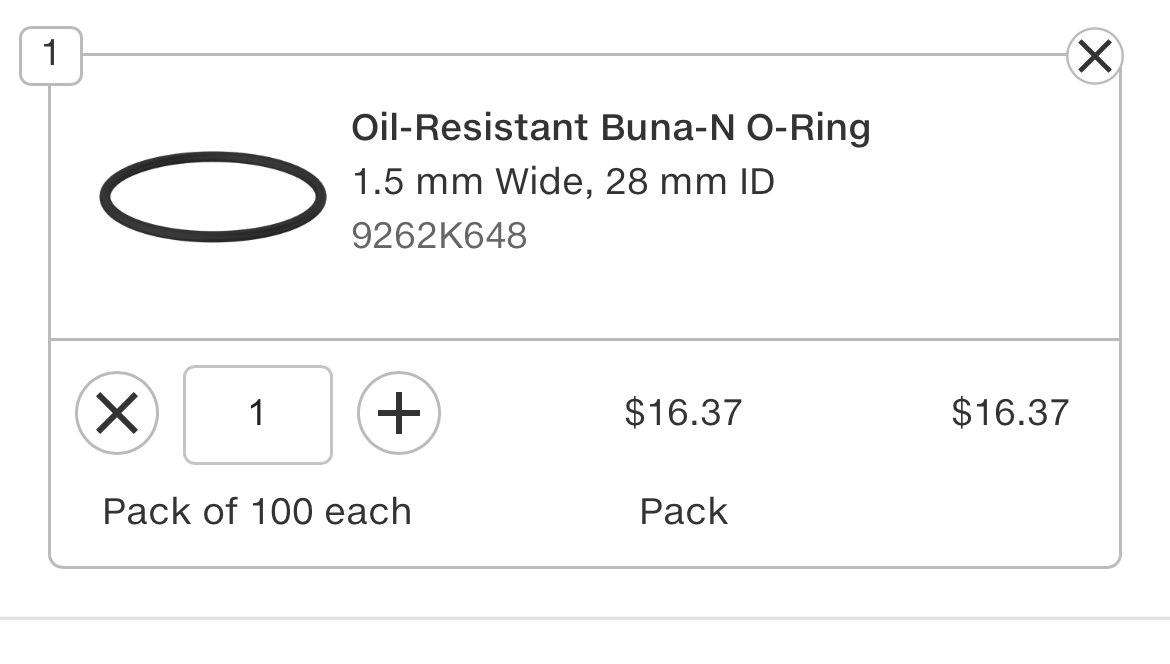

I used this link from Dewy and just picked a different size:
Oil-Resistant Hard Buna-N O-Ring, 2 mm Wide, 28 mm ID
McMaster-Carr
McMaster-Carr is the complete source for your plant with over 595,000 products. 98% of products ordered ship from stock and deliver same or next day.www.mcmaster.com
AnubisGuard
Master Member
That should be it, yeah.
velvetthunder
New Member

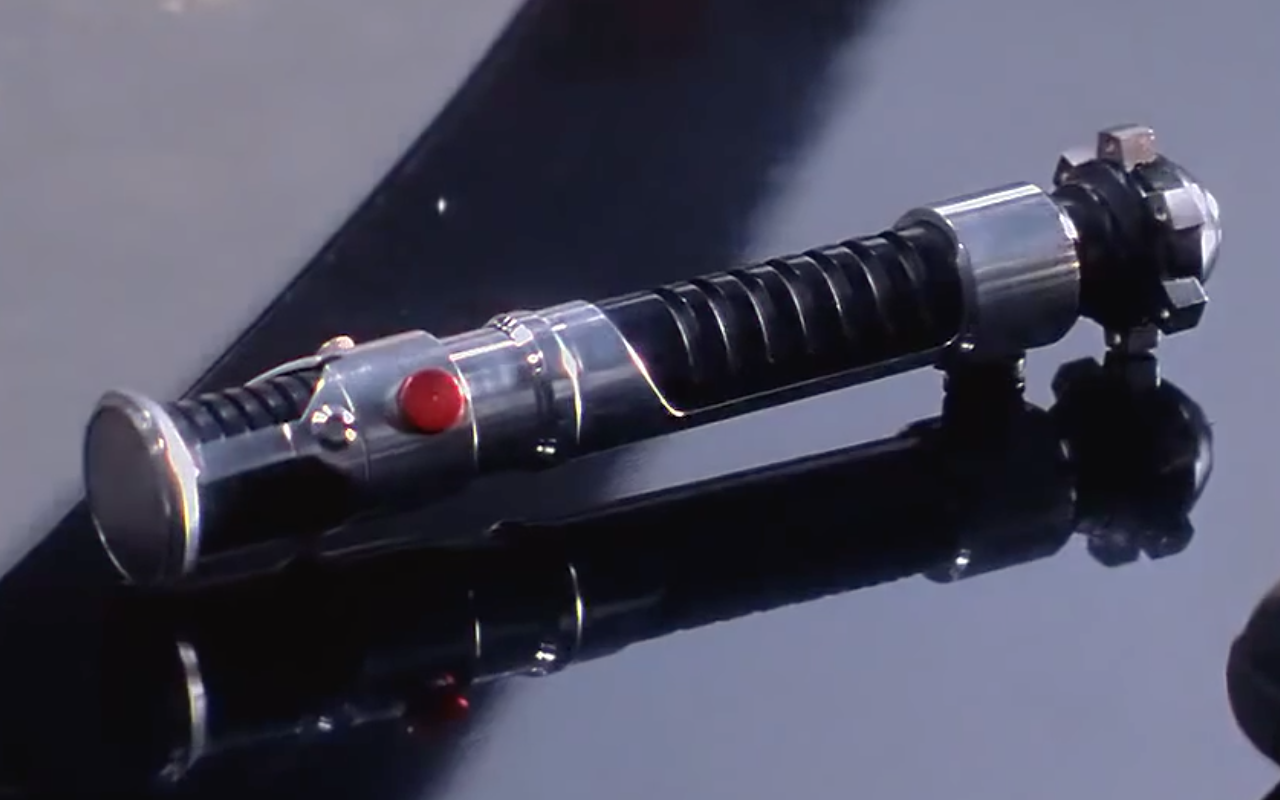

I have read a little about this on some early replies on this thread, but I am still not 100% clear on what the explanation is for this. And I am just super curious about what the consensus kind of is. I know dewy's model overlay proves that the floor saber is the same as the hero reference photos, but I'd be super curious about what the conclusion is on why the emitter lip is higher than the washer in this scene. Anyways this is out of pure curiosity.
Side note, I just completed my build of this hilt and I just am so grateful to be able to own something like this...it's truly incredible what Anakin Starkiller and Dewy have been able to accomplish. When I was a little kid I used to take photos of the TV with my moms old digital camera of this very scene, only imagining what it'd be like to hold the real deal. Dream come true! Thanks guys!
Side note, I just completed my build of this hilt and I just am so grateful to be able to own something like this...it's truly incredible what Anakin Starkiller and Dewy have been able to accomplish. When I was a little kid I used to take photos of the TV with my moms old digital camera of this very scene, only imagining what it'd be like to hold the real deal. Dream come true! Thanks guys!
