Yeah I have had no luck on the soles of the EVA boots. I was going to try turning a set of old Canadian army mukluks into EVA boots and using foam sheets for the blue parts, but I'm not skilled with that material and I'm leaning towards just doing IVA boots.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

zachsbanks547

New Member
That’s basically what I’m thinking: stick with IVA unless I find some soles.

Edit: one option I just remembered would be to buy boots from moonspacesuits.com. Most of their suits are pretty (n), but the boots don’t look half bad. You could either use as is or disassemble it, pattern the pieces, and reassemble with better materials and maybe a paint job.

Last edited:

zachsbanks547

New Member

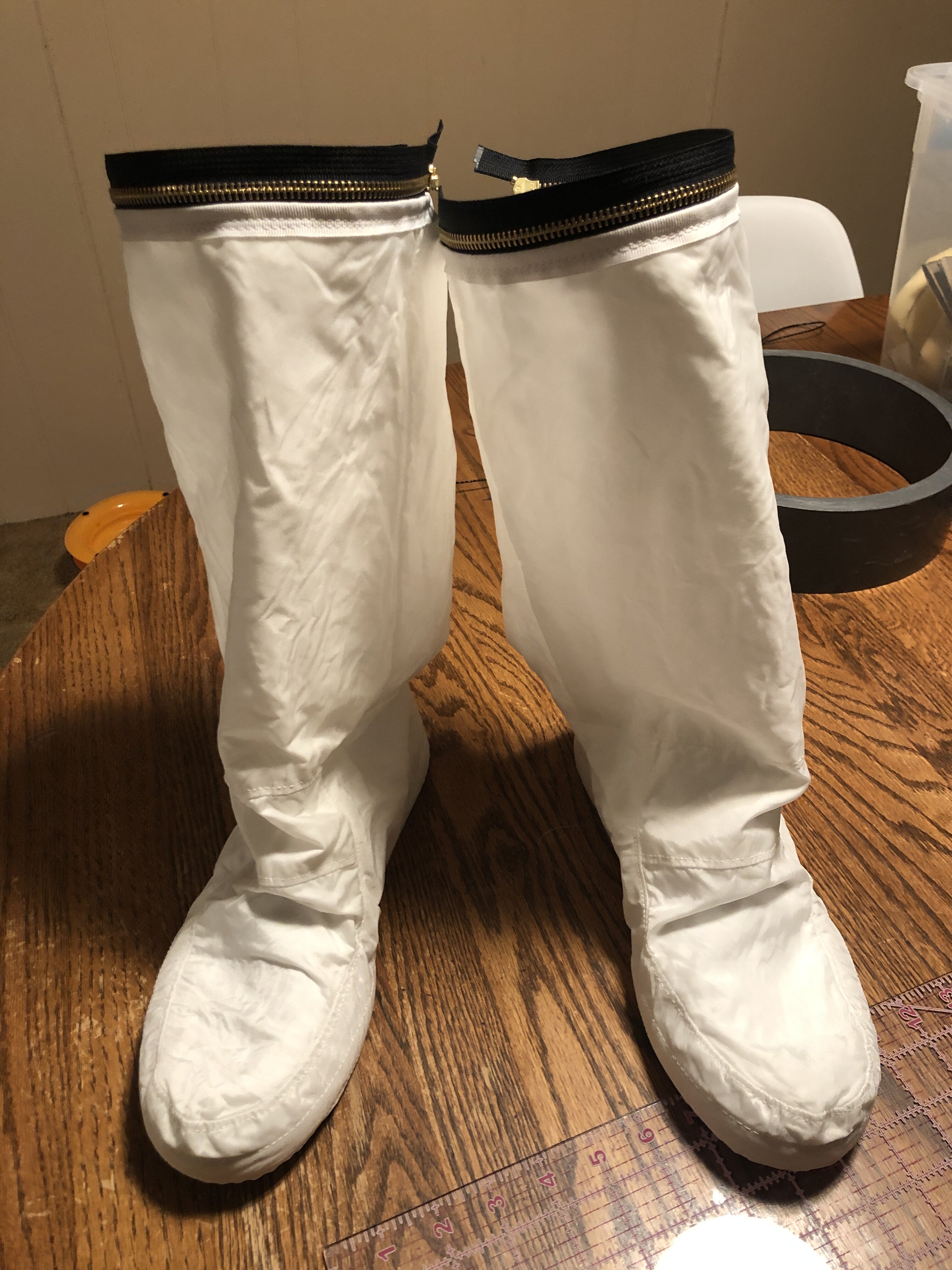

My IVA boots are done!

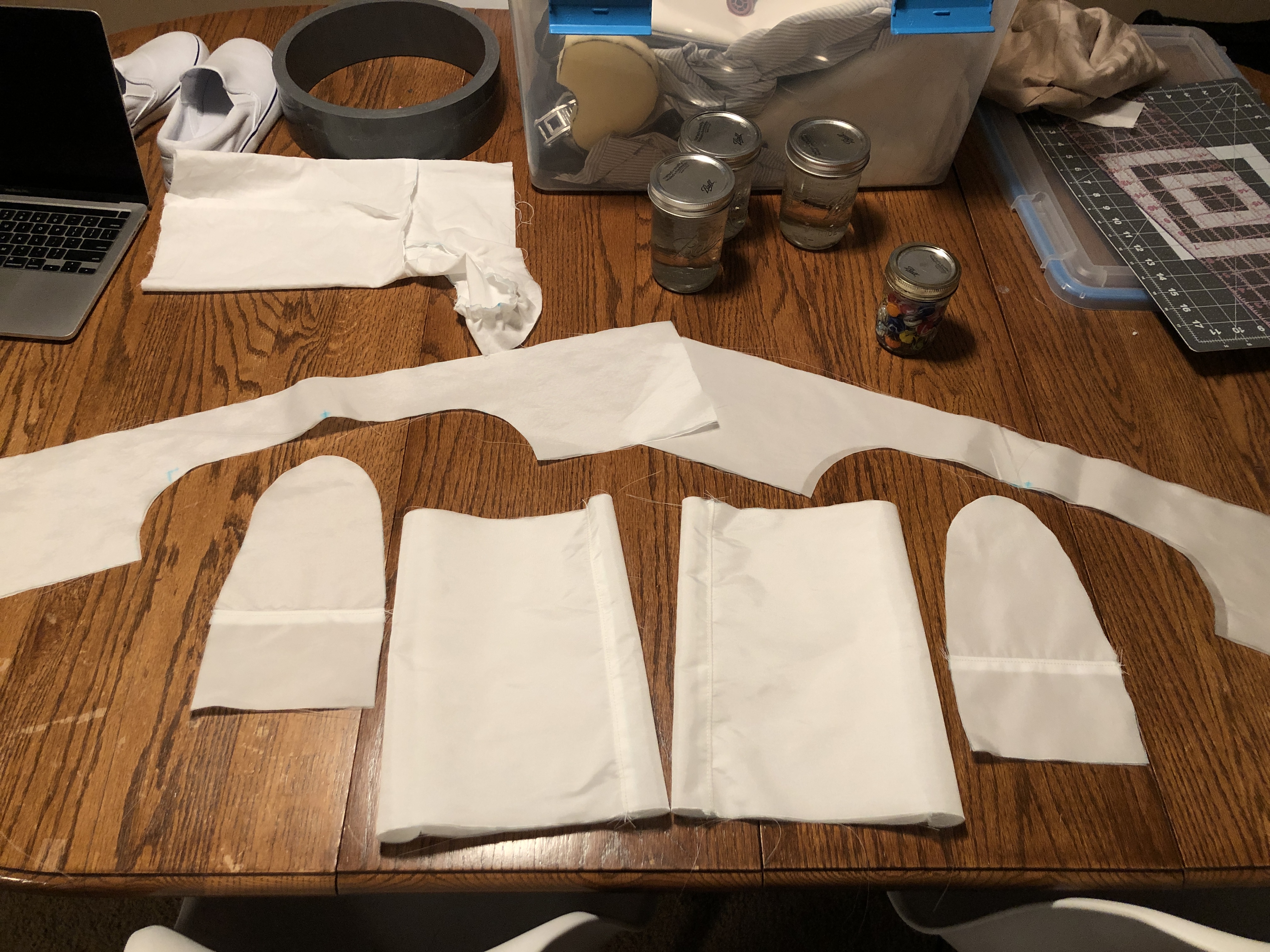

I got the all the pieces cut out and sewn mostly up. Then I had to have my very talented seamtress mother sew up the (tricky to me at least) toes of the outer layer. Ended up coming out great.
IMG_4174.jpg IMG_4181.jpg

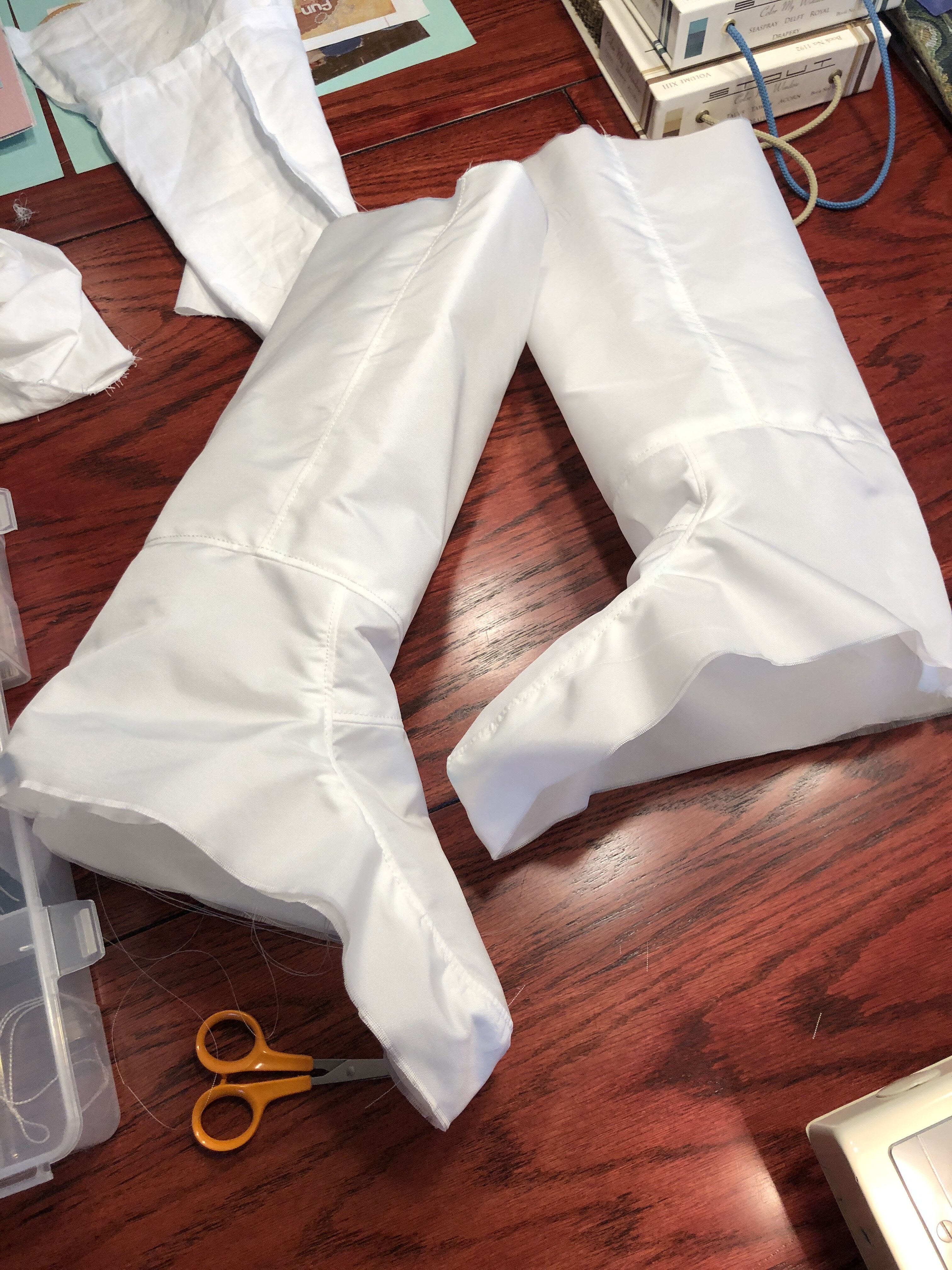

Then I got the inner outer layers connected and velcro attached. It’s looking great. I’m really happy with the shape, especially once attached to the shoe.

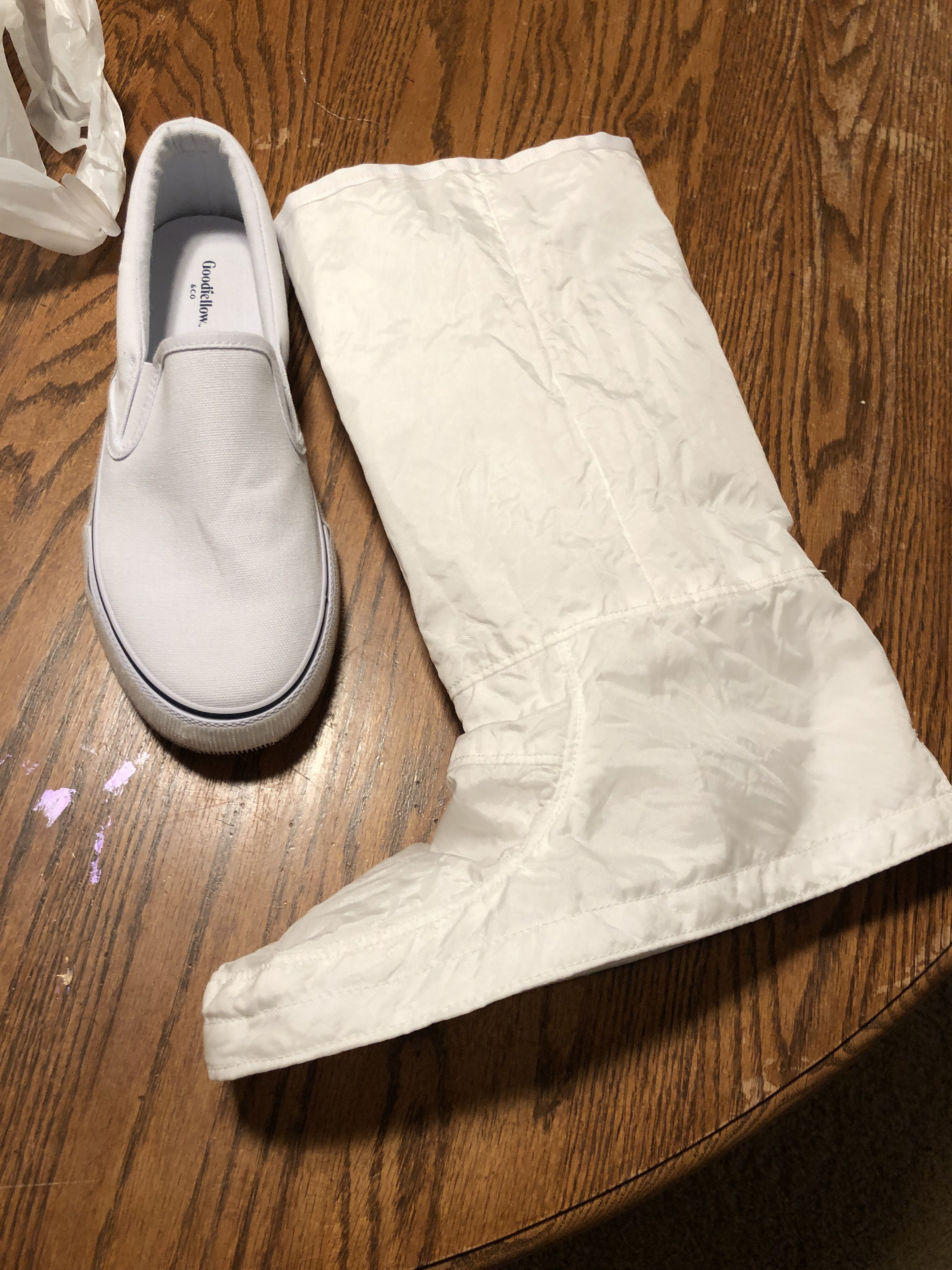

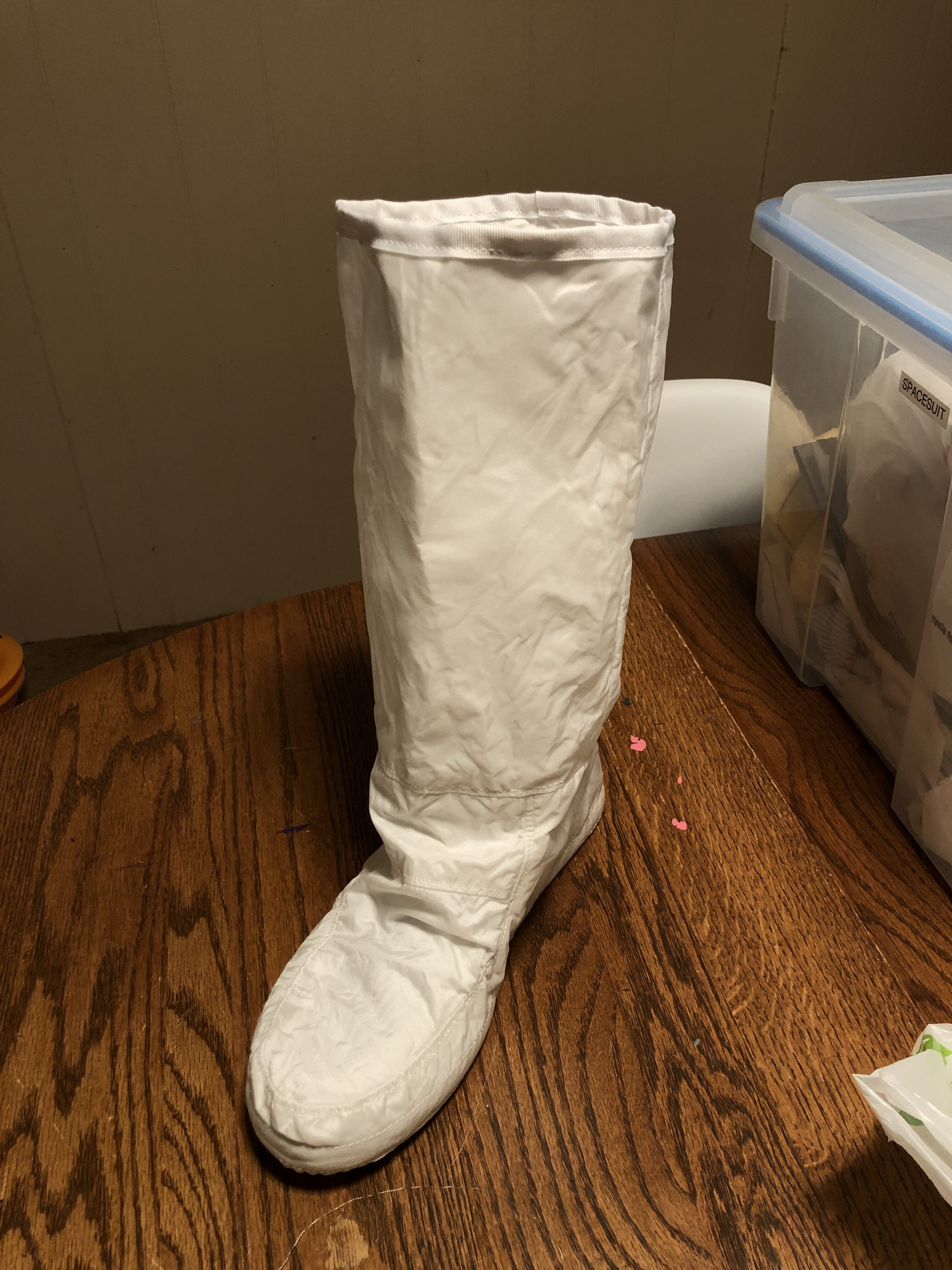

IMG_4183.jpg IMG_4184.jpg

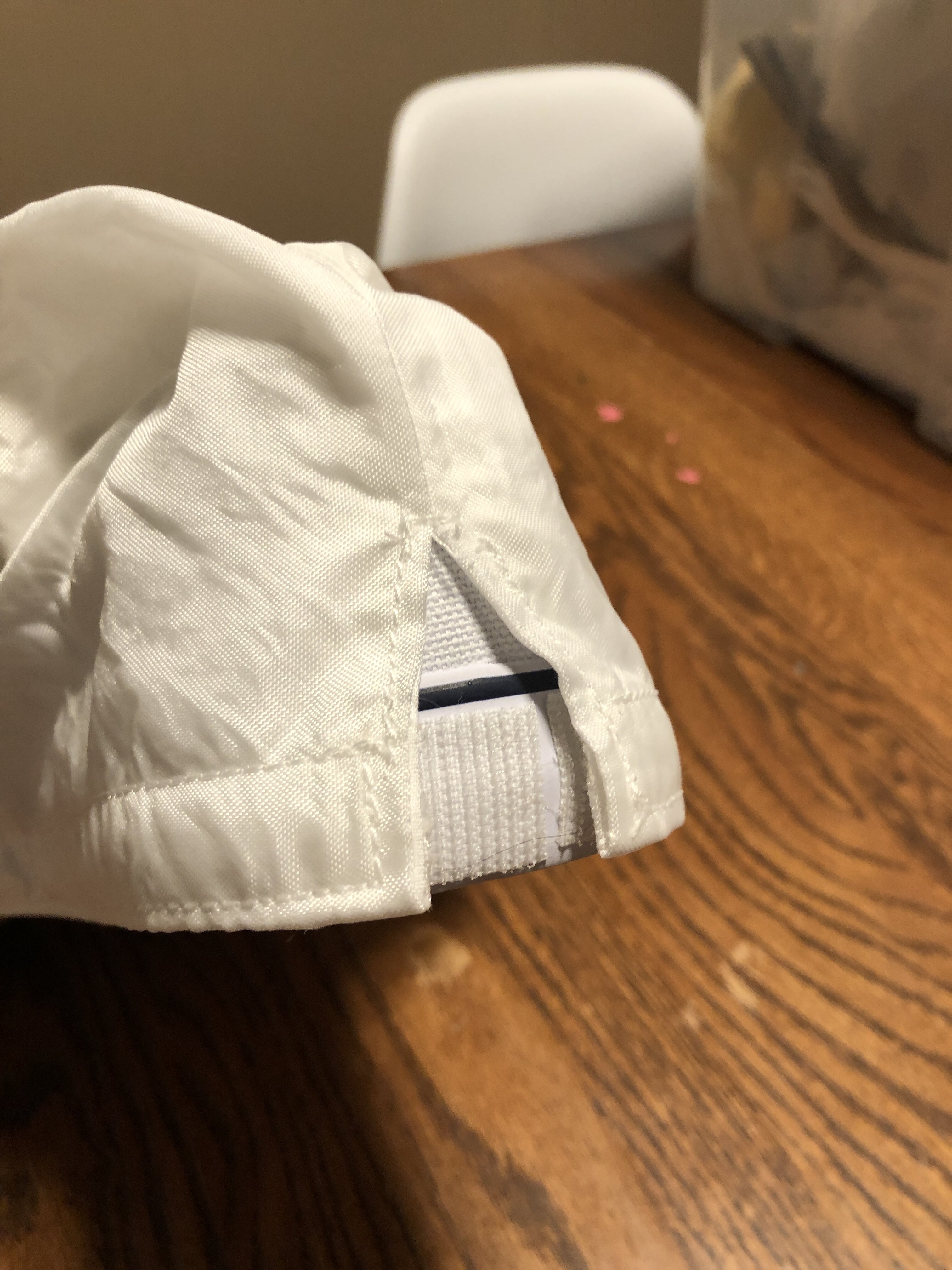

Unfortunately I had an issue where the final piece ended up too small around to fit around the shoe (despite earlier fit ups working great). For now, at least, I just split the back seam (and reenforced it) enough to fit it around the shoes. I may end up covering that with a patch of some kind in the future.

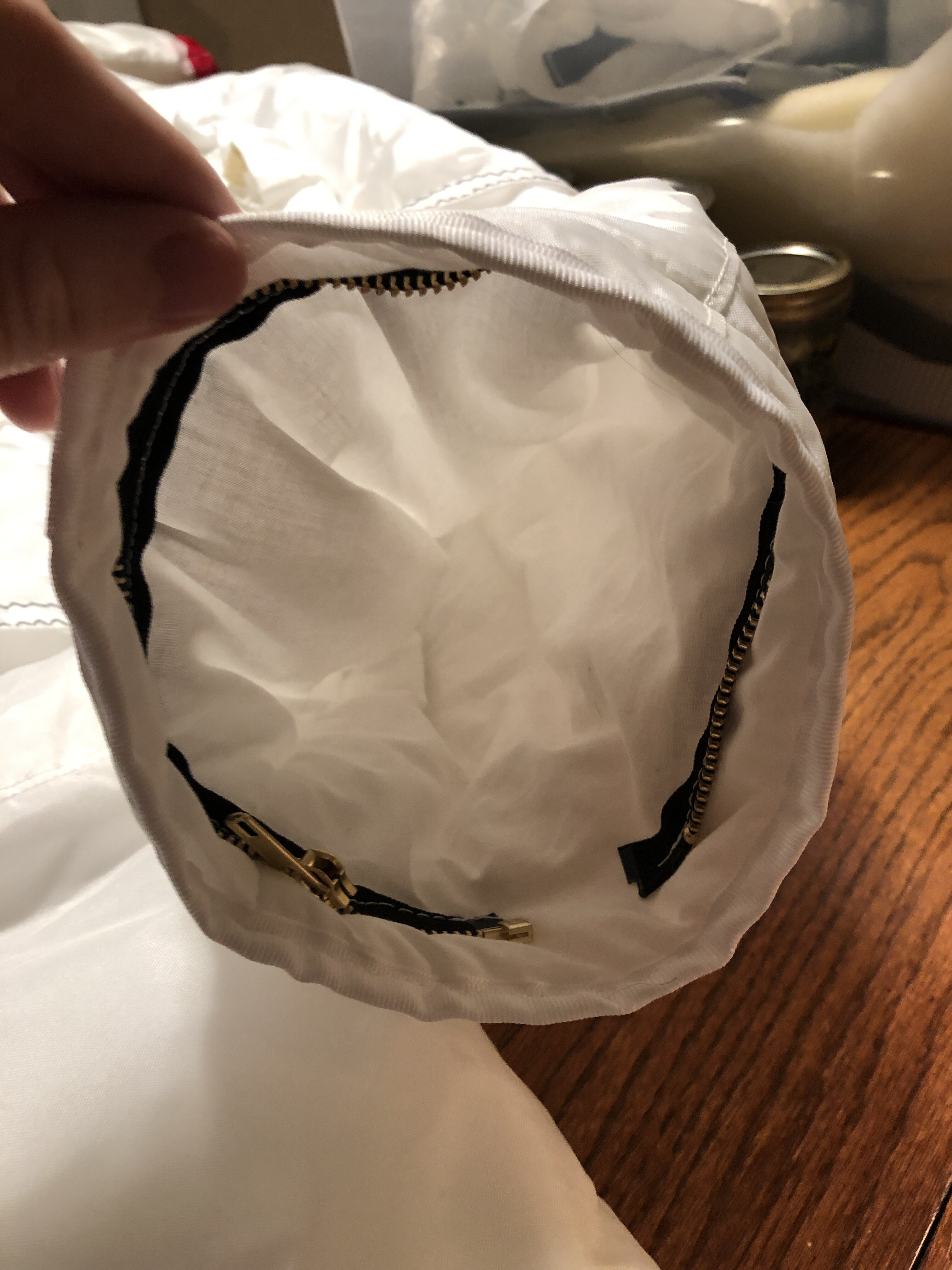

I got the zippers attached to the boots and the suit.
IMG_4188.jpg IMG_4190.jpg

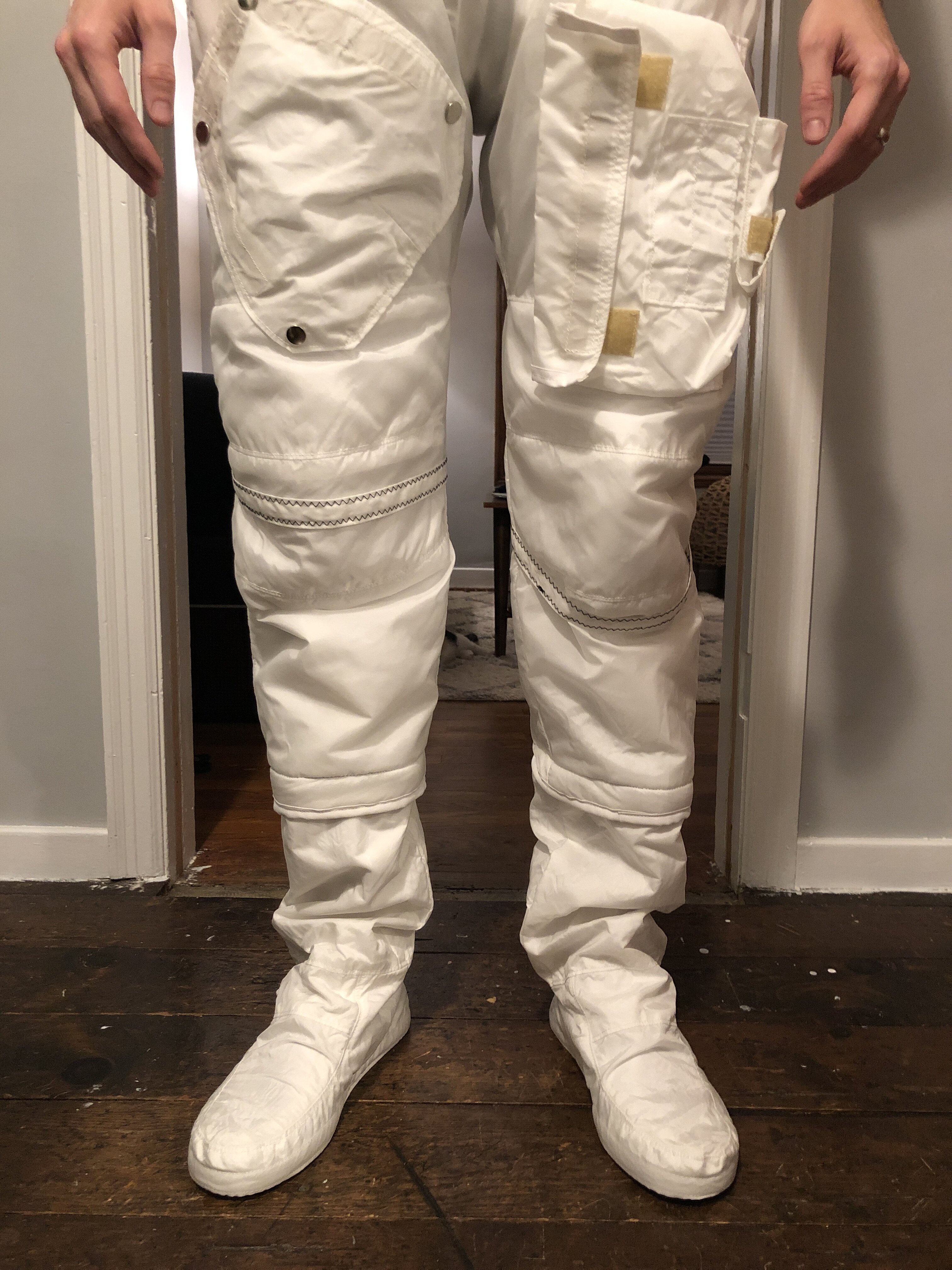

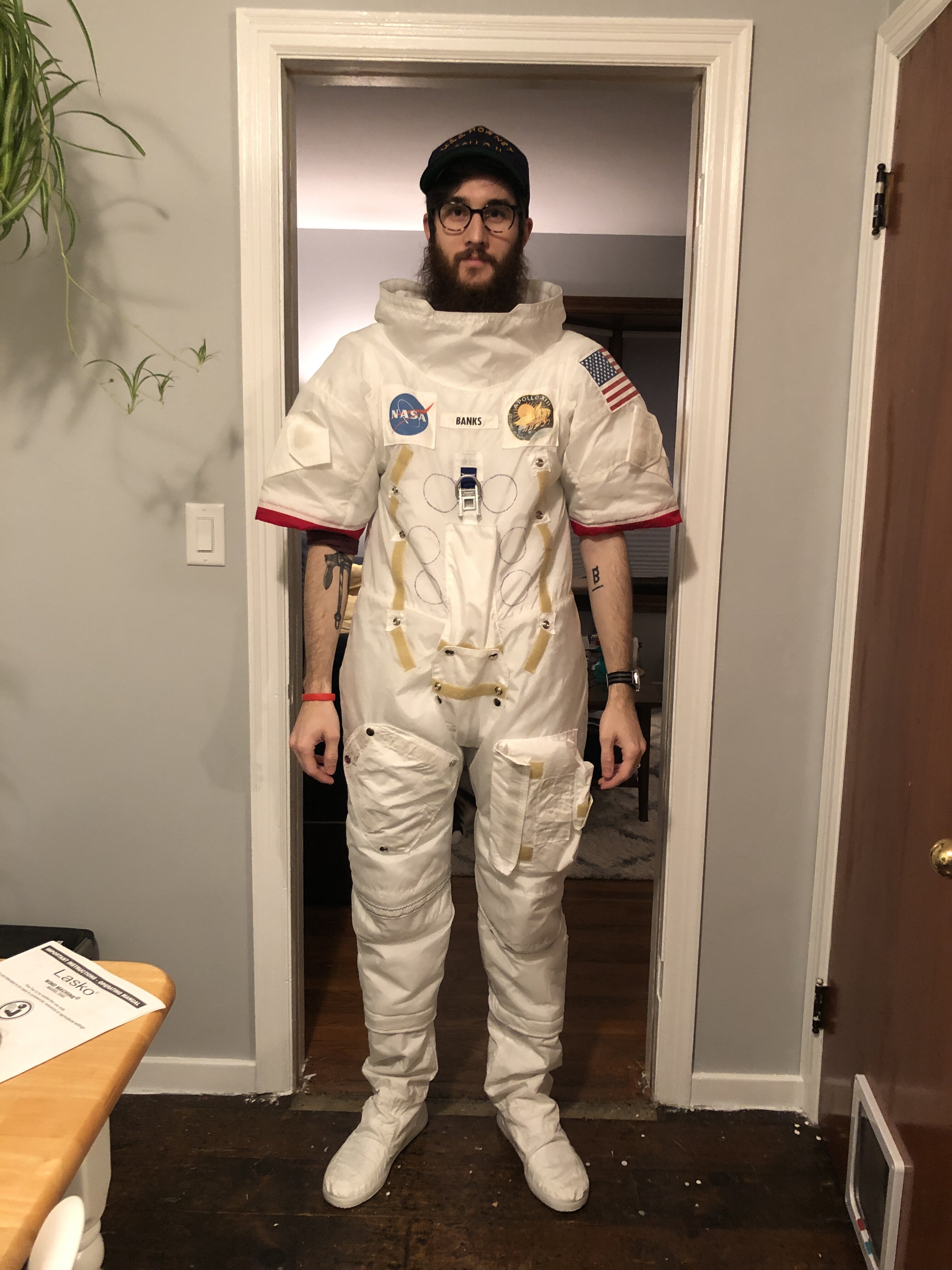

And it’s all together! And looking and feeling great. I have plenty of space to move/stretch/bend over without pulling on the legs or them getting tight.
IMG_4191.jpg IMG_4194.jpg

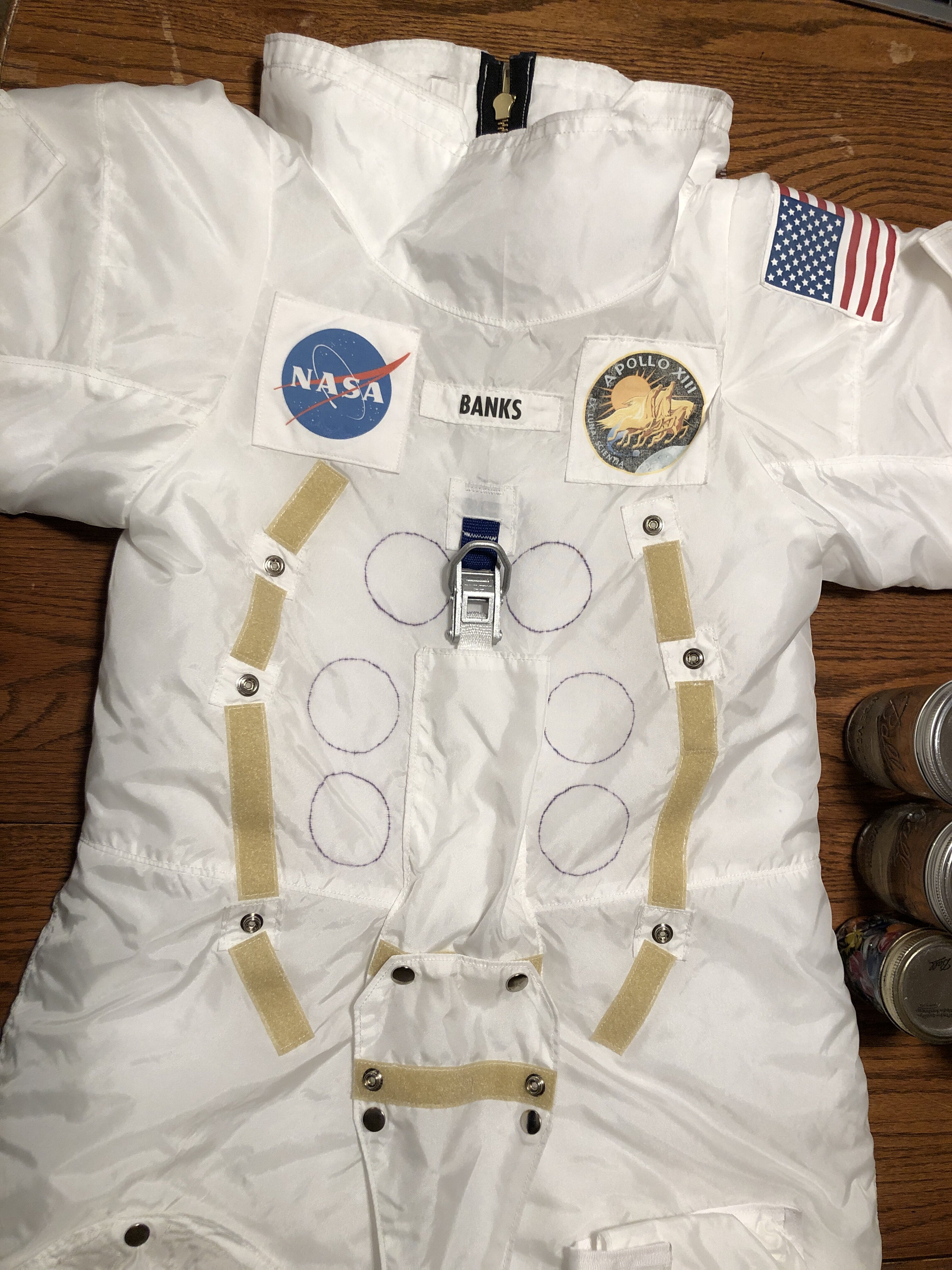

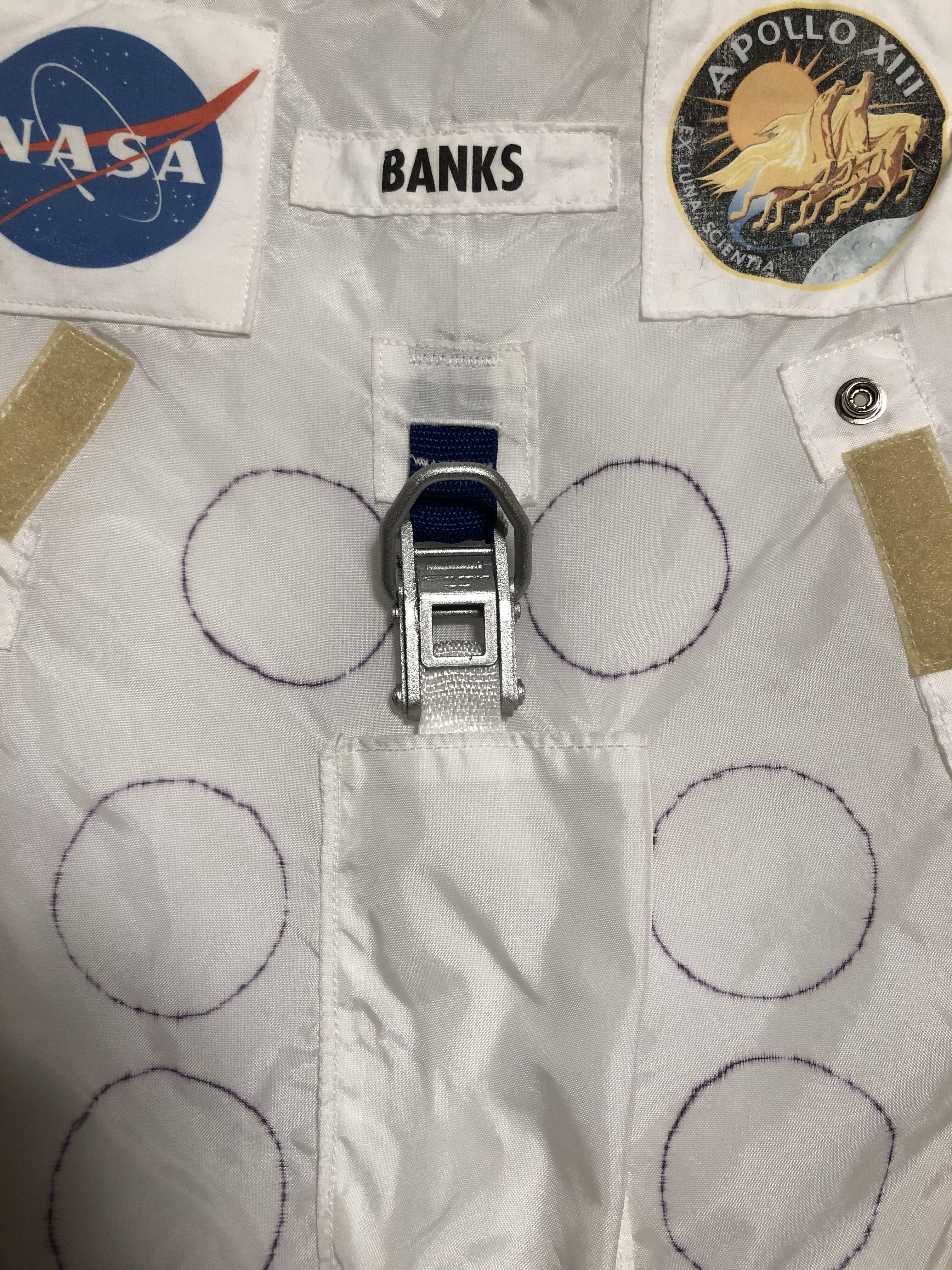

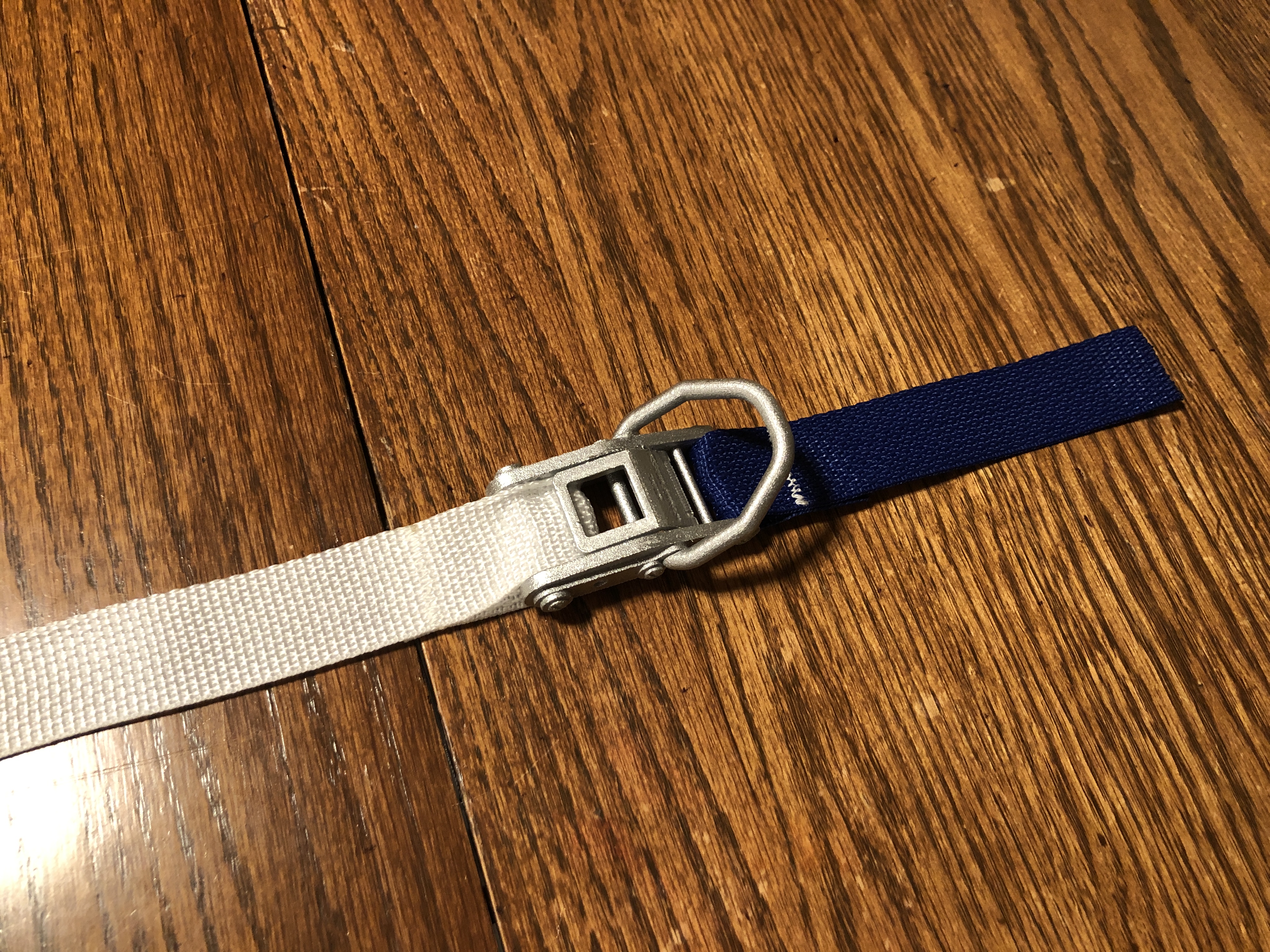

I also attached the front buckle. It was a pretty simple job with a few bar tacks. Again, it’s definitely a bit small, but I’ll worry about that later.
IMG_4176.jpg IMG_4178.jpg IMG_4179.jpg

And lastly, I got a mannequin. I couldn’t think of a better way to display the suit and I found a good deal on eBay, so I went for it. I got it all set up in my basement/work room. (though my wife isn’t a huge fan; too many episodes of Doctor Who)


zachsbanks547

New Member
More progress!

I decided to start working on my PVC (possibly placeholder) neck ring.

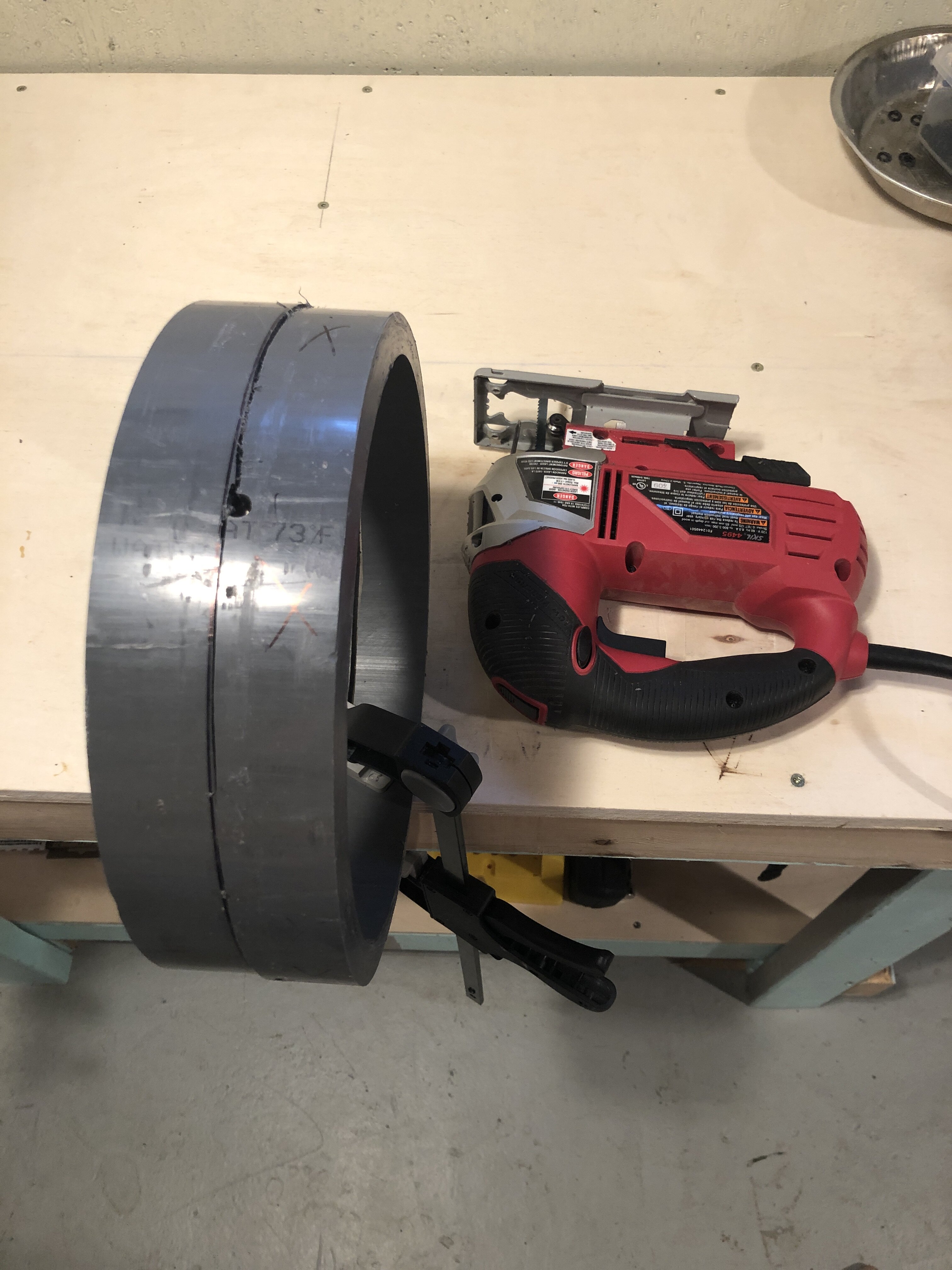

I had the slice my piece in half to get to 1.5", which I did with a jigsaw.

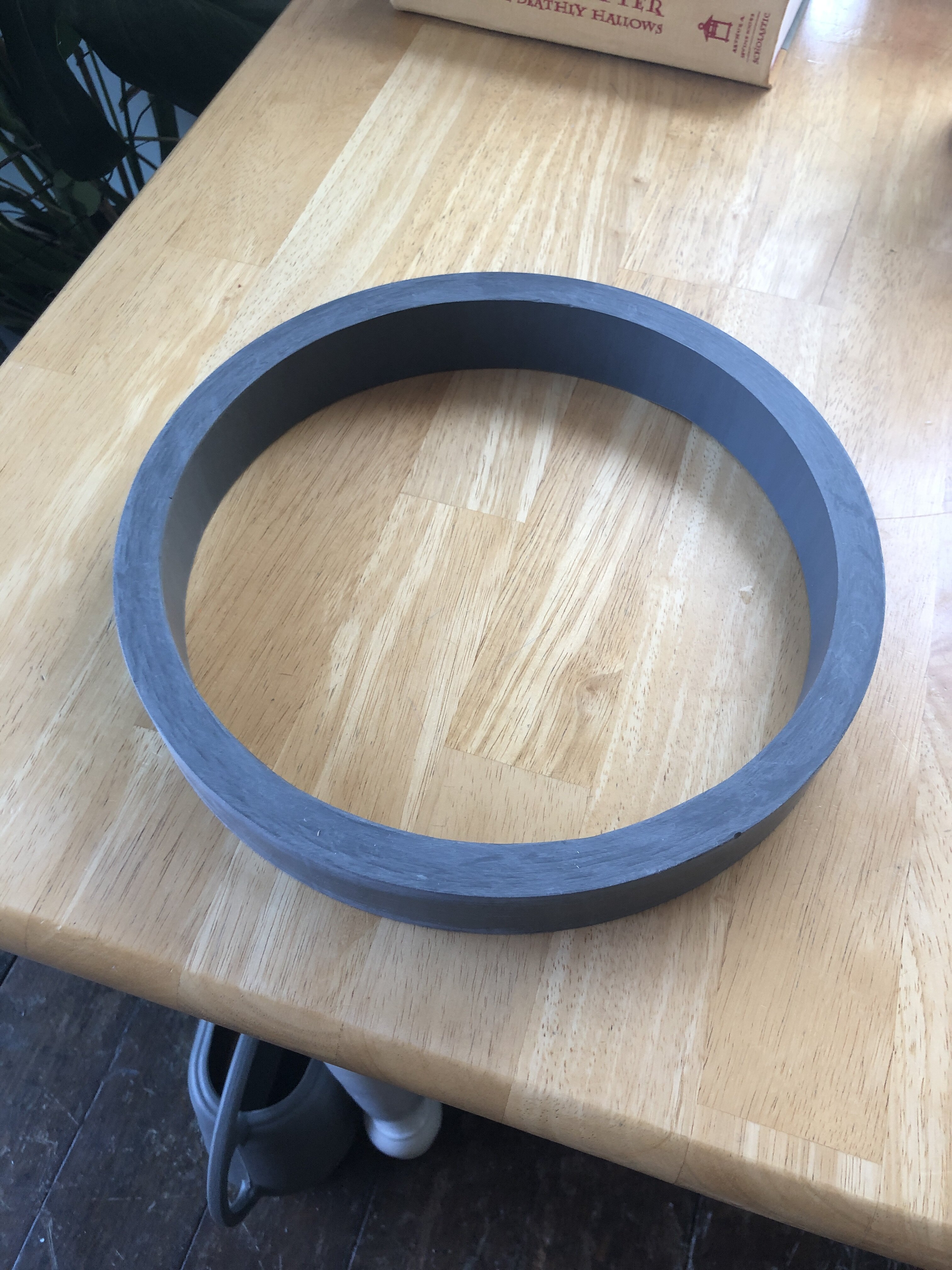

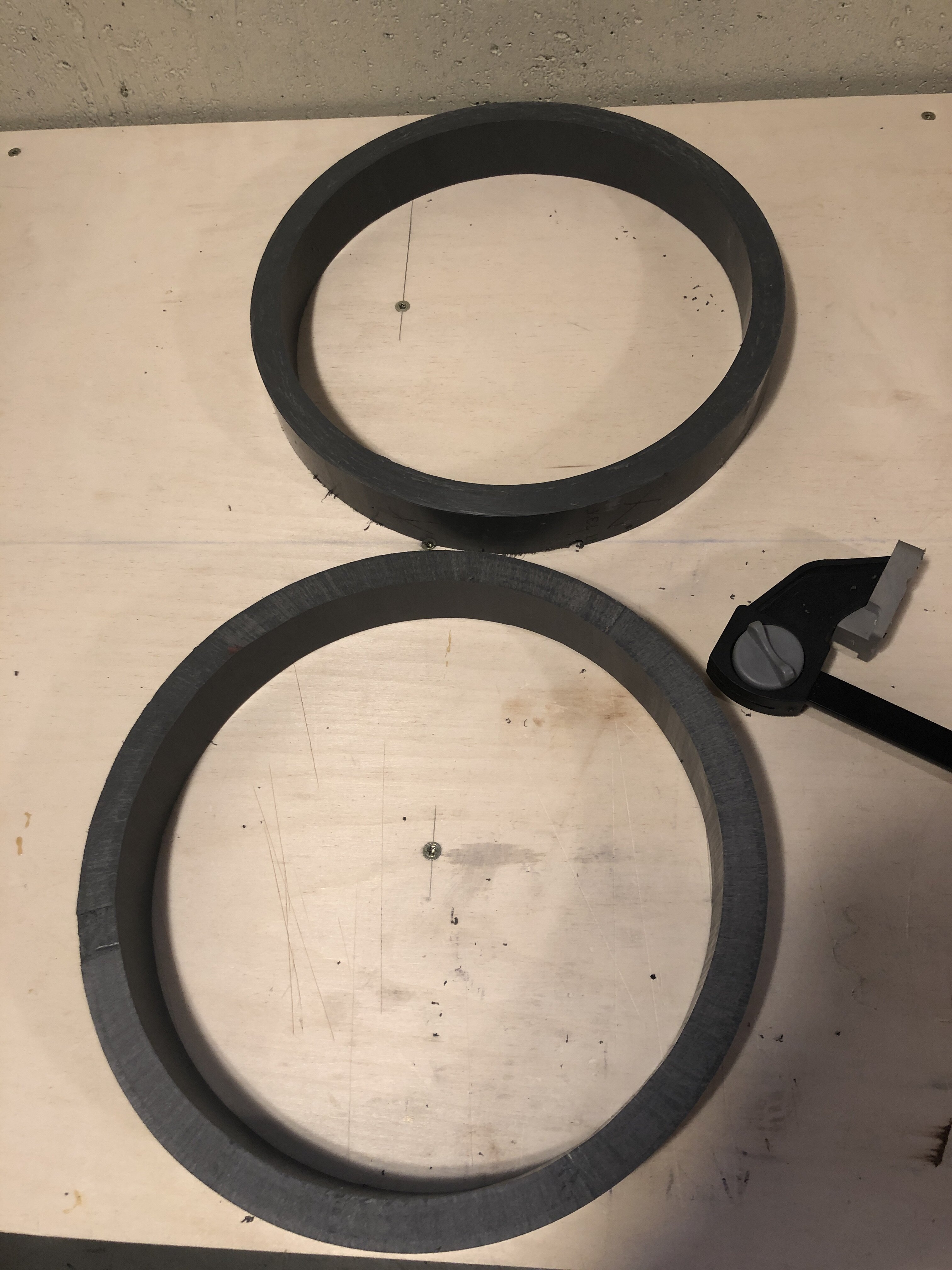

IMG_4196.JPG IMG_4197.JPG

After some sanding:

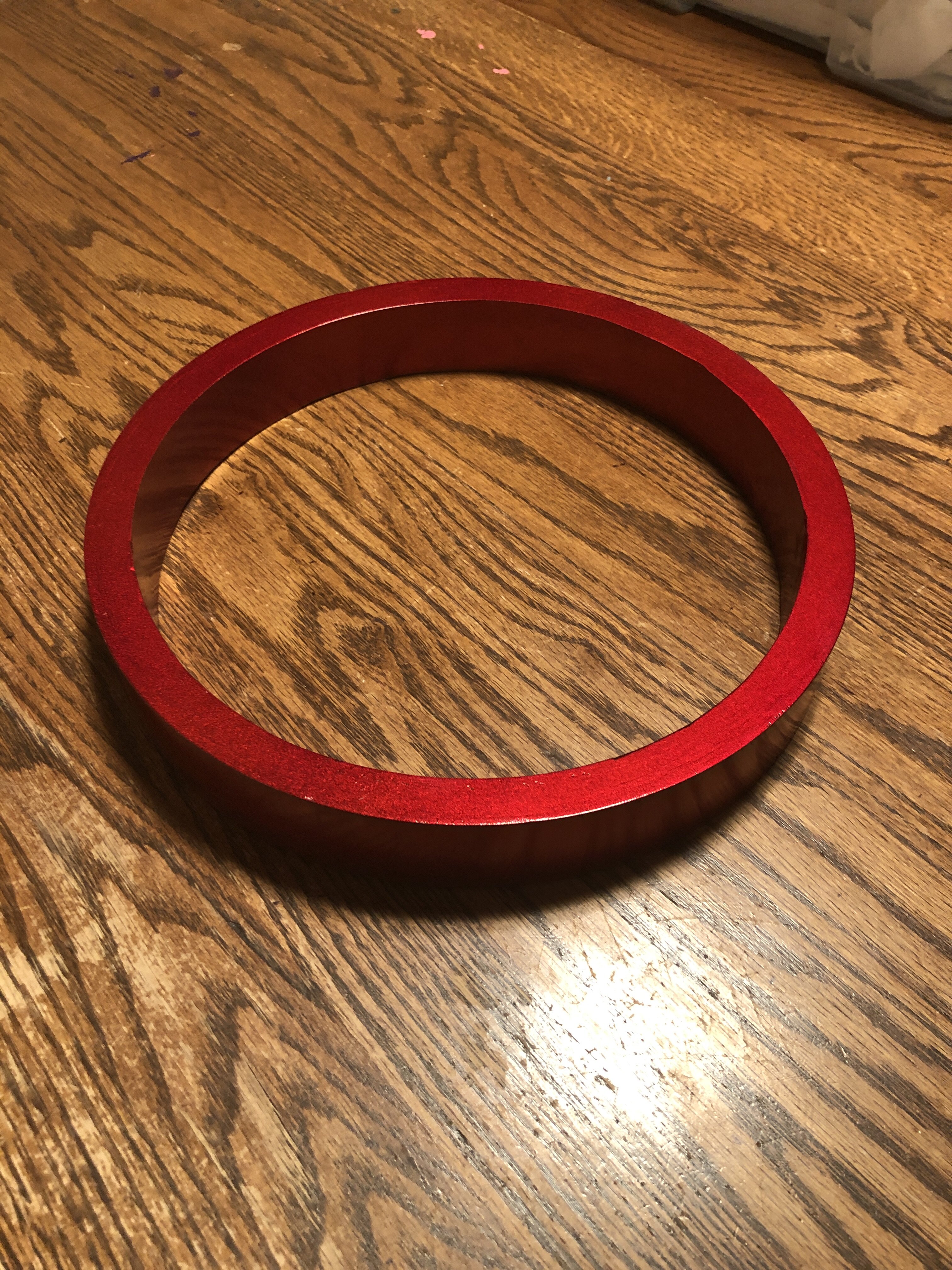

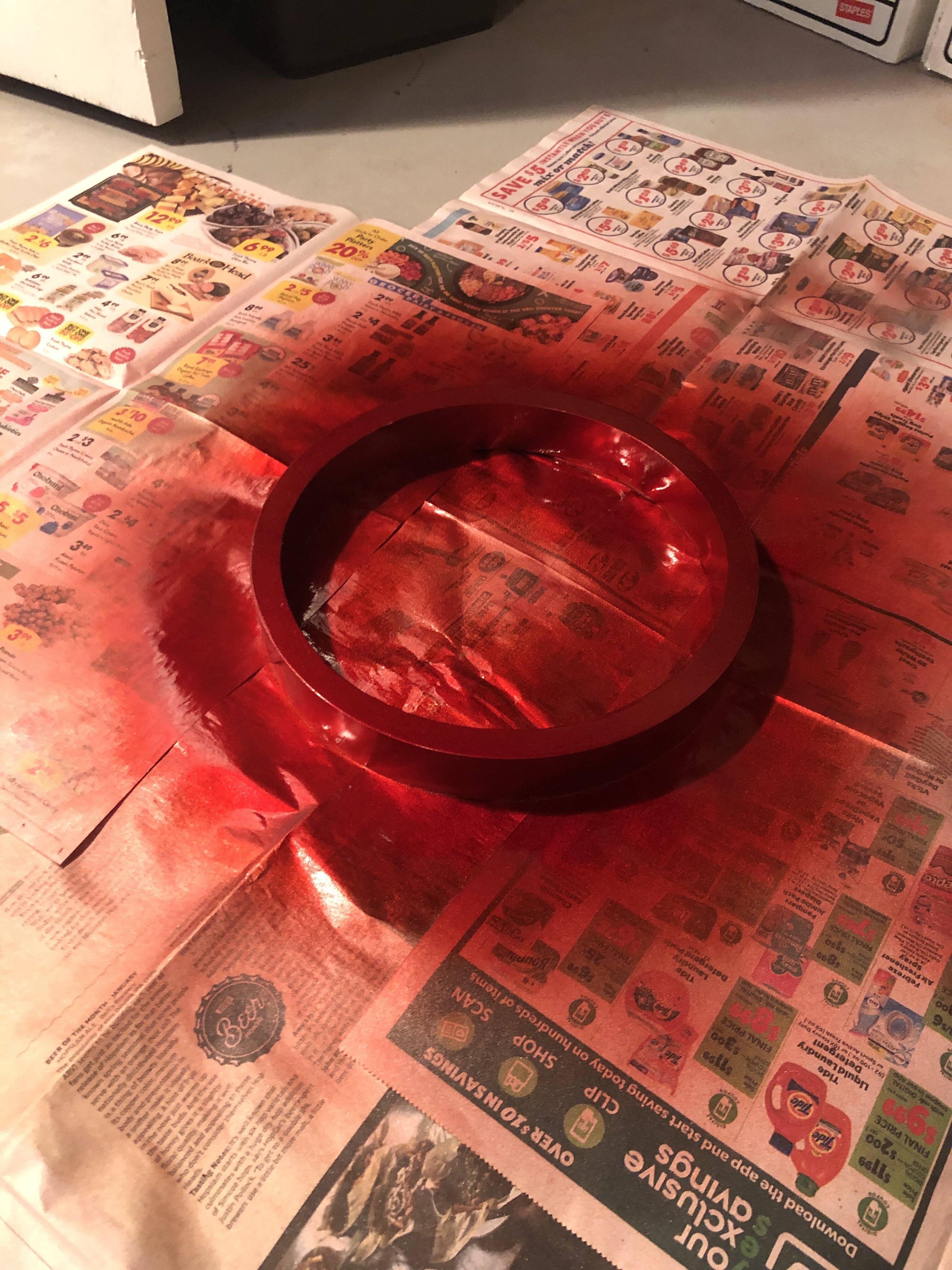

And after Duplicolor Metalcast base coat and red:

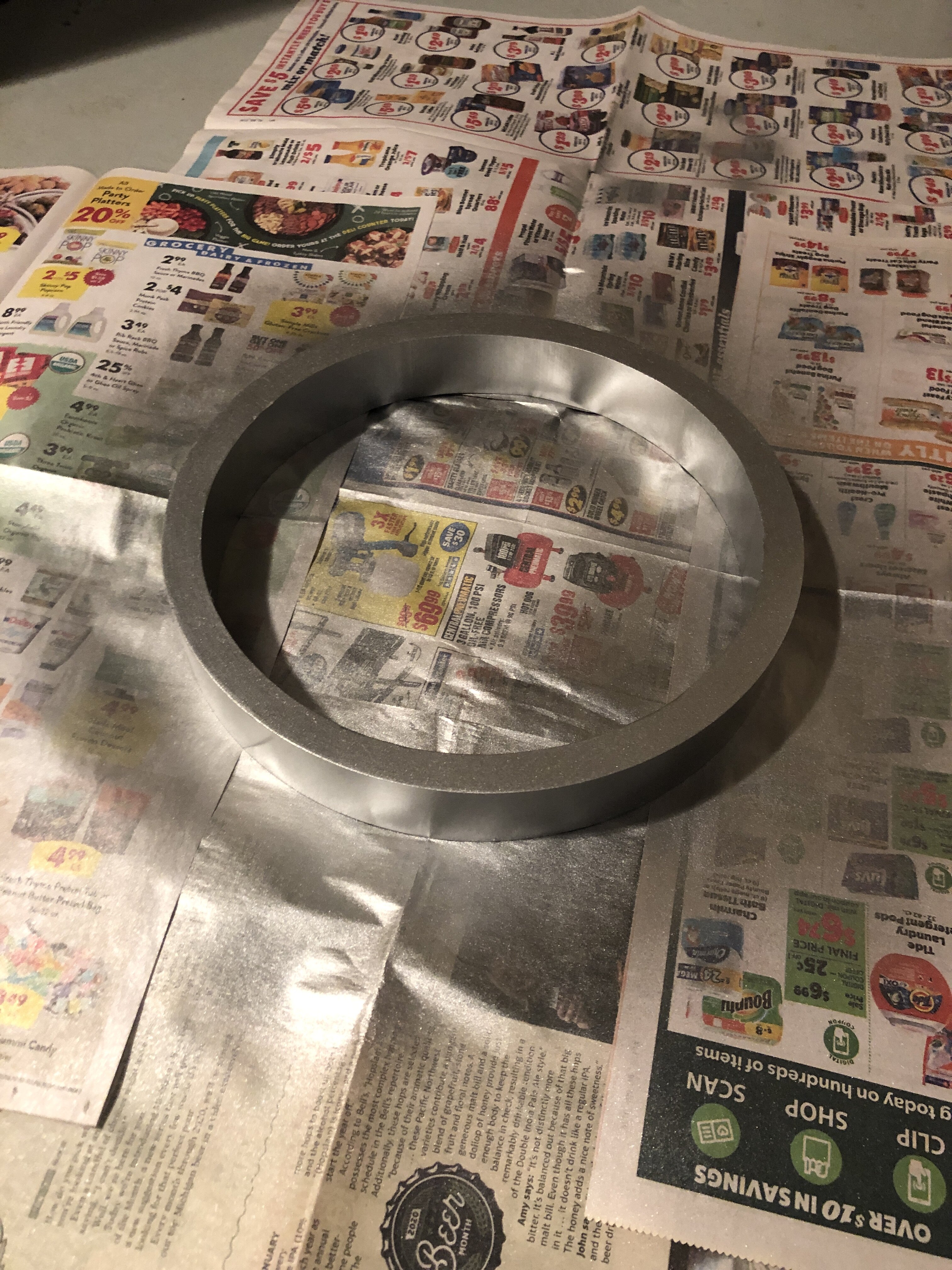

IMG_4199.JPG IMG_4200.JPG IMG_4201.JPG

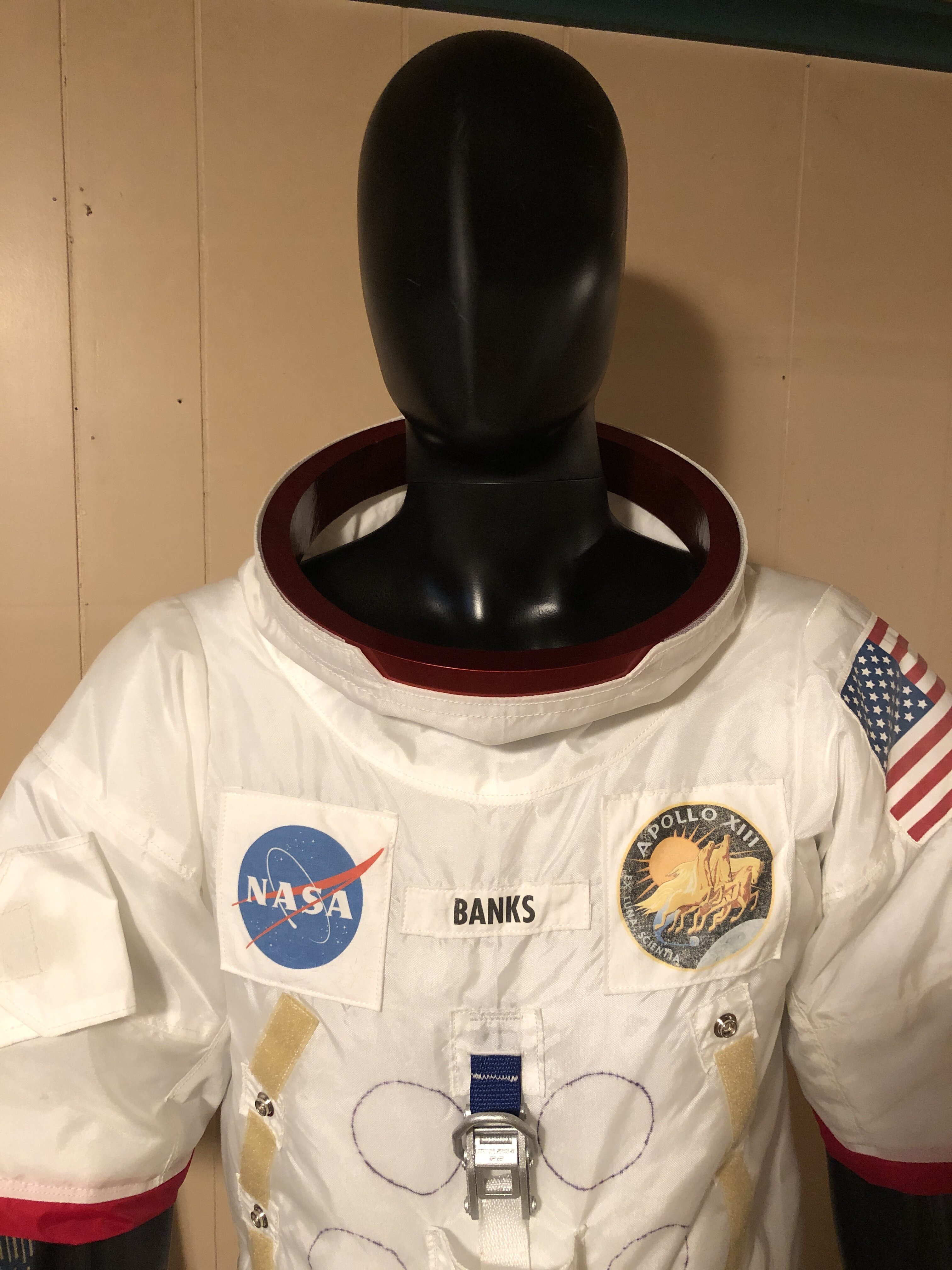

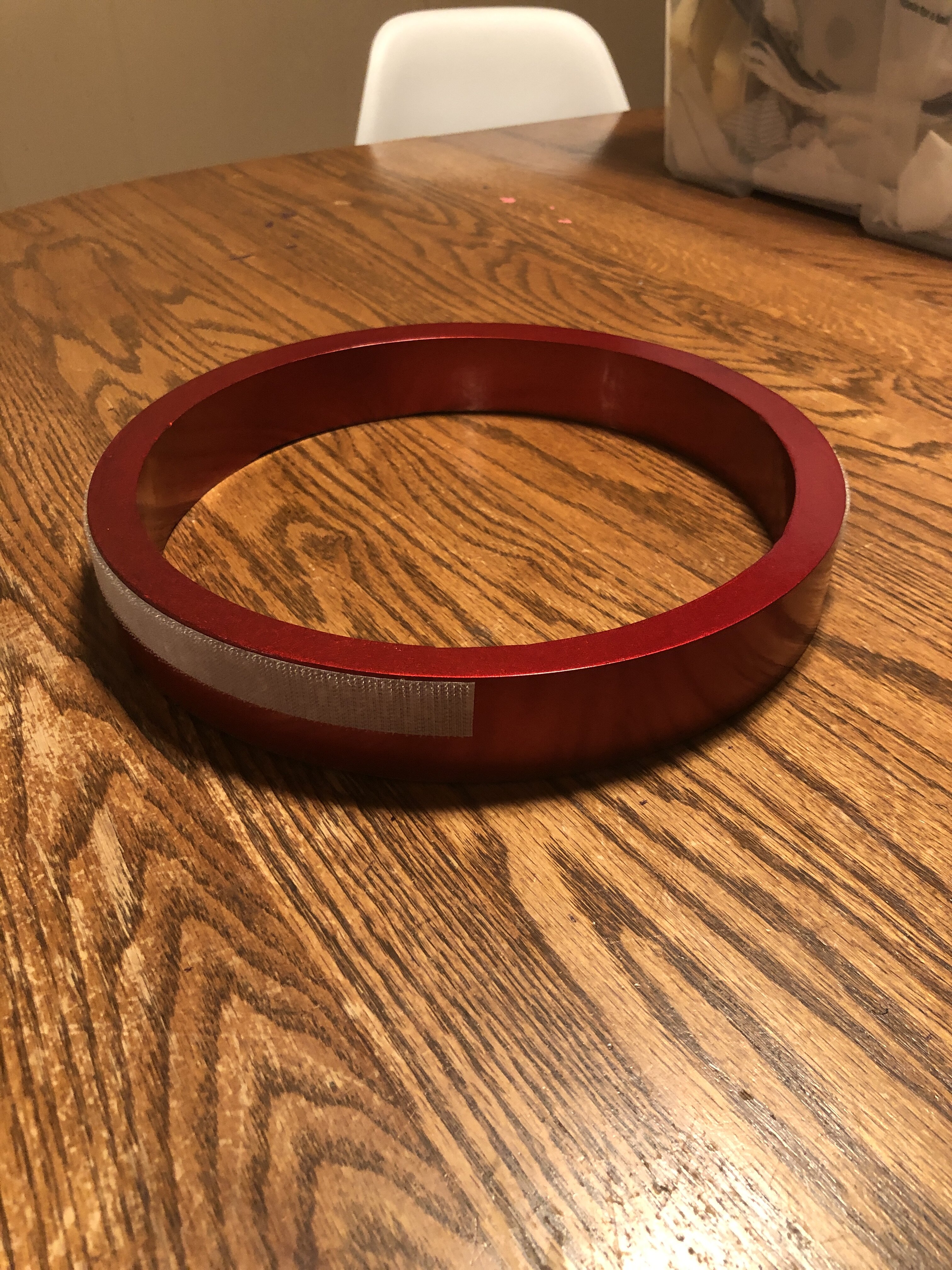

I added adhesive velcro to it, and did a test fit on the mannequin.

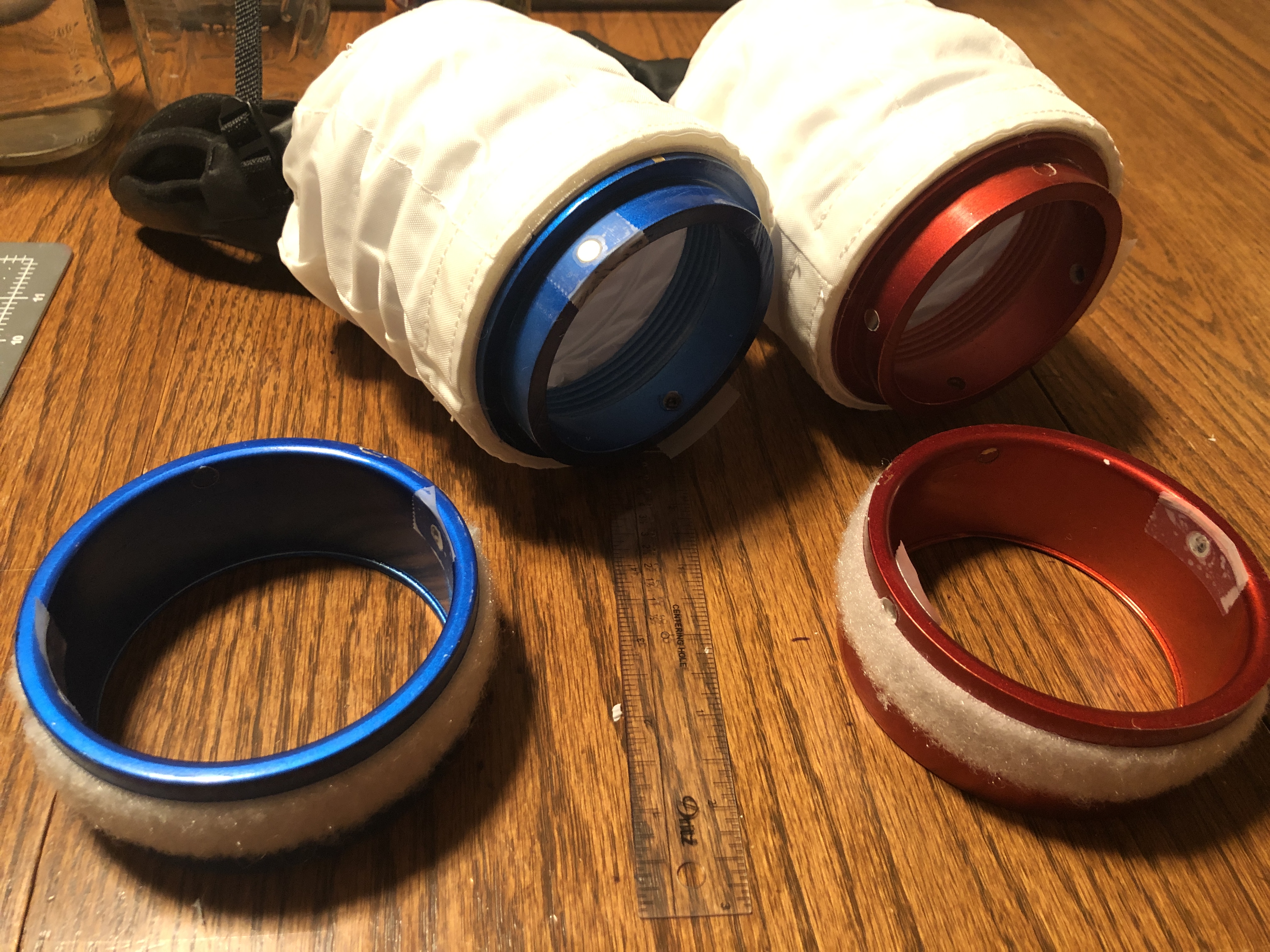

IMG_4207.JPG IMG_4210.JPG

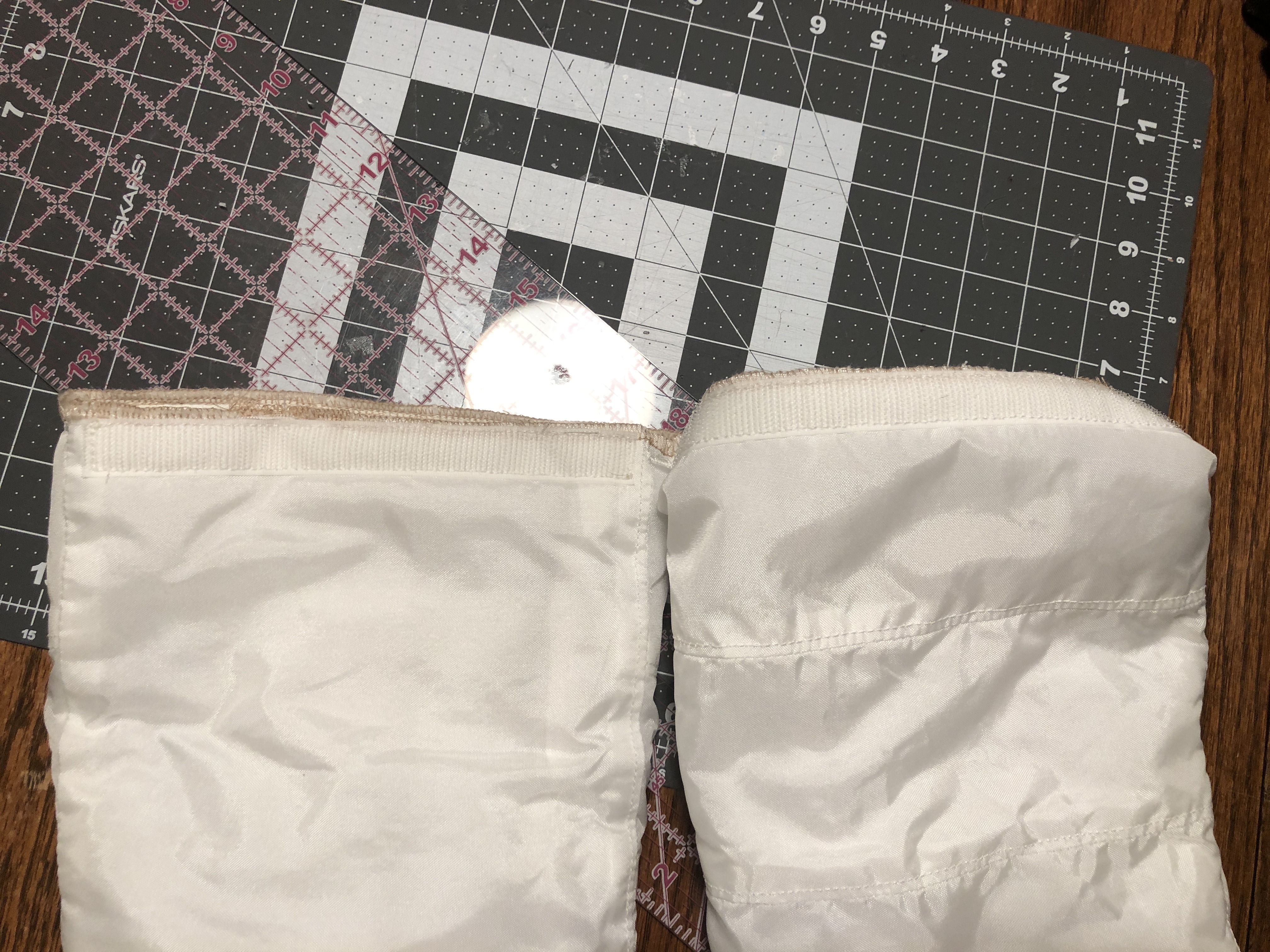

I sewed the velcro to the tops of my elbow pieces.

I added more magnets to my wrist rings, since the two pairs I had been using didn’t seem to hold quite as strong as I’d like. I added another two pairs per ring. It seems to work much better.

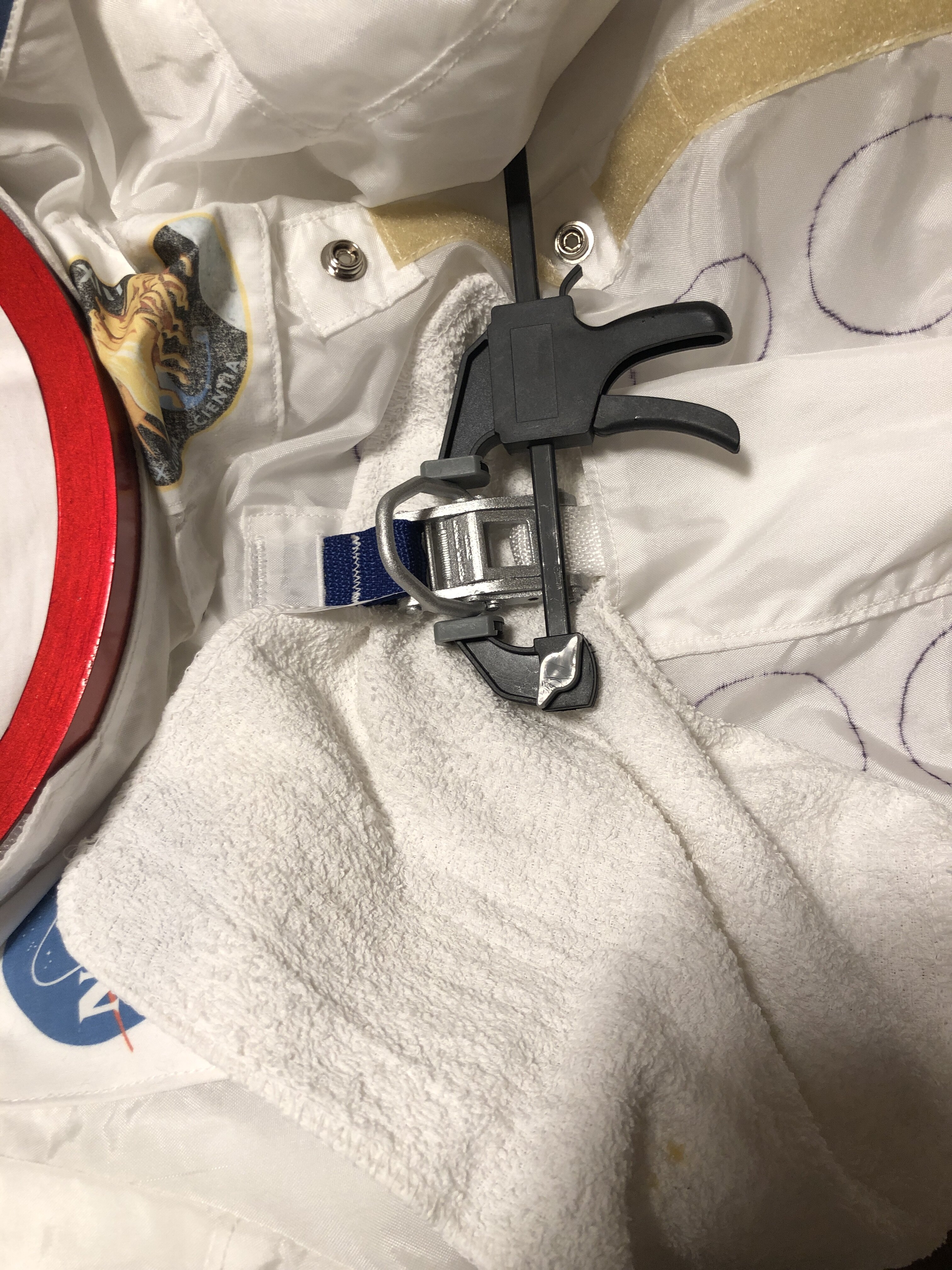

And I re-glued, for the third time, the PLSS loop onto the front buckle. The first two times I’d used super glue, but this time I used Gorilla Glue, which seems to have worked much better.

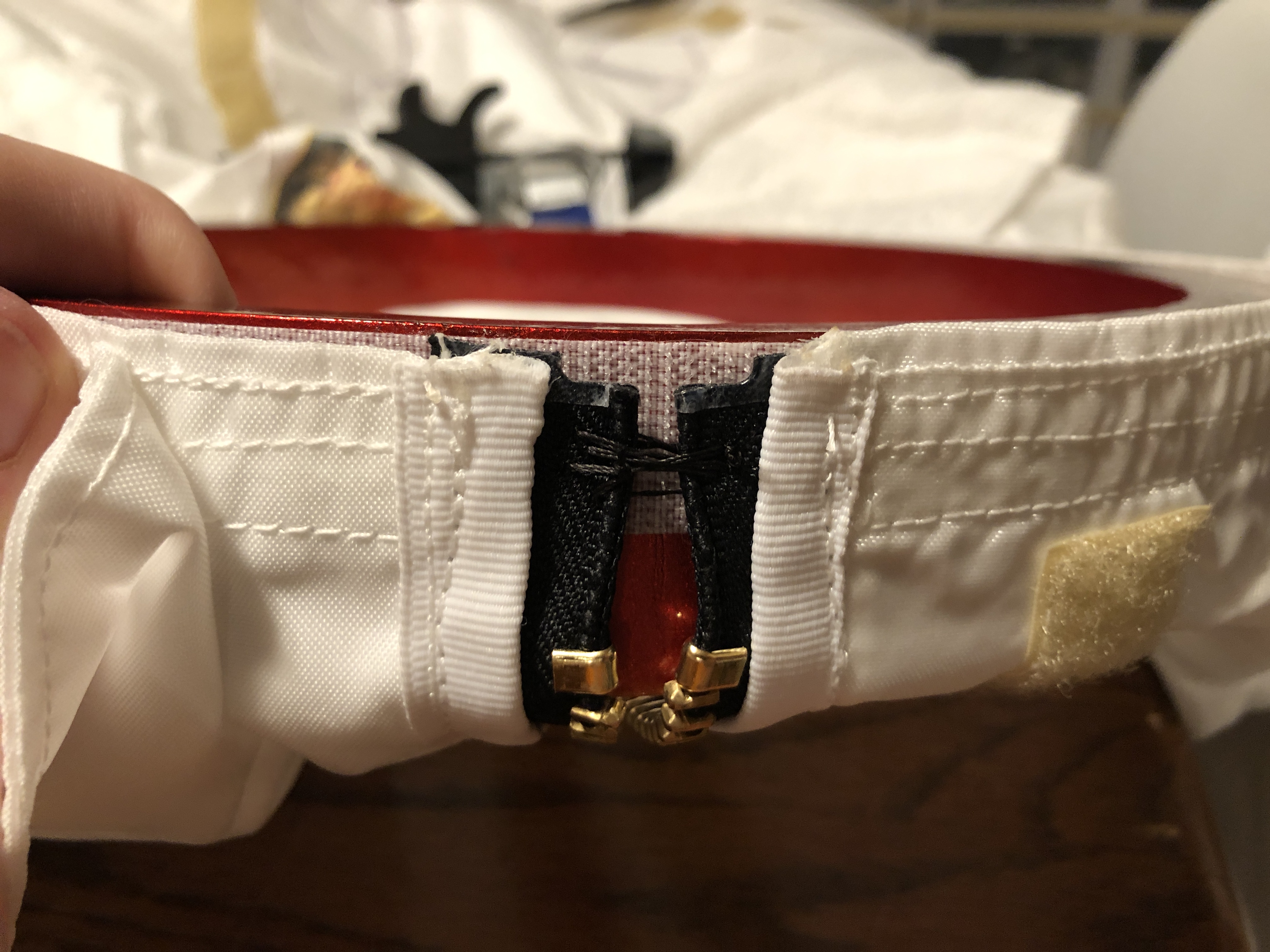

After having issues of the neck ring Velcro peeling off during donning, I ended up hand sewing the top of the zipper tape together to stop that area separating. It seems to have done the trick.

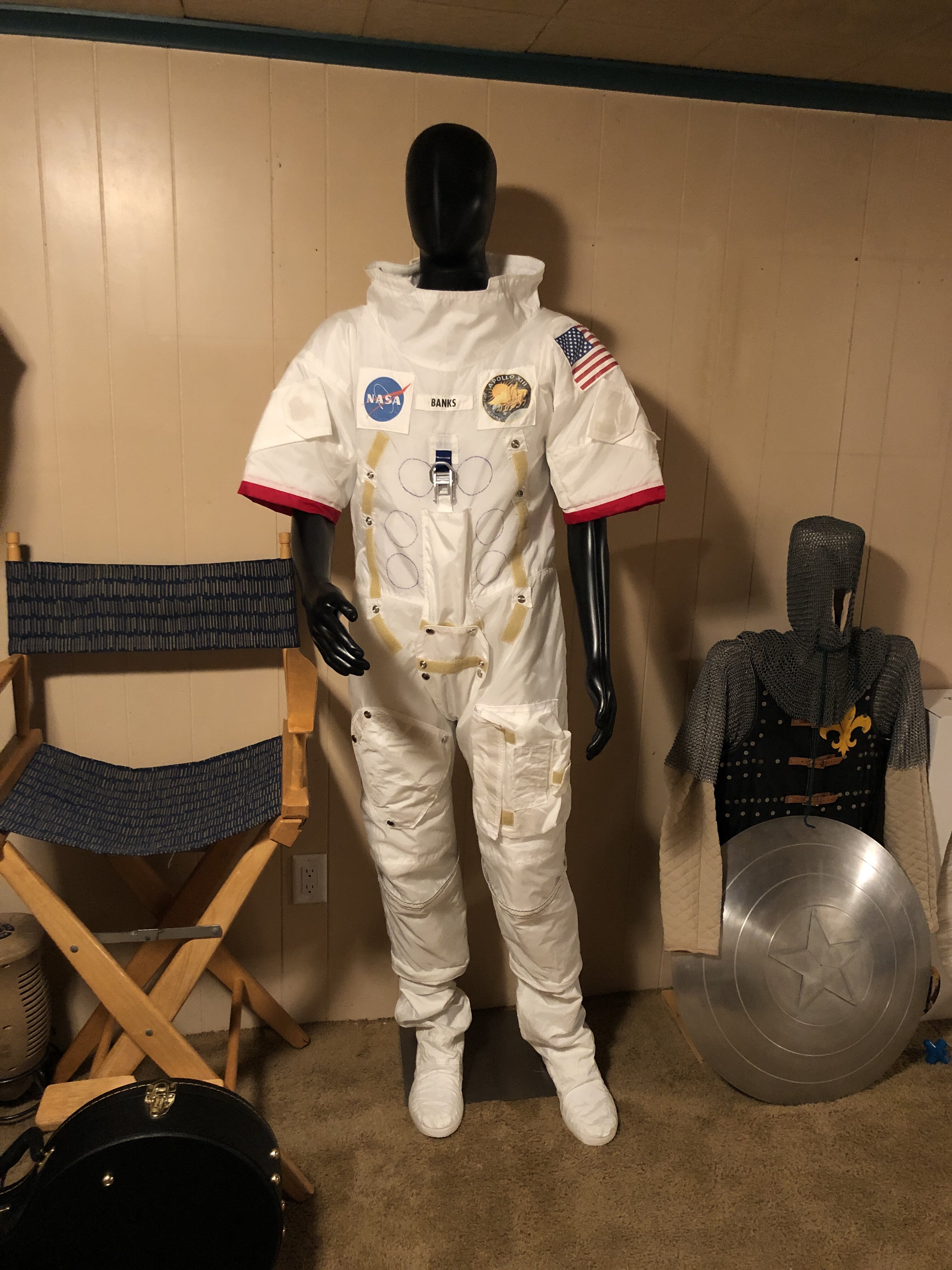

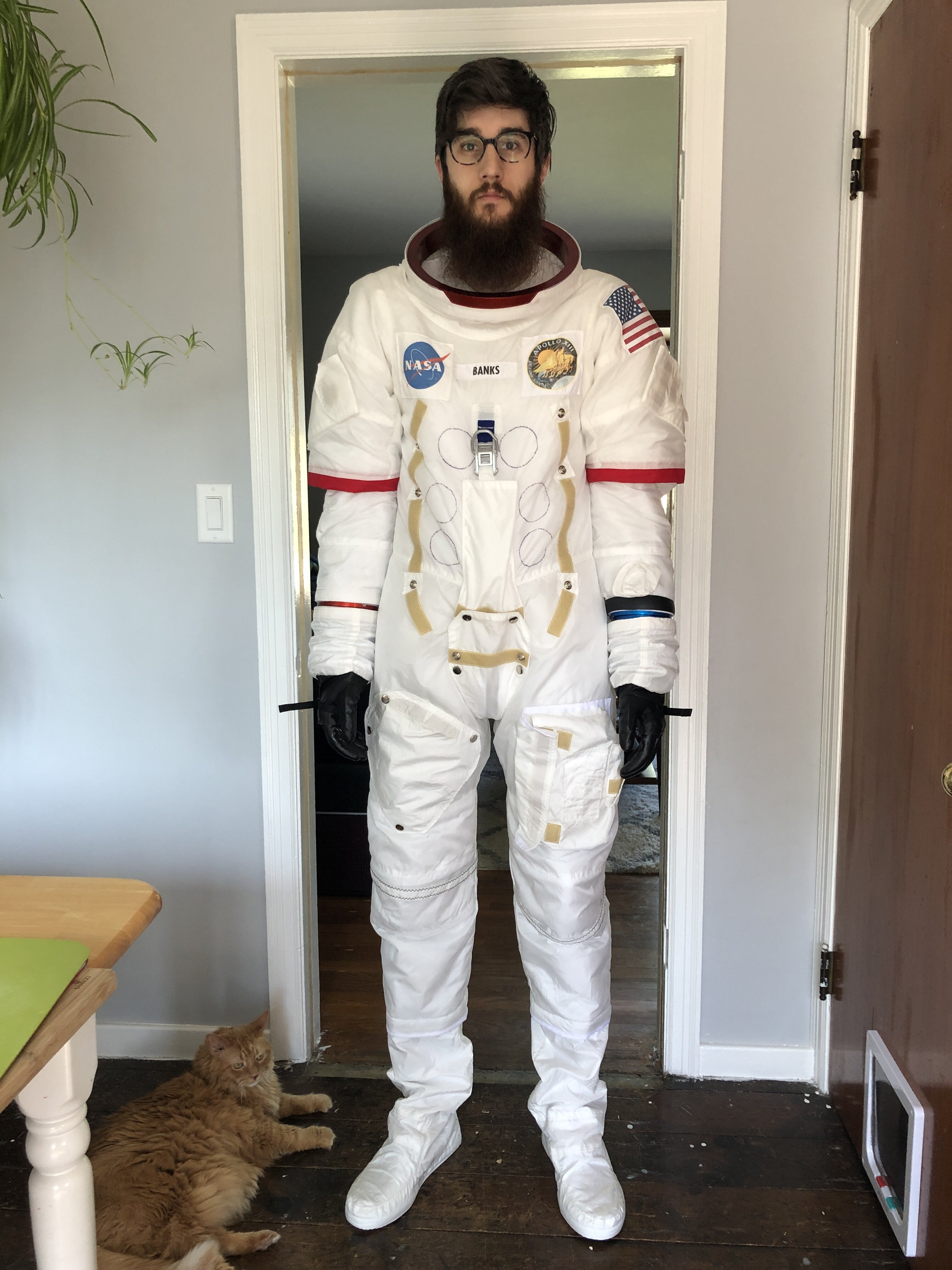

And here’s the whole (IVA) suit all together. The arms aren’t actually connected to the shoulders yet, but I wanted to try it all out. The neck ring definitely changes the feeling of the whole suit, and makes it feel much better and more real/substantial.

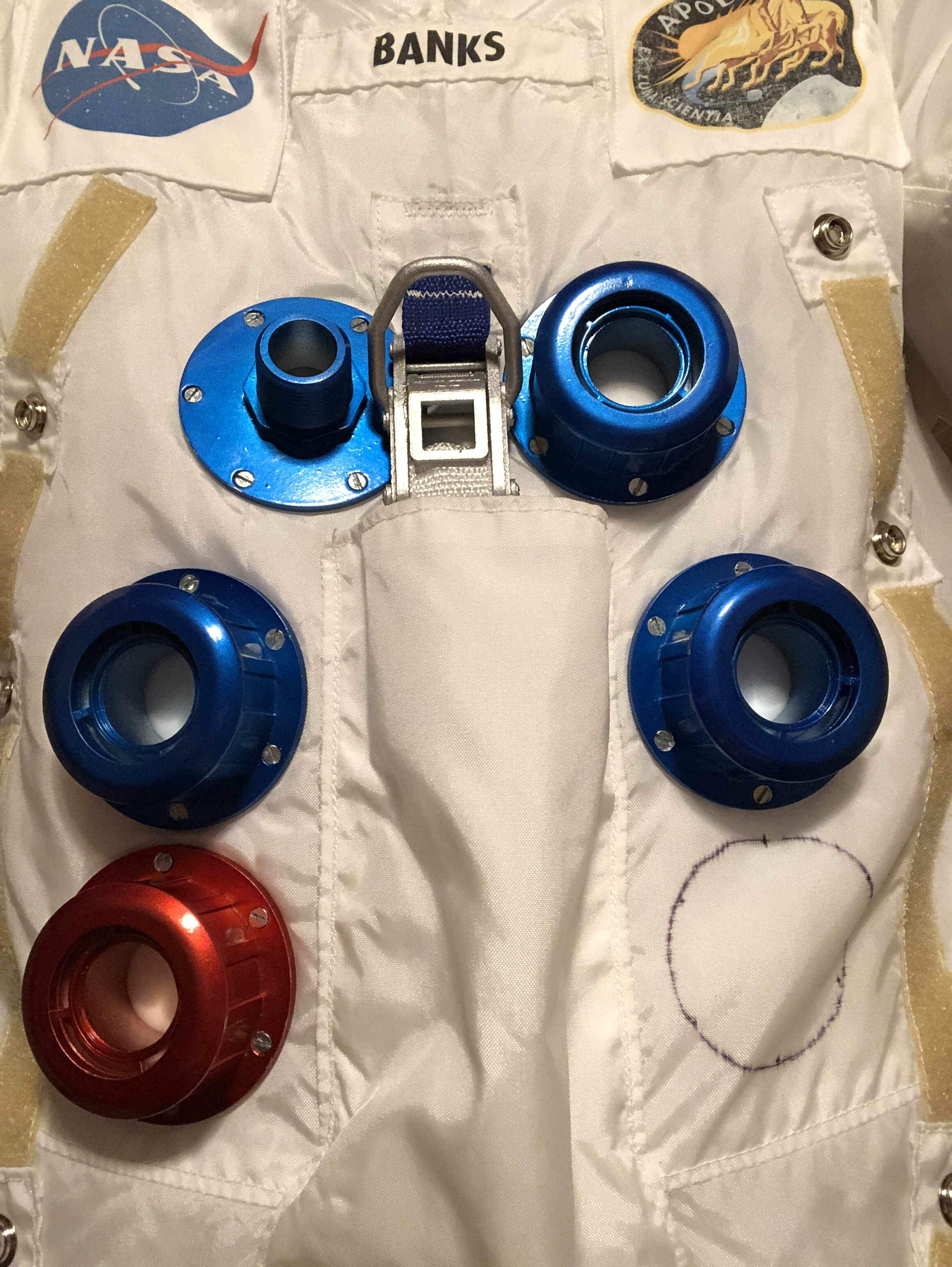

And lastly, I worked on attaching my PVC connecters to the front of the suit. I had a heck of a time getting the screws through for the first few:rolleyes:, but I figured out a good system by the latter two. Unfortunately I didn’t end up having enough screws to do the last O2 outlet, so I have some more on order. These will, like the neck ring, most likely be placeholders for accurate, 3D-printed pieces. But I think they turned out good for what they are.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Kokanee

Sr Member
RPF PREMIUM MEMBER
Awesome work! I used heavy duty gorilla double sided tape to attach my neck ring to the suit, never coming off.


zachsbanks547

New Member
It’s so close!

The main structure and connectors of the suit are done!

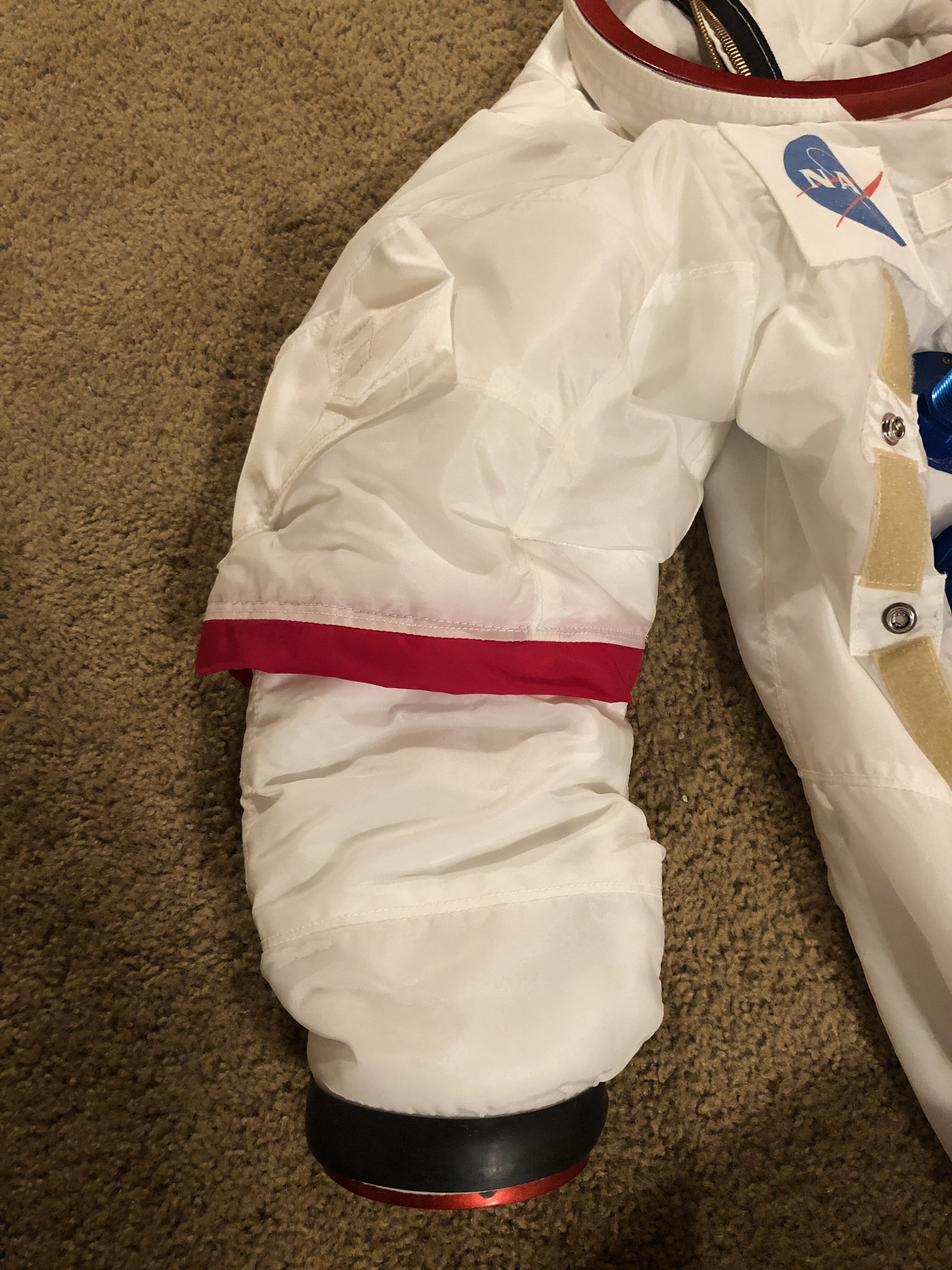

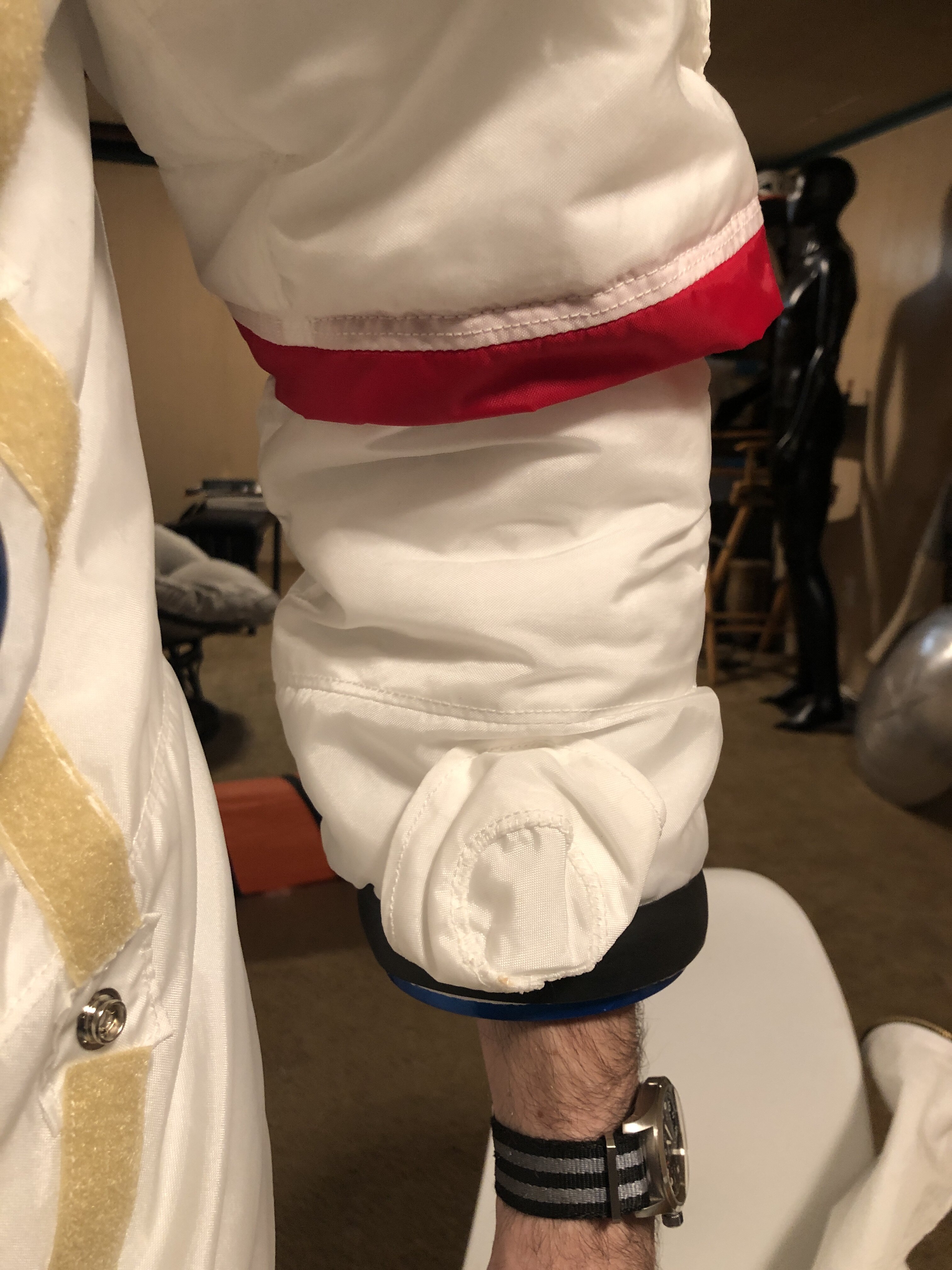

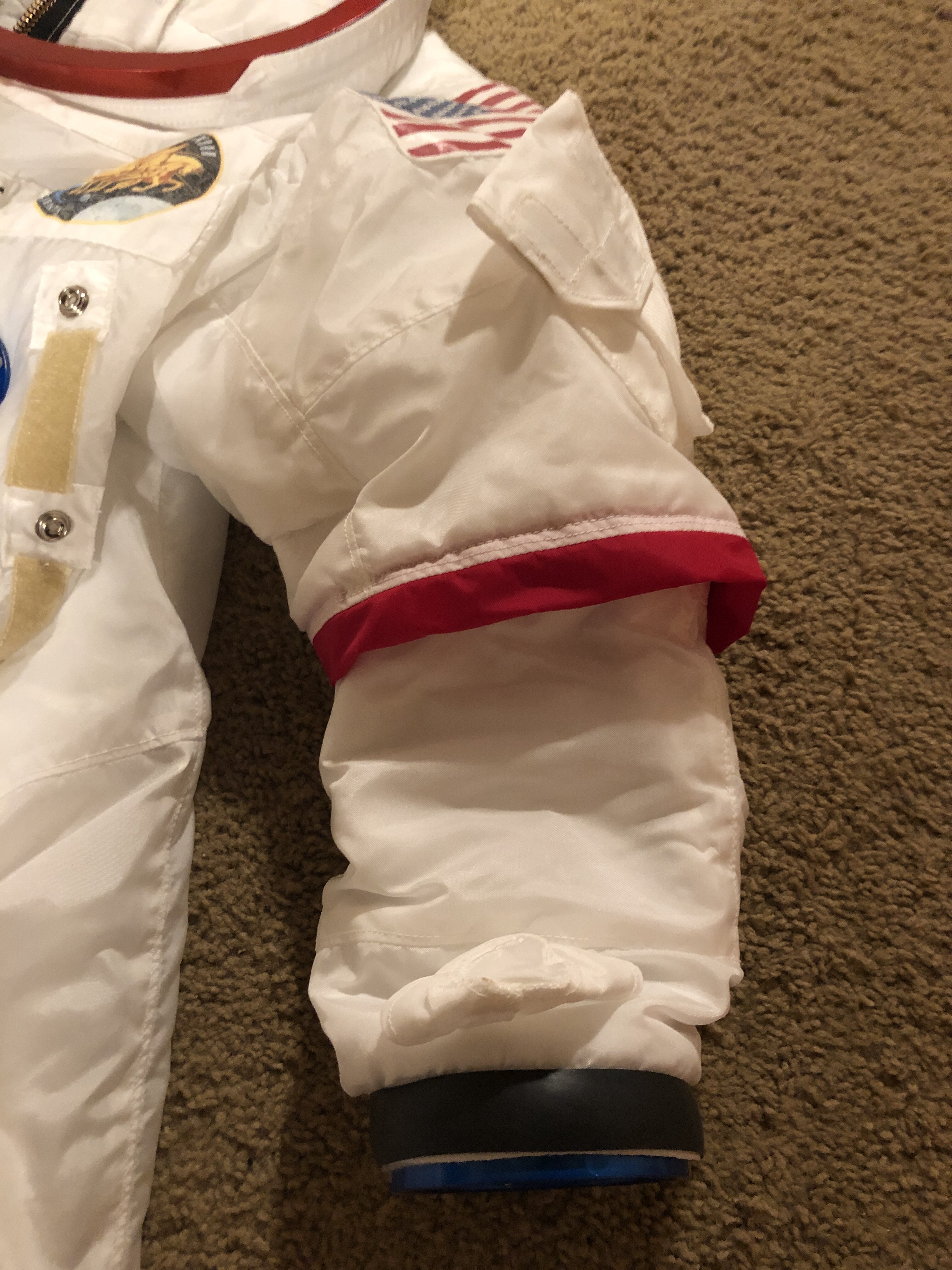

After a few tries and a lot of frustration, I got the elbows attached to the shoulders. The velcro pulled off too easily, so I ended up just sewing it directly.
IMG_4231.JPG IMG_4234.JPG IMG_4235.JPG

The screws came in, so I finally got the last connector attached to the suit. And the main thing is done!

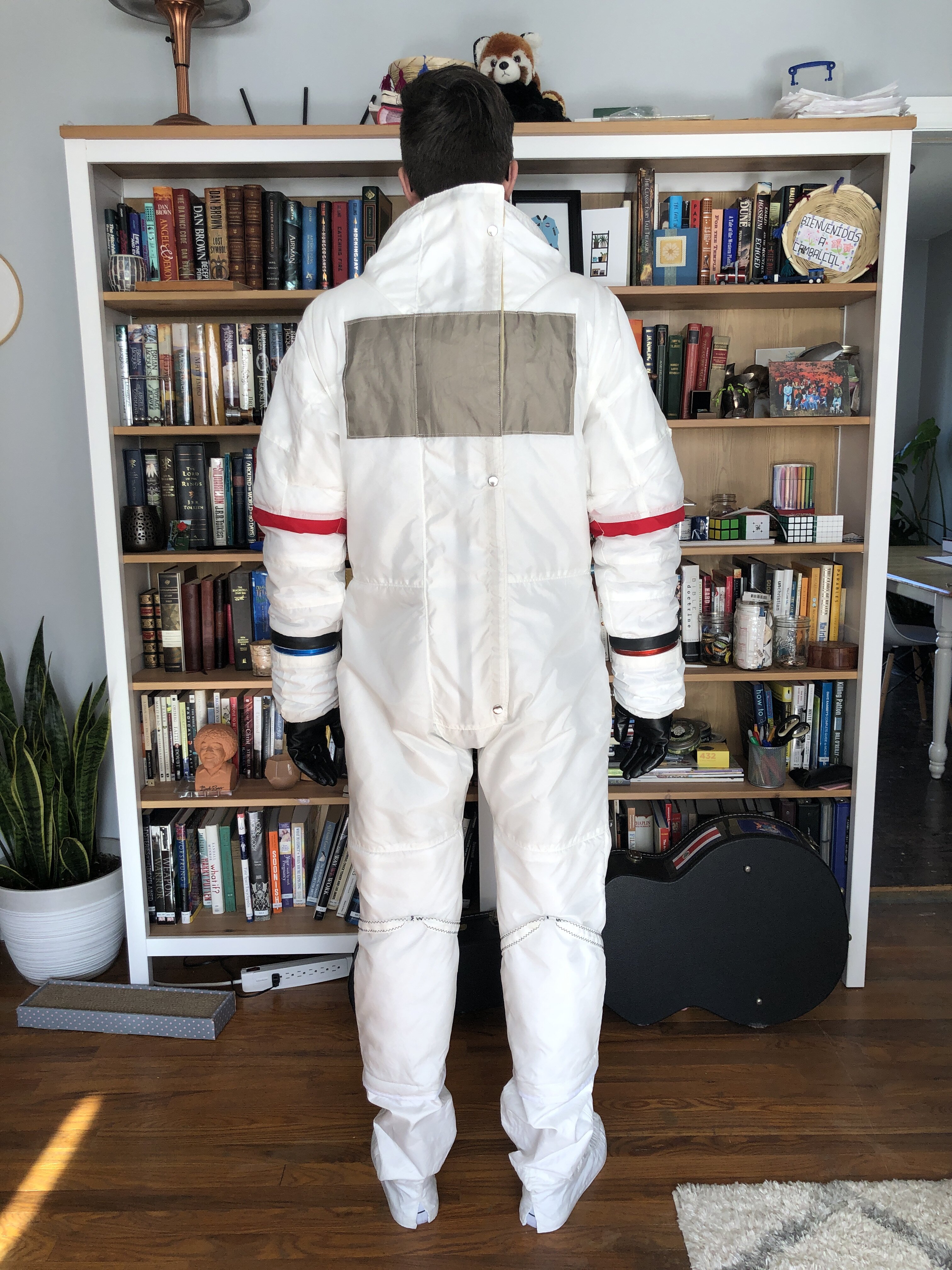

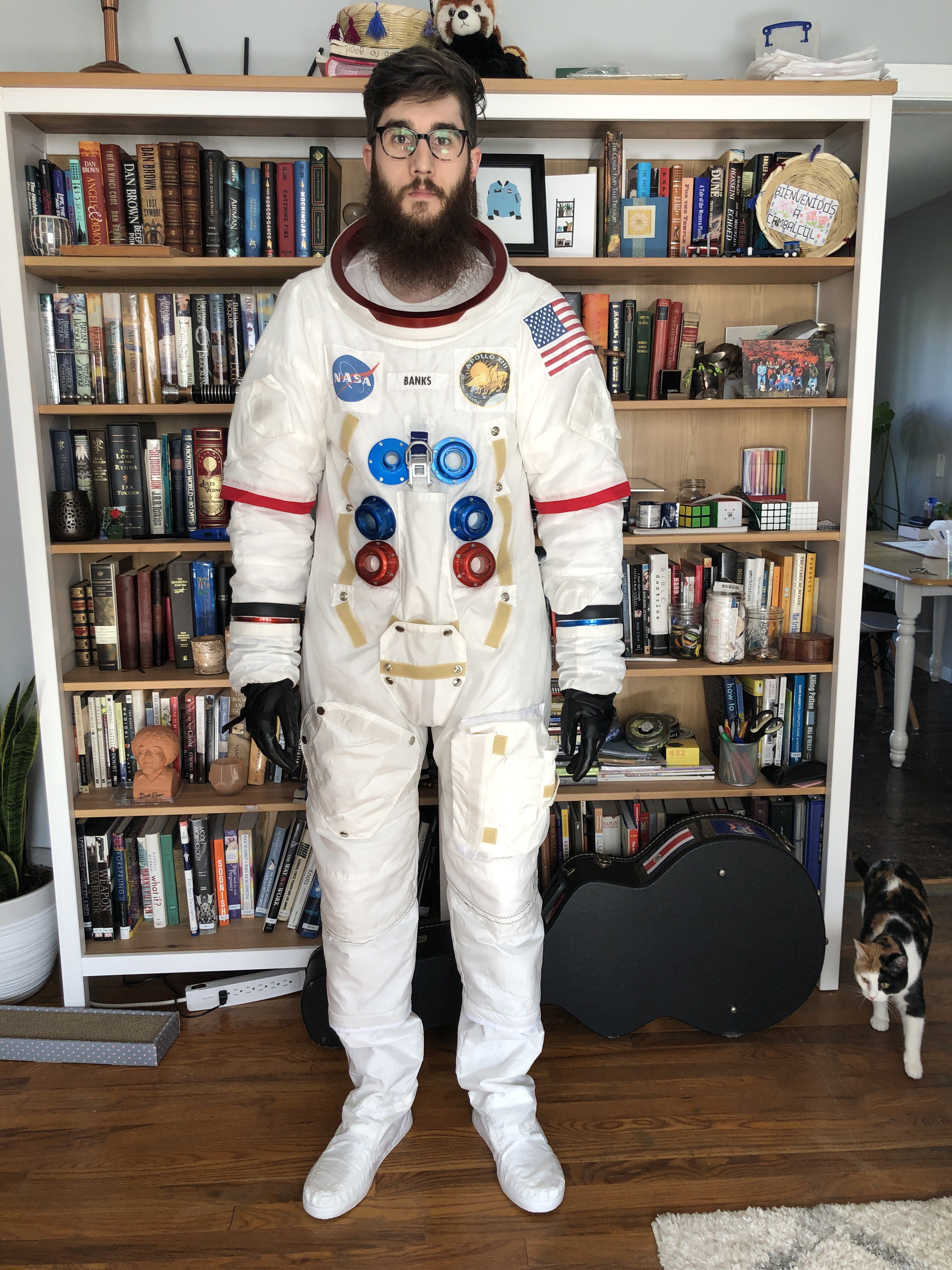

IMG_4240.JPG IMG_4241.JPG

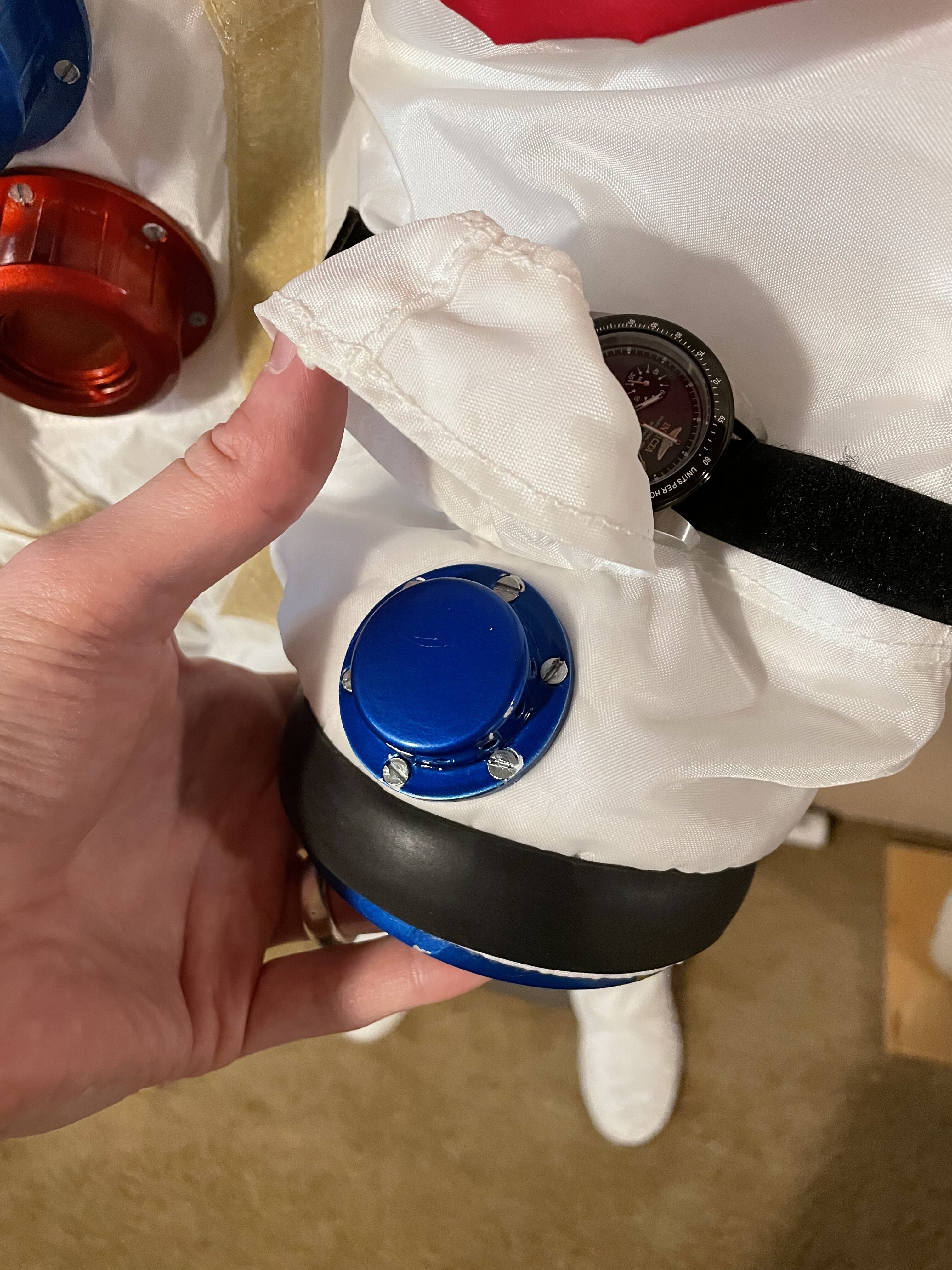

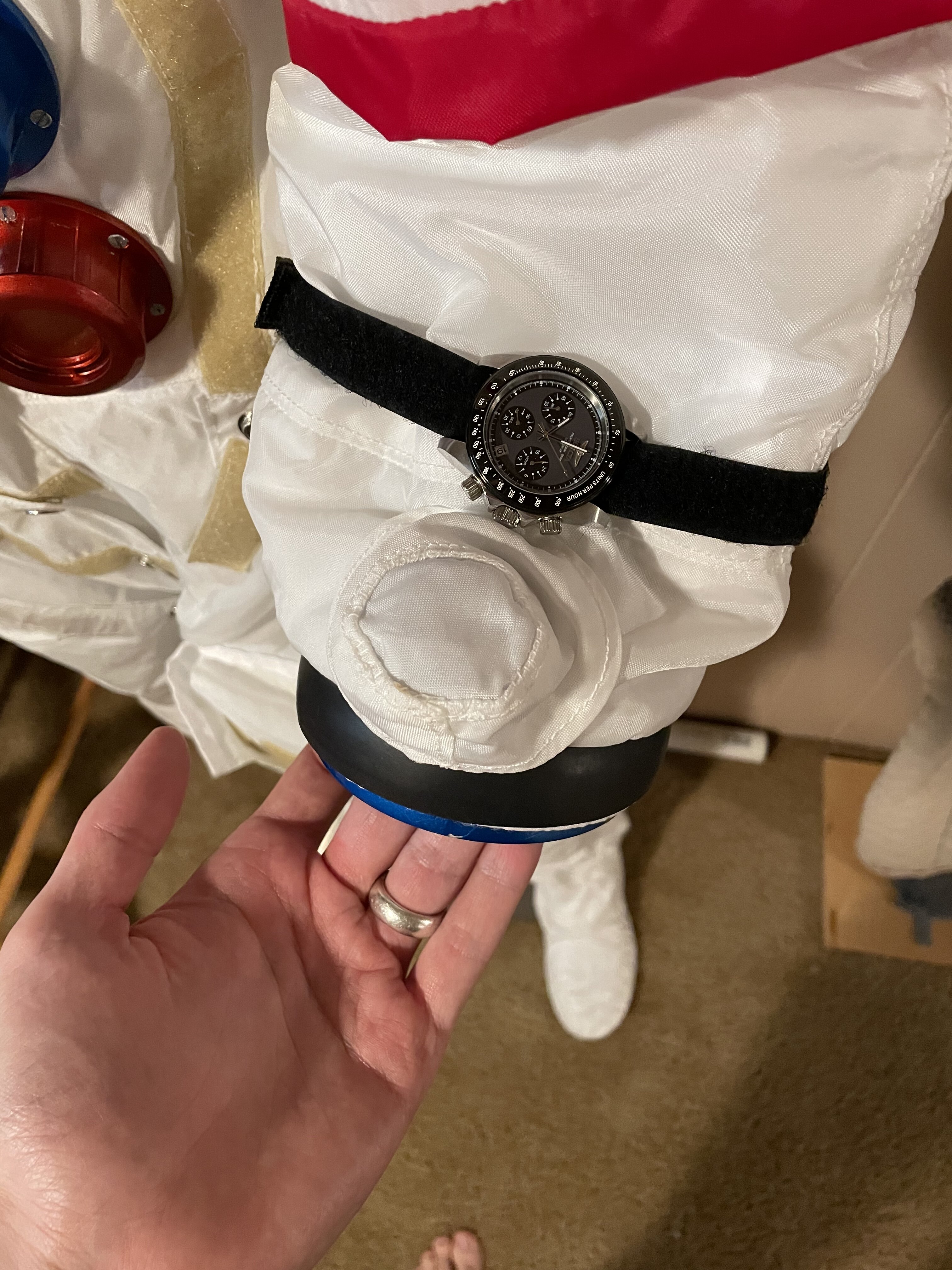

To finish the IVA suit, I only have to finish the leg commander stripes, pressure release valve, pressure gauge, and pressure gauge cover.

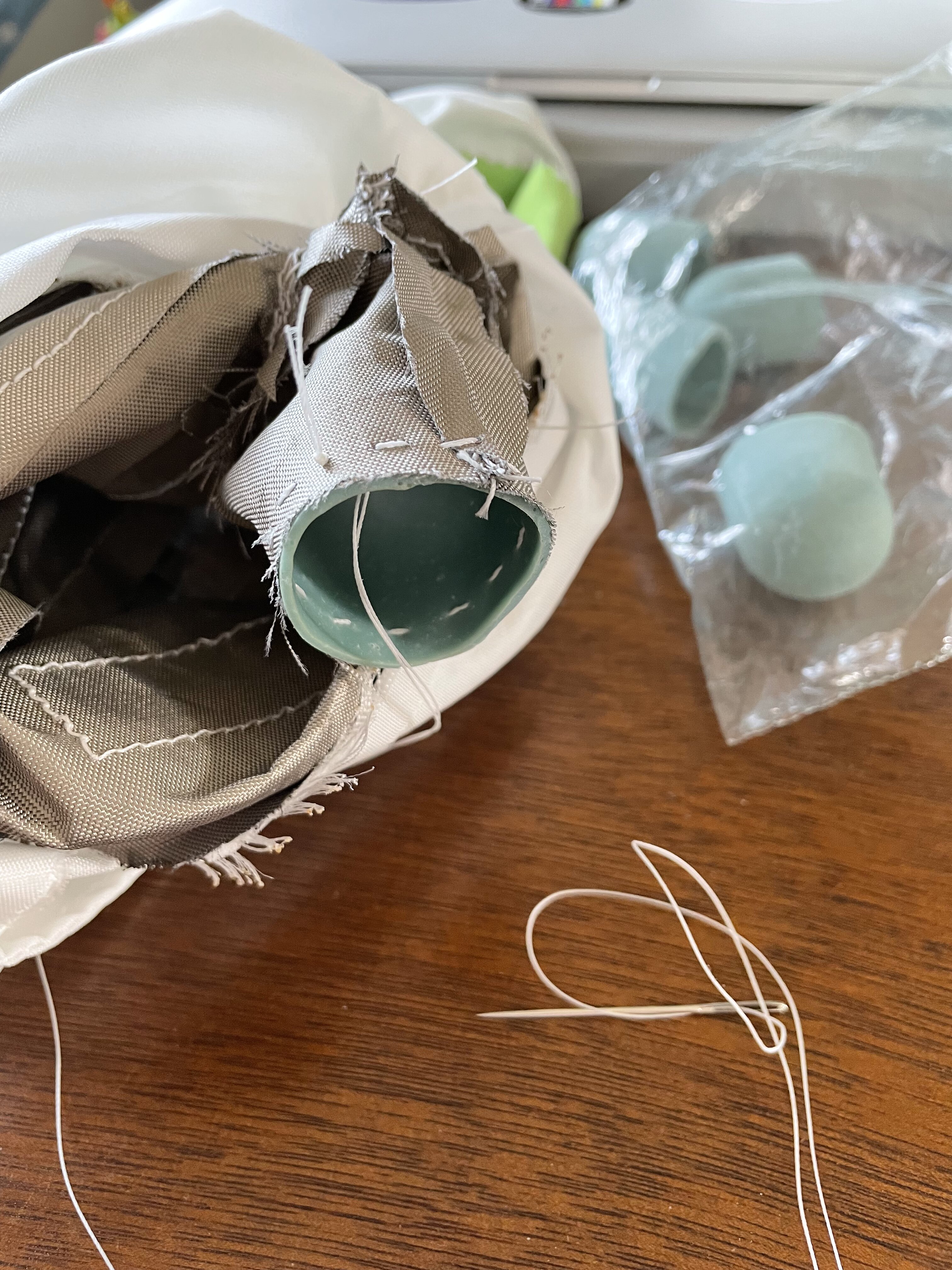

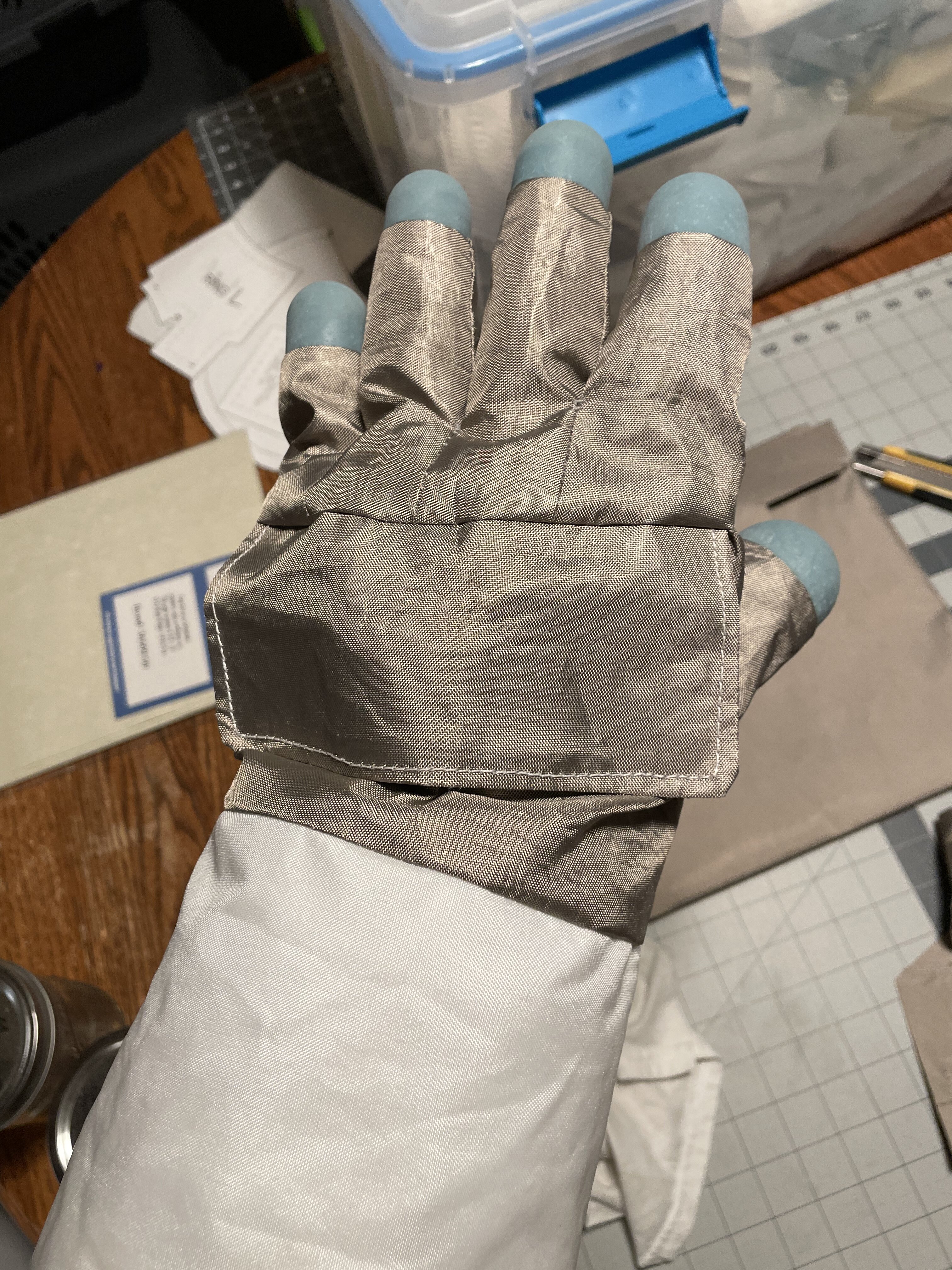

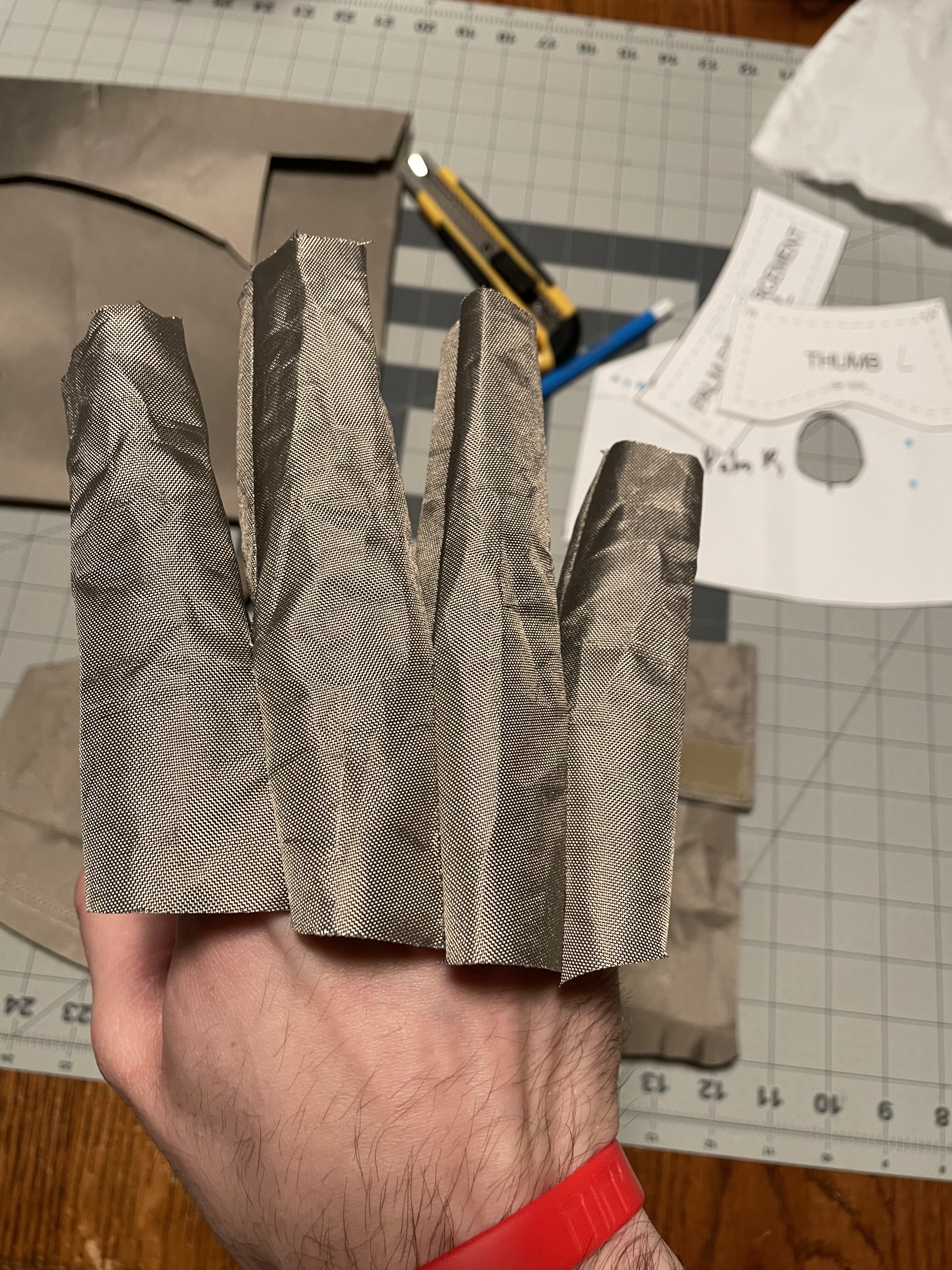

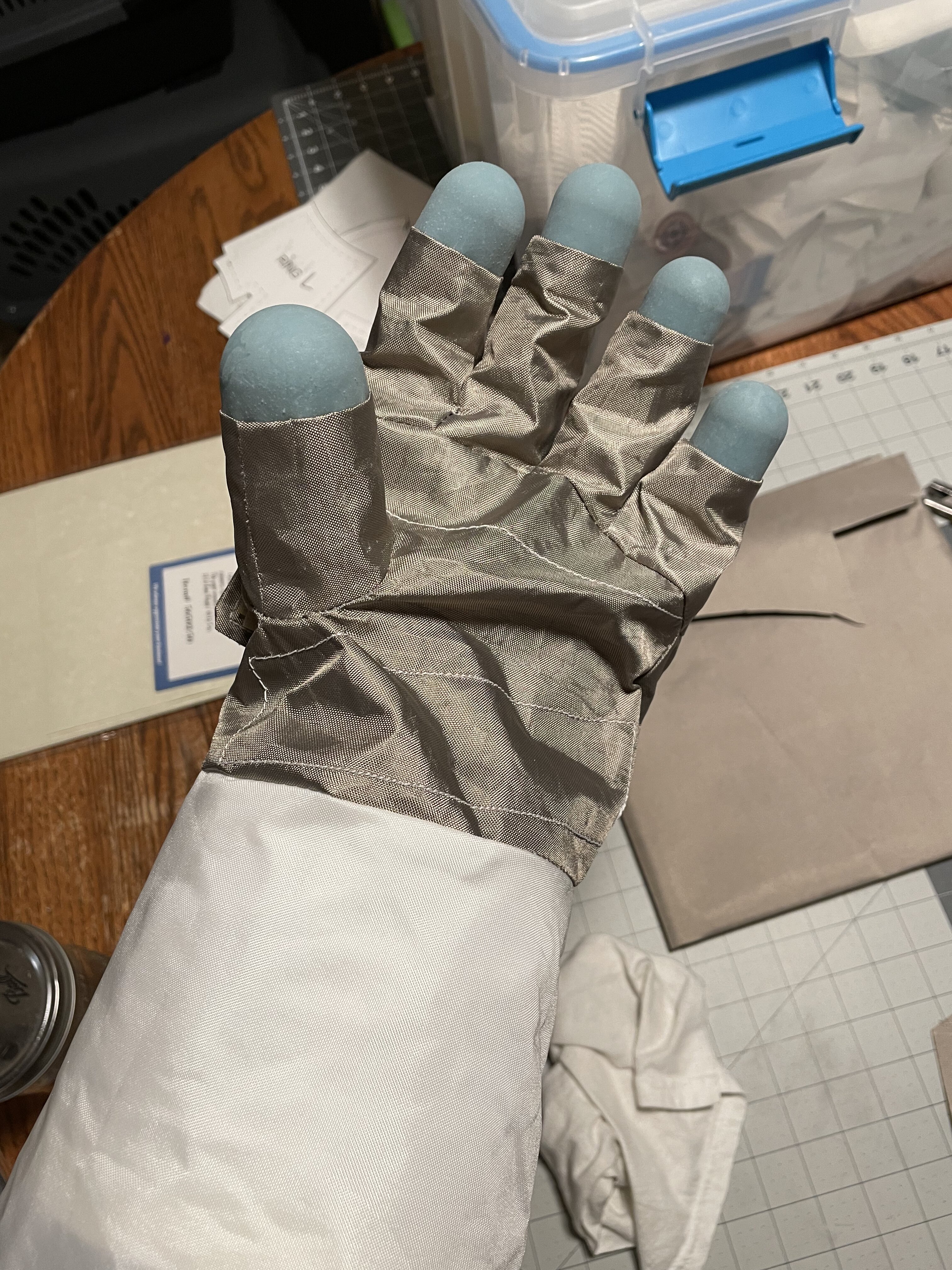

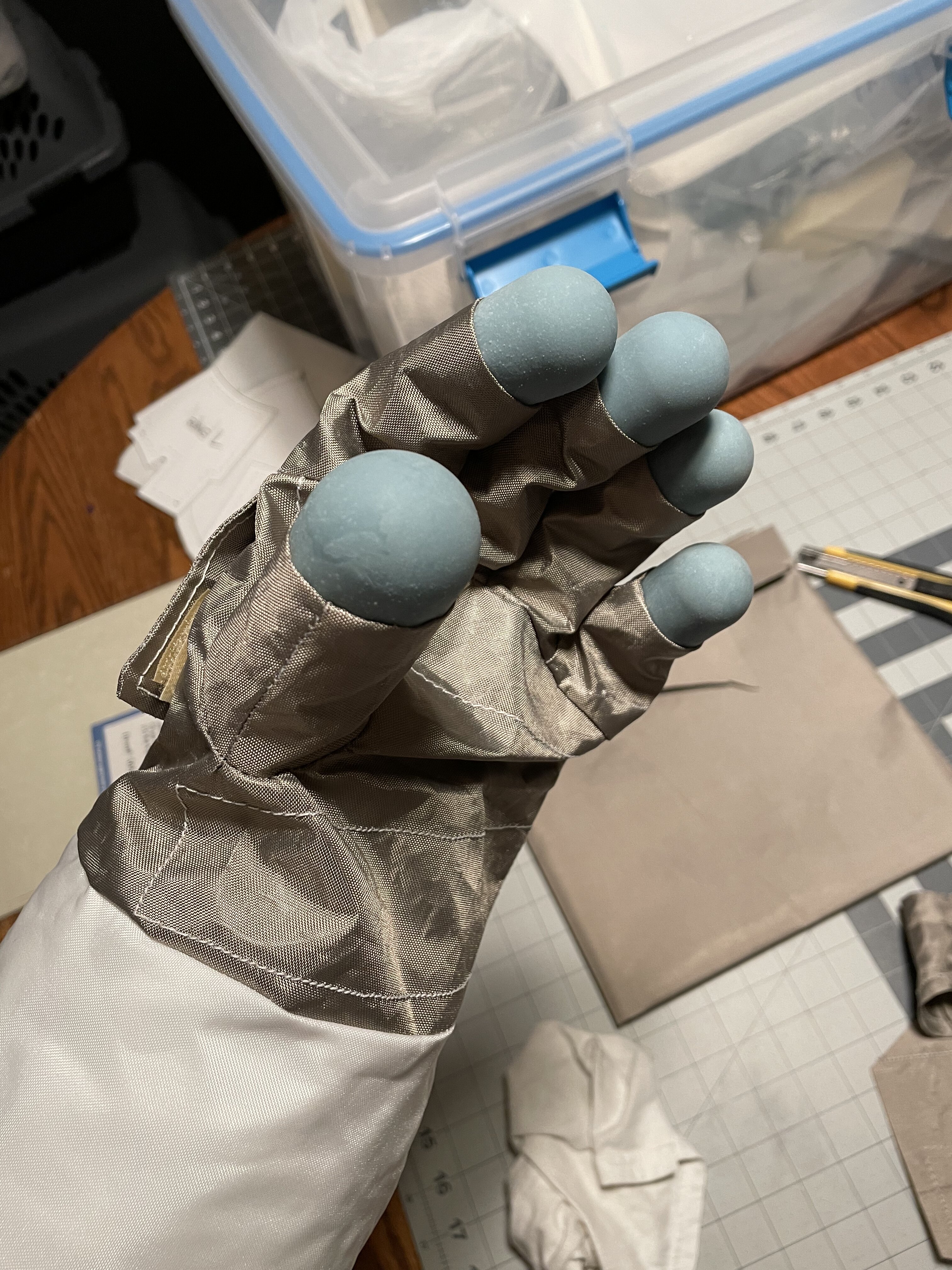

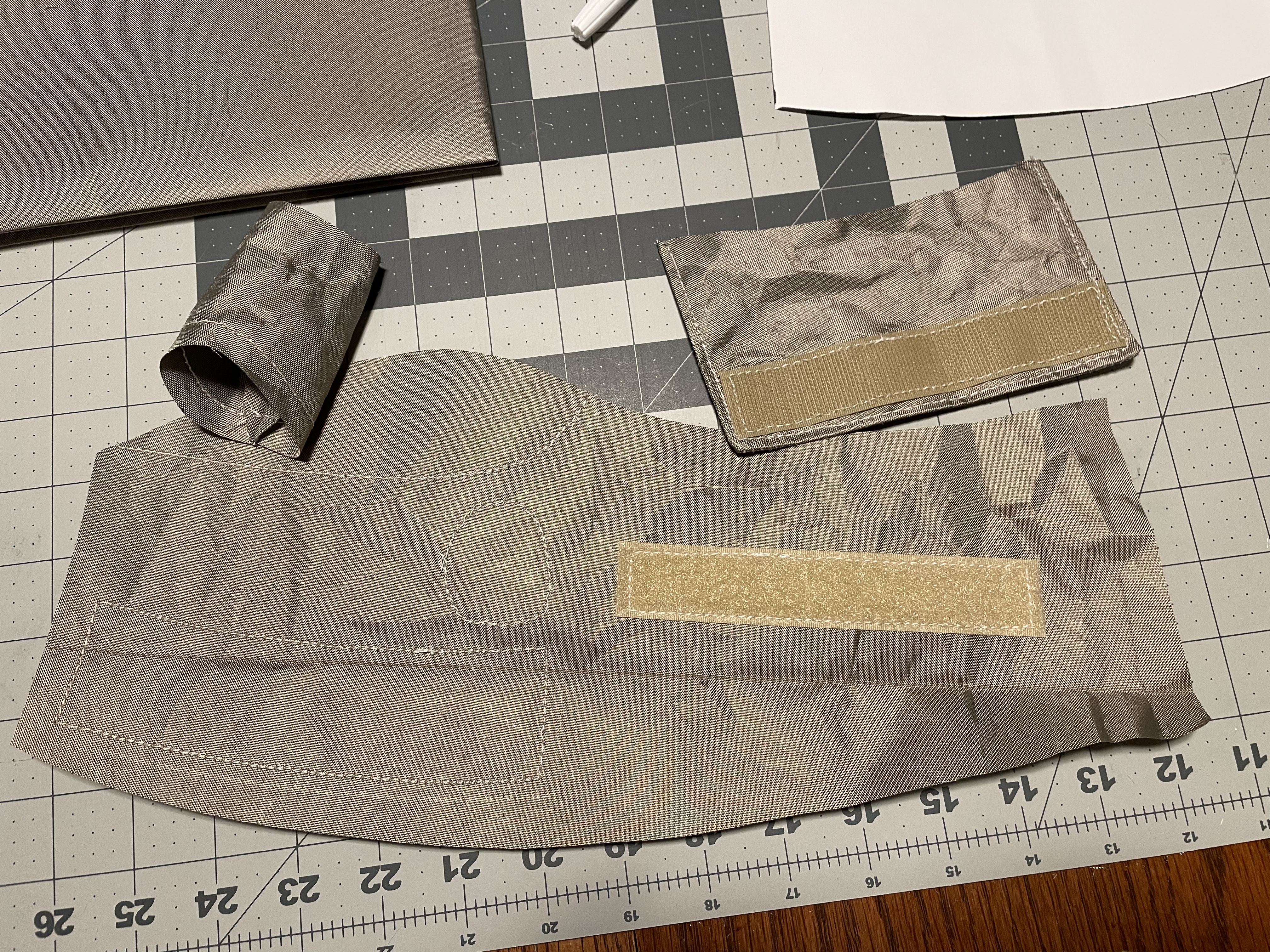

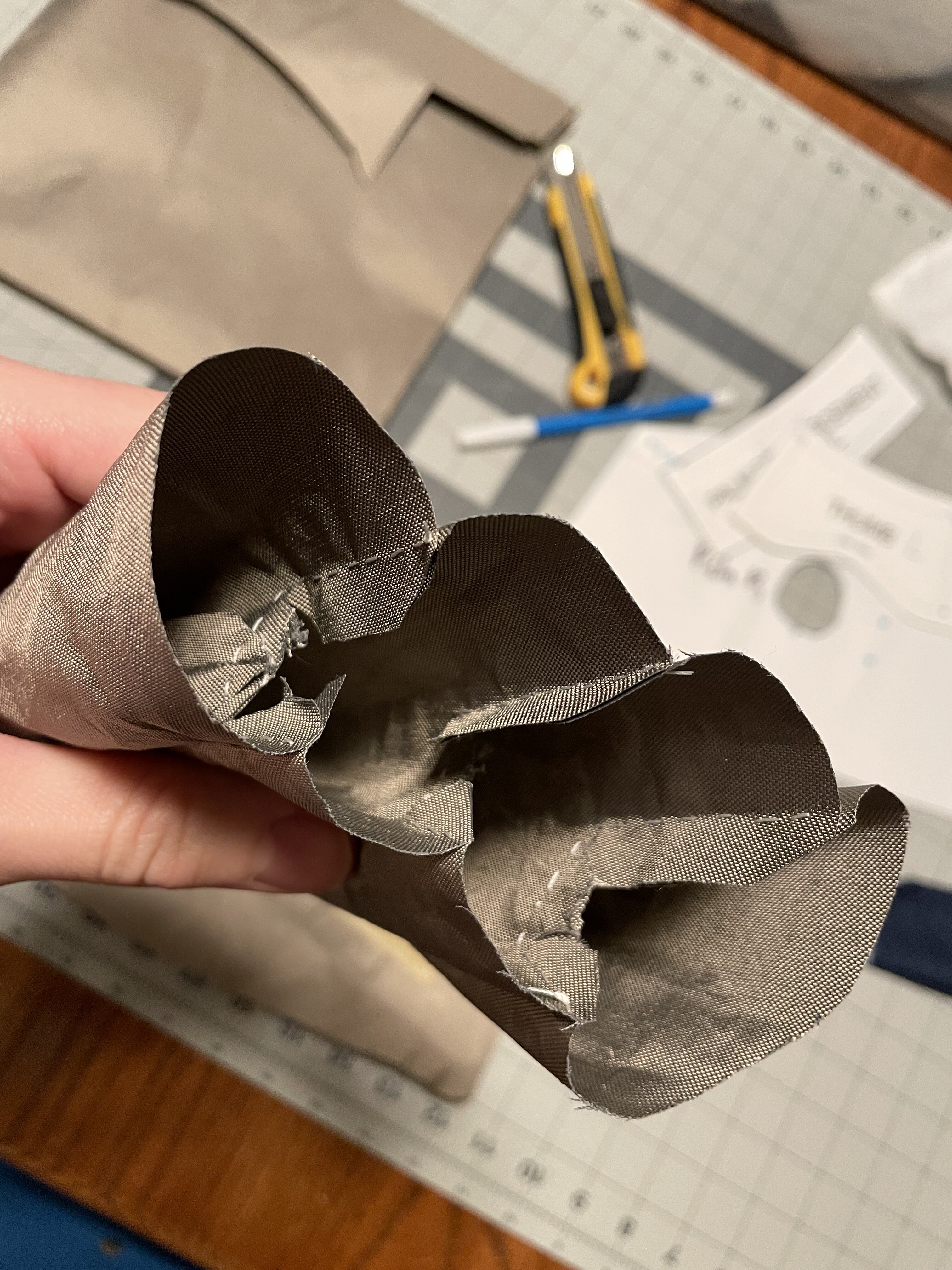

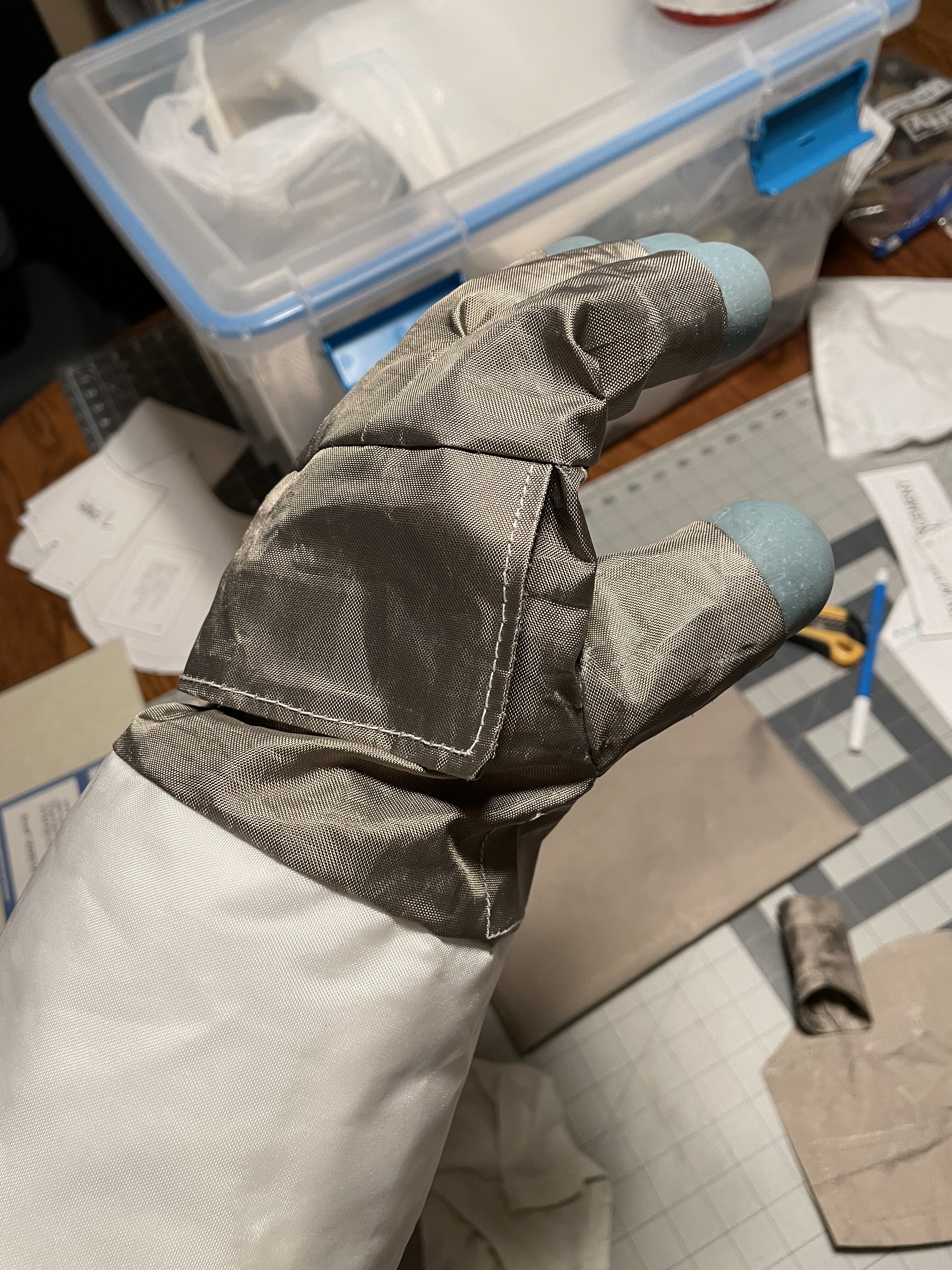

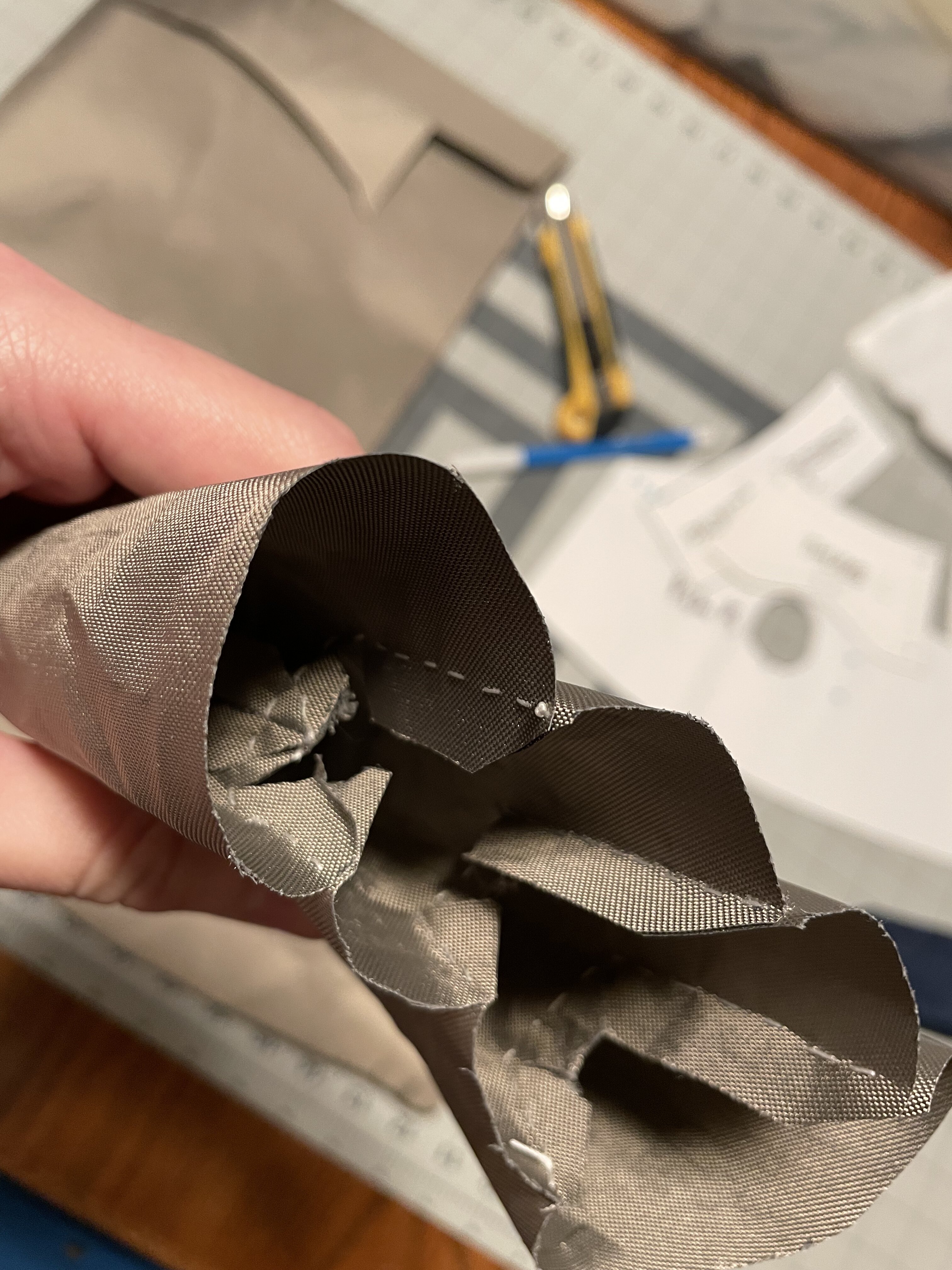

For the EVA parts, I have a glove pattern that I can work on, and I have an idea for the boots, but it involves buying things I don’t want to invest in quite yet.

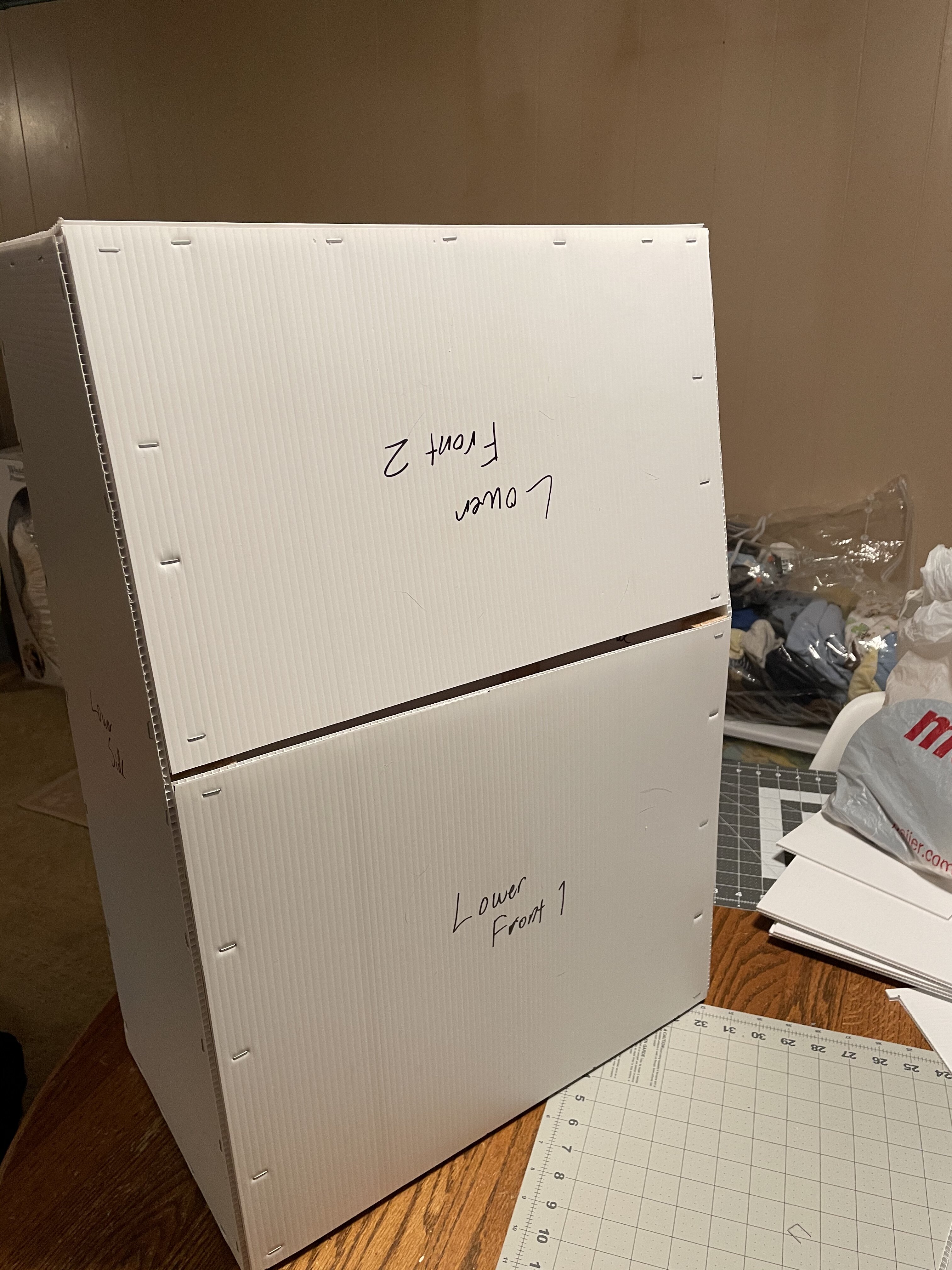

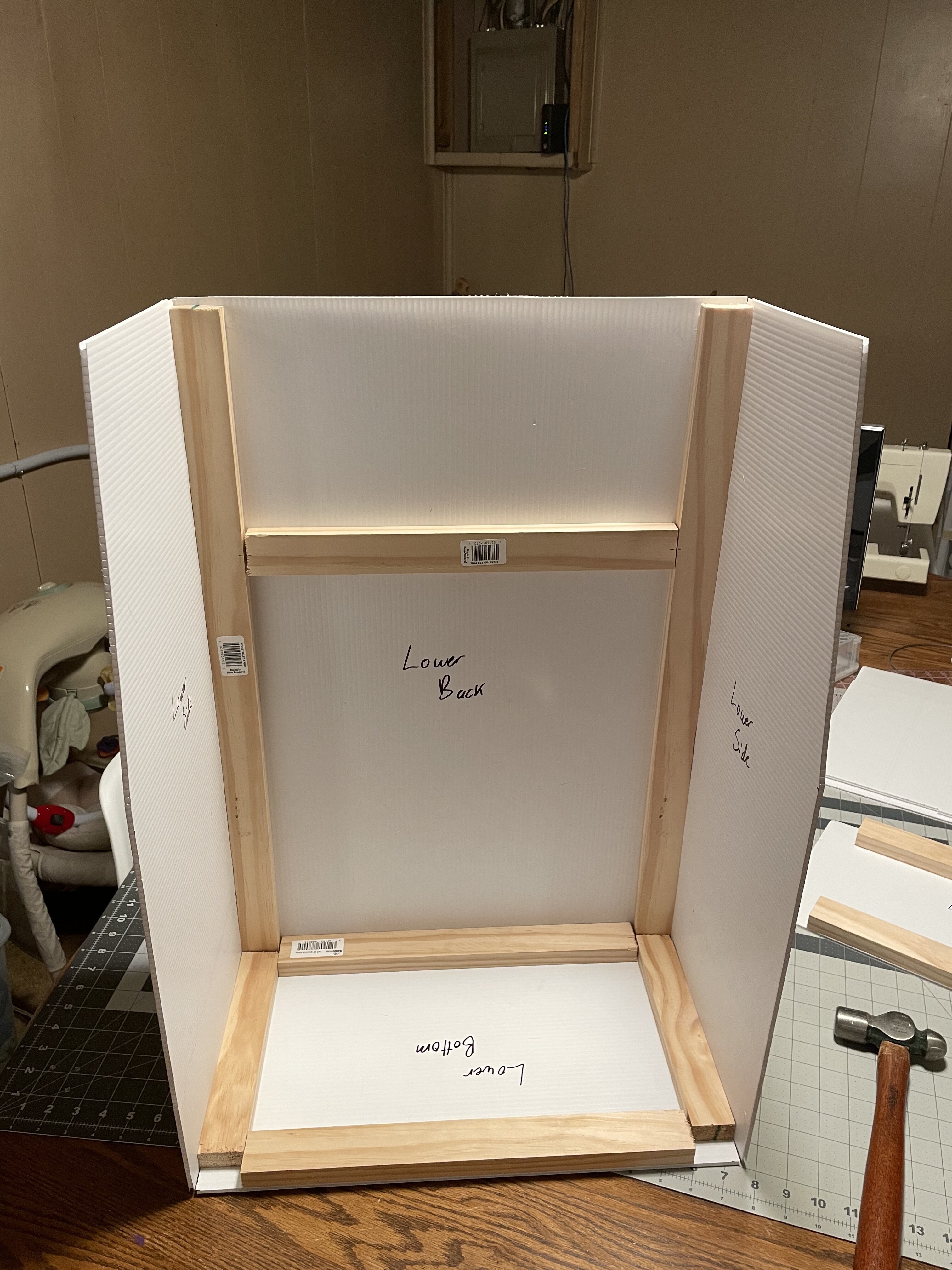

I have dimensions for the PLSS, but I don’t have a plan yet on construction.

And the one thing I have no idea what do for are the helmets, both bubble and EVA. I have STLs of the EVA helmet, but no printer yet (let alone one big enough for an EVA helmet). I also don’t have fabric patterns for the EVA helmet.
So if anyone has ideas there, let me know.


Lear60man

Master Member
RPF PREMIUM MEMBER
Looks awesome.

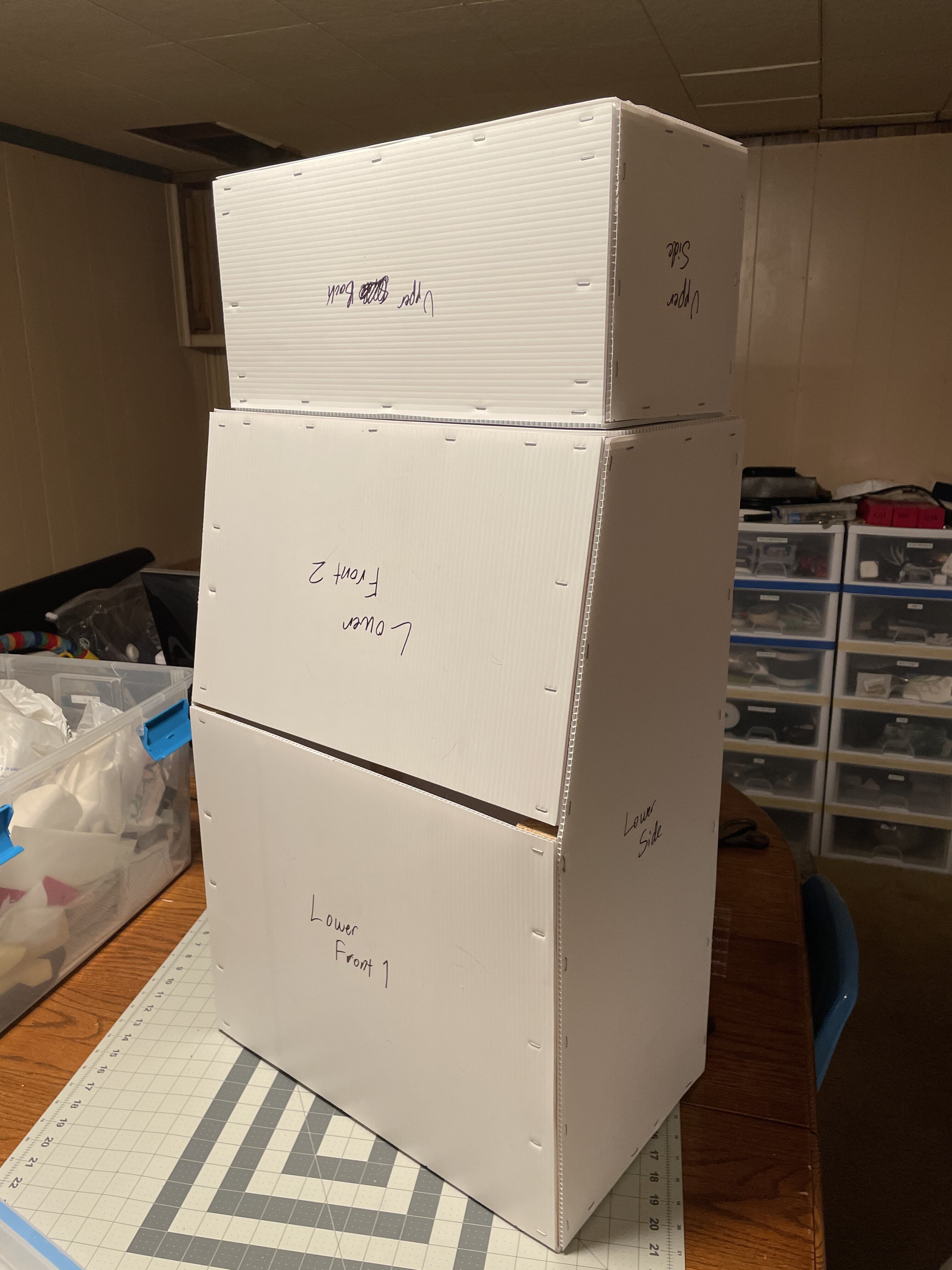

This is how i tackled the PLSS....I bought some 1/4 inch sprinkler pipe with various connectors to make a frame. Once the frame was done, I used corrugated polystyrene yard signs to make the top/bottom/sides. I linked an example but I think I found them at Home Depot:

I then used a rivet gun and wider than normal washers to attach the plastic signs to the PVC frame. Oh, I used a heat gun to make the 20-30 degree bend on the back of the PLSS above the grab handle. For the grab handle I used something like this that was lying around the garage: Off-White Flush Pull Handle 3" x 2.25"

Wrapped it in batting from the fabric store to dull the edges and made a pattern for the cover. As for the top of the PLSS I just used a block of foam because its light weight and not carrying any load like the PLSS back pack which has to be somewhat sturdy AND lighweight. The top and bottom parts of the PLSS are attached via velcro. Make sure to think out how you want to attach your hoses to the PLSS befor you start cutting your fabric. I made my cover to slip over the top like a pillow cover with a hidden velcro seam along the bottom three edges.


Rdann

New Member
Great job on the suit, I wish I had the talent to make one myself! Since I don't, I bought a replica suit and I'm in the process of making some mods and adding detail. I have a question: The velcro on the front of the suit around the PLSS connectors---is it the hook side or the loop side? Also the same question for the velcro on the back of the PLSS and top of the OPS. It's hard to tell from photos which type it is. Thanks for your help---


zachsbanks547

New Member
I used loop side, which I’m pretty sure is the correct type. It’s hard to tell in original photos because the Velcro they use is a special type called “unnapped loop”.
