Aliens APC 1:18 scale with interior

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

joberg

Master Member
Welcome to the club when trials and errors are your daily bread:p Silver lining: you learn as you go and you'll be able to solve the same/similar issue in the future! Looking very good(y)(y)


skiffy

Sr Member
Chrisisall, Analyzer - Thank you very much! It's been a long road but it's encouraging to see it now coming together. :)

Joberg - Thank you and, yes, there are always mistakes. It's like the old proverb 'He who never makes a mistake never makes anything'.

3d printing is not currently my friend. I'm having tech issues to do with a system board so in the meantime I fall back on good ol' hand-built components. There's a lesson there. :)



These parts will form the padded pieces that sit in the seat restraints. the hinges are hand made and are about as small as I can work (old eyes, old hands) at 3mm x 4mm.



I managed to file these two into the same shape - pretty much. Feeling like I needed a bit of a boost I chucked some NATO green on them.



Wow - they're looking very nice if I do say so myself. 2 down, 10 to go. :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

skiffy

Sr Member
Thanks Chuffy 70 - I'm looking for a new supplier for these tiny LEDs, my go-to guys don't post here anymore (bloody Brexit). When I find one I'll let you know. :)

Found some - 10Pcs 20cm t0603wm pre-soldered micro 0.1mm copper wired white smd led 060;UK | eBay

I was happy with the progress so I did a little more tonight, including adding the new lighting idea (back to back LEDs).



They look great and will get some light blocking paint in the middle and at the edges.



I found a couple of folks to test it out for me. :) It looks good in the light but better with it off.





This worked really well so I'm looking forward to doing the rest - especially the back eight - and seeing how they all look together.

Last edited:

DaddyfromNaboo

Master Member
RPF PREMIUM MEMBER
thank you alienbuilder. I'll try to recreate as much of the interior lighting as I can without flooding the place with light.
That is such an awesome build! I have seen many builds with fully decked out interior lighting that were way too bright for my tastes. The lights themselves were IMO always placed in the right spots, but the brightness of the light sources, at least when photographed, were almost always too bright, with blinking lights often being too fast. I think that toning down the light intensity makes detail pop out, I love that light and shadow in that picture with your test personnel ;)


joberg

Master Member
Very nice that seating set-up! Love the lighting of the soldiers and when everything will be said and done, I'll eagerly wait for pics of the inside with all of those details and stuff (y) (y) :cool: :cool:


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

skiffy

Sr Member
Thank you so much DaddyfromNaboo, Joberg. I'm looking forward to seeing some of the lighting come alive too.

I started to give the interior rear wall some love. I've provided a gap between the inner and outer so that I can route cables through for the lighting.

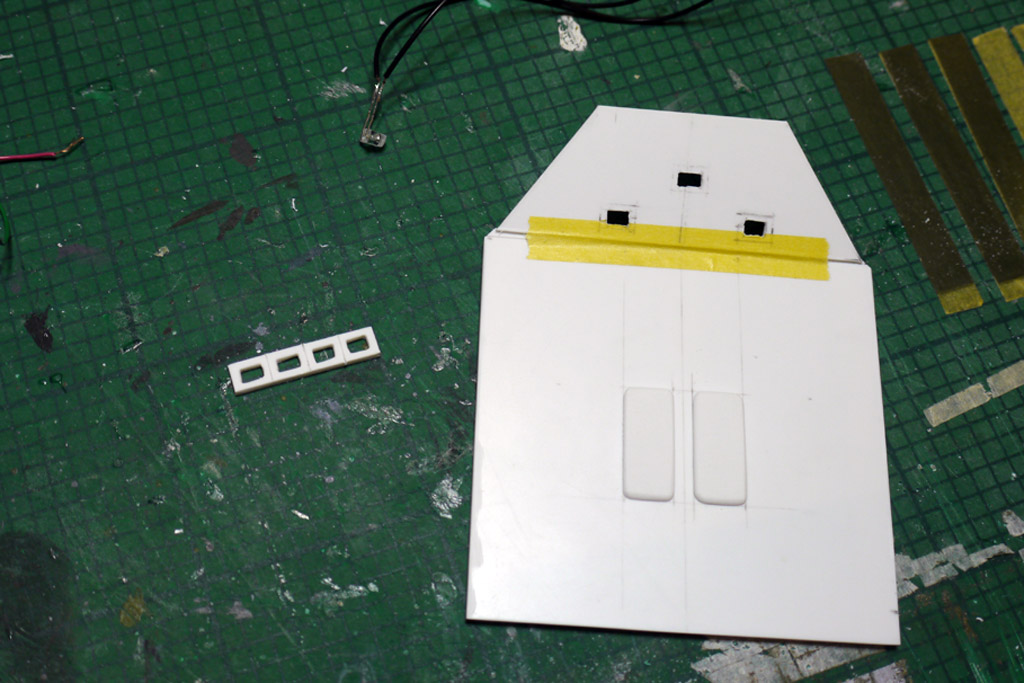

The two panels on the back are in place - they'll be painted red and I think they're fire blankets. I'm making surrounds for the lights in a block of four so they're easier to work with (there's a spare there in case of a fubar).
