A Stylized MAG - A Scratch Build - Almost Complete

Discussion in 'Replica Props' started by cavx, May 1, 2012.

  1. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    I am editing this first post as this thread is long and I think I can tell the story with this first revised edited.

    Almost done :)
    [​IMG]

    Long story short: Like many, I've wanted NIKE MAGs since they appeared in BACK TO THE FUTURE PART II in 1989. I have always been a fan of the NIKE and the hi-top and owned many pairs of NIKE and Jordans over the last 25 years - I was already wearing NIKE hi-tops before the film came out.

    In 2010, I bought a pair of the Mark Poon MAGs and whilst very well made, they are not my size so I could not wear them.

    Last year I found a Chinese made version which I was able to buy in my size [US10] in January this year. These shoes are known on these forums as "K-MAG (K stands for Knock offs) and there is a long thread discussing them and everything MAG. They K-MAGs are comfortable and I thought they would have to do until NIKE released something more affordable (if ever) than the 2011 MAG.

    Like many, I felt the K-MAG needed corrections. Until very recently, I had thought I was not skilled enough to do a full tear down and rebuild, so I initially planned on simply modifying some of the parts only. What I planned was some modifications that would include:


    1. Change out the Ankle Straps [I don't like the stitching and think it is only a matter of time before the hook and loop comes away]. After watching Jedifyfe's tutorials, I thought I would have a go at this, so thank you Jedifyfe for posting those most excellent videos.
    2. Ankle Strap Buckle. It is cheap, flat and needs to go. The replacement part I have created is slightly larger than the current one on the shoe and is much closer to the actual part. This turned out to be a project on its own and I ended up building a Vac Form to make them and the Heel Cups. Mine have that padded look like the ones on the real shoe.
    3. Mod the collars. This was as close to a rebuild as I was prepared to go at the time. As it turns out, I have been able to make complete new uppers. To do this, I had to make patterns and then learn how to sew. The patterns were made from images of the real shoe and using the K-MAG as a last.
    4. Add clear soles. I already have another thread on this so won't bother discussing that much more here. LINK
    I also have a BLOG about the build.

    So on to some images.
    [​IMG]
    A diagram of the real shoe. Note the position of the 'finger pull hole' in relation to the ankle strap.

    The Original Shoe
    [​IMG]

    The K-MAGs come in 4 different colourways and I chose white with black soles because it seemed to be the best of the bunch and the most wearable right out of the box.

    Painting Them Grey
    [​IMG]

    After some time, I realized white was just wrong, so after finding a spray paint made for upholstery, gave them a paint job and added some white SWOOSHES.

    Adding Clear Soles
    [​IMG]

    The creation of the clear soles was a huge learning curve and whilst they are far from perfect, they will have to do for this project.

    Creating New Uppers
    [​IMG]

    I've always wanted a leather pair of MAGs and these uppers are made from a kangaroo hide I was given. Also shown is the new Ankle Buckle and Heel Cups I made from scratch.

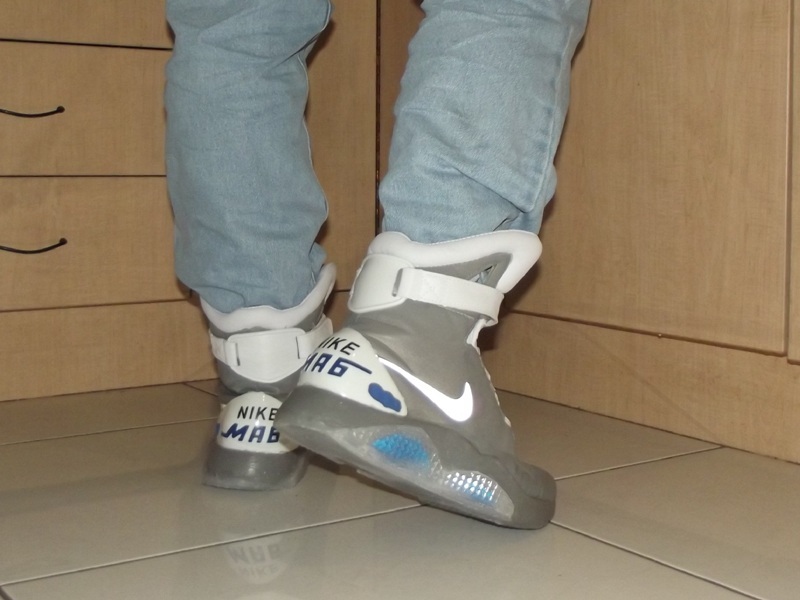

    Almost Complete
    [​IMG]
    I am still yet to glue the soles, so this is how the shoes should look when I am wearing them. I am almost hi-top complete :)

    Anyway, if your still reading this, feel free to read through the rest of the thread. The good stuff starts about Pg6.


    Attached Files:

    Last edited: Oct 26, 2012
  2. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    Good job. Let me know how you get on with the Anke Strap Buckle.

    whats the easiest method to making a new ankle strap buckle?
    I would like to make a new on too so I can house some batteries or a battery/el inverter inside.

    I'm doing same for the strap, just making a new one from fake leather, pvc and then shoving a small el light in there. The only problem is where to put the battery/inverter, as the back ankle strap buckle is too flat to hide anything and way too small.

    Something like the clonemag one would be great. If someone can give me some instructions on what materials and things to use, i would be happy to try and make one, might as well give it a go, even though im useless at creating stuff!

    Overall though, I think the K Mags, because they are innacurate in a lot of main points, such as the heel cup, ankle buckle, height of the upper shoe, and the soles, its quite a mission to create something close to the originals.

    The one thing i really like on these shoes is the inside material of the shoes, such as behind the tongue, and the inners of the whole shoe, the've used the same materials as other nike sneakers, so they are very comfortable.

    For those that are ripping out the entire shoe and replacing it with their own material, It would be best to reuse the inner material or get something similar, as it does look very nice.

  3. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    i was checking out the upper part of the shoe again. the material is like a fake leather/pvc type filled in with foam in contrast to the lower part of the shoe.

    i think it should be possible to simply take this upper part, remove the stitching, and then use it as a template to create a taller upper part. then its a matter of just taking some of the foam out, and stitching it back together, and then stitching this upper piece back onto the shoe.

    I may have to ask my mum for some stitching help!

  4. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Thanks. This part needs to be quite a bit thicker than the very thin plastic part supplied. I am in the process of making a master mold and have use 100mm PVC pipe as a base (the curve fits well around the shoe) and I used a 146mm hole saw to make the initial cut.

    [​IMG]
    I bought this size hole saw for building speakers as it is the right size for a 6.5" woofer and the systems I was making had 14 of these drivers. Excuse the rough cut as this was the first step. The part has since been cut into two, sanded off, and I have already drilled and cut out the slots for the straps. Another layer was glued yesterday and I am allowing 24 hours before I remove the clamps.

    Well Cloneprops ankle strap was the inspiration for this one. I was struggling with ideas on how to finish this, then thought about layering firbre glass over the plastic when I am done so that I get both a smooth finish, but also the smooth contours.

    They are wearable pair and why I have them. If I can make them look better, then great. If not, then it is a learning curve.

    They are quite well made. It is a shame that they copied a copy rather than go after the real deal, and so I will do what I can to correct what I can. Toe correction is clearly out, but I think that increasing the height of the ankle should make the toe look thinner anyway.

    Kind of what I was planning. I'll most likely use 4mm neoprene for the new collar and glue the vinyl to that. The trick is to allow extra size for stitching and reversal (turn then inside out once stitched).

  5. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    So after remodeling, this is where the ankle strap buckles are looking like now. These are still being built up but the images are just to share what my thoughts are.

    [​IMG]
    The smaller parts are a traced copy of the actual part on the shoes. I've placed them in this photo just for a sense of scale. As mentioned, I wanted to make this part larger, but the more I looked at it, the less I liked it, so back under the saw it went today.
    [​IMG]
    And the (still under development) next stage. Basically I took off the what equated to the inside edge of the original slots so about 85% of the original. I have also cut out the back to see about installing the battery here instead of cutting out the sole. I think if I went with that mini inverter and a watch battery, this could work out OK. So the next step on this part is to build up the back to give that "padded" look and I think fibre glass will be best here.

    Oh, and I woke this morning to find that both ankle straps had come apart, so they have been re-glued and are currently being clamped between two sheets of MDF for 24 hours. We'll see how they are tomorrow.

  6. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Back to Straps. So after 4 goes, I might (we'll see in the morning) have got this right. Jedifyfe made it look so easy in his video, but I can tell you from experience, this takes a bit of practice and it is tricky and fiddlely getting that NIKE logo to sit straight. I cheated and held it in place with some clear tape from the front until the glue dried. I also added that adjustment to the "fixed" side which was very needed after stuffing a large card tube into the MP shoes to give them support.

    So anyway, I was going to fit the new straps to my size 10 K-MAGs only to find (and lucky too as I was just before I cut the strap of the K-MAG) that the strap on the K-MAGs is not a true 1" wide, so my new 1" wide straps would not fit through the slots on the buckle. So I dragged in my Mark Poon MAGs from the theatre and changed out the straps (I had some horrid webbing straps) on them. They look much better now to.

    [​IMG]

    My collection of MAG shoes :cool ranging from size 8 on the right to 10 on the left. Now you can see why I want to add height to my MAGs and increase the tongue as well.

    [​IMG]

    The Mark Poon shoes are supposed to be 9US or 9.5US, but these appear to be the same size or only slightly larger than the US8s. So not sure who got their sizing wrong here. No wonder I can't fit into them properly because I am actually a size 9.5 myself. I buy 10s because when I had my feet measured for a pair of Red Wing boots one, I discovered that my left foot is slightly longer than my right.

  7. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    After thinking of ways to increase the height of the collar, I came up with the following after taking a good long look at my shoes, I came up with the idea of using what already exists.

    This image can be found in the thread by Cloneprops and is of his part for the amazing MAGs he is building.
    [​IMG]
    It is very neat and almost looks like it was heat and vacuum formed. Something I can not do in my work shop.

    Back to my shoes. I have marked the seam with a red arrow.
    [​IMG]
    This seam is not on the Mark Poon MAGs and I don't think it is on the real MAGs either. It is there on these shoes because it the material used for this part is different from that on the rest of the shoe's upper. This is much closer to what is used on the real MAG shoes just for the white trim. This part is quite well made, so why not just recyle this part instead or making a new one that might not look as good?

    [​IMG]

    So the idea now is to still make the vinyl/leatherette skin over neoprene and then attach that to the shoe, then attach this part to finish of the collar. In the end of the day, it is about adding an inch (or there abouts) between this stitched line and the bottom of the cutout of the "finger pulls".

    Given it is more pronounced on the inside than the outside, I would probably reverse this part as well so it sits over the new custom collar.

  8. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    Yeah i think its possible.

    the only problem with these kmags, is that the upper, whilst its stiched ontop the main part of the shoe,

    the inner material of the upper part, the sort of soft meshy type fabric, it extends all the way down to the bottom of the inner.

    got to find a way of ripping this out without causing too much damage.

  9. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Why do you need to remove that? Are you thinking for mounting a power supply? After building that over sized buckle made for a 9V, I took a look at the batteries in my house alarm remote (also used in car alarm remotes). The battery is called A23. These are 12V and they are about 1/4 the size of a 9V battery and only cost about $2.50 each! Just don't confuse them with the batteries for a camera at about $40 each!

    I am thinking of simply cutting my collar off just above the stitch line. When I attach the custom part, it gets stitched on upside down than folded over and up and this will cover the stitch line. I think if I was to run wires for the soles and heel cup, that would be the time to do it.

  10. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project


    ok yeah i see what you doing. you're going to just cut off at the seam, and create a slightly longer upper piece and just stitch back on?

    i think i know what that inner liner fabric is called. Its just called a type of tricot polyester mesh fabric or something similar. So what we can do is just cut off that upper part at the seam. open it up, redraw a new upper piece in pvc/leather and then fill it with the foam, restitch it and then stitch back on at the seam.

    it should then look much better and taller like the oriignal mag.
    The k Mags are though are innacurate before the seam join, they start to go in a straight line upwards, whereas on the real mags, they are curved going upwards, but still a longer upper piece will be more accurate.

    it will probably be best to remove some of the foam inside it too, as i think its too thick, the original mag and how clonemag has done it is that the foam is very flat like a sheet, while the kmags are like puffed out.

    good job on this, i think i might get another few pairs first of the k mags, if i mess up, i can try again.

    also, still hoping for a miracle that kmags version 2s will be coming out. would save us so much time and money.:confused

  11. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    yes, that battery looks good.
    what inverter though would you use? theres a 12v inverter (blue) about 1 inch thick thats on sale at adafruit.

    i was thinking of a solution where the inverter and battery fit inside the ankle buckle if at all possible, which is why i was thinking of low voltage solutions. But obviously most people are using a 9v batter solution. 12v would be longer lasting though. it might be possible to fit that adafruit 12v inverter and a single a23 battery inside the buckle.

  12. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Correct. The ankle strap covers this stitching now, and will continue to do the same after the new top collar is added.

    I am planning on using neoprene because it is slightly stiffer than foam.

    That is the plan :)

    Yeah, looking at TheNickFox's re-do and he slimmed the upper down and found it became tight. I still want these to be wearable, so some restrictions will apply with the final shape.

    Correct. I intend to remove all the foam from the main collar of this piece leaving just the trim padded on top - just like cloneprops part.

    My first attempt at a NIKE MAG conversion was actually 1992. I messed them up and ended throwing out quite a nice pair of NIKE AIRs. Oh well, it happens I guess and why I am planning every step this time. Back then, there was no forums to share this stuff, so it was kind of a closet project :$

    Maybe we all need to think like Sven :cool

    I am still interested in that "mini" unit about 40mm long. I think it would be best to still remove the contents from the case and build that into the buckle. Will see when I get mine.

    I don't know how long these A23 batteries last, but I am surprised no-one mentioned them before. They are 12V and small, so perfect IMO unless they go flat too fast or something I'm not aware of. The reason I want to house all the electronics in the buckle is because that part is removable and therefore serviceable.

  13. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Another go at the ankle buckle. This is looking better. It is actually back to the original size, just much thicker, so providing a place to store a battery. These are finished yet and still need more work before they go on my shoes.
    [​IMG]
    If they appear slightly off, they probably are. I have had to eye ball these as I don't have any precise manufacturing tools here. The lines will soften once I round the top and bottom edges and layer some fiber glass over the middle section.

  14. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    I got some sculptey in the mail yesterday, so decided to try and have a go at making the ankle strap holder.

    I did it purely by eye, looking at lots of images of the real mags and trying to copy it, but its quite hard since the shape is unorthodox.

    Not sure how they created the original back in 1989.

    Anyway, here's what i've come up with so far after a few hours, excluding the slits for the straps. I figure I will have to bake it first, harden it and then do the slits and further modifications. I put some cling film over the shoe and then sculpted straight on them.

    Do you think it looks too big? it's quite hard to sculpt all the curves, especially by hand. I guess we can call this method "ClayMag"!

    [​IMG]

  15. Jedifyfe

    Jedifyfe Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,550
    Re: My NIKE MAG Improvement project

    Looks really nice but yes a tad too big.

  16. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    i cut it down a bit from the back as it was too thick.
    trying to see if can make it more accurate

    [​IMG]

  17. Jedifyfe

    Jedifyfe Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,550
    Re: My NIKE MAG Improvement project

    MUCH better!

  18. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Here is my latest Sketch Up of the MAG Ankle Buckle. It is actually a complex part and whilst there is still a bit more work to do, this is starting to get the shape and size I want (I think). The unit is smaller than my earlier plastic attempts and still large enough to house a 9V battery.

    [​IMG]
    [​IMG]

  19. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    that looks great. how long does it take to learn 3D modelling?

    It looks so hard to do!

    also, i took a picture of the clay model alongside a 9v battery to show its size.

    [​IMG]

    On the Kmags, i think its slightly oversized as the upper part of the shoe is shorter than on the real shoe. I think on a restitched longer upper piece, the buckle would fit much better, as I could push it up and increase the distance between it and the heel cup.

    I'm still looking at images though of the real ones, trying to gauge the correct proportions.

    I think I might make another smaller version as well, one just for the kmag, and then keep the existing slightly bigger one for a proper modified kmag.

    I thought sculpting in clay would be easy, but its much harder than I thought! its the first time i've sculpted anything since kindergaten lol.

    Last edited: May 12, 2012
  20. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Here I have added some dimensions.
    [​IMG]

    So the actual height in the centre is 85mm or 3.346". The ends are 55mm or 2.165".

    For years I struggled with 3D CAD software. I self taught myself because I needed a better way to show clients the Home Theatres I was designing for them and my competition post on Facebook that they were using Sketch Up. That gave me the push I needed to learn how to do this stuff.

    Sketch Up offers easy step by step tutorials (via You Tube) when you down load the software. From there, it is simply a matter of drawing something. I did the simple house (external view) they do in the tutorial, but got impatient, so just took on a room I already knew dimensions for (my own HT) and went from there. The more I use it, the faster I get to do the same stuff, and the more complex I can go with what I am drawing.

    What makes this buckle a challenge is that it has multi radii in different plains. Each one needs to be stepped out or broken down into smaller straight line pieces in order to roll the edges or link them to the next radius. From what I can tell, complex shapes like this are actually outside the abilities of the free version of the program, so why I took on the PEP style drawing to do this.

    That looks better in this shot and I agree with what you just said.

    Yeah LOL. Same thing when grinding my part out of plastic. You make a diagram and mark out the plastic and all looks good and easy until you start to cut. Lucky I have over 2.5m of the 100mm PVC pipe left from the original 3m length (my screen came packed in this and I never threw it out for what ever reason), so I have no worries about material shortage here. Not for a while, anyway :cool

    Last edited: May 12, 2012
  21. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Whilst on the subject of Sketch Up, here is the start of the clear sole project I did before I decided to just pour a slab (yet to still buy materials for this).

    [​IMG]

    The idea was to draw this in 3D, have it converted to a DXF file or what ever my laser cutter needs and get him to laser cut the shape (x2) from 3mm perspex.

    From there, stick that to something like laminated MDF with double sides tape, seal the edges with hot glue and pour away Left and Right are simply a case of flipping the shape over.

  22. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Some more Sketch Up. OK this is the start of the part that will become the heel cup.

    [​IMG]

  23. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    And after a few hours...

    [​IMG]

    It is starting to take shape :)

  24. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    And more attempts at this part. It is actually a very complex shape.

    [​IMG]
    [​IMG]
    [​IMG]

  25. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Inspired by Airair's clay sculpt, I decided to rework my plastic version.

    [​IMG]

    The 3rd version is on the bottom left of the image. The original K-MAG copy is top and the 2nd (ugly build-up) is bottom right.
    The latest version is made from 4 layers of 100mm PVC pipe that have been bonded using solvent cement, than cut and shaped using hand and power tools.

    [​IMG]

    Side profile. Not sure if I should have added a 5th layer, or if I should grind the outer parts back to the 3rd layer.

    [​IMG]

    Because I did this by eye, there may not be symmetrical. The idea is still to be able to make 1 master, mold that and cast from there.

  26. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    fantastic, looks amazing! spot on!

  27. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Thanks :) Still a bit sanding to go I think and then the fun part - cutting the slots for the strap :rolleyes

    I was wondering how to do the mold and keep the RTV out of the back when pouring the first half. Then realized all I need is a another piece of the pipe (stuck to the part with hot glue) which lays across the width of the mold.

  28. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Made a start on the extended collars using 3mm EV(?) foam and vinyl.

    My Sketch Up file.
    [​IMG]

    My first cutout attempt. I am still to do the radii.
    [​IMG]

    The good news is, these parts seem to fit quite well.

  29. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    I made a pair of tongues tonight, but will have to re-do these as I made them a bit too short.

    Here is my revised version.

    [​IMG]

    In the earlier version, the top part was 85mm and as it turned out, it sat just maybe 5mm above the current tongue, so too short for what I need. The sleeve idea seems to be working and when fitted, looked quite neat.

    I also cut the foam at the line, and this allows the tongue to sit properly in the shoe but they are too short and I am out of EVA foam and need to purchase more to make another pair.

    Last edited: May 22, 2012
  30. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Ordered the cold cast clear elastomer today. Clear soles, here we come :)

  31. McFly88

    McFly88 Well-Known Member

    Trophy Points:
    566
    Re: My NIKE MAG Improvement project

    have you thought about a 'mass' production for some of these pieces. If so I'd be very interested. Especially with the clear soles if at all possible. I keep saying i'm going to do the EL strap on my K-Mags but I can't ever seem to find the time haha.

    Progress looks great btw.

  32. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    I am hoping to sell off the spare parts. These clear soles will cost me about $200 in materials to make regardless if I make one pair or six pairs. I need three for my own shoes and your welcome to the rest at my costs.

    OK hopefully I have some good news for those wanting to change the colour of their MAGs. Found this product which is supposed to be flexible paint for vinyl! Will run a test soon to see what it does and how well it stands up to flexing.

    [​IMG]

    [​IMG]

    This stuff was purchased at a local store that sells all things for cars called Super Cheap Auto.

    I'll use the Bondo to make a new version of my Ankle Buckle that will allow a 9V battery to be stored inside. So closer to the Sketch Up drawing I did a few posts back.

  33. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    And a short while later...

    YOU TUBE VIDEO TEST

    This product does not appear to crack even under stress that ordinary wearing will create. I'd say a win here :)

  34. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    great find Cavx. I think that video link is going straight to your my videos folder on youtube, so its not working properly at the moment.

    Also, i noticed that on the Kmags, that weird thumbprint pattern on main vinyl material, is actually painted on i think. I was cleaning some sculpey off, and noticed that the thumbprint was vanishing with some water. So i guess, whichever colour kmags you have, you can just rub hot water over it and get rid of all the thumbprints.

    So it will be nice and even, and great especially when spraying over with that vinyl paint spray.

    That thumbprint pattern is a bit weird! I wonder why they chose that?

  35. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    OK so I need to go into setting and change something. Probably why I could not find my own videos when I did a search whilst not logged in :facepalm

    I don't think so. Mine went swimming a few weeks/months back and that pattern is there as pronounced today as it was when they were brand new.

    I spent over an hour today masking up the size 8 pair and gave them a good spray. They drying right now so we will see how they look tomorrow. I won't disturb them just yet. I'll give the paint at least 6 to 8 hours.

    This pair will be done leaving the white soles and heel cup strap and top of collar. I've painted over the black SWOOSH as I have another set in white ready to go. I might use turps to take the paint off the SWOOSH before I apply the new white SWOOSH.

    I get my clear (with blue tint) cold cast elestomer on Friday, so looking forward to making clear soles.

  36. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Its been about 6 hours, so I have taken off the masking tape, cleaned up some bleeding and fitted the other parts including the new SWOOSH. This paint does not seem to be able to be removed with mineral turpentine and I found acetone was the only thing that worked.

    WORD OF WARNING. If you get this paint on the trim on the tongue or upper collar DO NOT use acetone here. It just eats the stuff! I did get a small amount on the trim of the tongue and I will have to simply paint it white. I also need a small artists brush to touch up around the elastic straps. I simply taped over the straps to form a straight line. This is one thing that bugs me about these and the Poon shoes - the eleastic should not pass through a slot, rather be stitched to the edge.


    [​IMG]

    [​IMG]

    Whilst I think they look better, my wife does not share my point of view. These are actually her Size 8s and she says prefers them white. Looks like I will have to buy her a new set :rolleyes

  37. dvdripped

    dvdripped Member

    Trophy Points:
    181
    Re: My NIKE MAG Improvement project

    That looks magic :) great work

  38. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Thanks :) Now I just need to convince my wife :confused

  39. MitasTouch

    MitasTouch Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,285
  40. MitasTouch

    MitasTouch Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,285
  41. airair

    airair Sr Member

    Trophy Points:
    1,525
    Re: My NIKE MAG Improvement project

    it looks great!

    whats the consensus on painting the foam part of the soles? is it latex mixed with fabric paint combination covered with some finish protector?

    or maybe a paint spray like the ones above could do a good job?

  42. TheNickFox

    TheNickFox Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,285
    Re: My NIKE MAG Improvement project

    Paint will most likely chip off, and I wouldn't trust an aerosol around a foam.

    Dye, is most likely the way to go. I'll be doing some experiments on my soles with Rit dye. My guess is that it should work...fingers crossed.

    -Nick

  43. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Has anyone ever applied 2PAK primer with a roller? I used to do this on speaker boxes and the end result was a pimpled hard poly coating that sealed even the porous end grain of MDF. I got this stuff on my clothes once and it flexed and moved and did not peel or crack for the time I had them. I don't know if it would react with the foam (eat the foam) but I think it ( and a roller) would provide the fine bumpy surface of that part of the shoe. It is also a light (lighter than the paint I've used) grey. It is very toxic though.

  44. Caloss

    Caloss Active Member

    Trophy Points:
    342
    Re: My NIKE MAG Improvement project

    rite die dose not work trust me ive tried it all it dose is look like you water painted it with kid paint plus it washes off mostly the only thing it sticks to is any cracks and stress lines in your foam. good will hunting guys i put up a formula but hey seeing is believing i guess

  45. The9thWonder

    The9thWonder Active Member RPF PREMIUM MEMBER

    Trophy Points:
    281
    Re: My NIKE MAG Improvement project

    @cavx nice job. The paint job is definitely a huge upgrade on these. Well done.

  46. Caloss

    Caloss Active Member

    Trophy Points:
    342
    Re: My NIKE MAG Improvement project

    rit die dose not work trust me ive tried it all it will look like you water painted it with kid paint plus it washes off mostly the only thing it sticks to is any cracks and stress lines in your foam. good will hunting guys i put up a formula but hey seeing is believing i guess.SIGNING OFF B4TF.

  47. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Hey thanks for the positive feedback.

    Just for giggles, here is the masking and painting photos.

    All Masked up
    [​IMG]

    Spray Painted
    [​IMG]

    I just hope my 10's turn out as good as my wife's 8s. They are in the garage drying right now.

  48. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    And here is the new tongue and extended collars. I need to paint the collars grey before I attempt to stitch the lining fabric to the other side. I also need to cut out my finger pull holes. You can see one tongue is bent. I made the back piece in two halves for this purpose.

    [​IMG]

  49. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Paint is dry and the tape has been removed :) Like the size 8s I did yesterday, there was some bleeding that needed cleaning up. Overall I am pleased with the result. I am wanting to darken the soles slightly. I think that they are too bold in white against the darker grey. If the grey was a few shades lighter, this would not be an issue.

    The MAG shoes and BTTF II inspired tube bag
    [​IMG]

    Adding some flash to show off the bling [reflective tape]
    [​IMG]

    And my first wear
    [​IMG]

    I like that shot. Looks like I'll have to update my avatar :)

    Some day I'll get a Jacket and Hoverboard [which I have plans for thanks to member Meta440]


    Attached Files:

  50. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Re: My NIKE MAG Improvement project

    Ok having another crack at the Ankle Buckle. When I bought the grey paint, I also bought a can of Bondo. I mixed about 50 grams and applied that and when it set, went back to shaping it, but it seemed everything I did, I created a flat spot or even create small indents. So it got shelved yet again.

    So I was given some poly resin the other week and today I decided to give this stuff a go. So I mixed up just 10 grams and tipped in on the curved surface and whilst holding the part by the edges, moved it around to let the resin run over the surface. It seems to have done what I wanted - to fill in the holes and create a very smooth curved surface.

    [​IMG]
    [​IMG]
    [​IMG]

    So given how well this experiment seems to have worked today, I'll be using this again to do the outer edges and around the strap slots.

    I've also hollowed the back out. It is not deep enough for a 9V as originally intended, but will be perfect for those watch batteries or maybe even two AAA batteries.

    This part must be right before I am prepared to chop the collars off my shoes and replace them.


Share This Page
