Star Trek Bridge Chairs Build

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


mercuryapollo

Active Member
RPF PREMIUM MEMBER

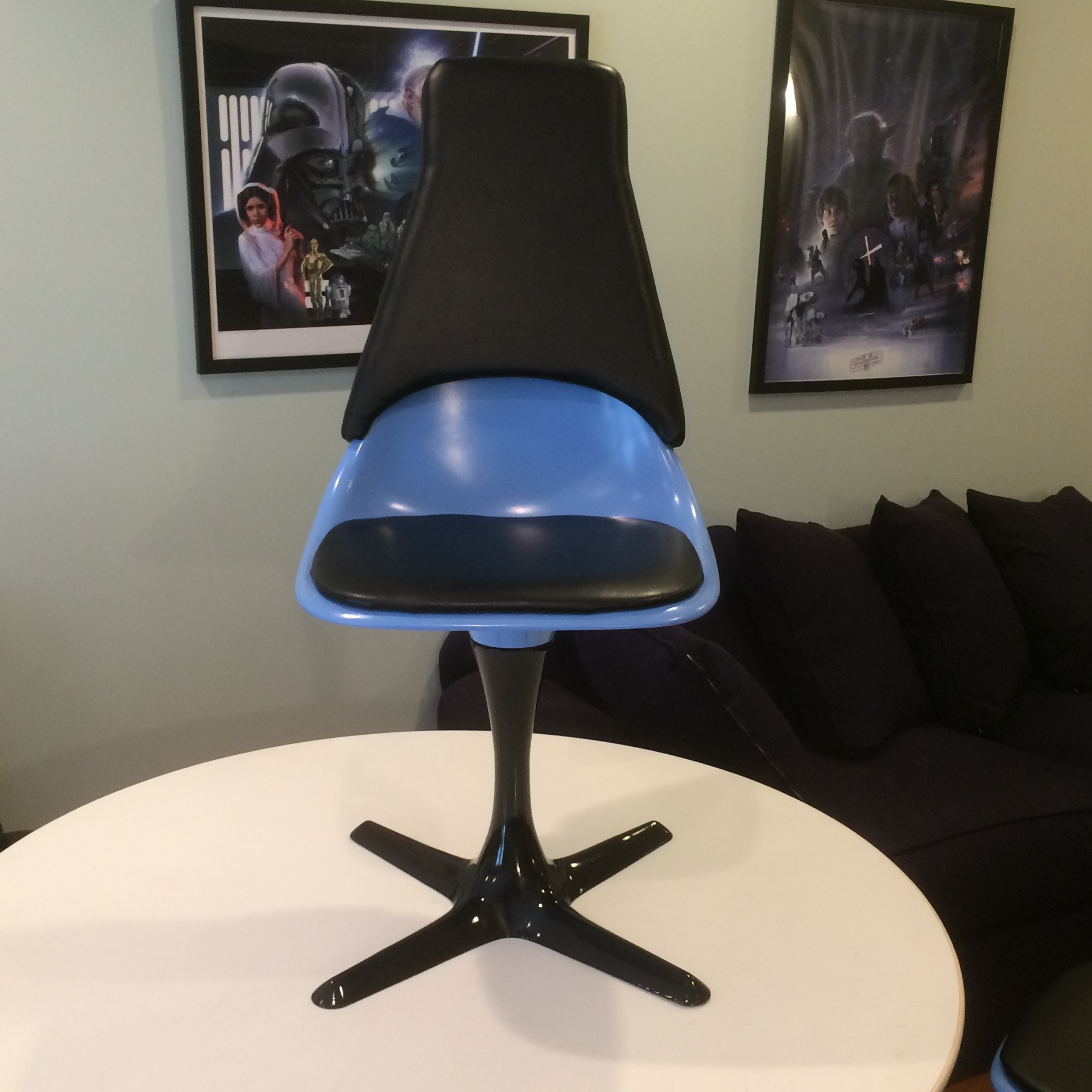

This is a build that i have had in the works for a while. Finally had time to complete. Of course the captains chair is on my bucket list but i just don't have the time to commit right now. So when I saw some original burke chairs on Ebay a while back I decided to jump into that. And why build one when you can build six. The listing had six charts and a table. They are Burke 103's. Not the 115's like they used for the original chairs. But the are close, look good when completed and were super reasonably priced. Here is a completed photo. I will go through the build in subsequent posts.



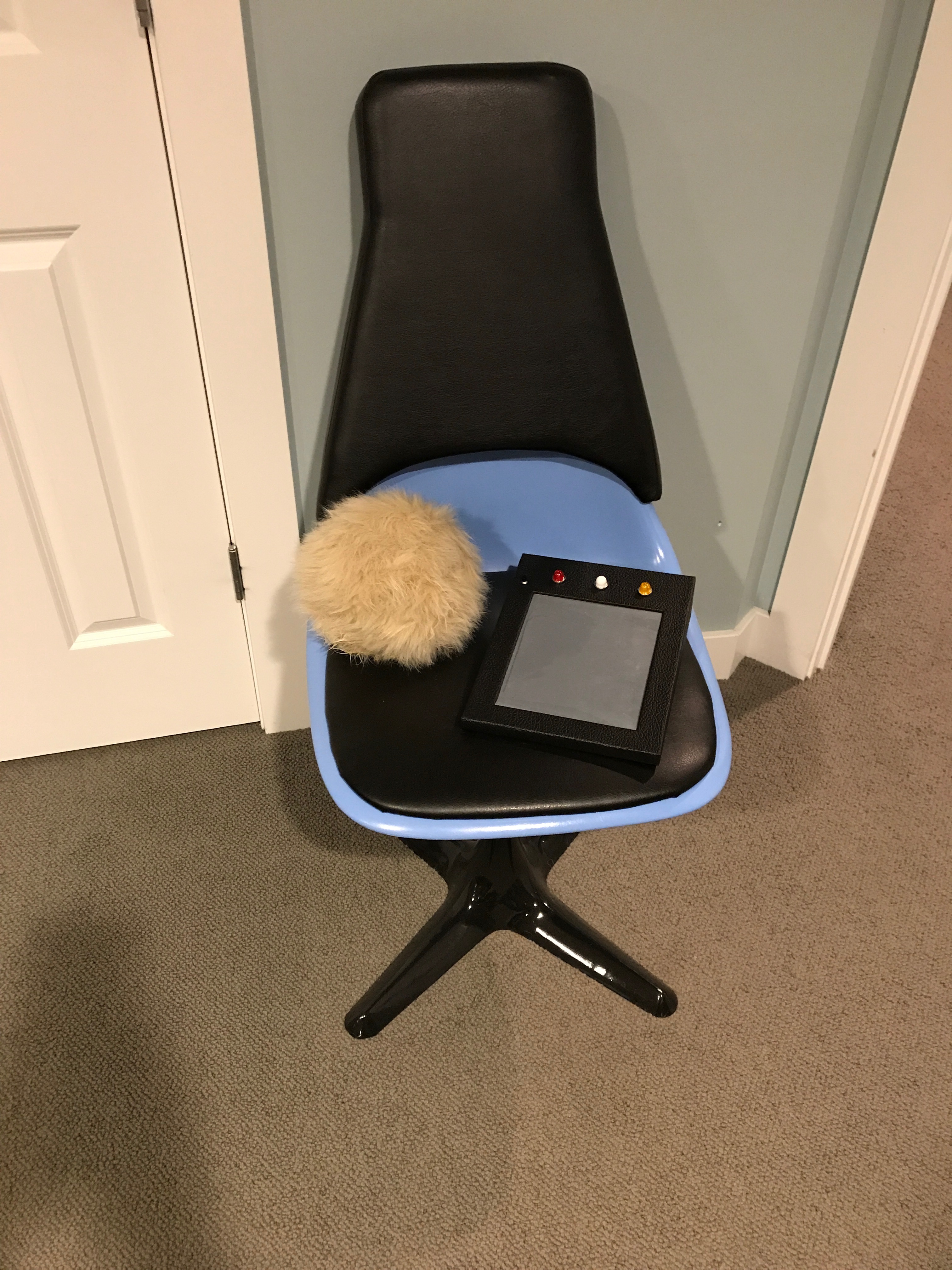

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Prefect42

Sr Member
RPF PREMIUM MEMBER
Those look fantastic. Congratulations.

I owned a Kirk chair for years. Sold it recently as I moved and didn't want to drag it with us. It was a dream come true. I hope you build one for yourself one day. It is an awesome feeling sitting in the Kirk chair for the first time.

Cheers.

Ted.


mercuryapollo

Active Member
RPF PREMIUM MEMBER
4E27A027-5045-4F79-A40E-226E2BC4C112.JPG 733DA401-164C-4696-98F0-ACD7D8BA4A8D.JPG

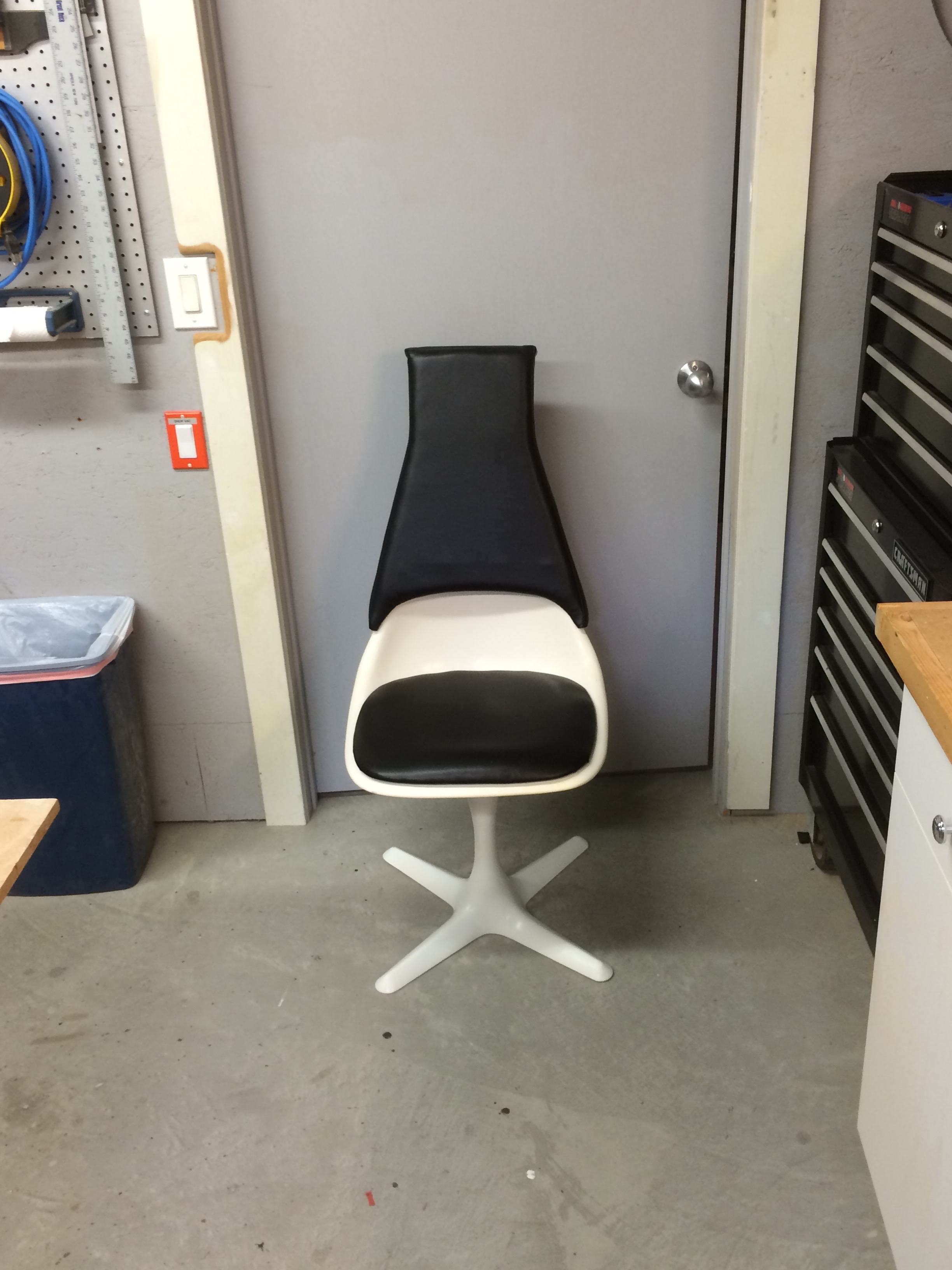

First thing I did was find the correct black vinyl for the seat cushions and chair backs. I bought some really nice material at Joann, very soft and feels like real leather. The seats were covered in some nasty pink fabric. I started to remove it but found it was just easier to cover over. The base of the seat was a thin but dense mdf type of material. I could not staple into it so I use hot glue to adhere the vinyl. I decided to wear gloves after burning myself a few times. Not fun. Needed to work fast and stretch the vinyl to adhere before the glue set. Next finding the correct color to paint the chairs.

Last edited:

mercuryapollo

Active Member
RPF PREMIUM MEMBER

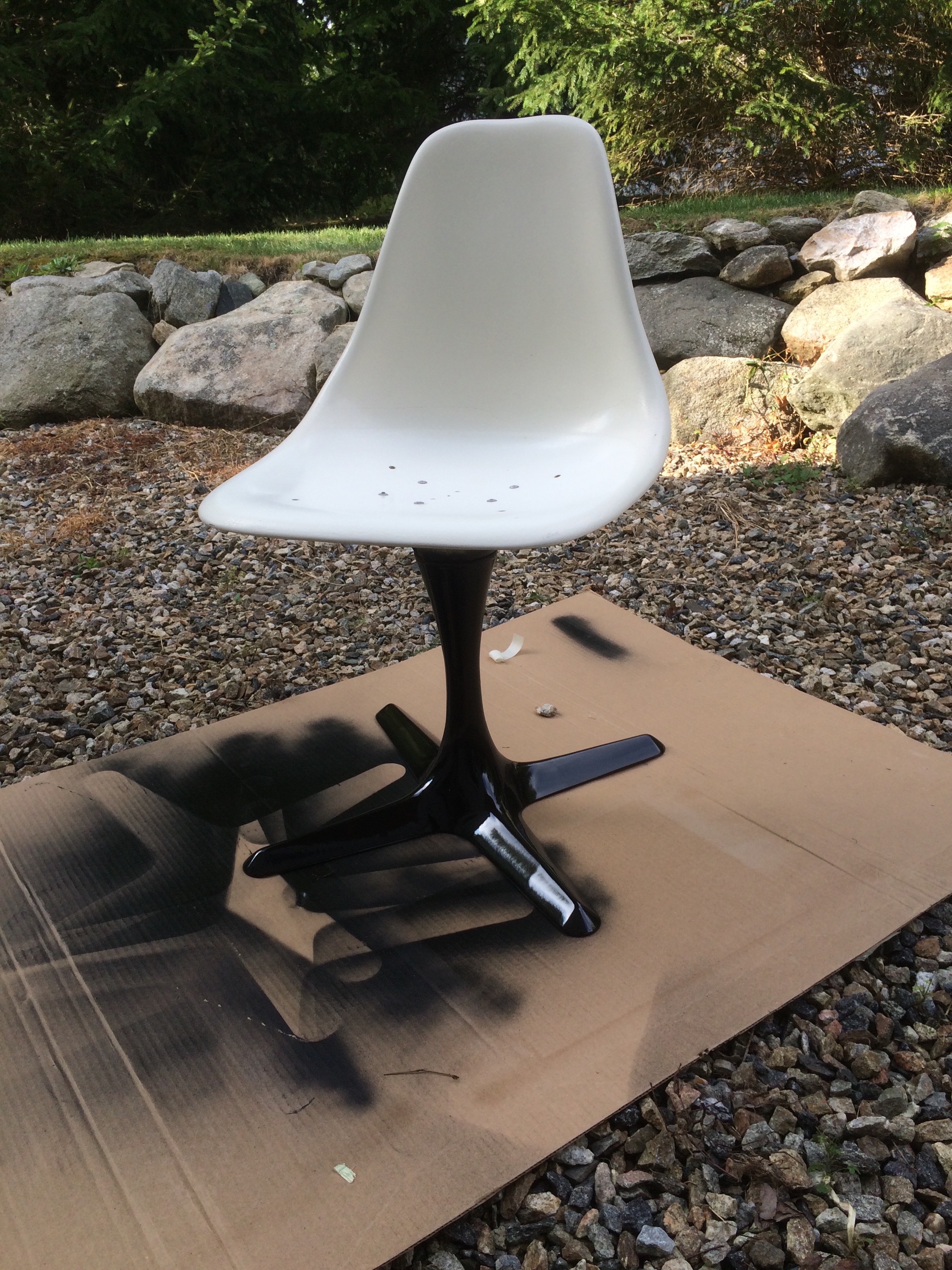

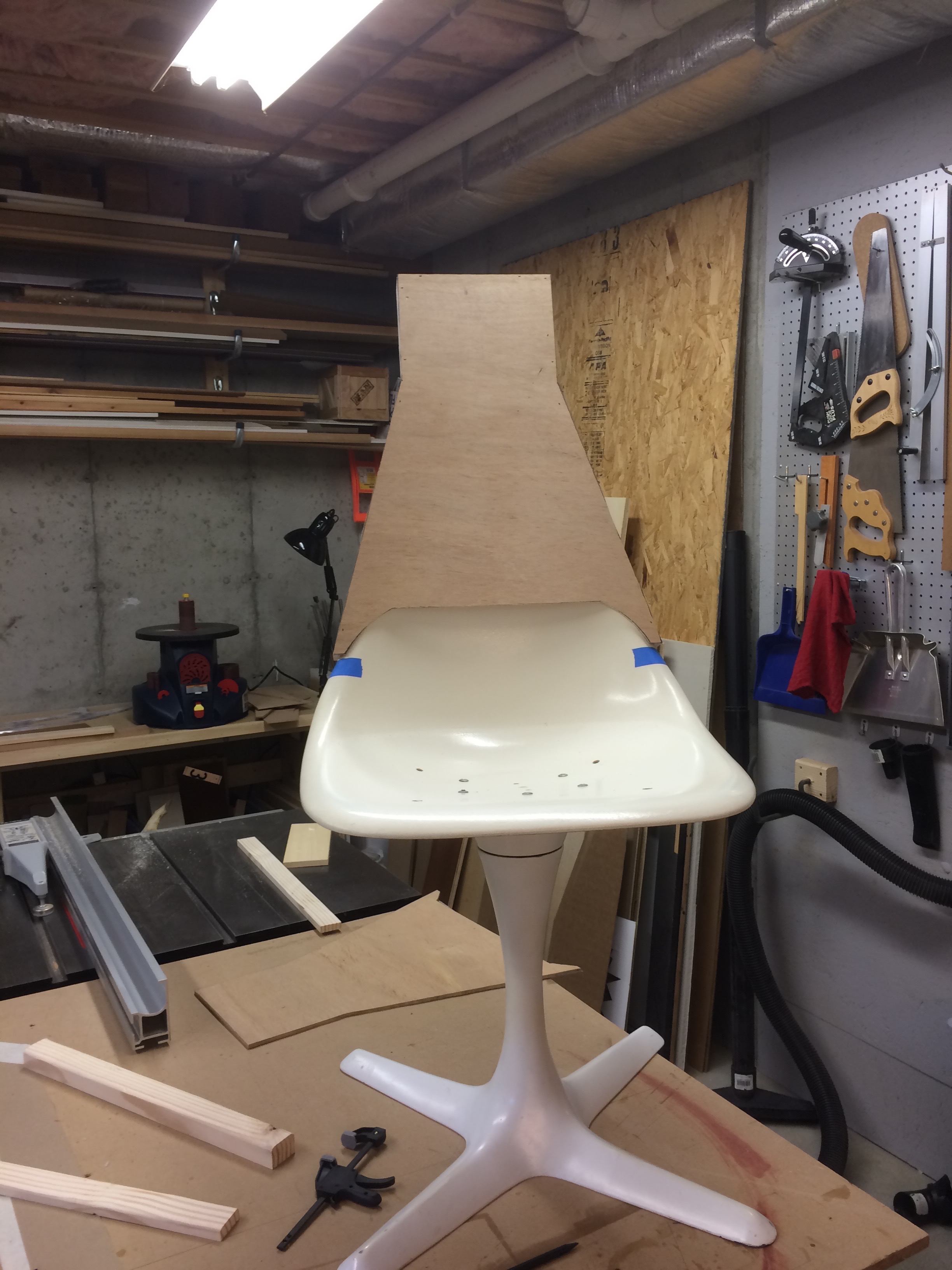

I tested a few different blue spray paints and found a very close match with Rustoleum Gloss Spa Blue. The base was painted gloss black. The trickiest part of the build was the chair back. I built a wood shell that i cover with half inch foam and then sewed the slip cover that would go over the shell and foam. It took bit of trial and error as there were no plans available and the sizing would be different anyway, with the #103 chair.
