Star Trek Boomerang Phaser "Starfleet Silver"

[MustangGTR1]

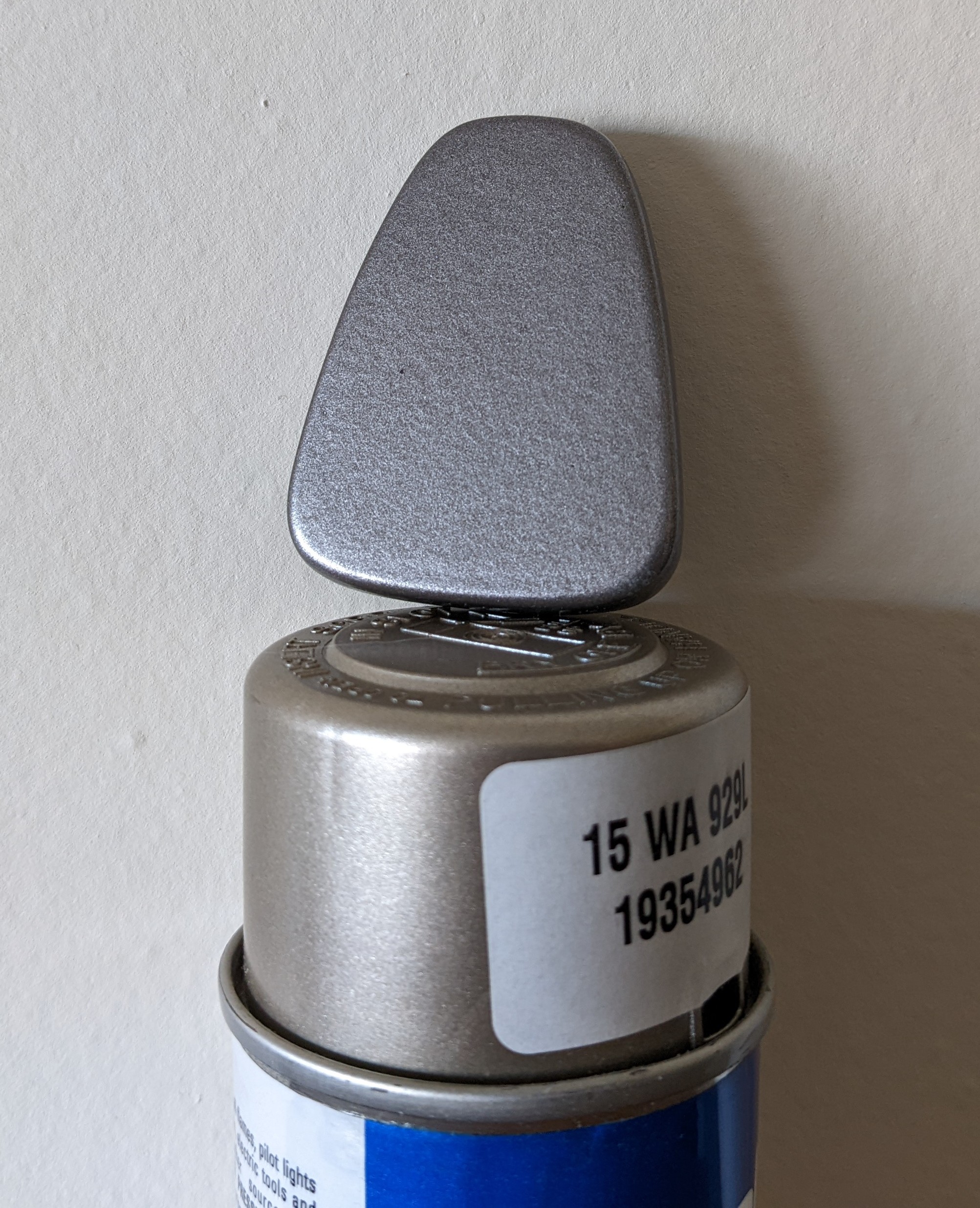

This is what I got when I ordered a can of pre-1998 GM15, compared with a sample of 7173 from back in the day. It's too light and too gold. Label gives an alternate color code of WA929L.

If you have a sample or photo of a GM15 that matches, I'd love to see it.

View attachment 1550757



Aka WA216B; here's that color against 7173 when I was investigating color codes a couple years ago. It's a touch too saturated but it's the best color match I know of so far. (It looks closer in the photo than it does in hand.)


View attachment 1550759

That other code comes up as

Cashmere Metallic​



[MustangGTR1]

I was lucky. A few years back. We had a body shop going out. So I bought the color paint chip books they had. 62 to 05 So I can look up any color



[AnubisGuard]

I was lucky. A few years back. We had a body shop going out. So I bought the color paint chip books they had. 62 to 05 So I can look up any color

My recollection is that the Plasti-Kote name for 7173 was "silver sand metallic." Now, there is a GM15 version with that name but the color chip I found online also didn't match. Mind checking if you have that one in your books and, if you do, sharing what it looks like? Thanks.



[MustangGTR1]

My recollection is that the Plasti-Kote name for 7173 was "silver sand metallic." Now, there is a GM15 version with that name but the color chip I found online also didn't match. Mind checking if you have that one in your books and, if you do, sharing what it looks like? Thanks.

I do. And I also have the old cans of 7173 and 7179 as well.. Here is Marble head on the left. And GM15 on the left



[AnubisGuard]

This version of GM15 aka GM15U aka WA914K, looks promising. No idea if it's from before '98 but the color chip is a warm medium gray, so it's on the right track.

Medium Gray Metallic 15/15U/WA914K for GM

2WayPen (.3 oz.) by ExpressPaint combines two paint repair pens into one cost-effective solution for fairly small nicks and scratches .One side of the 2WayPen is your factory-matched color; the other side contains high-quality clearcoat. Other Available sizes (Clearcoat not included and it is...

expresspaint.com

I just ordered a can and will report back on how it compares once I get it.



[HMS Mike]

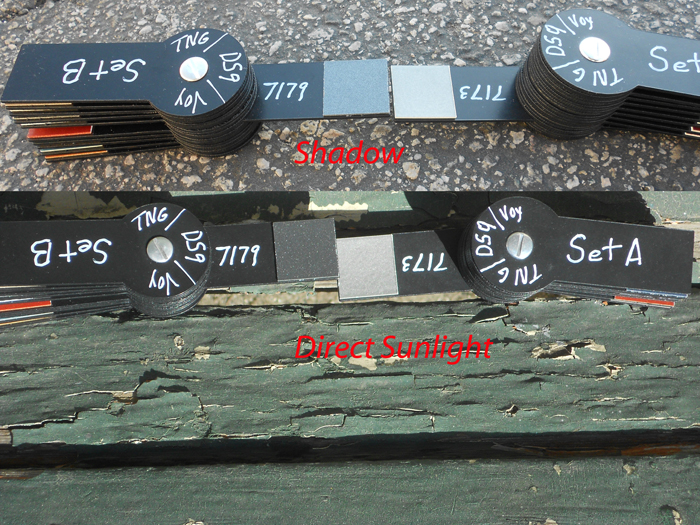

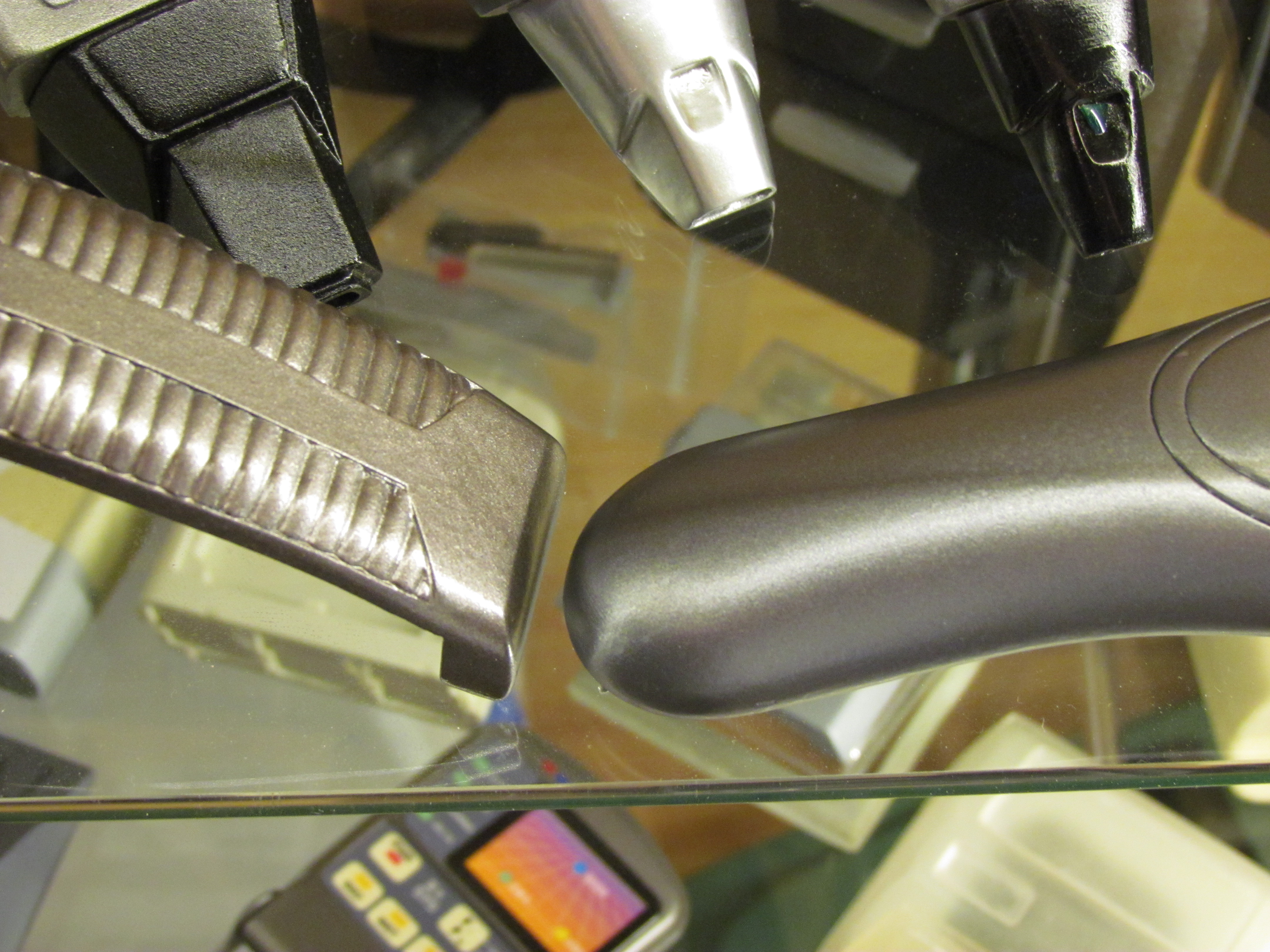

Hi Guys, So maybe this will help you with the colors. These are the color chips I used while working on the Trek shows to paint the props.



[Feltman Langer]

There is a link in the first post. To a place where you live, that does the same thing

Yes I've contacted Autopaint, they are in a different city to me and may not ship paints, I'll see what they come back with
Man this is such a complex thing I never expected this to be so hard!



[Feltman Langer]

Hi Guys, So maybe this will help you with the colors. These are the color chips I used while working on the Trek shows to paint the props.View attachment 1550813

Thank you Mike I'm betting this will cause a paint testing frenzy!



[AnubisGuard]

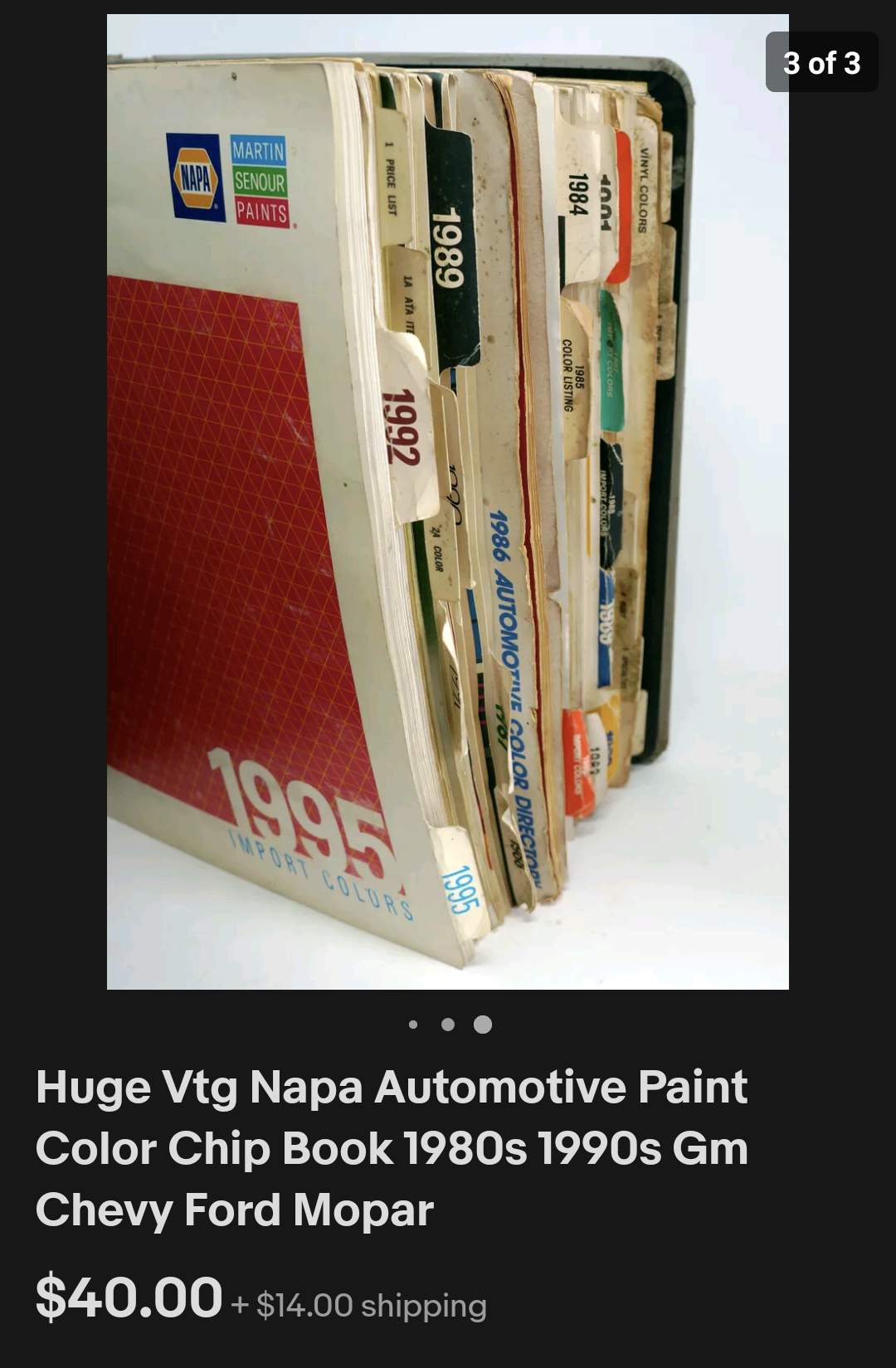

The madness deepens. I just bought a GM dealership color chip book off eBay; it runs from the mid '80s up to 1995, which I'm assuming is when HMS Mike began using 7173 (it started showing up on screen some time in '96 IIRC.)

Hopefully I can find the match and get the exact WA color code.



[Feltman Langer]

The madness deepens. I just bought a GM dealership color chip book off eBay; it runs from the mid '80s up to 1995, which I'm assuming is when HMS Mike began using 7173 (it started showing up on screen some time in '96 IIRC.)

View attachment 1550843

Hopefully I can find the match and get the exact WA color code.

Madness indeed, I vote we use the fugliest silver we can find and declare that the winner!



[MustangGTR1]

Madness indeed, I vote we use the fugliest silver we can find and declare that the winner!

It really comes down to what you are happy with. And Mike, thanks for helping



[Feltman Langer]

It really comes down to what you are happy with. And Mike, thanks for helping

True.
And it may be a case of close enough is good enough



[MustangGTR1]

True.
And it may be a case of close enough is good enough

I will tell you. Paints colors recycle. And some of the new paints look like the old ones. But with new paint code numbers



[Feltman Langer]

The madness deepens. I just bought a GM dealership color chip book off eBay; it runs from the mid '80s up to 1995, which I'm assuming is when HMS Mike began using 7173 (it started showing up on screen some time in '96 IIRC.)

View attachment 1550843

Hopefully I can find the match and get the exact WA color code.

Looking forward to the sitrep



[renaissance_man]

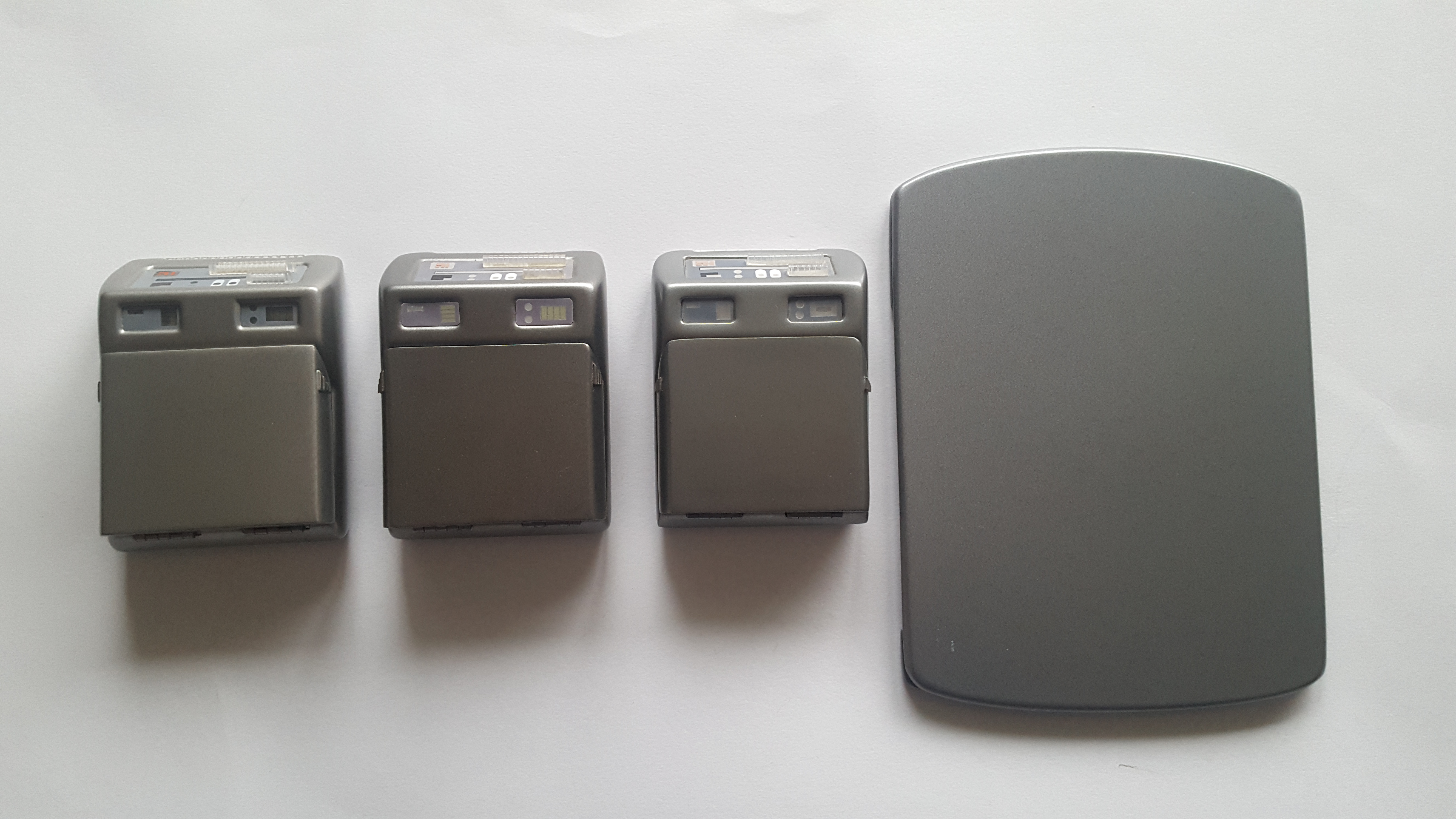

If you have an automotive supply shop that does off the shelf car paints pre-mixed then Vauxhall Smoke Silver is a great, modern day equivalent.
L-R
Master Replicas replica, HMS kit built up by HMS and a GMRos early 2000s replica (which is a tad undersized) and the reverse of a VOY PADD made by me paint with Vauxhall Smoke Silver.



[Feltman Langer]

If you have an automotive supply shop that does off the shelf car paints pre-mixed then Vauxhall Smoke Silver is a great, modern day equivalent.
L-R
Master Replicas replica, HMS kit built up by HMS and a GMRos early 2000s replica (which is a tad undersized) and the reverse of a VOY PADD made by me paint with Vauxhall Smoke Silver.
View attachment 1551069

Do you know the paintcode for that? We had Holden/ Vauxhall models here for a while.



[Feltman Langer]

The madness deepens. I just bought a GM dealership color chip book off eBay; it runs from the mid '80s up to 1995, which I'm assuming is when HMS Mike began using 7173 (it started showing up on screen some time in '96 IIRC.)

View attachment 1550843

Hopefully I can find the match and get the exact WA color code.

Any updates on this?



[AnubisGuard]

Any updates on this?

Estimated delivery date for my order is March 9th. So a few more days.



[Feltman Langer]

Estimated delivery date for my order is March 9th. So a few more days.

Baited breath time I'm waiting on a quote for GM18 from a local (same city across the harbour) reseller



[AnubisGuard]

Baited breath time I'm waiting on a quote for GM18 from a local (same city across the harbour) reseller

Color code book is here! I went through all the years of GM paint codes to find the closest ones. I took comparison photos of each under direct sunlight and in shade.

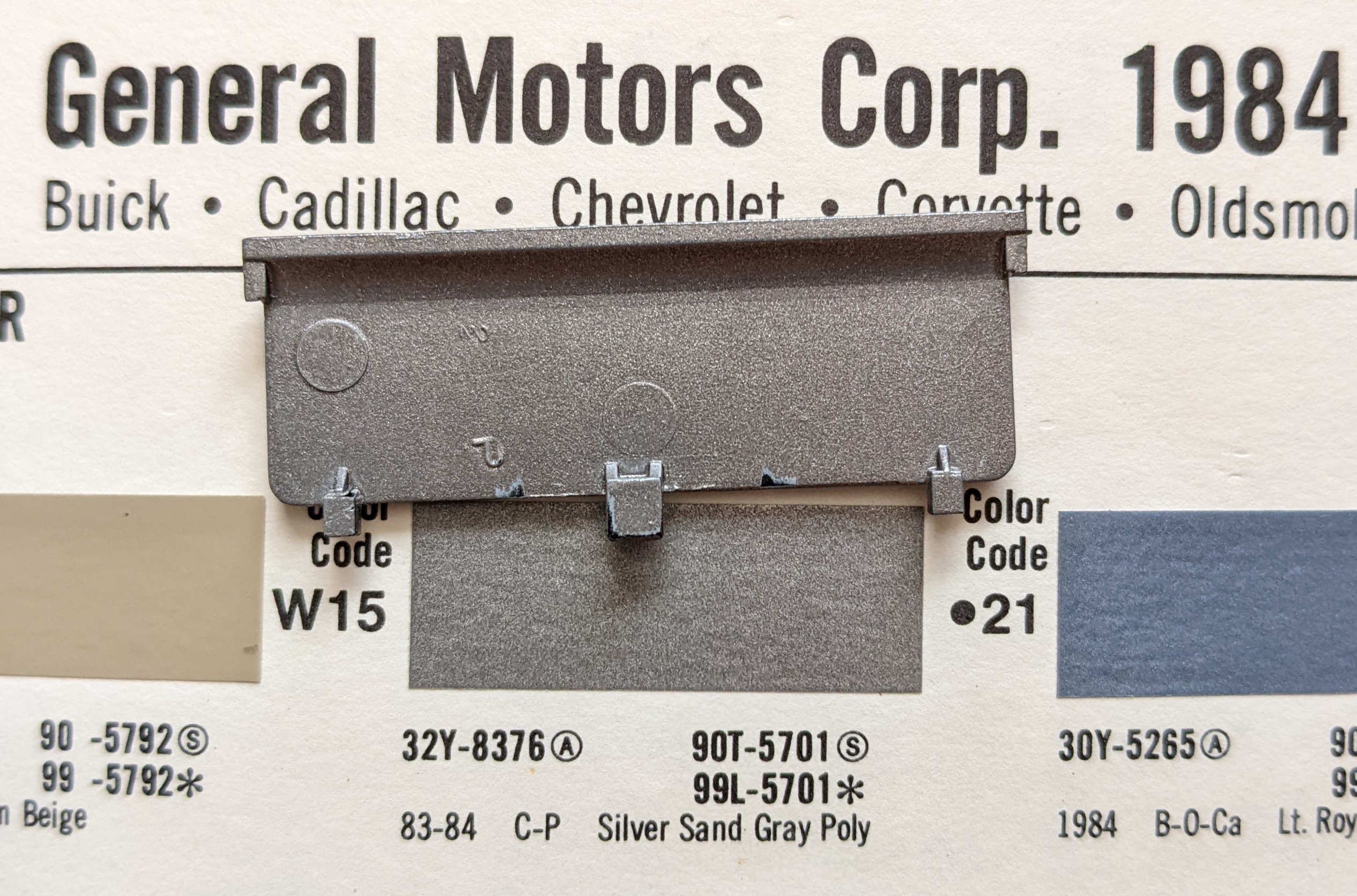

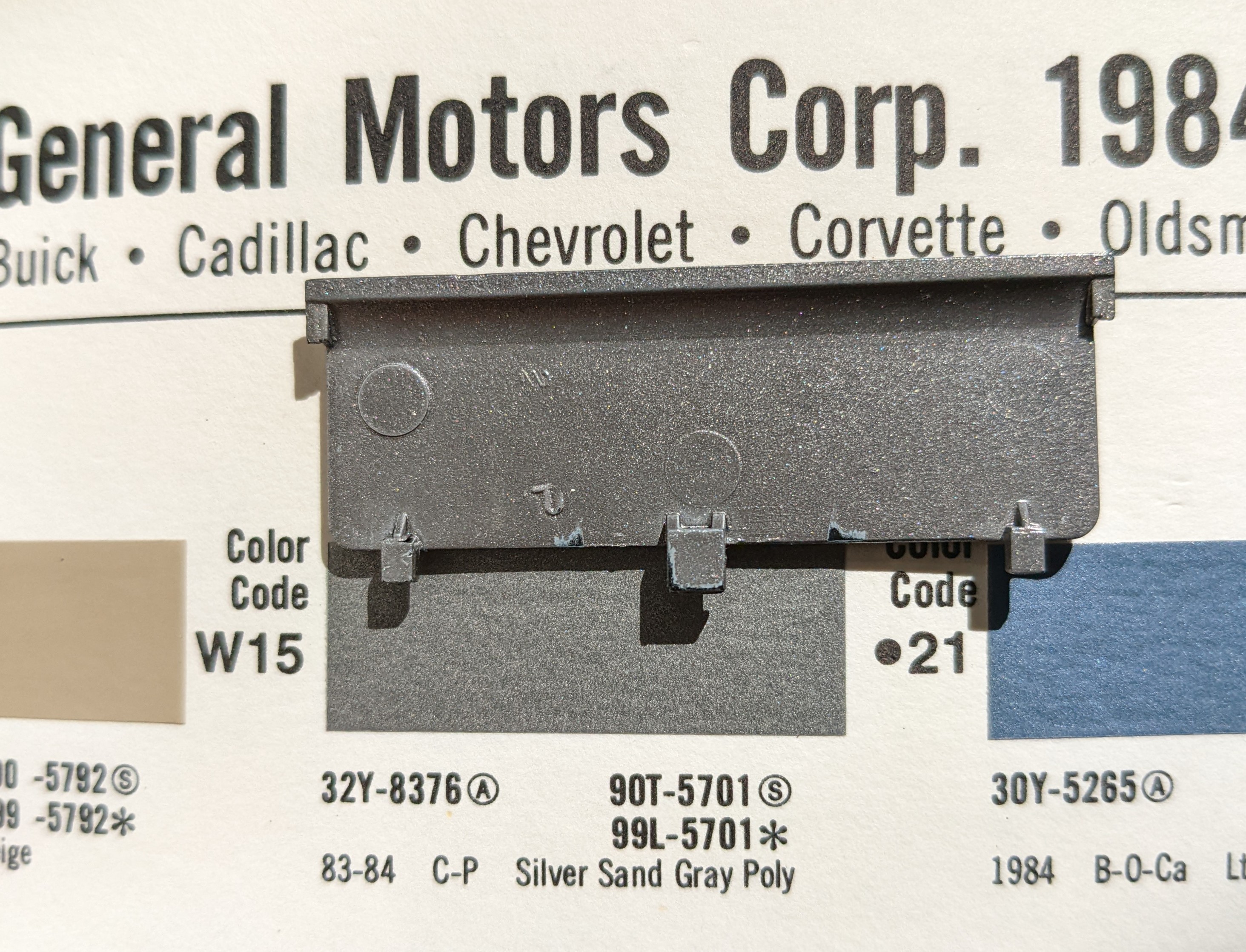

First up, here's the one I think Plasti-Kote was matching. W15 Silver Sand Gray Poly, aka 32Y-8376 aka 90T-5701. Googling those latter codes don't match paint colors, but a search for "W15 Silver Sand" turns up a 1984 Pontiac color code of WA8311. Plasti-Kote's brand name for 7173 was Silver Sand Metallic, so I'm like 90% sure this was what the code was. It's almost spot-on, but in person the real 7173 is a tiny -- and I mean tiny -- bit warmer than the color chip. But this should be choice #1 if you can get it.

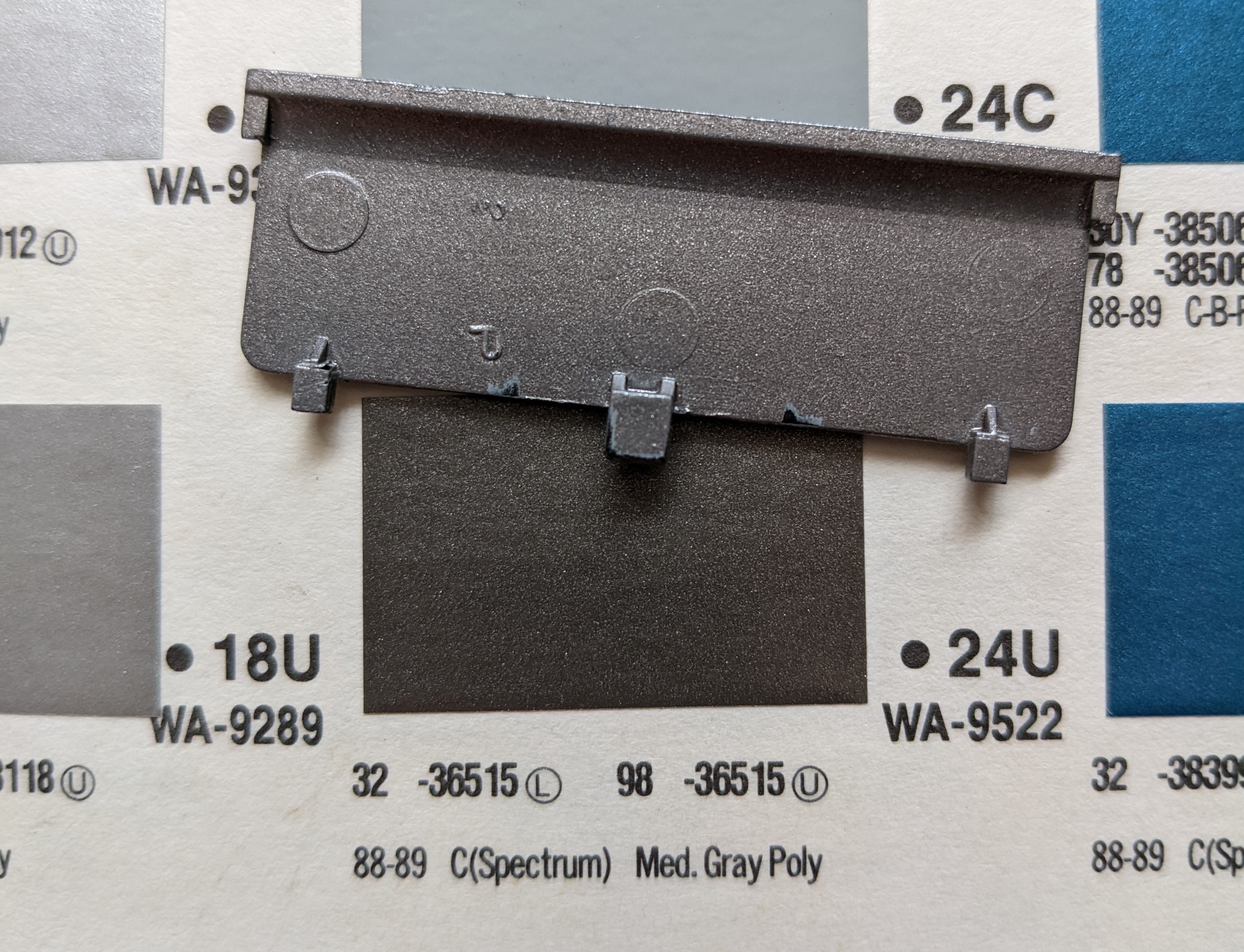

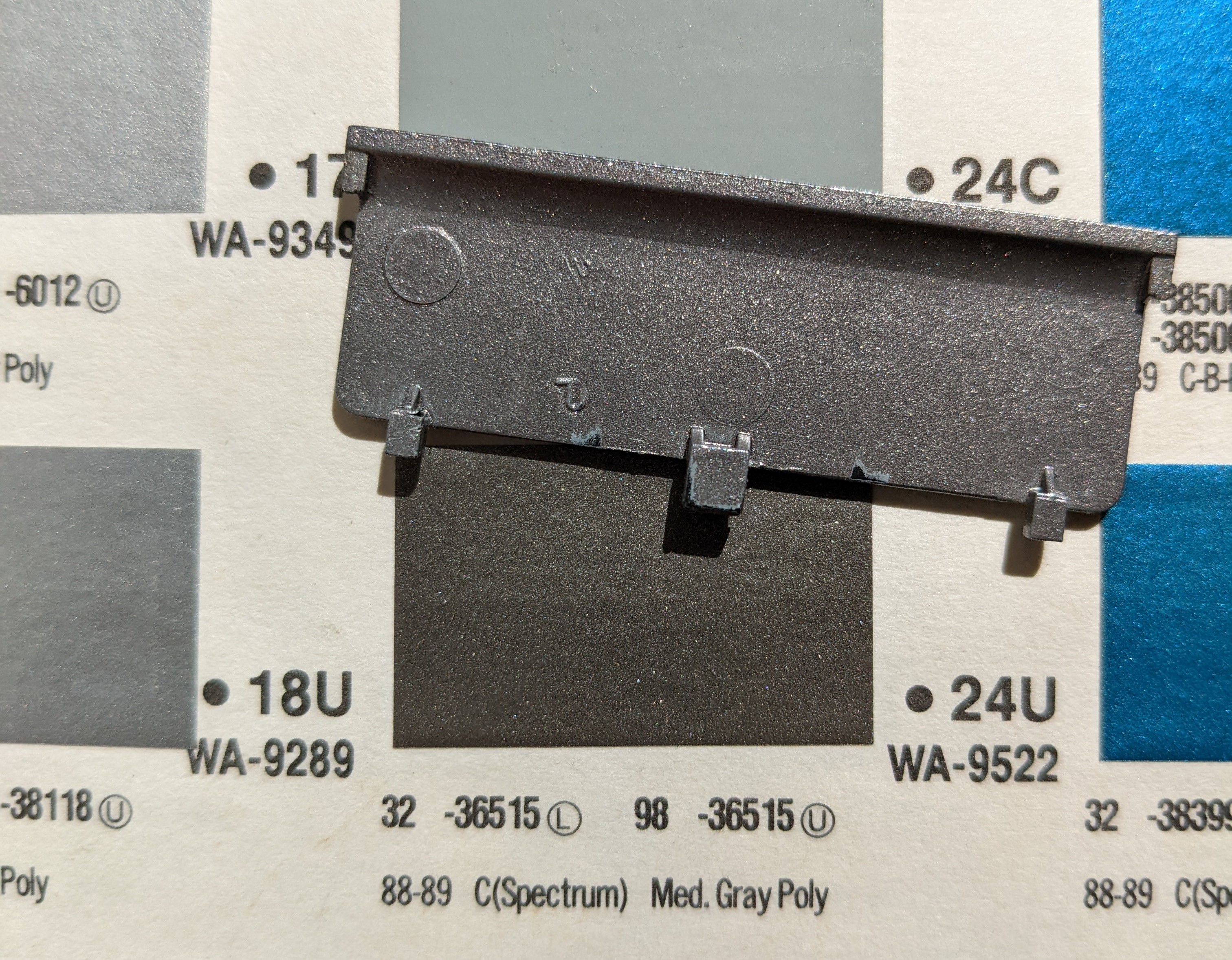

Next up in "close enough" is a 1992 code, GM18U Med. Gray Poly, aka WA9289. It's a touch too dark but it's a warmer tone that matches 7173 a bit better. The difference looks greater in the photos than it does in person.

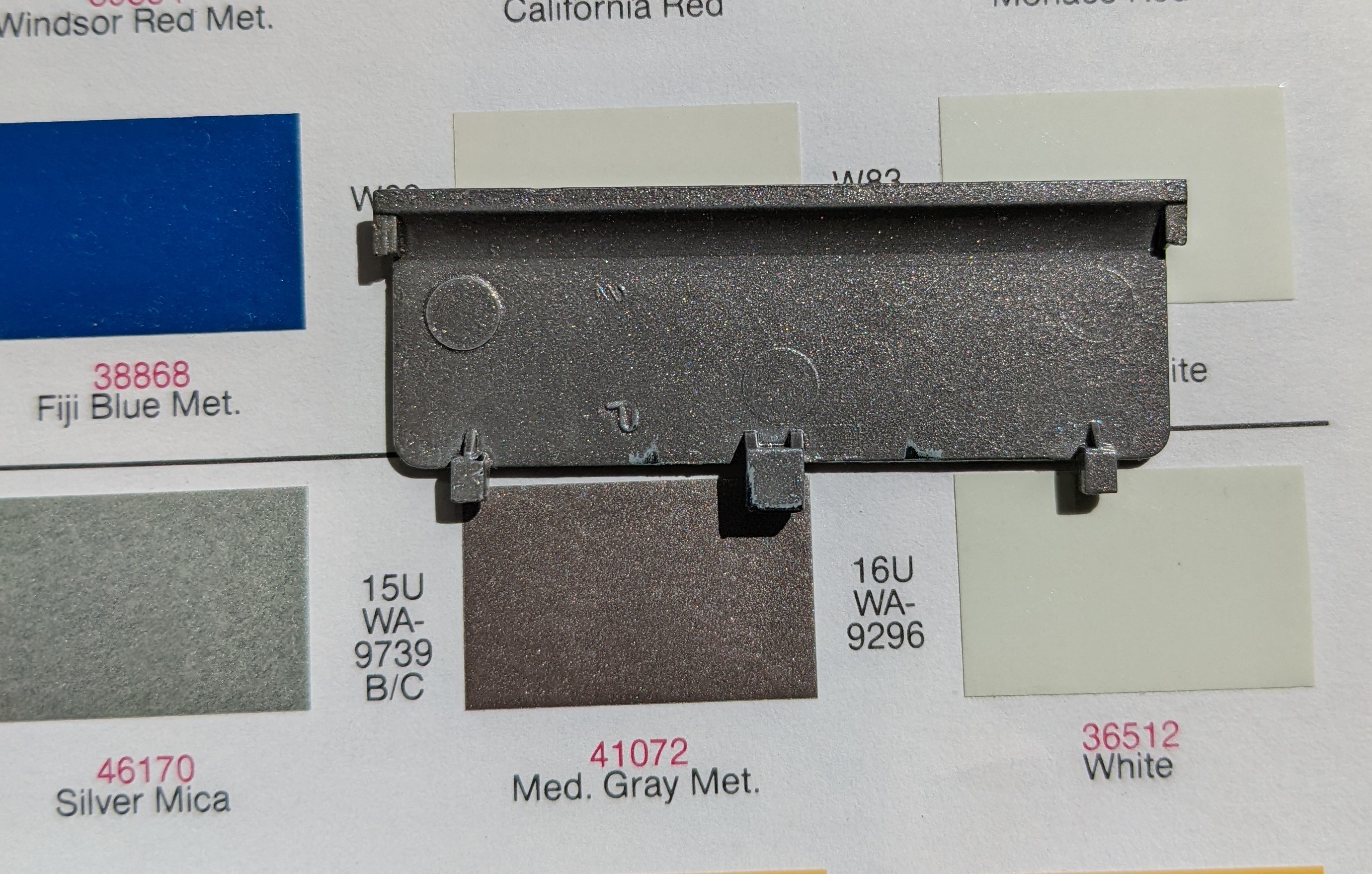

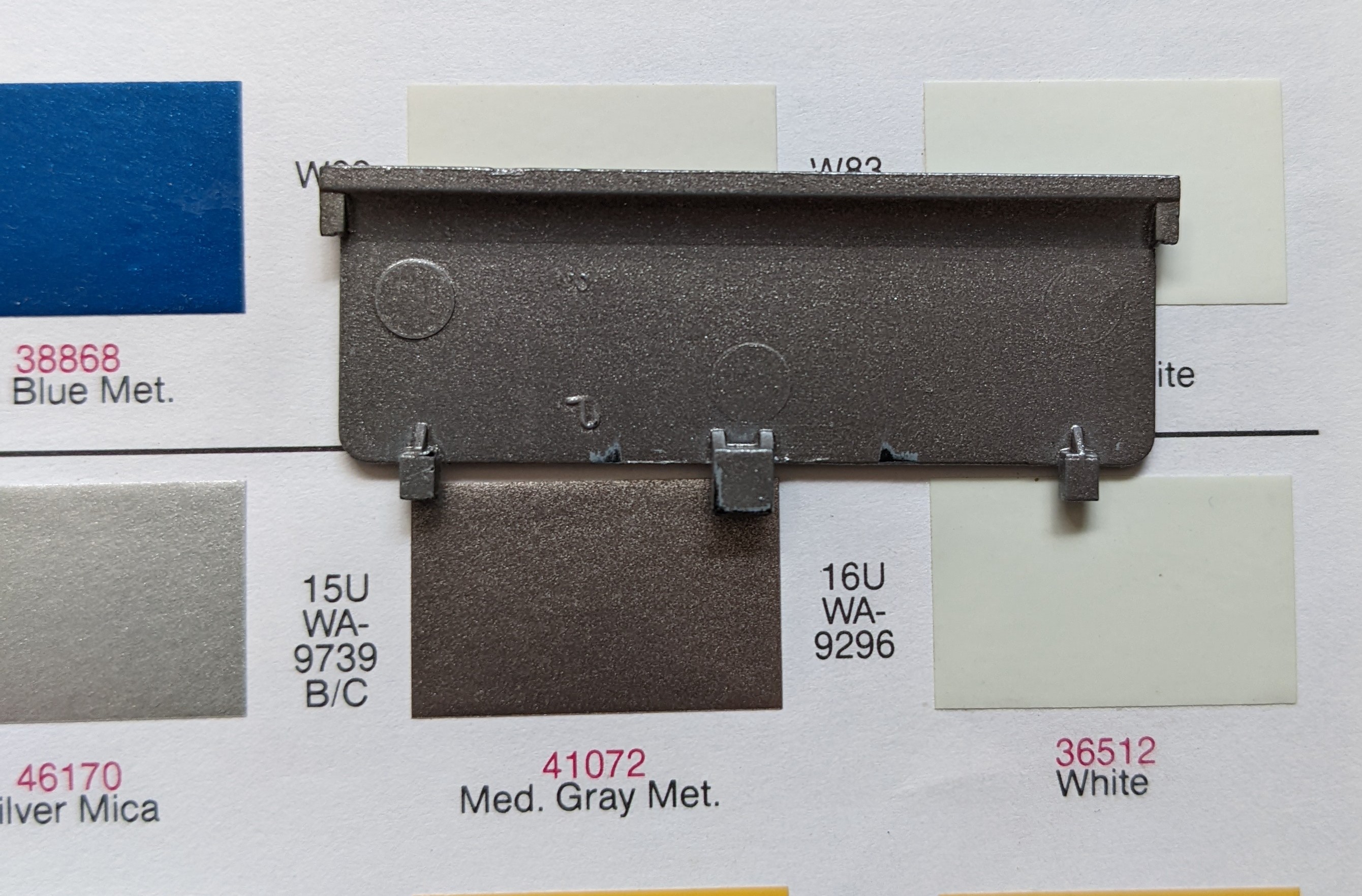

And a 1995 GM code, GM15U Med. Gray Met. aka WA9739. It's pretty beige, but is closer than the GM18 WA216B I'd found before.

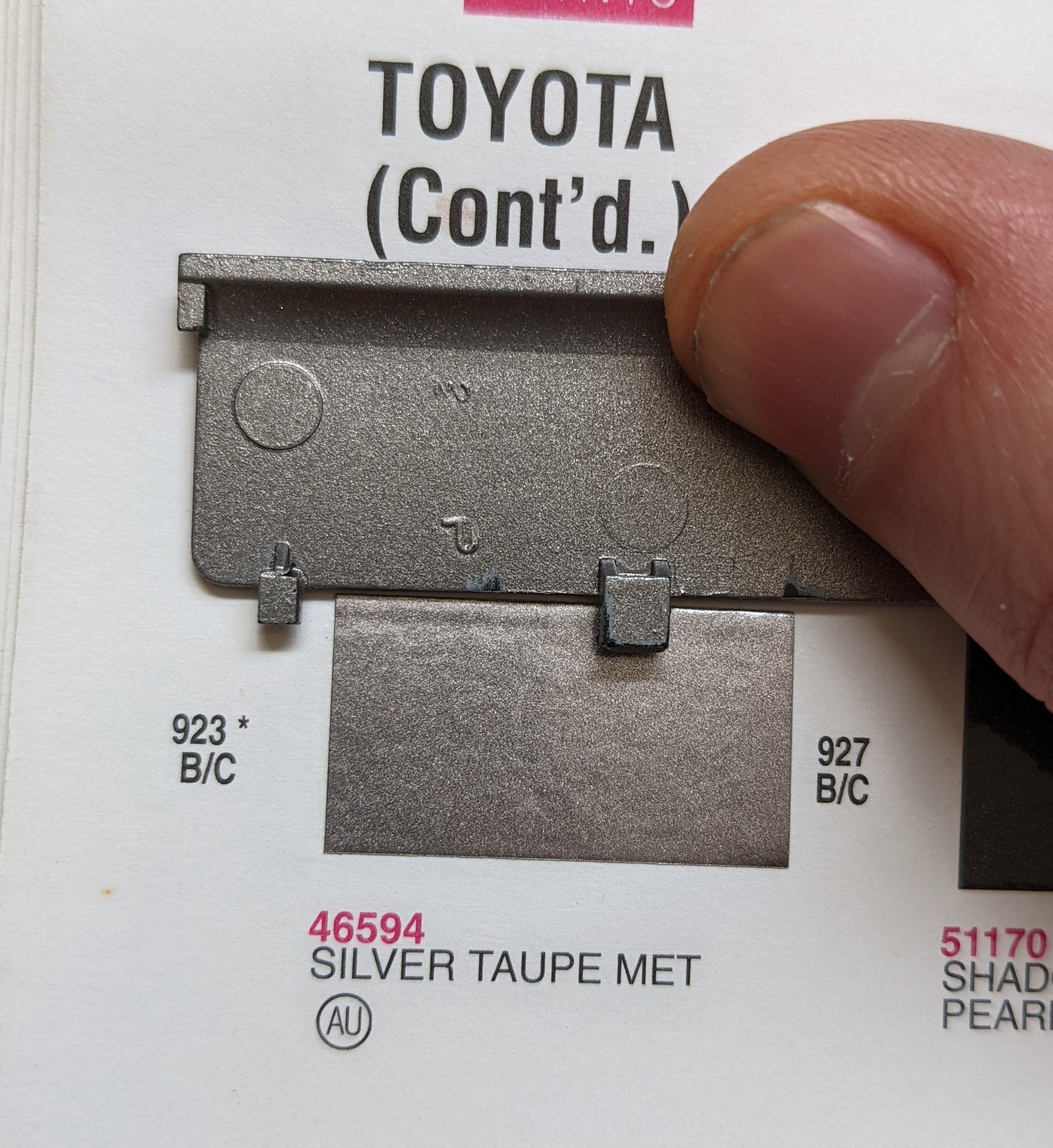

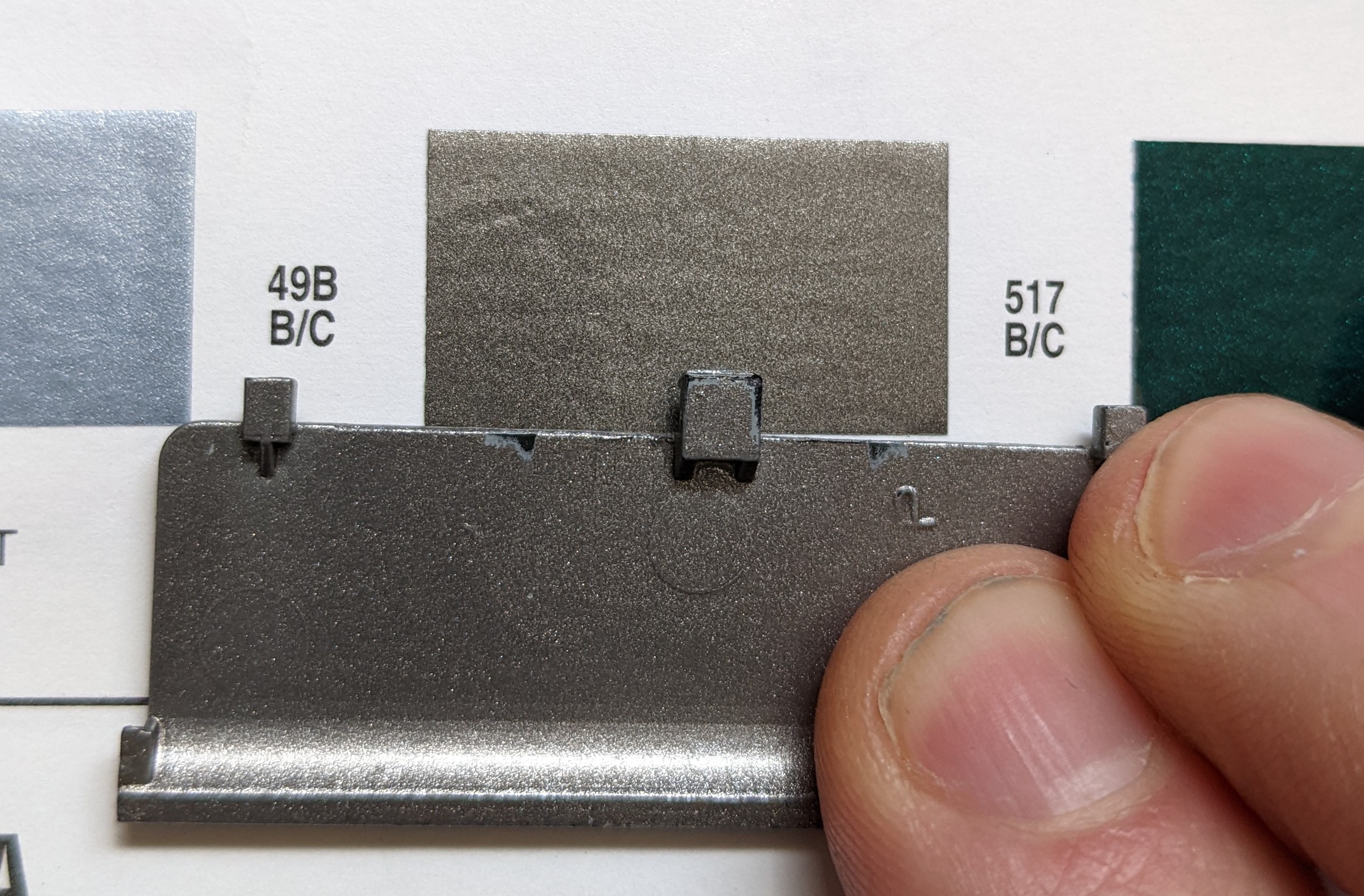

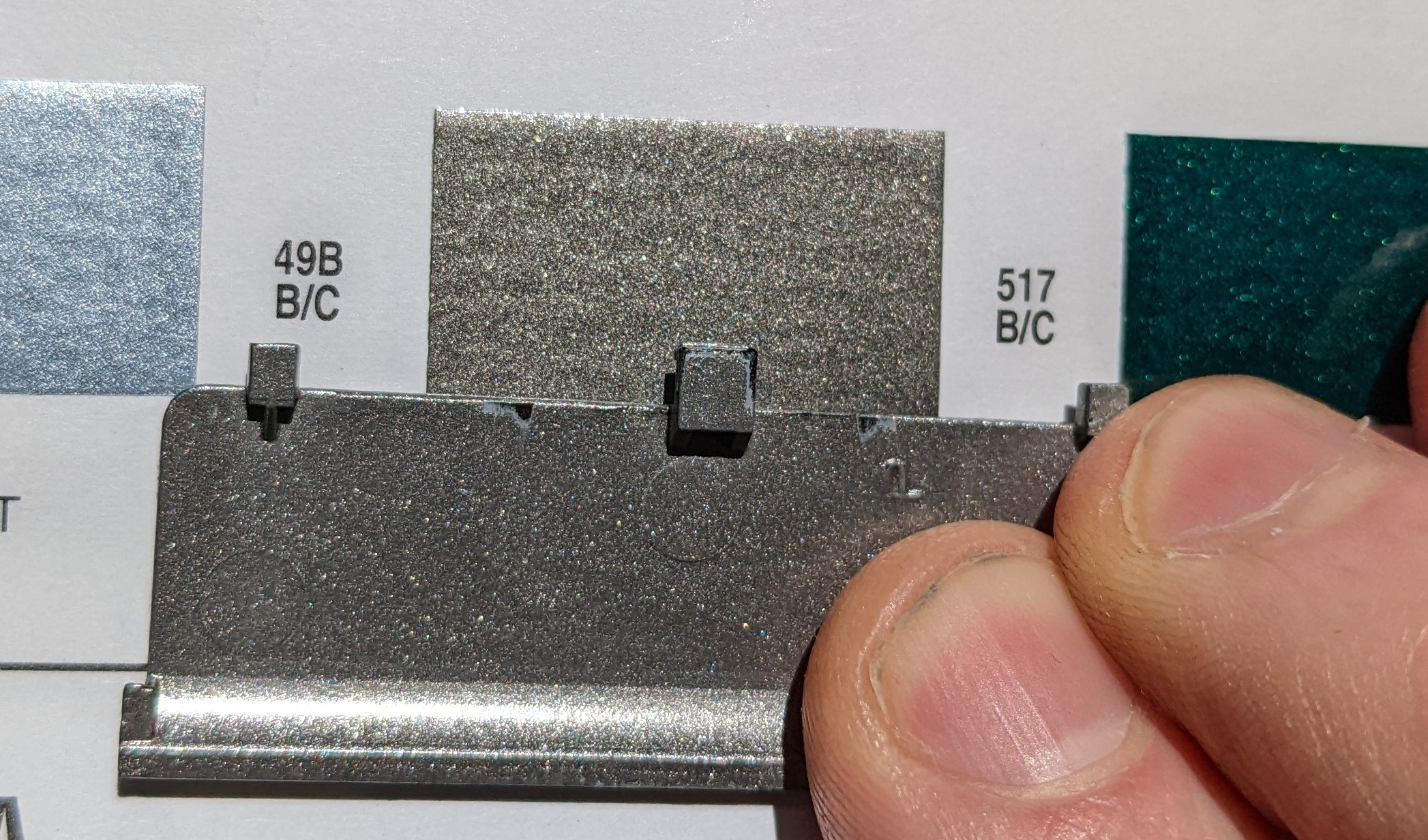

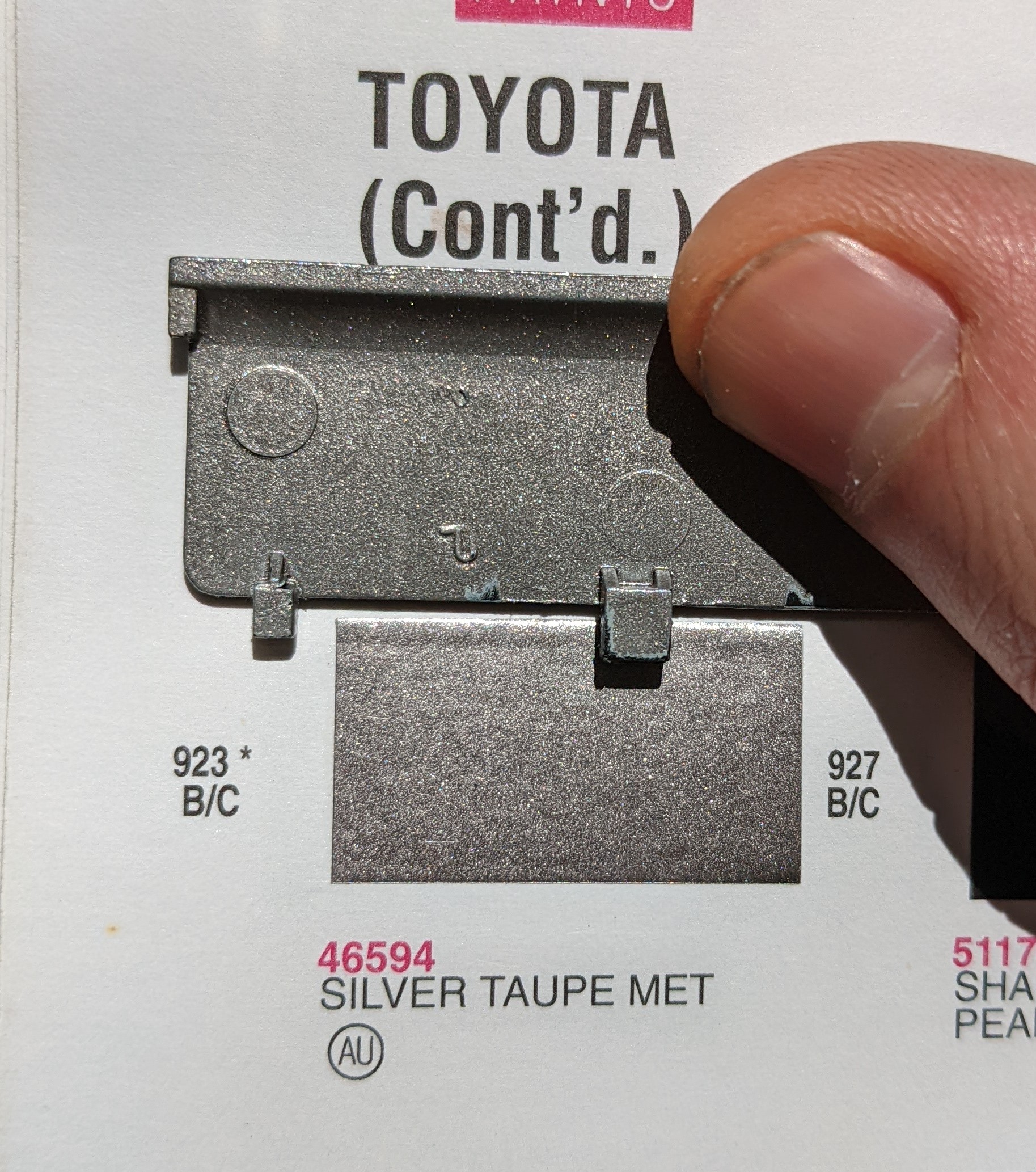

There's also a couple non-GM ones I noticed that are okay matches, a Subaru color 49B Slate Metallic from 1995 and a Toyota color 923 Silver Taupe Metallic, also from '95.
