Show your custom Lightsabers!

Y'know what? I just remembered this little saber I made a month or two back. Simple metal tube, black tape grips, red foam button.


upload gif from url

Now you may be thinking, "MeanObiwan, what is this? Tape grips? Foam button? You have two other awesome sabers and one in progress, what is this junk?"
Well, this is based off a very special saber. Rewind years back to an 11 or 10 year old MeanObiwan. Even back then I was capable of taking note of the screen used sabers details, aside from being metal, I noticed that the wielder could wrap their fingers completely around the hilt until their fingers touched, something that could not be achieved with the ginormous plastic fling-bladed toy sabers I had growing up with. So, I set out on my first ever custom lightsaber build.
I did what any skilled 10 or 11 year old prop maker does and commissioned my dads assistance with creating the hilt. The man worked his magic by taking a metal rod and cutting it at an angle so I'd have an angled "emitter" similar to a graflex. The rest was my call, my dad wasn't going to have all the fun. I set out to work finding any greeblies I could by scrounging around my moms craft room. After swiping a red foam circle, and secretly borrowingmy dads electrical tape (yeah, of course I was going to return it) I added my grips and buttons. Now I had to utilize my dads vital skills once more to create a blade. It was mesmerizing watching the man work this out. He traveled to the back yard, looked at some more metal rods, scratching his head and speaking strange, unfimilar four letter words as he tried to find one that would slide in tight to the hilt. He finally found one, cut it to shape and spray painted it blue for me. Wow. Was this awesome. My own custom lightsaber. It was amazing to me. Here all my friends had lousy huge Hasbro fling-blades and I'm wielding a real, metal thin hilted lightsaber. To me, the tape grips and foam button were as real as ever, the blade with paint runs was humming and ready to take on any adversary. It was the best saber in the world, made by me and my dad.
Well, I'm 22 now and its long since disappeared in my childhood, so for sentimental reasons I wanted to recreate it to remember making one with my dad, and all the many "battles" I fought with it.
Sorry for such a long winded, late night post, but I wanted to share that with you guys :)

Have you ever had a greeblie in the parts bin just waiting for the right prop project to come along? The custom below is the result of that wait.



I don't even remember where this came from. Early Yodashouse version? EDC Studios?

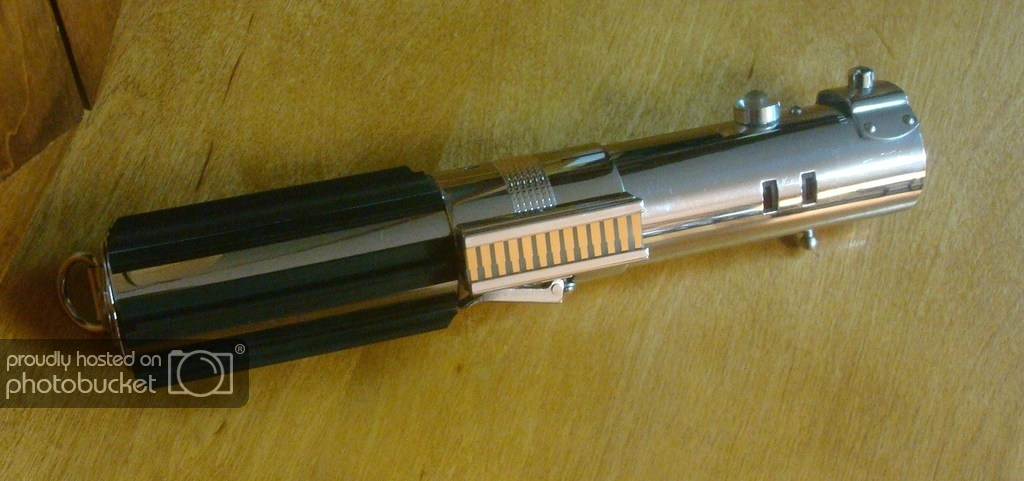

It isn't accurate, so it wasn't used on either version of my Luke ESB sabers. It sat in the bin for 10+ years until I recently purchased a chrome-plated Peak 3 cell flash off of Ebay.

The chrome plated versions must be rare. I've been buying Peaks for 15 years and this is the first chromed one that I've come across. I know there's one other RPF member that has one, too.

A blinged-out flash deserves blinged-out parts. Roman was my go-to man for the chromed replica Graflex clamp and lgtsbr (saberbelt.com) hooked me up with a NOS old-style Luke ANH D-ring.

The grips are the last of my Yodashouse grip material left over from 10+ years ago. I only had enough to make six grips, I was hoping to make seven. Oh, well. I can always change this later.

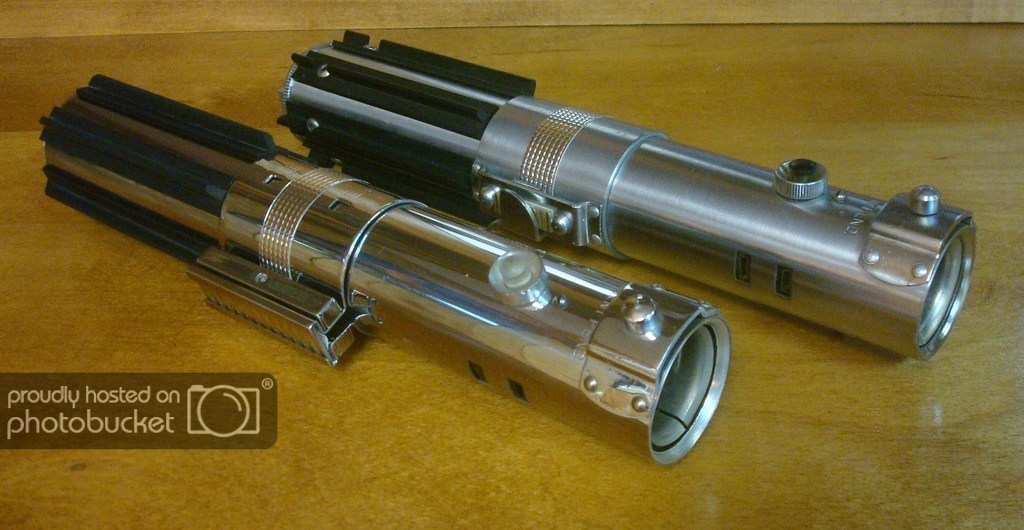

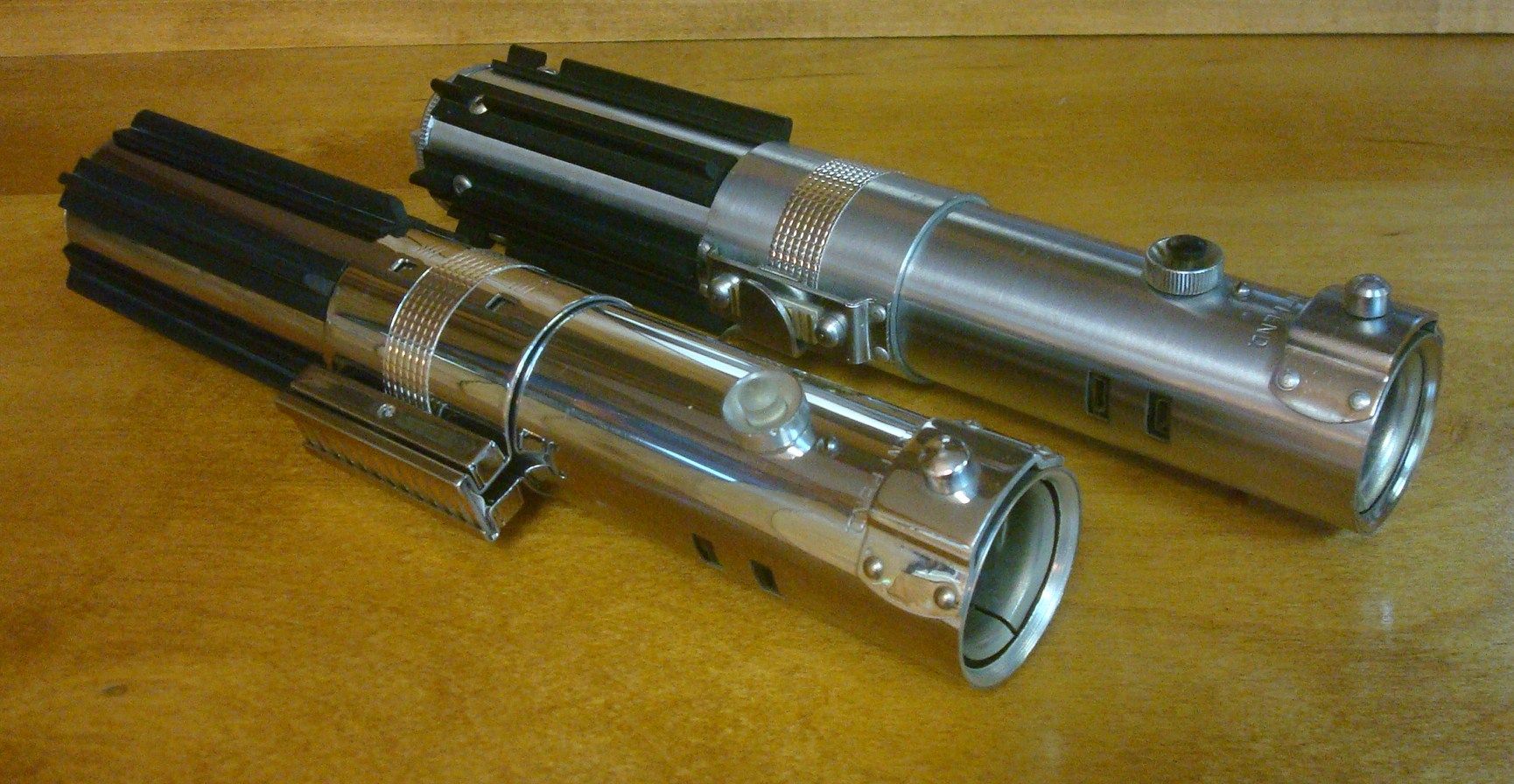

Next to a regular converted Peak.

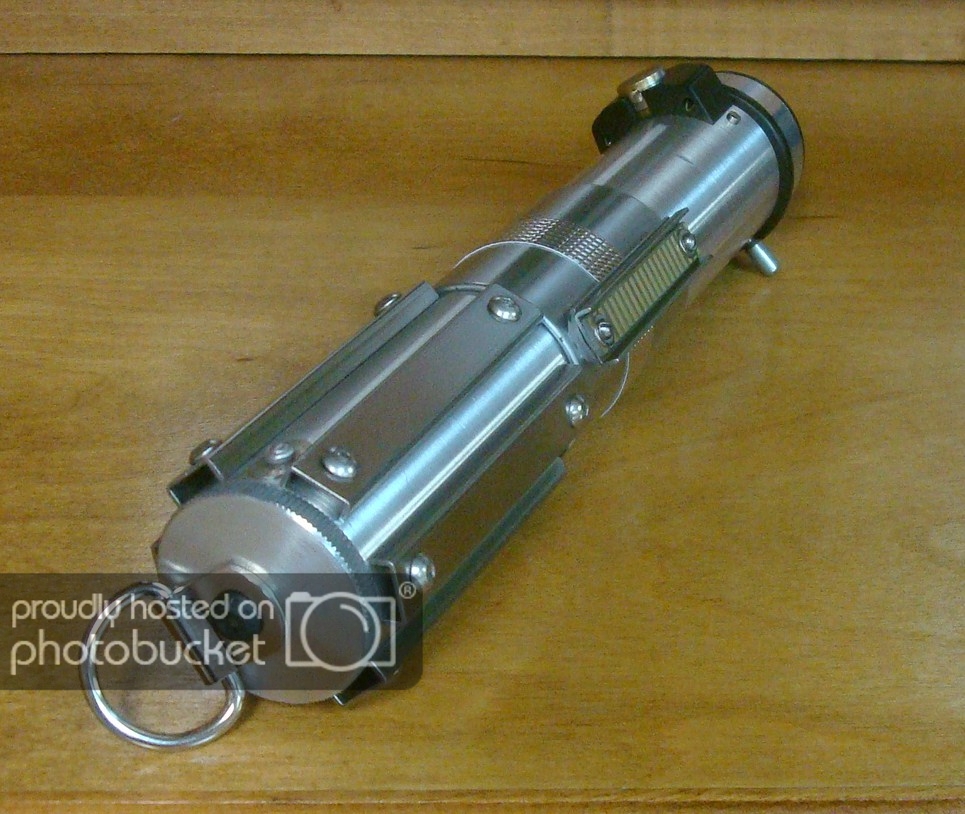

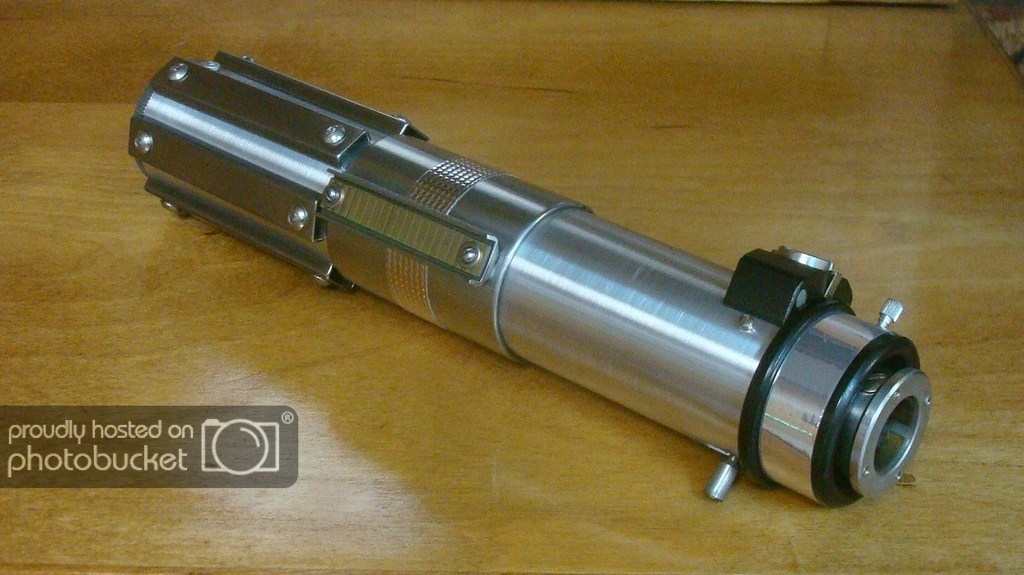

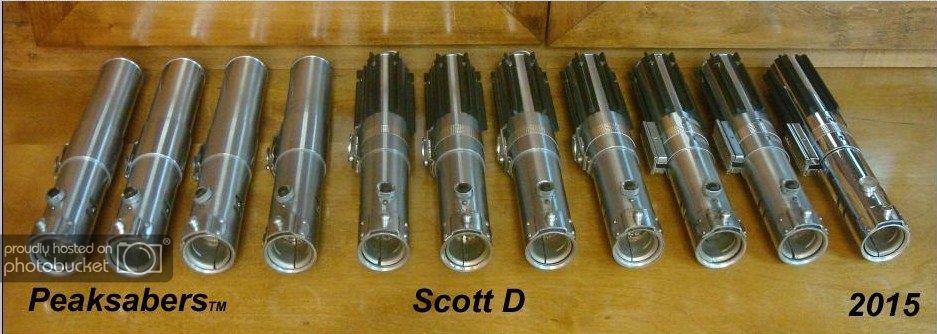

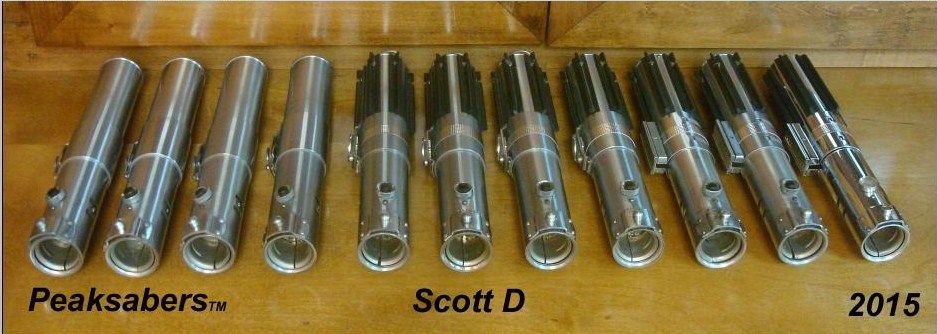

And a group pic of all of my Peaksabers™. (some awaiting conversion) There's one more currently on the way to me. It was purchased in a lot with a few other cool 3 cells. (Ebay)



Yes, I know the definition of insanity.

I really like Peak camera flashes and building them is like therapy.

In my head, I'm building them for the Star Wars Episode III that never happened.








Last edited by a moderator:

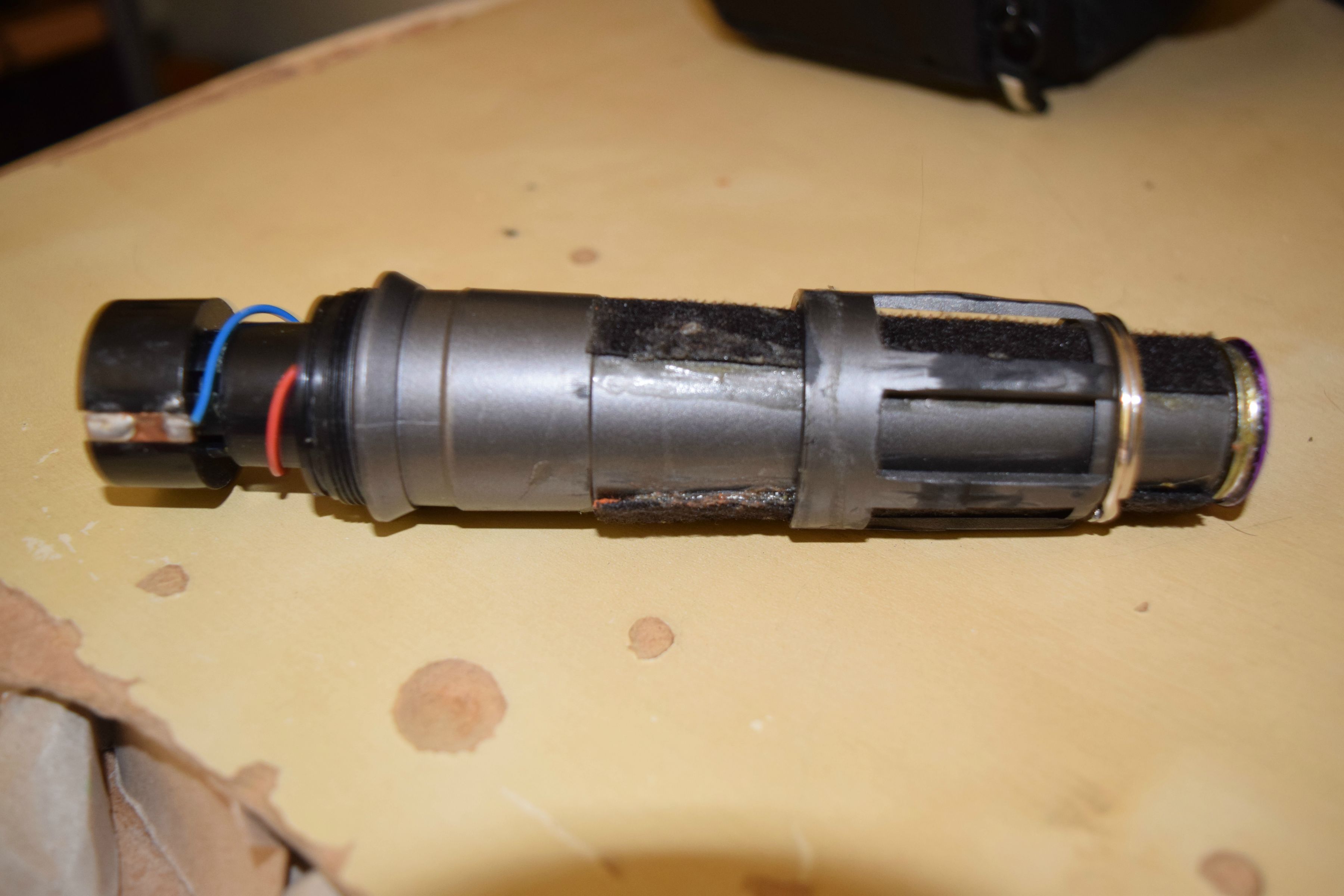

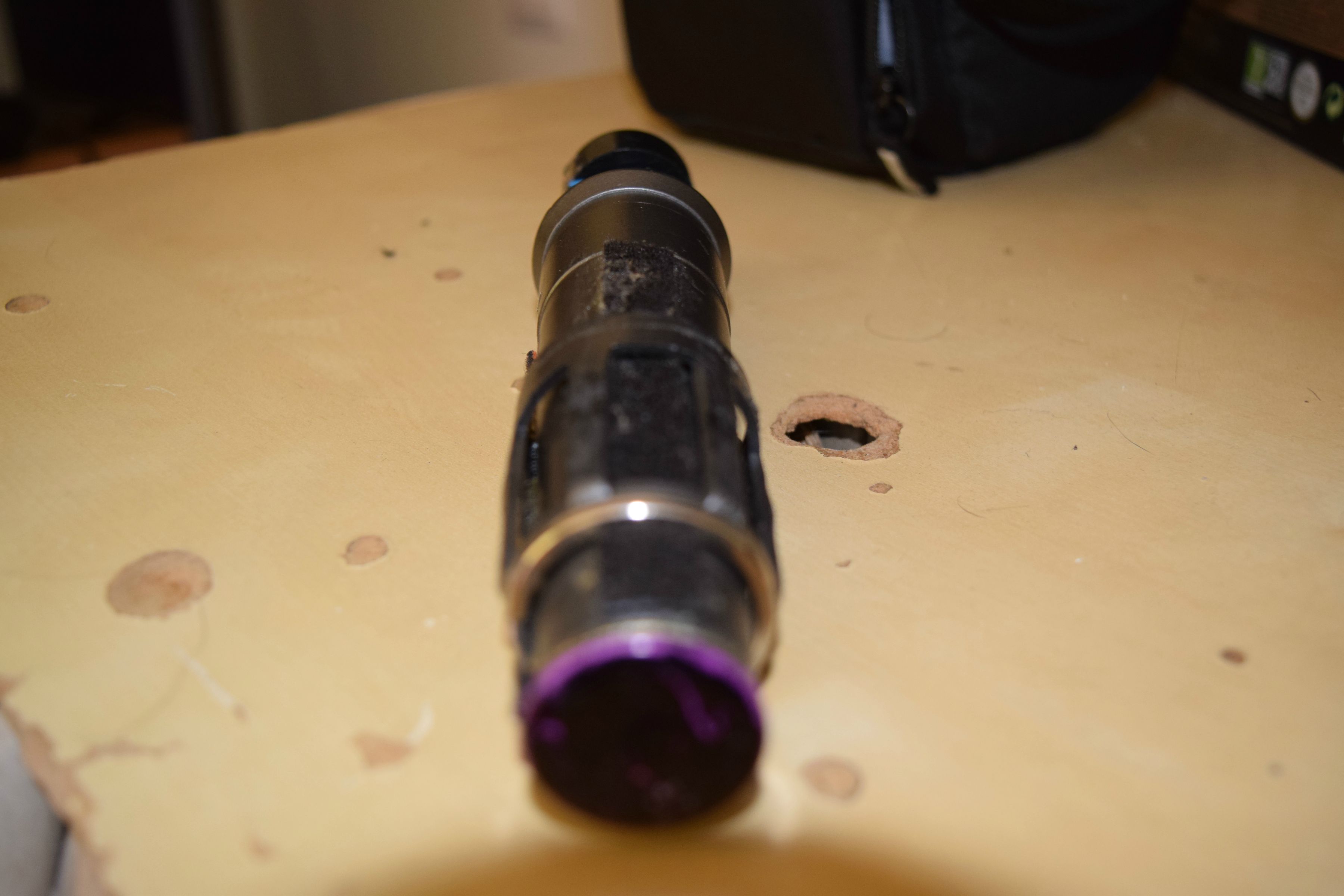

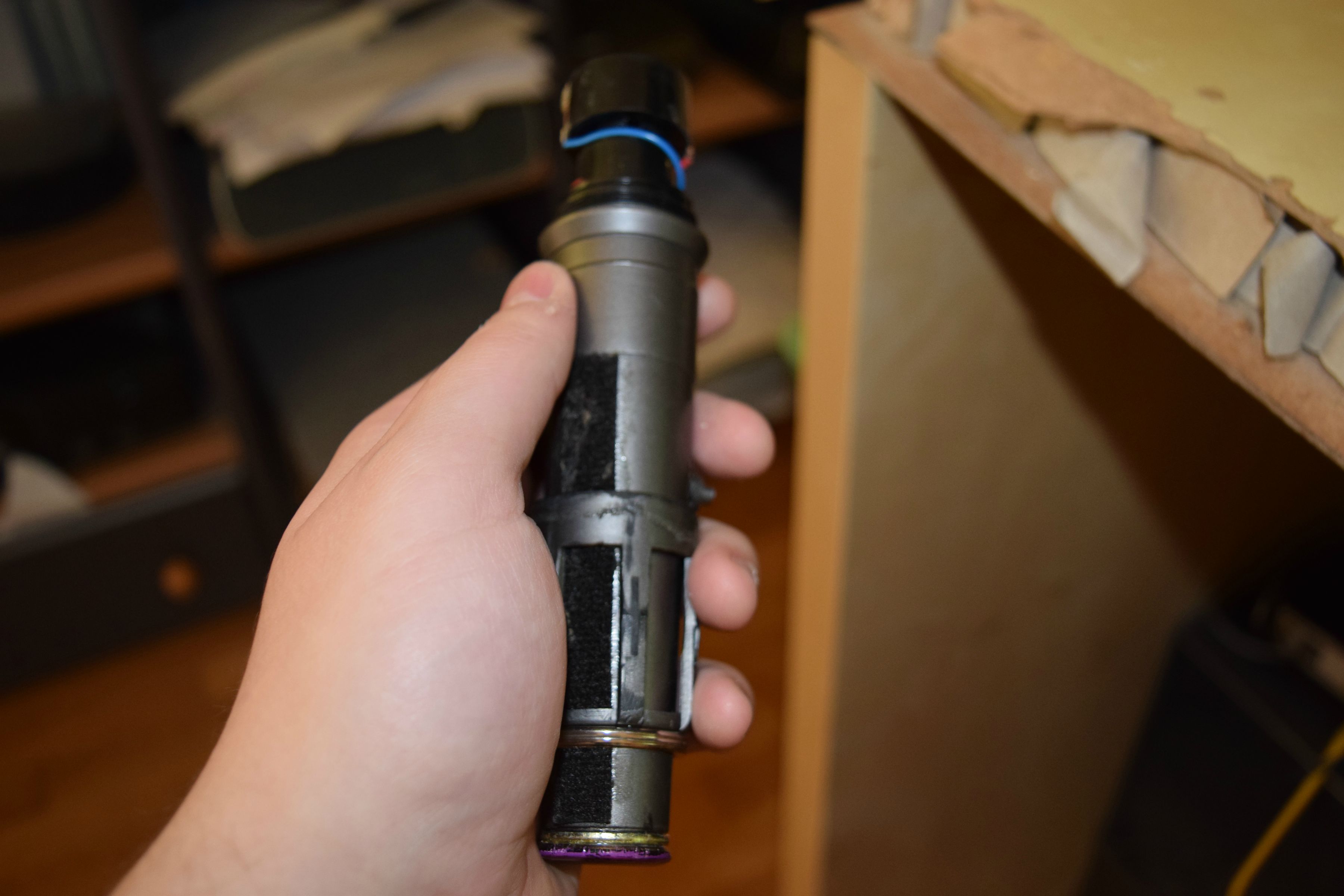

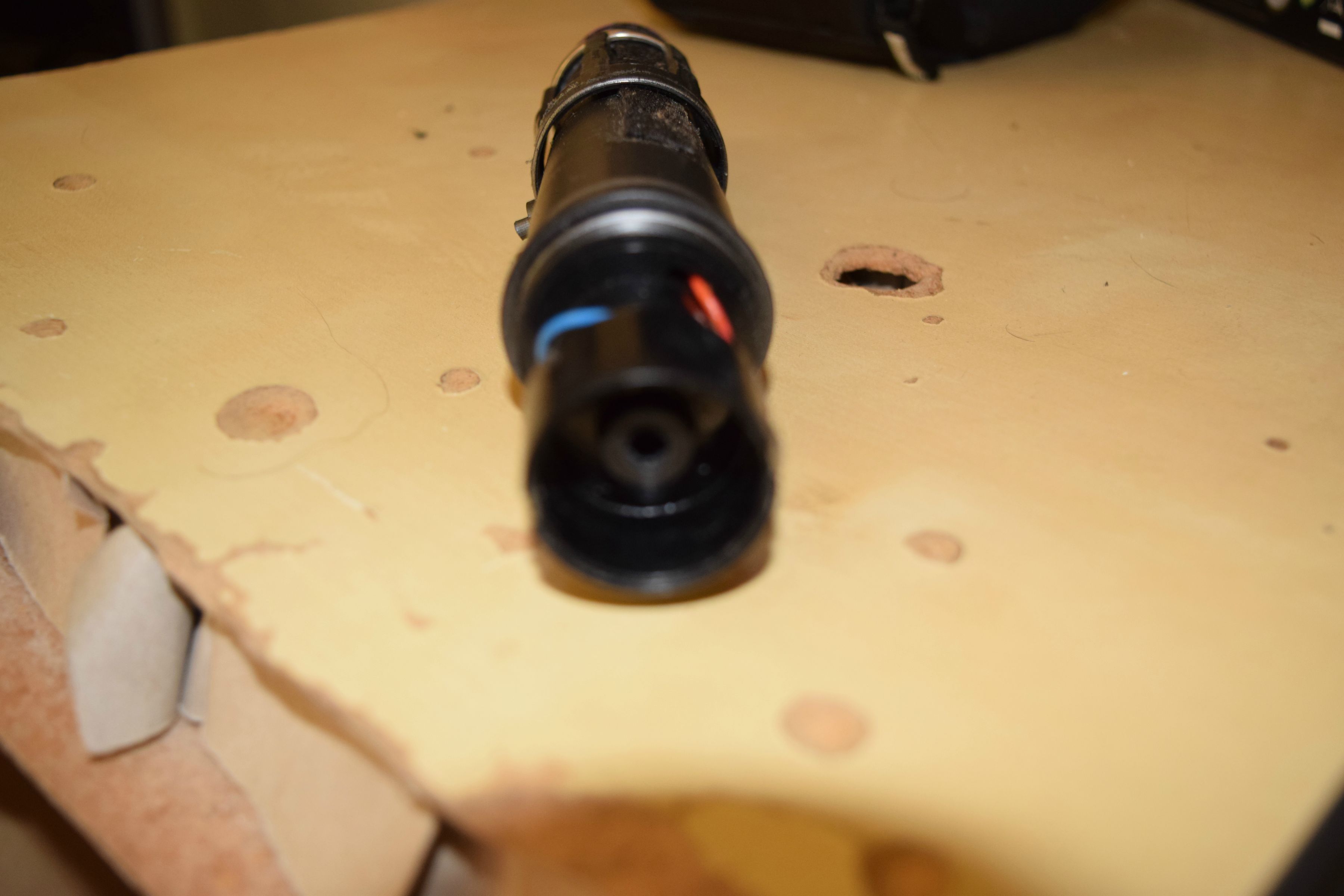

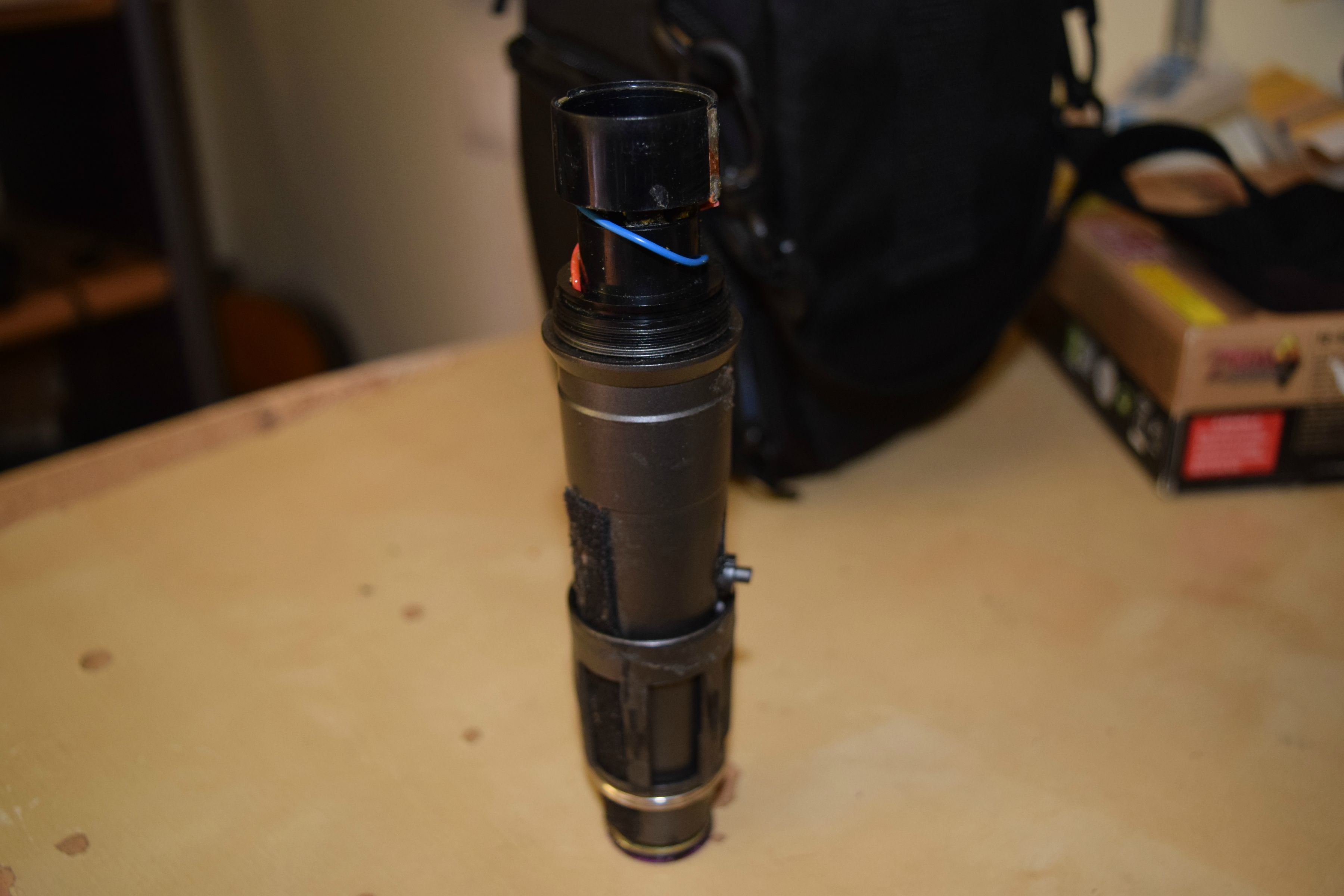

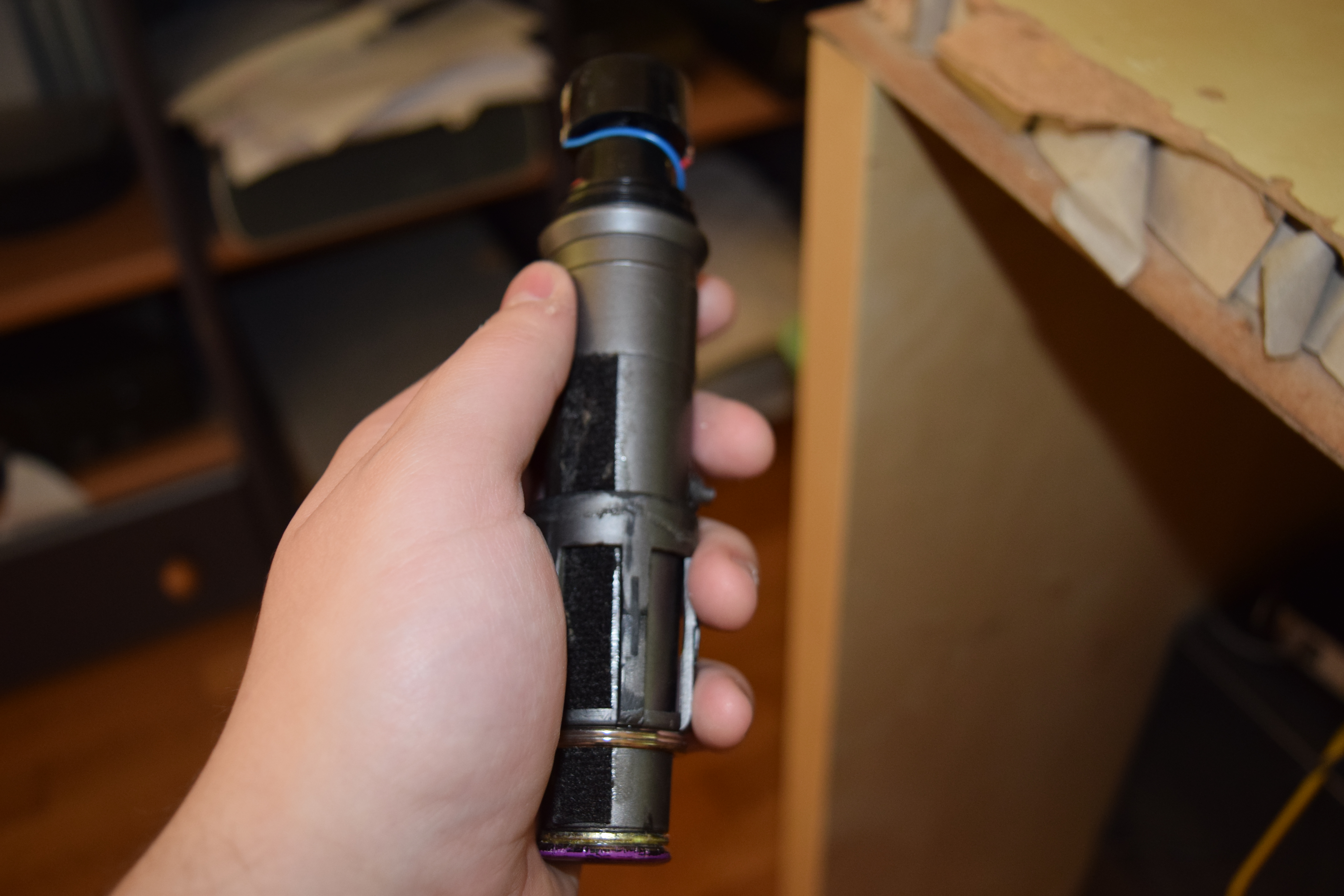

Here is my shortsaber. Made from a gored karaoke microphone, can't remember a specific brand. The "pommel" is made from a pin (an Iron Maiden one to be exact!) blacked out with a marker and the other extra part are the strips and metal rings which I found laying around in the house. It looks cheap as heck because it was made in two hours and from household materials


Attachments

  • DSC_0070.JPG
    8.4 MB · Views: 125
Last edited:
Man, the ravaged microphone saber is brilliant. I actually tore one apart just for one piece and thought it would've made a good saber after taking it apart.
Love the Peak sabers too, Scott. About how much do those 3 cells run?

Man, the ravaged microphone saber is brilliant. I actually tore one apart just for one piece and thought it would've made a good saber after taking it apart.
Thank you. And yes, I also took it apart just for the long tube thingy but then I realized its "guts" could all be fitted as lightsaber parts, right down to the working switch.

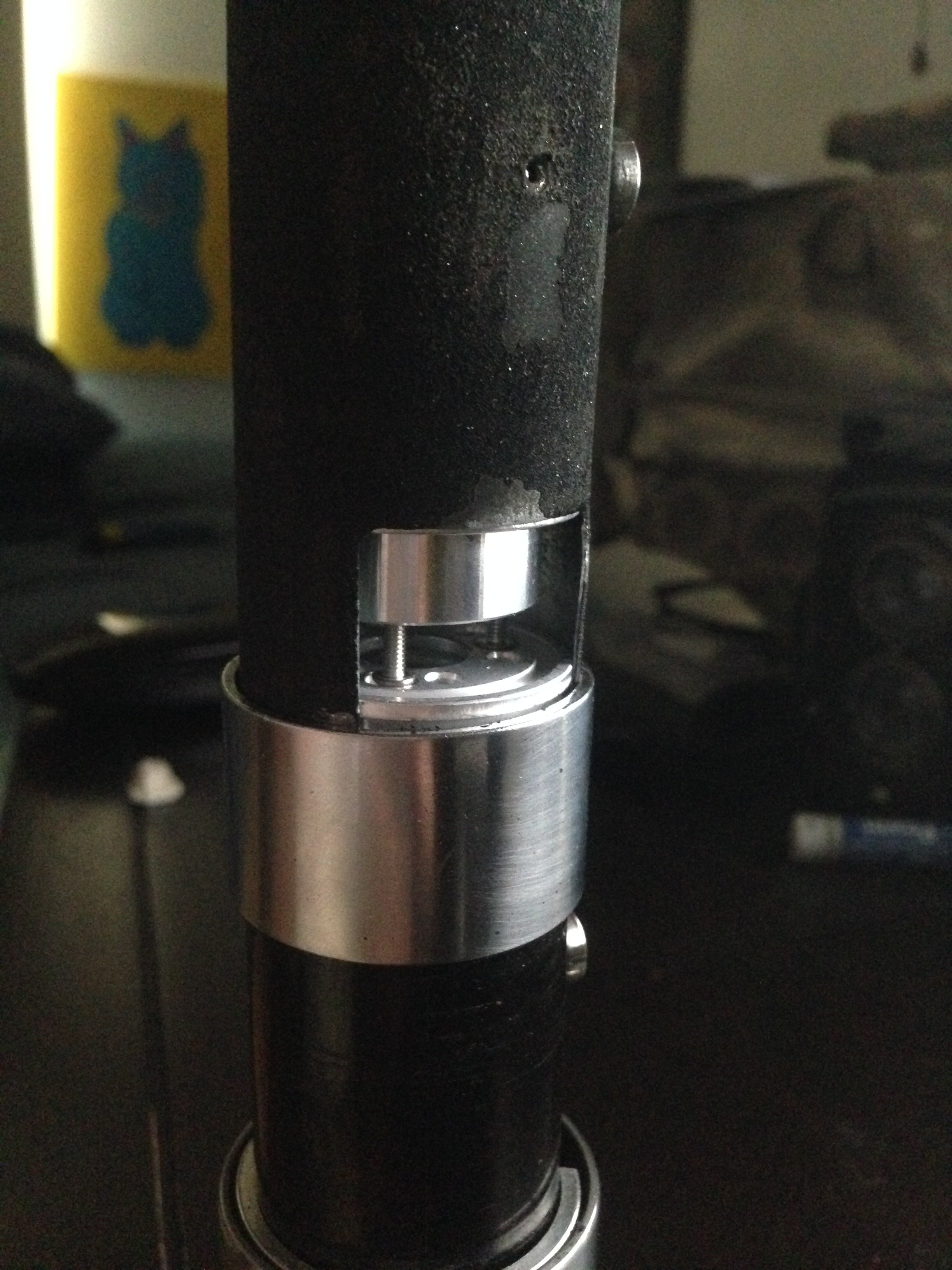

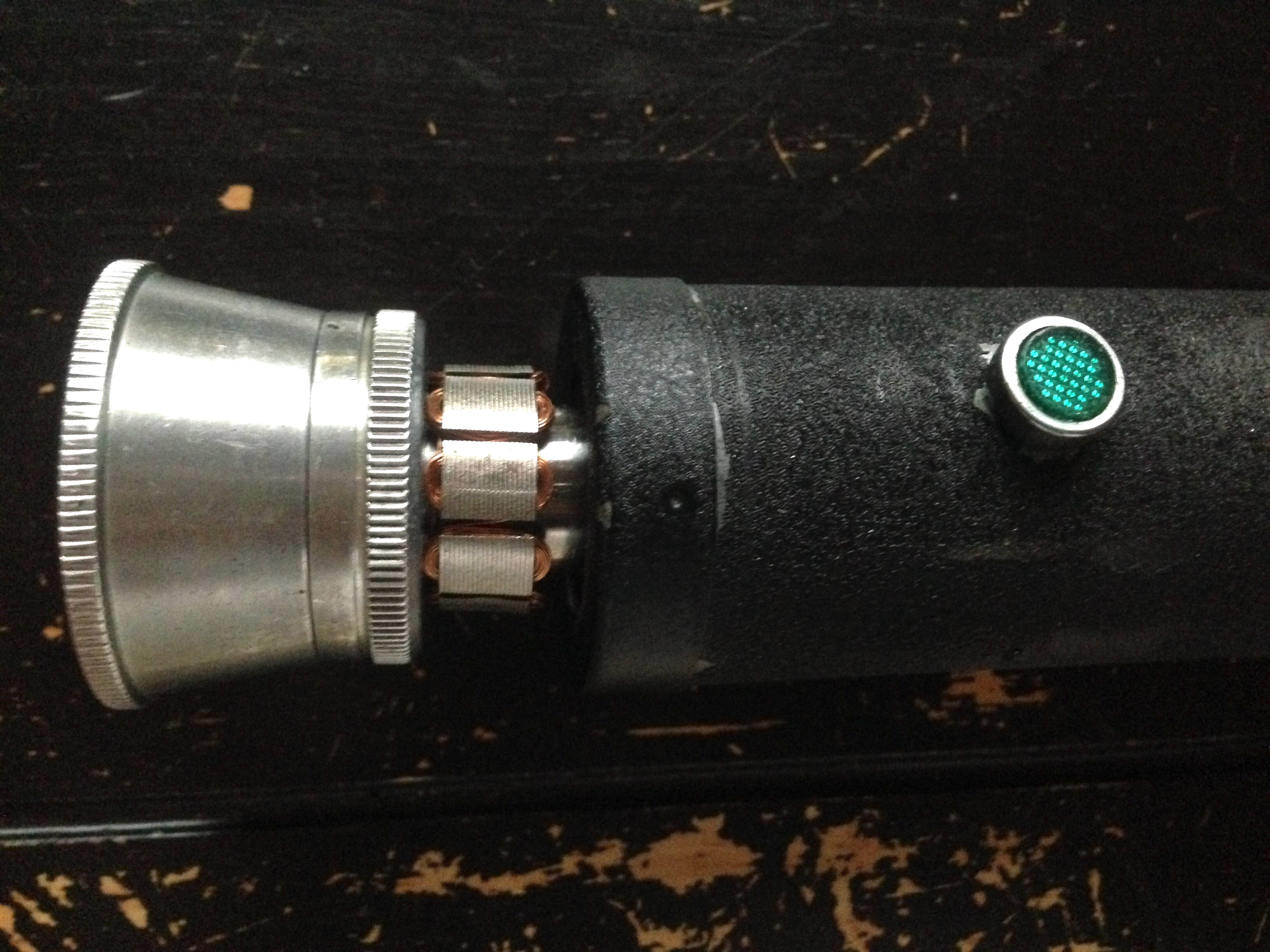

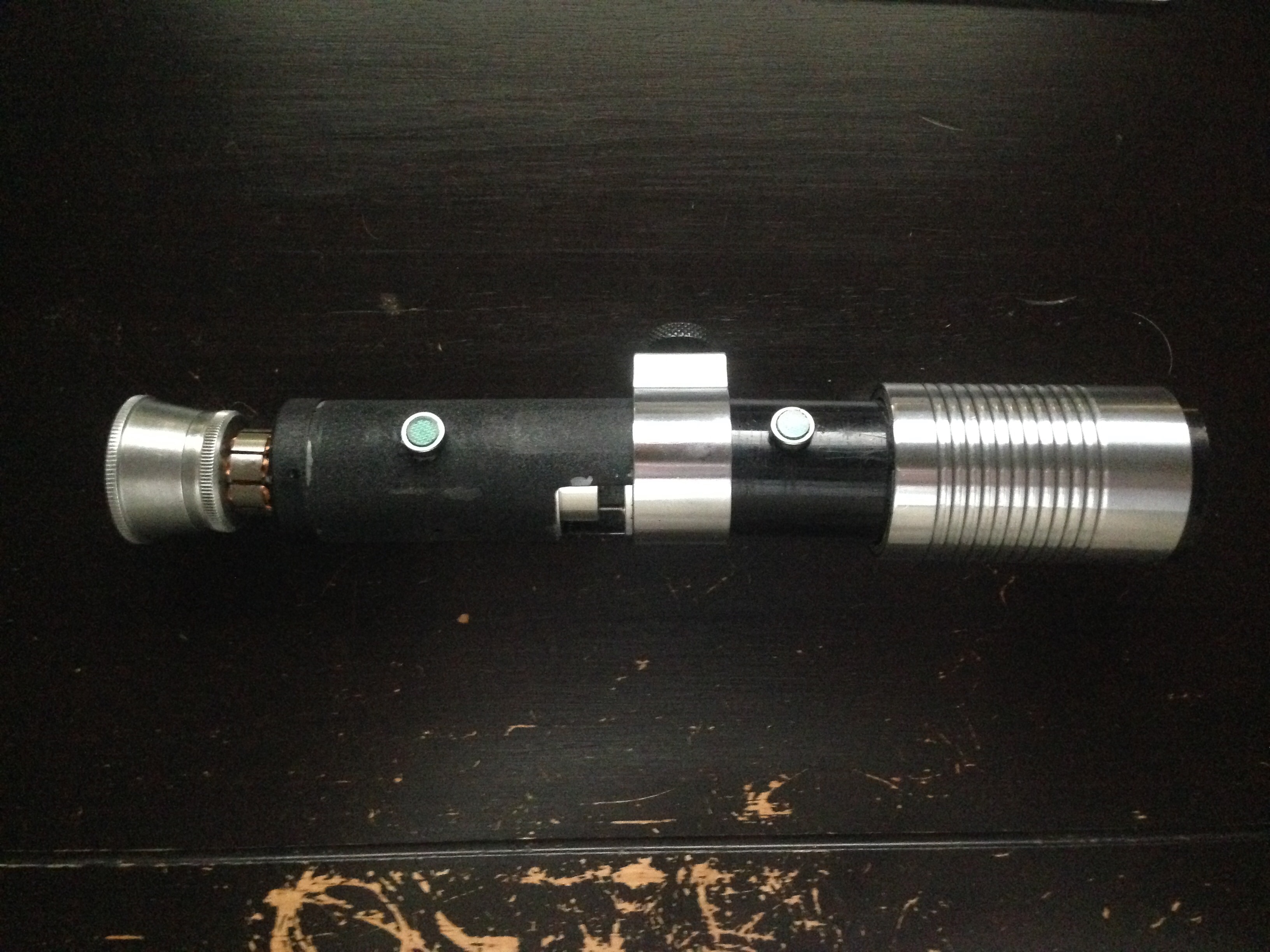

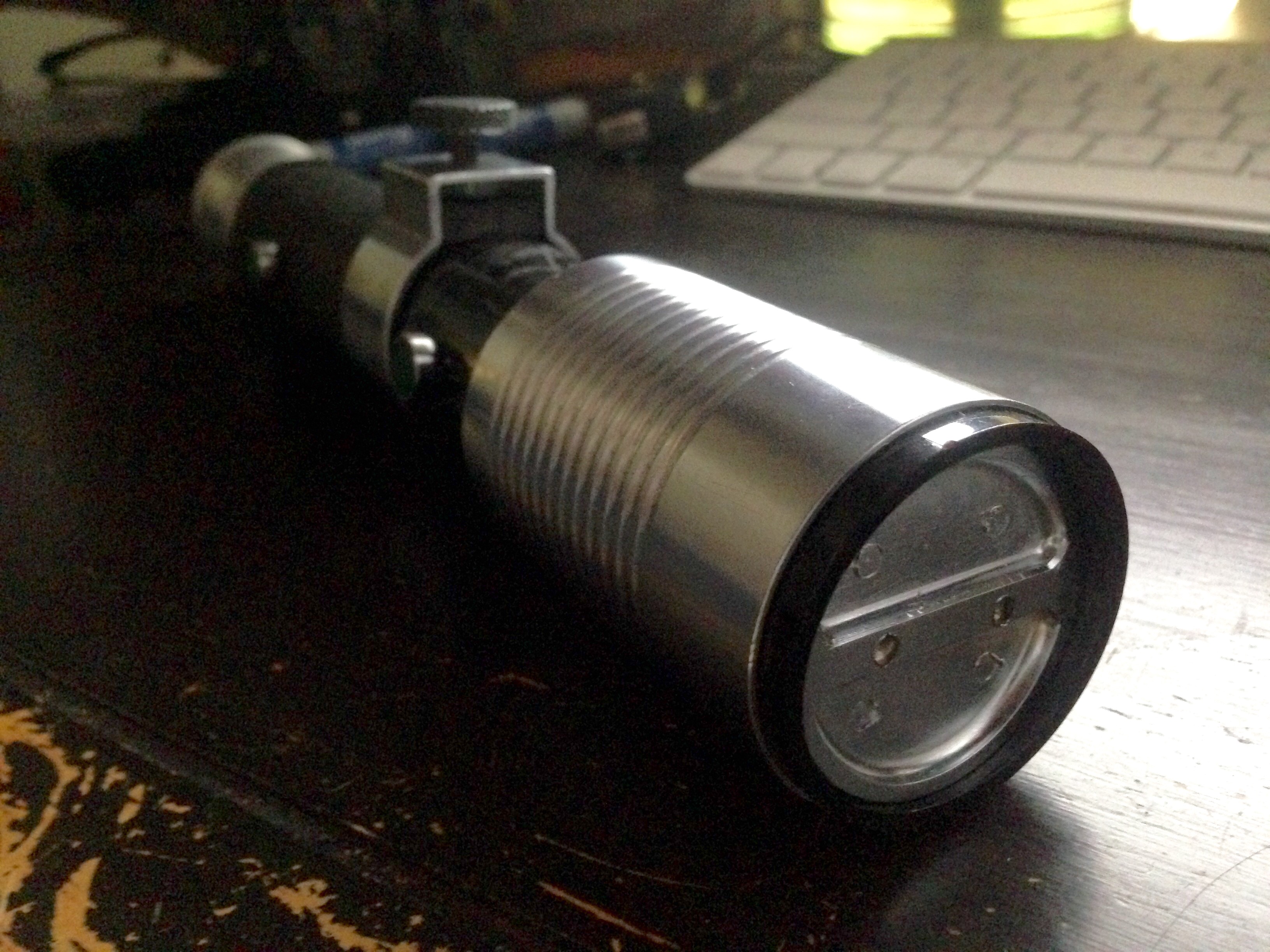

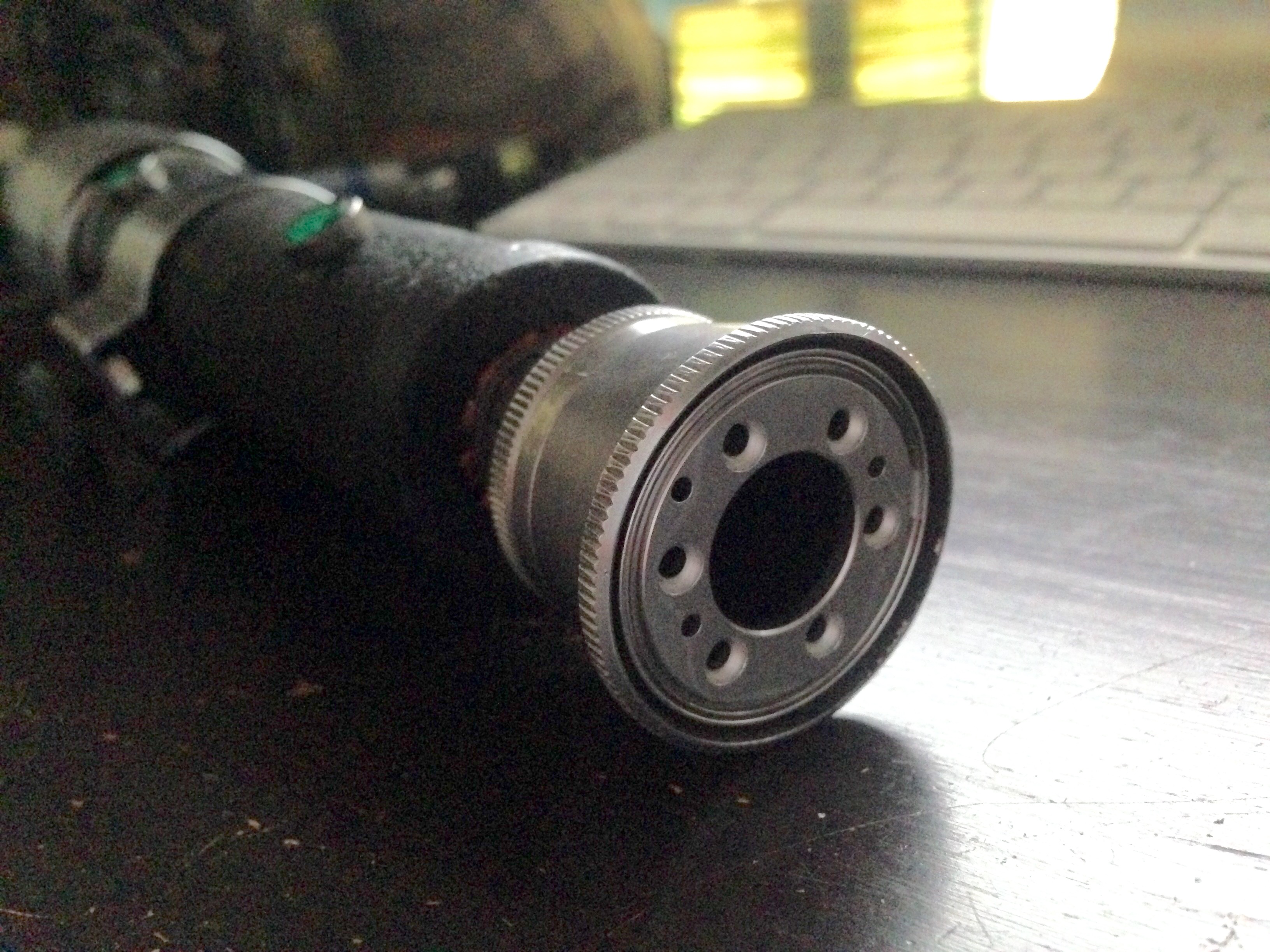

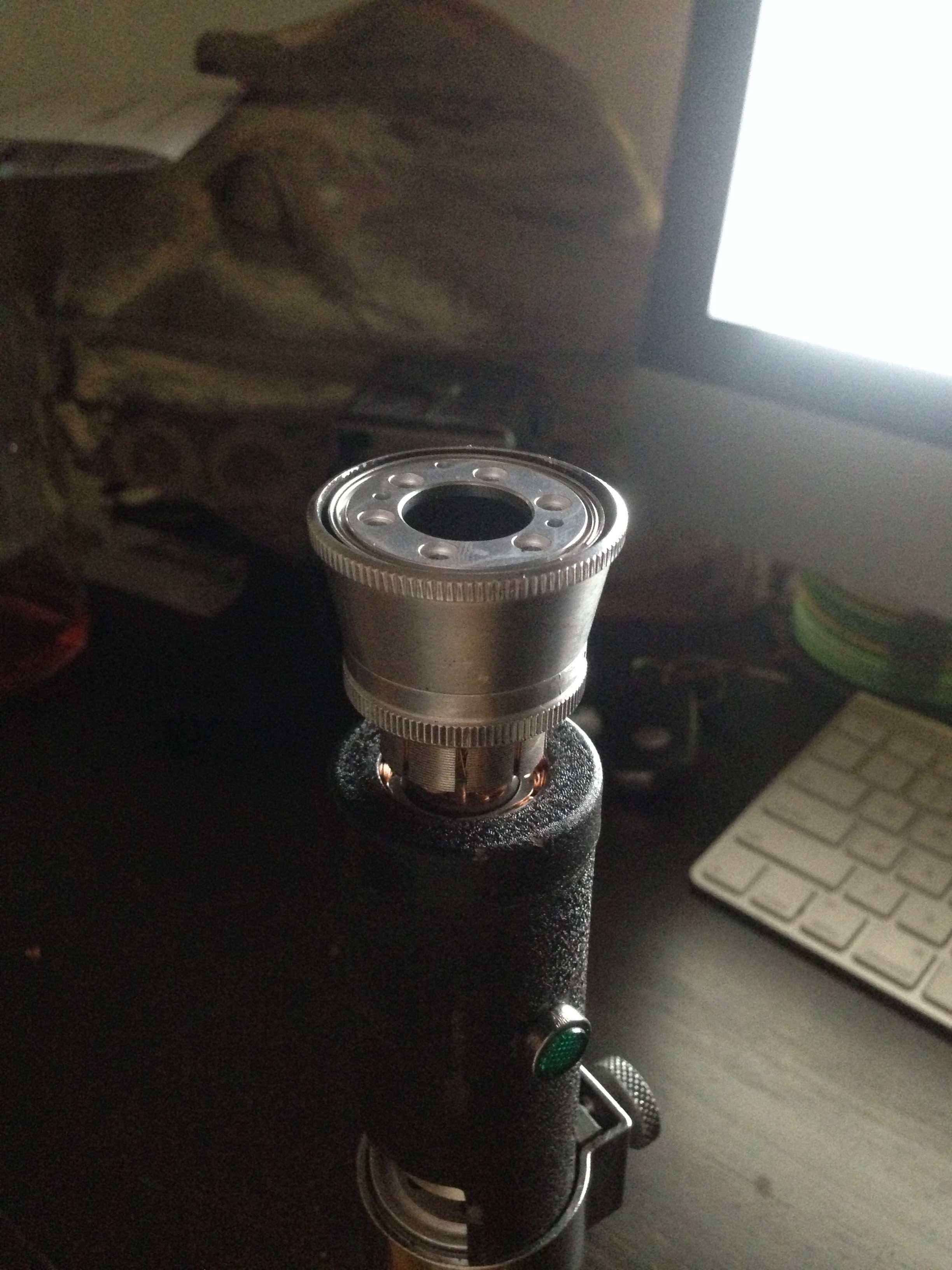

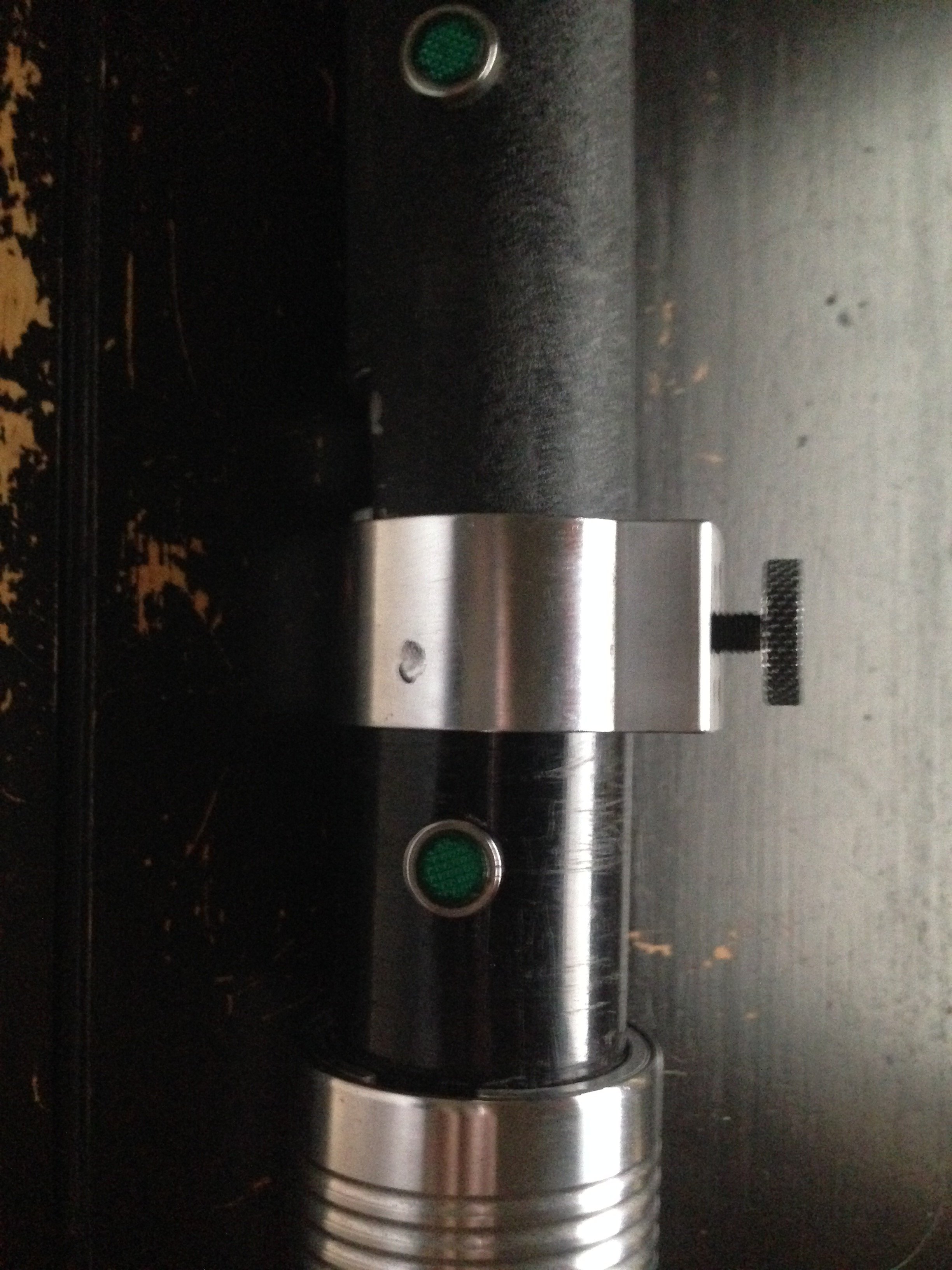

I finally got around to assembling this lightsaber. The "power cell" is a bakelite Kodak flash handle with a metal projector lens casing. The piece above is a Hershey flash shroud and the emitter neck is from a projection bulb casing. The indicator lights are from a popcorn popper machine. The crystal seat parts are from a hard drive as well as the copper spun part on the emitter neck. The shroud is an old lens hood and the clamp came from another flash handle. Im really pleased with this as my first build but unfortunately the parts I used wont allow for electronics or a blade. IMG_5162.JPGIMG_5163.JPGIMG_5164.JPGIMG_5165.JPGIMG_5166.JPGIMG_5167.JPGIMG_5168.JPG

Wow ... all great sabers ... and I have a distinct feeling we might see a Peak Flash in Episode VIII ... if someone from production is watching this thread ... at least you can provide them with some stunt versions as well as Hero's Scott D ;)

Chaim

Last edited by a moderator:
Wow ... all great sabers ... and I have a distinct feeling we might see a Peak Flash in Episode VIII ... if someone from production is watching this thread ... at least you can provide them with some stunt versions as well as Hero's Scott D ;)

Chaim

It would be great if they did and I'd help them out if I could. I doubt they'd need my help, though. :)

Man, the ravaged microphone saber is brilliant. I actually tore one apart just for one piece and thought it would've made a good saber after taking it apart.
Love the Peak sabers too, Scott. About how much do those 3 cells run?

The prices on Ebay for these is all over the place. I think the lowest I ever paid was $28.00, the highest was $90.00. (Prices are plus shipping) The $90.00 one was attached to a Busch Pressman camera, which ended up being displayed on the mantle in the "Man Room." I know I could sell it and make the cost of the flash less, but it isn't a big deal.

*waves hand* You WILL give one of those to me.... you dont need all of those... move along.

Mind tricks don't work on me. ;) I have sold a few in the past, though. I had made a few with "double-notched" ESB grips and decided to sell them. They looked great, but they didn't match all of the other ones I have. It's an OCD thing.

Thanks again for the compliments. :thumbsup 2 more projects completed, gotta work up the inspiration (and some spare time) to finish up the other two that I've started on.

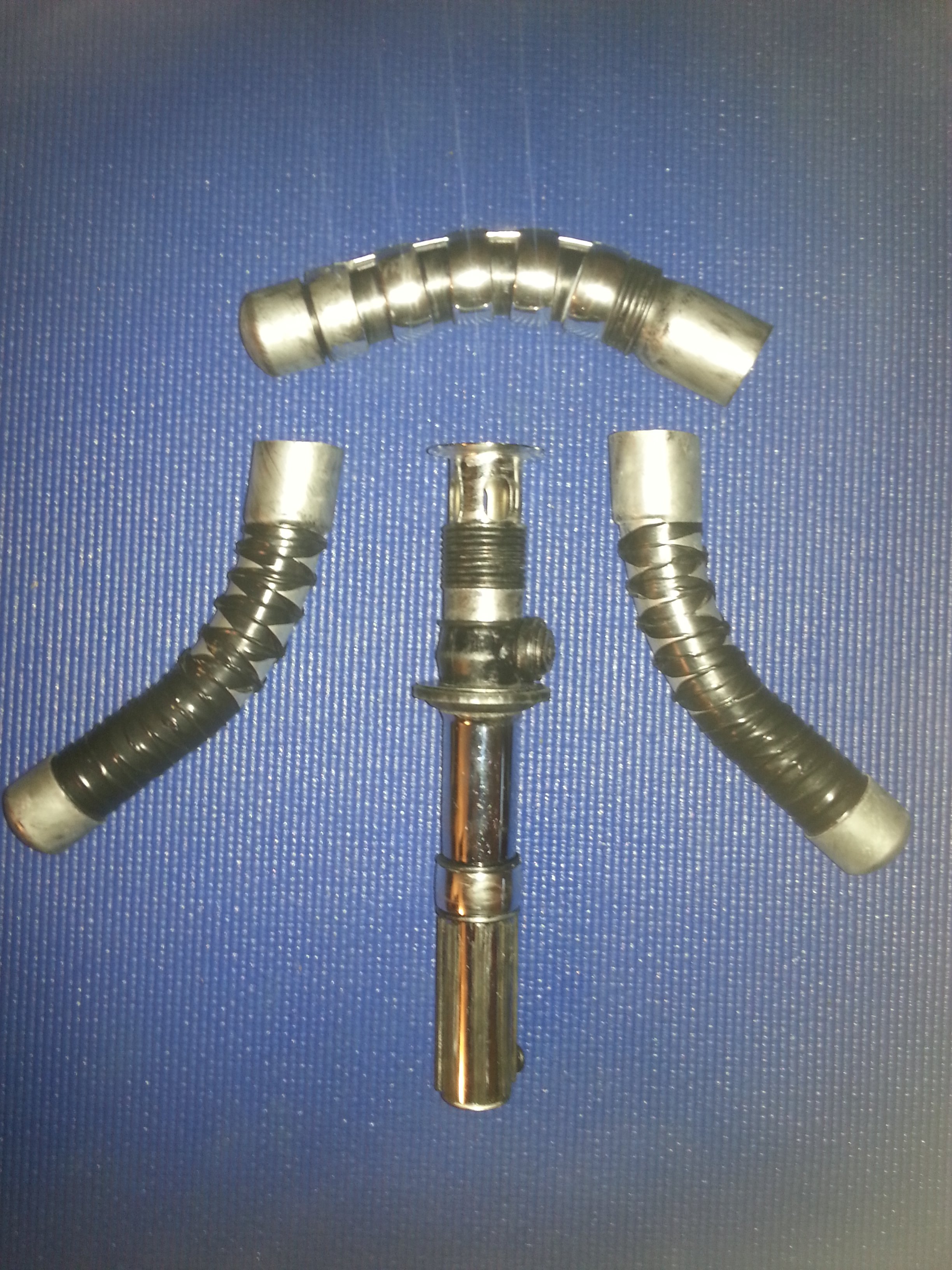

ever evolving for my costume. this is the most recent weathered iteration with 2 asajj style wraps and a more chromed out asajj im working on.

I finally got around to assembling this lightsaber. The "power cell" is a bakelite Kodak flash handle with a metal projector lens casing. The piece above is a Hershey flash shroud and the emitter neck is from a projection bulb casing. The indicator lights are from a popcorn popper machine. The crystal seat parts are from a hard drive as well as the copper spun part on the emitter neck. The shroud is an old lens hood and the clamp came from another flash handle. Im really pleased with this as my first build but unfortunately the parts I used wont allow for electronics or a blade. View attachment 500247View attachment 500248View attachment 500249View attachment 500250View attachment 500251View attachment 500252View attachment 500253

Looks good. Ill post mine soon.

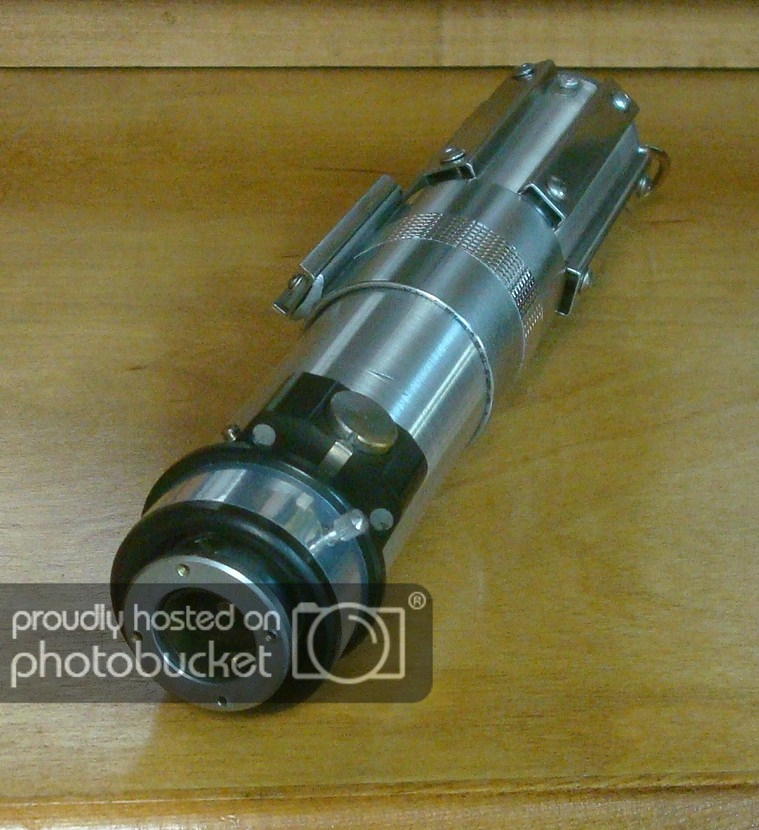

This Speedgun flash was in a lot of vintage 3 cell flashes and reflectors from a recent ebay purchase. It was originally last in line to convert, but for some reason it went right to the front.

The grips are my usual ones, everything drilled & tapped. The D-ring and the pieces of smooth/textured chrome tape came from The Custom Saber Shop.

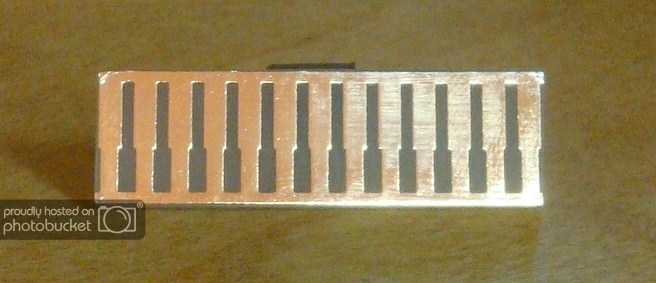

The circuit board is cut from a a bunch of boards that I scavenged from work around 15 years ago. I had it bolted to the clamp bar all by itself and it looked "blah." A piece of my grip material turned upside down and put between the clamp bar and circuit board made it look right to me.

The piece in the emitter is from the lot of flashes/reflectors and it's held in place by the long greeblie on the bottom of the flash. It's threaded and it holds the emitter piece in like a set screw.

This flash tube got the same 220 grit/320 grit wet-sanding treatment, just like my King Sol saber a few posts back.

All in all a neat little saber that would look good in the hands of a Jedi that with a smaller build. These Speedguns are 9" long. I'm not including the extra length provided by the emitter addition.












Last edited by a moderator:
