Resistance Crait Macrobinoculars / Neuro-Saav ND.621 Rangefinder (TLJ VD)

Discussion in 'Star Wars Costumes and Props' started by Red Hawk, Dec 21, 2017.

Tags:
  1. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    updated viewer hood. I (hopefully) improved the fitted curve, I updated the greeblies on top, fixed the flare, and lips. I thought about putting some kind of techy looking details inside so it wasn't just an open hole to the back of the camera, but if people end up adding electronics or something I didn't want to interfere.

    Screen Shot 10-10-18 at 03.48 PM.PNG Screen Shot 10-10-18 at 03.47 PM.PNG Screen Shot 10-10-18 at 03.49 PM.PNG

    The Ninja likes this.
  2. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Done!









    Sent from my iPhone using Tapatalk

    Saranac, xwingercrash and The Ninja like this.
  3. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210



    Sent from my iPhone using Tapatalk

    Trooper_trent likes this.
  4. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312
    Last edited by a moderator: Nov 8, 2018
  5. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Thanks!

    I'm also seeing something on the viewer hood itself that makes me think it's not just an open box. Oh and there's another small greeblie on the bottom, just inside the corner of the metal framing
    Screen Shot 10-10-18 at 07.08 PM.PNG

  6. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312

  7. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165

  8. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Matching up angles. If you see anything that’s off let me know so I can tweak my files.






    Sent from my iPhone using Tapatalk

  9. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312

  10. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165

  11. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312

  12. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    Totally forgot you could see the viewer on screen. * trent the attention to detail is crazy

    But with you I should have never expected less

    “I’m in a glass case of emotion”

    Beautiful job


    Sent from my iPhone using Tapatalk

  13. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    OK I know it's probably not accurate, but what about something like this? It matches with this shot where you can clearly see another silver lip, and it helps cover the back of the open viewer. Just makes it a bit cleaner in my opinion.
    Screen Shot 10-12-18 at 10.10 AM.PNG Screen Shot 10-12-18 at 10.11 AM 001.PNG Screen Shot 10-12-18 at 10.11 AM.PNG

    The Ninja and Cameron like this.
  14. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    I think your first version is right without the internal viewer section. I think the silver on the photo above is the inside of the upper lip not on the edge, lit slightly by the blue screen inside. If you go to 2.12.55 there is a split second where you can see the full rectangle of the blue screen lit up filling the whole of the hood aperture. It really is a split second as he lowers the macros down and its gone by 2.12.56. Sorry I don't have the screen tech to get a good grab



    Last edited by a moderator: Nov 9, 2018
    Trooper_trent likes this.
  15. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    Oh man I like that viewing port!!


    Sent from my iPhone using Tapatalk

  16. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    im a huge fan of this. Will you be making some of these?

    halliwax and The Ninja like this.
  17. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    Not sure if this is any better



    Attached Files:

    Trooper_trent likes this.
  18. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    Capture 4.GIF Capture 3.GIF

    It also looks to me like the bottom rib of the grip is wider spaced than the three above suggesting individual pieces for each strip? Also the gap at the top where they wrap over the camera do look like individual strips? Particularly between the bottom two strips of the grip?

    Trooper_trent likes this.
  19. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    OK yeah that's actually quite a bit better clarity. so that's definitely not a second viewer in the hood but rather just the blue light shining onto the underside of the top lip from inside. 100% agreed
    And it looks like there are brads or bolt hols on the underside on the bottom plate.
    Screen Shot 10-12-18 at 02.26 PM.PNG

    Last edited: Oct 12, 2018
  20. kurtyboy

    kurtyboy Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    Any better? Sorry, the one on the left is just HD because I'm too lazy to wrestle with my underpowered PC and the 4K disc right now!

    Trooper_trent likes this.
  21. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Man it’s so hard to tell. If I had to guess I'd say it's an effect of uneven weathering. that maybe the bottom rib has a slight bit less silver on it, making it appear thinner and giving the appearance of a thicker space between. Because when I add digital calipers to it it, they're the same width. Looks like the grips also extend further on the bottom than they do on the top. these seem to go all the way to the edge of the bottom plate area.
    I also see that there’s no latch on the bottom where your open the door to put in the film.
    Crazy.


    Last edited: Oct 13, 2018
  22. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Oh jeez lol so is there a whole cover plate on the bottom?

  23. kurtyboy

    kurtyboy Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    Looks like it. Also look at the underside of the viewer, the lip appears to around two sides.

    nailuj likes this.
  24. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    oh lordy. i'm gonna say it was dropped and its supposed to have a lip all the way around like the top plate does but one edge chipped off. Is there also a greeblie on the underside?

    Last edited: Oct 12, 2018
  25. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    I joined the camera party today!!! Yay!!!

    Long story short I missed 3 of these in the junkyard until now! Glad the chase is over



    Sent from my iPhone using Tapatalk

  26. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312
    Awesome news! Glad you were finally able to bag one. Looks like it’s in nice shape too.


    Sent from my iPad using Tapatalk

  27. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    Do you think the props guys build these things these days knowing that we will be trying to grab every millisecond of screen coverage. Analysing and re analysing for years to come. Then they leave the edge off one side, on the bottom, farthest from us so you can hardly see it, just to mess with our heads?

  28. kurtyboy

    kurtyboy Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    There is one, and possibly a second dark spot on the underside but I couldn't be sure if they were screws or just video artifacts.


  29. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    You guys talking about the “lip” around the viewing box?


    Sent from my iPhone using Tapatalk

  30. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Yeah the chipped lip and the two dark areas on the bottom of the viewer that could be other greeblies or just dirt or shadow.
    Screen Shot 10-15-18 at 09.05 AM.PNG Screen Shot 10-15-18 at 09.04 AM.PNG

  31. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    OK Opinions needed.
    For this bottom plate, it's clearly covering up the sliding latch that opens the gate but still has a notch cut into it for some reason. But the notch is only about 1/3 as high as the sliding switch is. In your opinion does this entire plate fit down inside the metal framing? or is it laying on top of it? It looks like it's cut off flush at the top as you can see bare metal in the gap near the top arch so it's like they peeled the textured "leather" stuff off and added the plate. But thickness wise, it's hard to tell if it's laying on top of the frame or pressfit into it. I'm leaning towards it being on top because otherwise the sliding switch area would cause it to bow out and I can't imagine they'd make that decision. Also it looks like there are 4 bolts/caps/rivets on the bottom edge. Then there are what looks to be 3 visible on the top edge, but one is way down by itself in a weird spot. Ideas?
    Screen Shot 10-18-18 at 06.43 PM.PNG

    I'm seeing something like this
    Screen Shot 10-18-18 at 06.57 PM.PNG

    nailuj and halliwax like this.
  32. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    * it trent... I never noticed it like that until now..

    Sure does look like a plate


    Sent from my iPhone using Tapatalk

  33. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    I agree that you can see the original backing plate at the top with the lining taken off. It looks to me that the new plate laps the edge of the old door frame 'encapsulating' it. In the top circle I see new plate lapped over and around the edge of the old plate edge covering it. The press fit option you describe.

    In the bottom circle I then see the ribs butted up against the edge of the new plate lip?

    (One thing I have learnt about this forum is how difficult it is to put into words what you think you are seeing !)




    Capture 1.PNG

    halliwax likes this.
  34. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Yeah its definitely difficult to explain. Pictures do help.
    Yes the grips need to extend all the way to the metal border (green arrows)
    and the leather stuff needs to come off (remove in blue)
    but my main question is whether the back plate is the dimensions of the leather (it'll sit down inside the border but would have to warp in the middle because of the height of the center sliding switch) or will sit on top of it (option A or option B)
    Screen Shot 10-19-18 at 04.55 AM.PNG


    And for the plate itself, should I make the rivets symmetrical? I would like to assume there's another one in the upper right corner covered by his thumb. The shape of this panel on the camera isn't square BTW, the left wall comes in at a slight angle so I've incorporated that into the panel. The right bottom corner is 90 degrees. the left bottom corner is acute by 2 degrees or so, making the top edge about 3 mm shorter than the bottom edge.
    Screen Shot 10-19-18 at 05.22 AM.PNG

    And then there's the question of this little thing here. Is it another rivet just randomly stuck in that weird spot? Is it a different greeblie?
    Should I leave it off, add it as another rivet? what do you think?
    Screen Shot 10-19-18 at 05.28 AM.PNG

    Screen Shot 10-19-18 at 05.31 AM.PNG ???

    Last edited: Oct 19, 2018
  35. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    I think I see B... “I think”


    Sent from my iPhone using Tapatalk

  36. kurtyboy

    kurtyboy Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    The flanges around the caps could just be artifacts. I'll see if I can get alternative frames from the UHD 4K which is a task in itself using my hardware set up!

  37. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Awesome. Yeah I'm not tied down to the look of them, just more trying to get an idea of positioning, sizing, etc. That would be great if you could get any additional shots.

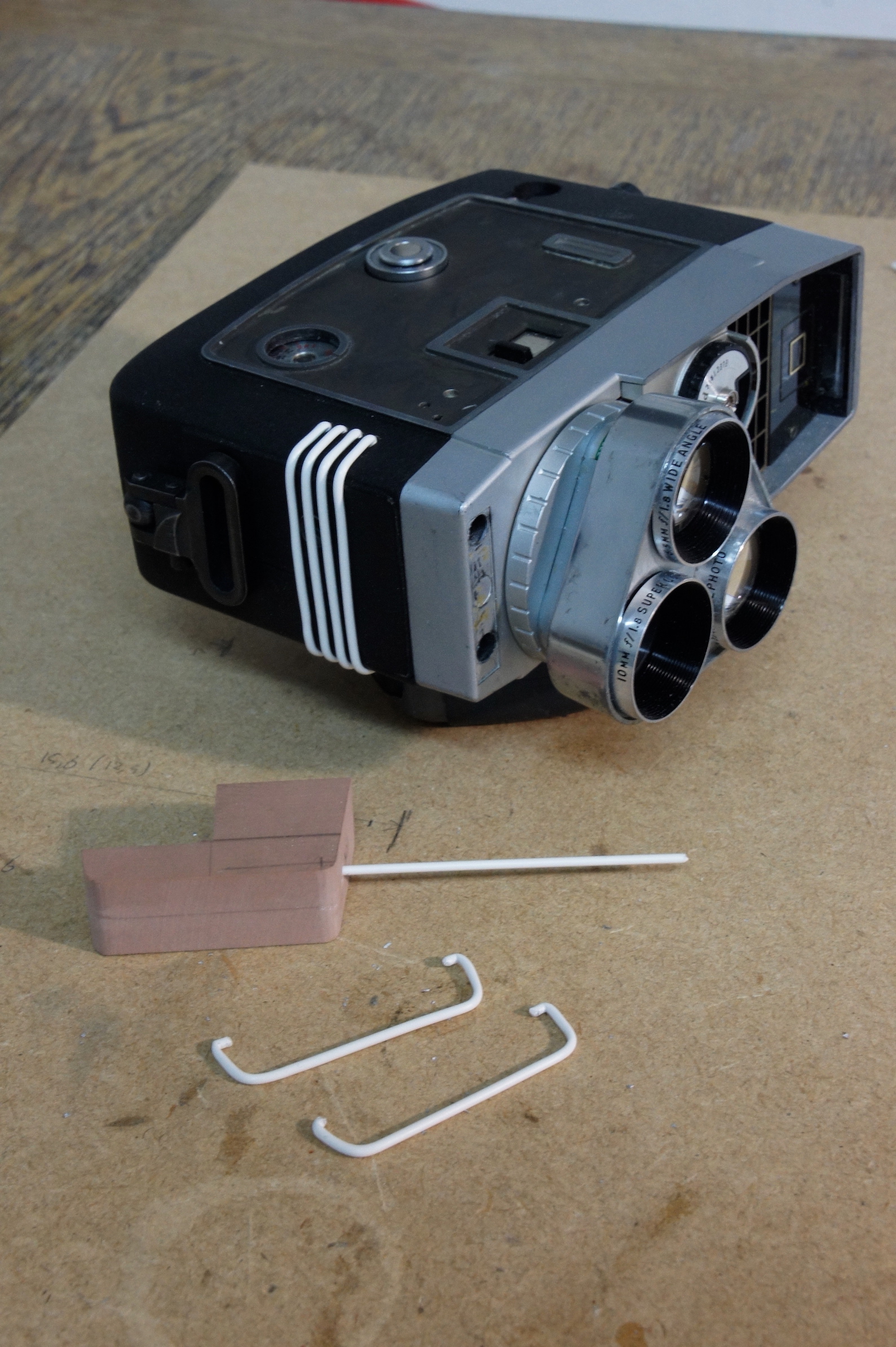

    Here’s a quick test print.

    Last edited: Oct 19, 2018
    The Ninja, halliwax and nailuj like this.
  38. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165

    Last edited: Oct 19, 2018
    thd9791, The Ninja and halliwax like this.
  39. nailuj

    nailuj Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    641
    Blimey. You don't hang around. Yes, thats what I had in my minds eye.

  40. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    Crazy! I love it


    Sent from my iPhone using Tapatalk

  41. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    OK I'm calling that set done. I threw it up on the JY if anyone wants it. I'm going to print the updated files and do a few more checks and I'll offer kits in my etsy or something if anyone wants 3D printed parts.




    Dann, thd9791, Saranac and 2 others like this.
  42. The Ninja

    The Ninja Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,136
    The finished build looks awesome Trent, congrats & well done on all the screen accurate 3D modelling, I will differently be up for some parts :thumbsup

    Trooper_trent likes this.
  43. Saranac

    Saranac Member

    Trophy Points:
    112
    Looks fantastic! I am also up for a set of parts to complete my build.

  44. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    That’s a beauty! If I didn’t snag a camera last week this sucker would be mine


    Sent from my iPhone using Tapatalk

  45. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    Just received a sportster IV I the mail thanks to a certain member who shall remain nameless unless they specify otherwise.
    Look how close I got on the trapezoid piece just from looking at these crappy screenshots. Lol I was quite pleased


    And here’s the revised kit. The viewer is much closer now. Correct length, depth, flare, lips, greeblies, etc.
    and the other parts are all dialed in. The grips have been lengthened so they touch the metal frame border on the underside. Let me know if you see anything else that needs to be modified
    b2a3d8adaff72966d2912f30d16b4eca.jpg 533e0934a7a34b25cb29a44855703af7.jpg 54edfd0bdfebeec174bfac8cb9f8ad72.jpg 278354898ec08054c718f34f88cde1d6.jpg
    dd5aba389605d79322ca6202ae24dca5.jpg e50357b15a82ab6c666d4bca39718eb9.jpg


    Sent from my iPhone using Tapatalk

  46. The Ninja

    The Ninja Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,136
    The Kit looks amazing Trent :thumbsup who was that super nice member who looked after you, those Sportster IV Cameras are like finding chicken teeth lol!!

  47. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    So close it’s scary!

    The updated kit is out of this world!


    Sent from my iPhone using Tapatalk

  48. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    When might this kit be hitting the market?

  49. xwingercrash

    xwingercrash Active Member

    Trophy Points:
    312
    Awesome work dude...looks incredible! I’m definitely down for a kit.


    Sent from my iPad using Tapatalk

  50. Trooper_trent

    Trooper_trent Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,165
    I have to figure out how to get the hood to print reliably. It's a 4 hour print and with DLP printers you don't find out that there's anything wrong with it until it's completely done (since it grows upside down in the resin). I've started printing some sets but that one part is giving me some trouble. Once I get a few sets ready, I'll start a run.

    Cameron, halliwax, Weldon and 2 others like this.
