R2D2 Build - 2/3 the size

Discussion in 'Star Wars Costumes and Props' started by Fuzzual, Dec 7, 2011.

  1. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Hey guys, its been very slow on my other projects due to work, and Christmas. Apparently both my wife and my boss think there are other priorities than my spaceship basement :confused So at any rate, I thought I would post an older, but continuously on going project.

    My father and I set out a couple years ago to build 3 droids for my poker room. (So far we don't yet have a completed unit, but isn't that how this hobby goes?) They are being built roughly 1/2 scale of the original, so that they would be smaller, but more importantly the correct height for my poker table. The plan is to put trays on them, similar to the ROTJ R2, when he is serving drinks on the sail barge.

    At any rate, the project has taken WAY longer to get done than either of us thought, but with my basement project underway, and the poker table nearly finished, the droids have become a priority once again, and things are getting going.


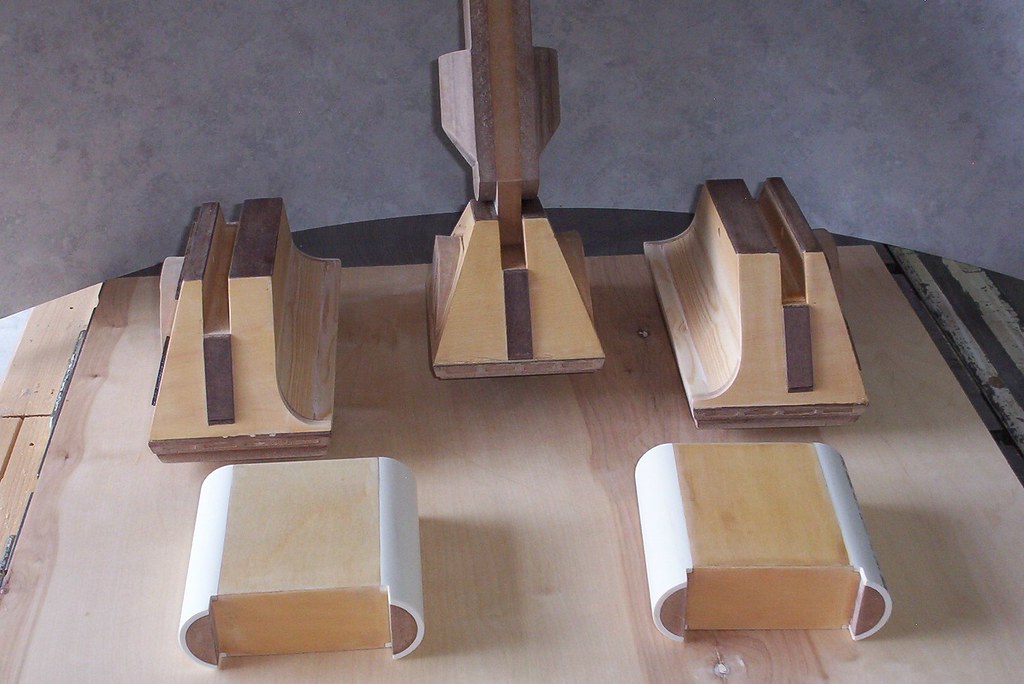

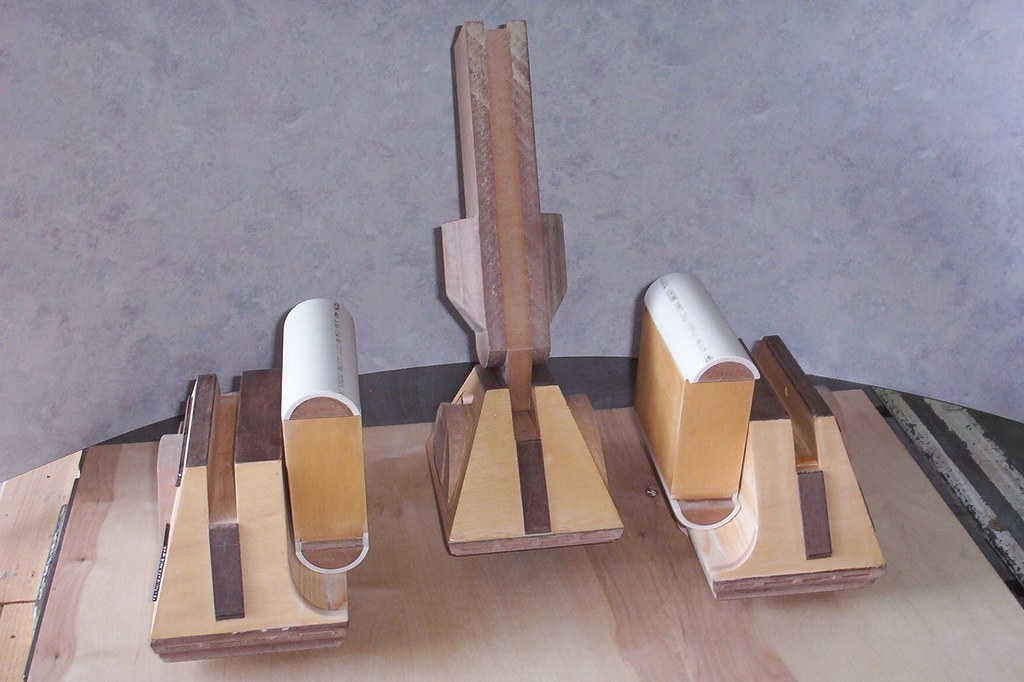

    *Just as a side note, my father hand carved all the parts for the foot pads, arms, etc out of wood! The man is insane!

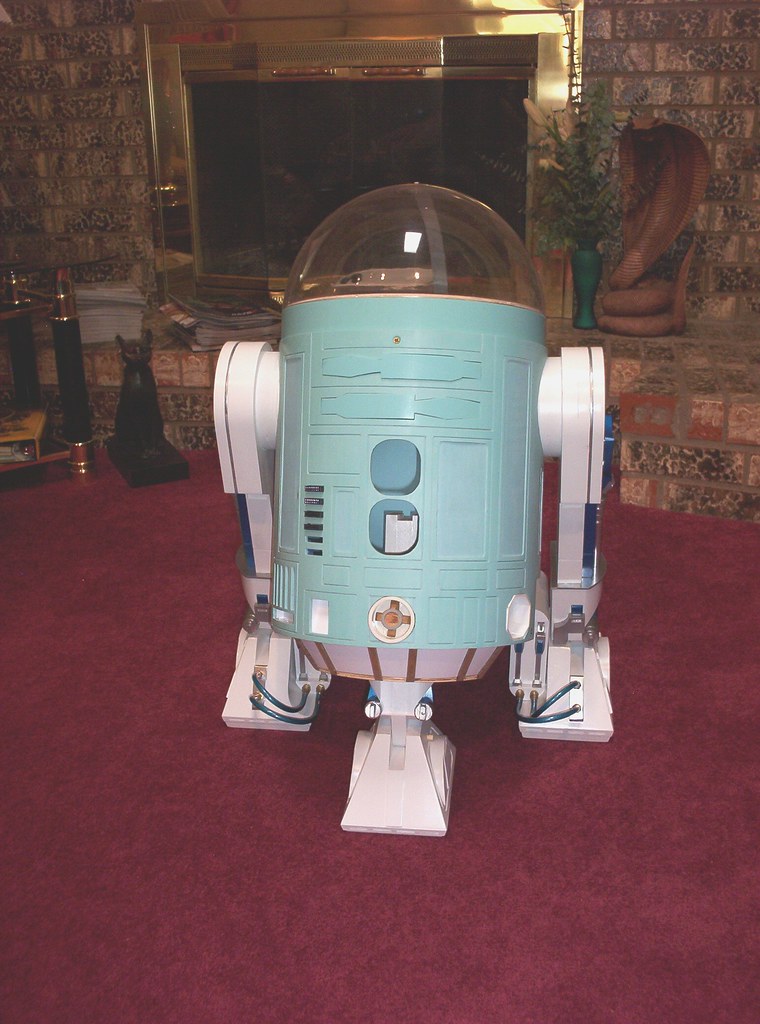

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Dec 18, 2015
  2. darthwhitey

    darthwhitey Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,635
    Re: R2D2 Build - Lots of Pics

    Coolest.

    Project.

    Ever.

  3. phez

    phez Sr Member

    Trophy Points:
    1,487
    Re: R2D2 Build - Lots of Pics

    Awesome scratch build!!!

  4. Finhead

    Finhead Sr Member

    Trophy Points:
    1,307
    Re: R2D2 Build - Lots of Pics

    I have to agree 100% that is a great build looks so clean and perfect.

  5. DarthChrisDK

    DarthChrisDK Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    560
    Re: R2D2 Build - Lots of Pics

    That is some good craftmanship. Looking really good so far!

  6. crypto

    crypto Active Member

    Trophy Points:
    361
    Re: R2D2 Build - Lots of Pics

    Looking awesome !

    What have you used for the body ? It looks like a big pvc pipe.

  7. wannab

    wannab Sr Member

    Trophy Points:
    1,486
    Re: R2D2 Build - Lots of Pics

    Fantastic!

    Where did you source the dome?


    Doug

  8. Supa troop

    Supa troop Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,635
    Re: R2D2 Build - Lots of Pics

    very very cool indeed, oh and FB'd too

  9. Weaselhammer

    Weaselhammer Sr Member

    Trophy Points:
    1,355
    Re: R2D2 Build - Lots of Pics

    Excellent build so far, very well done !

  10. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: R2D2 Build - Lots of Pics

    WOW guys, thanks so much. It has been one of those up and down projects; it gets worked on hard for two or three weeks, then sits for two months . . . and so on. my poor dad gets requests from me that are a very tall order, and the man is a perfectionist!

    Here is a list of parts so far:

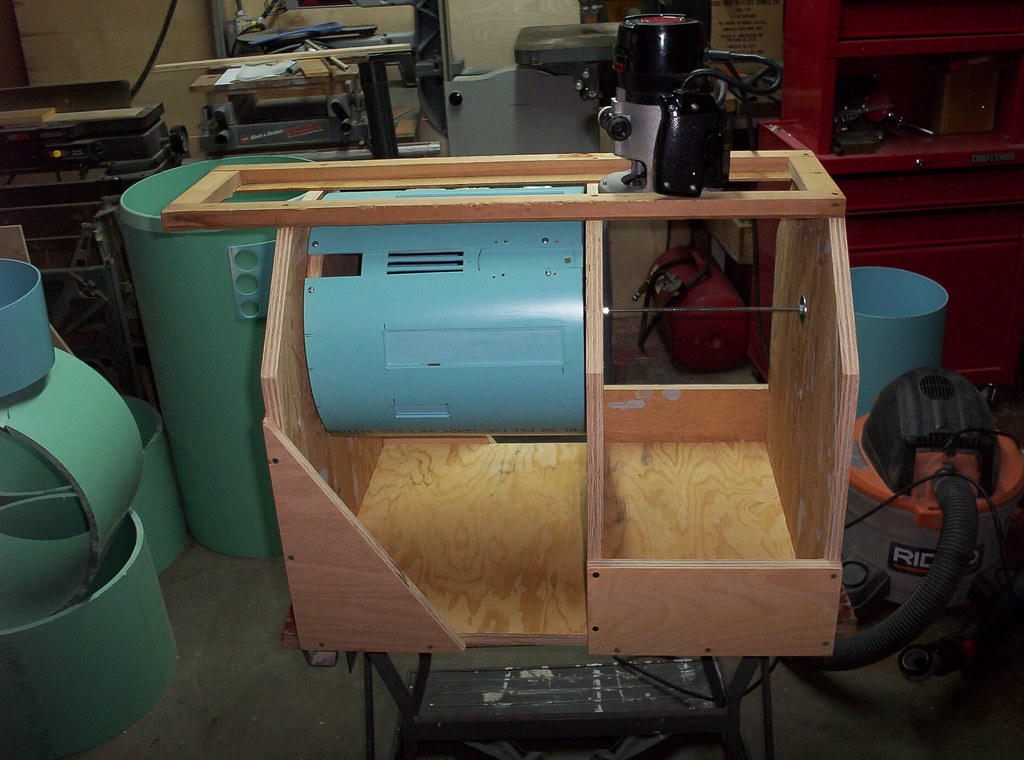

    - The body is a PVC sewer pipe, 12" diameter (The second body will be made out of Styrene instead. You can't imagine how much of a pain the sewer pipe was to route out with the router, and then the clean up . . . ugh, tough stuff.

    - The Dome is a restaurant cake lid, bought from a restaurant supply store for about $12

    - The eye pieces on the dome are composed of Windex bottle caps, and a plumbing fitting.

    - and all the legs, the small bolts, and other odds and ends are carved from wood with a turning lathe and other various tools.

    The dome has been painted, and the electronics installed for it, I don't have photos with me, but I will post some tonight.

    Thanks again for looking, and thanks for the compliments!!!

    Last edited: Feb 8, 2012
  11. MooCriket

    MooCriket Master Member

    Trophy Points:
    3,366
    Re: R2D2 Build - Lots of Pics

    Outstanding build!

  12. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: R2D2 Build - Lots of Pics

    Thanks brother! I appreciate that!

  13. Fyberdyne Labs

    Fyberdyne Labs Well-Known Member

    Trophy Points:
    942
    Re: R2D2 Build - Lots of Pics

    Wow.....Wow! There aren't words about how cool that is.

    Mark

  14. MattMunson

    MattMunson Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,145
    Re: R2D2 Build - Lots of Pics

    Great looking build, man! really nice work!!!

  15. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: R2D2 Build - Lots of Pics

    Thanks brother!

  16. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: R2D2 Build - Lots of Pics

    Thanks Matt, I love your builds. Its a great compliment!


  17. ave4uevoli

    ave4uevoli Sr Member

    Trophy Points:
    1,535
    Re: R2D2 Build - Lots of Pics

    Amazing..especially for a scratch build :thumbsup

  18. Fuzzual

    Fuzzual Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Re: R2D2 Build - Lots of Pics

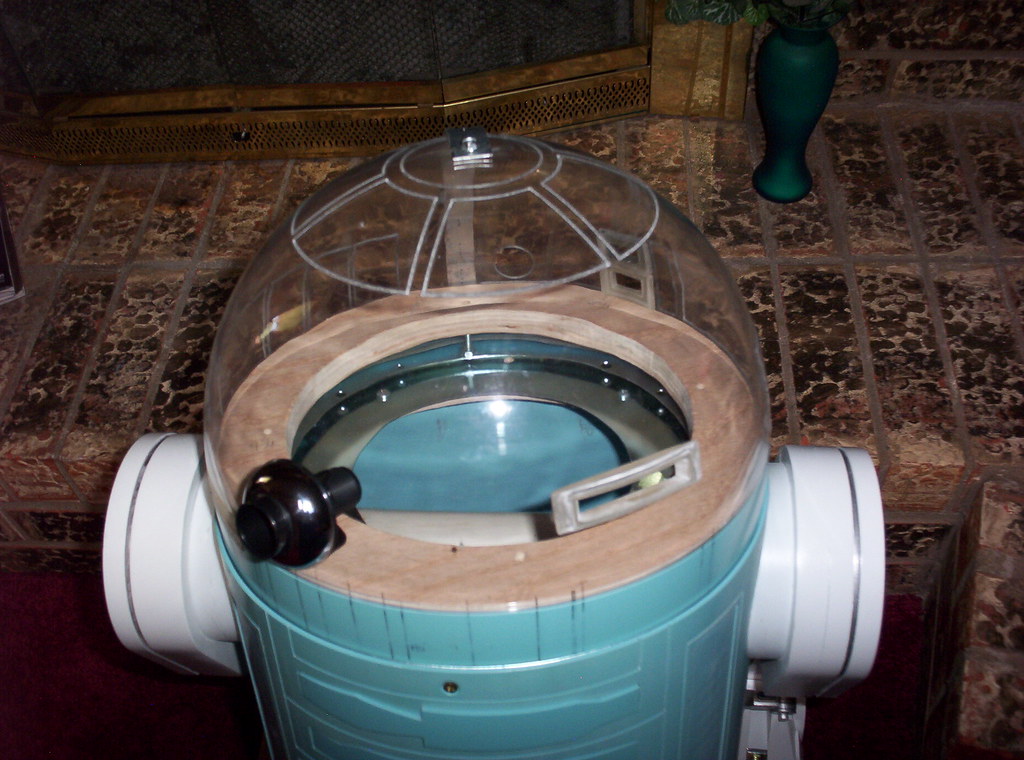

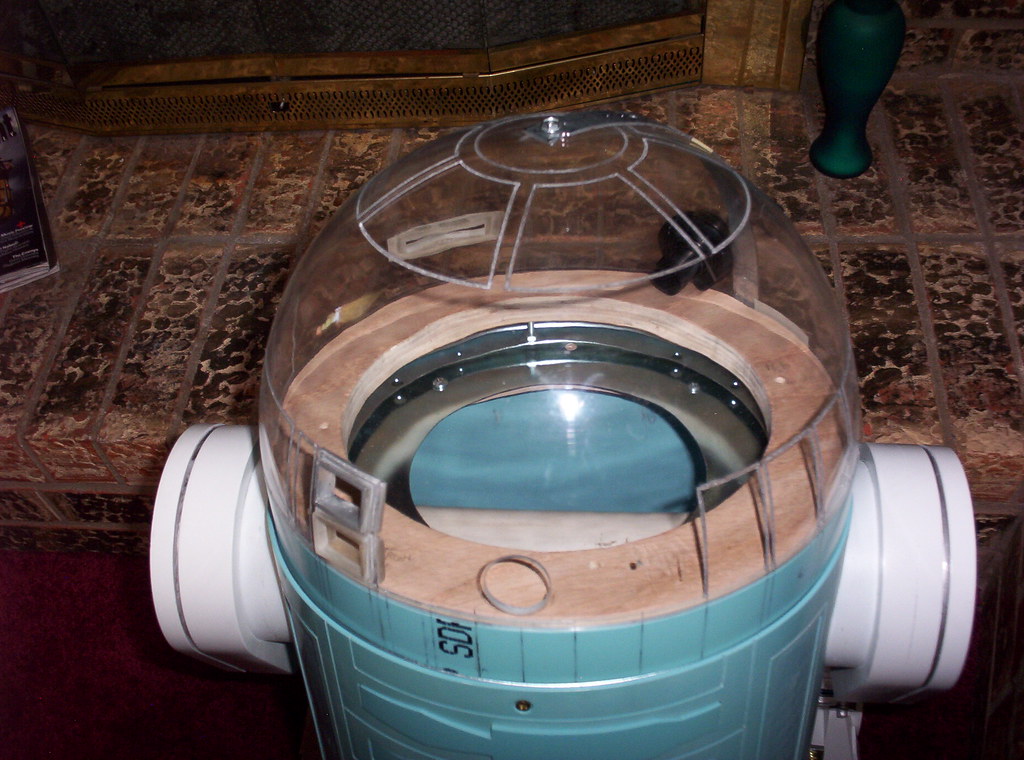

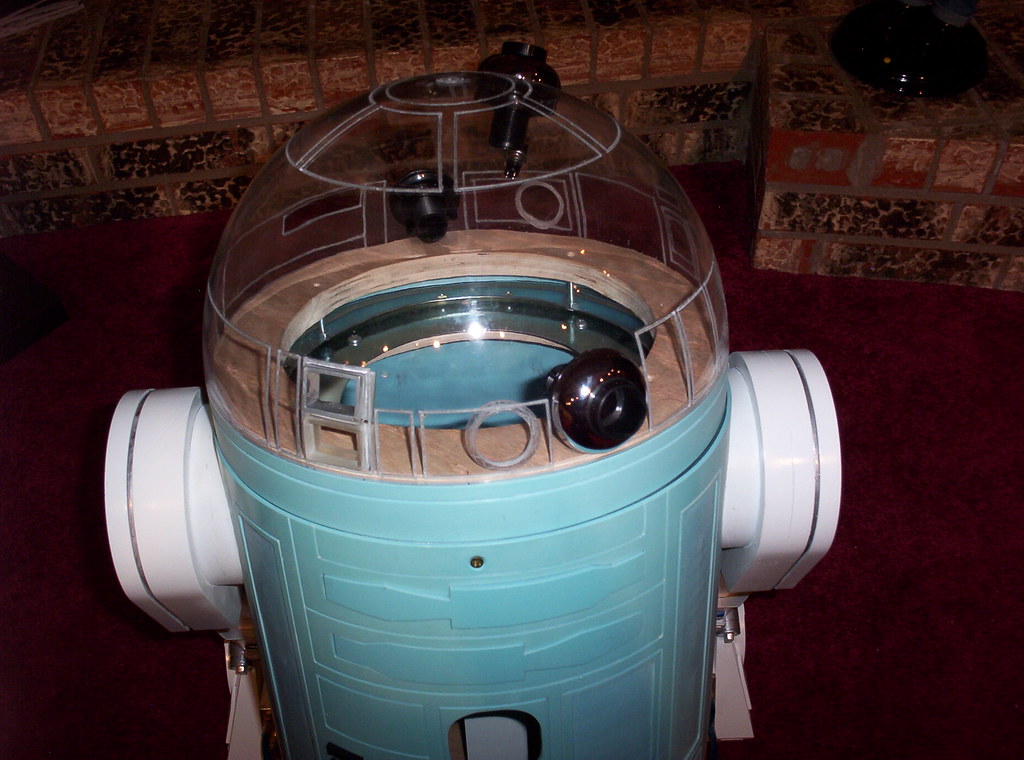

    So I took some shots of the Dome painted up, and a few other minor parts. I don't see getting a chance to work on this much until probably the first week of February, but I will be sure to update as often as I can. Hope you like!
