OWK ANH CAD design thread

[Anakin Starkiller]

I've been working on these for the past complete nights. Thought some of you might be interested in seeing this develop. The dimensions all come from my all real parts OWK. Although some details have been tweaked to match the chronicles saber



[scarf man]

Very nice.



[teecrooz]

Very cool Dan. Can’t wait to see the progress.



[Eruonen]



[Gregatron]

This should prove interesting.



[Halliwax]

Lol I love the logo in the sink knob!!



[Anakin Starkiller]

Lol I love the logo in the sink knob!!

It's almost like it was made to go there.



[Anakin Starkiller]



[Anakin Starkiller]



[James Kenobi 1138]

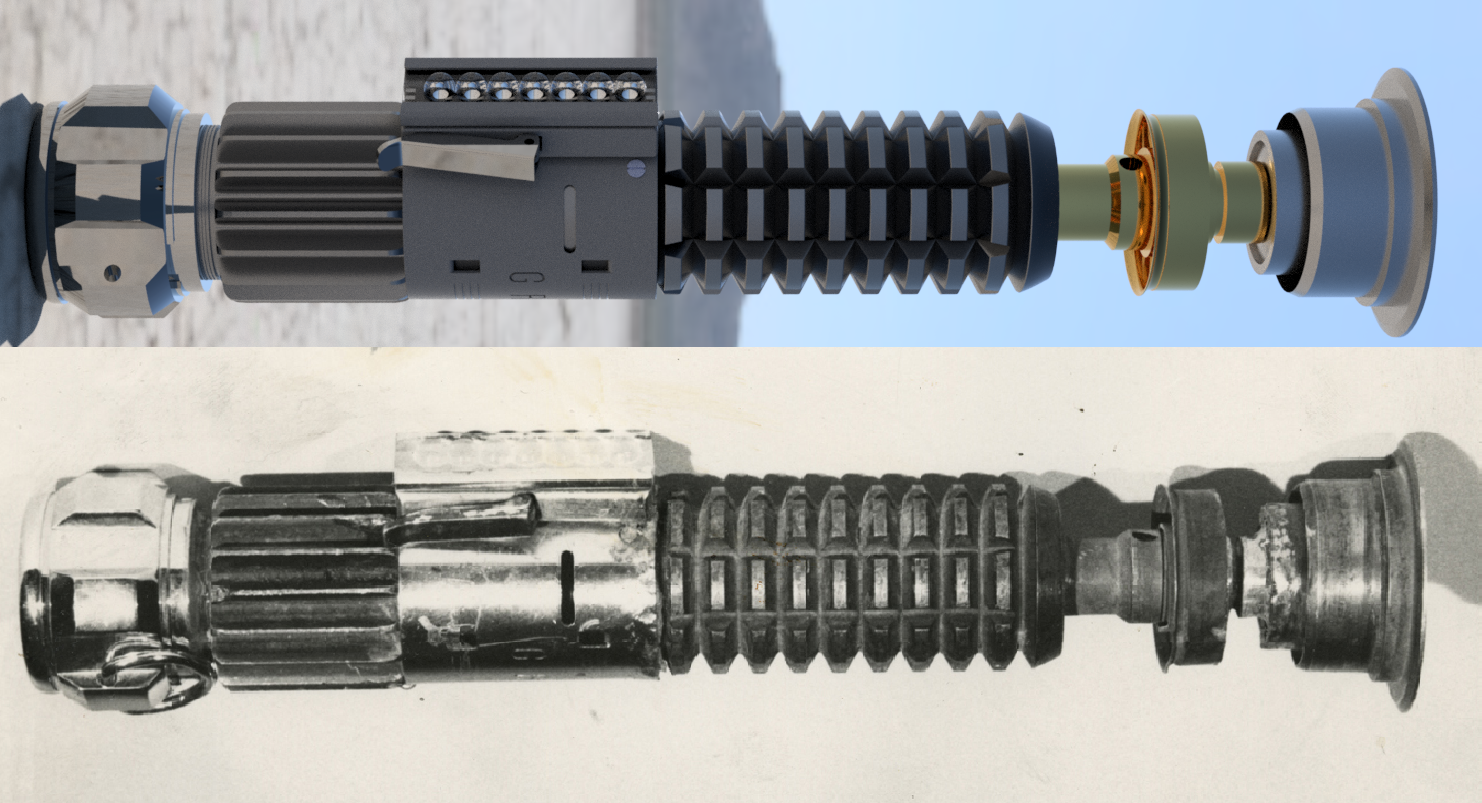

That’s a great comparison photo, your model looks great.

The windvane/emitter perspective doesn’t match-up because the real prop photo was taken after the saber was repaired with the screws allowing for the ‘bend’ we see in the Chronicles photos.



[Anakin Starkiller]

I didn't match the lens either. It was just a quick screengrab



[thd9791]

I really like how well you did the profile for the booster fins. I don’t know why but that’s where my eye was drawn and they’re a very characteristic shape - looks dead on



[scarf man]

This part of the stem looks a bit off to me.

It may be the reflection on your model, or some perspective element, seems a tad squished.



[Anakin Starkiller]

Thanks for the feedback
