Welcome to the Project Runs Forum!
This forum is intended for interest gauging and active runs. Due to the transient nature of this forum, please keep all research and ongoing discussion in one of our main forums so your information is not lost.
Only Premium Members can start a new run.
Limited Run Nike MAG Strap Upgrade Kit - Shipping 10/05/15!
- Thread starter markpoon
- Start date
Last edited by a moderator:
Greeky04
Well-Known Member
Re: Nike MAG Strap Upgrade Kit
Bennyvalle07 that looks great. Do you have pictures or a tutorial of where you put the battery and inverter? Id love to see how it all went together for my own straps. Cheers mate
Bennyvalle07 that looks great. Do you have pictures or a tutorial of where you put the battery and inverter? Id love to see how it all went together for my own straps. Cheers mate
Last edited by a moderator:
Last edited by a moderator:
Bennyvalle07
New Member
Re: Nike MAG Strap Upgrade Kit

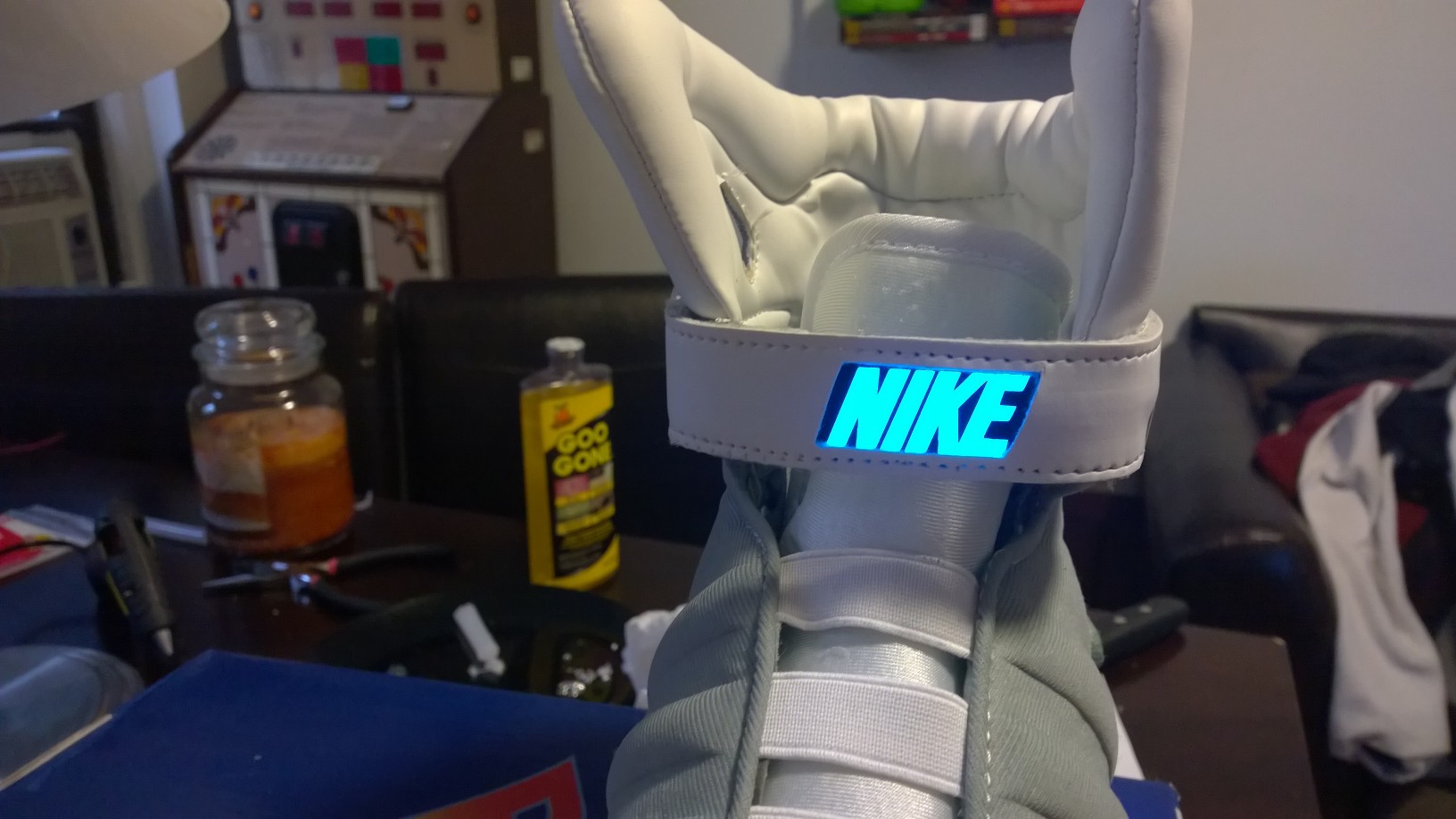

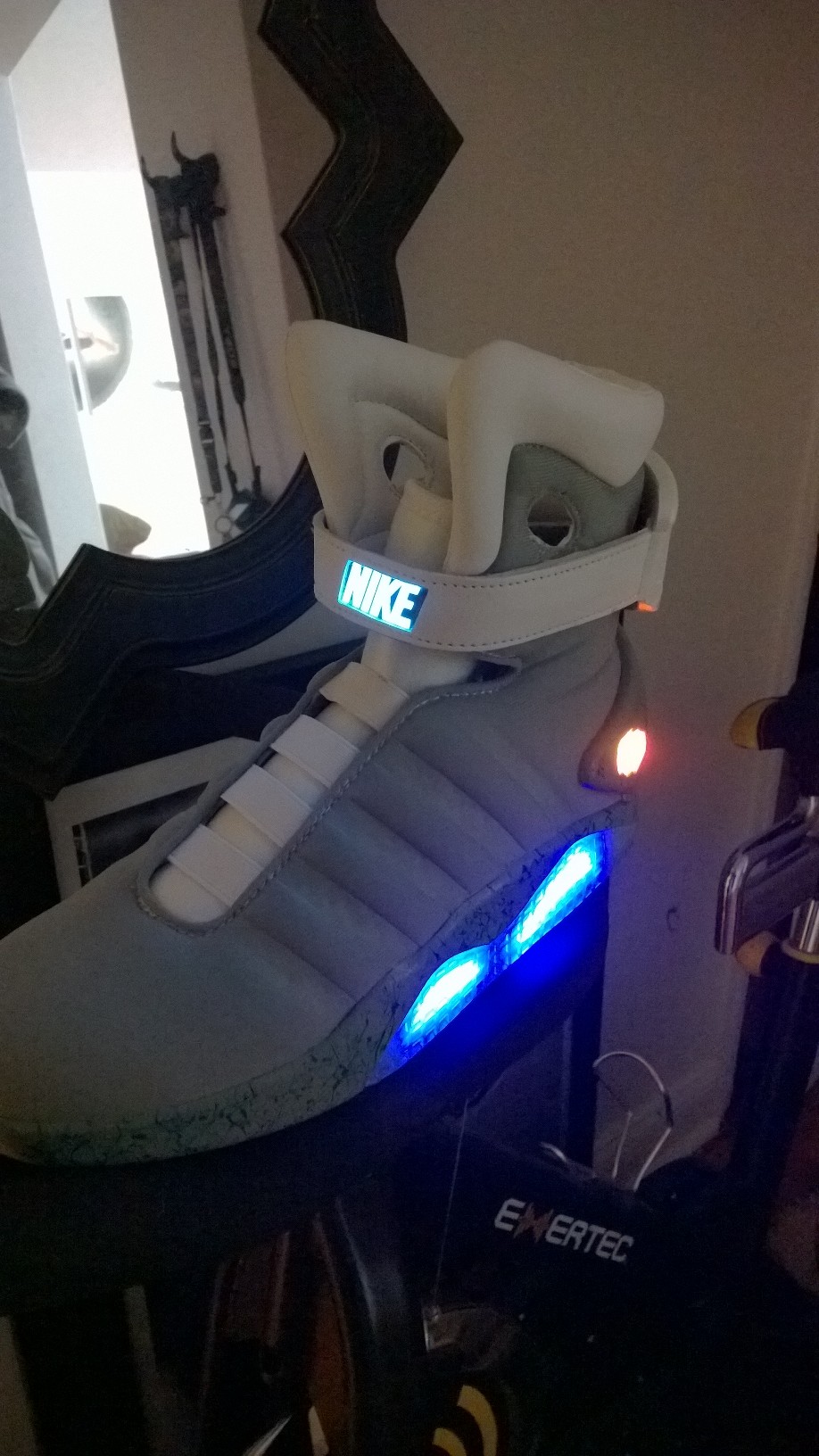

Yes they are the HC Mags.
Right now, the inverter and batter holder is sort of just hanging in the back until i can figure out how to set it up. I may post a tutorial of how mine was done. Not the neatest but the results are really good.
Yes they are the HC Mags.
Right now, the inverter and batter holder is sort of just hanging in the back until i can figure out how to set it up. I may post a tutorial of how mine was done. Not the neatest but the results are really good.
Re: Nike MAG Strap Upgrade Kit
wow! The HC MAGs looks pretty good! I'll be looking forward to seeing the tutorial, show us how you install the ELs on the strap ok?
wow! The HC MAGs looks pretty good! I'll be looking forward to seeing the tutorial, show us how you install the ELs on the strap ok?
Bennyvalle07
New Member
Re: Nike MAG Strap Upgrade Kit

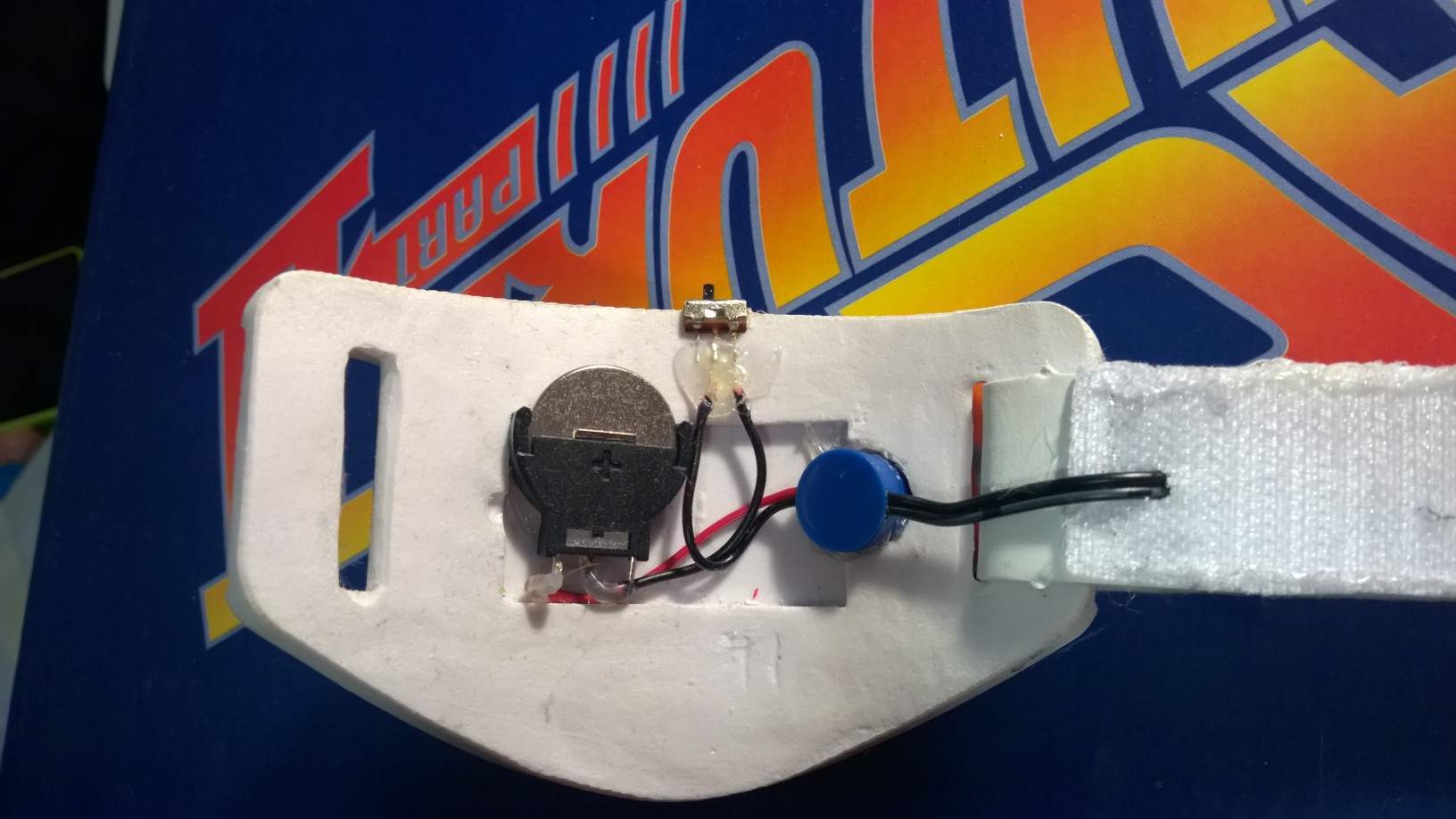

I soldered all the wiring as @markpoon suggested. i separated the strap stitching from the top and bottom and slid the EL in to the area where i cut out the "Rhombus" shape for the Nike logo. DO NOT DO the soldering of the inverter wire to the EL until you cut a hole in the strap to slide the wiring in (as show in the picture above). This makes it easier for you to hide the wiring inside the strap and slide it out of the hole in the back. Since the stitching is impossible to put back, i was able to use ELMERS SPRAY ON GLUE to reglue both pieces of the strap back together. Regarding the back strap shell, I secured the soldered wires with a glue gun as well as gluing them to the back of the strap shell. I also cut a small hole for the inverter to sit as well as the switch at the top.

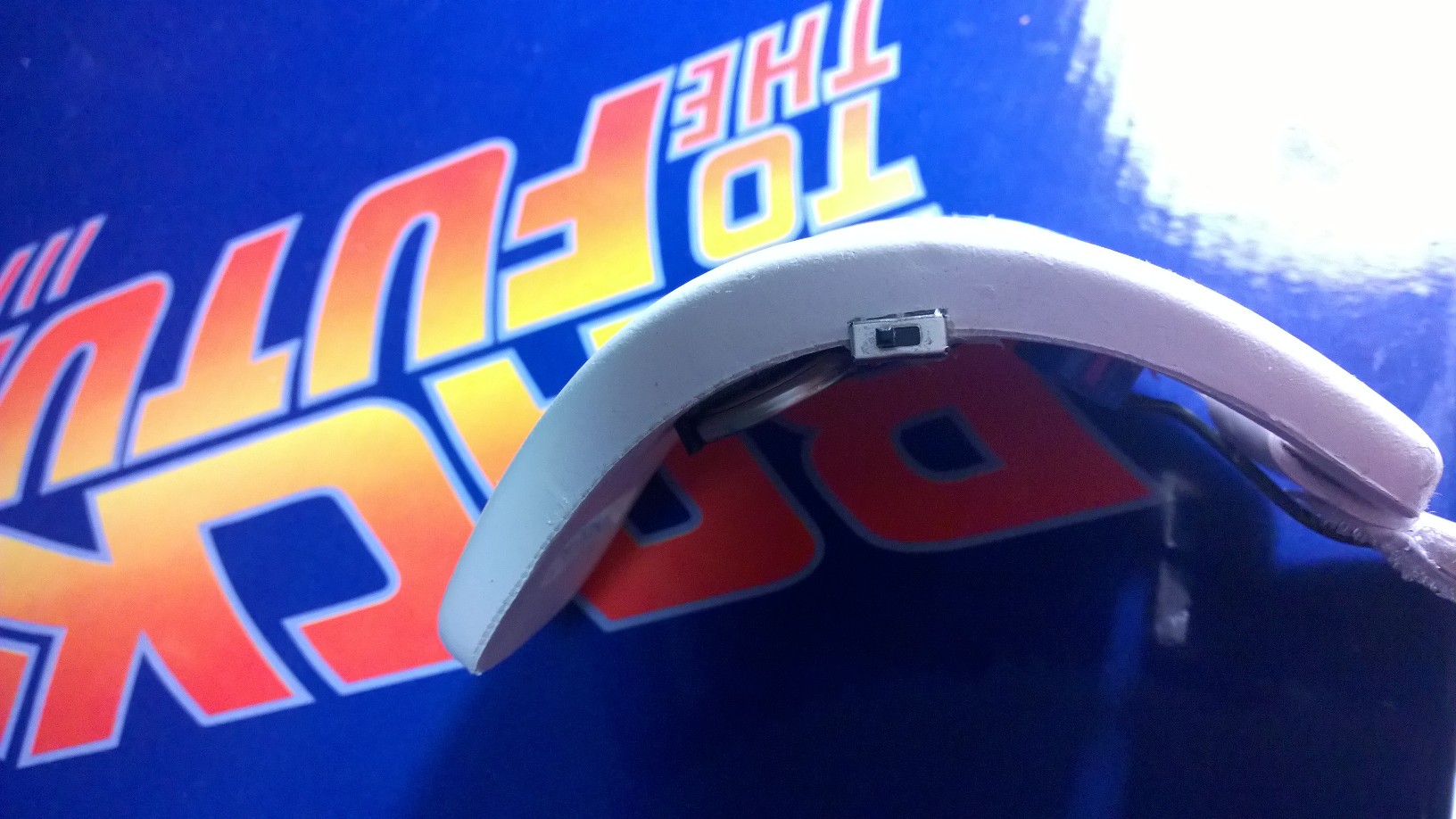

Here you can see how i cut a small box for the the switch as well as using a glue gun the secure it down. Easy access for turning it on. Even with all the components, it doesn't seem to take up much room in the back of the shoe.

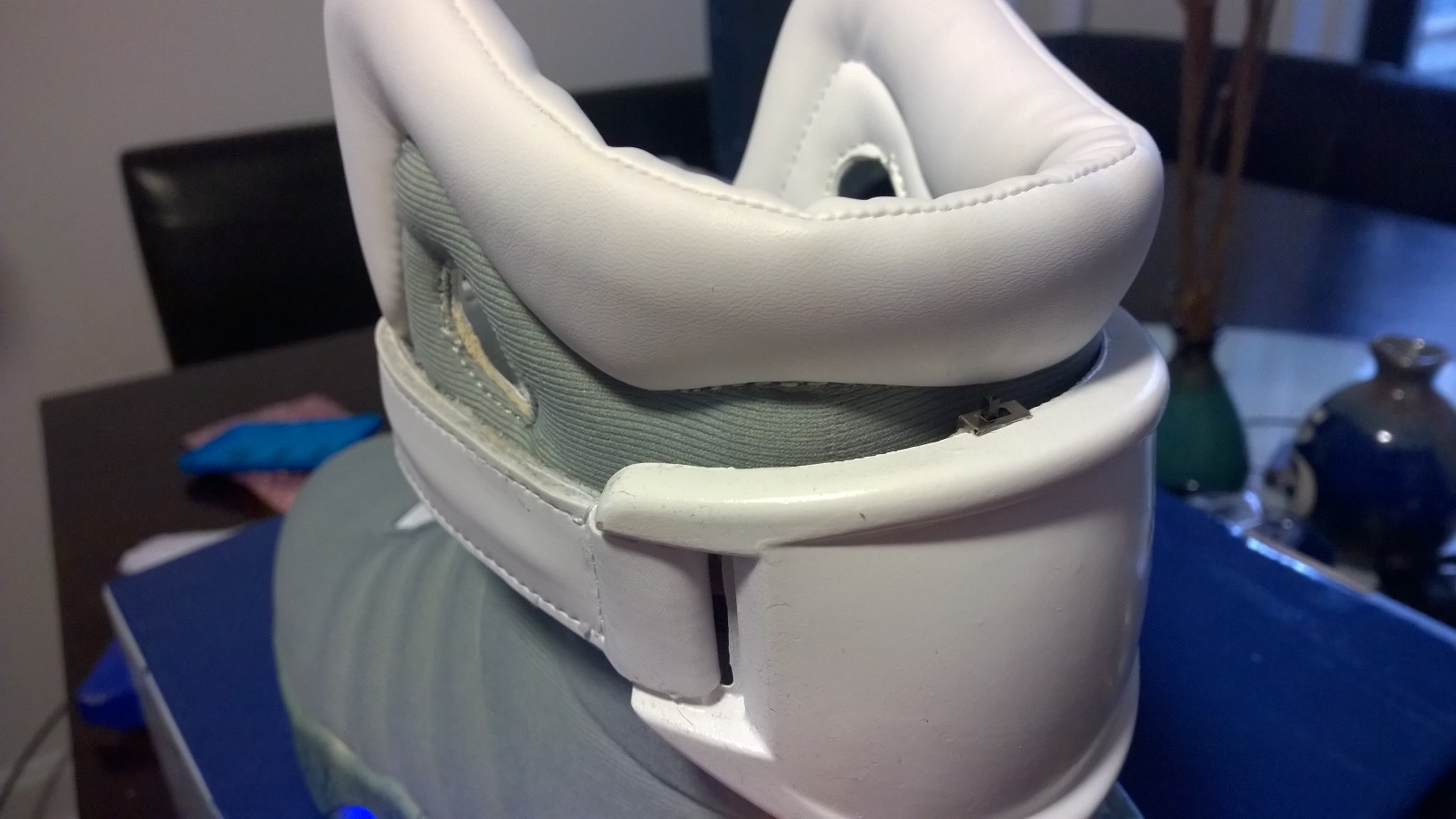

It doesn't look too bad from the back and is hardly noticeable.
Overall, i am satisfied with the results.
I soldered all the wiring as @markpoon suggested. i separated the strap stitching from the top and bottom and slid the EL in to the area where i cut out the "Rhombus" shape for the Nike logo. DO NOT DO the soldering of the inverter wire to the EL until you cut a hole in the strap to slide the wiring in (as show in the picture above). This makes it easier for you to hide the wiring inside the strap and slide it out of the hole in the back. Since the stitching is impossible to put back, i was able to use ELMERS SPRAY ON GLUE to reglue both pieces of the strap back together. Regarding the back strap shell, I secured the soldered wires with a glue gun as well as gluing them to the back of the strap shell. I also cut a small hole for the inverter to sit as well as the switch at the top.
Here you can see how i cut a small box for the the switch as well as using a glue gun the secure it down. Easy access for turning it on. Even with all the components, it doesn't seem to take up much room in the back of the shoe.
It doesn't look too bad from the back and is hardly noticeable.
Overall, i am satisfied with the results.
Re: Nike MAG Strap Upgrade Kit
hey mark, i have the HC MAGs as well and would love to get both the light kit here and the NIKE swoosh decals for the sides and NIKE MAG decal for the back of the shoes. will you post here when you have everything done? with the light kit and the NIKE swoosh decals, these HC MAGS will look great. thanks! i know you are going on vacation soon, so let us know when you can.
hey mark, i have the HC MAGs as well and would love to get both the light kit here and the NIKE swoosh decals for the sides and NIKE MAG decal for the back of the shoes. will you post here when you have everything done? with the light kit and the NIKE swoosh decals, these HC MAGS will look great. thanks! i know you are going on vacation soon, so let us know when you can.
Re: Nike MAG Strap Upgrade Kit
hi Bennyvalle07,
great job on the upgrade & thanks for posting the tutorial
- - - Updated - - -
hi boochydog,
the light kits are on hand & ready to be shipped, I'm still working on the decals & I'll put you down for a set, please send $45 to:
poonwkstarhub@gmail.com
& I'll ship your light kit as soon as I receive your payment
hi Bennyvalle07,
great job on the upgrade & thanks for posting the tutorial
- - - Updated - - -
hi boochydog,
the light kits are on hand & ready to be shipped, I'm still working on the decals & I'll put you down for a set, please send $45 to:
poonwkstarhub@gmail.com
& I'll ship your light kit as soon as I receive your payment
Bennyvalle07
New Member
Re: Nike MAG Strap Upgrade Kit
hi Bennyvalle07,
not a problem, let me know exactly which part isn't working & I'll send you a replacement.
hi Bennyvalle07,
not a problem, let me know exactly which part isn't working & I'll send you a replacement.
Last edited by a moderator:
Bennyvalle07
New Member
Re: Nike MAG Strap Upgrade Kit
I'm honestly not sure what exactly is not working. Is there any way you can send the El and inverter just to be safe. I don't want to open up the other strap and swap wires to figure it out.
I'm honestly not sure what exactly is not working. Is there any way you can send the El and inverter just to be safe. I don't want to open up the other strap and swap wires to figure it out.
Vormz
Sr Member
Re: Nike MAG Strap Upgrade Kit
Did you find out if it's adaptable on a 9V setup?
Thanks
Did you find out if it's adaptable on a 9V setup?
Thanks
Bennyvalle07
New Member
Re: Nike MAG Strap Upgrade Kit
Im sure the EL is but you may have to switch to a 9v inverter instead, not the one he supplies.
Im sure the EL is but you may have to switch to a 9v inverter instead, not the one he supplies.
Vormz
Sr Member
