Nike MAG replicas (V2 and V3 only)

jjdelp said:
Wrong and wrong and wrong. Diffusion of bubble has no affect on LEDs. The led boards that come in shoes cannot be adjusted. Your only option would be to use a resister in main line going into board which still keeps the red LEDs too bright. The replacements I'm sure are same. Your only way to make better at this point is to send to me and pay me to replace LEDs with my own.
Click to expand...

There are surface mount resistors on the back of the board already. You can simply use a different value resistor to lower the voltage, effectively dimming the LEDS.

That are covered in a clear encasing


WizardBTTF said:
There are surface mount resistors on the back of the board already. You can simply use a different value resistor to lower the voltage, effectively dimming the LEDS.
Click to expand...

- - - Updated - - -

Last edited:
jjdelp said:
I know this from already doing everything you guys are talking about. I'm actually like way ahead of all that stuff brother.
Click to expand...

I saw your 'shoe scientist' site. You swapped out some lights while the sole was off a shoe and did an EL repair. You fiddled with bulb clarity. You made some waffle panels. Multiple people here have done all that and more.

jjdelp said:
Diffusion of bubble has no affect on LEDs.
Click to expand...

According to your instagram you sprayed the bubble with 'Rustoleum Clear Enamel', which would be an attempt to affect LEDs appearance by altering the diffusion of the bubble.

Would you care to explain this discrepancy?

I cleared them and then replaced with my own LED boards that I make. Because no matter what you do red led will always be too bright.

Lol. I have seen noone do anything like what I am doing sir. No one close. But that's ok for you to think as I respect your opinion. If they have all done what I'm doing then you would have power laces that look like movie like me. Or sensors that turn on shoes. Or lights controlled with Bluetooth or anything else I'm working on. Just to add to your nice list already provided. So yea. I respect your opinion because I don't Judge against ignorance.

- - - Updated - - -

And for the record I have never removed a sole to add or change light. I make perfect precision cuts and have electronics far past what you're used to.

Last edited:
I just see much confusion in here I and can help with all things. Anyone who wants real help and trust me then hit me up.

Diffusing the bubble allows it too look more like rd mag bubble when turned off. Simple as that bro. Has nothing to do with turned on.

- - - Updated - - -

im not sure what you're trying to get across brother. I'm holding two pairs of real ones and two pairs of v3. I know what needs to be done.

- - - Updated - - -

Clear bubble, fix led, then move on.

Last edited:
jjdelp said:
That are covered in a clear encasing
Click to expand...

Takes like 20minutes to remove encapsulation resin.

jjdelp said:
I cleared them and then replaced with my own LED boards that I make. Because no matter what you do red led will always be too bright.
Click to expand...

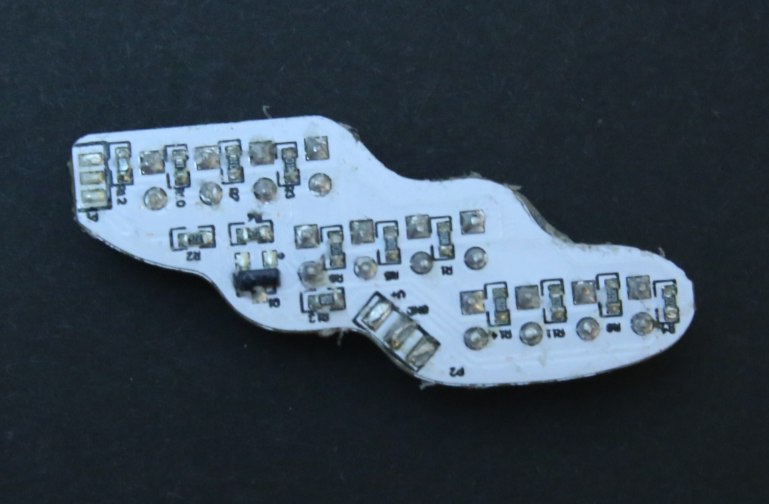

Red is so bright because they only used 100ohm resistors for red. You can still change the resistors to lower the brightness, just because you did it a different way...doesn't mean I am wrong.


Attachments

  • cap.PNG
    694.9 KB · Views: 103
jjdelp said:
Lol. I have seen noone do anything like what I am doing sir. No one close. But that's ok for you to think as I respect your opinion. If they have all done what I'm doing then you would have power laces that look like movie like me. Or sensors that turn on shoes. Or lights controlled with Bluetooth or anything else I'm working on. So yea. I respect your opinion because I don't Judge against ignorance.

- - - Updated - - -

And for the record I have never removed a sole to add or change light. I make perfect precision cuts and have electronics far past what you're used to.
Click to expand...

If you have powerlace mags, please....show and tell.

WizardBTTF said:
You want to have some space between the EL panel and the clear sole.



Regular ratchet clamps, with a clear flat piece of acrylic under to spread the pressure out.



I am mainly waiting until I have a been a member for 90 days. Don't think I can start runs until then.




The LEDS in there seem to be your typical 3mm 45 degree LEDS. They have resistors, but they are still ran too bright. I think the main issue is still getting the bubble diffused correctly around the LEDS...if you look at the RD the bubble itself it is still diffused...but it doesn't blur the LEDS together like these V3's. Ran at a slightly lower voltage with the bubble slightly diffused...would probably give the exact look of the RD. With the current diffused V3 bubble the bright LEDS just wash each other out.
Click to expand...

How are the leds on the v3 board soldered? Are they in series or parallel?

You are absolutely right. Just need to try different resistors to reduce the led brightness I they are too bright.

I hope to experiment on some shortly.

Like I said you can remove the resin then you can do many things. But I have many secrets for doing things well past changing the LEDs from 100 to the magic number. I can just with LEDs manipulate power. Manipulate el panels. Make them smart and react to sensors or add my light coding I write. It's way past playing with resisters man. I'm trying to elevate you all. Cause after all that work you do then you will realize that rd mag LEDs have their leads showing that resemble nothing like v3. Which makes my light boards look even better.

It's fun spider. I'm trying to get people going. Get them motivated. Get them creating. With all this talking people should be able to turn on shoes with brain waves by now.

- - - Updated - - -

Why would I show how? Look at Instagram. See White roshe and all the old versions I had. I'm making something great at moment my friend.

See Instagram. My white roshe. My red roshe. My old mags that were "slow". My straps. We doing what you want done brother. Making it happen.

- - - Updated - - -

It took me less than a year for that entire body of work on Instagram.

I'm not going to prove your claim for you. If you have powerlace Nike Mags that look like the movie, please....show and tell.

There are plenty of tools on this site that allow you to easily embed picture and video.

jjdelp said:
See Instagram. My white roshe. My red roshe. My old mags that were "slow". My straps. We doing what you want done brother. Making it happen.

- - - Updated - - -

It took me less than a year for that entire body of work on Instagram.
Click to expand...
I feel like someone posted your instagram on here a few weeks back. I've seen some of your stuff before.
