New BMF coming

My progress on the maintenance bays:

Gus76 said:
I finally have an update.

I have managed to get access to a 3D printer and print the maintenance pits I have designed.
This is the end result. The are printed in SLA resin with 50 micron resolution.
...
Click to expand...

I am floored. I think I have not seen another print with that quality. Ho-ly cow ... and there I was worrying about including small details in a print. So is there any preview software that simulates the various resolutions?

DaddyfromNaboo said:
I am floored. I think I have not seen another print with that quality. Ho-ly cow ... and there I was worrying about including small details in a print. So is there any preview software that simulates the various resolutions?
Click to expand...

Thank you. I don't think there is one... These are printed with 50 micron resolution, but I could go as low as 25 micron. To print this set it already takes 10 hours, so with 25 micron it will take twice more :)

- - - Updated - - -

Thank you, John. I am thinking about it, actually just created interest thread in the project runs, but not for all of the walls, just for the two that came already molded and are not screen accurate.

Jaitea said:
Beautiful job Gus,......outstanding.......Ok sidewalls next

J
Click to expand...

Gus, it appears that you are continuing to develop the models - the project thread you have going - will orders be updated to the more detailed prints? Also, did you ever manage to find enough reference for the bottom 4 mandible pits to model those, and if so, will you be offering them at some point as well? Cheers!

Timmythekid said:
Gus, it appears that you are continuing to develop the models - the project thread you have going - will orders be updated to the more detailed prints? Also, did you ever manage to find enough reference for the bottom 4 mandible pits to model those, and if so, will you be offering them at some point as well? Cheers!
Click to expand...

I am not changing the maintenance bays, they are pretty much done. I only do minor tweaking to ensure quality prints. I might do the bottom pits in the future... Right now I am actually working on a a set of grilles and fans:



Trying to find the optimal size and spacing.

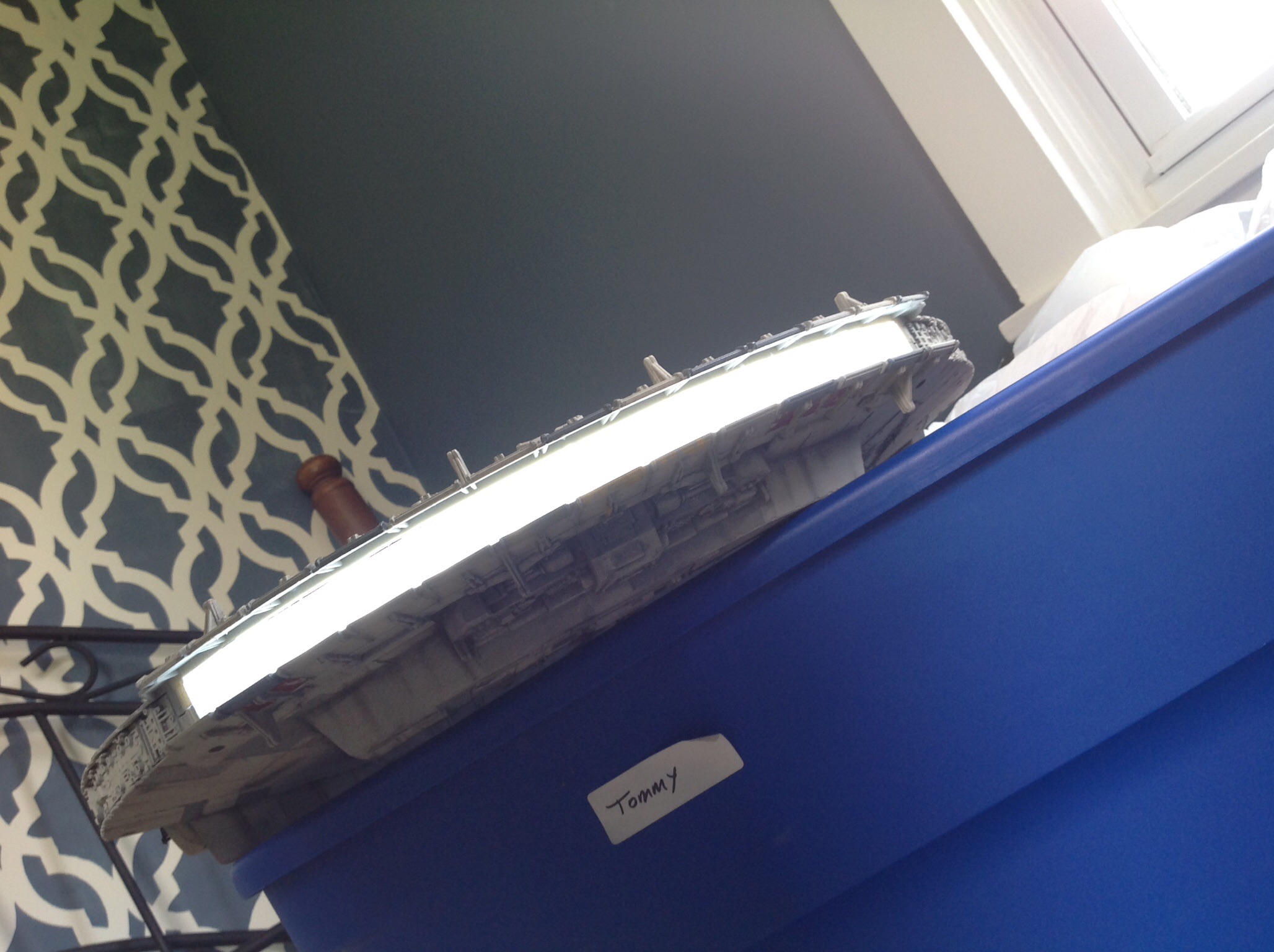

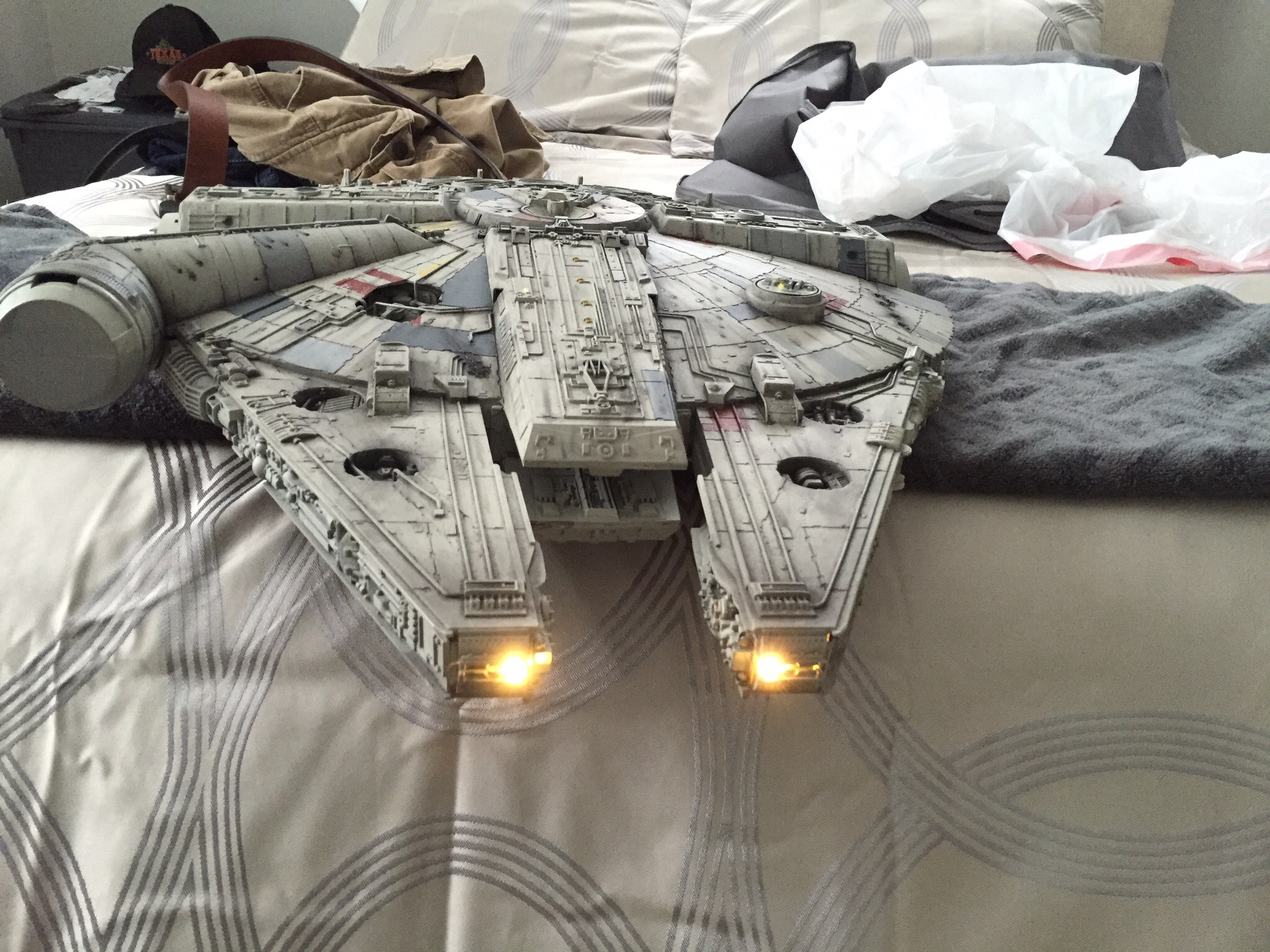

Couple updates. Engine lights and headlights installedimage.jpgimage.jpg

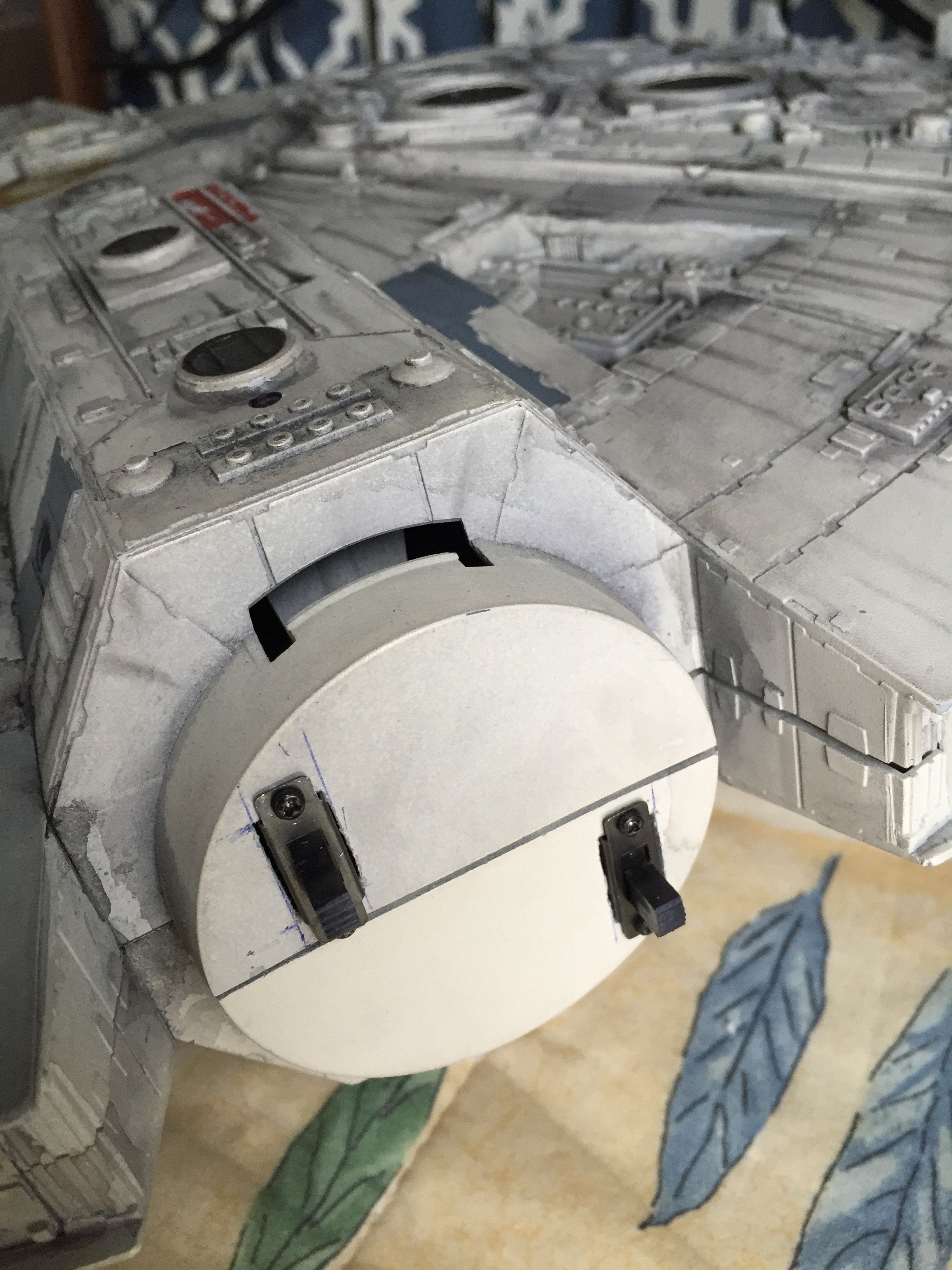

hidden Switches under docking ring image.jpg
I want to keep it all battery powered/ self contained.
im torn on the cockpit I was originally just gonna do a black window insert but I've been toying with a cockpit build thinking decals with possible lights but still working that out.

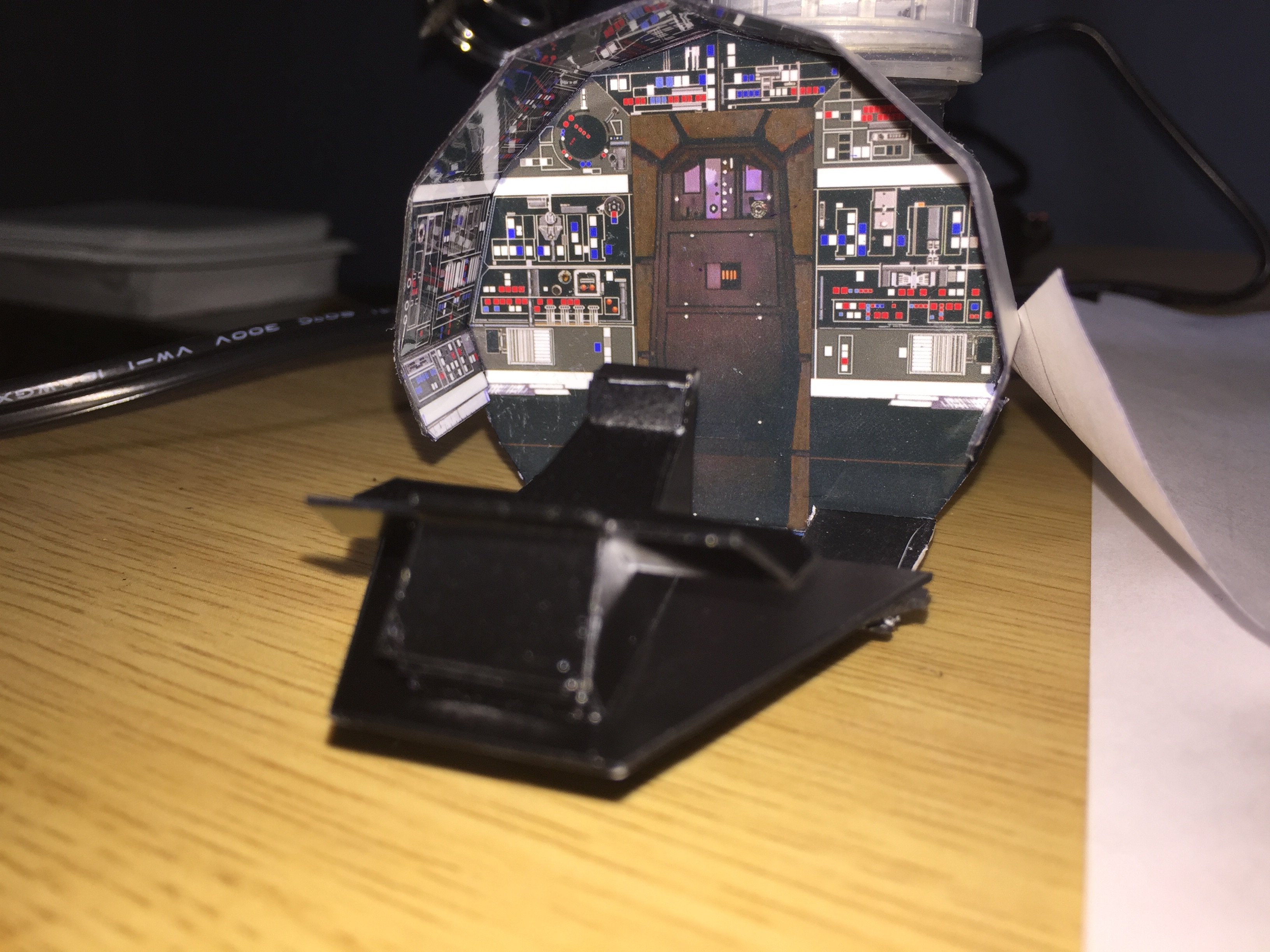

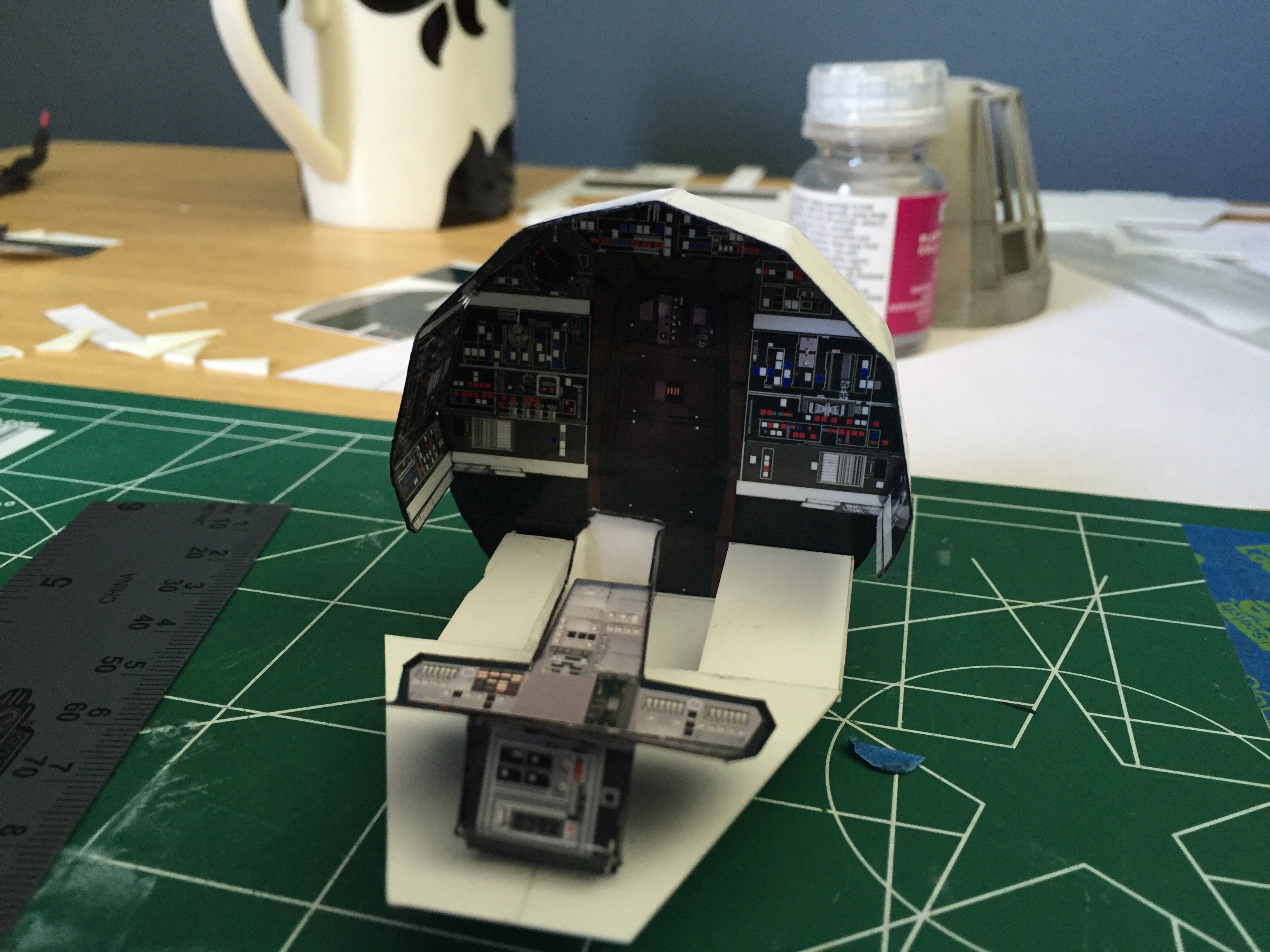

First mockup using Ozzys graphics rescaled image.jpgimage.jpg

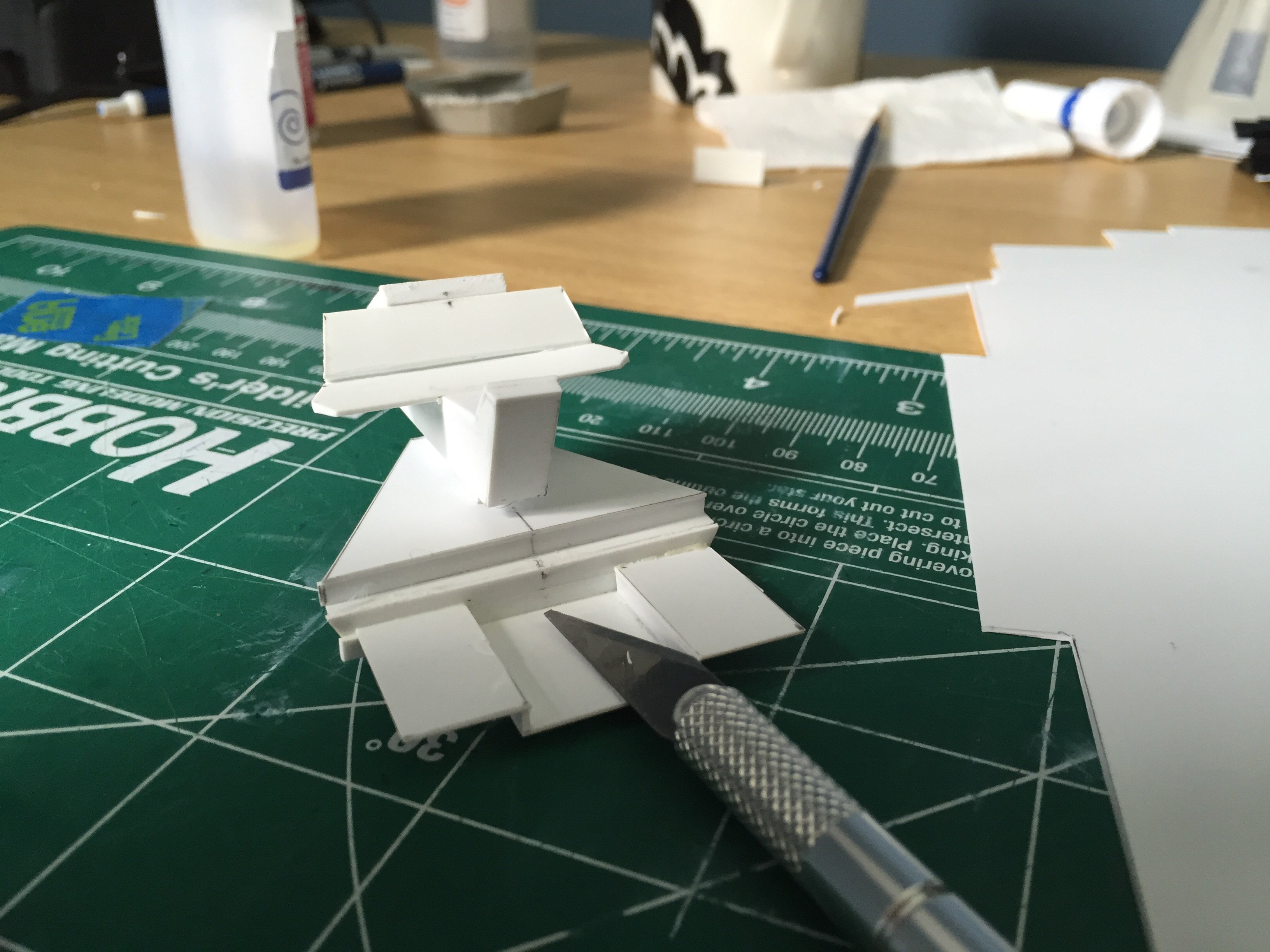

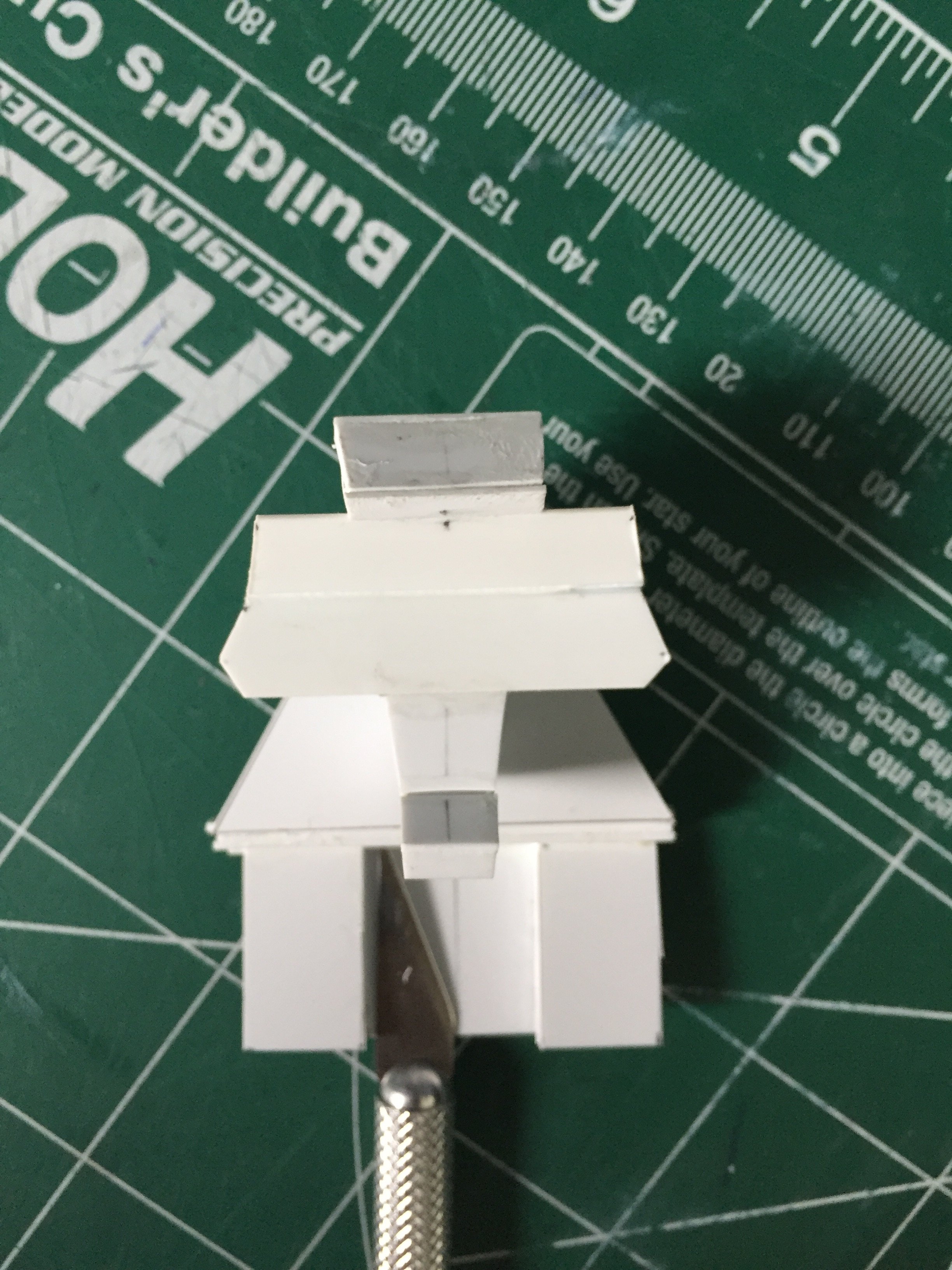

And spent sometime today rebuilding an ESB console image.jpgimage.jpgimage.jpg
Just the basics done I feel good about scale and I think this will be the final base to work with.
