Kurtyboy's new Vader Reveal project. 15 June - eye lenses and shutters

[teecrooz]

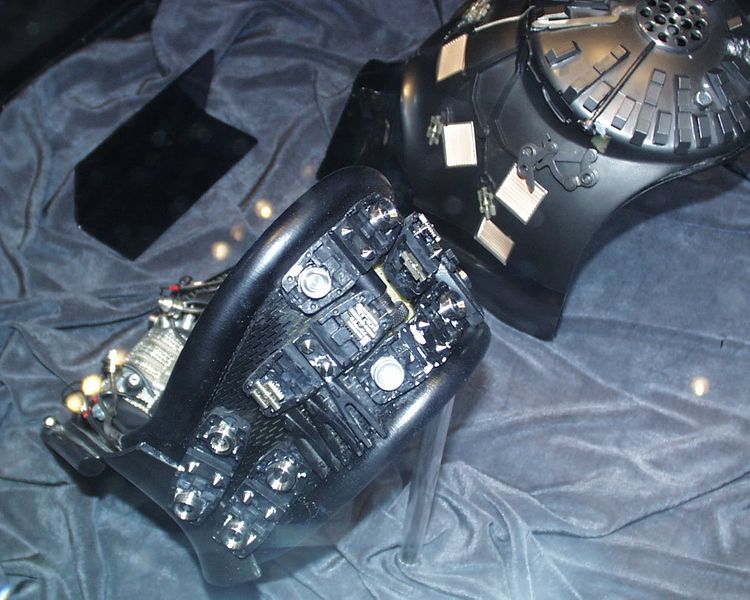

First two I came across to show the inside sprayed and outside isn’t.



[JSConnolly]

You got that the wrong way round. It is yellow at the back showing between the AM plugs and mesh, but lightly sprayed black on the wearer's side.

I don't have all the parts yet but I have no plans on doing runs.

Awww Too Bad. Because I would Love to get a set for Mine?

Joe



[JSConnolly]

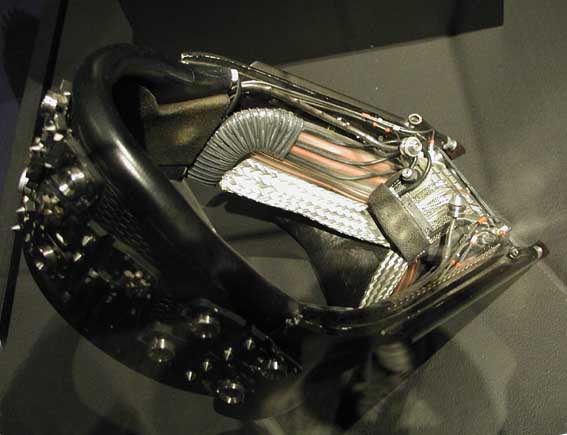

First two I came across to show the inside sprayed and outside isn’t.

View attachment 1438029View attachment 1438030

Ahhh Ok. Yea I see that it's yellow-ish on that inside.



[Lord Blackthorn]

I'm getting ready to redo my reveal helmet as well, does anyone know where i can get the vocoder block or if anyone has a file to print one?



[kurtyboy]

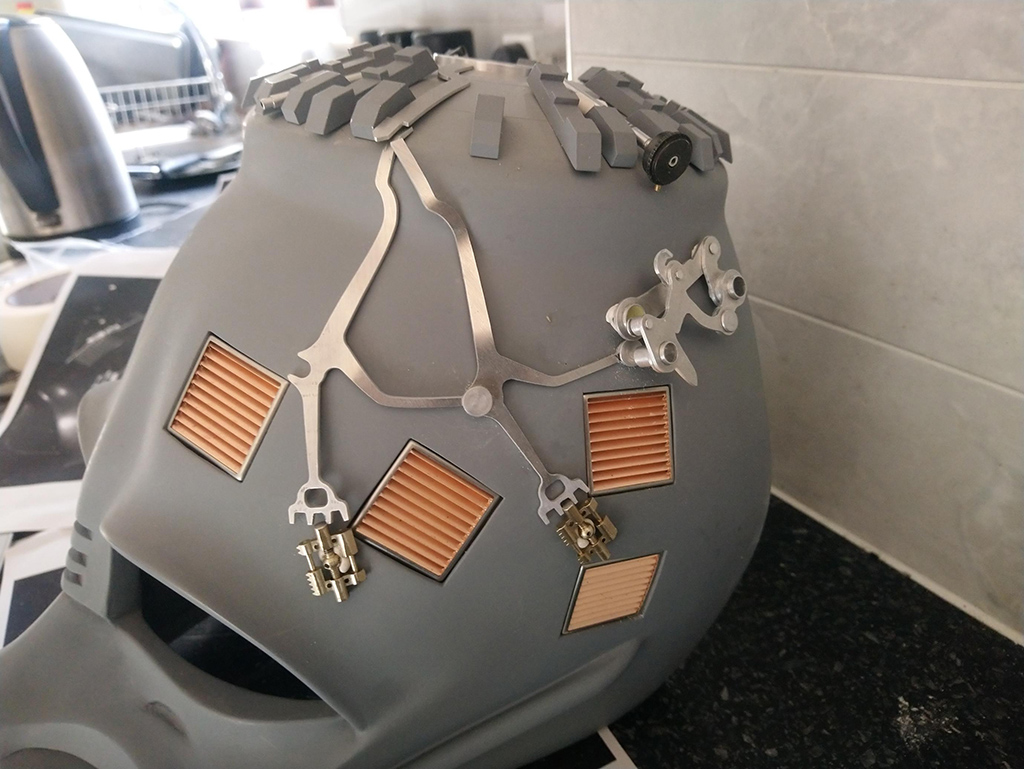

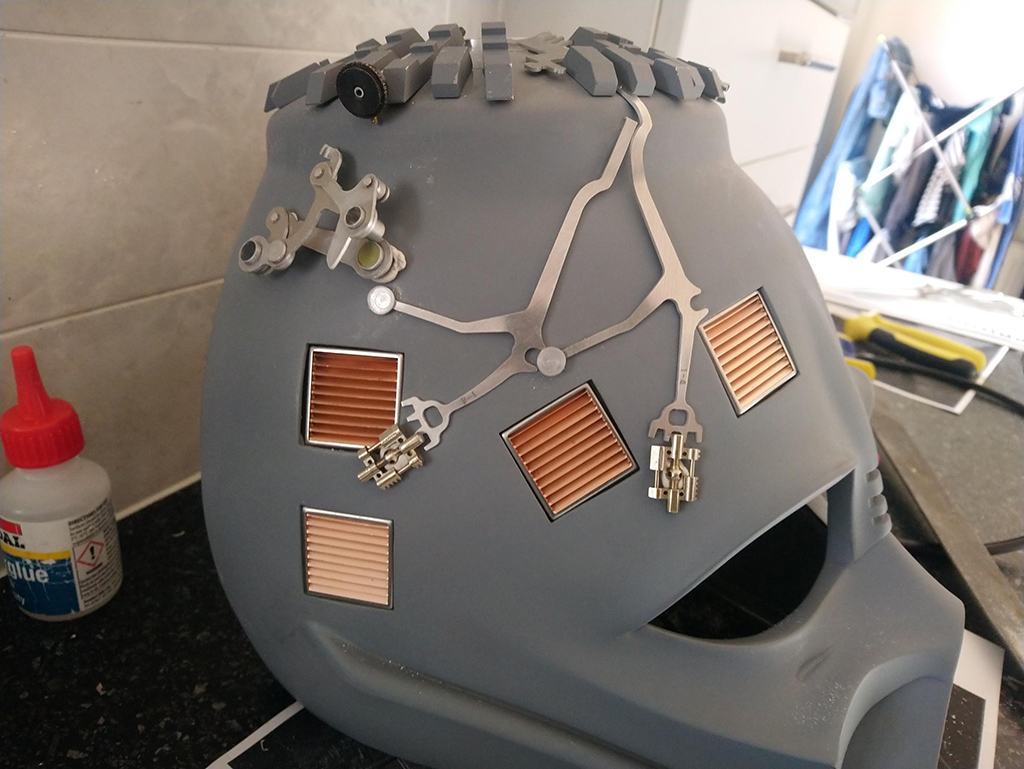

Got most of the linkages in their correct positions. Drilled holes for the retaining rivets.



[JSConnolly]

Got most of the linkages in their correct positions. Drilled holes for the retaining rivets.
View attachment 1438342

View attachment 1438343

WOW! VERY NICE!
Where did you get those Metal Parts from? Not the Glen Ross Dental Expanders or the Dinodes but the OTHER Metal parts?



[kurtyboy]

My long time "Reveal" partner had them laser cut years ago.



[JSConnolly]

My long time "Reveal" partner had them laser cut years ago.

Damn! See? SOMEONE Needs to reproduce this stuff so that the REST of us can get it and do ours!



[kurtyboy]

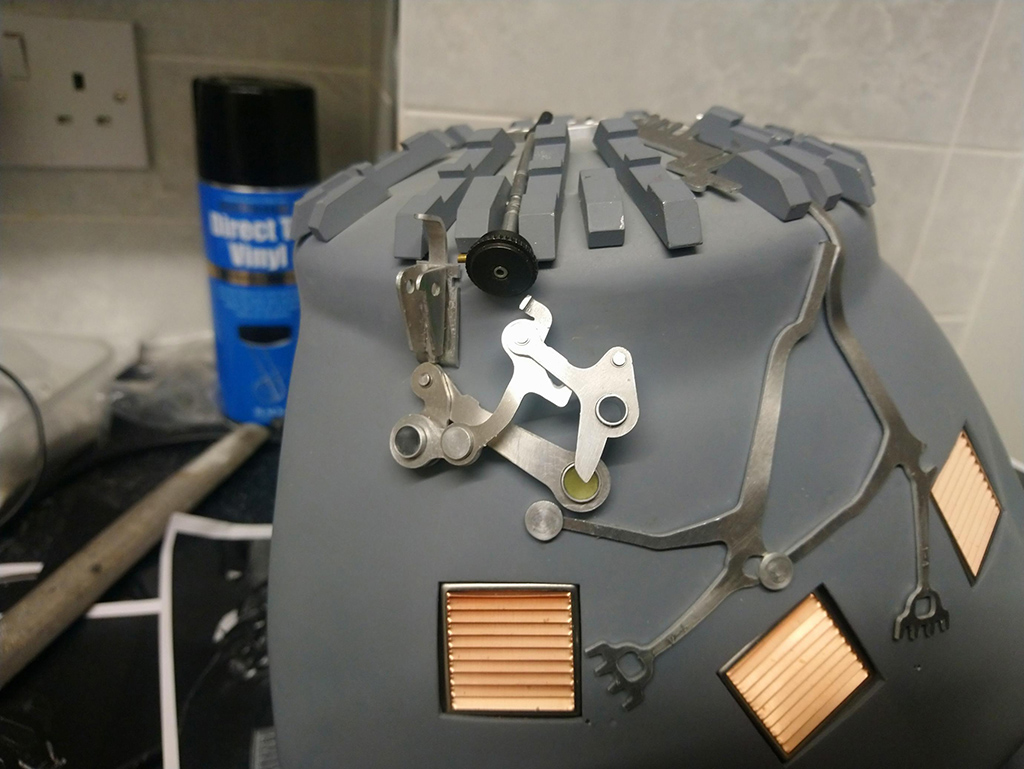

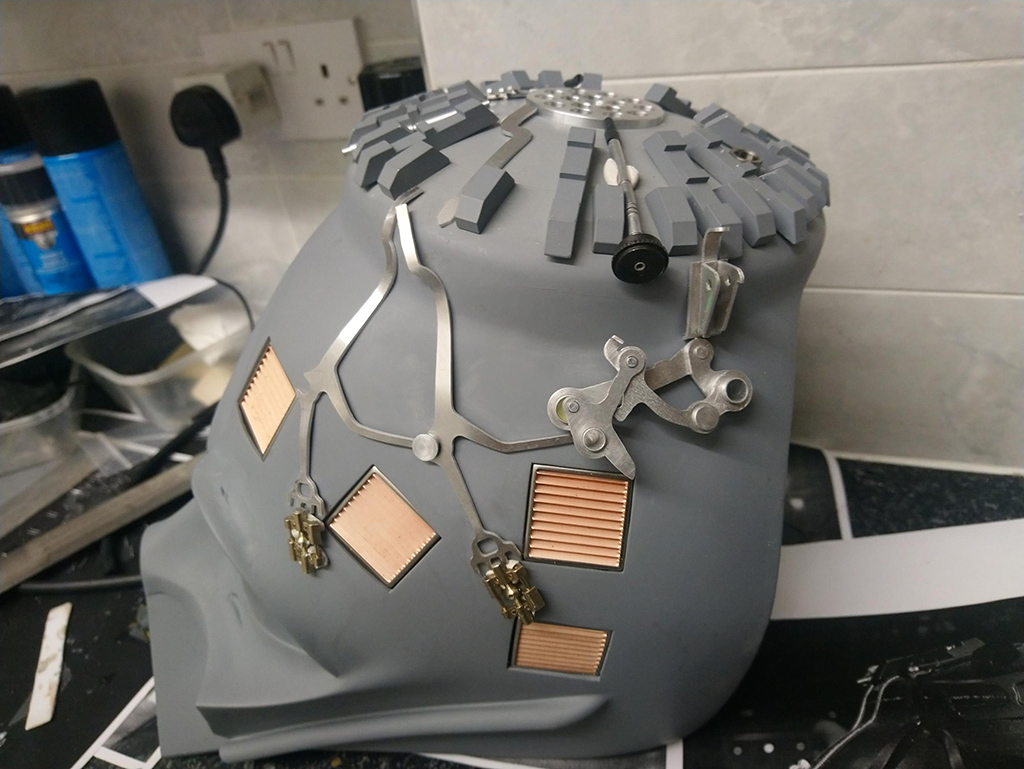

Linkages now permenantly attached and a few more parts. Some of these parts are now missing from the original prop so you have to look at some really old reference photos to see what it was like before they fell off.



[Bengrim09]

oh dude you know I have to get back on with mine now, I'm afraid I will ruin my CFO helmet when I cut it



[Bengrim09]

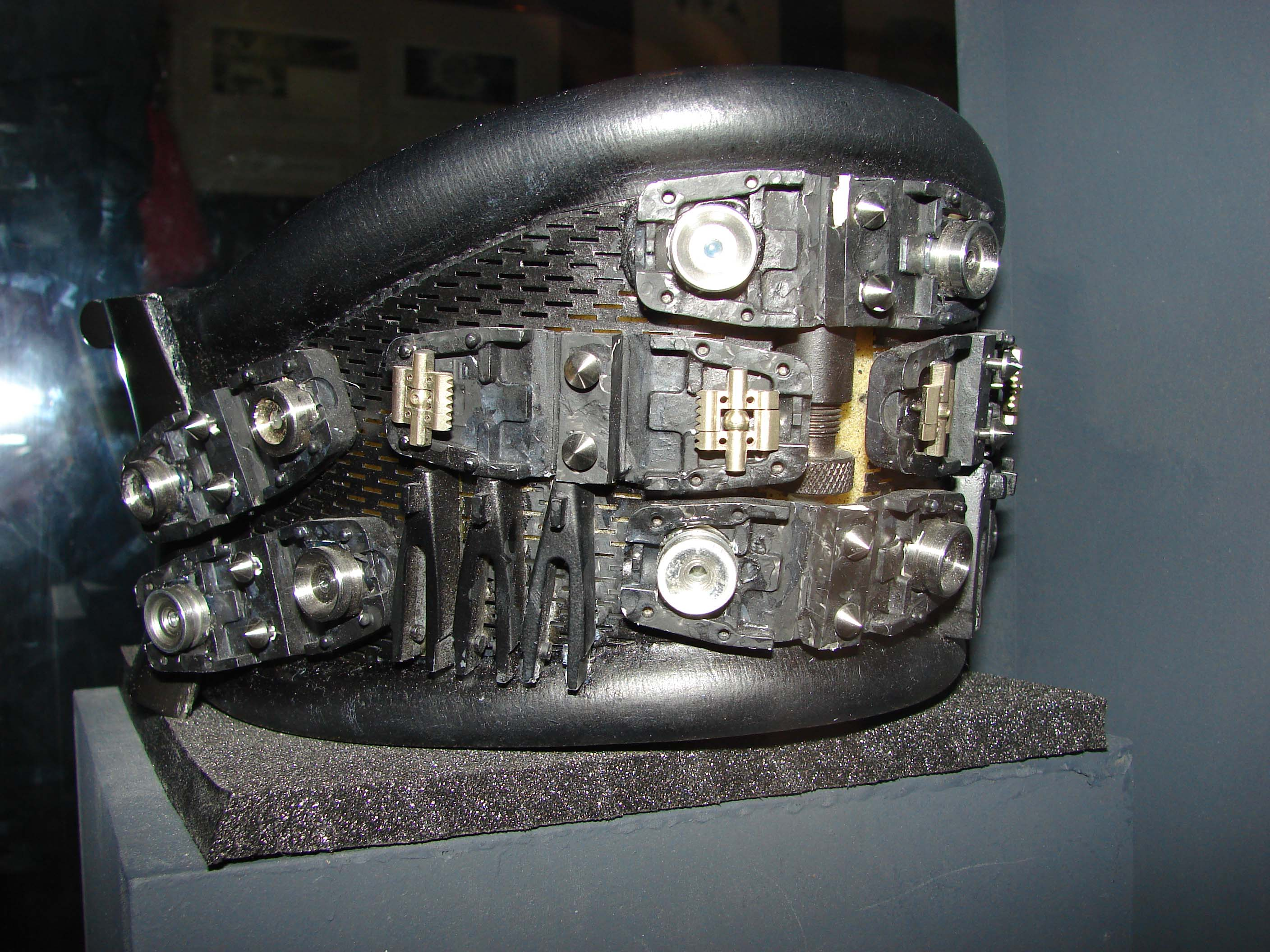

Also I DO think they sprayed the INSIDE of the foam that is showing through the back side? NOT the side that will be in contact with the wearer...
But the OTHER Side where you see it through the Mesh and The Opening in the Adjustment Screw area?!

Joe

no paint



[Bengrim09]

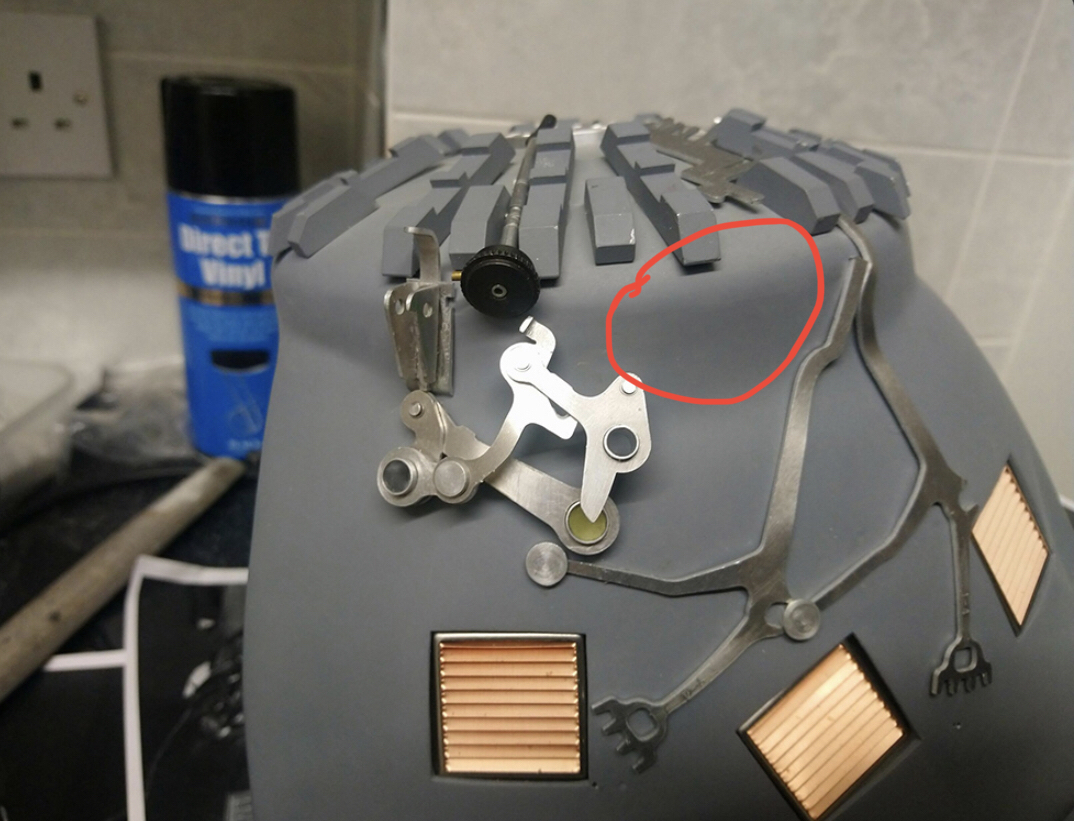

Linkages now permenantly attached and a few more parts. Some of these parts are now missing from the original prop so you have to look at some really old reference photos to see what it was like before they fell off.
View attachment 1438444

View attachment 1438445

Where’s your pincers ?



[kurtyboy]

Don't have yet. Sold a lot of my older parts with a view to upgrading.



[russellsch]

I’m loving this thread! The photos are glorious!!



[Stormy320]

He’s back. Looking great.

I owe Kurtboy about 30 plus wallets. Never did find them after my move and I’m convinced my wife through them out. Sorry bud!

I still don’t know what secret sauce greebly they were for



[Bengrim09]

How did you get your linkages marked with the numbers 1-4 ?
Just that little bit of detail really stands out



[kurtyboy]

The linkages have been etched.



[Bengrim09]

The linkages have been etched.

Very nice

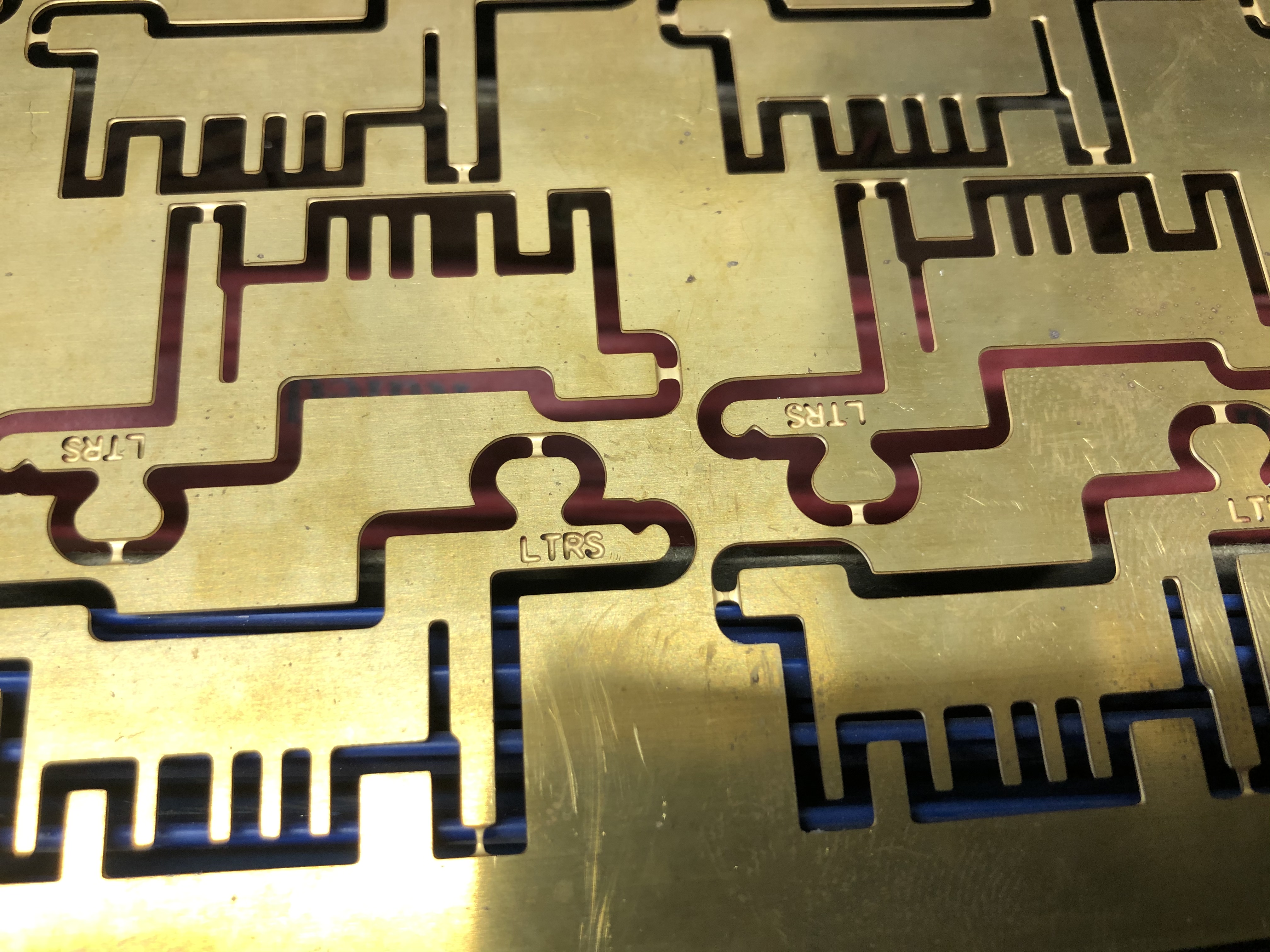

I tried to have some etching done at the Scottish photo etching firm I use and they couldn’t get it right

they did these, they look ok with a couple of coats of primer and paint on as it thinned the lettering out, but thinner lettering would have been better to start with



[thd9791]

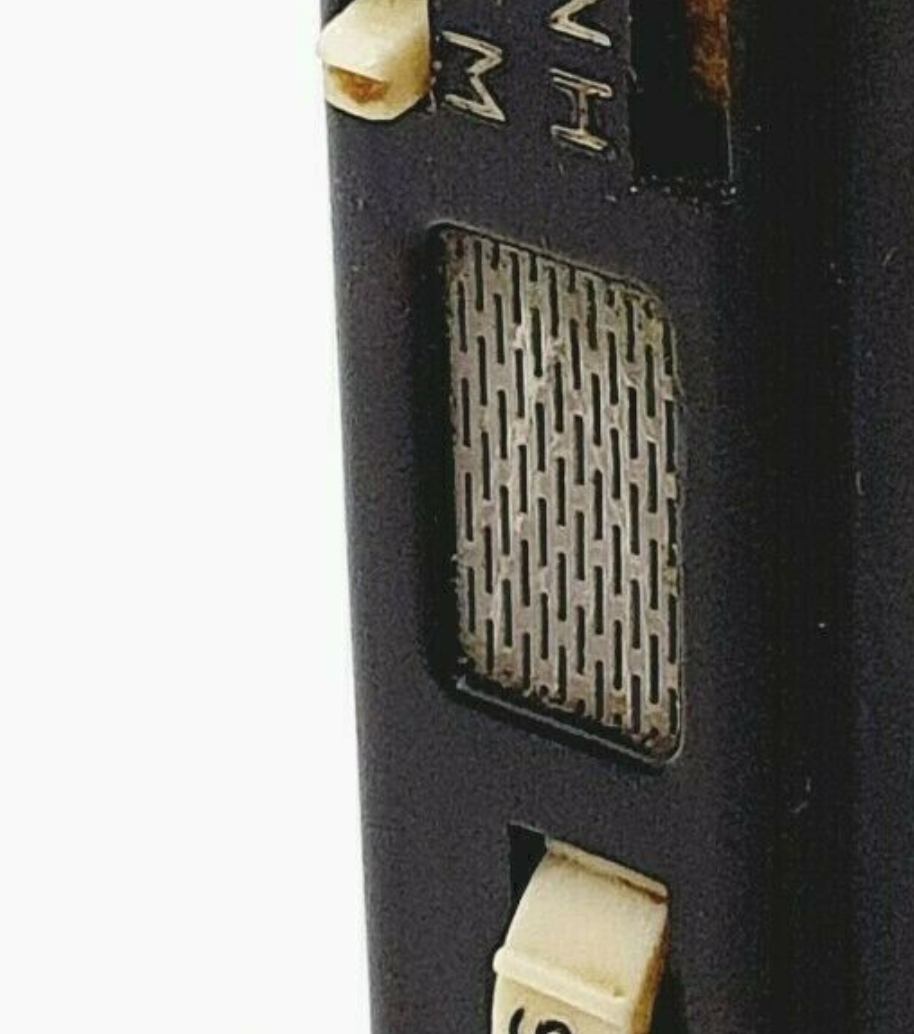

lol I just bumped into this tiny eastern european radio, and look what it includes!



[Frogfreak]

lol I just bumped into this tiny eastern european radio, and look what it includes!
View attachment 1438703

Cool! not much in there though.
