Don Juan
Well-Known Member
bout time..lol.
Jackieisrockin's IM3 Iron Patriot Pepakura Files! V2 files coming soon!
- Thread starter jackieisrockin
- Start date
SOUTHPAW
Well-Known Member
Is it going to be foam or paper? Either way, a STEALTH-made Patriot will be awesome!
streetsoul
Sr Member
i think i mite have to do this myself don lol but im holding my self till the v2s are out
gunna concentrate on my mk42 and mk 7 first
gunna concentrate on my mk42 and mk 7 first
STEALTH
Sr Member
Don Juan- It looks awesome! Great job!
STEALTH- Yes! I cant wait to see yet another awesome STEALTH build especially this one :thumbsup
It's probably going to be my last foam cosplay armor using pepakura to be honest.
I'm going to be getting into sculpting armors and other things over my own lifecast from now on after this costume.
I'm getting a lifecast made locally and I'd like to just learn how to be a better sculptor.
Pepakura is a great assist and all but I feel my sculpting isn't improving as much as I would want it to do.
I'd like to focus on it for a long time.
I'm kinda broke until Friday but I've been meaning to send you a donation for the files.
It's been on my mind all week last week to do so.
I'll show you some update soon. I'm going to use your helmet as well.
foam armor / Paper Helmet.
Thanks for the nice words man.
It's a War Machine. You know it will be completed. That's where my heart is most.
jackieisrockin
Well-Known Member
That looks awesome! Great job!
Awesome! Cant wait to see this build :thumbsup And good luck on your future sculpting!
Stealth! I love your video tutorials
I'm a little stuck though. I've downloaded the foam conversions of this Iron Patriot suit but I have no idea how to scale it to fit me. Jackie scaled them to fit 6'9 but I'm 6'4 and slim. What would I change the scaling number to or what is the best way to know it will fit me?
Thanks in advance!
Governor
Member
Stealth! I love your video tutorials
I'm a little stuck though. I've downloaded the foam conversions of this Iron Patriot suit but I have no idea how to scale it to fit me. Jackie scaled them to fit 6'9 but I'm 6'4 and slim. What would I change the scaling number to or what is the best way to know it will fit me?
Thanks in advance!
Modify this method
http://www.therpf.com/f24/dancinfoo...lly-completed-101543/index10.html#post2485141
http://www.therpf.com/f24/iron-man-...nk-first-post-128147/index16.html#post1999356
with the relevant scale number and height for the iron patriot suit and substitute in your height values
Last edited:
I don't really understand what you mean. The scale number Jackie used is 425.232765 for 6'9 so what would the scale number be for 6'4?
i think your scale number acroding to what Jackie said would be around 420 or 422
Fixed the inversion problem, Don Juan
A corrected link is in my signature, and Jackie is updating the link in the first post as well. Still haven't figured out how I managed to invert the 2d from the 3d view without checking the invert pattern box, but the new link has been inverted and reoriented on the paper. :thumbsup Thanks again for letting me know about this. :cheersA 420 scale is going to be too tall for a 6'4" individual.
425(default scale) divided by 81 inches (default height) equals about 5.25 (scale units per inch).
5.25 multiplied by 76 inches (6'4") gives you a scale of 398.8. A 420 scale would give a build height for a 6'8" person.
msleeper
Sr Member
jackieisrockin , you wouldn't happen to have the original for the hexagon shaped things on the shoulder rails, would you? I'm looking at the pep file and I already know it's going to look bad if I try to make it by hand, I'm thinking I might 3D print them. Thoughts?
Last edited by a moderator:
msleeper
Sr Member
I've been discussing animatronic plans with a friend of mine, he's really experienced with robotics and Arudino and he wants to help me with the shoulder gun motorization. We were kicking around some ideas on how to get the gun to swivel from one shoulder to the other, and I've come up with these vectors for the U shaped shoulder rail that I'm going to get laser cut:
If anyone has suggestions or is attempting something similar, please share your info! This is still pretty new territory for me.
If anyone has suggestions or is attempting something similar, please share your info! This is still pretty new territory for me.
Don Juan
Well-Known Member

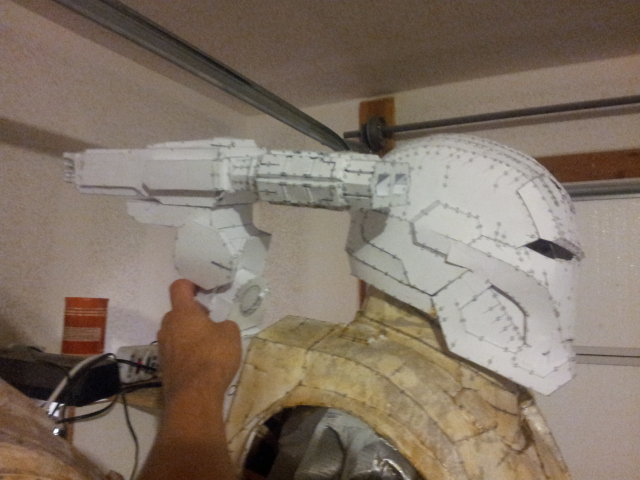

i think you have to cut it to fit your big head..lol...jk...i think it had to be a two piece....mine is the same..
laellee did your thighs and shins fit right to the scale you use?im using you as a guide..lol..i posted on my thread by accident ..oh well..
Yup, all mine was scaled at 393.5. Keep in mind though, I'm 6'2+" with a distance runner's build so I (literally) had more wiggle room. I actually tried the legs on when they were still just unfinished cardstock (thigh and shin sections taped together) just to be sure for size and length before resining even. For what it's worth, both sections (save for the ankle opening) were pretty roomy on me. To be sure, I'd build one matching thin and thigh, then try them on for fit and function. Msleeper, pretty sure you are stuck in the same boat as when you built the WM, my skinny ***** barely fit through the midsections, and that's scaled at 6'2"! :unsure
