Helagak's Mark 17 "Heartbreaker" PEPEKURA FILES INCOMING!!!

I would consider looking down "dlowrider" thread as hes made a almost perfect mark 5 model - so I assume there would be some kind of reference in there

Helagak said:
No problem.
Now get to work! B-)

Now a question for everyone. My next project is gonna be a mark 5 suit since there are no files out there. I need reference materials. How should I go about begging for them? You think if I started a mark 5 thread, I could get pal to help with finding the files then later turn it into a build thread?
I got the ref materials for the mark 42 off Clint... Ummm I forget his name. But he's banned now. I can never seem to find great pics by myself. Google gives me low quality junk. Any ideas?
Click to expand...

I think the thread idea is a good one. The Bluray has got some extra stuff that could help. The 1/6th sideshow is an awesome piece too, although they aren't always spot-on. I can look into the Bluray stuff if you'd like.

Helagak said:
No problem.
Now get to work! B-)

Now a question for everyone. My next project is gonna be a mark 5 suit since there are no files out there. I need reference materials. How should I go about begging for them? You think if I started a mark 5 thread, I could get pal to help with finding the files then later turn it into a build thread?
I got the ref materials for the mark 42 off Clint... Ummm I forget his name. But he's banned now. I can never seem to find great pics by myself. Google gives me low quality junk. Any ideas?
Click to expand...
hey bob if you give me your email i have a few pics i can send you ?

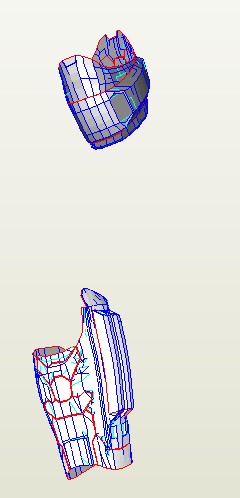

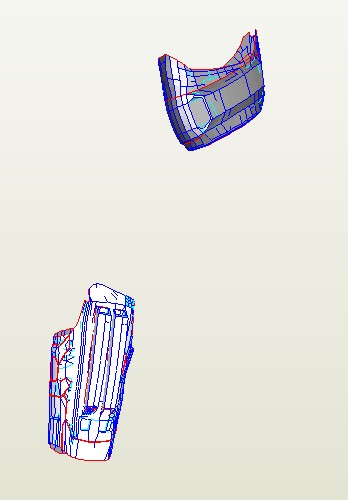

10.jpg11.jpgYou did a good job ! ! ! Now here just be short of neck and hand plate , and by the way ,why can't I integrate the forearm file into the upper arm ? ? ? JUST LIKE THE PICTURE

I have no idea why the forearm doesn't line up with the rest of the parts when brought into pep... It weird. But that forearm was a Mother to unfold, so I'm not doing it again. Sorry. Also, check page 4 for the neck and boot file links. I just haven't put them on the front page yet.

In other news, while I gather reference materials to make my mark 5, I decided to make a mark 1 in the mean time =D

this is blender right? im trying to learn how to use blender to make obj but i can't find a tutorial to make files using pic like this

I looked into the default scale of the files. . .correct me if I'm wrong but according to Pepakura Designer. . .the default scale suit stands at 2250mm = 7.38189ft. . .


Uh oh... I think I based my scale off the helmet and just ran with that scale. I didn't even look at the overall scale... x_x these are all labeled "V1" as in version one for a reason... I guess I'll have to rescale all the pieces... Ugh

I just put a warning about the size problem on the front page. I will try to rescale these files and release V2 files by this Friday.

Ok，@Helagak ，you mean you don't have the hand plate files???But there is a picture of forearm with hand plate on page1, what's wrong???
