Han in Carbonite - Kiwi Build

[Dazza007]

Volvo Panels painted and they are looking sweet. I plan on mounting them with Neodynium magnets so they are easy to remove for storage/moving.
Panels are reproduction in ABS from Todd Blatt

Carbonite Build Parts and Kits

If you're building a full size replica of your favorite frozen smuggler popsicle and need some parts, here's a shop with almost everything you'll need for the highest accuracy HiC build possible. Woah there's a lot here. Where do I start? Well, that depends on how accurate of a build you plan to...

custom3dstuff.com

Paint is Rust-Oleum Metallic Aluminium 2X Ultra Cover

That does mean I will try and shoehorn all of the electronics for the hero panels into one panel, more to come on that.



[Dazza007]

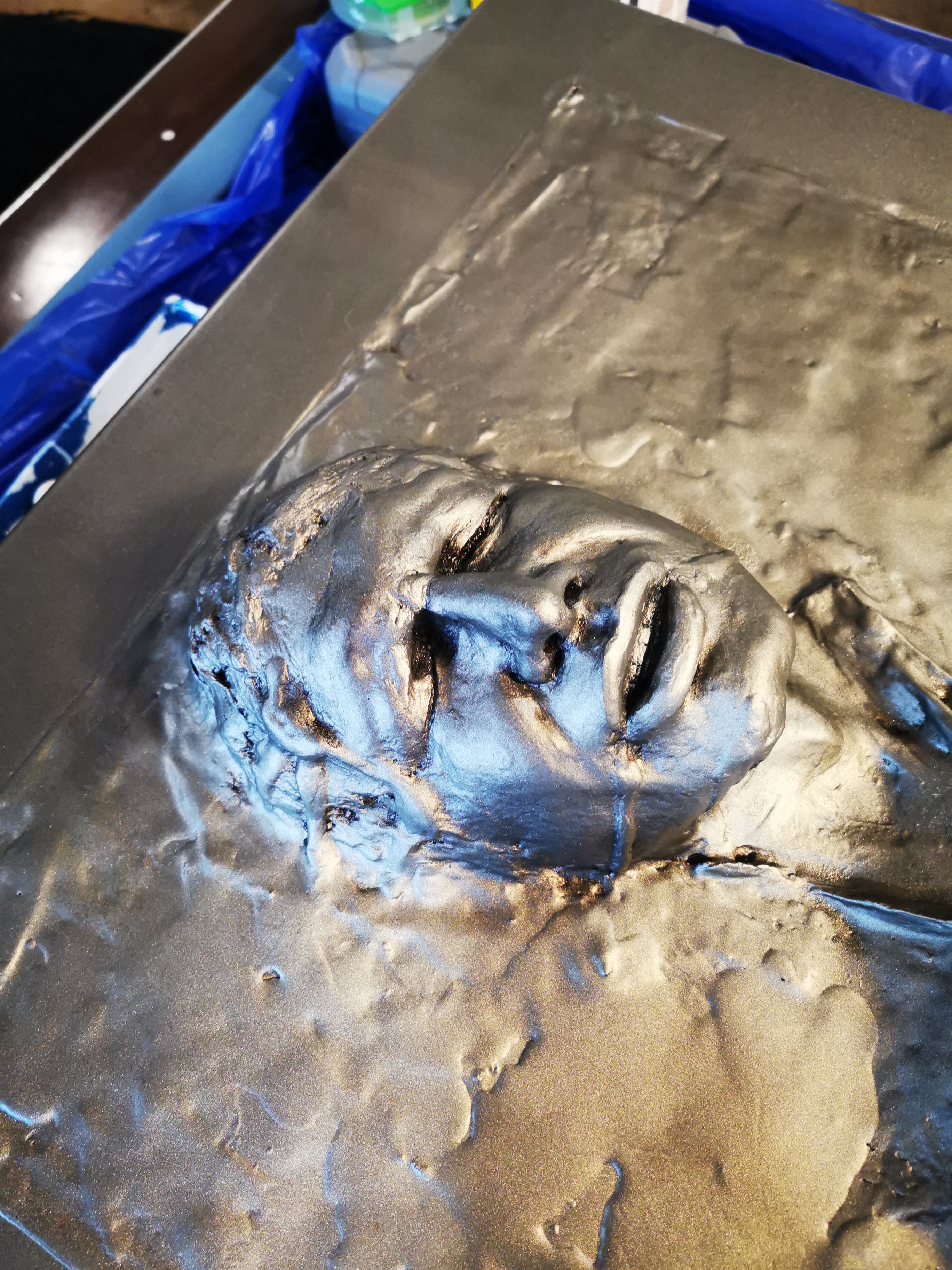

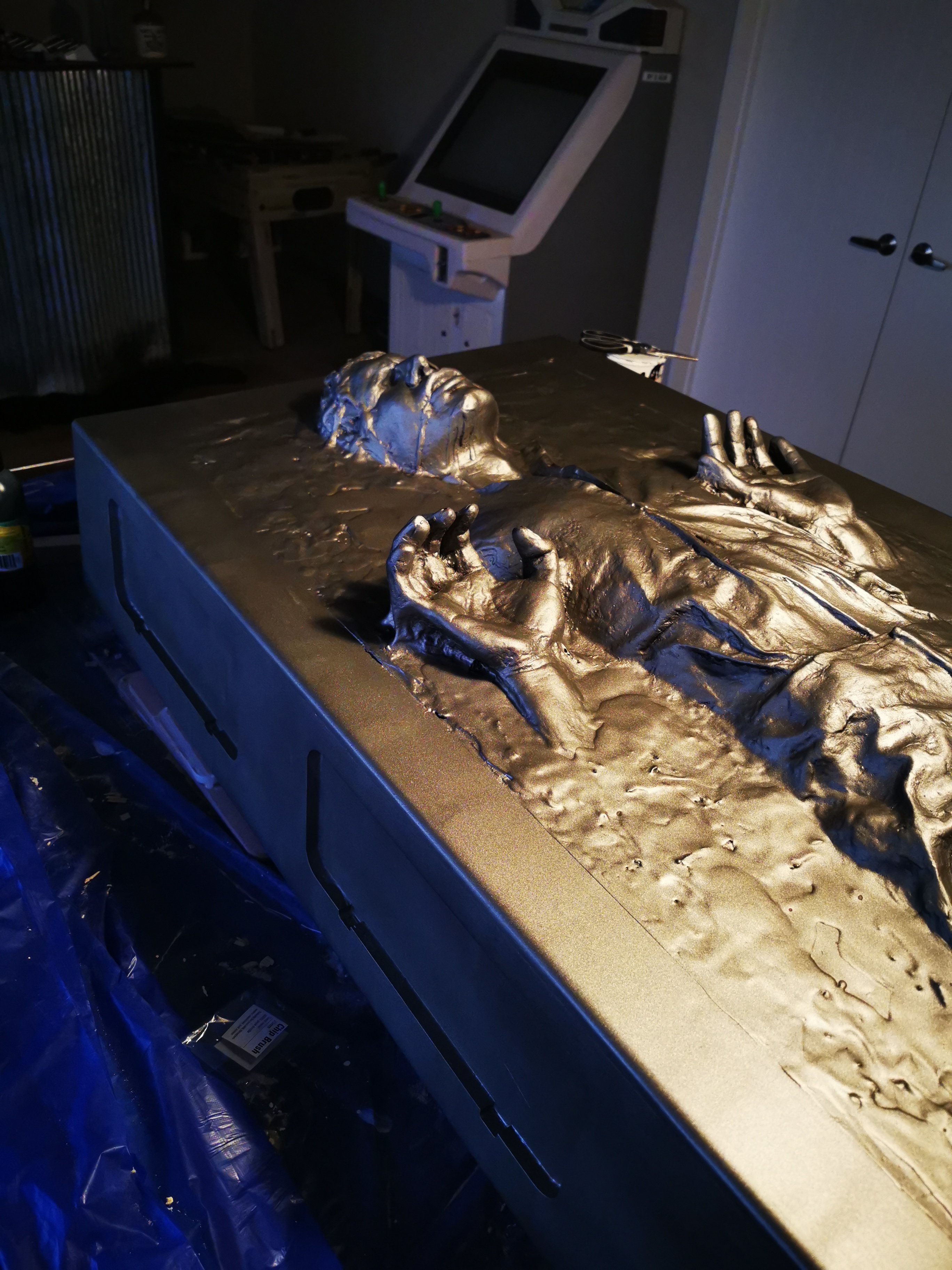

Finally had good enough weather to lay down my first coat of paint - I know its been debated, but I decided to go for a solid color block, so the whole thing is Rust-oleum Flat Antique Nickel. Its how I remember it from the movies, so I'm happy with the choice.
A little patchy in places, but i'll see how it dries and then add another coat, and possibly a third if Im not happy with that as well.



[Dazza007]

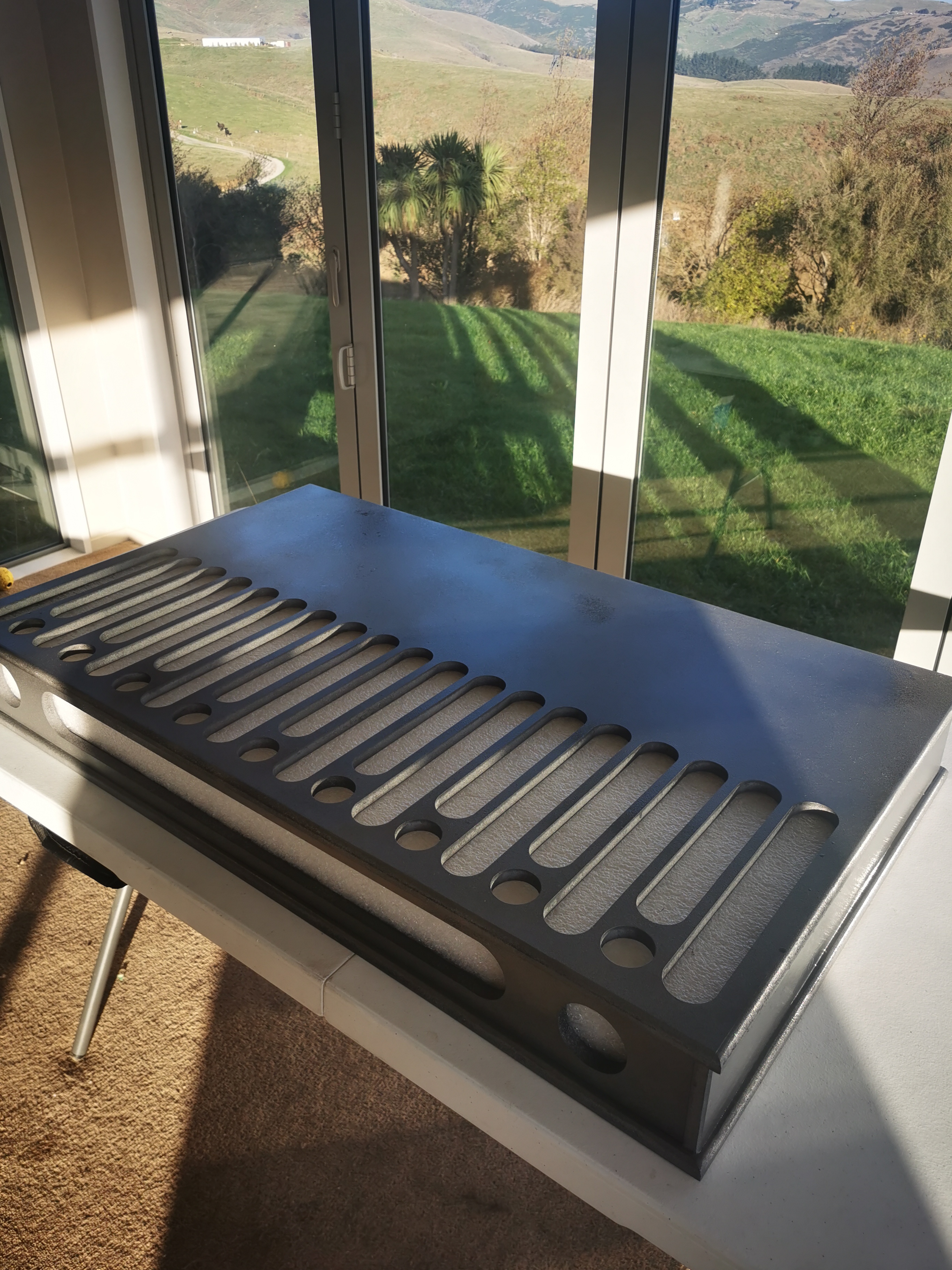

Busy Weekend - managed to paint the base as well, and insert/glue the diffuser plastic.
Now just waiting on an 5m RGB LED Strip, that I can program with an Arduino to simulate the hot lava underfloor, and the base will be complete.
Will upload scripts and instructions here as well as a video once its completed.



[Dazza007]

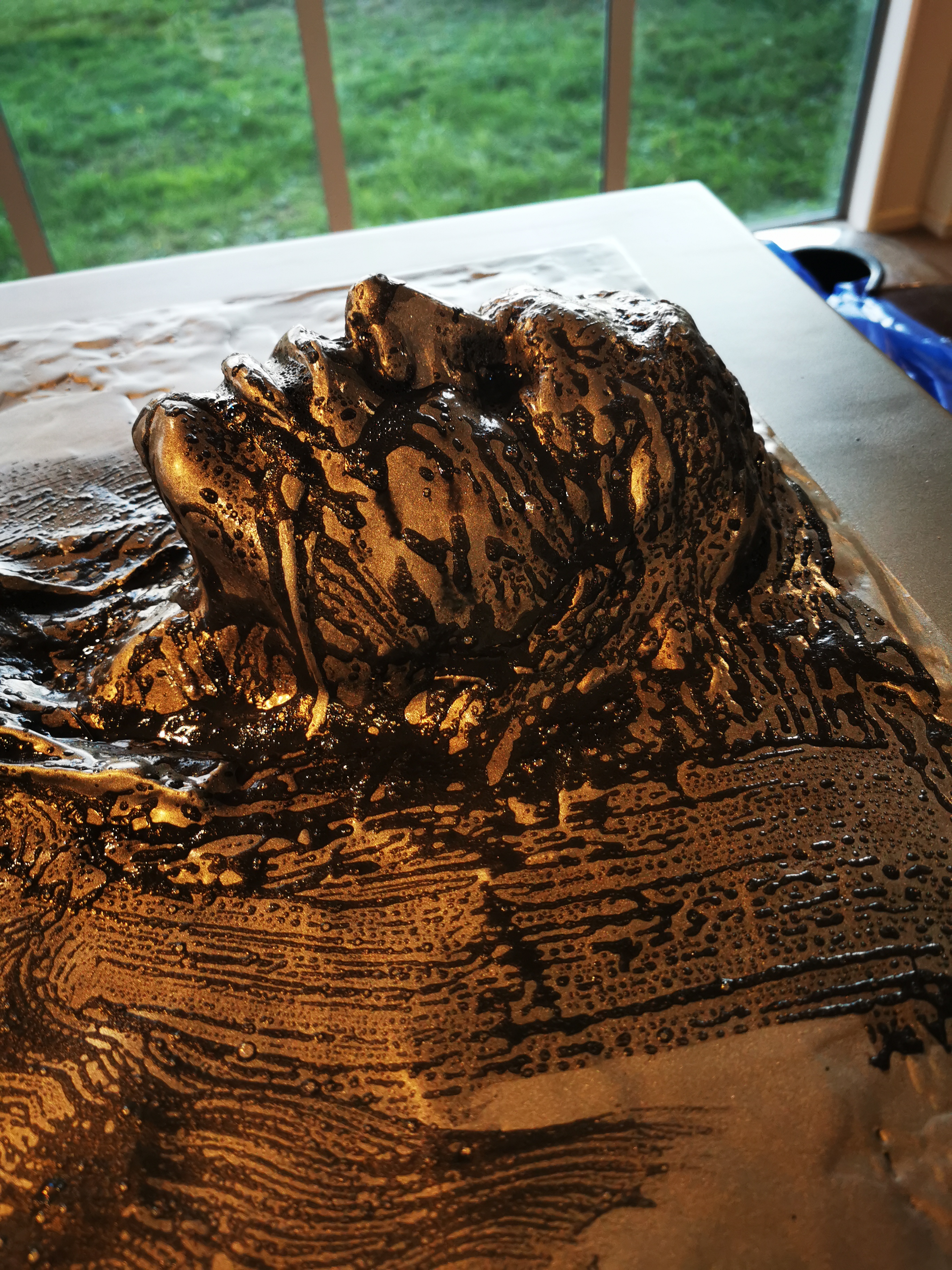

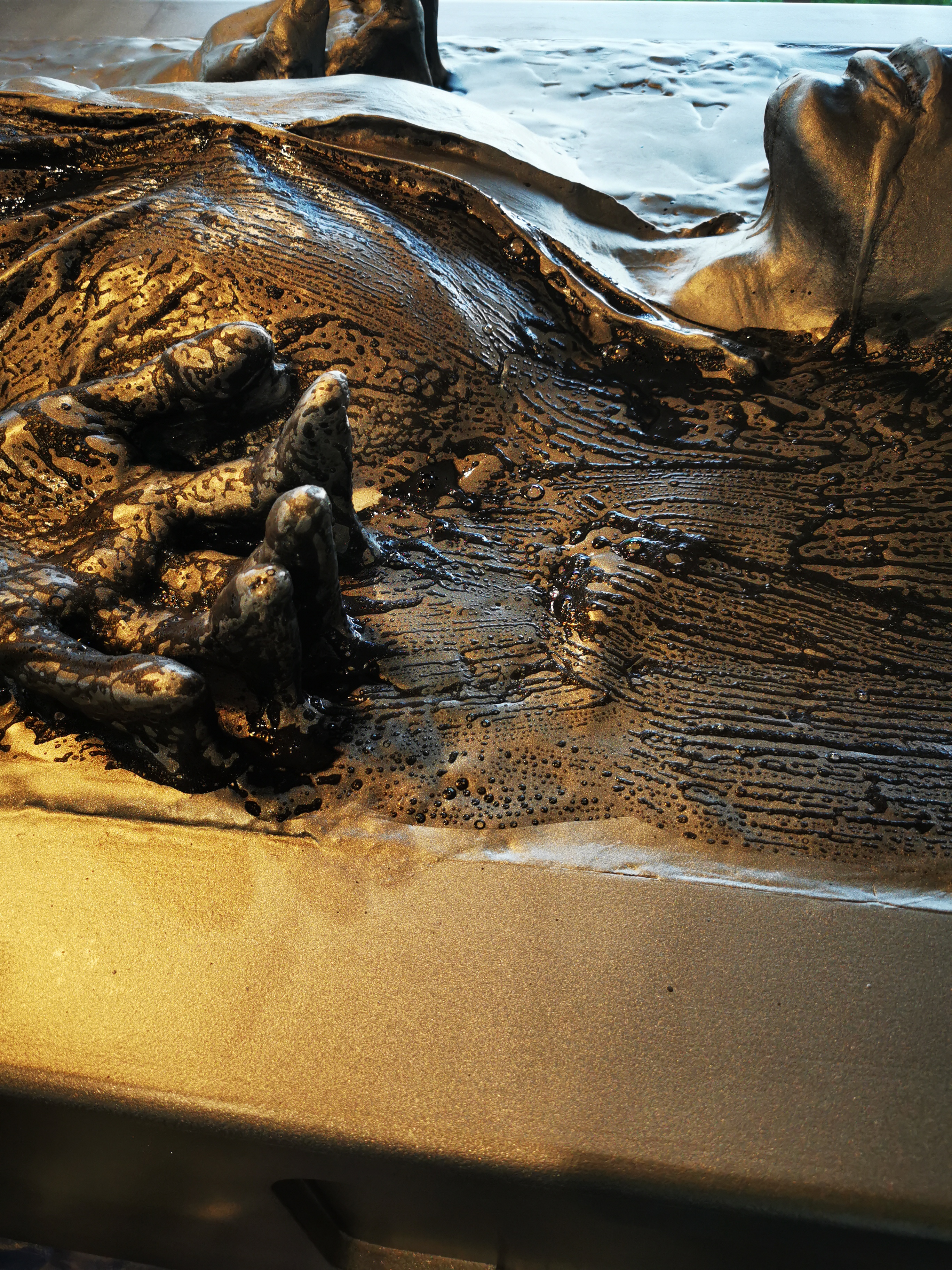

Ok Time for a bit of dirt - was pretty hard starting this considering i thought it already looked pretty good.
Dark Wash 1 part acrylic 5 parts water with a small squirt of Dishwash liquid.
Painted on quite heavily - let it dry for about 5 mins and then wiped off loosely with a damp rag, went over some areas a bit more to clean up, as was really wanting it quite subtle.
Will possibly add another wash as is pretty faint.



[Dazza007]

Here is my Initial Lighting test for the base - will be changing it a little, instructions to follow



[Dazza007]

OK Finished my base lighting.
Basically its an Arduino Mega plugged into one of these strips

Amazon.com: BTF-LIGHTING WS2812B ECO RGB Alloy Wires 5050SMD Individual Addressable 16.4FT 60Pixels/m 300Pixels Flexible Black PCB Full Color LED Pixel Strip Dream Color IP65 Waterproof DIY Projects Only DC5V: Home Improvement

Buy BTF-LIGHTING WS2812B ECO RGB Alloy Wires 5050SMD Individual Addressable 16.4FT 60Pixels/m 300Pixels Flexible Black PCB Full Color LED Pixel Strip Dream Color IP65 Waterproof DIY Projects Only DC5V: Rope Lights - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

I'd recommend getting an external 5V 10A Power supply, however mine does work when plugged into the 5V line on the mega

Attached is the Arduino script - based on one of the examples from the FastLED Library

I should point out the videos below appear a lot whiter than it looks in real life, I need to get a better camera

Heres the layout of my Strip

and heres the final Result



[Dazza007]

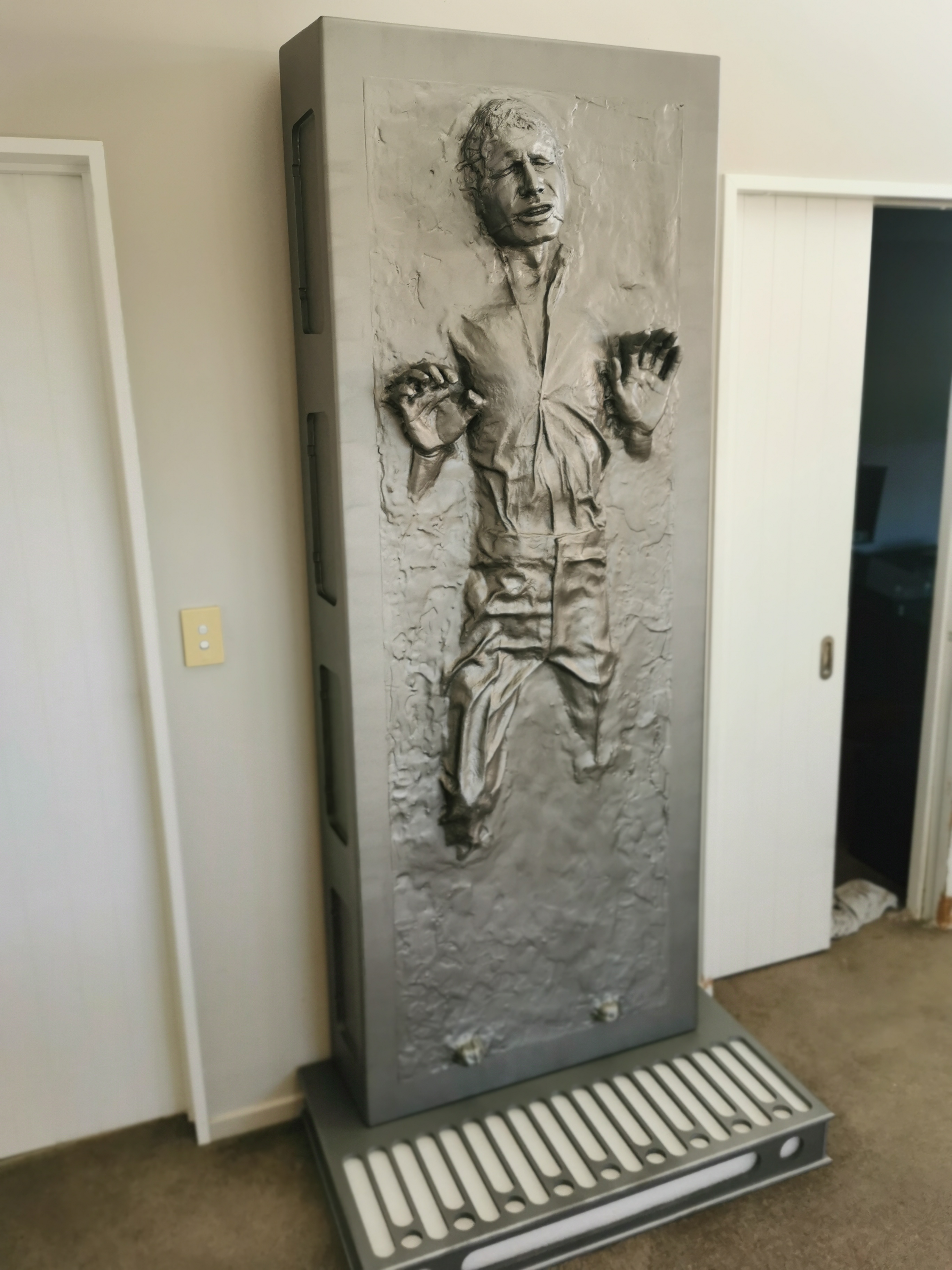

Paint Job Complete - Last coat of Rust-oleum Ultra Clear 2X Gloss down and now onto the panels



[Dazza007]

To make the panels easy to clip on and off, I ended up using Neodymium Rare earth magnets.
These are about 4.5mm Diameter, 3mm Deep

I then placed the panels in position and marked where the holes are onto the box - then drilled with a 4.5mm drill bit
then a bit of epoxy and slid each magnet into the holes - make sure you keep the polarity the same for each one makes things easier long term.

I then inserted the magnets - once again the correct polarity, into each of the panels - its a tight fit so no glue is needed

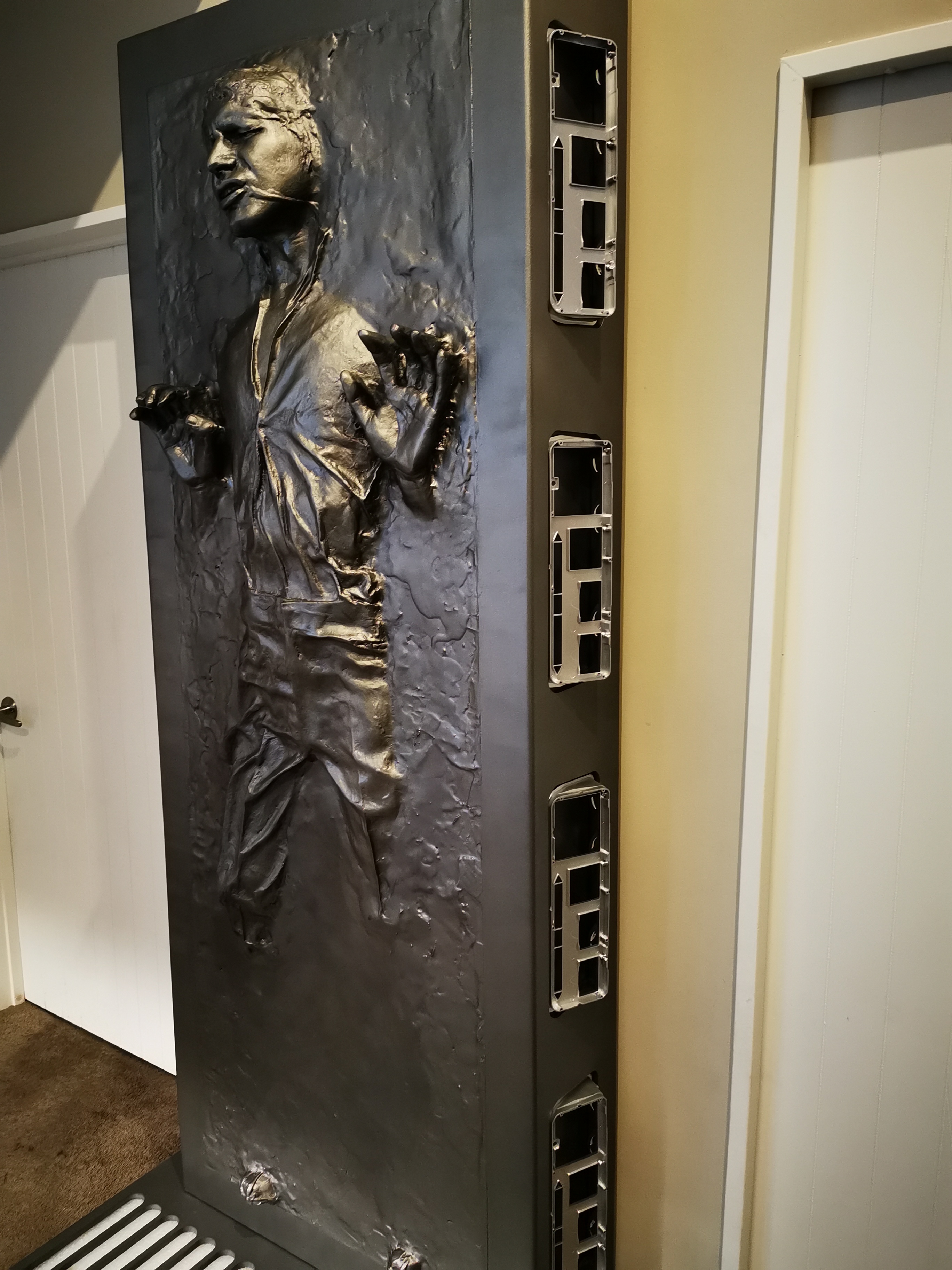

And now we have easily removeable click on panels
